Sanyo WXU10 - PLC WXGA LCD Projector User manual

2000 ANSI LUMENS zTRUE WXGA zMULTIMEDIA PROJECTOR
Issued 10/07 ©2007 SANYO
PLC-WXU10N
WXGA Ultraportable Multimedia Projector
VERY ADAPTABLE TO VARIOUS SITUATION
Offering a full widescreen 1280 x 800 resolution, the PLC-
WXU10N makes it possible to project high-quality HD
images from virtually any location. At 2000 lumens, this
extremely bright, yet compact, projector is equally
comfortable entertaining the whole family with exquisite HD
images from cable/satellite or DVD sources as it is
delivering a PC-based business presentation to a select
audience in the work place or projecting larger-than life
video from today’s best game consoles. Compatible with
wide screen laptops for wide screen WXGA (16:10)
presentation.
EASY LENS ADJUSTMENTS
A flexible zoom lens allows for projecting in both short and
long distances, from 4.6-feet to 41.3-feet to be exact.
Keystone Correction adjusts for 16 degrees up or down for
fast and easy set up. The PLC- WXU10N can be ceiling or
inversely mounted.
ULTRA-COMPACT, FULLY PORTABLE DESIGN
Not much larger than a laptop PC, the PLC-WXU10N
weighs less the 7.1 pounds and delivers high picture
quality in a versatile, go-anywhere system.
VERSATILE INPUTS
The PLC-WXU10N offers excellent flexibility via inputs
DVI-D and a D-Sub 15. It even has component video
inputs. Also there is a D-Sub 15 terminal for monitor
output for greater programming flexibility.
F1.75-1.9 ZOOM LENS WITH 1.2X OPITCAL ZOOM
With this lens and 2000 ANSI Lumens, a crisp bright
image is always the result. The optical zoom also helps
highlight important program segments.
AUTO INPUT SEARCH
Searches, finds and displays incoming source signal
automatically.
SOFT CARRYING CASE
Zip and go case great for carrying and storing the
projector.
PRESENTATION TECHNOLOGIES
21605 Plummer Street
Chatsworth, CA 91311
Ph: 888-337-1215 (toll-free)
Fax 818.717.2719
www.sanyolcd.com
Specifications
Resolution
WXGA (1280
x 800)
Brightness
2000
A
NSI Lumens
Uniformity
80%
LCD Panel System
0.56” TFT Poly
x 3
Number of Pixels
3,072,000 (1280
x
800
x 3)
Image Size (diagonal)
40”
–
300”
A
spect Ratio
16:10
Throw Distance
4.6’
–
41.3’
Zoom/Focus
Manual
Zoom Ratio
1:1.2
Up/Down Ratio
100:-1
Digital Keystone Correction
Vertical: +/-
16°
Projection System
Dichroic mirror & 4P prism systemw/ PBS
Projection Lens
F1.75-1.9
/
f0.74”-0.87”
Lens Throw Ratio
1.52-1.82:1
Projection Lamp
210W NSH
A
Scanning Frequency
H Sync: 15-80kHz, V Sync: 50-85Hz
Dot Clock
110MHz
Color System
PAL/PAL-M/PALN/SECAM/NTSC/NTSC4.43
Computer Compatibility
SXGA, WXGA,XGA, SVGA, VG
A
Sound Output
One-piece, 2.0-watt Mono
V
oltage
100-240V AC (auto Voltage) ; 50/60 Hz
BTU Rating
955
dB Rating
32dBA(Eco mode)
Power Consumption
280W
Dimensions (WxHxD)
11.7” x 3.9” x 9.3” (including Adjustable Feet)
Net Weight
7.1
lbs.
User Maintenance
Clean air filters, replace lamp assembly
PC Input Terminals
D-Sub15 x 1
•
DVI-D x 1
V
ideo Input Terminals
•Component Video (RCA x 3)
•Composite Video (RCA x 1)
•S-Video (Mini-DIN 4-pin)
•R & L audio (RCA x 2)
Output Terminals
D-Sub15 x 1
Included Accessories
•
I/R Remote Control •2 AAA Batteries
•Owner’s Manual •VGA Cable •Lens Cap
•AC Power Supply Cord •Soft Carrying Case
Optional Accessories
•
POA-CA-COMPVGA –VGA/Component Video Cable
•POA-MCSRL02 – RS232C Cable
•610 336 0362 – Replacement Lamp
Service Port
Mini DIN 6-pin
Warranty
Three years parts and labor;
90 days original lamp;
Quick Repair Program under warranty
Because its products are subject to continuous improvement, SANYO reserves the right to
modify product design and specifications without notice and without incurring any obligations.

Other manuals for WXU10 - PLC WXGA LCD Projector

3

This manual suits for next models

1

Other Sanyo Projector manuals

Sanyo PLC HF10000L User manual

Sanyo

Sanyo PLC HF10000L User manual

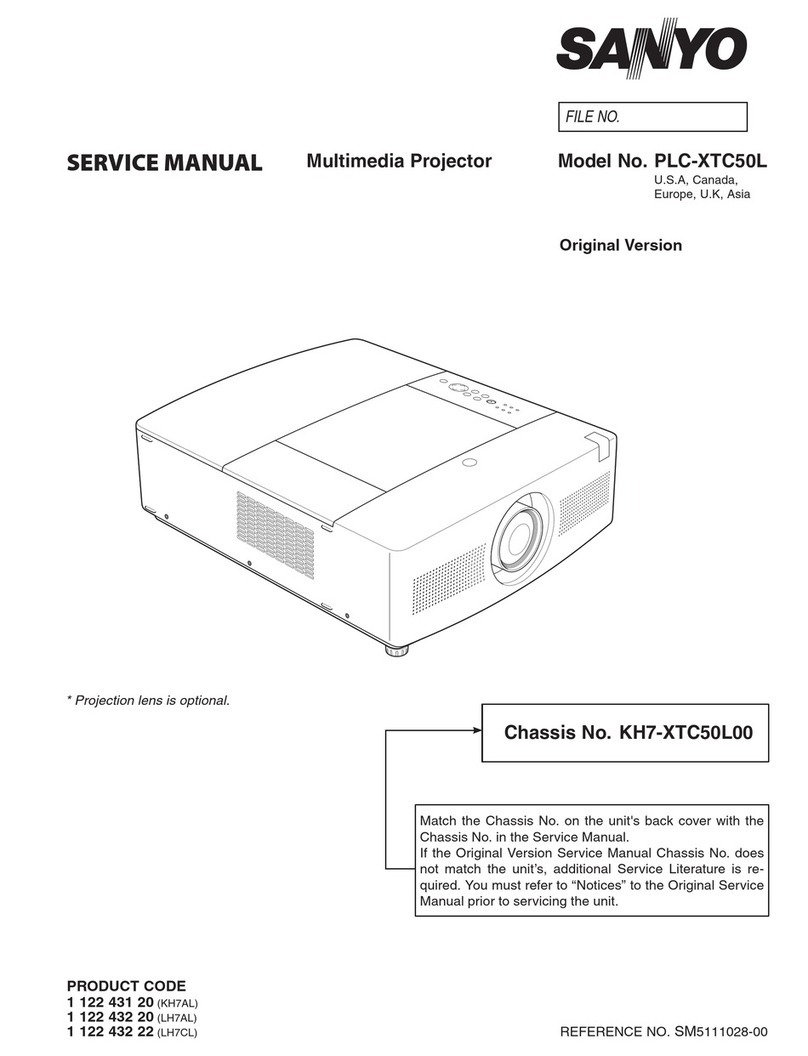

Sanyo PLC-XTC50L User manual

Sanyo

Sanyo PLC-XTC50L User manual

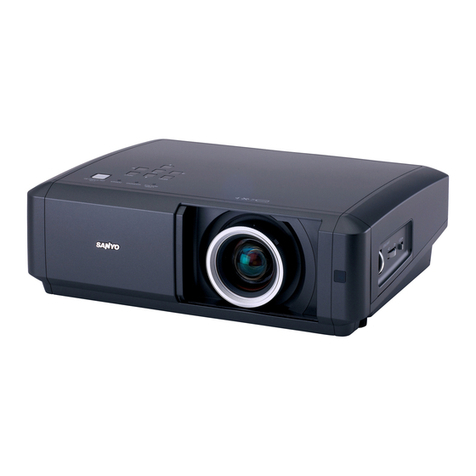

Sanyo PLV-Z60 User manual

Sanyo

Sanyo PLV-Z60 User manual

Sanyo PDG-DSU20N - SVGA DLP Projector User manual

Sanyo

Sanyo PDG-DSU20N - SVGA DLP Projector User manual

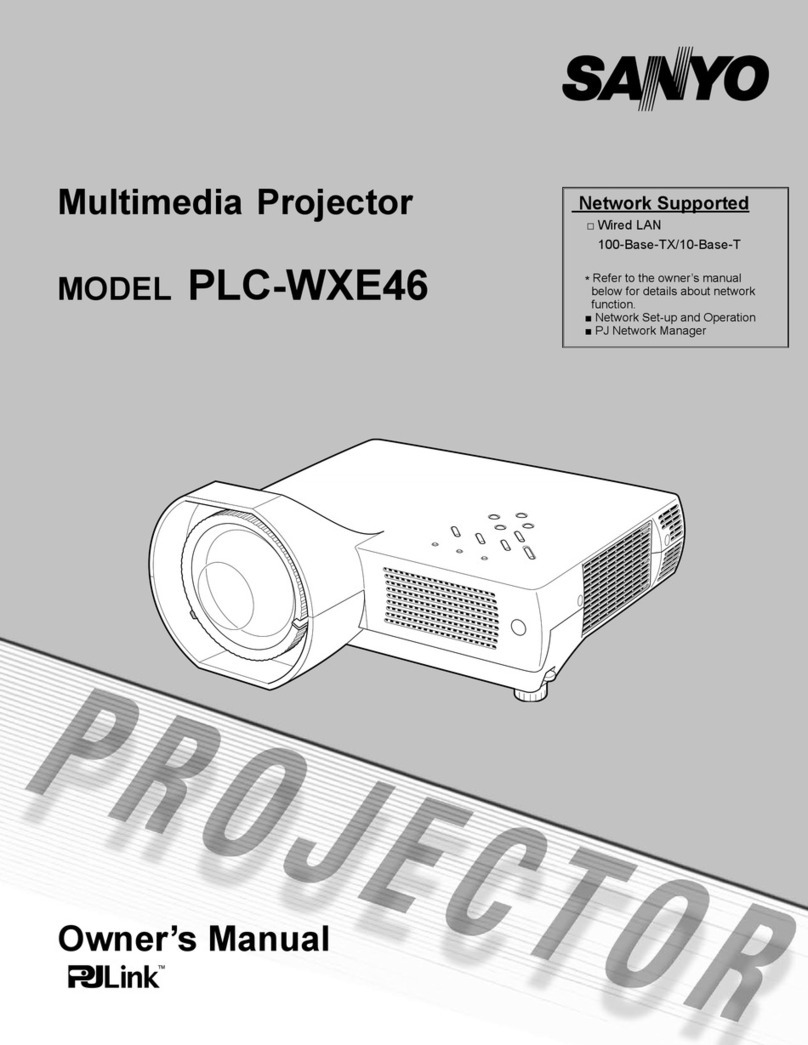

Sanyo PLC-WXE46 User manual

Sanyo

Sanyo PLC-WXE46 User manual

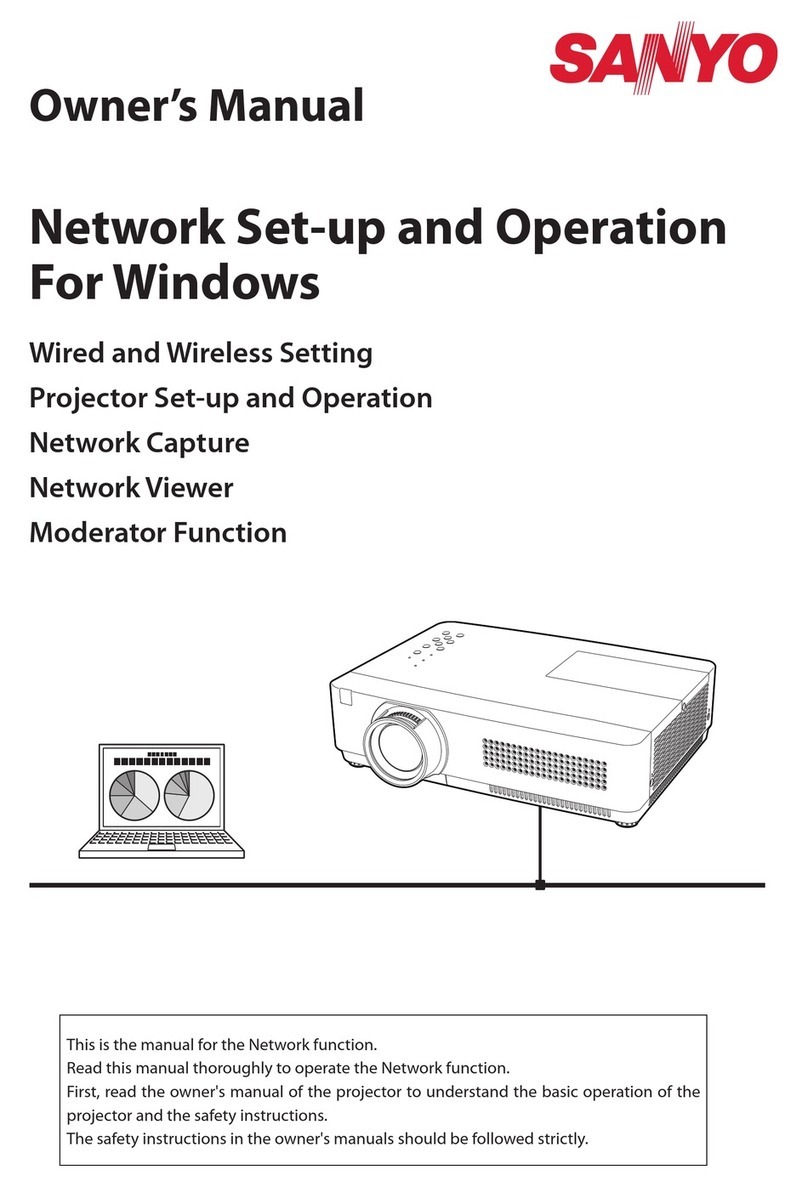

Sanyo PLC-XU305A - 3000 User manual

Sanyo

Sanyo PLC-XU305A - 3000 User manual

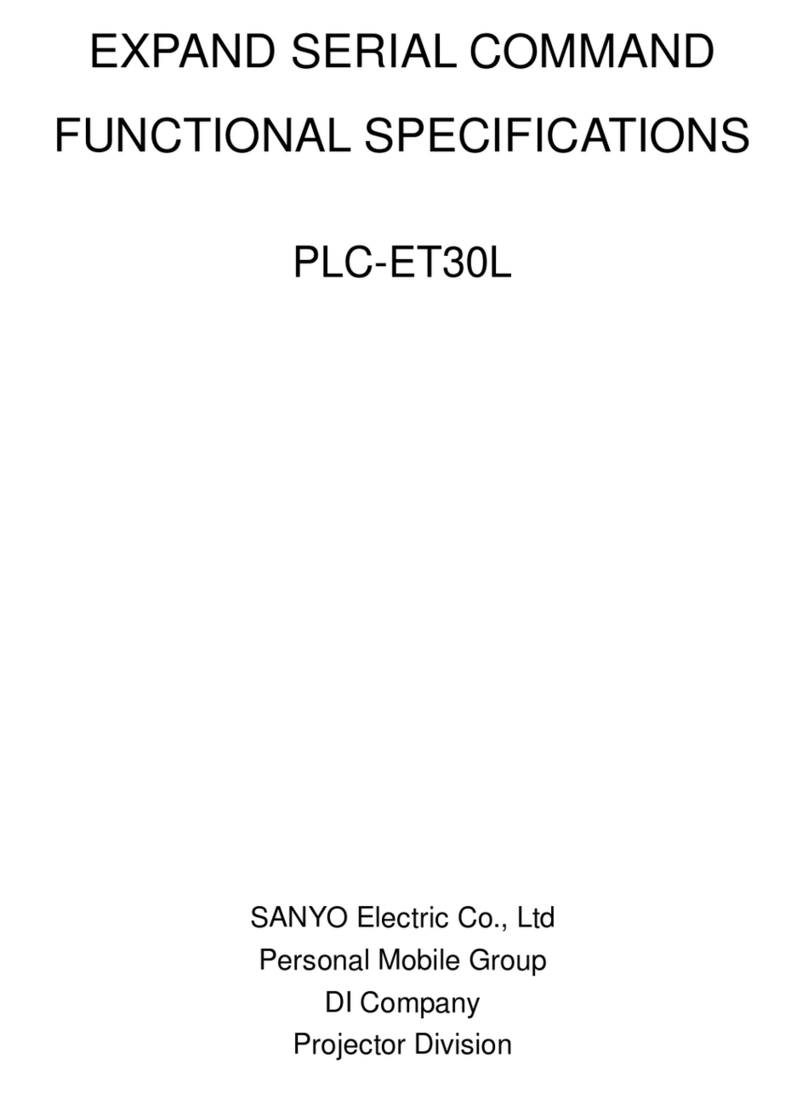

Sanyo PLC-ET30L - 4200 Lumens User manual

Sanyo

Sanyo PLC-ET30L - 4200 Lumens User manual

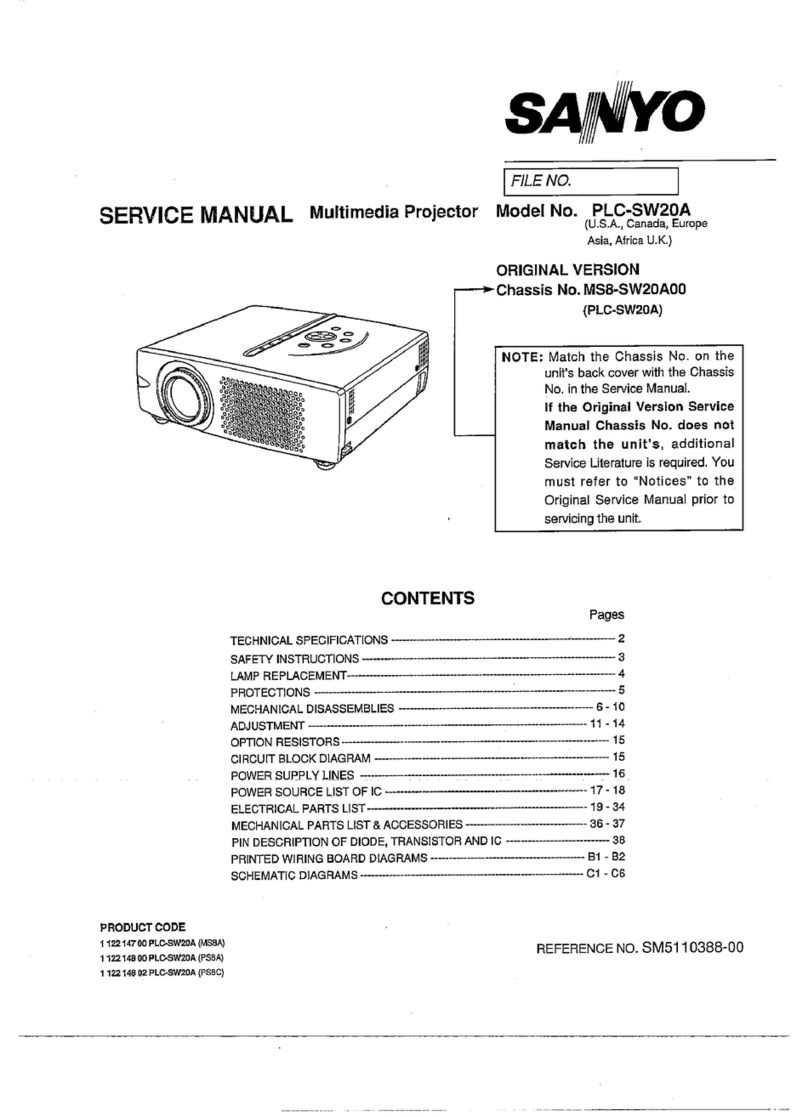

Sanyo PLC-SW20A User manual

Sanyo

Sanyo PLC-SW20A User manual

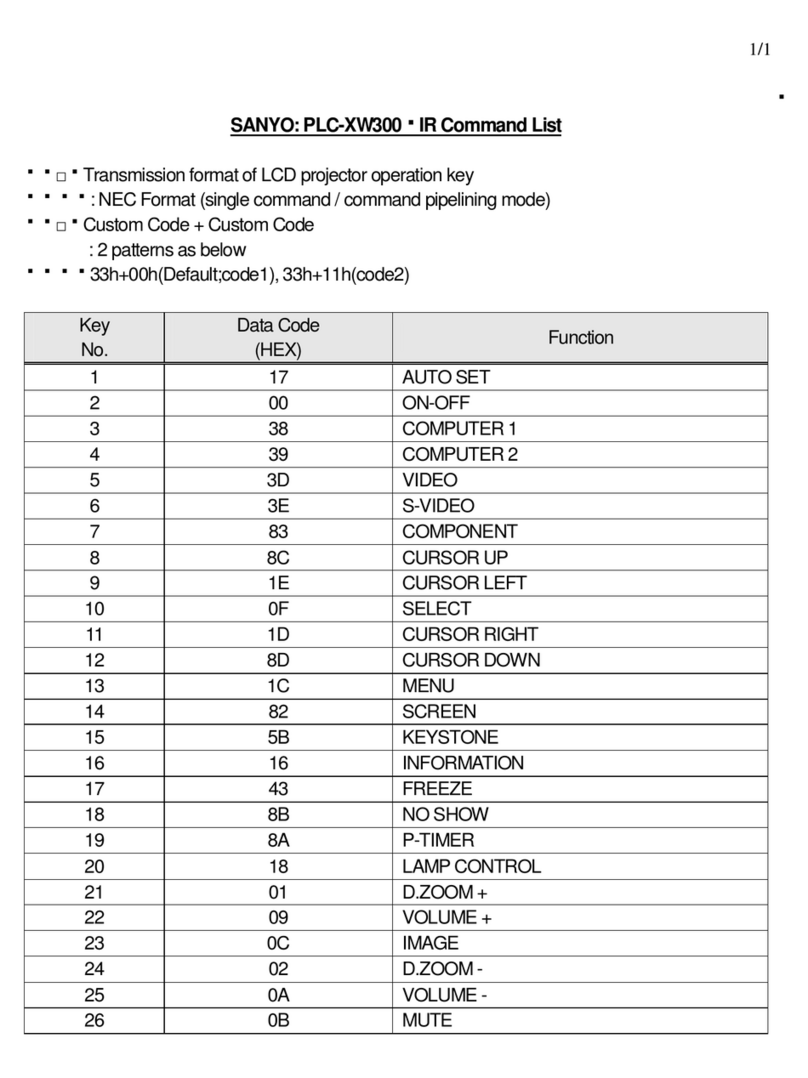

Sanyo PLC-XW300 - 3000 Lumens User manual

Sanyo

Sanyo PLC-XW300 - 3000 Lumens User manual

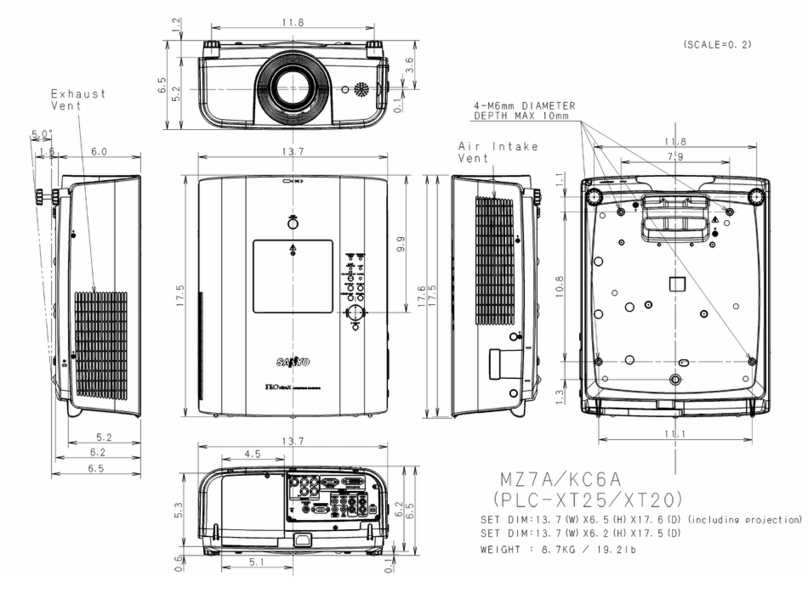

Sanyo PLC-XT25 Guide

Sanyo

Sanyo PLC-XT25 Guide

Sanyo PLV-80 Series User manual

Sanyo

Sanyo PLV-80 Series User manual

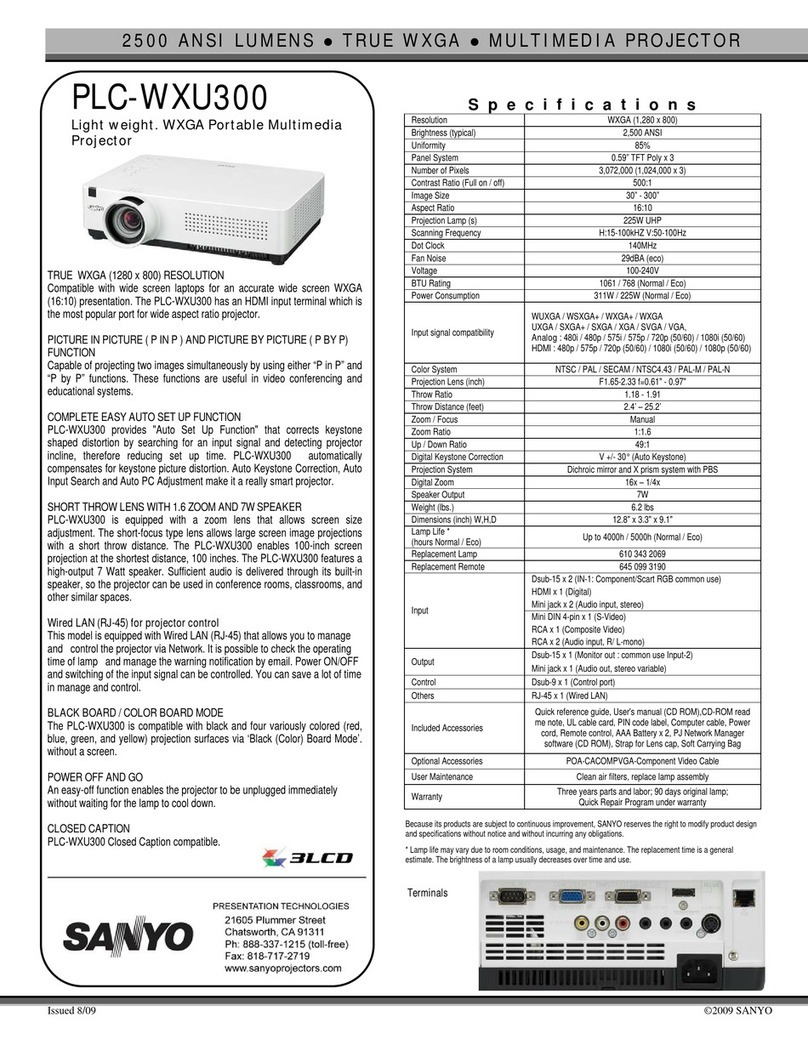

Sanyo PLC-WXU300 - 2500 Lumens User manual

Sanyo

Sanyo PLC-WXU300 - 2500 Lumens User manual

Sanyo PDG-DWL2500 - 2500 Lumens User manual

Sanyo

Sanyo PDG-DWL2500 - 2500 Lumens User manual

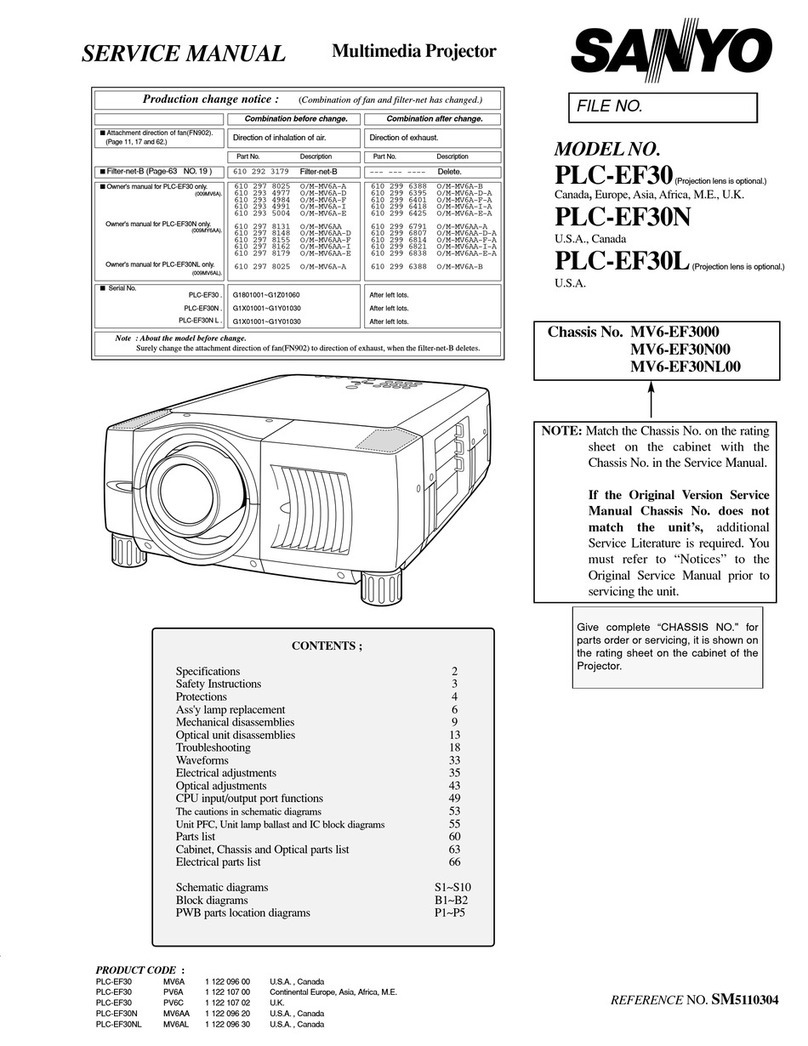

Sanyo PLC-EF30 User manual

Sanyo

Sanyo PLC-EF30 User manual

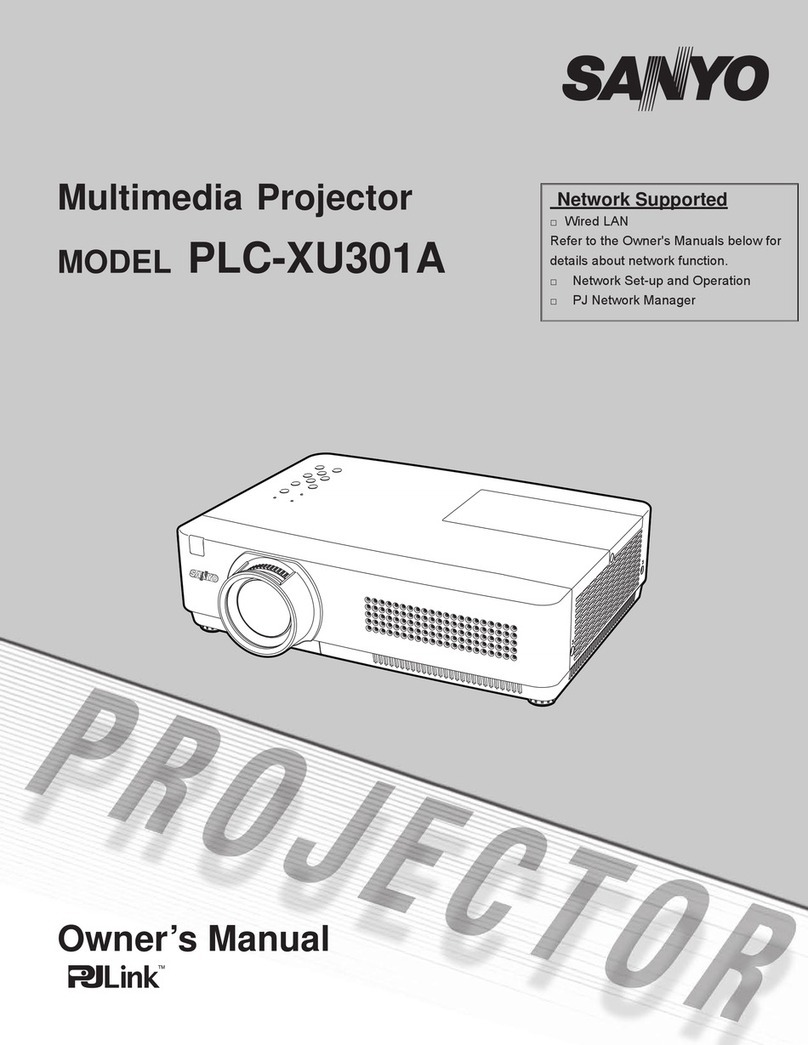

Sanyo PLC-XU301A User manual

Sanyo

Sanyo PLC-XU301A User manual

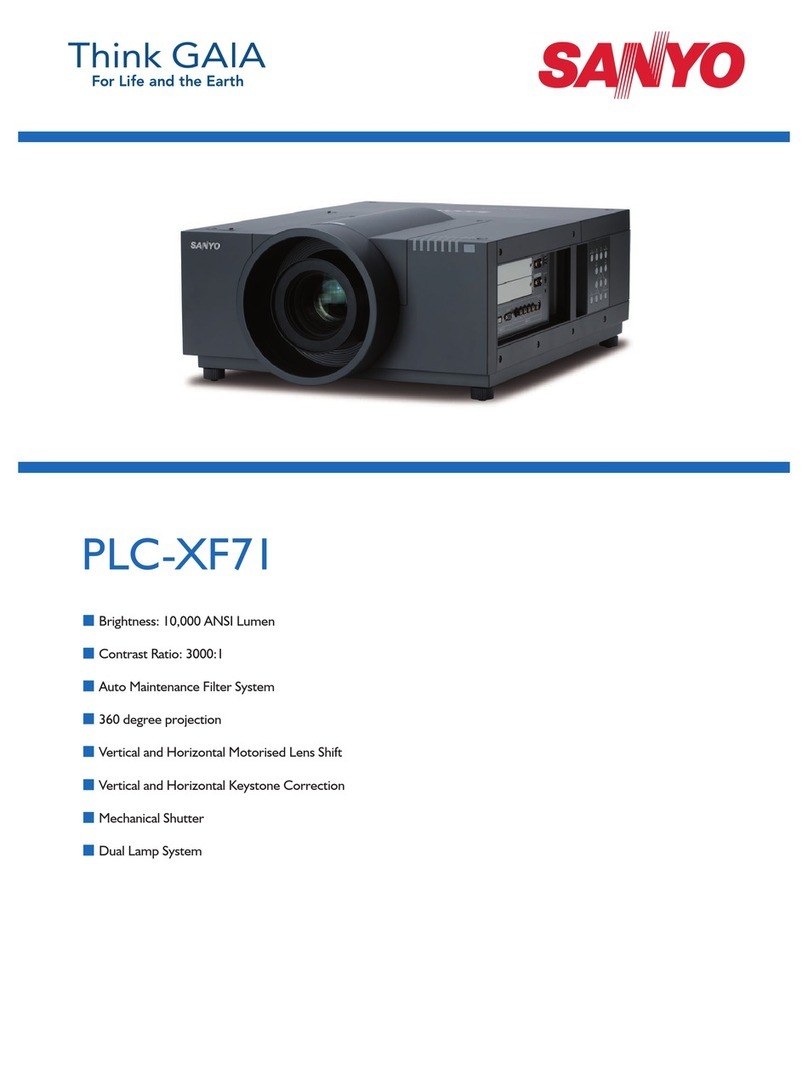

Sanyo PLC-XF71 User manual

Sanyo

Sanyo PLC-XF71 User manual

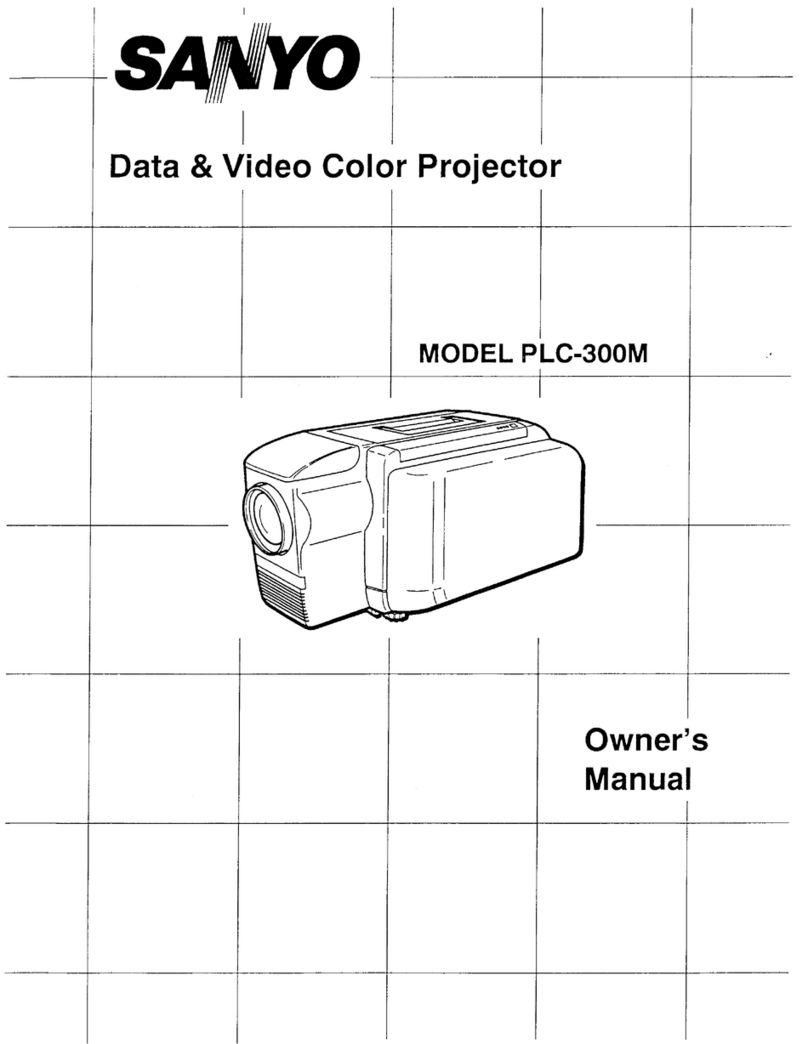

Sanyo PLC-300M User manual

Sanyo

Sanyo PLC-300M User manual

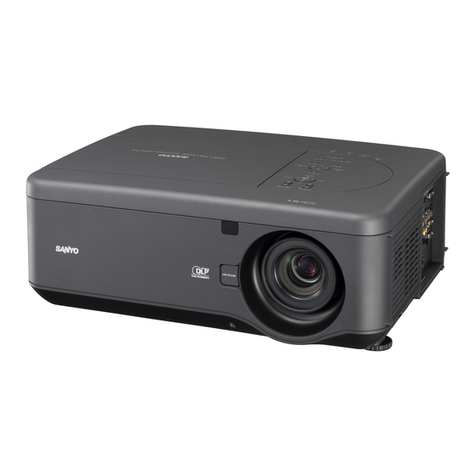

Sanyo PDG-DWT50L - WXGA DLP Projector User manual

Sanyo

Sanyo PDG-DWT50L - WXGA DLP Projector User manual

Sanyo PLC-XM100L User manual

Sanyo

Sanyo PLC-XM100L User manual

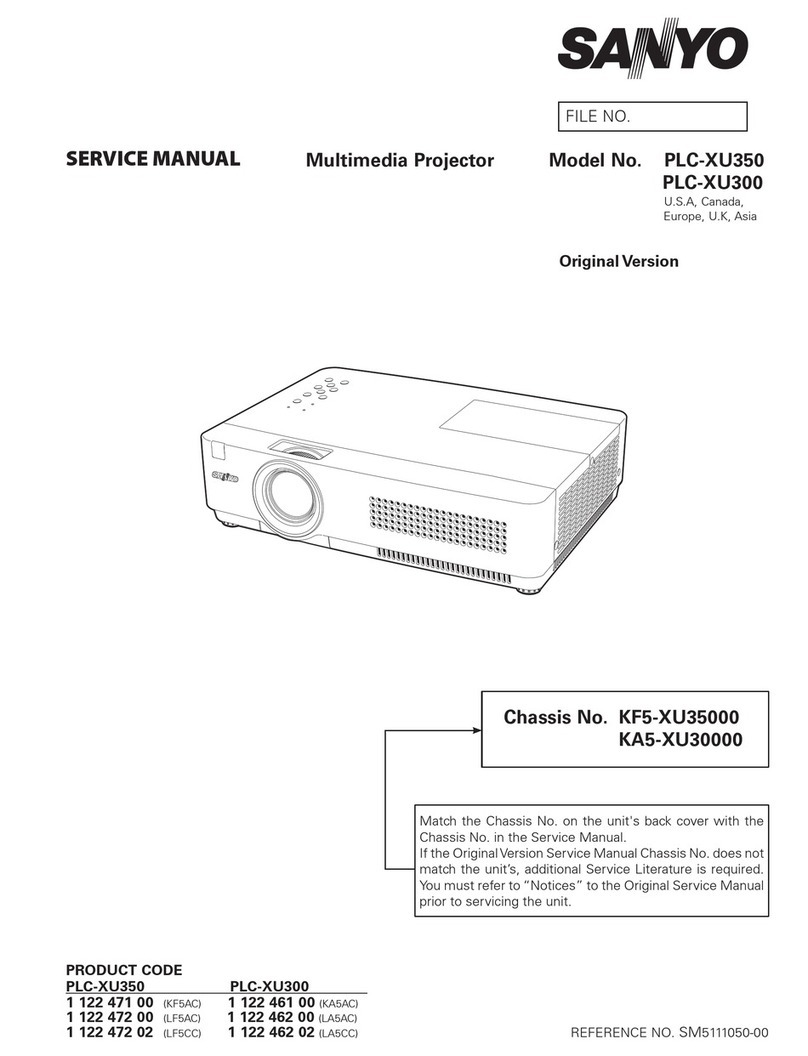

Sanyo PLC-XU350 User manual

Sanyo

Sanyo PLC-XU350 User manual

Sanyo PLC-XE32 User manual

Sanyo

Sanyo PLC-XE32 User manual

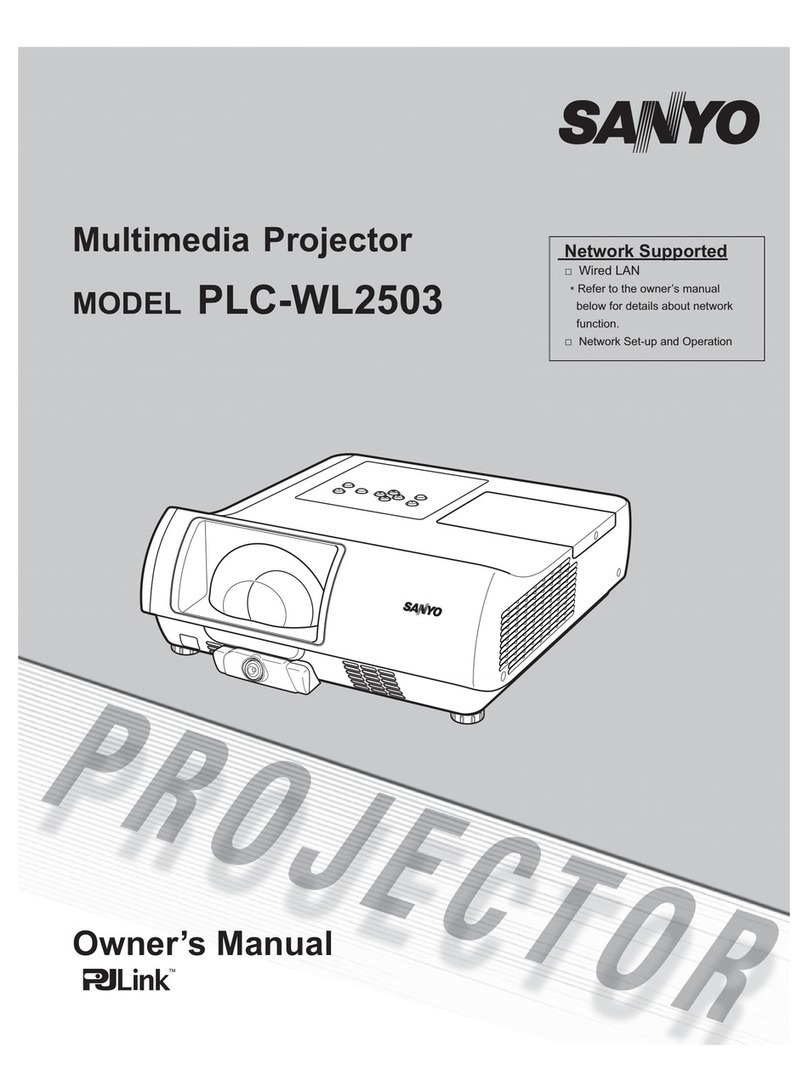

Sanyo PLC-WL2503 User manual

Sanyo

Sanyo PLC-WL2503 User manual

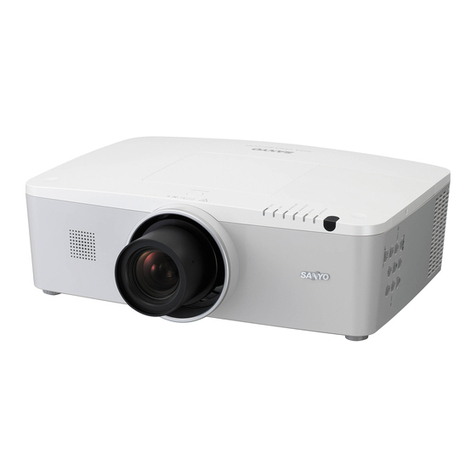

Sanyo PLC-XM150L User manual

Sanyo

Sanyo PLC-XM150L User manual

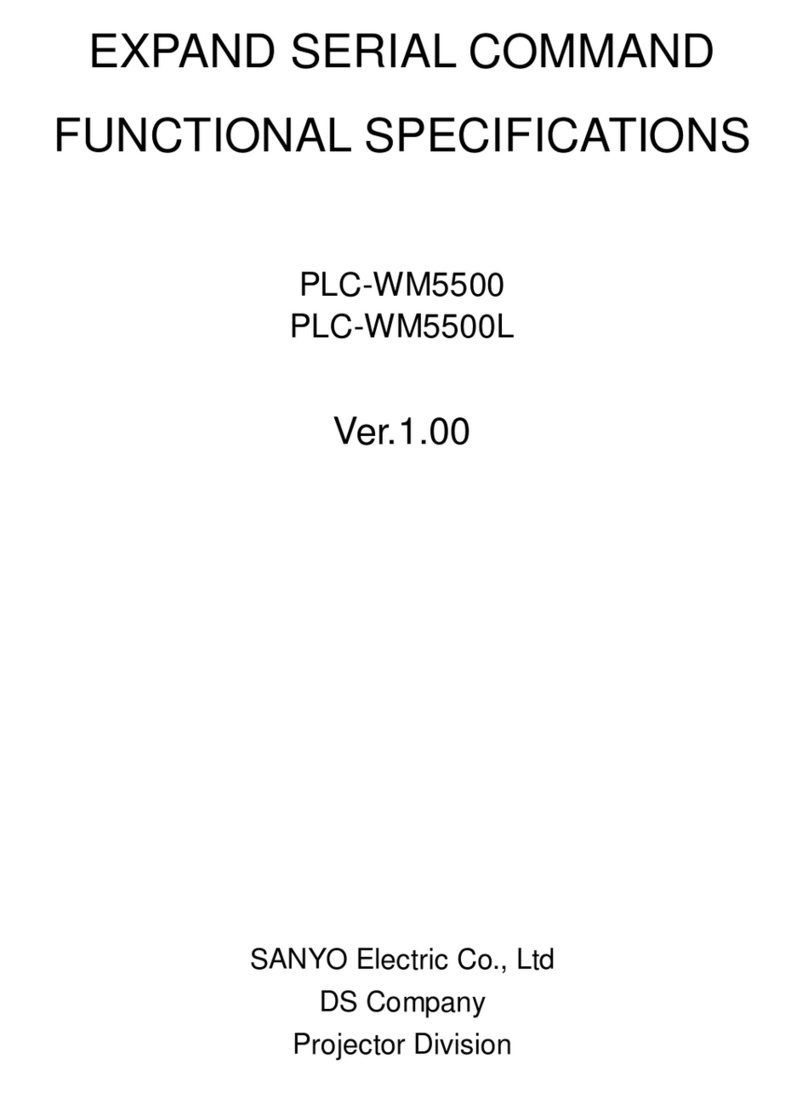

Sanyo PLC-WM5500/L - 5500 Lumens User manual
