VCC-4115P
COLOUR CCD camera
CCD-Farbkamera
Caméra CCD COULEUR
CCD
About this manual
Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
Über diese Bedienungsanleitung
Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der
Kamera zuerst diese Bedienungsanleitung sorgfältig durch und
bewahren Sie sie zum späteren Nachschlagen auf.
A propos de ce manuel
Avant d’installer et d’utiliser la caméra, veuillez lire ce
manuel attentivement. Gardez-le à portée de main pour
toute référence ultérieure.
COVER1.fm 1 ページ ２００２年９月６日 金曜日 午後６時３４分

English 1
Depending on the conditions of use, installation and
environment, please be sure to make the appropriate settings
and adjustments. If you need help with installation and/or
settings, please consult your dealer.
CONTENTS
PRECAUTIONS .................................................. 2
PARTS NAMES .................................................. 3
MOUNTING THE LENS...................................... 5
CONNECTIONS.................................................. 7
SETTINGS .......................................................... 8
TROUBLESHOOTING...................................... 13
SPECIFICATIONS ............................................ 14
FEATURES
• Built-in interline transfer method 1/4" CCD, approx.
320,000 picture elements
• Equipped with a DSP (Digital Signal Processor) function
• Horizontal resolution, more than 350 TV lines
• High sensitivity, minimum required illumination is 0.9 lux
(F1.2)
• Two types of backlight compensation functions (multi-spot
photometry and center focus photometry)
• Low smear, anti-blooming, low lag, no burning and no
geometric distortion using the CCD solid state image
device.
• 100% solid state components giving excellent immunity to
shock and vibration
• Not subject to interference from magnetic or electrostatic
fields
• Power supply: 24 V AC and 12 V DC operation
• Use a DC type auto-iris lens.
vcc4115p(gb).fm 1 ページ ２００２年９月５日 木曜日 午後３時５９分

ENGLISH
2English
PRECAUTIONS
■
■■
■In case of problem
Do not use the camera if smoke or a strange odour comes
from the unit, or if it seems not to function correctly. Disconnect
the power cord immediately, and consult your dealer (or a
Sanyo Authorized Service Centre).
■
■■
■Do not open or modify
Do not open the cabinet, as it may be dangerous and cause
damage to the unit. For internal settings and repairs, consult
your dealer (or a Sanyo Authorized Service Centre).
■
■■
■Do not put objects inside the unit
Make sure that no metal objects or flammable substance get
inside the camera. If used with a foreign object inside, it could
cause a fire, short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the
power cord immediately, and consult your dealer (or a Sanyo
Authorized Service Centre). Be careful to protect the camera
from rain, sea water, etc.
■
■■
■Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to
strong shock or vibration.
■
■■
■Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric
motor, transformer, audio speakers the magnetic field they
generate will distort the image.
■
■■
■Protect from humidity and dust
To prevent damages to the camera, do not install it where
there is greasy smoke or steam, where the dampness may get
too high, or where there is a lot of dust.
■
■■
■Protect from high temperatures
Do not install close to stoves, or other heat generating devices,
such as spotlights, etc., or where it could be subject to direct
sunlight, as that could cause deformation, discoloration or
other damages.
Be careful when installing close to the ceiling, in a kitchen or
boiler room, as the temperature may raise to high levels.
Install where the temperature range will stay between –10°C
and 50°C. (no condensation)
■
■■
■Cleaning
• Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened
with a soft detergent solution and wrung dry, then wipe dry
with dry soft cloth.
• Do not use benzine, thinner or other chemical product on
the cabinet, as that may cause deformation and paint
peeling. Before using a chemical cloth, make sure to read
all accompanying instructions. Make sure that no plastic or
rubber material comes in contact with the cabinet for a long
period of time, as that may cause damage or paint peeling.
vcc4115p(gb).fm 2 ページ ２００２年９月５日 木曜日 午後３時５９分

English 3
PARTS NAMES
1Shorter screws: M3 x 4
2Longer screws: M3 x 6
3Camera mounting
screw hole:
1/4"-20 UNC
1
2
3
4
1Flange-back lock screw (LOCK)
2Flange-back adjustment dial
3Lens mount cap
The cap is installed to protect the lens mount section.
Remove the lens mount cap before installing a lens (sold separately).
4Camera installation bracket
The bracket can be fixed at the top or bottom of the camera. When fixing the bracket, be sure to
use the longer screws and install the shorter screws on the opposite side to seal the openings.
CAUTION:
When installing the camera support, select a location that can support the total weight
of the camera and accessories.
vcc4115p(gb).fm 3 ページ ２００２年９月５日 木曜日 午後３時５９分

4English
PARTS NAMES
9
8
67
5
F
G
H
5Camera setup section
6White balance adjustment volume (R or B)
7Line phase adjustment volume (PHASE)
8Lens iris adjustment volume
9Lens iris output connector (LENS)
This 4-pin connector is used to send the DC control signal and power supply to an auto-iris type
lens.
FVideo output connector (VIDEO OUT: BNC type)
Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.
G24 V AC or 12 V DC input terminal (AC24V, DC12V, GND)
HPower indicator (POWER)
Comes on when the power to the camera is on.
■
■■
■Power supply connections
Use a 3 wire grounded cable (22 AWG or more), and connect as shown by the illustration.
CAUTION:
• To prevent camera and/or AC adaptor failure, pay close attention to polarity when making
the connections.
• To prevent fire hazard any UL listed wire rated VW-1, should be used for the 24 V AC cable
input terminal.
vcc4115p(gb).fm 4 ページ ２００２年９月５日 木曜日 午後３時５９分

English 5
MOUNTING THE LENS
1
2
C mount type lens
CS mount
type lens
2
3
Please use a DC type auto-iris lens (sold separately).
1Remove the lens mount cap from the camera.
2Install the auto-iris lens.
CS mount type lens
Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.
C mount type lens
To allow for flange-back adjustment, install the C-mount adaptor (option) on the lens mount,
then carefully align the lens mount with the camera opening and turn the lens slowly to install
it.
3Connect the lens plug to the lens iris output connector (LENS) on the side of the
camera.
When using lenses from other makers, the plug shape may not correspond to the terminal on
the camera. In such a case, remove the original plug and using a soldering iron, connect the
supplied lens iris plug according to the diagram. (Refer to page 6.)
Check the lens mount
Do not use a lens if the length “L” is more than 5mm. That may damage
the camera and prevent proper installation.
L
vcc4115p(gb).fm 5 ページ ２００２年９月５日 木曜日 午後３時５９分

6English
MOUNTING THE LENS
43
1
2
1
3
2
■
■■
■Pin layout
■
■■
■Flange-back adjustment
If the pick-up surface is not correctly positioned with relation to the lens focal point, the picture
will be out of focus (in particular when using auto-iris power zoom lenses, sold separately). If that
is the case, adjust the flange-back position as described below.

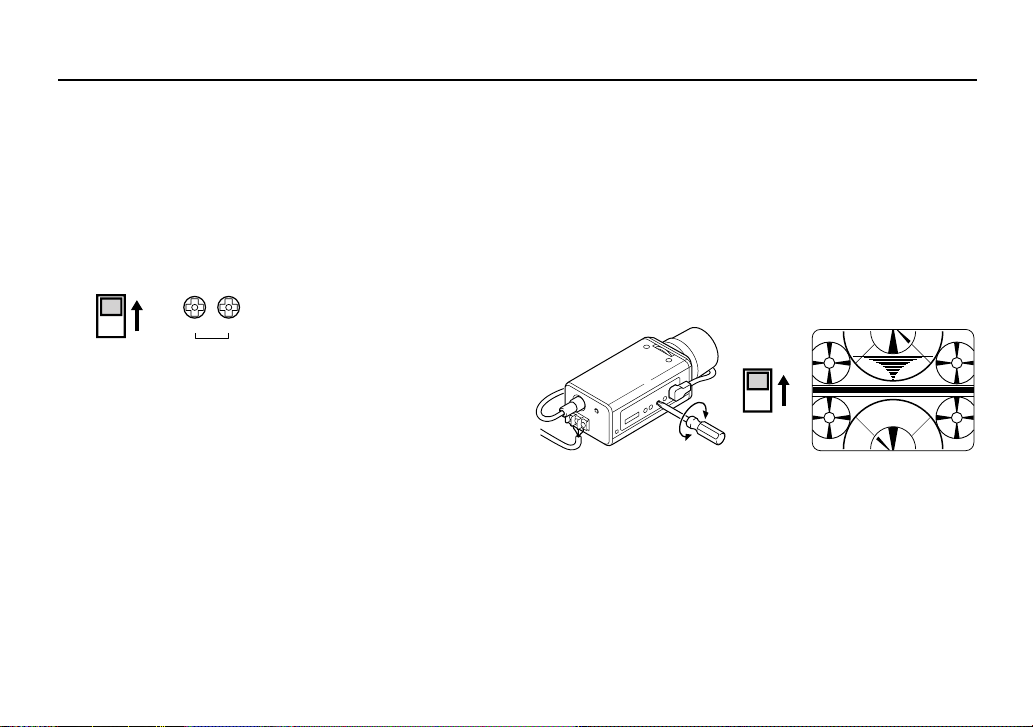

1Using a + screwdriver, loosen the flange-back lock screw (M2:+).
2Set the zoom lens to the maximum telephoto position, set the focus using the focus ring on
the lens.
3Set the zoom lens to the maximum wide angle position, set the focus using the flange-back
adjustment dial.
4Repeat steps 2 and 3, until the image stays in focus when changing from a telephoto shot to
a wide angle shot. When the setting is complete, tighten the flange-back lock screw.
DC type lenses
1Brake coil (–)
2Brake coil (+)
3Drive coil (+)
4Drive coil (–)
vcc4115p(gb).fm 6 ページ ２００２年９月６日 金曜日 午後５時３６分

English 7
CONNECTIONS
Basic connection for monitoring or recording
The peripheral devices (VCR, monitor, lens, etc.), AC
adaptor and cables are sold separately.
1Make the video signal connection between the camera
and the monitor or time lapse VCR.
2Connect the power supply.
• If using a commercially-available 24 V AC adapter,
always be sure to connect the ground wire (18AWG or
higher) to the ground terminal. (Figure 1)
• If using a 12 V DC power supply, make the connections
as shown in Figure 2.
Note:
• In order to avoid any problems with the camera and the
power supply, take sufficient care to ensure that the
polarities are correct when connecting the power supply.
3Insert the plug of this power cord into a wall outlet.
The POWER indicator (A) will light. Adjust the picture on
the monitor using the Brightness and Contrast controls etc.
■
■■
■Coaxial cable type and maximum length
• Cable type RG-59U (3C-2V), 250 m maximum.
• Cable type RG-6U (5C-2V), 500 m maximum.
• Cable type RG-11U (7C-2V), 600 m maximum.
CAUTION:
• The RG-59U type cable should not be run through electrical
conduits or through the air.
• Use CCTV/Video-grade coaxial cable.
GND AC24V
DC12V
GND AC24V
DC12V
(Video signal connections)
: VIDEO IN
: VIDEO OUT
(A)
124 V AC connection
Figure 1 Figure 2
12 V DC connection
vcc4115p(gb).fm 7 ページ ２００２年９月５日 木曜日 午後４時０分

8English
SETTINGS
12 56
34
7
■
■■
■Camera setup section
No. Settings Position
1Electronic Iris (EI)/Auto iris (AI) setting AI
2Aperture compensation setting SHRP
• SHRP (sharp)/NORM (normal)
3Backlight compensation mode setting (BLC) OFF
• MULTI (Multi)/OFF
4Backlight compensation mode setting (BLC) OFF
• CENT (Center)/OFF
5White balance setting ATW
• MANU (manual)/ATW (auto tracing white balance)
6Syncronisation (SYNC) setting INT
• LL (Line lock)/INT (Internal sync)
7Lens iris adjustment —
vcc4115p(gb).fm 8 ページ ２００２年９月９日 月曜日 午前１１時５３分

English 9
SETTINGS
■
■■
■Iris function setting 1
11
1
This should normally be set to the down (AI) position.
Use a manual or fixed iris lens and set the lens aperture to the
shortest F stop. Set the switch 1to the up (EI) position.
Note:
Please refer to the specifications for dynamic range of the
electronic iris.
CAUTION:
• The electronic iris is suitable for normal indoor use. When
the switch 1is set to the up (EI) position, do not use an
auto-iris lens.
• If used under fluorescent light, the image may flicker. In
such a case, change to incandescent lighting or set the
switch 1to the down (AI) position and use an auto-iris
lens.
• When shooting bright subjects, pay attention to the light
angle in order to avoid or minimize the smear phenomenon
effect.
When using an auto-iris lens (for indoor/
outdoor use)
Set the switch 1to the down (AI) position.
CAUTION:
If conditions are outside the electronic iris operation range or
more than the maximum illumination, it will cause saturation of
the CCD. In that case, use a manual iris lens.
■
■■
■Aperture 2
22
2
If you would like to emphasize the contours of the object, set
the switch 2to the up (SHRP) position.
AI
EI
NORM
SHRP
vcc4115p(gb).fm 9 ページ ２００２年９月９日 月曜日 午前１１時５３分

10 English
SETTINGS
■
■■
■Backlight compensation setting 3 4
3 43 4
3 4
This camera has two different backlight
correction functions: multi-spot
photometry (MULTI) and center focus
photometry (CENT). The normal setting
(switch 3and 4) is the down position,
but you can change the switch 3or 4
setting in accordance with the backlight
conditions.
Note:
• When using the backlight compensation function, set the
switch 3or 4to the up position. When not using the
function, set the switch 3and 4to the down (OFF)
position.
• When MULTI mode is set, scenes with no backlighting may
appear extremely dark and the object may appear over-
exposed. If this happens, move the switch 4to the up
(CENT) position.
(MULTI mode: 64 sections)
(CENT mode)
• MULTI mode: Use this position when applying backlight
compensation to the whole of the screen.
• CENT mode: Use this position when applying backlight
compensation to only the central portion of
the screen.
MULTI CENT
34
vcc4115p(gb).fm 10 ページ ２００２年９月５日 木曜日 午後５時５８分

English 11
SETTINGS
■
■■
■White balance adjustment 5
55
5
Normally the switch 5is set to the down (ATW: auto white
balance) position and the white balance is adjusted
automatically. If a manual white balance adjustment is
necessary, follow the steps below.
Set the switch 5to the up (MANU) position, then adjust the
colour.
•Turn Rto set the red ratio and/or Bto set the blue ratio.
■
■■
■Line phase adjustment 6
66
6
When using a camera switcher to connect 2 cameras or more
to one monitor, there may be a vertical roll of the images when
switched. In such a case, set as described below.
1Set the switch 6to the up (LL) position.
2
Switch the display on the monitor from camera 1 to camera 2.
Adjust the Line PHASE volume on camera 2 until the
vertical roll of the image stops.
If more than two cameras are used, please repeat this
procedure for all the cameras.
CAUTION:
If the vertical roll cannot be corrected by setting the Line
PHASE volume on camera 2, try setting the Line PHASE
volume on camera 1. If it still cannot be corrected, please
check that the polarity of the power cords of all connected
devices is correct.
ATW
MANU
RBWB
INT
LL
vcc4115p(gb).fm 11 ページ ２００２年９月５日 木曜日 午後４時０分

12 English
SETTINGS
■
■■
■Lens iris adjustment 7
77
7
If using a DC type auto-iris lens, you will need to set the
LEVEL volume when shooting in the conditions described
below.
L (counterclockwise): To decrease the contrast
H (clockwise): To increase the contrast
•If shooting simultaneously in a dark room and through a
bright window.
•If the subject background is extremely bright or dark.
•If the brightness of the picture on the monitor is not correct.
LEVEL
LH
vcc4115p(gb).fm 12 ページ ２００２年９月５日 木曜日 午後４時０分

English 13
TROUBLESHOOTING
Before taking the camera for repairs, please check below to make sure that the camera is used correctly. If it still does not perform
correctly, please consult your dealer or a Sanyo Authorized Service Centre.
■
■■
■No picture on the monitor screen
•Is the power turned on to all connected devices? Is the voltage correct?
•Are all the signal connecting cables correctly connected?
•Is the lighting sufficient?
•Has the lens cap been removed?
•Is the iris control correctly set?
■
■■
■The picture is not clear
•Is the monitor correctly adjusted?
•Is the flange-back position correctly set?
•Is the lens focus correctly adjusted?
•Are the lens surfaces clean?
If there is dust or finger prints on the lens, the image quality will deteriorate. To clean the lens use a soft cloth or a commercially
available lens cleaning set.
SERVICE
This camera is a precision instruments and if treated with care, will provide years of satisfactory performance. However, in the
event of a problem, the owner is advised not to attempt to make repairs or open the cabinet. Servicing should always be referred to
your dealer or Sanyo Authorized Service Centre.
vcc4115p(gb).fm 13 ページ ２００２年９月５日 木曜日 午後４時０分

14 English
SPECIFICATIONS
■
■■
■Camera:
SERVICE
This camera is a precision instruments and if treated with care,
will provide years of satisfactory performance. However, in the
event of a problem, the owner is advised not to attempt to
make repairs or open the cabinet. Servicing should always be
referred to your dealer or Sanyo Authorized Service Centre.
Scanning system : PAL standard
(625 TV lines, 25 frames/sec.)
Interlace : PLL 2:1 interlace
Image device : 1/4 inch solid state image
device CCD
Picture elements : 537 (H) x 597 (V)
Effective picture elements : 500 (H) x 582 (V)
Synchronizing system : Internal sync, Line lock
manually switchable
Resolution : 350 TV lines horizontally, 400
TV lines vertically
Video output level : 1.0 Vp-p/75 ohms, composite
Video S/N ratio : More than 48 dB
Minimum required
illumination
(incandescent lighting)
:Approx. 0.9 lux with a F 1.2
lens
Backlight compensation : MULTI/OFF switching,
CENT/OFF switching
Iris function : Manual EI/AI switching
Electronic iris range : 0.9 lux to 45,000 lux (F 1.2
lens)
Flange-back : 12.5 mm ± 0.5 mm
White balance : ATW/Manual switching
Lens mount : CS mount
Environmental conditions : Temperature: –10°C – +50°C
Humidity: less than 90%
(no condensation)
Power supply : 24 V AC, 50 Hz/12 V – 15 V DC
Power consumption : Approx. 2.8 W (with AI, lens)
Approx. 2.2 W (without AI, lens)
Weight : Approx. 280 g (without lens)
vcc4115p(gb).fm 14 ページ ２００２年９月９日 月曜日 午前１１時５４分

English 15
SPECIFICATIONS
■
■■
■Dimensions
Features and specifications are subject to change without prior notice or obligations.
1.4
108
99
10.7
M6
16
25.8
45
56
28
vcc4115p(gb).fm 15 ページ ２００２年９月５日 木曜日 午後４時０分
