Sanyo VCC-9500P User manual

Please read this manual before installing and using this unit, and always follow the instructions in it for proper
use. Please also read the separate Instruction Manual before using the unit for proper use.
(A)
(B)
1
2

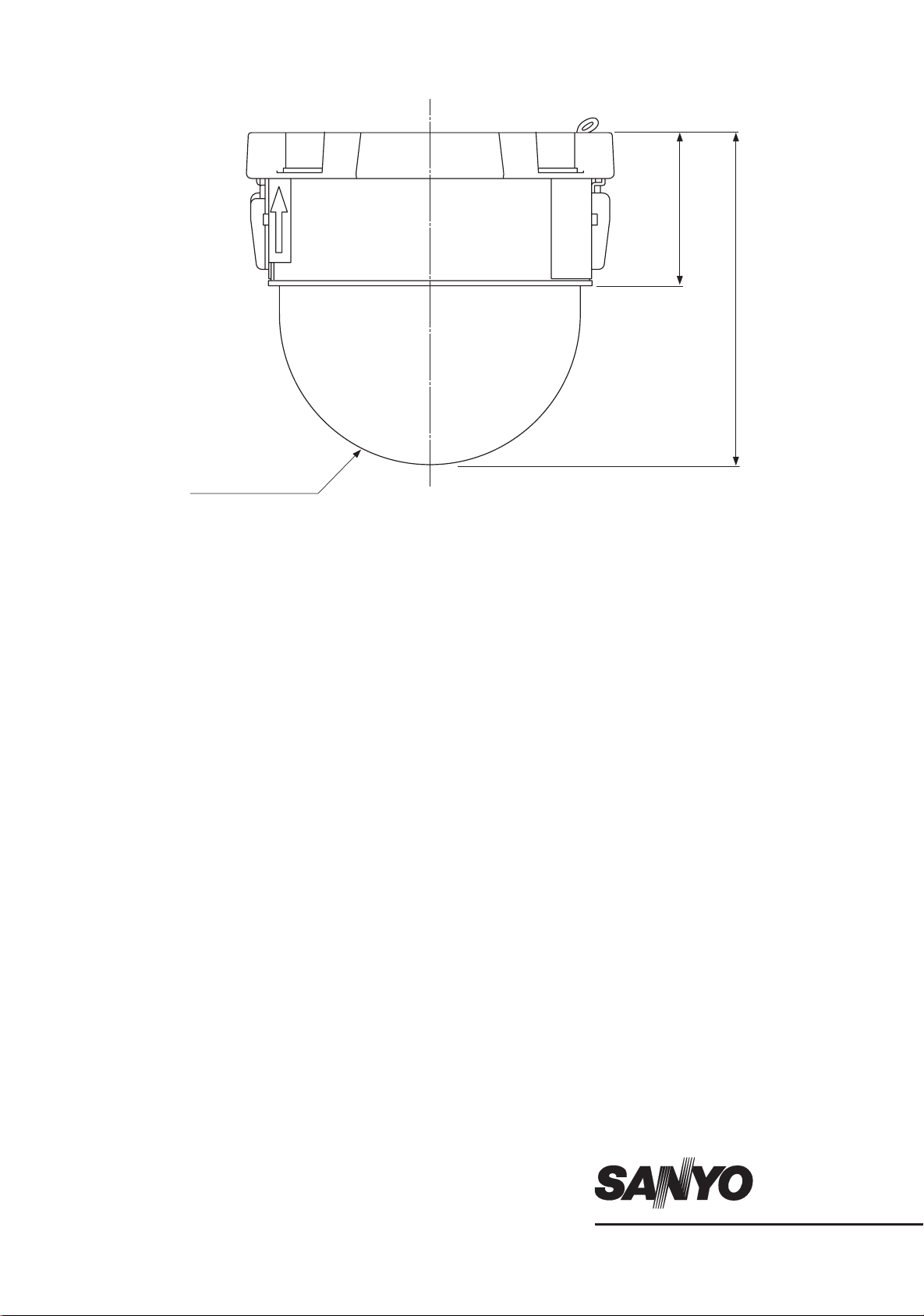

1Remove the plastic cover (A) and then
the tape (B) fixing the lens.
2Put back the plastic cover (A) and lock it
securely.
●Turn the cover clockwise until it clicks.
Before Installing the Unit
INSTALLATION MANUAL
Color CCD Camera
Install these units securely according to this installation
manual. Be aware that allowing them to fall may cause
personal injury.
This installation should be made by a qualified service
person and should conform to all local codes.
Product Lineup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Surface Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
In-ceiling Mount (Closed Type) . . . . . . . . . . . . . . . . . . 3
In-ceiling Mount (Open Type) . . . . . . . . . . . . . . . . . . . . 4
Connections and Settings . . . . . . . . . . . . . . . . . . . . . . 5
Address Settings Table. . . . . . . . . . . . . . . . . . . . . . . . . 7
Pattern Sheet (inserted at the end of this manual)
CAUTION: For VA-80S (Power Borard Unit)
ALL-POLE MAINS SWITCH with a contact separation of
at least 3mm in each pole shall be incorporated in the
electrical installation of the building.
Important
• Be careful when opening holes for installing the unit.
Work with the power and video cables pulled out for
easy installation.
• Make sure to properly perform waterproofing for the
ceiling where you are installing the unit.
• Make sure that the surface in the installation location
has no unevenness and is strong enough to bear the
total weight of the unit.
• Install this unit in an environment where the
temperature range stays between -10°C and +50°C
(no condensation allowed).
Contents
EnglishFrançaisEspañolDeutsch中文简体
L5BU2_XE(INSTALLATION).book 0 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 1 –

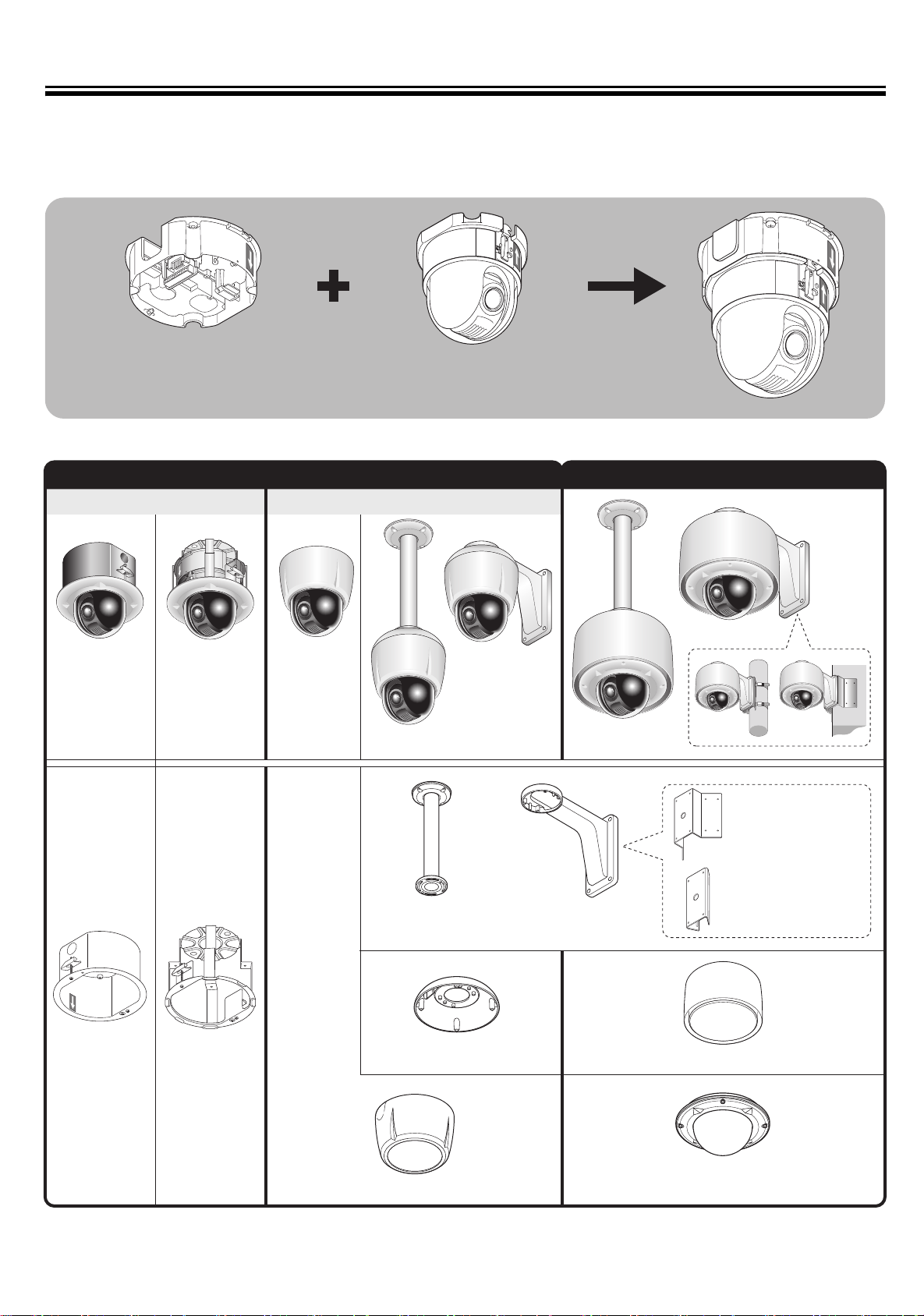

Product Lineup
To install the camera unit, the optional housing is required. When using a housing, be sure to choose the correct
one for your environment of use.
☞For instructions on how to install the outdoor type, the wall mounting bracket, pendant mounting bracket, and
attachment, refer to the relevant instruction manuals.
Power Board Unit
(VA-84S; for AC24V)
(VA-80S; for AC230V)
Camera unit
Indoor Type Outdoor Type
(In-ceiling Mount) (Surface Mount)
☞P3 ☞P4 ☞P2
In-ceiling
Bracket
Closed Type
(VA-80ME)
In-ceiling
Bracket
Open Type
(VA-80MF)
Pendant Mounting
Bracket (VA-80BP) Wall Mounting Bracket (VA-80BW)
Corner Mounting
Adapter (VA-80AC)
Pole Mounting
Adapter (VA-80AP)
Attachment (VA-80A) Outdoor Housing (VA-80EX)
Surface Cover (VA-80F)
●Clear Dome Cover (VA-CM8C)
●Smoked Dome Cover (VA-CM8S)
L5BU2_XE(INSTALLATION).book 1 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 2 –
Surface Mount
Make sure to also consult the Surface Cover Instruction Manual.
1Place the pattern sheet at the end of this manual on
the ceiling, mark the locations and drill the holes for
the cables and screws.
2Pull out the cables from the ceiling.
3Attach the supplied dust sheet (A) to the base of the
power board unit and the detachable piece of the
sheet (B) to the side.
☞Peel off the release-coated paper from the dust sheet
before attaching.
4Pass the cables through the slit (C) in the dust sheet.
5Fix the power board unit to the ceiling using the
supplied screws (D) (4 places).
6Connect the cables and set the switches.
☞See “Connections and Settings” on page 5.
7Fasten the camera unit safety wire (F) to the hook (G)
on the inner side of the power board unit.
8Align the arrows (H) of the same color (blue) on the
camera unit and the power board unit, and push the
camera unit until they click.
9Align the arrows (H) of the same color (blue) on the
inner side of the surface cover and the power board
unit, and fix the cover by rotating it clockwise.
■How to attach the drop-prevention cable
(accessory)
1) Peel off the two-sided tape (K) at the end of the cable
and attach it to the hook (L) on the inner side of the
surface cover as shown in the figure.
2) Fasten the cable to the hook (M) on the side of the
power board unit.
1. Installing the power board unit
2. Mounting the camera unit
M
K
L
Protrusion
3
4
5
7
8
E
AA
BB
BB
D
D
C
G
F
6
AA
9
1
1
2
Accessories
Dust sheet Drop-prevention
cable Screw (for power board unit)
H; Blue
H; Blue
To remove the camera unit
Removed in case of
surface routing.
Surface routing (ceiling)
Pass the cables
through the cable hole
(E) at the side of the
power board unit, and
attach the dust sheet
(A) as shown in the
figure.
L5BU2_XE(INSTALLATION).book 2 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 3 –

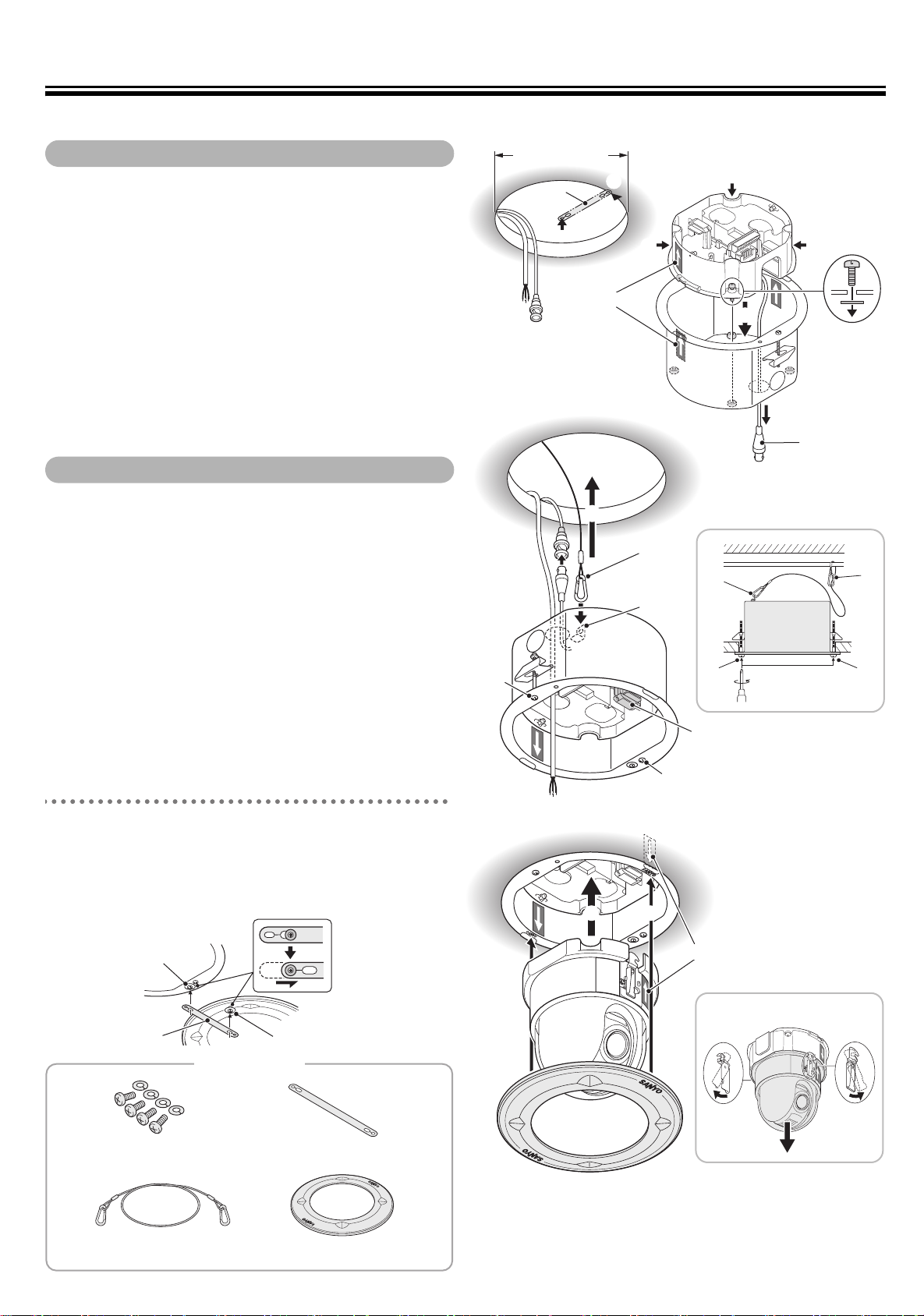

In-ceiling Mount (Closed Type)
Make sure to also consult the In-ceiling Bracket Closed Type Instruction Manual.
1Draw a circumference on the ceiling using the
supplied drop-prevention cable (A) as compass, and
drill a hole for installing the in-ceiling bracket.
2Pull out the cables from the ceiling.
3Pass the supplied screws (B) through each of the
power board unit screw holes and fasten them
loosely using washers (4 places).
4Align the arrows (C) of the same color (blue) on the
power board unit and the in-ceiling bracket, and
mount the power board unit. Tighten firmly the
screws (B) loosely fastened in the previous step.
●Pass the video cable (D) through the bracket cable
hole as preparation for the next step.
5Attach the supplied safety wire (E) to the ceiling
beam, for example, then connect it to the bracket-top
hook (F).
6Connect the video cable and pass the connection
cables through the bracket.
7Insert the bracket into the ceiling hole and fix it
using screws (G) (2 places).
8Connect the cables and set the switches.
☞See “Connections and Settings” on page 5.
9Align the arrows (C) of the same color (blue) on the
camera unit and the inner side of the bracket, and
push the camera unit until they click.
FAlign the SANYO logos on the supplied bracket
cover and the bracket, and push the cover until they
click.
■How to attach the drop-prevention cable
(accessory)
Fasten the drop-prevention cable (A) to the hooks (H) on
the bracket and its cover, then slide the cable as shown in
the figure.
1. Installing the power board unit
2. Installing on the ceiling
H
AH
Accessories
Bracket cover
Screw, washer
(for power board unit)
Safety wire
Drop-prevention
cable
1
2
3
4
5
6
8
3
3
3
A
B
E
G
G
D
F
FE
GG
5
7
7
9 F
C; Blue
C; Blue
To remove the camera unit
φ192 mm (7.6”)
L5BU2_XE(INSTALLATION).book 3 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 4 –
In-ceiling Mount (Open Type)
Make sure to also consult the In-ceiling Bracket Open Type Instruction Manual.
1Draw a circumference on the ceiling using the
supplied drop-prevention cable (A) as compass, and
drill a hole for installing the in-ceiling bracket.
2Pull out the cables from the ceiling.
3Pass the supplied screws (B) through each of the
power board unit screw holes and fasten them
loosely using washers (4 places).
4Mount the power board unit in the in-ceiling bracket.
Tighten firmly the screws (B) loosely fastened in the
previous step.
●When inserting the power board unit, do it diagonally.
5Attach the supplied safety wire (C) to the ceiling
beam, for example, then connect it to the bracket-top
hole (D).
6Connect the video cable and pass the connection
cables through the bracket.
7Insert the bracket into the ceiling hole and fix it
using screws (E) (2 places).
8Connect the cables and set the switches.
☞See “Connections and Settings” on page 5.
9Align the blue sticker (F) on the bracket and the
arrow (F) of the same color on the camera unit, and
then push the camera unit until they click.
FAlign the SANYO logos on the supplied bracket
cover and the bracket, and push the cover until they
click.
■How to attach the drop-prevention cable
(accessory)
Fasten the drop-prevention cable (A) to the hooks (G) on
the bracket and its cover, then slide the cable as shown in
the figure.
1. Installing the power board unit
2. Installing on the ceiling
G
AG
Accessories
Bracket cover
Screw, washer
(for power board unit)
Safety wire
Drop-prevention
cable
2
3
7
65
8
3
3
A
B
E
E
D
C
4
E
D
E
C
5
7
F
9
1
3
F; Blue
To remove the camera unit
φ192 mm (7.6”)
L5BU2_XE(INSTALLATION).book 4 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 5 –
Connections and Settings
Make sure to also consult the Power Board Unit Instruction Manual.
LNG
A
WH
B L
S L
O R
B R
B K
Y L
R D
G R
L
L
485A
485B
1
2
1System control setting switches
• Switch 6 is unused.
• The factory setting is represented in bold.
1Baud rate
Set the same baud rate as that on the camera.
2Control method
Set either to RS485 or coaxial (COAX).
3Protocol
Set the protocol for controlling the camera.
4Termination (Switch 5)
“OFF” is set by default.
When connecting multiple cameras, termination setting must be “ON”
on the last camera while it must be “OFF” on all others.
2Address setting switches
Set the camera address.
See “Address Settings Table” on page 7.
Switch 1 2
2400 OFF OFF
4800 OFF ON
9600 ON OFF
19200 ON ON
Switch 3
Coaxial (COAX) ON
RS485 OFF
Switch 4
SSP (SANYO) OFF
PELCO ON
123456
ON
1234
12345678
ON
Power Supply Connection
For the connections use cables higher than
18 AWG.
AC 24 V
or
AC 230 V
• Fix the power cable end firmly so that the power
terminal connection does not come loose. Use
solderless terminals (ring or spade type) for wiring.
• After connection, always install the supplied power
terminal cover Afor safety reasons.
<Ground>
<Neutral>
<Live>
Monitor Connection
Supported coaxial cables
• Using different cables from those specified here may attenuate the
video and/or sync signals and interfere with correct transmission.
• RG-59U coaxial cables can be used when distance between
devices is short, but not in duct or aerial routing.
Cable type Length
RG-59U (3C-2V) 250 m (273.4 yd) max.
RG-6U (5C-2V) 500 m (546.8 yd) max.
RG-11U (7C-2V) 600 m (656.2 yd) max.
BNC type
Connections
SIDE-A Switch Settings SIDE-B
1Controller connection
White Yellow
2Alarm signal input
3Alarm signal output
If a lamp is connected to this cable, it will light up
when an alarm signal is received or when the
built-in motion sensor detects movement.
For details on 2and 3, refer to the “Alarm Settings (ALARM)” in
the Instruction Manual.
CAMERA
LENS
PAN/TILT
AUTO MODE
ALARM
PRIVACY MASK
PASSWORD
LANGUAGE
OPTION
PRESET
MENU
ALARM
ALARM IN
ALARM OUT
ALARM DISABLE
MOTION
ALARM DISPLAY
PRESET
MENU
SET
SET
SET
SET
SET
SET
SET
SET
SET
OFF
BACK
1
1
OFF
OFF
OFF
OFF
BACK
y
y
IN 1 - 8
To COM
OUT 1/2
To COM
Alarm input
signal
Alarm output
signal
Joint board
All connection cables should be 24 AWG or higher with a
maximum length of no more than 600 m.
Do not connect the power cord until all other
connections have been completed.
L5BU2_XE(INSTALLATION).book 5 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 6 –
Connections and Settings
■Connections for using coaxial control (System connection)
■To prevent electromagnetic interference
Be sure to attach the clamping cores supplied with the camera unit to the cables as illustrated.
Power cable
Control and alarm input/output cables
Video cable
A RS-485 B
DO NOT CONNECT TO PHONE LINE
1
IN
OUT MONITOR OUT
MON2
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
MAIN
VIDEOAB
TELEMETRY
(1 - 16)
Video input
terminal
CameraCamera
Video input
terminal
Monitor
(sold separately)
Video input
terminal
Terminator
switch
Communication conversion
connectors
System controller
(sold separately)
Digital video recorder (sold separately)
L5BU2_XE(INSTALLATION).book 6 ページ ２００６年１２月８日 金曜日 午後３時５５分

– 7 –
Address Settings Table
Addresses are specified by setting the switches to ON/OFF.
In the table, the circle mark “m” means ON. Set switches as shown in the table.
12345678
ON
ONOFF
12345678
ON
ONOFF
Switch 8
• Address 1 - 127: OFF
• Address 128 - 255: ON
SANYO protocol: 1 - 127 PELCO protocol: 1 - 255
• Switch 8 is unused.
Address
(Camera No.) Switch No.
Protocol
SANYO/PELCO PELCO 1 2 3 4 5 6 7
0* 128
1129 m
2 130 m
3131 m m
4 132 m
5133 m m
6 134 mm
7135 m m m
8 136 m
9137 m m
10 138 mm
11 139 m m m
12 140 mm
13 141 m m m
14 142 mmm
15 143 m m m m
16 144 m
17 145 m m
18 146 mm
19 147 m m m
20 148 mm
21 149 m m m
22 150 mm m
23 151 m m m m
24 152 mm
25 153 m m m
26 154 mmm
27 155 m m m m
28 156 mmm
29 157 m m m m
30 158 mmmm
31 159 m m m m m
32 160 m
33 161 m m
34 162 mm
35 163 m m m
36 164 mm
37 165 m m m
38 166 mm m
39 167 m m m m
40 168 mm
41 169 m m m
42 170 mmm
43 171 m m m m
44 172 mm m
45 173 m m m m
46 174 mmm m
47 175 m m m m m
48 176 mm
49 177 m m m
50 178 mmm
51 179 m m m m
52 180 mmm
53 181 m m m m
54 182 mm mm
55 183 m m m m m
56 184 mmm
57 185 m m m m
58 186 mmmm
59 187 m m m m m
60 188 mmmm
61 189 m m m m m
62 190 mmmmm
63 191 m m m m m m
64 192 m
65 193 m m
66 194 mm
67 195 m m m
68 196 mm
69 197 m m m
70 198 mm m
71 199 m m m m
72 200 mm
73 201 m m m
74 202 mm m
75 203 m m m m
76 204 mm m
77 205 m m m m
78 206 mmm m
79 207 m m m m m
80 208 mm
81 209 m m m
82 210 mmm
83 211 m m m m
84 212 mmm
85 213 mmmm
Address
(Camera No.) Switch No.
Protocol
SANYO/PELCO PELCO 1 2 3 4 5 6 7
86 214 mmmm
87 215 m m m m m
88 216 mm m
89 217 m m m m
90 218 mmmm
91 219 m m m m m
92 220 mmm m
93 221 m m m m m
94 222 mmmm m
95 223 m m m m m m
96 224 mm
97 225 m m m
98 226 mmm
99 227 m m m m
100 228 mmm
101 229 m m m m
102 230 mm mm
103 231 m m m m m
104 232 mmm
105 233 m m m m
106 234 mmmm
107 235 m m m m m
108 236 mm mm
109 237 m m m m m
110 238 mmm mm
111 239 m m m m m m
112 240 mmm
113 241 m m m m
114 242 mmmm
115 243 m m m m m
116 244 mmmm
117 245 m m m m m
118 246 mm mmm
119 247 m m m m m m
120 248 mmmm
121 249 m m m m m
122 250 mmmmm
123 251 m m m m m m
124 252 mmmmm
125 253 m m m m m m
126 254 mmmmmm
127 255 m m m m m m m
Address
(Camera No.) Switch No.
Protocol
SANYO/PELCO PELCO 1 2 3 4 5 6 7
* When setting the address by using the menu screen on the camera, set the address setting switches to “0”.
L5BU2_XE(INSTALLATION).book 7 ページ ２００６年１２月８日 金曜日 午後３時５５分

Pattern Sheet: mm (inch)
186 (7.3)
166 (6.5)
4- φ4.5 (0.2)
P. D φ168 (6.6)
Scale: 1/1
L5BU2_XE(INSTALLATION).book 0 ページ ２００６年１２月８日 金曜日 午後３時５５分

Printed on recycled paper
Imprimé sur du papier recyclé
Impreso en papel reciclado
Gedruckt auf Recyclingpapier
使用再生纸印刷
1AC6P1P3149--
L5BU2/XE (1206KP-SY)
SANYO Electric Co., Ltd.
Printed in Japan
bDimensions: mm (inch)
156 (6.1)
71 (2.8)
φ136 (5.4)
L5BU2_XE(INSTALLATION).book 1 ページ ２００６年１２月８日 金曜日 午後３時５５分
