Introduction1
/
15

The camera supports network operation. By simply connecting a LAN cable to it, you can construct the most
advanced network monitoring system. From the Web browser (Internet Explorer) installed on your PC, you
can operate the camera via the network in an easy-to-use manner.
In addition, it is a PoE product that can be powered through a LAN cable, so you can install it in locations
where there is no power outlet nearby.
The camera has 4-megapixel CMOS sensor that produces clear images at ultra-high resolution.
The camera can deliver full HD H.264 video throughout the network. Connecting a high-definition monitor to
your PC enables full high-definition video monitoring.
The camera supports both H.264 video and JPEG image compression formats, which you can choose from
depending on the network environment.
The camera offers the focus assist function that supports focus adjustment at megapixel image resolution,
allowing you to fine-tune the focus in optimal conditions in an easy manner.
The camera's motion sensor function can work in conjunction with any external alarm device, facilitating the
construction of a high-level security system.
Installing associated software applications on your PC further extends the capabilities of your surveillance system.
Introduction 2
/
15

Image pickup device 1/3" CMOS sensor
Effective pixels 16:9 1920 (H) × 1080 (V), 4:3 2288 (H) × 1712 (V)
Lowest image
illumination
50IRE: 1.0 lx (at F1.2, color mode, high gain)
50IRE: 0.06 lx (at F1.2, black-and-white mode, high gain)
Video S/N ratio 50dB (when AGC is “OFF”)
Lens Built-in varifocal lens f=3 to 9mm, F1.2 to 2.1
Adjusting focus Focus assist function
Day/Night function Auto, color, black-and-white, alarm input switching
( (VDC-HD3300P/VDC-HD3300 only))
White balance Auto (ATW), one push (AWC), manual (R/B gain adjustable), indoor, outdoor,
fluorescent
Backlight compensation Multi-spot evaluative metering, center-weighted average metering, masking
Electronic sensitivity
boosting
Auto (32× max) or Off
Electronic shutter VDC-HD3300P/VDC-HD3100P: 1/25, 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000,
1/4000, 1/10000D
VDC-HD3300/VDC-3100: 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000,
1/10000
Long exposure shutter (1×, 2×, 4×, 8×, 16×, 32×)
Iris control DC iris lens supported
Camera settings Selectable between 2 camera setting patterns
AGC gain Normal/Middle/High (Manual gain setting possible at Off)
Gamma correction 0.45, 1, Mode 1, Mode 2
Aperture compensation On/Off (Correction level adjustable)
VIVID COLOR EFFECT ON/OFF
DNR ON/OFF
Mirror H/V/HV/OFF
Privacy mask On/Off, max. 8 mask patterns
Motion sensor On (masking/detection area setting)/Off
Language selection English, French, German, Spanish, Japanese
Video output Composite output
LAN 10BASE-T/100BASE-TX (RJ-45 connector)
Alarm input 2 (NO/NC), also serve as Day/Night switch (VDC-HD3300P/VDC-HD3300 only)
Alarm output 2 (NO/NC, 16V, 150 mA, open collector)
Introduction 3
/
15

Image/video
compression
H.264/JPEG
Video size (H.264) (16:9) 1920×1080, 1280×720, 640×360, 320×180
(4:3) 1600×1200, 1280×960, 1024×768, 640×480, 320×240
Video size (JPEG) (16:9)1920×1080, 1280×720, 1024×576, 640×360
(4:3) 2288×1712, 1600×1200, 1280×960, 1024×768, 800×600, 640×480, 320×240
Picture quality QUALITY mode: BASIC, NORMAL, ENHANCED, FINE, SUPER FINE
BITRATE mode: User-specified bit rate
Interface 10BASE-T/100BASE-TX
Protocol TCP/IP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
Simultaneous access 20
Security BASIC authentication (ID/password), SSL, IP filtering
International Waterproof
and Dustproof Standard
IP66
Operating ambient
temperature/humidity
–10 to +50°C, 90% RH or less (no condensation)
Power source 12 to 15 VDC/24 VAC±10%, 50/60 Hz, PoE
Power consumption 4,6W, 18W (with heater turned on)
Weight 770 g
Dimensions
Approvals: IP66/CE
This unit has been certified to IP66 standards when properly installed.
Use only an IP66 certified enclosure or an electrical box.
Ensure all openings in enclosure are sealed as per manufacturer's instructions.
1Video cable
2Cushioning sheet
3Hexagonal wrench
4Connector
5Pattern sheet
6CD-ROM
Introduction 4
/
15

To remove the cover, remove the three screws using the supplied hex wrench.
Connecting the camera and monitor using the supplied cable enables you to perform focus and iris adjustments
while monitoring the live video.
For details, see the “Connections” section.
You can use crocodile clip connectors instead of the supplied cable.
This cover protects the lens assembly.
Introduction 5
/
15

These buttons allow you to perform the following operations.
These operations may be performed with the Web browser installed on your PC. For details, refer to the linked
information.
Operation Associated button and use Equivalent network operation screen
Restoring factory default
settings
Press the NEAR button ( 1) and the SET button
(3) simultaneously OPTION SETTINGS (FACTORY
DEFAULT)
Resetting login password Press the FAR button ( 2) and the SET button
(3) simultaneously USER SETTINGS
Adjusting focus For details, refer to the “Lens Adjustment”
section. CAMERA SETTINGS (FOCUS ASSIST/IRIS SETTINGS)
Adjusting iris
Inverting video of wall-
mounted camera
Press the REVERSE button ( 4) Not supported via network operation
For details, see the “Installation
Manual”.
Restarting camera Press the RESET button ( 5) CAMERA SETTINGS (CAMERA
REBOOT)
Viewing Firmware Version For details, refer to the “Viewing Firmware
Version” section. OPTION SETTINGS (FIRMWARE UPDATE)
Introduction 6
/
15

For the detailed procedures for connecting terminals and cables, refer to the “Connections” section.
Use these coupling holes to mount the camera to the separately-sold base bracket.
Use this socket to connect the camera to your PC to enable network operation.
Use this cable to connect a 24 VAC or 12 VDC power supply.
There is no power indicator on the camera.
Alarm input cable: Connect an external switch, infrared sensor, or other device to detect alarm conditions
such as the entry of an intruder.
Alarm output cable: Connect a buzzer, lamp, or other alarm device.
Introduction 7
/
15

Perform the following connections according to the installation environment and application of your camera.
AAlarm Cable Connection
BPower Connection
CNetwork Connection
DCamera Monitor Connection
Before attempting the following connections, be sure to turn off all components of your system.
Improper connection may cause smoke or failures. Before attempting to connect each system
component, carefully read the instruction manual that comes with it to familiarize yourself with the
correct connection procedure.
Alarm Input Terminal Connection
Connect an alarm switch, infrared sensor, or other device to detect alarm conditions to the alarm input cable.
ALARM IN1: Red
ALARM IN2: gray
Introduction 8
/
15

After connecting an alarm device, configure the input conditions for the corresponding alarm input
cable via network operation on the ALARM SETTINGS screen.
To use the alarm input cable as Day/Night switching signal path, follow the steps below.
( (This function is supported only by VDC-HD3300P/VDC-HD3300.))
Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the cable you want to use in [EXT
ALARM].
On the ALARM SETTINGS screen, in [POLARITY], select the signal polarity of the alarm input
terminal.
Connecting an external switch to ALARM IN1 allows you to set the system clock by operating the
switch. To set the system clock, configure the [CLOCK IN] setting on the CLOCK SETTINGS screen.
Alarm Output Terminal Connection
Connect a buzzer, lamp, or other alarm device to the alarm output cable.
ALARM OUT1: Orange
ALARM OUT2: Brown
After connecting an alarm device, configure the output conditions for the corresponding alarm output
cable via network operation on the ALARM SETTINGS screen.
Configuration of alarm output terminal is also possible via remote operation. For that, set [ALARM
OUT] to “REMOTE” on the ALARM SETTINGS (ALARM OUT) screen.
Connect the power terminals (24 VAC/12 VDC) of the camera to a power supply.
AConnection to 24 VAC power supply
Although the power terminals have no polarity, the earth grounding wire must be connected to the GND (earth
grounding) terminal.
BConnection to 12 VDC power supply
Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.
Incorrect polarity may cause damage to the camera.
Be sure to use an 18AWG or thicker wire power cable.
A voltage drop may occur depending on the thickness of the power cable. If you must use a long
power cable, determine the cable type by ensuring that the voltage at the 24-VAC/12-VDC terminals
is within the operating range of the camera.
When using PoE to power the camera, do not use the camera's power terminals.
This camera is designed so that you can use all of its functions via network operation.
By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and
operate it from the Web browser installed on your PC.
Introduction 9
/
15

Use a LAN cable no longer than 100 m (109.4 yards) with the shield type CAT5 or higher.
The supported Web browser is Internet Explorer Ver.6.0 SP2 or higher, or Internet Explorer Ver.7.0.
About the internet connection
Port forwarding for the video port must be enabled on the broadband router.
For details on how to set port forwarding, please refer to your router's Instruction manual.
To connect two or more cameras, on the NETWORK SETTINGS screen, assign them with port
numbers that are different from that of the first camera.
Using PoE
This camera supports PoE (Power over Ethernet). This means that you can install the camera in locations where
there is no 24-VAC/12-VDC power outlet nearby.
When using PoE to power the camera, do not use the camera's power terminals.
Do not power the PoE hub or PoE power adapter until you finish connecting the camera.
AConnecting the PC and camera through a switching hub
You can use a PoE-compatible switching hub to extend the transmission distance.
For details on the extendable distance, please refer to the hub performance in the specifications, etc.
BConnecting the PC and camera through a switching hub and a power adapter
Introduction 10
/
15

To perform focus adjustment with the camera, remove the dome cover, connect the supplied cable to the MON
OUT socket of the camera, and connect a monitor to the camera using a video cable. ( A)
After adjustment, be sure to remove the monitor cable.
You can use crocodile clip connectors instead of the supplied cable. ( B)
Introduction 11
/
15

After installing the lens to the camera, you need to perform the following adjustments for the lens.
AAngle of View/Focus Adjustment (FOCUS ASSIST)

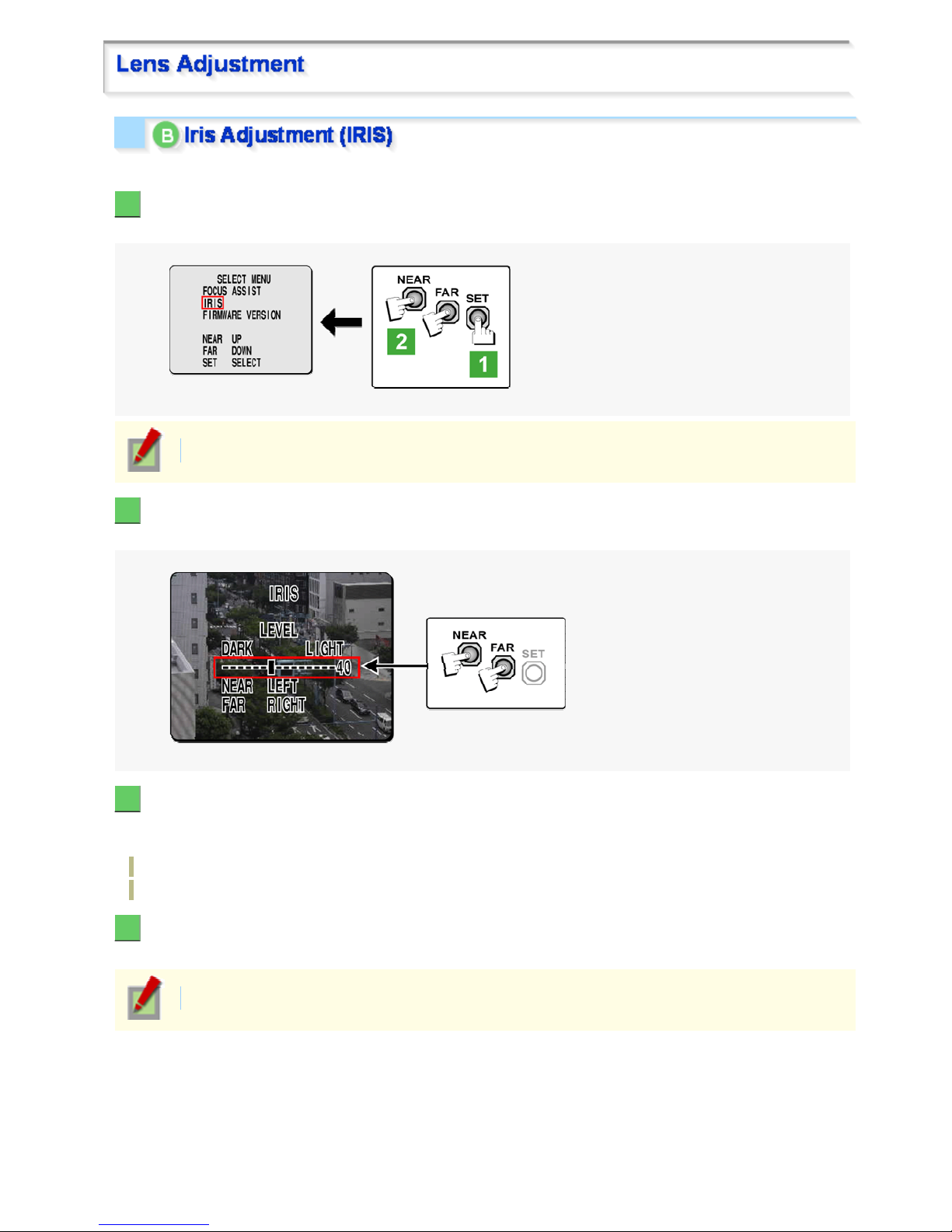

BIris Adjustment (IRIS)
Using network operation, you can use the focus assist function to adjust the focus.
Use the focus assist function to accurately focus on subject in high-resolution megapixel image because otherwise
doing so would be extremely difficult.
When focus cannot be adjusted normally because the video images are too dark or too bright, adjust
the lens iris first ( B).
The focus must be readjusted if the camera has lost focus due to difference in the subject distance or
ambient temperature, the deterioration of the lens and installation environment, and the like that have
been caused over the years.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [FOCUS ASSIST] using the NEAR/FAR button and press the SET button.
The monitor now shows the focus adjustment screen.
Introduction 12
/
15

3Adjust the lens orientation. Then adjust angle of view using the zoom ring, and the focus
using the buttons.
PEAK HOLD: Shows the value of the maximum focus level.
INDICATOR: Shows the value of the current focus level.
Adjusting focus
1Use the NEAR/FAR button to roughly focus on the subject.
Adjust by monitoring the video image on the monitor.
2Press the SET button.
The camera automatically focuses on the subject. Note that the color of the status indicator ( A)
“FOCUSING” turns from black to orange.
If the camera fails to automatically focus on the object, the status indicator ( A) will indicate “ERROR”. In this
case, manually adjust the focus (in Step 3).
3Press the NEAR/FAR button to adjust the focus.
Adjust to set the FA bar ( B) to the maximum level.
When the subject comes into focus, the color of the status indicator ( A) “FOCUSING” turns from black to
orange.
Pressing the button causes the FB bar ( C) gauge to move.
The position changes step by step each time the button is pressed and continuously at a high speed
when the button is held down.
4Press the SET button for 2 seconds or more.
The focus adjustment screen will close.
The focus adjustment screen will also close automatically if left idle for 5 minutes or more.
If video is out of focus in either color or black-and-white mode, adjust the focus in respective modes.
Introduction 13
/
15

If the camera produces too dark, too bright, or other incorrect video images, adjust the lens iris.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [IRIS] using the NEAR/FAR button and press the SET button.
The monitor now shows the iris adjustment screen.
3Press the NEAR/FAR button to adjust the iris level.
The position changes step by step each time the button is pressed and continuously at a high speed when the
button is held down.
NEAR: Closes the iris to produce darker images.
FAR: Opens the iris to produce brighter images.
4Press the SET button for 2 seconds or more.
The iris adjustment screen will be closed.
The iris adjustment screen will also close automatically if left idle for 5 minutes or more.
Introduction 14
/
15

On the FIRMWARE VERSION screen, you can check the firmware version, IP address, and other information on
the camera.
The firmware version can also be checked via network operation on the OPTION SETTINGS screen.
1Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
On the SELECT MENU screen, all information is displayed in English.
2Select [FIRMWARE VERSION] using the NEAR/FAR button and press the SET button.
The monitor now shows the FIRMWARE VERSION screen.
3Press the SET button for 2 seconds or more.
The FIRMWARE VERSION screen closes.
The FIRMWARE VERSION screen will close automatically if left idle for 5 minutes or more.
Introduction 15
/
15

VDC-HD3300/HD300P
VDC-HD3100/HD3100P
From Connection to Network Operation
Live Video Monitoring
Alarm Detection and Output
Software Information
Configuration menu quick reference tables
Quick O
p
eration Guide1
/
10

Follow the steps below to set up and connect the camera to your PC.
You can use alarm video recording, bidirectional audio communications, and other standard features of the
camera, in addition to normal live video monitoring.
1Connect the power cable to the power terminals.
Use a 24-VAC or 12-VDC power supply.
Do not turn on the camera until you complete all connections.
2Connect the network (LAN) socket to your PC using a LAN cable.
Check the operating environment of your PC and perform the following operations:
Check the network information on your PC.
Install the “H.264 Plug-in” from the supplied CD-ROM onto your PC.
3Connect necessary external devices to the alarm input/output terminals.
ALARM IN1/2 terminal: Connect an external switch, infrared sensor, or other device to detect alarm
conditions such as entry of an intruder.
ALARM OUT 1/2: Connect a buzzer, lamp, or other alarm device to output a signal to warn people of the
occurrence of an alarm condition.
4Connect a monitor for focus adjustment to the monitor output socket.
Connect your monitor to the camera via the supplied video cable.
5Turn on the camera.
Live video appears on the monitor.
Quick O
p
eration Guide 2
/
10

To enable surveillance with clear video images, adjust the lens focus while viewing the subject on the
FOCUS ASSIST screen displayed on the monitor.
After adjustment, be sure to remove the monitor cable.
6Access the camera from your PC's Web browser.
Live video appears on the live screen. Now, you can perform all network operations from your PC.
Quick O
p
eration Guide 3
/
10

If you are operating the camera for the first time, check the factory default video/image conditions on the
CODEC/STREAMING SETTINGS screen. Change the default settings as necessary.
For details, refer to the “CODEC/STREAMING SETTINGS” section.
16:9 (Default) →4:3
You can switch between JPEG image and H.264 video using the buttons on the live screen control panel.
The screenshot above shows the factory default settings for each video/image condition.
Quick O
p
eration Guide 4
/
10

If you are operating the camera for the first time, check the factory default alarm detection conditions on the
ALARM SETTINGS screen. Change the default settings as desired.
For details, refer to the “ALARM SETTINGS” section.
You can configure the camera to detect alarm conditions via the “alarm input terminals” or “built-in motion sensor”.
For how to configure the camera to detect alarm conditions via the alarm input terminals, refer to the “Alarm
Input/Output Terminal Connections” section.
Connecting an alarm switch, infrared sensor, or other external device to the ALARM IN1/2 terminal enables the
camera to detect alarm conditions such as entry of an intruder.
Setting Item Default Setting Optional Setting
ALARM IN1/2 (Alarm input
terminal number)
OFF (Disables alarm detection.) ON (Enables alarm detection.)
POLARITY (Signal polarity) NO (Ex.: Detects an alarm when
door is closed) NC (Ex.: Detects an alarm when door is opened.)
DURATION (Alarm retention
duration)
5SEC (Ex.: Records alarm video
for 5 sec.) 10SEC to 5MIN, CC (Retains the alarm state as long as the alarm signal persists.)
The camera uses the built-in motion sensor to detect alarm conditions.
The motion sensor detects an alarm condition in two ways as follows.
Setting Item Default Setting Optional Setting
MOTION (Use of built-in
motion sensor)
OFF (Disables alarm
detection.)
AMASKING
BDETECT
DURATION (Alarm retention
duration)
5SEC (Ex.: Records alarm
video for 5 sec.) 10SEC to 5MIN, CC (Retains an alarm state as long as the motion alarm persists.)
ADisabling motion detection in masked areas
Quick O
p
eration Guide 5
/
10
