Sanyo C21EF27 User manual

Part No. SKSM0200 E7PGV APRIL 1997
Colour Television
Service Manual
Give complete "SERVICE REF. NO." for parts
order or servicing, it is shown on the rating sheet
on the cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission sys-
tem and power source differ from the design
specifications. Refer to the specifications for the
design specifications
Model: C21EF27 (W.EUROPE)
Ser Ref No. C21EF27-01
Product Code: 1113 19406
Chassis: EC5-A
Original Manual
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
21DT1
Power Source AC220~240V 50Hz
Television System System BG
Colour System PAL
Receiving Channels VHF : E2~E12
CATV : X,Y,Z,S1~S41
UHF : 21~69
Aerial input impedance 75ohm
AV Terminal 21 pin SCART (AV1)
Speakers Two 16ohm, 5 x 9cm
Sound output 3W (cont.)
Picture tube 55 cm diagonal, 90˙
Visible picture 51 cm (diagonal)
Dimensions (W x H xD) 696 x 465 x 483 mm
Weight 21.5 kg
Page
Safety precautions ..............................2
Block diagram
Main signal routing ..........................3
Power signal routing........................4
Circuit description .............................5~6
Service control adjustments..............7~8
Circuit alignment.................................9
Memory IC replacement ....................10
Special functions................................11
Cabinet parts list................................12
Chassis electricl parts list...............13~19
Schematic Diagram .........................loose
SPECIFICATIONS CONTENTS

-2- Service manual-EC5 chassis
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube.The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X-
RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this ser-
vice manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits, take
necessary corrective action. Carefully follow the instructions for +B1 volt power supply adjustment, and high volt-
age adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark //!\ in the parts list and the schematic diagram designate components in which safe-
ty can be of special significance. It is particularly recommended that only parts designated on the parts list in this
manual be used for component replacement designated by mark /!\ . No deviations from resistance wattage or
voltage ratings may be made for replacement items designated by mark /!\ .
1: An isolation transformer should be connected in the
power line between the receiver and the AC line when
a service is performed on the primary of the converter
transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3:When replacing a chassis in the cabinet, always be cer-
tain that all the protective devices are installed proper-
ly, such as, control knobs, adjustment covers or
shields, barriers, isolation resistor-capacitor networks
etc.Before returning any television to the customer, the
service technician must be sure that it is completely
safe to operate without danger of electrical shock.

-3-
Service manual-EC5 chassis
BLOCK DIAGRAM (Main signal routing)
This is a diagram for all models and therefore differs slightly from the actual block diagram.
+130V
+24V
+18V
+15V
TU
VL
VH
U IF
Q801
Q101/Q102 Q103/Q104
Q105/Q106
Tuner
Key scan
10 Scan
1 Tu 51 VL
52 VH 3 U
8 Standby
SCL 49
SDA 50
BLK 35
R 34
G 33
B 32
Sharp 3
Bright 6
Cont 5
Colour 4
TV/AV 14
6 SCL
5 SDA
46 45 22 R
23 G 24 B 21 BLK 14 Sharp 17 Bright 25 Cont 26 Colour
Volume 7
13 TV/AV
30 R-Y 31 B-Y
29 R-Y 28 B-Y
30 R-Y
31 B-Y
29 R-Y
28 B-Y 50 Sound
R out 18
G out 19
B out 20
CVBS out 7
SIF in 5
Int.video 13
Ext.video 15
Ext.audio 6
Audio out 1
H out
37 41 43
V-F/B
V out
42
42
8
R-out Q711
G-out Q721
B-out Q701
IC501 V-out
H-out circuit
Q431 Q432
V-control circuit Deflection
Yoke
T471 Flyback Trans.
High Voltage
Q151 X151
X161 Q161 Q154
Q241 SCART
19 20 2, 6
1, 3
Video out
Video in
Audio in
Audio out
Q1032/Q1031
IC801 CPU IC201
IF/video/chroma/def.
IC802 Memory X131
SAW
IC271 1H delay
IC001 Audio out
Power control circuit
T611
converter trans.
AC in
Q839
Power supply circuit
CRT Unit

-4- Service manual-EC5 chassis
(Power supply routing)
D634
+15V
+5V
+18V
+24V
+130V
13
13
IC691 IC661
Q661
Q651
+9V +8V
control circuit Q611, Q612
Power switching Q613
C607
D601~D604
T611 converter trans.
AC in
IC801 CPU
IC802 Memory
A1901 RC Pre-amp
A101 Tuner
IC271 1H delay
IC001 Audio out
Speaker
CRT Unit
T471 FBT
Horizontal Drive circuit
IC501 V-out
IC201 IF/video/chroma/def.
44 8
3
MB
10 36 9
19
8
62
2
V.deflection
+5V
+9V
+5V
+8V
+8V
+18V
+9V
+130V/ +150V
+130V/ +150V
+24V
+24V
Power supply circuit
Standby signal from CPU pin 8
+150V

-5-
Service manual-EC5 chassis
1. POWER SUPPLY
The power supply circuit of the EC5-A chassis is com-
posed of a rectifier smoothing circuit, an oscillation circuit,
a control circuit and an output rectifier circuit. The AC
input voltage is full-wave rectified by the rectifier smooth-
ing circuit, and an unstable DC voltage is generated at
both terminals of the smoothing capacitor C607.This volt-
age is input to the oscillation circuit.The oscillation circuit
is provided with a blocking oscillator circuit that switches
the switching transistor Q613 ON and OFF, and an oscil-
lation frequency and a duty square wave pulse are gener-
ated in the input windings according to operation of the
control circuit. A square-wave pulse whose size is depen-
dent on the turn ratio of the input and output windings is
obtained in the output winding.This is rectified in the out-
put rectifier circuit, and the desired DC voltage is
obtained.
2. IF & DEFLECTION (TDA8361)
The IF output signal from the tuner passes through the
SAW filter, and it is input to pin45 and pin46 of IC201.The
signal input to the IC passes through the IF amplifier,
video detection and video amplifier circuits and is output
from pin7 as a composite video signal. And after this sig-
nal is converted to impedance at Q151, supplies to the
video and chroma amplifier stages.
The sync.-separation circuit separates the video signals
applied to pin13(internal video signal) or pin15(external
video signal) to vertical- and horizontal-sync. signals
respectively. The horizontal oscillator requires no external
components and is fully integrated. The oscillator is
always running when the start-pin36 is supplied with 8V.
Horizontal drive signal is output from pin37. VR361 is for
adjustment of the horizontal centring. The separated ver-
tical-sync. signal from sync. separation circuit passes
through the vertical-separation circuit, and applied to trig-
ger divider circuit. The horizontal oscillation pulse and
input vertical sync. pulse are monitored by the trigger
divider circuit, and switching 50Hz and 60Hz system, the
vertical amplitude automatically adjusted for 50Hz and
60Hz. The output signal from the trigger divider is trig-
gered vertical oscillation circuit consisting of C351, R356
and pin42, and vertical drive pulse is output from pin43.
VR501 is for changing the amount of AC feedback applied
to pin41 and for adjustment of the vertical amplitude.
3.VIDEO CHROMA & R.G.B. (TDA8361)
The composite video signal output from the pin7 of IC201
passes through Q151-Q154, and it is supplied to pin13.
The external video signal output from SCART is supplied
to pin15.The video signal input to pin13 or pin15 is sepa-
rated to luminance (Y) signal and chroma signal in IC201.
These pins are used in common with H/V-sync.separation
input.The peaking ofY signal is adjusted by DC voltage of
pin14. (“SHARPNESS” control) The chroma signal is
divided into R-Y and B-Y chroma signals, demodulated in
IC201, and output from pin30 (R-Y) and pin31 (B-Y).
These chroma signals pass through the 1H delay line cir-
cuit (IC271), and they are input to pin29 (R-Y) and pin28
(B-Y). These R-Y/B-Y signals pass through RGB matrix
circuit and RGB selector circuit of IC201. The internal
RGB signals are generated in RGB matrix circuit and the
RGB selector, consisting linear amplifiers, clamps and
selects either the internal RGB signals or the external
RGB signals input from pin22(R), pin23(G), pin24(B).
Selection is controlled by the voltage at the RGB switch
control (pin21) and mixed RGB modes are possible since
RGB switching is fast. The RGB switch also functions as
a fast blanking pin by blanking the RGB output stages;
here internal and external RGB signals are overruled.The
colour gain is controlled by DC voltage of pin26.
(“COLOUR” control) The contrast control voltage present
at pin25, and the brightness control voltage present at
pin17 controls DC level of RGB signals.The RGB signals
are finally buffered before being available at the RGB out-
put pins [pin20 (R), pin19 (G), pin18 (R)].
4. AUDIO OUTPUT(AN5265)
The audio signal output from pin52 of IC201 is input to
pin2 of IC001 and passes through the pre-amplifier circuit
and drive circuit, after which it is input to the audio ampli-
fier. The audio amplifier is an SEPP (single-ended, push-
pull) OTL type and output to pin8 to directly drive the
speaker.
5.VERTICAL OUTPUT (LA7832/LA7833)
An IC (LA7832/LA7833) is used for the vertical output cir-
cuit in this chassis.The vertical drive pulse from pin43 of
IC201 is input to pin4 of IC501. This pulse drives IC501,
and vertical scanning is performed. In the first half of
scanning a deflecting current is output from pin2 and
passes through the following path:
Vcc(B4) ➞D501 ➞pin3 ➞pin2 ➞DY ➞C512 ➞
VR501/R509.An electric charge is then stored in C512.In
the last half of scanning the current path is C512 ➞DY ➞
pin2 ➞pin1 ➞ VR501/R509 ➞C512. In this way, an
amplifying sawtooth waveform current flows directly to DY
to perform electron beam defection. Next, in the first half
of the banking period the vertical drive pulse suddenly
becomes OFF, and in order to reduce the current flowing
to DY, the current path becomes as follows by the induc-
tance of DY:
DY ➞pin2 ➞pin1 ➞VR501/R509 ➞C512 ➞DY. Also,
when the charge of DY has dissipated, the current path
becomes Vcc24V ➞pin6 ➞pin7 ➞ C502 ➞pin3 ➞
pin2➞DY ➞C512 ➞ VR501/R509, and when the pre-
scribed current value is reached, the vertical drive pulse
becomes ON.This completes one cycle.
6. HORIZONTAL OUTPUT
A horizontal oscillation signal is output from pin37 of
IC201 and switches the drive transistor Q431.This switch-
CIRCUIT DESCRIPTION

-6- Service manual-EC5 chassis
ing signal is current amplified by the drive transformer
T431 and drives the output transistor Q432. When Q432
becomes ON, an amplifying current flows directly to DY
through C441/C442 ➞DY ➞Q432 ➞GND, and defec-
tion is performed in the last half of the scanning period.
Next, when Q432 becomes OFF, the charge that had
been stored in DY up to that point releases a resonance
current to the resonant capacitors C421/C423 and
charges them. The current stored in C421/C423 is then
flowed back to DY, and an opposite charge is then stored
in DY. This opposite charge then switches the dumper
diode in Q432 ON, the resonance state is completed, and
an amplifying current is then flowed again directly to DY
through the dumper diode.By this means, deflection in the
first half of the scanning period is performed, and when
Q432 becomes ON at the end of the first half of the scan-
ning period, deflection during the last half is begun, thus
completing one cycle.
In the PCC circuit consisting of Q461 and Q462, the
parabola signal supplied from the vertical circuit is added
at the horizontal output stage and pincushion compensa-
tion is performed by varying the DC voltage bias. Further,
the ABL voltage is feedback to the base of Q462 to com-
pensate for width variations due to variations in the beam
current.
7. CPU <System andTeletext Control>
Pin description
Pin1: Tuning voltage output
Pin2: Band switch output 3 (UHF)
Pin3: Sharpness control output (6-bit DAC)
Pin4: Colour control output (6-bit DAC)
Pin5: Contrast control output(6-bit DAC)
Pin6: Brightness control output(6-bit DAC)
Pin7: Volume control output(6-bit DAC)
Pin8: Power ON/OFF output (Power-On:Lo)
Pin9: AFT signal input
Pin10: Option SW1&Keyboard scan input (DC)
Pin11: Option SW2
Pin12: 50/60Hz switch input (50Hz: Hi)
Pin13: GND
Pin14: TV/AV switch output (TV: Hi)
Pin15: 5.5/6.5 switch output
Pin16: Nega./posi switch output
Pin17: Function signal input for SCART
Pin18: L switch output
Pin19: L’ switch output
Pin20: LED drive
Pin21: Ignore output
Pin22: GND
Pin23: CVBS input0 (Internal)
Pin24: CVBS input1 (Internal/External)
Pin25: Black
Pin26: IREF
Pin27: Odd/Even output
Pin28: GND
Pin29: -
Pin30: V-deflection stop output(Stop:Lo)
Pin31: RGB REF
Pin32: Blue output for OSD
Pin33: Green output for OSD
Pin34: Red output for OSD
Pin35: Blanking output for OSD
Pin36: H-sync. input (Horizontal pulse for OSD)
Pin37: V-sync. input (Vertical pulse for OSD)
Pin38~39: Supply (+5V)
Pin 40: OSC GND
Pin 41: Oscillator input for CPU
Pin 42: Oscillator output for CPU
Pin 43: Reset input
Pin 44: Supply (+5V)
Pin 45: Protect signal input (L:Power circuit defects)
Pin 46: Ident. signal input
Pin 47: R/C signal input
Pin 48: Mute output in no picture
Pin 49: I2C bus SCL (Serial clock)
Pin 50: I2C bus SDA (Serial date)
Pin 51: Option SW5 & Band switch output1
Pin 52: Band switch output2

-7-
Service manual-EC5 chassis
SW601 F601
Fuse
D615
Q612
Q613
Power switching
T611
Converter
T471
FBT
R224
R492 AJ1
Mains SW
SW1901
Prog+ SW1904
Level-
SW1903
Level+
SW1902
Prog- SW1906
Memory
SW1905
Function
IC801
CPU
IC802
Memory
IC001
Audio output
VR631
+B ADJ.
R638
Q432 H-output
IC501 V-output
VR462
PCC ADJ.
VR461
H-Width
VR501
V-Size
SW501 V-center
JS501
TP-D
IC271
1H delay
TP-A
K1001
IC281
VR361
VR131
AGC
A101
Tuner
IC201
IF/Video/Chroma/Def.
VC141
T141
T101
SIF decoder
B1 POWER SUPPLY ADJ. TU-AGC ADJ.AFT ADJ.
GREY SCALE ADJ.
FOCUS ADJ.
MAIN BOARD
HIGH VOLTAGE &
H-WIDTH ADJ. V-CENTRE ADJ. H-CENTRE ADJ.
V-SIZE ADJ.
VR7
0
B-Dri
v
VR71 R-Dri
v
VR7
0
B-Bi
a
VR72
1
G-Bia
s
VR71
1
R-Bia
s
Q701
Q721 Q711
SERVICE CONTROL ADJUSTMENT
CRT BOARD

-8- Service manual-EC5 chassis
B1 POWER SUPPLY ADJUSTMENT
1. Set VR641 to be mechanical centre before pressing
the main switch.
2.Tune the receiver to PAL circular pattern.
3. Set brightness and contrast controls to normal.
4. Connect digital V-meter to the right side terminal of
R638.
5. By using VR631, adjust voltage to 130 ± 0.5 V (for 14
and 21 inch).
By using VR631, adjust voltage to 150 ± 0.5 V (for 25
and 28 inch).
AFT ADJUSTMENT
1.Tune the receiver to the clearest station.
2. By using T141, adjust AFT to obtain the best picture.
AGC ADJUSTMENT
NOTE: Do not attempt this adjustment with weak
signal.
1.Tune the receiver to the clearest station.
2. Set AGC VR(VR131) in direction which causes snow
noise to appear, then in the opposite direction until
snow noise just disappears.
GREY SCALE ADJUSTMENT
[SCREEN VR ADJUSTMENT]
1.Tune the receiver to the white pattern.
2. Set brightness and contrast controls to normal.
3. Set VR702 and VR712 to be mechanical centre.
4.Turn VR701, VR711 and VR721 fully counter-clock-
wise.
5. Connect a short lead between pin30 of IC801 and
GND to enter the service mode.
6. Set screen VR for one colour to be just visible.
[BIAS VR ADJUSTMENT]
7. By using VR701, VR711 or VR721, adjust line to be
white.
8. Disconnect a short lead.
[DRIVE VR ADJUSTMENT]
9. By using VR701 and VR711, adjust white balance.
HIGH VOLTAGE & WIDTH ADJUSTMENT
[HIGH VOLTAGE ADJUSTMENT]
1.Tune the receiver to circular pattern.
2. Set brightness and contrast controls to maximum.
3. Connect digital V-meter to both terminals of R224, and
high voltage meter to CRT anode.
4. Confirm high voltage to be 21.0 ± 1 KV at beam cur-
rent 0.7mA, and less than 25.0 KV at 0 beam current
(for 14 inch).
Confirm high voltage to be 25.0 ± 1 KV at beam cur-
rent 1.2, and less than 28.0 KV at 0 beam current (for
21 inch).
Confirm high voltage to be 26.0 ± 1 KV at beam cur-
rent 1.3, and less than 29.0 KV at 0 beam current (for
25 inch).
Confirm high voltage to be 26.0 ± 1 KV at beam cur-
rent 1.4, and less than 29.0 KV at 0 beam current (for
28 inch).
[H-WIDTH ADJUSTMENT]
5. If H-width is too wide or narrow, connect or disconnect
a lead wire AD1(for 14 and 21 inch).
Adjust VR462 to obtain proper H- width (for 25 and
28 inch).
6. Reconfirm high voltage.
H-CENTRE ADJUSTMENT
1.Tune the receiver to circular pattern.
2. Adjust H-centre by using VR361.
V-CENTRE ADJUSTMENT
1.Tune the receiver to circular pattern.
2. Adjust V-centre by using SW501.
For 14 inch model, connect or disconnect JS501 to
obtain proper vertical screen centre.
V-SIZE ADJUSTMENT
1.Tune the receiver to circular pattern.
2. Adjust V-size by using VR501.
FOCUS ADJUSTMENT
By using FOCUS VR, adjust focus control for well scan-
ning lines.

-9-
Service manual-EC5 chassis
DC 15.5V
AGC voltage (4.3-4.5V)
Output probe
Input probe
Marker frequency
Sweep ATT
0dB=176mVrms/75
SETTING
C644 +
IC201-pin48
IC201-pin45
(Side b)
IC201-pin7
38.9MHz
20dB
Adjustment
By using T141, adjust "P" to
be maximum amplitude.
Waveform
CIRCUIT ALIGNMENT
VIF alignment
0.002µF
75Ω1kΩ
a
b
10kΩ
Input probe Output probe
P

-10- Service manual-EC5 chassis
P
AS
When you replace a memory IC (IC802), it is neces-
sary to initialise the IC as follows.
A. Initialisation of Memory IC

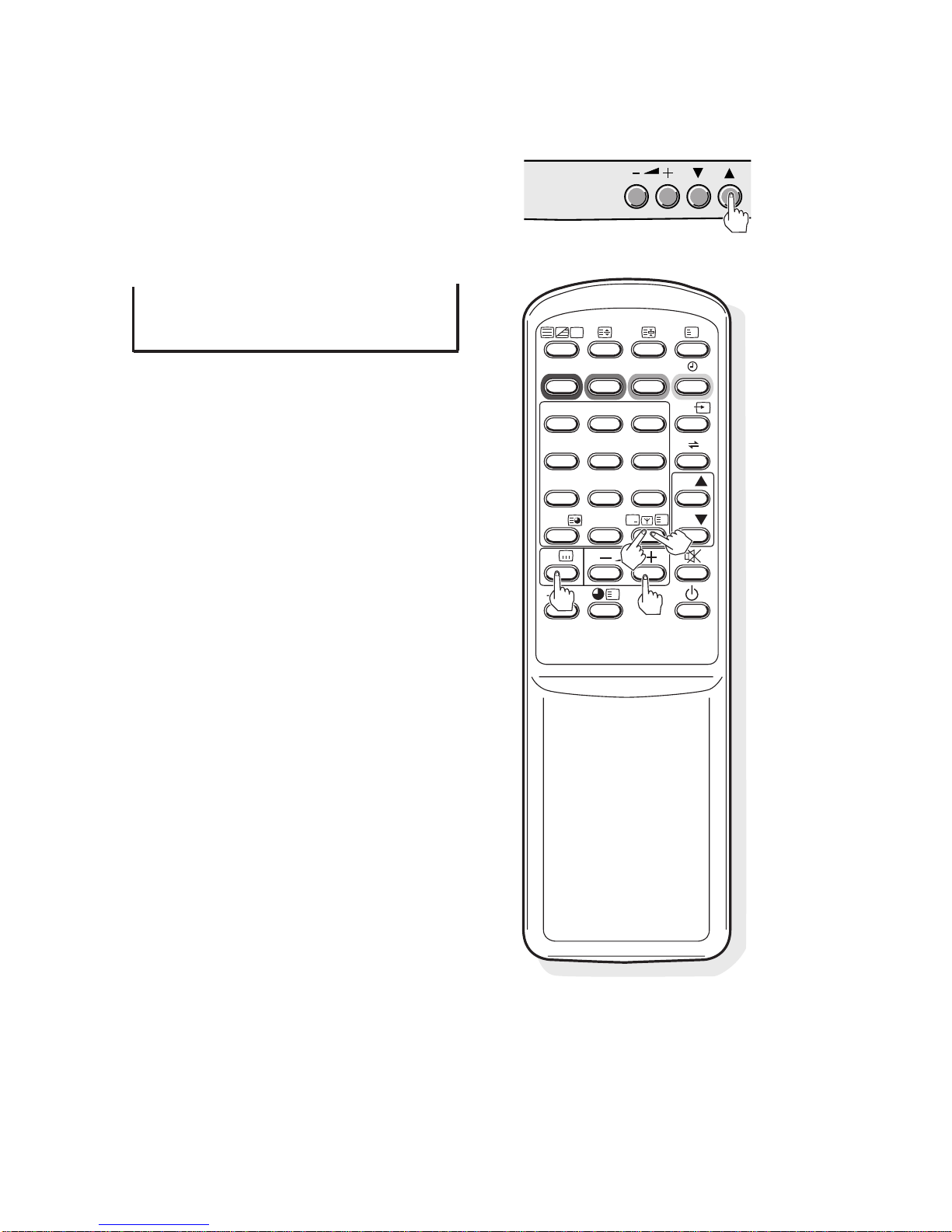

1. When you press and hold the Recall button on the RC
transmitter and then press the Prog + button on theTV
set, the following picture will appear on the screen.
2. Confirm SET number of all items is "0" by pressing the
Function button.
3. If it is not "0", change to "0" by the Level (+/-) button.
(Changing the SET number, automatically memo-
rised.)
4.Press the Recall button, to return the normal TV mode.
For more information, please refer to "special functions"
on the instruction manual.
MEMORY IC REPLACEMENT (Important Notice)
123
456
789
0-/--
i
P
P
P P
TV/
F
X
?
ITEM -1 SET➔ 0
1
2
1
3
4

-11-
Service manual-EC5 chassis
Special Function
Special Function
F
ITEM-1 SET➜0
1
2
3
4
5
6
7
8
9
P
AS
SETTING PROCEDURE
1Press and hold the button on the Remote control handset and then press the P▲ button on the TV set.
2To select the "ITEM" number, press the button on the remote control handset.
3To select the "SET" number, press the or but- ton repeatedly.
4To return to the normal TV mode, press the button.
✐The setting conditions of all items can be confirmed.
✐ Special functions are not cancelled if the TV set is switched
off or the mains disconnected.
This TV set allows you to set up the following special
functions.
■ Maximum volume setting and prohibition of presetting
ITEM-1
Sets the current volume as the maximum volume level and
prohibition of presetting.
SET➞ 0NO
SET➞ 1 YES
■Start up programme position
ITEM-2
Presets the programme position when the set is switched on.
SET➞ 0Last programme position start
SET➞ 1 Programme position "1" start
SET➞ 2 Programme position "2" start
SET➞ 3 Programme position "3" start
SET➞ 4 Programme position "4" start
SET➞ 5 Programme position "5" start
SET➞ 6 Programme position "6" start
SET➞ 7 Programme position "7" start
SET➞ 8 Programme position "8" start
SET➞ 9 "AV" start
1
3
1
2
2
4
●Maximum volume setting and prohibition of presetting
● Start up programme position

-12- E7PGV

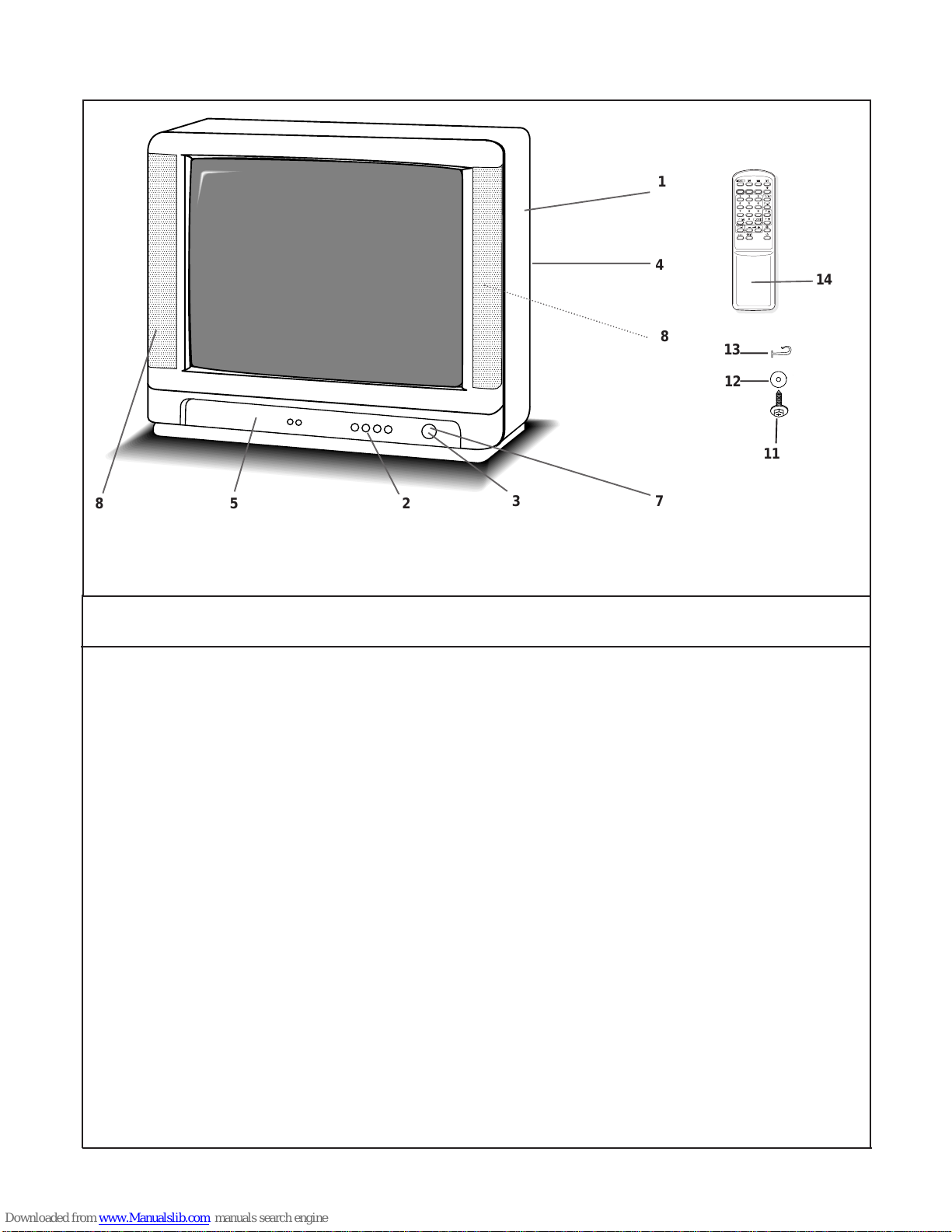

CABINET PARTS
1 610 266 1750 ASSY,CABINET FR-E7PG
2 610 249 5331 BUTTON UNIT A-E7KC
3 610 249 5355 BUTTON POWER-E7PC
4 610 249 5072 CABINET BACK-E7PC
5 610 266 1736 DEC SHEET-E7PA
6 610 253 2449 HOLDER AC CORD-GBR-D4VA
7 610 261 3032 SPRING-E7GC (For AC button)
8 610 266 1040 ASSY,GRILL SP-F2RE
9 411 076 1400 SCREW TPG 4 X 14 (Back cover)
10 411 076 1004 SCREW TPG 4 X 12 (Speakers + buttons)
11 412 009 3003 CRT SCREW 6 X 30 (CRT)
12 610 224 5721 CRT CUSHION-B3MY
13 610 265 4202 HOLDER DEGAUSS COIL-F3SC
REMOTE CONTROL
14 JXYC RC TRANSMITTER
645 000 6708 BATTERY,MANGAN,COMPOSITE
INSTRUCTION MANUAL
SKP10086 INST MANUAL-E7PG(1)GB,F,D,NL,GR
SKP10087 INST MANUAL-E7PG(2)I,S,P,SF,DK
SKP20105 SCHEMATIC DIAGRAM-E7PGV
Ref. No. Part No. Description
CABINET PARTS LIST SERVICE REF.NO. C21EF27-01
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
,,,
11
123
456
789
0-/--
i
P
P
P P
TV/
F
X
?
14
2
5
1
8
4
87
3
12
13

-13-
E7PGV
/!\
SERVICE REF. No. C21EF27-01
OUT OF CIRCUIT BOARD
PICTURE TUBE
/!\Q901 414 007 9001 CRT A51EBV13X09
COIL
/!\L901 645 002 5624 COIL,DEGAUSSING
645 002 5631 COIL,DEGAUSSING
MISCELLANEOUS
SP901 610 233 8409 SPEAKER 160HM
SP902 610 233 8409 SPEAKER 160HM
/!\W901 645 012 7632 ASSY,CORD,POWER
W902 610 251 5824 GROUNDING CONNECTOR
ASSY,PWB,MAIN E7PGV
1AA0B10E346HA
TRANSISTOR
Q101 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q102 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1021 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1022 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q103 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1031 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1032 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
Ref. No. Part No. Description Ref. No. Part No. Description
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a ! mark in this parts list and the circuit diagram show components whose value have spe-
cial significance to product safety. It is particularly recommended that only parts specified on the following parts list be
used for components replacement pointed out by the mark.
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G: ±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G: ±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W: +100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Rated value: P=pico farad, U=Micro farad
Material:
CERAMIC.......... Ceramic
MT-PAPER........ Metallized Paper
POLYESTER..... Polyester
MT-POLYEST.... Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarised Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND... Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES.... Fusible
CHASSIS ELECTRICAL PARTS LIST

405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q104 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q105 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q106 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q121 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q151 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q154 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q161 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q2001 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q201 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q241 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q251 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q431 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q432 405 022 6809 TR 2SD1651-CTV-YB
Q611 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q612 405 058 0208 TR 2SC3807-R-CTV-YA
Q613 405 022 8506 TR 2SD1710-CTV-YB
Q631 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q651 405 089 0000 TR 2SA1707-S
405 089 0109 TR 2SA1707-T
405 009 6907 TR 2SB985-S
405 009 7003 TR 2SB985-T
Q661 405 008 4805 TR 2SB764-E
Q682 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q685 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q686 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q801 405 118 4207 TR PH2369
Q831 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q839 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q861 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q871 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q872 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q873 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q874 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q875 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
INTEGRATED CIRCUIT
IC001 409 073 1509 IC AN5265
IC201 409 380 8703 IC TDA8361/N5
IC271 409 291 0605 IC TDA4661/V2
409 322 0505 IC TDA4662/V1
409 371 6909 IC TDA4662/V2
IC501 409 183 5008 IC LA7832
IC661 409 367 2809 IC BA178M09T
409 366 7904 IC UPC78M09AHF
IC691 409 298 5306 IC AN78M05 LB
Ref. No. Part No. Deacription Ref. No. Part No. Deacription
-14- E7PGV

409 241 5407 IC BA178M05T
409 265 4806 IC L78M05CV
409 172 1509 IC MC78M05CT
409 320 5700 IC UPC78M05AHF
IC801 410 276 7106 IC SAA5290ZP/065
IC802 409 247 7702 IC ST24C02AB1
409 281 8307 IC 24C02A/P
409 333 3700 IC 24LC02B/P
CAPACITOR
C001 403 043 3906 ELECT 33U M 16V
C002 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C003 403 059 3808 POLYESTER 2200P K 50V
403 179 2606 POLYESTER 2200P K 50V
C004 403 051 0607 ELECT 4.7U M 50V
C005 403 041 8804 ELECT 10U M 16V
C006 403 041 8804 ELECT 10U M 16V
C010 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C011 403 045 1504 ELECT 1000U M 25V
C012 403 199 9708 ELECT 470U M 25V
C013 403 086 2300 NP-ELECT 1U M 50V
C020 403 069 8305 CERAMIC 0.01U Z 50V
C100 403 043 9106 ELECT 47U M 16V
C1001 403 009 5708 CERAMIC 100P J 50V
C1002 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C1003 403 069 9500 CERAMIC 0.01U Z 50V
C1004 403 041 8804 ELECT 10U M 16V
C101 403 043 9106 ELECT 47U M 16V
C1021 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C105 403 049 0008 ELECT 1U M 50V
C106 403 069 9500 CERAMIC 0.01U Z 50V
C115TM 403 069 8315 CERAMIC 0.01U Z 50V
C121 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C131 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C132 403 069 1702 CERAMIC 1000P K 50V
C133 403 069 9500 CERAMIC 0.01U Z 50V
C134 403 049 9803 ELECT 2.2U M 50V
C135 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C136 403 194 4609 ELECT 470U M 16V
C137 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C138 403 069 9500 CERAMIC 0.01U Z 50V
C140 403 010 8507 CERAMIC 12P J 50V
C141 403 028 4102 CERAMIC 56P J 50V
C142 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C143 403 073 4201 CERAMIC 3900P K 50V
C153 403 011 4904 CERAMIC 120P J 50V
C155 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C160 403 069 1702 CERAMIC 1000P K 50V
C161 403 072 5001 CERAMIC 270P K 50V
C171 403 049 0008 ELECT 1U M 50V
C172 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C173 403 041 8804 ELECT 10U M 16V
C2001 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2002 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2003 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C201 403 014 3409 CERAMIC 18P J 50V
C202 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C203 403 073 9107 CERAMIC 4700P K 50V
C204 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C205 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C206 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C207 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C208 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C212 403 049 9803 ELECT 2.2U M 50V
C215 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C222 404 056 5109 ELECT 2.2U M 100V
C231 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C233 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C251 403 043 6006 ELECT 330U M 16V
C271 403 069 1702 CERAMIC 1000P K 50V
C272 403 069 1702 CERAMIC 1000P K 50V
C273 403 069 9500 CERAMIC 0.01U Z 50V
C275 403 069 9500 CERAMIC 0.01U Z 50V
C276 403 069 9500 CERAMIC 0.01U Z 50V
C277 403 069 9500 CERAMIC 0.01U Z 50V
C351 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C352 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C353 403 073 9107 CERAMIC 4700P K 50V
C354 403 049 0008 ELECT 1U M 50V
C361 403 072 5605 CERAMIC 2700P K 50V
C362 403 069 9500 CERAMIC 0.01U Z 50V
C363 403 042 2405 ELECT 100U M 16V
/!\C421 404 046 8400 MT-POLYPRO 8200P J 1.5K
/!\C423 403 324 2406 CERAMIC 330P K 3K
403 287 3601 CERAMIC 330P K 3K
403 232 3007 CERAMIC 330P K 3K
C429 403 066 6106 MT-POLYEST 0.47U J 250V
C432 403 075 7101 CERAMIC 1000P K 500V
C433 403 076 3102 CERAMIC 3900P K 500V
C434 403 054 0703 ELECT 47U M 35V
C438 403 059 3808 POLYESTER 2200P K 50V
403 179 2606 POLYESTER 2200P K 50V
/!\C441 403 216 7601 POLYPRO 0.36U J 200V
C445 403 049 4204 ELECT 10U M 50V
C491 403 076 5304 CERAMIC 680P K 500V
C492 403 115 0802 ELECT 22U M 100V
C501 403 054 1502 ELECT 470U M 35V
C502 403 053 2104 ELECT 220U M 35V
C503 403 024 2102 CERAMIC 39P J 50V
C504 403 069 9500 CERAMIC 0.01U Z 50V
C505 403 075 7101 CERAMIC 1000P K 500V
C506 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C511 403 188 1201 MT-POLYEST 0.15U K 100V
403 313 7603 MT-COMPO 0.15U J 100V
C512 403 148 0404 ELECT 1000U M 25V
C513 403 049 4204 ELECT 10U M 50V
C520 403 069 1702 CERAMIC 1000P K 50V
/!\C601 404 056 1408 MT-POLYEST 0.1U M 250V
404 074 6508 MT-COMPO 0.1U K 250V
/!\C602 404 056 1408 MT-POLYEST 0.1U M 250V
404 074 6508 MT-COMPO 0.1U K 250V
C606 403 076 6707 CERAMIC 1000P K 1K
403 312 8205 CERAMIC 1000P K 1K
C607 404 038 1600 ELECT 100U M 400V
C614 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C615 403 058 2604 POLYESTER 0.015U J 50V
403 179 3207 POLYESTER 0.015U J 50V
C616 403 247 6604 CERAMIC 680P K 2K
403 275 8205 CERAMIC 680P K 2K
Ref. No. Part No. Deacription Ref. No. Part No. Deacription
-15-
E7PGV

403 232 2109 CERAMIC 680P K 2K
C617 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
/!\C621 404 059 9203 CERAMIC 1000P M 400V
404 060 6000 CERAMIC 1000P M 400V
/!\C624 404 044 2806 CERAMIC 470P K 400V
404 044 2707 CERAMIC 470P M 400V
C631 403 247 5003 CERAMIC 470P K 1K
403 269 1809 CERAMIC 470P K 1K
403 232 0501 CERAMIC 470P K 1K
C634 403 247 5003 CERAMIC 470P K 1K
403 269 1809 CERAMIC 470P K 1K
403 232 0501 CERAMIC 470P K 1K
C641 404 042 4505 ELECT 220U M 160V
C643 403 148 2002 ELECT 470U M 35V
C644 403 148 0404 ELECT 1000U M 25V
403 134 5307 ELECT 1000U M 25V
C645 403 148 0404 ELECT 1000U M 25V
403 134 5307 ELECT 1000U M 25V
C662 403 044 1703 ELECT 470U M 16V
C663 403 040 3701 ELECT 220U M 10V
C685 403 049 0008 ELECT 1U M 50V
C691 403 039 6508 ELECT 100U M 10V
C800 401 037 5014 MT-GLAZE 0.000 ZA 1/10W
C801 403 069 9500 CERAMIC 0.01U Z 50V
C805 403 051 0607 ELECT 4.7U M 50V
C807 403 070 2606 CERAMIC 0.1U Z 50V
C814 403 046 9905 ELECT 4.7U M 25V
C819 403 046 9905 ELECT 4.7U M 25V
C824 403 049 0008 ELECT 1U M 50V
C829 403 049 0008 ELECT 1U M 50V
C834 403 049 0008 ELECT 1U M 50V
C841 403 069 9500 CERAMIC 0.01U Z 50V
C861 403 138 5600 POLYESTER 5600P J 50V
403 179 0800 POLYESTER 5600P J 50V
C870 403 022 8205 CERAMIC 33P J 50V
C871 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C872 403 043 9106 ELECT 47U M 16V
C873 403 018 0503 CERAMIC 22P J 50V
C874 403 018 0503 CERAMIC 22P J 50V
C875 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C878 403 073 9107 CERAMIC 4700P K 50V
C879 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C881 403 069 9500 CERAMIC 0.01U Z 50V
C882 403 041 8804 ELECT 10U M 16V
C885 403 069 1702 CERAMIC 1000P K 50V
RESISTOR
R001 401 018 1605 CARBON 33 JA 1/4W
R002 401 027 2303 CARBON 560 JA 1/6W
R003 401 024 7400 CARBON 10K JA 1/6W
R004 401 024 7004 CARBON 1K JA 1/6W
R006 401 024 7430 CARBON 10K JA 1/6W
R1001 401 037 6803 MT-GLAZE 12K JA 1/10W
R1002 401 037 6803 MT-GLAZE 12K JA 1/10W
R1003 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R1004 401 038 7601 MT-GLAZE 560 JA 1/10W
R1005 401 037 5707 MT-GLAZE 100K JA 1/10W
R1007 401 027 6608 CARBON 75 JA 1/6W
R1008 401 026 7408 CARBON 39K JA 1/6W
R1009 401 038 2200 MT-GLAZE 27K JA 1/10W
R101 401 038 6505 MT-GLAZE 47K JA 1/10W
R1011 401 027 6608 CARBON 75 JA 1/6W
R1015 401 027 6608 CARBON 75 JA 1/6W
R1016 401 027 6608 CARBON 75 JA 1/6W
R1019 401 027 6608 CARBON 75 JA 1/6W
R102 401 037 6803 MT-GLAZE 12K JA 1/10W
R1020 401 027 6608 CARBON 75 JA 1/6W
R1021 401 038 6307 MT-GLAZE 470 JA 1/10W
R1022 401 024 7400 CARBON 10K JA 1/6W
R1023 401 020 2003 CARBON 4.7K JA 1/4W
R1026 401 038 7601 MT-GLAZE 560 JA 1/10W
R1027 401 038 7601 MT-GLAZE 560 JA 1/10W
R1028 401 038 7601 MT-GLAZE 560 JA 1/10W
R1029 401 038 5003 MT-GLAZE 390 JA 1/10W
R103 401 038 6505 MT-GLAZE 47K JA 1/10W
R1031 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R1032 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R1033 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R104 401 037 6803 MT-GLAZE 12K JA 1/10W
R105 401 038 6505 MT-GLAZE 47K JA 1/10W
R106 401 037 6803 MT-GLAZE 12K JA 1/10W
R109 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R110 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R121 401 038 6505 MT-GLAZE 47K JA 1/10W
R122 401 038 0909 MT-GLAZE 220K JA 1/10W
R123 401 038 0909 MT-GLAZE 220K JA 1/10W
R133 401 037 9101 MT-GLAZE 180 JA 1/10W
R134 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R135 401 038 0800 MT-GLAZE 22K JA 1/10W
R137 401 037 5202 MT-GLAZE 100 JA 1/10W
R138 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R141 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R145 401 038 3504 MT-GLAZE 330 JA 1/10W
R150 401 037 5400 MT-GLAZE 1K JA 1/10W
R151 401 019 1040 CARBON 390 JA 1/4W
R152 401 037 6605 MT-GLAZE 120 JA 1/10W
R160 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R161 401 019 1000 CARBON 390 JA 1/4W
R162 401 037 5014 MT-GLAZE 0.000 ZA 1/10W
R163 401 025 7429 CARBON 220 JA 1/6W
R164 401 038 6208 MT-GLAZE 47 JA 1/10W
R170 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R171 401 037 5608 MT-GLAZE 10K JA 1/10W
R173 401 037 5014 MT-GLAZE 0.000 ZA 1/10W
R174 401 037 8005 MT-GLAZE 15K JA 1/10W
R1901 401 027 3003 CARBON 56K JA 1/6W
R1902 401 025 1902 CARBON 15K JA 1/6W
R1903 401 023 2802 CARBON 8.2K JA 1/4W
R1904 401 026 9907 CARBON 4.7K JA 1/6W
R1905 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R1906 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1907 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R1908 401 038 3504 MT-GLAZE 330 JA 1/10W
R1909 401 037 5608 MT-GLAZE 10K JA 1/10W
R1911 401 026 9600 CARBON 470 JA 1/6W
R1912 401 025 7805 CARBON 2.2K JA 1/6W
R2001 401 038 2200 MT-GLAZE 27K JA 1/10W
R2002 401 037 5608 MT-GLAZE 10K JA 1/10W
R2003 401 037 6803 MT-GLAZE 12K JA 1/10W
R2004 401 037 7800 MT-GLAZE 150 JA 1/10W
R2005 401 013 6407 CARBON 12K JA 1/4W
R201 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R202 401 037 5707 MT-GLAZE 100K JA 1/10W
R203 401 037 5202 MT-GLAZE 100 JA 1/10W
R204 401 037 5202 MT-GLAZE 100 JA 1/10W
R205 401 037 5202 MT-GLAZE 100 JA 1/10W
R213 401 037 8005 MT-GLAZE 15K JA 1/10W
R214 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R217 401 038 0800 MT-GLAZE 22K JA 1/10W
R218 401 015 2704 CARBON 1.8K JA 1/4W
R222 401 013 7305 CARBON 120K JA 1/4W
R223 401 024 9701 CARBON 12K JA 1/6W
R224 401 012 5708 CARBON 1K JA 1/4W
R226 401 037 5707 MT-GLAZE 100K JA 1/10W
R231 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R232 401 037 5202 MT-GLAZE 100 JA 1/10W
R241 401 038 6307 MT-GLAZE 470 JA 1/10W
R242 401 025 7409 CARBON 220 JA 1/6W
R243 401 025 7409 CARBON 220 JA 1/6W
R251 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
Ref. No. Part No. Deacription Ref. No. Part No. Deacription
-16- E7PGV

R252 401 037 5608 MT-GLAZE 10K JA 1/10W
R253 401 024 7400 CARBON 10K JA 1/6W
R271 401 016 2604 CARBON 220 JA 1/4W
R351 401 024 6700 CARBON 100 JA 1/6W
R352 401 037 5806 MT-GLAZE 1M JA 1/10W
R356 401 037 5202 MT-GLAZE 100 JA 1/10W
R357 401 037 5618 MT-GLAZE 10K JA 1/10W
R361 401 038 5409 MT-GLAZE 390K JA 1/10W
R363 401 038 0800 MT-GLAZE 22K JA 1/10W
R364 401 037 5202 MT-GLAZE 100 JA 1/10W
R365 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R371 401 021 3009 CARBON 5.6K JA 1/4W
R429 402 069 8704 WIRE WOUND 8.2 KA 7W
402 076 0609 WIRE WOUND 8.2 KA 7W
R432 401 037 5400 MT-GLAZE 1K JA 1/10W
R433 401 007 1104 CARBON 1K JA 1/2W
R434 401 009 9306 CARBON 390 JA 1/2W
R444 401 058 3706 OXIDE-MT 1K JA 1W
R447 401 026 9907 CARBON 4.7K JA 1/6W
R448 401 009 5803 CARBON 330 JA 1/2W
R481 401 064 5701 OXIDE-MT 1.8 JA 2W
R491 401 008 3701 CARBON 2.2 JA 1/2W
R495 401 025 4903 CARBON 180K JA 1/6W
R496 401 027 2600 CARBON 5.6K JA 1/6W
R501 401 020 2003 CARBON 4.7K JA 1/4W
R502 401 026 8108 CARBON 4.7 JA 1/6W
R505 401 024 7400 CARBON 10K JA 1/6W
R506 401 025 1605 CARBON 1.5K JA 1/6W
R507 401 025 7409 CARBON 220 JA 1/6W
R508 401 026 1000 CARBON 2.7K JA 1/6W
R509 401 057 9105 OXIDE-MT 1.2 JA 1W
R511 401 060 7402 OXIDE-MT 270 JA 1W
R513 401 059 3903 OXIDE-MT 1.5K JA 1W
R514 401 025 5405 CARBON 2.2 JA 1/6W
/!\R601 401 008 8607 CARBON 220K JA 1/2W
R602 402 060 8109 WIRE WOUND 3.9 KA 5W
402 072 4205 WIRE WOUND 3.9 KA 5W
R611 401 027 2600 CARBON 5.6K JA 1/6W
R615 401 016 4806 CARBON 22K JA 1/4W
R617 401 024 7004 CARBON 1K JA 1/6W
R619 401 016 1508 CARBON 22 JA 1/4W
R620 401 007 5805 CARBON 120K JA 1/2W
R621 401 007 5805 CARBON 120K JA 1/2W
R622 401 014 5201 CARBON 15K JA 1/4W
R623 401 025 7805 CARBON 2.2K JA 1/6W
R624 401 069 1708 OXIDE-MT 68 JA 2W
R625 401 069 1708 OXIDE-MT 68 JA 2W
R626 401 018 3401 CARBON 3.3K GA 1/4W
/!\R628 402 000 8305 SOLID 5.6M KA 1/2W
/!\R629 402 000 8305 SOLID 5.6M KA 1/2W
R635 401 012 8105 CARBON 100K JA 1/4W
R636 401 020 2003 CARBON 4.7K JA 1/4W
R637 401 014 6109 CARBON 150K JA 1/4W
R638 401 060 9307 OXIDE-MT 27K JA 1W
R639 401 024 9701 CARBON 12K JA 1/6W
R642 401 059 3903 OXIDE-MT 1.5K JA 1W
R645 401 064 6302 OXIDE-MT 10 JA 2W
R646 401 025 7805 CARBON 2.2K JA 1/6W
R651 401 012 7009 CARBON 10K JA 1/4W
R652 401 019 1901 CARBON 3.9K JA 1/4W
R661 401 012 7009 CARBON 10K JA 1/4W
R662 401 069 5607 OXIDE-MT 8.2 JA 2W
R663 401 013 5301 CARBON 1.2K JA 1/4W
R666 401 008 0205 CARBON 18 JA 1/2W
R681 401 012 7009 CARBON 10K JA 1/4W
R686 401 016 5803 CARBON 220K JA 1/4W
R687 401 021 5003 CARBON 560K JA 1/4W
R688 401 012 7009 CARBON 10K JA 1/4W
R689 401 025 8208 CARBON 22K JA 1/6W
R800 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R801 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R802 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R803 401 037 9408 MT-GLAZE 180K JA 1/10W
R804 401 012 7009 CARBON 10K JA 1/4W
R805 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R806 401 066 2104 OXIDE-MT 18K JA 2W
R807 401 037 5608 MT-GLAZE 10K JA 1/10W
R811 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R812 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R813 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R814 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R816 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R817 401 037 5608 MT-GLAZE 10K JA 1/10W
R818 401 038 0800 MT-GLAZE 22K JA 1/10W
R819 401 038 6505 MT-GLAZE 47K JA 1/10W
R821 401 037 5202 MT-GLAZE 100 JA 1/10W
R822 401 037 5608 MT-GLAZE 10K JA 1/10W
R823 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R824 401 026 4605 CARBON 33K JA 1/6W
R826 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R827 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R828 401 038 3702 MT-GLAZE 33K JA 1/10W
R831 401 037 5202 MT-GLAZE 100 JA 1/10W
R832 401 037 6803 MT-GLAZE 12K JA 1/10W
R833 401 039 0502 MT-GLAZE 82K JA 1/10W
R834 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R836 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R837 401 038 6505 MT-GLAZE 47K JA 1/10W
R838 401 037 8005 MT-GLAZE 15K JA 1/10W
R839 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R840 401 020 2003 CARBON 4.7K JA 1/4W
R841 401 038 0800 MT-GLAZE 22K JA 1/10W
R842 401 019 1901 CARBON 3.9K JA 1/4W
R843 401 037 5608 MT-GLAZE 10K JA 1/10W
R844 401 037 5608 MT-GLAZE 10K JA 1/10W
R846 401 020 2003 CARBON 4.7K JA 1/4W
R847 401 012 7009 CARBON 10K JA 1/4W
R848 401 020 2003 CARBON 4.7K JA 1/4W
R852 401 012 5708 CARBON 1K JA 1/4W
R856 401 016 4806 CARBON 22K JA 1/4W
R861 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R862 401 038 0800 MT-GLAZE 22K JA 1/10W
R863 401 038 0800 MT-GLAZE 22K JA 1/10W
R864 401 037 5400 MT-GLAZE 1K JA 1/10W
R865 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R866 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R867 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R868 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R869 401 038 2200 MT-GLAZE 27K JA 1/10W
R870 401 038 0800 MT-GLAZE 22K JA 1/10W
R871 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R872 401 038 3702 MT-GLAZE 33K JA 1/10W
R873 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R874 401 037 5608 MT-GLAZE 10K JA 1/10W
R875 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R876 401 037 5608 MT-GLAZE 10K JA 1/10W
R877 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R878 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R879 401 012 7009 CARBON 10K JA 1/4W
R880 401 038 6505 MT-GLAZE 47K JA 1/10W
R881 401 038 2200 MT-GLAZE 27K JA 1/10W
R883 401 020 0801 CARBON 470 JA 1/4W
R884 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R885 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R887 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R891 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R892 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R895 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R896 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R897 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R898 401 038 5102 MT-GLAZE 3.9K JA 1/10W
VARIABLE RESISTOR
VR131 645 006 5422 VR,SEMI,10K N
Ref. No. Part No. Deacription Ref. No. Part No. Deacription
-17-
E7PGV

610 239 7567 VR B-10K
VR361 645 006 5422 VR,SEMI,10K N
610 239 7567 VR B-10K
VR501 645 006 5408 VR,SEMI,100 N
610 232 7908 VR,SEMI,100 N
VR631 645 006 5514 VR,SEMI,2.2K N
610 239 7574 VR B-2K
TRANSFORMER
T141 610 037 4522 S COIL
T431 610 000 1053 DRIVE TRANS
610 000 1060 DRIVE TRANS
/!\T471 645 014 2987 TRANS,FLYBACK
/!\T611 645 007 7487 TRANS,POWER,PULSE
645 009 0332 TRANS,POWER,PULSE
COIL
L1002 645 001 4567 INDUCTOR,10U K
L1003 645 001 4567 INDUCTOR,10U K
L1006 645 001 4567 INDUCTOR,10U K
L1021 645 002 1787 CORE,PIPE
L103 645 008 2894 INDUCTOR,5.6U K
L141 645 001 4567 INDUCTOR,10U K
L151 645 008 2924 INDUCTOR,8.2U K
L161 645 001 4567 INDUCTOR,10U K
L201 645 008 2863 INDUCTOR,4.7U K
L202 645 008 2863 INDUCTOR,4.7U K
L203 645 008 2863 INDUCTOR,4.7U K
L431 610 032 5852 FILTER COIL
610 032 5869 FILTER COIL
645 008 5659 INDUCTOR,5.6U K
L444 610 000 0605 LINEARITY COIL
610 210 8071 LINEARITY COIL
L445 610 000 0278 COIL
610 205 1117 COIL
L521 645 001 5748 INDUCTOR,33U K
/!\L601 645 012 3337 LINE FILTER
L607 610 237 1000 PIPE CORE
L608 610 237 1000 PIPE CORE
L615 645 002 1787 CORE,PIPE
L801 645 008 2894 INDUCTOR,5.6U K
L841 645 008 0203 INDUCTOR,5.6U K
L871 645 008 0203 INDUCTOR,5.6U K
L881 645 011 0221 INDUCTOR,1.5U K
DIODE
D001 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D002 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D1007 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1011 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1015 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1016 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1019 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1020 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1021 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D1031 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D1032 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D135 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D1910 407 116 6504 LED SLP-181B-51
D222 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D251 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D252 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D253 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D254 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D271 407 053 6407 ZENER DIODE MTZ5.1C
407 056 8200 ZENER DIODE RD5.1EB3
407 163 8209 ZENER DIODE UZ-5.1BCC
D351 407 163 9909 ZENER DIODE UZ-9.1BCA
407 162 2703 ZENER DIODE UZ-9.1BCB
D361 407 063 8309 ZENER DIODE MTZJ11C
407 158 3400 ZENER DIODE UZ-11BSC
D445 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D446 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D447 407 199 8600 ZENER DIODE UZ-7.5BSC
407 199 8709 ZENER DIODE UZ-8.2BSA
D491 407 124 6404 DIODE ERA18-04
407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
D495 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D501 407 005 7308 DIODE EM01Z
408 009 9008 DIODE BYD33D
D603 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D604 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D605 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D606 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D614 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
/!\D615A 407 173 2907 PHOTO COUPLE PC123F2
D616 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D617 407 007 6606 DIODE ES1
407 007 6903 DIODE ES1Z
408 009 9008 DIODE BYD33D
D618 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D619 407 057 8209 ZENER DIODE RD8.2EB1
D631 407 007 7702 DIODE EU2A
D633 407 007 7603 DIODE EU2
407 007 7801 DIODE EU2Z
408 007 2506 DIODE BYW32
D634 407 007 7603 DIODE EU2
407 007 7801 DIODE EU2Z
408 007 2506 DIODE BYW32
D635 407 007 7603 DIODE EU2
407 007 7801 DIODE EU2Z
408 007 2506 DIODE BYW32
D641 407 057 4003 ZENER DIODE RD6.8EB1
D643 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D644 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D645 408 007 8607 DIODE 1N4148
Ref. No. Part No. Deacription Ref. No. Part No. Deacription
-18- E7PGV

407 013 1206 DIODE 1S1555
D646 407 053 8302 ZENER DIODE MTZ8.2A
407 057 8209 ZENER DIODE RD8.2EB1
407 151 9102 ZENER DIODE UZ-8.2BCA
D649 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D661 407 005 8602 DIODE ERA15-02
D669 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D683 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D685 407 057 4003 ZENER DIODE RD6.8EB1
D805 409 013 0104 IC HZT33
409 026 8005 IC L5630
409 057 5103 IC UPC574J
D861 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D862 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D871 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D872 407 055 7907 ZENER DIODE RD3.6EL
MISCELLANEOUS
/!\F601 423 022 2102 FUSE 250V 4A
F601-A1 645 000 5077 HOLDER,FUSE
F601-A2 645 000 5077 HOLDER,FUSE
A101 645 023 4118 TUNER,U/V
A101P1 645 008 4058 TERMINAL,PLUG
A101P2 645 008 4058 TERMINAL,PLUG
A1901 645 021 1041 UNIT,REMOCON RECEIVER
K1001 645 005 5867 SOCKET,RGB 21P
610 234 3779 SOCKET 21P
K1001Z 610 261 2813 MOUNTING-BRKT F2WV
KR-1 645 008 4058 TERMINAL PLUG
KR-2 645 008 4058 TERMINAL PLUG
KR-2 645 008 4058 TERMINAL PLUG
/!\PS601 408 003 6805 THERMISTOR 902P44E180MR14
408 015 1904 THERMISTOR PA3A5180B270
SW1901 610 011 2698 SWITCH,PUSH
SW1902 610 011 2698 SWITCH,PUSH
SW1903 610 011 2698 SWITCH,PUSH
SW1904 610 011 2698 SWITCH,PUSH
SW501 610 011 2728 SWITCH,LEVER 1P-3T
/!\SW601 645 017 0928 SWITCH,PUSH POWER 2P-2T
X131 421 004 8401 SAW F TSF5345
X151 645 000 4490 TRAP,CERAMIC 6.5MHZ
610 015 3011 TRAP,CERAMIC 6.5MHZ
X152 610 015 3547 CERAMIC TRAP
610 015 2854 TRAP,CERAMIC 5.5MHZ
X161 645 003 2806 CERAMIC FILTER
X201 645 018 9050 OSC,CRYSTAL 4.433619MHZ
610 249 5577 CRYSTAL OSCILLATOR
X231 610 226 6894 TRAP,CERAMIC 5.74MHZ
X871 645 015 8339 OSC,CRYSTAL 12MHZ
645 018 9593 OSC,CRYSTAL 12MHZ
ASSY,PWB,CRT E7PGV
1AA0B10E346HB
TRANSISTOR
Q701 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
406 000 3605 TR 2SC3620(LB-SAN-1)
Q711 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
406 000 3605 TR 2SC3620(LB-SAN-1)
Q721 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
406 000 3605 TR 2SC3620(LB-SAN-1)
Q741 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
CAPACITOR
C701 403 073 6403 CERAMIC 470P K 50V
C711 403 073 6403 CERAMIC 470P K 50V
C721 403 073 6403 CERAMIC 470P K 50V
C731 403 077 2807 CERAMIC 1000P Z 2K
RESISTOR
R701 401 018 2800 CARBON 330 JA 1/4W
R702 401 019 1901 CARBON 3.9K JA 1/4W
R703 401 012 5708 CARBON 1K JA 1/4W
R704 401 065 4604 OXIDE-MT 12K JA 2W
R705 401 009 6602 CARBON 3.3K JA 1/2W
R711 401 018 2800 CARBON 330 JA 1/4W
R712 401 019 1901 CARBON 3.9K JA 1/4W
R713 401 016 3809 CARBON 2.2K JA 1/4W
R714 401 065 4604 OXIDE-MT 12K JA 2W
R715 401 009 6602 CARBON 3.3K JA 1/2W
R721 401 018 2800 CARBON 330 JA 1/4W
R722 401 019 1901 CARBON 3.9K JA 1/4W
R723 401 015 2704 CARBON 1.8K JA 1/4W
R724 401 065 4604 OXIDE-MT 12K JA 2W
R725 401 009 6602 CARBON 3.3K JA 1/2W
R727 401 020 0801 CARBON 470 JA 1/4W
R741 401 020 2003 CARBON 4.7K JA 1/4W
R742 401 018 3807 CARBON 3.3K JA 1/4W
R744 401 018 2800 CARBON 330 JA 1/4W
VARIABLE RESISTOR
VR701 645 003 5722 VR,SEMI,4.7K N
VR702 645 003 5647 VR,SEMI,1K N
VR711 645 003 5722 VR,SEMI,4.7K N
VR712 645 003 5647 VR,SEMI,1K N
VR721 645 003 5722 VR,SEMI,4.7K N
MISCELLANEOUS
/!\K701 610 233 7990 CRT SOCKET
Ref. No. Part No. Deacription Ref. No. Part No. Deacription
-19-
E7PGV

Printed in the U.K.
Sanyo Industries [U.K.] Ltd.
