Colour Television Service Manual Model C25EG92F
(France)
Service Ref. No. C25EG92F-00
Service Ref. No. C25EG92F-02
Give complete "SERVICE REF. NO." for parts order or
servicing, it is shown on the rating sheet on the
cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission system
and power source differ from the design specifications.
Refer to the specifications for the design specifications
PRODUCT CODE
1113 24310
ORIGINAL VERSION
Chassis No. EC3-A
Specifications
Power source AC 220~240V 50Hz
Television system System B/G, I, L/L'
Colour system PAL/SECAM
Receiving channel VHF E2~E12,F2~F10
CATV X, Y, X, S1~S41,B~Q
UHF 21~69
Aerial input impedance 75ohm
AV terminal
21 Pin socket CENELEC standard
Sound output 3 watts
Picture tube 63 cm diagonal, 90 degree
(Visible picture diagonal) 59 cm
Dimensions (WxHxD) 584 x 533.5 x 446.5mm
Weight 24 Kg
Part No. SKSM0121 E8AL

-2-
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous
X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for +B1 volt power supply adjustment, and high
voltage adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark //!\ in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list in
this manual be used for component replacement designated by mark /!\ . No deviations from resistance wattage
or voltage ratings may be made for replacement items designated by mark /!\ .
1: An isolation transformer should be connected in the
power line between the receiver and the AC line when
a service is performed on the primary of the converter
transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers or
shields, barriers, isolation resistor-capacitor networks
etc.Before returning any television to the customer,
the service technician must be sure that it is
completely safe to operate without danger of electrical
shock.

-3-
BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
IC701 CPU 21P SCART
CRT UNIT
SIF UNIT
POWER SUPPLY T311
Converter Transformer
IC101 IF/Video/Chroma/IF
IC171 Audio Output
IC451 Vert. Output
Q432 H-Output
Q431Q352
Q354
Q351
Q313
Q312
RC Pre-amp.
IC790 Memory
Q101 X101
Saw Filter
IC270 1H Delay
IC280 SECAM
Q202
Q131 Q132~Q134
Q152 Q601
Q611
Q621 HV
FBT
DY
C461
VR431
Speaker
Control Keys
SIF (L/L")
VL VH
U
TU
IF
16
12
13
6
5
SCL
SDA
3: Volume 4: Colour 5: Brightness 6: Contrast 7: Sharpness
33
10 TV/AV
48
42/43/44 14
A-Out
A-In
RGB BLK-In
V-In
V-Out
16
16
24 23 22 21 15 13
45/46
28/29
30/31 27
7 5
20 19 18
R
G B
B
G
R
BLK
R-Y/B-Y
R-Y/B-Y
CVBS
37
43
41
50
11/12
14/16
9/10
16
42
V-Feedback
248
V-Drive
H-Drive
Sound
Volume
SIF-In
CVBS-Out
Internal CVBS-In External CVBS-In
B6 12V
B4 24V
B1: 130V B3: 130V B5: 8V B7: 5V
AC IN
Tuner
H V
Q857
Q858 Q851
IC290

-4-
1.POWER SUPPLY
The power supply circuit of the EC3-A chassis is
composed of a rectifier smoothing circuit, an oscillation
circuit, a control circuit and an output rectifier circuit. The
AC input voltage is full-wave rectified by the rectifier
smoothing circuit, and an unstable DC voltage is
generated at both terminals of the smoothing capacitor
C307. This voltage is input to the oscillation circuit. The
oscillation circuit is provided with a blocking oscillator
circuit that switches the switching transistor Q313 ON
and OFF, and an oscillation frequency and a duty square
wave pulse are generated in the input windings
according to operation of the control circuit. A square-
wave pulse whose size is dependent on the turn ratio of
the input and output windings is obtained in the output
winding. This is rectified in the output rectifier circuit, and
the desired DC voltage is obtained.
2.IF & DEFLECTION (TDA8362)
The IF output signal from the tuner passes through the
SAW filter, and it is input to pin45 and pin46 of IC101.
The signal input to the IC passes through the IF
amplifier, video detection and video amplifier circuits and
is output from pin7 as a composite video signal. This
signal is supplied to the video and chroma amplifier
stages through the buffer of Q131.
The sync.-separation circuit separates the video signals
applied to pin13(internal video signal) or pin15(external
video signal) to vertical- and horizontal-sync. signals
respectively. The horizontal oscillator requires no
external components and is fully integrated. The
oscillator is always running when the start-pin36 is
supplied with 8V. Horizontal drive signal is output from
pin37. VR401 is for adjustment of the horizontal centring.
The separated vertical-sync. signal from sync. separation
circuit passes through the vertical-separation circuit, and
applied to trigger divider circuit. The horizontal oscillation
pulse and input vertical sync. pulse are monitored by the
trigger divider circuit, and switching 50Hz and 60Hz
system, the vertical amplitude automatically adjusted for
50Hz and 60Hz. The output signal from the trigger
divider triggers the oscillation of vertical oscillation circuit
consisting of C401, R402 and pin42, and vertical drive
pulse is output from pin43. VR451 is for changing the
amount of AC feedback applied to pin41 and for
adjustment of the vertical amplitude.
3.VIDEO CHROMA & R.G.B. (TDA8362 )
The composite video signal output from the pin7 of
IC101 passes through Q131 to Q134, and it is supplied
to pin13. The external video signal output from SCART is
supplied to pin15. The video signal input to pin13 or
pin15 is separated to luminance (Y) signal and chroma
signal in IC101. These pins are used in common with
H/V-sync. separation input. The peaking of Y signal is
adjusted by DC voltage of pin14. (“SHARPNESS”
control) The chroma signal is divided into R-Y and B-Y
chroma signals, demodulated in IC101, and output from
pin30 (R-Y) and pin31 (B-Y). These chroma signals pass
through the 1H delay line circuit (IC270), and they are
input to pin29 (R-Y) and pin28 (B-Y). These R-Y/B-Y
signals pass through RGB matrix circuit and RGB
selector circuit of IC101. The internal RGB signals are
generated in RGB matrix circuit and the RGB selector,
consisting linear amplifiers, clamps and selects either the
internal RGB signals or the external RGB signals input
from pin22(R), pin23(G), pin24(B). Selection is controlled
by the voltage at the RGB switch control (pin21) and
mixed RGB modes are possible since RGB switching is
fast. The RGB switch also functions as a fast blanking
pin by blanking the RGB output stages; here internal and
external RGB signals are overruled. The colour gain is
controlled by DC voltage of pin26. (“COLOUR” control)
The contrast control voltage at pin25, and the brightness
control voltage at pin17 control DC level of RGB signals.
The RGB signals are finally buffered before being
available at the RGB output pins [pin20 (R), pin19 (G),
pin18 (R)].
4.AUDIO OUTPUT(AN5265)
The audio signal output from pin50 of IC101 is input to
pin2 of IC171 and passes through the pre-amplifier
circuit and drive circuit, after which it is input to the audio
amplifier. The audio amplifier is an SEPP (single-ended,
push-pull) OTL type and output to pin8 to directly drive
the speaker.
5.VERTICAL OUTPUT (LA7832)
An IC (LA7832) is used for the vertical output circuit in
this chassis. The vertical drive pulse from pin43 of IC101
is input to pin4 of IC451. This pulse drives IC451, and
vertical scanning is performed. In the first half of
scanning a deflecting current is output from pin2 and
passes through the following path:
Vcc(B4) ➞D451 ➞pin3 ➞pin2 ➞DY ➞C461 ➞
VR431/R459. An electric charge is then stored in C461.
In the last half of scanning the current path is C461 ➞
DY ➞ pin2 ➞pin1 ➞ VR431/R459 ➞C461. In this way,
an amplifying sawtooth waveform current flows directly to
DY to perform electron beam defection. Next, in the first
half of the banking period the vertical drive pulse
suddenly becomes OFF, and in order to reduce the
current flowing to DY, the current path becomes as
follows by the inductance of DY:
DY ➞pin2 ➞pin1 ➞VR431/R459 ➞C461 ➞DY. Also,
when the charge of DY has dissipated, the current path
becomes Vcc24V ➞pin6 ➞pin7 ➞ C452 ➞pin3 ➞
pin2➞DY ➞C461 ➞ VR431/R459, and when the
prescribed current value is reached, the vertical drive
pulse becomes ON. This completes one cycle.
CIRCUIT DESCRIPTION

-5-
6.HORIZONTAL OUTPUT
A horizontal oscillation signal is output from pin37 of
IC101 and switches the drive transistor Q431. This
switching signal is current amplified by the drive
transformer T431 and drives the output transistor Q432.
When Q432 becomes ON, an amplifying current flows
directly to DY through C441/442 ➞DY ➞Q432 ➞GND,
and defection is performed in the last half of the scanning
period. Next, when Q432 becomes OFF, the charge that
had been stored in DY up to that point releases a
resonance current to the resonant capacitors C420 and
C437 and charges them.The current stored in C420 and
C437 is then flowed back to DY, and an opposite charge
is then stored in DY. This opposite charge then switches
the dumper diode in Q432 ON, the resonance state is
completed, and an amplifying current is then flowed
again directly to DY through the dumper diode. By this
means, deflection in the first half of the scanning period
is performed, and when Q432 becomes ON at the end of
the first half of the scanning period, deflection during the
last half is begun, thus completing one cycle.
7.CPU
Pin description
Pin1: H-sync. input (Horizontal pulse for OSD)
Pin2: V-sync. input (Vertical pulse for OSD)
Pin3: Volume control output (6-bit DAC)
Pin4: Colour control output (6-bit DAC)
Pin5: Brightness control output (6-bit DAC)
Pin6: Contrast control output (6-bit DAC)
Pin7: Sharpness control output(6-bit DAC)
Pin8: 50Hz/60Hz switch
Pin9: AV1/AV2 output (L:AV1)
Pin10: TV/AV output (L:AV)
Pin11: Option switch
Pin12: I2C bus SCL (Serial clock for memory)
Pin13: I2C bus SDA (Serial date for memory)
Pin14: Tuning voltage output
Pin15: Ident signal input (L:No signal)
Pin16: R/C signal input
Pin17: SCART auto switch input (H: VCR play)
Pin18: GND
Pin19: Ignor output
Pin20: Option switch (AV2)
Pin21: AFT input
Pin22: Not used
Pin23: Supply Ground
Pin24: Oscillator input for CPU
Pin25: Oscillator output for CPU
Pin26: Supply Ground
Pin27: Power supply(+5V)
Pin28: Oscillator output for OSD
Pin29: Oscillator input for OSD
Pin30: Reset input
Pin31: Protect signal input (L:Power circuit defects)
Pin32: Not used(GND)
Pin33: AFT signal input
Pin34: Option switch (GND)
Pin35: Key scan signal input
Pin36: Timer-ON (Timer LED drive)
Pin37: S-VHS detect input(Sin:H)
Pin38: SIF switch output
Pin39: France L/L' switch output
Pin40: France L/L' switch output
Pin41: Posi./Nega. switch output
Pin42: Band switch output (L: UHF)
Pin43: Band switch output (L: VHF-H)
Pin44: Band switch output (L: VHF-L)
Pin45: 5.5MHz switch output
Pin46: Line mute output
Pin47: Mute output
Pin48: Power ON/OFF output (H:ON)
Pin49: Blanking output for OSD
Pin50: Not used (Open)
Pin51: Green output for OSD
Pin52: Red output for OSD

IC350
IC352
Q311
Q461
VR461
H-WIDTH
T471
Flyback
Transformer
Q1002
Q722
IC701
Q721
SW222
IC790
AJ1
IC101
VR401
H-CENTRE A101
TUNER
IC270
IC1001
SW451
V-CENTRE
IC451
V-Output
Q881
Q431
Q432 H-Output
KDY
CPU
IF/CHROMA/VIDEO/DEF.
SW701 SW702 SW703 SW704
-> SERVICE
VR351
+BADJ.
R232
VR431
V-SIZE
MEMORY
Main switch
T311
Converter
transformer
Q712
Q711
Q172
Q201
Q202
Q437
Q1005
Q351
102
Q856
Q101
R382
D315
VR120
AGC
SW301
K801
SCART Terminal
EC3
FOCUS SCREEN
F301
Fuse
SW705 SW706
R352
R145
R350
R354
Q312
Q313
Power
switching
Q436
Q713
Q352
Q345
Q371
Q372
Q353
Q1007
Q154
Q153
Q152
Q134
Q781
Q857
Q858
Q131
Q132
T101
L230
Q852
Q851
Q434 Q121
Q133
IC171
Audio
Output
Q708
Q703 Q722
Q1001
Q1003
B1 POWER SUPPLY ADJ. TU-AGC ADJ.AFT ADJ.
GREY SCALE ADJ.
FOCUS ADJ.
MAIN BOARD
HIGH VOLTAGE &
H-WIDTH ADJ. V-CENTRE ADJ. H-CENTRE ADJ.V-SIZE ADJ.
-6-
Q601
Q611
Q621
Q640
VR621
G-BIAS
VR601
B-BIAS
VR612
R-DRIVE
VR602
B-DRIVE
VR611
R-BIAS
SERVICE CONTROL ADJUSTMENT
CRT BOARD

-7-
B1 POWER SUPPLY ADJUSTMENT
1. Set VR351 to be mechanical centre before pressing the main
switch.
2. Tune the receiver to the PAL circular pattern.
3. Set the brightness and contrast controls to normal.
4. Connect digital V-meter between R350 and R354.
5. By using VR351, adjust the voltage to 130 ± 0.5 V
AFT ADJUSTMENT
1. Tune the receiver to the clearest station.
2. By using L230, adjust AFT to obtain the best picture.
AGC ADJUSTMENT
NOTE: Do not attempt this adjustment a with weak signal.
1. Tune the receiver to the clearest station.
2. Set AGC VR(VR120) in the direction which causes snow
noise just to appear, then in the opposite direction until the
snow noise just disappears.
GREY SCALE ADJUSTMENT
[SCREEN VR ADJUSTMENT]
1. Tune the receiver to the white pattern.
2. Set the brightness and contrast control to normal.
3. Set SW220 to the "SERVICE" position.
4. Set VR602 and VR612 to be mechanical centre.
5. Turn VR601, VR611 and VR621 fully anti-clockwise.
6. Set screen VR for one colour to be just visible.
[BIAS VR ADJUSTMENT]
7. By using VR601, VR611 or VR621, adjust the line until white.
8. Set SW220 to "NORMAL" position.
[DRIVE VR ADJUSTMENT]
9. By using VR602 and VR612, adjust white balance.
HIGH VOLTAGE & WIDTH ADJUSTMENT
[HIGH VOLTAGE ADJUSTMENT]
1. Tune the receiver to the PAL circular pattern.
2. Set the brightness and contrast controls to maximum.
3. Connect digital V-meter to both terminals of R232(left
side)(+) , and a high voltage meter to the CRT anode.
4. Confirm that the high voltage is 26.0 ± 1 KV at beam current
1.1mA , and less than 29.0 KV at 0 beam current.
[H-WIDTH ADJUSTMENT]
5. If H-width is too wide or narrow, connect or disconnect a lead
wire AJ1.
6. Reconfirm high voltage.
H-CENTRE ADJUSTMENT
1. Tune the receiver to the circular pattern.
2. Adjust H-centre by using VR401.
V-CENTRE ADJUSTMENT
1. Tune the receiver to the circular pattern.
2. If picture is not in the centre, connect or disconnect a lead
wire JR012.
V-SIZE ADJUSTMENT
1. Tune the receiver to the circular pattern.
2. Adjust V-size by using VR431.
FOCUS ADJUSTMENT
By using FOCUS VR, adjust focus control for good scanning
lines.

P
-8-
DC 15V
AGC voltage (4.3-4.5V)
Output probe
Input probe (A)
Band
Damping R
System SW
Sweep ATT
DETECTOR
ADJUSTMENT I
SETTING
R352 & R382
IC101-48 p
Tuner IF
(Side b)
R145 & SW220
No
No
B/G
9
Adjustment
By using L230, adjust "P"
to be maximum amplitude.
VIF waveform

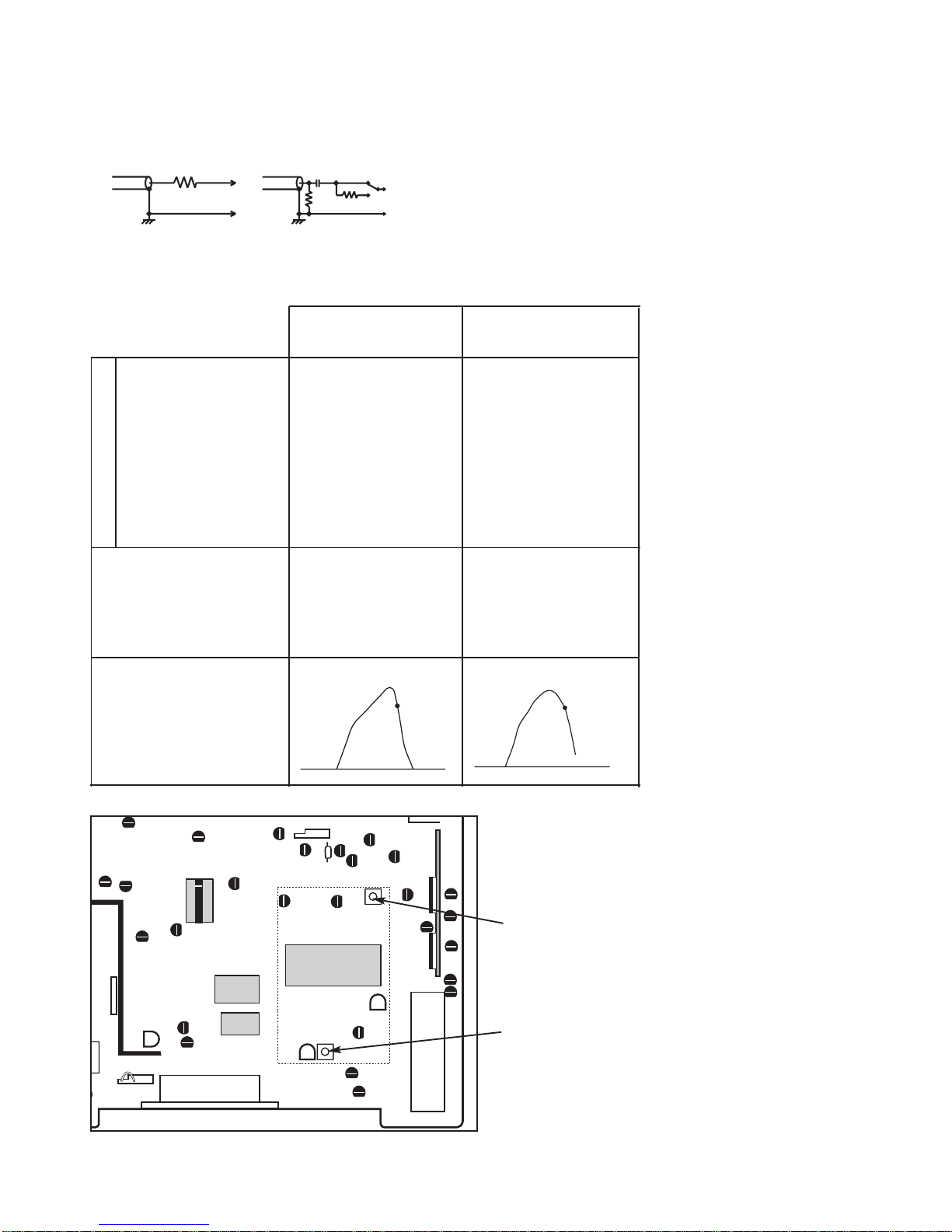

CIRCUIT ALIGNMENT
VIF ALIGNMENT
0.002µF
75Ω1kΩ
a
b
10kΩ
Input probe (A) Output probe
SW222
IC101
VR401
H-CENTRE
Q1006
A101
TUNER
IC270
SW451
V-CENTRE
IC451
V-Output
Q881
IF/CHROMA/VIDEO/DEF.
>
SERVICE
VR431
V-SIZE
Q202
IC280
TV/AV SW.
IC1003
Q1005
Q351
102
Q856
Q101
VR120
AGC
K801
SCART Terminal
R145
Q436
Q1008
Q154
Q153
Q152
Q134
Q781 Q773
Q772
Q771
Q857
Q858
Q131
Q132
T101
L230
Q852
Q851
Q434 Q121
Q133
JR012
Detector adjustment I
MAIN BOARD
38.9MHz
P
DETECTOR
ADJUSTMENT II
R352 & R382
IC101-48 p
Tuner IF
(Side b)
R145 & SW220
No
No
L'
9
By using T101, adjust "P"
to be maximum amplitude.
34.3MHz
Detector adjustment II

-9-
When you replace a memory IC (IC790), it is necessary to
initialise the IC as follows.
A. Initialisation of Memory IC
1. When you press and hold the Function button on the TV
set and then press the Recall button on the RC
transmitter, the following picture will appear on the screen.
2. Confirm SET number of all items is "0" by pressing the
Function button.
3. If it is not "0", change to "0" by the Level (+/-) button.
(Changing the SET number, automatically memorised.)
4. Press the Recall button, to return the normal TV mode.
For more information, please refer to "special functions" on
the instruction manual.
MEMORY IC REPLACEMENT (Important Notice)
PT MAS
F
P
1234
5678
90
-/-- ✻
P
F
TV/
P P
Function Button
Recall Button
ITEM -1 SET➔ 0
Level Button
Function Button

-10-
CABINET PARTS LIST
1. 610 256 4266 ASSY,CABINET FR-E8AC
2. 610 254 9201 CABINET BACK-E8YC
3. 610 255 2447 DEC BOARD-E8GC
4. 610 256 4303 BUTTON UNIT-E8AC
5. 610 253 2449 HOLDER AC CORD-GBR-D4VA
6. 645 003 9256 BADGE,SANYO*46.2X13.5L45
7. 610 210 7302 COIL SPRING-D8HA
8. 610 255 2423 BUTTON POWER-E8GC
9. 645 002 0636 ASSY,REMOTE CONTROL- JXRB
610 247 0154 RC CASE TOP-JXRA
610 247 0161 RC CASE BOTTOM-JXRA
610 247 0178 RC BATTERY LID-JXRA
610 247 0123 DEC RC SHEET-JXRA
1
2
6 4 3 8 7
5
1234
5678
90
-/--
✻
P
F
TV/
P P
9
REF PART No. DESCRIPTION
No.
C25EG92F-00/02

SERVICE REF. NO. C25EG92F-00
OUT OF CIRCUIT BOARD
PICTURE TUBE
/!\Q901 414 007 1104 CRT A59ECY13X38
COIL
/!\L901 645 003 0031 COIL,DEGAUSSING
645 003 0062 COIL,DEGAUSSING
MISCELLANEOUS
SP901 610 232 6086 SPEAKER
610 230 5234 SPEAKER
/!\W901 645 012 7632 ASSY,CORD,POWER
W902 610 024 2210 GROUNDING CONNECTOR-D8AC
610 204 6083 GROUNDING CONNECTOR
ASSY,PWB,MAIN E8AL 1AA0B10E086B0
TRANSISTOR
Q101 405 013 3305 TR 2SC2216(SAN)
Q121 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q131 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q132 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q133 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q134 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q152 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q153 406 007 2106 TR JC546A
406 007 2007 TR JC546B
Ref. No. Part No. Description Ref. No. Part No. Description
-11-
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a ! mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
Note Parts order must contain Service Ref. No., Part No., and descriptions.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G: ±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G: ±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W: +100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Rated value: P=pico farad, U=Micro farad
Material:
CERAMIC.......... Ceramic
MT-PAPER........ Metallized Paper
POLYESTER..... Polyester
MT-POLYEST.... Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarized Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Doble Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND... Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES.... Fusible
/!\

405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q154 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q201 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q202 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q280 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q311 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q312 405 058 0208 TR 2SC3807-R-CTV-YA
Q313 405 018 9203 TR 2SC3895-T-CTV-YB
Q351 405 009 6907 TR 2SB985-S
405 009 7003 TR 2SB985-T
Q352 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q353 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q354 405 008 4805 TR 2SB764-E
Q371 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q372 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q381 405 023 4903 TR 2SD400-D-MP
405 023 5009 TR 2SD400-E-MP
405 023 5306 TR 2SD400-F-MP
Q431 405 018 0507 TR 2SC3332-R
405 018 0606 TR 2SC3332-S
Q432 405 095 0209 TR 2SD1556-3E
Q436 405 019 3804 TR 2SC536-G-NP
Q437 405 019 3804 TR 2SC536-G-NP
Q461 405 064 7307 TR 2SB1274-Q-RA
405 064 7406 TR 2SB1274-R-RA
405 064 7505 TR 2SB1274-S-RA
Q462 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q703 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q708 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q711 405 118 4207 TR PH2369
Q722 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q771 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q772 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q773 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q781 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q851 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q852 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q857 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q858 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q881 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
INTEGRATED CIRCUIT
IC101 409 307 2500 IC TDA8362/N3
IC171 409 073 1509 IC AN5265
IC270 409 291 0605 IC TDA4661/V2
409 352 0803 IC TDA4665/V3
IC280 409 299 4902 IC TDA8395/N1
IC350 409 026 8609 IC L78M05-RA
IC352 409 285 5203 IC L78M08-RA
IC451 409 192 5709 IC LA7833
IC701 410 221 1906 IC M37210M3-623SP
IC790 409 247 7702 IC ST24C02AB1
409 281 8307 IC 24C02A/P
409 333 3700 IC 24LC02B/P
Ref. No. Part No. Description Ref. No. Part No. Description
-12-

CAPACITOR
C100 403 074 8901 CERAMIC 680P K 50V
C101 403 194 4609 ELECT 470U M 16V
C102 403 028 2009 CERAMIC 56P J 50V
C103 403 248 2001 ELECT 4.7U M 25V
C104 403 258 3500 ELECT 22U M 25V
C105 403 248 1400 ELECT 1U M 50V
C106 403 248 2001 ELECT 4.7U M 25V
C107 403 248 1608 ELECT 47U M 16V
C108 403 026 9703 CERAMIC 5P C 50V
C109 403 026 9703 CERAMIC 5P C 50V
C113 403 069 8305 CERAMIC 0.01U Z 50V
C114 403 069 8305 CERAMIC 0.01U Z 50V
C115 403 069 8305 CERAMIC 0.01U Z 50V
C116 403 069 0507 CERAMIC 1000P K 50V
C117 403 248 1608 ELECT 47U M 16V
C120 403 069 8305 CERAMIC 0.01U Z 50V
C121 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C122 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C123 403 233 0807 ELECT 10U M 50V
C126 403 061 2400 POLYESTER 3900P K 50V
403 179 1401 POLYESTER 3900P K 50V
C128 403 248 2803 ELECT 2.2U M 50V
C129 403 028 2009 CERAMIC 56P J 50V
C130 403 069 8305 CERAMIC 0.01U Z 50V
C132 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C134 403 069 0507 CERAMIC 1000P K 50V
C142 403 069 8305 CERAMIC 0.01U Z 50V
C143 403 069 8305 CERAMIC 0.01U Z 50V
C144 403 026 1103 CERAMIC 47P J 50V
C145 403 019 7709 CERAMIC 27P J 50V
C146 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C153 403 030 5401 CERAMIC 68P J 50V
C154 403 028 2009 CERAMIC 56P J 50V
C155 403 069 8305 CERAMIC 0.01U Z 50V
C156 403 069 8305 CERAMIC 0.01U Z 50V
C170 403 069 8305 CERAMIC 0.01U Z 50V
C171 403 258 3302 ELECT 33U M 16V
C172 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C173 403 056 8103 POLYESTER 1000P K 50V
403 179 3900 POLYESTER 1000P K 50V
C175 403 248 1905 ELECT 10U M 16V
C176 403 248 1905 ELECT 10U M 16V
C180 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C181 403 218 8101 ELECT 1000U M 25V
C182 403 086 2300 NP-ELECT 1U M 50V
C185 403 199 9708 ELECT 470U M 25V
C188 403 233 1507 ELECT 4.7U M 50V
C201 403 014 0200 CERAMIC 18P J 50V
C202 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C203 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C204 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C205 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C206 403 233 0807 ELECT 10U M 50V
C207 403 248 2803 ELECT 2.2U M 50V
C208 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C209 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C210 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C211 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C212 403 057 0601 POLYESTER 0.01U K 50V
403 179 3801 POLYESTER 0.01U K 50V
C213 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C215 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C216 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C220 403 194 4609 ELECT 470U M 16V
C221 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C222 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C231 403 194 2100 NP-ELECT 4.7U M 100V
C232 403 138 1602 ELECT 1U M 100V
C233A 403 075 8009 CERAMIC 0.01U K 500V
C234 403 248 2803 ELECT 2.2U M 50V
C240 403 069 8305 CERAMIC 0.01U Z 50V
C270 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
C271 403 069 0507 CERAMIC 1000P K 50V
C272 403 069 0507 CERAMIC 1000P K 50V
C275 403 248 1905 ELECT 10U M 16V
C282 403 248 1608 ELECT 47U M 16V
C283 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
C284 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C285 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
/!\C301 404 047 3602 MT-POLYEST 0.1U M 125V
404 066 6707 MT-POLYEST 0.1U M 250V
404 044 0901 MT-COMPO 0.1U M 250V
/!\C302 404 047 3602 MT-POLYEST 0.1U M 125V
404 066 6707 MT-POLYEST 0.1U M 250V
404 044 0901 MT-COMPO 0.1U M 250V
C303 403 076 7100 CERAMIC 1000P M 1K
C304 403 076 7100 CERAMIC 1000P M 1K
C305 403 076 7100 CERAMIC 1000P M 1K
C306 403 076 7100 CERAMIC 1000P M 1K
C307 404 028 9401 ELECT 220U M 400V
C314 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C315 403 058 2604 POLYESTER 0.015U J 50V
403 179 3207 POLYESTER 0.015U J 50V
C316 403 165 8407 CERAMIC 680P K 2K
403 186 1104 CERAMIC 680P K 2K
C317 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
/!\C331 404 060 6505 CERAMIC 2200P M 400V
404 060 6604 CERAMIC 2200P M 400V
C351 403 165 9305 CERAMIC 680P K 1K
403 185 9101 CERAMIC 680P K 1K
C352 403 165 8605 CERAMIC 470P K 2K
403 232 1805 CERAMIC 470P K 2K
C354 403 186 3108 CERAMIC 390P K 1K
C355 403 165 6106 CERAMIC 470P K 1K
403 186 2903 CERAMIC 470P K 1K
C361 404 055 9801 ELECT 220U M 200V
C362 403 281 1108 ELECT 22U M 250V
C363 403 148 2002 ELECT 470U M 35V
C364 403 148 0404 ELECT 1000U M 25V
403 134 5307 ELECT 1000U M 25V
C365 403 158 0807 ELECT 4700U M 25V
403 160 8808 ELECT 4700U M 25V
C371 403 201 5001 ELECT 330U M 16V
C372 403 194 4609 ELECT 470U M 16V
C373 403 248 1400 ELECT 1U M 50V
C381 403 248 1905 ELECT 10U M 16V
C383 403 244 1206 ELECT 100U M 10V
C401 403 270 2901 MT-POLYEST 0.1U K 63V
Ref. No. Part No. Description Ref. No. Part No. Description
-13-

403 237 8007 MT-COMPO 0.1U J 50V
C402 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C403 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C404 403 086 2300 NP-ELECT 1U M 50V
C405 403 060 0704 POLYESTER 2700P K 50V
403 179 2200 POLYESTER 2700P K 50V
C406 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
C407 403 233 0302 ELECT 100U M 16V
C410 403 056 9704 POLYESTER 0.01U J 50V
403 178 9309 POLYESTER 0.01U J 50V
/!\C420 404 060 7809 MT-POLYPRO 6000P J 1.5K
404 060 7908 MT-POLYPRO 6000P J 1.5K
C422 403 082 6906 POLYPRO 0.12U J 200V
/!\C423 404 040 8109 MT-POLYPRO 5600P J 1.5K
404 040 7805 MT-POLYPRO 5600P J 1.5K
C424 403 083 4901 POLYPRO 0.027U J 400V
C425 403 083 4307 POLYPRO 0.022U J 400V
C426 403 066 6106 MT-POLYEST 0.47U J 250V
C431 403 270 4004 MT-POLYEST 0.056U K 63V
403 260 3109 MT-COMPO 0.056U J 50V
C432 403 075 7101 CERAMIC 1000P K 500V
C433 403 076 3102 CERAMIC 3900P K 500V
C434 403 229 1207 ELECT 47U M 35V
/!\C441 403 082 8009 POLYPRO 0.2U J 200V
/!\C442 403 082 6906 POLYPRO 0.12U J 200V
C451 403 148 2002 ELECT 470U M 35V
403 161 3109 ELECT 470U M 35V
C452 403 217 1103 ELECT 220U M 35V
C453 403 023 9706 CERAMIC 39P J 50V
C454 403 069 8305 CERAMIC 0.01U Z 50V
C455 403 075 7101 CERAMIC 1000P K 500V
C456 403 233 0807 ELECT 10U M 50V
C459 403 065 9801 MT-POLYEST 0.22U K 100V
403 188 0907 MT-POLYEST 0.22U K 100V
C461 403 155 1203 ELECT 3300U M 25V
C462 403 248 1400 ELECT 1U M 50V
C464 403 257 0807 ELECT 0.47U M 50V
C465 403 066 0104 MT-POLYEST 2.2U K 100V
C466 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C467 403 241 3807 ELECT 220U M 10V
C468 403 258 3500 ELECT 22U M 25V
C469 403 233 0807 ELECT 10U M 50V
C470 403 069 8305 CERAMIC 0.01U Z 50V
C701 403 248 2001 ELECT 4.7U M 25V
C703 403 018 6208 CERAMIC 220P J 50V
C704 403 068 9006 CERAMIC 100P K 50V
C705 403 068 9006 CERAMIC 100P K 50V
C706 403 068 9006 CERAMIC 100P K 50V
C707 403 068 9006 CERAMIC 100P K 50V
C709 403 248 1400 ELECT 1U M 50V
C711 403 248 2001 ELECT 4.7U M 25V
C712 403 248 1400 ELECT 1U M 50V
C713 403 248 1400 ELECT 1U M 50V
C716 403 233 1507 ELECT 4.7U M 50V
C717 403 068 9006 CERAMIC 100P K 50V
C719 403 069 0507 CERAMIC 1000P K 50V
C721 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C722 403 248 1608 ELECT 47U M 16V
C723 403 028 1606 CERAMIC 56P J 50V
C724 403 028 1606 CERAMIC 56P J 50V
C725 403 069 8305 CERAMIC 0.01U Z 50V
C727 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C729 403 248 1905 ELECT 10U M 16V
C731 403 069 8305 CERAMIC 0.01U Z 50V
C732 403 069 8305 CERAMIC 0.01U Z 50V
C741 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C742 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C744 403 068 9006 CERAMIC 100P K 50V
C746 403 026 0809 CERAMIC 47P J 50V
C772 403 018 6208 CERAMIC 220P J 50V
C854 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C855 403 069 8305 CERAMIC 0.01U Z 50V
C856 403 248 1905 ELECT 10U M 16V
C859 403 068 9006 CERAMIC 100P K 50V
C881 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
RESISTOR
R101 401 026 9303 CARBON 47 JA 1/6W
R103 401 024 6700 CARBON 100 JA 1/6W
R104 401 027 2600 CARBON 5.6K JA 1/6W
R105 401 024 7004 CARBON 1K JA 1/6W
R106 401 025 7409 CARBON 220 JA 1/6W
R107 401 026 0409 CARBON 27 JA 1/6W
R120 401 025 8703 CARBON 220K JA 1/6W
R121 401 027 0309 CARBON 47K JA 1/6W
R122 401 024 7707 CARBON 100K JA 1/6W
R123 401 025 8703 CARBON 220K JA 1/6W
R124 401 027 5502 CARBON 6.8K JA 1/6W
R125 401 025 3807 CARBON 180 JA 1/6W
R126 401 027 2600 CARBON 5.6K JA 1/6W
R127 401 024 6700 CARBON 100 JA 1/6W
R130 401 024 9701 CARBON 12K JA 1/6W
R131 401 027 5502 CARBON 6.8K JA 1/6W
R132 401 027 0309 CARBON 47K JA 1/6W
R133 401 025 3807 CARBON 180 JA 1/6W
R134 401 024 7004 CARBON 1K JA 1/6W
R135 401 024 7004 CARBON 1K JA 1/6W
R137 401 025 8703 CARBON 220K JA 1/6W
R138 401 025 3807 CARBON 180 JA 1/6W
R140 401 024 7004 CARBON 1K JA 1/6W
R141 401 024 7004 CARBON 1K JA 1/6W
R142 401 026 9907 CARBON 4.7K JA 1/6W
R143 401 024 7004 CARBON 1K JA 1/6W
R144 401 024 7004 CARBON 1K JA 1/6W
R146 401 027 2600 CARBON 5.6K JA 1/6W
R147 401 027 2600 CARBON 5.6K JA 1/6W
R148 401 024 7004 CARBON 1K JA 1/6W
R149 401 024 7004 CARBON 1K JA 1/6W
R151 401 024 7004 CARBON 1K JA 1/6W
R156 401 027 5205 CARBON 680 JA 1/6W
R157 401 026 9303 CARBON 47 JA 1/6W
R158 401 026 9303 CARBON 47 JA 1/6W
R159 401 024 9701 CARBON 12K JA 1/6W
R160 401 024 9701 CARBON 12K JA 1/6W
R161 401 027 5205 CARBON 680 JA 1/6W
R162 401 027 5205 CARBON 680 JA 1/6W
R165 401 027 2600 CARBON 5.6K JA 1/6W
R166 401 024 7400 CARBON 10K JA 1/6W
R170 401 025 1902 CARBON 15K JA 1/6W
R171 401 026 3707 CARBON 33 JA 1/6W
R172 401 027 2303 CARBON 560 JA 1/6W
R174 401 024 7400 CARBON 10K JA 1/6W
R183 401 024 7004 CARBON 1K JA 1/6W
R184 401 026 7408 CARBON 39K JA 1/6W
R201 401 027 0309 CARBON 47K JA 1/6W
R202 401 024 7707 CARBON 100K JA 1/6W
R203 401 024 6700 CARBON 100 JA 1/6W
R204 401 024 6700 CARBON 100 JA 1/6W
R205 401 024 6700 CARBON 100 JA 1/6W
R209 401 024 6700 CARBON 100 JA 1/6W
R210 401 025 4200 CARBON 1.8K JA 1/6W
R211 401 024 7400 CARBON 10K JA 1/6W
R213 401 026 7408 CARBON 39K JA 1/6W
R215 401 025 4200 CARBON 1.8K JA 1/6W
Ref. No. Part No. Description Ref. No. Part No. Description
-14-

R219 401 019 1000 CARBON 390 JA 1/4W
R230 401 027 5908 CARBON 68K JA 1/6W
R231 401 027 9005 CARBON 82K JA 1/6W
R232 401 012 5708 CARBON 1K JA 1/4W
R234 401 024 7400 CARBON 10K JA 1/6W
R235 401 026 7408 CARBON 39K JA 1/6W
R236 401 026 1000 CARBON 2.7K JA 1/6W
R237 401 025 7805 CARBON 2.2K JA 1/6W
R275 401 025 7409 CARBON 220 JA 1/6W
R280 401 025 1902 CARBON 15K JA 1/6W
R281 401 027 5502 CARBON 6.8K JA 1/6W
R282 401 025 2305 CARBON 150K JA 1/6W
/!\R301 401 008 8607 CARBON 220K JA 1/2W
R302 402 067 7709 WIRE WOUND 3.9 KA 7W
R311 401 027 2600 CARBON 5.6K JA 1/6W
R315 401 025 8208 CARBON 22K JA 1/6W
R317 401 024 7004 CARBON 1K JA 1/6W
R319 401 016 1508 CARBON 22 JA 1/4W
R320 401 007 5805 CARBON 120K JA 1/2W
R321 401 007 5805 CARBON 120K JA 1/2W
R322 401 014 5201 CARBON 15K JA 1/4W
R323 401 026 1000 CARBON 2.7K JA 1/6W
R324 401 069 6208 OXIDE-MT 82 JA 2W
R325 401 069 1708 OXIDE-MT 68 JA 2W
R326 401 018 3401 CARBON 3.3K GA 1/4W
R331 402 000 8305 SOLID 5.6M KA 1/2W
R332 402 000 8305 SOLID 5.6M KA 1/2W
R350 401 014 6109 CARBON 150K JA 1/4W
R352 401 066 9103 OXIDE-MT 27 JA 2W
R353 401 027 5502 CARBON 6.8K JA 1/6W
R354 401 015 4708 CARBON 180K JA 1/4W
R355 401 061 4400 OXIDE-MT 33K JA 1W
R356 401 013 6407 CARBON 12K JA 1/4W
R360 401 059 3903 OXIDE-MT 1.5K JA 1W
R362 402 052 2702 WIRE WOUND 12 KA FH 3W
R364 401 012 7009 CARBON 10K JA 1/4W
R365 401 019 1901 CARBON 3.9K JA 1/4W
R366 401 012 7009 CARBON 10K JA 1/4W
R367 401 013 5301 CARBON 1.2K JA 1/4W
R370 401 027 8602 CARBON 8.2K JA 1/6W
R371 401 024 9701 CARBON 12K JA 1/6W
R372 401 026 7606 CARBON 390K JA 1/6W
R373 401 027 3201 CARBON 560K JA 1/6W
R374 401 025 8703 CARBON 220K JA 1/6W
R375 401 025 8208 CARBON 22K JA 1/6W
R376 401 024 7400 CARBON 10K JA 1/6W
R382 401 058 1108 OXIDE-MT 10 JA 1W
R383 401 025 3807 CARBON 180 JA 1/6W
R401 401 024 6700 CARBON 100 JA 1/6W
R402A 401 024 8001 CARBON 1M JA 1/6W
R403 401 024 6700 CARBON 100 JA 1/6W
R404 401 025 8208 CARBON 22K JA 1/6W
R405 401 024 6700 CARBON 100 JA 1/6W
R406 401 026 7606 CARBON 390K JA 1/6W
R407 401 025 8208 CARBON 22K JA 1/6W
R408 401 024 6700 CARBON 100 JA 1/6W
R409 401 026 9907 CARBON 4.7K JA 1/6W
R410 401 025 8208 CARBON 22K JA 1/6W
R412 401 027 0309 CARBON 47K JA 1/6W
R413 401 026 9907 CARBON 4.7K JA 1/6W
R414 401 026 1000 CARBON 2.7K JA 1/6W
R415 401 026 4605 CARBON 33K JA 1/6W
R416 401 024 7400 CARBON 10K JA 1/6W
R417 401 025 8208 CARBON 22K JA 1/6W
R418 401 026 1307 CARBON 27K JA 1/6W
R422 402 068 6909 WIRE WOUND 7W
R431 401 025 7409 CARBON 220 JA 1/6W
R432 401 024 7004 CARBON 1K JA 1/6W
R433 401 010 3102 CARBON 470 JA 1/2W
R434 401 009 9306 CARBON 390 JA 1/2W
R436 401 014 5201 CARBON 15K JA 1/4W
R441 401 058 3706 OXIDE-MT 1K JA 1W
R448 401 065 2808 OXIDE-MT 120 JA 2W
R451 401 026 8108 CARBON 4.7 JA 1/6W
R452 401 026 7002 CARBON 3.9K JA 1/6W
R453 401 018 3807 CARBON 3.3K JA 1/4W
R454 401 024 9008 CARBON 120 JA 1/6W
R455 401 025 7805 CARBON 2.2K JA 1/6W
R456 401 020 2003 CARBON 4.7K JA 1/4W
R457 401 026 9907 CARBON 4.7K JA 1/6W
R458 401 059 2708 OXIDE-MT 150 JA 1W
R459 401 057 6708 OXIDE-MT 0.68 JA 1W
R460 401 010 7605 CARBON 560 JA 1/2W
R463 401 025 4200 CARBON 1.8K JA 1/6W
R464 401 014 4105 CARBON 1.5K JA 1/4W
R465 401 027 3201 CARBON 560K JA 1/6W
R467 401 058 3706 OXIDE-MT 1K JA 1W
R468 401 025 4200 CARBON 1.8K JA 1/6W
R469 401 027 5908 CARBON 68K JA 1/6W
R471 401 025 1605 CARBON 1.5K JA 1/6W
R472 401 027 0309 CARBON 47K JA 1/6W
R473 401 022 1905 CARBON 680 JA 1/4W
R474 401 009 0907 CARBON 270 JA 1/2W
R475 401 009 5803 CARBON 330 JA 1/2W
R480 401 027 0309 CARBON 47K JA 1/6W
R481 401 064 5206 OXIDE-MT 1.5 JA 2W
R700 401 024 7400 CARBON 10K JA 1/6W
R701 401 024 7400 CARBON 10K JA 1/6W
R702 401 026 4308 CARBON 3.3K JA 1/6W
R703 401 024 7400 CARBON 10K JA 1/6W
R704 401 025 8208 CARBON 22K JA 1/6W
R707 401 024 6700 CARBON 100 JA 1/6W
R708 401 024 9701 CARBON 12K JA 1/6W
R709 401 027 9005 CARBON 82K JA 1/6W
R710 401 024 7004 CARBON 1K JA 1/6W
R711 401 026 4308 CARBON 3.3K JA 1/6W
R712 401 025 4200 CARBON 1.8K JA 1/6W
R713 401 025 1902 CARBON 15K JA 1/6W
R715 401 024 7400 CARBON 10K JA 1/6W
R716 401 026 4605 CARBON 33K JA 1/6W
R717 401 024 9305 CARBON 1.2K JA 1/6W
R718 401 026 7002 CARBON 3.9K JA 1/6W
R721 401 026 4605 CARBON 33K JA 1/6W
R723 401 024 7004 CARBON 1K JA 1/6W
R724 401 024 7400 CARBON 10K JA 1/6W
R726 401 024 7400 CARBON 10K JA 1/6W
R727 401 024 7707 CARBON 100K JA 1/6W
R730 401 025 8208 CARBON 22K JA 1/6W
R731 401 026 1000 CARBON 2.7K JA 1/6W
R732 401 024 7400 CARBON 10K JA 1/6W
R733 401 024 9701 CARBON 12K JA 1/6W
R734 401 026 9907 CARBON 4.7K JA 1/6W
R735 401 027 8602 CARBON 8.2K JA 1/6W
R736 401 025 1605 CARBON 1.5K JA 1/6W
R737 401 024 9701 CARBON 12K JA 1/6W
R738 401 024 9701 CARBON 12K JA 1/6W
R740 401 025 4606 CARBON 18K JA 1/6W
R741 401 024 7400 CARBON 10K JA 1/6W
R742 401 024 6700 CARBON 100 JA 1/6W
R743 401 025 1308 CARBON 150 JA 1/6W
R744 401 026 9907 CARBON 4.7K JA 1/6W
R745 401 025 1308 CARBON 150 JA 1/6W
R746 401 026 9907 CARBON 4.7K JA 1/6W
R747 401 024 6700 CARBON 100 JA 1/6W
R748 401 024 6700 CARBON 100 JA 1/6W
R749 401 026 7002 CARBON 3.9K JA 1/6W
R750 401 026 4308 CARBON 3.3K JA 1/6W
R758 401 027 2600 CARBON 5.6K JA 1/6W
R759 401 025 7805 CARBON 2.2K JA 1/6W
R761 401 066 2104 OXIDE-MT 18K JA 2W
R762 401 024 7400 CARBON 10K JA 1/6W
R763 401 025 1902 CARBON 15K JA 1/6W
R764 401 025 4903 CARBON 180K JA 1/6W
R766 401 027 2600 CARBON 5.6K JA 1/6W
Ref. No. Part No. Description Ref. No. Part No. Description
-15-

R767 401 026 9907 CARBON 4.7K JA 1/6W
R768 401 020 0801 CARBON 470 JA 1/4W
R771 401 024 9701 CARBON 12K JA 1/6W
R772 401 024 9701 CARBON 12K JA 1/6W
R773 401 024 9701 CARBON 12K JA 1/6W
R774 401 027 0309 CARBON 47K JA 1/6W
R775 401 027 0309 CARBON 47K JA 1/6W
R776 401 027 0309 CARBON 47K JA 1/6W
R777 401 024 7400 CARBON 10K JA 1/6W
R780 401 024 7707 CARBON 100K JA 1/6W
R781 401 025 8208 CARBON 22K JA 1/6W
R782 401 026 9907 CARBON 4.7K JA 1/6W
R787 401 024 7400 CARBON 10K JA 1/6W
R791 401 026 6609 CARBON 390 JA 1/6W
R795 401 026 3905 CARBON 330 JA 1/6W
R796 401 025 1605 CARBON 1.5K JA 1/6W
R802 401 026 9600 CARBON 470 JA 1/6W
R810 401 024 7400 CARBON 10K JA 1/6W
R811 401 025 1308 CARBON 150 JA 1/6W
R812 401 025 1605 CARBON 1.5K JA 1/6W
R813 401 026 9907 CARBON 4.7K JA 1/6W
R814 401 026 9907 CARBON 4.7K JA 1/6W
R815 401 027 5502 CARBON 6.8K JA 1/6W
R816 401 025 1902 CARBON 15K JA 1/6W
R817 401 027 0309 CARBON 47K JA 1/6W
R850 401 024 7707 CARBON 100K JA 1/6W
R851 401 024 9701 CARBON 12K JA 1/6W
R852 401 024 9701 CARBON 12K JA 1/6W
R853 401 027 2600 CARBON 5.6K JA 1/6W
R854 401 027 2303 CARBON 560 JA 1/6W
R855 401 027 6608 CARBON 75 JA 1/6W
R856 401 026 7408 CARBON 39K JA 1/6W
R857 401 026 1307 CARBON 27K JA 1/6W
R858 401 027 6608 CARBON 75 JA 1/6W
R859 401 027 6608 CARBON 75 JA 1/6W
R860 401 027 6608 CARBON 75 JA 1/6W
R861 401 027 6608 CARBON 75 JA 1/6W
R862 401 027 6608 CARBON 75 JA 1/6W
R866 401 026 9907 CARBON 4.7K JA 1/6W
R867 401 026 9600 CARBON 470 JA 1/6W
R868 401 024 7400 CARBON 10K JA 1/6W
R870 401 024 7400 CARBON 10K JA 1/6W
R881 401 024 7004 CARBON 1K JA 1/6W
R882 401 024 9305 CARBON 1.2K JA 1/6W
R883 401 026 4308 CARBON 3.3K JA 1/6W
R885 401 024 9305 CARBON 1.2K JA 1/6W
R887 401 024 7004 CARBON 1K JA 1/6W
VARIABLE RESISTOR
VC141 610 003 0374 TRIMMER,28.5PF
VR120 645 006 5422 VR,SEMI,10K N
610 239 7567 VR B-10K
VR351 645 006 5514 VR,SEMI,2.2K N
610 239 7581 VR B-2K
VR401 645 006 5422 VR,SEMI,10K N
610 239 7567 VR B-10K
VR431 645 006 5408 VR,SEMI,100 N
610 232 7908 VR,SEMI,100 N
VR461 645 006 5606 VR,SEMI,4.7K N
610 232 8455 VR,SEMI,5K N
TRANSFORMER
T101 610 037 4508 S COIL
/!\T311 645 007 7494 TRANS,POWER,PULSE
645 009 0349 TRANS,POWER,PULSE
T431 610 000 1077 DRIVE TRANS
/!\T471 645 003 3094 TRANS,FLYBACK
COIL
L103 645 008 2863 INDUCTOR,4.7U K
L135 645 008 2924 INDUCTOR,8.2U K
L136 645 003 9782 INDUCTOR,22U K
L152 645 008 2894 INDUCTOR,5.6U K
L153 645 008 2924 INDUCTOR,8.2U K
L201 645 008 2863 INDUCTOR,4.7U K
L202 645 008 2863 INDUCTOR,4.7U K
L203 645 008 2863 INDUCTOR,4.7U K
L230 610 037 4522 S COIL
L280 645 001 4727 INDUCTOR,10U K
/!\L301 610 221 6912 LINE FILTER
L420 610 031 1039 INDUCTOR
L431 610 032 5821 FILTER COIL
645 008 5628 INDUCTOR,1U M
L441 610 000 0858 LINEARITY COIL
610 000 0872 LINEARITY COIL
L442 610 000 0070 COIL
L451 610 210 3908 PEAKING COIL 33UHK
645 001 5748 INDUCTOR,33U K
L452 610 032 1243 INDUCTOR,150U K
610 032 1250 INDUCTOR,150U
L461 610 031 1367 INDUCTOR 202J
L462 610 000 0261 COIL
610 208 3781 COIL
L702 645 008 0203 INDUCTOR,5.6U K
L703 645 008 0203 INDUCTOR,5.6U K
L704 645 003 9751 INDUCTOR,18U K
L705 645 011 0221 INDUCTOR,1.5U K
L706 645 001 4727 INDUCTOR,10U K
L852 645 001 4567 INDUCTOR,10U K
DIODE
D123 407 012 4208 DIODE 1SS131
407 012 6004 DIODE 1SS178
D130 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D141 407 088 2603 DIODE 1SS265
D171 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D172 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D201 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D202 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D203 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D210 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D231 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D232 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D233 408 007 8607 DIODE 1N4148
407 013 1008 DIODE 1S1553
D234 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D275 407 163 8209 ZENER DIODE UZ-5.1BCC
D303 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D304 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D305 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D306 407 006 6300 DIODE ERC05-10B
407 009 6901 DIODE RM11C
D314 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
/!\D315 407 105 8700 PHOTO COUPLE PC113B
408 009 8407 PHOTO COUPLE CNY17F-3OPT6
D316 407 005 4505 DIODE DS442X
Ref. No. Part No. Description Ref. No. Part No. Description
-16-

407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D317 407 007 6606 DIODE ES1
407 007 6903 DIODE ES1Z
408 009 9008 DIODE BYD33D
D318 407 005 4505 DIODE DS442X
407 013 1008 DIODE 1S1553
407 013 4306 DIODE 1S2076A
407 013 6508 DIODE 1S2471
D319 407 151 9003 ZENER DIODE UZ-7.5BCC
407 151 9102 ZENER DIODE UZ-8.2BCA
D351 407 007 7702 DIODE EU2A
D352 407 007 7504 DIODE EU1C
D353 407 007 7603 DIODE EU2
408 007 2506 DIODE BYW32
D354 407 007 7603 DIODE EU2
408 007 2506 DIODE BYW32
D355 407 007 7603 DIODE EU2
408 007 2506 DIODE BYW32
D361 407 151 8600 ZENER DIODE UZ-6.2BCC
407 164 9908 ZENER DIODE UZ-6.8BCA
D362 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D364 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D365 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D366 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D370 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D371 407 151 8600 ZENER DIODE UZ-6.2BCC
407 164 9908 ZENER DIODE UZ-6.8BCA
D372 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D381 407 127 3400 ZD BZX55C12-GPS-26
407 163 9206 ZENER DIODE UZ-13BCA
407 164 4705 ZENER DIODE UZ-13BCB
D401 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D431 407 163 9909 ZENER DIODE UZ-9.1BCA
407 162 2703 ZENER DIODE UZ-9.1BCB
D433 407 005 7308 DIODE EM01Z
D438 407 095 8001 DIODE ERD07-15L
D439 407 006 4108 DIODE ERB44-04
D451 407 005 7308 DIODE EM01Z
408 009 9008 DIODE BYD33D
D465 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D466 407 164 7805 ZENER DIODE UZ-20BCA
D469 407 007 7405 DIODE EU1
D471 407 118 2207 ZENER DIODE 1Z75
D701 407 116 6504 LED SLP-181B-51
D703 407 055 7907 ZENER DIODE RD3.6EL
D704 409 013 0104 IC HZT33
409 026 8005 IC L5630
409 057 5103 IC UPC574J
D705 407 075 9905 ZENER DIODE EQA03-11A
407 063 8309 ZENER DIODE MTZJ11C
D712 408 007 8607 DIODE 1N4148
407 013 1206 DIODE 1S1555
D721 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
D862 407 012 4406 DIODE 1SS133
407 012 5809 DIODE 1SS176
MISCELLANEOUS
/!\F301 423 022 2102 FUSE 250V 4A
A101 645 007 7593 TUNER,U/V
A701 645 007 1546 UNIT,REMOCON RECEIVER
610 224 5806 RC PREAMP 409-1L
K801 610 009 8275 SOCKET 21P
610 218 6673 SOCKET 21P
610 225 2361 SOCKET 21P
/!\PS301 408 013 3801 TH PTH451C262BF140M270
SW220 610 011 2728 SWITCH,LEVER 1P-3T
/!\SW301 645 003 6811 SWITCH,PUSH POWER 2P-2T
SW451 610 011 2728 SWITCH,LEVER 1P-3T
SW701 610 011 2698 SWITCH,PUSH
SW702 610 011 2698 SWITCH,PUSH
SW703 610 011 2698 SWITCH,PUSH
SW704 610 011 2698 SWITCH,PUSH
SW705 610 011 2698 SWITCH,PUSH
SW706 610 011 2698 SWITCH,PUSH
X101 421 004 7701 SAW F TSF5344
X131 610 012 0617 TRAP,CERAMIC
X132 645 000 4490 TRAP,CERAMIC 6.5MHZ
610 015 3011 TRAP,CERAMIC 6.5MHZ
X151 645 003 2806 CERAMIC FILTER
X152 645 003 2813 CERAMIC FILTER
X201 610 239 3347 CRYSTAL OSCILLATOR
X701 645 000 6692 OSC,CERAMIC 8.00MHZ
645 002 1039 OSC,CERAMIC 8.00MHZ
ASSY,PWB,AM SIF E8CL 1AA0B10E08700
TRANSISTOR
Q501 405 015 9701 TR 2SC2814-F4-TA
405 015 9909 TR 2SC2814-F5-TA
Q502 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q503 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q504 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q505 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
INTEGRATED CIRCUIT
IC501 409 345 2005 IC TDA3843/V3
IC502 409 020 8704 IC LC4066B
409 030 5809 IC MC14066B
409 207 1900 IC MLC4066B
409 051 3501 IC TC4066BP
CAPACITOR
C501 403 069 9500 CERAMIC 0.01U Z 50V
C502 403 069 9500 CERAMIC 0.01U Z 50V
C503 403 069 9500 CERAMIC 0.01U Z 50V
C504 403 069 9500 CERAMIC 0.01U Z 50V
C505 403 069 9500 CERAMIC 0.01U Z 50V
C506 403 248 2001 ELECT 4.7U M 25V
C507 403 248 1905 ELECT 10U M 16V
C508 403 248 2803 ELECT 2.2U M 50V
C509 403 194 4609 ELECT 470U M 16V
C510 403 069 9500 CERAMIC 0.01U Z 50V
C511 403 248 2803 ELECT 2.2U M 50V
C512 403 248 2803 ELECT 2.2U M 50V
RESISTOR
R501 401 037 5202 MT-GLAZE 100 JA 1/10W
R502 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R503 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R504 401 038 3504 MT-GLAZE 330 JA 1/10W
R505 401 037 5202 MT-GLAZE 100 JA 1/10W
R506 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R507 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R508 401 037 5608 MT-GLAZE 10K JA 1/10W
R509 401 037 5608 MT-GLAZE 10K JA 1/10W
R510 401 037 5608 MT-GLAZE 10K JA 1/10W
R511 401 037 5608 MT-GLAZE 10K JA 1/10W
Ref. No. Part No. Description Ref. No. Part No. Description
-17-

R512 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R513 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R514 401 037 5608 MT-GLAZE 10K JA 1/10W
R521 401 039 0502 MT-GLAZE 82K JA 1/10W
R522 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R523 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R524 401 038 7809 MT-GLAZE 56K JA 1/10W
DIODE
D501 407 004 8009 DIODE DSB015-TA
D502 407 004 8009 DIODE DSB015-TA
MISCELLANEOUS
X501 421 005 6703 SAW F TSB6311U
ASSY,PWB,CRT E8JE 1AA0B10E13000
TRANSISTOR
Q601 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q611 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q621 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q640 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q651 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
CAPACITOR
C601 403 073 6403 CERAMIC 470P K 50V
C611 403 073 6403 CERAMIC 470P K 50V
C621 403 073 6403 CERAMIC 470P K 50V
C631 403 077 2708 CERAMIC 1000P P 2K
C651 403 201 5001 ELECT 330U M 16V
RESISTOR
R601 401 018 2800 CARBON 330 JA 1/4W
R602 401 019 1901 CARBON 3.9K JA 1/4W
R603 401 012 5708 CARBON 1K JA 1/4W
R604 401 065 4604 OXIDE-MT 12K JA 2W
R605 401 009 6602 CARBON 3.3K JA 1/2W
R611 401 018 2800 CARBON 330 JA 1/4W
R612 401 019 1901 CARBON 3.9K JA 1/4W
R613 401 016 3809 CARBON 2.2K JA 1/4W
R614 401 065 4604 OXIDE-MT 12K JA 2W
R615-B 401 009 6602 CARBON 3.3K JA 1/2W
R621 401 018 2800 CARBON 330 JA 1/4W
R622 401 019 1901 CARBON 3.9K JA 1/4W
R623 401 015 2704 CARBON 1.8K JA 1/4W
R624 401 065 4604 OXIDE-MT 12K JA 2W
R625-B 401 009 6602 CARBON 3.3K JA 1/2W
R627 401 020 0801 CARBON 470 JA 1/4W
R641 401 020 2003 CARBON 4.7K JA 1/4W
R642 401 018 3807 CARBON 3.3K JA 1/4W
R644 401 017 0807 CARBON 270 JA 1/4W
R652 401 012 7009 CARBON 10K JA 1/4W
R653 401 012 7009 CARBON 10K JA 1/4W
VARIABLE RESISTOR
VR601 645 003 5722 VR,SEMI,4.7K N
VR602 645 003 5647 VR,SEMI,1K N
VR611 645 003 5722 VR,SEMI,4.7K N
VR612 645 003 5647 VR,SEMI,1K N
VR621 645 003 5722 VR,SEMI,4.7K N
COIL
L601 645 008 0012 INDUCTOR,330U K
L611 645 008 0012 INDUCTOR,330U K
L621 645 008 0012 INDUCTOR,330U K
DIODE
D601 407 013 1206 DIODE 1S1555
D611 407 013 1206 DIODE 1S1555
D621 407 013 1206 DIODE 1S1555
D651 407 013 1206 DIODE 1S1555
MISCELLANEOUS
/!\K601-B 610 233 7990 CRT SOCKET
SERVICE REF. NO. C25EG92F-02
C25EG92F-02 differs from C25EG92F-00 on the
following points, refer to C25EG92F-00 for all other
points.
OUT OF CIRCUIT BOARD
PICTURE TUBE
/!\Q901 414 008 6405 CRT A59ECF20X05
ASSY,PWB,MAIN E8ALM 1AA0B10E19000
CAPACITOR
/!\C420 404 044 1502 MT-POLYPRO 6200P J 1.5K
404 040 8806 MT-POLYPRO 6200P J 1.5K
/!\C441 403 082 7804 POLYPRO 0.18U J 200V
RESISTOR
R452 401 027 5502 CARBON 6.8K JA 1/6W
R454 401 026 0607 CARBON 270 JA 1/6W
R455 401 026 1000 CARBON 2.7K JA 1/6W
R460 401 009 5803 CARBON 330 JA 1/2W
R463 401 007 8400 CARBON 1.5K JA 1/2W
R481 401 067 3011 OXIDE-MT 3.9 JA 2W
Ref. No. Part No. Description Ref. No. Part No. Description
-18-
