SANYO
SERVICE MANUAL
1. Caution……………………………………………………………2
2. Specification………………………………………………………6
3. BOM List …………………………………………………………9
4. Alignment Procedure………………………………………….…35
5. Block Diagram……………………………………………………44
6. Schematic Diagram………………………………………………45
7. PCB Layout………….……………………………………………46
8. Exploded ViewDiagram…………………………………………48
This manual is the latest at the time of printing, and does not
include the modification which may be made after the printing, by
the constant improvement of product.
C21TF26S

WARNING: TOREDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION: TO REDUCE THE RISK OF
ELECTRICAL SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SER VICING TO
QUALIFIED SERVICE PERSONNEL.
The lighting flash with arrowhead symbol, with an equilateral triangle is intended to
alert the user to the presence of uninsulated voltage within the products
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
the person.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
CAUTION:
Use of controls, adjustments or procedures other than those specified herein may result in
hazardous radiation exposure.
CAUTION
RISKRISK OFOF ELECTRIELECTRICC
SHOCKSHOCK DODO NOTNOT OPEN.OPEN.
2
dangerous

3
FOR YOUR PERSONAL SAFETY
1. When the power cord or plug is damaged or frayed, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
2. Do not overload wall outlets and extension cords as this can result in fire or electric shock.
3. Do not allow anything to rest on or roll over the power cord, and do not place the TV where power cord is subject to
traffic or abuse. This may result in a shock or fire hazard.
4. Do not attempt to service this television set yourself as opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service personnel.
5. Never push objects of any kind into this television set through cabinet slots as they may touch dangerous voltage
points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the television set.
6. If the television set has been dropped or the cabinet has been damaged, unplug this television set from the wall outlet
and refer servicing to qualified service personnel.
7. If liquid has been spilled into the television set, unplug this television set from the wall outlet and refer servicing to
qualified service personnel.
8. Do not subject your television set to impact of any kind. Be particularly careful not to damage the picture tube surface.
9. Unplug this television set from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
10.1. Do not place this television set on an unstable cart, stand, or table. The television set may fall, causing serious injury
to a child or an adult, and serious damage to the appliance.Use only with a cart or stand recommended by the
manufacturer, or sold with the television set. Wall or shelf mounting should follow the manufacturer s instructions, and
should use a mounting kit approved by the manufacturer.
10.2. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces
may cause the appliance and cart combination to overturn.
CAUTION:
Read all of these instructions. Save these instructions for later use.Follow all Warnings and
Instructions marked on the audio equipment.
1. Read Instructions- All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions- The safety and operating instructions should be retained for future reference.
3. Heed Warnings- All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions- All operating and use instructions should be followed.
IMPORTANT SAFETY INSTRUCTIONS

4
PROTECTION AND LOCATION OF YOUR SET
11. Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Never expose the set to rain or water.If the set has been exposed to rain or water, unplug the set from the wall
outlet and refer servicing to qualified service personnel.
12. Choose a place where light (artificial or sunlight) does not shine directly on the screen.
13. Avoid dusty places, since piling up of dust inside TV chassis may cause failure of the set when high humidity persists.
14. The set has slots, or openings in the cabinet for ventilation purposes, to provide reliable operation of the receiver, to
protect it from overheating. These openings must not be blocked or covered.
Never cover the slots or openings with cloth or other material.
Never block the bottom ventilation slots of the set by placing it on a bed, sofa, rug, etc.
Never place the set near or over a radiator or heat register.
Never place the set in enclosure, unless proper ventilation is provided.
PROTECTION AND LOCATION OF YOUR SET
15.1. If an outside antenna is connected to the television set, be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges, Section 810 of the National Electrical Code, NFPA No.
70-1975, provides information with respect to proper grounding of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection
to grounding electrode, and requirements for the grounding electrode.
15.2. Note to CATV system installer : (Only for the television set with CATV reception)
This reminder is provided to call the CATV system attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding
system of the building, as close to the point of cable entry as practical.
16. An outside antenna system should not be located in the vicinity of overhead power lines or other electric lights or power
circuits, or where it can fall into such power lines or circuits.When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17. For added protection for this television set during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage due to lightning
and power-line surges.

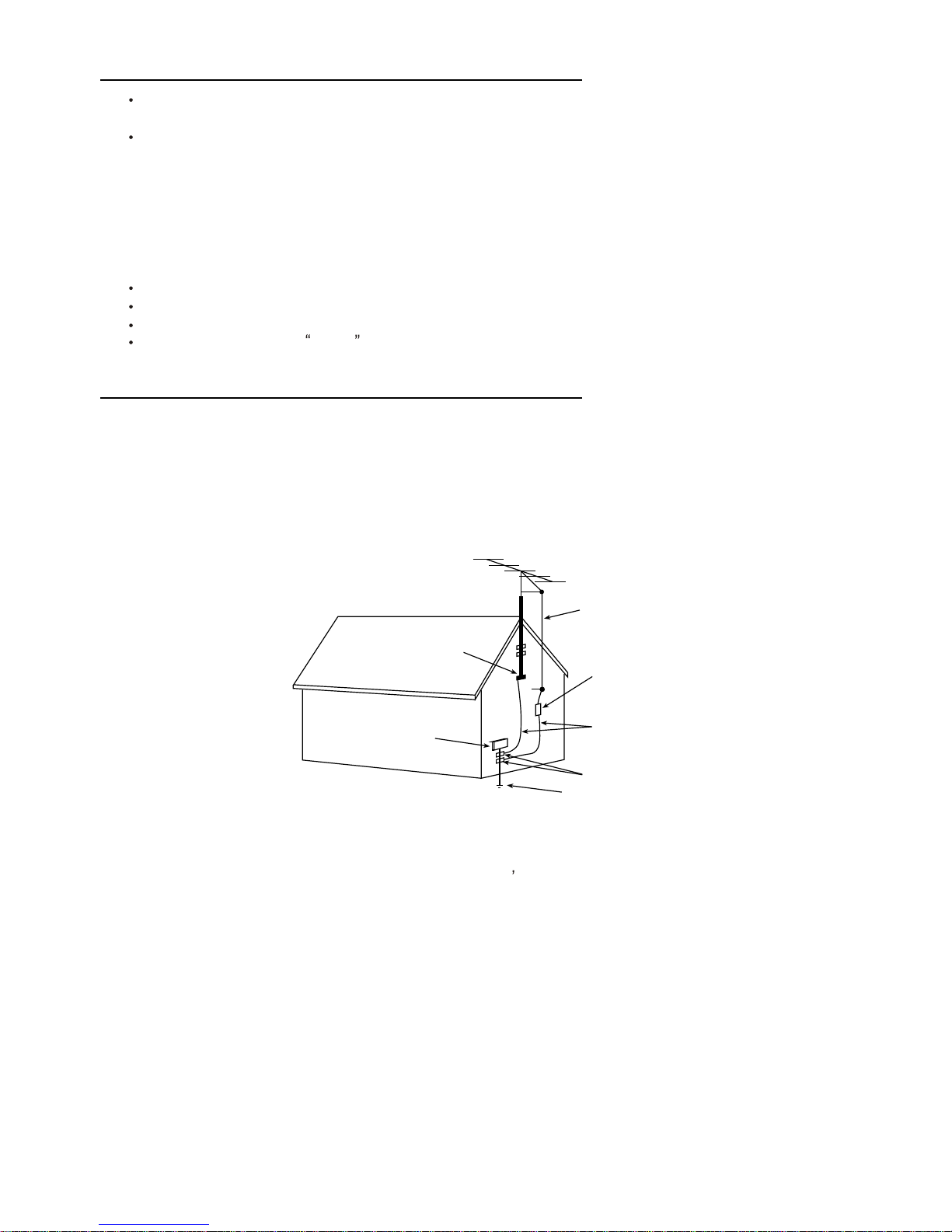

ANTENNA
LEAD- IN WIRE
ANTENNA DISCHARGE
UNIT (NEC SECTION
810-20)
GROUNDING
CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
ELECTRIC SERVICE
EQUIPMENT
GROUND CLAMP
NEC-NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS
a built-in
installer s

OPERATION OF YOUR SET
18. This television set should be operated only from the type of power source indicated on the marking label. If you are not
sure of the type of power supply at your home, consult your television dealer or local power company. For television
sets designed to operate from battery power, refer to the operating instructions.
19. If the television set does not operate normally by following the operating instructions, unplug this television set from the
wall outlet and refer servicing to qualified service personnel. Adjust only those controls that are covered in the operating
instructions as improper adjustment of other controls may result in damage and will often require extensive work by a
qualified technician to restore the television set to normal operation.
20. When going on a holiday : If your television set is to remain unused for a period of time, for instance, when you go on
a holiday, turn the television set and unplug the television set from the wall outlet.
IF THE SET DOES NOT OPERATE PROPERLY
21. If you are unable to restore normal operation by following the detailed procedure in your operating instructions,
do not attempt any further adjustment. Unplug the set and call your dealer or service technician.
22. Whenever the television set is damaged or fails, or a distinct change in performance indicates a need for
service, unplug the set and have it checked by a professional service technician.
23. It is normal for some TV sets to make occasional snapping or popping sounds, particularly when being
turned on or off.If the snapping or popping is continuous or frequent, unplug the set and consult your
dealer or service technician.
FOR SERVICE AND MODIFICATION
24. Do not use attachments not recommended by the television set manufacturer as they may cause hazards.
25.When replacement parts are required, be sure the service technician has used replacement parts specified
by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions
may result in fire, electric shock, or other hazards.
26. Upon completion of any service or repairs to the television set, ask the service technician to perform
routine safety checks to determine that the television is in safe operating condition.
5
off

PFS2 FORMAT-1 Report
Date:2004-5-19 13:55
ProductView......:
Report by............:
Specs / Products
MasterData
Customer Id
newsan
Version 1
Status
Locked
12NC
Brand
EAN \
UPC \
Rece
p
tion
+Tunin
g
-
p
resets/channels 181, Full-Cable
+Tunin
g
- technolo
gy
PLL
+Tunin
g
- Indication Full-Cable
+Fre
q
Bands FS TUNER
+Channels
+IF Fre
q
45.75M
+TV S
y
stems Off Air/Cabl
e
NTSC-M, PAL MN
+Add S
y
stems Ext In 4.43 NTSC, 4.43PAL
+TV S
y
stems Multi PAL NTSC
+Sound S
y
stems AV STEREO,BTSC
Picture - Processin
g
+Scan Standard
+Scan Modes 4:03
+Wide Screen Switchin
g
+Combfilter
+Picture Control Brightness, Color, Contrast, Tint, Sharpness
Con Var, Smart pict 4 modes
+Pict Enhancement Blue Mute
+Pict Noise Reduction Yes
Picture - Dis
p
la
y
+Dis
p
la
y
T
ype
+Screen Format
+Size
(
Visual
)
" - size/vis. cm 21"
+Deflection S
y
stem
(
CRT onl
y)
+Tube Technolo
gy
(
CRT onl
y)
+CRT Defl
+CRT Gun
+CRT Ma
g
n field
+Resolution
+Coatin
g
(
onl
y
for D.V. sets
)
+White Point
Sound
+Leaflet Power 8W
+RMS Power Intern 2X4W(for 21")
+RMS Power Extern
+Surround Sound YES
' +Sound Features Mute, Smart sound(4 modes)
+Sound Control Balance, Bass, Treble, Volume
Sound - S
p
eakers
+S
p
eaker confi
g
uration 2 speakers
+S
p
eakers used
+S
p
eaker Size
User Interface
+Interface Name 2188
+Voice Control
+Menu Cursor Control
+Menu Colours
+Menu Lan
g
ua
g
es Spanish, English, Franch, Portuguese
+Special Features V-chip with Child Lock, CCD, Favorite
channel, Notebook, Biological,Calendar
+O
p
erational Features Alternate Channel/ recall
+PP Features one PP for all channel
Product: C21TF26S
2004-5-19 17:07 2188 PFS 1 of 3

Date:2004-5-19 13:55
ProductView......:
Report by............:
Specs / Products
Product: C21TF26S
+Tuning/Install Features Auto Cable/ Auto select. Auto channel Prog,
Cable/Antenna select, Channnel Edit,
Factory Mode, Language Selection, Service
Mode
+Clock/Timer Functions sleep timer
+Local Controls Front Channel +/-, Volume+/-, Mains(Tact
Switch), Menu, TV/Video
+Local Controls To
p
+Indicators - screen
+Indicators - front
+Numb of Loc Cont
(
incl Mains
)
+Number of Ind.
(
incl Mains
)
+Local Controls
(
Old
)
Remote Control
+Remote Control - sco
p
eTV
+Remote Control - t
yp
eStandard
+Remote Control - t
yp
en
r
F
+Remote Control - features
Connectors Rea
r
+Scart RGB+Y/C+CVBS
+Scart RGB+CVBS
+Scart CVBS+Y/C
+Com
p
onent In
(
Y/U/V
)
Cinch
+In Y/C+Cinch
(
CVBS+St
)
x
+In Y/C+Cinch
(
CVBS+Mo
)
+In Y/C+Cinch
(
St
)
+In BNC
(
CVBS
)
+In Cinch
(
CVBS+St
)
+In Cinch
(
CVBS+Mo
)
+Out Cinch
(
CVBS+St
)
x
+Out Cinch
(
CVBS+Mo
)
+Out Cinch Audio Stereo
+Out Cinch Audio Mono
+Out Cinch Dolb
y
Surround
+Di
g
Audio Out
+Louds
p
eakers
+Control Busses
+Feature Slot
+ITV Smart Port
+Terr. Antenna in 75 Ohms(F type)
Guide + IR Blaster Jack
Connectors Fron
t
+In Cinch
(
CVBS + St
)
+In Cinch
(
CVBS+Mo
)
+Head
p
hone Out
Connectors Side
+In Y/C + Cinch
(
CVBS+St
)
+In Y/C + Cinch Stereo
+In Cinch
(
CVBS + St
)
x
+IN Cinch
(
CVBS + Mo
)
+Head
p
hone Out
Connectors To
p
Connectors Mechanical
St
y
lin
g
+Cabinet Name 2188
+Confi
g
uration
+Gra
p
hics/Lo
g
o's RCA
+Cabinet Colour and Finish
+Mechanics
+S
p
eaker Visibilit
y
General
+Se
g
ment
+Chassis M123A
+Software Deliver
y
Mode
+Software Version 13-A21V01-TOP
+Mains Volta
g
e110-240V
+Mains Fre
q
uenc
y
50 / 60 Hz
+T
yp
e Mains Cord ARGENTINA
2004-5-19 17:07 2188 PFS 2 of 3

Date:2004-5-19 13:55
ProductView......:
Report by............:
Specs / Products
Product: C21TF26S
Power Consum
p
tion
(
P
)
TV in On
Power Consum
p
tion SB in Watts less than 3W
Power Consum
p
tion Semi SB in W
+Power in "ON" for
+Power in Standb
y
for
+Power in "OFF" for
Wei
g
ht
(
P
)
TV
(
incl. Packa
g
in
g)
Wei
g
ht
(
P
)
TV
(
excl. Packa
g
e
)
Wei
g
ht AVUnit excl Packa
g
in
g
+INDICATION on BACKCOVE
R
+Channel
Final E
q
ui
p
ment
+Packa
g
in
g
- methods
+Documents and manuals
+Lan
g
ua
g
es DFU
+Cables Su
pp
lied
+Antenna Su
pp
lied
+Stand Su
pp
lied
+Aux E
q
ui
p
m Su
pp
lied
Packa
g
in
g
- width cm
Packa
g
in
g
- hei
g
ht cm
Packa
g
in
g
- de
p
th cm
Miscellaneous
+EAN Indication
+A
pp
robation CB
+Tests
+Local Inte
g
ration
V
arious Perf. Param.
+Service Call-Rate
PIP/POP
+T
ype
+Features
Di
g
ital Rece
p
tion
+Transmission
Built-in Data S
y
stem
+Text Standard
+
(
Tele
)
text Features
+Nbr bck
g
rnd
p
a
g
e / Mem Size
+Text Technolo
gy
+Di
g
ital Data handlin
g
+Pro
g
ram Guide
Built-in Clock/Timer
+T
ype
+Features
Built-in Radio
+T
ype
Built-in PC dis
p
la
y
+PC S
y
nch
+PC Control
Built-in DVD drive
+T
yp
e of Medium
+T
yp
e of Dec
k
Phased Out Items
+Tuner/Frontend
+Sensitivit
y
+CRT EHT
+Li
g
htnin
g
Protection
+Accoun
t
+XX
(
Radio Antenna in
)
+Non Volatile Memor
y
+In Y/C + Cinch
(
CVBS+Mo
)
Version of deck
2004-5-19 17:07 2188 PFS 3 of 3

Item No. Description Quantity Req. Designator Remarks
08-002180-FRY ASS'Y - PACKING FOR F/R CAB. 1
74-075045-50D POLYBAG (75CMX45CMX0.5MM) 1
74-100100-8CD POLYBAG (100CMX100CM) 2
74-345900-50C EPE BOARD (600MMX400MMX5MM) 0.93
74-345910-50C EPE BOARD (300MMX240MMX5MM) 1.333
74-360350-50C EPE BOARD (620mmX500mmX5mm) 0.25
76-001497-0AF CARTON BOX LWH 640X460X360MM 0.028
76-002139-0AR CARTON BOX LWH 672X642X494MM 0.333
76-002180-0AF CARTON BOX LWH 642X500X445MM 0.07
76-002180-0AP CARTON BOX LWH 642X530X510MM 0.25
76-346740-01A CARTON SHEET LWH 440X620X3MM 0.142
77-075045-6WC BUBBLE BAG (75cmX45cm) 1
77-100100-6WC BUBBLE BAG (100cmX100cm) 0.5
08-02180G-SIY ASS'Y - SIDE AV BD 1
47-RCA020-XX1 RCA SOCKET Y/W/R 1 P1101
46-31789H-02X HS 2P22 400 MM TJC3-2Y/SCN-2Y 1 P1102A V - GND FOR M.BD P904
40-2180MH-SIA1X P.C.B. SIDE AV BD 1
46-32274H-03X HS 3P24 380 TJC3-3Y/SCN-3Y 1 L - R FOR MPX BD P1003
08-02188G-CRY 1
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D502
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D501
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q510
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q501
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q502
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q503
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R501
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R504
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R507
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R522
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R524
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R525
9

Item No. Description Quantity Req. Designator Remarks
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R526
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R527
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R502
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R505
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R508
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R523
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R503
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R506
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R509
18-CD0104-JNX RES. C.F. 100K OHM 1/4W +/-5% 1 R521
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R514
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R515
18-FE0272-JNX RES. M.O. 2.7K OHM 1/2W +/-5% 1 R518
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R510
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R511
18-FG0183-JHX RES. M.O. 18K OHM 2W +/-5% 1 R512
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C508
26-AIM103-KBX CAP. CER 0.01UF 500V +/-10% B 1 C504
26-AMK221-KBX CAP. CER 220PF 2KV +/-10% B 1 C505
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C514
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C507
26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C501
26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C502
26-EBP681-JCX CAP. CER 680 pF 50V +/-5% 1 C503
35-139730-00X FERR. BEAD BF60 2 FOR C514 (L505 & L506)
40-02135S-CRD P.C.B. CRT BD 1
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 FOR Q505 (B - E)
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 FOR Q509 (B - E)
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 FOR Q507 (B - E)
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J505
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J502
10

Item No. Description Quantity Req. Designator Remarks
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J503
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J501
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J504
46-10967W-01X PIN BASE *1 TJC1-1A 1 P503
46-28816H-05X HS 5P24 500 TJC3-5Y/SCN-5Y 1 P501 P2 -P6 FOR M.BD P201
46-30615H-04X HS 4P24 460 F/W TJC3-4Y/SCN-4 1 P502 FOR M. BD P402
47-CRT004-XX0 CRT SOCKET GZS10-2-AC2 1 S501
08-0A21SG-MAY 1
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D402
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D401
10-0FR104-FBX DIODE FR104 (FAST RECTIFIER) 1 D403
10-1N4001-EBX DIODE 1N4001 (RECTIFIER) 1 D301
10-1N4002-EBX DIODE 1N4002 (RECTIFIER) 1 D405
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D005
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D206
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D006
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D007
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D601
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D008
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D602
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D009
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D307
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D302
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D303
10-1N4148-ABX DIODE 1N4148 (SWITCHING) 1 D305
10-CW574C-DJX DIODE CW574CD 1 D101
10-79C3V9-DBX DIODE ZENER 3V9 1/2W 5% 1 D304
10-79C5V1-DBX DIODE ZENER 5V1 1/2W 5% 1 D001
10-79C6V2-DBX DIODE ZENER 6V2 1/2W 5% 1 D404
11-A124ES-0BX TRANSISTOR PDTA124ES (PNP) 1 Q005
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q604
11

Item No. Description Quantity Req. Designator Remarks
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q001
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q004
11-C124ES-0BX TRANSISTOR PDTC124ES (NPN) 1 Q212
11-C144ES-0BX TRANSISTOR PDTC144ES (NPN) 1 Q211
11-DD1555-0AX TRANSISTOR 3DD1555 1 Q402
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q003
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q202
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q605
11-SA1015-YBX TRANSISTOR 2SA1015Y 1 Q210
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q203
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q209
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q002
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q208
11-SC1815-YBX TRANSISTOR 2SC1815Y 1 Q905
11-SC2482-0BX TRANSISTOR 2SC2482 1 Q401
11-SC3779-DBX TRANSISTOR 2SC3779D (RF AMPL) 1 Q101
13-00M24C-08P IC EEPROM 8K M24C08 (WRITE) 1 IC001
13-0STV93-02S IC STV9302 1 IC301
13-L7809C-VAP IC L7809CV 1 IC401
13-TDA705-7AS IC TDA7057AQ (R/L AUDIO O/P) 1 IC601
18-CB0100-JNX RES. C.F. 10 OHM 1/6W +/-5% 1 J217
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R218
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R009
18-CB0101-JNX RES. C.F. 100 OHM 1/6W +/-5% 1 R228
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R415
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R013
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R234
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R029
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R116
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R051
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R901
12

Item No. Description Quantity Req. Designator Remarks
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R922
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R902
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R920
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R012
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R011
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R030
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R050
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R043
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R042
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R006
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R406
18-CB0102-JNX RES. C.F. 1K OHM 1/6W +/-5% 1 R924
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R047
18-CB0103-JNX RES. C.F. 10K OHM 1/6W +/-5% 1 R052
18-CB0104-JNX RES. C.F. 100K OHM 1/6W +/-5% 1 R031
18-CB0121-JNX RES. C.F. 120 OHM 1/6W +/-5% 1 R227
18-CB0123-JNX RES. C.F. 12k OHM 1/6W +/-5% 1 R212
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R115
18-CB0151-JNX RES. C.F. 150 OHM 1/6W +/-5% 1 R117
18-CB0122-JNX RES. C.F. 1.2k OHM 1/6W +/-5% 1 R007
18-CB0153-JNX RES. C.F. 15k OHM 1/6W +/-5% 1 R315
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R201
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R202
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R203
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R220
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R238
18-CB0221-JNX RES. C.F. 220 OHM 1/6W +/-5% 1 R401
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R055
18-CB0222-JNX RES. C.F. 2.2k OHM 1/6W +/-5% 1 R044
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R215
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R912
13

Item No. Description Quantity Req. Designator Remarks
18-CB0223-JNX RES. C.F. 22k OHM 1/6W +/-5% 1 R913
18-CB0224-JNX RES. C.F. 220k OHM 1/6W +/-5% 1 R206
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R217
18-CB0271-JNX RES. C.F. 270 OHM 1/6W +/-5% 1 R233
18-CB0303-JNX RES. C.F. 30K OHM 1/6W +/-5% 1 R205
18-CB0331-JNX RES. C.F. 330 OHM 1/6W +/-5% 1 R219
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R218A
18-CB0332-JNX RES. C.F. 3.3k OHM 1/6W +/-5% 1 R046
18-CB0333-JNX RES. C.F. 33K OHM 1/6W +/-5% 1 R602
18-CB0334-JNX RES. C.F. 330K OHM 1/6W +/-5% 1 R232
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R213
18-CB0392-JNX RES. C.F. 3.9K OHM 1/6W +/-5% 1 R214
18-CB0470-JNX RES. C.F. 47 OHM 1/6W +/-5% 1 R002
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R119
18-CB0471-JNX RES. C.F. 470 OHM 1/6W +/-5% 1 R208
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R015
18-CB0472-JNX RES. C.F. 4.7k OHM 1/6W +/-5% 1 R311
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R216
18-CB0473-JNX RES. C.F. 47K OHM 1/6W +/-5% 1 R245
18-CB0560-JNX RES. C.F. 56 OHM 1/6W +/-5% 1 R114
18-CB0561-JNX RES. C.F. 560 OHM 1/6W +/-5% 1 R209
18-CB0564-JNX RES. C.F. 560K OHM 1/6W +/-5% 1 R210
18-CB0681-JNX RES. C.F. 680 OHM 1/6W +/-5% 1 R028
18-CB0683-JNX RES. C.F. 68K OHM 1/6W +/-5% 1 R211
18-CB0751-JNX RES. C.F. 750 OHM 1/6W +/-5% 1 R008
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R903
18-CB0820-JNX RES. C.F. 82 OHM 1/6W +/-5% 1 R923
18-CB0821-JNX RES. C.F. 820 OHM 1/6W +/-5% 1 R118
18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R237
18-CB0822-JNX RES. C.F. 8.2K OHM 1/6W +/-5% 1 R606
18-CD0100-JNX RES. C.F. 10 OHM 1/4W +/-5% 1 R027
14

Item No. Description Quantity Req. Designator Remarks
18-DB0103-FNX RES. M.F. 10K OHM 1/6W +/-1% 1 R302
18-DB0104-FNX RES. M.F. 100K OHM 1/6W +/-1% 1 R303
18-DB0153-FNX RES. M.F. 15K OHM 1/6W +/-1% 1 R244
18-DB0223-FNX RES. M.F. 22K OHM 1/6W +/-1% 1 R306
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R403
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R405
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R418
18-EF0109-JGX RES. FUS. 1 OHM 1W +/-5% (LS) 1 R409
18-FF0103-JGX RES. M.O. 10k OHM 1W +/-5% 1 R410
18-FF0123-JGX RES. M.O. 12k OHM 1W +/-5% 1 R408
18-FF0129-JGX RES. M.O. 1.2 OHM 1W +/-5% 1 R304
18-FF0221-JGX RES. M.O. 220 OHM 1W +/-5% 1 R336
18-FG0153-JHX RES. M.O. 15k OHM 2W +/-5% 1 R404
18-GJ0332-JUX1 RES.C.C.5W 3.3KOHM +/-5% 1 R402
18-RG0228-JHX RES. WIRE ROUND 0.22 OHM 2W +/-5% 1 R620
25-BCA102-M1X CAP. ELEC 1000 UF 16V +/-20% 1 C232
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C004
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C220
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C023
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C227
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C231
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C603
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C901
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C902
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C907
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C025
25-BCB100-M1X CAP. ELEC 10 UF 16V +/-20% 1 C311
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C240
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C605
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C211
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C101
15

Item No. Description Quantity Req. Designator Remarks
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C016
25-BCB101-M1X CAP. ELEC 100 UF 16V +/-20% 1 C903
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C418
25-BCB221-M1X CAP. ELEC 220 UF 16V +/-20% 1 C906
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C423
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C202
25-BCB470-M1X CAP. ELEC 47 UF 16V +/-20% 1 C082
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C217
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C604
25-BDA471-M1X CAP. ELEC 470 UF 25V +/-20% 1 C415
25-BDB221-M1X CAP. ELEC 220 UF 25V +/-20% 1 C301
25-BEA102-M1X CAP. ELEC 1000 UF 35V +/-20% 1 C413
25-BEB101-M1X CAP. ELEC 100 UF 35V +/-20% 1 C302
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C208
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C915
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C916
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C203
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C008A
25-BFB109-M1X CAP. ELEC 1 UF 50V +/-20% 1 C214
25-BFB220-M1X CAP. ELEC 22 UF 50V +/-20% 1 C106
25-BFB478-M1X CAP. ELEC 0.47 UF 50V +/-20% 1 C218
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C304
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C216
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C104
25-BFB479-M1X CAP. ELEC 4.7 UF 50V +/-20% 1 C310
25-BHB100-M1X CAP. ELEC 10 UF 100V +/-20% 1 C420
25-BJA470-M1X CAP. ELEC 47 UF 160V +/-20% 1 C411
25-BLA100-M1X CAP. ELEC 10 UF 250V +/-20% 1 C408
25-GFB228-K1X CAP. ELEC 0.22 UF 50V +/-10% 1 C205
25-GFB478-K1X CAP. ELEC 0.47 UF 50V 10%CEC-K 1 C234
25-GFB478-K1X CAP. ELEC 0.47 UF 50V 10%CEC-K 1 C236
16

Item No. Description Quantity Req. Designator Remarks
26-ABC101-JZX CAP. CER 100 PF 50V +/-5% SL 1 C001
26-ABC101-JZX CAP. CER 100 PF 50V +/-5% SL 1 C002
26-ABC390-JZX CAP. CER 39 PF 50V +/-5% SL 1 C021
26-ABC390-JZX CAP. CER 39 PF 50V +/-5% SL 1 C022
26-AIC102-KBX CAP. CER 1000 PF 500V +/-10% B 1 C401
26-AIC102-KBX CAP. CER 1000 PF 500V +/-10% B 1 C404
26-AIC391-KBX CAP. CER 390 PF 500V +/-10% B 1 C409
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C112
26-EBP102-KBX CAP. CER 1000 PF 50V +/-10% B 1 C219
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C212
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C102
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C019
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C114
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C024
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C201
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C241
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C005
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C228
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C230
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C233
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C425
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C417
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C110
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C239
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C020
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C017
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C221
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C081
26-EBP103-ZFX CAP. CER 0.01UF 50V +80/-20% F 1 C105
26-EBP152-KBX CAP. CER 1500pF 50V +/-10% B 1 C209
26-EBP181-JCX CAP. CER 180PF 50V +/-5% CH 1 C207
17

Item No. Description Quantity Req. Designator Remarks
26-EBP270-JCX CAP. CER 27PF 50V +/-5% CH 1 C011
26-EBP272-KBX CAP. CER 2700pF 50V +/-10% B 1 C210
26-EBP331-JCX CAP. CER 330PF 50V +/-5% CH 1 C018
26-EBP391-JCX CAP. CER. 390PF 50V +/-5% CH 1 C403
26-EBP391-JCX CAP. CER. 390PF 50V +/-5% CH 1 C412
27-AGQ563-J0X CAP. M.PP 0.056 UF 250V +/-5% 1 C410
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C909
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C610
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C309
27-MBC104-J0X CAP. M.P.E 0.1 UF 63V +/-5% 1 C242
27-MBC224-J0X CAP. M.P.E 0.22UF 63V +/-5% 1 C305
27-MBC474-J0X CAP. M.P.E 0.47UF 63V +/-5% 1 C601
27-MBC474-J0X CAP. M.P.E 0.47UF 63V +/-5% 1 C602
27-PBC222-J0X CAP. P.E 0.0022UF 63V +/-5% 1 C213
27-PBC222-J0X CAP. P.E 0.0022UF 63V +/-5% 1 C204
27-PBC562-J0X CAP. P.E 0.0056UF 63V +/-5% 1 C422
27-PBC822-J0X CAP. P.E 0.0082UF 63V +/-5% 1 C235
34-A109K0-1IX COIL CHOKE 1 UH +/-10% 1 L103
34-A109K0-1IX COIL CHOKE 1 UH +/-10% 1 L102
34-A608K6-1BX COIL CHOKE 0.6 UH +/-10% 1 L402
34-R100J2-0EX COIL PL - 10 UH +/-5% 1 L002
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L208
34-R220J2-0EX COIL PL - 22 UH +/-5% 1 L207
34-R330J2-0EX COIL PL - 33 UH +/-5% 1 L080
34-R330J2-0EX COIL PL - 33 UH +/-5% 1 L202
34-R829J2-0EX COIL PL - 8.2 UH +/-5% 1 L204
36-HDR001-AX1 TRANSFOR HOR. DRIVE (MAGNETIC CORE) 1 T401
41-WJ0050-B00 WIRE BARE JUMPER 5MM 1 L101
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J009A
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J015
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J101
18

Item No. Description Quantity Req. Designator Remarks
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J203
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J210
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J211
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R204
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R207
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R249
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J001
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 R200
41-WJ0060-B00 WIRE BARE JUMPER 6mm 1 J907
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J305
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J010
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J208
41-WJ0065-B00 WIRE BARE JUMPER 6.5MM 1 J301
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J217A
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J011
41-WJ0070-B00 WIRE BARE JUMPER 7MM 1 J012
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J018
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J205
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J206
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J207
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J218
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J215
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J602
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J303
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J022
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J913
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J225
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J914
41-WJ0075-B00 WIRE BARE JUMPER 7.5MM 1 J901
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J108
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J903
19

Item No. Description Quantity Req. Designator Remarks
41-WJ0080-B00 WIRE BARE JUMPER 8 MM 1 J919
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J219
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J209
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J302
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J306
41-WJ0085-B00 WIRE BARE JUMPER 8.5MM 1 J920
41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J212
41-WJ0090-B00 WIRE BARE JUMPER 9MM 1 J904
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J230
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J601
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J231
41-WJ0095-B00 WIRE BARE JUMPER 9.5MM 1 J229
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J102
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J221
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J002
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J002A
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J003
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J402
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J110
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J917
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J111
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J017
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J910
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J911
41-WJ0100-B00 WIRE BARE JUMPER 10MM 1 J921
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J004
41-WJ0105-B00 WIRE BARE JUMPER 10.5MM 1 J304
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J016
41-WJ0110-B00 WIRE BARE JUMPER 11MM 1 J226
41-WJ0115-B00 WIRE BARE JUMPER 11.5MM 1 J604
41-WJ0125-B00 WIRE BARE JUMPER 12.5MM 1 J106
