SERVICE MANUAL Colour Television
FILE NO.
JXMRM
-/--
-/--
PP
A•B
TIMER
TV/AV
CH
SWAP SOUND
CH SCAN
BASS
CH
SURROUND
MENU
S.SYS C.SYS
CH
TV/AV
-
+
MENU
Original Version
Chassis Series: FC3-G2
C5GSH
Model No. CE21KF8R
(Russia)
Give complete “SERVICE REF. NO.” for
parts order or servicing. It is shown on the
rating plate at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
Service Ref. No. CE21KF8R-50
Product Code: 111363414
Specifications
Power Source . . . . . . . . . . AC110-240V, 50Hz/60Hz.
Colour System . . . . . . . . . PAL/SECAM/NTSC4.43/NTSC/PAL-60Hz
Television System . . . . . . B/G, I, D/KK’, MM
Channel Coverage . . . . . VHF: E2 - E12,R1 - R12,K1 - K9,J1 - J12,A2 - A13
UHF: 21 - 69, A14 - A69, J13 - J62
CATV: S1-S41, X, Y, Z, Z+1, Z+2
Video IF . . . . . . . . . . . . . . 38.0MHz
Aerial Input Impedance . . 75Ω
Ext. Terminals
Video inputs: Phono jack x 2 (1Vp - p, 75Ω)
S-Video inputs: Din 4 pin x 1 (Separate Y/C signal input)
Audio inputs: Phono jack (L/R) x 2 (436mVrms, more than 40KΩ)
Video monitor outputs: Phono jack x 1 (1Vp - p, 75Ω)
Audio monitor outputs: Phono jack (L/R) x 1 (436mVrms, less than 600Ω)
Sound Output (RMS) . . . . 5W + 5W
Speaker . . . . . . . . . . . . . 8 cm 13 cm 2
Dimensions . . . . . . . . . . . . 652 (W) 460 (H) 490 (D)mm
Weight . . . . . . . . . . . . . . . . approx. 23.2 Kg
Specifications subject to change without notice.
(Software: AC5-G2)
REFERENCE NO. SM3010002
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 1

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Service Adjustments with replacing Memory IC (IC802) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-27
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high
voltage check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 2

-3-
Chassis Block Diagrams
A1901A
RC
RECEIVER
D1910
LED
FRONT
CONTROL
KEYS
SW1901 ~ SW1906 KEY-IN
POWER
ON-TIMER
RC-IN
S-VIDEO IN (FROM S-TERMINAL)
IC001
AUDIO AMP.
SP902 SP901
R-OUT
L-OUT
12
2
8
6
R
L
REAR
MONITOR
OUT
TERMINAL
REAR
AV1
INPUT
TERMINAL
FRONT
AV2
INPUT
TERMINAL
V
L
R
V
L
R
V
L
R
VIDEO MONITOR OUT
AUDIO MONITOR OUT(LEFT)
AUDIO MONITOR OUT(RIGHT)
AV1 L-IN
AV1 R-IN AV2 R-IN
AV2 L-IN
AV2 VIDEO IN
AV1 VIDEO IN
S-TERMINAL C-IN
Y-IN
9
1 6
7
38
4
+
AV2/S-INPUT AV1/AV2
(FROM CPU PIN-25)
C-IN
Y-IN
SDA/SCL
(FROM CPU)
5
26
2
29
3
28
10
21
(L-TV-L)1/30
AUDIO
CONTROL/
SURROUND
IC3701
R-OUT
TV-AUDIO
L-OUT
VIDEO
OUT (TV)
VIDEO-IN Y-IN
IC201
IF/VIDEO/
CHROMA
11/12
14
15
16
46
42
1
44
5/6
19
20
21
23 27
34 35
TV
AUDIO
OUT
INT.VIDEO IN
(C-IN)
B-Y
R-Y
9
7
17
VIDEO IN
VIDEO MONITOR OUT
R-OUT
G-OUT
B-OUT
VERT.OUT
HORIZ.OUT
Q431
H-DRIVE
IC281
SECAM
IC1501
VIDEO SELECTOR
AV IN
TV IN
TV IN
AV,Y IN
AV-IN
Y-IN
2
1
5 3
13
12
11 910
14
4
15
TV/AV (FROM CPU PIN-24)
S-INPUT
28 32
31
12
11
3
4
19
20
21
1/2
24
26
IC801
CPU
IC802
EEPROM
SDA
SCL
OSD R-OUT OSD G-OUT OSD B-OUT
SDA/SCL
TV/AV OUT
AV1/AV2 OUT
5
6
SDA/SCL
A101
TUNER SAW
FILTER
X161
IF IN
T431
H-DRIVE
TRANS.
Q432
H-OUT
15
IC501
VERT./DEF.
CRT UNIT
IC701
TRIPLE VIDEO
OUTPUT AMP.
R
G
B
R
G
B
1
2
37
8
9
HEATER
L902
DY
HV
T471
FBT
FOCUS
SCREEN
HV
CRT
AV-OUT Y-OUT
TV/AV OUT Y-OUT MONITOR OUT POWER SUPPLY CIRCUIT
140V
25V 24V
13V
MAIN SOUND AMP. HORIZ. DEF.
VERT. DEF. FBT
TUNER
36V
12V
9V
5V
SURROUND, AV SW. AUDIO CTL, IC201 CPU, EEPROM
IC1401
VIDEO
SELECTOR
AV OUT
R-IN
G-IN
B-IN
+
SUPER WOOFER UNIT
8/9 4
IC1402
SUPER
WOOFER AMP.
SUPER WOOFER
R
LFrom IC3701 pin-21
From IC3701 pin-10
PCC
CIRCUIT
Q461-Q462
IC1401
PRE-AMP.
16/7
13/14
MAIN SIGNAL PROCESSING CIRCUIT
[
[
PWB S-Woofer is not equiped

SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 3

-4-
Chassis Block Diagrams

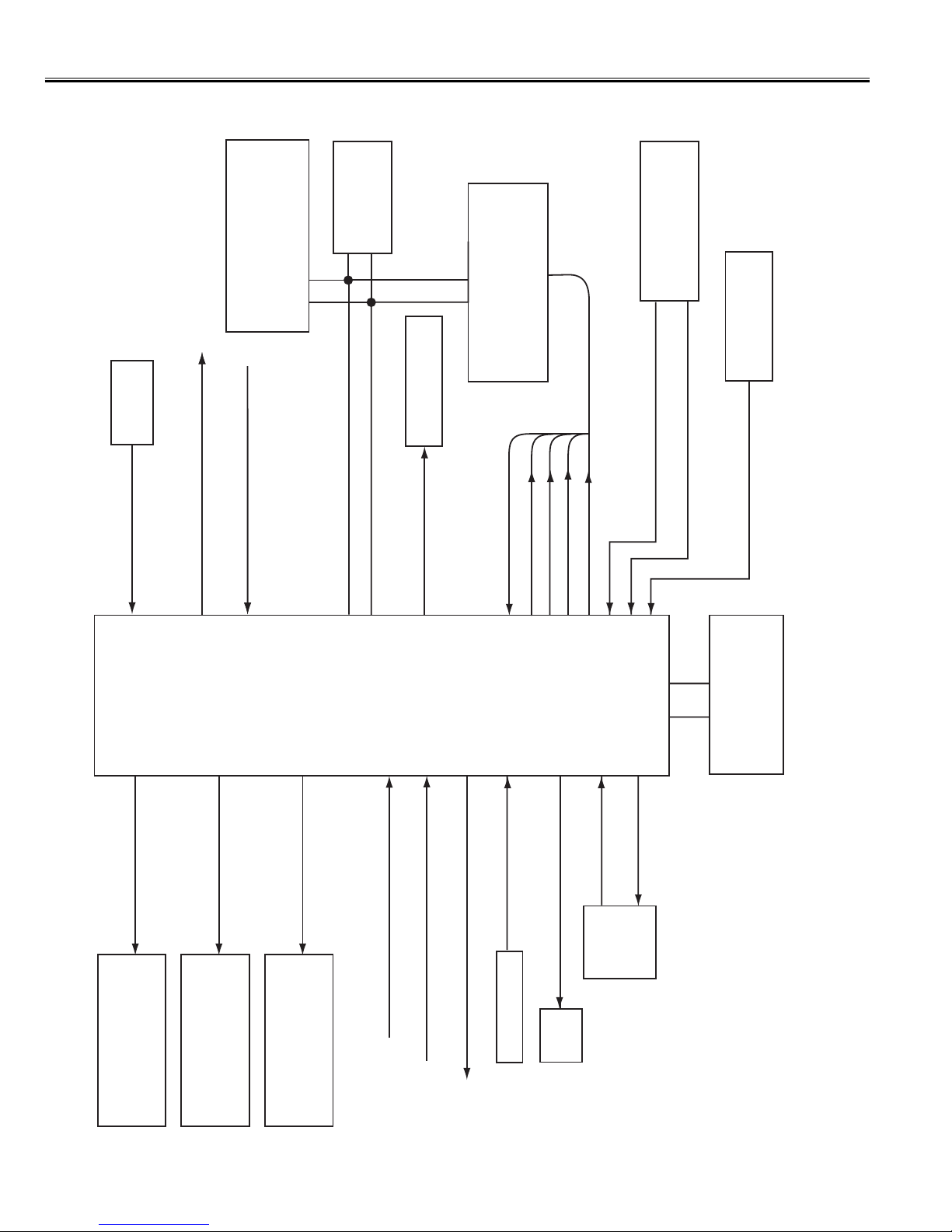

SYSTEM CONTROL
12 KEY SWITCH IN KEY
SWITCH
SCL
2
1
31
SDA
POWER ON/OFF
PHOTO COUPLE
(ON=HIGH, OFF=LOW)
IC201
IF/VIDEO / CHROMA/DEF.
IC801
CPU
QXXAVC305P
22
19 20
21
18
17
27
34
7 6
32
28
33
OSD BLK OUT(Active=High)
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High)
DEFLECTION
CIRCUIT
HORIZ. SYNC IN (ACTIVE=LOW)
VERT. SYNC IN (ACTIVE=LOW)
POWER PROTECT IN
(POWER ERROR=LOW) POWER CIRCUIT
etc.
SCL
SDA
IC802
MEMORY
OSC
X801
32.768KHz CPU OSC OUT
CPU OSC IN
LED ON-TIMER LED OUT (ON TIMER ON=Low)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
9 29
SOUND MUTE OUT
IC001
AUDIO AMP.
VIF-M OUTPUT (HIGH=NTSC, LOW=OTHER)
A101
F/S TUNER
AFT SIGNAL INPUT
10
RESET INPUT (RESET=LOW) 13
56
SECAM KILLER INPUT (HIGH=SECAM)
5
SCL
SDA
11 12
5
4
(MUTE ON=HIGH)
26
AV1/AV2 SWITCH
IC1401
VIDEO SWITCH 8(AV1+LOW, AV2=HIGH)
24
TV/AV SWITCH
IC1501
VIDEO SWITCH 9/10 (TV=LOW, AV=HIGH)
50/60Hz OUTPUT (60Hz+LOW, 50Hz=HIGH)
25
S-TERMINAL INPUT (S-IN=LOW)
11 IC3701
AUDIO CONTROL
&
SURROUND
13 14
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 4

-5-
IC Block Diagrams

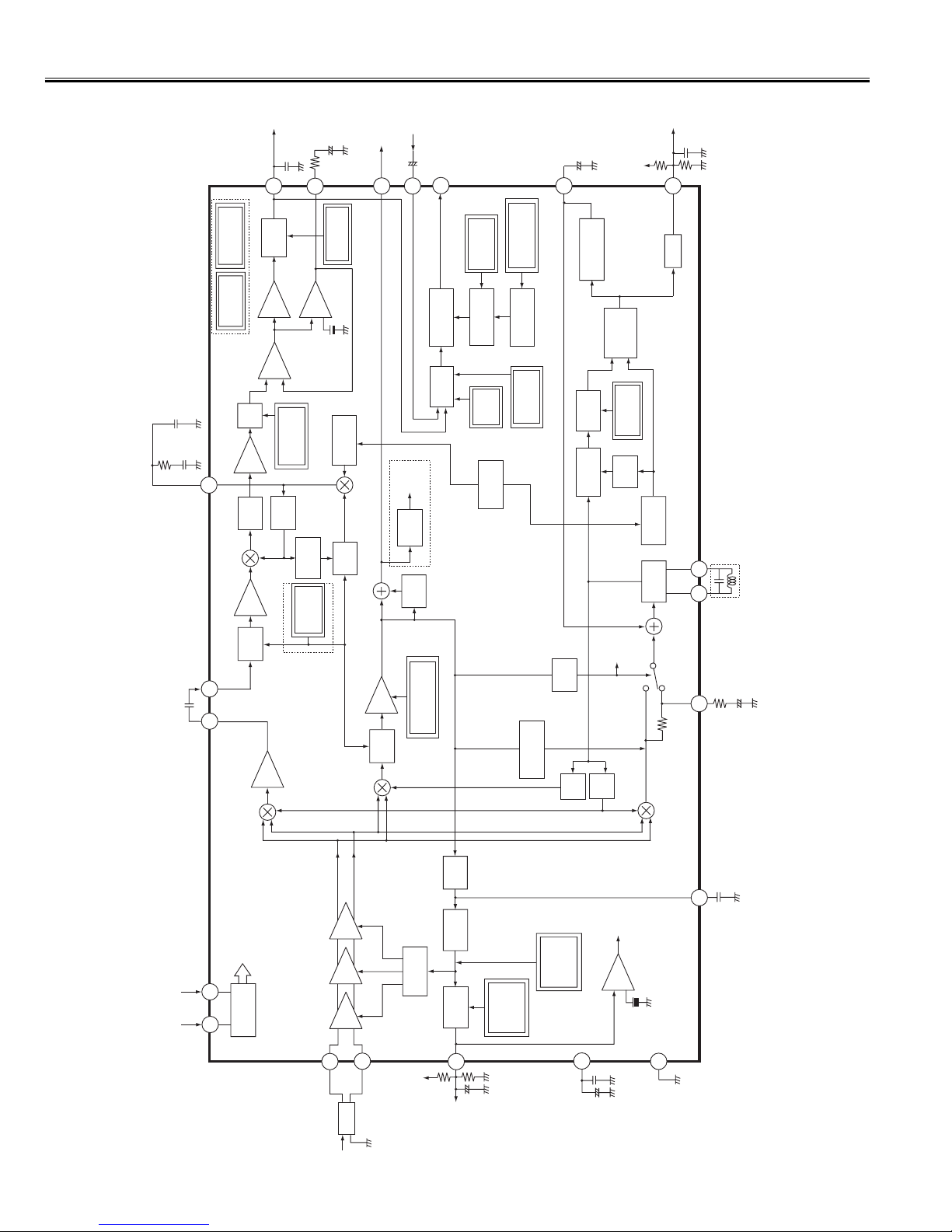

IC201 < IF/Video/Chroma/Def. > LA76818A
1
DC
VOL
SW
FM
DET
23456
IF
AGC
RF
AGC
VIF
7
8910
IF
VCC 5V 11 12 13
BUS
PEAKING
CORING BLACK
STRETCH
SYNC
SEP
14 15
ABL
DC
REST
CLAMP
OSD
CONTRAST
BRIGHT
16 17 18 19 20
CONTRAST
BRIGHT RGB
MATRIX
OSD
SW
DRIVE/OUT-OFF
VCC 21 22 23
FSC/
SYNC SW
24 25 26 27
VER
RAMP HOR
VCCH
VCC
VER
C/D
HOR
OUT
PHASE
SHIFTER
AFC2
AFC1
VER
SEP
HOR
C/D
1/256
COLOR
CLAMP
LPF
ALC
+
SW
CLAMP
DEMO
PAL
SW
ACC
BPF
ON/OFF
DELAY
LINE
SW
TRAP
AFT
VIDEO
DET
TRAP
LIM
AMP
BPF
SPLL
BPF
VIDEO
AMP IF
IDENT VIDEO 
SW APC1 TINT
VXO DDS APC2 DC ADS.
CLAMP
VCO
1H DELAY
HOR
VCO
FBP
2829
30
31
32 1H
VCC
33
34
353637
38
39
40
41
42
CLMP
43
4445
CLMP
V/C VCC
5V
46
47
48
4950
A2C
PLL
51
525354
Audio Output
FM Output/Selected 
Audio Output
PIF AGC
RF AGC Output
PIF Input1
PIF Input 2
IF Ground
IF Vcc
FM Filter
AFT Output
Bus Data
Bus Clock
ABL
Red Input
Green Input
Blue Input
Fast Blanking Input
RGB Vcc
Red Output
Green Output
Blue Output
fsc output or C
Sync output
Vertical Output
Ramp ALC Filter
Horizontal/BUS Vcc
Horizontal Output
Horizontal AFC Filter
Flyback Pulse Input
VCO IREF
Clock (4MHz) Outupt
CCD Vcc
CCD Filter
CCD/Horizontal Ground
SECAM B-Y Input 
(Cb Input)
SECAM R-Y Input 
(Cr Input)
Chroma APC2 Filter
Clamp Filter
4.43 MHz Crystal
Chroma APC1 Filter
Selected Video Output
Video/Vertical/BUS Ground
External Video Input(Y-IN)
Video/Vertical Vcc
Internal Video Input (S-C IN)
Black Level Detector
Video Output
VCO Filter
VCO Coil 2
VCO Coil 1
APC Filter
Ext. Audio Input
SIF Output
SIF APC Filter
SIF Input
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 5

IC Block Diagrams
-6-
IC201 <IF System Block Diagram> LA76818A
11 12

BUS
Interface
SAW 5
6
4
8 7
PIF
In1
PIF
In2
IF In
9V
30K
RF AGC
Out
120K
IF VCC
IF
GND
VIF AMP
VIF 1 VIF 2 VIF 3
IF AGC 
Drive
RF
AGC 2ndIF
AGC
RF AGC
Delay
6bit
IF AGC
Def
1bit
+
-
(6 Vcc)/7
To
BUS
3
0.022u PIF
AGC
IF
AGC
Data Clock
APC
Det
+π/4

-π/4

Snd
Det Amp
52
SIF.Out
Sound
Trap
Video
Det
Buzz
Canceller
50 APC
Filter
330
0.47u +
PLL Pull-in SW
To
BUS
Lock
Det
Video.Level 
3bit
Amp
54
10p SIF.In
Sound
BPF
VCO.Coil
VCO
COIL1 VCO
COIL2
48 49
VIF
VCO Chroma
Counter
B/N INV IF
Ident
OSC
C/D
Amp
SIF. Sys
2bit pre-
scaller
SIF
VCO
500K
BPF
SIF
APC
Filter
1K
0.01u 1000p
53 LIM
AMP FM
Det
FM.Level
5bit
Chroma
C/D
APC
Det
500K
Det
To
BUS
Chroma
VCO
VIF
Counter
Reset
Pulse
VCO
Ident
VIF.Sys
2bit Phase
Detector
A.MUTE
1bit VOLUME
D/A
VOLUME
Filter
A.SW
1bit
Input
Select VOLUME
(ATT)
-
+
-
+
2.5V
Amp
FM Gain
1bit Deem-TC
1bit
De-
emph
FM Mute
1 bit
2
9
46
51
1
A.Fil.Def
1bit
VOLUME
7bit
47
VCO
Alignment
AFT 10 AFT
Vcc
100K
100K
0.1u
VCO
Filter
+
0.47u
Audio.out
+
Audio in
10u
Video 
Out
FM
Filter
+
1u
FM
Out
0.01u
+
to BUS Line
+
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 6

-7-
IC Block Diagrams
1
IN 3 2
Vcc 3
SW1 4
OUT 5
GND 6 IN1-Y 7
IN1-C 8
SW2 9 IN 2
SW
6dB
(-6dB)
CLAMP
CLAMP
CLAMP
BIAS
6dB
SW
15K
SW1 SW2 OUT
L
H
-
L IN 1
L
HIN 2
IN 3
IC1401 < VIDEO Switch > MM1188XS
VDD VDD VDD
MIRROR 2
VDD
FLASH-
DIODE
1x
VOC
Inverting
Input
(3x)
1,2,3
9,8,7
3x
VDD
6
5
4
Non-inverting
Input
Vip
MIRROR 1
Vbias
MIRROR 3
LEVEL-
SHIFTER 1 LEVEL-
SHIFTER 2
DIFFERENTIAL
STAGE
CURRENT
SOURCES
GND
THERMAL
PROTECTION
Note: One amplifier shown.
Cathode
Output
(3x)
Vi
IC701 < Triple Video Output Amplifier. > TDA6103Q
IC001 < Audio AMP.> AN17820B
12345678910 11 12
VCC OUT1
(+) OUT1 (-)
Output
GND Standby IN1 IN2 Vol.
Input
GND OUT2
(-) OUT2 (+)
Output
GND
+- + -
+
-
+-
IC501 < Vertical Output > TDA9302H/LA78040N
Thermal
Protection
-
+AMP
Pump
Up
1
INVERTING  INPUT
2
Vcc
3
PUMP UP OUT
4
GND
5
Ver. OUTPUT
6
OUTPUT  STAGE Vcc
7
NON INV. INPUT
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 7

-8-
Service Information
This TV set has a built-in power supply protection circuit.
It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality
occurs during TV reception, the TV set goes to the stand-by mode.
When an abnormality occurs during TV reception, it causes pin 27 of the CPU to go continually Low for about
one second. The CPU detects that this has occurred and outputs the signal from pin 31 to switch off the power
supply lines.
Releasing the protective circuit and restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again
via either the main power switch or the ON-OFF button on the remote control. This will work only if the power
supply trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be
restored and the circuit will have to be repaired.
Protection Circuit
IC3701 < Audio Control & Surround > NJW1142M
68
1
7
20
10
25
22
NJRC
ORIGINAL
SURROUND
&
SIMULATED
STEREO
IIC BUS
INTERFACE
AGC
BIAS
TONE
VOL 1
TONE
VOL 1
VOL 2
VOL 2
19
18
14
13
16
15
17
30
21
23
24
12
11
IN 1a
AGC TONE Ha TONE La OUT a
CVa
CVb
CTH
CTL
CSR
SCL
SDA
V+
GND
VREF
OUT b
SR-FIL
TONE Hb TONE Lb
5
MONa
-2dB
SEL
2
IN 2a
3
IN 3a
4
IN 4a
IN 1b
SEL
IN 2b
IN 3b
IN 4b
29
28
27
MONb
-2dB
26
9
+4.5 dB
LINEa
LINEb
+4.5 dB
IC Block Diagrams
14 13
Pulse 
DET
Pulse
I/F
Clamp
VCO
SW2
15
Filter
PLL
DET
16
17
System
SW1
LIM
KILLER
Bell/EQU
Filter
SW3
1819
ACC
Bell/EQU
Adj
20
123
ID-KIL ID
45
F0 Adj
67
SW/ALC
8
F0-Fil Kil-Fil 4.43DC ID-Fil 4M-DC R-Y Out B-Y Out
N.C.
4MHz In
SC-In
4.43MHz In
AV/SECAM
Kil-Out
Video In
VccEQU-Adj
9 10
GND
11
12
N.C.
N.C.
N.C.
IC281 < Secam Decoder > LA7642NM-TLM-E
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 8

Service Adjustments with Replacing Memory IC(IC802)
Note: The CPU (IC801) and memory IC (IC802) store the service adjustments data and controls data for each
circuit.When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].

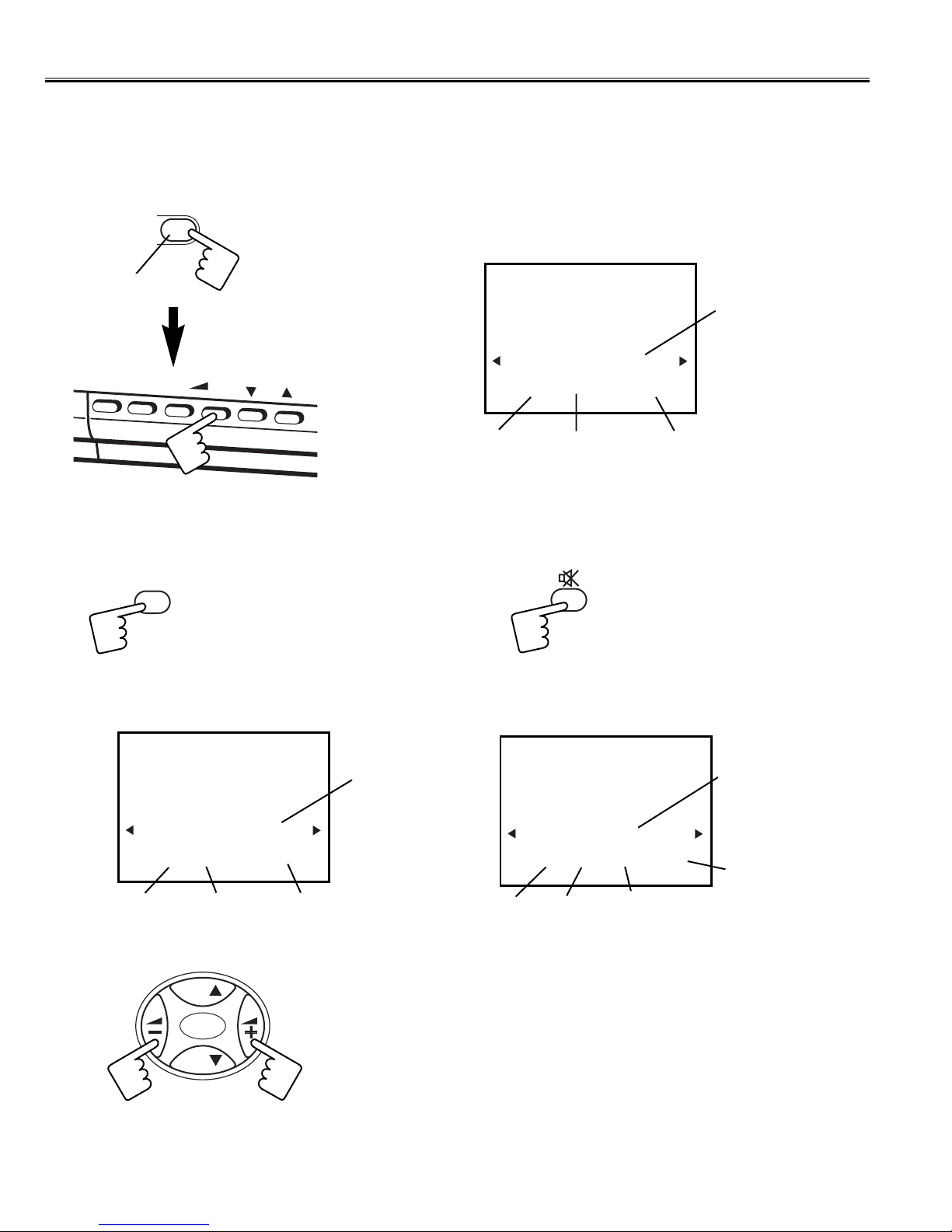

[1] Initializing Procedure
1. Put a new memory IC.
2. Turn on the TV set.
3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the
screen.
4. Press the PROGRAMME UP on the TV set while the above On-Screen Display is still on the screen. The following
picture appears on the screen.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & Play : No executed
- Inhibit Data : Cancelled
- Ch Skip Data : Cancelled
- Sound Volume Data : 10/63 steps.
- Volume Lock : OFF
- Tuning Lock : OFF
- Music Mode : OFF
- AV Start : OFF
- Colour System : AUTO
1
CLR
[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. & Item
RF AGC Item 01, RF AGC
Horizontal centre Item 02, H-PHA
Vertical size Item 04, V-SIZ
Vertical-S correction Item 05, V-SCO
Vertical linearity Item 06, V-LIN
Gray scale Item 14-17, 19-21
Further adjustment please refer to page 12 and 13.
-9-
CH
TV/AV
-
+
MENU
TV/AV Selector
CH
TV/AV
-
+
MENU
PROGRAMME UP
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 9

-10-
Service Adjustments with Replacing Memory IC(IC802)
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
01 RFAGC 0~63 30 RF AGC Adj.
02 H-PHA 0~31 8 H-Phase (H-Centering) Adj. (50Hz)
03 V-POS 0~63 40 V-Position (V-Centering) Adj. (50Hz)Fixed.
04 V-SIZ 0~127 70 V-Size Adj. (50Hz)
05 V-SCO 0~31 19 V-S Correction (50Hz)
06 V-LIN 0~31 17 V-Linearity Adj. (50Hz)
07 H-P60 -16~+15 +2 H-PHASE Adj. (60Hz)
08 V-S60 - 64~+32 0V-Size Adj. (60Hz)
09 OSDHP 0~255 33 OSD H-Position Adj.
10 OSDC 0~127 45 OSD Contrast Adj.
11 V-SCP 0~7 7 Correction of the V-size
accompanying brightness change.
12 H-SCP 0~7 7 Correction of the H-size
accompanying brightness change.
13 SBIAS 0~127 105 Sub Bias Adj. (Do not change)
14 RBIAS 0~255 0 Red Bias Adj.
15 GBIAS 0~255 0 Green Bias Adj.
16 BBIAS 0~255 0 Blue Bias Adj.
17 RDRIV 0~127 64 Red Drive Adj.
18 GDRIV 0~15 8 Green Drive Adj.
19 BDRIV 00~127 64 Blue Drive Adj.
20 1-LINE APPEAR White Balance Adj.
21 DRV White Balance Adj.
22 B-YD 0~15 9 B-Y DC level Adj.
23 R-YD 0~15 10 R-Y DC level Adj.
24 B-YDN - 16~+15 0NTSC B-Y DC level Adj.
25 R-YDN - 16~+15 0NTSC R-Y DC level Adj.
26 SBDC - 16~+15 −8SECAM B-Y DC level Adj.
27 SRDC - 16~+15 −5SECAM R-Y DC level Adj.
28 G-YA 0,1 0 G-Y angle Adj.
29 RBGB 0~15 8 R-Y, B-Y Gain Blance Adj. (Do not change.)
30 RBAG 0~15 8 R-Y, B-Y Angle Adj. (Do not change.)
31 G-YAN 0,1 0 NTSC G-Y Angle Adj.
32 RBGBN - 16~+15 0NTSC R-Y, B-Y Gain Balance Adj.
33 RBAGN - 16~+15 0NTSC G-Y, B-Y Angle Adj.
34 COGV 0~3 0 Coring Gain Adj.
35 BLKS 0~3 3 Setting of Black stretch start.
36 BLKG 0~3 3 Setting of Black stretch gain.
37 BRTA 0,1 0 On and off of ABL.
38 BRST 0,1 0 Setting of ABL.
39 BRTH 0~7 0 Setting of ABL.
40 WPL 0~3 3 White peak limitter.
41 YGAM 0~3 0 Y Gamma setting.
42 PORW 0,1 0 Switching of Pre-shoot and
Over shoot in AV mode.
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
DATA INITIAL
No. ITEM RANGE SETUP SCRIPTION
DATA
43 PORS 0~3 2 Pre-shoot/Over shoot Adj. in AV mode.
44 RFCO 0~3 3 RF Coring Gain Adj.
45 PORWN 0,1 0 Switching of RF Pre-shoot and Over shoot.
46 PORSN 0~3 0 RF Pre-shoot/Over shoot Adj.
47 TINT -16~+15 0 RF Tint Adj.
48 TINT443 -16~+15 -12 NTSC 4.43 Tint Adj.
49 SHRF -32~+31 0 RF Sharpness Adj.
50 TEXTC - 128~+127 0OSD TEXT Contrast.
51 VOLUM 0~255 127 Volume Control Adj.
52 DEEM 0~1 0 De emphasis TC.
53 VIFSW 0~3 0 VIF System Switch.
54 SIFSW 0~3 1 SIF System Switch.
55 V-LVL 0~7 4 Video Level Adj.
56 FMLVL 0~31 16 FM Level Adj.
57 IFOM-S 0,1 0 Over Modulation Switch
58 IFMN-S 0,1 1 Audio Monitor Switch
59 IFTRAPS 0,1 1 SIF Trap Switch ON/OFF
60 IFMLVL 0~255 136 Video Level & Modulation
61 TRAP-T 0~7 4 Trap Test
62 H-FRQ 0~63 34 Horizontal Frequency
63 FBTS 0,1 0 FBT Blanking Switch
64 COOP 0~7 7 Color Killer Option
65 HBLKL 0∼77H-Blanking Control. (Left)
66 HBLKR 0∼73H-Blanking Control. (Right)
67 AFCRF 0,1 0 RF AFC gain & Gate Adj.
68 VSRF 0,1 0 RF Vert. Sync. Separation Adj.
69 CDMRF 0~7 0 RF Vert. Count-Down Circuit Adj.
70 AFCAV 0,1 1 AV AFC Gain & Gate Adj.
71 VSUAV 0,1 0 AV Vert Sync. Separation Adj.
72 CDMAV 0~7 0 AV Vert Count-Down Circuit Adj.
73 HLVDRF 0,1 1 H Lock, V Detect RF
74 HLVDAV 0,1 1 H Lock, V Detect AV
75 VCO-SW 0,1 0 C-VCO Adj. Switch
76 VCO-ADJ 0~3 3 C-VCO Adj.
77 CROSS-BW 0~3 0 Output Pattern Picture
78 AVNCON 0~127 64 AV Blue Back Signal Contrast
79 AVNBRI 0~127 64 AV Blue Back Signal Brightness
80 POMT 0~127 25 Power Mute Time Adj.
81 CHMT 0~31 10 Channel Change Mute time Agj.
82 SYST 0~15 5 The number of times that a colour system AUTO is judged.
83 S-STE 0~3 2 Stereo/Mono Option. 0=MONO,
1=SIMPLE AV STEREO, 2,3=AV STEREO
84 VOLTBL 0~1 1 Volume Table
85 MPP 0,1 0 Multi Personal Preference function on/off
o=without M.P.P., 1=with M.P.P.
( /JE0109A)
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 10

-11-
Service Adjustments with Replacing Memory IC(IC802)
Notes: The initial value that the CPU writes down the CPU ROM data to the memory when replaced the memory IC.
TV set may not operate correctly with this initial value. It is required to set up the fine adjustment for service
adjustments described in the above.
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
86 TUNER 0,1 0 Tuner Option
87 AV123 0~3 1 AV1/AV2/AV3 Option, 0=AV only,
1=AV1, AV2, 2~3=AV1, AV2,AV3
88 OPT POS 0,1 1 Programme number Option,
Position No. Option, 0=100 pos., 1=256 pos.
89 GAME 0,1 1 GAME Option,
0=without GAE, 1=with GAME
90 LANGUAGE 0,1 1 Language Option,
0=without Language, 1=with Language
91 OPT COL 0~7 5 Colour System Option, 0~1=PAL only,
2=VMT, 3=China/Indonesia, 4=3 System,5~7=Multi
92 OPT SIF 0~7 3 SIF System Option
93 OPT BASS 0~3 2 Bass Expander Option,
0=without BASS, 1~2=BASS EXPANDER,3=WOOFER
94 OPT SURR 0,1 1 Surround Option,
0=without SURROUND, 1=with SURROUND
95 SUB-BT 0,1,2 0 Audio IC (NJW1142)Sub Bass Treble adj.
96 A-AGC 0,1,2 0 Audio IC (NJW1142) AGC adj.
300 R00 0~255 154 ROM Correction
301 R01 0~255 242 ROM Correction
302 R02 0~255 166 ROM Correction
303 R03 0~255 246 ROM Correction
304 R04 0~255 3 ROM Correction
305 R05 0~255 0 ROM Correction
306 R06 0~255 0 ROM Correction
307 R07 0~255 0 ROM Correction
308 R08 0~255 2 ROM Correction
309 R09 0~255 229 ROM Correction
310 R10 0~255 144 ROM Correction
311 R11 0~255 13 ROM Correction
312 R12 0~255 239 ROM Correction
313 R13 0~255 141 ROM Correction
314 R14 0~255 238 ROM Correction
315 R15 0~255 141 ROM Correction
316 R16 0~255 237 ROM Correction
317 R17 0~255 141 ROM Correction
318 R18 0~255 236 ROM Correction
319 R19 0~255 141 ROM Correction
320 R20 0~255 235 ROM Correction
321 R21 0~255 141 ROM Correction
322 R22 0~255 33 ROM Correction
323 R23 0~255 155 ROM Correction
324 R24 0~255 6 ROM Correction
325 R25 0~255 33 ROM Correction
DATA INITIAL
No. ITEM RANGE SETUP DESCRIPTION
DATA
326 R26 0~255 154 ROM Correction
327 R27 0~255 246 ROM Correction
328 R28 0~255 0 ROM Correction
329 R29 0~255 0 ROM Correction
330 R30 0~255 0 ROM Correction
331 R31 0~255 0 ROM Correction
332 R32 0~255 0 ROM Correction
333 R33 0~255 0 ROM Correction
334 R34 0~255 0 ROM Correction
335 R35 0~255 0 ROM Correction
336 R36 0~255 0 ROM Correction
337 R37 0~255 0 ROM Correction
338 R38 0~255 0 ROM Correction
339 R39 0~255 0 ROM Correction
340 R40 0~255 107 ROM Correction
341 R41 0~255 127 ROM Correction
342 R42 0~255 7 ROM Correction
343 R43 0~255 3 ROM Correction
344 R44 0~255 234 ROM Correction
345 R45 0~255 144 ROM Correction
346 R46 0~255 3 ROM Correction
347 R47 0~255 33 ROM Correction
348 R48 0~255 166 ROM Correction
349 R49 0~255 249 ROM Correction
350 R50 0~255 33 ROM Correction
351 R51 0~255 167 ROM Correction
352 R52 0~255 34 ROM Correction
353 R53 0~255 0 ROM Correction
354 R54 0~255 0 ROM Correction
355 R55 0~255 0 ROM Correction
366 R12 0~255 0 ROM Correction
367 R13 0~255 0 ROM Correction
368 R68 0~255 0 ROM Correction
369 R69 0~255 0 ROM Correction
370 R70 0~255 0 ROM Correction
371 R71 0~255 0 ROM Correction
372 R72 0~255 160 ROM Correction
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 11

-12-
ADDRESS
DRV
SI. 00100101S2.11111000
DATA
B 64
21 R 64
ADDRESS
V-SCO
SI. 00100101S2.11111000
DATA
9
05
ADDRESS
RF AGC
SI. 00100101S2.11111000
DATA
30
01
Service Adjustments with Replacing Memory IC(IC802)
[Entering to Service Mode]
1. Press and hold the MENU button on the Remote Control and press the VOLUME (+) button on the TV set.
Following setting items appears on the screen.
Display for [V-SCO] V-S Correction adjustment
Read Status
Item No. Item Data value
Display for [RF AGC] RF AGC adjustment
Read Status
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
Read Status
Item No. Item
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
2. Select item by pressing the TIMER (Item No. UP) or SOUND MUTE (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME - button on the remote control handset.
Example
-/--
MENU
MENU
0102030405......84... ...8483828180......01
-/--
TIMER
-/--
CH
TV/AV
-
+
MENU
05
-/--
CH
CH
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 12

-13-
Service Mode Adjustments
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to “ Entering to Service mode” on page 11.
NOTE: Do not attempt this adjustment with weak signal.
(1)Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to
minimum.
(2)Select [RF AGC] in the service mode.
(3)Change value until the snow noise just disappears.
(4)Exit from service mode.
Item 01 [RF AGC] AGC
(1)Receive a monochrome circular pattern.
(2)Set the brightness and contrast to normal.
(3) Select [H-PHA] in the service mode.
(4)Change value to be optimum horizontal centre position.
(5)Exit from service mode.
Item 02 [H-PHA] HORIZONTAL CENTRE
(1)Receive a monochrome circular pattern.
(2)Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3)Set the brightness and contrast to maximum.
(4) Select [V-SIZ] in the service mode.
(5)Change value to be optimum vertical size.
(6)Exit from service mode.
Item 04 [V-SIZ] VERTICAL SIZE
Horizontal centre
Vertical size
cUpper
Center
Bottom
d
e
a
b
Upper
Center
Bottom
(1)Receive a crosshatch pattern.
(2)Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3)Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-SCO] in the service mode.
(5) Adjust Vertical S-letter Correction so that the difference
of “c”, “d” and “e” becomes less than 2 mm by pressing
the VOLUME + or - button.
(6) Confirm Vertical Linearity and adjust Vertical Center
then Vertical Size.
(7) Exit from service mode.
Item 05 [V-SCO] V-S CORRECTION
(1)Receive a crosshatch pattern.
(2)Set the lever of SW501 (Vertical Center SW) as the
position of a center.
(3)Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(4) Select [V-LIN] in the service mode.
(5)Adjust Vertical Linearity so that the difference of “a” and
“b” becomes less than 3mm by pressing VOLUME + or
- button.
(6) Exit from service mode.
Item 06 [V-LIN] VERTICAL LINEARITY
E
E
E
J507
R426
D642
Q462
D501
Q540
C461
PCC
D421
J505
SW501
JP463
Q461
Q461-H2
C524
J411
C521
IC501-H3
C540
R473
R471
R472
C462
R480
D462
C467
R464
R468
C470
D512
J503
R516
C468
R463
R465
D461
R466
R461
C463
C466
J502
Q461A
Q461-H1 R540
D465
R501
4
45
J501
R469 R467
J506
J630
JP14
0
J1003
D1032
J022
J019
C1401
C15
0
J
2
Q261
R264
J1004
J
J112
JP1401
J113
J408
J409
J508
J239
J017
JP501
R872
JW34
R503
JP503
J10
R514
VR462
VR463
JWW1
R502
R478
JW31 JW32
J410
JW37
J509
JW40
H-SIZE
SW501
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 13

-14-
Service Mode Adjustments
1
T471A
T471
JP409
C437
R487
JP412
T471-H5
T471-H1
JP408
JP407
JP403A
JP405
R355
JW1
J406
R477A
R492
R
C423-H2 C423-H3
C423-H1 C420-H1
C420
C420-H3C420-H2
C437A
R424
D438
435
JP410
JP411
R477
JP404
T471-H2
J405
C471
JW6
R483
R481
R481A
T471-H7
T471-H11
T471-H6
T471-H4
T471-H8
T471-H10
JP483
JP436
JP477
C437B
FC3G2 CHASSIS
T471
P435
JP403
MAIN BOARD
SCREEN VR
(Under side)
(1)Receive a monochrome circular pattern.
(2)Set the brightness and colour to normal, contrast to maximum.
(3)Enter to the service mode.
(4) Select No. 14 RBIAS (Red Bias), No, 15 GBIAS (Green Bias), and No. 16 BBIAS (Blue Bias) and set each data to 0
by pressing the VOLUME + or - key.
(5)Select No. 17 RDRIV (Red Drive) and No. 19 BDRIV (Blue Drive) and set each data to 64 by pressing the VOLUME
+ or - key.
(6)Turn Screen Control on the FBT (T471) to minimum (fully counter-clock-wise).
(7) Select No. 20 (1-line appear).
(8) Advance Screen Control clockwise to obtain just visible one colour line. If line does not appear, place this control to
maximum (fully clockwise).
(9) Raise each Bias Level with 1, 2, 5, 6, 9 and 0 keys to obtain just visible white line.
(10) Select No. 21 DRV (Drive Adjustments).
(11) Adjust Red and Blue Drive Levels alternately with 3, 4, -/-- or RECALL key to produce normal black an white
picture in highlight areas.
(12) Check for proper grayscale at all brightness levels. To turn off the TV Service Menu display, press the MENU key.
Note: If the Grayscale adjustment is made after picture tube replacement, check the High Voltage
Items 14-17, 19-21 GREY SCALE
JXMRM
-/--
-/--
PP
A•B
TIMER
TV/AV
CH
SWAP SOUND
CH SCAN
BASS
CH
SURROUND
MENU
S.SYS C.SYS
Red Bias -
Red Bias +
Green Bias -
Green Bias +
Blue Bias -
Blue Bias + Press the MENU button to exit
from service mode.
Red Drive -
Red Drive +
Blue Drive -
Blue Drive +
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 14

-15-
Service Adjustments
Following adjustments are not required to readjust when replacing the memory IC.
Note: +B (+130V) Voltage Check and Grayscale Adjustment
mustbe completed beforeattemptingHighVoltageCheck.
(1)Connect high voltage voltmeter negative lead to
ground, and connect + lead to anode of picture tube.
(2)Tune receiver to an active channel and confirm TV is
operating properly.
(3)Maximize the beam current by adjusting the contrast
and brightness controls to maximum. Confirm high
voltage is within 23.0 KV and 25.0 KV at maximum
beam current.
(4)Eliminate the beam current by adjusting the contrast
and brightness controls to minimum. Confirm high
voltage does not exceed 26.5 KV at zero beam current.
If reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
HIGH VOLTAGE CHECK
34
21
E
E
E
E
E
16 9
7
1
E
E
E
E
E
E
E
10
58
E
C651
C609-H1
C609A-H2
C609A-H1
C609
T611
L613
C615
C618
C617
D611
D643
Q613A
Q613-H1
Q613
Q613-H2
Q613-H3
C629
L612
L616
D610
R615
R626
D614
D615
C614
D612 L614
R620
R621
R625
R632
R633
C611
C613
C644
D616
D617
L615
Q611
Q625
Q641
Q642
R611
R613
R614
R616
R619
R622 R623
R624
R627
R631
R641
R642
R643
R644
D641
Q613-H4
Q613-H5
Q612
D619
!
!
J607
J606
J609
T611A
T611-H3
T611-H2
T611-H7
T611B
R628 R629
J604
T611B-H13
T611B-H14
T611B-H17 T611B-H12
T611-H14 T611-H13
T611-H17
J608
J605
T611-H12
Q651
R651
R672
D671 R671
J627
R681
Q681
C665
D659
R659
R658
R669
R668
D664
C681
IC681
R646
D653
L653
L654
C654
C643
C657
Q653
J623
Q652
C656
R657
R655
R652
C655
D651
L651
L652
C652
D652
J612
J611
R653
D692
R663
R664
C639
D662
R665
R661
R645
J625
J616
91
C690
D655
D693
R695
J622
R103
J626
D661
Q462
D439
J411
T431
C425A
C424A
R471
R4
C462
R480
R468
J402
C465
J403
R434
C423
L431
T431-H4
C433
C432
T431-H2
C434
R431
Q431
R433
C425
C424
C441-H2
C441-H
C442
C441
C442-H3
L432
R423
J404
C442-H2
C442-H1
C44
T431-H1 T431-H3
L461
Q432
Q432-H2
Q432-H3 Q432-H1
Q432A
L462-H3
L462-H1
L462
L462-H2
C423A
TP-B
R445
J630
IC802
D861
J821
J408
J621
J2
J409
C618A
J618
J619
Q613-H6
VR651
T611-H4
J63
JP5
JP631
JW35
J401
J615
Q654
C609 H2
R660
JW11
JW12 JW10
JWW1
T431A
JP431
JW7
C355
R656
J624
JP633
R613A
D654-H2
D654
D654-H1
JW13
JW14
JW15 R478
Q662
J603
JW33
JW8
J410
JP441A
J617
Q432B
L441
L441-H1
L441-H3
L441
C664
C653
J638
(1)Connect DC meter to TP-B and the ground.
(2)Tune the receiver to an active channel and synchro-
nized picture. Select NATURAL picture mode by press-
ing the PICTURE MODE button on the remote control.
(3)Adjust B-voltage to be 130 ± 1V DC by using VR651.
B-VOLTAGE SUPPLY CHECKING
(1)Receive the monochrome circular pattern.
(2)Set the brightness to normal and contrast to maximum.
(3)Adjust the focus control on the F.B.T. for the best focus
on the screen centre.
FOCUS ADJUSTMENT
MAIN BOARD
B-Voltage Supply Adjustment
MAIN BOARD
TP-B
9
7
1
E
T471A
T471
T611
L613
C617
D611
C629
L612
D616
6
17
15
6
23
R624
Q613-H4
Q612
!
J609
T
T611-H7
T611B
R628 R629
H
13 T611B-H12
D439
JP409
R488
T431
C515
C437
C425A
C424A
R487
C487
KQ
JP412
T471-H5
T471-H1
KDY-1
JP408
JP407
JP403A
JP405
R355
JW1
R
5
J406
R477A
C486
R492
C491
D485
R475
R485
D
R484
J403
R434
C423-H2 C423-H3
C423
C423-H1 C420-H1
C420
C420-H3C420-H2
C437A
R422
R424
L431
T431-H4
C433
C432
T431-H2
C434
R431
Q431
R433
C425
C424
D438
C441-H2
C441-H3
C442
C441
C442-H3
L432
R435
R423
J404
KD
Y
C442-H2
C442 H1
C441-H1
R441
T431-H1 T431-H3
JP410
JP411
R477
JP404
T471-H2
J405
C471
JW6
R483
R481
R481A
T471-H7
T471-H11
T471-H6
T471-H4
T471-H8
T471-H10
Q432
Q432-H2
Q432-H3 Q432-H1
Q432A
JP483
R442
JP436
C423A
JP477
C437B
FC3G2 CHASSIS
TP-B
T471
JP435
Q613-H6
T431A
JP431
JP441
C355
JP441A
JP403
Q432B
Focus VR
(Upper side)
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 15

-16-
Special Function
1To enter into the special function setting mode, press and
hold the MENU button of the remote control, then press the
PROGRAMME DOWN button on the TV set.
Once TUNING LOCK is switched on, further channel tuning
(Pre-set) is not possible. The Channel Swapping function also
is not possible.
2Select an item of the special functions by pressing the
PROGRAMME UP or DOWN button on the remote control
or the TV set.
3Set the selected special function “ ON “ by pressing the
VOLUME + or
- button. To cancel, set to “ OFF”.
(2) Tuning Lock setting
The following special functions can be set up on this TV
set.
With this function, a maximum sound volume limit can be set at
any level.
(3) Music Mode setting
When Music Mode is ON, Programme position from “247” to
“255” and “0” are set Music Mode. Only sound is provided and
any picture is not on the screen under Music Mode.
Set AV-START to ON and every time the TV set is switched on,
AV position will be the initial programme position.
(4) AV Start setting
TUNING LOCKED
How to set the special function:
Note: When making the VOLUME LOCK setting, set the
desired maximum sound volume by pressing the VOLUME + or
- button before entering Special Function setting mode.
AV1
MUSIC Turns black
screen
4Press the MENU button of the remote control to return to the normal TV mode.
(1) Volume Lock setting
SOUND
IIIIIIII
-/--
MENU
OFF
OFF
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
OFF
ON
OFF
OFF
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
SELECT ADJUST
M
EXIT
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
CH
-
+
-/--
CH
CH
-/--
CH
CH
-/--
MENU
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 16

-17-
Purity and Convergence Adjustment
RED
BLUE
Adjust tabs together to
superimpose red and
blue horizontal line.
Figure- 2 BLUE AND RED LINE MOVEMENT Figure- 3 BLUE/RED AND GREEN MOVEMENT
Adjust tabs together to
superimpose red/blue
and green horizontal
line.
Adjust tabs angle to superimpose
blue and red vertical line. Adjust tabs angle to superimpose red/blue and green vertical line.
GREEN
BLUE / RED
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
PURITY ADJUSTMENT
1. Demagnetize the picture tube and receiver using an external
degaussing coil. When replacing picture tube or deflection
yoke, mount deflection yoke and purity-convergence magnets
assembly properly, see figures 1 and 4.
2. Turn Red and Blue guns off and provide only Green raster.
Rotate Screen control to fully counterclockwise. Rotate Red
and Blue Bias controls fully counterclockwise. Slowly rotate
Green Bias control clockwise to produce Green raster.
3. Loosen the screw holding the Deflection Yoke and remove the
3 Rubber Wedges, and slide the Deflection Yoke fully forward.
4. Rotate and spread the Tabs of the two Purity Magnets to cen-
tre the vertical green belt in the picture screen. The Purity
Magnets are also adjusted to obtain vertical centring of the
raster.
5. Slowly slide the Deflection Yoke backward until a uniform
green screen is obtained.
6. Check the purity of the red and blue screens for uniformity,
turn off other colours to check this (use bias controls).
Readjust the yoke position if necessary until all screens are
pure.
7. Adjust each Bias control and screen control to obtain white
raster. Refer to Gray Scale Adjustment. If part of the picture
screen is coloured, adjust the Deflection Yoke position forward
or backward slightly.
8. Tighten the mounting screw of the Deflection Yoke. Adjust
Convergence next.
CENTRE CONVERGENCE ADJUSTMENT
1. Use a dot crosshatch pattern signal.
2. Turn Red and Blue guns on and turn off Green gun. Adjust the
angle between the Tabs of the Four Pole Magnet 1 and 2, and
superimpose the Red and Blue vertical lines in the centre area
of the picture screen. Refer to figure 2.
3. Keeping the mutual angle of the Tabs of the Four Pole Magnet
turn them together to superimpose the Blue and Red horizon-
tal lines in the centre area of the picture screen. Refer to fig-
ure 2.
4. Turn Green gun on and adjust Six Pole Magnet 3 and 4 that
the Green line superimposed on the Red/Blue lines.
This is the same procedure used in steps 2 and 3.
Refer to figure 3.
OUTER AREA CONVERGENCE ADJUSTMENT
Slightly loosen the screw holding the Deflection Yoke. Adjust the
Deflection Yoke to converge the detail in the outer area (left side
and right side) of the picture screen by orbital movement of the
front of the Yoke, then secure the Deflection Yoke in appropriate
position by putting the wedges as illustrated. Tighten screw hold-
ing the Deflection Yoke.
RUBBER
WEDGE
DEFLECTION YOKE
DEFLECTION YOKE
MOUNTING SCREW

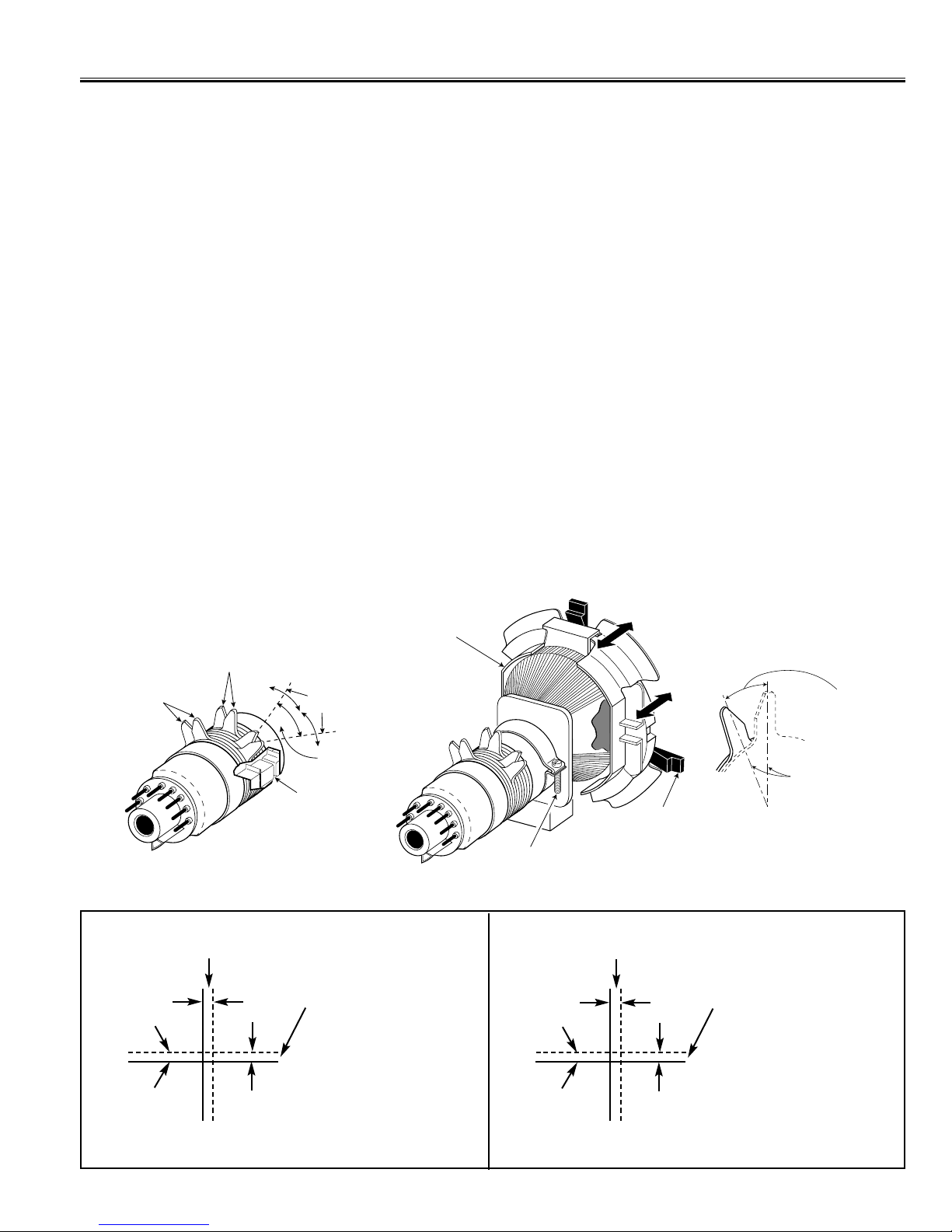

Figure 4. Deflection Yoke Movement
SIX-POLE
MAGNET TABS FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
4
3
2
1
FOCUS GAP
(G3-G4)
Figure 1. Purity and Convergence Magnets
MAGNET TABS
ANGLE OF MAGNET TABS
Figure 5. Adjusting Magnet
Note: The form of deflection yoke changes with models.
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 17

C5GSH

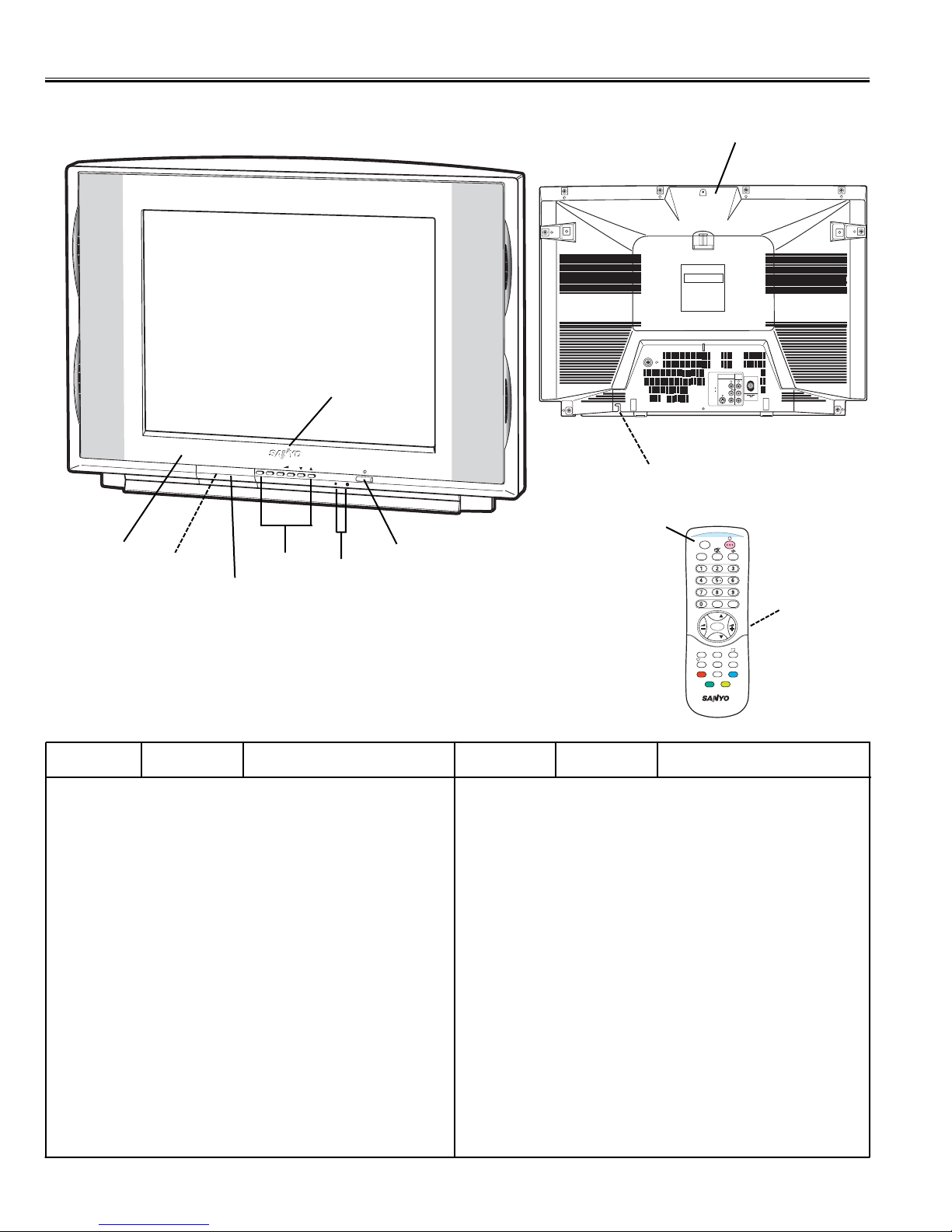

Cabinet Parts List
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
CH
TV/AV
-
+
MENU
JXMRM
-/--
-/--
PP
A•B
TIMER
TV/AV
CH
SWAP SOUND
CH SCAN
BASS
CH
SURROUND
MENU
S.SYS C.SYS
9
10
1 610 299 9051 BUTTON POWER-C5GA
610 229 8406 SPRING-E3HA
2 610 299 9136 DEC.IND-C5GA
3 610 299 9068 BUTTON UNITED-C5GA
4 610 104 2505 LATCH PUSH,7.9X6.9BK
or 645 019 2449 LATCH PUSH,7.9X6.9BK
5 610 311 2206 ASSY,CABINET FR-C5GE
5-a 610 311 2251 CABINET FRONT-C5GE
5-b 610 307 0292 DOOR-C5GT
6 645 041 7269 BADGE,SANYO*43.5X10L43.5
7 610 316 2454 CABINET BACK-C5GSH
8 610 256 7670 HOLDER AC CORD-SGP-D4VA
9 645 067 5089 ASSY,REMOCON JXMRM
10 610 297 3723 RC-BATTERY LID-JXMRA
610 315 8853 INSTRUCTIONS MANUAL-C5GSH
Key No. Part No. Description Key No. Part No. Description
ANT. 75Ω
L
R
AUDIO
AV1 INPUT
VIDEO
(MONO)
S-VIDEO
MONITOR
OUT
1
2
3
5-b
4
6
8
7
5-a
-18-
SM_21-C5GSH (Rus) 6/28/04 11:33 AM Page 18

-19-
C5GSH
OUT OF CIRCUIT BOARD
PICTURE TUBE
Q901 4140130108 CRT A51QDJ470X17NSCR
COIL
L901 6450515514 COIL,DEGAUSSING
6450515521 COIL,DEGAUSSING
MISCELLANEOUS
SP901 6450553653 SPEAKER,8
SP902 6450553653 SPEAKER,8
W901 6450399251 CORD,POWER-2.0MK-A5003
W902 6103081281 ASSY,WIRE GND CONNECTOR C
6103179018 ASSY,PWB,MAIN C5GSH
1AA0B10S130FA
TRANSISTOR
Q1003 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1004 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1005 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q1006 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
Q111 4050159721 TR 2SC2814-F4-TB
Q122 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q1401 4051345925 TR 2SA1037AK-T146-R
4051472215 TR 2SA1037AK-S-T146
4050020318 TR 2SA1037K T146 R
4050020417 TR 2SA1037K T146 S
!
!
!
Chassis Electrical Parts List
Ref. No. Part No. Description Ref. No. Part No. Description
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
!
Note: Parts order must contain Service Ref. No., Part No., and descriptions. The main PCB unit will be supplied without tuner and
flyback transformer. They should be ordered separately.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified B : ±0.1pF C : ±0.25pF
D : ±0.5pF F : ±1PF G : ±2pF
R : ±0.25-0pF S : ±0-0.25pF E : +0-1pF
More than 10pF
A : Not specified B : ±0.1% C : ±0.25%
D : ±0.5% F : ±1% G : ±2%
H : ±3% J : ±5% K : ±10%
L : ±15% M : ±20% N : ±30%
P : +100-0% Q : +30-10% T : +50-10%
U : +75-10% V : +20-10% W : +100-10%
X : +40-20% Y : +150-10%Z : +80-20%
Rated value: P=pico farad, U=micro farad
Material:
CERAMIC...........Ceramic
MT-PAPER.........Metallized Paper
POLYESTER......Polyester
MT-POLYEST.....Metallized Polyester
POLYPRO..........Polypropylene
MT-POLYPRO....Metallized Polypropylene
COMPO FILM.....Composite film
MT-COMPO........Metallized Composite
STYRENE...........Styrene
TA-SOLID...........Tantalum Solid
AL-SOLID...........Aluminium Solid
ELECT................Electrolytic
NP-ELECT..........Non-polarised Electrolytic
OS-SOLID..........Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT..........Double Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON...........Carbon
MT-FILM............Metal Film
OXIDE-MT.........Oxide Metal Film
SOLID................Composition
MT-GLAZE.........Metal Glaze
WIRE WOUND...Wire Wound
CERAMIC RES..Ceramic
FUSIBLE RES....Fusible
NOTES:
P List-C5GSH 6/28/04 11:22 AM Page 19

-20-
C5GSH
4050026726 TR 2SA1179-M6-TB
4050026924 TR 2SA1179-M7-TB
4051631513 TR 2SA1179N-M6-TB
4051632718 TR 2SA1179N-M7-TB
Q1402 4060087407 TR 2SA1015-G(SAN)-TPE2
4050017417 TR 2SA1015-O(SAN)
4050017615 TR 2SA1015-Y(SAN)
4050043119 TR 2SA564A-Q(CU)
4050043218 TR 2SA564A-R(CU)
4050061717 TR 2SA933S-Q
4050061816 TR 2SA933S-R
Q1501 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q1503 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q1504 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q190 4051345925 TR 2SA1037AK-T146-R
4051472215 TR 2SA1037AK-S-T146
4050020318 TR 2SA1037K T146 R
4050020417 TR 2SA1037K T146 S
4050026726 TR 2SA1179-M6-TB
4050026924 TR 2SA1179-M7-TB
4051631513 TR 2SA1179N-M6-TB
4051632718 TR 2SA1179N-M7-TB
Q1902 4060087407 TR 2SA1015-G(SAN)-TPE2
4050017417 TR 2SA1015-O(SAN)
4050017615 TR 2SA1015-Y(SAN)
4050043119 TR 2SA564A-Q(CU)
4050043218 TR 2SA564A-R(CU)
4050061717 TR 2SA933S-Q
4050061816 TR 2SA933S-R
Q261 4060087407 TR 2SA1015-G(SAN)-TPE2
4050017417 TR 2SA1015-O(SAN)
4050017615 TR 2SA1015-Y(SAN)
4050043119 TR 2SA564A-Q(CU)
4050043218 TR 2SA564A-R(CU)
4050061717 TR 2SA933S-Q
4050061816 TR 2SA933S-R
Q431 4050180517 TR 2SC3332-R
4050180616 TR 2SC3332-S
Q432 4051571304 TR 2SD2634-YB
Q527 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051631612 TR 2SC2812N-L6-TB0
4051631711 TR 2SC2812N-L7-TB0
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q611 4050136712 TR 2SC2274-D
4050136811 TR 2SC2274-E
4050137016 TR 2SC2274-F
Q612 4050066514 TR 2SA984-E
4050066712 TR 2SA984-F
Q613 4051726803 TR 2SK3102
Q625 4050136811 TR 2SC2274-E
4050137016 TR 2SC2274-F
Q641 4060087407 TR 2SA1015-G(SAN)-TPE2
4050017615 TR 2SA1015-Y(SAN)
4050043218 TR 2SA564A-R(CU)
4050061816 TR 2SA933S-R
Q642 4050118411 TR 2SC1740S-Q
4050118510 TR 2SC1740S-R
4050118619 TR 2SC1740S-S
4050122012 TR 2SC1815-GR
4050122319 TR 2SC1815-Y
4050207511 TR 2SC945A-PA
4050207719 TR 2SC945A-QA
Q651 4050118411 TR 2SC1740S-Q
4050118510 TR 2SC1740S-R
4050118619 TR 2SC1740S-S
4050122012 TR 2SC1815-GR
4050122319 TR 2SC1815-Y
4050207511 TR 2SC945A-PA
4050207719 TR 2SC945A-QA
Q652 4050890010 TR 2SA1707-S
4050890119 TR 2SA1707-T
4050096917 TR 2SB985-S
4050097013 TR 2SB985-T
Q654 4050599804 TR 2SD1913-Q-RA
4050599903 TR 2SD1913-R-RA
Q661 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q662 4060087407 TR 2SA1015-G(SAN)-TPE2
4050017417 TR 2SA1015-O(SAN)
4050017615 TR 2SA1015-Y(SAN)
4050043119 TR 2SA564A-Q(CU)
4050043218 TR 2SA564A-R(CU)
4050061717 TR 2SA933S-Q
4050061816 TR 2SA933S-R
Q663 4050144519 TR 2SC2412K T146 R
4050144618 TR 2SC2412K T146 S
4050158724 TR 2SC2812-L6-TB
4050158922 TR 2SC2812-L7-TB
4051739813 TR 2SC3928A1R
4051739912 TR 2SC3928A1S
4051843411 TR 2SD0601A-R-TX
Q681 4050118411 TR 2SC1740S-Q
4050118510 TR 2SC1740S-R
4050118619 TR 2SC1740S-S
4050122012 TR 2SC1815-GR
4050122111 TR 2SC1815-O
4050122319 TR 2SC1815-Y
4050207511 TR 2SC945A-PA
4050207719 TR 2SC945A-QA
4050207917 TR 2SC945A-RA
Ref. No. Part No. Description Ref. No. Part No. Description
P List-C5GSH 6/28/04 11:22 AM Page 20
