Sanyo DP50741 User manual

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
210 W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 36 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . 10.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1238mm
HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 838mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . . 283mm
REFERENCE No. SM780185
DP50741, J4JE, PRODUCT CODE 111011204
FILE NO.
SERVICE MANUAL Remote Control Digital
Color Television DP50741 (U.S.A.)
(CANADA)
ORIGINAL VERSION
Chassis No. P50741-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
Servicing should be performed by only trained and qualified service personnel.
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5
MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . 11
COMPONENT AND TEST POINT LOCATIONS . . . . . . 22
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 25
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 26
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 27
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . . . . 32
BLOCK DIAGRAM OF MAIN MICOM . . . . . . . . . . . . . . 35
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 37
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 38

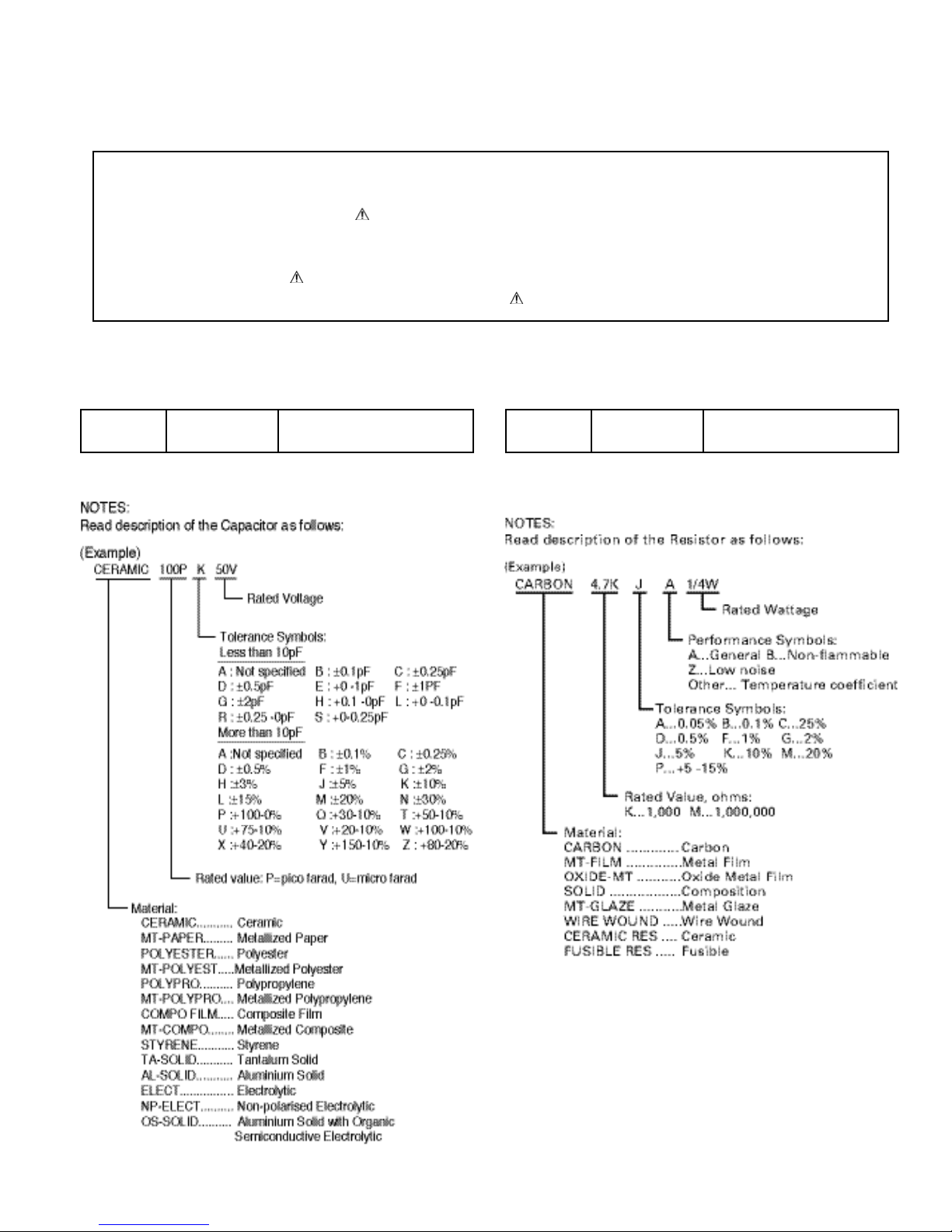

CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 39
SCHEMATIC DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . 40
© Sanyo Manufacturing Corporation 2011

– 2 –
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.

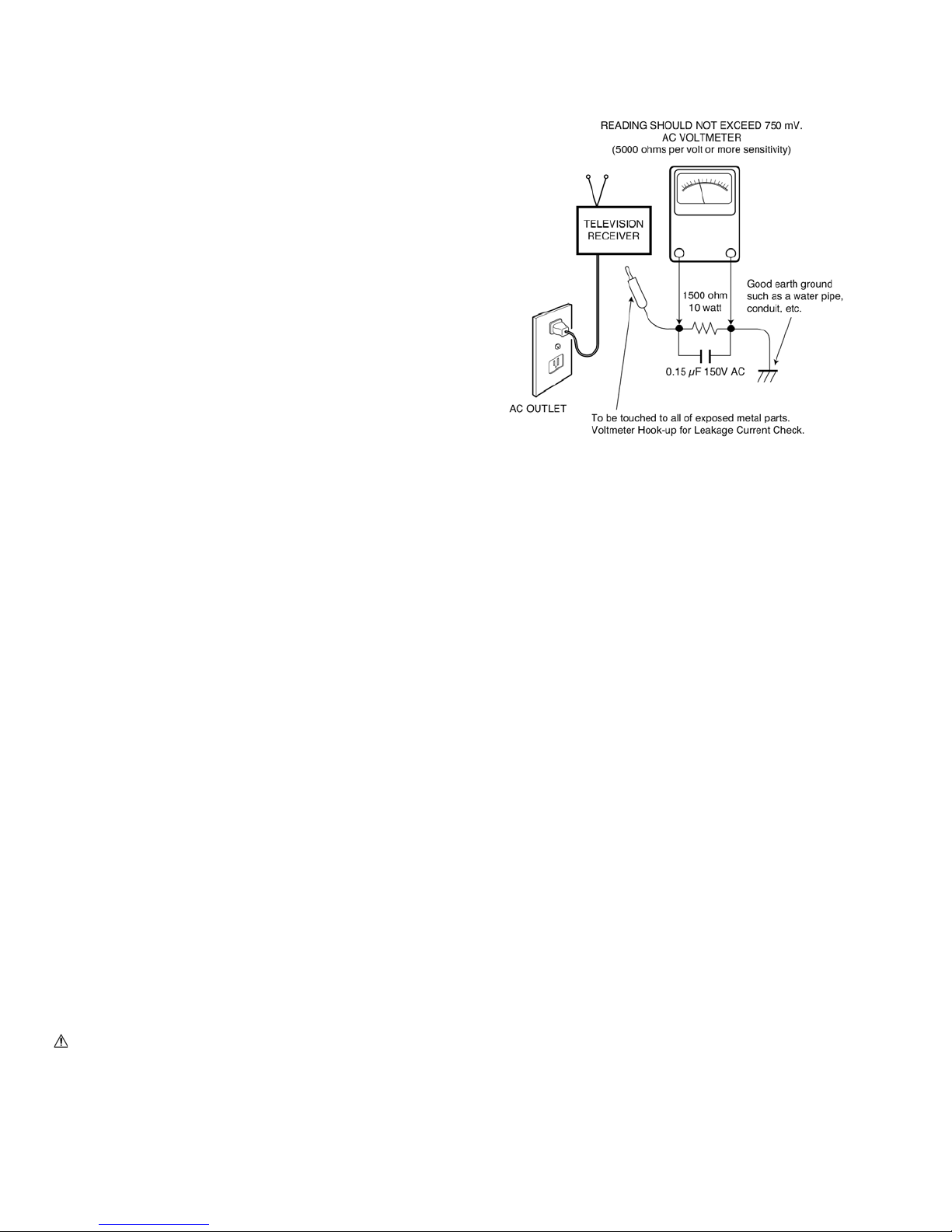

Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 μF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis
or circuit assembly.
7. Incidental body movements, such as, lifting a foot from
a carpeted floor or the rubbing of fabric together can
generate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
SAFETY INSTRUCTIONS

– 3 –
SERVICE ADJUSTMENTS
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the
service adjustments.
ON-SCREEN SERVICE MENU SYSTEM

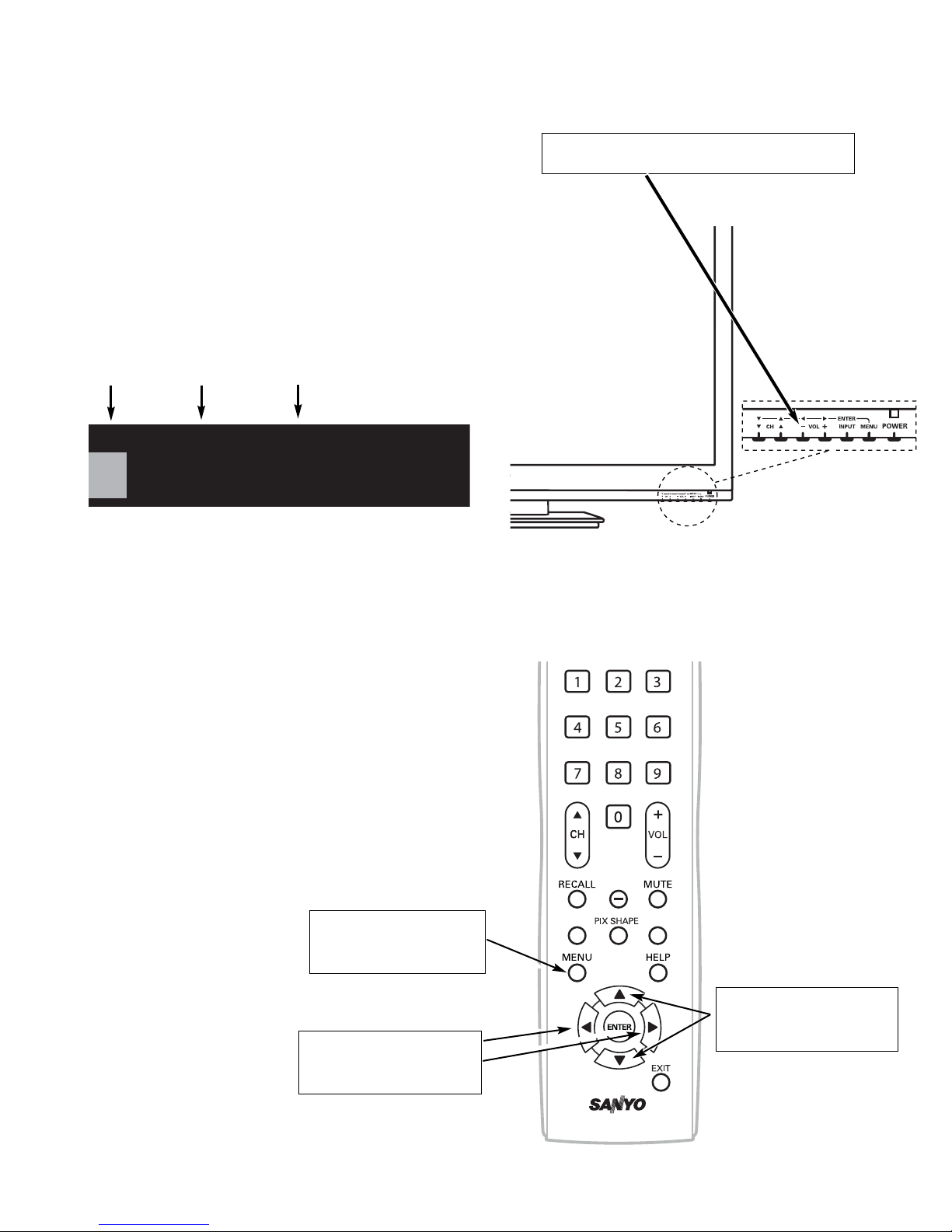

1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (––) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor  and key to select the desired
service menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor or key to adjust the data.
The or key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.
Figure 1. Service Menu Display
HEX DATA
Index ParameterName
FACTORY_VOL 0x21 48 0 255
Value Def. MIN MAX
1
ITEM NO. TITLE
SUB CH
INFO DYN VOL
Menu:
Exit Service Menu
Cursor :
Select Item
Cursor :
Adjust the data
Volume – :Enter Service Menu

– 4 –
ON-SCREEN SERVICE MENU
Table 1. ON-SCREEN SERVICE MENU
When IC7600 (Flash Memory) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (NO. 087 OP1) should be hexadecimal 00.
See 087 above. If this program code is wrong the TV will not operate properly.
Note 2. Option Data 2 (NO. 088 OP2) should be hexadecimal 09.
See 088 above. If this program code is wrong the TV will not operate properly.
NOTES: Option 2 Data (Display Panel)
Option 1 and Option 2 data is initial and can be set according to adjusment information.
Index ParameterName Value Min Max
17 OP1 00h 0 255
18 OP2 09h 0 255

– 5 –
POWER FAILURE CIRCUIT
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
sub_CPU it is necessary to disconnect the AC cord
for a short time.

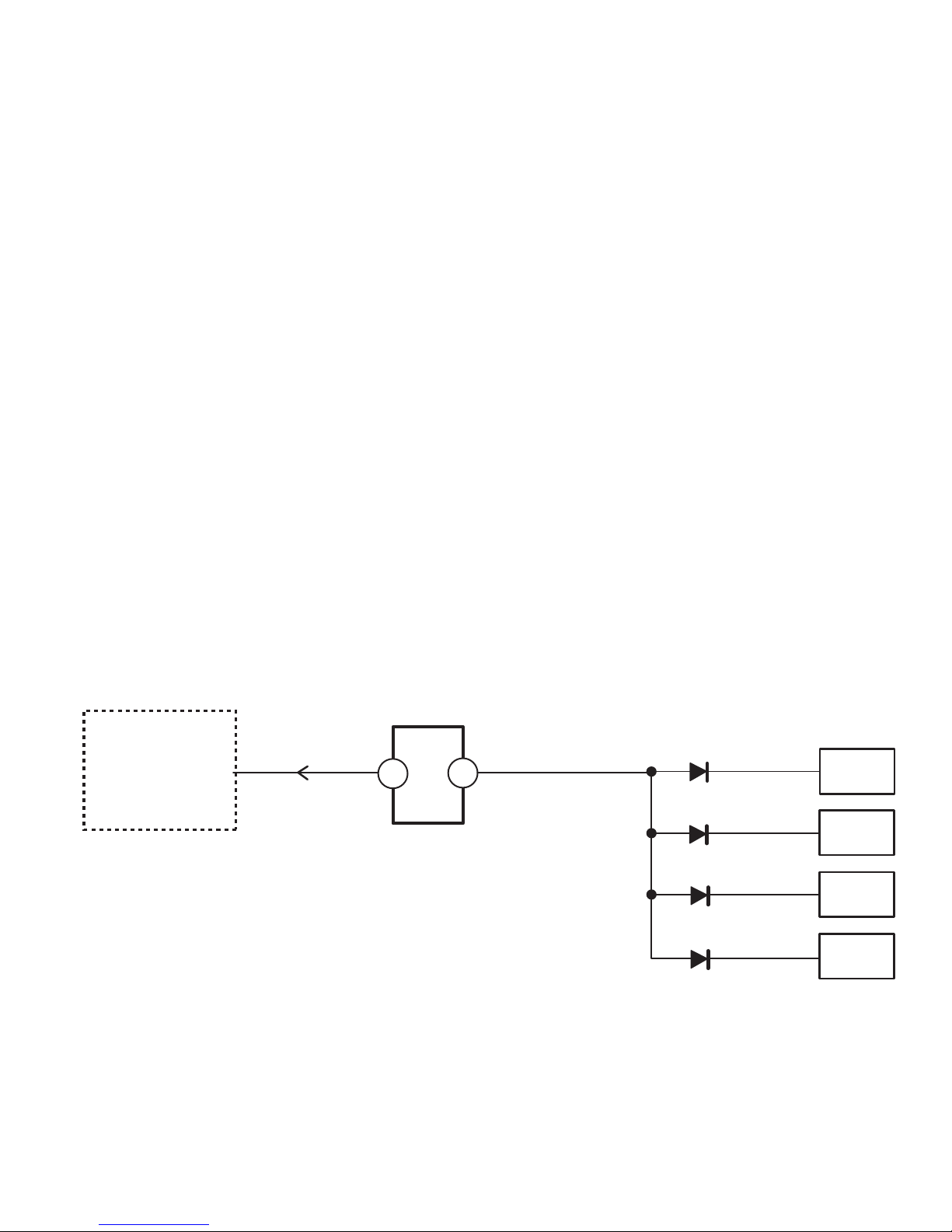

Internal sub_CPU on main IC 5500 is programmed so the
set will go to standby mode when there is circuit failure as
described below. (Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the sub_CPU which checks for an abnormal
condition in the chassis power supplies.
If, while the power is on, a failure is caused by any of the fol-
lowing that results in a low voltage supply, the sub_CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC5500 pin W7.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the sub_CPU will
shut off the power within three seconds.
W7
AA5
IC5500
Power Fail
Power On1
Power Board
Main
D1621
K8B
D1668
D6702
T_Con Pow
5V
Audio Pow
12V
3.3V
D1641
9V

– 6 –

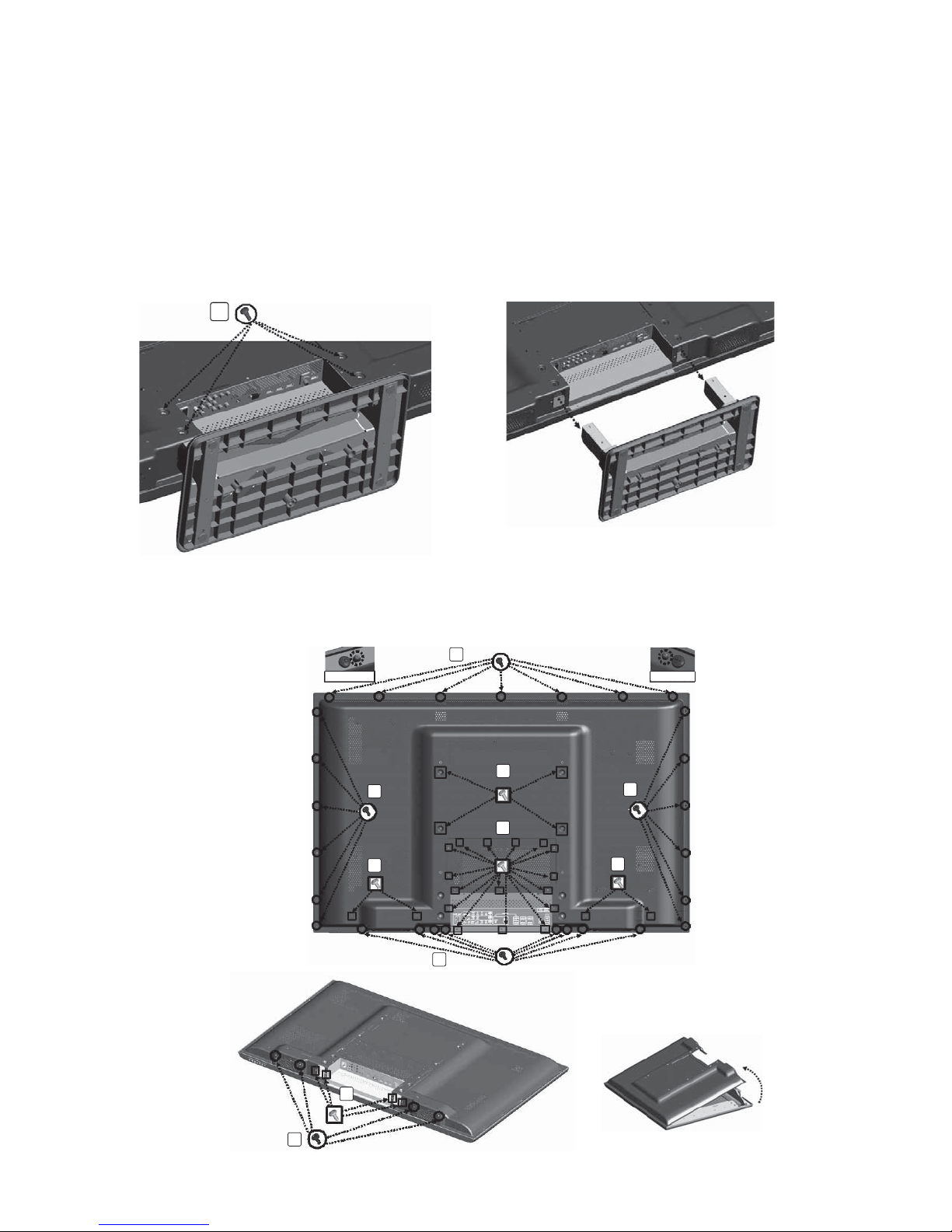

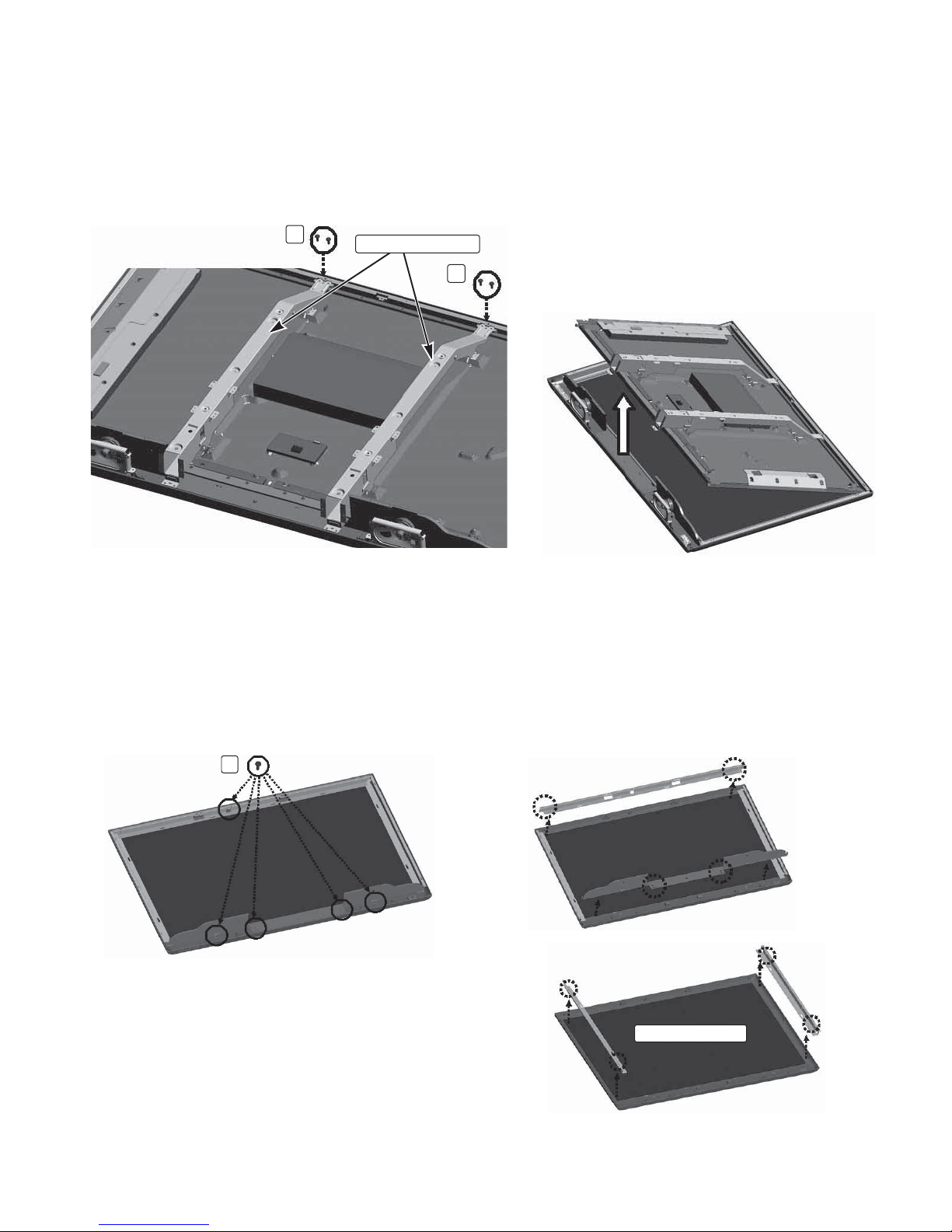

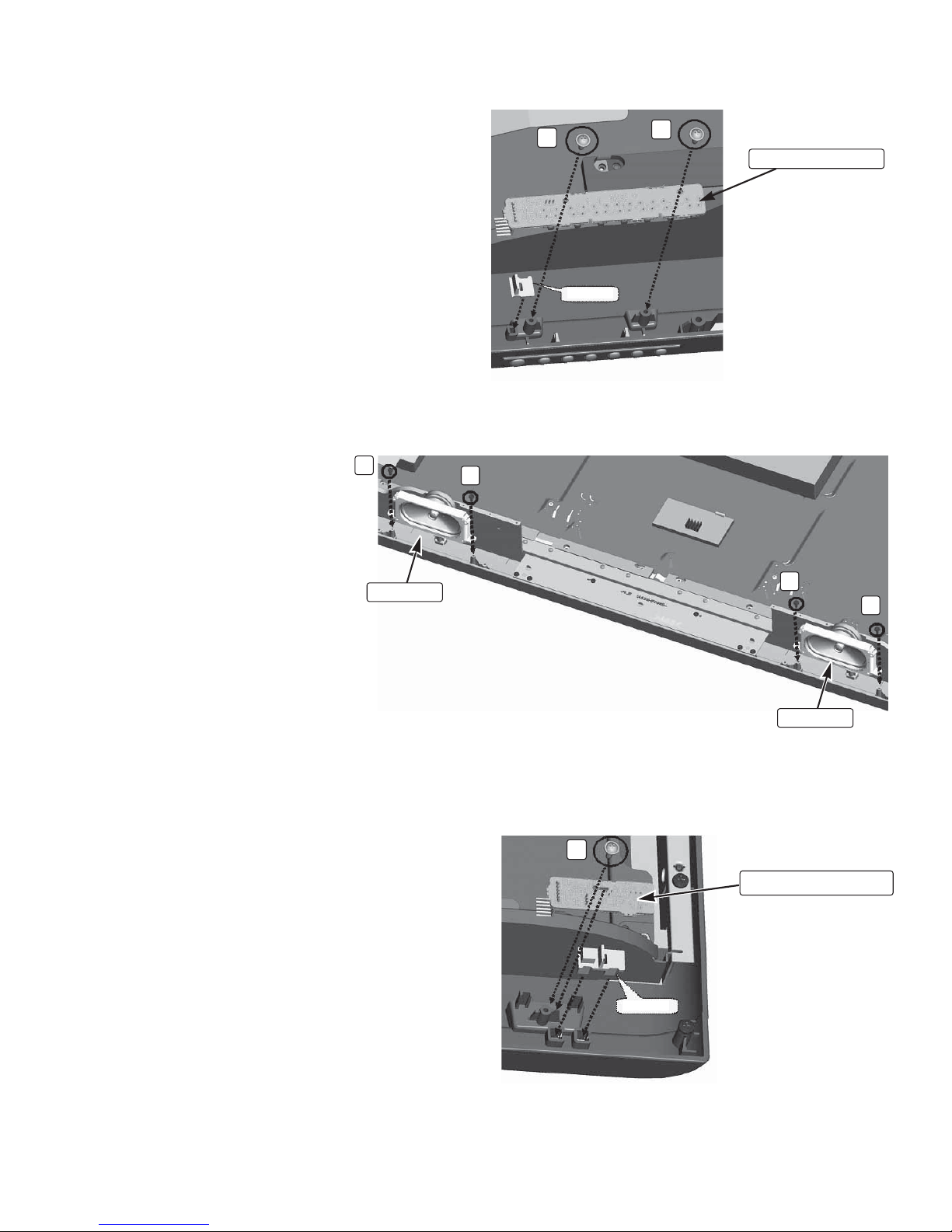

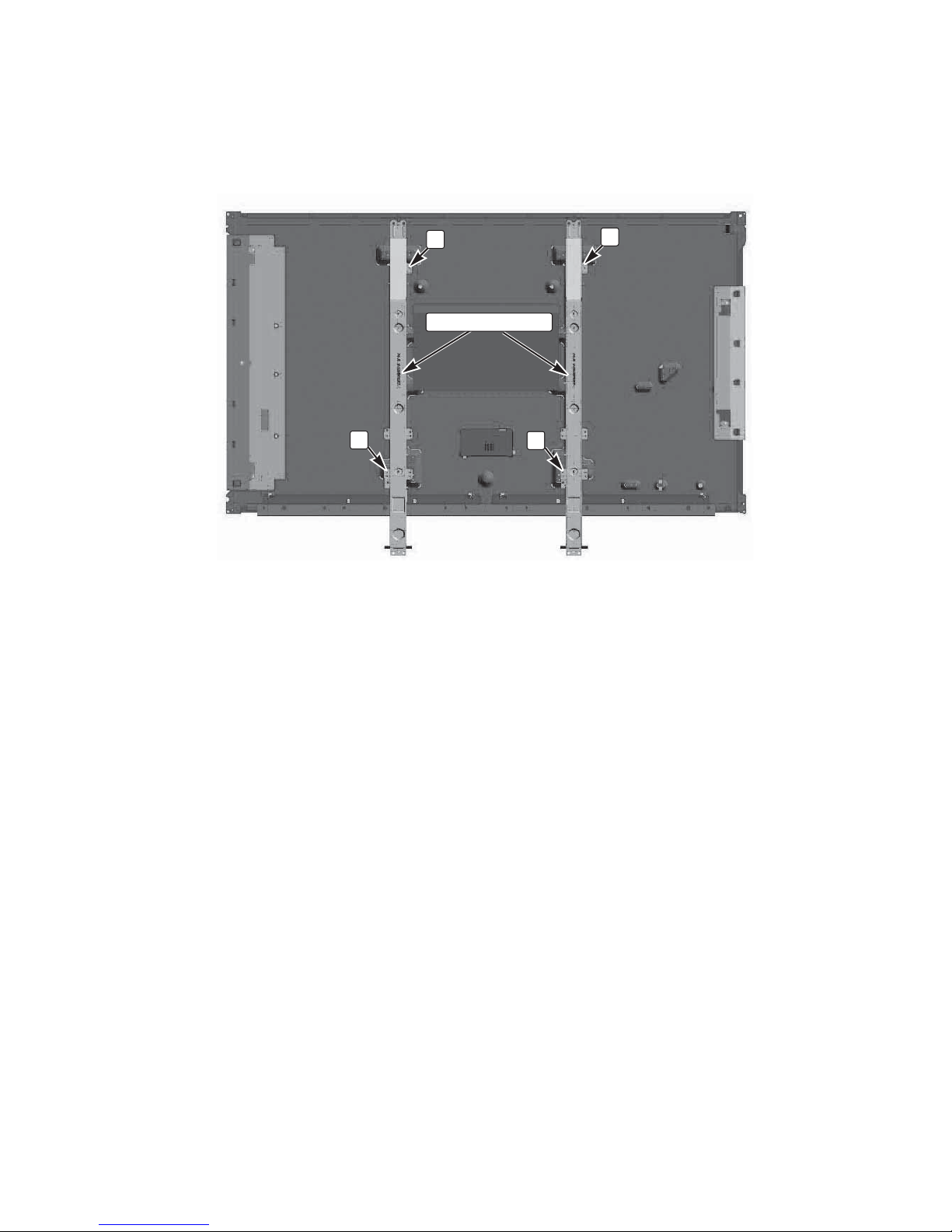

BACK CABINET REMOVAL
Remove 59 screws to take the back cabinet off.
(A:4x10, 31 pcs.; C:4x8, 28 pcs.)
MECHANICAL DISASSEMBLY
CAUTION:
This PDP TV uses several different kinds of screws. Using the correct screw is necessary to prevent damage.
Lead wires must be redressed to their previous locations after servicing. The Earth sheet and gasket are
provided to prevent interference to other radio and television receivers. The Earth sheet and gasket should
be returned to its previous position after servicing.
STAND REMOVAL
Position TV face down on a padded or cushioned surface to protect the screen and finish.
Remove 4 screws (B:6X16) and lift up TV from the stand.
B
A
A
AA
C
CC
C
A
C
positioning point positioning point

– 7 –
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated Circuits) are Electrostatically Sensitive,
and, therefore, require special handling techniques as described under “Servicing
Electrostatically Sensitive Devices,” on page two in this service literature.
F
D
DDNut (Tuner)
F
F
Main(Digital) Board
F
F
Analog Board
F
F
F
F
F
Power Unit
EEF
FF
MECHANICAL DISASSEMBLY (Continued)
12
66
534
1: Main (Digital) Board 3: Power Unit
2: RC LED Board 4: KEY SW Board
3: Analog Board 6: Speakers
ANALOG AND MAIN BOARD REMOVAL
Remove 13 screws (D: 3X10, 3pcs; E:PC terminal
nuts, 2pcs; F:3X6, 8pcs) and 1 Nut (Tuner) to take the
analog board and the Main (digital) Board off.

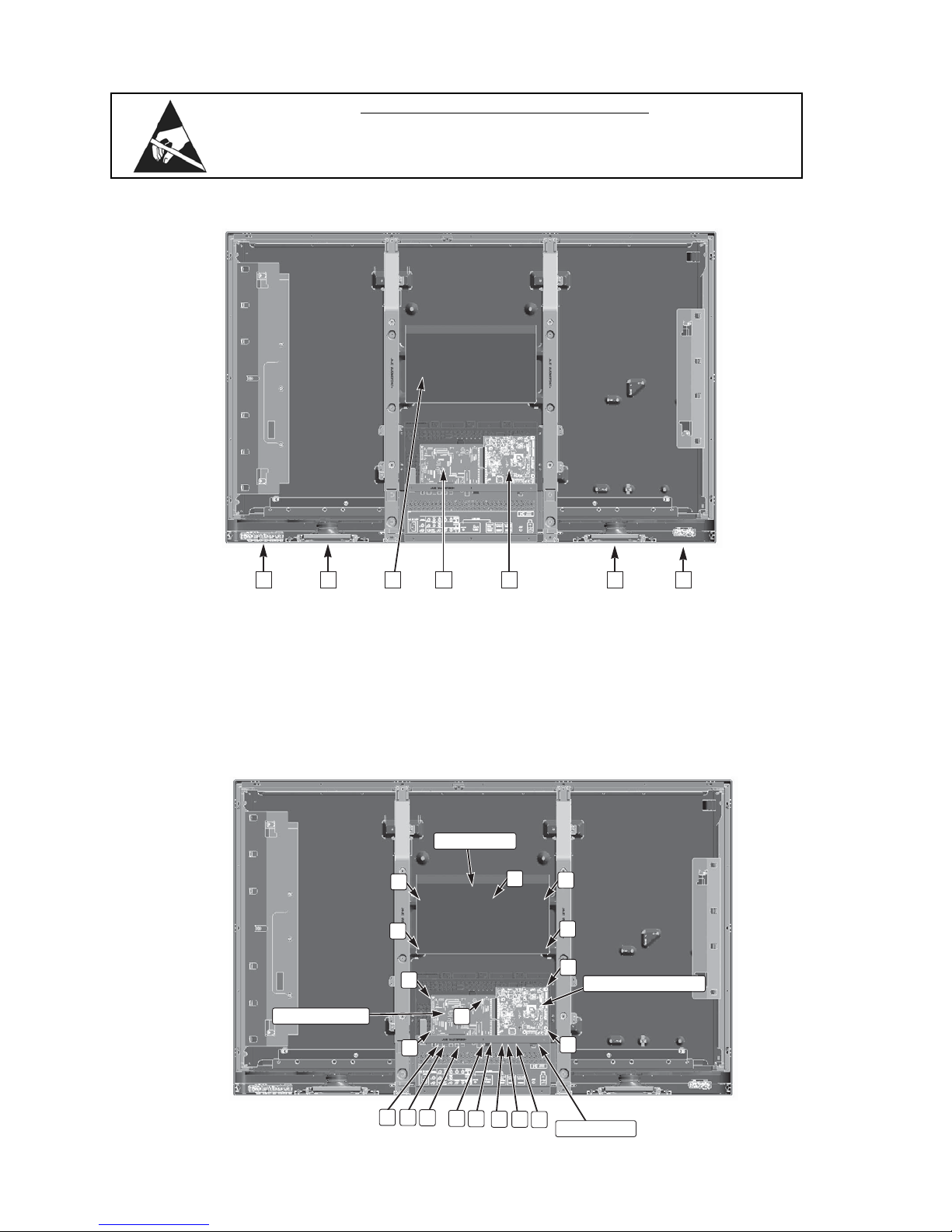

BOARD LOCATIONS
POWER UNIT REMOVAL
Remove 5 screws (F:3x6) to take the power unit off.

– 8 –
MECHANICAL DISASSEMBLY (Continued)
AMounting Frame
A
FILTER GLASS REMOVAL
1. Remove 4 screws (A:4x10) to take the panel module and panel holders (Mounting Frames) with boards off.
Filter Grass
A
3. Remove 5 screws (A:4x10) to take the shield front (4 pcs) and the filter glass off.

– 9 –
MECHANICAL DISASSEMBLY (Continued)
KEY SW BOARD REMOVAL
Remove 2 screws (D:3x10) to take the key sw board off.
RC LED BOARD REMOVAL
Remove 1 screw (D:3x10) to take the RC Led board off.
KEY SW Board
DD
DEC IND
AA
A
A
Speaker
Speaker
D
RC LED Board
DEC IND
SPEAKER REMOVAL
Remove 4 screws (A:4x10) to take off both speakers.

– 10 –
C
Mounting Frame
CC
C
PANEL MODULE REMOVAL
1. Remove the 4 screws (C:4x8) from the Mounting Frames to take the panel module off.
CAUTION:
This PDP TV uses several different kinds of screws. Using the correct screw is necessary to prevent damage.
Lead wires must be redressed to their previous locations after servicing. The Earth sheet and gasket are
provided to prevent interference to other radio and television receivers. The Earth sheet and gasket should
be returned to its previous position after servicing.

– 11 –
CHASSIS ELECTRICAL PARTS LIST
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2.
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS RESISTORS

– 12 –
Schematic
Location Part No. Description Schematic Location Part No. Description
“ASSY,PWB,DIGITAL J4JE”
CAPACITORS
C001 F1G1C104A077 CERAMIC 0.1U K 16V
C002 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C003 F1G1C104A077 CERAMIC 0.1U K 16V
C004 F1K1E475A106 CERAMIC 4.7U K 25V
C005 F1G1C104A077 CERAMIC 0.1U K 16V
C006 F1G1C104A077 CERAMIC 0.1U K 16V
C007 F1G1A105A047 CERAMIC 1U K 10V
C008 F1H1H104A913 CERAMIC 0.1U K 50V
C009 F1H1H104A913 CERAMIC 0.1U K 50V
C010 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C011 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C012 F1H1E474A100 CERAMIC 0.47U K 25V
C013 F1H1E474A100 CERAMIC 0.47U K 25V
C015 F1H1H104A913 CERAMIC 0.1U K 50V
C017 F1H1H104A913 CERAMIC 0.1U K 50V
C018 F1H1E474A100 CERAMIC 0.47U K 25V
C019 F1H1E474A100 CERAMIC 0.47U K 25V
C020 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C021 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C023 F1K1E475A106 CERAMIC 4.7U K 25V
C024 F1K1E475A106 CERAMIC 4.7U K 25V
C025 F1H0J4750004 CERAMIC 4.7U K 6.3V
C026 F1G1C104A077 CERAMIC 0.1U K 16V
C027 F1K1E475A106 CERAMIC 4.7U K 25V
C810 F1H0J4750004 CERAMIC 4.7U K 6.3V
C820 F1G1A105A047 CERAMIC 1U K 10V
C821 F1G1A105A047 CERAMIC 1U K 10V
C825 F1G1H222A571 CERAMIC 2200P K 50V
C1251 F1G1A105A047 CERAMIC 1U K 10V
C1252 F1G1A105A047 CERAMIC 1U K 10V
C1254 F1G1C104A077 CERAMIC 0.1U K 16V
C1255 F1G1A105A047 CERAMIC 1U K 10V
C1256 F1G1A105A047 CERAMIC 1U K 10V
C1257 F1G1A105A047 CERAMIC 1U K 10V
C1258 F1G1A105A047 CERAMIC 1U K 10V
C5500 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5503 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5504 F1G1C104A077 CERAMIC 0.1U K 16V
C5506 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5507 F1G1C104A077 CERAMIC 0.1U K 16V
C5509 F1G1C104A077 CERAMIC 0.1U K 16V
C5511 F1G1A105A047 CERAMIC 1U K 10V
C5512 F1G1C104A077 CERAMIC 0.1U K 16V
C5513 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5515 F1G1A105A047 CERAMIC 1U K 10V
C5517 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5518 F1G1C104A077 CERAMIC 0.1U K 16V
C5520 F1G1C104A077 CERAMIC 0.1U K 16V
C5522 F1G1C104A077 CERAMIC 0.1U K 16V
C5525 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5528 F1G1C104A077 CERAMIC 0.1U K 16V
C5529 F1G1C104A077 CERAMIC 0.1U K 16V
C5530 F1G1C104A077 CERAMIC 0.1U K 16V
C5532 F1G1C104A077 CERAMIC 0.1U K 16V
C5534 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5535 F1G1C104A077 CERAMIC 0.1U K 16V
C5536 F1G1C104A077 CERAMIC 0.1U K 16V
C5537 F1G1C104A077 CERAMIC 0.1U K 16V
C5538 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5540 F1G1C104A077 CERAMIC 0.1U K 16V
C5542 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5543 F1G1C104A077 CERAMIC 0.1U K 16V
C5545 F1G1C104A077 CERAMIC 0.1U K 16V
C5547 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5551 F1G1C104A077 CERAMIC 0.1U K 16V
C5552 F1J0J106A004 CERAMIC 10U K 6.3V
C5552 F1J0J106A020 CERAMIC 10U K 6.3V
C5553 F1G1C104A077 CERAMIC 0.1U K 16V
C5554 F1G1C104A077 CERAMIC 0.1U K 16V
C5555 F1G1C104A077 CERAMIC 0.1U K 16V
C5556 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5557 F1G1C104A077 CERAMIC 0.1U K 16V
C5558 F1G1A105A047 CERAMIC 1U K 10V
C5559 F1G1A105A047 CERAMIC 1U K 10V
C5560 F1G1A105A047 CERAMIC 1U K 10V
C5564 F1G1C104A077 CERAMIC 0.1U K 16V
C5565 F1G1C104A077 CERAMIC 0.1U K 16V
C5567 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5576 F1G1A105A047 CERAMIC 1U K 10V
C5577 F1G1A105A047 CERAMIC 1U K 10V
C5578 F1G1A105A047 CERAMIC 1U K 10V
C5579 F1G1C104A077 CERAMIC 0.1U K 16V
C5580 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5581 F1G1C104A077 CERAMIC 0.1U K 16V
C5582 F1G1C104A077 CERAMIC 0.1U K 16V
C5583 F1G1A105A047 CERAMIC 1U K 10V
C5585 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5586 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5587 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5588 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5589 F1G1C104A077 CERAMIC 0.1U K 16V
C5591 F1G1C104A077 CERAMIC 0.1U K 16V
C5593 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5597 F1G1C104A077 CERAMIC 0.1U K 16V
C5601 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5603 F1G1C104A077 CERAMIC 0.1U K 16V
C5604 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5605 F1G1C104A077 CERAMIC 0.1U K 16V
C5606 F1G1C104A077 CERAMIC 0.1U K 16V
C5607 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5608 CC1H180JMNCNG CERAMIC 18P J 50V

– 13 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5609 F1G1A105A047 CERAMIC 1U K 10V
C5613 CC1H5R0CMNCNG CERAMIC 5P C 50V
C5614 CC1H5R0CMNCNG CERAMIC 5P C 50V
C5615 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5616 F1J0J106A004 CERAMIC 10U K 6.3V
C5616 F1J0J106A020 CERAMIC 10U K 6.3V
C5622 F1G1C104A077 CERAMIC 0.1U K 16V
C5623 F1G1C104A077 CERAMIC 0.1U K 16V
C5626 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
C5627 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
C5630 CC1H180JMNCNG CERAMIC 18P J 50V
C5633 F1G1A105A047 CERAMIC 1U K 10V
C5634 F1G1A105A047 CERAMIC 1U K 10V
C5635 F1G1A105A047 CERAMIC 1U K 10V
C5636 F1G1A105A047 CERAMIC 1U K 10V
C5640 F1G1A105A047 CERAMIC 1U K 10V
C5641 F1G1A105A047 CERAMIC 1U K 10V
C5642 F1G1A105A047 CERAMIC 1U K 10V
C5643 F1G1A105A047 CERAMIC 1U K 10V
C5644 F1G1A105A047 CERAMIC 1U K 10V
C5645 F1G1A105A047 CERAMIC 1U K 10V
C5646 F1G1A105A047 CERAMIC 1U K 10V
C5647 F1G1A105A047 CERAMIC 1U K 10V
C5660 F1G1C104A077 CERAMIC 0.1U K 16V
C5722 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5727 F1G1H103A706 CERAMIC 0.01U K 50V
C5728 F1G1H103A706 CERAMIC 0.01U K 50V
C5731 F1G1H103A706 CERAMIC 0.01U K 50V
C5736 F1G1H1020008 CERAMIC 1000P K 50V
C5737 F1G1H1020008 CERAMIC 1000P K 50V
C5738 F1G1C104A077 CERAMIC 0.1U K 16V
C5763 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5950 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5953 D0GA103JA047 MT-GLAZE 10K JA 1/16W
C6200 F1G1A105A047 CERAMIC 1U K 10V
C6201 F1G1A105A047 CERAMIC 1U K 10V
C6202 F1G1A105A047 CERAMIC 1U K 10V
C6203 F1G1C104A077 CERAMIC 0.1U K 16V
C6205 F2G1C101A066 ELECT 100U M 16V
C6206 F1G1C104A077 CERAMIC 0.1U K 16V
C6250 F1G1A105A047 CERAMIC 1U K 10V
C6251 F1G1H471A541 CERAMIC 470P J 50V
C6252 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6254 F1H1E474A100 CERAMIC 0.47U K 25V
C6256 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6257 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6259 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6260 F1G1H471A541 CERAMIC 470P J 50V
C6261 F1G1A105A047 CERAMIC 1U K 10V
C6500 F1G1C104A077 CERAMIC 0.1U K 16V
C6530 F1G1C104A077 CERAMIC 0.1U K 16V
C6550 F1G1C104A077 CERAMIC 0.1U K 16V
C6600 F1G1C104A077 CERAMIC 0.1U K 16V
C6601 F1G1C104A077 CERAMIC 0.1U K 16V
C6602 F1G1C104A077 CERAMIC 0.1U K 16V
C6603 F1G1C104A077 CERAMIC 0.1U K 16V
C6604 F1G1C104A077 CERAMIC 0.1U K 16V
C6605 F1G1C104A077 CERAMIC 0.1U K 16V
C6606 F1G1C104A077 CERAMIC 0.1U K 16V
C6607 F1G1C104A077 CERAMIC 0.1U K 16V
C6608 F1G1C104A077 CERAMIC 0.1U K 16V
C6609 F1G1C104A077 CERAMIC 0.1U K 16V
C6610 F1G1C104A077 CERAMIC 0.1U K 16V
C6611 F1G1C104A077 CERAMIC 0.1U K 16V
C6612 F1G1C104A077 CERAMIC 0.1U K 16V
C6613 F1G1C104A077 CERAMIC 0.1U K 16V
C6614 F1G1C104A077 CERAMIC 0.1U K 16V
C6615 F1G1C104A077 CERAMIC 0.1U K 16V
C6616 F1G1C104A077 CERAMIC 0.1U K 16V
C6617 F1G1C104A077 CERAMIC 0.1U K 16V
C6618 F1G1C104A077 CERAMIC 0.1U K 16V
C6627 F1G1C104A077 CERAMIC 0.1U K 16V
C6650 F1G1C104A077 CERAMIC 0.1U K 16V
C6651 F1G1A105A047 CERAMIC 1U K 10V
C6652 F2G1C221A066 ELECT 220U M 16V
C6701 F1G1C104A077 CERAMIC 0.1U K 16V
C6702 F1G1H103A706 CERAMIC 0.01U K 50V
C6703 F1K1E475A106 CERAMIC 4.7U K 25V
C6705 F1G1H222A571 CERAMIC 2200P K 50V
C6707 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6710 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6730 F1G1A105A047 CERAMIC 1U K 10V
C6731 F1G1A105A047 CERAMIC 1U K 10V
C6732 F1G1C104A077 CERAMIC 0.1U K 16V
C6733 F1J0J106A004 CERAMIC 10U K 6.3V
C6733 F1J0J106A020 CERAMIC 10U K 6.3V
C6734 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6741 F1G1H223A720 CERAMIC 0.022U K 50V
C6742 F1G1H223A720 CERAMIC 0.022U K 50V
C6743 F1K1E475A106 CERAMIC 4.7U K 25V
C6745 F1G1H222A571 CERAMIC 2200P K 50V
C6747 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6755 F1G1H1020008 CERAMIC 1000P K 50V
C6757 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6761 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6762 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6763 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6771 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6772 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6773 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6783 F1J0J106A004 CERAMIC 10U K 6.3V

– 14 –
Schematic
Location Part No. Description Schematic Location Part No. Description
F1J0J106A020 CERAMIC 10U K 6.3V
C7600 F1G1C104A077 CERAMIC 0.1U K 16V
C7681 F1H0J4750004 CERAMIC 4.7U K 6.3V
C7682 F1G1C104A077 CERAMIC 0.1U K 16V
C7683 F1G1C104A077 CERAMIC 0.1U K 16V
DIODES
D850 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
D6501 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D6502 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D6503 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D6650 B0ZBZ0000174 DIODE DF2S6.8UFS
D6651 B0ZBZ0000174 DIODE DF2S6.8UFS
D6700 B0JCND000033 DIODE CRS20I30A
D6702 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
D6740 B0JCND000033 DIODE CRS20I30A
D6760 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
D6770 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
INTEGRATED CIRCUITS
IC001 QLV4906V-H—P IC LV4906V-TLM-H
IC820 QLE24C162M-EP IC LE24C162M-TLM-E
IC1251 C0JBAR000390 IC CD4052BNSR
QTC4052BF—-P IC TC4052BF(EL)
IC5500 QMN2WS0161A-M IC MN2WS0161A
IC5760 QXXAVD265—-M IC V59C1512164QDJ25
IC6250 C0ABBB000350 IC BA4558RF-E2
C0ABBB000450 IC NJM4558M-TE2
IC6600 QTDA9996——P IC TDA9996
IC6650 C0DBZYY00458 IC RT9711CGB
IC6700 QLV5893M-E—P IC LV5893M-TE-L-E
IC6730 C0CBAYG00009 IC LM1117S-ADJ
IC6740 QLV5893M-E—P IC LV5893M-TE-L-E
IC6760 C0DBEYY00016 IC PQ070XNA1ZPH
IC6770 C0DBEYY00016 IC PQ070XNA1ZPH
IC6780 C0CBAYG00009 IC LM1117S-ADJ
IC7600 QXXAAJQ1353— IC W25Q64CVSFIG J4JE
IC7600A QXXAVD296—-P IC W25Q64CVSFIG
IC7600C 1AA6P4P2271— LABEL-W25Q64CVSFIG J4JE
IC7682 C0EBY0000932 IC IC-PST8428NR
COILS
L001 J0JBC0000134 “INDUCTOR 1000OHM, P”
L002 G1C220MA0445 “INDUCTOR ,22UH”
L003 G1C220MA0445 “INDUCTOR ,22UH”
L004 G1C220MA0445 “INDUCTOR ,22UH”
L005 G1C220MA0445 “INDUCTOR ,22UH”
L006 J0JYC0000381 “INDUCTOR , 220 OHM”
L007 J0JYC0000381 “INDUCTOR , 220 OHM”
L008 J0JYC0000381 “INDUCTOR , 220 OHM”
L820 J0JBC0000134 “INDUCTOR 1000OHM, P”
L830 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1251 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5500 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5502 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5503 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5504 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5505 J0JYC0000381 “INDUCTOR , 220 OHM”
L5506 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5507 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5508 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5509 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5510 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5511 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5512 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5513 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5514 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5515 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5516 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5517 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5518 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5519 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5520 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5521 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5523 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L5524 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L5525 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L5600 J0JBC0000134 “INDUCTOR 1000OHM, P”
L5621 G1C4R7M00016 “INDUCTOR,4.7U M”
L5622 G1C4R7M00016 “INDUCTOR,4.7U M”
L5950 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L6202 J0JBC0000134 “INDUCTOR 1000OHM, P”
L6203 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6204 G1C3R3MA0061 “INDUCTOR,3.3U M”
L6205 J0JYC0000381 “INDUCTOR , 220 OHM”
L6250 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6310 D1HYR004A012 R-NETWORK 0X4 0.063W
L6311 D1HYR004A012 R-NETWORK 0X4 0.063W
L6312 D1HYR004A012 R-NETWORK 0X4 0.063W
L6313 D1HYR004A012 R-NETWORK 0X4 0.063W
L6314 D1HYR004A012 R-NETWORK 0X4 0.063W
L6315 D1HYR004A012 R-NETWORK 0X4 0.063W
L6600 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L6650 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6700 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6701 1AV4L2KQ100MG “INDUCTOR,10U M”
G1C100MA0445 INDUCTOR 10U M

– 15 –
Schematic
Location Part No. Description Schematic Location Part No. Description
L6702 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6703 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6704 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6705 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6730 J0JYC0000381 “INDUCTOR , 220 OHM”
L6740 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6741 1AV4L2KQ100MG “INDUCTOR,10U M”
L6741 G1C100MA0445 INDUCTOR 10U M
L6760 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6761 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L6771 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q820 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q821 B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
TXXLBB005—-P TR MMBTSA1235F
Q860 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1251 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1252 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5500 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5501 B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
TXXLBB005—-P TR MMBTSA1235F
Q5660 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q5661 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6250 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6252 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6260 B1ADCF000194 TR ISA1235AC1F
B1ADCF000201 TR ISA1235AC1E
TXXLBB005—-P TR MMBTSA1235F
Q6750 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q6751 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
RESISTORS
R004 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R005 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R006 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R007 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R802 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R803 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R810 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R811 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R820 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R821 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R822 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R823 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R824 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R825 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R826 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R827 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R828 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R829 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R832 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R834 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R837 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R839 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R840 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R842 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R843 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R844 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R845 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R846 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R847 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R850 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R851 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R852 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R853 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R854 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R855 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R860 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R861 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R862 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R863 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R866 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R867 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R868 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R869 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1251 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1252 D0GB334JA068 MT-GLAZE 330K JA 1/10W
R1253 D0GB334JA068 MT-GLAZE 330K JA 1/10W
R1254 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1255 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1256 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1257 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1258 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1259 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1260 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1261 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1262 D0GB101JA069 MT-GLAZE 100 JA 1/10W

– 16 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R1263 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1264 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1265 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1266 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1272 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1273 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1274 D0GB334JA068 MT-GLAZE 330K JA 1/10W
R1275 D0GB334JA068 MT-GLAZE 330K JA 1/10W
R1276 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1277 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1281 D0GB334JA068 MT-GLAZE 330K JA 1/10W
R1282 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1283 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1284 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1285 D0GB334JA068 MT-GLAZE 330K JA 1/10W
R1286 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R1287 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R1288 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R5500 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5502 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5503 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R5504 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5505 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5511 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R5512 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R5516 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5518 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5526 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5527 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5531 D0GB390JA072 MT-GLAZE 39 JA 1/10W
R5532 D0GB390JA072 MT-GLAZE 39 JA 1/10W
R5539 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5550 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5551 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5552 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5553 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5555 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5557 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R5558 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R5562 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5563 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R5564 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5566 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R5567 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R5570 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5571 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5572 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5574 D0GB561JA069 MT-GLAZE 560 JA 1/10W
R5577 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5578 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R5579 D0GB560JA072 MT-GLAZE 56 JA 1/10W
R5580 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5582 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5583 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5584 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5585 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5586 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5587 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5588 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5589 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5594 D0GB122JA072 MT-GLAZE 1.2K JA 1/10W
R5596 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5597 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5598 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5599 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5600 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5604 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R5606 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5611 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R5612 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5613 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5614 D0GB820JA072 MT-GLAZE 82 JA 1/10W
R5617 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5618 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5620 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5622 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5624 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5627 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5628 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5630 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5633 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R5635 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R5637 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R5639 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5640 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R5643 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R5644 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R5646 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5647 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5648 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5649 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5650 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5652 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5653 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5654 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R5656 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5657 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5658 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5659 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5660 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5661 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5662 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5664 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R5666 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5668 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5669 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R5672 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5675 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5676 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R5678 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R5688 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5716 D0GA103JA047 MT-GLAZE 10K JA 1/16W

– 17 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5720 D0GA121JA045 MT-GLAZE 120 JA 1/16W
R5760 D0GB271JA069 MT-GLAZE 270 JA 1/10W
R5763 D0GB271JA069 MT-GLAZE 270 JA 1/10W
R5764 D0GA103JA047 MT-GLAZE 10K JA 1/16W
R5951 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5953 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5954 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R5957 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5958 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5959 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5960 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R5969 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R6201 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6202 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6203 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R6208 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6212 D0GB271JA069 MT-GLAZE 270 JA 1/10W
R6213 D0GB271JA069 MT-GLAZE 270 JA 1/10W
R6250 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6251 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6253 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6254 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6255 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6256 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6257 D0GB683JA070 MT-GLAZE 68K JA 1/10W
R6259 D0GB683JA070 MT-GLAZE 68K JA 1/10W
R6260 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R6262 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6263 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6264 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6265 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6267 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6268 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6305 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R6307 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R6308 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R6310 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R6311 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R6322 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6323 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6324 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6502 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6503 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6505 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6506 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6507 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6508 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6509 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6510 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6511 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6512 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6513 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6514 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6532 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6534 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6536 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6537 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6538 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6539 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6540 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6541 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6542 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6543 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6544 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6545 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6552 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6553 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6555 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6556 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6557 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6563 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6564 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6565 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6566 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6567 D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
R6568 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6569 D0GB470J0002 MT-GLAZE 47 JA 1/10W
R6603 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R6604 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
R6612 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6613 D0GB473JA072 MT-GLAZE 47K JA 1/10W
R6615 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6616 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6652 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6655 D0GB270JA072 MT-GLAZE 27 JA 1/10W
R6656 D0GB270JA072 MT-GLAZE 27 JA 1/10W
R6657 D0GB153JA072 MT-GLAZE 15K JA 1/10W
R6658 D0GB153JA072 MT-GLAZE 15K JA 1/10W
R6701 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6702 D0GB390JA072 MT-GLAZE 39 JA 1/10W
R6703 D0GB103ZA038 MT-GLAZE 10K FA 1/10W
R6704 D0GB682JA072 MT-GLAZE 6.8K JA 1/10W
R6705 D0GB273ZA038 MT-GLAZE 27K FA 1/10W
R6708 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
R6711 D0GB1R0JA071 MT-GLAZE 1 JA 1/10W
R6730 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
R6731 D0GB120JA072 MT-GLAZE 12 JA 1/10W
R6732 D0GB221Z0002 MT-GLAZE 220 FA 1 /10W
R6734 D0GB2R2JA072 MT-GLAZE 2.2 JA 1/10W
R6741 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6742 D0GB390JA072 MT-GLAZE 39 JA 1/10W
R6743 D0GB222ZA038 MT-GLAZE 2.2K FA 1/10W
R6744 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R6745 D0GB122ZA038 MT-GLAZE 1.2K FA 1/10W
R6748 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6751 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6752 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R6753 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6754 D0GB2R2JA072 MT-GLAZE 2.2 JA 1/10W
R6756 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6763 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R6765 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W

– 18 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R6766 D0GB471ZA037 MT-GLAZE 470 FA 1/10W
R6767 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
R6769 D0GB680JA072 MT-GLAZE 68 JA 1/10W
R6771 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R6773 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R6774 D0GB471ZA037 MT-GLAZE 470 FA 1/10W
R6775 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
R6777 D0GB680JA072 MT-GLAZE 68 JA 1/10W
R6781 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R6782 D0GB220JA072 MT-GLAZE 22 JA 1/10W
R6783 D0GB471JA069 MT-GLAZE 470 JA 1/10W
R6785 D0GB2R2JA072 MT-GLAZE 2.2 JA 1/10W
R6787 D0GB121J0002 MT-GLAZE 120 JA 1/10W
R7607 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R7608 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R7609 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R7678 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R7679 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R7681 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R7687 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R7689 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R7690 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R7692 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R7693 D0GB103JA072 MT-GLAZE 10K JA 1/10W
CRYSTALS/OSCILLATORS
X5500 1AV4V10B9620G “OSC,CRYSTAL 24.576MHZ”
“ASSY,PWB,ANALOG-COMP-
J4JE”
CAPACITORS
C1020 F2A1V4700087 ELECT 47U M 35V
C1051 F1H1H102A219 CERAMIC 1000P K 50V
C1052 F1H1H102A219 CERAMIC 1000P K 50V
C1600 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C1602 F2A0J2210063 ELECT 220U M 6.3V
C1603 F1H1H104A220 CERAMIC 0.1U Z 50V
C1604 F2A1V4710080 ELECT 470U M 35V
C1620 F2A1V4710080 ELECT 470U M 35V
C1621 F1H1H104A913 CERAMIC 0.1U K 50V
C1622 F1H1H104A913 CERAMIC 0.1U K 50V
C1623 F1K1H105A138 CERAMIC 1U K 50V
C1625 F1H1H472A219 CERAMIC 4700P K 50V
C1626 F1J1E105A171 CERAMIC 1U K 25V
C1627 F2A1V4710080 ELECT 470U M 35V
C1640 F1H1H104A220 CERAMIC 0.1U Z 50V
C1641 F1J1E105A171 CERAMIC 1U K 25V
C1642 F2A1V4700087 ELECT 47U M 35V
C1643 F1H1H104A220 CERAMIC 0.1U Z 50V
C1644 F2A1V4710080 ELECT 470U M 35V
C1666 F2A1V4710080 ELECT 470U M 35V
C1800 F1H1H104A220 CERAMIC 0.1U Z 50V
C1801 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C1802 F1H1H103A219 CERAMIC 0.01U K 50V
C1803 F1H1H103A219 CERAMIC 0.01U K 50V
C1804 F1H1H104A220 CERAMIC 0.1U Z 50V
C2405 F1H1H104A220 CERAMIC 0.1U Z 50V
C2410 F1H1H104A220 CERAMIC 0.1U Z 50V
C2411 F1H1H104A220 CERAMIC 0.1U Z 50V
C3900 F1H1H104A220 CERAMIC 0.1U Z 50V
C3902 F1H1H104A220 CERAMIC 0.1U Z 50V
C3904 F1J0J106A004 CERAMIC 10U K 6.3V
C3904 F1J0J106A020 CERAMIC 10U K 6.3V
DIODES
D1620 B0JCND000033 DIODE CRS20I30A
D1621 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
D1641 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
D1668 B0ACCK000005 DIODE 1SS355-TE-17
B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
D1700 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D2405 B0JCGD000002 DIODE RB551V-30-TE-17
B0JCGD000014 DIODE DSF05S30U
D3904 B0BC6R100010 ZD UDZS-TE-176.2B
B0BC6R100025 ZENER DIODE 02DZ6.2Y(TPH3
B0BC6R2A0384 ZENER DIODE MM3Z6V2B
INTEGRATED CIRCUITS
IC1600 C0CBAYG00009 IC LM1117S-ADJ
IC1620 QLV58063MX-HP IC LV58063MX-TLM-H
IC1640 C0CBAYG00009 IC LM1117S-ADJ
IC2401 C0JBAA000570 “IC TC7SH08F,LJ(T”
IC2402 C0JBAA000570 “IC TC7SH08F,LJ(T”
COILS
L1611 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1612 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1620 G0C150M00005 “INDUCTOR,15UH”
L1622 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1640 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1641 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1642 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1643 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1645 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
L1702 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1703 J0JYC0000381 “INDUCTOR , 220 OHM”
L1704 J0JYC0000381 “INDUCTOR , 220 OHM”
L1709 J0JYC0000381 “INDUCTOR , 220 OHM”

– 19 –
Schematic
Location Part No. Description Schematic Location Part No. Description
L1710 J0JYC0000381 “INDUCTOR , 220 OHM”
L1717 RGF2202JTAANL MT-GLAZE 22K JA 1/10W
L1801 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1802 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
L1902 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q1645 T2SC2859-Y—P TR 2SC2859-Y TE85L
Q1810 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q1813 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q3900 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
Q3901 B3L000000032 IC GA1A2S100LY
Q3902 B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
TXXLBB006—-P TR MMBTSC3928R
RESISTORS
R1004 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1009 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1020 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1022 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1023 D0GB820JA072 MT-GLAZE 82 JA 1/10W
R1024 D0GB750JA072 MT-GLAZE 75 JA 1/10W
R1028 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1033 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1038 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1043 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1051 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1052 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R1054 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1055 D0GB104JA068 MT-GLAZE 100K JA 1/10W
R1600 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
R1601 D0GB120JA072 MT-GLAZE 12 JA 1/10W
R1602 D0GB221Z0002 MT-GLAZE 220 FA 1 /10W
R1621 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1622 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
R1623 D0GB562JA072 MT-GLAZE 5.6K JA 1/10W
R1624 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
R1625 D0GB102ZA038 MT-GLAZE 1K FA 1/10W
R1640 D0GB121ZA038 MT-GLAZE 120 FA 1/10W
R1641 D0GB120JA072 MT-GLAZE 12 JA 1/10W
R1642 D0GB821ZA037 MT-GLAZE 820 FA 1/10W
R1645 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1646 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1647 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R1662 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1663 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1664 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1665 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1667 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1668 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R1702 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1707 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1708 D0GB333JA070 MT-GLAZE 33K JA 1/10W
R1776 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1800 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1801 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1802 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1803 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1804 D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
R1805 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R1806 RGFR000ZTAANL MT-GLAZE 0.000 ZA 1/10W
R1810 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R1811 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1812 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1813 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R2400 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2401 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2405 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2407 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2408 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2409 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2410 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2411 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2412 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2413 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R2414 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2415 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2416 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2417 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R2420 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2421 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R2422 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R1901 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R1902 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R1903 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1904 D0GB272JA072 MT-GLAZE 2.7K JA 1/10W
R1905 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1906 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1907 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1908 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R1909 D0GB822JA072 MT-GLAZE 8.2K JA 1/10W
R1910 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R1911 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R1912 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R3900 D0GB224JA068 MT-GLAZE 220K JA 1/10W
R3902 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
R3903 D0GB101JA069 MT-GLAZE 100 JA 1/10W
R3904 D0GB223JA070 MT-GLAZE 22K JA 1/10W
R3905 D0GB102JA071 MT-GLAZE 1K JA 1/10W
R3906 D0GB331JA069 MT-GLAZE 330 JA 1/10W
R3907 D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
R3908 D0GB221JA069 MT-GLAZE 220 JA 1/10W
R3909 D0GB221JA069 MT-GLAZE 220 JA 1/10W

– 20 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R3913 D0GB103JA072 MT-GLAZE 10K JA 1/10W
R3914 D0GB221JA069 MT-GLAZE 220 JA 1/10W
SWITCHES
SW1901 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
SW1902 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
SW1903 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
SW1904 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
SW1905 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
SW1906 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
SW1907 1AV4S10B5650J “SWITCH,PUSH 1P-1TX1”
MISCELLANEOUS
A100 1AA0B10N309A0 “ASSY,PWB,DIGITAL J4JE”
A300 1AA0B10N319A0 “ASSY,PWB,ANALOG-COMP-
J4JE”
A310 1AA0B10N319AA “ASSY,PWB,ANALOG-J4JE”
A320 1AA0B10N319AB “ASSY,PWB,KEY_SW-J4JE”
A330 1AA0B10N319AC “ASSY,PWB,RC_LED-J4JE”
A3900 B3RAB0000094 “UNIT,REMOCON,RECEIVER”
A6200 1AV4F1BAZ0170 “TUNER,U/V”
EL901 1AV4T44B03300 PDP MODULE
EL902 1AV4Z12B66100 OPTICAL FILTER
KAC J0HAYY000120 “UNIT,NOISE FILTER”
K5A K1KY40B00017 “PLUG,HOUSING 40P”
K5B K1KY32B00007 “PLUG,HOUSING 32P”
K5DL K1KA04AA0150 “PLUG,4P”
K5FA K1KA04AA0150 “PLUG,4P”
K5LV K1KY39A00001 “PLUG,39P(40-1)”
K6501 1LB4J11B0780M “SOCKET,HDMI 19P”
K6502 1LB4J11B0780M “SOCKET,HDMI 19P”
K6503 1LB4J11B0780M “SOCKET,HDMI 19P”
KDSP K1KA04AA0180 “PLUG,4P”
KUSB K1FY104B0066 “SOCKET,USB 4P”
KUSB K1FY104B0069 “SOCKET,USB 4P”
K1004 1LB4J12B14600 “JACK,RCA-7”
K1005 K2HA5YYB0002 “JACK,RCA-5”
K16A K1KY40BA0348 “SOCKET,PWB 40P”
K16B K1KY32BA0348 “SOCKET,PWB 32P”
K2400 K1FY115B0027 “SOCKET,D-SUB 15P”
K2401 K2HC1YYB0066 “JACK,PHONE D3.6”
K2405 K2HA2YYB0022 “JACK,RCA-2”
K8B 1AA9W0EDQ003- NON STANDARD WIRE ASSY-
JPN
K8CTR 1AA96DQCNA02W STANDARD WIRE ASSY-JPN
K8FRA 1AA94DQCNA02W STANDARD WIRE ASSY-JPN
SPL L0AA12C00015 “SPEAKER,8”
SPR L0AA12C00015 “SPEAKER,8”
U901 1AV4U20C54800 “UNIT,POWER”
WK5LV-PN 1AA4W30B66400 “LVDS CABLE,40P-30P”
