Part No. SKSM0189 F3SLV JUNE 1997
Colour Television
Service Manual
Model
C28ER56NF (FRANCE)
Service Ref. No. C28ER56NF-01
PRODUCT CODE: 1113 27210
ORIGINAL VERSION: Chassis No. EB4-A
Give complete "SERVICE REF. NO." for parts order or
servicing, it is shown on the rating sheet on the
cabinet back of the TV set.
Note
This TV receiver will not work properly in foreign
countries where the television transmission system
and power source differ from the design specifications.
Refer to the specifications for the design specifications
Specifications
Power source AC 220~240V 50Hz
Television system System B/G,L/L’/I
Colour system PAL,SECAM
Receiving channel VHF: E2-E12,F2-F10
CATV: X, Y, Z, S1-S41,B-Q
UHF: #21~69
Aerial input impedance 75ohm
AV terminal
21 Pin socket AV1 CENELEC (Full +YC)
21 Pin socket AV2 CENELEC standard
Sound output(Cont.) 5 watts X2
Picture tube 70cm diagonal, 90 degree
(Visible picture diagonal) 66cm
Dimensions (WxHxD) 736 x 596 x 500mm
Weight 32 Kg
28DN2F

-2- F3SLV
SAFETY PRECAUTION
X-RADIATION PRECAUTION
The primary source of X-RADIATION in the television receiver is the picture tube. The picture tube is specially
constructed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must
be the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous
X-RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for +B1 volt power supply adjustment, and high
voltage adjustment to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark //!\ in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list in
this manual be used for component replacement designated by mark /!\ . No deviations from resistance wattage
or voltage ratings may be made for replacement items designated by mark /!\ .
1: An isolation transformer should be connected in the
power line between the receiver and the AC line when
a service is performed on the primary of the converter
transformer of the set.
2: Comply with all caution and safety-related notes
provided on the cabinet back, inside the cabinet, on
the chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers or
shields, barriers, isolation resistor-capacitor networks
etc.Before returning any television to the customer,
the service technician must be sure that it is
completely safe to operate without danger of electrical
shock.

-3-
F3SLV
BLOCK DIAGRAM
This is a diagram for all models and therefore differs slightly from the actual block diagram.
IC801 CPU 21P Scart: AV1 21P Scart: AV2
IC201 IF/Video/Chroma/Def.
IC1202 CVBS int/ext sw.
CRT Unit
FBT
DY
IC001 Audio Output
IC501 Vert. Output
T611 Converter Transformer
Power Supply Circuit
SIF Unit Audio Unit
Tuner
IC802 Memory
47 49 50
SCL
SDA
RC Pre.amp
6 5
51
52
IC810 Band sw.
14
24
17 18
2 3 4 5
2: Bright 3: Contranst 4: Colour 5: Sharpness
Control Keys
10
VL
VH
U
IF
TU
116
45/46
28/29 30/31
41 48
37
18
19 20
7
13
15 21 22 23 24
X131 T141/VC141 SAW Filter
IC271 1H Delay R-Y/B-Y
R-Y/B-Y
CVBS In
Functuin In(AV1/AV2)
11/12
14/16
B
G
R
BLK
External CVBS in
Internal CVBS in
Q151 Q152/Q154
H-Drive Q431 Q432
H-Outpit
V-Drive
V-Feedback
Audio In
Speakers VR501
C512
H
V
HV
Q2601
Q2611
Q2621
Q171
1
63
8 Out
Audio I/O Audio I/OVideo I/O Video I/O
RGB/BLK In
B1: 150V B2: 25V B3: 15V B4: 24V
IC651 IC652
B6: 12V B8: 5V B7: 8V
L, R L, R
1/ 5 10/ 8
AC In
Q612 Q613
V-In
V-In
R
G
B
CVBS In
Audio I/O
SIF In
Audio Out L, R
42
IC281
SECAM
R-Y/B-Y
9/10
132
L/L'
7
VIF ADJUST 3
2
L/L'

-4- F3SLV
1. POWER SUPPLY
The power supply circuit of the EB4-A chassis is
composed of a rectifier smoothing circuit, an oscillation
circuit, a control circuit and an output rectifier circuit. The
AC input voltage is full-wave rectified by the rectifier
smoothing circuit, and an unstable DC voltage is
generated at both terminals of the smoothing capacitor
C607. This voltage is input to the oscillation circuit. The
oscillation circuit is provided with a blocking oscillator
circuit that switches the switching transistor Q613 ON
and OFF, and an oscillation frequency and a duty square
wave pulse are generated in the input windings
according to operation of the control circuit. A square-
wave pulse whose size is dependent on the turn ratio of
the input and output windings is obtained in the output
winding. This is rectified in the output rectifier circuit, and
the desired DC voltage is obtained.
2. IF & DEFLECTION (TDA8361)
The IF output signal from the tuner passes through the
SAW filter, and it is input to pin45 and pin46 of IC201.
The signal input to the IC passes through the IF
amplifier, video detection and video amplifier circuits and
is output from pin7 as a composite video signal. And
after this signal is converted to impedance at Q151,
supplies to the video and chroma amplifier stages.
The sync.-separation circuit separates the video signals
applied to pin13(internal video signal) or pin15(external
video signal) to vertical- and horizontal-sync. signals
respectively. The horizontal oscillator requires no
external components and is fully integrated. The
oscillator is always running when the start-pin36 is
supplied with 8V. Horizontal drive signal is output from
pin37. VR361 is for adjustment of the horizontal centring.
The separated vertical-sync. signal from sync. separation
circuit passes through the vertical-separation circuit, and
applied to trigger divider circuit. The horizontal oscillation
pulse and input vertical sync. pulse are monitored by the
trigger divider circuit, and switching 50Hz and 60Hz
system, the vertical amplitude automatically adjusted for
50Hz and 60Hz. The output signal from the trigger
divider is triggered vertical oscillation circuit consisting of
C351, R352 and pin42, and vertical drive pulse is output
from pin43. VR501 is for changing the amount of AC
feedback applied to pin41 and for adjustment of the
vertical amplitude.
3. VIDEO CHROMA & R.G.B. (TDA8361)
The composite video signal output from the pin7 of
IC101 passes through Q151-Q154, and it is supplied to
pin13. The external video signal output from SCART is
supplied to pin15. The video signal input to pin13 or
pin15 is separated to luminance (Y) signal and chroma
signal in IC201. These pins are used in common with
H/V-sync. separation input. The peaking of Y signal is
adjusted by DC voltage of pin14. (“SHARPNESS”
control) The chroma signal is divided into R-Y and B-Y
chroma signals, demodulated in IC201, and output from
pin30 (R-Y) and pin31 (B-Y). These chroma signals pass
through the 1H delay line circuit (IC271), and they are
input to pin29 (R-Y) and pin28 (B-Y). These R-Y/B-Y
signals pass through RGB matrix circuit and RGB
selector circuit of IC101. The internal RGB signals are
generated in RGB matrix circuit and the RGB selector,
consisting linear amplifiers, clamps and selects either the
internal RGB signals or the external RGB signals input
from pin22(R), pin23(G), pin24(B). Selection is controlled
by the voltage at the RGB switch control (pin21) and
mixed RGB modes are possible since RGB switching is
fast. The RGB switch also functions as a fast blanking
pin by blanking the RGB output stages; here internal and
external RGB signals are overruled. The colour gain is
controlled by DC voltage of pin26. (“COLOUR” control)
The contrast control voltage present at pin25, and the
brightness control voltage present at pin17 controls DC
level of RGB signals. The RGB signals are finally
buffered before being available at the RGB output pins
[pin20 (R), pin19 (G), pin18 (R)].
4. AUDIO OUTPUT(TDA7263M)
The audio signals output from the audio unit are input to
pin1(L) and 5(R) of IC171 and passes through the pre-
amplifier circuit and drive circuit, after which it is input to
the audio amplifier. The audio amplifier is an SEPP
(single-ended, push-pull) OTL type and output to pin8(R)
and 10(L) to directly drive the speakers.
5. VERTICAL OUTPUT (LA7832/LA7832)
An IC (LA7832/LA7833) is used for the vertical output
circuit in this chassis. The vertical drive pulse from pin43
of IC201 is input to pin4 of IC501. This pulse drives
IC501, and vertical scanning is performed. In the first half
of scanning a deflecting current is output from pin2 and
passes through the following path:
Vcc(B4) ➞D501 ➞pin3 ➞pin2 ➞DY ➞C512 ➞
VR501/R509. An electric charge is then stored in C512.
In the last half of scanning the current path is C512 ➞
DY ➞ pin2 ➞pin1 ➞ VR501/R509 ➞C512. In this way,
an amplifying sawtooth waveform current flows directly to
DY to perform electron beam defection. Next, in the first
half of the banking period the vertical drive pulse
suddenly becomes OFF, and in order to reduce the
current flowing to DY, the current path becomes as
follows by the inductance of DY:
DY ➞pin2 ➞pin1 ➞VR501/R509 ➞C512 ➞DY. Also,
when the charge of DY has dissipated, the current path
becomes Vcc24V ➞pin6 ➞pin7 ➞ C502 ➞pin3 ➞
pin2➞DY ➞C512 ➞ VR501/R509, and when the
prescribed current value is reached, the vertical drive
pulse becomes ON. This completes one cycle.
CIRCUIT DESCRIPTION

-5-
F3SLV
6. HORIZONTAL OUTPUT
A horizontal oscillation signal is output from pin37 of
IC201 and switches the drive transistor Q431. This
switching signal is current amplified by the drive
transformer T431 and drives the output transistor Q432.
When Q432 becomes ON, an amplifying current flows
directly to DY through C441 ➞DY ➞0432 ➞GND, and
defection is performed in the last half of the scanning
period. Next, when Q432 becomes OFF, the charge that
had been stored in DY up to that point releases a
resonance current to the resonant capacitors C421/C423
and charges them. The current stored in C421/C423 is
then flowed back to DY, and an opposite charge is then
stored in DY. This opposite charge then switches the
dumper diode in Q432 ON, the resonance state is
completed, and an amplifying current is then flowed
again directly to DY through the dumper diode. By this
means, deflection in the first half of the scanning period
is performed, and when Q432 becomes ON at the end of
the first half of the scanning period, deflection during the
last half is begun, thus completing one cycle.
In the PCC circuit consisting of Q461 and Q462, the
parabola signal supplied from the vertical circuit is added
at the horizontal output stage and pincushion
compensation is performed by varying the DC voltage
bias. Further, the ABL voltage is feedback to the base of
Q462 to compensate for width variations due to
variations in the beam current.
7. CPU <System and Teletext Control>
Pin description
Pin1: Tuning voltage output
Pin2: Brightness control output (6-bit DAC)
Pin3: Contrast control output (6-bit DAC)
Pin4: Colour control output (6-bit DAC)
Pin5: Sharpness control output(6-bit DAC)
Pin6: Not used (GND)
Pin7: Not used (GND)
Pin8: Power ON/OFF output (H:ON)
Pin9: AFT signal input
Pin10: Option SW1 & Keyboard scan input (DC)
Pin11: Option SW2
Pin12: 50/60Hz switch input (50Hz: Hi)
Pin13: GND
Pin14: TV/AV switch output (TV: Hi)
Pin15: S-VHS switch output (S-VHS: Hi)
Pin16: Option SW3 (2AV: Hi)
Pin17: Function signal input for SCART1
Pin18: Function signal input for SCART2
Pin19: Power LED drive output1
Pin20: Option SW4 & Power LED drive output2
Pin21: Ignore output
Pin22: GND
Pin23: CVBS input0 (Internal)
Pin24: CVBS input1 (Internal/External)
Pin25: Black
Pin26: IREF
Pin27: Odd/Even output
Pin28: GND
Pin29: -
Pin30: V-deflection stop output
Pin31: RGB REF
Pin32: Blue output for OSD
Pin33: Green output for OSD
Pin34: Red output for OSD
Pin35: Blanking output for OSD
Pin36: H-sync. input (Horizontal pulse for OSD)
Pin37: V-sync. input (Vertical pulse for OSD)
Pin38~39: Supply (+5V)
Pin 40: OSC GND
Pin 41: Oscillator input for CPU
Pin 42: Oscillator output for CPU
Pin 43: Reset input
Pin 44: Supply (+5V)
Pin 45: Protect signal input (L:Power circuit defects)
Pin 46: Ident. signal input
Pin 47: R/C signal input
Pin 48: Mute output in no picture
Pin 49: I2C bus SCL (Serial clock)
Pin 50: I2C bus SDA (Serial date)
Pin 51: Option SW5 & Band select output1
Pin 52: Band select output2

-6- F3SLV
SW601 Main switch
F601 Fuse
Q611
T611 Converter Transformer
TP-B
VR462 H-Width
Q461
Q462
T451 Flyback Transformer
Q612
Q613
T481 RC Transformer
D615 Photo-coupler
SW1901
Prog.+ SW1902
Prog.- SW1903
Vol.+ SW1904
Vol.-
Q641
VR641 +B ADJ. Q681
Q501
Q432 H-Output
IC501 V-Outout
IC651 +12V
R224
J213
Scart 2
SW501 V-Centre
VR501 V-Size
IC271 1H Delay IC652
+8V
Scart 1
IC201
IF/Video/Croma/Def.
IC281
VR361 H-Centre
VR131 AGC
T101 T102
VC141 T141
IC810 Band SW. Audio Board
SIF Board
A101 Tuner
IC1202 Int./Ext. SW.
IC1201 AV2 SW.
TP-E TP-D
IC802 Memory
IC801
CPU
IC001 Audio-output
Video-
input Audio-
input-R Headphones
Audio-
input-L
B1 POWER SUPPLY ADJ. TU-AGC ADJ.
VIF DET 1/2
AFT ADJ.
GREY SCALE ADJ.
FOCUS ADJ.
MAIN BOARD
HIGH VOLTAGE &
H-WIDTH ADJ. V-CENTRE ADJ. H-CENTRE ADJ.V-SIZE ADJ.
Q641
Q621
Q601
Q611
VR611 R-BIAS
VR621 G-BIAS
VR601 B-BIAS
VR612 R-DRIVE
VR602 B-DRIVE
SERVICE CONTROL ADJUSTMENT
CRT BOARD
IC1251
IC3401
IC3451
IC3431
K34A K34B
T3401
PILOT ADJ.
AUDIO BOARD
IC3851 IC3852
K38H2 K38H1
T3853
T3851T3852
SIF BOARD SIF ADJ.(FM Det-1)
SIF ADJ.(FM Det-2)

-7-
F3SLV
B1 POWER SUPPLY ADJUSTMENT
1. Set VR641 to be mechanically centre before
pressing the mains ON/OFF switch.
2. Tune the receiver to a PAL circular pattern.
3. Set the brightness and contrast controls to
normal.
4. Connect a digital V-meter to test point "TP-B".
5. Using VR641, adjust the voltage to 150 ± 0.5V.
AFT ADJUSTMENT
1. For B/G or L, tune the receiver to the clearest
station. By using T141, adjust the AFT to
obtain the best picture.
2. For L’, tune the receiver to the clearest station.
By using VC141, adjust the AFT to obtain the
best picture.
AGC ADJUSTMENT
NOTE: Do not attempt this adjustment with a
weak signal.
1. Tune the receiver to the clearest station.
2. Set AGC VR(VR131) in direction which causes
snow noise just to appear, then in the opposite
direction until the snow noise just disappears.
GREY SCALE ADJUSTMENT
[SCREEN VR ADJUSTMENT]
1. Tune the receiver to the white pattern.
2. Set the brightness and contrast controls to
normal.
3. Set VR2602and VR2612 to their mechanical
centres.
4. Turn VR2601, VR2611 and VR2621 fully
counter-clockwise (anti-clockwise).
5. Set the TV into service mode by pressing the
Function button on the Remote control and
the Prog + on the TV front panel. Press the
Function button on the Remote control until
“SCREEN” is highlighted. This sets up a
horizontal scanning line.
6. Set screen VR so that one colour is just visible.
[BIAS VR ADJUSTMENT]
7. By using VR2601, VR2611 or VR2621, adjust
the line until it becomes white.
8. Set screen mode OFF, by pressing the Recall
button on the Remote control.
[DRIVE VR ADJUSTMENT]
9. Using VR2602 and VR2612, adjust white
balance.
HIGH VOLTAGE & WIDTH ADJUSTMENT
[HIGH VOLTAGE ADJUSTMENT]
1. Tune the receiver to the circular pattern.
2. Set the brightness and contrast controls to
maximum.
3. Connect a digital V-meter to both terminals of
R224, and a high voltage meter to the CRT
anode.
4. Confirm high voltage to be 26.0 ± 1 KV at
beam current 1.4, and less than 29.0 KV at 0
beam current.
[H-WIDTH ADJUSTMENT]
5. Adjust VR462 to obtain proper H- width .
6. Reconfirm high voltage.
H-CENTRE ADJUSTMENT
1. Tune the receiver to a circular pattern.
2. Adjust H-centre by using VR361.
V-CENTRE ADJUSTMENT
1. Tune the receiver to a circular pattern.
2. Adjust V-centre by using SW501.
V-SIZE ADJUSTMENT
1. Tune the receiver to a circular pattern.
2. Adjust V-size by using VR501.
FOCUS ADJUSTMENT
By using FOCUS VR, adjust focus control for
good scanning lines.
F
P
F

-8- F3SLV
DC 15.0V
AGC voltage (4.3-4.5V)
Output probe (Side b)
Input probe
DC5V
JIG-A
Sweep ATT
0dB=176mVrms/75
Scope
System
SETTING
IC651-pin1
IC201-pin48
IC201-pin45
IC201-pin7
Q681-E
IC201-pin46
20dB
100mV/div
L
Adjustment
By using T141,
adjust "P" to be
maximum
amplitude.
How to select SYSTEM L or
L’.
1. Before power on, connect
IC801-pin11 to GND.
2. Select L or L’ acording to
the table
Waveform Notes

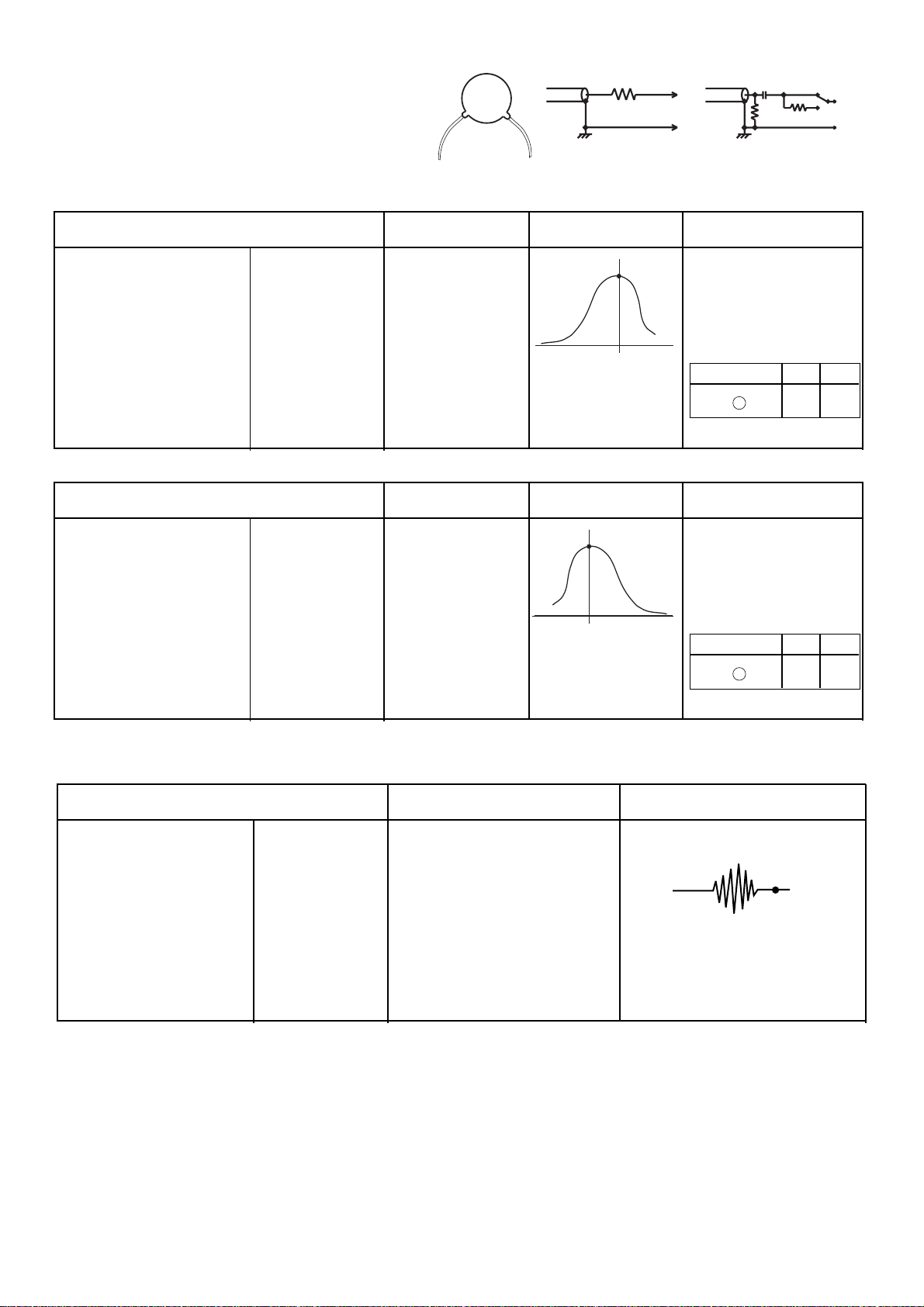

CIRCUIT ALIGNMENT
VIF alignment (DETECTOR ADJ.1)
VIF alignment (DETECTOR ADJ.2)
0.002µF
75Ω1kΩ
a
b
10kΩ
Input probe Output probe
P
SIF alignment (FM Detector-1)
DC 12V
AGC voltage (DC5V)
Output probe (Side a)
Input probe
Jig-A
Sweep ATT
Scope
Marker Frequency
SETTING
K38H2-pin3
IC3852-pin13
IC3852-pin5
IC3852-pin17
IC3852-pin6
10dB
100mV/div
38.9MHz
Adjustment
By using T3853, adjust "P" to
be 38.9MHz ±100KHz.
Waveform
P
0.01uF
103P
Jig-A
LL’
Q832- C GND Short Open
DC 15.0V
AGC voltage (4.3-4.5V)
Output probe (Side b)
Input probe
DC5V
JIG-A
Sweep ATT
0dB=176mVrms/75
Scope
System
SETTING
IC651-pin1
IC201-pin48
IC201-pin45
IC201-pin7
Q681-E
IC201-pin46
20dB
100mV/div
L’
Adjustment
By using VC141,
adjust "P" to be
maximum
amplitude.
How to select SYSTEM L or
L’.
1. Before power on, connect
IC801-pin11 to GND.
2. Select L or L’ acording to
the table
Waveform Notes
P
LL’
Q832- C GND Short Open
,

-9-
F3SLV
SIF alignment (FM Detector-2)
DC 12V
DC5V
Output probe
Input probe
Scope
Carrier Frequency
Modulation Frequency
System
SETTING
K38H2-pin3
IC3851-pin21
IC3851-pin15
IC3851-pin16
100mV/div
5.5MHz
1KHz (Sine wave)
B/G
Adjustment
By using T3852, adjust DC
level to be 1.7V.
DC 12V
DC5V
Output probe
Input probe
Scope
Carrier Frequency
Modulation Frequency
System
SETTING
K38H2-pin3
IC3851-pin21
IC3851-pin19
IC3851-pin18
100mV/div
5.74MHz
1KHz (Sine wave)
B/G
Adjustment
By using T3851, adjust DC
level to be 1.7V.
Oscilloscope
Input sound signal source
TV system
Deviation
Mode
SETTING
IC3401-pin5
System B/G
27kHz
Stereo
Adjustment
By using T3401, adjust
amplitude to be maximum.
Waveform
Pilot alignment
A

-10- F3SLV
When you replace a memory IC (IC802), it is
necessary to initialise the IC as following step.
A. Initialisation
Press and hold the normalisation button on the
remote control handset and press the programme +
button on the TV set.
The IC will be initialised automatically to set the following
data.
User control data
Colour : Centre
Brightness : Centre
Contrast : Maximum
Sharpness : Centre
Text. Bright : Centre
Bass : Centre
Treble : Centre
Balance : Centre
Volume : Step 12
Service data Manual set data
K1 : +000 -> +001
K2 : +000 -> -001
ST ID : +000
ATT : +004
MAX : -096 -> -050
MIN : +010 -> -075
The initialised service data of items K1, K2, MAX and
MIN should be modified to the manual set data
shown above.
For how to modify, refer to next step.
B. Service Mode
1. To enter the service mode, press and hold the
Function button on the remote control handset
and press the programme + button on the TV
set.
The following OSD appears on the screen.
2. Select the desired service item by using the Function
button on the remote control handset.
3. Change the data by using the Level + or - button
.
4. To return to TV mode press the Recall button
on the remote control handset.
Service mode description
K1, K2 : For adjustment of stereo separation
ST ID : Mode setting for A2 stereo judgement
+000 : Fast mode
+001: Normal mode
+002: Fast -> normal mode
ATT : Attenuation of FM sound
To equalise sound levels between FM and
Nicam.
MAX : Setting of sensitivity for switching Nicam to FM
mode
MIN : Setting of sensitivity for switching FM to Nicam
mode.
SCREEN: For screen adjustment
To make one horizontal scanning line.
NOTE:
The items K1, K2, ST ID and ATT are invalid
adjustments for a model which does not have an A2
stereo decoder.
The items MAX and MIN are invalid adjustmens for a
model which does not have a Nicam decoder.
These items allow modifications to the set data, but
there is no effect in performance.
F
ADJUST DATA
K1 +000
K2 -006
ST ID +000
ATT +004
MAX -050
MIN -075
SCREEN VOL
CPU Ver 1.0
P
F
P
INITIALISATION (Important Notice)

-11-

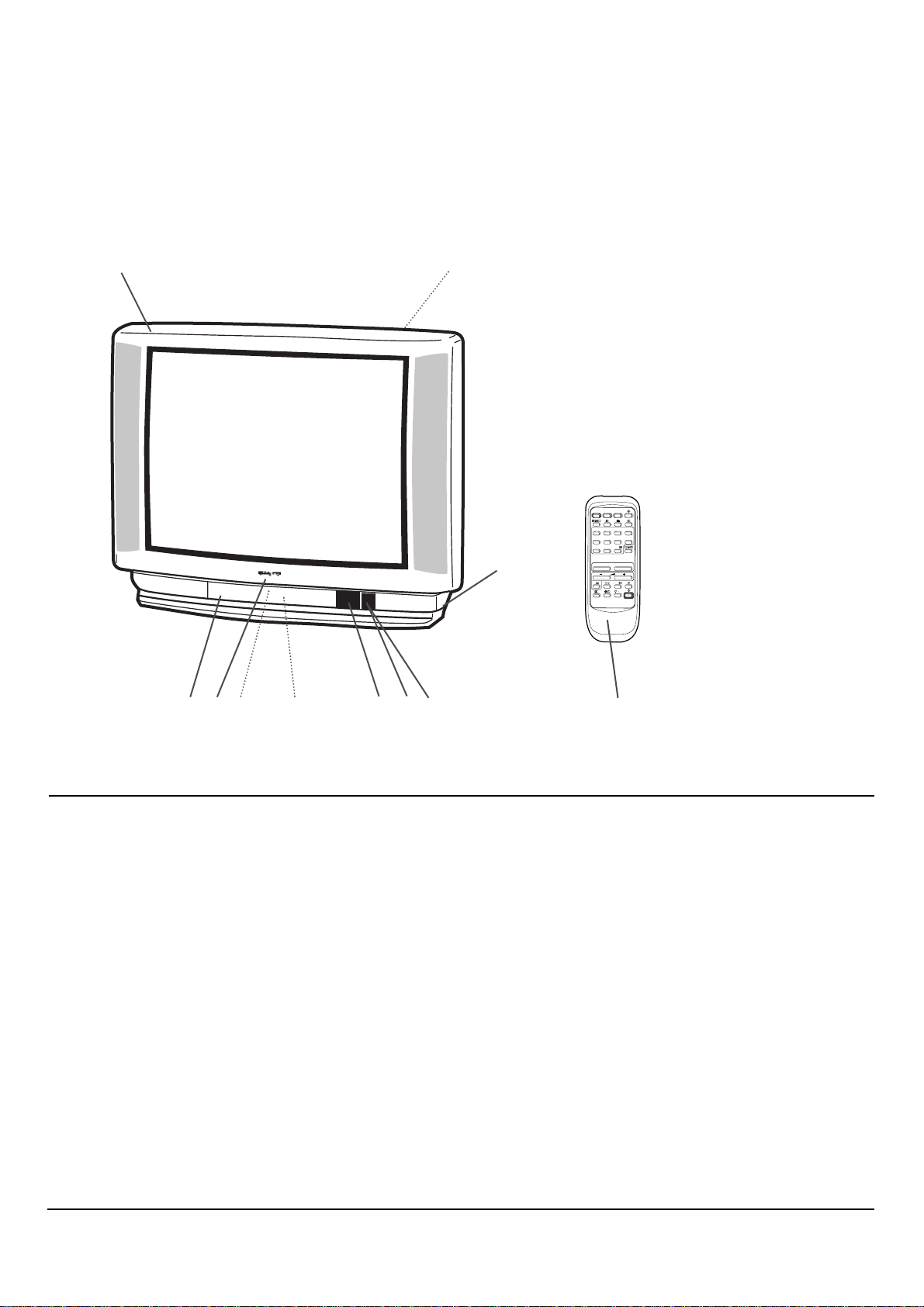

CABINET PARTS LIST FOR MODELS C28ER56NF-01
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
CABINET PARTS
1 610 264 7556 ASSY,CABINET FR-F3SLV
2 610 261 6057 BUTTON POWER-F3SCM
3 610 264 7587 CABINET BACK-F3SLV
4 610 264 7594 DOOR-F3SLV
5 610 261 6132 DEC BOARD-F3SCM
6 610 261 7726 DEC CONTROL SHEET-F3SCM
7 610 253 2449 HOLDER AC CORD-GBR-D4VA
610 260 0148 HOLDER RC GBR-BLFA
610 265 4202 HOLDER DC-F3SCM
8 610 261 3032 SPRING-E7GC
9 645 003 9256 BADGE,SANYO*46.2X13.5L45
610 133 2354 FIXER PURSE LOCK,D11.5(PA
645 005 0312 FIXER HOOK
10 610 104 2505 LATCH PUSH,7.9X6.9BK
610 224 5721 CRT CUSHION-B3MY-UK
ACCESSORIES
11 JXZB RC TRANSMITTER
SKP10077 INSTRUCTIONS MANUAL-F3JLV
645 000 6708 BATTERY,MANGAN,COMPOSITE
BASS
1234
5678
90-/--
P▲▼
i
?
TV/
x
PP
F
A B
2
4 6 11
3
1
58
9
7
Ref. No. Part No. Description Ref. No. Part No. Description
10

-12-
OUT OF CIRCUIT BOARD
PICTURE TUBE
/!\Q901 414 007 1203 CRT A66ECY13X38
COIL
/!\L901 645 003 0048 COIL,DEGAUSSING
645 003 0055 COIL,DEGAUSSING
MISCELLANEOUS
SP901 610 232 3986 SPEAKER
610 228 7202 SPEAKER
SP902 610 232 3986 SPEAKER
610 228 7202 SPEAKER
W901 645 012 7632 ASSY,CORD,POWER
W902 610 204 6090 GROUNDING CONNECTOR
610 260 0667
ASSY,PWB,CRT F2RC (1AA0B10E24500)
TRANSISTOR
Q2601 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q2611 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q2621 405 041 6507 TR 2SC2621-D-RA
405 041 6705 TR 2SC2621-E-RA
405 066 9903 TR 2SC2688(1)-K
405 067 0008 TR 2SC2688(1)-L
405 067 0107 TR 2SC2688(1)-M
Q2640 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q2651 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
CAPACITOR
C2601 403 074 5702 CERAMIC 560P K 50V
C2611 403 074 5702 CERAMIC 560P K 50V
C2621 403 074 5702 CERAMIC 560P K 50V
C2631 403 077 2708 CERAMIC 1000P P 2K
C2635 403 055 8401 ELECT 22U M 250V
403 260 0405 ELECT 22U M 250V
C2651 403 201 5001 ELECT 330U M 16V
Ref. No. Part No. Description Ref. No. Part No. Description
CHASSIS ELECTRICAL PARTS LIST
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by a ! mark in this parts list and the circuit diagram show components whose value have
special significance to product safety. It is particularly recommended that only parts specified on the following parts
list be used for components replacement pointed out by the mark.
Note: Parts order must contain Service Ref. No., Part No., and descriptions.
Read description in the Capacitor and Resistor as follows:
CAPACITOR
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10PF
A: Not specified B: ±0.1PF C: ±0.25PF
D: ±0.5PF F: ±1PF G: ±2PF
R: ±0.25-0PF S: ±0-0.25PF E: +0-1PF
More than 10PF
A: Not specified B: ±0.1% C: ±0.25%
D: ±0.5% F: ±1% G: ±2%
H: ±3% J: ±5% K: ±10%
L: ±15% M: ±20% N: ±30%
P: +100-0% Q: +30-10% T: +50-10%
U: +75-10% V: +20-10% W: +100-10%
X: +40-20% Y: +150-10% Z: +80-20%
Rated value: P=pico farad, U=Micro farad
Material:
CERAMIC.......... Ceramic
MT-PAPER........ Metallized Paper
POLYESTER..... Polyester
MT-POLYEST.... Metallized Polyester
POLYPRO.......... Polypropylene
MT-POLYPRO.... Metallized Polypropylene
COMPO FILM..... Composite film
MT-COMPO........ Metallized Composite
STYRENE........... Styrene
TA-SOLID........... Tantalum Solid
AL-SOLID........... Aluminium Solid
ELECT................ Electrolytic
NP-ELECT.......... Non-polarized Electrolytic
OS-SOLID.......... Aluminium Solid with Organic Semiconductive Electrolytic
DL-ELECT.......... Doble Layered Electrolytic
RESISTOR
CARBON 4.7K J A 1/4W Rated Wattage
Performance Symbols:
A: General B: Non flammable Z: Low noise
Other: Temperature coefficient
Tolerance Symbols:
A: ±0.05% B: ±0.1% C: ±0.25% D: ±0.5%
F: ±1% G: ±2% J: ±5% K: ±10%
M: ±20% P: +5-15%
Rated value, ohms:
K: 1,000, M: 1,000,000
Material:
CARBON........... Carbon
MT-FILM............ Metal Film
OXIDE-MT......... Oxide Metal Film
SOLID................ Composition
MT-GLAZE......... Metal Glaze
WIRE WOUND... Wire Wound
CERAMIC RES.. Ceramic
FUSIBLE RES.... Fusible

RESISTOR
R2601 401 018 2800 CARBON 330 JA 1/4W
R2602 401 019 1901 CARBON 3.9K JA 1/4W
R2603 401 012 5708 CARBON 1K JA 1/4W
R2604 401 065 4604 OXIDE-MT 12K JA 2W
R2605 401 009 6602 CARBON 3.3K JA 1/2W
R2611 401 018 2800 CARBON 330 JA 1/4W
R2612 401 019 1901 CARBON 3.9K JA 1/4W
R2613 401 016 3809 CARBON 2.2K JA 1/4W
R2614 401 065 4604 OXIDE-MT 12K JA 2W
R2615-B 401 009 6602 CARBON 3.3K JA 1/2W
R2621 401 018 2800 CARBON 330 JA 1/4W
R2622 401 019 1901 CARBON 3.9K JA 1/4W
R2623 401 015 2704 CARBON 1.8K JA 1/4W
R2624 401 065 4604 OXIDE-MT 12K JA 2W
R2625-B 401 009 6602 CARBON 3.3K JA 1/2W
R2627 401 020 0801 CARBON 470 JA 1/4W
R2641 401 020 2003 CARBON 4.7K JA 1/4W
R2642 401 018 3807 CARBON 3.3K JA 1/4W
R2644 401 017 0807 CARBON 270 JA 1/4W
R2652 401 012 7009 CARBON 10K JA 1/4W
R2653 401 012 7009 CARBON 10K JA 1/4W
VARIABLE RESISTOR
VR2601 645 003 5722 VR,SEMI,4.7K N
VR2602 645 003 5647 VR,SEMI,1K N
VR2611 645 003 5722 VR,SEMI,4.7K N
VR2612 645 003 5647 VR,SEMI,1K N
VR2621 645 003 5722 VR,SEMI,4.7K N
COIL
L2601 645 008 0012 INDUCTOR,330U K
L2611 645 008 0012 INDUCTOR,330U K
L2621 645 008 0012 INDUCTOR,330U K
DIODE
D2601 407 013 1206 DIODE 1S1555
D2611 407 013 1206 DIODE 1S1555
D2621 407 013 1206 DIODE 1S1555
D2651 407 013 1206 DIODE 1S1555
MISCELLANEOUS
K26M 645 008 4058 TERMINAL,PLUG
K26P 645 004 2911 PLUG,5P
K26Q 645 004 2898 PLUG,3P
/!\K2601-B 610 233 7990 CRT SOCKET
610 264 1462
ASSY,PWB,SIF F3SL 1AA0B10E3250A
TRANSISTOR
Q3851 405 015 9701 TR 2SC2814-F4-TA
405 015 9909 TR 2SC2814-F5-TA
Q3852 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3853 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3861 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3870 405 015 9701 TR 2SC2814-F4-TA
405 015 9909 TR 2SC2814-F5-TA
Q3871 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3872 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
INTEGRATED CIRCUIT
IC3851 409 330 9903 IC TDA3866/V1
IC3852 409 310 8407 IC LA7577N
CAPACITOR
C3851 403 069 9500 CERAMIC 0.01U Z 50V
C3852 403 069 9500 CERAMIC 0.01U Z 50V
C3853 403 069 9500 CERAMIC 0.01U Z 50V
C3854 403 069 9500 CERAMIC 0.01U Z 50V
C3855 403 069 9500 CERAMIC 0.01U Z 50V
C3856 403 069 9500 CERAMIC 0.01U Z 50V
C3857 403 046 9905 ELECT 4.7U M 25V
C3858 403 049 9803 ELECT 2.2U M 50V
C3859 403 013 3004 CERAMIC 150P J 50V
C3861 403 013 3004 CERAMIC 150P J 50V
C3862 403 049 9803 ELECT 2.2U M 50V
C3863 403 049 9803 ELECT 2.2U M 50V
C3864 403 049 9803 ELECT 2.2U M 50V
C3865 403 069 9500 CERAMIC 0.01U Z 50V
C3866 403 042 8308 ELECT 22U M 16V
C3867 403 041 9405 ELECT 10U M 16V
C3872 403 023 4404 CERAMIC 330P J 50V
C3873 403 069 9500 CERAMIC 0.01U Z 50V
C3875 403 069 9500 CERAMIC 0.01U Z 50V
C3876A 403 270 4202 MT-POLYEST 0.068U K 63V
403 249 9405 MT-COMPO 0.068U J 50V
C3877 403 046 9905 ELECT 4.7U M 25V
C3878 403 018 0503 CERAMIC 22P J 50V
C3879 403 048 6308 ELECT 0.47U M 50V
C3880 403 074 6600 CERAMIC 560P K 50V
C3881 403 069 1702 CERAMIC 1000P K 50V
C3883 403 069 9500 CERAMIC 0.01U Z 50V
C3884 403 046 9905 ELECT 4.7U M 25V
RESISTOR
R3851 401 037 5202 MT-GLAZE 100 JA 1/10W
R3852 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R3853 401 037 5400 MT-GLAZE 1K JA 1/10W
R3854 401 038 3504 MT-GLAZE 330 JA 1/10W
R3855 401 037 5202 MT-GLAZE 100 JA 1/10W
R3856 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R3857 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R3858 401 037 5608 MT-GLAZE 10K JA 1/10W
R3859 401 037 5608 MT-GLAZE 10K JA 1/10W
R3861 401 037 5608 MT-GLAZE 10K JA 1/10W
R3862 401 037 5608 MT-GLAZE 10K JA 1/10W
R3863 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R3864 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R3865 401 038 7601 MT-GLAZE 560 JA 1/10W
R3866 401 038 7601 MT-GLAZE 560 JA 1/10W
R3867 401 038 6505 MT-GLAZE 47K JA 1/10W
R3870 401 038 3504 MT-GLAZE 330 JA 1/10W
R3872 401 037 5608 MT-GLAZE 10K JA 1/10W
R3873 401 038 6505 MT-GLAZE 47K JA 1/10W
R3874 401 038 6208 MT-GLAZE 47 JA 1/10W
R3875 401 038 6208 MT-GLAZE 47 JA 1/10W
R3876 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R3877 401 038 7502 MT-GLAZE 56 JA 1/10W
R3878 401 037 5608 MT-GLAZE 10K JA 1/10W
R3879 401 038 9001 MT-GLAZE 680 JA 1/10W
TRANSFORMER
T3851 610 037 5512 S COIL
T3852 610 037 5512 S COIL
T3853 610 037 4539 S COIL
DIODE
D3851 407 166 1108 DIODE 1SS356-TW11
D3852 407 166 1108 DIODE 1SS356-TW11
MISCELLANEOUS
K38H1 610 221 3713 TERMINAL 5P
K38H2 610 221 3652 TERMINAL
X3851 421 005 6703 SAW F TSB6311U
X3852 645 003 2806 CERAMIC FILTER
X3853 645 006 3022 CERAMIC FILTER 5.742MHZ
X3871 421 006 0809 SAW F TSF5365P
X3872 421 005 1708 SAW F TSB5310U
Ref. No. Part No. Description Ref. No. Part No. Description
-13-

610 264 1479
ASSY,PWB,AUDIO F3SL 1AA0B10E3250B
TRANSISTOR
Q1251 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q1252 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3411 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3412 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3431 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3432 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3481 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3482 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3483 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
Q3484 405 109 4407 TR BC848-B
405 015 8704 TR 2SC2812-L6-TA
INTEGRATED CIRCUIT
IC1251 409 009 2501 IC HD14052BP
409 120 7607 IC MN4052B
409 051 2801 IC TC4052BP
409 059 2209 IC UPD4052BC
IC3401 409 371 6206 IC TDA9840/V2
IC3431 409 316 4601 IC TDA8424
IC3451 409 404 3707 IC SAA7283ZP/M2
CAPACITOR
C1251 403 041 8804 ELECT 10U M 16V
C3401 403 041 8804 ELECT 10U M 16V
C3402 403 069 5601 CERAMIC 0.01U K 50V
C3403 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C3404 403 310 5008 CERAMIC 3300P G 25V
C3405 403 042 2405 ELECT 100U M 16V
C3407 403 026 2803 CERAMIC 47P J 50V
C3408 403 049 9803 ELECT 2.2U M 50V
C3409 403 049 9803 ELECT 2.2U M 50V
C3411 403 069 5601 CERAMIC 0.01U K 50V
C3412 403 069 5601 CERAMIC 0.01U K 50V
C3413 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C3414 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C3415 403 069 9500 CERAMIC 0.01U Z 50V
C3421 403 069 9500 CERAMIC 0.01U Z 50V
C3422 403 041 8804 ELECT 10U M 16V
C3431 403 049 0008 ELECT 1U M 50V
C3432 403 042 2405 ELECT 100U M 16V
C3433 403 049 0008 ELECT 1U M 50V
C3434 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C3435 403 068 3202 CERAMIC 0.033U K 25V
403 073 1200 CERAMIC 0.033U K 50V
C3436 403 074 7607 CERAMIC 5600P K 50V
C3437 403 074 7607 CERAMIC 5600P K 50V
C3438 403 068 3202 CERAMIC 0.033U K 25V
403 073 1200 CERAMIC 0.033U K 50V
C3456 403 069 9500 CERAMIC 0.01U Z 50V
C3458 403 073 3501 CERAMIC 390P K 50V
C3459 403 069 8305 CERAMIC 0.01U Z 50V
C3460 403 069 9500 CERAMIC 0.01U Z 50V
C3461 403 069 9500 CERAMIC 0.01U Z 50V
C3462 403 041 8804 ELECT 10U M 16V
C3463 403 008 7406 CERAMIC 10P D 50V
C3464 403 041 8804 ELECT 10U M 16V
C3465 403 018 7403 CERAMIC 220P J 50V
C3466 403 069 9500 CERAMIC 0.01U Z 50V
C3467 403 041 8804 ELECT 10U M 16V
C3468 403 069 9500 CERAMIC 0.01U Z 50V
C3469 403 049 0008 ELECT 1U M 50V
C3471 403 069 9500 CERAMIC 0.01U Z 50V
C3472 403 041 8804 ELECT 10U M 16V
C3473 403 072 1607 CERAMIC 0.022U K 50V
C3474 403 192 5905 CERAMIC 0.1U K 25V
403 070 0909 CERAMIC 0.1U K 50V
C3475 403 026 2803 CERAMIC 47P J 50V
C3476 403 026 2803 CERAMIC 47P J 50V
C3477 403 069 9500 CERAMIC 0.01U Z 50V
C3478 403 048 6308 ELECT 0.47U M 50V
C3480 403 192 5905 CERAMIC 0.1U K 25V
403 070 0909 CERAMIC 0.1U K 50V
C3481 403 069 9500 CERAMIC 0.01U Z 50V
C3482 403 043 9106 ELECT 47U M 16V
C3483 403 069 9500 CERAMIC 0.01U Z 50V
C3484 403 043 9106 ELECT 47U M 16V
C3485 403 049 0008 ELECT 1U M 50V
C3486 403 049 0008 ELECT 1U M 50V
C3487 403 069 9500 CERAMIC 0.01U Z 50V
C3488 403 043 9106 ELECT 47U M 16V
C3490 403 009 5708 CERAMIC 100P J 50V
C3491 403 130 3604 CERAMIC 0.047U K 25V
403 130 3109 CERAMIC 0.047U K 50V
C3492 403 041 8804 ELECT 10U M 16V
C3493 403 069 9500 CERAMIC 0.01U Z 50V
C3494 403 043 9106 ELECT 47U M 16V
RESISTOR
R1251 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R1252 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R1253 401 039 0502 MT-GLAZE 82K JA 1/10W
R1254 401 039 0502 MT-GLAZE 82K JA 1/10W
R1257 401 038 6307 MT-GLAZE 470 JA 1/10W
R1258 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1262 401 039 0502 MT-GLAZE 82K JA 1/10W
R1264 401 039 0502 MT-GLAZE 82K JA 1/10W
R1265 401 038 6307 MT-GLAZE 470 JA 1/10W
R1266 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R3401 401 037 5202 MT-GLAZE 100 JA 1/10W
R3402 401 037 5202 MT-GLAZE 100 JA 1/10W
R3403 401 038 3108 MT-GLAZE 30K JA 1/10W
R3410 401 038 0909 MT-GLAZE 220K JA 1/10W
R3411 401 038 0800 MT-GLAZE 22K JA 1/10W
R3412 401 038 0800 MT-GLAZE 22K JA 1/10W
R3431 401 037 5202 MT-GLAZE 100 JA 1/10W
R3432 401 037 5202 MT-GLAZE 100 JA 1/10W
R3433 401 037 5202 MT-GLAZE 100 JA 1/10W
R3434 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R3435 401 037 5202 MT-GLAZE 100 JA 1/10W
R3436 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R3451 401 025 7102 CARBON 22 JA 1/6W
R3461 401 037 5400 MT-GLAZE 1K JA 1/10W
R3462 401 037 5202 MT-GLAZE 100 JA 1/10W
R3463 401 037 5608 MT-GLAZE 10K JA 1/10W
R3464 401 038 6505 MT-GLAZE 47K JA 1/10W
R3465 401 037 5806 MT-GLAZE 1M JA 1/10W
R3466 401 037 5608 MT-GLAZE 10K JA 1/10W
R3467 401 038 9407 MT-GLAZE 680K JA 1/10W
R3468 401 037 9200 MT-GLAZE 1.8K JA 1/10W
R3469 401 038 3702 MT-GLAZE 33K JA 1/10W
R3471 401 037 5202 MT-GLAZE 100 JA 1/10W
R3472 401 037 5202 MT-GLAZE 100 JA 1/10W
R3473 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R3474 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R3475 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R3476 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R3477 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R3478 401 038 3603 MT-GLAZE 3.3K JA 1/10W
Ref. No. Part No. Description Ref. No. Part No. Description
-14-

R3479 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R3480 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R3481 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R3482 401 038 0701 MT-GLAZE 2.2K JA 1/10W
TRANSFORMER
T3401 645 015 7943 COIL,FERRITE 2.5M
COIL
L3401 645 001 4758 INDUCTOR,100U K
L3451 645 018 9999 INDUCTOR,120 OHM
L3452 645 008 2221 INDUCTOR,2.2U K
L3454 645 008 2221 INDUCTOR,2.2U K
L3455 645 008 2221 INDUCTOR,2.2U K
L3461 645 008 1996 INDUCTOR,10U J
DIODE
D3461 407 169 7909 VARACTOR DI BBY31
D3462 407 004 8009 DIODE DSB015-TA
MISCELLANEOUS
X3401 645 018 6875 OSC,CRYSTAL 10MHZ
645 016 6662 OSC,CRYSTAL 10MHZ
X3461 645 007 7449 OSC,CRYSTAL 8.192MHZ
610 264 1448
ASSY,PWB,MAIN F3SLV (1AA0B10E225F0)
TRANSISTOR
Q001 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1001 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1002 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1003 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1004 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1005 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1041 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1042 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q1043 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1201 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1202 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1203 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q1204 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q121 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q141 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q142 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q151 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q152 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q153 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q154 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q161 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q162 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q171 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
Ref. No. Part No. Description Ref. No. Part No. Description
-15-

405 019 3804 TR 2SC536-G-NP
Q2001 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q201 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q202 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q203 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q431 405 018 0507 TR 2SC3332-R
405 018 0606 TR 2SC3332-S
Q432 405 095 0209 TR 2SD1556-3E
Q461 405 064 7307 TR 2SB1274-Q-RA
405 064 7406 TR 2SB1274-R-RA
405 064 7505 TR 2SB1274-S-RA
405 139 1100 TR 2SB1565-D RA
405 139 1209 TR 2SB1565-E RA
405 139 1308 TR 2SB1565-F RA
Q462 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q501 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q611 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q612 405 058 0208 TR 2SC3807-R-CTV-YA
Q613 405 095 0407 TR 2SC4429-L-YB
405 095 0308 TR 2SC4429-M-YB
Q641 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q652 405 023 4903 TR 2SD400-D-MP
405 023 5009 TR 2SD400-E-MP
405 023 5306 TR 2SD400-F-MP
Q681 405 059 9804 TR 2SD1913-Q-RA
405 059 9903 TR 2SD1913-R-RA
405 060 0005 TR 2SD1913-S-RA
Q682 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q801 405 118 4207 TR PH2369
Q831 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q832 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q835 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q861 406 007 1901 TR JC556A
406 007 1802 TR JC556B
405 004 4205 TR 2SA608-E-CTV-NP
405 004 4809 TR 2SA608-F-CTV-NP
405 028 7909 TR 2SA608-G-CTV-NP
Q871 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q872 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q873 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q874 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
Q875 406 007 2106 TR JC546A
406 007 2007 TR JC546B
405 019 1909 TR 2SC536-E-NP
405 019 2708 TR 2SC536-F-NP
405 019 3804 TR 2SC536-G-NP
INTEGRATED CIRCUIT
IC001 409 301 4906 IC TDA7263M
IC1201 409 018 7603 IC LA7016
IC1202 409 120 3401 IC LA7221
IC201 409 380 8802 IC TDA8362/N5
IC271 409 371 7005 IC TDA4665/V4
IC281 409 374 5503 IC TDA8395/N2
IC501 409 192 5709 IC LA7833
IC651 409 143 3402 IC AN78M12 LB
409 365 2900 IC BA178M12T
409 269 1207 IC L78M12CV
409 366 1803 IC MC78M12CT
IC652 409 362 7403 IC AN78M08 LB
409 365 2801 IC BA178M08T
409 285 5203 IC L78M08-RA
409 269 1108 IC L78M08CV
409 366 1704 IC MC78M08CT
IC801 410 269 6802 IC SAA5290ZP/061
IC802 409 247 7702 IC ST24C02AB1
409 281 8307 IC 24C02A/P
409 333 3700 IC 24LC02B/P
IC810 409 019 6209 IC LA7910
CAPACITOR
C001 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C002 403 070 9803 CERAMIC 0.015U K 50V
C003 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C004 403 070 9803 CERAMIC 0.015U K 50V
C005 403 046 3507 ELECT 33U M 25V
C006 403 046 3507 ELECT 33U M 25V
C007 403 270 3403 MT-POLYEST 0.22U K 63V
Ref. No. Part No. Description Ref. No. Part No. Description
-16-

Ref. No. Part No. Description Ref. No. Part No. Description
-17-
403 237 7901 MT-COMPO 0.22U J 50V
C008 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C009 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C010 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C011 403 045 1504 ELECT 1000U M 25V
C012 403 045 1504 ELECT 1000U M 25V
C013 403 069 9500 CERAMIC 0.01U Z 50V
C014 403 069 9500 CERAMIC 0.01U Z 50V
C015 403 047 3100 ELECT 47U M 25V
C016 403 085 4008 NP-ELECT 10U M 16V
C017 403 085 4008 NP-ELECT 10U M 16V
C021 403 052 8503 ELECT 1000U M 35V
C023 403 069 9500 CERAMIC 0.01U Z 50V
C024 403 069 9500 CERAMIC 0.01U Z 50V
C1001 403 069 1702 CERAMIC 1000P K 50V
C1002 403 041 8804 ELECT 10U M 16V
C1003 403 009 5708 CERAMIC 100P J 50V
C1004 403 130 3109 CERAMIC 0.047U K 50V
C1005 403 069 1702 CERAMIC 1000P K 50V
C1006 403 041 8804 ELECT 10U M 16V
C1007 403 009 5708 CERAMIC 100P J 50V
C1008 403 130 3109 CERAMIC 0.047U K 50V
C1009 403 041 8804 ELECT 10U M 16V
C101 403 194 4609 ELECT 470U M 16V
C102 403 043 9106 ELECT 47U M 16V
C1021 403 069 1702 CERAMIC 1000P K 50V
C1022 403 041 8804 ELECT 10U M 16V
C1023 403 009 5708 CERAMIC 100P J 50V
C1024 403 041 9405 ELECT 10U M 16V
C1025 403 069 1702 CERAMIC 1000P K 50V
C1026 403 041 8804 ELECT 10U M 16V
C1027 403 009 5708 CERAMIC 100P J 50V
C1028 403 041 9405 ELECT 10U M 16V
C1029 403 041 8804 ELECT 10U M 16V
C103A 403 069 9500 CERAMIC 0.01U Z 50V
C1031 403 014 9203 CERAMIC 180P J 50V
C104B 403 043 9106 ELECT 47U M 16V
C1041 403 041 8804 ELECT 10U M 16V
C106 403 049 0008 ELECT 1U M 50V
C106A 403 069 9500 CERAMIC 0.01U Z 50V
C1101 403 041 8804 ELECT 10U M 16V
C1103 403 069 1702 CERAMIC 1000P K 50V
C1104 403 041 8804 ELECT 10U M 16V
C1105 403 009 5708 CERAMIC 100P J 50V
C1106 403 069 1702 CERAMIC 1000P K 50V
C1107 403 041 8804 ELECT 10U M 16V
C1108 403 014 9203 CERAMIC 180P J 50V
C1109 403 008 7406 CERAMIC 10P D 50V
C114 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C117 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C120 403 069 9500 CERAMIC 0.01U Z 50V
C1201 403 041 8804 ELECT 10U M 16V
C1202 403 041 8804 ELECT 10U M 16V
C1203 403 069 8305 CERAMIC 0.01U Z 50V
C1205 403 009 5708 CERAMIC 100P J 50V
C121 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C131 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
C132 403 069 1702 CERAMIC 1000P K 50V
C132A 403 069 1702 CERAMIC 1000P K 50V
C132B 403 069 9500 CERAMIC 0.01U Z 50V
C133 403 069 9500 CERAMIC 0.01U Z 50V
C134 403 049 9803 ELECT 2.2U M 50V
C135 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C136 403 194 4609 ELECT 470U M 16V
C137 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C138 403 069 9500 CERAMIC 0.01U Z 50V
C141 403 028 4409 CERAMIC 56P J 50V
C142 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C143 403 073 4201 CERAMIC 3900P K 50V
C144 403 069 9500 CERAMIC 0.01U Z 50V
C145 403 069 9500 CERAMIC 0.01U Z 50V
C146 403 010 8507 CERAMIC 12P J 50V
C151 403 024 2102 CERAMIC 39P J 50V
C161 403 009 5708 CERAMIC 100P J 50V
C162 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C163 403 041 8804 ELECT 10U M 16V
C171 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C1901 403 069 1702 CERAMIC 1000P K 50V
C200 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2001 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2002 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C2003 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C201 403 014 3409 CERAMIC 18P J 50V
C202 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C203 403 073 9107 CERAMIC 4700P K 50V
C204 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C205 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C206 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C207 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C208 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C209 403 069 1702 CERAMIC 1000P K 50V
C212 403 049 9803 ELECT 2.2U M 50V
C215 403 270 3908 MT-POLYEST 0.47U K 63V
403 256 0808 MT-COMPO 0.47U J 50V
C222 404 045 6605 NP-ELECT 2.2U M 50V
C226 403 138 1602 ELECT 1U M 100V
C231 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C232 403 014 9203 CERAMIC 180P J 50V
C233 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C234 403 013 3004 CERAMIC 150P J 50V
C235 403 008 7406 CERAMIC 10P D 50V
C271 403 069 1702 CERAMIC 1000P K 50V
C272 403 069 1702 CERAMIC 1000P K 50V
C273 403 069 9500 CERAMIC 0.01U Z 50V
C274 403 041 8804 ELECT 10U M 16V
C281 403 270 3403 MT-POLYEST 0.22U K 63V
403 237 7901 MT-COMPO 0.22U J 50V
C282 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C283 403 069 9500 CERAMIC 0.01U Z 50V
C284 403 043 9106 ELECT 47U M 16V
C351 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C352 403 270 3809 MT-POLYEST 0.047U K 63V
403 225 2703 MT-COMPO 0.047U J 50V
C353 403 073 9107 CERAMIC 4700P K 50V
C354 403 049 0008 ELECT 1U M 50V
C361 403 072 5605 CERAMIC 2700P K 50V
C362 403 069 9500 CERAMIC 0.01U Z 50V
C363 403 042 2405 ELECT 100U M 16V
/!\C421 404 046 8806 MT-POLYPRO 6200P J 1.5K
C422 403 083 4901 POLYPRO 0.027U J 400V
C423 404 040 7805 MT-POLYPRO 5600P J 1.5K

C424 403 083 3409 POLYPRO 0.015U J 400V
C430 403 075 7101 CERAMIC 1000P K 500V
C431 403 068 5602 CERAMIC 0.056U Z 25V
C432 403 075 7101 CERAMIC 1000P K 500V
C433 403 076 3102 CERAMIC 3900P K 500V
C434 403 229 1207 ELECT 47U M 35V
C437 403 066 6106 MT-POLYEST 0.47U J 250V
C438 403 057 0601 POLYESTER 0.01U K 50V
403 179 3801 POLYESTER 0.01U K 50V
/!\C441 403 309 2100 POLYPRO 0.3U J 400V
C445 403 049 4204 ELECT 10U M 50V
C462 403 049 0008 ELECT 1U M 50V
C463 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C464 403 270 3700 MT-POLYEST 0.39U K 63V
403 255 8904 MT-COMPO 0.39U J 50V
C465 403 066 0104 MT-POLYEST 2.2U K 100V
403 158 9107 MT-POLYEST 2.2U K 100V
C467 403 040 3701 ELECT 220U M 10V
C468 403 045 5809 ELECT 22U M 25V
C470 403 069 8305 CERAMIC 0.01U Z 50V
C481 403 076 1405 CERAMIC 2700P K 500V
C482 403 159 7409 MT-POLYEST 0.1U K 250V
C501 403 054 1502 ELECT 470U M 35V
C502 403 053 2104 ELECT 220U M 35V
C503 403 024 2102 CERAMIC 39P J 50V
C504 403 069 9500 CERAMIC 0.01U Z 50V
C505 403 075 7101 CERAMIC 1000P K 500V
C506 403 183 7901 MT-POLYEST 0.1U K 100V
403 256 4806 MT-COMPO 0.1U J 100V
C511 403 183 7901 MT-POLYEST 0.1U K 100V
403 256 4806 MT-COMPO 0.1U J 100V
C512 403 148 0701 ELECT 2200U M 25V
C513 403 049 4204 ELECT 10U M 50V
C514 403 049 4204 ELECT 10U M 50V
C600 403 076 4000 CERAMIC 4700P K 500V
/!\C601 404 056 1408 MT-POLYEST 0.1U M 250V
404 074 6508 MT-COMPO 0.1U K 250V
C602 404 056 1408 MT-POLYEST 0.1U M 250V
404 074 6508 MT-COMPO 0.1U K 250V
C603 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C604 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C605 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C606 403 312 8205 CERAMIC 1000P K 1K
403 076 7100 CERAMIC 1000P M 1K
C607 404 047 1608 ELECT 270U M 400V
404 069 6001 ELECT 270U M 400V
C613 403 061 8303 POLYESTER 4700P K 50V
403 179 1104 POLYESTER 4700P K 50V
C614 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C615 403 058 2604 POLYESTER 0.015U J 50V
403 179 3207 POLYESTER 0.015U J 50V
C616 403 165 6205 CERAMIC 1000P K 2K
403 232 1102 CERAMIC 1000P K 2K
C617 403 059 6205 POLYESTER 0.022U K 50V
403 179 2408 POLYESTER 0.022U K 50V
/!\C631 404 060 6505 CERAMIC 2200P M 400V
404 071 4200 CERAMIC 2200P M 400V
404 060 6604 CERAMIC 2200P M 400V
/!\C632 404 044 2806 CERAMIC 470P K 400V
404 071 4606 CERAMIC 470P K 400V
404 060 6901 CERAMIC 470P M 400V
C640 403 069 8305 CERAMIC 0.01U Z 50V
C641 403 165 9305 CERAMIC 680P K 1K
403 262 4401 CERAMIC 680P K 1K
C642 404 055 9801 ELECT 220U M 200V
C643 403 148 2002 ELECT 470U M 35V
C644 403 148 0701 ELECT 2200U M 25V
C645 403 158 1309 ELECT 2200U M 35V
C651 403 148 0305 ELECT 470U M 16V
C652 403 069 9500 CERAMIC 0.01U Z 50V
C653 403 043 9106 ELECT 47U M 16V
C655 403 126 4400 ELECT 100U M 10V
C661 403 051 0607 ELECT 4.7U M 50V
C681 403 190 4702 ELECT 1000U M 25V
C682 403 069 9500 CERAMIC 0.01U Z 50V
C683 403 147 9606 ELECT 1000U M 10V
C684 403 050 6600 ELECT 3.3U M 50V
C802 403 270 2901 MT-POLYEST 0.1U K 63V
403 237 8007 MT-COMPO 0.1U J 50V
C812 403 049 0008 ELECT 1U M 50V
C814 403 049 0008 ELECT 1U M 50V
C816 403 046 9905 ELECT 4.7U M 25V
C818 403 046 9905 ELECT 4.7U M 25V
C841 403 069 9500 CERAMIC 0.01U Z 50V
C861 403 061 7504 POLYESTER 4700P J 50V
403 179 1203 POLYESTER 4700P J 50V
C871 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C872 403 043 9106 ELECT 47U M 16V
C873 403 018 0503 CERAMIC 22P J 50V
C874 403 018 0503 CERAMIC 22P J 50V
C875 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C878 403 073 9107 CERAMIC 4700P K 50V
C879 403 068 0409 CERAMIC 0.1U Z 25V
403 070 2606 CERAMIC 0.1U Z 50V
C881 403 069 9500 CERAMIC 0.01U Z 50V
C882 403 041 8804 ELECT 10U M 16V
C883 403 018 0503 CERAMIC 22P J 50V
C884 403 018 0503 CERAMIC 22P J 50V
C892 403 069 9500 CERAMIC 0.01U Z 50V
RESISTOR
R001 401 037 5400 MT-GLAZE 1K JA 1/10W
R002 401 037 9200 MT-GLAZE 1.8K JA 1/10W
R003 401 037 5400 MT-GLAZE 1K JA 1/10W
R004 401 037 9200 MT-GLAZE 1.8K JA 1/10W
R005 401 019 9600 CARBON 47 JA 1/4W
R006 401 014 4105 CARBON 1.5K JA 1/4W
R007 401 019 9600 CARBON 47 JA 1/4W
R008 401 014 4105 CARBON 1.5K JA 1/4W
R009 401 010 1504 CARBON 4.7 JA 1/2W
R010 401 010 1504 CARBON 4.7 JA 1/2W
R011 401 007 7601 CARBON 150 JA 1/2W
R012 401 007 7601 CARBON 150 JA 1/2W
R013 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R014 401 025 7409 CARBON 220 JA 1/6W
R015 401 037 5400 MT-GLAZE 1K JA 1/10W
R016 401 038 6505 MT-GLAZE 47K JA 1/10W
R017 401 037 5608 MT-GLAZE 10K JA 1/10W
R100 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1001 401 038 7601 MT-GLAZE 560 JA 1/10W
R1002 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1003 401 038 7601 MT-GLAZE 560 JA 1/10W
R1004 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1005 401 027 6608 CARBON 75 JA 1/6W
R1006 401 038 5300 MT-GLAZE 39K JA 1/10W
R1007 401 038 3702 MT-GLAZE 33K JA 1/10W
R1008 401 027 6608 CARBON 75 JA 1/6W
R1009 401 027 6608 CARBON 75 JA 1/6W
R101 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1010 401 027 6608 CARBON 75 JA 1/6W
R1011 401 037 5202 MT-GLAZE 100 JA 1/10W
R1012 401 027 6608 CARBON 75 JA 1/6W
R1013 401 024 6700 CARBON 100 JA 1/6W
R1014 401 027 6608 CARBON 75 JA 1/6W
R1015 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R1016 401 019 1000 CARBON 390 JA 1/4W
R1017 401 024 7400 CARBON 10K JA 1/6W
Ref. No. Part No. Description Ref. No. Part No. Description
-18-

R1018 401 038 3504 MT-GLAZE 330 JA 1/10W
R1021 401 038 7601 MT-GLAZE 560 JA 1/10W
R1022 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1023 401 038 7601 MT-GLAZE 560 JA 1/10W
R1024 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1025 401 038 5300 MT-GLAZE 39K JA 1/10W
R1026 401 038 3702 MT-GLAZE 33K JA 1/10W
R1027 401 027 6608 CARBON 75 JA 1/6W
R1028 401 027 6608 CARBON 75 JA 1/6W
R1029 401 025 1308 CARBON 150 JA 1/6W
R1031 401 038 7601 MT-GLAZE 560 JA 1/10W
R1032 401 038 7601 MT-GLAZE 560 JA 1/10W
R1033 401 038 7601 MT-GLAZE 560 JA 1/10W
R1041 401 038 2200 MT-GLAZE 27K JA 1/10W
R1042 401 037 5608 MT-GLAZE 10K JA 1/10W
R1043 401 039 0304 MT-GLAZE 820 JA 1/10W
R1044 401 039 0304 MT-GLAZE 820 JA 1/10W
R1045 401 037 5400 MT-GLAZE 1K JA 1/10W
R1046 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1047 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R1051 401 037 8104 MT-GLAZE 150K JA 1/10W
R1052 401 037 5707 MT-GLAZE 100K JA 1/10W
R1053 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R1054 401 037 8104 MT-GLAZE 150K JA 1/10W
R1055 401 037 5707 MT-GLAZE 100K JA 1/10W
R1056 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R108 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R110 401 038 3702 MT-GLAZE 33K JA 1/10W
R1101 401 027 6608 CARBON 75 JA 1/6W
R1102 401 037 7800 MT-GLAZE 150 JA 1/10W
R1103 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1104 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1105 401 037 5707 MT-GLAZE 100K JA 1/10W
R1106 401 037 5707 MT-GLAZE 100K JA 1/10W
R1111 401 037 5608 MT-GLAZE 10K JA 1/10W
R1200 401 022 1905 CARBON 680 JA 1/4W
R1201 401 038 6505 MT-GLAZE 47K JA 1/10W
R1202 401 038 6505 MT-GLAZE 47K JA 1/10W
R1203 401 037 5608 MT-GLAZE 10K JA 1/10W
R1204 401 038 2200 MT-GLAZE 27K JA 1/10W
R1205 401 038 2200 MT-GLAZE 27K JA 1/10W
R1206 401 038 6505 MT-GLAZE 47K JA 1/10W
R1207 401 024 7400 CARBON 10K JA 1/6W
R1208 401 038 0800 MT-GLAZE 22K JA 1/10W
R1209 401 024 7400 CARBON 10K JA 1/6W
R121 401 027 0309 CARBON 47K JA 1/6W
R131 401 038 0909 MT-GLAZE 220K JA 1/10W
R132 401 038 0909 MT-GLAZE 220K JA 1/10W
R133 401 037 9101 MT-GLAZE 180 JA 1/10W
R134 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R135 401 038 6505 MT-GLAZE 47K JA 1/10W
R136 401 037 6803 MT-GLAZE 12K JA 1/10W
R137 401 037 5202 MT-GLAZE 100 JA 1/10W
R138 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R141 401 038 9209 MT-GLAZE 6.8K JA 1/10W
R142 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R143 401 027 2600 CARBON 5.6K JA 1/6W
R144 401 037 5400 MT-GLAZE 1K JA 1/10W
R145 401 038 0800 MT-GLAZE 22K JA 1/10W
R147 401 027 0309 CARBON 47K JA 1/6W
R149 401 038 0800 MT-GLAZE 22K JA 1/10W
R150 401 024 7004 CARBON 1K JA 1/6W
R151 401 022 1905 CARBON 680 JA 1/4W
R152 401 025 7409 CARBON 220 JA 1/6W
R153 401 037 5400 MT-GLAZE 1K JA 1/10W
R154 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R155 401 037 5400 MT-GLAZE 1K JA 1/10W
R156 401 037 5400 MT-GLAZE 1K JA 1/10W
R157 401 039 0908 MT-GLAZE 910 JA 1/10W
R158 401 037 5400 MT-GLAZE 1K JA 1/10W
R159 401 022 1905 CARBON 680 JA 1/4W
R161 401 026 3905 CARBON 330 JA 1/6W
R162 401 037 9101 MT-GLAZE 180 JA 1/10W
R163 401 038 6505 MT-GLAZE 47K JA 1/10W
R164 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R165 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R166 401 026 9907 CARBON 4.7K JA 1/6W
R171 401 038 6307 MT-GLAZE 470 JA 1/10W
R172 401 025 7409 CARBON 220 JA 1/6W
R173 401 025 7409 CARBON 220 JA 1/6W
R1900 401 038 7809 MT-GLAZE 56K JA 1/10W
R1901 401 037 8005 MT-GLAZE 15K JA 1/10W
R1901A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1902 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R1902A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1903 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R1903A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1904 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R1905 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R1906 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R1907 401 037 5608 MT-GLAZE 10K JA 1/10W
R1908 401 038 3504 MT-GLAZE 330 JA 1/10W
R1909 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R1911 401 038 6307 MT-GLAZE 470 JA 1/10W
R1921 401 037 6605 MT-GLAZE 120 JA 1/10W
R1922 401 038 5003 MT-GLAZE 390 JA 1/10W
R1924 401 027 5502 CARBON 6.8K JA 1/6W
R2001 401 038 2200 MT-GLAZE 27K JA 1/10W
R2002 401 037 5608 MT-GLAZE 10K JA 1/10W
R2004 401 037 7800 MT-GLAZE 150 JA 1/10W
R2005 401 026 7002 CARBON 3.9K JA 1/6W
R201 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R202 401 037 5707 MT-GLAZE 100K JA 1/10W
R203 401 024 6700 CARBON 100 JA 1/6W
R204 401 024 6700 CARBON 100 JA 1/6W
R205 401 024 6700 CARBON 100 JA 1/6W
R206 401 037 5202 MT-GLAZE 100 JA 1/10W
R207 401 037 5202 MT-GLAZE 100 JA 1/10W
R208 401 037 5202 MT-GLAZE 100 JA 1/10W
R211 401 038 0800 MT-GLAZE 22K JA 1/10W
R212 401 017 1844 CARBON 2K7 JA 1/4W
R213 401 038 7710 MT-GLAZE 5.6K JA 1/10W
R214 401 037 5202 MT-GLAZE 100 JA 1/10W
R215 401 038 3702 MT-GLAZE 33K JA 1/10W
R216 401 025 8208 CARBON 22K JA 1/6W
R217 401 025 8208 CARBON 22K JA 1/6W
R218 401 038 7809 MT-GLAZE 56K JA 1/10W
R223 401 014 0305 CARBON 130K JA 1/4W
R224 401 024 7004 CARBON 1K JA 1/6W
R226 401 026 7408 CARBON 39K JA 1/6W
R227 401 024 7400 CARBON 10K JA 1/6W
R231 401 037 7800 MT-GLAZE 150 JA 1/10W
R232 401 037 5202 MT-GLAZE 100 JA 1/10W
R271 401 024 6700 CARBON 100 JA 1/6W
R272 401 024 9008 CARBON 120 JA 1/6W
R351 401 037 5202 MT-GLAZE 100 JA 1/10W
R352 401 037 5806 MT-GLAZE 1M JA 1/10W
R353 401 038 0909 MT-GLAZE 220K JA 1/10W
R354 401 024 7400 CARBON 10K JA 1/6W
R355 401 012 9904 CARBON 10M JA 1/4W
R356 401 037 5202 MT-GLAZE 100 JA 1/10W
R357 401 037 8005 MT-GLAZE 15K JA 1/10W
R361 401 038 5409 MT-GLAZE 390K JA 1/10W
R363 401 038 0800 MT-GLAZE 22K JA 1/10W
R364 401 037 5202 MT-GLAZE 100 JA 1/10W
R365 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R431 401 038 3504 MT-GLAZE 330 JA 1/10W
R432 401 037 5400 MT-GLAZE 1K JA 1/10W
R433 401 007 1104 CARBON 1K JA 1/2W
R434 401 067 9201 OXIDE-MT 390 JA 2W
R435 402 068 0204 WIRE WOUND 10 JA 5W
402 075 2307 WIRE WOUND 10 JA 5W
R436 401 012 7009 CARBON 10K JA 1/4W
R441 401 058 3706 OXIDE-MT 1K JA 1W
Ref. No. Part No. Description Ref. No. Part No. Description
-19-

R447 401 026 9907 CARBON 4.7K JA 1/6W
R448 401 009 5803 CARBON 330 JA 1/2W
R451 401 064 5305 OXIDE-MT 1.5 JA 2W
R462 401 025 1605 CARBON 1.5K JA 1/6W
R463 401 025 4200 CARBON 1.8K JA 1/6W
R467 401 025 8703 CARBON 220K JA 1/6W
R468 401 025 4200 CARBON 1.8K JA 1/6W
R469 401 027 5908 CARBON 68K JA 1/6W
R470 401 027 0309 CARBON 47K JA 1/6W
R471 401 025 1605 CARBON 1.5K JA 1/6W
R472 401 027 0309 CARBON 47K JA 1/6W
R473 401 027 5205 CARBON 680 JA 1/6W
R474 401 009 0907 CARBON 270 JA 1/2W
R481 401 025 4903 CARBON 180K JA 1/6W
R482 401 027 2600 CARBON 5.6K JA 1/6W
R501 401 026 9907 CARBON 4.7K JA 1/6W
R502 402 051 8705 FUSIBLE RES 4.7 J- 1/2W
R504 401 027 3003 CARBON 56K JA 1/6W
R505 401 026 7002 CARBON 3.9K JA 1/6W
R506 401 025 7805 CARBON 2.2K JA 1/6W
R507 401 024 6700 CARBON 100 JA 1/6W
R508 401 025 1605 CARBON 1.5K JA 1/6W
R509 401 057 7507 OXIDE-MT 0.82 JA 1W
R511 401 062 1200 OXIDE-MT 470 JA 1W
R513 401 058 3706 OXIDE-MT 1K JA 1W
R521 402 037 1805 FUSIBLE RES 4.7 J- 1W
R602 402 067 7709 WIRE WOUND 3.9 KA 7W
402 072 4403 WIRE WOUND 3.9 KA 7W
R611 401 027 2600 CARBON 5.6K JA 1/6W
R615 401 025 8208 CARBON 22K JA 1/6W
R617 401 024 7004 CARBON 1K JA 1/6W
R619 401 016 1508 CARBON 22 JA 1/4W
R620 401 007 5805 CARBON 120K JA 1/2W
R621 401 007 5805 CARBON 120K JA 1/2W
R622 401 014 5201 CARBON 15K JA 1/4W
R623 401 025 4200 CARBON 1.8K JA 1/6W
R624 401 068 6902 OXIDE-MT 56 JA 2W
R625 401 065 9609 OXIDE-MT 18 JA 2W
R626 401 016 3304 CARBON 2.2K GA 1/4W
/!\R631 402 000 8305 SOLID 5.6M KA 1/2W
/!\R632 402 000 8305 SOLID 5.6M KA 1/2W
R641 401 014 6109 CARBON 150K JA 1/4W
R642 401 027 4307 CARBON 6.2K JA 1/6W
R643 401 015 4708 CARBON 180K JA 1/4W
R644 401 011 2708 CARBON 68K JA 1/2W
R645 401 025 8208 CARBON 22K JA 1/6W
R646 402 069 9800 WIRE WOUND 2.7 KA 5W
402 075 4202 WIRE WOUND 2.7 KA 5W
R647 402 069 8704 WIRE WOUND 8.2 KA 7W
402 076 0609 WIRE WOUND 8.2 KA 7W
R648 401 026 9907 CARBON 4.7K JA 1/6W
R651 401 064 3806 OXIDE-MT 1 JA 2W
R652 401 069 5607 OXIDE-MT 8.2 JA 2W
R653 401 066 9103 OXIDE-MT 27 JA 2W
R655 401 065 5809 OXIDE-MT 15 JA 2W
R656 401 026 9600 CARBON 470 JA 1/6W
R657 401 007 6901 CARBON 15 JA 1/2W
R661 401 068 4700 OXIDE-MT 4.7K JA 2W
R662 401 068 8807 OXIDE-MT 5.6K JA 2W
R681 401 008 1608 CARBON 1.8K JA 1/2W
R682 401 069 1708 OXIDE-MT 68 JA 2W
R684 401 027 8602 CARBON 8.2K JA 1/6W
R685 401 025 8208 CARBON 22K JA 1/6W
R800 401 025 7805 CARBON 2.2K JA 1/6W
R801 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R802 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R803 401 037 9408 MT-GLAZE 180K JA 1/10W
R804 401 024 7400 CARBON 10K JA 1/6W
R806 401 024 7400 CARBON 10K JA 1/6W
R807 401 024 7400 CARBON 10K JA 1/6W
R808 401 019 1901 CARBON 3.9K JA 1/4W
R811 401 025 7805 CARBON 2.2K JA 1/6W
R812 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R813 401 026 4605 CARBON 33K JA 1/6W
R815 401 024 6700 CARBON 100 JA 1/6W
R816 401 037 5608 MT-GLAZE 10K JA 1/10W
R817 401 027 8602 CARBON 8.2K JA 1/6W
R818 401 037 5707 MT-GLAZE 100K JA 1/10W
R819 401 025 7805 CARBON 2.2K JA 1/6W
R820 401 037 5608 MT-GLAZE 10K JA 1/10W
R821 401 038 0800 MT-GLAZE 22K JA 1/10W
R822 401 038 6505 MT-GLAZE 47K JA 1/10W
R823 401 024 9305 CARBON 1.2K JA 1/6W
R824 401 038 0701 MT-GLAZE 2.2K JA 1/10W
R825 401 038 3603 MT-GLAZE 3.3K JA 1/10W
R831 401 038 0800 MT-GLAZE 22K JA 1/10W
R832 401 037 5608 MT-GLAZE 10K JA 1/10W
R833 401 038 0800 MT-GLAZE 22K JA 1/10W
R834 401 038 0800 MT-GLAZE 22K JA 1/10W
R835 401 037 5400 MT-GLAZE 1K JA 1/10W
R836 401 038 0800 MT-GLAZE 22K JA 1/10W
R837 401 037 5400 MT-GLAZE 1K JA 1/10W
R838 401 037 8005 MT-GLAZE 15K JA 1/10W
R839 401 026 4605 CARBON 33K JA 1/6W
R840 401 026 9600 CARBON 470 JA 1/6W
R841 401 038 0800 MT-GLAZE 22K JA 1/10W
R842 401 026 9907 CARBON 4.7K JA 1/6W
R843 401 037 5608 MT-GLAZE 10K JA 1/10W
R844 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R845 401 037 5608 MT-GLAZE 10K JA 1/10W
R846 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R847 401 037 5608 MT-GLAZE 10K JA 1/10W
R848 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R851 401 037 5400 MT-GLAZE 1K JA 1/10W
R852 401 037 5400 MT-GLAZE 1K JA 1/10W
R853 401 038 0800 MT-GLAZE 22K JA 1/10W
R861 401 038 2101 MT-GLAZE 2.7K JA 1/10W
R862 401 038 0800 MT-GLAZE 22K JA 1/10W
R863 401 038 0800 MT-GLAZE 22K JA 1/10W
R864 401 038 7601 MT-GLAZE 560 JA 1/10W
R865 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R866 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R867 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R868 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R869 401 038 2200 MT-GLAZE 27K JA 1/10W
R870 401 025 8208 CARBON 22K JA 1/6W
R870A 401 037 5004 MT-GLAZE 0.000 ZA 1/10W
R871 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R872 401 038 3702 MT-GLAZE 33K JA 1/10W
R873 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R874 401 037 5608 MT-GLAZE 10K JA 1/10W
R875 401 038 7700 MT-GLAZE 5.6K JA 1/10W
R876 401 037 5608 MT-GLAZE 10K JA 1/10W
R877 401 039 0403 MT-GLAZE 8.2K JA 1/10W
R878 401 037 7909 MT-GLAZE 1.5K JA 1/10W
R879 401 037 5608 MT-GLAZE 10K JA 1/10W
R880 401 038 6505 MT-GLAZE 47K JA 1/10W
R884 401 037 7800 MT-GLAZE 150 JA 1/10W
R885 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R886 401 037 7800 MT-GLAZE 150 JA 1/10W
R887 401 038 5102 MT-GLAZE 3.9K JA 1/10W
R888 401 037 5202 MT-GLAZE 100 JA 1/10W
R889 401 037 5202 MT-GLAZE 100 JA 1/10W
R891 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R892 401 038 6406 MT-GLAZE 4.7K JA 1/10W
R893 401 037 5400 MT-GLAZE 1K JA 1/10W
R894 401 037 5400 MT-GLAZE 1K JA 1/10W
R895 401 037 6704 MT-GLAZE 1.2K JA 1/10W
R896 401 038 6505 MT-GLAZE 47K JA 1/10W
R897 401 024 7004 CARBON 1K JA 1/6W
R898 401 024 7004 CARBON 1K JA 1/6W
VARIABLE RESISTOR
VC141 645 004 2263 TRIMMER,10PF
Ref. No. Part No. Description Ref. No. Part No. Description
-20-
