Sanyo P46841-03 User manual

This guide is divided into 4 sections/pages depending on type of defect:
page 1)No Green LED Power Light.(LED never turns“ON”)
page 2)Green LED Light is “ON”, but Backlights are not “ON”,or only turn“ON & then OFF”.
page 3)Green LED Light is “ON”, and Backlights are “ON”,but there is no video/OSD.
page 4)Green LED Light turns “ON”, but turns “OFF”within 10 seconds.
Please select the section/page that matches your defect and follow the flow chart.
These models & chassis versions are in this guide:
P46841-03
P42841-05
PLEASE KEEP THIS GUIDE.
IT WILL NOT BE PROVIDED FOR EVERY REPAIR.
t[email protected]
SANYO
TROUBLESHOOTING GUIDE
2012 MODELS
P46841-03 / P42841-05/ P42841-06
2012/06/07
2012-4A
P42841-06

Repair Flow Chart:Trouble Condition
Green Power LED does not turn on. The TV is dead.
Green Power LED:
Does not turn ON.
The TV is dead.
On analog signal board:
Is the “5VSTB” voltage supplied?
(see TABLE*1.0)
On digital signal board:
Is the “5V_STBY” voltage on
“K5A Pin 3 or Pin 4”?
Analog board is not working.
Replace “analog board”.
Unplug(CN2) connector on
power board. On Power board:
Is the “5VSTB” voltage supplied?
(see TABLE*2.0)
Power board is not working.
Replace “Power board”.
Unplug(K16A) and(K16B) connector
between digital unit and analog unit
Is the “5V_STBY” voltage supplied?
(see TABLE*3.0)
Analog board is not working.
Replace “analog board”.
Replace “digital board”.
While pushing the “power key sw”
is the 2.9V from “key sw2”
supplied to “K16A Pin17”?
Analog board was broken.
Replace “analog board”.
Digital board is not working.
Replace “digital board”.
No:0v
No:0v
Yes:5v
Yes:5v
No:0v
Yes:5v
Yes:5v
No:0v
Yes
No voltage(0v)at K16A Pin17 or 2.9V always present.
(see TABLE*5.0)
Page 1
(TABLE *1.0)Analog board:5VSTB Test Points
42" /46"Models 5VSTB on Analog board Conrmation Voltage
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
Analog K17 Pin3 or Pin4 5V
(TABLE *2.0) Power board:5VSTB Test Points
42" /46"Models 5VSTB on Power board Conrmation Voltage
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
Power CN2 Pin3 or Pin4 5V
(TABLE *3.0)Digital board:5V_STBY Test Points
42" /46"Models 5V_STBY on Analog board Conrmation Voltage
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
Analog K16A Pin3 or Pin4 5V

Repair Flow Chart:Trouble Condition
Green Power is on, but LCD backlights are not on.
Backlights do not turn on, or only turn on and back off.
Power LED turns ON,
but LCD backlight is not ON
or only turned ON and then
back OFF.
On analog signal board:
Is the “BL_SW” voltage (3．3V)
Supplied from “K17 Pin13”?
On Power board:
Is the 0V supplied from “CN3 Pin10”
during LED on time?
Panel is broken.
Replace “Panel”.
On digital board:
Is 3.3V supplied to”K5A Pin19” ?
Digit board is not working.
Replace “digital board”.
On Power board:
Is the +20sine wave (RMS) supplied from “CN3 Pin 1/2/3”
Power board is not working.
Replace “Power board”.
Confirm wire harness connection
between analog board &Power board
and between Power board and panel .
Panel is not working
Replace panel.
Replace “analog board and
wire harness”.
No:0V
No:0V
Yes:3.3V
Yes:3.3V
Yes:0V
No:over 0.1V
No:0V
Yes:+/-20 sine wave(RMS)
Page2
See TABLE *1.0
“ CN3
Pin 4/5/6”
and -20 sine wave (RMS) supplied
Page 2
(TABLE *1.0)Analog board: 3.3V Test Points
42" /46"Models 3.3V on Analog board Conrmation Voltage
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
Analog k17 Pin13 3.3V

Repair Flow Chart:Trouble Condition
Green Power LED and LCD backlights are ON,but no video or OSD.
LCD backlights are ON,
but TV has NO VIDEO or OSD.
On analog board:
Is the 12V supplied from “K17 Pin 6/7”?
On digital board:
Is power 12V supllied from “K5A Pin2”?
Replace“Power board” and
“Wire harness”.
On digital board:
Is power 12V to TCON supplied
from“K7200 Pin1/2/3/4” ?
Analog board is not working.
Replace “analog board”.
Is LVDS clock output?
Confirm LVDS cable connection
and check video OSD again.
T.Cnt.Board or LCD panel is not working.
1st:Replace“T.Cnt.Board&LVDS Cable”.
If T.Cnt.board&LVDS cable do not solve
problem, then 2nd:Replace“LCD Panel”.
Digital board is not working.
Replace “digital board”.
Digit board is not working.
Replace “digital board”.
If the clock output is OK, the digital board is
normally OK, but can not be 100% sure. If
the T Cont Board &LVDS do not solve the
problem, please try the digital before ordering
a panel.
Ｎｏ：０Ｖ
Ｙｅｓ
Ｎｏ：０Ｖ
Ｙｅｓ：１２Ｖ
Ｎｏ：０Ｖ
Ｎｏ：０Ｖ ｏｒ １．１Ｖ ｃｏｎｓｔａｎｔ
Ｙｅｓ
Ｙｅｓ：１２Ｖ
See TABLE *2.0
See TABLE *1.0
Page 3
(TABLE *1.0)Digital board: power 12V to Tcon
42" /46"Models Digital board power to Tcon Conrmation Voltage
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
Digital K7200 Pin1 or Pin2 or Pin3 or Pin4 12V
Note:The bandwidth of the oscilloscope and probe must be at least 100MHZ or higher to check if the clock pulse exists.
(TABLE*2.0)Main board:"LVDS Clock"Test Points
42" /46"Models LVDS Clock on Digital board
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
K7200 Pin32 clock+
K7200 Pin33 clock-

Repair Flow Chart:Trouble Condition
Power LED turns OFF within 10 sec of power ON.
Power LED turns OFF within
10 sec of power ON.
On analog board:
Is 3.3V supplied to“K17 Pin1”during
LED ON time?
On digital board:
Is 3.3V supllied to “K5A Pin29”?
Unplug cable from digital board
to T.Cnt.board is symptom
changed?
Analog board is not working.
Replace “analog board”.
On power board:
Is the 12V supplied from “CN2 Pin6/7 ”
during LED ON time?
Digital board is not working.
Analog board may also not be working.
Replace “digital board and analog board”.
T Con board is not working.
Digital board may also not be working.
Replace “T Con board&digital board”.
Power board is not working.
Replace “Power board.”
Ｎｏ：０Ｖ
Ｙｅｓ：３．３Ｖ
Ｎｏ：０Ｖ
Ｙｅｓ
Ｎｏ
Digital board is not working.
Replace “digital board”.
Ｙｅｓ：３．３Ｖ
Ｎｏ：０Ｖ
Page4
See TABLE *1.0
Page 4
(TABLE *1.0) Digital board: 3.3V Test Points
42" /46"Models 3.3V on Digital board Conrmation Voltage
P46841-03 Z5WP
P42841-05 Z5VT
P42841-06 Z5VV
Digital K5A Pin29 3.3V

Specifications
POWER RATING . . . . . . . . . . . . . . . . . . . . . . . . . 120VAC
178 W (AVG.)
ANTENNA INPUT IMPEDANCE. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
DIGITAL
RECEIVING CHANNEL . . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-135 (CATV)
1-135 (DIGITAL)
REMOTE READY. . . . . . . . . 36 KEY REMOTE CONTROL
SOUND OUTPUT. . . . . . . . . . . . . . . . . . . . . . . 10.0 W/CH
INTERMEDIATE FREQUENCY
PICTURE IF CARRIER . . . . . . . . . . . . . . . . . . 45.75MHz
SOUND IF CARRIER . . . . . . . . . . . . . . . . . . . 41.25MHz
COLOR SUB CARRIER . . . . . . . . . . . . . . . . . 42.17MHz
CABINET DIMENSIONS
WIDTH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1115mm
HEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 746mm
DEPTH INCLUDING BASE . . . . . . . . . . . . . . . . 270mm
REFERENCE No. SM780206
DP46841, Z5WP, PRODUCT CODE 113026505
SERVICE MANUAL Remote Control Digital
Color Television DP46841
(U.S.A.) (CANADA)
ORIGINAL VERSION
Chassis No. P46841-03
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to
the Original Service
Manual prior to servicing
the unit.
Servicing should be performed by only trained and qualified service personnel.
Contents
SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . 2
SERVICE ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 3
ON-SCREEN SERVICE MENU . . . . . . . . . . . . . . . . . . . . . 4
POWER FAILURE CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . 5
MECHANICAL DISASSEMBLY . . . . . . . . . . . . . . . . . . . . 6
CHASSIS ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . 9
COMPONENT AND TEST POINT LOCATIONS . . . . . . 22
BLOCK DIAGRAM POWER LINES. . . . . . . . . . . . . . . . . 26
BLOCK DIAGRAM SIGNAL LINES . . . . . . . . . . . . . . . . 27
IC BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 28
TROUBLESHOOTING FLOW CHARTS . . . . . . . . . . . . . 32
SCHEMATIC NOTES . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
IC, DIODE, AND TRANSISTOR PIN LAYOUTS. . . . . . . 36
PC BOARD CONNECTIONS AND LOCATIONS . . . . . . 37
CAPACITOR AND RESISTOR CODE CHART . . . . . . . . 38
SCHEMATIC DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . 39
© Sanyo Manufacturing Corporation 2012
FILE No.

– 2 –
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed inside the cabinet, on the chassis, and on the back.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 μF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
in the parts list and in the schematic diagrams. To ensure
safe product operation, it is necessary to replace those com-
ponents with the exact same PARTS.
SERVICING ELECTROSTATICALLY SENSITIVE DEVICES
Semiconductors (solid-state devices) that can be damaged
by static electricity are referred to as Electrostatically
Sensitive (ES) devices. Examples of typical ES devices are:
Integrated Circuits (IC), Field-Effect Transistors (FET), and
“chip” components. The following techniques should be
observed strictly, to reduce the occurrence of semiconduc-
tor damage due to electrostatic discharge.
1. Immediately prior to handling any semiconductor com-
ponent or an assembly containing a semiconductor
device or devices, discharge the electrostatic buildup on
your body by touching a known earth ground. You may
also obtain and wear a commercially available discharg-
ing wrist strap device.
CAUTION: Be sure to remove the wrist strap before
applying power to any unit being serviced.
2. After removing an ES equipped assembly, place it on a
conductive surface, such as, aluminum foil, to prevent
buildup or exposure to static electricity.
3. Use only grounded-tip soldering irons to solder or unsol-
der ES devices.
4. Use only anti-static solder removal devices. Some suc-
tion-type devices can generate static electricity adequate
to damage ES devices.
5. A replacement ES device will come packaged in protective
material (conductive foam, aluminum foil, or some compa-
rable conductive material). Do Not remove an ES device
from its protective packaging unless you are prepared to
install it immediately.
6. Precisely prior to removing an ES device from its protective
packaging, touch the protective packaging to the chassis or
assembly in which the device will be installed.
CAUTION: Be sure that no power is applied to the chassis
or circuit assembly.
7. Incidental body movements, such as, lifting a foot from
a carpeted floor or the rubbing of fabric together can
generate static electricity sufficient to damage ES devices.
Therefore, minimize all body movements while handling
exposed (unpackaged) ES devices.
SAFETY INSTRUCTIONS

– 3 –
GENERAL
This set has an On-screen Service Menu system included in
the CPU that allows remote operation for most of the
service adjustments.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•Turn off the receiver and disconnect the AC power
supply.
•While pressing the Volume (––) button on the televi-
sion, reconnect the AC power supply. The Service
Menu will now appear. The remote can now be used
to make adjustments. See Figure 1 below.
2. Service Adjustments:
•Press the Cursor  and key to select the desired
service menu item you want to adjust. See page 4 for
the On-screen Service Menu.
•Use the Cursor or key to adjust the data.
The or key will increase or decrease the data
sequentially.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu
display.

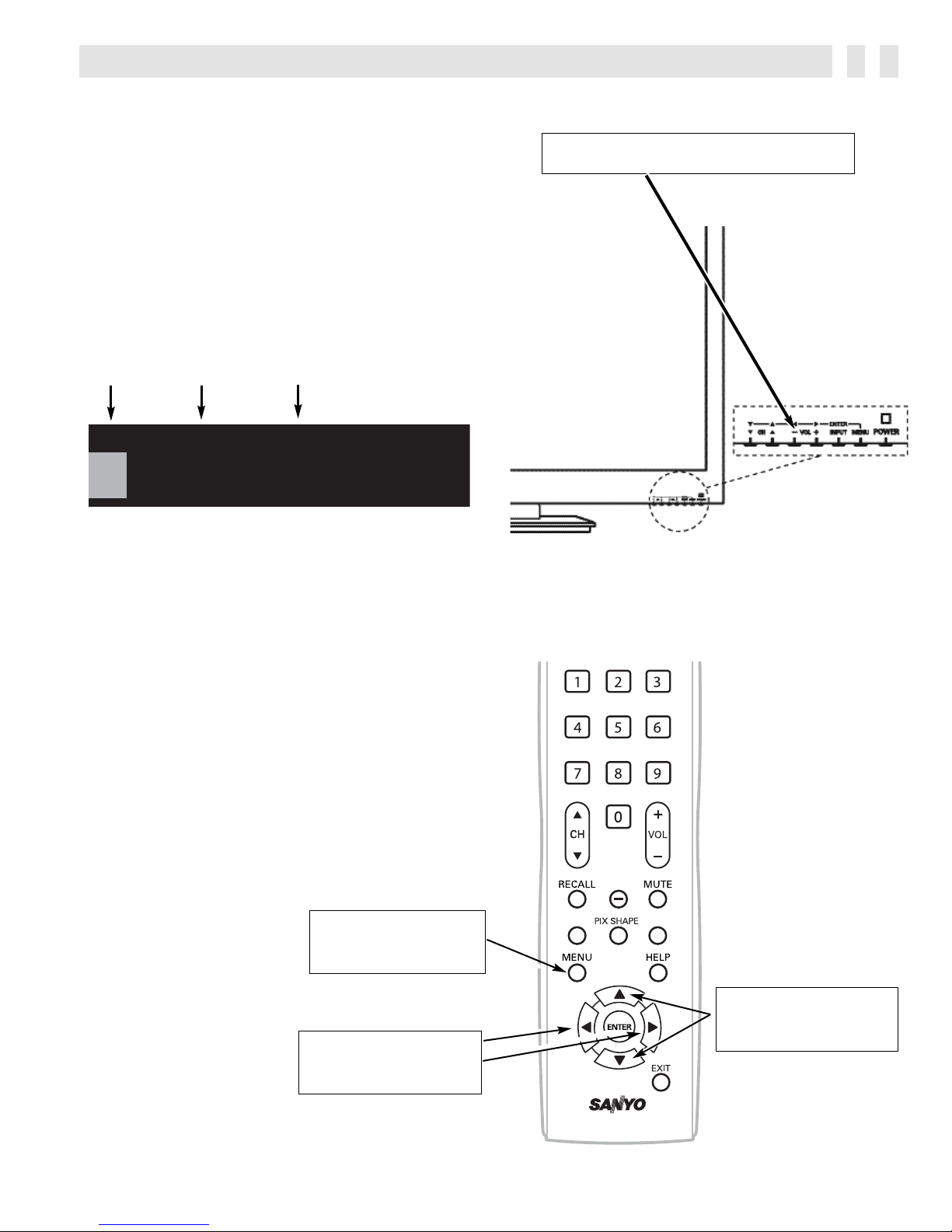

Figure 1. Service Menu Display
HEX DATA
Index ParameterName
FACTORY_VOL 0x21 48 0 255
Value Def. MIN MAX
1
ITEM NO. TITLE
SUB CH
INFO DYN VOL
Menu:
Exit Service Menu
Cursor :
Select Item
Cursor :
Adjust the data
SERVICE ADJUSTMENTS
Volume – :Enter Service Menu

– 4 –
Table 1. ON-SCREEN SERVICE MENU
When IC5750 (Flash Memory) is replaced, check the bus data to confirm they are the same as below. See page 3 for
On-Screen Service Menu access and adjustments.
PROGRAM CODES
The microprocessor used in this model is a multi-purpose type and is used in several different models. To ensure
proper operation and the correct features for your particular model, the program codes must be correct.
Note 1. Option Data 1 (Index 02) should be hexadecimal 00.
See Index 02 above. If this program code is wrong the TV will not operate properly.
Note 2. Option Data 2 (Index 03) should be hexadecimal 33.
See Index 03 above. If this program code is wrong the TV will not operate properly.
NOTES: Option 2 Data (Display Panel)
Option 1 and Option 2 data is initial and can be set according to adjusment information.
Index ParameterName Value Min Max
02 OP1 00h 0 255
03 OP2 33h 0 255
ON-SCREEN SERVICE MENU

– 5 –
Check the following if the unit is turned off by the power
failure detector.
1. Disconnect the AC power cord (120V AC line) for a short
time.
2. Connect a DC Voltmeter to the circuits shown below.
3. Press the Power key and check for the proper voltage
supplies.
4. If any of these voltages is low, the power failure detec-
tor should turn the unit off within three seconds.
5. Check all circuits shown below.
Note: If power failure is detected 3 times in 15 minutes,
the set will enter the standby mode and cannot be
switched On.To reset the operating programs of the
sub_CPU it is necessary to disconnect the AC cord
for a short time.
Internal sub_CPU on main IC 5500 is programmed so the
set will go to standby mode when there is circuit failure as
described below. (Refer to“Block Diagram Power Lines”.)
This unit is equipped with a Power Failure Detector function
included in the sub_CPU which checks for an abnormal
condition in the chassis power supplies.
If, while the power is on, a failure is caused by any of the fol-
lowing that results in a low voltage supply, the sub_CPU will
turn the unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
Power Failure: Detected voltage failure for circuit.
(Connected to IC5500 pin 234.)
(Normal: High; Failure: Low)
If, while the power is off, the power is switched on and any
of these failures remains uncorrected, the sub_CPU will
shut off the power within three seconds.
D9
D5
IC5500 (sub_CPU)
Power Fail
Power On1
Power Board
Main
D1668
K8B
D6700
Audio_Pow
12V
5V
D1613
5V
POWER FAILURE CIRCUIT

/
/9'6&DEOH
32:(581,7
$
67$1'%$6(
$
$
$
&
'
%
'
'
'
(
(
&&& &
&
&
&
&
&
&
&&
&
– 6 –
BACK CABINET REMOVAL
1. Remove 20 screws (B:3x6, 1 pc.; C:3x10, 13 pcs.;
D:4x8, 4 pcs.; E:3x10, 2 pcs.)
2. Detach AC cord from cabinet back.
3. Take off the cabinet back.
CAUTION:
This LCD TV uses several different kinds of screws. Using the correct screw is necessary to prevent damage.
Lead wires must be redressed to their previous locations after servicing. The Earth sheet and gasket are
provided to prevent interference to other radio and television receivers. The Earth sheet and gasket should
be returned to its previous position after servicing.
STAND BASE REMOVAL
Position TV face down on a padded or cushioned
surface to protect the screen and finish.
Remove 4 screws (A:M6X12) and remove the
stand base from the TV.
MECHANICAL DISASSEMBLY

0
0$,1%2$5'
%
7(50,1$/%$6(5($5
%
%
%
%
%
*
%
%
+2/'(5&+$66,6%$6(
$
%
%
32:(581,7
%%
%
%
%
%
%
%
%
%
%
%
%
)
)
– 7 –

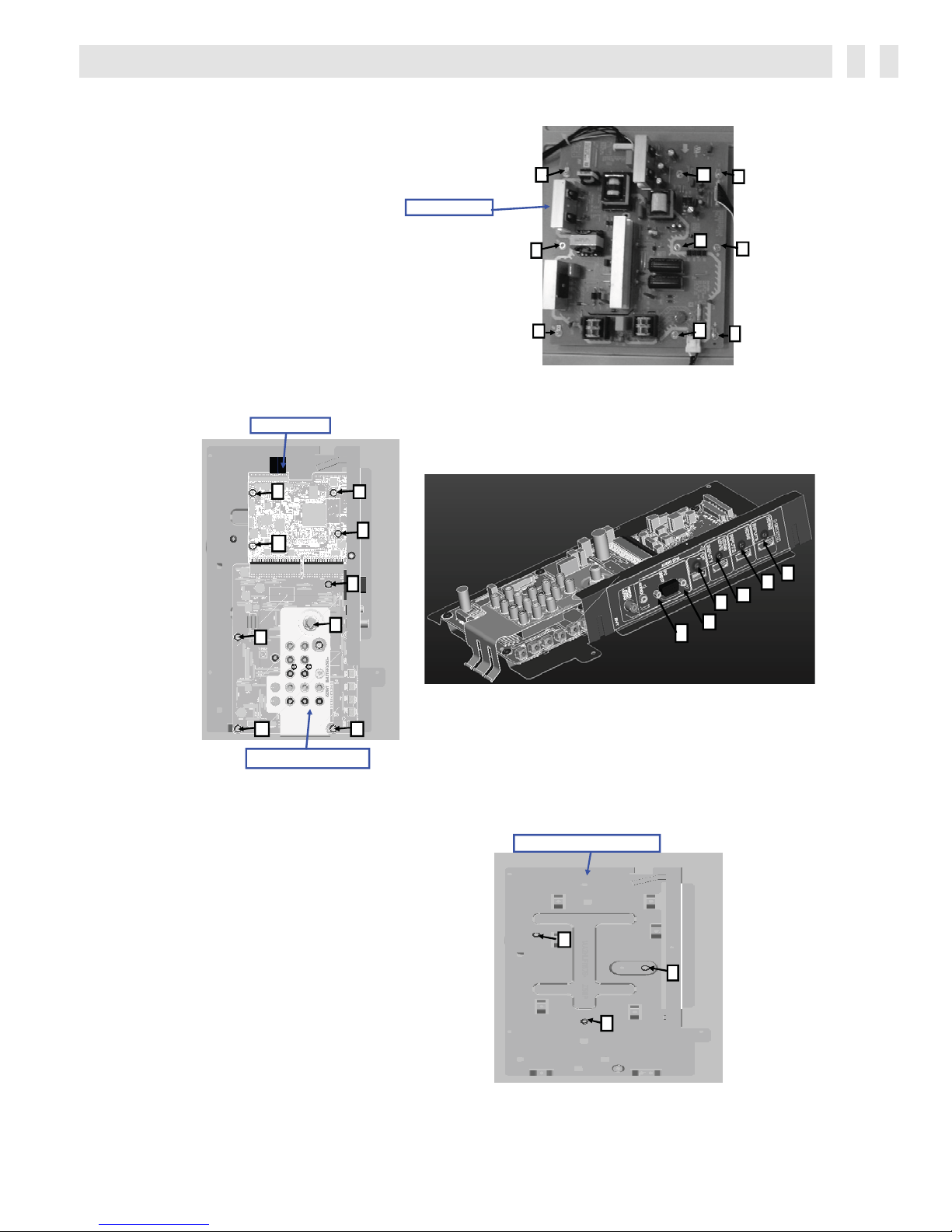

MAIN BOARD AND CHASSIS BASE REMOVAL
Remove 15 screws (B:3x6, 12 pcs.; F:2pcs.), and one (1) Nut
(G) to take the main board off.
HOLDER CHASSIS BASE REMOVAL.
Remove 3 screws (A:3x6, 1 pc.; B:4x8, 2 pcs.) to take
the holder chassis base off.
MECHANICAL DISASSEMBLY (Continued)
POWER UNIT REMOVAL
Remove 9 screws (B:3x6) to take the power unit off.

&
&
%87721%2$5'
&
5&%2$5'
&
02817,1*:$//
+
02817,1*:$//
+
– 8 –
ELECTROSTATICALLY SENSITIVE DEVICES
Many solid-state devices (especially Integrated Circuits) are Electrostatically Sensitive,
and, therefore, require special handling techniques as described under “Servicing
Electrostatically Sensitive Devices,” on page two in this service literature.
SPEAKER REMOVAL
No screws.
Take away each speaker from Front Cabinet directly.
RC BOARD AND BUTTON BOARD REMOVAL
Remove 3 screws (C:3x10) to take the RC board and button board off.
ATTENTION
– Confirm Mounting wall wire is installed when you install the back cabinet.
MECHANICAL DISASSEMBLY (Continued)
MOUNTING WALL

– 9 –
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS
and PRODUCT SAFETY NOTICE on Page 2
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A IN THIS PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ON THE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACE-
MENT DESIGNATED BY A . NO DEVIATIONS FROM RESISTANCE, WATTAGE, AND VOLTAGE RATINGS MAY
BE MADE FOR REPLACEMENT ITEMS DESIGNATED BY A .
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.
CAPACITORS RESISTORS
CHASSIS ELECTRICAL PARTS LIST
NOTES:
Read Description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V
Rated Voltage
Tolerance Symbols:
Less than 10pF
A : Not specified
D : ±0.5pF
G : ±2pF
R : ±0.25-0pF
B : ±0.1pF
E : +0-1pF
H : +0.1-0pF
S: ±0.25-0pF
C : ±0.25pF
F : ±1pF
L : +0-0.1pF
More than 10pF
A : Not specified
D : ±0.5%
H : ±3%
L : ±15%
P : +100-0%
U : +75-10%
X : +40-20%
B : ±0.1%
F : ±1%
J : ±5%
M : ±20%
Q : +30-10%
V : +20-10%
Y : +150-10%
C : ±0.25%
G : ±2%
K : ±10%
N : ±30%
T : +50-10%
W : +100-10%
Z : +80-20%
Rated value: P=pico tarad, U=micro tarad
Material:
CERAMIC . . . . . . .
MT-PAPER. . . . . . .
POLYESTER . . . . .
MT-POLYEST . . . .
POLYPRO . . . . . . .
MT-POLYPRO . . . .
COMPO FILM . . . .
MT-COMPO. . . . . .
STYRENE . . . . . . .
TA-SOLID . . . . . . .
AL-SOLID . . . . . . .
ELECT . . . . . . . . . .
NP-ELECT . . . . . . .
OS-SOLID . . . . . . .
Ceramic
Metallized Paper
Polyester
Metallized Polyester
Polypropylene
Metallized Polypropylene
Composite Film
Metallized Composite
Styrene
Tantalum Solid
Aluminum Solid
Electrolytic
Non-polarised Electrolytic
Alluminum Solid with Organic
Semiconductive Electrolytic
NOTES:
Read Description of the Resistor as follows:
(Example)
CARBON 4.7K J A 1/4W
Rated Wattage
A...0.05%
D...0.5%
J...5%
P...+5-15%
B...0.1%
F...1%
K...10%
C...25%
G...2%
M...20%
Rated value, ohms:
K...1,000 M...1,000,000
Material:
CARBON . . . . . . . .
MT-FILM . . . . . . . .
OXIDE-MT. . . . . . .
SOLID . . . . . . . . . .
MT-GLAZE . . . . . .
WIRE WOUND . . .
CERAMIC RES . . .
FUSIBLE RES . . . .
Carbon
Metal Film
Oxide Metal Film
Composition
Metal Glaze
Wire wound
Ceramic
Fusible
Performance Symbols:
A...General B..Non-flammable
Z...Low noise
Other...Temperature coefficient
Tolerance Symbols:

– 10 –
Schematic
Location Part No. Description Schematic Location Part No. Description
ASSY,PWB ,MAIN DIGITAL-Z5WP
CAPACITORS
C001 F1H1H102A219 CERAMIC 1000P K 50V
C002 F1H1H102A219 CERAMIC 1000P K 50V
C003 F1J1E105A213 CERAMIC 1U K 25V
C004 F1J1E105A213 CERAMIC 1U K 25V
C005 F1H1H102A219 CERAMIC 1000P K 50V
C006 F1H1H102A219 CERAMIC 1000P K 50V
C007 F1H1H102A219 CERAMIC 1000P K 50V
C008 F1H1H102A219 CERAMIC 1000P K 50V
C009 F1H1H104A913 CERAMIC 0.1U K 50V
C010 F1H1H104A913 CERAMIC 0.1U K 50V
C011 F1H1H104A913 CERAMIC 0.1U K 50V
C012 F1H1H104A913 CERAMIC 0.1U K 50V
C013 F1H1H104A913 CERAMIC 0.1U K 50V
C014 F1H1H104A913 CERAMIC 0.1U K 50V
C015 F1H1H104A913 CERAMIC 0.1U K 50V
C016 F1H1H104A913 CERAMIC 0.1U K 50V
C018 F1H1H331A792 CERAMIC 330P J 50V
C019 F1H1H331A792 CERAMIC 330P J 50V
C020 F1J1E105A213 CERAMIC 1U K 25V
C021 F1H1H104A913 CERAMIC 0.1U K 50V
C022 F1H1H104A913 CERAMIC 0.1U K 50V
C023 F1J1E105A213 CERAMIC 1U K 25V
C024 F1G1C104A077 CERAMIC 0.1U K 16V
C025 F1G1C104A077 CERAMIC 0.1U K 16V
C026 F1G1C104A077 CERAMIC 0.1U K 16V
C027 F1G1C104A077 CERAMIC 0.1U K 16V
C028 F1G1H150A541 CERAMIC 15P J 50V
C029 F1G1H150A541 CERAMIC 15P J 50V
C031 F1G1H681A571 CERAMIC 680P K 50V
C032 F1G1H101A541 CERAMIC 100P J 50V
C033 F1G1H472A571 CERAMIC 4700P K 50V
C034 F1G1C104A077 CERAMIC 0.1U K 16V
C035 F1G1C104A077 CERAMIC 0.1U K 16V
C036 F1J1E105A213 CERAMIC 1U K 25V
C037 F1J1E105A213 CERAMIC 1U K 25V
C038 F1G1C104A077 CERAMIC 0.1U K 16V
C040 F1G1C104A077 CERAMIC 0.1U K 16V
C041 F1G1C104A077 CERAMIC 0.1U K 16V
C042 F1G1C104A077 CERAMIC 0.1U K 16V
C5505 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5506 F1G1H103A706 CERAMIC 0.01U K 50V
C5507 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5508 F1G1C104A077 CERAMIC 0.1U K 16V
C5509 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5510 F1G1C104A077 CERAMIC 0.1U K 16V
C5511 F1G1H1020008 CERAMIC 1000P K 50V
C5512 F1G1C104A077 CERAMIC 0.1U K 16V
C5513 F1G1C104A077 CERAMIC 0.1U K 16V
C5514 F1G1H1020008 CERAMIC 1000P K 50V
C5515 F1G1H1020008 CERAMIC 1000P K 50V
C5516 F1G1H103A706 CERAMIC 0.01U K 50V
C5517 F1G1H221A737 CERAMIC 220P J 50V
C5518 F1G1C104A077 CERAMIC 0.1U K 16V
C5519 F1G1H103A706 CERAMIC 0.01U K 50V
C5520 F1G1C104A077 CERAMIC 0.1U K 16V
C5522 F1G1H390A541 CERAMIC 39P J 50V
C5523 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5525 F1G1H221A737 CERAMIC 220P J 50V
C5527 F1G1H103A706 CERAMIC 0.01U K 50V
C5528 F1G1C104A077 CERAMIC 0.1U K 16V
C5531 F1G1C104A077 CERAMIC 0.1U K 16V
C5532 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5533 F1G1C104A077 CERAMIC 0.1U K 16V
C5534 F1G1H103A706 CERAMIC 0.01U K 50V
C5535 F1G1H1020008 CERAMIC 1000P K 50V
C5536 F1G1H221A737 CERAMIC 220P J 50V
C5537 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5538 F1G1H1020008 CERAMIC 1000P K 50V
C5539 F1G1H103A706 CERAMIC 0.01U K 50V
C5540 F1G1H1020008 CERAMIC 1000P K 50V
C5541 F1G1H103A706 CERAMIC 0.01U K 50V
C5542 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5543 F1G1H103A706 CERAMIC 0.01U K 50V
C5544 F1G1A105A047 CERAMIC 1U K 10V
C5546 F1G1C104A077 CERAMIC 0.1U K 16V
C5547 F1G1H392A571 CERAMIC 3900P K 50V
C5549 F1G1C104A077 CERAMIC 0.1U K 16V
C5550 F1G1H103A706 CERAMIC 0.01U K 50V
C5551 F1G1H1020008 CERAMIC 1000P K 50V
C5552 F1G1C104A077 CERAMIC 0.1U K 16V
C5553 F1G1H103A706 CERAMIC 0.01U K 50V
C5554 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5555 F1G1C104A077 CERAMIC 0.1U K 16V
C5556 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5557 F1G1A105A047 CERAMIC 1U K 10V
C5558 F1G1H1020008 CERAMIC 1000P K 50V
C5559 F1G1H1020008 CERAMIC 1000P K 50V
C5560 F1G1A105A047 CERAMIC 1U K 10V
C5561 F1G1H1020008 CERAMIC 1000P K 50V
C5562 F1G1C104A077 CERAMIC 0.1U K 16V
C5563 F1G1C104A077 CERAMIC 0.1U K 16V
C5565 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5566 F1G1A105A047 CERAMIC 1U K 10V
C5567 F1H0J4750004 CERAMIC 4.7U K 6.3V
C5568 F1G1H1020008 CERAMIC 1000P K 50V
C5569 F1G1C104A077 CERAMIC 0.1U K 16V

– 11 –
Schematic
Location Part No. Description Schematic Location Part No. Description
C5570 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5571 F1G1C104A077 CERAMIC 0.1U K 16V
C5572 F1G1A105A047 CERAMIC 1U K 10V
C5574 F1G1A105A047 CERAMIC 1U K 10V
C5575 F1G1A105A047 CERAMIC 1U K 10V
C5576 F1G1A105A047 CERAMIC 1U K 10V
C5577 F1G1A105A047 CERAMIC 1U K 10V
C5578 F1G1A105A047 CERAMIC 1U K 10V
C5579 F1G1A105A047 CERAMIC 1U K 10V
C5580 F1G1A105A047 CERAMIC 1U K 10V
C5581 F1G1E473A091 CERAMIC 0.047U K 25V
C5583 F1G1E473A091 CERAMIC 0.047U K 25V
C5585 F1G1H103A706 CERAMIC 0.01U K 50V
C5586 F1G1E473A091 CERAMIC 0.047U K 25V
C5588 F1G1E473A091 CERAMIC 0.047U K 25V
C5590 F1G1E473A091 CERAMIC 0.047U K 25V
C5592 F1G1C104A077 CERAMIC 0.1U K 16V
C5593 F1G1E473A091 CERAMIC 0.047U K 25V
C5595 F1G1E473A091 CERAMIC 0.047U K 25V
C5597 F1G1H103A706 CERAMIC 0.01U K 50V
C5598 F1G1E473A091 CERAMIC 0.047U K 25V
C5600 F1G1E473A091 CERAMIC 0.047U K 25V
C5602 F1G1E473A091 CERAMIC 0.047U K 25V
C5605 F1G1H220A541 CERAMIC 22P J 50V
C5606 F1G1H390A541 CERAMIC 39P J 50V
C5608 F1G1H220A541 CERAMIC 22P J 50V
C5613 F1H1H1500009 CERAMIC 15P J 50V
C5614 F1H1H1500009 CERAMIC 15P J 50V
C5615 F1G1C104A077 CERAMIC 0.1U K 16V
C5616 F1G1C104A077 CERAMIC 0.1U K 16V
C5618 F1G1C104A077 CERAMIC 0.1U K 16V
C5619 F1G1H150A541 CERAMIC 15P J 50V
C5620 F1G1H150A541 CERAMIC 15P J 50V
C5650 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5653 F1G1C104A077 CERAMIC 0.1U K 16V
C5661 F1G1C104A077 CERAMIC 0.1U K 16V
C5700 F1G1A105A047 CERAMIC 1U K 10V
C5701 F1G1C104A077 CERAMIC 0.1U K 16V
C5702 F1G1A105A047 CERAMIC 1U K 10V
C5703 F1G1C104A077 CERAMIC 0.1U K 16V
C5704 F1G1C104A077 CERAMIC 0.1U K 16V
C5705 F1G1C104A077 CERAMIC 0.1U K 16V
C5707 F1G1C104A077 CERAMIC 0.1U K 16V
C5708 F1G1C104A077 CERAMIC 0.1U K 16V
C5709 F1G1C104A077 CERAMIC 0.1U K 16V
C5711 F1G1C104A077 CERAMIC 0.1U K 16V
C5712 F1G1C104A077 CERAMIC 0.1U K 16V
C5713 F1G1C104A077 CERAMIC 0.1U K 16V
C5714 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5715 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C5750 F1G1A105A047 CERAMIC 1U K 10V
C5902 F1G1C104A077 CERAMIC 0.1U K 16V
C5903 F1G1A684A047 CERAMIC 0.68U K 10V
C5905 F1G1C104A077 CERAMIC 0.1U K 16V
C6250 F1G1A105A047 CERAMIC 1U K 10V
C6251 F1G1H1020008 CERAMIC 1000P K 50V
C6252 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6253 F2G1C101A066 ELECT 100U M 16V
C6254 F1G1C104A077 CERAMIC 0.1U K 16V
C6255 F1G1H560A541 CERAMIC 56P J 50V
C6256 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6257 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6258 F1G1H560A541 CERAMIC 56P J 50V
C6259 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6260 F1G1H1020008 CERAMIC 1000P K 50V
C6261 F1G1A105A047 CERAMIC 1U K 10V
C6330 F1G1C104A077 CERAMIC 0.1U K 16V
C6332 F2G1C221A066 ELECT 220U M 16V
C6500 F1G1C104A077 CERAMIC 0.1U K 16V
C6501 F1G1C104A077 CERAMIC 0.1U K 16V
C6530 F1G1C104A077 CERAMIC 0.1U K 16V
C6531 F1G1C104A077 CERAMIC 0.1U K 16V
C6560 F1G1C104A077 CERAMIC 0.1U K 16V
C6561 F1G1C104A077 CERAMIC 0.1U K 16V
C6600 F1G1A105A047 CERAMIC 1U K 10V
C6601 F1G1A105A047 CERAMIC 1U K 10V
C6701 F1G1C104A077 CERAMIC 0.1U K 16V
C6702 F1G1C104A077 CERAMIC 0.1U K 16V
C6703 F1J0J106A004 CERAMIC 10U K 6.3V
F1J0J106A020 CERAMIC 10U K 6.3V
C6706 F1G1C104A077 CERAMIC 0.1U K 16V
C6707 F2G1C471A066 ELECT 470U M 16V
C6708 F1G1A2240008 CERAMIC 0.22U K 10V
C6720 F1H0J4750004 CERAMIC 4.7U K 6.3V
C6721 F1G1C104A077 CERAMIC 0.1U K 16V
C6722 F1G1C104A077 CERAMIC 0.1U K 16V
C6723 F1G1A105A047 CERAMIC 1U K 10V
C6724 F1G1H392A571 CERAMIC 3900P K 50V
C6727 F2G1C471A066 ELECT 470U M 16V
C6728 F1G1H103A706 CERAMIC 0.01U K 50V
C6729 F1G1C104A077 CERAMIC 0.1U K 16V
C6730 F1G1H221A737 CERAMIC 220P J 50V
C6733 F1G1A105A047 CERAMIC 1U K 10V
C6740 F1G1A2240008 CERAMIC 0.22U K 10V
C6741 F1G1C104A077 CERAMIC 0.1U K 16V
C6742 F1G1C104A077 CERAMIC 0.1U K 16V
C6743 F2G1C221A066 ELECT 220U M 16V
C6752 F1G1E473A091 CERAMIC 0.047U K 25V
C6753 F1G1A105A047 CERAMIC 1U K 10V
C6754 F1G1A105A047 CERAMIC 1U K 10V

– 12 –
Schematic
Location Part No. Description Schematic Location Part No. Description
DIODES
D002 B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
B0ACDJ000017 DIODE 1SS352(TH3 F T)
DDDA2J10100LG DIODE DA2J10100L
D003 B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
B0ACDJ000017 DIODE 1SS352(TH3 F T)
DDDA2J10100LG DIODE DA2J10100L
D007 B0BC6R100010 ZD UDZS-TE-176.2B
B0BC6R2A0384 ZENER DIODE MM3Z6V2B
DZDZ2J062M0LG ZD DIODE DZ2J062M0L
D008 B0BC6R100010 ZD UDZS-TE-176.2B
B0BC6R2A0384 ZENER DIODE MM3Z6V2B
DZDZ2J062M0LG ZD DIODE DZ2J062M0L
D6700 B0ACCK000019 DIODE 1SS355
B0ACDJ000007 DIODE 1SS352-(TPH3)
B0ACDJ000017 DIODE 1SS352(TH3 F T)
DDDA2J10100LG DIODE DA2J10100L
INTEGRATED CIRCUITS
IC001 C1AB00003628 IC STA333W13TR
IC5500 C1AB00003956 IC ZR39748HGCG
IC5700 C3ABSY000102 IC H5PS5162GFR-S6C
IC5750 QXXAAJQ1300— IC S25FL064P0XMFI0 N8LJ
IC5900 C0EBY0001079 IC XC6118N28AMR-G
IC6250 C0ABBB000350 IC BA4558RF-E2
C0ABBB000450 IC NJM4558M-TE2
IC6500 C0JBAA000345 “IC TC7SET08FU(T5L,JF)”
C0JBAA000502 “IC TC7SET08FU(5L,JF,T”
C0JBAA000505 IC 74AHCT1G08GW
IC6530 C0JBAA000345 “IC TC7SET08FU(T5L,JF)”
C0JBAA000502 “IC TC7SET08FU(5L,JF,T”
C0JBAA000505 IC 74AHCT1G08GW
IC6560 C0JBAA000345 “IC TC7SET08FU(T5L,JF)”
C0JBAA000502 “IC TC7SET08FU(5L,JF,T”
C0JBAA000505 IC 74AHCT1G08GW
IC6600 C0DBZYY00485 IC NCP380HSN05AAT1G
IC6700 C0CBAYG00009 IC LM1117S-ADJ
IC6720 C0DBAYY01122 IC BD9328EFJ-E2
IC6750 C0DBGYY02242 IC AP2128K-ADJTRG1
COILS
L001 G1C220MA0445 “INDUCTOR ,22UH”
L002 G1C220MA0445 “INDUCTOR ,22UH”
L003 G1C220MA0445 “INDUCTOR ,22UH”
L009 J0JCC0000371 “INDUCTOR , 120 OHM”
L011 J0JYC0000381 “INDUCTOR , 220 OHM”
L012 J0JYC0000381 “INDUCTOR , 220 OHM”
L013 G1C220MA0445 “INDUCTOR ,22UH”
L017 J0JCC0000371 “INDUCTOR , 120 OHM”
L5500 J0JCC0000371 “INDUCTOR , 120 OHM”
L5501 J0JCC0000371 “INDUCTOR , 120 OHM”
L5502 J0JCC0000371 “INDUCTOR , 120 OHM”
L5503 J0JYC0000381 “INDUCTOR , 220 OHM”
L5504 J0JYC0000381 “INDUCTOR , 220 OHM”
L5505 J0JCC0000371 “INDUCTOR , 120 OHM”
L5506 J0JCC0000371 “INDUCTOR , 120 OHM”
L5507 J0JCC0000371 “INDUCTOR , 120 OHM”
L5508 J0JCC0000371 “INDUCTOR , 120 OHM”
L5509 J0JCC0000371 “INDUCTOR , 120 OHM”
L5510 J0JCC0000371 “INDUCTOR , 120 OHM”
L5511 J0JCC0000371 “INDUCTOR , 120 OHM”
L5512 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
L5513 J0JCC0000371 “INDUCTOR , 120 OHM”
L5514 J0JCC0000371 “INDUCTOR , 120 OHM”
L5515 J0JCC0000371 “INDUCTOR , 120 OHM”
L5516 G1CR22JA0135 “INDUCTOR ,0.22UH”
L6313 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6314 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6315 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6316 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6317 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6318 J0JAD0000028 “IMPEDANCE,200 OHM M”
L6720 G1C220MA0445 “INDUCTOR ,22UH”
L6721 D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
D0GDR00JA072 MT-GLAZE 0.000 ZA 1/10W
D0GDR00Z0002 MT-GLAZE 0.000 ZA 1/10W
TRANSISTORS
Q6250 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6251 B1ADCF000004 TR 2SA1037AK-S-T146
B1ADCF000194 TR ISA1235AC1F
B1ADCF000195 TR 2SA1037AK-T146-R
B1ADCF000201 TR ISA1235AC1E
B1ADDF000004 TR 2SA1235A1F
Q6252 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6329 B1CHPD000006 TR CPH3338-T-TL-E
B1DHDD000041 TR AO3407A
Q6331 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6700 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6701 B1CHPD000006 TR CPH3338-T-TL-E
B1DHDD000041 TR AO3407A
Q6720 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6721 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R

– 13 –
Schematic
Location Part No. Description Schematic Location Part No. Description
B1ABDF000024 TR 2SC3928A1S
Q6730 B1CFRC000023 TR MCH6437-P-TL-E
Q6740 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6741 B1ABCE000028 TR MMBTSC3928R
B1ABDF000013 TR 2SC3928A1R
B1ABDF000024 TR 2SC3928A1S
Q6742 B1CFRC000023 TR MCH6437-P-TL-E
RESISTORS
R001 D0GB5R6JA040 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA090 MT-GLAZE 5.6 JA 1/10W
R002 D0GB5R6JA040 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA090 MT-GLAZE 5.6 JA 1/10W
R003 D0GB5R6JA040 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA090 MT-GLAZE 5.6 JA 1/10W
R004 D0GB5R6JA040 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA072 MT-GLAZE 5.6 JA 1/10W
D0GB5R6JA090 MT-GLAZE 5.6 JA 1/10W
R005 D0GB470J0002 MT-GLAZE 47 JA 1/10W
D0GB470JA041 MT-GLAZE 47 JA 1/10W
D0GB470JA089 MT-GLAZE 47 JA 1/10W
R006 D0GB470J0002 MT-GLAZE 47 JA 1/10W
D0GB470JA041 MT-GLAZE 47 JA 1/10W
D0GB470JA089 MT-GLAZE 47 JA 1/10W
R007 J0JCC0000371 “INDUCTOR, 120 OHM”
R008 J0JCC0000371 “INDUCTOR, 120 OHM”
R009 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R010 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R012 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R013 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R015 D0GB222JA041 MT-GLAZE 2.2K JA 1/10W
D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
D0GB222JA089 MT-GLAZE 2.2K JA 1/10W
R019 D0GB222JA041 MT-GLAZE 2.2K JA 1/10W
D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
D0GB222JA089 MT-GLAZE 2.2K JA 1/10W
R022 D0GB470J0002 MT-GLAZE 47 JA 1/10W
D0GB470JA041 MT-GLAZE 47 JA 1/10W
D0GB470JA089 MT-GLAZE 47 JA 1/10W
R023 D0GB470J0002 MT-GLAZE 47 JA 1/10W
D0GB470JA041 MT-GLAZE 47 JA 1/10W
D0GB470JA089 MT-GLAZE 47 JA 1/10W
R5500 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5501 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5502 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5503 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5504 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5505 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
D0GB123ZA068 MT-GLAZE 12K FA 1/10W
D1BB1202A055 MT-GLAZE 12K FA 1/10W
R5506 D0GB821ZA037 MT-GLAZE 820 FA 1/10W
D0GB821ZA068 MT-GLAZE 820 FA 1/10W
D1BB8200A055 MT-GLAZE 820 FA 1/10W
R5507 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
D0GB102JA089 MT-GLAZE 1K JA 1/10W
R5508 D0GB123ZA038 MT-GLAZE 12K FA 1/10W
D0GB123ZA068 MT-GLAZE 12K FA 1/10W
D1BB1202A055 MT-GLAZE 12K FA 1/10W
R5509 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
D0GB472ZA068 MT-GLAZE 4.7K FA 1/10W
D1BB4701A055 MT-GLAZE 4.7K FA 1/10W
R5510 D0GB472ZA038 MT-GLAZE 4.7K FA 1/10W
D0GB472ZA068 MT-GLAZE 4.7K FA 1/10W
D1BB4701A055 MT-GLAZE 4.7K FA 1/10W
R5513 D0GB820JA041 MT-GLAZE 82 JA 1/10W
D0GB820JA072 MT-GLAZE 82 JA 1/10W
D0GB820JA089 MT-GLAZE 82 JA 1/10W
R5514 D0GB100JA041 MT-GLAZE 10 JA 1/10W
D0GB100JA072 MT-GLAZE 10 JA 1/10W
D0GB100JA089 MT-GLAZE 10 JA 1/10W
R5516 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5517 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5518 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5519 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5520 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5522 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
D0GB102JA089 MT-GLAZE 1K JA 1/10W

– 14 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5523 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5524 D0GB391ZA037 MT-GLAZE 390 FA 1/10W
D0GB391ZA068 MT-GLAZE 390 FA 1/10W
D1BB3900A055 MT-GLAZE 390 FA 1/10W
R5525 D0GB472JA041 MT-GLAZE 4.7K JA 1/10W
D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
D0GB472JA089 MT-GLAZE 4.7K JA 1/10W
R5526 D0GB472JA041 MT-GLAZE 4.7K JA 1/10W
D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
D0GB472JA089 MT-GLAZE 4.7K JA 1/10W
R5527 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5528 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5529 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5530 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5531 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5532 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5533 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5534 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5535 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5536 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5537 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5538 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5539 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5540 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5541 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5542 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5543 D0GB273JA041 MT-GLAZE 27K JA 1/10W
D0GB273JA072 MT-GLAZE 27K JA 1/10W
D0GB273JA089 MT-GLAZE 27K JA 1/10W
R5544 D0GB333JA041 MT-GLAZE 33K JA 1/10W
D0GB333JA070 MT-GLAZE 33K JA 1/10W
D0GB333JA089 MT-GLAZE 33K JA 1/10W
R5545 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5546 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5547 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5548 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5549 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5550 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5551 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5552 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5553 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5554 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5555 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5556 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5557 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5558 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5559 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5560 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5561 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5562 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W

– 15 –
Schematic
Location Part No. Description Schematic Location Part No. Description
R5563 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5564 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5565 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5566 D0GB750JA041 MT-GLAZE 75 JA 1/10W
D0GB750JA072 MT-GLAZE 75 JA 1/10W
D0GB750JA089 MT-GLAZE 75 JA 1/10W
R5567 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5568 D0GB221JA041 MT-GLAZE 220 JA 1/10W
D0GB221JA069 MT-GLAZE 220 JA 1/10W
D0GB221JA089 MT-GLAZE 220 JA 1/10W
R5569 D0GB105JA041 MT-GLAZE 1M JA 1/10W
D0GB105JA071 MT-GLAZE 1M JA 1/10W
D0GB105JA089 MT-GLAZE 1M JA 1/10W
R5570 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5572 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5573 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5574 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5575 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5576 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5577 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5578 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5579 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5581 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5582 D0GB222JA041 MT-GLAZE 2.2K JA 1/10W
D0GB222JA072 MT-GLAZE 2.2K JA 1/10W
D0GB222JA089 MT-GLAZE 2.2K JA 1/10W
R5583 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5584 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5585 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5586 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5587 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
D0GB102JA089 MT-GLAZE 1K JA 1/10W
R5588 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
D0GB102JA089 MT-GLAZE 1K JA 1/10W
R5589 D0GB102JA041 MT-GLAZE 1K JA 1/10W
D0GB102JA071 MT-GLAZE 1K JA 1/10W
D0GB102JA089 MT-GLAZE 1K JA 1/10W
R5591 D0GB472JA041 MT-GLAZE 4.7K JA 1/10W
D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
D0GB472JA089 MT-GLAZE 4.7K JA 1/10W
R5592 D0GB472JA041 MT-GLAZE 4.7K JA 1/10W
D0GB472JA072 MT-GLAZE 4.7K JA 1/10W
D0GB472JA089 MT-GLAZE 4.7K JA 1/10W
R5593 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5594 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5598 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5599 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5603 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5650 D0GBR00JA071 MT-GLAZE 0.000 ZA 1/10W
D0GBR00Z0002 MT-GLAZE 0.000 ZA 1/10W
R5660 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5700 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D0GB101ZA068 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5701 D0GB101JA041 MT-GLAZE 100 JA 1/10W
D0GB101JA069 MT-GLAZE 100 JA 1/10W
D0GB101JA089 MT-GLAZE 100 JA 1/10W
R5702 D0GB101ZA037 MT-GLAZE 100 FA 1/10W
D0GB101ZA068 MT-GLAZE 100 FA 1/10W
D1BB1000A055 MT-GLAZE 100 FA 1/10W
R5750 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
R5751 D0GB103JA041 MT-GLAZE 10K JA 1/10W
D0GB103JA072 MT-GLAZE 10K JA 1/10W
D0GB103JA089 MT-GLAZE 10K JA 1/10W
