Sanyo DS32424 User manual

Contents
Safety Instructions . . . . . . . . . . . . . . . . . . 2
Service Adjustments. . . . . . . . . . . . . 3 - 10
Service Hints. . . . . . . . . . . . . . . . . . . . . . 11
Mechanical Disassemblies. . . . . . . . . . . 12
Chassis Electrical Parts List . . . . . . 13 - 25
Cabinet Parts List . . . . . . . . . . . . . . . . . . 26
Component and Test Point
Locations . . . . . . . . . . . . . . . . . . . 27 - 32
Schematic Insert . . . . . . . . . . . . . . . 33 - 40
Schematic Notes . . . . . . . . . . . . . . . . . 33
Pin Layouts . . . . . . . . . . . . . . . . . . . . . 33
Capacitor and Resistor Codes . . . . . . 33
Block Diagram. . . . . . . . . . . . . . . 34 - 35
Voltage Charts . . . . . . . . . . . . . . . 34 - 36
Waveforms. . . . . . . . . . . . . . . . . . . . . . 36
Main PC Board . . . . . . . . . . . . . . . 37 - 40
Audio/Video Board. . . . . . . . . . . . 39 - 40
CRT Socket Board . . . . . . . . . . . . . . . . 37
Pincushion Correction Board . . . . . . . 37
Specifications
Power Rating . . . . . . . . . . . . . . . . . . . . . 120V, 60Hz
100W (Avg), 2.5A (Max)
Antenna Input Impedance. . . . . . . . . . . . . . . . . 75Ω
UHF/VHF/CATV
Receiving Channel . . . . . . . . . . . . . . . . 2 - 13 (VHF),
14 - 69 (UHF),
01, 14-94, 95-125 (CATV)
Remote Ready . . . . . . . . . . 39 Key Remote Control
Sound Output . . . . . . . . . . . . . . . . . . . . . . 3.0 W/CH
Intermediate Frequency
Picture IF Carrier. . . . . . . . . . . . . . . . . . 45.75MHz
Sound IF Carrier . . . . . . . . . . . . . . . . . . 41.25MHz
Color Sub Carrier . . . . . . . . . . . . . . . . . 42.17MHz
Picture Tube. . . . . . . . . . . . . . . . . . . A80ERF082X13
Semiconductors
Integrated Circuits. . . . . . . . . . . . . . . . . . . . . . . 13
Transistors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Except within Tuner and RC Pre-Amp.
Cabinet Dimensions
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 768 mm
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . 732 mm
Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 577 mm
REFERENCE No. SM780093
DS32424, G7ZEA, PRODUCT CODE 111372384
AS
FILE NO.
SERVICE MANUAL Remote Control Color
Television DS32424 (U.S.A.)
(CANADA)
ORIGINALVERSION
Chassis No. 32424-00
NOTE: Match the Chassis No. on
the unit’s back cover with
the Chassis No. in the
Service Manual.
If the Original Version
Service Manual Chassis
No. does not match the
unit’s, additional Service
Literature is required. You
must refer to “Notices” to the
Original Service Manual
prior to servicing the unit.
VIEW
FLAT
MENU CH VOL VOL POWER
CH
+
_
AS

— 2 —
SAFETY PRECAUTIONS
WARNING: The chassis of this receiver has a floating
ground with the potential of one half the AC line voltage in
respect to earth ground. Service should not be attempted by
anyone not familiar with the precautions necessary when
working on this type of equipment.
The following precautions must be observed:
1. An isolation transformer must be connected in the power
line between the receiver and the AC line before any ser-
vice is performed on the receiver.
2. Comply with all caution and safety-related notes provid-
ed on the side of the cabinet, inside the cabinet, on the
chassis, and the picture tube.
3. When replacing a chassis in the cabinet, always be certain
that all the protective devices are installed properly, such
as control knobs, adjustment covers, shields and barriers.
DO NOT OPERATE THIS TELEVISION RECEIVER
WITHOUT THE PROTECTIVE SHIELD IN POSITION AND
PROPERLY SECURED.
4. Before replacing the back cover of the set, thoroughly
inspect the inside of the cabinet to see that no stray parts
or tools have been left inside.
Before returning any television to the customer, the
service technician must perform the following safety
checks to be sure that the unit is completely safe to
operate without danger of electrical shock.
ANTENNA COLD CHECK
Remove AC plug from the 120 VAC outlet and place a
jumper across the two blades. Connect one lead of an ohm-
meter to the jumpered AC plug, and touch the other lead to
each exposed antenna terminal (UHF and VHF antenna ter-
minals). The resistance must measure between 1M ohm and
5.2M ohm. Any resistance value below or above this range
indicates an abnormality which requires corrective action.
LEAKAGE CURRENT CHECK
Plug the AC line cord directly into a 120 VAC outlet. (Do not
use an isolation transformer for this check.) Use an AC volt-
meter, that has 5000 ohms per volt or more sensitivity.
Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15 µF
150 VAC capacitor, between a known good earth ground
(water pipe, conduit, etc.) and all exposed metal parts of the
cabinet (antennas, handle bracket, metal cabinet, screw
heads, metal overlays, control shafts, etc.). Measure the AC
voltage across the 1500 ohm resistor. The AC voltage
should not exceed 750 mV. A reading exceeding 750 mV
indicates that a dangerous potential exists. The fault must
be located and corrected. Repeat the above test with the
receiver power plug reversed.
NEVER RETURN A RECEIVER TO THE CUSTOMER
WITHOUT TAKING THE NECESSARY CORRECTIVE ACTION.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in solid-state receivers is
the picture tube. The picture tube is specially constructed to
limit X-Ray emission. For continued X-RADIATION protection,
the replacement tube must be the same type as the original
(including the suffix letter in the part numbers). Excessive high
voltage may produce potentially hazardous X-RADIATION. To
avoid such hazards, the high voltage must be maintained within
specific limits. Refer to the X-RADIATION WARNING NOTE on
the CHASSIS SCHEMATIC in this service manual for specific
high voltage limits. If the high voltage exceeds specified limits,
check the components specified on the chassis schematic
diagram and take the necessary corrective action. Carefully
follow the instructions for the +B Voltage Check and the High
Voltage Check to maintain the high voltage within the specified
limits.
HIGHVOLTAGE HOLD-DOWNTEST
To prevent X-RADIATION from the picture tube due to
excessive high voltage, a HOLD-DOWN circuit is provided in
the high voltage circuit. Every time the receiver is serviced,
the high voltage HOLD-DOWN circuit must be tested for
proper operation. Refer to the HIGH VOLTAGE HOLD-
DOWN TEST in service adjustments.
PRODUCT SAFETY NOTICE
When replacing components in a receiver, always keep in
mind the necessary product safety precautions. Pay special
attention to the replacement of components marked with a
star (★) in the parts list and in the schematic diagrams. To
ensure safe product operation, it is necessary to replace
those components with the exact same PARTS.
SAFETY INSTRUCTIONS
0.15 µF 150V AC
1500 ohm
10 watt
Good earth ground
such as a water pipe,
conduit, etc.
AC OUTLET
TELEVISION
RECEIVER
READING SHOULD NOT EXCEED 750 mV.
AC VOLTMETER
(5000 ohms per volt or more sensitivity)
To be touched to all of exposed metal parts.
Voltmeter Hook-up for Leakage Current Check.

GENERAL
This set has an on-screen Service Menu system included in the CPU that allows remote operation for most of the service adjustments.
To enter the Service Menu, first disconnect the AC power cord. Then while pressing the MENU key on the front control panel, recon-
nect the AC power cord. The adjustments can now be made with the remote control or front control panel keys.
ON-SCREEN SERVICE MENU SYSTEM
1. Enter the Service Menu:
•While pressing the MENU key on the front control panel, reconnect the AC
power cord. The Service Menu Display will now appear. See Figure 1.
2. Service Adjustments:
•Press the ▲or ▼key to select the desired service menu item you
want to adjust. (See page 5 for On-screen Service Menu.)
•Use the + or – key or number keys to adjust the data.
The + or – keys will increase or decrease the data sequentially.
The number keys (0 ~ 7) toggle only their respective bits between
1 and 0 and are used to change the Sub-Address. For example to
change bit 5 press the number 5 key. See below.
3. Exit from the Service Menu:
•Press the MENU key to turn off the Service Menu display.
SERVICE ADJUSTMENTS
— 3 —
IC802 (EEPROM) REPLACEMENT
When IC802 (EEPROM) is replaced, IC801 (CPU) will automatically write the initial reference data into IC802 for basic TV operation.
However, the bus data should be checked and some bus data should be set up before attempting the service adjustments.
(See pages 5 – 7, Table 1, for detailed bus data information.)
INITIAL BUS DATA SETUP
Note: When IC802 (EEPROM) is replaced, change the following initial reference data for proper TV operation before
attempting service adjustments.
1. Disconnect the AC power cord (AC 120V line).
2. While pressing the MENU key, reconnect the AC power cord. The Service Menu display will now appear.
3. Select NO. 3C SCO (Sub Color) with ▲or ▼key. Adjust the data with + or – key for 25.
4. Select NO. 3D STI (Sub Tint) with ▲or ▼key. Adjust the data with + or – key for 0C.
5. Select NO. 3F SSH (Sub Sharpness) with ▲or ▼key. Adjust the data with + or – key for 02.
6. Select NO. 40 AFC6HFR (AFC / H Frequency) with ▲or ▼key. Adjust the data with number keys for BF.
7. Select NO. 41 VTR7HP (V Trans / H Phase with ▲or ▼key. Adjust the data with + or – key for 12.
8. Select NO. 42 VS (V Size) with ▲or ▼key. Adjust the data with + or – key for 2F.
9. Select NO. 43 VSP7VPO (V Sync Sep / V Position) with ▲or ▼key. Adjust the data with number keys for 20.
10. Select NO. 44 CDM5UVL (V Count Dn Mode / V Lin Top) with ▲or ▼key. Adjust the data with number keys for 0F.
11. Select NO. 45 VC5LVL (V Compresion / V Lin Bottom) with ▲or ▼key. Adjust the data with number keys for 4A.
12. Select NO. 46 VSC (V S Correction) with ▲or ▼key. Adjust the data with + or – key for 0C.
13. Select NO. 4A RD (Red Drive) with ▲or ▼key. Adjust the data with + or – key for 3A.
14. Select NO. 4C BD (Blue Drive) with ▲or ▼key. Adjust the data with + or – key for 3A.
15. Select NO. 4D SBI (Sub Bias) with ▲or ▼key. Adjust the data with + or – key for 44.
16. Select NO. 50 OSD (On Screen Display Contrast) with ▲or ▼key. Adjust the data with + or – key for 06.
17. Select NO. 54 FLS (Y/C Filter Mode) with ▲or ▼key. Adjust the data with + or – key for 83.
18. Select NO. 57 YGM6DCR4BSS2BSG (Y Gamma / DC Reset / Black Streak Start / Black Streak Gain) with ▲or ▼key.
Adjust the data with number keys for A1.
SCO
3C 1C 00011100
Figure 1. Service Menu Display
ITEM NO.
TITLE
BINARY DATA
(8 bit)
HEX DATA
(b7) (b6) (b5) (b4) (b3) (b2) (b1) (b0)
0 1 0 1 0 1 1 0 BINARY DATA
(8 bit)

INITIAL BUS DATA SETUP (Cont.)
19. Select NO. 58 AFC7CBP5 (Auto Flesh / C Band Pass Filter) with ▲or ▼key. Adjust the data with number keys for C0.
20. Select NO. 59 DIG6ABL5MSD4BAT (OSD D/A / ABL Defeat / Mid Stop / ABL Threshold) with ▲or ▼key. Adjust the data
with numbers key for 64.
21. Select NO. 5A RYA (R-Y/B-Y Angle) with ▲or ▼key. Adjust the data with + or – key for 00.
22. Select NO. 5F VL5BPF (Video Level / S BPF Sw) with ▲or ▼key. Adjust the data with + or – key for 80.
23. Select NO. 60 EWD (E/W DC) with ▲or ▼key. Adjust the data with + or – key for 2B.
24. Select NO. 61 EWA (E/W Amp) with ▲or ▼key. Adjust the data with + or – key for 22.
25. Select NO. 62 EWT (E/W Tilt) with ▲or ▼key. Adjust the data with + or – key for 21.
26. Select NO. 63 EWB4EWP (E/W Corner Btm / E/W Corner Top) with ▲or ▼key. Adjust the data with number keys for B8.
27. Select NO. 64 EWC7HLV6HSC (E/W Cor Sw / H Lock V Det / H Size Comp) with ▲or ▼key. Adjust the data with
number keys for 02.
28. Select NO. 65 BOW4ANG (Bow Correct / Angle Correct) with ▲or ▼key. Adjust the data with number keys for 87.
29. Select NO. 66 PRE6OVR4CTT (Pre Shoot Adj / Over Shoot Adj / Chroma Trap Test) with ▲or ▼key. Adjust the data
with number keys for 20.
30. Select NO. 67 HBL4HBR (H Blanking L / H Blanking R) with ▲or ▼key. Adjust the data with number keys for 2A.
31. Select NO. 6A YTH2YGA (Y TH / Y Gain) with ▲or ▼key. Adjust the data with number keys for 0D.
32. Select NO. 6B RWD6ROF4BWD2BOF (R Width / R Offset / B Width / B Offset) with ▲or ▼key. Adjust the data with
number keys for 10.
33. Select NO. 83 OPT (Asp Ratio / Comb F / Clock / Scan Veloc) with ▲or ▼key. Adjust the data with number keys for 3C.
34. Select NO. 84 OP2 (V Guide / Tone / AV / PIP / F/V / I-Ch / C En / C En Select) with ▲or ▼key. Adjust the data with
number keys for 2E.
35. Select NO. 8D HR (H Display Position) with ▲or ▼key. Adjust the data with + or – key for 1C.
36. Select NO. 8E SBO (Sub Bright Offset) with ▲or ▼key. Adjust the data with + or – key for 00.
37. Select NO. 92 DTN (YUV Sub Tint) with ▲or ▼key. Adjust the data with + or – key for FC.
38. Select NO. 96 BDC (YUV Cb Offset) with ▲or ▼key. Adjust the data with + or – key for 00.
39. Select NO. 97 RDC (YUV Cr Offset) with ▲or ▼key. Adjust the data with + or – key for 00.
40. Select NO. 9A ECN (16:9 Sub Contrast) with ▲or ▼key. Adjust the data with + or – key for F0.
41. Select NO. 9B EBR (16:9 Sub Bright) with ▲or ▼key. Adjust the data with + or – key for FB.
42. Select NO. 9E EVS (16:9 Sub V Size) with ▲or ▼key. Adjust the data with + or – key for F5.
43. Select NO. A0 EEA(16:9 Sub E/W Amp) with ▲or ▼key. Adjust the data with + or – key for EF.
44. Select NO. A1 EET (16:9 Sub E/W Tilt) with ▲or ▼key. Adjust the data with + or – key for FF.
45. Select NO. A2 EEP (16:9 Sub E/W Corner Top) with ▲or ▼key. Adjust the data with + or – key for FC.
46. Select NO. A3 EEB (16:9 Sub E/W Corner Bottom) with ▲or ▼key. Adjust the data with + or – key for FD.
47. Select NO. A4 EUV (16:9 Sub V Lin Top) with ▲or ▼key. Adjust the data with + or – key for FD.
48. Select NO. A5 ELV (16:9 Sub V Lin Bottom) with ▲or ▼key. Adjust the data with + or – key for 03.
49. Select NO. AB VFL (Filter System AVt) with ▲or ▼key. Adjust the data with + or – key for 04.
50. Press the MENU key to turn off the Service Menu display.
— 4 —
SERVICE ADJUSTMENTS (Cont.)

— 5 —
Table 1. ON-SCREEN SERVICE MENU
When IC802 (EEPROM) is replaced, check the bus data to confirm they are the same as below. The shaded menu should be
checked and be set up or readjusted according to the procedures described in the following pages. Initial Setup Data marked
with an * should be changed from Initial Reference Data. (See pages 3 and 4 for Initial Bus Data Setup.)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
3C SCO 0F 25* 00011011 Sub Color
3D STI 15 0C* 00001110 Sub Tint
3E SB 20 20 00100000 Sub Bright
3F SSH 08 02* 00000101 Sub Sharpness
40 AFC6HFR A5 BF* 10111111 AFC(6) Horizontal Frequency
41 VTR7HP 0C 12* 00001111 Vertical Trans(7) Horizontal Phase
42 VS 40 2F* 00111110 Vertical Size
43 VSP7VPO 2A 20* 00101111 Vertical Sync Separator(7) Vertical Position
44 CDM5UVL 06 0F* 00001011 Vetical Count Down Mode(5) Vertical Linearity Top
45 VC5LVL 9E 4A* 01001101 Vertical Compression(5) Vertical Linearity Bottom
46 VSC 14 0C* 00010010 Vertical S Correction
47 RB 00 00 00000000 Red Bias
48 GB 00 00 00000000 Green Bias
49 BB 00 00 00000000 Blue Bias
4A RD 38 3A* 00111010 Red Drive
4B HT5HTD4GD 37 37 00110111 Half Tone(6~5) Half Tone Defeat(4) Green Drive
4C BD 38 3A* 00111010 Blue Drive
4D SBI 30 44* 00010111 Sub Bias
4E ↓↓↓↓Not Used
4F ↓↓↓↓Not Used
50 OSD 07 06* 00001010 On Screen Display Contrast
51 CRG6 80 80 10000000 Coring
52 ↓↓↓↓Not Used
53 ↓↓↓↓Not Used
54 FLS 84 83* 10000011 Y/C Filter Mode
55 GRY7CRS5GYA3CKO 03 03 00000011 Gray(7) Cross B/W(6~5) G-Y Angle(4) Color Killer
56 FBP6YAP4WP 42 42 01000001 FBP Blanking(6) Y APF(4) White Peak
57 YGM6DCR4BSS2BSG A5 A1* 01100001 Y Gamma(7~6) DC Reset(5~4) B Strk Start(3~2)B Strk Gain
58 AFC7CBP5 40 C0* 11000000 Auto Flesh(7) Color Band Pass Filter(5)
59 DIG6ABL5MSD4BAT 44 64* 01100100 OSD D/A(6) ABL Defeat(5) Mid Stop(4) ABL Threshold
5A RYA 0B 00* 00000000 R-Y/B-Y Angle
5B CBO4CRO 88 88 10001000 Cb DC Offset(7~4) Cr DC Offset
5C ↓↓↓↓Not Used
5D STS7RAD 20 20 00100000 S Trap Switch(7) RF AGC Delay
5E FMM7VIF4IAS 00 00 00000000 FM Mute(7) VIF System Switch(4) IF AGC
5F VL5BPF A0 80* 10000000 Video Level(7~5) S BPF Switch
60 EWD 28 2B* 00011000 E/W DC
61 EWA 17 22* 00010100 E/W Amp
62 EWT 1D 21* 00100001 E/W Tilt
63 EWB4EWP 88 B8* 10111001 E/W Corner Bottom(7~4) E/W Corner Top
64 EWC7HLV6HSC 03 02* 00000101 E/W Correction Sw(7) H Lock V Det(6) H Size Comp
65 BOW4ANG 78 87* 10011001 Bow Correction(7~4) Angle Correction
66 PRE6OVR4CTT C0 20* 00100000 Preshoot Adj(7~6) Overshoot Adj(5~4) Chroma Trap Test
67 HBL4HBR 38 2A* 00111010 H Blanking Left(7~4) H Blanking Right
68 SSP5VM 90 90 10010000 Sync Sep Sens(7~5) VM Gain
69 VBL4 00 00 00000000 V Size 0.75(7) V Blanking Select
6A YTH2YGA 00 0D* 00001101 Y TH(3~2) Y Gain
6B RWD6ROF4BWD2BOF 00 10* 00010000 R Width(7~6) R Offset(5~4) B Width(3~2) B Offset
80 ATT 07 07 00000111 Attenuation (MTS Input Level)

Table 1. ON-SCREEN SERVICE MENU (Continued)
— 6 —
SERVICE ADJUSTMENTS (Cont.)
No. TITLE INITIAL REFERENCE INITIAL SETUP INITIAL SETUP FUNCTION
DATA HEX DATA HEX DATA BINARY
81 WDB 20 20 00100000 Wide Band
82 SPC 20 20 00100000 Spectral
83 OPT 70 3C* 00111100 Aspect Ratio(5) Comb Filter(4) Clock(3) Scan Velocity(2)
84 OP2 52 2E* 00101110 V Guide(7) Tone(6) AV(5) PIP(4) F/V(3) I-Ch(2) C En(1) C En Sel
85 PUV 18 18 00011000 PIP Up Vertical Position
86 PDV 93 93 10010011 PIP Down Vertical Position
87 PLH 0A 0A 00001010 PIP Left Horizontal Position
88 PRH 65 65 01100101 PIP Right Horizontal Position
89 PCN 2A 2A 00101010 PIP Contrast
8A PBS 0F 0F 00001111 PIP BG Start
8B PCO 28 28 00101000 PIP Color
8C PTI 28 28 00101000 PIP Tint
8D HR 16 1C* 00011001 H Display Position
8E SBO 05 00* 00000000 Sub Bright Offset
8F DCN 00 00 00000000 YUV Sub Contrast
90 DBR 00 00 00000000 YUV Sub Bright
91 DCL 00 00 00000000 YUV Sub Color
92 DTN 00 FC* 11111100 YUV Sub Tint
93 DSP 00 00 00000000 YUV Sub Sharpness
94 DCG 00 00 00000000 YUV Sub Coring
95 DVM 00 00 00000000 YUV Sub VM
96 BDC 02 00* 00000000 YUV Cb Offset
97 RDC 02 00* 00000000 YUV Cr Offset
98 DHC 00 00 00000000 YUV Sub H Phase
99 DHS 00 00 00000000 YUV Sub E/W DC
9A ECN F4 F0* 11101001 16:9 Sub Contrast
9B EBR 00 FB* 11111011 16:9 Sub Bright
9C ECL 00 00 00000000 16:9 Sub Color
9D ETN 00 00 00000000 16:9 Sub Tint
9E EVS F9 F5* 11110111 16:9 Sub V Size
9F EVP 00 00 00000000 16:9 Sub V Position
A0 EEA F5 EF* 11111000 16:9 Sub E/W Amp
A1 EET FB FF* 00000010 16:9 Sub E/W Tilt
A2 EEP 00 FC* 11111111 16:9 Sub E/W Corner Top
A3 EEB FC FD* 00000000 16:9 Sub E/W Corner Bottom
A4 EUV FC FD* 11111110 16:9 Sub V Linearity Top
A5 ELV 00 03* 00000011 16:9 Sub V Linearity Bottom
A6 EWV 02 02 00000010 16:9 V Blanking Select
A7 SSN 02 02 00000010 Sync Separator Sense
A8 CDR 00 00 00000000 TV Count Down Mode
A9 AFR 00 00 00000000 AFC Loop Gain
AA B16 04 04 00000100 16:9 ABL VTH Sw
AB VFL 03 04* 00000100 Filter Sys (AV)
AC VCB 01 01 00000001 C Bypass (AV)
AD BWD 02 02 00000010 EWD AT AV Blue Back
AF DRV R40 R40 01000000 Red Drive Adjustment (See Note 1.)
R40 R40 01000000 Blue Drive Adjustment (See Note 1.)
– - - - Red Bias Adjustment (See Note 2.)
– - - - Green Bias Adjustment (See Note 2.)
– - - Blue Bias Adjustment (See Note 2.)

— 7 —
PROGRAM CODES
The microprossesor used in this model is a multi-purpose
type and is used in several different models. To ensure
proper operation and the correct features for your particu-
lar model, the program codes must be correct.
Note 1. Option Data 1 (NO. 83 OPT) should be hexadecimal
3C (00111100 binary). See page 4 INITIAL DATA SETUP,
step 32, for set up procedure. If this program code is wrong
the TV will not operate properly.
Note 2. Option Data 2 (NO. 84 OP2) should be hexadecimal
2E (00101110 binary). See page 4 INITIAL DATA SETUP,
step 33, for set up procedure. If this program code is wrong
the TV will not operate properly.
BIT FUNCTION DATA
01
0 ~1 NOT USED — —
2 SCAN VELOCITY NONE YES
3 CLOCK NONE YES
4 COMB FILTER NONE YES
5 WIDE MODE NONE YES
6 SURROUND NONE YES
7 NOT USED — —
BIT FUNCTION DATA
01
0SHIPPING CONDITION NORMAL COOL
OF COLOR ENHANCER
1 COLOR ENHANCER NONE YES
2 INITIAL CH & XDS NONE YES
3 FIXED/VARIABLE FIXED FIX/VAR
4 PIP NONE YES
5 AV INPUTS AV1/2 AV1/2/3
6 BASS & TREBLE / TONE BASS & TR TONE
7 V-GUIDE NONE YES
Note 1.
Red/Blue Drive Adjustments in Service Menu NO. AF DRV:
Adjust Red and Blue Drive Levels alternately with 1, 3, 7,
and 9 keys on the remote control. See Figure 2. The Drive
Level adjustment data will be written in the Service Menu
No. 4A RD and 4C BD automatically.
123
456
7 98
RB(–) RB(+)
BB(–) BB(+)
(N/A)
GB(–) (N/A) GB(+)
(N/A)
FOR RED BIAS ADJUSTMENT
FOR BLUE BIAS ADJUSTMENT
FOR GREEN BIAS ADJUSTMENT
Figure 2.
Figure 3.
123
4 5 6
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
(N/A) (N/A) (N/A)
(N/A)
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT
Note 2.
Red/Green/Blue Bias Adjustments in Service Menu
between AF and B0 (No Vertical Sweep):
Adjust each Bias Level with 1, 3, 4, 6, 7, or 9 key on the
remote control. See Figure 3. The Bias Level adjustment
data will be written in the Service Menu No. 47 RB,
No. 48 GB, and No. 49 BB automatically.
DRIVEAND BIASADJUSTMENTS

— 8 —
SERVICE ADJUSTMENTS (Continued)
ANTENNA CONNECTIONS
This receiver is designed for UHF/VHF reception. A 75 ohm
terminal is provided for UHF and VHF receptions. When
connecting a CATV antenna system, connect the 75 ohm
coaxial cable directly to the 75 ohm terminal. For 300 ohm
VHF antenna, use an adapter (not included with the TV set).
CIRCUIT PROTECTION
Fuse F601 (4A) is included in the AC line. This fuse must be
replaced with the proper fuse (see Parts List).
+BVOLTAGE CHECK
Connect Voltmeter + lead to TJ1 130V and – lead to ground
(TE7). Connect receiver to AC 120V line. Tune receiver to an
active channel. Reset the picture controls to the FACTORY
PRESET levels (press remote control RESET key twice).
Voltage must measure between +128.0V and +132.0V. If the
voltage is out of this range, the power circuit must be
checked. No +B adjustment is provided on this chassis.
HORIZONTALWIDTH ADJUSTMENT
1. Tune receiver to an active channel.
2. Check the picture for proper width. If width is not correct,
perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 60 EWD (Horizontal Width) with ▲or ▼key.
6. Adjust the data with + or – key for proper width. To turn
off the Service Menu display, press the MENU key.
HORIZONTAL CENTERINGADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the horizontal center of TV screen.
If picture is not centered horizontally, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 41 VTR7HP (Horiz. Phase) with ▲or ▼key.
6. Adjust the data with + or – key for horizontal center. To
turn off the Service Menu display, press the MENU key.
VERTICAL SIZEADJUSTMENT
1. Tune receiver to an active channel.
2. Check the vertical size of the picture. If the vertical size is
too large or small, perform steps 3 ~ 6.
3. Turn off the receiver and disconnect the AC power cord.
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 42 VS (Vertical Size) with ▲or ▼ key.
6. Adjust the data with + or – key for full scan. To turn off
the Service Menu display, press the MENU key.
VERTICAL CENTERINGADJUSTMENT
1. Tune receiver to an active channel.
2. Check that picture is in the center of TV screen. If picture
center is too low, add resistor R513 (1K ohm 1W). If picture
center is too high, add resistor R512 (1K ohm 1/2W).
VCO ADJUSTMENT
Note: VCO must be adjusted after IC101 (Signal
Processor), IC802 (EEPROM) or T151 (VCO Coil) is
replaced.
1. Tune receiver to an active channel.
2. Set the picture controls to the Sports level.
3. Connect digital voltmeter + lead to pin 58 (TP 10) of IC101
and – lead to ground (TE 7).
4. Confirm a reading of 3.6 ± 0.2 VDC.
5. If voltage is out of specifications adjust T151 for
3.6 ± 0.2 VDC.
RFAGCADJUSTMENT
1. Tune receiver to strongest VHF station in your area.
2. Set contrast and brightness controls for maximum.
3. Turn off the receiver and disconnect the AC power cord
(120V AC line).
4. While pressing the MENU key, reconnect the AC power
cord. The Service Menu display will now appear.
5. Select NO. 5D STS7RAD (RF AGC Delay) with ▲or ▼key.
6. Adjust the data with + or – key in the direction which
causes snow to appear; then in the opposite direction
until the snow just disappears.
7. To turn off the Service Menu display, press the MENU key.
VIDEO LEVEL
1. Connect color-bar generator to antenna terminals.
2. Switch the generator to a white field (100 IRE).
3. Set the picture controls to the Sports levels.
4. Connect oscilloscope + lead to terminal TP16B (Q202
Emitter) and – lead to ground.
5. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
6. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
7. Select NO. 5F VL5BPF (Video Level) with the ▲or ▼key.
8. Adjust the data with the 5 ~ 7 numeric keys for an oscil-
loscope reading of 1.0 ± 0.1 VP-P at TP16.
9. Press the MENU key to turn off the Service Menu display
and disconnect oscilloscope from chassis.
CAUTION FOR CONTINUED PROTECTION AGAINST
A RISK OF FIRE, REPLACE ONLY WITH THE
SAME TYPE 4A, 125V FUSE.
ATTENTION : POUR MAINTENIR LA PRO-
TECTION CONTRE LES RISQUES
D’ INCENDIE UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE 4A, 125V.
4A 125V

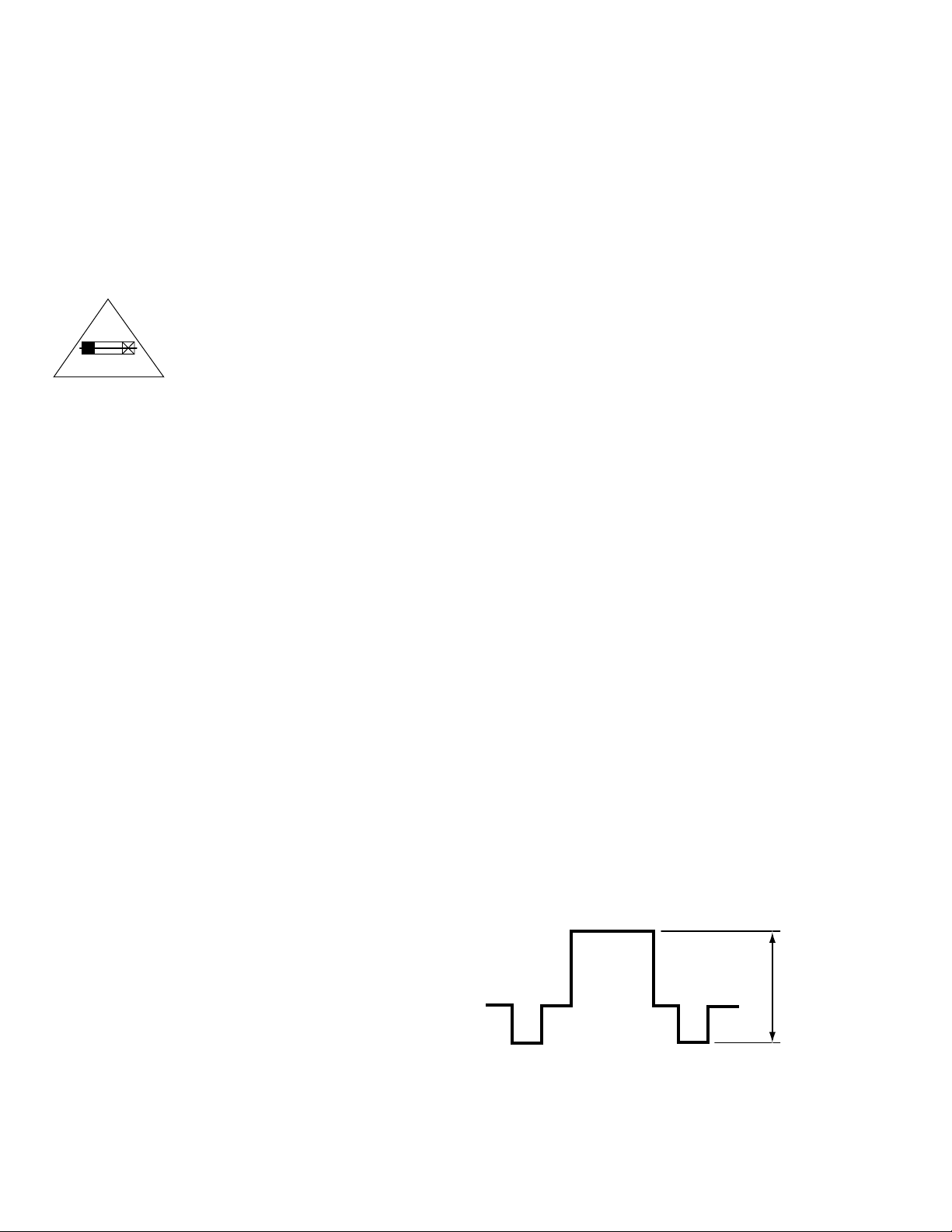

Figure 4.
1.0 ± 0.1 VP-P

— 9 —
GRAYSCALE ADJUSTMENT
1. Connect a color-bar generator to the antenna terminals.
2. Switch the generator to the white pattern.
3. Set the picture controls to the Sports level or Reset (use
MENU key and ▲or ▼ key or RESET key).
4. Turn off the receiver and disconnect the AC power cord
(120V AC line).
5. While pressing the MENU key, reconnect the AC power-
cord. The Service Menu display will now appear.
6. Select NO. 4A RD (Red Drive) and NO. 4C BD (Blue Drive)
with ▲or ▼key and set each data to 3A with + or – key.
7. Select NO. 47 RB (Red Bias), NO. 48 GB (Green Bias) and
NO. 49 BB (Blue Bias) with ▲or ▼ key and set each data
to 00 with + or – key.
8. Set NO. 3C SCO (Sub Color) data to 25, NO. 3D STI (Sub
Tint) data to 0C, NO. 3E SB (Sub Bright) data to 20, NO. 3F
SSH (Sub Sharpness) data to 05, and NO. 4B GD (Green
Drive) data to 37 with ▲or ▼, and + or – keys.
9. Turn Screen Control (T402) to minimum (fully counter-
clockwise).
10. Select the Service Menu Bias Adjustments between AF
and B0 (No Vertical Sweep) with ▲or ▼key.
11. Advance Screen Control (T402) clockwise to obtain just
visible one color line. If line does not appear, place this
control to maximum (fully clockwise).
12. Raise each Bias Level with 3, 6, and 9 keys to obtain just
visible white line. See Figure 5.
13. Select the Service Menu NO. AF DRV (Drive Adjustments)
with ▲or ▼key.
14. Adjust Red and Blue Drive Levels alternately with 1, 3,
7, or 9 key to produce normal black and white picture in
highlight areas. See Figure 6.
15. Check for proper grayscale at all brightness levels.
Note: If Grayscale Adjustment is made after picture tube
replacement, check Brightness Level Adjustment.
FOCUSADJUSTMENT
Adjust focus control (T402) for well defined scanning lines.
BRIGHTNESS LEVELADJUSTMENT
Note: Grayscale Adjustment and High Voltage Check must be
completed before attempting Brightness Level
Adjustment.
1. Connect a color-bar generator to the antenna terminals.
2. Switch the generator to the crosshatch pattern.
3. Reset the picture controls to the Sports level.
4. Connect voltmeter (high impedance) + lead to terminal
TP51 and – lead to terminal TP50 on main board. Set
voltmeter for 1.5V ~ 3V range.
5. Turn off the receiver and disconnect the AC power cord.
6. While pressing the MENU key, reconnect the AC power-
cord. The Service Menu display will now appear.
7. Select NO. 3E SB (Sub Brightness) with ▲or ▼key.
8. Adjust the data with + or – key for 680 mVDC.
9. Press the MENU key to turn off the Service Menu display.
10. Check brightness level on every active channel, readjust
(repeat steps 5 ~ 9), if necessary.
Note: Do not set to excessive brightness level, otherwise
the contrast level will be suppressed.
HIGHVOLTAGE HOLD-DOWNTEST
Every time the receiver is serviced, the HIGH VOLTAGE
HOLD-DOWN circuit must be tested for proper operation by
following these steps:
1. Connect receiver to 120V AC line. Tune receiver to active
channel. Reset the picture controls to the Sports level.
2. Check that the voltage measured between TP7 and TE7
(ground side) is within 16.5 VDC to 21 VDC. If the voltage
is out of this range, the Hold-Down Circuit must be checked.
3. Connect a DC Voltage supply to TP7 and TE7 through a
100 ohm 1/4W resistor. Adjust the DC voltage to 23 VDC.
The receiver should shutdown, losing raster and sound.
Then the receiver should turn off automatically. This
reaction indicates that the Hold-Down circuit is function-
ing properly. If the receiver does not shutdown, a
malfunction is indicated and its cause must be found and
corrected.
4. To obtain picture again, remove the DC Supply and wait
a few minutes. Now turn on the receiver.
HIGHVOLTAGE CHECK
Note: +B (+130V) Voltage Check and Grayscale Adjustment
must be completed before attempting High Voltage
Check.
1. Connect high voltage voltmeter – lead to ground, and
connect + lead to anode of picture tube.
2. Tune receiver to an active channel and confirm TV is
operating properly.
3. Eliminate the beam current by adjusting the contrast and
brightness controls to minimum.
4. Confirm high voltage is within 30.8 KV and 35.4 KV. If
reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
123
456
7 98
RB(–) RB(+)
BB(–) BB(+)
(N/A)
GB(–) (N/A) GB(+)
(N/A)
FOR RED BIAS ADJUSTMENT
FOR BLUE BIAS ADJUSTMENT
FOR GREEN BIAS ADJUSTMENT

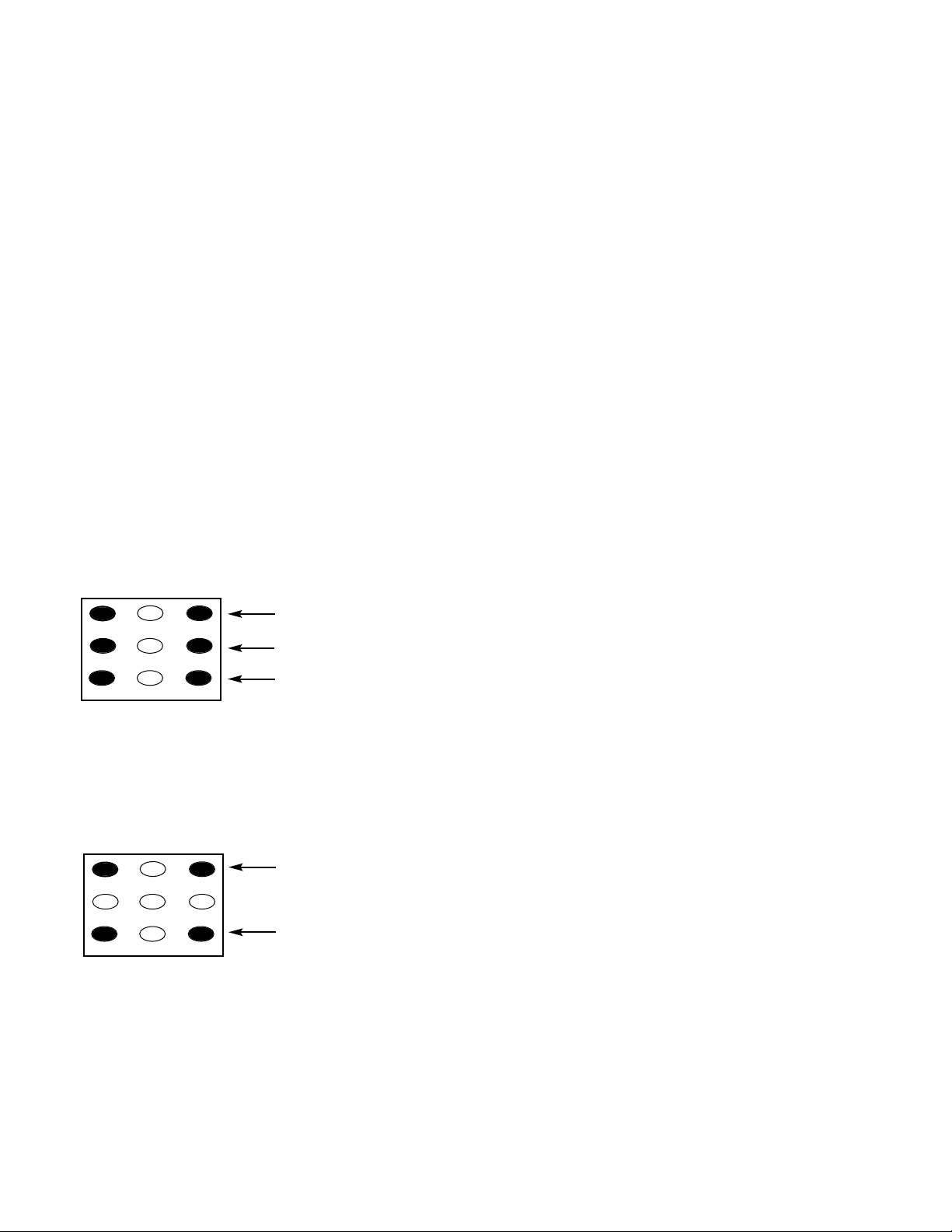

Figure 5. Remote Control Number keys’ functions in
Bias Adjustment (No Vertical Sweep)
123
4 5 6
7 98
RD(–) RD(+)
BD(–) BD(+)
(N/A)
(N/A) (N/A) (N/A)
(N/A)
Figure 6. Remote Control Number keys’ functions in
Service Menu NO. AF DRV
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT

MULTI-SOUND SECTIONADJUSTMENTS
Note: Multi-Sound Section must be adjusted after
A101 (U/V Tuner), IC3401 (MTS Decoder), or IC802
(EEPROM) is replaced.
INPUT LEVELADJUSTMENT
1. Connect a signal to the antenna terminals with audio of
1 KHZ100% modulation.
2. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
3. Connect voltmeter (RMS) to TP317 and ground.
4. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
5. Select NO. 80 ATT (MTS Input Level) with the ▲or ▼
key.
6. Adjust the + or – key for a voltmeter reading of 400 ± 20
mVrms at TP317.
SEPARATIONADJUSTMENT
7. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
8. Connect oscilloscope CH1 to TP317 and CH2 to TP318
and ground.
9. Connect an MTS TV/Stereo generator to antenna terminal.
10. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
11. Select pilot, 300Hz audio frequency and Left modulating
signal.
12. Select NO. 81 WDB (Wide Band) with the ▲or ▼key.
13. Adjust the + or – key for minimum low frequencies at
TP317. See Figure 9.
14. Select 4 KHz audio frequency and Right modulating signal.
15. Select NO. 82 SPC (Spectral) with the ▲or ▼key.
16. Adjust the + or – key for minimum high frequencies at
TP318. See Figure 9.
Repeat adjustments (steps 11–16) until no further decreases
in amplitude can be obtained. Press the MENU key to turn
off the Service Menu display.
PURITYAND CONVERGENCEADJUSTMENTS
Purity and Convergence have been aligned at the factory.
No re-alignment is necessary.
— 10 —
SERVICE ADJUSTMENTS (Continued)
Minimize L leakage
Minimize R leakage
4KHz
300Hz
TP317 (R)
TP318 (L)
Figure 9. Separation Adjustments
PINCUSHION CORRECTIONADJUSTMENT
1. Connect a color-bar generator to the antenna terminals
and select a crosshatch pattern.
2. Set the picture controls to the Sports level.
3. Turn off the receiver and disconnect the AC power cord
(AC 120V line).
4. While pressing the Menu key, reconnect the AC power
cord. The Service Menu will now appear.
5. Select No. 62 EWT with ▲or ▼key and adjust with + or –
key for equal tilt at top and bottom.
6. Select No. 61 EWA with ▲or ▼key and adjust with + or –
key for straight vertical lines at the center.
7. Select No. 63 EWB4EWP with ▲or ▼key and adjust with +
or – key for straight vertical lines at the top.
8. Select No. 63 EWB4EWP with ▲or ▼key and adjust with
4 ~ 7 keys for straight vertical lines at the bottom.
9. Repeat steps 5 through 8 for best pincushion adjustment.
10. Press the MENU key to turn off the Service Menu display.

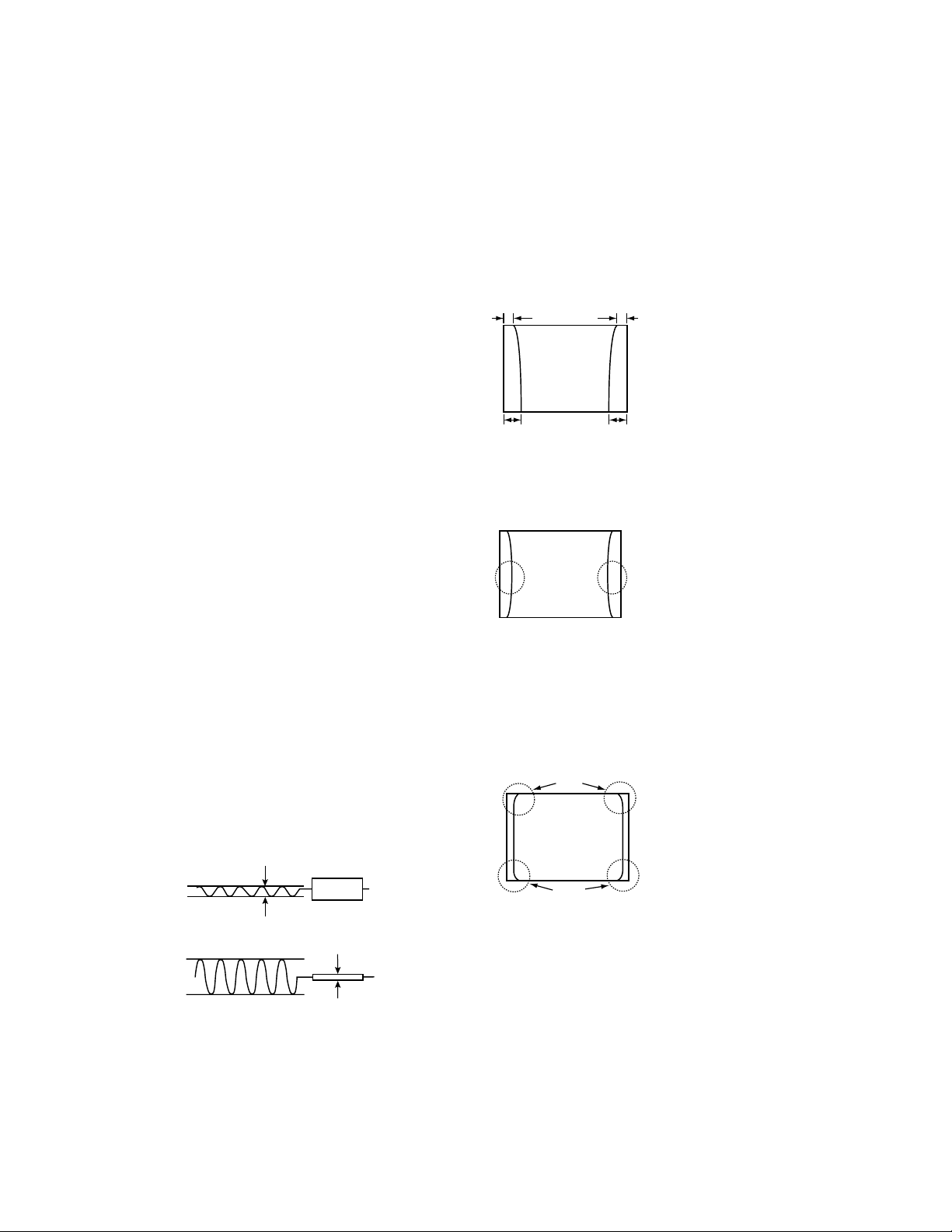

Figure 9.
Figure 7.
Figure 8.
Adjust No. 62 EWT for equal tilt:
Ta=Tb, Tc=Td.
Ta Tc
Tb Td
Adjust No. 61 EWA for the center
part of the vertical line to be straight.
Adjust No. 63 EWP for straight vertical
lines at the top. (+ or – keys)
Adjust No. 63 EWB for straight vertical
lines at the bottom. (4 ~ 7 keys)
EWP
EWB

— 11 —
SERVICE HINTS
POWER FAILURE DETECTOR
This unit is equipped with a Power Failure Detector function included in the CPU which checks for an abnormal condition in
the chassis power supplies, including the power supply derived from the Horizontal Output Transformer.
If, while the power is on, a failure is caused by any of the following that results in a low voltage supply, the CPU will turn the
unit off in 1.5 seconds to prevent further damage:
•Failure within the power supply circuits.
•A short circuit in the load side from the supply.
•Stoppage of the Horizontal Output Oscillator caused by the X-Radiation protection Hold-Down Circuit.
If, while the power is off, the power is switched on and any of these failures remains uncorrected, the CPU will shut off the
power within three seconds.
Check the following if the unit is turned off by the power failure detector.
1. Disconnect the AC power cord (120V AC line) for at least 10 seconds.
2. Connect a DC Voltmeter to the following TEST POINTS.
3. Press the Power key and check for the proper voltage supplies.
4. If any of these voltages is low, the power failure detector should turn the unit off within three seconds.
5. Check all circuits listed above.
Note: This unit is equipped with a Power Surge Protection feature included in the CPU. If power failure occurs three times
within 15 minutes, the CPU will automatically stop functioning to help prevent secondary damage. (TV will not turn
on by pressing the power key.) To reset the operating programs within the CPU, disconnect the AC power cord for
at least 10 seconds.
D508 26V
TJ6 5V
D429 Cathode 8V
D643 12V

— 12 —
MECHANICAL DISASSEMBLIES
CABINET BACK REMOVAL

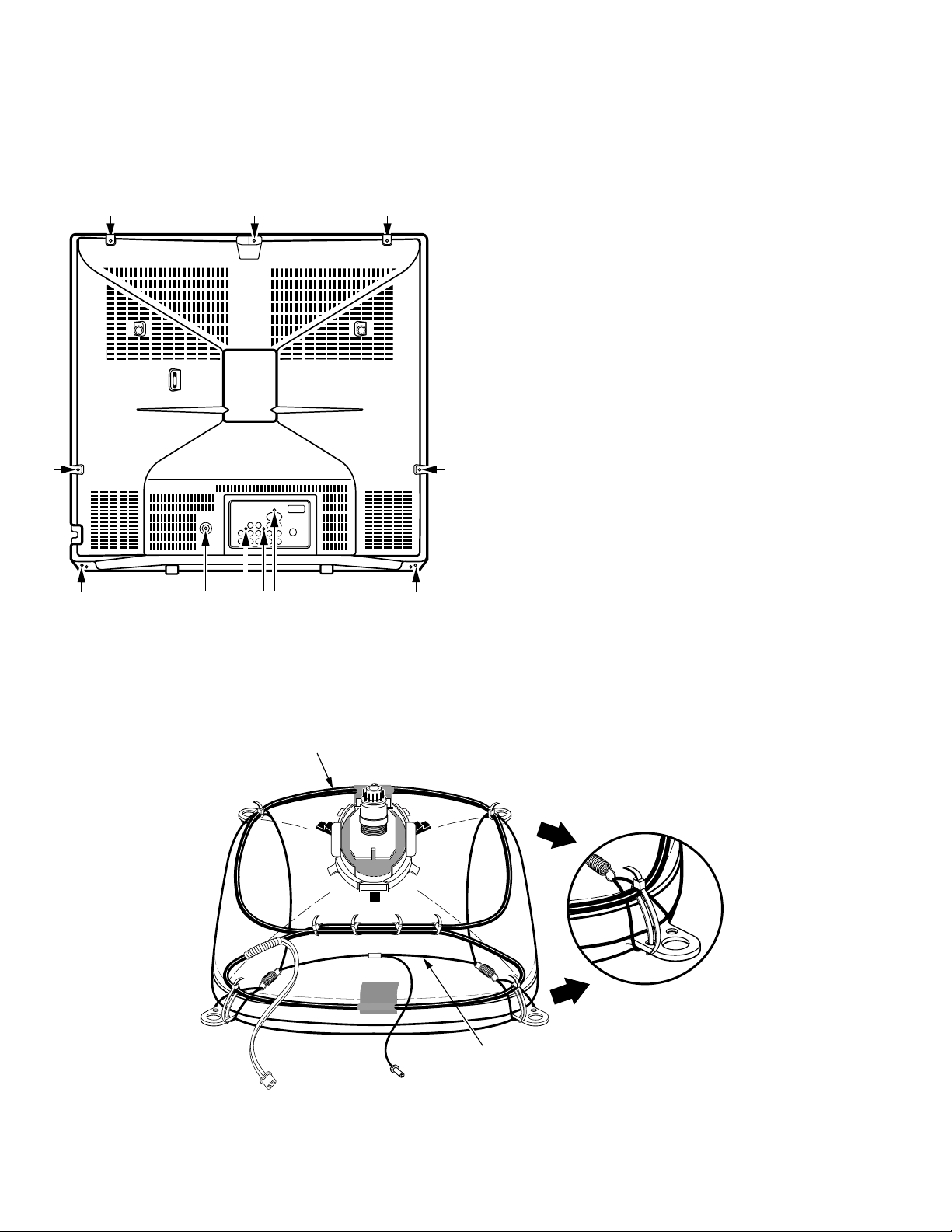

1. Refer to Figure 1, remove 11 screws.
2. Pull off cabinet back and remove.
CHASSIS REMOVAL
1. Remove cabinet back.
2. Discharge the picture tube anode (2nd anode lead) to the
dag coating (picture tube grounding lead).
3. Disconnect degaussing coil socket (KD), picture tube
socket, deflection yoke connector (KX), speakers
connector (KSP), picture tube ground lead, and 2nd
anode lead.
4. Remove chassis completely by sliding it straight back.
PICTURETUBE REMOVAL
CAUTION: Do not disturb the deflection yoke or magnet
assembly on the picture tube neck. Care must be taken to
keep these assemblies intact, unless picture tube is being
replaced. Discharge the picture tube to the coating before
handling the tube.
1. Remove chassis, referring to Chassis Removal instructions.
2. Place cabinet’s front face down on a soft surface.
3. Remove the screw on each corner of the picture tube and
GENTLY lift the picture tube out of the cabinet.
4. Install a replacement picture tube in reverse order.
Properly install the degaussing coil and picture tube
grounding lead on the picture tube. See Figure 2.
Note: If Picture Tube is being replaced, mount the Degaussing
Coil properly on the tube. See Figure 2.
Figure 2. Picture Tube Removal
Figure 1. Cabinet Back Removal
DEGAUSSING
COIL
PICTURE TUBE
GROUNDING LEAD
TO PICTURE TUBE
SOCKET BOARD
GROUND
DEGAUSSING COIL
SOCKET

— 13 —
CHASSIS ELECTRICAL PARTS LIST
CAPACITORS
NOTES:
Read description of the Capacitor as follows:
(Example)
CERAMIC 100P K 50V Rated Voltage
Tolerance Symbols:
less than 10PF
A . .Not specified
B . .±0.1PF C . .±0.25PF
D . .±0.5PF F . .±1PF
G . .±2PF R . .+0.25 - 0PF
S . .+0 - 0.25PF E . .+0 - 1PF
more than 10PF
A . .Not specified
B . .±0.1% C . .±0.25%
D . .±0.5% F . .±1%
G . .±2% H . .±3%
J . .±5% K . .±10%
L . .±15% M . .±20%
N . .±30% P . .+100 - 0%
Q . .+30 - 10% T . .+50 - 10%
U . .+75 - 10% V . .+20 - 10%
W .+100 - 10% X . .+40 - 20%
Y . .+150 - 10% Z . .+80 - 20%
Rated Value: P...Pico Farad U...Micro Farad
Material:
CERAMIC . . . . . .Ceramic
MT-PAPER . . . . .Metalized Paper
POLYESTER . . .Polyester
MT-POLYEST . .Metalized Polyester
POLYPRO . . . . .Polypropylene
MT-POLYPRO . .Metalized Polypropylene
COMPO-FILM . .Composite Film
MT-COMPO . . . .Metalized Composite
STYRENE . . . . . .Styrene
TA-SOLID . . . . .Tantalum Solid
AL-SOLID . . . . . .Aluminum Solid
ELECT . . . . . . . .Electrolytic
NP-ELECT . . . . .Non-Polarized Electrolytic
OS-SOLID . . . . .Aluminum Solid with Organic
Semiconductive Electrolytic
C001 404 084 3801 ELECT 1U M 50V
C002 404 084 3801 ELECT 1U M 50V
C005 404 087 1200 ELECT 0.1U M 50V
C007 404 089 2700 ELECT 100U M 25V
C008 403 224 6009 CERAMIC 4700P K 50V
C009 403 224 6009 CERAMIC 4700P K 50V
C010 404 084 3306 ELECT 470U M 16V
C011 404 084 3306 ELECT 470U M 16V
C015 404 087 2306 ELECT 220U M 25V
C017 403 357 9601 CERAMIC 0.1U Z 50V
C101 404 084 2200 ELECT 100U M 6.3V
C103 403 224 6108 CERAMIC 0.01U K 50V
C106 404 084 4105 ELECT 3.3U M 50V
C128 404 084 2705 ELECT 10U M 16V
C130 403 224 5705 CERAMIC 1000P K 50V
C131 404 084 3801 ELECT 1U M 50V
C133 403 224 6108 CERAMIC 0.01U K 50V
C134 403 235 5404 CERAMIC 1500P K 50V
C137 403 364 7508 CERAMIC 10P J 50V
C142 403 343 4603 CERAMIC 0.022U K 50V
C143 403 224 6108 CERAMIC 0.01U K 50V
C146 403 224 6108 CERAMIC 0.01U K 50V
C147 404 084 2200 ELECT 100U M 6.3V
C151 404 084 3702 ELECT 0.47U M 50V
C153 404 084 3702 ELECT 0.47U M 50V
C161 403 357 9601 CERAMIC 0.1U Z 50V
C211 403 069 8305 CERAMIC 0.01U Z 50V
C212 404 084 4006 ELECT 2.2U M 50V
C221 404 084 6901 NP-ELECT 1U M 50V
C247 401 150 6001 MT-GLAZE 0.000 ZA 1/10W
C252 403 057 3107 POLYESTER 0.1U K 50V
403 311 8909 POLYESTER 0.1U K 50V
404 084 5102 POLYESTER 0.1U K 63V
CAUTION: To Protect against electrical shock and for continued product safety, refer to SAFETY PRECAUTIONS,
X-RADIATION PRECAUTIONS, HIGH VOLTAGE HOLD-DOWN TEST, and PRODUCT SAFETY NOTICE on Page 2.
Notes: Parts having Location Number are located on the following boards.
Numbers 300, 1000, 3400 Series . . . . . . . . . . . . . . . . .On the AV Board and Main Board
Numbers 400 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .On the PCC Board and Main Board
Numbers 700 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Picture Tube Socket Board.
Numbers 900 Series . . . . . . . . . . . . . . . . . . . . . . . . . . .Out of Board.
Numbers 1700 Series . . . . . . . . . . . . . . . . . . . . . . . . . .On the Picture Tube Socket Board and Main Board
All Other Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . .On the Main Board
PRODUCT SAFETY NOTICE
PRODUCT SAFETY SHOULD BE CONSIDERED WHEN A REPLACEMENT IS MADE IN ANY AREA OF A RECEIVER.
COMPONENTS INDICATED BY A STAR (★) IN THIS PARTS LIST ANDTHE SCHEMATIC DIAGRAM DESIGNATE
COMPONENTS IN WHICH SAFETY CAN BE OF SPECIAL SIGNIFICANCE. IT IS PARTICULARLY RECOMMENDED
THAT ONLY PARTS DESIGNATED ONTHE FOLLOWING PARTS LIST BE USED FOR COMPONENT REPLACEMENT
DESIGNATED BYA STAR. NO DEVIATIONS FROM RESISTANCE,WATTAGE,ANDVOLTAGE RATINGS MAY BE MADE
FOR REPLACEMENT ITEMS DESIGNATED BY A STAR.
Schematic
Location Part No. Description Schematic
Location Part No. Description
Note: Schematic part location numbers may not always match with the part descriptions.
The part descriptions are correct and should be used.

— 14 —
C253 404 084 3702 ELECT 0.47U M 50V
C256 404 084 3801 ELECT 1U M 50V
C257 403 224 6108 CERAMIC 0.01U K 50V
C258 404 087 0500 ELECT 220U M 10V
C271 404 087 0500 ELECT 220U M 10V
C272 404 084 4105 ELECT 3.3U M 50V
C284 404 084 3207 ELECT 47U M 16V
C285 403 224 6108 CERAMIC 0.01U K 50V
C301 404 084 2705 ELECT 10U M 16V
C302 404 084 2705 ELECT 10U M 16V
C303 403 357 9601 CERAMIC 0.1U Z 50V
C306 403 357 9601 CERAMIC 0.1U Z 50V
C307 404 084 2804 ELECT 100U M 16V
C308 403 319 4804 CERAMIC 0.22U Z 16V
C309 403 357 9304 CERAMIC 560P J 50V
C310 403 224 5507 CERAMIC 22P J 50V
C311 404 084 3207 ELECT 47U M 16V
C312 403 357 9601 CERAMIC 0.1U Z 50V
C313 403 086 2607 NP-ELECT 1U M 50V
C314 403 357 9601 CERAMIC 0.1U Z 50V
C315 403 235 0102 CERAMIC 39P J 50V
C316 403 357 9601 CERAMIC 0.1U Z 50V
C317 403 357 9601 CERAMIC 0.1U Z 50V
C318 403 234 9304 CERAMIC 8P D 50V
C319 403 357 9601 CERAMIC 0.1U Z 50V
C320 403 319 4804 CERAMIC 0.22U Z 16V
C322 403 357 9601 CERAMIC 0.1U Z 50V
C323 403 086 2607 NP-ELECT 1U M 50V
C324 404 084 3801 ELECT 1U M 50V
C326 403 357 9601 CERAMIC 0.1U Z 50V
C331 403 235 0102 CERAMIC 39P J 50V
C332 403 234 9304 CERAMIC 8P D 50V
C401 404 084 3009 ELECT 220U M 16V
C402 403 224 6108 CERAMIC 0.01U K 50V
C403 403 062 9309 POLYESTER 6800P J 50V
403 312 2708 POLYESTER 6800P J 50V
404 086 6800 POLYESTER 6800P J 63V
C405 404 084 6901 NP-ELECT 1U M 50V
★C406 403 076 3607 CERAMIC 470P K 500V
★C407 403 076 0507 CERAMIC 2200P K 500V
C408 403 103 0005 ELECT 4.7U M 160V
★C411 403 353 4204 MT-POLYPRO6500P H 1.5K
404 076 5509 MT-POLYPRO6500P H 1.5K
★C412 403 369 5103 MT-POLYPRO6200P H 1.5K
404 086 0303 MT-POLYPRO6200P H 1.5K
★C413 403 083 3201 POLYPRO 0.012U J 400V
★C414 403 083 3409 POLYPRO 0.015U J 400V
★C416 403 358 7200 MT-POLYPRO 0.15U J 250V
403 372 6302 MT-POLYPRO 0.15U J 250V
403 375 0604 MT-POLYPRO 0.15U J 250V
403 392 8003 MT-POLYPRO 0.15U J 250V
★C417 403 346 6723 MT-POLYPRO 0.18U J 250V
403 372 1604 MT-POLYPRO 0.18U J 250V
403 372 6401 MT-POLYPRO 0.18U J 250V
403 392 8102 MT-POLYPRO 0.18U J 250V
★C419 403 158 9107 MT-POLYEST 2.2U K 100V
C421 404 091 6406 ELECT 220U M 6.3V
C422 403 066 6106 MT-POLYEST 0.47U J 250V
C427 403 224 6108 CERAMIC 0.01U K 50V
★C436 403 324 3106 CERAMIC 820P K 3K
★C437 403 076 4010 CERAMIC 4700P K 3K
C445 404 087 2207 ELECT 22U M 25V
C462 403 235 0607 CERAMIC 100P J 50V
C463 403 057 7709 POLYESTER 0.012U K 50V
403 311 9302 POLYESTER 0.012U K 50V
404 086 5308 POLYESTER 0.012U K 63V
C472 403 057 2100 POLYESTER 0.1U J 50V
403 057 3107 POLYESTER 0.1U K 50V
403 067 5603 MT-COMPO 0.1U J 50V
403 166 6808 MT-POLYEST 0.1U J 63V
C479 403 073 8308 CERAMIC 4700P K 50V
C482 404 084 4709 ELECT 47U M 100V
C484 404 084 4204 ELECT 4.7U M 50V
★C486 403 076 3607 CERAMIC 470P K 500V
★C487 404 087 3402 ELECT 1000U M 35V
C489 404 084 3306 ELECT 470U M 16V
C493 404 056 5307 NP-ELECT 2.2U M 100V
C497 404 084 2200 ELECT 100U M 6.3V
C502 404 084 4402 ELECT 220U M 35V
C503 403 276 0208 ELECT 2.2U K 50V
C504 404 085 4500 ELECT 2200U M 25V
C505 403 256 0808 MT-COMPO 0.47U J 50V
404 084 5706 MT-POLYEST 0.47UJ 63V
C506 403 059 0104 POLYESTER 0.018U K 50V
403 312 0100 POLYESTER 0.018U K 50V
404 084 5201 POLYESTER 0.018UK 63V
C508 403 026 0809 CERAMIC 47P J 50V
C509 403 256 0808 MT-COMPO 0.47U J 50V
404 084 5706 MT-POLYEST 0.47UJ 63V
★C511 403 058 5407 POLYESTER 0.15U K 50V
403 141 5802 POLYESTER 0.15U J 50V
403 260 2300 MT-COMPO 0.15U J 50V
403 274 9302 POLYESTER 0.15U J 50V
403 274 9401 POLYESTER 0.15U K 50V
C516 404 084 3900 ELECT 10U M 50V
★C601 404 089 1703 MT-POLYEST 0.22U M 275V
404 096 0706 MT-POLYEST 0.22U M 275V
★C608 403 222 1907 CERAMIC 2200P K 1K
403 232 0204 CERAMIC 2200P K 1K
403 263 6305 CERAMIC 2200P K 1K
★C609 404 075 5005 ELECT 470U M 200V
404 089 3509 ELECT 470U M 200V
★C611 403 238 8501 CERAMIC 220P K 1K
403 325 5109 CERAMIC 220P K 1K
C612 403 057 3107 POLYESTER 0.1U K 50V
403 311 8909 POLYESTER 0.1U K 50V
404 084 5102 POLYESTER 0.1UK 63V
Schematic
Location Part No. Description Schematic Location Part No. Description

— 15 —
C613 403 061 9805 POLYESTER 0.047U J 50V
403 312 2104 POLYESTER 0.047U J 50V
404 086 6503 POLYESTER 0.047U J 63V
C614 403 056 9704 POLYESTER 0.01U J 50V
403 311 8602 POLYESTER 0.01U J 50V
404 084 5003 POLYESTER 0.01UJ 63V
C622 404 084 3405 ELECT 1 000U M 25V
★C625 403 232 0600 CERAMIC 4700P K 1K
403 263 6503 CERAMIC 4700P K 1K
C626 403 134 6403 ELECT 2200U M 16V
C628A 404 096 2403 ELECT 470U M 160V
C629 404 084 3009 ELECT 220U M 16V
C630 404 084 3801 ELECT 1U M 50V
★C631 404 088 2909 CERAMIC 1000P M 250V
404 088 7102 CERAMIC 1000P M 250V
★C632 404 088 3005 CERAMIC 2200P M 250V
404 088 7201 CERAMIC 2200P M 250V
C634 404 084 3207 ELECT 47U M 16V
C636 403 224 6108 CERAMIC 0.01U K 50V
C641 404 084 4303 ELECT 47U M 50V
C642 404 084 3801 ELECT 1U M 50V
C683 404 088 5801 ELECT 33U M 16V
C688 404 084 2804 ELECT 100U M 16V
C689 403 357 9601 CERAMIC 0.1U Z 50V
C693 404 087 1200 ELECT 0.1U M 50V
C701 403 074 8901 CERAMIC 680P K 50V
C711 403 074 8901 CERAMIC 680P K 50V
C721 403 074 8901 CERAMIC 680P K 50V
★C742 403 077 2807 CERAMIC 1000P Z 2K
C751 404 084 3801 ELECT 1U M 50V
C792 404 085 5002 ELECT 47U M 25V
C801 403 224 6108 CERAMIC 0.01U K 50V
C806 404 084 2705 ELECT 10U M 16V
C808 403 224 5507 CERAMIC 22P J 50V
C809 403 224 5507 CERAMIC 22P J 50V
C811 404 084 3801 ELECT 1U M 50V
C822 404 084 2408 ELECT 470U M 6.3V
C835 403 224 6108 CERAMIC 0.01U K 50V
C853 404 087 1200 ELECT 0.1U M 50V
C854 403 235 1000 CERAMIC 220P J 50V
C856 404 084 3801 ELECT 1U M 50V
C857 403 235 1000 CERAMIC 220P J 50V
C858 403 224 5705 CERAMIC 1000P K 50V
C861 403 224 6108 CERAMIC 0.01U K 50V
C1001 404 084 2705 ELECT 10U M 16V
C1002 404 088 5702 ELECT 22U M 16V
C1004 403 224 6108 CERAMIC 0.01U K 50V
C1005 403 224 6108 CERAMIC 0.01U K 50V
C1006 404 084 2705 ELECT 10U M 16V
C1007 403 224 6108 CERAMIC 0.01U K 50V
C1011 403 224 6108 CERAMIC 0.01U K 50V
C1021 404 084 2705 ELECT 10U M 16V
C1022 404 088 5702 ELECT 22U M 16V
C1026 404 084 2705 ELECT 10U M 16V
C1031 403 224 6108 CERAMIC 0.01U K 50V
C1032 404 084 3009 ELECT 220U M 16V
C1051 404 084 2705 ELECT 10U M 16V
C1054 403 357 9601 CERAMIC 0.1U Z 50V
C1055 403 357 9601 CERAMIC 0.1U Z 50V
C1081 404 084 3207 ELECT 47U M 16V
C1091 403 224 6108 CERAMIC 0.01U K 50V
C1201 404 084 3801 ELECT 1U M 50V
C1206 404 084 3207 ELECT 47U M 16V
C1211 404 084 3801 ELECT 1U M 50V
C1701 403 058 3403 POLYESTER 0.015U K 50V
403 311 9708 POLYESTER 0.015U K 50V
404 086 5506 POLYESTER 0.015U K 63V
C1702 404 089 2700 ELECT 100U M 25V
C1704 403 235 4902 CERAMIC 470P K 50V
C1705 404 084 2804 ELECT 100U M 16V
C1708 403 235 0805 CERAMIC 150P J 50V
C1709 403 235 0300 CERAMIC 56P J 50V
C1711 404 086 5001 POLYESTER 0.01U K 63V
C1712 404 086 5209 POLYESTER 0.012U J 63V
C1713 403 071 5606 CERAMIC 220P K 50V
C1714 403 075 4209 CERAMIC 820P K 50V
C1715 403 065 1409 POLYESTER 4700P K 200V
403 101 9208 POLYESTER 4700P K 200V
C1716 403 075 4209 CERAMIC 820P K 50V
C1717 403 237 7901 MT-COMPO 0.22U J 50V
404 086 6404 POLYESTER 4700P K 63V
404 086 7906 MT-POLYEST 0.22U J 63V
C1719 403 055 1006 ELECT 10U M 160V
C1721 404 084 3207 ELECT 47U M 16V
C1722 403 102 9900 ELECT 22U M 160V
C1724 403 072 4400 CERAMIC 270P K 50V
C1726 403 034 9900 CERAMIC 100P K 500V
C1727 404 084 2804 ELECT 100U M 16V
C1740 404 084 3801 ELECT 1U M 50V
C1748 403 069 8305 CERAMIC 0.01U Z 50V
C1749 404 087 3204 ELECT 100U M 35V
C1902 404 084 2705 ELECT 10U M 16V
C3401 404 087 1200 ELECT 0.1U M 50V
C3404 404 089 6500 NP-ELECT 4.7U M 50V
C3406 403 325 2504 CERAMIC 0.012U K 50V
C3407 403 235 5701 CERAMIC 5600P K 50V
C3408 404 084 3702 ELECT 0 .47U M 50V
C3411 404 084 3702 ELECT 0 .47U M 50V
C3412 404 084 3207 ELECT 47U M 16V
C3413 404 091 6604 ELECT 4.7U M 25V
C3414 404 084 2804 ELECT 100U M 16V
C3416 404 089 6500 NP-ELECT 4.7U M 50V
C3417 404 091 6604 ELECT 4.7U M 25V
C3418 404 089 6500 NP-ELECT 4.7U M 50V
C3421 403 224 5606 CERAMIC 2700P K 50V
C3422 403 323 3602 CERAMIC 0.047U K 50V
C3423 403 342 9203 TA-SOLID 3.3U K 10V
C3424 404 089 6500 NP-ELECT 4.7U M 50V
Schematic
Location Part No. Description Schematic Location Part No. Description

— 16 —
C3426 403 299 1820 TA-SOLID 10U K 10V
C3427 404 084 3801 ELECT 1U M 50V
C3431 403 224 6009 CERAMIC 4700P K 50V
C3432 404 087 1200 ELECT 0.1U M 50V
C3433 403 224 6009 CERAMIC 4700P K 50V
C3434 403 343 4603 CERAMIC 0.022U K 50V
C3435 404 091 6604 ELECT 4.7U M 25V
C3436 404 089 6500 NP-ELECT 4.7U M 50V
C3437 404 091 6604 ELECT 4.7U M 25V
C3439 404 089 6500 NP-ELECT 4.7U M 50V
C3441 404 091 6604 ELECT 4.7U M 25V
C3442 404 091 6604 ELECT 4.7U M 25V
C3443 404 091 6604 ELECT 4.7U M 25V
C3444 404 091 6604 ELECT 4.7U M 25V
C3445 404 091 6604 ELECT 4.7U M 25V
C3447 404 091 6604 ELECT 4.7U M 25V
DIODES
D101 408 047 6205 ZENER DIODE MTZJ36A (36V)
D276 407 149 0807 DIODE 1SS355 TE-17
D277 407 149 0807 DIODE 1SS355 TE-17
D278 407 149 0807 DIODE 1SS355 TE-17
D279 407 149 0807 DIODE 1SS355 TE-17
D351 408 047 6502 ZENER DIODE MTZJ5.1A (5.1V)
D406 407 006 4108 DIODE ERB44-04
D407 407 095 8001 DIODE ERD07-15L
D408 407 222 4401 ZENER DIODE 1Z150 (150V)
★D421 407 158 1307 ZENER DIODE HZ11B2L (11V)
★D422 407 158 1307 ZENER DIODE HZ11B2L (11V)
D428 407 054 5706 ZENER DIODE RD15EB1 (15V)
407 099 6904 ZENER DIODE MTZJ15A (15V)
D429 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D445 407 007 7405 DIODE EU1
D446 407 055 1707 ZENER DIODE RD20EB1 (20V)
407 099 7802 ZENER DIODE MTZJ20A (20V)
D463 407 012 4406 DIODE 1SS133
D481 407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
407 124 6404 DIODE ERA18-04
D482 407 011 4407 DIODE TVR1G
D483 407 007 6606 DIODE ES1
407 124 5506 DIODE RMPG06G
407 124 6404 DIODE ERA18-04
D486 407 054 0008 ZENER DIODE RD10EB2 (10V)
407 099 6102 ZENER DIODE MTZJ10B (10V)
D490 408 047 7707 ZENER DIODE MTZJ5.6C (5.6V)
D501 407 005 8602 DIODE ERA15-02
407 011 3004 DIODE S5277B
407 088 6502 DIODE MPG06D
408 009 9404 DIODE 1N4002ID
D502 407 118 2207 ZENER DIODE 1Z75 (75V)
D503 408 047 6205 ZENER DIODE MTZJ36A (36V)
D508 407 006 0100 DIODE ERA91-02
★D601 407 005 7605 DIODE EM2B
407 013 3200 DIODE 1S1887A
408 008 8606 DIODE GP15G
★D602 407 005 7605 DIODE EM2B
407 013 3200 DIODE 1S1887A
408 008 8606 DIODE GP15G
★D603 407 005 7605 DIODE EM2B
407 013 3200 DIODE 1S1887A
408 008 8606 DIODE GP15G
★D604 407 005 7605 DIODE EM2B
407 013 3200 DIODE 1S1887A
408 008 8606 DIODE GP15G
D611 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
★D612 407 218 0707 PC TLP421(BL)
407 231 2801 PHOTO COUPLE PC123YC2
D613 407 057 2722 ZENER DIODE RD6.2EB1 (6.2V)
407 063 9009 ZENER DIODE MTZJ6.2A (6.2V)
D614 407 006 0100 DIODE ERA91-02
D621 407 106 2806 DIODE RU3YX
★D624 407 129 6706 DIODE RU4YX LF-L1
407 211 6102 DIODE FE301-1L43
★D625A 407 191 3900 DIODE FML-G16S
D627 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D629 407 054 7007 ZENER DIODE RD16EB1 (16V)
407 099 7208 ZENER DIODE MTZJ16A (16V)
D641 407 007 7801 DIODE EU2Z
D642 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D643 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D680 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D683 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D687 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D693 407 057 2722 ZENER DIODE RD6.2EB2 (6.2V)
407 063 9009 ZENER DIODE MTZJ6.2B (6.2V)
D694 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
Schematic
Location Part No. Description Schematic Location Part No. Description

— 17 —
D751 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D801 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D831 407 222 5903 ZD UDZS-TE-173.6B (3.6V)
D1002 408 047 2306 ZENER DIODE MTZJ10B (10V)
D1006 408 047 2306 ZENER DIODE MTZJ10B (10V)
D1011 408 047 2306 ZENER DIODE MTZJ10B (10V)
D1022 408 047 2306 ZENER DIODE MTZJ10B (10V)
D1026 408 047 2306 ZENER DIODE MTZJ10B (10V)
D1031 408 047 2306 ZENER DIODE MTZJ10B (10V)
D1705 407 108 5300 DIODE SB07-03N
D1707 407 108 5300 DIODE SB07-03N
D1708 407 013 4306 DIODE 1S2076A
407 013 7109 DIODE 1S2473
408 008 2406 DIODE 1N4148
D1901 408 047 9206 ZENER DIODE MTZJ7.5C (7.5V)
INTEGRATED CIRCUITS
IC001 409 389 4607 IC LA4600
★IC101 409 526 7221 IC LA76835NM-TBM
IC301 409 544 5807 IC LA76604M-TLM-E
★IC501 409 374 0607 IC LA7846N
★IC601 409 172 8102 IC SE130NH
IC681 409 528 6202 IC PQ050ES1MXP
IC801 410 456 7803 IC M37272M8-***FP T4
IC802 409 333 3700 IC 24LC02B/P
409 376 1503 IC ST24C02B6
409 440 8902 IC M24C02-BN6
409 495 6908 IC CAT24WC02P
409 497 0706 IC S524C20D21-DCB0
409 528 8404 IC S524A40X21-DCB0
410 499 1004 IC AT24C02-10PI-2.7
IC1001 409 051 3006 IC TC4053BP
IC1002 409 051 3006 IC TC4053BP
IC1003 409 051 3006 IC TC4053BP
IC1201 409 051 2930 IC TC4053BF-EL
IC3401 409 467 1108 IC CXA2134Q-T6
COILS
★LF601 645 012 0589 LINE FILTER
645 026 8274 LINE FILTER
L164 645 003 9713 INDUCTOR, 15U K
645 016 2657 INDUCTOR, 15U K
L256 610 031 3873 INDUCTOR, 10U K
645 016 2534 INDUCTOR, 10U K
L301 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L302 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L306 645 008 2856 INDUCTOR, 39U K
645 016 3012 INDUCTOR, 39U K
L401 645 052 5926 INDUCTOR, 3.3U, FILTER
L402 652 000 2180 CORE, PIPE
L403 610 078 6820 PIPE CORE
652 000 1282 CORE, PIPE
★L413 645 030 2879 COIL, LINEARITY
645 064 2654 COIL, LINEARITY
L414 610 031 1367 INDUCTOR 202J
610 211 3488 INDUCTOR
L414 645 005 5645 INDUCTOR, 2200U K
645 007 8361 INDUCTOR, 2000U
L416 645 016 9144 INDUCTOR, 650UH
L602 645 005 0763 CORE, PIPE
L611 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L612 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L621 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L623 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L625 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L628 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L707 610 029 8149 PEAKING COIL 100UH K
645 001 4758 INDUCTOR, 100U K
L717 610 029 8149 PEAKING COIL 100UH K
645 001 4758 INDUCTOR, 100U K
L727 610 029 8149 PEAKING COIL 100UH K
645 001 4758 INDUCTOR, 100U K
L801 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L821 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L851 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L881 645 006 2490 INDUCTOR, 1U K
645 016 2411 INDUCTOR, 1U K
L882 645 006 2490 INDUCTOR, 1U K
645 016 2411 INDUCTOR, 1U K
★L901 645 053 5277 ASSY, COIL, DEGAUSSING
L1701 610 031 3873 INDUCTOR, 10U K
645 016 2534 INDUCTOR, 10U K
L1702 645 008 2825 INDUCTOR, 27U K
645 016 2893 INDUCTOR, 27U K
L1703 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L1704 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
L1705 610 078 5946 PIPE CORE
652 000 1725 CORE, PIPE
Schematic
Location Part No. Description Schematic
Location Part No. Description

— 18 —
Schematic
Location Part No. Description
L1706 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
L1901 645 008 2894 INDUCTOR, 5.6U K
645 016 3104 INDUCTOR, 5.6U K
TRANSISTORS
Q001 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q135 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q202 405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
405 151 3304 TR 2SA608NF-NPA
406 000 6804 TR 2SA1015-GR(SAN)
Q208 405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
405 151 3304 TR 2SA608NF-NPA
406 000 6804 TR 2SA1015-GR(SAN)
Q271 405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q301 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q302 405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q303 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q315 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q321 405 002 0308 TR 2SA1037K-T-96-R
405 002 0407 TR 2SA1037K-T-96-S
405 002 6726 TR 2SA1179-M6
405 002 6924 TR 2SA1179-M7-TB
405 134 5925 TR 2SA1037AK T146 R
405 147 2205 TR 2SA1037AK T146 S
405 163 1503 TR 2SA1179N-M6-TB
405 163 2708 TR 2SA1179N-M7-TB
405 173 9605 TR 2SA1235A1E
405 173 9704 TR 2SA1235A1F
Q401 405 013 6207 TR 2SC2271-D-CTV
405 013 6306 TR 2SC2271-E-CTV
405 029 7106 TR 2SC2271-D
405 029 7205 TR 2SC2271-E
★Q402 405 163 4306 TR 2SD2645-YB
Q461 405 017 1901 TR 2SC3114-T
405 039 3303 TR 2SC3114-R
405 039 3402 TR 2SC3114-S
Schematic
Location Part No. Description

— 19 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q462 405 138 0906 TR 2SB1370-D
405 138 1002 TR 2SB1370-E
405 138 1101 TR 2SB1370-F
405 138 1309 TR 2SB1565-E
405 138 1408 TR 2SB1565-F
Q486 405 023 5009 TR 2SD400-E-MP
405 023 5306 TR 2SD400-F-MP
Q490 405 023 5009 TR 2SD400-E-MP
405 023 5306 TR 2SD400-F-MP
★Q601 405 148 1801 TR 2SK2638
Q611 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q612 405 006 6504 TR 2SA984-E
405 006 6702 TR 2SA984-F
Q613 405 013 6801 TR 2SC2274-E
405 013 7006 TR 2SC2274-F
Q627 405 009 6907 TR 2SB985-S
405 009 7003 TR 2SB985-T
405 089 0000 TR 2SA1707-S
405 089 0109 TR 2SA1707-T
Q635 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q641 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q681 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q688 405 001 7605 TR 2SA1015-Y(SAN)
405 004 3208 TR 2SA564A-R(CU)
405 006 1806 TR 2SA933S-R
405 151 3304 TR 2SA608NF-NPA
406 000 6804 TR 2SA1015-GR(SAN)
Q693 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q695 405 001 7605 TR 2SA1015-Y(SAN)
405 004 3208 TR 2SA564A-R(CU)
405 004 4809 TR 2SA608-F-CTV-NP
Q701 406 009 9509 TR 2SC4544 LB183
Q702 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q711 406 009 9509 TR 2SC4544 LB183
Q712 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q721 406 009 9509 TR 2SC4544 LB183
Q722 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA

— 20 —
Schematic
Location Part No. Description Schematic Location Part No. Description
Q831 405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
405 151 3304 TR 2SA608NF-NPA
406 000 6804 TR 2SA1015-GR(SAN)
Q1001 405 014 4509 TR 2SC2412K-T-96-R
405 014 4608 TR 2SC2412K-T-96-S
405 015 8724 TR 2SC2812-L6-TB
405 015 8922 TR 2SC2812-L7-TB
405 163 1602 TR 2SC2812N-L6-TB
405 163 1701 TR 2SC2812N-L7-TB
405 173 9803 TR 2SC3928A1R
405 173 9902 TR 2SC3928A1S
Q1201 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q1202 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q1211 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q1212 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q1700 405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
405 151 3304 TR 2SA608NF-NPA
406 000 6804 TR 2SA1015-GR(SAN)
Q1701 405 001 7407 TR 2SA1015-O(SAN)
405 001 7605 TR 2SA1015-Y(SAN)
405 004 3109 TR 2SA564A-Q(CU)
405 004 3208 TR 2SA564A-R(CU)
405 006 1707 TR 2SA933S-Q
405 006 1806 TR 2SA933S-R
405 151 3304 TR 2SA608NF-NPA
406 000 6804 TR 2SA1015-GR(SAN)
Q1702 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q1704 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
405 157 0505 TR 2SC536NF-NPA
Q1706 405 011 8401 TR 2SC1740S-Q
405 011 8500 TR 2SC1740S-R
405 011 8609 TR 2SC1740S-S
405 012 2002 TR 2SC1815-GR
405 012 2101 TR 2SC1815-O
405 012 2309 TR 2SC1815-Y
405 020 7501 TR 2SC945A-PA
405 020 7709 TR 2SC945A-QA
405 020 7907 TR 2SC945A-RA
405 151 8705 TR 2SC536NG-NPA
