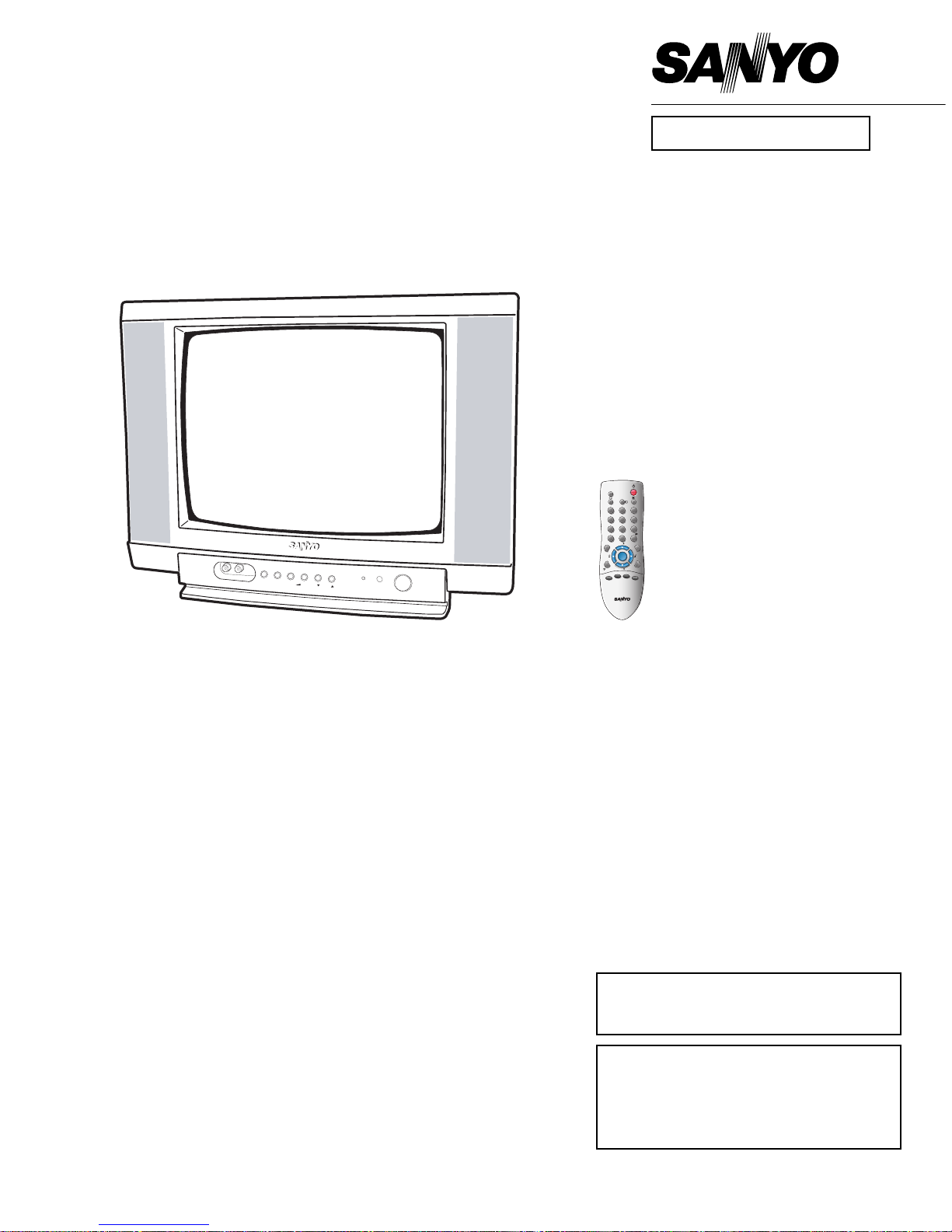

Sanyo CP14SE1K User manual

SERVICE MANUAL Colour Television
Specifications
Power Source . . . . . . . .AC127 - 240V, 50/60Hz.
Colour System . . . . . . . .PAL, SECAM, NTSC4.43, NTSC, PAL 60Hz
Television System . . . . .B/G, D/KK’, I, M/M
Channel Coverage . . . . .VHF: E2-E12, R1-R12, K1-K9, J1-J12, A2-A13
0-11, 5A (AUS), 1-11 (NZ)
UHF: 21-69, A14-A69, J13-J62, 28-69 (AUS)
CATV: S1-S41, X, Y, Z, Z+1, Z+2,
Video IF . . . . . . . . . . . . . . 38.0 MHz
Aerial Input Impedance .75Ω
Ext. Terminals
Video inputs: Phono jack 2 (1.0Vp
- p, impedance 75Ω)
Audio inputs: Phono jack (L) 2 (436mVrms, impedance more than 40KΩ)
Video monitor output: Phono jack 1 (1.0Vp
- p, 75Ω)
Audio monitor outputs: Phono jack(L) 1(436mVrms, Impedance less than
600Ω)
Speaker . . . . . . . . . . . . . . 5 cm  9 cm  2 pcs.
Sound Output (RMS) . . . 2.5W + 2.5W
Dimensions . . . . . . . . . . . 433 (W) 336 (H) 359 (D)mm
Weight . . . . . . . . . . . . . . . approx. 8.7 Kg
Specifications subject to change without notice
Original Version
Chassis Series: AC7-A
BE5V/BE5W
FILE NO.
Model No. CP14SE1K
Service Ref. No. CP14SE1K-00
(Australia)
CP14SE1K-50
(New Zealand)
(Australia / New Zealand)
Give complete “SERVICE REF. NO.” for parts
order or servicing. It is shown on the rating plate
at the cabinet back of the unit.
This T.V. receiver will not work properly in
foreign countries where the television
transmission system and power source dif-
fer from the design specifications. Refer to
the specification table.
Product Code: 113016716
REFERENCE NO. SM3010329
VIDEO AUDIO
TV/AV MENU CH
- +
POWER
123
456
789
0
TV/AV
TIMER
x
-/--
SWAP
CH SCAN
MENU
BASS
SOUND
S. SYS
SURROUND
CH
CH
A B
.
PP
JXPSG
- NOTE -
Service Ref. No. CP14SE1K-00 is electrically
the same as Service Ref. No. CP14SE1K-50.
The difference between Service Ref. No.
CP14SE1K-00 and CP14SE1K-50 is as follow:
Destination CP14SE1K-00....Australia
CP14SE1K-50....New Zealand
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 1

Contents
-2-
Safety Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Chassis Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
IC Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Service Adjustment with Replacing Memory IC(IC801) . . . . . . . . . . . . 7-14
Service Mode Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-16
Service Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Special Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Purity and Convergence Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Mechanical Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Protection Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cabinet Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Chassis Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-31
Component Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32-33
Voltages and Waveforms Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Safety Notice
SAFETY PRECAUTIONS
1: An isolation transformer should be connected in the
power line between the receiver and the AC line
when a service is performed on the primary of the
converter transformer of the set.
2: Comply with all caution and safety-related notes pro-
vided on the cabinet back, inside the cabinet, on the
chassis or the picture tube.
3: When replacing a chassis in the cabinet, always be
certain that all the protective devices are installed
properly, such as, control knobs, adjustment covers
or shields, barriers, isolation resistor-capacitor net-
works etc.. Before returning any television to the
customer, the service technician must be sure that
it is completely safe to operate without danger of
electrical shock.
X-RADIATION PRECAUTION
The primary source of X-RADIATION in television receiver is the picture tube. The picture tube is specially con-
structed to limit X-RADIATION emissions. For continued X-RADIATION protection, the replacement tube must be
the same type as the original including suffix letter. Excessive high voltage may produce potentially hazardous X
- RADIATION. To avoid such hazards, the high voltage must be maintained within specified limit. Refer to this
service manual, high voltage adjustment for specific high voltage limit. If high voltage exceeds specified limits,
take necessary corrective action. Carefully follow the instructions for + B1 volt power supply adjustment, and high
voltage check to maintain the high voltage within the specified limits.
PRODUCT SAFETY NOTICE
Product safety should be considered when a component replacement is made in any area of a receiver.
Components indicated by mark in the parts list and the schematic diagram designate components in which
safety can be of special significance. It is particularly recommended that only parts designated on the parts list
in this manual be used for component replacement designated by mark . No deviations from resistance
wattage or voltage ratings may be made for replacement items designated by mark .

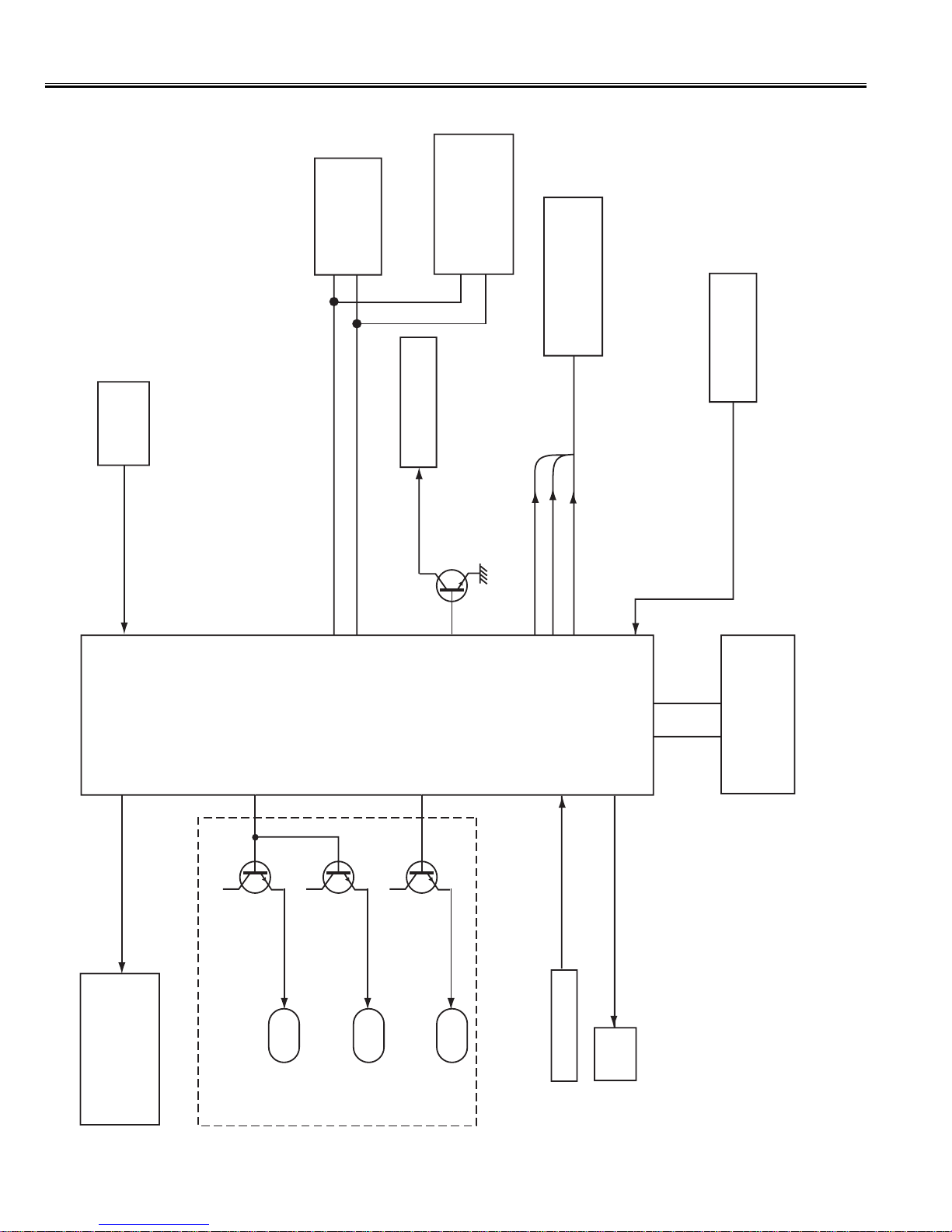

SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 2

IC001
AUDIO AMP.
A101
TUNER
IC802
MEMORY
IC201
CPU/CHROMA/IF/VIDEO/
DEFLECTION/PWR.
RC
RECEIVER
A1901
LED
D1910
FRONT
KEYS
SW1901 ~ SW1906
AUDIO-IN1 AUDIO-IN2
AUDIO-OUT
V-IN1 V-IN2
V-OUT
SP901
SP902 IC501
VERTICAL
Q431
T431
H-DRIVE
TRANS Q432
10
R-OUT
G-OUT
B-OUT
V-OUT
H-OUT
ON-TIMER
AUDIO OUT
L-OUT
R-OUT
IF OUT
X161
SAW
FILTER
IF-IN
IF-IN
T471
FBT
SDA/SCL
T611
CONVERTER
TRANS
5VRC
8V
5V-2 5V-1
3.3VRC
14V
14V
24V
11V
130V
IC201
PRIMARY
CIRCUIT
D610
HV
FOCUS
SCREEN
Q901
CRT
L902
DY
AC
(Power ON=High)
1
5/6
3
10/12
13/14 5
DEFLECTION
AUDIO AMP.
FBT, TUNER
11
16
12 13
ABL FEED BACK
32
28
24
80 274 72
POWER FAILURE
STB
Q886
54
55
56
9
13
29
Q703/Q701/Q705
38 39
POWER MNG
IC201
IC201, TUNER
IC201
IC201
AUDIO CONTROL
5VRC
50
45 44
(mono) (mono)
8.7V
-3-

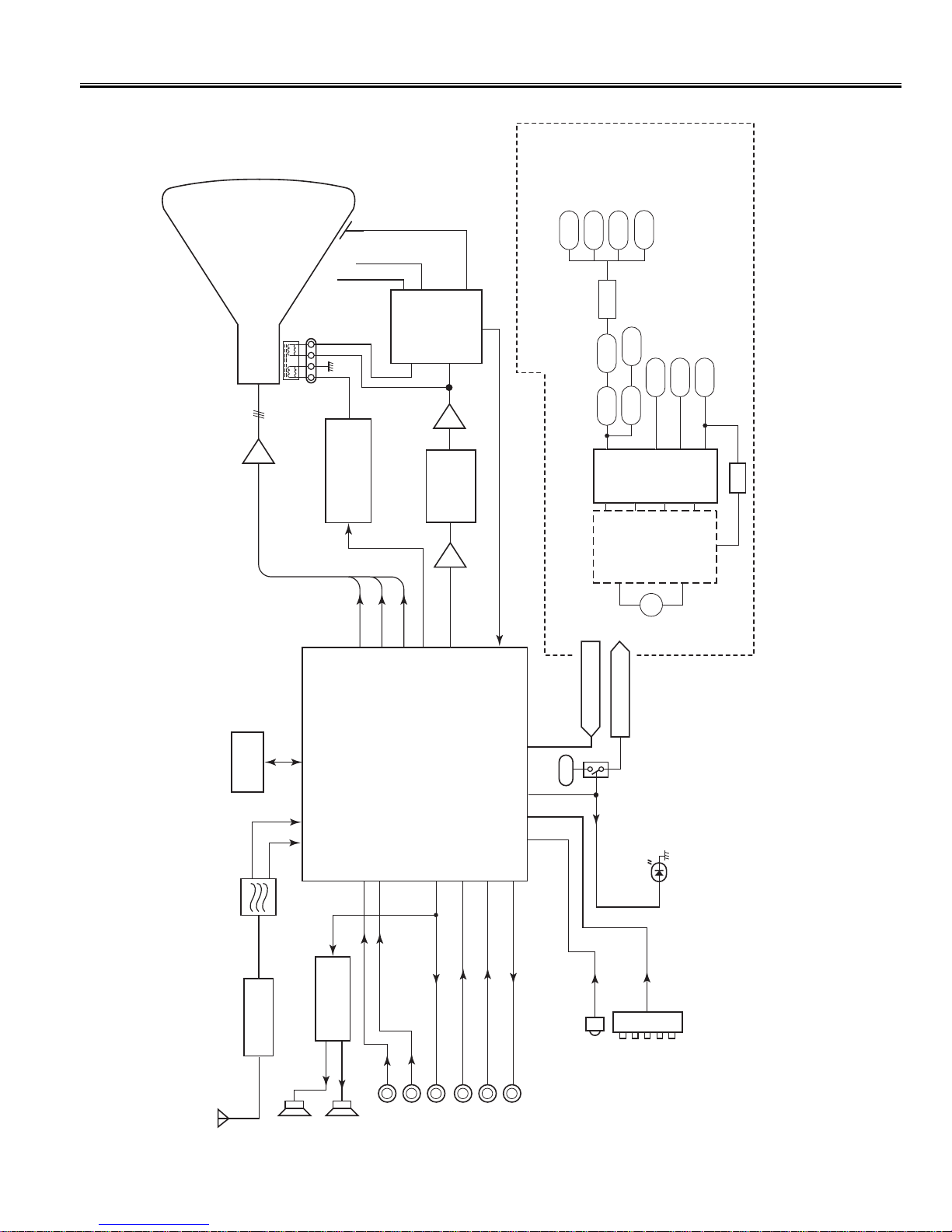

Chassis Block Diagrams
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 3

Chassis Block Diagrams
-4-
2KEY SWITCH IN KEY
SWITCH
IIC SCL
75
76
IIC SDA
STB PHOTO COUPLE
IC201
QXXAAJQD803--
54 55
56
72
7675
74
80
OSD RED OUT(Active=High)
OSD GREEN OUT(Active=High)
OSD BLUE OUT(Active=High) CRT UNIT
POWER PROTECT IN
(POWER ERROR=LOW)
POWER CIRCUIT
etc.
IIC SCL
IIC SDA
IC802
MEMORY
LED
ON-OFF (POWER ON=High)
RC SIGNAL IN (ACTIVE=HIGH)
RC PRE-AMP.
69
SOUND MUTE (MUTE=H)
IC001
AUDIO AMP.
5V_1
5V_2
8V
A101
F/S TUNER
56
5
4
IC1200
AUDIO CONTROL
17
18
74 Q886
33 27
8.7V 8.7V 8.7V
POWER REGULATOR
Q201 Q202 Q203
System Control
QXXAVC940---M QXXAVD010---M
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 4

-5-
IC201 < CPU/IF/Video/Chroma/Def.> QXXAVC940---M/QXXAVD010---M
IC Block Diagrams
12345678910
11 12 13 14 15 16 17 18 19 20 21 22 23 24
25 26
27
28
29
30
31
32
33
34
35
36
37 38
39
40
41424344
45
4647
48
4950
51
5253
54
5556
57
58
59
60
61
62
63
64
65
66 67 68 69
70
71
72
73 74
75
76
77
78
79
80
PLL
DEMO
VCO
ADJ
VIF
VIFAMP
IF AGC
RF AGC
VIF AGC FIL
VIF IN1 VIF IN2
RF AGC FIL
+
VIF APC
+
+
VIF GND
SECAM BELL FIL
5.7 VREG OUT
CVBS1 IN/YIN YC
CHROMA VCC
+
CVBS2 IN/CIN YC
ABCL IN/EHT IN
CVBS4 IN/C-SYNC IN
8.7 VREG OUT
EW OUT
FAST SW
VIDEO SW
C-TRAP
AFT
SOUND
TRAP
LOCK
DET
QIF
DET
SAW
TEST0
TEST1
P20
P21
P11/MFT0A/MFT1B
P02/CSIO_RXDMFT3AMFT0B
1.5V DVDD
P04/CSIO_SCLK
P03/CSIO_TXDMFT5AMFT68
DVSS
P01/SCL0
P00/SDA0
P05/UART_RXD/AD3
P06/UART_TXD
P07/INT0/AD2/UART_RTS
P10/INT1/AD1/UART_CTS
IIC
Decoder
ROM
RAM
I/O CPU
Core
vco
OSD
RESET
Power
Manage
HV BLK
DRIVE
CUT OFF
BRIGHT
CONTRAST
OSD MIXING
RGB MATRIX
COLOR
FAST SW
VERTICAL
COUNT DOWN
HORIZONTAL
COUNT DOWN
SYNC
SEP
AFC1 H VCO
AFC2
V RAMP
CbCr Y
RGB to YUV
CONVERT
GBR
VCXO
DDS
VIDEO PRO
Y DELAY
SHARPNESS
BLACK STRETCH
Y MUTE
CHROMA PRO
C-BPF/APC
PAL/NTSC/SECAM
KILLER/ID
ACC
6dB
AMP
BASEBAND
TINT
MIX/SBPF
LIM/FM DET
AF AMP
ATT
VIDEO LINE OUT
CHROMA GND
X'TAL
C-APC FIL
Cr IN/R IN
Cb IN/B IN
CVBS3 IN/YIN YCbCr/G IN
SECAM PLL FIL
VRAMP AGC FIL
DEF GND
FBP IN
H OUT
DEF VCC
AFC1 FIL
VRAMP CAPA
VRAMP OUT
2.2 VREGOUT
IM OUT/FSCOUT
P14/AFT(AD0)
P15/SDA1/MFT2A/MFT3B
P13/CSIO_SRDY/AD4
P16/SCL1/MFT1A/MFT2B
P12/MFT4A/MFT5B/AD5
P17/AD7(AKB) RESET
P23/MFT7A/MFT4B
P22/MFT6A/MFT7B
AVSS
3.3V DVDD
3.3V AVDD
4.0 VREGOUT
VREG VCC
B OUT
G OUT
R OUT
SVM OUT
HI VCC (8V)
DIRECT OUT
AUDIO ATT(L) OUT
AUDIO ATT(R) OUT
QIF OUT/INT.CARRIER OUT
SIF MIX F/B
AUDIO BYPASS
EXT AUDIO(R) IN
EXT AUDIO(L) IN
VIF VCO F/B
VIF VCC
QIF IN/SIF IN
++
+
+
++
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 5

-6-
IC Block Diagrams

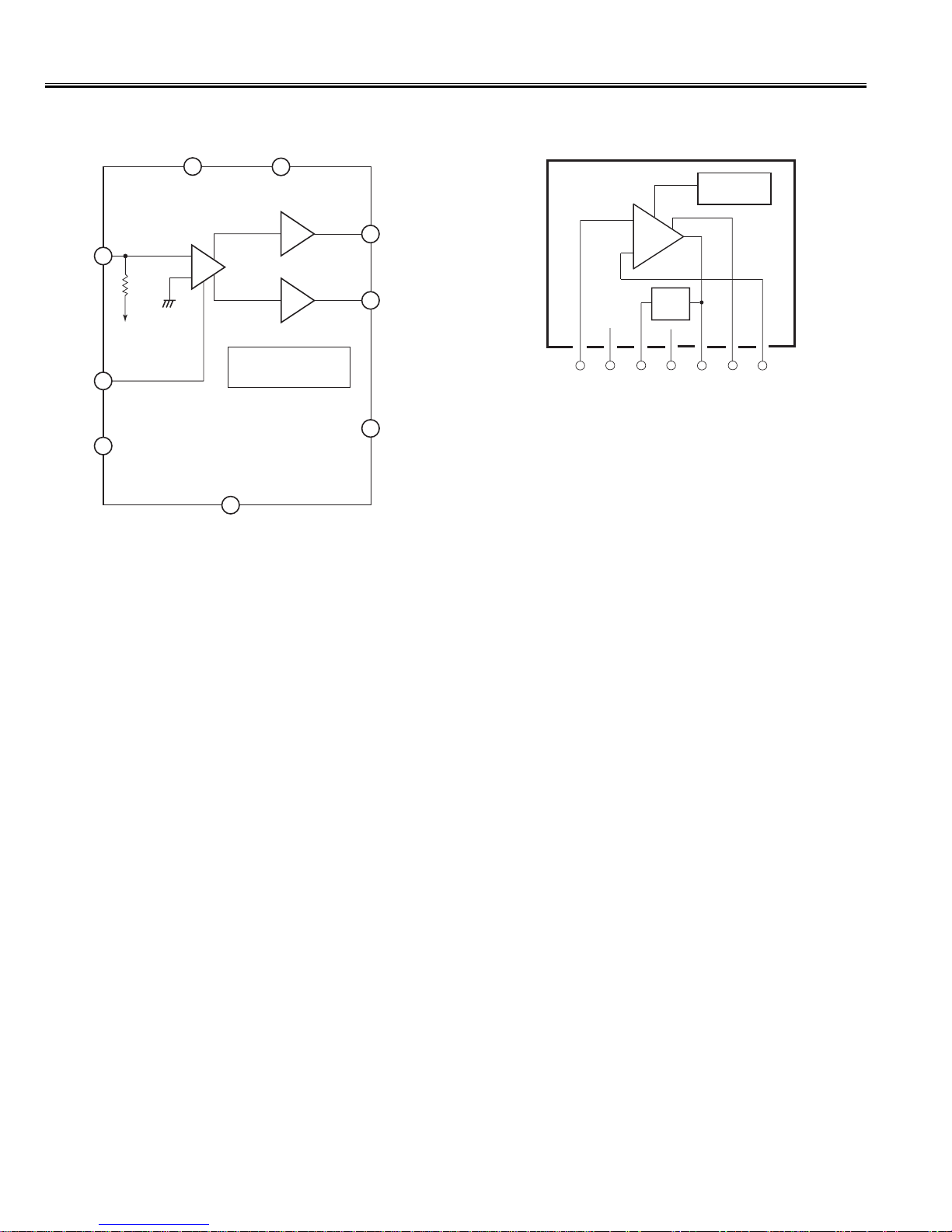

IC001 < Audio AMP.> LA42105-E
3
7
4
2
69
14
13
11
Output amplifier
Input amplifier
Standby VCC
+OUT1
-OUT1
PWR
GND
IN
MUTE
PRE
GND
Ri=
30kΩ
Vcc / ground shorting protection circuit
Load shorting protection circuit
Thermal protection circuit
Ripple
Filter
IC501 < Vertical Output > LA78040/LA78040N
Thermal
Protection
-
+
AMP
Pump
Up
1
INVERTING INPUT
2
Vcc
3
PUMP UP OUT
4
GND
5
Ver. OUTPUT
6
OUTPUT STAGE Vcc
7
NON INV. INPUT
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 6

-7-
Service Adjustments with Replacing Memory IC(IC802)
Note: The CPU (IC201) and memory IC (IC802) store the service adjustments data and controls data for each
circuit.When the Memory IC(IC802) is replaced, some of the service adjustments should be readjusted to
obtain the best performance. The necessary service adjustments are carried out by using the RC handset.
Please set up the TV set with following steps [1] to [2].

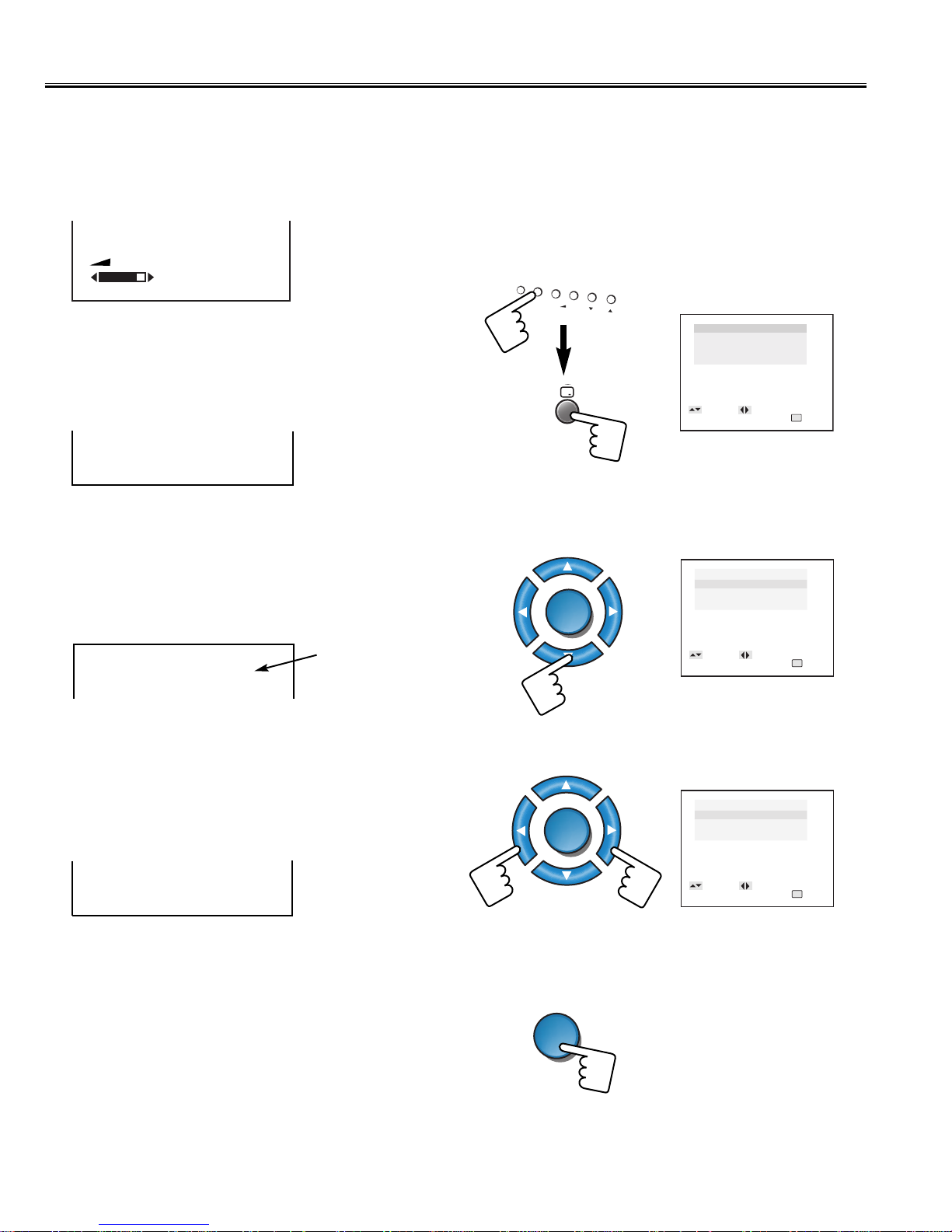

[1] Initializing Procedure
1. Put a new memory IC.
2. Turn on the TV set.
3. Press and hold the TV/AV Selector on the TV set for more than 2 seconds. The following picture appears on the
screen.
4. Press the MENU on the TV set while the above On-Screen Display is still on the screen. The following picture
appears on the screen.
5. Switch off the TV set by pressing the Power Switch button on the TV set while the above On-Screen Display is
still on the screen.
This completes the initialization of memory IC.
Following shows the initialized contents of memory data by this procedure.
- Plug & play : No executed
- Inhibit data : Cancelled
- Ch skip data : Cancelled
- Sound volume data : 10/63 steps.
- Volume Lock : OFF
- Colour system : AUTO
CLR
CLR
Press and hold for more than 2 seconds
MENU
TV/AV
CH
- +
[2] Required Service Adjustments
Readjust the following service adjustments.
Adjustments Service Mode No. & Item
RF AGC Item 126, RF DELAY ADJ
Horizontal centre Item 21, H-PHA (PAL)
Vertical Position Item 16, V-SHIFT
Vertical linearity Item 14, V-LIN
Vertical-S correction Item 12, V-SCO
Gray scale Item 187 ~ 191
Further adjustment please refer to page 15 and 16.
MENU
TV/AV
CH
- +
(displayed in yellow color)
(displayed in red color)
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 7

-8-
Service Adjustments with Replacing Memory IC(IC802)
MENU
[Entering to Service Mode]

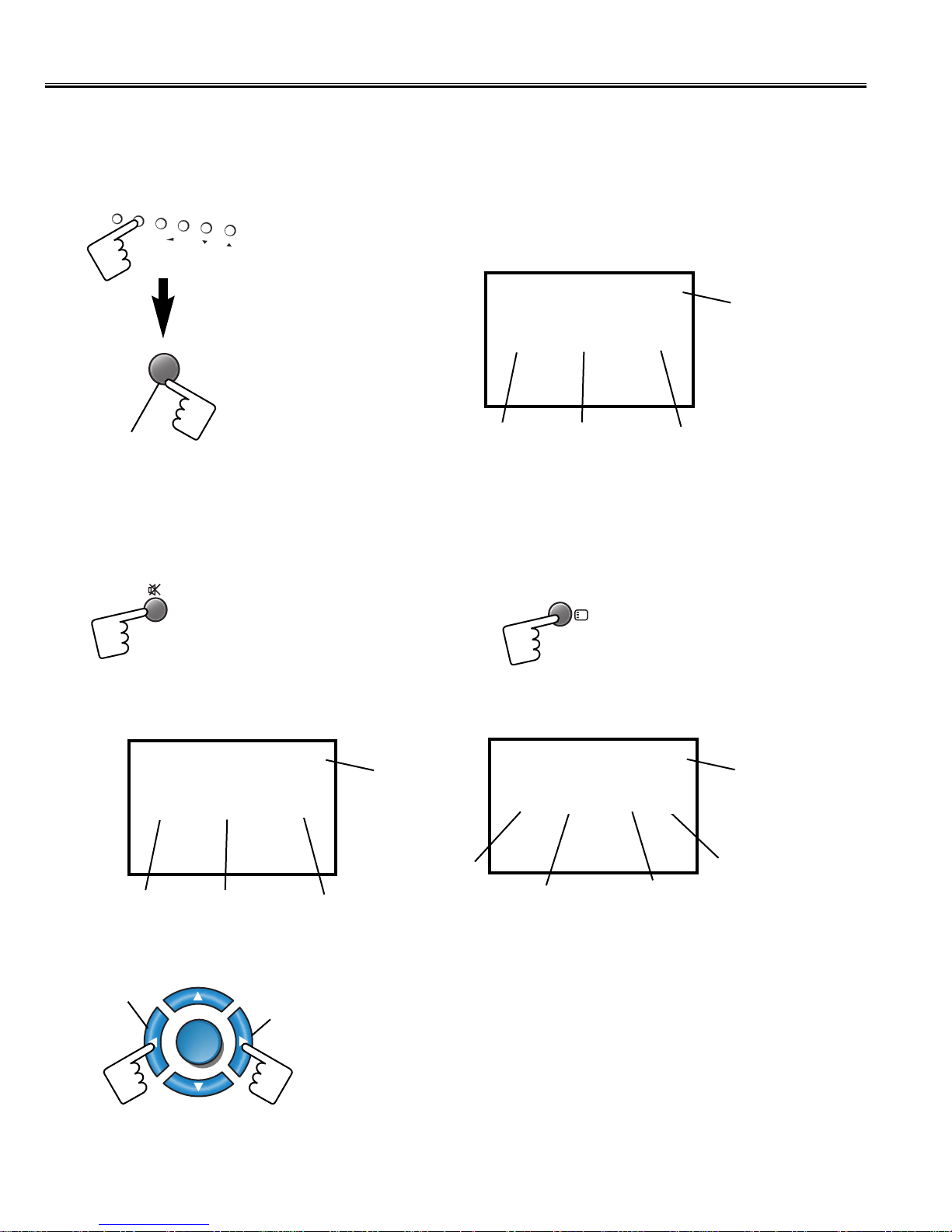

1. Press and hold the MENU button on the TV set and press the numeric 1 button on the Remote Control. Following
setting items appears on the screen.
Display for [V-SCO] V-S Correction adjustment
Item No. Item Data value
Display for [RF DELAY ADJ] RF AGC adjustment
Version
Item No. Item Data value
Data value for Red
Display for [DRV] White balance adjustment
Data value for Blue
To return to normal TV mode, press the MENU button on the TV set or the remote control handset.
2. Select item by pressing the SOUND MUTE (Item No. UP) or TIMER (Item No. DOWN) button on the remote control
handset.
3. Adjust data value by pressing the VOLUME + or VOLUME - button on the remote control handset.
Example
1
button POS 1
0102030405......200 200...96959493.....01
MENU
TV/AV
CH
- +
TIMER
x
SERVICE MODE
INDEX ADDRESS DATA
2.11
126 RF DELAY ADJ 2A
12 V S CORRECT 50 2A
Version
DRIVER(R) 3F DRIVER(B) 45
Item
Item
Version
VOLUME +
VOLUME -
SERVICE MODE
INDEX ADDRESS DATA
2.11
SERVICE MODE
INDEX ADDRESS DATA
2.11
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 8

-9-
Service Adjustments with Replacing Memory IC(IC802)
(/JE0371B)
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
No. Item Range Data Description
01 VIF VCO ADJ 0 ~ 3F 1E VIF VCO free-running frequency fine adjustment
02 STRAP ADJ 0 ~ 3F 10 SOUND trap free-running frequency fine adjustment
03 H VCO ADJ 0 ~ F 8 HORIZONTAL VCO free running frequency fine adjustment
04 SECAM BLK LEVEL (R) 0 ~ 3F 1A SECAM-(R-Y) signal black level adjustment
05 SECAM BLK LEVEL (B) 0 ~ 3F 21 SECAM-(B-Y) signal black level adjustment
06 V SIZE 50 0 ~ 3F 22 V Ramp amplitude adjustment (Vertical Size) for PAL
07 V-SIZE 50 ZOOM 0 ~ 3F 33 V-Size for Zoom Mode PAL
08 V-SIZE 50 WIDE 0 ~ 3F 16 V-Size for Wide Mode PAL
09 V-SIZE 60 -1F ~ 20 0 V Ramp amplitude adjustment (Vertical Size) for NTSC
10 V SIZE 60 ZOOM -1F ~ 20 0 V-Size for Zoom Mode NTSC
11 V SIZE 60 WIDE -1F ~ 20 0 V-Size for Wide Mode NTSC
12 V S CORRECT 50 0 ~ 3F 2A V-S Correction control for PAL
13 V S CORRECT 60 -1F ~ 20 0 V-S Correction control for NTSC
14 V LINEARITY 50 0 ~ 3F 25 V Linearity control for PAL
15 V LINEARITY 60 -1F ~ 20 02 V Linearity control for NTSC
16 V SHIFT 50 0 ~ F 05 V Ramp start timing point adjustment 2 line/step (V position) for PAL
17 V SHIFT 60 -7 ~ 8 -03 V Ramp start timing point adjustment 2 line/step (V position) for NTSC
18 AFC2 H PHASE 50 0 ~ 1F 11 Horizontal Phase (H-Position) adjustment for PAL
19 AFC2 H PHASE 50 ZOOM 0 ~ 1F 0 Horizontal Phase (H-Position) ZOOM adjustment for PAL
20 AFC2 H PHASE 50 WIDE 0 ~ 1F 0 Horizontal Phase (H-Position) WIDE adjustment for PAL
21 AFC2 H PHASE 60 0 ~ 1F 2 Horizontal Phase (H-Position) adjustment for NTSC
22 AFC2 H PHASE 60 ZOOM 0 ~ 1F 0 Horizontal Phase (H-Position) ZOOM adjustment for NTSC
23 AFC2 H PHASE 60 WIDE 0 ~ 1F 0 Horizontal Phase (H-Position) WIDE adjustment for NTSC
24 EHT V 0 ~ 7 0 EHT Vertical Function 0: OFF 1: Gain UP
25 EHT HSIZE 0 ~ 7 0 EHT Horizontal Size Function 0: OFF 1: Gain UP
26 EHT PARABOLA 0 ~ 7 0 EHT Parabola Function 0: OFF 1: Gain UP
27 EW STOP 0 ~ 1 0 East West Function disable 0:On 1: Off
28 E/W UP/LOW ON 0 ~ 1 0 East /West Corner
29 E/W PARABOLA 50 0 ~ 3F 0 East West Parabola 50 Adustment
30 E/W CORNER UPPER 50 0 ~ 3F 0 East West Upper Corner 50 Adustment
31 E/W CORNER LOWER 50 0 ~ 3F 0 East West Lower Corner 50 Adustment
32 E/W TRAPEZIUM 50 0 ~ 3F 0 East West Trapezium 50 Adustment
33 E/W H SIZE 50 0 ~ 3F 0 East West H-Size 50 Adustment
34 E/W PARABOLA 60 0 ~ 3F 0 East West Parabola 60 Adustment
35 E/W CORNER UPPER 60 0 ~ 3F 0 East West Upper Corner 60 Adustment
36 E/W CORNER LOWER 60 0 ~ 3F 0 East West Lower Corner 60 Adustment
37 E/W TRAPEZIUM 60 0 ~ 3F 0 East West Trapezium 60 Adustment
38 E/W H SIZE 60 0 ~ 3F 0 East West H-Size 60 Adustment
39 CONTRAST CONTROL 0 ~ 2F 13 Contrst Control (Offset Data)
40 BRIGHTNESS CONTROL 0 ~ 3F 2A Brightness Control (Offset Data)
41 TINT CONTROL TV -3F ~ 40 1D Tint Control (Offset Data) for TV
42 TINT CONTROL AV -3F ~ 40 47 Tint Control (Offset Data) for AV
43 SERVICE SW 0 ~ 1 0 Vertical Output ON/OFF Switch (Contrast Control)
44 VRAMP OFF 0 ~ 1 0 Vertical Output ON/OFF Switch ON/OFF
45 V AGC SPEED UP 0 ~ 1 0 V Ramp AGC Speed
46 Y/C TEST ON 0 ~ 1 0
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 9

-10-
Service Adjustments with Replacing Memory IC(IC802)
No. Item Range Data Description
47 BASEBAND TINT 50 0 ~ 7F 0 Base band tint control for component color signal by 7bits DAC
48 BASEBAND TINT 60 0 ~ 7F 12 Base band tint control for component color signal by 7bits DAC
49 HVCO FREERUN UP 0 ~ 1 0 Horizontal free-running frequency up
50 HALF H KILLER 0 ~ 1 0 Composite-Sync Half H Kill
51 H FREE 0 ~ 1 0 Horizontal forced free-running mode switch
52 H START 0 ~ 1 0 Horizontal output switch
53 AFC1 PULL UP 0 ~ 1 1 Horizontal AFC1 gain switch
54 HVCO PULL UP 0 ~ 1 0 Horizontal VCO Filter PULL UP
55 HVCO PULL DOWN 0 ~ 1 0 Horizontal VCO Filter PULL DOWN
56 AFC1 GAIN UP 0 ~ 3 0 Horizontal AFC1 gain switch
57 ACFQ IF CONT 0 ~ 1 1 AFC1 gain controlled by IF AGC
58 DOUBLE COINCI 0 ~ 1 0 Horizontal AFC1 Gain Controlled by FAST Horizontal Coincidence
59 AFC2 RAMP UP 0 ~ 1 0 AFC2 RAMP UP
60 FBP BTHL 0 ~ 1 0 FBP slice level switch
61 AFC2 GAIN UP 0 ~ 3 3 Horizontal AFC2 gain switch
62 HBLK RIGHT 0 ~ 3 1 Control edge of horizontal blanking pulse that is right side of picture
63 HBLK LEFT 0 ~ 3 0 Control edge of horizontal blanking pulse that is left side of picture
64 HBLK SEL 0 ~ 1 1 Horizontal blanking select
65 HD SEL 0 ~ 1 1 Horizontal time pulse for OSD
66 HV BLK OFF 0 ~ 1 0 H and V blanking off switch for RGB-OUT
67 BGP SHIFT 0 ~ 3 0 Burst Gate Pulse for Position Adjustment
68 SECAM BGP SHIFT 0 ~ 3 3 Burst Gate Pulse for Position Adjustment
69 BGP SEL 0 ~ 1 0 Burst Gate Pulse Mode Select
70 PSEUDO H COIN 0 ~ 1 0 Horizontal coincidence detection by fsc counter
71 AUTO SLICE LEVEL 0 ~ 7 0 Sync separator slice level down
72 VSYNC UP ON 0 ~ 1 0 Sync Separator Gain Up at vertical sync
73 AUTO SLICE SPEED UP 0 ~ 1 0 Auto Slice Speed Switch (Normal / Up)
74 AUTO SLICE SPEED DN 0 ~ 1 0 Auto Slice Speed Switch (Normal / Down)
75 AUTO SLICE DOWN 0 ~ 1 0 Sync detect level switch during video period.
76 HV FREE 0 ~ 1 0 Horizontal and Vertical forced free-running mode switch
77 V SYNC DET TIME 0 ~ 7 0 Vertical sync detect minimum time switch
78 V SYNC DET MODE 0 ~ 1 1 Vertical sync detect mode select
79 MACRO OFF 0 ~ 1 0 Switch to improvr macrovision signal ON/OFF
80 VBLK STOP 0 ~ 1 0 Vertical blanking stop
81 EQ LATCH OFF 0 ~ 1 0 AFC1 stop timing shift
82 HBLK STOP 0 ~ 1 0 Horizontal blanking stop
83 VRAMP TEST 0 ~ 1 0 Vertical Ramp Out Test
84 V 1 WINDOW 0 ~ 1 0 Vertical sync detect mode select
85 V FREE2 0 ~ 1 0 Vertical free-running mode when horizontal coincidence is low
86 V FREE 0 ~ 1 0 Vertical forces free-running mode switch
87 FORCE V MODE 0 ~ 3 0 Vertical frequency mode switch
88 V STD DET OFF 0 ~ 1 0 Vertical frequency standard / non-standard detection
89 V STD DET2 0 ~ 1 0 Vertical frequency standard / non-standard detection
90 V FREE FREQ 0 ~ 1 0 Vertical free-running frequency
91 OSD VD DELAY 0 ~ 1 0 VD TIMING delay for OSD TIMING
92 W VBLK ON 0 ~ 1 1 Vertical blanking wide mode 16:9
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 10

-11-
Service Adjustments with Replacing Memory IC(IC802)
No. Item Range Data Description
93 VLOGIC STOP 0 ~ 1 0 Vertical count up logic stop
94 VBLK TEST 0 ~ 1 0 V blanking control
95 WIDE VBLK TOP 0 ~ F 0 Vertical blanking top adjustment 16:9
96 WIDE VBLK BOTTOM 0 ~ F 3 Vertical blanking bottom adjustment 16:9
97 OSD CONT CLIP LEVEL 0 ~ 3 1 Contrast control clip level of OSD mode
98 OSD CONT CLIP OFF 0 ~ 1 0 Contrast control clip switch of OSD mode
99 DRIVER (R) 0 ~ 7F 3F R OUT amplitude adjustment by 7 bits DAC
100 BLUE BACK 0 ~ 1 0 Blue back mode ON/OFF switch
101 DRIVER (B) 0 ~ 7F 3F B OUT amplitude adjustment by 7 bits DAC
102 WHITE BACK 0 ~ 1 0 White raster mode ON/OFF switch
103 TEST PATTERN 0 ~ 1F 0 SCREEN TEST MODE
104 PEAK ACL 0 ~ 1 0 PEAK ACL MODE ON / OFF
105 ABCL 0 ~ 1 0 ABCL ON / OFF Switch
106 ABCL GAIN 0 ~ 1 0 ABCL Gain Low / High Switch
107 DCT LEVEL 0 ~ 7 0 DC Transfer Level Control
108 DCT ON 0 ~ 1 0 DC Transfer select ON / OFF
109 COLOR CONTROL PAL 0 ~ 10 0 Color Saturation control (Offset Data of Color) for PAL
110 COLOR CONTROL NTSC 0 ~ 10 0 Color Saturation control (Offset Data of Color) for NTSC
111 COLOR CONTROL SECAM 0 ~ 10 0 Color Saturation control (Offset Data of Color) for SECAM
112 TAKE OFF 0 ~ 1 1 Chroma BPF / Take Off switch
113 C KILLER LEVEL 0 ~ 1 0 Color killer sensitivity threshold switch
114 COLOR SYSTEM 0 ~ F 0 Color system selector
115 443NT50 INHIBIT 0 ~ 1 1 Auto color system 443NTSC(50Hz)
116 FSC FREE 0 ~ 1 0 VCXO free-running mode switch ON/OFF
117 FORCE MONO 0 ~ 1 0 Monochrome mode switch
118 FORCE COLOR 0 ~ 1 0 Killer function ON/OFF switch only for manual color mode
129 COND KILLER EN 0 ~ 1 0 Condition Killer Sensitivity Enable
120 1/2FSC TRAP OFF 0 ~ 1 0 Half fsc Trap filer off
121 C BPF OFF 0 ~ 1 0 Chroma DDS OFF
122 CTI 0 ~ 1 1 Color Edge Timing Improvement
123 DDS OFF 0 ~ 1 0 Chroma Bandpass Filter OFF
124 ACC AMP ON 0 ~ 1 0 Chroma ACC AMP FUNCTION
125 C ANGLE 95 0 ~ 1 1 Chroma Demodulation Angle switch
126 RF DELAY ADJ 0 ~ 7F 2A RF AGC delay point adjustment
127 VIF SYNC ADJ 0 ~ 1 01 Enable VIF video out lamp
128 AFT DEFETAT 0 ~ 1 0 AFT OUT ON/OFF switch
129 VIF REEQ 0 ~ F 0 VIF frequency selector
130 VIF VIDEO OUT GAIN 0 ~ 7 3 VIF Video Detector output amplitude adjustment
131 VIF DEFEAT 0 ~ 1 0 VIF AGC gain
132 AFT REV 0 ~ 1 0 AFT polarity reverse
133 VIF POS 0 ~ 1 0 positive modulation mode
134 STRAP OFF 0 ~ 1 0 SOUND trap test mode switch
135 OM DET 0 ~ 1 0 Vertical frequency standard / non-standard detection
136 VIF AGC CLIP 0 ~ 1 0 VIF AGC sensitivity become low
137 AMF ON 0 ~ 1 0 VIF AGC CURRENT CHANGE ON/OFF switch
138 AMF VTH 0 ~ 7 0 VIF AGC CURRENT CHANGE FUNCTION INPUT LEVEL Adj.
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 11

-12-
Service Adjustments with Replacing Memory IC(IC802)
No. Item Range Data Description
139 VIF AGC VTH HYS OFF 0 ~ 1 0 VIF AGC CURRENT CHANGE FUNCTION HYSTERESIS OFF SWITCH
140 VIF AGC SPEED UP 0 ~ 7 0 VIF AGC SPEED Adj.
141 AUDIO ATT L MONO 0 ~ 7F 7F L Ch Audio output level attenuation
142 SIF OUT MUTE 0 ~ 1 1 AF direct put out ON/OFF (Mute) switch
143 AUDIO ATT (R) 0 ~ 7F 7F R Ch Audio output level attenuation
144 SIF OVER MODE 0 ~ 1 0 SIF OVER modulation detector ON/OFF switch
145 AUDIO SW SEL 0 ~ 1F 0 Audio Switch Selector
146 SECAML PC65 0 ~ 1 0 SECAML’ Phase Comparator Mode Select
147 CONV VCO PULL UP 0 ~ 1 0 SIF CONVERTER VCO PULL UP
148 CONV VCO BETA UP 0 ~ 1 0 SIF CONVERTER VCO Bup
149 SIF MODE 0 ~ 7 1 SIF Frequency selector
150 AVL SEL 0 ~ 1 0 AVL MODE DELECTOR ON/OFF
151 SIF INT 0 ~ 1 1
152 SIF BPF WIDE 0 ~ 3 3 SIF BPF band width selector ( For over mode )
153 SIF PAL 0 ~ 3 0 Switch to improve Sound S/N at PAL signal ON/OFF
154 SIF PAL INV 0 ~ 1 0 Switch to improve Sound S/N at PAL signal ON/OFF
155 SIF BPF TEST 0 ~ 1 0 Color Saturation control (Offset Data of Color) for PAL
156 HI TRAP OFF 0 ~ 1 0 Color Saturation control (Offset Data of Color) for NTSC
157 VIDEO SW LPF 0 ~ 1 0 Color Saturation control (Offset Data of Color) for SECAM
158 VIDEO MUTE 0 ~ 1 0 Luminance signal mute ON/OFF
159 SHARPNESS PRE 0 ~ 1F 13 SHARPNESS PRESHOOT LEVEL Adjustment
160 SHARPNESS OVER 0 ~ 1F 10 SHARPNESS OVERSHOOT LEVEL Adjustment
161 BLK STRETCH OFF 0 ~ 1 0 Black Stretch function ON/OFF switch
162 BLK STRETCH CHARGE 0 ~ 3 1 Charge time constant adjustment for black stretch
163 BLK STRETCH 0 ~ 3 1 Discharge time constant adjustment for black stretch
164 BLK STRTCH GAIN 0 ~ 1 0 Black stretch gain adjustment
165 GAMMA CONTROL 0 ~ 3 3 Luminance gamma threshold control ON/OFF
166 C TRAP ADJ PAL 0 ~ 3 1 Chroma trap for for adjustment PAL
167 C TRAP ADJ NTSC 0 ~ 3 1 Chroma trap for for adjustment NTSC
168 C TRAP OFF 0 ~ 1 0 Chroma trap ON/OFF switch
169 DOUBLE TRAP 0 ~ 1 1 Chroma trap filter for SECAM ON/OFF
170 Y NR TH 0 ~ 3 0 Video Noise Reduction Threshold level change
171 Y NR DEPTH 0 ~ 3 0 Video Noise Reduction Threshold Depth change
172 Y NR ON 0 ~ 1 1 Video Noise Reduction ON
173 Y DL TIME ADJ 0 ~ 7 2 Luminance signal delay time adjustment for PAL
174 Y DL TIME ADJ SECAM 0 ~ 7 3 Luminance signal delay time adjustment for SECAM
175 SECAM KILLER 0 ~ 3 1 SECAM color killer sensitivity threshold adjustment
176 SECAM PLL RST OFF 0 ~ 1 0 SECAM PLL RESET disable
177 SECAM OFF 0 ~ 1 0 SECAM demodulator switch
178 CR DL FINE 0 ~ 1 0 Cr signal delay time adjustment
179 CBCR GAIN UP 0 ~ 1 0 CbCr signal pedestal Gain Switch
180 CBCRPED ADJ ON 0 ~ 1 1 CbCrPED ADJ ON
181 CRPEDESTAL ADJ 0 ~ F 3 Cr signal Pedestal level adjustment
182 CBPEDESTAL ADJ 0 ~ F 4 Cb signal Pedestal level adjustment
183 CB DL FINE 0 ~ 3 0 Cb signal delay time adjustment
184 DL TEST 0 ~ 1 0 1HD TEST MODE
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 12

-13-
Service Adjustments with Replacing Memory IC(IC802)
No. Item Range Data Description
185 R MATRIX PAL 0 ~ 3 1 R Matrix 50
186 R MATRIX NT DEFFER 0 ~ 3 1 R matrix gain control for YCbCr (NTSC Offset)
187 WHITE BALANCE 0 ~ 3 ........ WHITE BALANCE (R-Drive & B-Drive)
188 CUT OFF ( R ) 0 ~ FF 0 R OUT Pedestal level adjustment ( R Bias for White balance )
189 CUT OFF ( G ) 0 ~ FF 0 G OUT Pedestal level adjustment ( G Bias for White balance )
190 CUT OFF ( B ) 0 ~ FF 0 B OUT Pedestal level adjustment ( B Bias for White balance )
191 CUT OFF ......... One Line
192 FAST SW 0 ~ 1 0
193 E/W P 50 ZOOM 0 ~ 3F 0 EW_PARA_50_ZOOM
194 E/W C UP 50 ZOOM 0 ~ 3F 0 EW_COR_U_50_ZOMM
195 E/W C LOW 50 ZOOM 0 ~ 3F 0 EW_COR_L_50_ZOMM
196 E/W T 50 ZOOM 0 ~ 3F 0 EW_TRAPE_50_ZOOM
197 E/W H SIZE 50 ZOOM 0 ~ 3F 0 EW_HSIZE_50_ZOOM
198 E/W P 60 ZOOM 0 ~ 3F 0 EW_PARA_60_ZOOM
199 E/W C UP 60 ZOOM 0 ~ 3F 0 EW_COR_U_60_ZOOM
200 E/W C LOW 60 ZOOM 0 ~ 3F 0 EW_COR_L_60_ZOOM
201 E/W T 60 ZOOM 0 ~ 3F 0 EW_TRAPE_60_ZOOM
202 E/W H SIZE 60 ZOOM 0 ~ 3F 0 EW_HSIZE_60_ZOOM
203 E/W P 50 WIDE 0 ~ 3F 0 EW_PARA_50_WIDE
204 E/W C UP 50 WIDE 0 ~ 3F 0 EW_COR_U_50_WIDE
205 E/W C LOW 50 WIDE 0 ~ 3F 0 EW_COR_L_50_WIDE
206 E/W T 50 WIDE 0 ~ 3F 0 EW_TRAPE_50_WIDE
207 E/W H SIZE 50 WIDE 0 ~ 3F 0 EW_HSIZE_50_WIDE
208 E/W P 60 WIDE 0 ~ 3F 0 EW_PARA_60_WIDE
209 E/W C UP 60 WIDE 0 ~ 3F 0 EW_COR_U_60_WIDE
210 E/W C LOW 60 WIDE 0 ~ 3F 0 EW_COR_L_60_WIDE
211 E/W T 60 WIDE 0 ~ 3F 0 EW_TRAPE_60_WIDE
212 E/W H SIZE 60 WIDE 0 ~ 3F 0 EW_HSIZE_60_WIDE
213 OPT MONO STE 0 ~ 1 1 Option Stereo / Mono (0=Stereo w/ surround; 1=Mono w/o surround)
214 OPT VOL TABLE 0 ~ 1 1 Option Volume Table
215 OPT MPP 0 ~ 1 1 Option MPP (0=with MPP; 1=without MPP)
216 OPT BOOSTER 0 ~ 1 1 Option Booster (0=with Booster; 1=without Booster)
217 OPT AV SEL 0 ~ 3 1 Option Audio Video Select
218 OPT COL SYSTEM 0 ~ 2 1 Option Color System
219 OPT SIF SYSTEM 0 ~ 3 1 Option SIF System (0=Auto/BG/I/DK/m, 1=BG/I/DK, 2=S-1/S-2, 3=M Fixed)
220 OPT LG ALPS TCL 0 ~ 2 0 Option Maker Tunner LG , ALPS , TCL
221 OPT PLUG & PLAY 0 ~ 1 0 Option Plug and Play
222 OPT ASIA ME HSE 0 ~ 2 0 Option ASIA Middle East HSE
223 POWER ON TIME 0 ~ FF 0 Power ON Timer
224 OSD H - POSITION 0 ~ FF 3F OSD Horizontal Position
225 OSD V - ( 60 Hz ) 0 ~ FF 16 OSD Vertical NTSc
226 VOLUME OFFSET 0 ~ 7 0 Volume Offset
227 BASS OFFSET 0 ~ 7 0 BASS OFFSET
228 TREBLE OFFSET 0 ~ 7 0 TREBLE OFFSET
229 OPT AFT 0 ~ 1 1 0 : For VCO AFT Voltage 2.5 V (WS 1.2) ==> 1 : for (WS 2.0)
230 OPT CHMUTE 0 ~ 1 1 VIDEO MUTE WHEN changing posion 0: NO MUTE 1: MUTE
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 13

-14-
Service Adjustments with Replacing Memory IC(IC802)
Following table shows the initial values which have been stored in the CPU ROM, and items for the service adjustments.
Service mode adjustments table in CPU ROM
No. Item Range Data Description
231 AV TV TIME 0 ~ FF 17
232 BG STRAP OFFSET 0 ~ 12 -1
233 DK STRAP OFFSET 0 ~ 12 -5
234 I STRAP OFFSET 0 ~ 12 2
235 M STRAP OFFSET 0 ~ 12 1
236 BGSUB STRAP OFFSET 0 ~ 12 -4
237 OPT PAL DK I 0 ~ 1 0
238 OPT BASS WOOFER 0 ~ 1 0 0: Bass Expander, 1: Woofer
239 SECAM CNT 0 ~ FF 5
240 KEY WORD 0 ~ FF AC
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 14

-15-
Service Mode Adjustments
T471H7
T471H10
MAIN BOARD
SCREEN VR
(Under side)
(1) Receive a monochrome circular pattern.
(2) Set the brightness and colour to normal, contrast to maximum.
(3) Enter to the service mode.
(4) Select No. 188 CUT OFF (R), No, 189 CUT OFF (G), and No. 190 CUT OFF (B) and set each data to 0 by pressing
the VOLUME + or - key.
(5) Select No. 187 WHITE BALANCE (R-Drive and B-Drive) and set data to 3F by pressing the VOLUME + or - key.
(6) Turn Screen Control on the FBT (T471) to minimum (fully counter-clock-wise).
(7) Select No. 191 (1-line appear).
(8) Advance Screen Control clockwise to obtain just visible one colour line. If line does not appear, place this control to
maximum (fully clockwise).
(9) Raise each CUT OFF Level with 1, 2, 3, 4, 5 and 6 keys to obtain just visible white line.
(10) Select No. 187 WHITE BALANCE (Drive Adjustments).
(11) Adjust Red and Blue Drive Levels alternately with 1, 3, 4 or 6 key to produce normal black and white
picture in highlight areas.
(12) Check for proper grayscale at all brightness levels. To turn off the TV Service Menu display, press the MENU key.
Note: If the Grayscale adjustment is made after picture tube replacement, check the High Voltage
Items 187 - 191 GREY SCALE
123
456
789
0
TV/AV
TIMER
x
-/--
SWAP
CH SCAN
MENU
BASS
SOUND
S. SYS
SURROUND
CH
CH
A B
.
PP
JXPSG
R-CUT OFF +
Press the MENU button to exit
from service mode.
R-Drive +
G-CUT OFF +
R-CUT OFF -
R-Drive -
G-CUT OFF -
B-CUT OFF +
B-Drive +
B-CUT OFF -
B-Drive -
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 15

-16-
Service Mode Adjustments
Following adjustments should be carried out when the memory IC is replaced. How to enter the service mode and
adjust values, please refer to “ Entering to Service mode” on page 8.
NOTE: Do not attempt this adjustment with weak signal.
(1) Tune the receiver to most clearest (or strongest) VHF
station in your area. Set the brightness and contrast
controls to maximum. Set the colour control to
minimum.

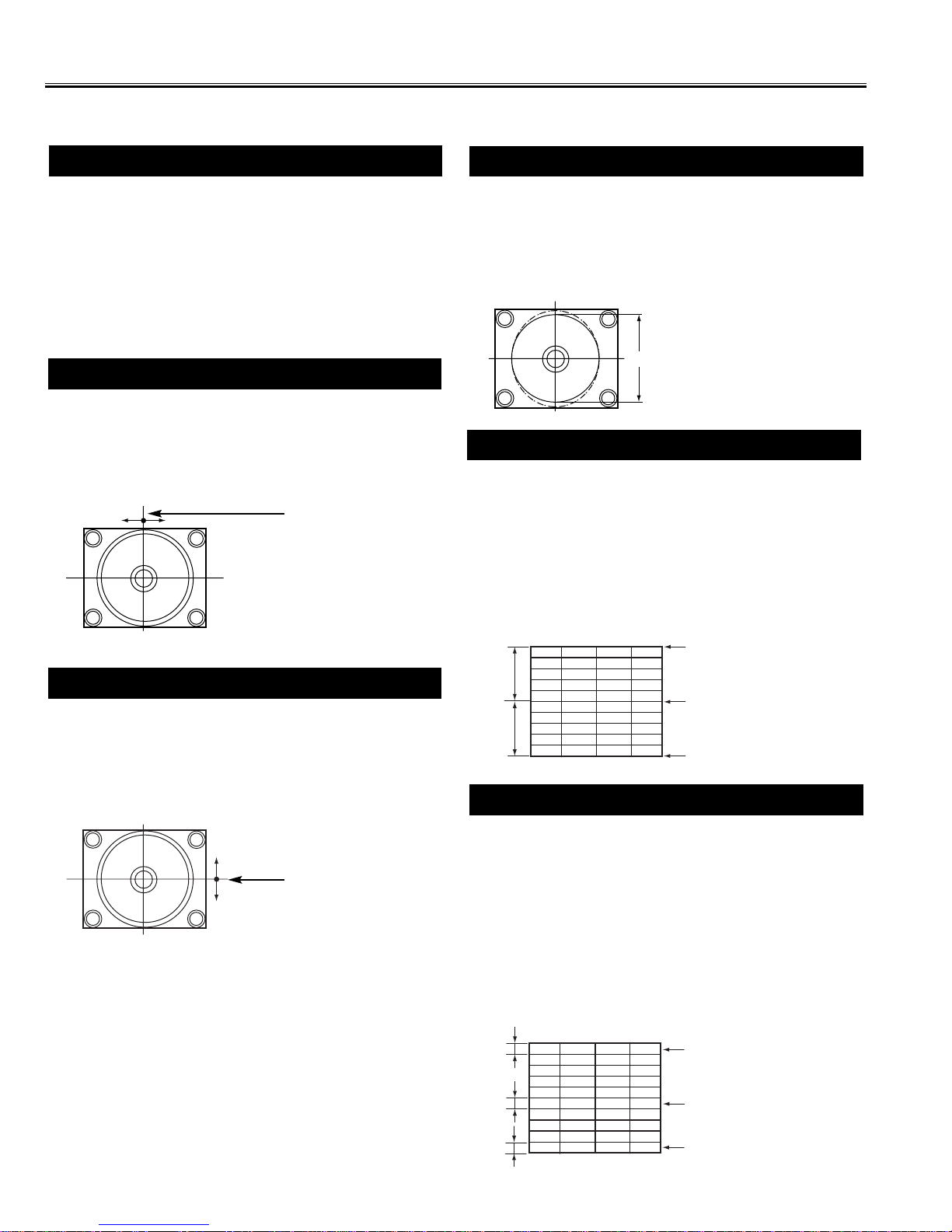

(2) Select [RF DELAY ADJ] in the service mode.
(3) Change value until the snow noise just disappears.
(4) Exit from service mode.
Item 126 [RF DELAY ADJ] AGC ADJ
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [AFC2 H-PHASE 50] in the service mode.
(4) Change value to be optimum horizontal centre position.
(5) Exit from service mode.
Item 18 [AFC2 H-PHASE 50] HORIZONTAL ADJ
(1) Receive a monochrome circular pattern..
(2) Set the brightness and contrast to maximum.
(3) Select [V-SIZE 50] in the service mode.
(4) Change value to be optimum vertical size.
(5) Exit from service mode.
Item 6 [V-SIZE 50] VERTICAL SIZE
Horizontal centre
Vertical size
cUpper
Center
Bottom
d
e
a
b
Upper
Center
Bottom
(1) Receive a crosshatch pattern.
(2) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(3) Select [V S CORRECT 50] in the service mode.
(4) Adjust Vertical S-letter Correction so that the difference
of “c”, “d” and “e” becomes less than 2 mm by pressing
the VOLUME + or - button.
(5) Confirm Vertical Linearity and adjust Vertical Center
then Vertical Size.
(6) Exit from service mode.
Item 12 [V S CORRECT 50] V-S CORRECTION
(1) Receive a crosshatch pattern.
(2) Select a picture mode of NATURAL by pressing the
PICTURE MODE button.
(3) Select [V-LINEARITY 50] in the service mode.
(4) Adjust Vertical Linearity so that the difference of “a” and
“b” becomes less than 3mm by pressing VOLUME + or
- button.
(5) Exit from service mode.
Item 14 [V-LINEARITY 50] VERTICAL LINEARITY
(1) Receive a monochrome circular pattern.
(2) Set the brightness and contrast to normal.
(3) Select [V-SHIFT 50] in the service mode.
(4) Change value to be optimum verticall centre position.
(5) Exit from service mode.
Item 16 [V-SHIFT 50] VERTICAL CENTRE
Vertical centre
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 16

-17-

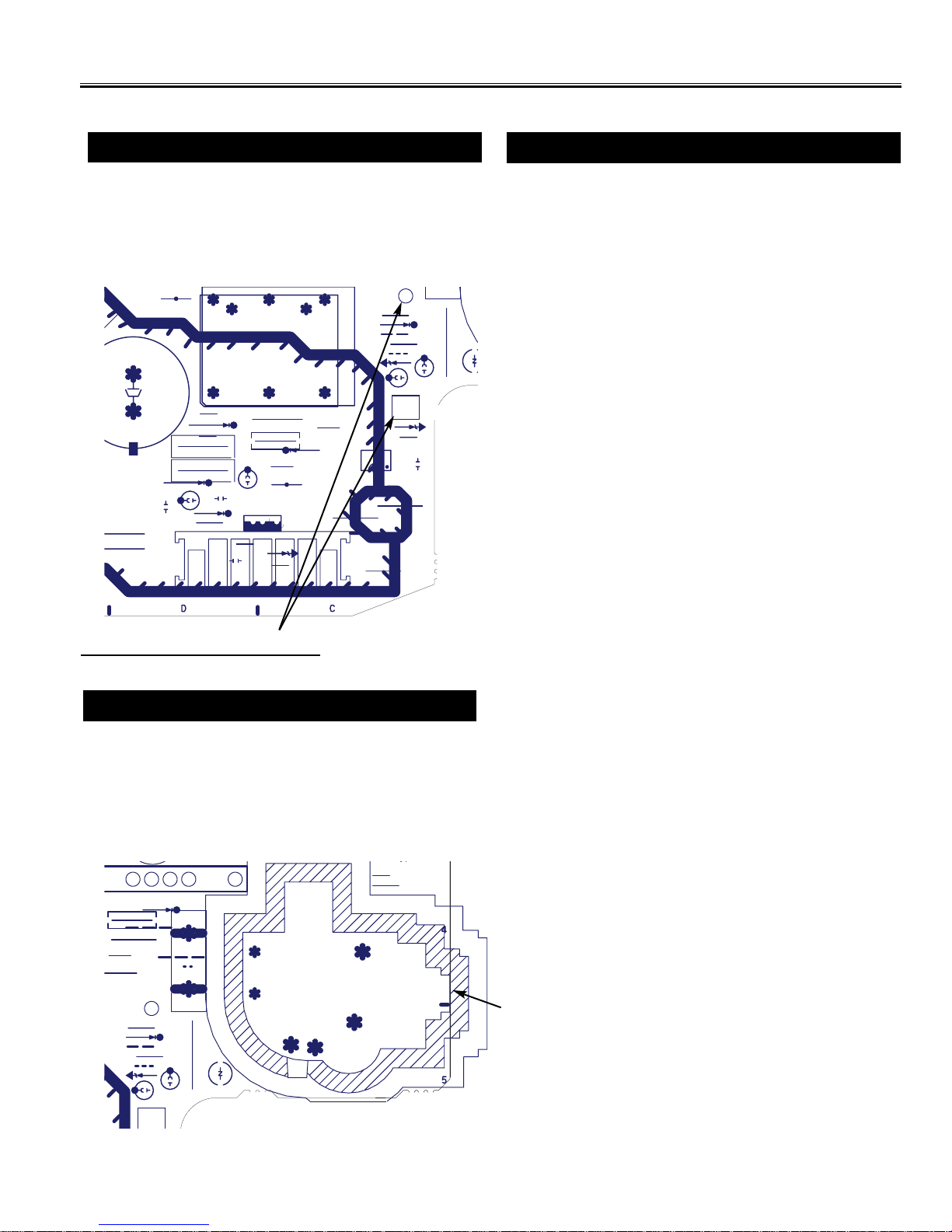

Service Adjustments
Following adjustments are not required to readjust when replacing the memory IC.
Note: +B (+130V) Voltage Check and GrayscaleAdjustment
mustbe completedbeforeattempting HighVoltageCheck.
(1) Connect high voltage voltmeter negative lead to
ground, and connect + lead to anode of picture tube.
(2) Tune receiver to an active channel and confirm TV is
operating properly.
(3) Maximize the beam current by adjusting the contrast
and brightness controls to maximum. Confirm high
voltage is within 21.0 KV and 23.0 KV at maximum
beam current.
(4) Eliminate the beam current by adjusting the contrast
and brightness controls to minimum. Confirm high
voltage does not exceed 24 KV at zero beam current.
If reading is not within range, check horizontal circuit.
No high-voltage adjustment is provided on this chassis.
HIGH VOLTAGE CHECK
01
??? ***
C611
C615
C661
D611
C691
3
4
2
1
D610
C629
R603
R604
R607
R610
IC601A
R631
R632
J294
C610
C613
D609
D613
R611
D637
R639
R606
R685
C612
VR631
C617
C632
L632
L602
R609
D612
J625
D614
D636
D686
C637
R692
IC601
C614A
C614
C616
8
1 7
T611A
1
9
8
T611
TP-B
C489
R605
C607H1
T471H5
T611H10
T611AH9
T611H7
T611AH7
T611H1
T611AH4
T611H4
T611AH1
T471H4
T47
(1) Connect DC meter to TP-B and the ground.
(2) Tune the receiver to an active channel and synchro-
nized picture. Select NATURAL picture mode by press-
ing the PICTURE MODE button on the remote control.
(3) Adjust B-voltage to be 130 ± 0.5V DC by using VR631.
B-VOLTAGE SUPPLY CHECKING
(1) Receive the monochrome circular pattern.
(2) Set the brightness to normal and contrast to maximum.
(3) Adjust the focus control on the F.B.T. for the best focus
on the screen centre.
FOCUS ADJUSTMENT
MAIN BOARD
B-Voltage Supply Adjustment
MAIN BOARD TP-B
C661
C471
C691
KDY-3
KDY-4
KDY-5
KDY-6
C356
D631
R424
KDY-1
JP482
R423
R355
J294
635
J404
J606
T471
D637
R639
D445
R445
R685
VR631
C631
R103
J625
R435
D686
T
611A
TP-B
C489
T471H5
T611H10
T611AH9
R435H1
T471H7
T611H7
T471H1
R435H2
T611H1
T611H4
T471H4
T471H2
C435AH2
T471H10
Focus VR
(Upper side)
VR631
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 17

-18-
Special Function
1To enter into the special function setting mode, press and hold the MENU button of the TV set, then press the
Recall button on the Remote Control.
Once TUNING LOCK is switched on, further channel tuning
(Pre-set) is not possible. The Channel Swapping function also
is not possible.
2Select an item of the special functions by pressing the PROGRAMME UP or DOWN button on the remote control
or the TV set.
3Set the selected special function “ ON “ by pressing the
VOLUME + or
- button. To cancel, set to “ OFF”.
(2) Tuning Lock setting
The following special functions can be set up on this TV
set.
With this function, a maximum sound volume limit can be set at
any level.
(3) Music Mode setting
When Music Mode is ON, Programme position from “247” to
“255” and “0” are set Music Mode. Only sound is provided and
any picture is not on the screen under Music Mode.
Set AV-START to ON and every time the TV set is switched on,
AV1 position will be the initial programme position.
(4) AV Start setting
TUNING LOCKED
How to set the special function:
Note: When making the VOLUME LOCK setting, set the
desired maximum sound volume by pressing the VOLUME + or
- button before entering Special Function setting mode.
AV1
MUSIC Turns black
screen
4Press the MENU button of the remote control to return to the normal TV mode.
(1) Volume Lock setting
SOUND
AV START
T
UNIN
G
L
OCK
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
AV START
T
UNIN
G
L
OCK
VOLUME LOCK
MUSIC MODE
OFF
ON
OFF
OFF
SELECT ADJUST
M
EXIT
TUNING LOCK
AV START
VOLUME LOCK
MUSIC MODE
OFF
OFF
OFF
OFF
SELECT ADJUST
M
EXIT
MENU
TV/AV
CH
- +
MENU
MENU
MENU
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 18

-19-
Purity and Convergence Adjustment
RED
BLUE
Adjust tabs together to
superimpose red and
blue horizontal line.
Figure- 2 BLUE AND RED LINE MOVEMENT Figure- 3 BLUE/RED AND GREEN MOVEMENT
Adjust tabs together to
superimpose red/blue
and green horizontal
line.
Adjust tabs angle to superimpose
blue and red vertical line.
Adjust tabs angle to superimpose
red/blue and green vertical line.
GREEN
BLUE / RED
CAUTION: The Convergence and Purity adjustments have been made at the factory. Readjustment
should be made only after picture tube or deflection yoke replacement, following the steps below:
PURITY ADJUSTMENT
1. Demagnetize the picture tube and receiver using an external
degaussing coil. When replacing picture tube or deflection
yoke, mount deflection yoke and purity-convergence magnets
assembly properly, see figures 1 and 4.
2. Turn Red and Blue guns off and provide only Green raster.
Rotate Screen control to fully counterclockwise. Rotate Red
and Blue Bias controls fully counterclockwise. Slowly rotate
Green Bias control clockwise to produce Green raster.
3. Loosen the screw holding the Deflection Yoke and remove the
3 Rubber Wedges, and slide the Deflection Yoke fully forward.
4. Rotate and spread the Tabs of the two Purity Magnets to cen-
tre the vertical green belt in the picture screen. The Purity
Magnets are also adjusted to obtain vertical centring of the
raster.
5. Slowly slide the Deflection Yoke backward until a uniform
green screen is obtained.
6. Check the purity of the red and blue screens for uniformity,
turn off other colours to check this (use bias controls).
Readjust the yoke position if necessary until all screens are
pure.
7. Adjust each Bias control and screen control to obtain white
raster. Refer to Gray Scale Adjustment. If part of the picture
screen is coloured, adjust the Deflection Yoke position forward
or backward slightly.
8. Tighten the mounting screw of the Deflection Yoke. Adjust
Convergence next.
CENTRE CONVERGENCE ADJUSTMENT
1. Use a dot crosshatch pattern signal.
2. Turn Red and Blue guns on and turn off Green gun. Adjust the
angle between the Tabs of the Four Pole Magnet 1 and 2, and
superimpose the Red and Blue vertical lines in the centre area
of the picture screen. Refer to figure 2.
3. Keeping the mutual angle of the Tabs of the Four Pole Magnet
turn them together to superimpose the Blue and Red horizon-
tal lines in the centre area of the picture screen. Refer to fig-
ure 2.
4. Turn Green gun on and adjust Six Pole Magnet 3 and 4 that
the Green line superimposed on the Red/Blue lines.
This is the same procedure used in steps 2 and 3.
Refer to figure 3.
OUTER AREA CONVERGENCE ADJUSTMENT
Slightly loosen the screw holding the Deflection Yoke. Adjust the
Deflection Yoke to converge the detail in the outer area (left side
and right side) of the picture screen by orbital movement of the
front of the Yoke, then secure the Deflection Yoke in appropriate
position by putting the wedges as illustrated. Tighten screw hold-
ing the Deflection Yoke.
RUBBER
WEDGE
DEFLECTION YOKE
DEFLECTION YOKE
MOUNTING SCREW
Figure 4. Deflection Yoke Movement
SIX-POLE
MAGNET TABS FOUR-POLE
MAGNET TABS
ANGLE
OF TABS
PURITY
MAGNET
TABS
4
3
2
1
FOCUS GAP
(G3-G4)
Figure 1. Purity and Convergence Magnets
MAGNET TABS
ANGLE OF MAGNET TABS
Figure 5. Adjusting Magnet
Note: The form of deflection yoke changes with models.
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 19

-20-
Mechanical Disassembly
CABINET BACK REMOVAL

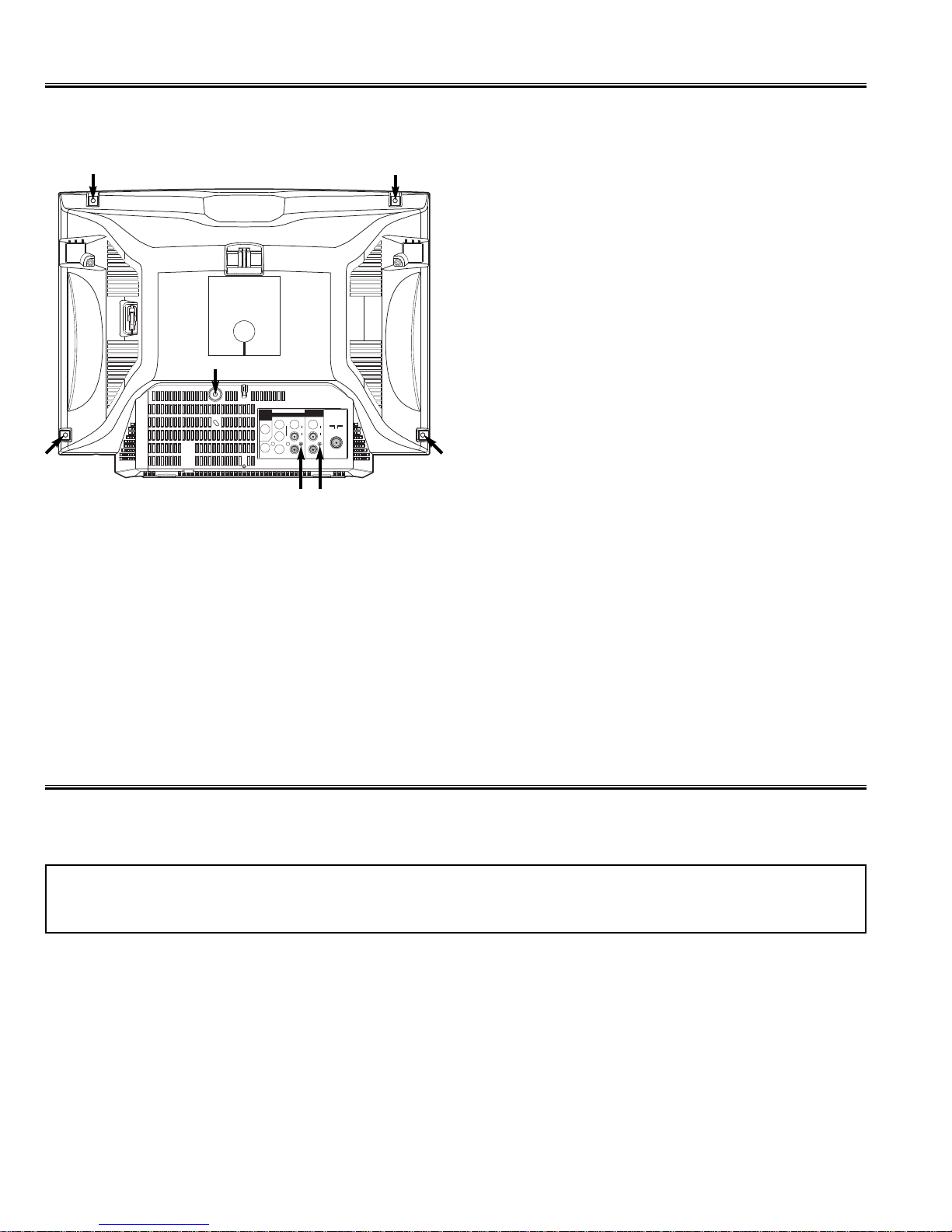

1. Refer to Figure 1, remove 7 screws.
2. Pull off cabinet back and remove.
Figure 1. Cabinet Back Removal
When an abnormality occurs during TV reception, it causes pin 72 of the Processor to go continually Low (less
than 2.0V) for about 2 second. The Processor detects that this has occurred and outputs the signal from pin 74 to
switch off the power supply lines.
Releasing the protective circuit and restoring power supply
To release the protective circuit and restore power supply, turn the power to the TV set OFF and then ON again via
either the main power switch or the ON-OFF button on the remote control. This will work only if the power supply
trouble was temporary. If there is permanent trouble such as a damaged circuit, power cannot be restored and the
circuit will have to be repaired.
This TV set has a built-in power supply protection circuit.
It is provided to protect the TV set in case of a power supply circuit malfunctions. When something abnormality occurs
during TV reception, the TV set goes to the stand-by mode.
Protection Circuit
ANT. 75Ω
AUDIO
VIDEOS-VIDEO VIDEO
R
L
AUDIO
R
L
C
C
MONITOR
OUT
INPUT
AV1/DVD
SUPER
WOOFER
OUT
R
B
Y
SM_14-BE5V (AC7-A)AUS 5/6/08 1:04 PM Page 20
