User Guide of AU-4512S
Installing the software of USB Adapter...........................................................................3
Configuring your wireless network (with Microsoft Zero Configuration Tool)...11
Wi-Fi Protect Setup (WPS)................................................................................................13
Pin Input Config (PIN)........................................................................................................14

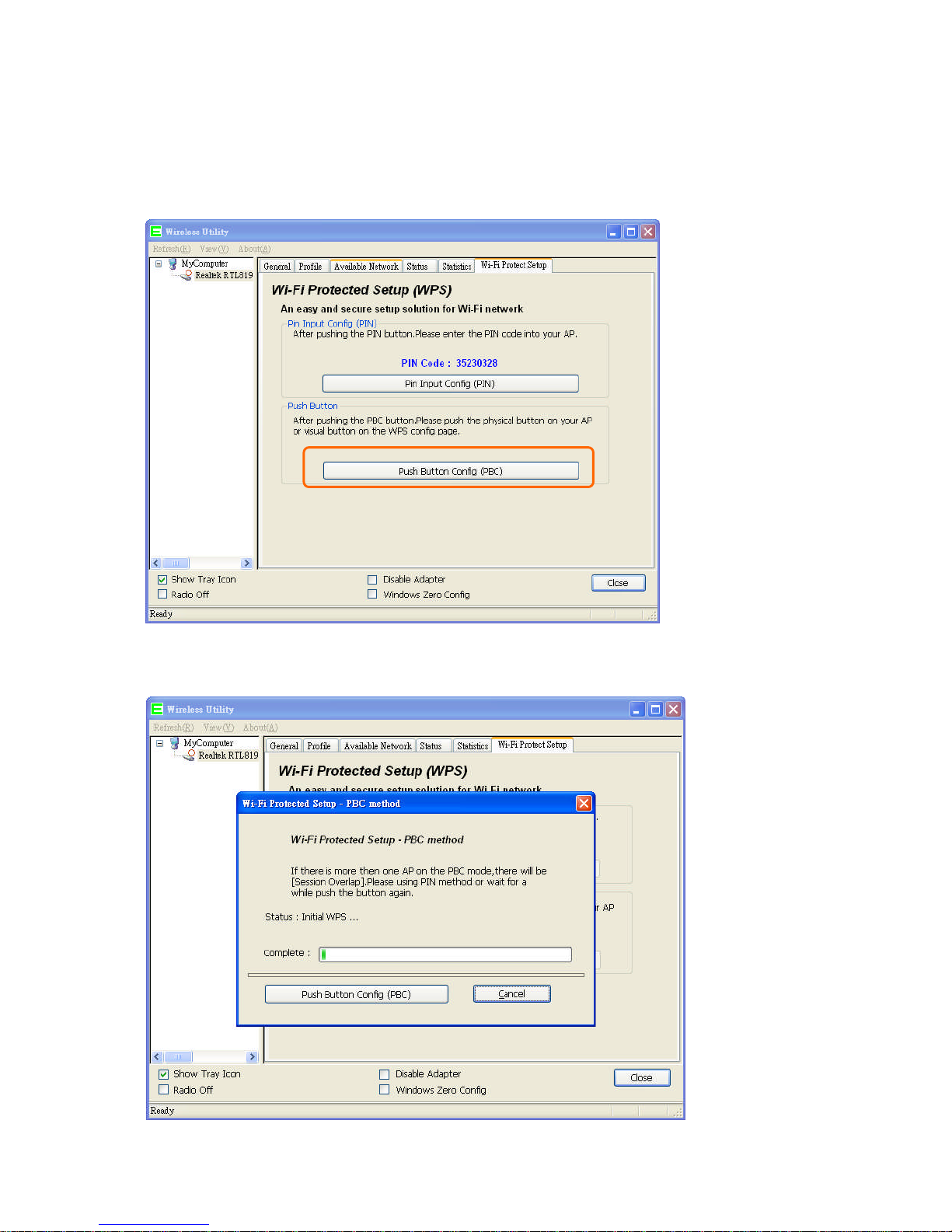

Push Button (PBC)..............................................................................................................18
Radio Off.............................................................................................................................19

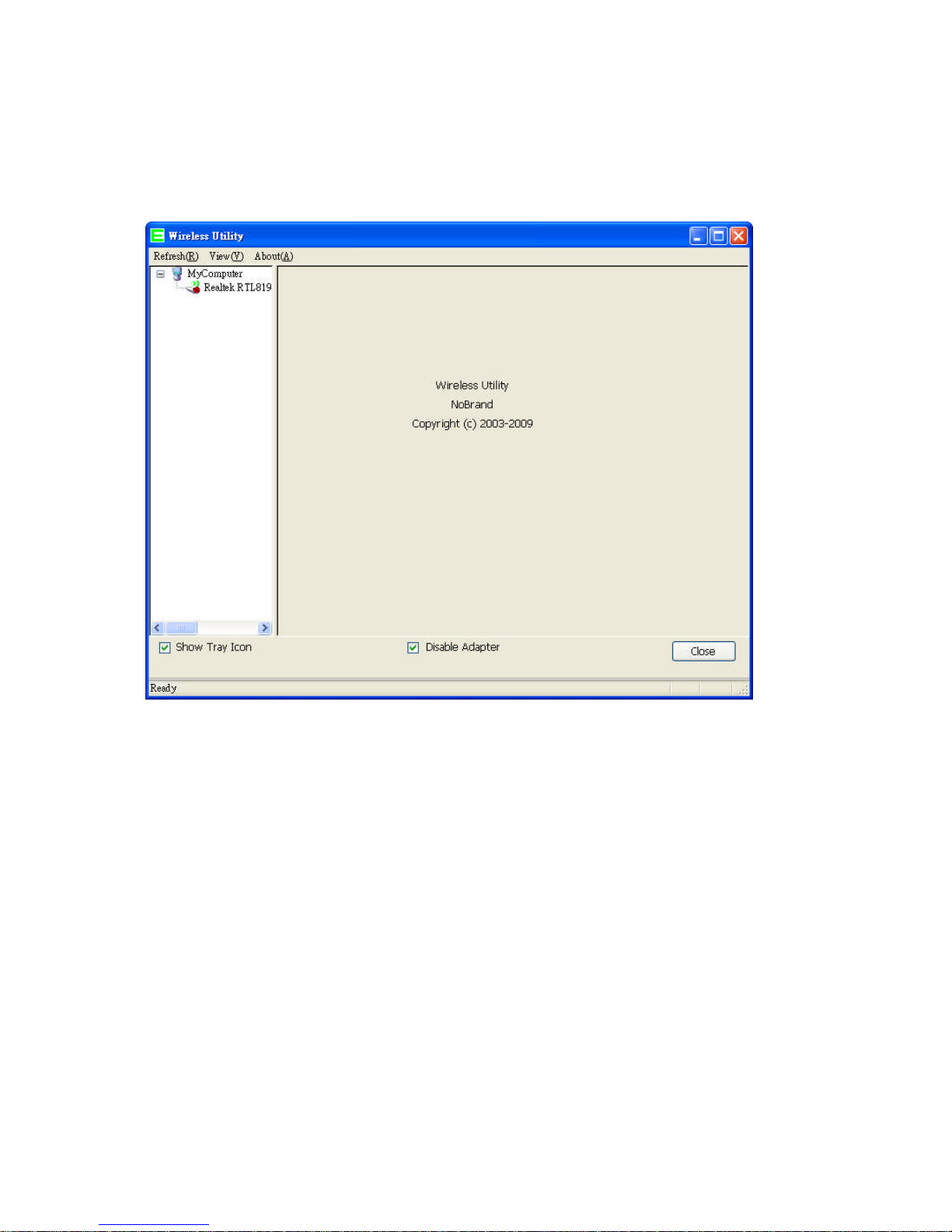

Disable Adapter...................................................................................................................20
Uninstalling the software..................................................................................................21
Wireless Zero Configuration Troubleshooting............................................................22
Federal Communication Commission Interference Statement...............................27

3
Installing the software of USB Adapter
Step 1.

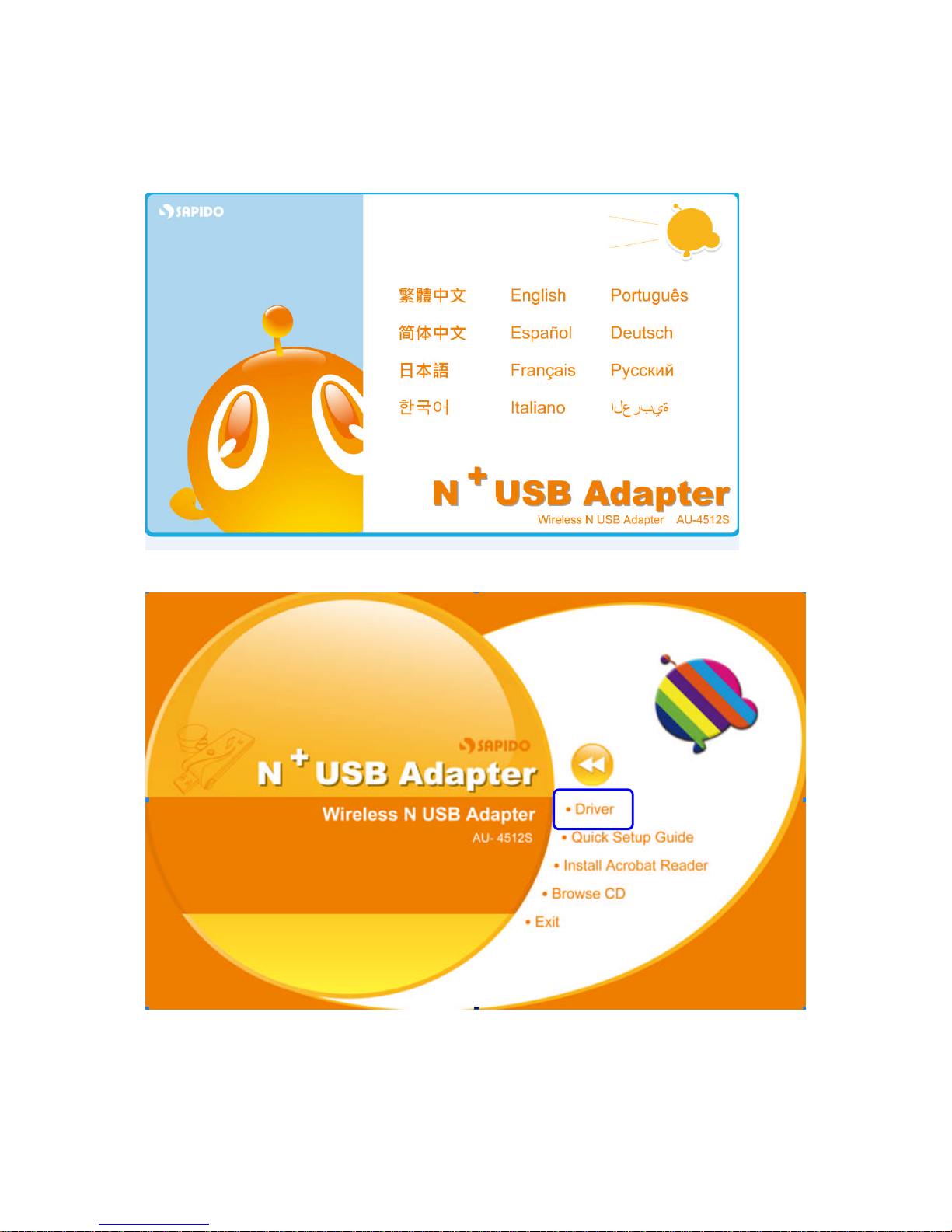

When installation CD-ROM starts, following language selection menu will appear and
please select the preferred Language to begin with.
Step 2.
To run the Setup Wizard, please select “Driver”on the main menu.

4
Step 3.
The setup program will install the driver and utility to computer. Please click the
“Next” button to continue.
Step 4.
The setup program is ready to begin installation. Please click the “ Install” button.

5
Step 5.
The software installation should begin. This may take a few minutes.
Step 6.
Once the installation success, click “ Yes” to restart your system (recommended).
Otherwise, click “No” to restart your system later.

6
Step 7.
Once the installation complete, you may now configure your wireless network.

7
Configuring your wireless network (with Wireless Utility)
1. Windows XP users, if you chose “Microsoft Zero Configuration Tool” during the
software installation please skip to page 11.
2. Double click on the computer with wireless signal icon in your taskbar or the
shortcut icon on the desktop.
3. It should pop up the Wireless Utility window. And then utility shows the
connecting wireless network that connected automatically or was the default
network in profile.

8
4. Click the “Available Network” tab to the wireless network surveying page. Click
the “Refresh” button to scan the area for wireless network(s). Once the scan
completed, select the desired wireless network from the list and double click it
or click the “Add to Profile” button.
5. It should pop up the wireless Network Properties window. If you do not have
any wireless security (WEP, WPA, WPA2, and etc.) set on your wireless network,
simply click the “OK”button and skip to step7. If you do have wireless securities
on your wireless network, configure the security setting in “Wireless network
security” column.

9
6. Set your wireless securities settings, when it completed, click the “OK” button.
Select the Network Authentication and Data encryption to set the encryption
type.
- If you have WEP, typically you select the format and enter your WEP key below
the Data encryption.
- If you have WPA-PSK or WPA2-PSK, typically you only enter your key in the
“Network Key” and type again to confirm it.
- If you have 802.1x configure, typically you only configure your setting in
802.1x configure column.

10

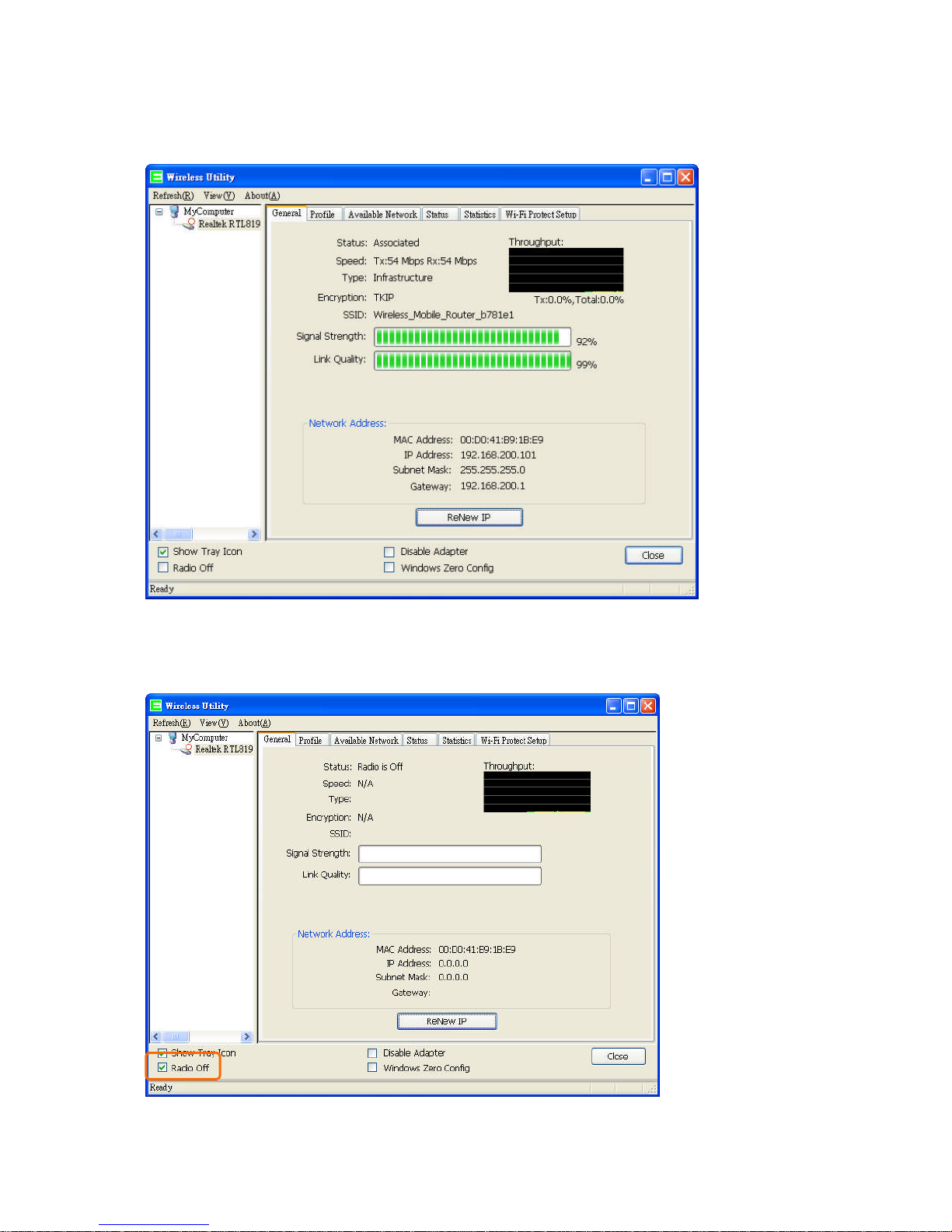

7. After connected to wireless network, utility will back to “General” page and
show the wireless network status. Once the wireless network connected
successfully, the Network Address will show the AU-4512S has gotten the IP
address from DHCP.
8. Click the “Profile” tab to check the profile page. The wireless network
configuration has added in Available Profile(s). It could remove, edit, duplicate
and set default the profiles in this page.
