Sapido BRB72n User manual
http://www.sapido.com.tw/ User Manual v1.0.0
2
Table of Contents
Table of Contents........................................................................................................................2
FCC Caution ...............................................................................................................................6
Chapter 1 Introduction ........................................................................................................8
1.1 Product Appearance...........................................................................................8
Chapter 2 System and Network Setup.................................................................................9
2.1 Build Network Connection..................................................................................9
2.2 Connecting BRB72N ...........................................................................................9
2.3 Network setup...................................................................................................10
2.3.1 Windows 2000...........................................................................................10
2.3.2 Windows XP.............................................................................................. 11
2.3.3 Windows Vista / Windows 7......................................................................12
2.4 Router IP Address Lookup................................................................................13
2.4.1 Log into Web GUI......................................................................................15
Chapter 3 Internet Connection ..........................................................................................16
3.1 Using as a broadband router............................................................................16
3.2 Home button menu ...........................................................................................17

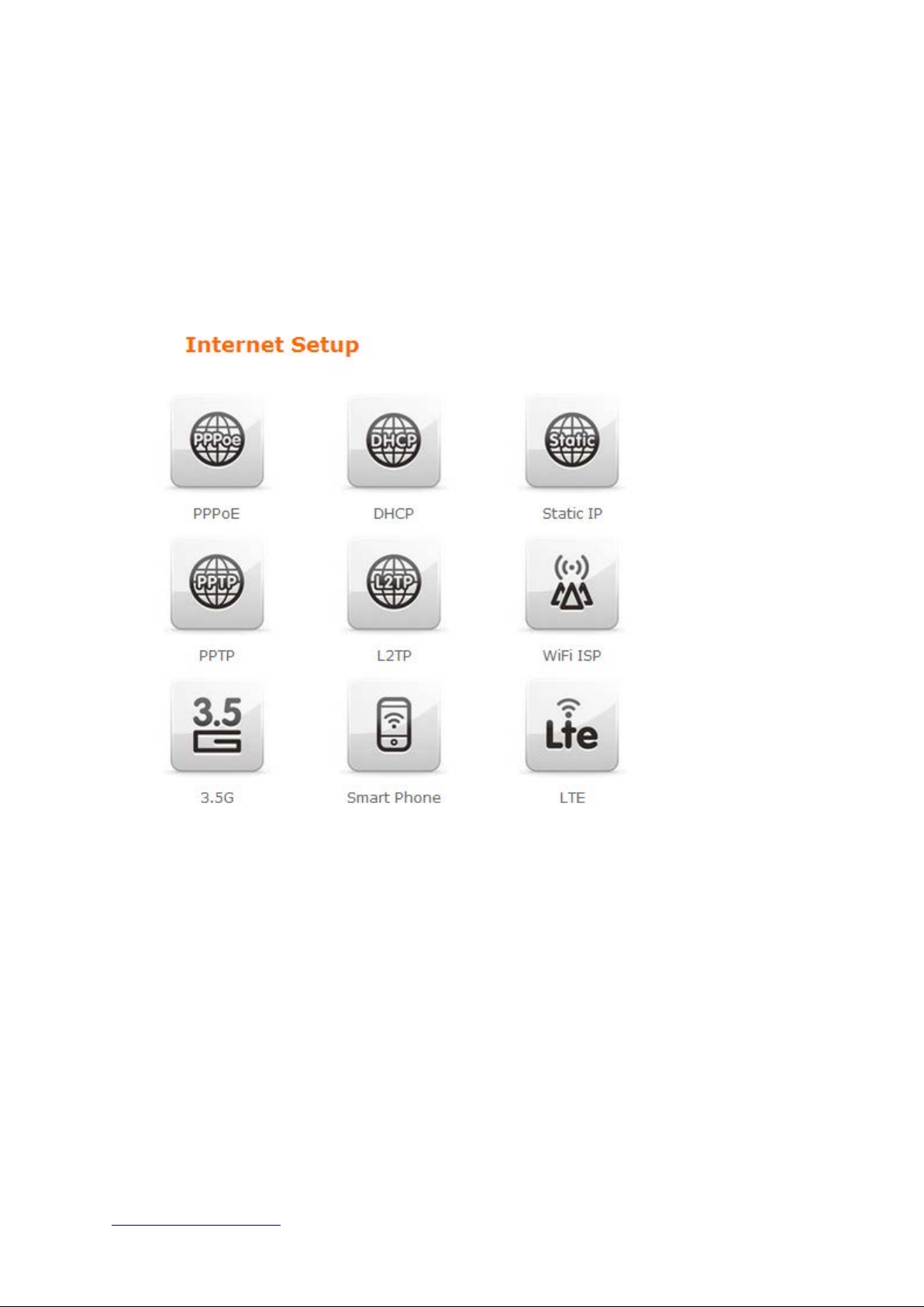

3.3 Internet Setup...................................................................................................20
3.3.1 PPPoE.......................................................................................................21
3.3.2 DHCP ........................................................................................................21
3.3.3 Static IP.....................................................................................................23
3.3.4 PPTP.........................................................................................................23
3.3.5 L2TP .........................................................................................................25
3.3.6 WiFi ISP....................................................................................................26
3.3.7 3.5G ..........................................................................................................26
3.3.8 Smartphone ..............................................................................................27
3.3.9 LTE............................................................................................................29
3.4 AP（HW sw it ch）.................................................................................................29
3.5 WiFi AP（HW switch）........................................................................................30
Chapter 4 GUI Function Setup...........................................................................................32
4.1 Firmware Upgrade ............................................................................................32
4.1.1 Auto upgrade............................................................................................32
4.1.2 Manual upgrade........................................................................................32
4.2 Parental Control................................................................................................33
4.2.1 URL Filtering.............................................................................................33
4.2.2 MAC Filter Schedule .................................................................................34
4.2.3 Wireless Schedule ....................................................................................36
4.3 Office Control ...................................................................................................36
http://www.sapido.com.tw/ User Manual v1.0.0
3
4.3.1 Multiple AP................................................................................................37
4.3.2 Wireless Access Control...........................................................................38
4.3.3 IP Filtering ................................................................................................38
4.3.4 IP Binding.................................................................................................39
4.3.5 QoS...........................................................................................................40
4.4 File Menu..........................................................................................................41
4.4.1 Samba Storage .........................................................................................41
4.4.2 FTP server ................................................................................................41
4.5 Webcam server.................................................................................................43
4.6 VPN Server .......................................................................................................44
4.7 DoS ...................................................................................................................45
4.8 Remote Management........................................................................................46
4.9 Status................................................................................................................47
4.10 Factory Default .................................................................................................51
4.11 Reboot ..............................................................................................................51
4.12 Logout ..............................................................................................................51
Chapter 5 Advance Setup..................................................................................................53
5.1 Internet Mode....................................................................................................53
5.1.1 Internet Setup...........................................................................................53
5.1.2 AP .............................................................................................................53
5.1.3 WiFi AP .....................................................................................................53
5.1.4 WiFi ISP....................................................................................................53
5.2 IP Config...........................................................................................................53
5.2.1 WAN..........................................................................................................53
5.2.1.1 PPPoE.................................................................................................................................53
5.2.1.2 DHCP ...................................................................................................................................55
5.2.1.3 Static IP...............................................................................................................................55
5.2.1.4 PPTP....................................................................................................................................56
5.2.1.5 L2TP.....................................................................................................................................58
5.2.1.6 3.5G......................................................................................................................................59
5.2.1.7 Smartphone.......................................................................................................................60
5.2.1.8 LTE .......................................................................................................................................61
5.2.2 LAN...........................................................................................................63
5.2.3 DDNS ........................................................................................................64
5.3 IPv6 Config .......................................................................................................65
5.4 Wireless............................................................................................................67
5.4.1 Basic Settings...........................................................................................67
5.4.2 Advanced Settings....................................................................................69
http://www.sapido.com.tw/ User Manual v1.0.0
4
5.4.3 Security ....................................................................................................70
5.4.4 Access Control .........................................................................................72
5.4.5 WPS..........................................................................................................72
5.4.6 WDS..........................................................................................................74
5.4.7 Schedule...................................................................................................78
5.5 NAT ...................................................................................................................78
5.5.1 DMZ ..........................................................................................................78
5.5.2 Virtual Server............................................................................................78
5.6 AirCloud Storage ..............................................................................................80
5.7 AirCloud Monitor ..............................................................................................80
5.8 VPN Server .......................................................................................................80
5.9 Firewall.............................................................................................................80
5.9.1 DoS ...........................................................................................................80
5.5.2 QoS ..............................................................................................................81
5.5.3 Port Filtering.............................................................................................82
5.5.4 IP Filtering ................................................................................................83
5.5.5 Mac Filter Schedule ..................................................................................83
5.5.6 URL Filtering.............................................................................................83
5.5.7 IP Binding.................................................................................................83
5.5.8 VLAN.........................................................................................................83
5.10 System..............................................................................................................84
5.10.1 Wake on Lan.............................................................................................84
5.10.2 Change Password.....................................................................................85
5.10.3 Firmware Upgrade ....................................................................................85
5.10.4 Profiles Save.............................................................................................85
5.10.5 Remote Management................................................................................88
5.10.6 Time Zone.................................................................................................88
5.10.7 UpnP.........................................................................................................88
5.10.8 Route Setup..............................................................................................89
5.10.9 VPN Passthough.......................................................................................91
5.10.10 Wan Type Auto Detection..........................................................................91
Chapter 6 Q & A ................................................................................................................93
6.1 Installation........................................................................................................93
6.2 LED...................................................................................................................93
6.3 IP Address ........................................................................................................93
6.4 OS Setting.........................................................................................................94
6.5 BRB72N Setup ..................................................................................................96
6.6 Wireless LAN ....................................................................................................97
http://www.sapido.com.tw/ User Manual v1.0.0
5
6.7 Support.............................................................................................................99
6.8 Others............................................................................................................. 100
Chapter 7 Appendices..................................................................................................... 101
7.1 Operating Systems......................................................................................... 101
7.2 Brow sers ........................................................................................................ 101
7.3 Communications Regulation Information....................................................... 101
http://www.sapido.com.tw/ User Manual v1.0.0
6
FCC Caution
FCC Part 15.19 Caution:
1. This device complies withPart 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmfulinterference and
(2) this device must accept any interference received, including interference that
may cause undesired operation
2. This device and its antenna(s) must not be co-located or operating inconjunction
withanyotherantennaor transmitter.
3. Changes or modifications to this unit not expresslyapproved by the party
responsible for compliance could void the user authorityto operate the equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction withany other
antennaortransmitter.
The antennas used for this transmitter must be installed to provide a separation
distance of at least20 cm from all persons and must not be co-located or operating in
conjunction withany other antenna or transmitter.
FCC Statement in User’s Manual (for calss B)
FCC Section 15.105
“Federal Communications Commission (FCC) Statement”
This equipment has beentested and found to complywith the limits for a lass B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference byone or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
http://www.sapido.com.tw/ User Manual v1.0.0
7
-- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-- Consult the dealer or anexperienced radio/TV technician for help.
CE Statement of Conformity
Our product has been tested in typical configuration by Ecom Sertech Corp and was found to
comply with the essential requirement of “Council Directive on the Approximation of the Laws
of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC;
93/68/EEC)
http://www.sapido.com.tw/ User Manual v1.0.0
8
Chapter 1 Introduction
1.1 ProductAppearance
LED Indicator Status Description:
LED
Function
Color
Status
Description
Power Adapter
Green
On Power adapter is connected
Battery-Powered
Green
On Surplus electricity
is between 100% and
20%
Green
Red
On Surplus electricity
is between 20% and
10%
Red
On Surplus electricity is lower than 10%
Charging
Green
On Battery is full charged
Red
Blinking Battery is charging
Wireless/WPS
activity
Green
On Wireless is connected
Blinking
30ms
Wireless Tx/Rx activity
Blinking
120ms Reset is in progress
Red
Blinking
120ms WPS function in progress
Ethernet p
ort
activity
Green
On 10/100Mbps Ethernet is connected
Blinking
30ms 100Mbps Ethernet Tx/Rx activity
Blinking
120ms 10Mbps Ethernet Tx/Rx activity
http://www.sapido.com.tw/ User Manual v1.0.0
9
Chapter 2 System and Network Setup
The BRB72N is an easy to setup and wireless device for various application and environment,
especially for large installs such as hotels, offices space, warehouses, hot-spots and more.
To begin with BRB72N , you must have the following minimum system requirements. If your
system can’t correspond to the following requirements, you might get some unknown troubles
on your system.
Internet Account for XDSL/Cable Modem
One Ethernet (10/100mbps) network interface card.
TCP/IP and at least one web browser software installed (E.g.: Internet Explorer, Firefox,
Safari、Chrome latest version).
802.11b、g、n wireless adapter for wireless mobile clients.
Recommended OS:WinXP, Visata or Win7 / Linux.
2.1 Build Network Connection
Administrator can manage the settings for WAN, LAN, Wireless Network, NTP, password,
VPN, Firewall, etc.
Please confirm the network environment or the purpose before setting this product.
2.2 Connecting BRB72N
Prepare the followings before the connection:
PC or Notebook for setup
Wireless connection （Ethernet port default is for internet）
1. Make sure you are under “Router Mode”.
2. Connect BRB72N to xDSL/ Cable modem with the Ethernet cable, WAN to LAN.
3. Turn on your Computer.
http://www.sapido.com.tw/ User Manual v1.0.0
10
2.3 Network setup
After the network connection is built, the next step is setup the router with proper network
parameters,so it can work properly in your network environment. Before you connect to the
wireless router and start configuration procedures, your computer must be able to get an IP
address from the wireless router automatically (use dynamic IP address). If it’s set to use
static IP address, or you’re unsure, please follow the below instructions to configure your
computer with dynamic IP address:
If the operating system of your computer is….
Windows 2000 - please go to section 2.3.1
Windows XP - please go to section 2.3.2
Windows Vista/Win7 - please go to section 2.3.3
2.3.1 Windows 2000
Click “Start” button (it should be located at lower-left corner of your computer), then click
control panel. Double-click Network and Dial-up Connections icon, double click Local Area
Connection, and Local Area Connection Properties window will appear. Select “Internet
Protocol (TCP/IP)”, then click “Properties”.
http://www.sapido.com.tw/ User Manual v1.0.0
11
1. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
2.3.2 Windows XP
1. Click “Start” button (it should be located at lower-left corner of your computer), then
click control panel. Double-click Network and Internet Connections icon, click Network
Connections, then double-click Local Area Connection, Local Area Connection Status
window will appear, and then click “Properties”.
http://www.sapido.com.tw/ User Manual v1.0.0
12
2. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
2.3.3 Windows Vista / Windows 7
1. Click “Start” button (it should be located at lower-left corner of your computer), then
click control panel. Click View Network Status and Tasks, and then click Manage Network
Connections. Right-click LocalArea Network, then select “Properties”. Local Area
http://www.sapido.com.tw/ User Manual v1.0.0
13
Connection Properties window will appear, select “Internet Protocol Version 4 (TCP / IPv4)”,
and then click “Properties”.
2. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”, then click “OK”.
2.4 Router IP Address Lookup
http://www.sapido.com.tw/ User Manual v1.0.0
14
After the IP address setup was completed, please clicks “start” → “run” at the bottom-lower
corner of your desktop:
Input “cmd”, and then click “OK”.
Input “ipconfig”, then press “Enter” key. Please check the IP address followed by “Default
Gateway” (In this example, the gateway IP address of router is 192.168.1.1)
http://www.sapido.com.tw/ User Manual v1.0.0
15
NOTE: If the IP address ofGatewayis notdisplayed,or the address followed by‘IPAddress’ begins with
“169.x.x.x”, please recheck networkconnection between your computer and router,and / or go to the
beginning ofthis chapter, to recheck everystep of network setup procedure.
2.4.1 Log into Web GUI
After your computer obtained an IP address from wireless router, please start your web
browser, and input the IP address of the wireless router in address bar, and the following
message should be shown. Please click “admin” to login the BRB72N .
Enter the User name and Password in to the blank and then Click Login. The default values
for User Name and Password are admin (all in lowercase letters).
Users can set or change user name and password used for accessing the web management
interface in this section.
Input User Name and New Password, then input Confirm Password again.
http://www.sapido.com.tw/ User Manual v1.0.0
16
Chapter 3 Internet Connection
This Chapter describes how to setup BRB72N to the internet. The BRB72N is delivered with
the following factory default parameters.
Default IP address: 192.168.1.1
Default IP subnet mask: 255.255.255.0
Web login user name: admin
Web login password: admin
3.1 Using as a broadband router
Open a Web browser, and enter http://192.168.1.1 (Default Gateway) into the blank.
Enter the User name and Password into the blank and then click Login. The default
values for User Name and Password are admin (all in lowercase letters).
http://www.sapido.com.tw/ User Manual v1.0.0
18
Item Description
Internet Setup There are several different method to access Internet，PPPoE、
DHCP、Static IP、PPTP、L2TP、WiFi ISP
A
P（HW sw itch）
If a router is already set at the house, and you want to make
the wireless LAN communication
WiFi AP
（HW switch）
When you connect to the internet wirelessly through PC and
wireless device without wireless LAN function equipped.
Firmware Upgrade This function allows you upgrade the BRB72N firmware to new
version. Please note do not power off the device during the upload
because it may crash the system.
Parental control You can use URL filter 、MAC Filter Schedule and Wireless
Schedule to limit access Internet.
Office Control For office environment，there are Multiple AP、Wireless Access
Control、IP Filtering、IP Binding and QoS
File Menu There are Samba Storage and FTP server features
Webcam server For image record
VPN Server PPTP/L2TP general setup introduction.
DoS Denial of Service
http://www.sapido.com.tw/ User Manual v1.0.0
19
Remote management This page allow you to access the GUI on WAN.
Advance Setup Advance setting menu
Status You could check WAN, LAN, Client network in status.
Factory Default You could reset the current configuration to factory default.
Reboot This function is used to reboot
Logout This page is used to logout.
http://www.sapido.com.tw/ User Manual v1.0.0
20
3.3 Internet Setup
Click Internet Setup iconto enter WAN setup as below. The Internet Setup is
depended on the service that youcontract with the provider. The BRB72N
provides five selections for the Internet Mode type, PPPoE, DHCP, Static IP ,
PPTP and L2TP、WiFi ISP、3.5G、Smart Phone、LTE. Check with your ISP if
you don’t know the WAN type.
.
Other manuals for BRB72n
1
Table of contents
Other Sapido Router manuals
