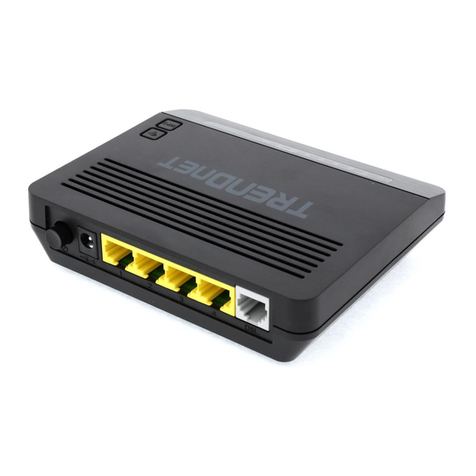

TRENDnet TEW-651BR User manual

i

ii
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
The availability of some specific channels and/or operational frequency bands are country dependent and are
firmware programmed at the factory to match the intended destination. The firmware setting is not accessible
by the end user.
Europe –EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test
methods have been applied in order to prove presumption of conformity with the essential requirements of
the R&TTE Directive 1999/5/EC:
EN60950-1: 2006
Safety of Information Technology Equipment
EN 50385: 2002
Product standard to demonstrate the compliance of radio base stations and fixed terminal stations for
wireless telecommunication systems with the basic restrictions or the reference levels related to human
exposure to radio frequency electromagnetic fields (110MHz - 40 GHz) - General public
EN 300 328 V1.7.1 (2006-10)

iii
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data
transmission equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques;
Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive
EN 301 489-1 V1.8.1 (2008-04)
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 1: Common technical requirements
EN 301 489-17 V1.3.2 (2008-04)
Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC)
standard for radio equipment and services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment
This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states
and EFTA countries, except in France and Italy where restrictive use applies.
In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain
authorization to use the device for setting up outdoor radio links and/or for supplying public access to
telecommunications and/or network services.
This device may not be used for setting up outdoor radio links in France and in some areas the RF output
power may be limited to 10 mW EIRP in the frequency range of 2454 –2483.5 MHz. For detailed information
the end-user should contact the national spectrum authority in France.
Česky *Czech+
TRENDnet tímto prohlašuje, že tento TEW-651BR je ve shodě se základními
požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-651BR
overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt TRENDnet, dass sich das Gerät TEW-651BR in Übereinstimmung
mit den grundlegenden Anforderungen und den übrigen einschlägigen
Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab TRENDnet seadme TEW-651BR vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English
Hereby, TRENDnet, declares that this TEW-651BR is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente TRENDnet declara que el TEW-651BR cumple con los
requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de
la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΣΗΝ ΠΑΡΟΤ΢Α TRENDnet ΔΗΛΩΝΕΙ ΟΣΙ TEW-651BR ΢ΤΜΜΟΡΦΩΝΕΣΑΙ
ΠΡΟ΢ ΣΙ΢ ΟΤ΢ΙΩΔΕΙ΢ ΑΠΑΙΣΗ΢ΕΙ΢ ΚΑΙ ΣΙ΢ ΛΟΙΠΕ΢ ΢ΧΕΣΙΚΕ΢ ΔΙΑΣΑΞΕΙ΢ ΣΗ΢
ΟΔΗΓΙΑ΢ 1999/5/ΕΚ.
Français
Par la présente TRENDnet déclare que l'appareil TEW-651BR est conforme aux

iv
[French]
exigences essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Italiano
[Italian]
Con la presente TRENDnet dichiara che questo TEW-651BR è conforme ai
requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva
1999/5/CE.
Latviski
[Latvian]
Ar šo TRENDnet deklarē, ka TEW-651BR atbilst Direktīvas 1999/5/EK būtiskajām
prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo TRENDnet deklaruoja, kad šis TEW-651BR atitinka esminius reikalavimus ir
kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart TRENDnet dat het toestel TEW-651BR in overeenstemming is
met de essentiële eisen en de andere relevante bepalingen van richtlijn
1999/5/EG.
Malti
[Maltese]
Hawnhekk, TRENDnet, jiddikjara li dan TEW-651BR jikkonforma mal-ħtiġijiet
essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, TRENDnet nyilatkozom, hogy a TEW-651BR megfelel a vonatkozó
alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski [Polish]
Niniejszym TRENDnet oświadcza, że TEW-651BR jest zgodny z zasadniczymi
wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy
1999/5/EC.
Português
[Portuguese]
TRENDnet declara que este TEW-651BR está conforme com os requisitos
essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
TRENDnet izjavlja, da je ta TEW-651BR v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
TRENDnet týmto vyhlasuje, že TEW-651BR spĺňa základné požiadavky a všetky
príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
TRENDnet vakuuttaa täten että TEW-651BR tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Svenska
[Swedish]
Härmed intygar TRENDnet att denna TEW-651BR står I överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.

v
TABLE OF CONTENTS
ABOUT THIS GUIDE....................................................................................1
Purpose ....................................................................................................................................... 1
Terms/Usage............................................................................................................................... 1
Overview of this User’s Guide .................................................................................................... 1
INTRODUCTION...........................................................................................2
Applications: ............................................................................................................................... 2
Supported Features: ................................................................................................................... 3
Wireless Performance Considerations ....................................................................................... 4
UNPACKING AND SETUP .............................................................................5
Unpacking ................................................................................................................................... 5
Setup ........................................................................................................................................... 5
HARDWARE INSTALLATION ........................................................................6
Front Panel.................................................................................................................................. 6
Rear Panel ................................................................................................................................... 7
Side Panel.................................................................................................................................... 8
Hanging Way............................................................................................................................... 8
Hardware connections................................................................................................................ 9
Connecting the WLAN Router................................................................................................ 9
Check the installation............................................................................................................. 10
PC NETWORK TCP/IP SETTINGS .............................................................11
Windows 95/98/ME.................................................................................................................. 11
Windows 2000 .......................................................................................................................... 12
Windows XP .............................................................................................................................. 13
Windows Vista / 7..................................................................................................................... 15
CONFIGURATION......................................................................................17
Login to the WLAN Router through Wireless LAN ................................................................... 17
Login to the WLAN Router........................................................................................................ 17
Using the Web Browser............................................................................................................ 17
Setup Wizard............................................................................................................................. 18
Advanced configuration............................................................................................................ 30
Main .......................................................................................................................................... 30
LAN & DHCP Server............................................................................................................ 30
WAN...................................................................................................................................... 31
Password................................................................................................................................ 39

vi
Time....................................................................................................................................... 40
Dynamic DNS........................................................................................................................ 41
Wireless..................................................................................................................................... 42
Basic....................................................................................................................................... 42
Security.................................................................................................................................. 43
Advanced ............................................................................................................................... 45
Wi-Fi Protected Setup............................................................................................................ 46
Status ........................................................................................................................................ 47
Device Information................................................................................................................ 47
Log......................................................................................................................................... 49
Log Setting............................................................................................................................. 50
Statistic................................................................................................................................... 51
Wireless.................................................................................................................................. 52
Routing...................................................................................................................................... 52
Static ...................................................................................................................................... 53
Dynamic................................................................................................................................. 54
Routing Table ........................................................................................................................ 55
Access........................................................................................................................................ 56
Filters ..................................................................................................................................... 56
Virtual Server......................................................................................................................... 60
Special AP.............................................................................................................................. 61
DMZ....................................................................................................................................... 63
Firewall Settings.................................................................................................................... 64
Management............................................................................................................................. 65
SNMP (Simple Network Management Protocol).................................................................. 65
Remote Management............................................................................................................. 66
Tools.......................................................................................................................................... 68
Restart.................................................................................................................................... 68
Settings................................................................................................................................... 68
Firmware................................................................................................................................ 69
Ping Test ................................................................................................................................ 70
TECHNICAL SPECIFICATIONS...................................................................71
LIMITED WARRANTY ................................................................................72

1
ABOUT THIS GUIDE
Congratulations on your purchase of this TEW-651BR Wireless Home Router. This
integrated access device combines Internet gateway functions with wireless LAN
and Fast Ethernet switch. It provides a complete solution for Internet surfing and
office resource sharing, and it is easy to configure and operate for every user.
Purpose
This manual discusses how to install the IEEE 802.11b/g/n Wireless Home Router.
Terms/Usage
In this guide, the term “the WLAN Router” refers to your IEEE 802.11b/g/n
Wireless Home Router.
Overview of this User’s Guide
Introduction. Describes the IEEE 802.11b/g/n Wireless Home Router and its
features.
Unpacking and Setup. Helps you get started with the basic installation of the IEEE
802.11b/g/n Wireless Home Router.
Identifying External Components. Describes the front panel, rear panel and LED
indicators of the IEEE 802.11b/g/n Wireless Home Router.
Connecting the WLAN Router. Tells how you can connect the IEEE 802.11b/g/n
Wireless Home Router to your xDSL/Cable Modem.
Technical Specifications. Lists the technical (general, physical and environmental,
performance and Routers settings) specifications of the IEEE 802.11b/g/n Wireless
Home Router.

2
INTRODUCTION
With the explosive growth of the Internet, accessing information and services at
any time, day or night has become a standard requirement for most people. The
era of the standalone PC is waning. Networking technology is moving out of the
exclusive domain of corporations and into homes with at least two computers.
This integrated access device combines Internet gateway functions with wireless
LAN and Fast Ethernet switch. Designed for the business and home, it saves you
the cost of installing a separate modem and ISP line for each computer, while
providing ready connection for the users, with or without the network wires.
Broadband network access is also gaining ground. However, allowing more than
two computers to access the Internet at the same time means less affordable,
higher costs. Thus, there is a need to share one public IP address over a single
Internet connection to link the home with the Internet.
The scarcity of IP addresses and using a shared Internet connection through an
Internet sharing device can solve high network access costs. All linked computers
can make full use of broadband capabilities over such a device.
This device not only comes equipped with a wide range of features, but also can
be installed and configured right out of the box. This device supports a simple local
area network and Internet access share, offering great cost savings.
The local area network connects home computers while also allowing any of the
computers to access the Internet, share resources, or play online games—the
basis of the family computing lifestyle.
Applications:
Broadband Internet access:
Several computers can share one high-speed broadband connection through
wireless or wired (WLAN, LAN and WAN-Internet).
Resource sharing:
Share resources such as printers, scanners and other peripherals.
File sharing:
Exchange data, messages, and distribute files thus making good use of hard disk
space.
Online gaming:
Through the local area network, online gaming and e-commerce services can be
easily setup.

3
Firewall:
A built-in firewall function —for security and anti-hacking systems.
Supported Features:
Based on IEEE 802.11n technology and compliant with IEEE 802.11b/g
standards
4 x 10/100Mbps Auto-MDIX LAN ports
1 x 10/100Mbps WAN port (Internet)
GREENnet technology reduces port-based power consumption
Compatible with most popular cable/DSL Internet service providers using
Dynamic/Static IP, PPPoE, PPTP and L2TP
High-speed data rates of up to 150Mbps with IEEE 802.11n*
Wi-Fi Protected Setup (WPS) connects wireless clients at the push of a
button
Supports 64/128-bit WEP, WPA/WPA2-RADIUS and WPA-PSK/WPA2-PSK
Internet Access Control (MAC Address, Domain and IP Filtering)
Easy remote management via Web browser
Firewall features Network Address Translation (NAT)
Universal Plug and Play (UPnP) and Application Level Gateway support for
Internet applications such as email, FTP, gaming, remote desktop, Net
Meeting, Telnet and more
Wi-Fi Multimedia (WMM) Quality of Service (QoS) supported
Simple setup via Web browser using the latest version of Internet Explorer,
Firefox, and Safari
Works with Windows, Linux, and Mac operating systems
Indoor range up to 100 meters (330 ft.) depending on the environment
Outdoor range up to 300 meters (980 ft.) depending on the environment
3-year limited warranty
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data
throughput and coverage will vary depending on interference, network traffic, building materials and other
conditions.

4
Wireless Performance Considerations
There are a number of factors that can impact the range of wireless devices.
1. Adjust your wireless devices so that the signal is traveling in a straight path,
rather than at an angle. The more material the signal has to pass through the
more signal you will lose.
2. Keep the number of obstructions to a minimum. Each obstruction can reduce
the range of a wireless device. Position the wireless devices in a manner that
will minimize the amount of obstructions between them.
3. Building materials can have a large impact on your wireless signal. In an indoor
environment, try to position the wireless devices so that the signal passes
through less dense material such as dry wall. Dense materials like metal, solid
wood, glass or even furniture may block or degrade the signal.
4. Antenna orientation can also have a large impact on your wireless signal. Use
the wireless adapter’s site survey tool to determine the best antenna
orientation for your wireless devices.
5. Interference from devices that produce RF (radio frequency) noise can also
impact your signal. Position your wireless devices away from anything that
generates RF noise, such as microwaves, radios and baby monitors.
6. Any device operating on the 2.4GHz frequency will cause interference. Devices
such as 2.4GHz cordless phones or other wireless remotes operating on the
2.4GHz frequency can potentially drop the wireless signal. Although the phone
may not be in use, the base can still transmit wireless signal. Move the phone’s
base station as far away as possible from your wireless devices.
If you are still experiencing low or no signal consider repositioning the wireless
devices or installing additional access points. The use of higher gain antennas may
also provide the necessary coverage depending on the environment.
