Operating instructions
Mulled wine- and Hot water kettle
HOT DRINK –HOT DRINK MAXI –HOT DRINK MINI
Article no.: 317-2000 / 317- 2005 / 317-2010

Seite 2von 11
Stand 02/23 SvN
CONTENTS
Scope of delivery ............................................................................................................................................ 3
Standards and guidlines ................................................................................................................................. 3
Technical overview ..................................................................................................................................... 3/4
General notes .........................................................................................................................................................4
Safety instrucions ...................................................................................................................................................5
Device installation ..................................................................................................................................................6
Device connection .......................................................................................................................................... 6
Structure and parts ......................................................................................................................................... 6
First commissioning........................................................................................................................................ 7
Operation-Settings..................................................................................................................................................7
Cleaning..................................................................................................................................................................7
Maintenance ...........................................................................................................................................................7
Taking the unit out of operation/Storage/Transport ...............................................................................................8
Troubleshooting......................................................................................................................................................8
Wiring diagram…………………………………………………………………………….……………….………………8
Exploded view with legend ……………………………………………………………………………....…..............9/10
Packaging disposal……........................................................................................................................................10
Equipment disposal...............................................................................................................................................11

Seite 3von 11
Stand 02/23 SvN
Dear Customer,
Congratulations on your new SARO mulled wine and hot water kettle HOT DRINK.
The item you have purchased is designed for commercial use in restaurants, hotels, cafés,
canteens and supermarkets to serve larger quantities of drinks.
Please read the operating instructions carefully before commissioning.
We hope you enjoy your new SARO product.
SCOPE OF DELIVERY
• 1 mulled wine and hot water kettle HOT DRINK
STANDARDS AND GUIDELINES
The unit complies with the current EU standards and directives:
Low Voltage Directive - NSP 2014/35/EU,
Electromagnetic Compatibility Directive - EMC 2014/30/EU,
RoHS Directives 2011/65/EU and 2015/863/EU.
If required, we will send you the corresponding declaration of conformity.
TECHNICAL OVERVIEW
HOT DRINK
Model
HOT DRINK, HOT DRINK MAXI, HOT DRINK MINI
Order no.
317-2000, 317-2005, 317-2010
Material
Housing and lid stainless steel
Safety tap
Yes
Temperature setting
Stepless
Connection preparation
Ready to plug in with safety plug
Indicator light (cooking/keeping
warm)
Yes
Overheating protection
Yes
Gross content
19 L / 40 L / 10 L
Connection
230 V / 50 Hz / 2.4 kW
External dimensions
317-2000: ⌀267 x H540 mm
317-2005: ⌀390 x H 600 mm
317-2010: ⌀225 x H 490 mm

Seite 4von 11
Stand 02/23 SvN
Gross weight
317-2000: 7 kg
317-2005: 8.9 kg
317-2010: 4 kg
GTIN [EAN code]
317-2000: 4017337317066
317-2005: 4017337317196
317-2010: 4017337317073
GENERAL NOTES
•Keep these operating instructions within easy reach near the unit.
•The manufacturer/dealer cannot be held responsible for damage caused by failure to observe these operating
instructions.
•If these operating instructions are not observed, the safety of the unit can no longer be guaranteed.
•If the unit is passed on to third parties, these operating instructions must also be handed over.
•This appliance must not be operated by children or persons with reduced physical, sensory or mental capabilities, as
they may not understand the hazards involved in the use of electrical appliances, resulting in accidents, fire, explosion
or property damage.
•After unpacking the unit, make sure that everything is in perfect condition. If you discover any damage, do not connect
the unit but notify your dealer.
•Check whether all components specified in the scope of delivery are present. If this is not the case, inform your dealer.
•Keep the packaging of the unit. The unit can only be transported safely in its original packaging, e.g. for repair
purposes, when moving house, etc. Note that all components of the packaging (plastic bags, cardboard, polystyrene
parts, etc.) can endanger children and must therefore not be stored near them.
•If it is not possible to store the packaging, separate the different packaging materials and deliver them to the nearest
collection point for proper disposal.
•Do not use the unit outdoors in the rain or in damp rooms.
•Do not operate the unit unattended.
•Observe the accident prevention regulations and general safety regulations applicable to the area of use.
•Set up the unit on a dry and even, safe surface.
•Before connecting the appliance to the mains and before using it, clean it carefully as indicated under "Cleaning".
•Before connecting the appliance, make sure that a shockproof socket (with earth) and a 230 volt connection are
available and that this corresponds to the information on the type plate. Other types of current than specified on the
type plate may cause the appliance to overheat or become defective.
•Do not drill or pierce holes in the inside or outside of the unit.
•The manufacturer/dealer cannot be held responsible for damage caused by failure to observe the operating
instructions. Likewise, the safety of the unit is then no longer guaranteed.
•In the event of a malfunction, disconnect the appliance from the mains and inform your dealer. He will carry out the
repair with original spare parts.

Seite 5von 11
Stand 02/23 SvN
SAFETY INSTRUCTIONS
•Incorrect operation and improper handling can lead to malfunctions of the unit and injury to the user.
•Observe the accident prevention regulations and general safety regulations applicable to the area of use.
•Ensure that the unit stands securely on a dry, non-slip surface that is adequate for the weight of the unit and that it is in
a well-ventilated place.
•Do not store highly flammable or explosive substances near the unit.
Do not carry out any work with highly flammable substances in the vicinity of the unit (no spray paint or similar). It could
otherwise lead to a fire or explosion.
•Do not place heavy objects, loads or liquids on the unit.
•Before connecting to your mains, check that the type of current and mains voltage correspond to the specifications on
the type plate. Commissioning is only possible if they match in order to avoid accidents/defects.
•Do not use adapters, power strips and/or extension cords; otherwise the cables/cords can quickly overheat if other
appliances are also connected. The risk of fire increases.
•Do not move the appliance during use.
•Before moving the unit, switch it off (if there is a switch for this purpose) and disconnect the mains plug.
•Always pull the cable out of the socket by the plug housing only.
•Make sure that the unit does not tilt when moving. This could lead to injuries.
•After a possible power failure or a short unplugging, switch off the unit briefly, wait 5 minutes, plug in again and start the
unit.
•Do not let the mains cable hang over sharp edges, do not crush it and keep it away from hot objects and open flames.
•Make sure that it is not possible to accidentally pull on the cable or trip over it.
•Check the cable regularly. If it is damaged, e.g. by crushing, then it must be replaced by a qualified specialist.
•Do not touch the appliance, cable or plug with wet or damp hands.
•Caution! The unit is live as long as it is connected to the mains.
•Protect the unit from moisture.
•Do not clean the appliance with an open jet of water.
•Do not immerse the unit in water or other liquids or wet it with liquids.
If the appliance should get wet, unplug it from the mains immediately and have it checked by a specialist before using it
again. There is a danger to life from electric shock.
•A damaged unit must not be used!
In this case, disconnect the unit from the mains and contact your specialist dealer!
•Never attempt to open or repair the unit yourself. There is a danger to life!
•Do not drill or pierce a hole in the unit, either from the outside or inside.
Do not install any other devices or put any foreign things there.
•Repairs must be carried out by appropriate specialists using the original spare parts.
•Always disconnect the appliance from the mains before cleaning, and also if it is not going to be used for a long time.
•For hygienic reasons, at least daily cleaning is recommended, but also in the course of a day if necessary.
•Do not operate the appliance in dry condition, the overheating protection will be triggered.

Seite 6von 11
Stand 02/23 SvN
DEVICE INSTALLATION
Ensure that you stand securely on a dry and non-slip surface.
Ensure that the mains plug is always freely accessible and can be disconnected from the mains without difficulty.
DEVICE CONNECTION
Before connecting the unit, make sure that the voltage and frequency of the power supply match the specifications on the type
plate! Other voltages can cause the unit to overheat!!!
Only connect the appliance to an earthed socket outlet with a 230 volt connection.
STRUCTURE AND PARTS
FIRST COMMISSIONING

Seite 7von 11
Stand 02/23 SvN
Before first use:
Unpack the appliance, check that it is complete and set it up (see Setting up the appliance). Clean the appliance (see Cleaning).
Connect the cleaned coffee machine (see appliance connection) to a 230 V socket.
Do not remove the coffee until the brewing process is complete.
OPERATION - SETTINGS
- Rinse thoroughly with hot water before use.
- Place the mulled wine and hot water kettle on a horizontal, stable, non-slip and heat-resistant
Underground.
- Check that the thermostat is set to "0".
- Remove the lid and fill the container at least halfway with the desired beverage,
to heat and/or keep warm (water, mulled wine, tea or coffee)
- Put the lid back on the container.
- Insert the plug into the socket.
- Switch on the unit with the on/off switch. The control lamp of the switch lights up, indicating that the
unit is supplied with power.
- Turn the temperature control knob to the temperature you want.
- The appliance heats up and at this moment the indicator light above the switch goes out.
- The control lamp lights up again when the desired temperature is reached.
- The appliance heats up again automatically when the desired temperature drops by approx. 5° to 10°. During this time
the
Control lamp switched off, it lights up again when the temperature is reached again.
- If you turn the temperature control knob close to 100°, the appliance will always remain in the "COOKING" position.
and only stop it as soon as the on/off switch is pressed or the temperature control knob is turned to a lower temperature.
- Switch off the appliance when the container is almost empty or the sight glass shows only little content.
CLEANING
Do not use abrasive, bleaching, corrosive or scratching cleaning agents/cleaning aids, as this could damage/scratch the surfaces.
To clean and descale the machine, switch it off and unplug it from the mains. Let the machine cool down completely.
Empty the container if it still contains liquid and rinse it well. Wipe or wipe out the lid and the outer surface with a damp cloth. A
mild washing-up liquid can be used. Wipe again without detergent.
Make sure that the mulled wine hot water kettle is never placed in water for cleaning, hosed down or cleaned with a water,
steam or high-pressure cleaner.
In order to maintain a good function in the long term, we recommend that you decalcify the appliance regularly. The intervals
depend on the hardness of the water. An indication that descaling is necessary is limescale on the bottom of the tank.
After descaling, remove the remains of the descaling agent.
Finally, fill the container with clear water and rinse it well.
MAINTENANCE
The mulled wine hot water dispenser requires very little maintenance. Please note the points under Installation and Cleaning.

Seite 8von 11
Stand 02/23 SvN
TAKING THE UNIT OUT OF OPERATION / STORAGE / TRANSPORT
Switch off the unit, disconnect the mains plug.
Clean the unit thoroughly inside and out. If it is dry and the unit is not to be used for a longer period of time, store it in a dry,
dust-free and not hot place. It is best to cover the unit or use the original packaging to protect the unit from damage.
Secure the unit against pets climbing in, so that they cannot be trapped there.
When storing only the packaging material, please note that components of the packaging such as plastic bags, cardboard,
polystyrene parts, etc., can be dangerous for children if they play with them unsupervised (e.g. choking hazard). can endanger
children if they play with them unsupervised (e.g. choking hazard).
When transporting the unit, it is best to use the original packaging so that the unit is optimally protected against impact, sharp
edges, weather conditions, etc. Do not expose it to moisture or rain and avoid strong vibrations.
TROUBLESHOOTING
If the mulled wine hot water dispenser is operated without liquid or with too little liquid, the overheating protection is triggered.
Remove the mains plug from the power supply. The reset pin is located on the underside (in the centre). Press it in deeply.
Then fill the appliance again with liquid, at least up to the middle, and plug in the mains plug again.
See Operation and settings.

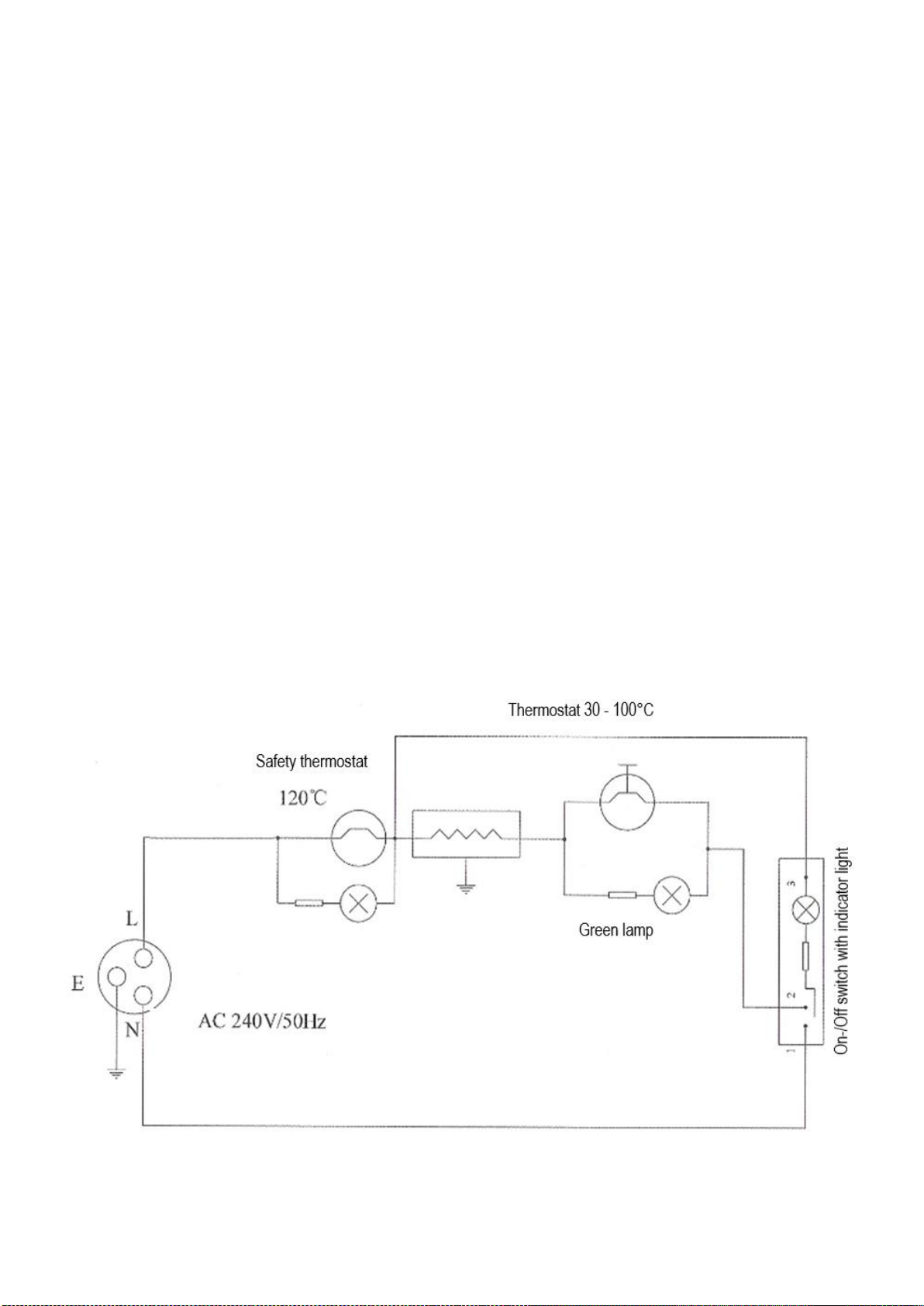

CIRCUIT DIAGRAM

Seite 9von 11
Stand 02/23 SvN

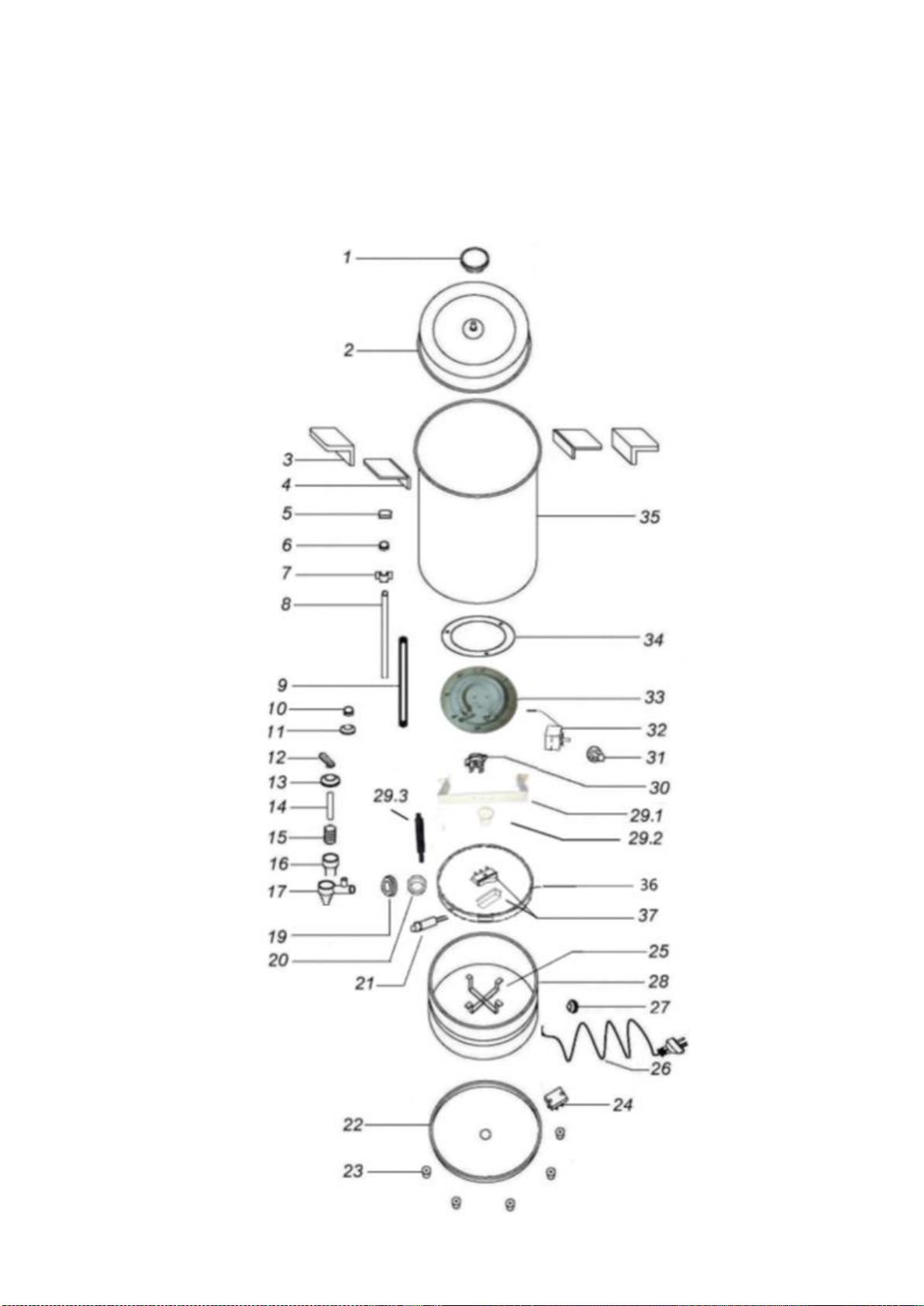

EXPLOSION DRAWING:

Seite 10 von 11
Stand 02/23 SvN
EXPLOSION VIEW - Legend
1 Caps´s shaft (175-5062)
2 Lid
3 Plastic handle
4 Fixer lid shaft
5 Screw of glas graduation (175-5050)
6 Sealing of Graduation (175-5046)
7 Fixer of water graduation (317-30262)
8 Glass graduation (317-30265)
9 Sleeve of graduation
10 Sealing of graduation (175-5044)
11 Screw of glas fraduation (317-3052)
12 Tab of faucet
13 Screw of faucet handle
14 Shaft of faucet
15 Spring of faucet
16 Sealing of faucet (317-2075)
17 Faucet (317-3001)
19 Sealing of faucet (317-3070)
20 Fixing screw of faucet (175-5054)
21 Indication lamp (317-3048)
22 Base of urn
23 Foot (175-5097)
24 Terminal block
25 Fixer of bottom cover
26 Power cord with plug (175-5079)
27 Wire clip (175-5087)
28 Base of urn
29.1 Brace for reset button
29.2 Spring for reset button
29.3 Reset button
30 Thermostat (317-3023)
31 Knob (317-3031)
32 Adjustable Thermostat adjustment (317-3030)
33 Heating dish (317-3007)
34 Sealing of heating dish (317-30075)
35 Body of urn
36 Waist ring
37 Switch with indication and cover (317-3004)
PACKAGING DISPOSAL
Please separate the packaging materials accordingly and send them to the responsible collection points.
for recycling and environmental protection.

Seite 11 von 11
Stand 02/23 SvN
APPLIANCE DISPOSAL
Once the appliance has reached the end of its service life, please dispose of it properly at a collection
point for electrical appliances.
Electrical appliances do not belong in household waste.
Your local administration will inform you about the addresses and opening hours of collection points.
This is the only way to ensure that old appliances are disposed of and recycled properly.
Thank you very much!
Diese Tabelle können Sie für Ihren eigenen, eventuell späteren Bedarf ausfüllen und nutzen.
Gerätebezeichnung
Mulled wine hot
water dispenser
Modellname:
HOT DRINK
(MAXI/MINI)
Order number
317-
Serial number
from the type plate
from the type plate
If applicable
./.
If shown separately
Refrigerant
Production date
from the type plate
from the type plate
Bought on:
Telephone number of the seller
Gekauft where:
If available
(name of the dealer)
E-mail address of the seller
Possibly
More notes
Name of the seller
Made in P.R.C for:
SARO Gastro-Products GmbH
Sandbahn 6, 46446 Emmerich am Rhein, Germany
Tel. [phone]
Fax [phone]
E-Mail [email protected]
Web www.saro.de
Note: Technical / design / model changes and errors excepted.
