SATA 51311 User manual

800W 角磨机
800W Angle Grinder
800W Winkelschleifer
Угловаяшлифовальнаямашина800 Вт
800W 앵글 그라인더
Moedor de ângulo de 800W
800W 電動アングルグラインダー
Amoladora angular de 800W
51311/05155
使用说明书 \ User's Manual \ Bedienungsanleitung \ Инструкция по эксплуатации
사용설명서 \ Manual de instruções \ 取扱説明書 \ Manual del uso
中文 EN DE RU KO PT JA ES

3
中文 EN DE RU KO PT JA ES
51311/05155
安全操作须知：
没有按照以下列举的说明而使用或操作将导致触电、着火和 /或严重伤害。在所有以下列举的警告中术语“电
动工具”指市电驱动（有线）电动工具或电池驱动（无线）电动工具。
工作场地：
1 ）保持工作场地清洁和明亮。混乱和黑暗的场地会引发事故。
2 ）不要在易爆环境，如有易燃液体、气体或粉尘的环境下操作电动工具。电动工具产生的火花会点燃粉尘或气体。
3 ）让儿童和旁观者离开后操纵电动工具。分心会使你放松控制。
电气安全：
1 ）电动工具插头必须与插座相配。绝不能以任何方式改装插头。需接地的电动工具不能使用任何转换插头。未经
改装的插头和相配的插座将减少触电危险。
2 ）避免人体接触接地表面，如管道、散热片和冰箱。如果你身体接地会增加触电危险。
3 ）不得将电动工具暴露在雨中或潮湿环境中。水进入电动工具将增加触电危险。
4 ）不得滥用电线。绝不能用电线搬运、拉动电动工具或拔出其插头。让电动工具远离热、油、锐边或运动部件。
受损或缠绕的电线会增加触电危险。
5 ）当在户外使用电动工具时，使用适合户外使用的外接电线。适合户外使用的电线将减少触电危险。
6 ）当在潮湿环境下使用该机器不可避免时，使用剩余电流装置（RCD）保护。剩余电流装置的使用可以减少
触电的危险。
人身安全：
1 ）保持警觉，当操作电动工具时关注所从事的操作并保持清醒。切勿在有疲倦，药物、酒精或治疗反应下操作电
动工具。在操作电动工具期间精力分散会导致严重人身伤害。
2 ）使用安全装置。始终佩戴护目镜。安全装置，诸如适当条件下的防尘面具、防滑安全鞋、安全帽、听力防护等
装置能减少人身伤害。
3 ）避免突然起动。确保开关在插入插头时处于关断位置。手指放在已接通电源的开关上或开关处于接通时插入插
头可能会导致危险。
4 ）在电动工具接通之前，拿掉所有调节钥匙或扳手。遗留在电动工具旋转零件上的扳手或钥匙会导致人身伤害。
5 ）手不要伸得太长。时刻注意脚下和身体平衡。这样在意外情况下能很好地控制电动工具。
6 ）着装适当。不要穿宽松衣服或佩带饰品。让头发、衣服和袖子远离运动部件。宽松衣服、佩饰或长发可能会卷
入运动部件。
7 ）如果提供了与排屑装置、集尘设备连接用的装置，则确保它们连接完好且使用得当。使用这些装置可减少碎屑
引起的危险。
8 ）使用夹钳或其他方法将工件固定在平台上。用手握机器或将机器倚靠在身体上导致不平稳可引起失控。
9 ）不要使用梯子或其他不稳定的支撑方法。在特殊情况下，稳固的立足使使用更好的控制机器。
10 ）使手保持干燥，清洁，无油脂。带油的手可能导致失控。
11 ）经常佩戴有侧面护罩的护目镜。日常戴的眼镜可能有防冲击的镜头，但它们不是安全护目镜。遵循该注意事项
将减少眼睛伤害。
12 ）保护您的呼吸器官。当有尘工作时，佩戴防尘面具。遵循该注意事项将减少严重的身体伤害。
13 ）保护您的听觉。在长时间持续工作中，需佩戴耳塞。遵循该注意事项将减少严重的身体伤害。
电动工具使用和注意事项：
1 ）不要滥用电动工具，根据用途使用适当的电动工具。选用适当的设计额定值的电动工具会使你工作更有效、
更安全。

4
中文 EN DE RU KO PT JA ES
51311/05155
2 ）如果开关不能接通或关断工具电源，则不能使用该电动工具。不能用开关来控制的电动工具是危险的且必须进
行修理。
3 ）在进行任何调节、更换附件或贮存电动工具之前，必须从电源上拔掉插头和 /或将电池盒脱开电源。这种防护
性措施将减少电动工具突然起动的危险。
4 ）将闲置电动工具贮存在儿童所及范围之外，并且不要让不熟悉电动工具或对这些说明不了解的人操作电动工具。
电动工具在未经训练的用户手中是危险的。
5 ）保养电动工具。检查运动件的安装偏差或卡住、零件破损情况和影响电动工具运行的其他条件。如有损坏，电
动工具必须在使用前修理好。许多事故由维护不良的电动工具引发。
6 ）保持切削刀具锋利和清洁。保养良好的有锋利切削刃的刀具不易卡住而且容易控制。
7 ）按照使用说明书以及打算使用的电动工具的特殊类型要求的方式，考虑作业条件和进行的作业来使用电动工具、
附件和工具的刀头等。将电动工具用作那些与要求不符的操作可能会导致危险情况。
8 ）保存此说明书。向使用该机器的使用者提供该说明书。如果将此机器出借给别人使用，也将此说明书一并借出。
维修：
1 ）将你的电动工具送交专业维修人员，必须使用同样的备件进行更换。这样将确保所维修的电动工具的安全性。
2 ）当维修时，仅使用有标示的零部件。
3 ）按照本说明书中维修部分操作。使用未经授权的零件或未按该说明书中的指示操作可能引发触电的危险。
角磨操作安全警告：
通用安全警告：
1 ）该电动工具是用于实现砂轮机功能的。阅读随该电动工具提供的所有安全警告，说明，图解和规定。不
了解以下所列所有说明将导致电击、着火或严重伤害。
2 ）不推荐用该电动工具进行诸如刷光、抛光等操作。电动工具不按指定的功能去操作，可能会发生危险和
引起人身伤害。
3 ）不使用非工具制造商推荐和专门设计的附件。否则该附件可能被装到你的电动工具上，而它不能保证安
全操作。
4 ）附件的额定速度必须至少等于电动工具上标出的最大速度。附件以比其额定速度大的速度运转会发生爆
裂和飞溅。
5 ）附件的外径和厚度必须在电动工具额定能力范围之内。不正确的附件尺寸不能得到充分防护或控制。
6 ）砂轮、法兰盘、靠背垫或任何其他附件的轴孔尺寸必须适合于安装到电动工具的主轴上。带轴孔的、与
电动工具安装件不配的附件将会失稳，过度振动并会引起失控。
7 ）不要使用损坏的附件。在每次使用前要检查附件，例如砂轮是否有碎片和裂缝，靠背垫是否有的裂缝，
撕裂或过度磨损。如果电动工具或附件跌落了，检查是否有损坏或安装没有损坏的附件。检查和安装附
件后，让自己和旁观者的位置远离旋转附件的平面，并以电动工具最大空载速度运行 1 min。损坏的附件
通常在该试验时会碎裂。
8 ）戴上防护用品。根据适用情况，使用面罩、安全护目镜或安全眼镜。适用时，戴上防尘面具、听力保护
器、手套和能挡小磨料或工件碎片的工程围裙。眼防护罩必须挡住各种操作产生的飞屑。防尘面具或口
罩必须能过滤操作产生的颗粒。长期暴露在高强度噪声中会引起失聪。
9 ）让旁观者与工作区域保持一定安全距离。任何进入工作区域的人必须戴上防护用品。工件或破损附件的
碎片可能会飞出并引起紧靠着操作区域的旁观者的伤害。切割附件触及带电导线会使电动工具外露的金
属零件带电，并使操作者触电。
10 ）当在磨削附件有可能切割到暗线或自身电线的场所进行操作时，只能通过绝缘握持面来握住电动工具。
切割机附件碰到一根带电导线可能会使电动工具的外露金属零件带电并使操作者发生电击危险。

5
中文 EN DE RU KO PT JA ES
51311/05155
11 ）使软线远离旋转的附件。如果控制不当，软线可能被切断或缠绕，并使得你的手或手臂可能被卷入旋转
附件中。
12 ）直到附件完全停止运动才放下电动工具。旋转的附件可能会抓住表面并拉动电动工具而让你失去对工具
的控制。
13 ）当携带电动工具时不要开动它。意外地触及旋转附件可能会缠绕你的衣服而使附件伤害身体。
14 ）经常清理电动工具的通风口。电动机风扇会将灰尘吸进机壳，过多的金属粉末沉积会导致电气危险。
15 ）不要在易燃材料附近操作电动工具。火星可能会点燃这些材料。
16 ）不要使用需用冷却液的附件。用水或其他冷却液可能会导致电腐蚀或电击。
附加安全说明：
反弹和相关警告：
反弹是因卡住或缠绕住的旋转砂轮、靠背垫、钢丝刷或其他附件而产生的突然反作用力。卡住或缠绕会引起
旋转附件的迅速堵转，随之使失控的电动工具在卡住点产生与附件旋转方向相反的运动。例如，如果砂轮被
工件缠绕或卡住，伸入卡住点的砂轮边缘可能会进入材料表面而引起砂轮爬出或反弹。砂轮可能飞向或飞离
操作者，这取决于砂轮在卡住点的运动方向。在此条件下砂轮也可能碎裂。反弹是电动工具误用和 /或不正
确操作工序或条件的结果，可以通过采取以下给出的适当预防措施得以避免。
1 ）保持紧握电动工具，使你的身体和手臂处于正确状态以抵抗反弹力。如有辅助手柄，则要一直使用，以
便最大限度控制住起动时的反弹力或反力矩。如采取合适的预防措施，操作者就可以控制反力矩或
反弹力。
2 ）绝不能将手靠近旋转附件。附件可能会反弹碰到手。
3 ）不要站在发生反弹时电动工具可能移动到的地方。反弹将在缠绕点驱使工具逆砂轮运动方向运动。
4 ）当在尖角、锐边等处作业时要特別小心。避免附件的弹跳和缠绕。尖角、锐边和弹跳具有缠绕旋转附件
的趋势并引起反弹的失控。
5 ）不要附装上锯链、木雕刀片或带齿锯片。这些锯片会产生频繁的反弹和失控。
附加磨削和砂磨的专用安全警告：
1 ）只使用所推荐的砂轮型号和为选用砂轮专门设计的护罩。不是为电动工具设计的砂轮不能充分得到
防护，是不安全的。
2 ）护罩必须牢固地装在电动工具上，且放置得最具安全性，只有敁小的砂轮部分暴露在操作人面前。护罩
帮助保护操作者免于受到爆裂砂轮碎片和偶然触及砂轮的危险。
3 ）砂轮只用于推荐的用途。例如：不要用切割砂轮的侧而进行磨削。施加到砂轮侧面的力可能会使其碎裂。
4 ）始终为所选砂轮选用未损坏的、有恰当规格和形状的砂轮法兰盘。合适的砂轮法兰盘支承砂轮可以减小
砂轮破裂的可能性。切割砂轮的法兰盘可以不同于砂轮法兰盘。
5 ）不要使用从大规格电动工具上用剩的磨损砂轮。用于大规格电动工具上的砂轮不适于较小规格工具的高
速工况并可能会爆裂。
角磨使用注意事项：
1 ）该角磨仅用于磨削。
2 ）在操作时，避免磨片撞击或其它强力性动作。一旦发生，必须立刻停机检查。
3 ）若工具起动后，出现明显颤动或其它异常，请立即停机，排除故障后方可继续操作。
4 ）打磨金属时会产生火花。小心勿让火花及研磨屑喷到身上。
5 ）研磨含硅酸石材时，产生的灰尘有害健康。不可加工含石棉材料的工件。
6 ）在粉尘过多的环境下，应缩短电动工具的清洁周期。
7 ）本机只可用于干式加工。

6
中文 EN DE RU KO PT JA ES
51311/05155
角磨在工作时产生的粉尘可能含有致癌或对人体有害的化学物质。例如：
a ）油漆中含的铅。
b ）砷和铬与木材起反应后也会产生有毒物质。
为了减少这些有毒的化妆物质对人体的伤害，要尽量保证在通风的环境下工作，并且工作时配戴合格的
安全保护装置。
配备：
1 ）非切割片护罩。
2 ）辅助把手。
3 ）扳手。
4 ）法兰。
在某些国家或某些特殊的机型，其所提供的配备，可能与以上所给的资料稍有出入。
操作说明：
1 ）检查供电电压须与铭牌数据相符。
2 ）护罩的安装与调整：

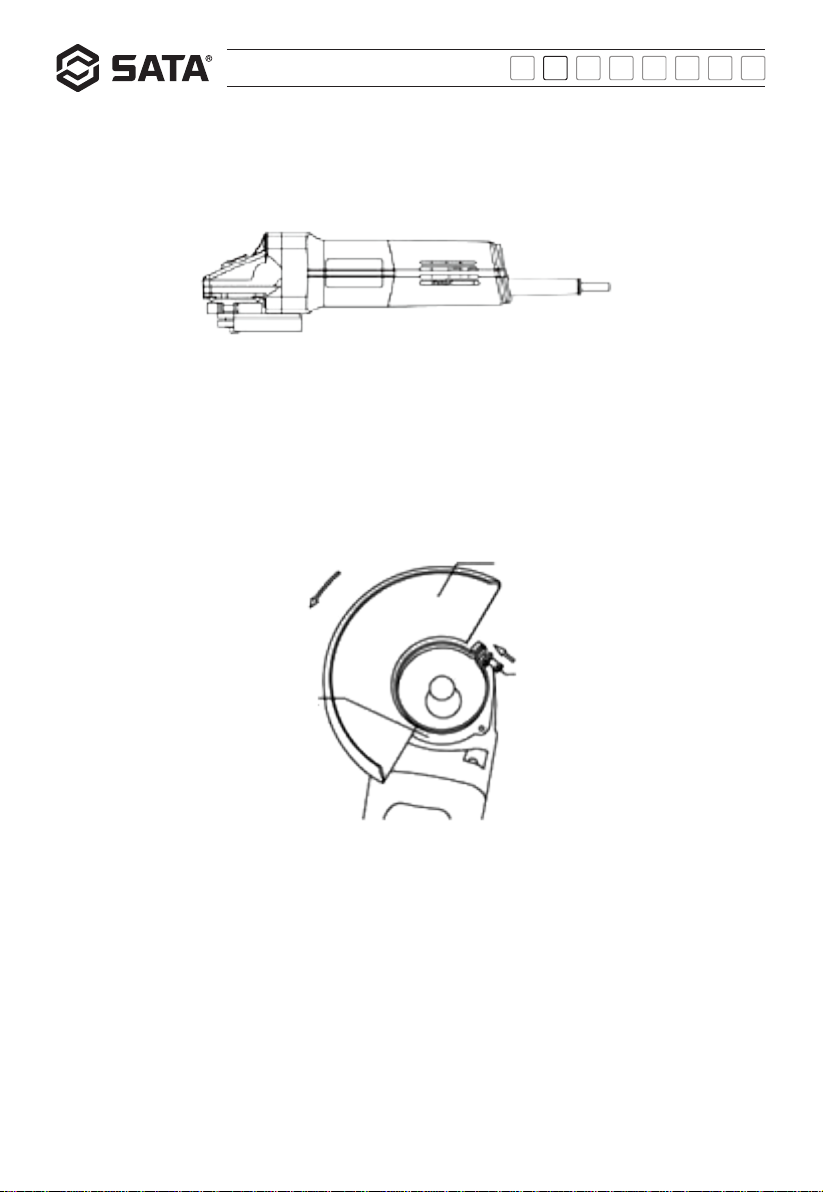

护罩是一种保护装置，用来防止作业中因砂轮破裂而受伤。安装护罩时，将护罩箍上的突起部分与齿轮箱盖上
的沟槽吻合，然后逆时针方向将护罩旋转至工作位置，最后牢固地紧固好螺钉。（按图中的指示方向为安装，
反之为拆卸。）开始工作前，请确认护罩安装好并且紧固。稍微拧松固定螺丝，护罩即可转动并固定在所需的
工作角度，护罩调整完毕后确认固定螺丝是否完全拧紧。
非切割片护罩
齿轮箱盖
螺钉

7
中文 EN DE RU KO PT JA ES
51311/05155
3 ）安装磨片：
不得使用安全线速度低于 80m/s 的砂轮，严禁使用损坏、不平衡的砂轮。
a ）在输出轴完全静止的情况下，按下轴锁定钮来固定输出轴。
b ）将下法兰固定到输出轴上，装上砂轮抵住下法兰，再将有螺纹的上法兰旋接到输出轴上（注
意上法兰的安装方向如下图所示：安装磨片和切割片时用不同的面接触片）。
c ）检查磨片内孔尺寸是否与法兰凸缘完全吻合，并用扳手把上法兰旋紧固定。
4 ）取下扳手，松开轴锁定钮。
5 ）开关机操作：
检查工具的开关操作是否自如，确保插电的开关处于关停状态。
与切片接触面
上法兰
开关

8
中文 EN DE RU KO PT JA ES
51311/05155
a ）开机：将开关按下，工具启动，再次将开关锁定钮用力按下，锁定工具的工作状态。
关机：用力按下开关后松开，开关和开关锁定钮会自动弹起，工具停止工作。
b ）开动工具后，方可移动工件。
实际应用：
为减少爆炸、电击等危险和伤害，作业前必须检查工件表面下有无隐蔽的电线、气体、供水管道！
请操作者牢固握持工具的主握持部位后再行操作！
1 ）打磨

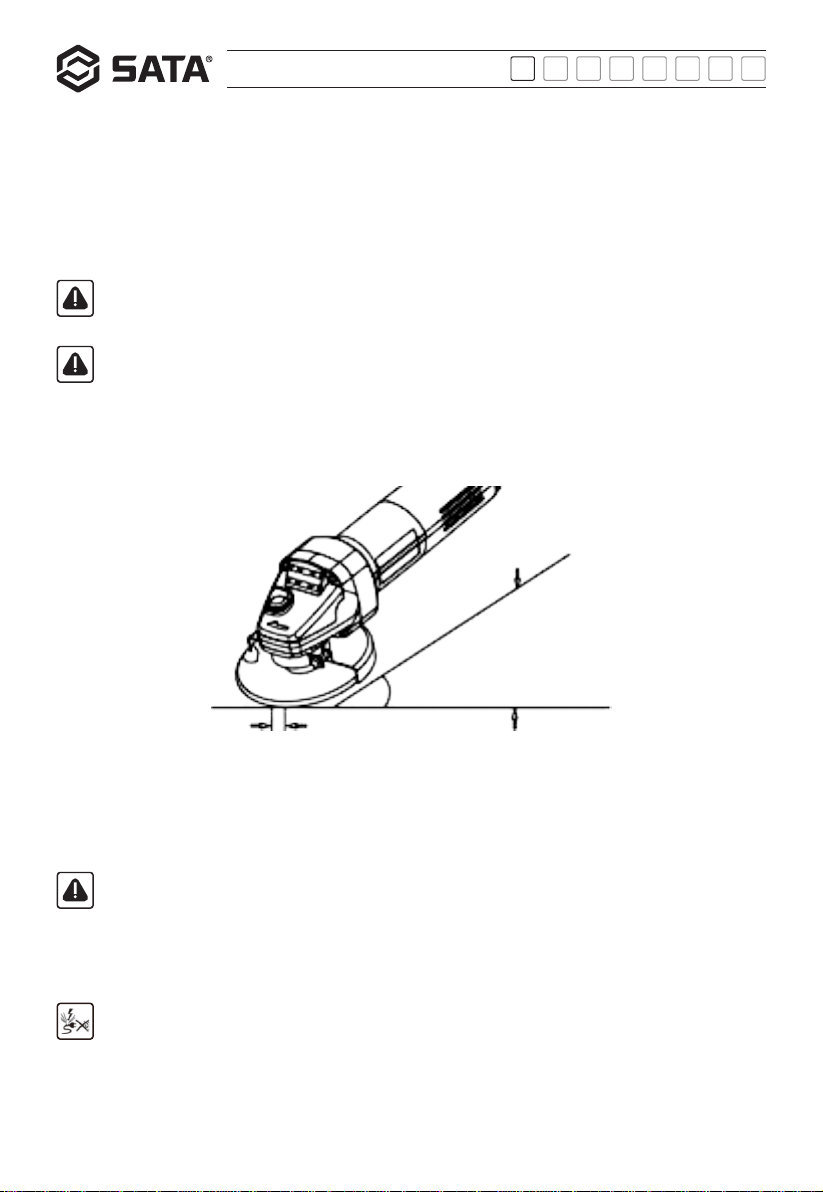

a ）磨片与工件保持 15 度左右的角度，部分接触，效果最佳。
b ）为避免工件过热、脱色或起纹，请施加轻力，使机身前后移动。
c ）切勿选用切割片进行打磨。
d ）为避免火花及磨屑射到身上，可根据磨片旋转方向，选择适当方式持机。
打磨金属时会产生火花，火花散射范围内，严禁存放任何可燃物料，以免火灾！
工具维护保养：
注意：
进行维修检查之前，必须把插头拔离电源插座。
1 ）避免工具受到震荡、撞击或油脂影响。
2 ）检查安装螺钉。经常检查安装螺钉是否紧固稳妥。螺钉松开极易引起严故。
3 ）定期检查线缆。如发现损伤应立即维修处理。此工具所用电源线为特殊结构，且勿擅自更换电源线。
15°-30°

9
中文 EN DE RU KO PT JA ES
51311/05155
4 ）保持通风槽清洁顺畅。经常清除尘埃、油污，严防杂物入内。
5 ）更换碳刷。经授权的维修中心检查和更换碳刷，以保证工具长期安全使用。
6 ）必须由授权的维修中心进行维修。只能使用原厂的配件、零件。
7 ）清洁。避免使用造成塑料龟裂损坏的溶剂擦拭塑料零件。建议使用稍微沾湿了肥皂水的柔布擦拭外塑料机壳。
请勿让马达淋到水，禁止将整个机身投入水中，以免引起马达故障及触电事故！
工具用途和规格：
本产品是以单相串激式电动机为动力的手持式角向磨光机。其安全性能符合 GB3883.3《手持式电动工具的安全第二部
分：电动砂轮机、抛光机和盘式砂光机的专用要求》的规定。
本产品适用于一般环境条件下，用纤维增强钹形砂轮对金属材料进行磨削作业活动。
本产品广泛应用于对金属和建筑材料的加工。
本产品的性能、规格如下表所示。
型号 51311
额定输入功率 w 800
额定转速 r/min 12500
砂轮片规格 mm 100
砂轮片型式 工作线速度为 72m/s 的砂轮片
重量 kg 1.95±0.15
注：本公司保留规格参数改进之权利，恕不另行通知。

10
中文 EN DE RU KO PT JA ES
51311/05155
工具维护保养：
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
48
49
46
45
43
21 22 23 24 25 26 27
28
29 30 31 32
33 34 35
36 37 38 3940 41 42 44
47

11
中文 EN DE RU KO PT JA ES
51311/05155

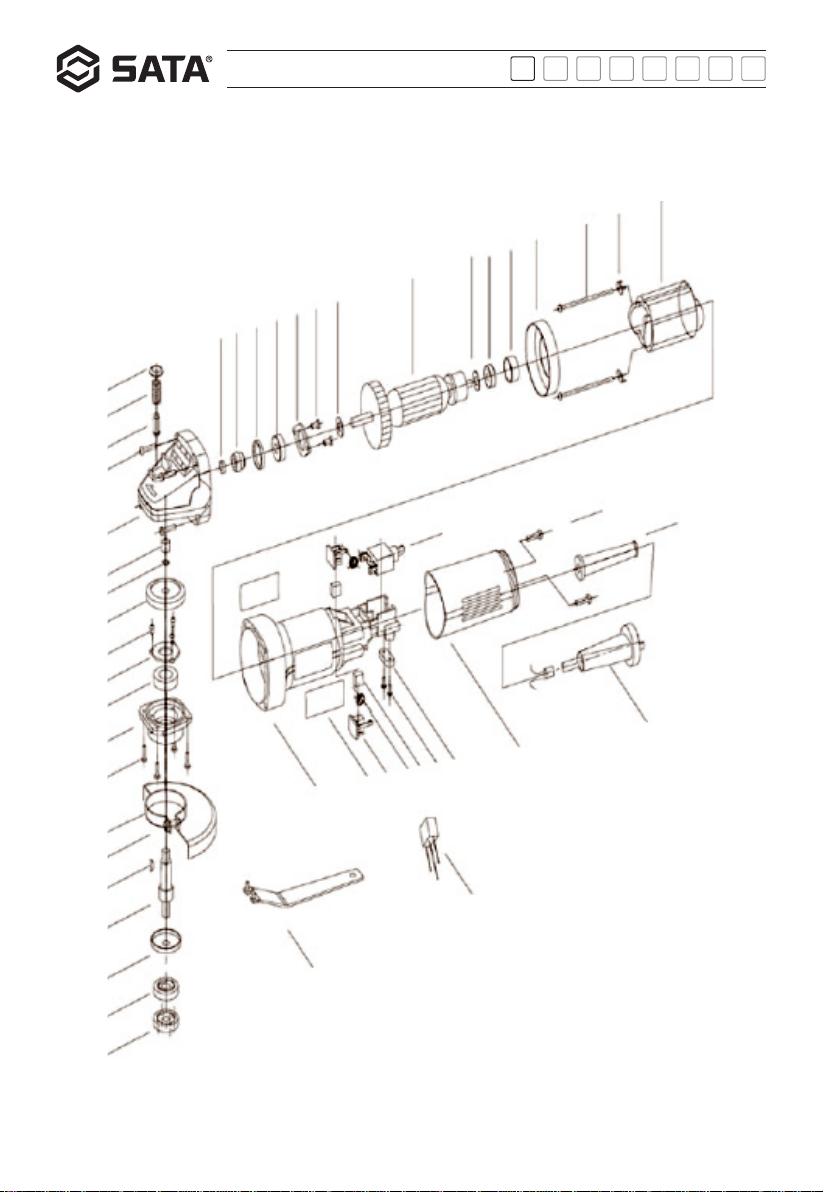

产品明细表：
图号 名称 用量
1外压板 1
2内压板 1
3防尘盖 1
4输出轴 1
5月牙销 1
6螺丝 M6×20 1
7砂轮罩 1
8螺丝 M4×16 4
9轴承座 1
10 6001 轴承 1
11 轴承盖板 1
12 棟丝 M4×10 3
13 大齿轮 1
14 卡簧 1
15 0810 滚针轴承 1
16 齿轮箱 1
17 螺丝 M4×24 4
18 锁销 1
19 弹簧 1
20 锁销帽 1
21 螺母 1
22 小齿轮 1
23 皮圈 1
24 608 轴承 1
25 轴承压板 1

12
中文 EN DE RU KO PT JA ES
51311/05155
图号 名称 用量
26 平机螺丝 M4×10 2
27 垫片 1
28 转子 1
29 垫片 1
30 607 轴承 1
31 轴承套 1
32 轴承套 1
33 定子螺丝 M4×75 2
34 螺丝垫片 2
35 定子 1
36 机壳 1
37 铭牌 2
38 支架 2
39 盘簧 2
40 碳刷 2
41 螺丝 M4×16 2
42 压线板 1
43 开关 1
44 后盖 2
45 螺丝 M4×16 2
46 电源线护袞 1
47 电源线 1
48 扳手 1
49 电容电感 1

13
中文 EN DE RU KO PT JA ES
51311/05155
用户保存联（请保存此联）：
★敬请购机者注意！购机后需经销单位盖章方为有效，涂改作废，遗失不补。
用户 /联系人 联系电话
产品名称
经销单位盖章：
产品型号
产品编号
购买日期
经销单位

中文 EN DE RU KO PT JA ES
51311/05155
14
Safe Operation Instructions:
Failure to use or operate in accordance with the instructions listed below will result in electric shock, fire, and/or serious injury.
Among all the warnings listed below, the term "electric tool" refers to a mains-driven（wired）power tool or a battery-
powered（wireless）power tool.Save these instructions.
Workplace:
1 ）Keep workplace clean and bright. Chaotic and dark sites can cause accidents.
2 ）Do not operate the tool in explosive atmospheres, in the presence of flammable liquids, gases, or dust. Sparks from tools can
ignite dust or gas.
3 ）Operate the tool when children and bystanders leave. Do not be distracted.
Electrical Safety:
1 ）The tool plug must match the socket. Never modify the plug in any way. Electric tools to be grounded cannot use any conversion
plug. Unmodified plugs and mating outlets will reduce the risk of electric shock.
2 ）Avoid contact with grounded surfaces, such as pipes, heat sinks, and refrigerators. If your body is grounded it will increase the risk
of electric shock.
3 ）Do not expose power tools to rain or moisture. Water entering the power tool increases the risk of electric shock.
4 ）Do not abuse wires. Never carry wires, pull power tools, or pull out plugs. Keep power tools away from heat, oil, sharp edges, or
moving parts. Damaged or twisted wires increase the risk of electric shock.
5 ）When using the power tool outdoors, use an external wire suitable for outdoor use. Wires suitable for outdoor use will reduce the
risk of electric shock.
6 ）When using the machine in wet conditions is unavoidable, use residual current device（RCD）protection. The use of
residual current devices can reduce the risk of electric shock.
Personal safety:
1 ）Stay alert and pay attention to what you are doing when operating the power tool and stay awake. Do not operate power tools
under fatigue, drugs, alcohol or treatment reactions. Distractions during the operation of power tools can cause serious
personal injury.
2 ）Use safety devices. Always wear goggles. Safety devices, such as dust masks, antiskid safety shoes, helmets, hearing protection,
etc. under appropriate conditions The device can reduce personal injury.
3 ）Avoid sudden start. Make sure the switch is in the off position when plugged into the plug. Inserting the plug with your finger on a
switched-on switch or when the switch is on may cause danger.
4 ）Remove all adjustment keys or wrenches before turning the power tool on. A wrench or key left on a rotating part of a power tool
can cause personal injury.
5 ）Do not stretch your hands too long. Always pay attention to the balance between your feet and your body. This gives good control of
power tools in unexpected situations.
6 ）Dress appropriately. Do not wear loose clothing or accessories. Keep hair, clothing, and sleeves away from moving parts. Loose
clothes, accessories, or long hair may get caught in moving parts.
7 ）If devices are provided for the connection of chip evacuation devices and dust collection devices, make sure they are connected
and used properly. Use these devices to reduce the risk of debris.
8 ）Use clamps or other methods to secure the workpiece to the platform. Holding the machine by hand or leaning the machine against
the body can cause unsteadiness and can cause loss of control.
9 ）Do not use ladders or other unstable support methods. In exceptional circumstances, a firm footing allows the use of better control
machines.
10 ）Keep hands dry, clean and free of grease. Hands with oil may cause loss of control.

中文 EN DE RU KO PT JA ES
51311/05155
15
11 ）Always wear goggles with side shields. Everyday wear glasses may have shock- proof lenses, but they are not safety goggles.
Following this precaution will reduce eye damage.
12 ）Protect your respiratory organs. When wearing dust, wear a dust mask. Following this precaution will reduce serious physical
injuries.
13 ）Protect your hearing. Wear earplugs for long periods of continuous work. Following this precaution will reduce serious physical
injuries.
Power tool use and precautions:
1 ）Do not abuse power tools and use appropriate power tools depending on their use. Selecting a properly designed power tool will
make your work more effective and safer.
2 ）The power tool cannot be used if the switch cannot turn on or turn off the power of the tool. Electric tools that cannot be controlled
by switches are dangerous and must be repaired.
3 ）Before making any adjustments, replacing accessories, or storing power tools, the plug must be removed from the power source
and/or the battery box must be unplugged. This preventive measure will reduce the risk of sudden start-up of the power tool.
4 ）Store unused power tools outside the reach of children, and do not operate power tools for persons unfamiliar with power tools or
who are unaware of these instructions. Electric tools cannot be used by users without training.
5 ）Maintain power tools. Check for misalignment or jamming of moving parts, broken parts, and other conditions that affect the
operation of the power tool. If it is damaged, the power tool must be repaired before use. Many accidents are caused by poorly
maintained power tools.
6 ）Keep the cutting tool sharp and clean. Well-maintained tools with sharp edges are not easy to get stuck and easy to control.
7 ）Use power tools, attachments, and tool tips in accordance with the operating instructions and the type of power tool that you
intend to use, considering the operating conditions and the work performed. Use of power tools for operations that do not
comply with requirements may result inhazardous conditions.
8 ）Save this manual. The instructions are provided to the user who uses the machine. If you lend this machine to someone else, you
also lend it out.
Maintenance:
1 ）Send your power tool to professional service personnel and must use the same spare parts for replacement. This will ensure the
safety of the power tools being repaired.
2 ）Use only marked parts when servicing.
3 ）Follow the repair section in this manual. Use of unauthorized parts or failure to follow the instructions in this manual may result in a
risk of electric shock.
Angle grinder operation safety warning:
universal safety warning:
1 ）The power tool is used to implement the function of the grinder. Read all safety warnings, instructions, illustrations,
and regulations provided with the power tool. Failure to understand all instructions listed below will result in electric
shock, fire, or serious injury.
2 ）This power tool is not recommended for operations such as brushing and polishing. The power tool does not operate
according to the specified function, and danger and personal injury may occur.
3 ）Do not use non-tool manufacturer recommended and specially designed accessories. Otherwise the attachment may be
attached to your power tool and it does not guarantee safe operation.
4 ）The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. The
accessories will burst and splash when operated at speeds greater than their rated speed.

中文 EN DE RU KO PT JA ES
51311/05155
16
5 ）The outer diameter and thickness of the attachment must be within the rated power range of the power tool. Incorrect
attachment sizes cannot be adequately protected or controlled.
6 ）The shaft hole size of the grinding wheel, flange plate, backrest pad or any other accessories must be suitable for
mounting on the spindle of the power tool. Attachments with shaft holes that are not compatible with power tool
mountings will be unstable, excessively vibrating and causing loss of control.
7 ）Do not use damaged accessories. Check attachments before each use, such as whether the grinding wheel has shards
and cracks, whether the back cushion has cracks, tears, or excessive wear. If the power tool or accessory is dropped,
inspect it for damage or installing an undamaged accessory. After checking and installing accessories, keep yourself and
bystanders away from the plane of the rotating attachment and run for 1 min at the maximum no-load speed of the power
tool. Damaged accessories usually break during this test.
8 ）Wear protective equipment. Use a mask, safety goggles, or safety glasses as appropriate. Wear dust masks, hearing
protectors, gloves, and engineering aprons that can block small abrasives or pieces of work pieces when applicable. The
eye shield must block flying debris generated by various operations. Dust masks or masks must be able to filter the
particles produced by the operation. Long-term exposure to high-intensity noise can cause deafness.
9 ）Keep bystanders at a safe distance from the work area. Any person entering the work area must wear protective
equipment. Fragments of the work piece or broken attachment may fly out and cause injury to bystanders in the
immediate area of operation. Cutting accessories that come in contact with live wires can charge the exposed metal parts
of the power tool and cause the operator to get an electric shock.
10 ）When working in a place where the grinding attachment may be cut to dark lines or its own wires, hold the power tool
only through the insulated grip surface. Access to a live wire on the cutter attachment may cause the exposed metal parts
of the power tool to become live and pose an electric shock hazard to the operator.
11 ）Keep the cord away from the rotating attachment. If not properly controlled, the cord may be cut off or entangled and
your hand or arm may be caught in the rotating attachment.
12 ）Do not drop the power tool until the attachment completely stops moving. Rotating attachments can grab the surface and
pull the power tool to lose control of the tool.
13 ）Do not operate the power tool when carrying it. Unexpectedly touching a rotating attachment may wrap your clothes and
cause the attachment to injure the body.
14 ）Always clean the vents of the power tool. The motor fan draws dust into the cabinet and excessive metal powder
deposition can cause electrical hazards.
15 ）Do not operate power tools near flammable materials. Sparks may ignite these materials.
16 ）Do not use accessories that require coolant. Water or other coolant may cause electric corrosion or electric shock.
Additional safety instructions:
Rebound and related warnings:
Bounce is a sudden reaction force due to a stuck or wound rotating wheel, backrest pad, wire brush, or other attachment.
Jamming or entangling can cause a rapid blocking of the rotating attachment, which in turn causes the uncontrolled power
tool to produce a movement in the opposite direction of rotation of the attachment at the point of the attachment.For example,
if the grinding wheel is wound or stuck by the workpiece, the edge of the grinding wheel stuck into the stuck point may enter
the surface of the material and cause the grinding wheel to climb out or rebound. The grinding wheel may fly to or from the
operator, depending on the direction of movement of the grinding wheel at the point of arrest. Under this condition, the
grinding wheel may also be broken.Rebound is the result of misuse and/or incorrect operation of the power tool or conditions,
and can be avoided by taking the appropriate precautions given below.
1 ）Hold the power tool tightly to keep your body and arm in the correct condition to resist rebound. If there is an auxiliary
handle, it must be used at all times in order to minimize the rebound or counter-torque at start-up. If proper precautions

中文 EN DE RU KO PT JA ES
51311/05155
17
are taken, the operator can control the counter-torque or rebound force.
2 ）Never place your hands near rotating accessories. Attachments may bounce and hit hands.
3 ）Do not stand where the power tool may move when a rebound occurs. The rebound will drive the tool at the winding point
against the movement of the grinding wheel.
4 ）Be careful when working on sharp corners, sharp edges, etc. Avoid bouncing and winding of attachments. Sharp corners,
sharp edges, and bouncing have the tendency to wrap rotating accessories and cause a runaway rebound.
5 ）Do not attach saw chains, wood carving blades ortoothed saw blades. These saw blades produce frequent bounces and
runaways.
Special safety warnings for additional grinding and sanding:
1 ）Use only recommended wheel types and shields specifically designed for use with abrasive wheels. Abrasive wheels that
are not designed for power tools are not fully protected and are not safe.
2 ）The guard must be securely mounted on the power tool and placed in the most secure condition, with only the smallest
part of the grindstone exposed to the operator. The shroud helps protect the operator from the danger of bursting wheel
fragments and accidental access to the wheel.
3 ）The grinding wheel is only for recommended use. For example: Do not grind with the side of the cutting wheel. The force
applied to the side of the wheel may cause it to crack.
4 ）Always use an undamaged, properly sized and shaped wheel flange for the selected wheel. A suitable grinding wheel
flange support grinding wheel can reduce the possibility of broken wheels. The cutting wheel flange may be different from
the grinding wheel flange.
5 ）Do not use worn abrasive wheels from large size power tools. Grinding wheels used on large-scale power tools are not
suitable for the high-speed working conditions of smaller-sized tools and may burst.
Angle grinder use precautions:
1 ）This angle grinder is used only for grinding.
2 ）During operation, avoid scratching or other strong action. Once it has occurred, it must be stopped and checked immediately.
3 ）If the tool suddenly starts to vibrate or other abnormality occurs, stop the machine immediately and troubleshoot before
proceeding.
4 ）Sparks when grinding metal. Be careful not to let sparks and abrasive dust spray your body.
5 ）When grinding stones containing silicic acid, the dust generated is harmful to health.Cannot process workpieces containing
asbestos.
6 ）In an environment with excessive dust, the cleaning cycle of power tools should be shortened.
7 ）This machine can only be used for dry processing.
T he dust produced by grinders during work may contain chemicals that are carcinogenic or harmful to the human body.Eg:
a ）Lead in paint.
b ）Toxins are also produced from the reaction of arsenic and chromium with wood.
In order to reduce the harmful effects of these toxic cosmetic substances on the human body, it is necessary to ensure.
that they work in a ventilated environment and wear qualified safety protection devices when working.
Equipment:
1 ）Non-cutting shields.
2 ）auxiliary handle.
3 ）Wrench.
4 ）Flange.
In some countries or certain special models, the equipment provided may be slightly different from the information given above.

中文 EN DE RU KO PT JA ES
51311/05155
18
Instructions:
1 ）Check that the supply voltage must match the nameplate data.
2 ）Guard installation and adjustment:
Guard installation and adjustment The shroud is a protection device to prevent injuries due to broken wheels in the work. When
installing the shroud, match the protruding part of the shroud with the groove on the gearbox, then rotate the shroud
counterclockwise to the working position, and finally fasten the screws firmly.（Install according to the direction shown in the
figure, otherwise disassemble.）Before starting work, make sure the guard is installed and tightened. Slightly loosen the set screw,
the shield can be turned and fixed at theFrom the working point of view, after the shield is adjusted, make sure that the fixing
screws are fully tightened.
shielding
gear box cover
screw

中文 EN DE RU KO PT JA ES
51311/05155
19
3 ）installation grinding:
Do not use grinding wheels with safety line speed less than 80m/s. Do not use damaged, unbalanced grinding wheels.
a ）When the output shaft is completely stationary, press the shaft lock button to fix the output shaft.
b ）Fix the lower flange to the output shaft, install the grinding wheel against the lower flange, and screw the threaded
upper flange onto the output shaft（note that the upper flange The installation direction is as shown in the figure below:
when the grinding plate and the cutting slice are installed, different surface contact pieces are used）.
c ）Check whether the inner hole size of the grinding plate is completely in line with the flange flange, and tighten the upper
flange with a wrench.
4 ）Remove the wrench and release the shaft lock button.
contact surface
flange

中文 EN DE RU KO PT JA ES
51311/05155
20
5 ）Switching machine operation:
Check whether the switching operation of the tool is easy and ensure that the switch is in the off state before plugging in.
a ）Power on: Press the switch and the tool starts. Press the switch lock button again to lock the working status of the tool.
Shutdown: Press the switch firmly and release it. The switch and the switch lock button will automatically pop up and the tool
will stop working.
b ）Move the workpiece only after starting the tool.
Practical application:
In order to reduce the risk of explosions, electric shocks, and injuries, it is necessary to check the presence of subtle wire, gas,
and water supply pipes under the surface of the workpiece before starting work!
Ask the operator to firmly hold the main grip of the tool before operating!
1 ）Grinding
a ）The grinding plate and the workpiece are kept at an angle of about 15 degrees, and the parts are in contact with each other.
The effect is the best.
b ）In order to avoid overheating, discoloration or wrinkling of the workpiece, apply a light force to move the body back and forth;
15°-30°
switch
