CABLE SET FOR PROGRAMMING
DEVICES WITH RS-232 TTL PORT
DB9FC/RJ-KPL
db9fcrj_en 08/08
The DB9FC/RJ-KPL cable set includes the DB9FC/RJ main cable, RJ/PIN3 adapter,
PIN3/RX adapter and connector with two RJ (6-pin) sockets. The first two cables are marked
by yellow cable flag labels with suitable symbol printed on them.
This set replaces the two cables manufactured earlier under the name of DB9FC/PIN3 (or
RS-CA5/6/R-2/4) and DB9FC/RJ. It enables computer to be connected to devices with
RS-232 TTL port, irrespective of what type of socket is used in them (PIN3 or RJ).
The DB9FC/RJ cable has a built-in data converter from RS-232 (-12V, +12V) into RS-232
TTL (0V, +5V) standard.
The set is designed for use with the following devices:
−CA-6, CA-5 alarm control panels (all electronics board versions);
−RX-2K, RX-4K, RE-4K radio controllers;
−INT-RX 433MHz keyfobs receiver expansion module
−ACCO-KP, ACCO-KP-PS access control modules.
Note: The cables designated DB9FC/RJ, manufactured up to 2007 (including 2007) and sold
individually (without adapters), do not allow programming the CA-5, CA-6 control
panels with PIN3 socket, as well as the radio controllers (even when using the
adapters described herein).
The figures below show connection diagrams.

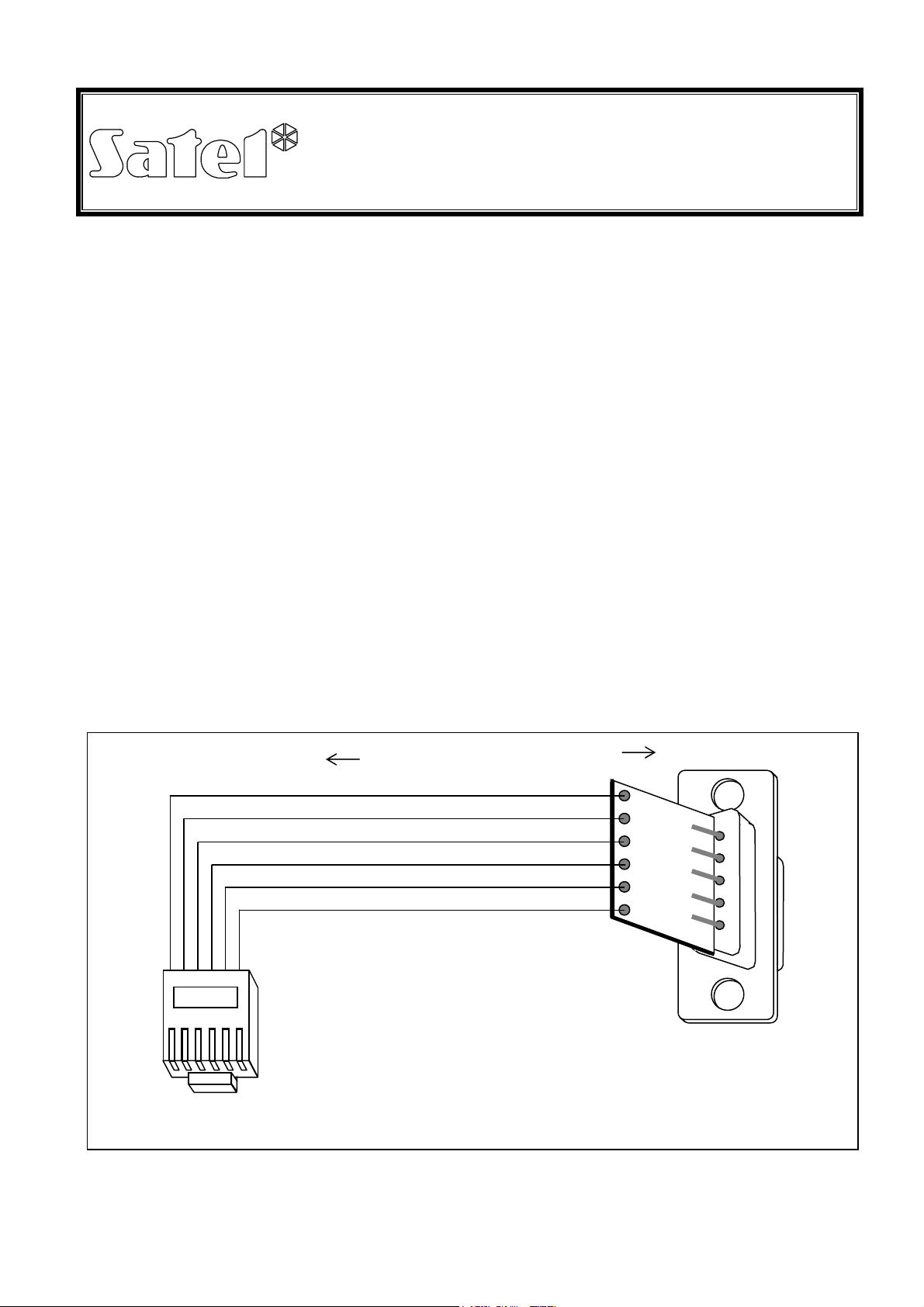

Figure 1. Connection diagram – DB9FC/RJ cable
1
2
3
4
5
to control panel
(view of RJ plug )
DB9F
to computer
(view of converter board located in
DB9F female connector)
654321

2 DB9FC/RJ-KPL SATEL
Figure 2. Connection diagram – RJ/PIN3 adapter
Figure 3. View of PIN3/RX adapter (for programming radio controllers)
Figure 4. Method of making cable connections
The latest EC declaration of conformity and product approval certificates are
available for downloading on website www.satel.pl
SATEL sp. z o.o.
ul. Schuberta 79
80-172 Gdańsk
POLAND
tel. + 48 58 320 94 00
[e-mail]
www.satel.pl
3 2 1
view of RJ plug view of PIN-3 plug
654
to RJ connector to device with PIN3 socket
3 2 1
COM (black)
LV (white)
AL (green)
COMPUTER
2xRJ connector
DB9FC/RJ
adapter
RJ/PIN3
device with
PIN3 type
socket
1
1
cable
to RJ/PIN3 adapter to radio controller
