Overview:
Developed by SATEN on the basis of the latest technologies, ST-DVR-16LA4 Series Digital
Video Recorder combines with the advanced H.264 video encoding and decoding standard
and maintains high performance rock-solid reliability and longer recording service time. ST-
DVR-16LA4 Digital Video Recorder can be used as a standalone video surveillance product,
as well as to build up a powerful surveillance network which is suitable for home or small-
scale business applications.
Main Features
User-friendly GUI for easy operation
1024×768 VGA output resolution
Simultaneous VGA and CVBS output.
Up to 4CIF resolution.
Scheduled and event recording parameters configurable per individual camera
Partial digital zoom by using mouse when in PTZ control mode
16-ch synchronous playback
Support dual stream
Different recording storage period configurable for each channel
NTP, SADP, DHCP protocols supported
Functions & Performances
Compression
PAL/NTSC adaptive video inputs.
H.264 video compression with high reliability and superior definition.
G.711 audio compression standard.
Independent video encoding parameters, including frame rate, resolution, bit rate, video
quality, etc.
Scheduled and event recording parameters configurable for per individual camera.
Support dual stream.
Encoding for both audio/video composite stream and video stream; audio and video
synchronization during composite stream encoding.
Compression, storage and network transmission of video image at 4CIF or CIF
resolution.
Local Monitoring
Up to 1024×768 resolution for VGA output display.
Simultaneous VGA and CVBS output.
1/4/9/16-camera video live view, with the camera order adjustable.

Technical Manual
United Kingdom-London
www.saten.co.uk
UAE – Dubai
6-7 Ludgate Square
[e-mail]
JAFZA - P.O. Box: 7816
Post code: EC4M 7AS
TEL: [phone]
TEL: [phone]
FAX: [phone]
Group switch, manual switch and automatic cycle modes selectable for video live view,
with the auto cycle period configurable.
Digital zoom in live view mode.
Shield of assigned channel for live view.
Privacy masking capability.
Multiple PTZ protocols supported, and settings and callup of presets, patrols and
patterns.
Video image zoom-in by clicking the mouse and tracing by dragging mouse in PTZ
control mode.
Hard Disk Management
Connection to 2 SATA hard disks supported, with up to 2TB storage capacity.
S.M.A.R.T technology.
HDD standby function.
HDD file system is compatible with Windows. Use pre-allocating hard disk management
technology, and no disk fragments.
Recording
Cycle and non-cycle recording mode.
Scheduled and event video encoding parameters.
Multiple recording types, including manual, continuous, alarm, motion, motion | alarm
and motion & alarm recording, etc.
8 recording time periods with separate recording types.
Pre-record and Post-record time for alarm and motion detection, and pre-record time for
schedule and manual recording.
Lock and unlock of video files.
HDD property can be set to read-only.
Video data search and playback by channel number, recording type, time etc.
Digital zoom function in playback mode.
Pause, play fast, play slow, skip forward, and skip backward when playback, locating in
progress bar by dragging the mouse.
16-channel synchronous playback.
Backup
Record files backed up via USB device.
Bunch backup by file or by time.
Record files edited for backup in playback.
Management and maintenance for backup devices.
Alarm & Exception
Configurable arming time for alarm in/out.
Various alarm types supported: alarms for video loss, motion detection, video tempering,
video signal abnormal, video in/out format unmatched, illegal access, network
disconnection, IP conflict, hard disk error and hard disk full.
Various alarm response actions supported: camera recording, relay out, on-screen
warning, audible warning and upload to center, etc.
Auto recovery from exceptions.

Technical Manual
United Kingdom-London
www.saten.co.uk
UAE – Dubai
6-7 Ludgate Square
[e-mail]
JAFZA - P.O. Box: 7816
Post code: EC4M 7AS
TEL: [phone]
TEL: [phone]
FAX: [phone]
Others
Control of DVR via front panel keys, mouse, IR remote control and special keyboard.
Three-level user management, each user with individual operating permission for DVR
and camera.
Powerful record and search for log of operation, alarm and exceptions.
Import/export of device configuration files.
Network
10/100M adaptive network interface.
TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols, etc.
Unicast and multicast supported; TCP and UDP protocols applicable in unicast
transmission.
Remote search, playback and download, lock/unlock of video files;
support breakpoint resume.
Remote access and configuration of parameters; remote import/export of device
configuration parameters.
Remote access of device running status, system log and alarm status.
Remote control of DVR via button operation.
Remote lock/unlock of panel buttons and mouse.
Remote formatting of hard disk, upgrade, reboot/shutdown and other system
maintenance operations.
RS-485 transparent channel transmission.
Event alarm and exceptions upload to remote management host.
Remote manual recording.
Remote video image capture in JPEG format.
Remote PTZ control.
Voice talk and broadcast.
Built-in WEB Server.
Development
Provision of SDK in Windows and Linux operating systems.
Application software source code of Demo.
Support and training service for application system development.

Technical Manual
United Kingdom-London
www.saten.co.uk
UAE – Dubai
6-7 Ludgate Square
[e-mail]
JAFZA - P.O. Box: 7816
Post code: EC4M 7AS
TEL: [phone]
TEL: [phone]
FAX: [phone]

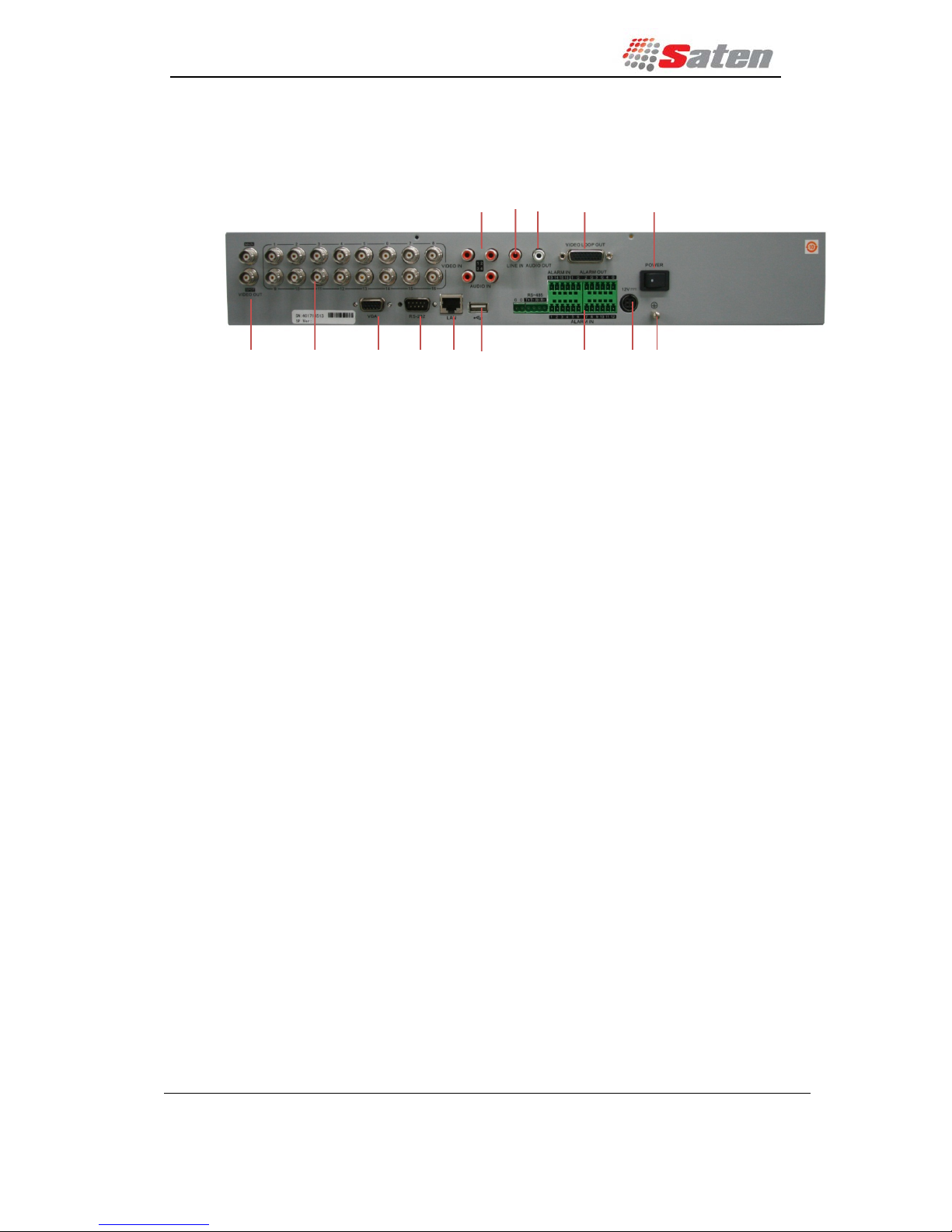

ST-DVR-16LA4 Rear Panel
1. VIDEO OUT
2. VIDEO IN
3. VGA Interface
4. RS-232 Serial Interface
5. LAN
6. USB Interface
7. RS-485 Interface, ALARM IN, ALARM OUT
8. 12VDC Power Supply Interface
9. GND
10. AUDIO IN
11. LINE IN
12. AUDIO OUT
13. LOOP OUT
14. POWER
1 2 3
4 7 8
9
5
6
10 11
13 14
12

Technical Manual
United Kingdom-London
www.saten.co.uk
UAE – Dubai
6-7 Ludgate Square
[e-mail]
JAFZA - P.O. Box: 7816
Post code: EC4M 7AS
TEL: [phone]
TEL: [phone]
FAX: [phone]
Specifications:
ST-DVR-16LA4DescriptionID
Video/Audio input
H.264Video Compression:1 16-chVideo Input:2 BNC (1.0Vp-p, 75Ω) -PAL / NTSC adaptiveVideo Input Interface:3 G.711Audio Compression:4 4-chAudio Input:5 RCA (2Vp-p, 1kΩ)Audio Input Interface:6 1-ch , RCA (2Vp-p, 1kΩ)Voice Talk Input:7
Video/Audio Output
4CIF (PAL: 704x576; NTSC: 704x480 )Preview Resolution:8 1-ch, resolution: 1024x768/60HzVGA Output:9 2-ch, BNC (1.0Vp-p, 75Ω)PAL: 704x576 / NTSC 704x480CVBS output10 4CIF/2CIF/CIF/QCIFRecording resolution:11 1-ch, BNC(1.0Vp-p, 75Ω)Video output:12 1-ch, BNC(1.0Vp-p, 75Ω)Video Spot Output:13 16-CH, DB15 connectorVideo Loop Output:14
4CIF/2CIF: 6fps; CIF/QCIF: 25fps(P)/30 fps (N)Frame Rate:15
32Kbps~2048Kbps, or user-defined (Max.3Mbps)Video Bit Rate:16 Video / Video & AudioStream Type:17 1-ch RCA(Linear electrical level, 1 KΩ)Audio Output:18 64kbpsAudio Bit Rate:19 SupportDual Stream20
16-CH
Synchronous
Playback
21
Hard Disk Driver
2 SATA InterfacesInterface Type:22 Each interface supports up to 2TB capacityCapacity:23
External Interface
1 RJ45 10M/100M adaptive Ethernet InterfaceNetwork Interface:24 2 interface, USB 2.0USB Interface:25 1 RS-232 interface; 1 RS-485 interfaceSerial Interface:26 16-chAlarm Input:27 4-chAlarm Output:28 IR Remote ControlRemote Control:29

Technical Manual
United Kingdom-London
www.saten.co.uk
UAE – Dubai
6-7 Ludgate Square
[e-mail]
JAFZA - P.O. Box: 7816
Post code: EC4M 7AS
TEL: [phone]
TEL: [phone]
FAX: [phone]
General
12 VDCPower Supply:30
≤15W (without HDD or DVD-R/W)Consumption:31
-10
℃
~ +55
℃
Working
Temperature:
32
10%~90%Working Humidity:33 70mm(H) ×440mm(W) ×390mm(D)Dimension:34
≤8Kg(without HDD or DVD-R/W)Weight:35
