Satoh S-650g User manual

SATOH TRACTOR

S•&SOG

with

4-cylinder

PB

Gasoline Engine

INSTRUCTION BOOK

SATOH AGRICULTURAL MACHINE MFG.

CO.,

LTD.

KINSAN BLDG.

NO.

5,

4-CHOME NIHONBASHI-MUROMACHI

TOKYO JAPAN

PUBLICATION No.

-018

INTRODUCTION

Equipped with a high-powered· four-cylinder gasoline engine, SATOH

S-650G

tractor

does

an

extensive range

of

farming jobs. Because it

is

incorporated SATOH's latest technological innovation as well

as

many

years

ot

research

and

experience

in

manufacturing farm tractors, its

outstanding

performance

and

high efficiency have been already

recognized through

many

severest tests.

Every piece

of

the

tractor

S-650G

is

made

of

the

selected quality

materials

and

by

the

world's

most

advanced machine tools.

It

also

combines SATOH's highest standards

of

design

and

workmanship,

therefore,

both

longer service life and versatility are secured.

However,

to

work

out

these potentialities,

the

operator's

cooperation

is

a must. For this reason,

not

only

must

he

perform daily

check

and

periodical service,

but

also he

must

strictly follow

the

instructions given

in this manual.

These

instructions can

be

followed even

by

a novice,

however,

in

order

to

get easier and quicker operations, an

operator

is

requested

to

have a

fu

II

knowledge of

the

service procedures

and

a

skilled level of techniques. Once

the

operator

is

fully

acquainted

with

the

technical informations described

in

this manual,

he

will become a

qualified mechanic.

Prior

to

the

use

of

this new tractor, be sure

to

read

"Operation"

and

"Periodical Service"

in

this manual. It

is

desired

that

an

operator

keeps

this manual

on

hand

so

that

he

can look

into

it whenever necessary.

For

further questions, apply

to

your

nearest SATOH dealer, giving

the

SERIAL and ENGINE NUMBER of

your

tractor.

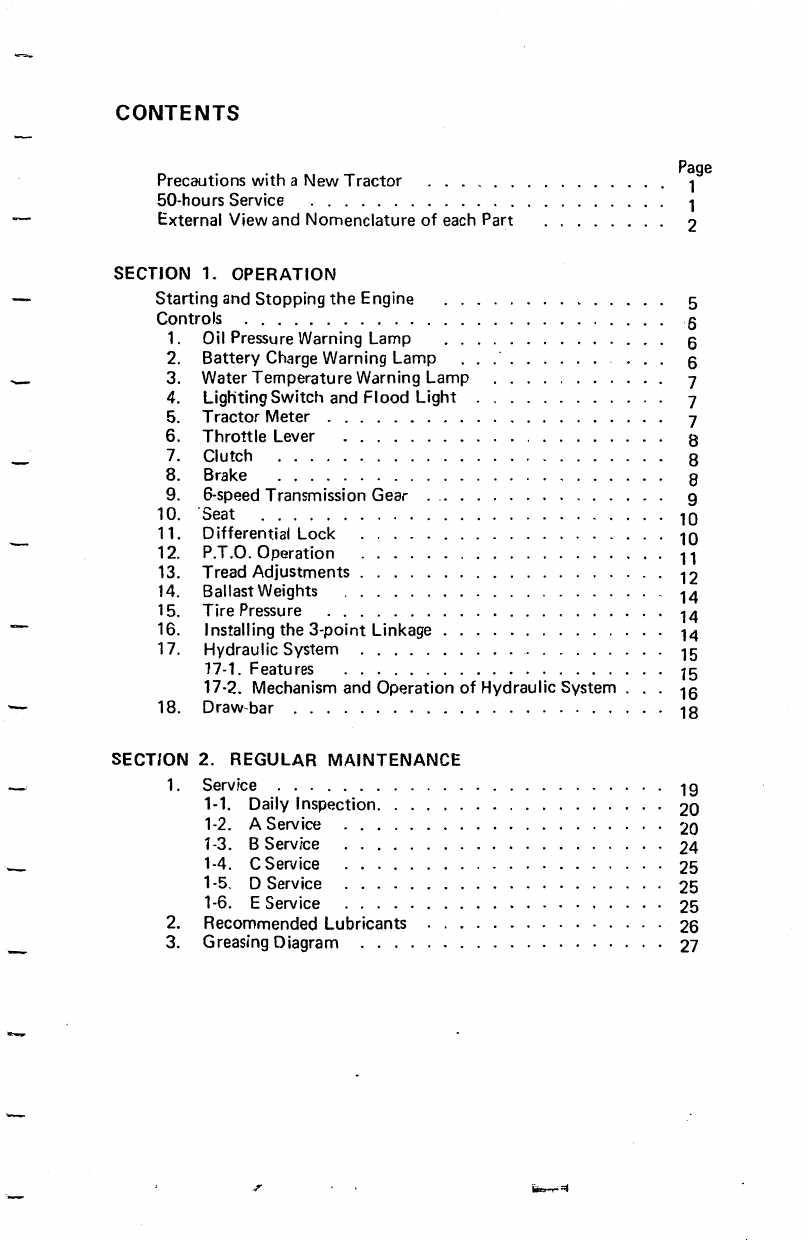

CONTENTS

Precautions with a New

Tractor

. . . . . .

50-hours Service . . . . . . . . . . . . .

External View

and

Nomenclature

of

each Part

SECTION

1.

OPERATION

Page

1

2

Starting

and

Stopping

the

Engine 5

Controls . . . . . . . . . . . 6

1. Oil Pressure Warning Lamp 6

2.

Battery

Charge Warning Lamp 6

3.

Water

Temperature

Warning Lamp 7

4. Lighting Switch

and

Flood

light

7

5.

Tractor

Meter 7

6.

Throttle

Lever 8

7. Clutch 8

8. Brake 8

9. 6-speed Transmission Gear 9

10.

·seat

. . . . . . 10

11. Differential Lock

10

12. P.T.O. Operation

11

13. Tread Adjustments 12

14. Ballast Weights

14

15. Tire Pressure

14

16. Installing the

3-point

Linkage

14

17. Hydraulic System . . . . . 15

17-1. Features . . . . . . . . .

15

17·2. Mechanism and Operation

of

Hydraulic System . 16

18. Draw-bar

............

· · · · · · · · ·

18

SECTION 2. REGULAR MAINTENANCE

1. Service

......

.

1-1. Daily Inspection.

1-2. A Service

1-3. B Service

1-4. C Service

1-5. D Service

1-6. E Service

2.

Recommended Lubricants

3.

Greasing Diagram

19

20

24

25

26

27

SECTION 3. SERVICE

INFORMATION

1.

Caution Under Cold Climate

2. Carburetor and Fuel Pump

3. Governor . . .

4. Valve Clearance

5. Engine 0 il

6. Cooling System

7.

Tightening Cylinder Head Bolts

8.

Air

Cleaner

9. Battery

.......

.

10.

Alternator

.....

.

11. Starting

Motor

12. Fan and Governor Belts

13. Fuse

.....

.

14. Brake

Adjustment

. . .

15.

Clutch

Adjustment

16. Center

Beam

and

Front

Hub.

17. Electrical Wiring Chart

SECTION 4. SPECIFICATION AND

DATA

Engine

.....

.

Cooling System . .

Fuel Equipment

lubrication

System

Electrical System

Engine Performance Curves .

Capacities

Dimensions

Performance

Power

lift

Clutch

Brakes

P.T.O.

Tread

Adjustment

3·point

linkage

Wheel Equipment

Travel

Speeds

28

29

30

31

32

33

34

35

36

37

38

39

40

PRECAUTIONS

WITH

A

NEW

TRACTOR

All

component including

the

engine

is

subject

to

rigorous checks during

factory assembly. It

is

advisable

that

a new tractor should be used with

special care. For

the

first

25-

50

hours, it should

not

be operated for

heavy

duty

work.

If

circumstances require

the

tractor

to

operate with

heavy toad,

the

gear should be one stage lower than requested.

50-HOURS SERVICE

After first 50-hours

of

operation, the following points should be

serviced.

(

1)

Replace

the

engine oil and

the

oil filter.

(2)

Replace

the

transmission oil.

(3) Retighten the cylinder head bolts and adjust

the

valve clearance.

(4)

Retighten all bolts, nuts and screws.

(5)

Check and adjust

the

fan and governor belts.

(6)

Check

the

wheels for tire pressure and tire condition.

This 50-hours Service must be performed

without

fail because it

is

essential

in

order to keep the tractor always

in

the

top

condition.

page

1

__..,

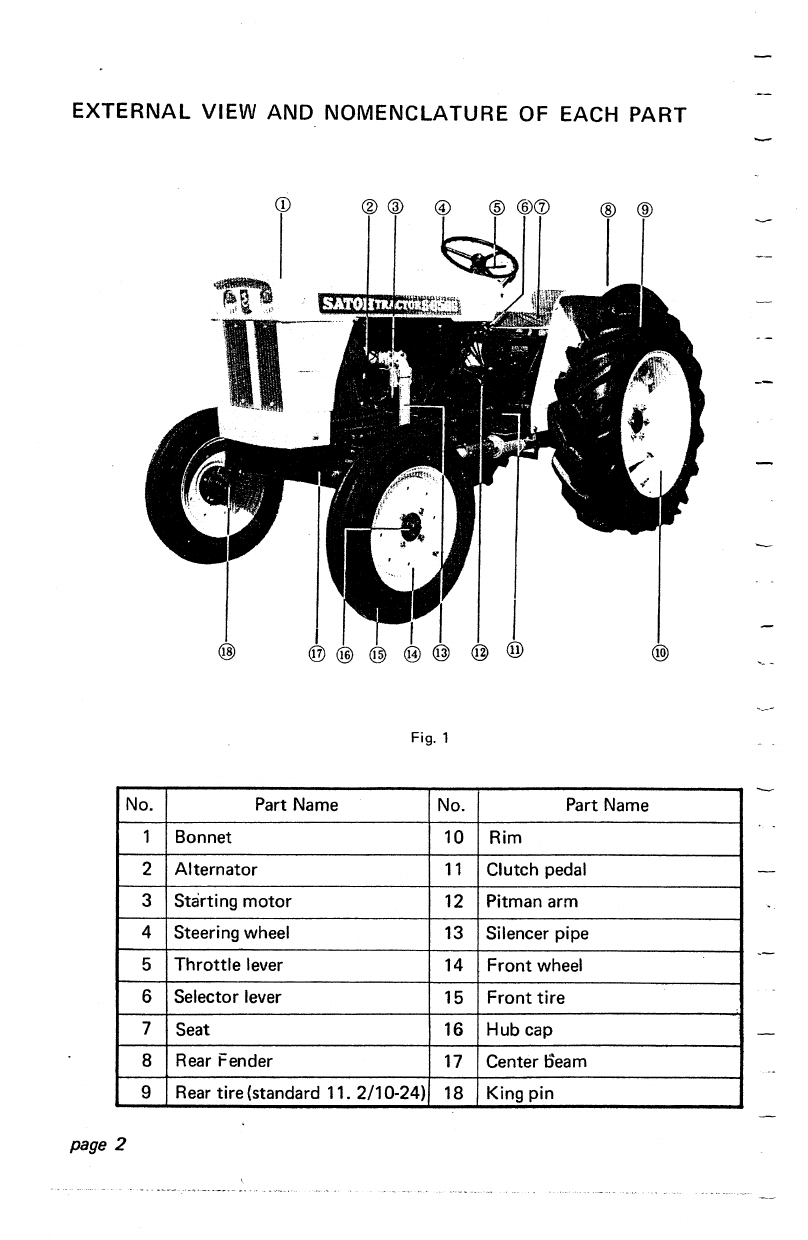

EXTERNAL

VIEW AND

NOMENCLATURE

OF EACH PART

Fig. 1

No. Part Name No. Part

Name

1 Bonnet 10 Rim

2 Alternator

11

Clutch pedal

3 Starting

motor

12 Pitman arm

4 Steering wheel 13 Silencer pipe

5

Throttle

lever 14

Front

wheel

6 Selector lever 15

Front

tire

7 Seat 16 Hub cap

8

Rear

Fender

17

Center oeam

9

Rear

tire(standard 11. 2/10-24) 18 King pin

page

2

@-----------------1)

Fig. 2

No. Part Name No. Part Name

19 Louver

24

Instrument panel

20 Filler

cap

25

Step

21

Air

cleaner

26

Fuel cap

22

Control lever

27

Steering lever

23

Flood light 28

Head

lamp

page 3

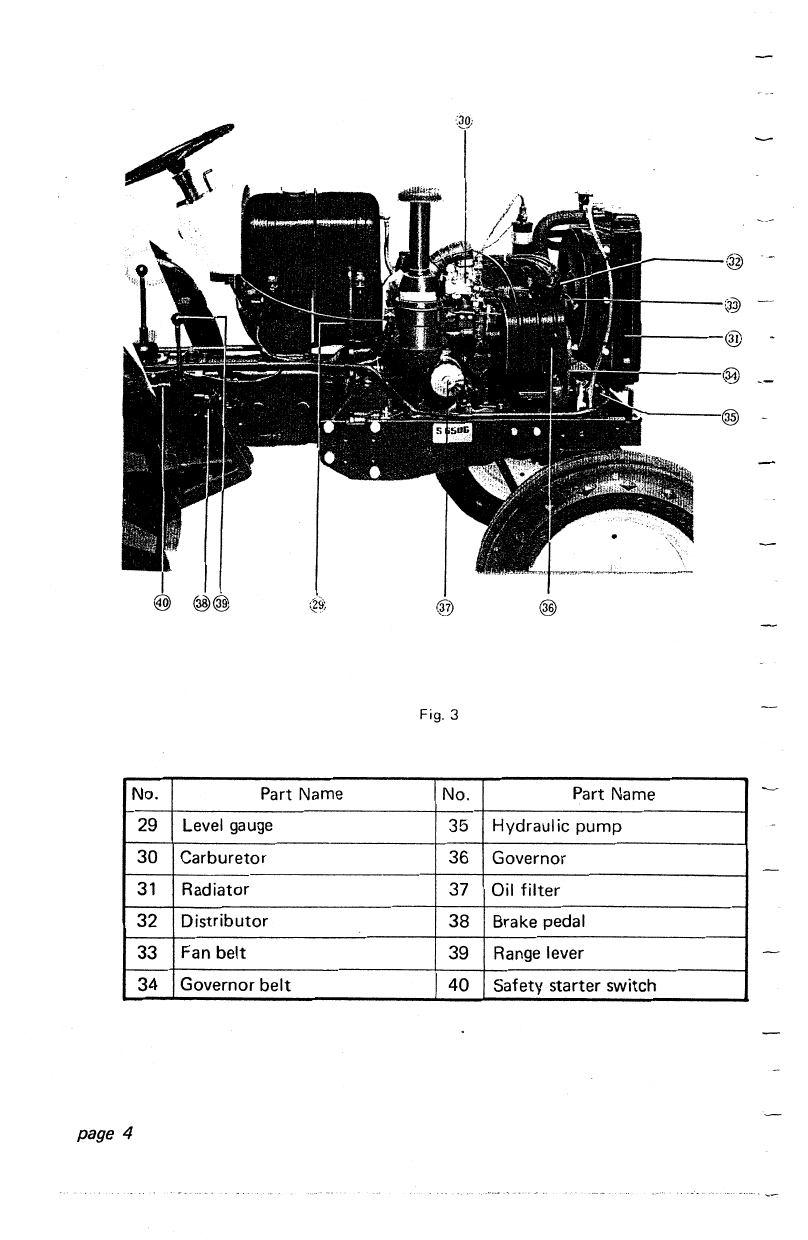

Fig. 3

No. Part Name No. Part Name

29

Level gauge 35 Hydraulic

pump

30

Carburetor

36

Governor

31

Radiator

37

Oil filter

32

Distributor

38 Brake pedal

33

Fan

belt

39 Range lever

34

Governor

belt

40

Safety

starter

switch

page

4

-

SECTION

1.

OPERATION

STARTING

AND

STOPPING THE

ENGINE

Before starting

the

engine, be sure to check

the

engine oil, cooling

water, transmission

oil

and hydraulic

oil

for quantity,

in

addition

the

daily check specified

in

1-1

of

SECTION

2-

(

1)

The engine

is

provided with a safety switch, so

that

the starter will

not run excepting when

the

range lever

is

in

"NEUTRAL"_

Accordingly, when starting the engine, place range lever

in

"NEUTRAL".

(

2)

Set

the

starter switch

to

"0

N", and confirm

the

oil

pressure

warning lamp, battery charge warning lamp, and water temperature

warning lamp. Turn the starter switch

to

"START",

then,

the

engine will start

to

run. After

the

engine has been started, keep off

your hand from

the

starter switch.

Fig. 4

(3)

Avoid turning

the

starting motor for 15 consecutive seconds or

more.

(4)

U"nder

the cold climate, disengage

the

clutch by fully depressing

the

pedal, then, fully pull

out

the choke button.

Start

the

engine

with

the

throttle

lever in

the

idle running speed.· After

the

engine

started, release

the

clutch pedal and slowly push in the choke lever

while observing

the

engine condi.tion. When

the

engine started

to

run smoothly, keep

the

engine under idle running for warming-up.

(5)

To

stop

the

engine,

turn

the throttle lever

to

the

"SLOW" (idle

running) position, and

set

the

starter switch

to

"OFF".

After stopping, be sure

to

remove the main switch key.

page 5

CONTROLS

In

case

the

starter switch turns off under

the

high speed running

of

the

engine, it will

be

caused

to

have a trouble of "DIESELING".

Control System

of

the engine and tractor are as shown

in

Figs. 7

through 12.

1.

OIL

PRESSURE WARNING LAMP

When

the

starter switch

is

set

to

"ON",

the

oil pressure warning lamp

is

--

turned on. Always

the

lamp should be watched, because it indicates

whether

the

engine

is

properly lubricated. Normally, after

the

engine ·

started,

the

lamp

is

turned

off. If the. lamp keeps

to

light

on

during

operation,

the

engine oil may be insufficient or

the

oil pressure switch

·-

is

faulty.

Stop

the

operation, and check

quantity

of

the

oil and

the

oil

pressure switch condition.

Fig. 5

Instrument

Panel and

Control

System

Indicator

Instrument

(A)

Oil

Pressure Warning

Lamp

(B)

Battery

Charge Warning

Lamp

(C)

Water

Temperature

Warning

Lamp

(D)

Lighting

Switch

(E)

Tractor

Meter

(F)

Throttle

Lever

(G)

Starter

Switch

(H)

Choke

wire

2. BATTERY CHARGE WARNING LAMP

page

6

When

the

starter

switch

is

turned

to

"ON",

the

lamp

is

turned on.

After starting

the

operation,

the

lamp

is

turned

off. The lamp indicates

whether

the

battery

is

being correctly charged. If the lamp lights on

during operation,

the

fan belt may be slipping or damaged, or the

charging circuit

is

faulty.

Stop

the operation immediately, and check

the

possible cause.

-

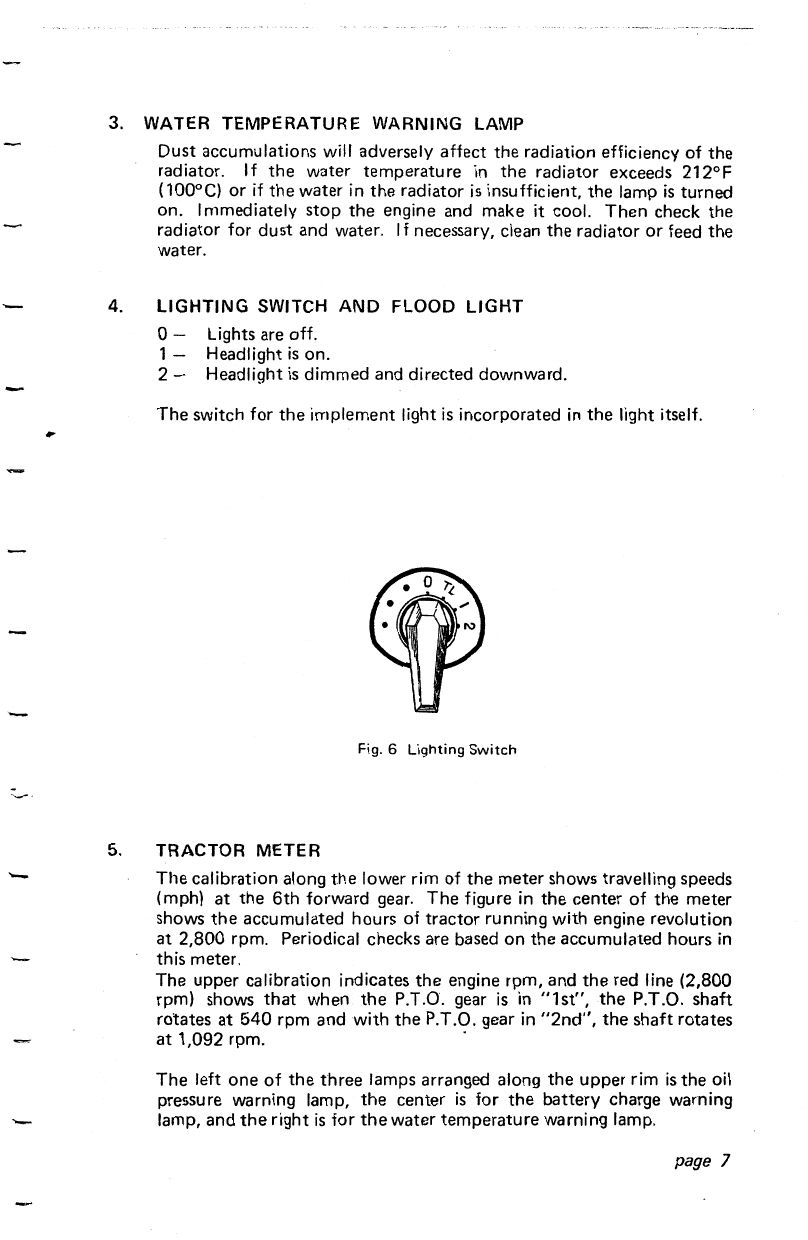

3. WATER TEMPERATURE WARNING LAMP

Dust accumulations will adversely affect the radiation efficiency of

the

radiator. If

the

water

temperature

in

the

radiator exceeds 212°F

(100°C)

or

if

the

water in

the

radiator

is

insufficient,

the

lamp

is

turned

on. Immediately

stop

the

engine and make it cool.

Then

check

the

radiator for dust and water. If necessary, clean

the

radiator

or

feed

the

water.

4.

LIGHTING

SWITCH

AND

FLOOD

LIGHT

0 - Lights are off.

5.

1 - Headlight

is

on.

2-

Headlight

is

dimmed and directed downward.

The

switch for

the

implement light

is

incorporated

in

the

light itself.

Fig. 6

Lighting

Switch

TRACTOR METER

The

calibration along

the

lower rim of

the

meter shows travelling speeds

(mph)

at

the

6th

forward gear.

The

figure in

the

center of

the

meter

shows

the

accumulated hours of

tractor

running with engine revolution

at 2,800 rpm. Periodical checks are based

on

the

accumulated hours

in

this meter.

The upper calibration indicates

the

engine rpm, and

the

red line (2,800

rpm) shows

that

when.

the

P.T.O. gear

is

in

"1st",

the

P.T.O. shaft

rotates

at

540

rpm

and

with

the

P.T.O. gear

in

"2nd",

the

shaft rotates

at

1

,092

rpm. ·

The

left

one

of

the

three

lamps arranged along

the

upper

rim

is

the oil

pressure warning lamp,

the

center

is

for

the

battery charge warning

lamp, and

the

right

is

for

the

water

temperature

warning lamp.

page

7

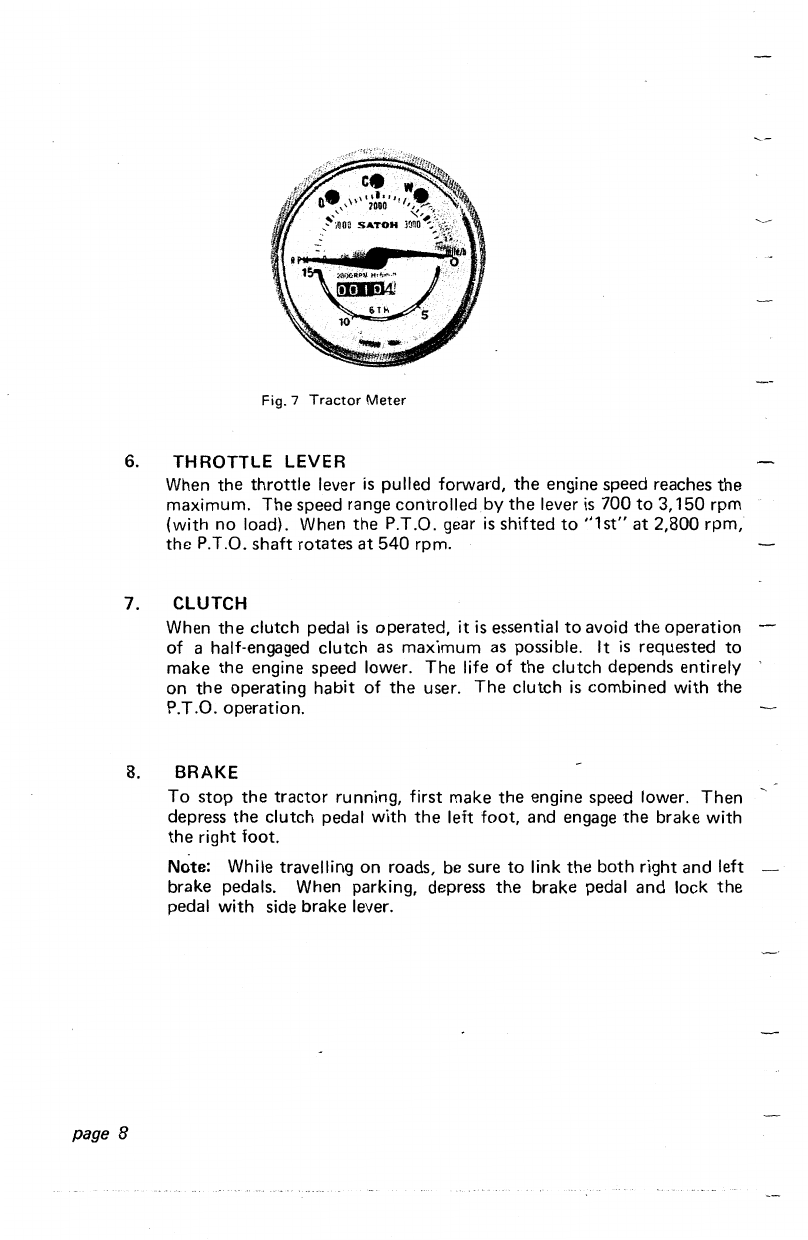

Fig. 7

Tractor

Meter

6.

THROTTLE LEVER

When

the

throttle

lever

is

pulled forward,

the

engine speed reaches

the

maximum.

The

speed range controlled

by

the

lever

is

700

to

3,150

rpm

(with no load). When

the

P.T.O. gear

is

shifted

to

"1st"

at

2,800 rpm,

the

P.T.O.

shaft

rotates

at

540

rpm.

7. CLUTCH

When

the

clutch pedal

is

operated, it

is

essential

to

avoid

the

operation

of a half-engaged clutch as maximum as possible. It

is

requested to

make

the

engine speed lower.

The

life

of

the

clutch depends entirely

on

the

operating habit

of

the

user.

The

clutch

is

combined with

the

P.T.O. operation.

8. BRAKE

page 8

To

stop

the

tractor

running, first make

the

engine speed lower.

Then

depress

the

clutch pedal with

the

left foot, and engage

the

brake with

the

right foot.

Note: While travelling

on

roads, be sure

to

link

the

both right and left

brake pedals. When parking, depress

the

brake pedal

and

lock

the

pedal with side brake lever.

Fig. 8 Brake Pedal

(A)

Looking

Plate

(8) Side Brake Lever

9. 6·SPEED TRANSMISSION

GEAR

The lever located exactly

in

front

of

the

seat

is

the

selector lever.

This lever

is

used for shifting

the

gears

to

1st, 2nd and 3rd for for-

ward and 1st for reverse. The lever

on

the

right side

is

used for chang-

ing

the

speed range from High

to

Low and vice versa. Thus a total

of

6 for forward and 2 for reverse

speeds are at your option.

N

R

2 [

3

Fig. 9 6-Speed Gear Position

Running

F1

Position

Range

Lever Selec-

Posi-

tor

tion Selec- 1

tor

page

9

10.

SEAT

The

operator's

seat

can be adjusted

in

the

range of 1.77 in.

(45

mm)

both

for

front

and

rear directions so

that

the

operator

can have

the

most suitable posture.

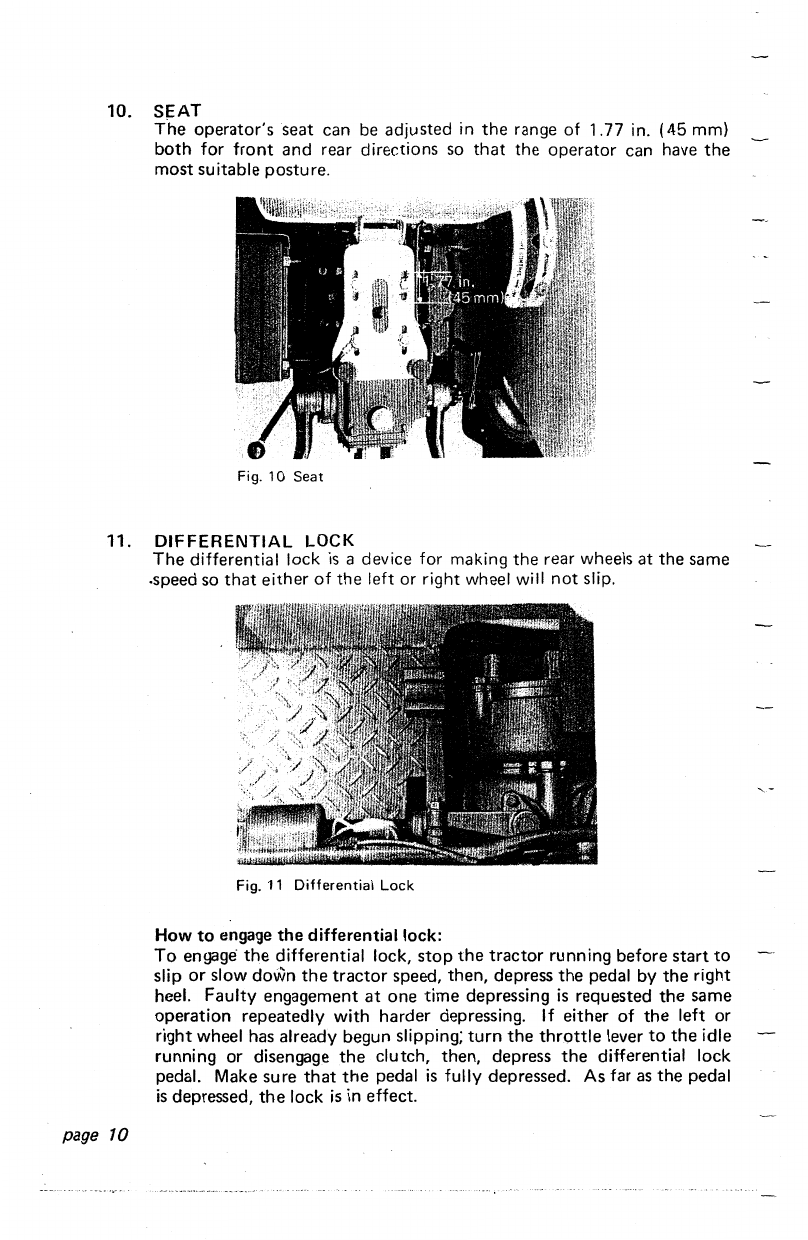

Fig.

10

Seat

11.

DIFFERENTIAL

LOCK

page

10

The

differential lock

is

a device for making

the

rear wheels

at

the

same

.speed so

that

either

of

the

left or right wheel will

not

slip.

Fig.

11

Differential

Lock

How

to

engage

the

differential lock:

To

engage

the

differential lock,

stop

the

tractor

running before

start

to

slip

or

slow

down

the

tractor

speed, then, depress

the

pedal by

the

right

heel. Faulty engagement

at

one

time

depressing

is

requested

the

same

operation repeatedly with harder depressing. If either

of

the

left or

right wheel has already begun slipping;

turn

the

throttle

lever

to

the

idle

running or disengage

the

clutch, then, depress

the

differential lock

pedal. Make sure

that

the

pedal

is

fully depressed. As far

as

the

pedal

is

depressed,

the

lock

is

in effect.

How

to

release

the

differential lock:

Immediately after

the

right

foot

is

moved

off

the

pedal,

the

differential

lock

is

automatically released by force of

the

spring. However, it must

be remembered

that

the

lock may

not

be released

under

special

conditions.

In

this case,

the

right and left brake pedals should be

quickly

and

alternatively depressed, then,

the

differential lock

will

be

set free.

If

the

same occurs while plowing,

the

brake pedal

of

the

land

wheel side should be applied.

The

lock will be let out. When

the

both

right and left brakes are linked for towing a trailer, operation of

the

steering handle

to

right and left allows

the

lock becoming free. When

the

tractor

is

stopped with

the

differential lock applied, reverse running

with a jerk can release

the

lock.

Note: Avoid using

the

differential lock when operating

the

tractor

at

high speed

or

running

on

a road.

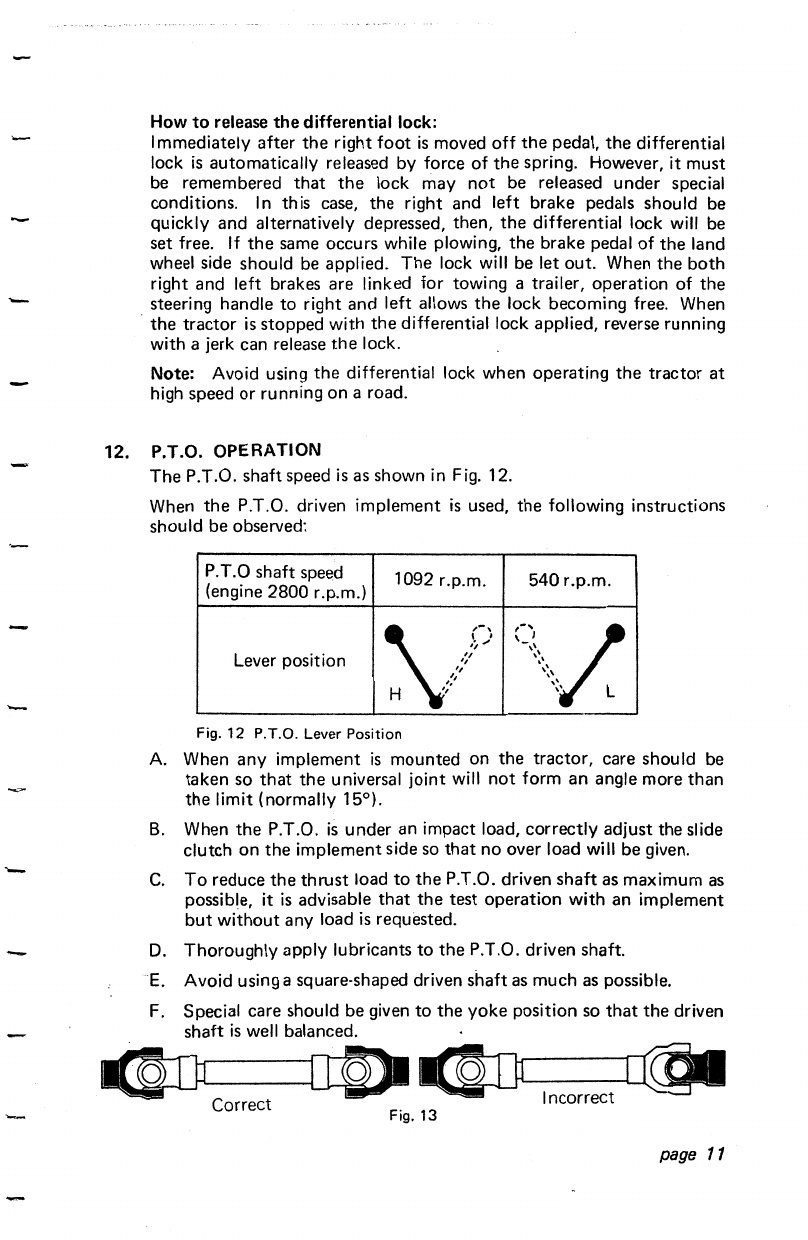

12. P.T.O. OPERATION

The

P.T.O. shaft speed

is

as shown in Fig. 12.

When

the

P.T.O. driven implement

is

used,

the

following instructions

should be observed:

P.T.O shaft speed 1092 r.p.m.

540

r.p.m.

(engine 2800 r.p.m.)

~

,-,

n/

I '

I;""'

-,

\ \

Lever position

,,

'.•

,,

;·

,~,

L

Fig. 12

P.

T.O. Lever Position

A.

When

any

implement

is

mounted on

the

tractor, care should be

taken

so

that

the

universal

joint

will

not

form

an

angle more

than

the

limit (normally 15°).

B.

When

the

P.T.O.

is

under an impact load, correctly adjust the slide

clutch

on

the

implement side so

that

no

over load will

be

given.

C.

To

reduce

the

thrust

load

to

the

P.T.O. driven

shaft

as maximum as

possible, it

is

advisable

that

the

test

operation with an implement

but

without

any load

is

requested.

D.

Thoroughly apply lubricants

to

the

P.T.O. driven shaft.

E.

Avoid using a square-shaped driven

shaft

as much as possible.

F.

Special care should be given

to

the yoke position so

that

the

driven

shaft

is

well balanced.

Incorrect

c@

page

11

13.

TREAD

ADJUSTMENTS

page

12

The

tread of the

front

and the rear wheels can

be

freely adjusted

according

to

the

type

of

operation.

A.

Adjusting

the

tread

of

the

front

wheels

The

tread can be adjusted

to

the

following four ways; viz. 40.9 in.

(1,040 mm). 44.9 in. (1,140 mm). 48.8 in. (1,240 mm) and 52.8

in. (1,341 mm).

To

adjust

the

tread, first jack

up

the

front

part of

the

tractor,

and

align

the

setting hole

of

the center beam with

that

of

the

beam extension.

After this adjustment,

the

tie rod should also be adjusted according

to

the

tread requested.

(Do note

that

when adjustment of 50.2 in. (1,321 mm) tread

is

requested,

the

front

wheels

of

the right and left side should be

replaced as one side

to

the

other.)

13.93

in.

(100)

$

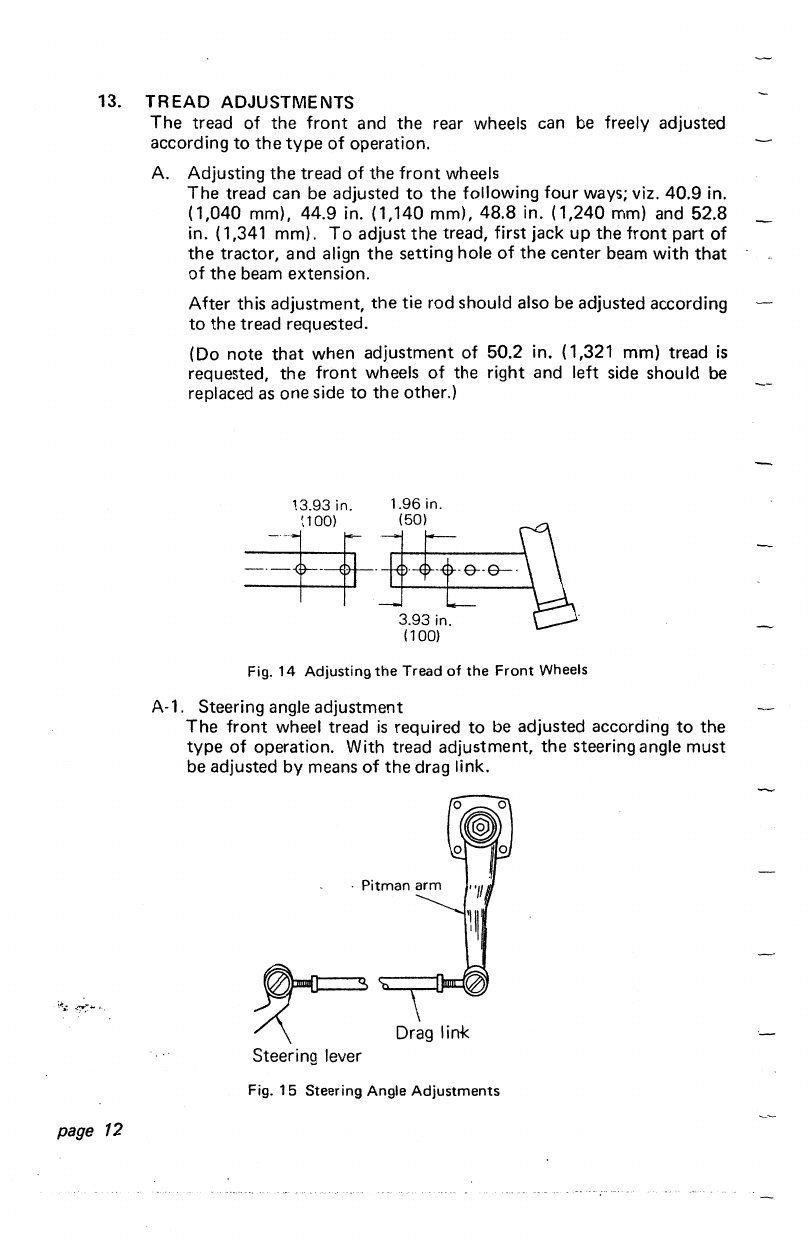

Fig.

14

Adjusting

the

Tread

of

the

Front

Wheels

A·1. Steering angle adjustment

The

front

wheel tread

is

required

to

be adjusted according

to

the

type

of

operation. With tread adjustment,

the

steering angle must

be adjusted by means

of

the

drag link.

Drag link

Steering lever

Fig.

15

Steering Angle

Adjustments

Adjustment should be made

in

the

following manner.

The

maximum steering angle

is

53° when inside

of

both

right and left

wheels are measured. Turn the steering wheel

to

both right

or

left

with

the

maximum angle, and loosen

the

drag link lock

nut

and

tum

the drag link so

that

the

rear end

of

the inner wheel steering

lever comes contact with

the

stopper. When the wider tread

is

required

the

drag link becomes longer while

the

narrower tread

makes

the

tube shorter.

B.

Rear wheel tread adjustment

To

adjust

the

rear wheel tread, jack up the rear wheels. Select the

tread required for operation by means

of

turning

the

rim inside

out

or

replace

the

tires

of

the

right and left as one side

to

the

other.

Fig. 16 shows adjustment of the rear wheel tread.

Fig.

16

Rear Wheel Tread

Adjustments

Distance between tire center

Jines

A 8 c D E F G

40in.

42.1 in. 43.8 in. 46.2 in. 47.9 in.

50

in. 51.7 in.

(1,017 (1,069 (1,113 (1,173 (1,217 (1,269 (1,313

m/m) m/m) m/m) m/m) m/m) m/m) m/m)

page

13

B-1.

Installation of

the

rear wheels

Make sure

that

the

rear

tirr:ls

should be installed so

as

to

form

the

letter

of

"V"

as

viewed from

the

tractor

front

side.

Front

Fig.

17

14. BALLAST WEIGHTS

Tire slipping will

not

only damage

the

tire,

but

also waste the fuel.

If

heavier traction force

is

needed,

the

ballast weight should be attached

to

each wheel, or water can be fed into the tire tubes

in

combination

with

the

ballast weights.

In

this case,

if

atmospheric temperature tends

to

be below

the

freezing point an anti-freezing solution should be added

to

the

water.

Front wheel added

Rear wheel added 40

lbs

X 4 (

18

kg

X

4)

77 lbs X 4 (35 kg X

4)

To

feed

the

water into tire tubes,

the

valve TR218A, manufactured by

Nippon Goodyear K.K.

is

used.

15.

TIRE

PRESSURE

Tire pressure should be frequently checked. Incorrect tire pressure,

either

too

high or

too

low, will result in

the

quick wear of

the

tire.

It

is

advisable

that

tire pressure should

be

checked

at

least once a week.

When water ballast

is

put

into

the

tubes, further frequent check

is

required.

AG

TIRE

ESTATE TIRE

Front

tire

(500-15)

Rear tire (11.2/1

0-24)

Front

tire

(5.90-15)

Rear tire

(11.2/10-24)

36.93

lbs/in2 (2.6 kg/cm2)

16 lbs/in2 (1.13 kg/cm2)

27.91bs/in2 (1.97 kg/cm2)

17.7 lbs/in2 (1.25 kg/cm2)

16. INSTALLING THE 3-POINT LINKAGE

page

14

The

3-point linkage

is

designed for implements under Category

I.

A.

The

top

link length can be adjusted in

the

range from 16.53 in.

(420 mm)

to

24.4 in. (620 mm).

The

bracket which

is

to

be

mounted on

the

tractor side, has two holes (upper and lower).

These holes should be used according

to

the

type

of operation.

B.

The

lift rod (leveling lever) can be adjusted in

the

range from

12.598 in. (320 mm)

to

18.503 in. (470 mm).

Note: It should be avoided

to

draw

an

implement

by

installing

the

linkage draw-bar on

the

lower link.

When it

is

requested

to

draw

an

implement,

the

lower link should

be always

kept

in horizontal position.

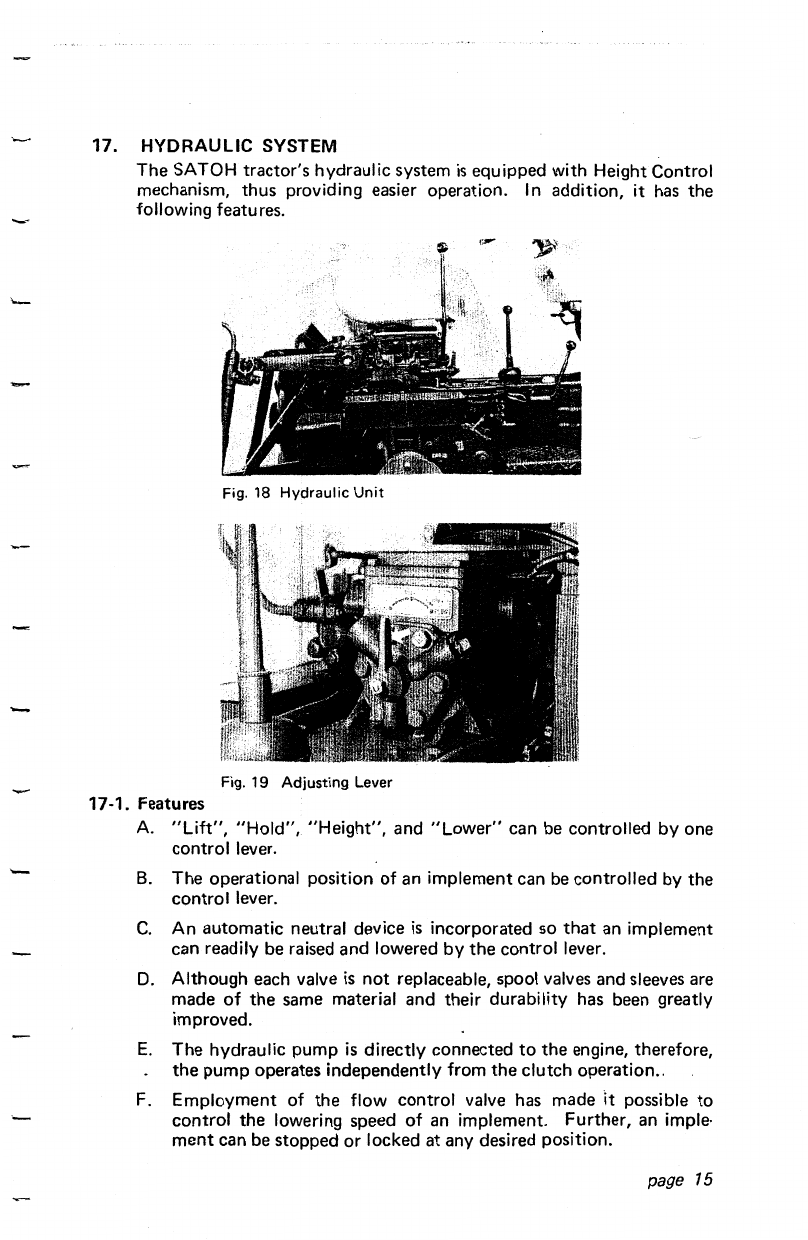

17. HYDRAULIC SYSTEM

The SATOH tractor's hydraulic system

is

equipped with Height Control

mechanism, thus providing easier operation.

In

addition, it has the

following features.

Fig. 18

Hydraulic

Unit

Fig.

19

Adjusting

Lever

17-1. Features

A.

"Lift",

"Hold",

"Height", and

"Lower"

can be controlled by one

control lever.

B.

The operational position

of

an implement can

be

controlled by the

control lever.

C.

An automatic neutral device

is

incorporated so

that

an implement

can readily be raised and lowered

by

the

control lever.

D.

Although each valve

is

not

replaceable, spool valves and sleeves are

made

of

the

same material and their durability has been greatly

improved.

E.

The hydraulic pump

is

directly connected

to

the

engine, therefore,

the

pump operates independently from the clutch operation

..

F. Employment of

the

flow control valve has made it possible to

control the lowering speed

of

an implement. Further, an imple·

ment

can be stopped

or

locked

at

any desired position.

page

15

G.

The

hydraulic system has improved its performance and durability

by

the

use of an exclusive oil.

H.

External hydraulic valve (optional equipment) provides availability

of

hydraulically driven implements, such as

front

loader, dump

trailer, hydraulic mower, etc.

17-2. Mechanism

and

Operation

of

Hydraulic System

page 16

To

operate

the

SATOH

tractor

correctly, a good knowledge of the

operation of each hydra4lic mechanism

is

requested.

A.

Control lever

When

the

control lever

is

pulled toward the rear of the tractor,

the

hydraulic lift arm moves up, and pushed

toward

the

front, lowers

the

lift arm. Accordingly, an implement can be held

at

a desired

height according

to

the

type

of implements.

Fig.

20

Control

Lever

Note: When

the

control lever placed

in

"UP",

the

lever stopper

(see Fig. 20 A) has been set according

to

each tractor. Make no

attempt

to

change

the

stopper position

at

your

option. If

the

stopper

position had been shifted carelessly,

the

hydraulic pump

will be given

an

over load. Consult

the

nearest dealer for

correction of

the

stopper position.

B.

Hand

nut

Two

hand nuts are

provided,which are

to

be used when

the

same

type

op-

eration

is

repeated-

ly performed.

Fig. 21

satoh s-650g User manual

Popular Tractor manuals by other brands
