Saturn 17LS3-SS Owner's manual

SATURN 17LS3-SS, 17LS3-BK
20LS3-SS, 20LS3-BK
20DS3-SS
17LS4-Bk, 20LS4-BK
LOW SPEED AND DUAL SPEED
FLOOR MACHINE
OWNER’S/OPERATOR’S MANUAL
WWW.EDIC-USA.COM

UNPACKING YOUR NEW SATURN:
When your package is delivered, check each of the 3
cartons carefully for signs of rough handling. If the
SATURN is damaged, notify the carrier immediately
and request an inspection. Be sure to keep the cartons,
packing inserts, packing lists and carrier’s receipt until
the inspector has veried your claim.
EDIC’s liability ceases when the carrier picks up the
shipment. However, our customer service sta will be
happy to furnish any information needed in connection
with the claim and will attempt to expedite a resolution.
PLEASE READ BEFORE
OPERATING YOUR NEW SATURN:
Read the manual carefully and completely before at-
tempting to operate the unit. is manual has important
information for the use and safe operation of the ma-
chine. Keep this manual handy at all times.
is equipment has been engineered and manufactured
to provide excellent performance and service. To ensure
that your equipment will continue to perform as intend-
ed:
• Maintain and inspect equipment regularly
• Use only original EDIC parts when servicing.
• Operate equipment with care.
If additional information is needed, please contact EDIC
at: 800-338-3342 or email [email protected]
All information and specications printed in the manual
are current at the time of printing; however, because of
EDIC’s policy of continual product improvement, we
reserve the right to make changes at any time without
notice.
FAILURE TO COMPLY WITH THE FOL-
LOWING WARNINGS AND INSTRUC-
TIONS WILL VOID THE WARRANTY.
WARNING!
• Do not operate the machine unless trained and au-
thorized.
• Do not leave the machine unattended when plugged
in. Unplug from the outlet when not in use, before
servicing, and when changing the brushes or pads.
• Use indoors only.
• Do not allow to be used as a toy. Close attention is
necessary when used by or near children.
• Do not bypass or defeat the safety “lock-out lever.”
• e machine was designed for use as per instruc-
tions and recommendations written in this manual.
Any deviation from its proper use or purpose and
the consequential damage that may occur is the sole
responsibility of the end user.
• Do not use with damaged cord or plug. If the ma-
chine is not working as it should, or it has been
dropped, damaged, le outdoors or dropped into
water, take it to an authorized service center.
• Do not pull or carry by cord, use cord as handle,
close a door on the cord or pull cord around sharp
edges or corners. Do not run machine over cord.
Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp
the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Make sure the machine is plugged into an electrical
outlet with the same voltage and frequency rating
as shown on the nameplate of the machine. Do not
attempt to plug a 115- volt machine into a 230- volt
outlet.
• Do not immerse or use this machine in standing
water. Such use can cause electric shock.
• Keep the electrical supply cord from contacting the
rotating brush or drive block.
• Do not expose machine to freezing temperatures.
• To avoid electric shock, do not expose the unit to
rain. Store indoors only.
• Connect to a properly grounded outlet only. See
“Grounding Instructions.”
• Turn o all controls before unplugging.
• When using an extension cord, use a 3 conductor-
grounding cord, 12 gauge wire or heavier. Do not use
more than 25’ of extension cord.
• Do not put any object into openings.
• Do not use with any opening blocked. Keep free of
dust, lint, hair and anything that may reduce air ow.
• Do not operate machine in ammable or explosive
areas.
• All servicing of EDIC equipment should be per-
2

formed by an EDIC authorized service center.
• Keep hair, loose clothing, ngers and all parts of
body away from openings and moving parts.
• Use extra care when cleaning near stairs.
• When servicing machine, use manufacturer’s sup-
plied or approved replacement parts.
• Do not wrap the cord too tightly when storing.
• Work only in well lit areas.
• is equipment is heavy. Use proper liing tech-
niques when liing heavy equipment.
GROUNDING INSTRUCTIONS:
is piece of equipment must be grounded. Should an
electrical malfunction occur, grounding provides a path
of least resistance for electrical current- reducing the risk
of electric shock. is piece of equipment is furnished
with a cord that has a grounding conductor and ground-
ing plug. e grounded plug must only be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordi-
nances.
WARNING:
Connecting the equipment to an improperly grounded
outlet can result in an increased risk of electric shock. A
qualified electrician should be consulted if you are un-
sure that the outlet is properly grounded. Do not modify
the plug provided with the equipment. If it will not fit
the outlet, have a proper outlet installed by a qualified
electrician.
is appliance is designed for use on a 120-volt circuit.
e grounding plug provided looks like the plug illus-
trated in Figure 1. Replace the plug if the grounding pin
is damaged or broken.
e Green (or Green/Yellow) wire in the cord is the
grounding wire. When replacing a plug, this wire must
be attached to the grounding pin only.
DO NOT use extension cords.
Servicing:
In the event that your SATURN requires service, please
contact EDIC at:
800-338-3342
or email [email protected]
Do not attempt repairs yourself. EDIC will assist you in
locating an indepedent service contractor.
PREPARING THE MACHINE FOR
OPERATION
Your oor machine will operate in a wide variety of hard
oors and carpet cleaning applications. Consult with
your local dealer or EDIC Customer Service to select the
correct accessories for the job you are going to perform.
BRUSH, PAD DRIVER
INSTALLATION
Lock the handle in the upright position and tip the ma-
chine back so it rests on the handle and wheels. Fit the
three slots of the clutch plate in the back of the brush
or pad driver over the three lugs of the drive plate (Fig.
1). Push it rmly into position and turn it counterclock-
wise until it locks in place (Fig. 2).
Fig. 1
Fig. 2
3
Figure 1

TO REMOVE PAD DRIVER:
Tip the machine back so it rests on the
handle and wheels. Turn the brush or pad driver
clockwise until it disengages and lis o. Do not store
the machine with the brush or pad drivers installed.
PAD INSTALLATION
TO INSTALL PAD: Tilt the machine back on wheels
until machine is resting on handle. Center the pad on the
pad holder and press the pad onto the pad holder.
TO REMOVE PAD: Simply remove the pad from the
pad holder by pulling it away from the pad holder with
steady force.
MACHINE OPERATION
1. Install the pad driver and pad, brush or attachment.
2. Plug in machine.
3. Lower the handle to the desired operating position.
4. Place both hands on the handle grips with your n-
gers around the ON/OFF lever which extends from
one side to the other underneath the handle grips.
5. e safety LOCK-OUT lever is located underneath
the right side handle grip and ON/OFF lever. To
unlock the LOCK-OUT lever, use your right hand
forenger to press the lever down toward the back of
the switch box
6. While pressing the LOCK-OUT lever, pull the ON/
OFF lever on either side of the handle to start the
machine.
7. e LOCK-OUT lever will automatically lock when
you release the ON/OFF lever preventing the ma-
chine from being turned on until it is unlocked
again.
TO MANEUVER YOUR FLOOR MACHINE
1. Raise the handle slightly and the machine will go to
the right. e higher you raise it, the faster it will go.
2. Lower the handle and the machine will go le. e
more you lower it, the faster it will go.
3. Practice on a smooth surface to gain experience in
operating the unit before moving on to other surfac-
es.
DUAL SPEED FUNCTION FOR 17DS3-BK &
20DS3-BK:
Use the black switch located directly behind the motor
to switch between low speed (180RPM) and high speed
(320RPM). Do not change speeds while machine is run-
ning. Always wait until motor has stopped completely
before changing speeds.
Storage:
Wipe with a clean damp cloth aer every use.
Store in a clean dry place.
CORD STORAGE:
• Unplug the cord- Clean and inspect for damage.
• Wrap the cord around the le side handle grip.
• Do not wrap too tightly.
4

5
NOTES

6
B
W
G
B
W
G
AC MOTOR
SWITCH
B
W
G
HANDLE MOTOR
LOW SPEED
WIRING

7
DUAL SPEED WIRING
AC MOTOR

8
84
1 43 5 6 7
8
910 11 12
13
14
15
16
17
18
19
20 21
22
23
24
25
27
28
29
30 31
34 36 37
35
4241 43 4544 46
47
48
49
50515253
54
57
63
58
59
62
65
66
67
68
69
71
70
72
73
76
77
55
64
75
32
78
79 80818283
40
39
60
61
33
2
20DS3-SS
10-9-07
20DS3-SS 10-9-07
38
39
39
36
13 32
74
26
56
39

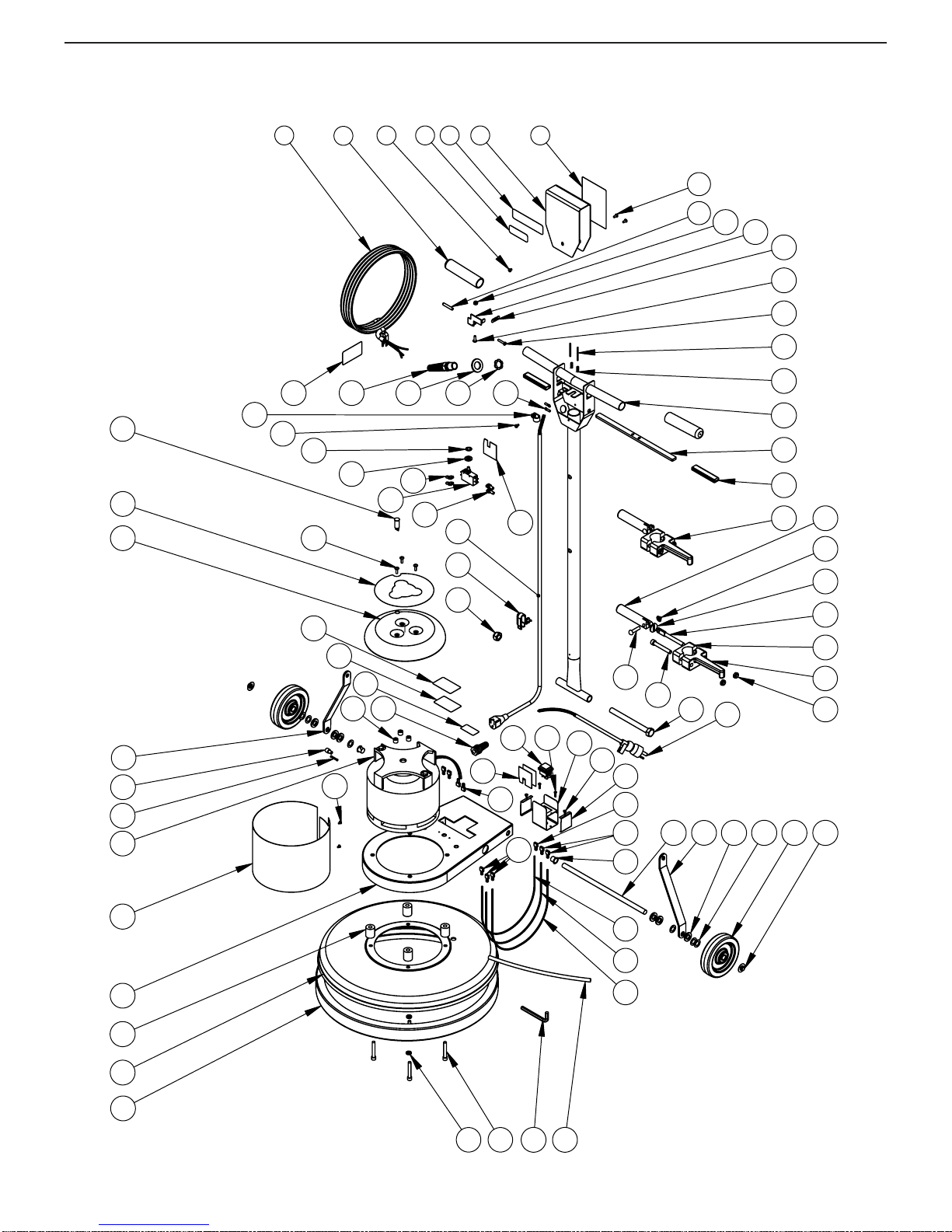

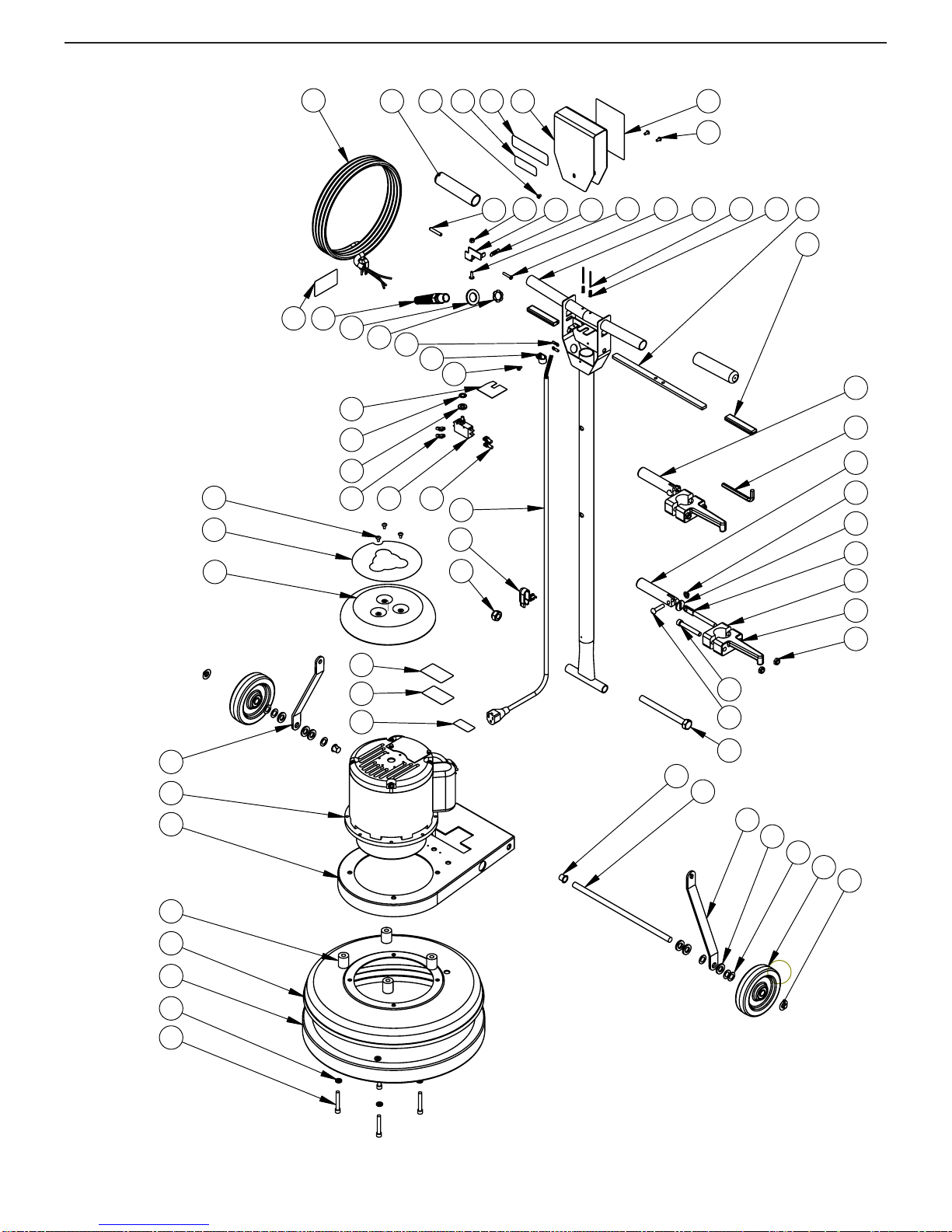

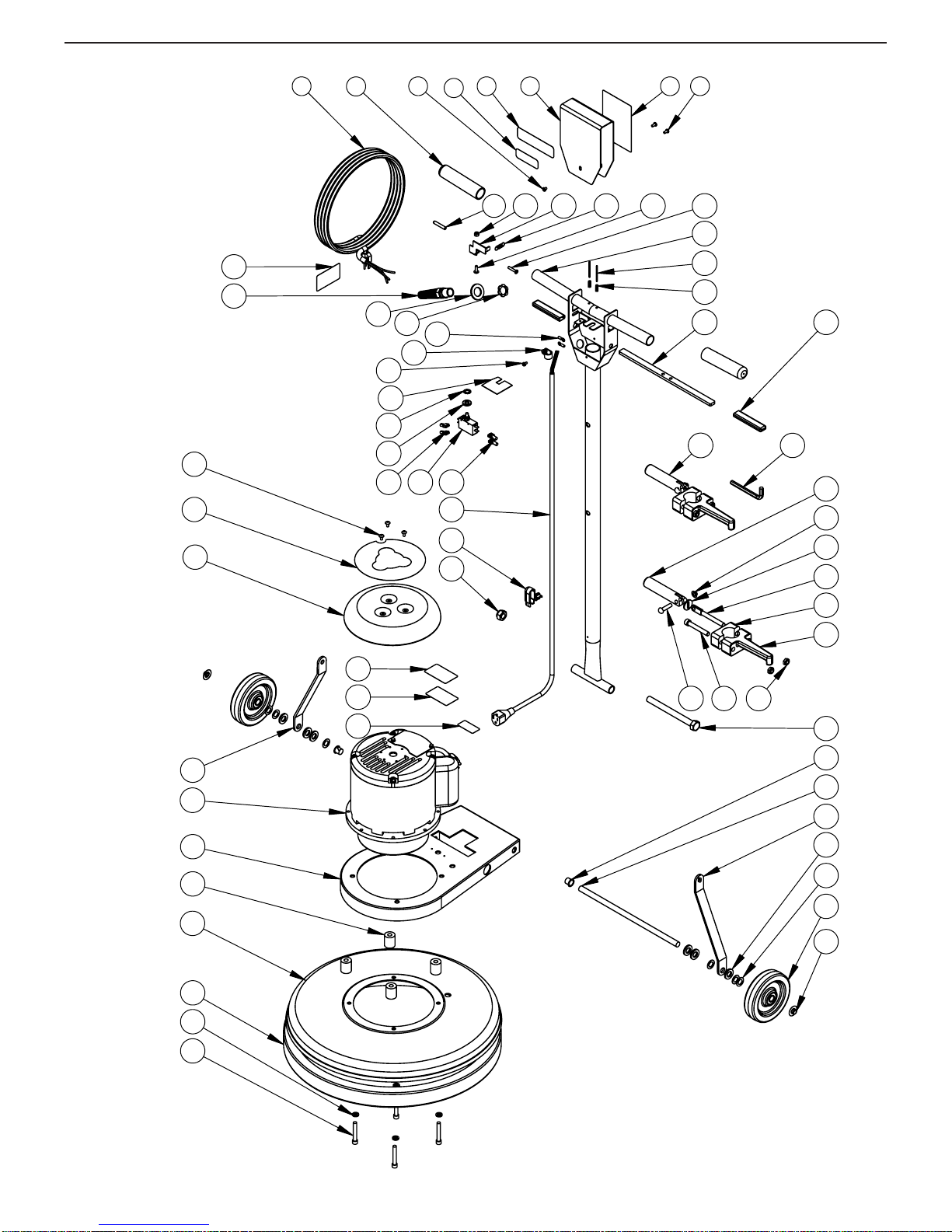

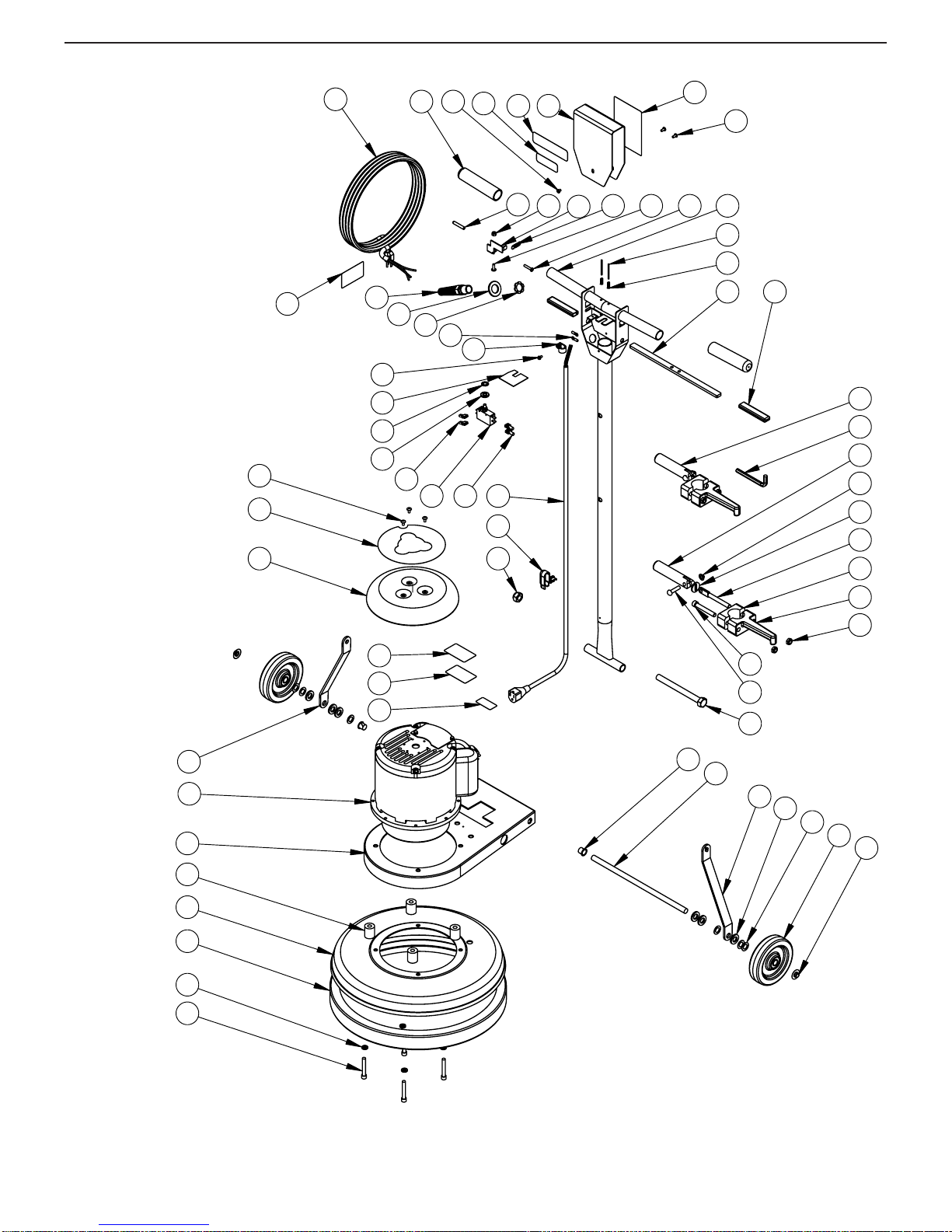

ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2
K11498 Grip 2
3
C11528 Screw, 10-32 X .25 in 1
4
H12066 Label, 0.5 HP, Saturn 1
5
H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7
H11493 Label, Safety, Floor Machine 1
8
C11529 Screw, 10-32 X .375 in 2
9
K11519 Lever Grip, Lockout, Black 1
10
C00278 Locknut, 10-32, Nylon, SS 1
11
D11494 Lockout Bracket 1
12
D11524 Spring, Lockout 1
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 4
14
C11491 Screw, 10-32 X 1 in, SS 1
15
C00306 Roll Pin, .125 X 1.75 2
16
D11523 Spring, Trigger 2
17
D11479 Handle, Chrome, Floormachine 1
18
D11495 Trigger, Zinc Plated 1
19
K11520 Lever Grip, Trigger, Black 2
20
11507A Assembled Locking Handle, Cord Hook 1
21
D11497 Handle, Locking Clamp 1
22
C11538 Cap Nut, .31 in, Push-On 1
23
C00259 Washer, Slotted, Zinc 1
24
C11536 Spade Bolt, .375-16 X 4 in 1
25
D11507 Cord Hook Clamp 1
26
D11507-2 Cord Hook Body 1
27
C11558 Locknut, .375-16, Nylon 2
28
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
29
C11537 Dowel Pin, .31 X 1.5 in 1
30
C13101 Screw, Hex Cap, M14-2.0 1
31
B10719 Power Cord, 25', 16-3 1
32
B11518 Switch Insulation 3
33
B11751 Switch, Rocker, DPDT, Black 1
34
C00293 #8 X .5in Pan, Black SMS, Phillips 2
35
D11582 Bracket, Switch Mount 1
36
C00297 Screw,#8 X .25 in, Pan Head 4
37
D11646 Switch Bracket Cover 2
38
B00177-1 Terminal Lug, Female, QD, .25 X .032 1
39
B00177 Terminal Lug, Female, QD, .25 X .032 11
40
K00674 Bushing, .50 in, Nylon 2
41
D11510 Axle, Floor Machine 1
42
D11482 Handle Brace, Right, Black 1
43
C00240 Washer, Shoulder, Nylon 6
44
C11559 Washer, .515 X .875 X .032 6
45
G11943 Wheel, 5 in Saturn 2
46
C02305 Cap Nut, .5in Push-on 2
47
B00185-30 Wire, 14 Ga X 2 ft, White, UL195 1
48
B00185-40 Wire, 14 Ga X 2 ft, Black, UL1015 1
49
B00185-86 Wire, 14 Ga X 2 ft, Red, UL1015 1
50
B00228-2 1 Foot Shrinktube, .375 in, Poly 1
51
C11619 Allen Wrench, .31 in 1
52
C11501 Socket Cap Screw, .31 - 18 4
53
C00251 Lockwasher, .31, Split 4
54
E11478 Bumper, 20 in Floor Machine 1
55
D11486-SS Brush Cover, 20 in, Stainless 1
56
K11521 Spacer, Base, Floor Machine 4
57
D11483 Frame, Motor, Black 1
58
D11545 Motor Screen 1
59
G11573 Motor 1
60
B00181 Butt Connector, Blue, 1 Wire 1
61
B00179-1 Closed End Cntr, 16-3 1
62
D11481 Handle Brace, Left, Black 1
63
K11517 Spacer, .19 ID X .375 High X .50 OD, Nylon 3
64
B11199 Strain Relief, Pigtail w-Locknut 1
65
H10976-1 Label, UL STD 561-507 1
66
H00565-5 Label, Serial #, Standard 1
67
H03545 Cover, Serial #, Label 1
68
H11490C-H Drip Cover w - Light, Chrome 1
69
H11830 Label, Saturn, Drip Cover 1
70
B02196-1 Light, Motor Carbon Brush Wear 1
71
C13100 Nut, M14-2.0 Nylon Insert 1
72
B10734 Strain Relief, Handle 1
73
B11513 Cord, Handle, 14-3 SJTW 1
74
B11762 Terminal Lug, Nylon, Female 2
75
B11465 Switch, DPST, Pushbutton 1
76
C00252 Washer, .375 in, Flat 1
77
C11541 Washer, .375 in, Star 1
78
C00284 Screw, 10-32 X .375 Ground 1
79
B00187 Cable Clamp, Nylon, .43 in. 1
80
B00180-10-3 Ring Terminal, #10 Center 2
81
B11505 Strain Relief Nut, Metal 1
82
C11560 Washer, .93 ID X 1.5 OD 1
83
B11504 Strain Relief, Metal 1
84
H02548-2 Label, Important, Cord 1

9
84
1 43 5 6 7
8
910 11 12
13
14
15
16
17
18
19
20 21
22
23
24
25
27
28
29
30 31
34 36 37
35
4241 43 4544 46
47
48
49
50515253
54
57
63
58
59
62
65
66
67
68
69
71
70
72
73
76
77
55
64
75
32
78
79 80818283
40
39
60
61
33
2
20DS3-SS
10-9-07
20DS3-SS 10-9-07
38
39
39
36
13 32
74
26
56
39
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2
K11498 Grip 2
3
C11528 Screw, 10-32 X .25 in 1
4
H12066 Label, 0.5 HP, Saturn 1
5
H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7
H11493 Label, Safety, Floor Machine 1
8
C11529 Screw, 10-32 X .375 in 2
9
K11519 Lever Grip, Lockout, Black 1
10
C00278 Locknut, 10-32, Nylon, SS 1
11
D11494 Lockout Bracket 1
12
D11524 Spring, Lockout 1
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 4
14
C11491 Screw, 10-32 X 1 in, SS 1
15
C00306 Roll Pin, .125 X 1.75 2
16
D11523 Spring, Trigger 2
17
D11479 Handle, Chrome, Floormachine 1
18
D11495 Trigger, Zinc Plated 1
19
K11520 Lever Grip, Trigger, Black 2
20
11507A Assembled Locking Handle, Cord Hook 1
21
D11497 Handle, Locking Clamp 1
22
C11538 Cap Nut, .31 in, Push-On 1
23
C00259 Washer, Slotted, Zinc 1
24
C11536 Spade Bolt, .375-16 X 4 in 1
25
D11507 Cord Hook Clamp 1
26
D11507-2 Cord Hook Body 1
27
C11558 Locknut, .375-16, Nylon 2
28
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
29
C11537 Dowel Pin, .31 X 1.5 in 1
30
C13101 Screw, Hex Cap, M14-2.0 1
31
B10719 Power Cord, 25', 16-3 1
32
B11518 Switch Insulation 3
33
B11751 Switch, Rocker, DPDT, Black 1
34
C00293 #8 X .5in Pan, Black SMS, Phillips 2
35
D11582 Bracket, Switch Mount 1
36
C00297 Screw,#8 X .25 in, Pan Head 4
37
D11646 Switch Bracket Cover 2
38
B00177-1 Terminal Lug, Female, QD, .25 X .032 1
39
B00177 Terminal Lug, Female, QD, .25 X .032 11
40
K00674 Bushing, .50 in, Nylon 2
41
D11510 Axle, Floor Machine 1
42
D11482 Handle Brace, Right, Black 1
43
C00240 Washer, Shoulder, Nylon 6
44
C11559 Washer, .515 X .875 X .032 6
45
G11943 Wheel, 5 in Saturn 2
46
C02305 Cap Nut, .5in Push-on 2
47
B00185-30 Wire, 14 Ga X 2 ft, White, UL195 1
48
B00185-40 Wire, 14 Ga X 2 ft, Black, UL1015 1
49
B00185-86 Wire, 14 Ga X 2 ft, Red, UL1015 1
50
B00228-2 1 Foot Shrinktube, .375 in, Poly 1
51
C11619 Allen Wrench, .31 in 1
52
C11501 Socket Cap Screw, .31 - 18 4
53
C00251 Lockwasher, .31, Split 4
54
E11478 Bumper, 20 in Floor Machine 1
55
D11486-SS Brush Cover, 20 in, Stainless 1
56
K11521 Spacer, Base, Floor Machine 4
57
D11483 Frame, Motor, Black 1
58
D11545 Motor Screen 1
59
G11573 Motor 1
60
B00181 Butt Connector, Blue, 1 Wire 1
61
B00179-1 Closed End Cntr, 16-3 1
62
D11481 Handle Brace, Left, Black 1
63
K11517 Spacer, .19 ID X .375 High X .50 OD, Nylon 3
64
B11199 Strain Relief, Pigtail w-Locknut 1
65
H10976-1 Label, UL STD 561-507 1
66
H00565-5 Label, Serial #, Standard 1
67
H03545 Cover, Serial #, Label 1
68
H11490C-H Drip Cover w - Light, Chrome 1
69
H11830 Label, Saturn, Drip Cover 1
70
B02196-1 Light, Motor Carbon Brush Wear 1
71
C13100 Nut, M14-2.0 Nylon Insert 1
72
B10734 Strain Relief, Handle 1
73
B11513 Cord, Handle, 14-3 SJTW 1
74
B11762 Terminal Lug, Nylon, Female 2
75
B11465 Switch, DPST, Pushbutton 1
76
C00252 Washer, .375 in, Flat 1
77
C11541 Washer, .375 in, Star 1
78
C00284 Screw, 10-32 X .375 Ground 1
79
B00187 Cable Clamp, Nylon, .43 in. 1
80
B00180-10-3 Ring Terminal, #10 Center 2
81
B11505 Strain Relief Nut, Metal 1
82
C11560 Washer, .93 ID X 1.5 OD 1
83
B11504 Strain Relief, Metal 1
84
H02548-2 Label, Important, Cord 1

10
1
9
2
68
4
35 6 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
43
44
45
47
48
49
50
51
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
17LS3-BK
10-19-07
17LS3-BK 10-19-07
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2 K11498 Grip 2
3 C11528 Screw, 10-32 X .25 in 1
4 H12066 Label, 1.5 HP, Saturn 1
5 H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7
H11493 Label, Safety, Floor Machine 1
8 C11529 Screw, 10-32 X .375 in 2
9 K11519 Lever Grip, Lockout, Black 1
10 C00278 Locknut, 10-32, Nylon, SS 1
11 D11494 Lockout Bracket 1
12 D11524 Spring, Lockout 1
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14
C11491 Screw, 10-32 X 1 in, SS 1
15 D11479 Handle, Chrome, Floormachine 1
16 C00306 Roll Pin, .125 X 1.75 2
17
D11523 Spring, Trigger 2
18 D11495 Trigger, Zinc Plated 1
19 K11520 Lever Grip, Trigger, Black 2
20 11507A Assembled Locking Handle, Cord Hook 1
21 C11619 Allen Wrench, .31 in 1
22 D11497 Handle, Locking Clamp 1
23 C11538 Cap Nut, .31 in, Push-On 1
24 C00259 Washer, Slotted, Zinc 1
25 C11536 Spade Bolt, .375-16 X 4 in 1
26 D11507 Cord Hook Clamp 1
27 D11507-2 Cord Hook Body 1
28
C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31
C13101 Screw, Hex Cap, M14-2.0 1
32
K00674 Bushing, .50 in, Nylon 2
33 D11510 Axle, Floor Machine 1
34 D11482 Handle Brace, Right, Black 1
35 C00240 Washer, Shoulder, Nylon 6
36 C11559 Washer, .515 X .875 X .032 6
37 G11943 Wheel, 5 in Saturn 2
38 C02305 Cap Nut, .5in Push-on 2
39 C11501 Socket Cap Screw, .31 - 18 4
40 C00251 Lockwasher, .31, Split 4
41 E11477 Bumper, 17 in Floor Machine 1
42 D11485B Brush Cover, 17 in, Black 1
43 K11521 Spacer, Base, Floor Machine 4
44 D11483 Frame, Motor, Black 1
45 G11468 Motor W-Gearbox, 1.5 HP 1
46 D11481 Handle Brace, Left, Black 1
47 H10976-1 Label, UL STD 561-507 1
48 H00565-5 Label, Serial #, Standard 1
49 H03545 Cover, Serial #, Label 1
50 D11490B Drip Cover, Black 1
51 H12913 Label, Drip Cover, White 1
52 C11916 Screw, 10-32 X .375 Phillips 3
53 C13100 Nut, M14-2.0 Nylon Insert 1
54 B10734 Strain Relief, Handle 1
55 B11513 Cord, Handle, 14-3 SJTW 1
56 B11762 Terminal Lug, Nylon, Female 2
57 B11465 Switch, DPST, Pushbutton 1
58 B00177 Terminal Lug, Female, QD, .25 X .032 2
59 C00252 Washer, .375 in, Flat 1
60 C11541 Washer, .375 in, Star 1
61 B11518 Switch Insulation 1
62 C00284 Screw, 10-32 X .375 Ground 1
63 B00187 Cable Clamp, Nylon, .43 in. 1
64 B00180-10-3 Ring Terminal, #10 Center 2
65 B11505 Strain Relief Nut, Metal 1
66 C11560 Washer, .93 ID X 1.5 OD 1
67 B11504 Strain Relief, Metal 1
68 H02548-2 Label, Important, Cord 1

11
1
9
2
68
4
35 6 78
10 11 12 13 14 15
16
17
18 19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36 37 38
39
40
41
42
43
44
45
47
48
49
50
51
52
53
54
555657
58
59
60
61
62 63
64
65
66
67
46
17LS3-BK
10-19-07
17LS3-BK 10-19-07
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2 K11498 Grip 2
3 C11528 Screw, 10-32 X .25 in 1
4 H12066 Label, 1.5 HP, Saturn 1
5 H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7
H11493 Label, Safety, Floor Machine 1
8 C11529 Screw, 10-32 X .375 in 2
9 K11519 Lever Grip, Lockout, Black 1
10 C00278 Locknut, 10-32, Nylon, SS 1
11 D11494 Lockout Bracket 1
12 D11524 Spring, Lockout 1
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14
C11491 Screw, 10-32 X 1 in, SS 1
15 D11479 Handle, Chrome, Floormachine 1
16 C00306 Roll Pin, .125 X 1.75 2
17
D11523 Spring, Trigger 2
18 D11495 Trigger, Zinc Plated 1
19 K11520 Lever Grip, Trigger, Black 2
20 11507A Assembled Locking Handle, Cord Hook 1
21 C11619 Allen Wrench, .31 in 1
22 D11497 Handle, Locking Clamp 1
23 C11538 Cap Nut, .31 in, Push-On 1
24 C00259 Washer, Slotted, Zinc 1
25 C11536 Spade Bolt, .375-16 X 4 in 1
26 D11507 Cord Hook Clamp 1
27 D11507-2 Cord Hook Body 1
28
C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31
C13101 Screw, Hex Cap, M14-2.0 1
32
K00674 Bushing, .50 in, Nylon 2
33 D11510 Axle, Floor Machine 1
34 D11482 Handle Brace, Right, Black 1
35 C00240 Washer, Shoulder, Nylon 6
36 C11559 Washer, .515 X .875 X .032 6
37 G11943 Wheel, 5 in Saturn 2
38 C02305 Cap Nut, .5in Push-on 2
39 C11501 Socket Cap Screw, .31 - 18 4
40 C00251 Lockwasher, .31, Split 4
41 E11477 Bumper, 17 in Floor Machine 1
42 D11485B Brush Cover, 17 in, Black 1
43 K11521 Spacer, Base, Floor Machine 4
44 D11483 Frame, Motor, Black 1
45 G11468 Motor W-Gearbox, 1.5 HP 1
46 D11481 Handle Brace, Left, Black 1
47 H10976-1 Label, UL STD 561-507 1
48 H00565-5 Label, Serial #, Standard 1
49 H03545 Cover, Serial #, Label 1
50 D11490B Drip Cover, Black 1
51 H12913 Label, Drip Cover, White 1
52 C11916 Screw, 10-32 X .375 Phillips 3
53 C13100 Nut, M14-2.0 Nylon Insert 1
54 B10734 Strain Relief, Handle 1
55 B11513 Cord, Handle, 14-3 SJTW 1
56 B11762 Terminal Lug, Nylon, Female 2
57 B11465 Switch, DPST, Pushbutton 1
58 B00177 Terminal Lug, Female, QD, .25 X .032 2
59 C00252 Washer, .375 in, Flat 1
60 C11541 Washer, .375 in, Star 1
61 B11518 Switch Insulation 1
62 C00284 Screw, 10-32 X .375 Ground 1
63 B00187 Cable Clamp, Nylon, .43 in. 1
64 B00180-10-3 Ring Terminal, #10 Center 2
65 B11505 Strain Relief Nut, Metal 1
66 C11560 Washer, .93 ID X 1.5 OD 1
67 B11504 Strain Relief, Metal 1
68 H02548-2 Label, Important, Cord 1

68
1
9
2 3 4 5 6 7
8
10 11 12 13 14 1615
67 66 65
17 18
19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36
?
37 38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
565758
59
60
61
62
63
64
17LS3-SS
10-30-07
17LS3-SS
10-30-07
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2 K11498 Grip 2
3 C11528 Screw, 10-32 X .25 in 1
4 H12066 Label, 1.5 HP, Saturn 1
5
H11831 Label, EDIC, Black-Silver 1
6 D11496B Switch Box Cover, Black 1
7 H11493 Label, Safety, Floor Machine 1
8 C11529 Screw, 10-32 X .375 in 2
9 K11519 Lever Grip, Lockout, Black 1
10 C00278 Locknut, 10-32, Nylon, SS 1
11 D11494 Lockout Bracket 1
12 D11524 Spring, Lockout 1
13 C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14 C11491 Screw, 10-32 X 1 in, SS 1
15 D11479 Handle, Chrome, Floormachine 1
16 C00306 Roll Pin, .125 X 1.75 2
17 D11523 Spring, Trigger 2
18 D11495 Trigger, Zinc Plated 1
19 K11520 Lever Grip, Trigger, Black 2
20 11507A Assembled Locking Handle, Cord Hook 1
21 C11619 Allen Wrench, .31 in 1
22 D11497 Handle, Locking Clamp 1
23 C11538 Cap Nut, .31 in, Push-On 1
24
C00259 Washer, Slotted, Zinc 1
25 C11536 Spade Bolt, .375-16 X 4 in 1
26 D11507 Cord Hook Clamp 1
27
D11507-2 Cord Hook Body 1
28
C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31
C13101 Screw, Hex Cap, M14-2.0 1
32 K00674 Bushing, .50 in, Nylon 2
33 D11510 Axle, Floor Machine 1
34 D11482 Handle Brace, Right, Black 1
35 C00240 Washer, Shoulder, Nylon 6
36 C11559 Washer, .515 X .875 X .032 6
37 G11943 Wheel, 5 in Saturn 2
38 C02305 Cap Nut, .5in Push-on 2
39 C11501 Socket Cap Screw, .31 - 18 4
40 C00251 Lockwasher, .31, Split 4
41 E11477 Bumper, 17 in Floor Machine 1
42
D11485-SS Brush Cover, 17 in, Stainless 1
43 K11521 Spacer, Base, Floor Machine 4
44 D11483 Frame, Motor, Black 1
45 G11468 Motor W-Gearbox, 1.5 HP 1
46 D11481 Handle Brace, Left, Black 1
47 H10976-1 Label, UL STD 561-507 1
48 H00565-5 Label, Serial #, Standard 1
49 H03545 Cover, Serial #, Label 1
50 D11490C Drip Cover, Chrome 1
51 H11830 Label, Saturn, Drip Cover 1
52 C11916 Screw, 10-32 X .375 Phillips 3
53 C13100 Nut, M14-2.0 Nylon Insert 1
54 B10734 Strain Relief, Handle 1
55 B11513 Cord, Handle, 14-3 SJTW 1
56 B11762 Terminal Lug, Nylon, Female 2
57 B11465 Switch, DPST, Pushbutton 1
58 B00177 Terminal Lug, Female, QD, .25 X .032 2
59 C00252 Washer, .375 in, Flat 1
60 C11541 Washer, .375 in, Star 1
61 B11518 Switch Insulation 1
62 C00284 Screw, 10-32 X .375 Ground 1
63 B00187 Cable Clamp, Nylon, .43 in. 1
64 B00180-10-3 Ring Terminal, #10 Center 2
65 B11505 Strain Relief Nut, Metal 1
66 C11560 Washer, .93 ID X 1.5 OD 1
67 B11504 Strain Relief, Metal 1
68 H02548-2 Label, Important, Cord 1
10

68
1
9
2 3 4 5 6 7
8
10 11 12 13 14 1615
67 66 65
17 18
19
20
21
22
23
24
25
26
27
28
29
30
31
32 33 34 35 36
?
37 38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
565758
59
60
61
62
63
64
17LS3-SS
10-30-07
17LS3-SS
10-30-07
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2 K11498 Grip 2
3 C11528 Screw, 10-32 X .25 in 1
4 H12066 Label, 1.5 HP, Saturn 1
5
H11831 Label, EDIC, Black-Silver 1
6 D11496B Switch Box Cover, Black 1
7 H11493 Label, Safety, Floor Machine 1
8 C11529 Screw, 10-32 X .375 in 2
9 K11519 Lever Grip, Lockout, Black 1
10 C00278 Locknut, 10-32, Nylon, SS 1
11 D11494 Lockout Bracket 1
12 D11524 Spring, Lockout 1
13 C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14 C11491 Screw, 10-32 X 1 in, SS 1
15 D11479 Handle, Chrome, Floormachine 1
16 C00306 Roll Pin, .125 X 1.75 2
17 D11523 Spring, Trigger 2
18 D11495 Trigger, Zinc Plated 1
19 K11520 Lever Grip, Trigger, Black 2
20 11507A Assembled Locking Handle, Cord Hook 1
21 C11619 Allen Wrench, .31 in 1
22 D11497 Handle, Locking Clamp 1
23 C11538 Cap Nut, .31 in, Push-On 1
24
C00259 Washer, Slotted, Zinc 1
25 C11536 Spade Bolt, .375-16 X 4 in 1
26 D11507 Cord Hook Clamp 1
27
D11507-2 Cord Hook Body 1
28
C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31
C13101 Screw, Hex Cap, M14-2.0 1
32 K00674 Bushing, .50 in, Nylon 2
33 D11510 Axle, Floor Machine 1
34 D11482 Handle Brace, Right, Black 1
35 C00240 Washer, Shoulder, Nylon 6
36 C11559 Washer, .515 X .875 X .032 6
37 G11943 Wheel, 5 in Saturn 2
38 C02305 Cap Nut, .5in Push-on 2
39 C11501 Socket Cap Screw, .31 - 18 4
40 C00251 Lockwasher, .31, Split 4
41 E11477 Bumper, 17 in Floor Machine 1
42
D11485-SS Brush Cover, 17 in, Stainless 1
43 K11521 Spacer, Base, Floor Machine 4
44 D11483 Frame, Motor, Black 1
45 G11468 Motor W-Gearbox, 1.5 HP 1
46 D11481 Handle Brace, Left, Black 1
47 H10976-1 Label, UL STD 561-507 1
48 H00565-5 Label, Serial #, Standard 1
49 H03545 Cover, Serial #, Label 1
50 D11490C Drip Cover, Chrome 1
51 H11830 Label, Saturn, Drip Cover 1
52 C11916 Screw, 10-32 X .375 Phillips 3
53 C13100 Nut, M14-2.0 Nylon Insert 1
54 B10734 Strain Relief, Handle 1
55 B11513 Cord, Handle, 14-3 SJTW 1
56 B11762 Terminal Lug, Nylon, Female 2
57 B11465 Switch, DPST, Pushbutton 1
58 B00177 Terminal Lug, Female, QD, .25 X .032 2
59 C00252 Washer, .375 in, Flat 1
60 C11541 Washer, .375 in, Star 1
61 B11518 Switch Insulation 1
62 C00284 Screw, 10-32 X .375 Ground 1
63 B00187 Cable Clamp, Nylon, .43 in. 1
64 B00180-10-3 Ring Terminal, #10 Center 2
65 B11505 Strain Relief Nut, Metal 1
66 C11560 Washer, .93 ID X 1.5 OD 1
67 B11504 Strain Relief, Metal 1
68 H02548-2 Label, Important, Cord 1
11

123 5 6 7 8
910 11 12 13 14
15
16
17
18 19
20
31
32
33
46
35
36
37
38
39
40
41
42
43
44
45 34
47
48
49
50
51
52
53
54
55
58 57 56
59
60
61
62 63 64
65
66
67
68
20LS3-BK
10-20-07
22
23
25
24
26
27
2930 28
21
4
20LS3-BK
10-20-07
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2 K11498 Grip 2
3 C11528 Screw, 10-32 X .25 in 1
4 H12066 Label, 1.5 HP, Saturn 1
5 H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7 H11493 Label, Safety, Floor Machine 1
8 C11529 Screw, 10-32 X .375 in 2
9
K11519 Lever Grip, Lockout, Black 1
10
C00278 Locknut, 10-32, Nylon, SS 1
11 D11494 Lockout Bracket 1
12
D11524 Spring, Lockout 1
13 C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14 C11491 Screw, 10-32 X 1 in, SS 1
15 D11479 Handle, Chrome, Floormachine 1
16
C00306 Roll Pin, .125 X 1.75 2
17 D11523 Spring, Trigger 2
18
D11495 Trigger, Zinc Plated 1
19 K11520 Lever Grip, Trigger, Black 2
20 11507A Assembled Locking Handle, Cord Hook 1
21
C11619 Allen Wrench, .31 in 1
22
D11497 Handle, Locking Clamp 1
23 C11538 Cap Nut, .31 in, Push-On 1
24
C00259 Washer, Slotted, Zinc 1
25
C11536 Spade Bolt, .375-16 X 4 in 1
26 D11507 Cord Hook Clamp 1
27 D11507-2 Cord Hook Body 1
28 C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31 C13101 Screw, Hex Cap, M14-2.0 1
32 K00674 Bushing, .50 in, Nylon 2
33 D11510 Axle, Floor Machine 1
34 D11482 Handle Brace, Right, Black 1
35 C00240 Washer, Shoulder, Nylon 6
36 C11559 Washer, .515 X .875 X .032 6
37 G11943 Wheel, 5 in Saturn 2
38 C02305 Cap Nut, .5in Push-on 2
39 C11501 Socket Cap Screw, .31 - 18 4
40
C00251 Lockwasher, .31, Split 4
41
E11478 Bumper, 20 in Floor Machine 1
42
D11486B Brush Cover, 20 in, Black 1
43 K11521 Spacer, Base, Floor Machine 4
44 D11483 Frame, Motor, Black 1
45 G11468 Motor W-Gearbox, 1.5 HP 1
46 D11481 Handle Brace, Left, Black 1
47
H10976-1 Label, UL STD 561-507 1
48 H00565-5 Label, Serial #, Standard 1
49 H03545 Cover, Serial #, Label 1
50 D11490B Drip Cover, Black 1
51 H12913 Label, Drip Cover, White 1
52 C11916 Screw, 10-32 X .375 Phillips 3
53 C13100 Nut, M14-2.0 Nylon Insert 1
54 B10734 Strain Relief, Handle 1
55 B11513 Cord, Handle, 14-3 SJTW 1
56 B11762 Terminal Lug, Nylon, Female 2
57 B11465 Switch, DPST, Pushbutton 1
58 B00177 Terminal Lug, Female, QD, .25 X .032 2
59 C00252 Washer, .375 in, Flat 1
60 C11541 Washer, .375 in, Star 1
61 B11518 Switch Insulation 1
62 C00284 Screw, 10-32 X .375 Ground 1
63 B00187 Cable Clamp, Nylon, .43 in. 1
64 B00180-10-3 Ring Terminal, #10 Center 2
65 B11505 Strain Relief Nut, Metal 1
66 C11560 Washer, .93 ID X 1.5 OD 1
67 B11504 Strain Relief, Metal 1
68 H02548-2 Label, Important, Cord 1
10

123 5 6 7 8
910 11 12 13 14
15
16
17
18 19
20
31
32
33
46
35
36
37
38
39
40
41
42
43
44
45 34
47
48
49
50
51
52
53
54
55
58 57 56
59
60
61
62 63 64
65
66
67
68
20LS3-BK
10-20-07
22
23
25
24
26
27
2930 28
21
4
20LS3-BK
10-20-07
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2 K11498 Grip 2
3 C11528 Screw, 10-32 X .25 in 1
4 H12066 Label, 1.5 HP, Saturn 1
5 H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7 H11493 Label, Safety, Floor Machine 1
8 C11529 Screw, 10-32 X .375 in 2
9
K11519 Lever Grip, Lockout, Black 1
10
C00278 Locknut, 10-32, Nylon, SS 1
11 D11494 Lockout Bracket 1
12
D11524 Spring, Lockout 1
13 C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14 C11491 Screw, 10-32 X 1 in, SS 1
15 D11479 Handle, Chrome, Floormachine 1
16
C00306 Roll Pin, .125 X 1.75 2
17 D11523 Spring, Trigger 2
18
D11495 Trigger, Zinc Plated 1
19 K11520 Lever Grip, Trigger, Black 2
20 11507A Assembled Locking Handle, Cord Hook 1
21
C11619 Allen Wrench, .31 in 1
22
D11497 Handle, Locking Clamp 1
23 C11538 Cap Nut, .31 in, Push-On 1
24
C00259 Washer, Slotted, Zinc 1
25
C11536 Spade Bolt, .375-16 X 4 in 1
26 D11507 Cord Hook Clamp 1
27 D11507-2 Cord Hook Body 1
28 C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31 C13101 Screw, Hex Cap, M14-2.0 1
32 K00674 Bushing, .50 in, Nylon 2
33 D11510 Axle, Floor Machine 1
34 D11482 Handle Brace, Right, Black 1
35 C00240 Washer, Shoulder, Nylon 6
36 C11559 Washer, .515 X .875 X .032 6
37 G11943 Wheel, 5 in Saturn 2
38 C02305 Cap Nut, .5in Push-on 2
39 C11501 Socket Cap Screw, .31 - 18 4
40
C00251 Lockwasher, .31, Split 4
41
E11478 Bumper, 20 in Floor Machine 1
42
D11486B Brush Cover, 20 in, Black 1
43 K11521 Spacer, Base, Floor Machine 4
44 D11483 Frame, Motor, Black 1
45 G11468 Motor W-Gearbox, 1.5 HP 1
46 D11481 Handle Brace, Left, Black 1
47
H10976-1 Label, UL STD 561-507 1
48 H00565-5 Label, Serial #, Standard 1
49 H03545 Cover, Serial #, Label 1
50 D11490B Drip Cover, Black 1
51 H12913 Label, Drip Cover, White 1
52 C11916 Screw, 10-32 X .375 Phillips 3
53 C13100 Nut, M14-2.0 Nylon Insert 1
54 B10734 Strain Relief, Handle 1
55 B11513 Cord, Handle, 14-3 SJTW 1
56 B11762 Terminal Lug, Nylon, Female 2
57 B11465 Switch, DPST, Pushbutton 1
58 B00177 Terminal Lug, Female, QD, .25 X .032 2
59 C00252 Washer, .375 in, Flat 1
60 C11541 Washer, .375 in, Star 1
61 B11518 Switch Insulation 1
62 C00284 Screw, 10-32 X .375 Ground 1
63 B00187 Cable Clamp, Nylon, .43 in. 1
64 B00180-10-3 Ring Terminal, #10 Center 2
65 B11505 Strain Relief Nut, Metal 1
66 C11560 Washer, .93 ID X 1.5 OD 1
67 B11504 Strain Relief, Metal 1
68 H02548-2 Label, Important, Cord 1
11

123 5 6 7 8
910 11 12 13 14
15
16
17
18 19
20
31
32
33
46
35
36
37
38
39
40
41
42
43
44
45 34
47
48
49
50
51
52
53
54
55
58 57 56
59
60
61
62 63 64
65
66
67
68
20LS3-SS
10-20-07
20LS3-SS
10-20-07
22
23
25
24
26
27
2930 28
21
4
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2
K11498 Grip 2
3
C11528 Screw, 10-32 X .25 in 1
4
H12066 Label, 1.5 HP, Saturn 1
5
H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7
H11493 Label, Safety, Floor Machine 1
8
C11529 Screw, 10-32 X .375 in 2
9
K11519 Lever Grip, Lockout, Black 1
10
C00278 Locknut, 10-32, Nylon, SS 1
11
D11494 Lockout Bracket 1
12
D11524 Spring, Lockout 1
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14
C11491 Screw, 10-32 X 1 in, SS 1
15
D11479 Handle, Chrome, Floormachine 1
16
C00306 Roll Pin, .125 X 1.75 2
17
D11523 Spring, Trigger 2
18
D11495 Trigger, Zinc Plated 1
19
K11520 Lever Grip, Trigger, Black 2
20
11507A Assembled Locking Handle, Cord Hook 1
21
C11619 Allen Wrench, .31 in 1
22
D11497 Handle, Locking Clamp 1
23
C11538 Cap Nut, .31 in, Push-On 1
24
C00259 Washer, Slotted, Zinc 1
25
C11536 Spade Bolt, .375-16 X 4 in 1
26
D11507 Cord Hook Clamp 1
27
D11507-2 Cord Hook Body 1
28
C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31
C13101 Screw, Hex Cap, M14-2.0 1
32
K00674 Bushing, .50 in, Nylon 2
33
D11510 Axle, Floor Machine 1
34
D11482 Handle Brace, Right, Black 1
35
C00240 Washer, Shoulder, Nylon 6
36
C11559 Washer, .515 X .875 X .032 6
37
G11943 Wheel, 5 in Saturn 2
38
C02305 Cap Nut, .5in Push-on 2
39
C11501 Socket Cap Screw, .31 - 18 4
40
C00251 Lockwasher, .31, Split 4
41
E11478 Bumper, 20 in Floor Machine 1
42
D11486-SS Brush Cover, 20 in, Stainless 1
43
K11521 Spacer, Base, Floor Machine 4
44
D11483 Frame, Motor, Black 1
45
G11468 Motor W-Gearbox, 1.5 HP 1
46
D11481 Handle Brace, Left, Black 1
47
H10976-1 Label, UL STD 561-507 1
48
H00565-5 Label, Serial #, Standard 1
49
H03545 Cover, Serial #, Label 1
50
D11490C Drip Cover, Chrome 1
51
H11830 Label, Saturn, Drip Cover 1
52
C11916 Screw, 10-32 X .375 Phillips 3
53
C13100 Nut, M14-2.0 Nylon Insert 1
54
B10734 Strain Relief, Handle 1
55
B11513 Cord, Handle, 14-3 SJTW 1
56
B11762 Terminal Lug, Nylon, Female 2
57
B11465 Switch, DPST, Pushbutton 1
58
B00177 Terminal Lug, Female, QD, .25 X .032 2
59
C00252 Washer, .375 in, Flat 1
60
C11541 Washer, .375 in, Star 1
61
B11518 Switch Insulation 1
62
C00284 Screw, 10-32 X .375 Ground 1
63
B00187 Cable Clamp, Nylon, .43 in. 1
64
B00180-10-3 Ring Terminal, #10 Center 2
65
B11505 Strain Relief Nut, Metal 1
66
C11560 Washer, .93 ID X 1.5 OD 1
67
B11504 Strain Relief, Metal 1
68
H02548-2 Label, Important, Cord 1
10

123 5 6 7 8
910 11 12 13 14
15
16
17
18 19
20
31
32
33
46
35
36
37
38
39
40
41
42
43
44
45 34
47
48
49
50
51
52
53
54
55
58 57 56
59
60
61
62 63 64
65
66
67
68
20LS3-SS
10-20-07
20LS3-SS
10-20-07
22
23
25
24
26
27
2930 28
21
4
ITEM
NO.
PART NUMBER DESCRIPTION QTY.
1 B11487 Power Cord, 14-3, 50 FT, SJTW 1
2
K11498 Grip 2
3
C11528 Screw, 10-32 X .25 in 1
4
H12066 Label, 1.5 HP, Saturn 1
5
H11831 Label, EDIC, Black-Silver 1
6
D11496B Switch Box Cover, Black 1
7
H11493 Label, Safety, Floor Machine 1
8
C11529 Screw, 10-32 X .375 in 2
9
K11519 Lever Grip, Lockout, Black 1
10
C00278 Locknut, 10-32, Nylon, SS 1
11
D11494 Lockout Bracket 1
12
D11524 Spring, Lockout 1
13
C90007 Screw, 10-32 X .625 Phillips, Truss Head, SS 1
14
C11491 Screw, 10-32 X 1 in, SS 1
15
D11479 Handle, Chrome, Floormachine 1
16
C00306 Roll Pin, .125 X 1.75 2
17
D11523 Spring, Trigger 2
18
D11495 Trigger, Zinc Plated 1
19
K11520 Lever Grip, Trigger, Black 2
20
11507A Assembled Locking Handle, Cord Hook 1
21
C11619 Allen Wrench, .31 in 1
22
D11497 Handle, Locking Clamp 1
23
C11538 Cap Nut, .31 in, Push-On 1
24
C00259 Washer, Slotted, Zinc 1
25
C11536 Spade Bolt, .375-16 X 4 in 1
26
D11507 Cord Hook Clamp 1
27
D11507-2 Cord Hook Body 1
28
C11558 Locknut, Black Oxide, Thin 2
29
C11502 Socket Cap Screw, .375-16 X 2.5 in 1
30
C11537 Dowel Pin, .31 X 1.5 in 1
31
C13101 Screw, Hex Cap, M14-2.0 1
32
K00674 Bushing, .50 in, Nylon 2
33
D11510 Axle, Floor Machine 1
34
D11482 Handle Brace, Right, Black 1
35
C00240 Washer, Shoulder, Nylon 6
36
C11559 Washer, .515 X .875 X .032 6
37
G11943 Wheel, 5 in Saturn 2
38
C02305 Cap Nut, .5in Push-on 2
39
C11501 Socket Cap Screw, .31 - 18 4
40
C00251 Lockwasher, .31, Split 4
41
E11478 Bumper, 20 in Floor Machine 1
42
D11486-SS Brush Cover, 20 in, Stainless 1
43
K11521 Spacer, Base, Floor Machine 4
44
D11483 Frame, Motor, Black 1
45
G11468 Motor W-Gearbox, 1.5 HP 1
46
D11481 Handle Brace, Left, Black 1
47
H10976-1 Label, UL STD 561-507 1
48
H00565-5 Label, Serial #, Standard 1
49
H03545 Cover, Serial #, Label 1
50
D11490C Drip Cover, Chrome 1
51
H11830 Label, Saturn, Drip Cover 1
52
C11916 Screw, 10-32 X .375 Phillips 3
53
C13100 Nut, M14-2.0 Nylon Insert 1
54
B10734 Strain Relief, Handle 1
55
B11513 Cord, Handle, 14-3 SJTW 1
56
B11762 Terminal Lug, Nylon, Female 2
57
B11465 Switch, DPST, Pushbutton 1
58
B00177 Terminal Lug, Female, QD, .25 X .032 2
59
C00252 Washer, .375 in, Flat 1
60
C11541 Washer, .375 in, Star 1
61
B11518 Switch Insulation 1
62
C00284 Screw, 10-32 X .375 Ground 1
63
B00187 Cable Clamp, Nylon, .43 in. 1
64
B00180-10-3 Ring Terminal, #10 Center 2
65
B11505 Strain Relief Nut, Metal 1
66
C11560 Washer, .93 ID X 1.5 OD 1
67
B11504 Strain Relief, Metal 1
68
H02548-2 Label, Important, Cord 1
11

10
17LS4-BK

11
17LS4-BK

10
20
20
17LS4-BK
