Savant PAV-SMS2001 User manual

PAV-SMS2001 | 009-1606-00 | 180108
Copyright 2018 Savant Systems, LLC
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
1 of 2
Box Contents
(1) Savant Music Server with AVB (PAV-SMS2001)
(1) Installation Kit (075-0208-xx)
(1) 5V DC 3A Power Supply (025-0153-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)
Dimensions and Weight
Height 1.6in (41.5 mm)
Width 8.5in (215.0 mm)
Depth 3.7in (93.3 mm)
Weight Net: 1.4lb (0.64 kg) Shipping: 2.3lb (1.05 kg)
Power
Input Power 5V DC 3A
Max Power 15 Watts
Networking
Supported
Standard
IEEE 802.1 AVB/TSN switches
IEEE 802.3 Ethernet
Regulatory
Safety and
Emissions
FCC Part 15 CE C-Tick
RoHS Compliant

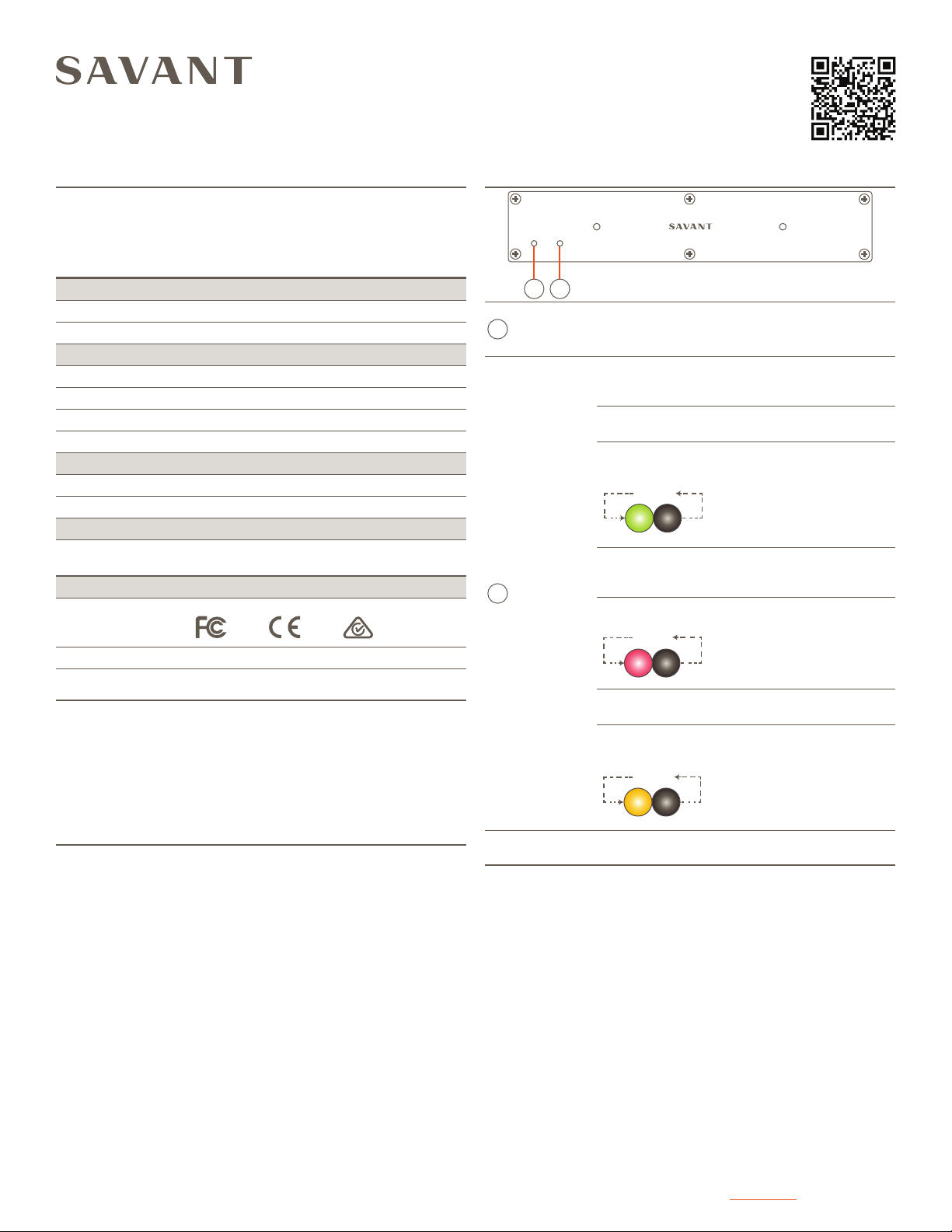

Front Panel
A B
Power Status
Power LED
Green: System has power and is operating
normally.
O: System is not receiving power.
Status LED
O: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Green: Host has established communications
with the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Red: Host has determined the firmware needs to
be updated, but a problem occurred during the
process that will initiate a reset.
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link-local IP Address and is connecting to the
host.
A
B
1s1s
Repeat
1s1s
Repeat
1s1s
Repeat
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
NOTE: Setting DHCP reservation varies from router to router. Refer to
the documentation for the router to configure DHCP reservation.
Network Requirements
The PAV-SMS2001 requires a Audio Video Bridging (AVB) network.
Connect all Savant devices to the same local area network (LAN) or
subnet as the host. Savant recommends not implementing any type
of trac or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Installation
The PAV-SMS2001 should be installed on a solid, flat, level surface. The
device will fit on a 1U rack shelf. The location should be dry, well
ventilated, and out of direct sunlight.
For Product Info
Savant® Music Server with AVB (PAV-SMS2001)
Quick Reference Guide

PAV-SMS2001 | 009-1606-00 | 180108
Copyright 2018 Savant Systems, LLC
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
2 of 2
Rear Panel
Reset
Resets the network settings of the device.
Hold Reset Button for 5 seconds while powered
on to clear network settings. Status LED will
rapidly blink red when reset is complete.
USB USB 2.0 Type A (reserved for future use).
Digital
Audio Out
(Optical)
(1) Digital optical preamp output, line-level
96kHz/24-bit output, fixed volume.
Digital
Audio Out
(Coaxial)
(1) Digital coaxial preamp output, line-level
96kHz/24-bit output, fixed volume.
Ethernet
8-pin RJ-45 port
10/100/1000 Base-T auto-negotiating port with
Link/Activity LEDs.
Supports Audio Video Bridging (AVB).
Ethernet
Activity LED
Green Blinking: Activity (Rx/Tx).
O: No Activity.
Ethernet
Link LED
Green Solid: Ethernet Link is established.
O: Ethernet link is not established.
Power Input 5V DC 3A
A
B
C
D
E
F
G
H
Expansion
Up to sixteen Savant AVB devices can be connected in a single system
providing a virtual audio switch, that can be configured to suit almost
any need.
Regulatory Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. this device may not cause harmful interference, and
2. this device must accept any interference received, including inter-
ference that may cause undesired operation.
Additional Documentation
Refer to the following documents located on the Savant Customer
Community for additional information.
– Savant Music Server with AVB Deployment Guide (009-16xx-xx)
– ProAV IP Audio Deployment Guide (009-1571-xx)
Printed in China
Part # HDH6C005010
