Savant SIS-5000S-00 User manual

The Savant® Intercom Server enables 3rd Party Intercom Door/Gate
entry products and intercom enabled iOS devices to create a
Savant® Intercom Server Solution that integrates easily into an
existing Savant Control System. Once installed and configured, the
Savant Intercom can communicate with various 3rd Party Intercom
Door/Gate entry systems to supply audio and/or video of the
entrance to your facility or home.
This Quick Reference Guide gives basic information about the
Savant Intercom along with initial installation and wiring procedures.
Once installed and connected, refer to the Savant SIS-5000S-xx
Intercom Deployment Guide for configuration and integration
procedures.
Box Contents
(1) Savant Intercom Server (SIS-5000S-00)
(1) Power cord
(1) Quick Reference Guide (this document)
Supported Devices
•1U Rack System (RCK-3000-xx)
•3rd Party Door Entry systems
•Holovision Analog Intercom Door/Gate Entry
•Holovision VoIP Intercom Door/Gate Entry
•Siedle Analog Intercom Door/Gate Entry
•Mobotix VoIP Intercom Door/Gate Entry
•Savant TrueControl™ II for iOS
•TEL-IAD2-xx Integrated Access Device (Analog to VoIP
conversion)
•PAS-1000-xx Public Announcement System
Specifications
Environmental
Environmental
Temperature
Operating: 50° to 95° F (10° to 35° C)
Temperature
Storage: -40° to 116° F (-40° to 47° C)
Humidity
5% to 95% RH (non condensing)
Cooling
15 cubic feet per minute (CFM) recommended
Noise
12dBA at idle
Dimensions and Weight
Dimensions and Weight
Height
1.4 in (3.6 cm)
Width
7.7 in (19.7 cm)
Depth
7.7 in (19.7 cm)
Weight
2.6 lb (1.20 kg)
Rack Space
1U
Power
Power
Input Power
100-240V AC 50/60Hz
Maximum Power
85W
Memory
Memory
Memory
8 GB
Compliance
Compliance
Safety and
Emissions
FCC Part 15 | CE Mark | C-Tick
RoHS
Compliant
Minimum Supported Release
Minimum Supported Release
Savant OS
da Vinci 7.0.2

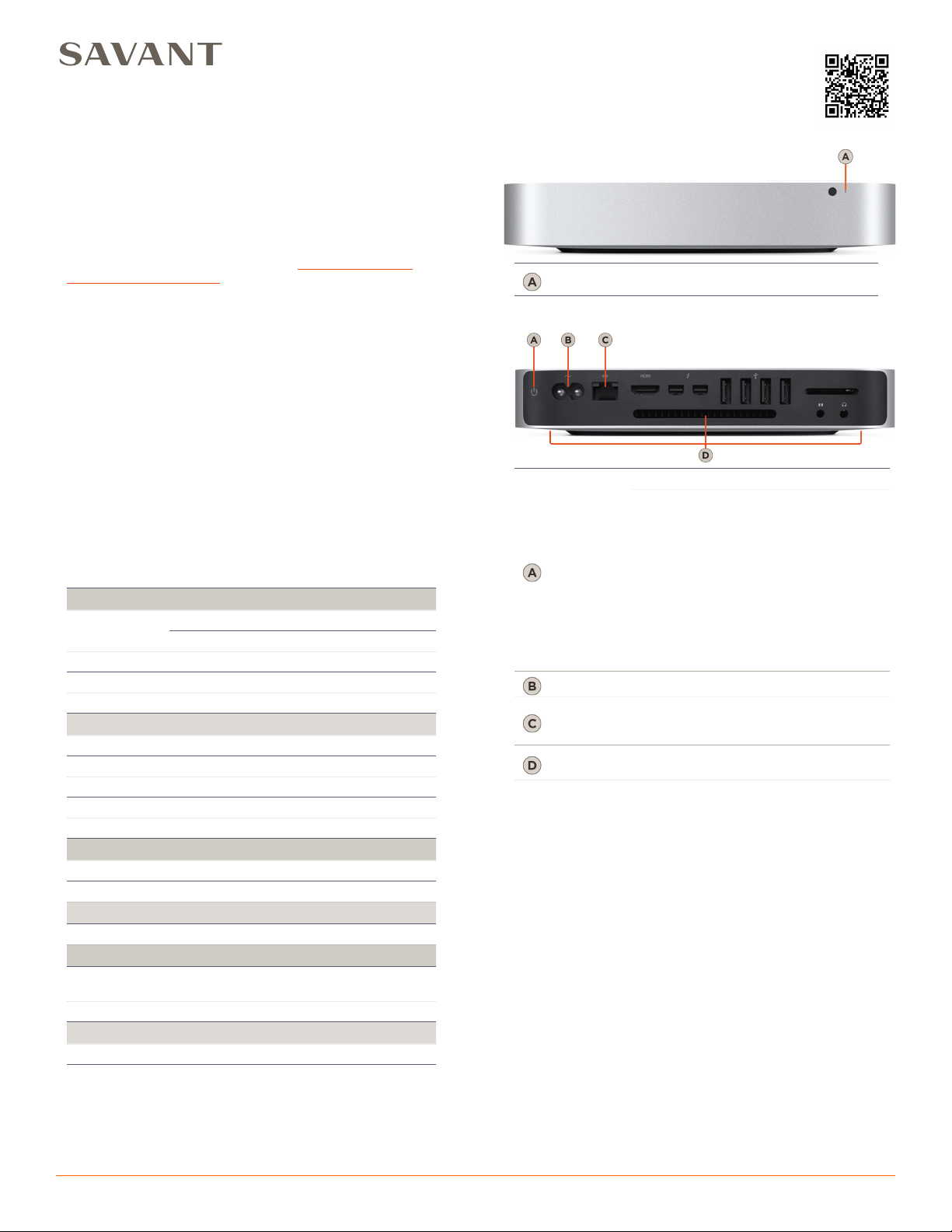

Front Panel
Power LED
Illuminates white when host is powered On.
Rear Panel
Power Button
Power On: Press while powered Off
Power Button
Power Off:
1. Launch a Terminal window from the SDE.
2. SSH into the SIS-5000S:
ssh#RPM@<ip_of_#SIS5000S>
3. Enter default password: RPM.
4.At the prompt, enter shutdown command:
sudo#shutdown#8P#now#
5. When prompted, enter the default password
again: RPM.
6. Verify the SIS-5000S Power LED is off.
7. Unplug the SIS-5000S.
Power Input
100-240V AC 50/60Hz
Ethernet
10/100/1000 Gigabit Ethernet Port. Connect
to a managed Ethernet switch within your
local network.
Cooling Vents
Output for cooling of the internal processor.
DO NOT BLOCK
Note: Connections not identified in the diagram above are not
functional within a Savant Configuration/Installation.
Power Management Recommendations
Savant recommends a pure sine wave uninterruptible power supply
(UPS) with the ability to shut down the SIS-5000S before the
battery runs out of power. Never remove power from the
SIS-5000S before shutting it down.
Additional Documentation
Refer to the following documents located on the Savant Customer
Community for for additional information.
•Savant intercom Server (SIS-5000S) Deployment Guide
SIS-5000S-00 | 009-1302-01 | 150626
SIS-5000S-00 | 009-1302-01 | 150626
45 Perseverance Way, Hyannis, MA 02601
Copyright © 2015 Savant Systems, LLC
1
of
2
savant.com | 508.683.2500
Savant® Intercom Server
Quick Reference Guide
For Product Info

Wiring and Connections
Below is a high level diagram displaying the Savant Intercom Server Solution. After installing the SIS-5000S-xx Intercom Server into a racking type
system, the following connections can be made. Unless otherwise stated, the connection to the local Ethernet switch is a standard Cat 5 with RJ-45
connection.
1. Connect the Ethernet port of the SIS-5000S-xx to a port on the Ethernet switch within the local network.
2. Connect the Ethernet port from the Savant Host within the Savant Control System to a port on the Ethernet switch.
3. Connect a wireless router to the Ethernet switch. (This may already be wired as part of the complete Savant Control System)
4. After installing and wiring the 3rd Party Intercom Door/Gate Entry station, connect the station to the Ethernet switch.
5. If a Public Announcement system is being integrated, connect the system to the Ethernet switch within the local network.
6. Once wired, the SIS-5000S-xx Intercom Server, iOS device(s), PA system and Intercom/Door Entry system can be added to the Savant Control
System using the RacePoint Blueprint design tool. Refer to the Savant SIS-5000S-xx Intercom Deployment Guide.
7. Once added to Blueprint, the Savant Configurator can be used to configure the individual functions for each part of the system. Refer again to
the Savant SIS-5000S-xx Intercom Deployment Guide.
Rack Mounting
Savant offers an optional 1U Rack Shelf for installation of the SIS-5000S-xx Intercom Server and/or Savant Host into a 19-inch rack system. The
RCK-3000-xx provides front access via a removable faceplate, and sliding tray. An open shelf design provides proper ventilation and easy access to
wiring. For more information, refer to the Savant Rack Shelf Quick Reference Guide (009-0558-xx).
