Savoy House 52-190-3CN-187 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552
MODELS: 52-190-3CN-187
52-190-3WA-13
CEILING FAN
OWNER'S MANUAL

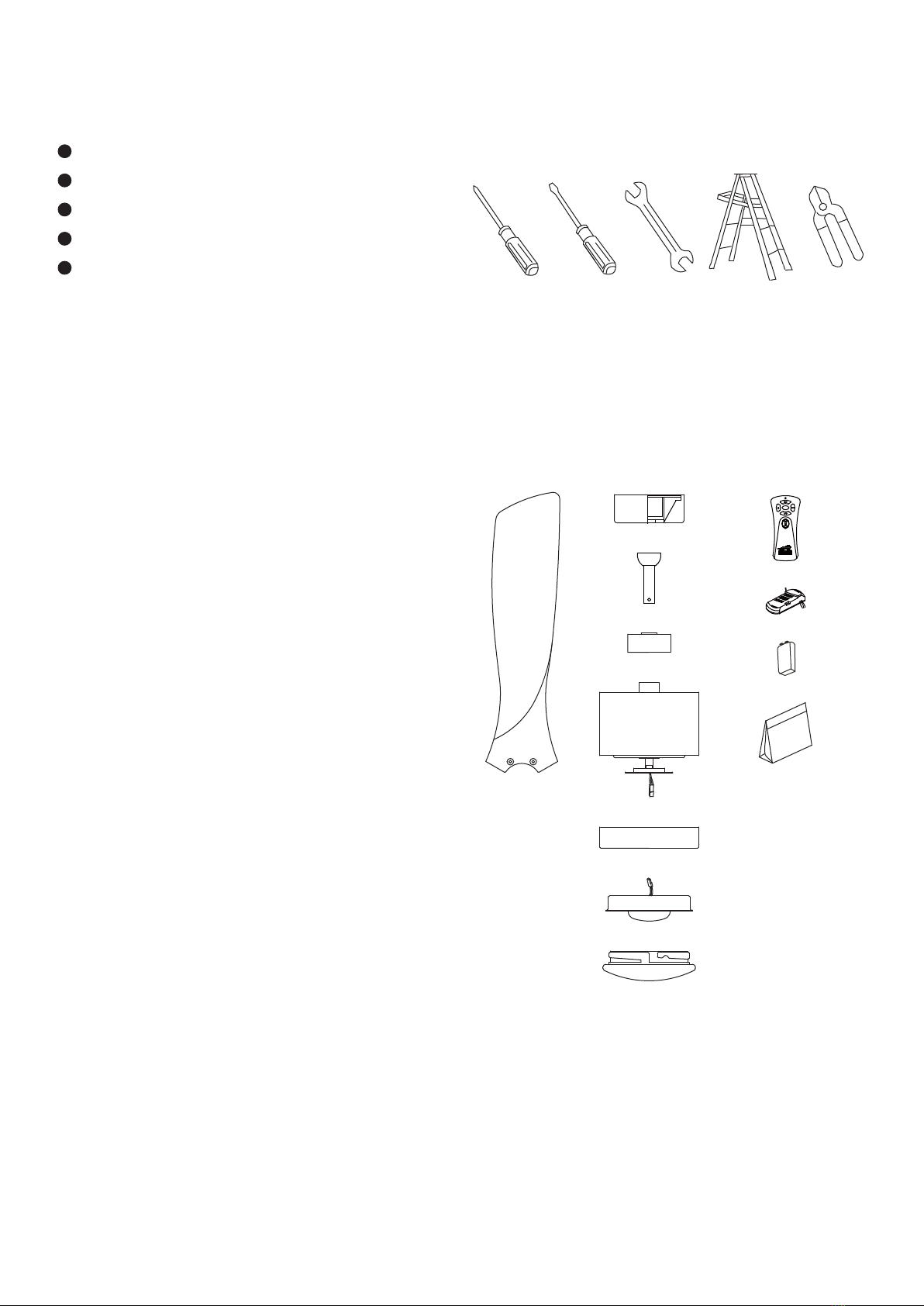

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items;
a. Set of blades assembly (3)
b. Hanger bracket assembly
c. Downrod
d. Coupling cover
e. Fan motor assembly
f. Mounting plate
g. 16W LED Light kit
h. Glass shade
i. Transmitter+holder+2 mounting
screws
j. Receiver+6 wire nuts
k. 9 volt battery
l. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3)
wood screws (2), washers (2)
2) Blade attachment hardware:
screws (7), flat washers (7),
lock washers (7)
3) Balance Kit
1
a
b
c
d
e
f
g
h
i
k
l
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED
j
9Volt
Battery

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric
shock, or personal injury, mount to outlet
box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the
support of light fixtures are not acceptable
for fan support and may need to be
replaced. Due to the complexity of the
installation of this fan, a qualified licensed
electrician is strongly recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT". WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses
or turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate fasteners
and building materials. The outlet box and
its support must be able to fully support
the moving weight of the fan (at least 50
lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an
existing fixture but no ceiling joist, you
may need an installation hanger bar as
shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGULO MÁXIMO
EN EL TECHO: 20º

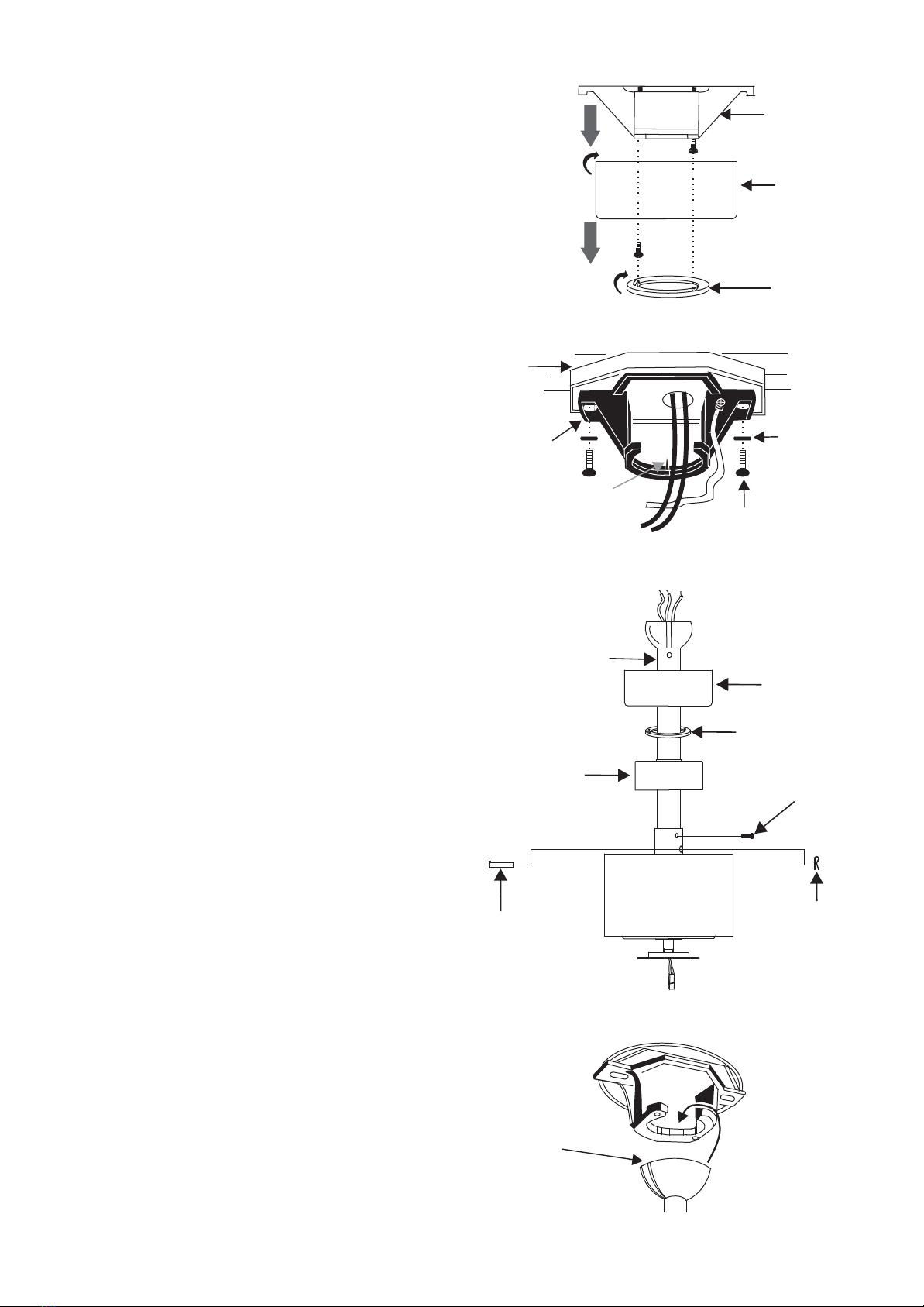

REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from
the canopy by removing the 1 of 2 screws
from the bottom of the hanger bracket and
loosening the other one a half turn from
the screw head. Next, turn the canopy
counter clockwise to removing the hanger
bracket from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin
and set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top
of the fan motor through the collar cover,
canopy cover, canopy and then through
the ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of
the downrod with the holes in the collar
on top of the motor housing (Fig.7).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole near the end
of the hanger pin until it snaps into its
locked position, as noted in the circle inset
of Fig. 7.
Step 8. Tighten two set screws on top of
the fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. Hanging the Fan
4
Figure 5
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
CUL Listed
electrial
box
Figure 6
Figure 7
Figure 8
120V Wires
Washers
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Coupling cover
Hanger
bracket
Ceiling
canopy
Canopy
cover

5
6. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the main fuse box before wiring.
NOTE: This remote control unit is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency
switches on your receiver and transmitter
have been preset at the factory. Please
recheck to make sure the switches on
transmitter and receiver are set to the
same position, any combination of settings
will operate the fan as long as the
transmitter and receiver are set to the
same position. (Figure 9)
Step 1. (Figure 10) Insert the receiver into
the mounting bracket with the flat side of
the receiver facing the ceiling.
Step 2. (Figure 11) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan to the white wire marked "TO
MOTOR N" from the receiver. Connect the
blue wire from the fan to the blue wire
marked "For Light" from the receiver.
Secure the wire connections with the
plastic wire nuts provided.
Step 3. (Figure 11) Receiver to House
Supply Wires Electrical Connections:
Connect the black (hot) wire from the
ceiling to the black wire marked "AC in L"
from the receiver. Connect the white
(neutral) wire from the ceiling to the white
wire marked "AC in N" from the Receiver.
Secure the wire connections with the
plastic wire nuts provided.
Step 4. (Figure 11) If your outlet box has a
ground wire (green or bare copper)
connect it to the fan ground wires;
otherwise connect the hanging bracket
ground wire to the mounting bracket.
Secure the wire connection with a plastic
nut provided. After connecting the wires,
spread them apart so that the green and
white wires are on one side of the outlet
box and black and blue wires are on the
other side. Carefully tuck the wire
connections up into the outlet box.
Figure 9
Figure 10
Figure 11
Code switch
ON
ON
Receiver
Hanger
bracket
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)

6
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan's receiving unit.
7. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into
ceiling outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the
canopy over the screw on the hanger
bracket, turn canopy until it locks in place
at the narrow section of the key holes.
Step 3. Align the circular hole on canopy
with the remaining hole on the hanger
bracket, secure by tightening the two set
screws.
Note: Adjust the canopy screws as
necessary until the canopy and canopy
cover are snug. (Fig. 12)
Warning: Make sure tab at bottom of
hanger bracket is properly seated in
groove of hanger ball before attaching
canopy to bracket. Failure to properly seat
tab in groove could cause damage to
electrical wiring.
Figure 12
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws

7
Figure 13
Figure 14
9. INSTALLATING THE
MOUNTING PLATE

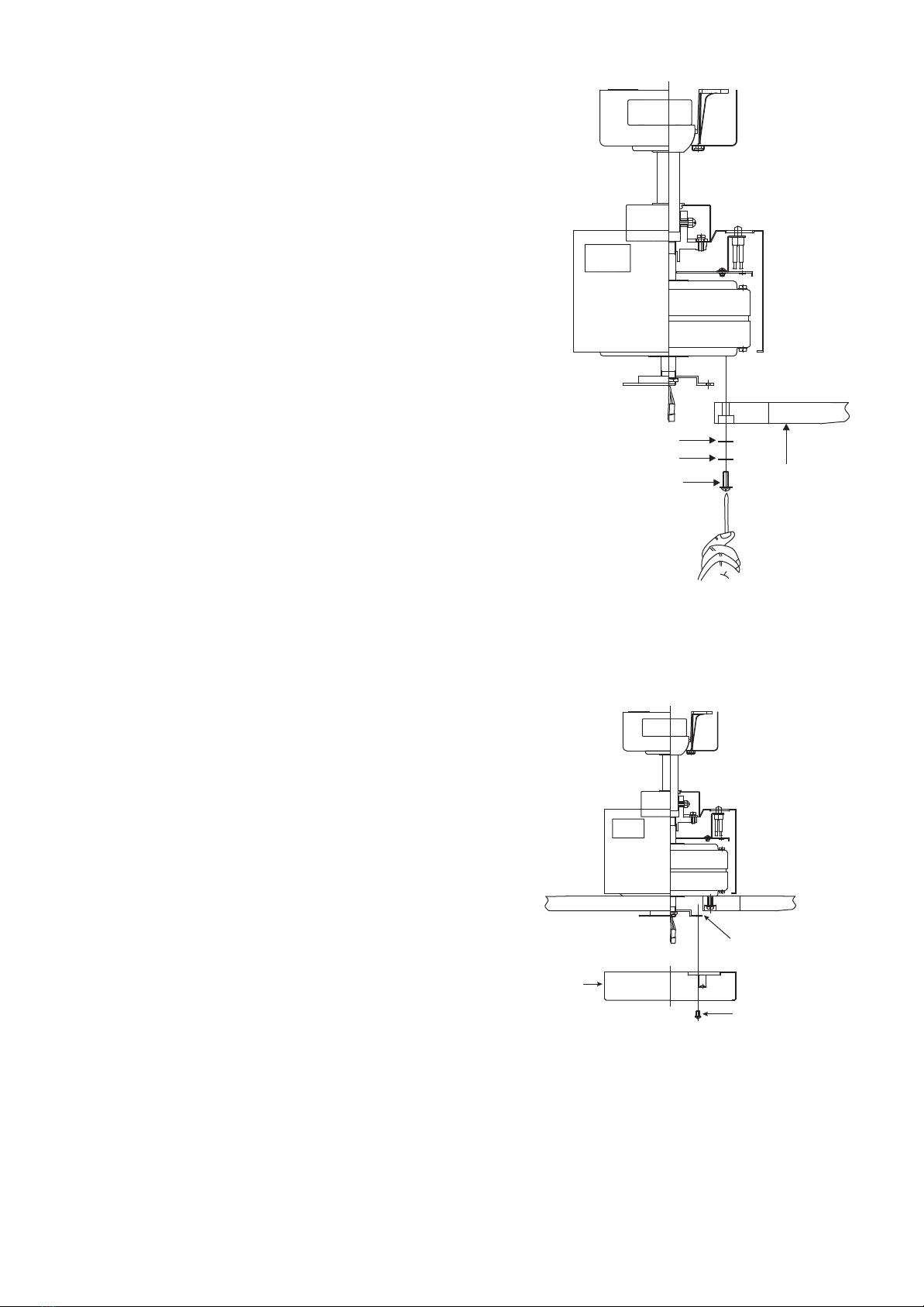

1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
2. Place the key holes on the mounting
plate over the 2 screws previously
loosened from the mounting ring, turn
mounting plate until it locks in place at the
narrow section of the key holes. Secure by
tightening the 2 screws previously
loosened and the one previously removed.
(Fig. 14)
8. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing
mounts and discard before installation.
Step 1 Attach the blade to the motor
using the screws, lock washers and flat
washers provided.
Step 2 Tighten each screw. Make sure the
blade is straight.
Screws
Blade
Flat washers
Lockwashers
Mounting ring
Mounting
plate
Screws

8
Figure 15
Figure 16
10. INSTALLING THE
LED LIGHT KIT
NOTE: Before starting installation, discon-
nect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Turning power off using the fan switch is
not sufficient to prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
mounting plate and keep it for future use.
Loosen the other 2 screws (Do not
remove)
Step 2. While holding the LED light kit
under your fan, make the polarized plug
connections: (Fig. 15)
- Red to white
- Black to black
Step 3. Place the key holes on the LED
light kit over the 2 screws previously loos-
ened, and turn the LED light kit until it
locks in place at the narrow section of the
key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Fig. 15)
11. INSTALLING THE
GLASS SHADE
1. Raise glass shade up against the LED
light kit and secure it to fan by turning
glass clockwise until snug. DO NOT OVER-
TIGHTEN. (Fig. 16)
2. Restore power and your light kit is ready
for operation.
Mounting plate
Connection plugs
LED Light kit
Screws
LED Light kit
Glass shade

9
13. OPERATING INSTRUC-
TIONS
Restore power to ceiling fan and test for
proper operation.
A. HI, MED, and LOW buttons:
These three buttons are used to set the
fan speed as follows:
HI= high speed
Med= medium speed
Low= low speed
B. OFF button:
This button turns the fan off.
C. button:
This button controls the light. Press and
release the button to turn the light ON
or OFF. Press and hold the button to
set the desired brightness. The light
key has an auto-resume, it will stay at
the same brightness as the last time it
was turned off.
Figure 18
LOW
OFF
HI
MED
Figure 17
9 Volt
Battery
12. INSTALLING THE
BATTERY
Install 9 volt battery (included), to prevent
damage to transmitter, remove the
battery if not used for long periods. (Fig.
17)

10
Figure 19
Figure 20
The Reverse switch is located on the top
of the motor housing. Slide the switch to
the Left for warm weather operation.
Slide the switch to the Right for cool
weather operation.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: Wait for fan to stop before chang-
ing the setting of the slide switch.
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown
in Fig. 19. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Fig. 20. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check
the support connections, brackets, and blade attachments twice a year. Make sure they
are secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use
only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor, or the wood, or possibly cause an electrical
shock.
3. You can apply a light coat of furniture polish to the wood blades for additional
protection and enhanced beauty. Cover small scratches with a light application of shoe
polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
14. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".

11
15. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds
noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections
in the switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other
or the interior wall of the switch housing. CAUTION: Make sure main
power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control (s).
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above the
tip of one of the blades. Measure this distance. Rotate the fan until the
next blade is positioned for measurement. Repeat for each blade. The
distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side
by side) blades can redistribute the weight and possibly result in
smoother operation.
WARNING: To reduce the risk of personal injury, do not bend the blade
arm while installing, balancing the blades, or cleaning the fan. Do not
insert foreign objects between rotating fan blades.
