READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : LP8146(FN666)
MODEL: 60-5025-313-13
60-5025-3SV-SN
60-5025-3KO-SN
CEILING FAN
OWNER'S MANUAL

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items;
a. Set of blades assembly (3)
b. Hanger bracket assembly
c. Downrod
d. Coupling cover
e. Fan motor assembly
f. LED Light kit assembly
g. Metal cover
h. Transmitter+holder+2 mounting
screws+3 volt battery (CR2032)
i. Package hardware
1) Mounting hardware :
screws(2), lock washers(2),
star washers(2), wire nuts(3)
wood screws(2), washers(2)
2) Blade attachment hardware:
screws (7), washers (7),
lock washers(7)
3) Safety cable hardware:
wood screw(1), lock washer(1),
metal washer(1)
1
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
g
h
i

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the
circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with
any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet
box for mounting to the outlet box. Most
outlet boxes commonly used for the
support of lighting fixtures are not
acceptable for fan support and may need
to be replaced, consult a qualified
electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only ETL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be ETL Listed and marked suitable
for use with the model fan you are
installing. Switches must be ETL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3

REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from
the canopy by removing the 1 of 2 screws
from the bottom of the hanger bracket and
loosening the other one a half turn from
the screw head. Next, turn the canopy
counter clockwise to removing the hanger
bracket from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin
and set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top
of the fan motor through the collar cover,
canopy cover, canopy and then through
the ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of
the downrod with the holes in the collar
on top of the motor housing (Fig.7).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole near the end
of the hanger pin until it snaps into its
locked position, as noted in the circle inset
of Fig. 7.
Step 8. Tighten two set screws on top of
the fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 5
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
CUL Listed
electrial
box
Figure 6
Figure 7
Figure 8
120V Wires
Washers
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Hanger
bracket
Ceiling
canopy
Canopy
cover
Coupling cover

5
6. INSTALLATION OF
SAFETY SUPPORT

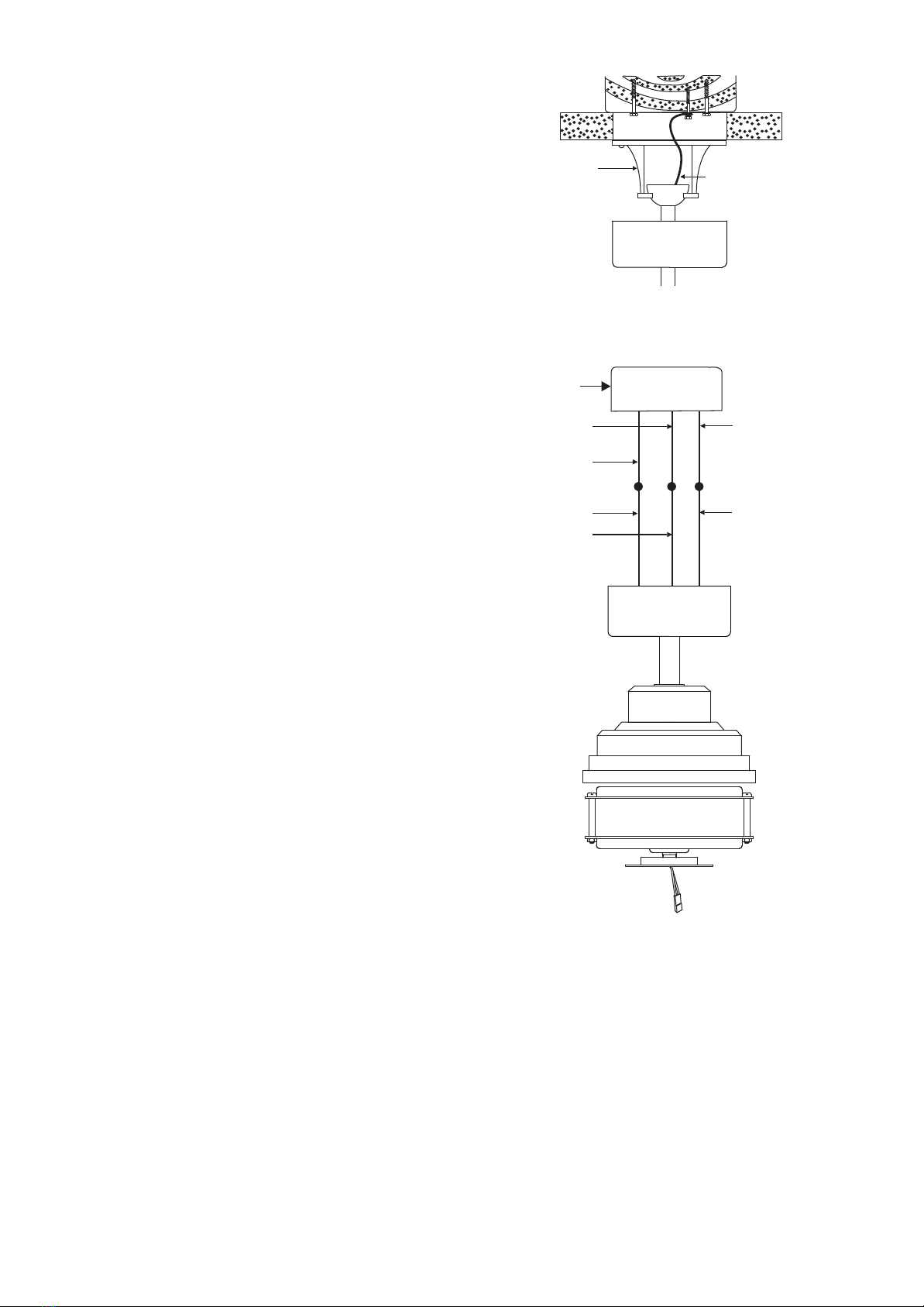

An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw
and washer, as illustrated in Figure 9.
Hanger bracket Safety cable
Figure 9
Figure 10
Outlet Box
Black ("AC IN L")
White ("AC IN N")
White (Neutral)
Black (Hot)
Green or bare
copper (ground)
Ground (green)
(Connect to ground
wire on hanger
bracket if no house
ground wire exists.)
7. MAKE THE ELECTRICAL
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the main fuse box before wiring.
Step 1. Motor to House Supply Wires
Electrical Connections: Connect the WHITE
wire (Neutral) from the outlet box to the
WHITE wire marked "AC in N" from the
motor. (Fig. 10)
Step 2. Connect the BLACK wire (Hot) from
the outlet box to the BLACK wire marked
"AC in L" from the motor. (Fig. 10)
Step 3. (Figure 10) If your outlet box has a
ground wire (green or bare copper)
connect it to the fan ground wires;
otherwise connect the hanging bracket
ground wire to the mounting bracket.
Secure the wire connection with a plastic
nut provided. After connecting the wires,
spread them apart so that the green and
white wires are on one side of the outlet
box and black and blue wires are on the
other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan's receiving unit.

6
8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into
ceiling outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the
canopy over the screw on the hanger
bracket, turn canopy until it locks in place
at the narrow section of the key holes.
Step 3. Align the circular hole on canopy
with the remaining hole on the hanger
bracket, secure by tightening the two set
screws.
Note: Adjust the canopy screws as
necessary until the canopy and canopy
cover are snug. (Fig. 11)
Warning: Make sure tab at bottom of
hanger bracket is properly seated in
groove of hanger ball before attaching
canopy to bracket. Failure to properly seat
tab in groove could cause damage to
electrical wiring.
Figure 11
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
Figure 12
9. ATTACHING THE FAN
BLADES
Step 1. Align the holes from the blade to
the holes from the motor, and secure the
blade in place with screws, wahers and
and lock wahers provided. (Fig. 12)
Step 2. Repeat this process to attach the
other blades.
Blade
Washers
Lock washers
Screws

7
Figure 14
Figure 13
Figure 15
10. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove the light shade from the
LED light kit assembly. (Fig. 13)
Step 2. Remove the LED light kit from the
mounting plate. (Fig. 14)
Step 3. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove) (Fig. 15)
Step 4. Place the key holes on the
mounting plate over the 2 screws
previously loosened from the mounting
ring, turn mounting plate until it locks in
place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 15)
Mounting ring
Mounting
plate
Screws
Screws
LED light
kit
Mounting
plate
Light
shade
LED Light kit
assembly

8
Figure 16
11. INSTALLING THE LED
LIGHT KIT & LIGHT
SHADE
NOTE: Before starting installation, disconect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
posts of the mounting plate and keep it for
future use. Loosen the other 2 screws. (Do not
remove) (Fig. 16)
Step 2. While holding the LED light kit under
your fan, make the polarized plug connections:
- Red to white
- Black to black
Step 3. Place the key holes in the LED light kit
over the two screws previously loosened from
the mounting plate. Turn the LED light kit until
the LED light kit locks in place at the narrow
section of the key holes. (Fig. 16)
Step 4. Securely tighten the two light kit
mounting screws previously loosened and the
one previously removed. (Fig. 16)
Step 5. Raise light shade up against the LED
light kit, and secure it to fan by turning light
shade clockwise until snug. DO NOT
OVERTIGHTEN. (Fig. 16)
NOTE: The metal cover included with your fan
is an option to replace the glass for the light in
the event that you prefer not to use the light
feature of your fan. The metal cover is not
necessary for the light operation; it can be
saved for later use if desired.
LED Light kit
Screws
Mounting
Plate
Connection
plugs
Light shade

9
Figure 17
Figure 18
Insert the 3 volt battery (included) and make
sure the battery is properly seated with the
Positive + sign facing up. (Fig. 17)
Your DC motor is equipped with an auto
learning type of remote control. There are no
frequency switches on the receiver unit, the
receiver will automatically learn the frequency
from the remote control during the pairing
process.
The remote control unit has frequency
settings that can be changed. The frequency
settings on the remote control should only be
changed if your fan experiences interference
or if a second or more fans with the same type
of control system are installed in the same
structure. (Fig. 17)
ON/DIM Switch: The ON position is to be used
for a light kit with CFL bulbs, the DIM position
is to be used for all other dimmable style
bulbs. (Fig. 17)
12. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation. (Fig. 18)
A. button:
Increase fan speed ( 6 speed max.)
B. button:
Decrease fan speed (1 speed minimal)
C. 6 SPEED LED indicators:
Pressing and holding the + button will
increase the fan speed automatically
through the speed settings and the incre-
ments will be denoted on the LED indica-
tors.
= minimum speed
= low speed
= medium low speed
= medium speed
= medium high speed
= high speed
D. button:
Maximum (6 speed).
E. fan off/set buton:
This button turns the fan off.
F. The " " button is used to set the fan
forward or reverse, press the button
forward (for warm weather) or reverse
(for cool weather).
G. button:
This button controls the light. Press and
release the button to turn the light ON or
OFF. Press and hold the button to set the
desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as the last time it was turned
off.
ON
DIM
ON
DIM
ON ECE
1234
ON ECE
1234
Frequency Switch
Code switch

10
Figure 19
Pairing Process:
The auto-learning process will only initiate
within the first 60 seconds of supplying power
to the fan.
Beginning with the fans power off, restore
power to the fan. Press and hold the “Fan
Off/Set” button for 6 seconds and release. If
the optional light kit is installed, the light will
blink twice. Once the receiver has detected the
frequency, the fan will automatically begin a
self-calibration process. The fan will begin to
operate and rotate in the counter-clockwise
direction on the highest RPM for 3 minutes.
When the counter-clockwise rotation has
finished, the fan will reverse and rotate in the
clockwise position on the highest RPM for 3
minutes. The fan will stop rotating once the
self-calibration process is complete. The total
self-calibration process will last approximately
6 minutes. During the self-calibration process
the remote control will not function and no
buttons should be pressed.
Pairing Process for Multiple Fans:

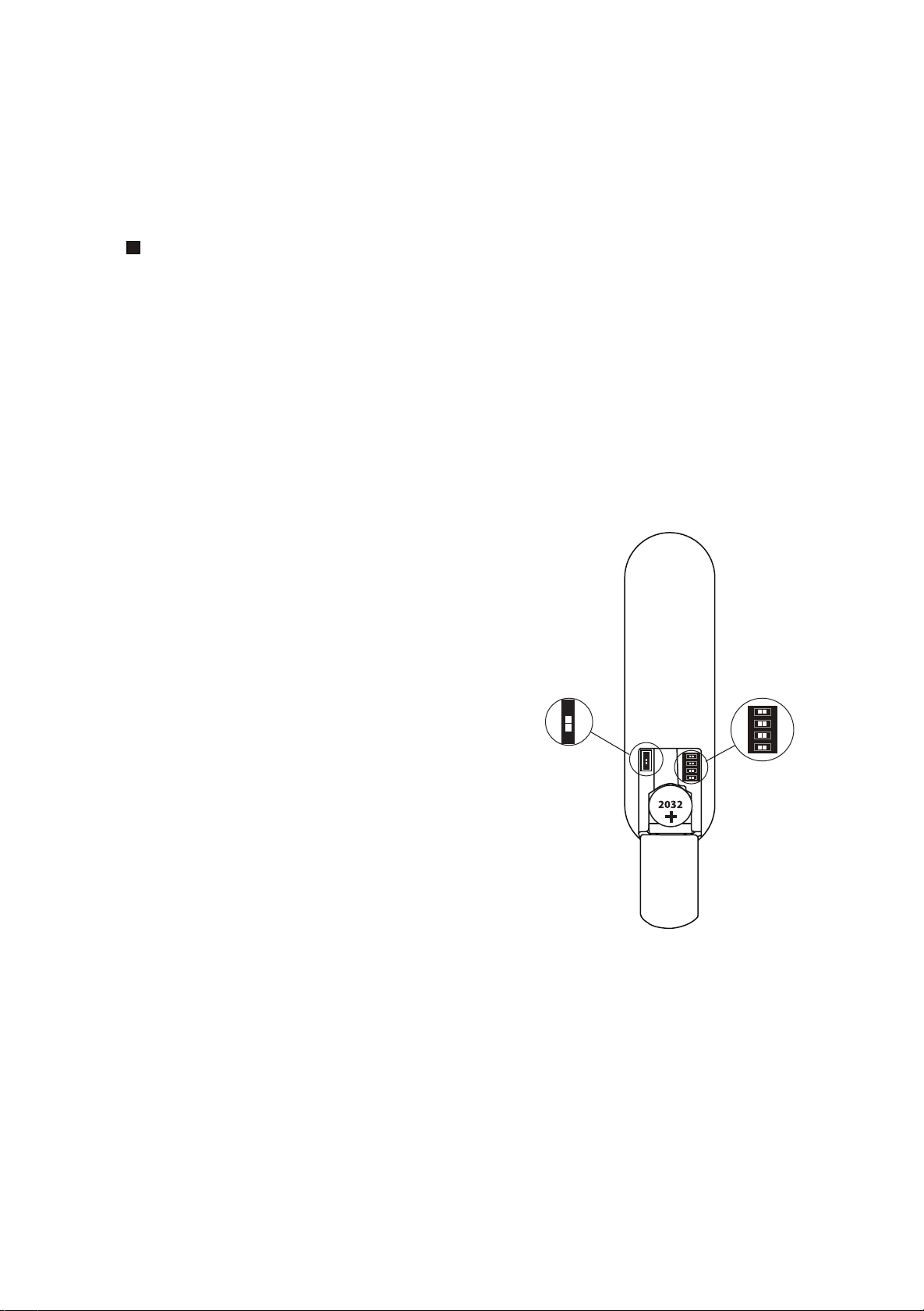

Select the desired frequency setting from the
back of the remote control. (Fig 19) You change
the frequency setting by arranging the small
switches numbered 1 through 4 in the up or
down position making 16 different frequencies
or combinations possible. Anytime you change
the frequency for a fan you must complete the
pairing process as described above.
Beginning with the power off to all fans, restore
power to the first fan. Select the desired
frequency setting. Complete the pairing
process as described above. Test the fan for
proper operation.
Restore power to the second fan. Select the
desired frequency setting. Complete the
pairing process as described above. Test the
fan for proper operation.
Repeat this process until all fans have been
paired.
This receiver provides the following protective
function:
1. Lock Rotor Position: The DC motor has a
built-in safety against a stalled or locked rotor
condition (stalled blade rotation). If there is an
obstruction or fault with the motor, the current
monitoring function will automatically turn
power off to the motor after 30 seconds.
Remove the obstruction and turn the AC power
off. Restore power and re-start fan motor.
2. Over 80W protection: When the receiver
detects motor power consumption which is
greater than 80W, the receiver power will be
stopped and operation will immediately
discontinue. Wait for 5 seconds and then turn
the receiver power back on.
ON
DIM
ON
DIM
ON ECE
1234
ON ECE
1234
Frequency Switch
Code switch

11
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check
the support connections, brackets, and blade attachments twice a year. Make sure they
are secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use
only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor, or the wood, or possibly cause an electrical
shock.
3. You can apply a light coat of furniture polish to the wood blades for additional
protection and enhanced beauty. Cover small scratches with a light application of shoe
polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
13. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".
Figure 20
Figure 21
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on
this fan, press the reverse button while
the fan is running.

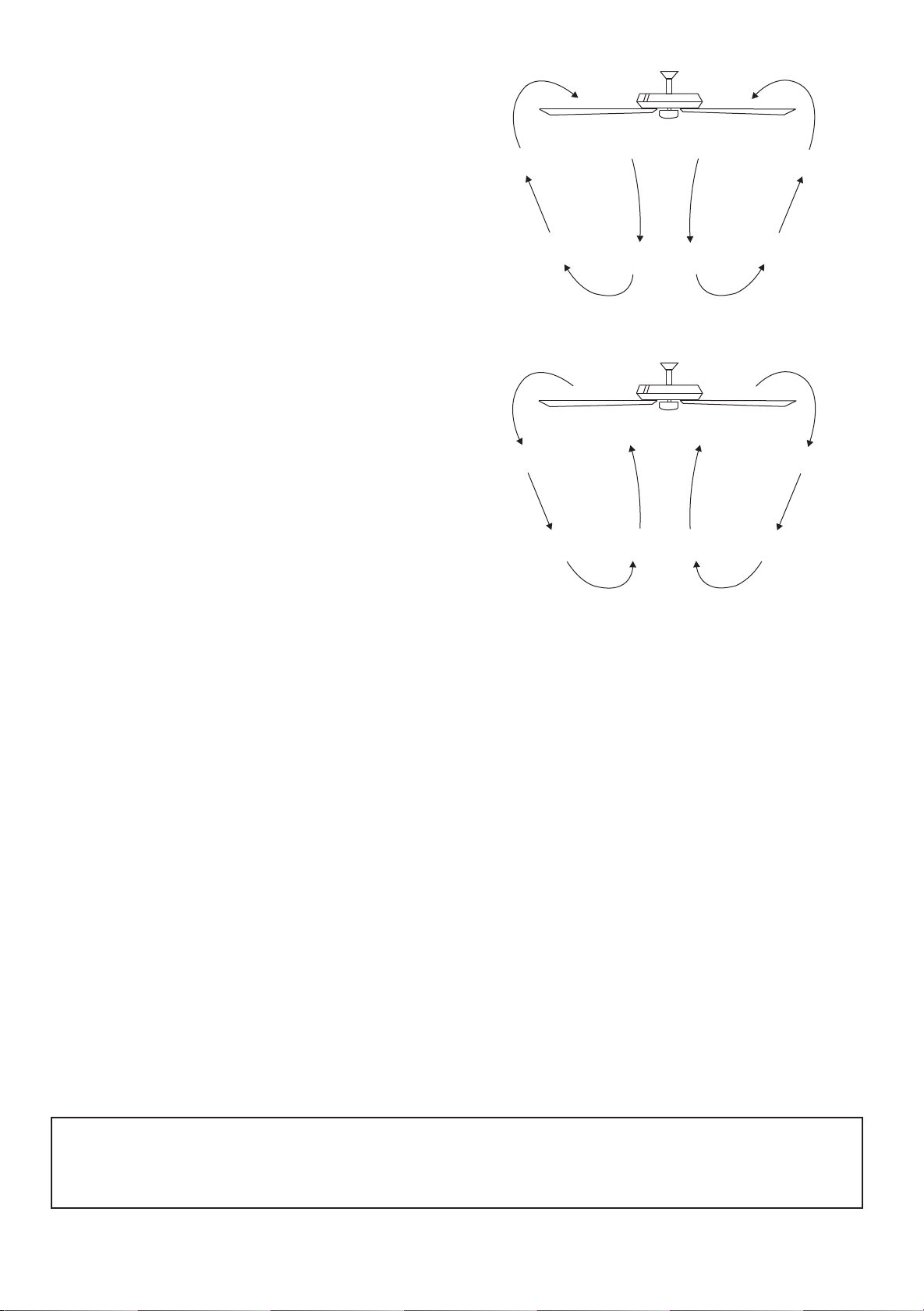

Warm weather - (Forward) A downward
airflow creates a cooling effect as shown
in Fig. 20. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Fig. 21. This allows you to
set your heating unit on a cooler setting
without affecting your comfort.

12
14. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds
noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections
in the switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other
or the interior wall of the switch housing. CAUTION: Make sure main
power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control (s).
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above the
tip of one of the blades. Measure this distance. Rotate the fan until the
next blade is positioned for measurement. Repeat for each blade. The
distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side
by side) blades can redistribute the weight and possibly result in
smoother operation.
WARNING: To reduce the risk of personal injury, do not bend the blade
arm while installing, balancing the blades, or cleaning the fan. Do not
insert foreign objects between rotating fan blades.
