Savoy House 52P-620-5BC-13 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
CUL LISTED MODEL : AC-416
MODEL: 52P-620-5BC-13
52P-620-5WA-SN
CEILING FAN
OWNER'S MANUAL

2. PACKAGE CONTENTS
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1
1. TOOLS AND MATERIALS
REQUIRED
Unpack your fan and check the contents.
You should have the following items:
a. Blade set (5)
b. Hanger bracket
c. Canopy
d. Downrod
e. Coupling cover
f. Fan motor assembly
g. Set of blades bracket (5)
h. Light kit
i. Glass shade assembly
j. Receiver+6 wire nuts
k. Wall transmitter incl. 2 mounting screws
and 3 wire nuts
l. Wall plate w/2 mounting screws
m. 3 x 40W candelabra bulbs
n. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3)
wood screws (2), washers (2).
2) Blade attachment hardware:
screws (16), fiber washers (16)
3) Blade arm hardware:
screws with lock washers (11)
4) Safety cable hardware:
wood screw, lock washer,
metal washer
5) Balance Kit
a
b
c
d
e
f
g
h
i
j
n
m
l
k

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the
circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the
National Electrical Code and local
electrical codes. Electrical installation
should be performed by a qualified
licensed electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with
any solid-state fan speed control device.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet
box for mounting to the outlet box. Most
outlet boxes commonly used for the
support of lighting fixtures are not
acceptable for fan support and may need
to be replaced, consult a qualified
electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only CUL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be CUL Listed and marked suitable
for use with the model fan you are
installing. Switches must be CUL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.
ATTENTION
Under the Energy Policy Act of 2005,
federal regulations require all ceiling fans
with light kits manufactured or imported
after January 1, 2009, to limit the total
wattage consumed by the light kit to 190
watts. Therefore, this product is equipped
with a 190W limiting device. If lamping
exceeds 190 watts, the light kit will shut
off automatically until the proper wattage
of bulbs are installed. Reset the light kit by
turning it off, replacing the bulbs with the
correct wattage, and then turning the
light kit back on.

4. MOUNTING OPTIONS
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 20° ANGLE

REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting and the "close-
to-ceiling"installation. The "close-to-ceiling"
installation is recommended in rooms with
less than 8-feet ceilings or in areas where
additional space is desired from the floor to
the fan blades.

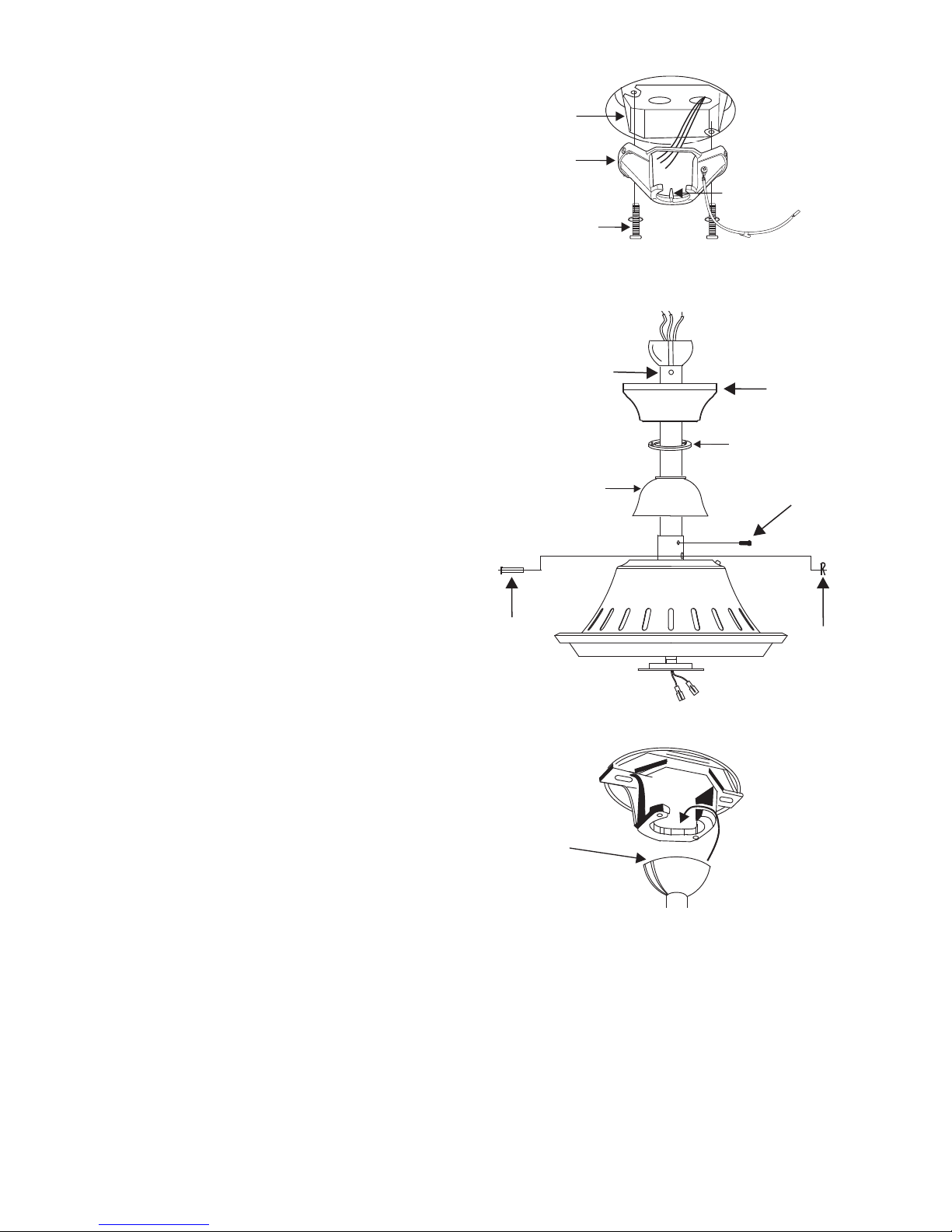

STANDARD CEILING INSTALLATION
Step 1. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 3. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 4. Route wires exiting from the top
of the fan motor through the coupling
cover and canopy and then through the
ball/ downrod. (Fig. 6)
Step 5. Align the holes at the bottom of
the downrod with the holes in the collar
on top of the motor housing (Fig.6).
Carefully insert the hitch pin through the
holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole near the end
of the hitch pin until it snaps into its
locked position, as noted in the circle inset
of Fig. 6.
Step 6. Tighten two set screws on top of
the fan motor firmly. (Fig. 6)
Step 7. Place the downrod ball into the
hanger bracket socket. (Fig. 7)
5. HANGING THE FAN
4
Figure 5
Figure 6
Figure 7
Registration slot
Downrod
Canopy
Set screws
Lock pin
Hitch pin
Canopy cover
Coupling cover
Tab
Mounting screws
(supplied with
electrical box)
CUL Listed
electrical box
Hanger
bracket

5

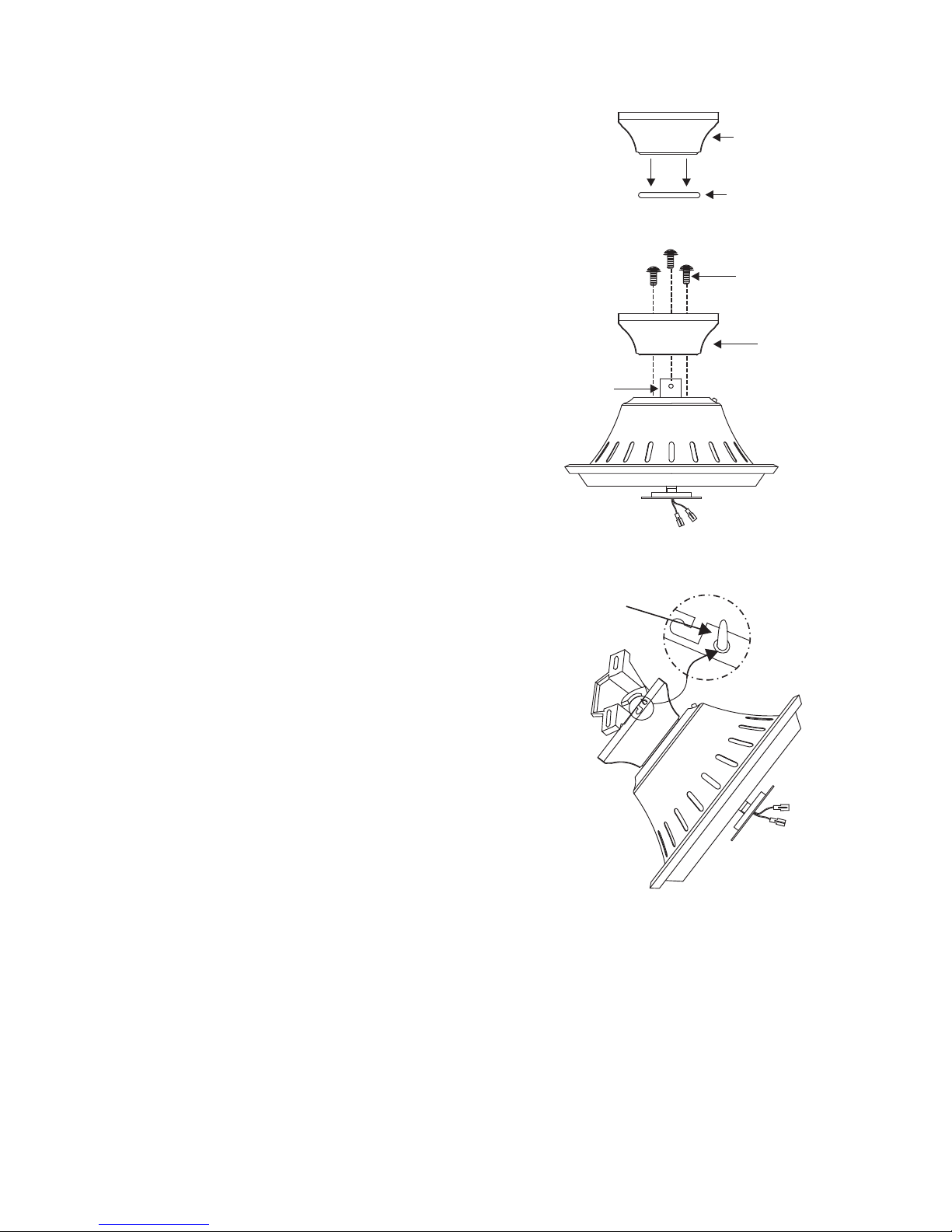

CLOSE-TO-CEILING INSTALLATION
1. Remove the decorative canopy bottom
cover from the canopy by depressing
the three studs. (Fig. 8)
2. Pass the 120-volt supply wires through
the center hole in the ceiling hanger
bracket as shown in Fig. 5.
3. Loose the two screws on the outlet box
halfway.
4. Attach the hanger bracket on the outlet
box by sliding the hanger bracket over
the screws provided with the outlet
box.
5. Tighten the two screws on the outlet
box securely.
6. Remove three of the six screws and lock
washers (every other one) from the
collar of top motor. (Fig. 9)
7. Place the ceiling canopy over the collar
at the top of the motor. Align the
mounting holes with the holes in the
motor and fasten using the screws and
lock washers provided. (Fig. 9)
8. Tighten the mounting screws securely.
(Fig. 9)
WARNING: Failure to completely tighten
the three screws in step 7 could result in
fan loosening and possibly falling.
9. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is
fully locked into hook as shown in Fig.
10. This will allow you to make the
electrical connections.
Figure 8
Figure 9
Figure 10
Canopy bottom cover
Hook
Screw and lockwasher
(3 of 6 places)
Canopy
Canopy
Collar

6
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw
and washer, as illustrated in Figure 11.
7. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the main fuse box before wiring.
NOTE: This remote control unit is equipped
with 16 code combinations to prevent
possible interference from or to other
remote units. The frequency switches on
your receiver and transmitter have been
preset at the factory. Please recheck to
make sure the switches on transmitter and
receiver are set to the same position, any
combination of settings will operate the
fan as long as the transmitter and receiver
are set to the same position. (Fig. 12)
Step 1. (Fig. 13) Insert the receiver into
the mounting bracket with the flat side of
the receiver facing the ceiling.
Step 2. (Fig. 14 & 15) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan to the white wire marked "TO
MOTOR N" from the receiver. Connect the
blue wire from the fan to the blue wire
marked "For Light" from the receiver.
Secure the wire connections with the
plastic wire nuts provided.
Hanger bracket Safety cable
Figure 11
Figure 12
Figure 13
Code switch
ON
ON
Receiver
Hanger
bracket

7
Step 3. (Fig. 14 & 15) Receiver to House
Supply Wires Electrical Connections:
Connect the black (hot) wire from the
ceiling to the black wire marked "AC in L"
from the receiver. Connect the white
(neutral) wire from the ceiling to the white
wire marked "AC in N" from the Receiver.
Secure the wire connections with the
plastic wire nuts provided.
Step 4. (Fig. 14 & 15) If your outlet box has
a ground wire (green or bare copper)
connect it to the fan ground wires;
otherwise connect the hanging bracket
ground wire to the mounting bracket.
Secure the wire connection with a plastic
nut provided. After connecting the wires,
spread them apart so that the green and
white wires are on one side of the outlet
box and black and blue wires are on the
other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan's receiving unit.

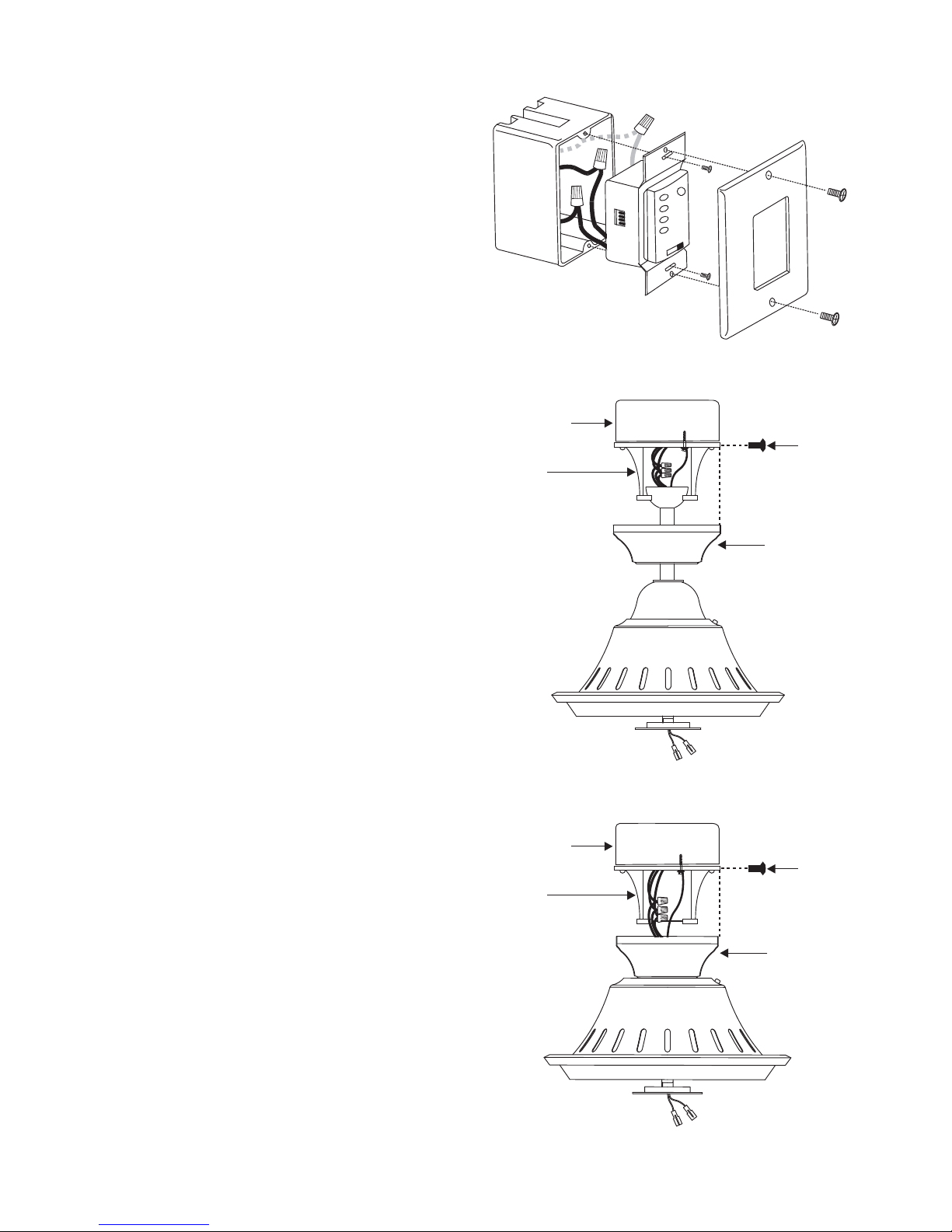

Figure 14
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
Figure 15
INPUT
AC120V
AC SUPPLY
White
White
White
Blue
Black
Black
Black
Black
Black
Black
Black
Wall
transmitter
Ground
Ground
Green
Green
White
Blue
Black
Fan

8
Figure 16
9. FINISHING THE
INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 17. Make sure you place the wires
safely into the outlet box. Secure the
canopy to the hanger bracket with the
four screws with your fan.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the
hanger bracket. Secure the canopy to the
hanger bracket as shown in Figure 18 with
four screws included with your fan.
8. INSTALLING THE WALL
TRANSMITTER
REMEMBER to Shut the Power Off at the
Circuit Breaker or Fuse Box.
WARNING: HOOK UP IN "SERIES ONLY" DO
NOT CONNECT THE HOT AND NEUTRAL
WIRES OF ELECTRIC CIRCUIT TO THE
TRANSMITTER WALL SWITCH - DAMAGE TO
THE SWITCH AND POSSIBLE FIRE COULD
OCCUR.
Step 1. Remove the existing wall plate and
switch from the wall junction box.
Step 2. Make the electrical connections as
shown in (Fig. 15). If your outlet box has a
ground wire (green or bare copper)
connect the wall transmitter's ground wire
to it; otherwise connect the wall
transmitter's ground wire directly to one of
the screws from the outlet box.
Step 3. (Fig. 16) Carefully tuck the wire
connections inside the junction box. Secure
the wall transmitter with the two screws
provided. Attach the wall plate over the
wall transmitter and secure with the two
screws provided.
Figure 17
Outlet box
Hanger
bracket
Canopy
Screws
Figure 18
Outlet box
Hanger
bracket
Canopy
Screws

9
10. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing
mounts and discard before installation.
Step 1 Attach the blade to the blade
bracket using the screws and fiber
washers as shown in Figure 19. Start screw
into bracket. Repeat for the two remaining
screws.
Step 2 Tighten each screw. Make sure the
blade is straight.
Step 3 Fasten blade assembly to motor
using the screws supplied. (Fig. 19)
Figure 19
Figure 20
Screws
Blade
Blades bracket
Screws
Fiber
washers
11. INSTALLING THE
LIGHT KIT
NOTE: Before starting installation,
disconnect the power by turning off
the circuit breaker or removing the
fuse at fuse box.
Step 1. Remove the 1 of 3 screws from
the mounting ring and loosen the other
2 screws. (Do not remove)
Step 2. Raise and hold the light kit close
to the ceiling fan and proceed to do the
wire connections. Connect the white
wire connectors from the light kit and
fan, follow the same procedure with the
black wire connectors. (Fig. 20)
Step 3. Place the key holes on the light
kit over the 2 screws previously
loosened from the mounting ring, turn
light kit until it locks in place at the
narrow section of the key holes. Secure
by tightening the 2 screws previously
loosened and the one previously
removed. (Fig. 20)
Mounting ring
Connection plugs
Light kit
Screws

10

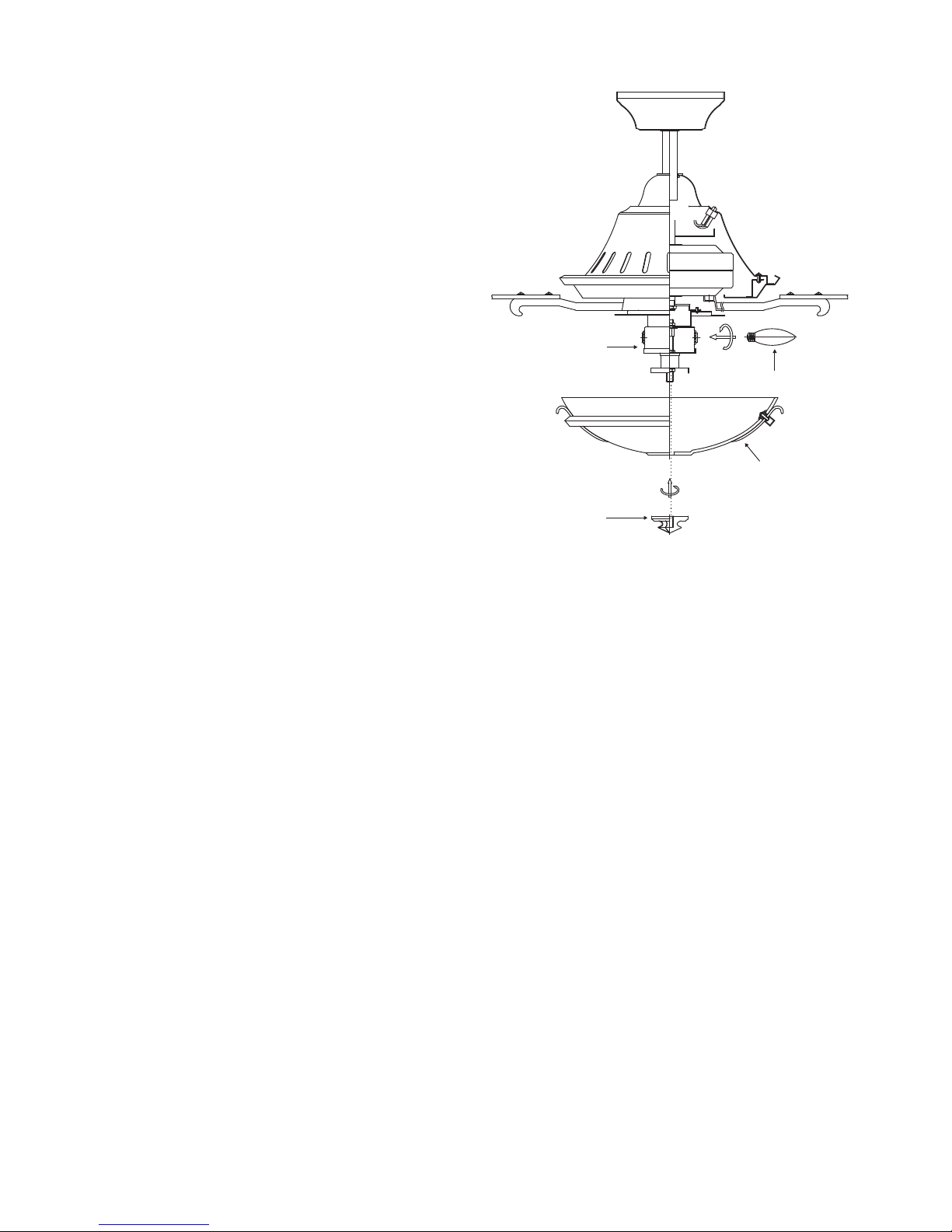

Figure 21
12. INSTALLING THE
LIGHT BULBS & GLASS
SHADE
1. Install 3 x 40W candelabra bulbs
(included). (Fig. 21)
2. Remove the decorative nut from the
light kit. Place glass shade assembly
over the light kit stem, secure with
decorative nut. Do not overtighten.
(Fig. 21)
3. Restore power and your light kit is
ready for operation.
Light kit
Bulbs
Glass shade
assembly
Decorative nut

11
Figure 22
Figure 23
Figure 24
13. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. HI, MED, and LOW buttons:
These three buttons are used to set
the fan speed as follows:
HI= high speed
Med= medium speed
Low= low speed
B. FAN OFF button:
This button turns the fan off.
C. LIGHT button:
This button controls the light. Press
and release the button to turn the
light ON or OFF. Press and hold the
button to set the desired brightness.
The light key has an auto-resume, it
will stay at the same brightness as
the last time it was turned off.
D. "OFF-ON "Slide Button:
This button turns the power Off and
On to the Fan and Light(s).
The Reverse switch is located on the top of
the motor housing. Slide the switch to the
Left for warm weather operation. Slide the
switchto the Right forcoolweatheroperation.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: Wait for fan to stop before
changing the setting of the slide switch.
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown
in Fig. 23. This allows you to set your
air conditioner on a warmer setting
without affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling
area as shown in Fig. 24. This allows you
to set your heating unit on a cooler
setting without affecting your comfort.

12
Problem
Fan will not start.
Fan sounds
noisy.
Fan wobble.
Lights shut off
and will not
come back on.
Remote control
malfunction.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in
the switch housing.
CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver
are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other or
the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Do not connect the fan with a wall mounted variable speed control (s)
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above the
tip of one of the blades. Measure this distance. Rotate the fan until the
next blade is positioned for measurement. Repeat for each blade. The
distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side
by side) blades can redistribute the weight and possibly result in
smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
1. This unit is equipped with a wattage limiting device. Lamping in
excess of 190 watts will disable your ceiling fan's light kit. To reset your
light kit you must turn the power off and re lamp, keeping the
wattage under 190 watts. Restore power to your ceiling fan and
continue normal operation.
1. Do not connect the fan with a wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
14. TROUBLESHOOTING
