Savoy House M2011 Series User manual

FAN RATING AC 120V. 60Hz
UL LISTED MODEL : YG893
MODEL: M2011XX
READ AND SAVE THESE INSTRUCTIONS
OWNER'S MANUAL
56” CEILING FAN

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items:
a. Set of blades assembly (4)
b. Blade support plate
c. Hanger bracket assembly
d. Downrod
e. Coupling cover
f. Fan motor assembly
g. Mounting plate
h. LED Light kit
i. Lamp shade
j. Receiver+wire nuts (6)

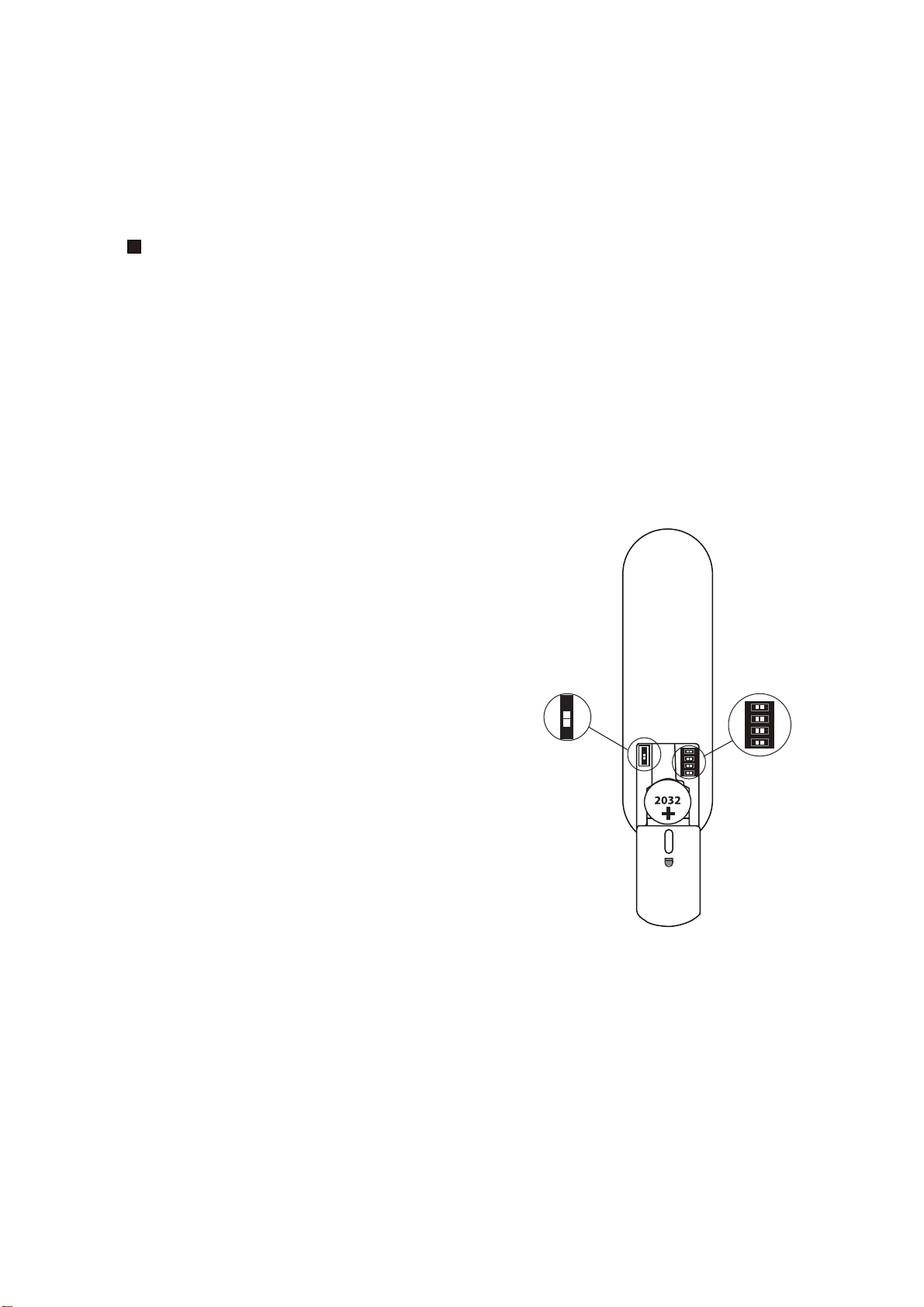

k. Transmitter+holder+2 mounting
screws+3 volt battery (CR2032)
l. Package hardware
1) Mounting hardware :
screws(2), lock washers(2),
star washers(2), wire nuts(3)
wood screws(2), washers(2)
2) Blade attachment hardware:
screws with lock washers (10)
3) Balance Kit
1
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED
a
j
k
l
b
c
d
e
f
g
h
i

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric
shock, or personal injury, mount to outlet
box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the
support of light fixtures are not acceptable
for fan support and may need to be
replaced. Due to the complexity of the
installation of this fan, a qualified licensed
electrician is strongly recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.

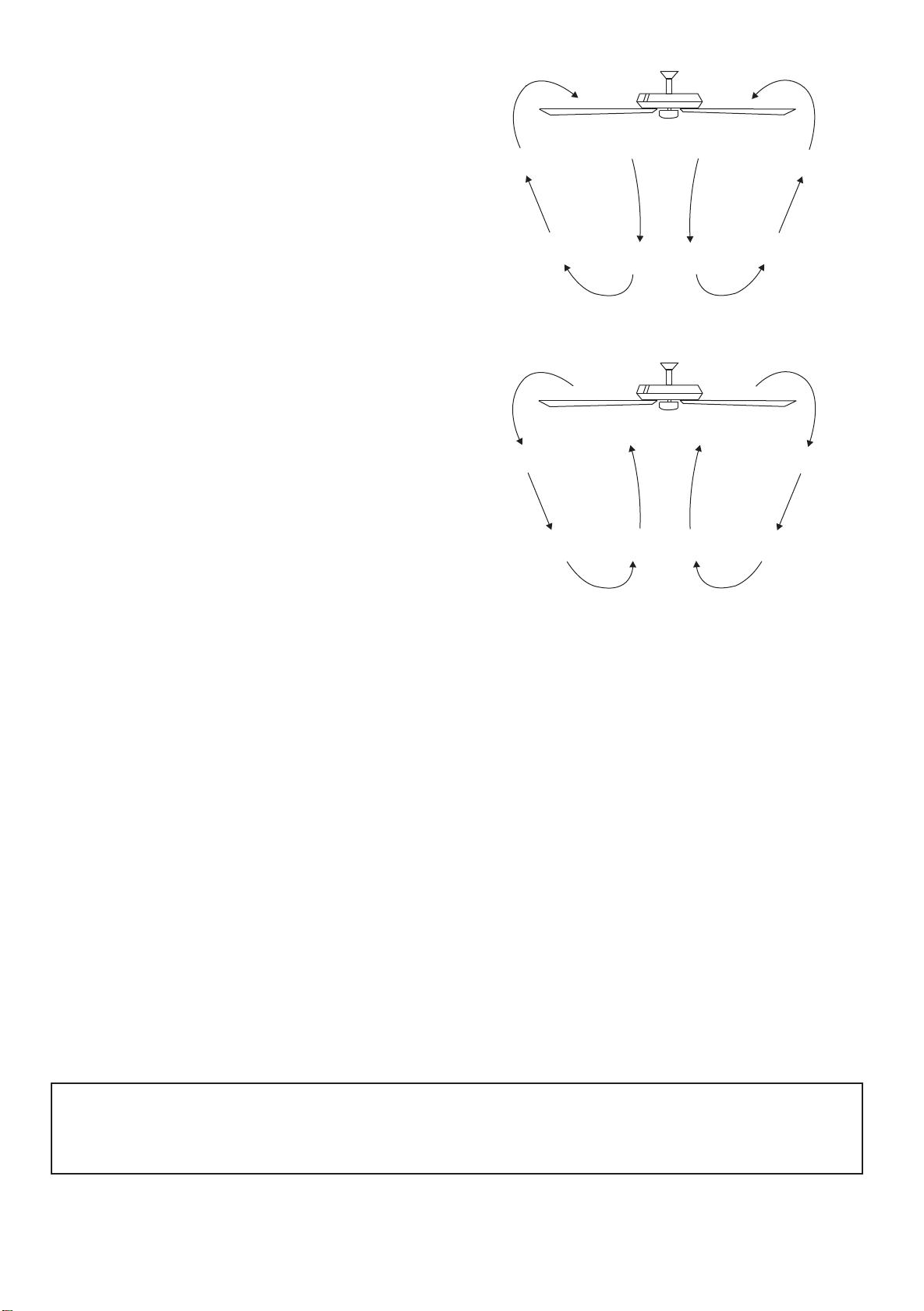

7. To operate the reverse function on this fan,
press the reverse button while the fan is
running.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be UL Listed and marked suitable for
use with the model fan you are installing.
Switches must be UL General Use
Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
13. WARNING: Chemical Burn Hazard. Keep
batteries away from children.
14. This product contains a lithium button/coin
cell battery. If a new or used lithium
button/coin cell battery is swallowed or
enters the body, it can cause severe
internal burns and can lead to death in as
little as 2 hours. Always completely secure
the battery compartment. If the battery
compartment does not close securely, stop
using the product, remove the batteries,
and keep it away from children. IF you
think batteries might have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
15. The batteries shall be disposed of properly,
including keeping them away from
children; Even used cells may cause injury.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses
or turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate fasteners
and building materials. The outlet box and
its support must be able to fully support
the moving weight of the fan (at least 50
lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an
existing fixture but no ceiling joist, you
may need an installation hanger bar as
shown in Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 25° ANGLE

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by removing the 1 of 2 screws from
the bottom of the hanger bracket and
loosening the other one a half turn from the
screw head. Next, turn the canopy counter
clockwise to removing the hanger bracket
from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through the
ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing (Fig.7). Carefully insert
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Step 8. Tighten two set screws on top of the
fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
Figure 6
Figure 5
Figure 7
Figure 8
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Hanger
bracket
Ceiling
canopy
Canopy
cover
Coupling cover
120V Wires
Ceiling
hanger
bracket
Mounting screws
(supplied with
electrical box)
UL Listed
electrial box
Washers

5
6.MAKETHEELECTRICAL
CONNECTIONS
WARNING: To avoid possible electrical shock,
be sure electricity is turned off at the main
fuse box before wiring.
Follow the steps below to connect the fan to
your household wiring. Use the plastic wire
nuts with your fan. Secure the plastic wire
nuts with electrical tape. Make sure there are
no loose strands or connections.
Motor to receiver electrical connections:
•Connect the white wire from the fan to the
white wire marked "For Light" from the
receiver .
•Connect the blue wire from the fan to the
blue wire marked "For Light" from the
receiver.
•Connect the yellow wire from the fan to
the yellow wire from the receiver.
•Connect the red wire from the fan to the
red wire from the receiver .
•Connect the grey wire from the fan to the
grey wire from the receiver.
•Connect the green wires from the fan, the
receiver, and the mounting bracket to the
fitter ground wire.
receiver to house supply wires electrical
connections:
•Connect the black (hot) wire from the
ceiling to the black wire marked "AC in L"
from the filter.
•Connect the white (neutral) wire from the
ceiling to the white wire marked "AC in N"
from the from the filter.
•Connect the green wire from the ceiling to
the green wire from the filter.
•Secure each wire connection with a plastic
wire nut provided with the electrical
hardware.
After connecting wires, spread them apart so
that the green and white wires are on one
side of the outlet box and the black wire is on
the other side. Carefully tuck the wire
connections and the fitter up into the outlet
box.
Insert the receiver into the mounting bracket
with the flat side of the receiver facing the
ceiling.

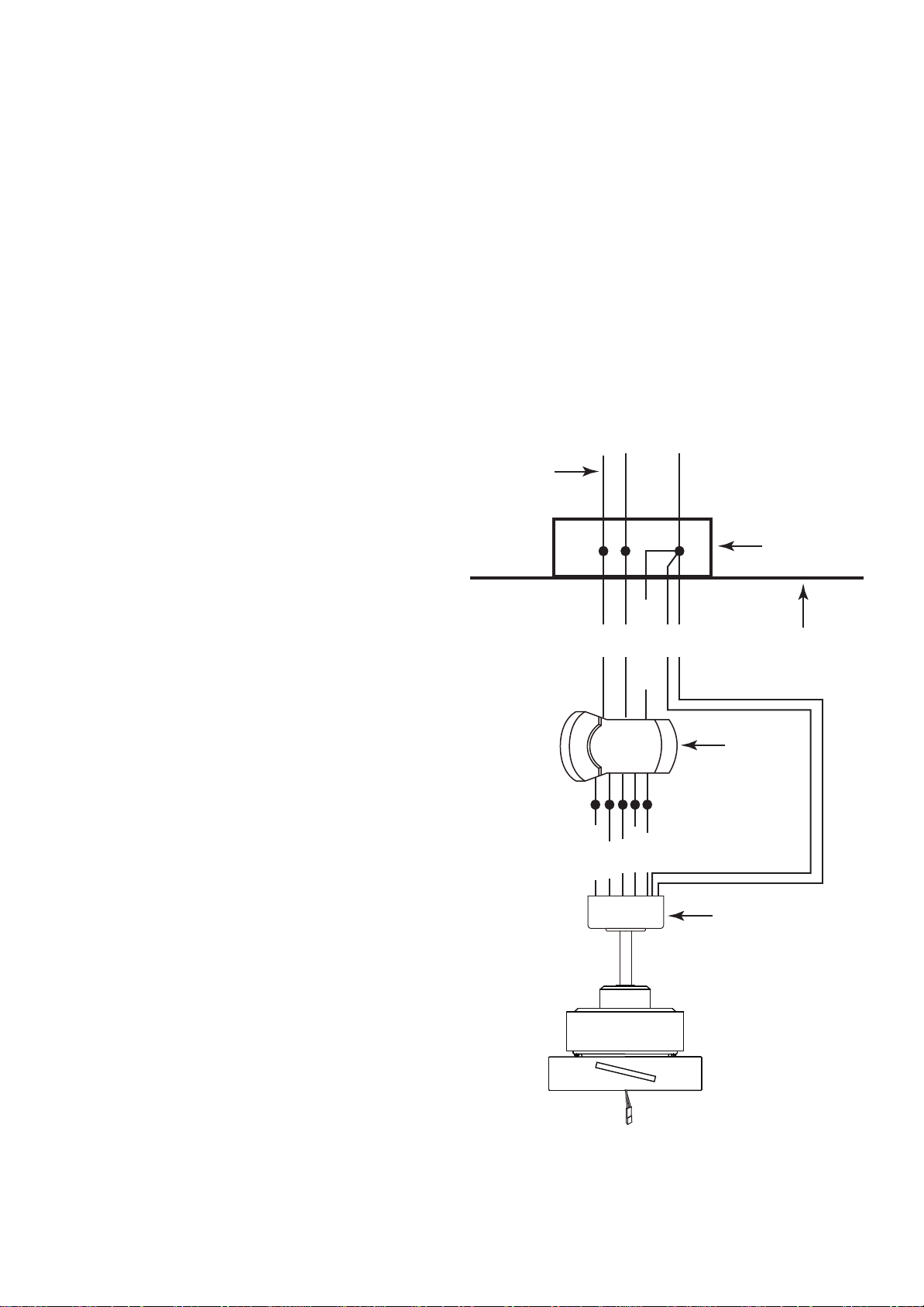

Figure 9
Receiver
Fan canopy
Outlet box
Ceiling
WH
WH
BLK
BLK
House
supply
wire
GRN GRN
YELLOW/GRN
GROUND
GRN (downrod)
GRN (hanger bracket)
RED
BLUE
WHITE
YELLOW
GRAY

6
7. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn
canopy until it locks in place at the narrow
section of the key holes.
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws.
NOTE: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig. 10)
WARNING: Make sure tab at bottom of
hanger bracket is properly seated in groove
of hanger ball before attaching canopy to
bracket. Failure to properly seat tab in groove
could cause damage to electrical wiring.

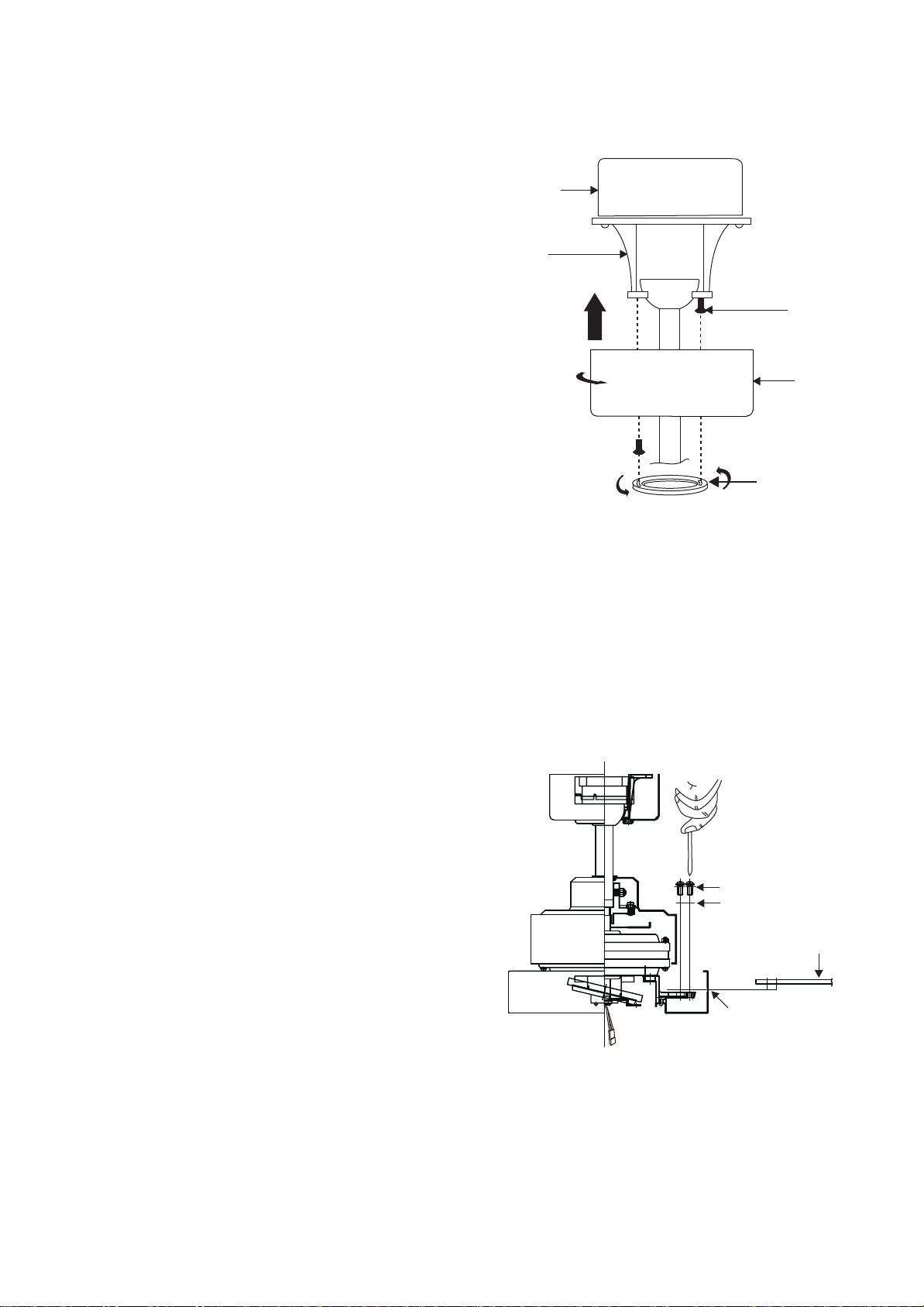

Figure 10
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
Figure 11
8. ATTACHING THE FAN
BLADES
Step 1. Insert the blade through the slot in
the housing. Align the holes in the blade and
the fan motor assembly and secure with
blade support plate and screws with lock
washers . (Fig. 11)
Blade
Screws with lock washers
Blade support plate
Slot

7

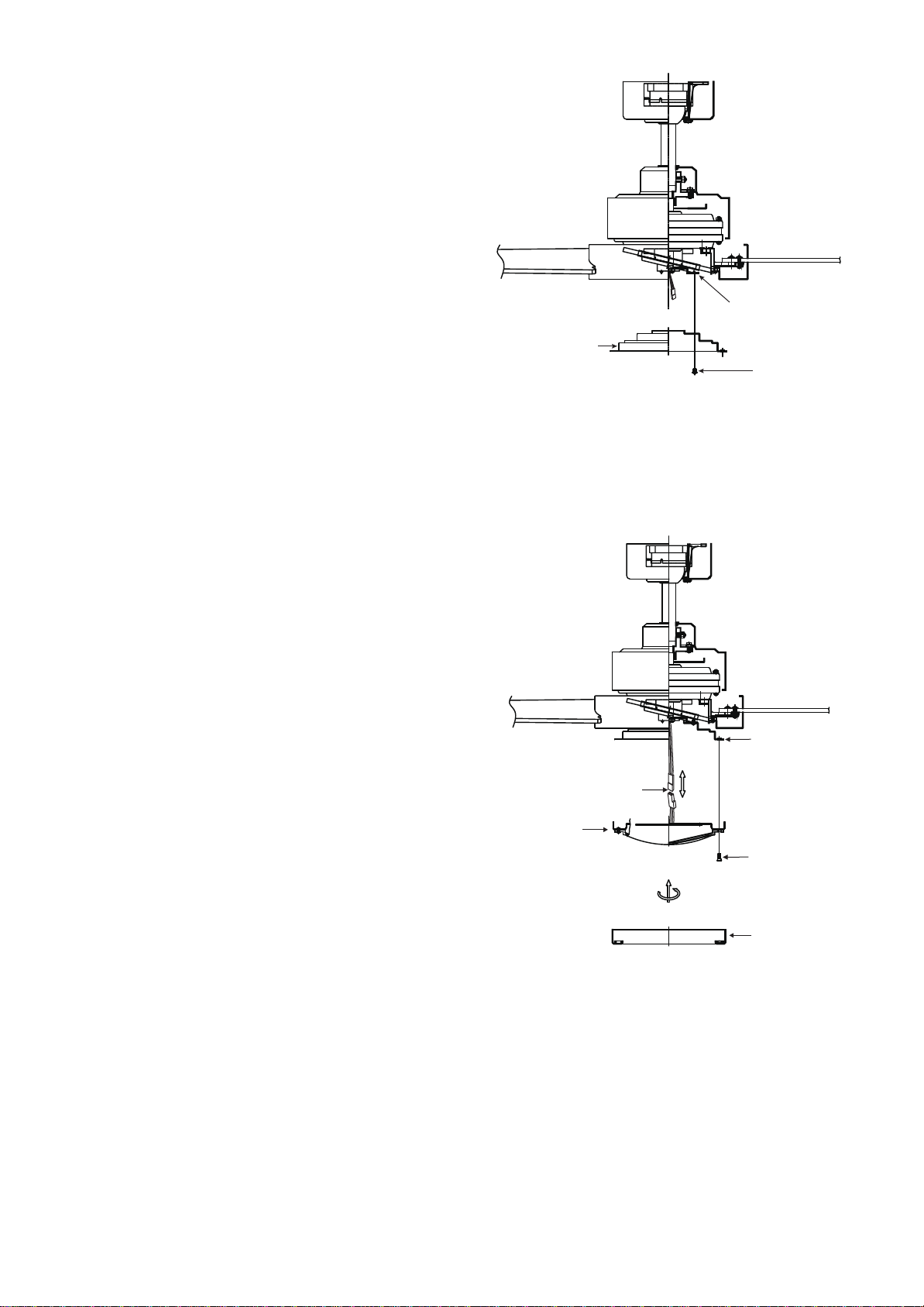

Figure 12
9.INSTALLATINGTHE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
Step 2. Place the key holes on the
mounting plate over the 2 screws
previously loosened from the mounting
ring, turn mounting plate until it locks in
place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 12)
Figure 13
10.INSTALLINGTHELED
LIGHTKIT&LIGHTKIT
DECORATIVERING
NOTE: Before starting installation, disconect
the power by turning off the circuit breaker
or removing the fuse at fuse box. Turning
power off using the fan switch is not
sufficienttopreventelectricshock.
Step 1. Remove the four light kit mounting
screws from the posts of the mounting
plate.(Fig.13)
Step 2. While holding the LED light kit
under your fan, make the polarized plug
connections:
-Redtowhite
-Blacktoblack
Step 3. Place the LED light kit to the to the
mounting plate with the four light kit
mounting screws previously removed.
Securelytightenthe four light kit mounting
screws. (Fig.13)
Step 4. Raise light kit decorative ring
up against the LED light kit, and secure it
to fan by turning light kit decorative ring
clockwise until snug. Do not overtighten.
(Fig. 13)
Mounting ring
Mounting
plate
Screws
LED Light kit
Screws
Mounting
Plate
Connection
plugs
Light kit
decorative ring

8
Figure 14
Figure 15
Insert the 3 volt battery (included) and make
sure the battery is properly seated with the
Positive + sign facing up. (Fig. 14)
Your DC motor is equipped with an auto
learning type of remote control. There are no
frequency switches on the receiver unit, the
receiver will automatically learn the frequency
from the remote control during the pairing
process.
The remote control unit has frequency
settings that can be changed. The frequency
settings on the remote control should only be
changed if your fan experiences interference
or if a second or more fans with the same type
of control system are installed in the same
structure. (Fig. 14)
ON/DIM Switch: The ON position is to be used
for a light kit with CFL bulbs, the DIM position
is to be used for all other dimmable style
bulbs. (Fig. 14)
11. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation. (Fig. 15)
A. button:
Increase fan speed ( 6 speed max.)
B. button:
Decrease fan speed (1 speed minimal)
C. 6 SPEED LED indicators:
Pressing and holding the + button will
increase the fan speed automatically
through the speed settings and the incre-
ments will be denoted on the LED indica-
tors.
= minimum speed
= low speed
= medium low speed
= medium speed
= medium high speed
= high speed
D. button:
Maximum (6 speed).
E. fan off/set buton:
This button turns the fan off.
F. The " " button is used to set the fan
forward or reverse, press the button
forward (for warm weather) or reverse
(for cool weather).
G. button:
This button controls the light. Press and
release the button to turn the light ON or
OFF. Press and hold the button to set the
desired brightness. The light key has an
auto-resume, it will stay at the same
brightness as the last time it was turned
off.
ON
DIM
ON
DIM
ON ECE
1234
ON ECE
1234
Frequency Switch
Push support to
open the back cover
Code switch

9
Figure 16
PairingProcess:
The auto-learning process will only initiate
within the first 60 seconds of supplying power
tothefan.
Beginning with the fans power off, restore
power to the fan. Press and hold the “Fan
Off/Set” button for 6 seconds and release. If
the optional light kit is installed, the light will
blinktwice. Oncethe receiver has detected the
frequency, the fan will automatically begin a
self-calibration process. The fan will begin to
operate and rotate in the counter-clockwise
direction on the highest RPM for 3 minutes.
When the counter-clockwise rotation has
finished, the fan will reverse and rotate in the
clockwise position on the highest RPM for 3
minutes. The fan will stop rotating once the
self-calibration process is complete. The total
self-calibration process will last approximately
6 minutes. During the self-calibration process
the remote control will not function and no
buttonsshouldbe pressed.
PairingProcessforMultipleFans:
Select the desired frequency setting from the
backoftheremotecontrol.(Fig16)Youchange
the frequency setting by arranging the small
switches numbered 1 through 4 in the up or
downpositionmaking16differentfrequencies
orcombinationspossible.Anytimeyouchange
the frequency for a fan you must complete the
pairingprocessas described above.
Beginningwiththepowerofftoallfans,restore
power to the first fan. Select the desired
frequency setting. Complete the pairing
process as described above. Test the fan for
properoperation.
Restore power to the second fan. Select the
desired frequency setting. Complete the
pairing process as described above. Test the
fanforproper operation.
Repeat this process until all fans have been
paired.
This receiver provides the following protective
function:
1. Lock Rotor Position: The DC motor has a
built-in safety against a stalled or locked rotor
condition (stalled blade rotation). If there is an
obstructionorfaultwith themotor,thecurrent
monitoring function will automatically turn
power off to the motor after 30 seconds.
RemovetheobstructionandturntheACpower
off.Restorepower and re-startfanmotor.
2. Over 80W protection: When the receiver
detects motor power consumption which is
greater than 80W, the receiver power will be
stopped and operation will immediately
discontinue. Wait for 5 seconds and then turn
thereceiverpower back on.
Frequency Switch
Code switch
ON
DIM
ON
DIM
ON ECE
1234
ON ECE
1234

10
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the
motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
12. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY
REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".
Figure 17
Figure 18
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
NOTE: To operate the reverse function on
this fan, press the reverse button while the
fan is running.
Warm weather - (Forward) A downward air-
flow creates a cooling effect as shown in Fig.
17. This allows you to set your air conditioner
on a warmer setting without affecting your
comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 18. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.

11
13. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds noisy.
Remote control
malfunction.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and receiver are
set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing. CAUTION: Make sure main power is
off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control(s).
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control(s).
2. Make sure the dip switches are set correctly.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are unequal.
Check this level by selecting a point on the ceiling above the tip of one of
the blades. Measure this distance. Rotate the fan until the next blade is
positioned for measurement. Repeat for each blade. The distance deviation
should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent (side by
side) blades can redistribute the weight and possibly result in smoother
operation.
WARNING: To reduce the risk of personal injury, do not bend the blade arm
while installing, balancing the blades, or cleaning the fan. Do not insert
foreign objects between rotating fan blades.
