Savoy House 52-160-5RV-13 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552
MODEL: 52-160-5RV-13
CEILING FAN
OWNER'S MANUAL

1
2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items:
a. Set of blades assembly (5)
b. Hanger bracket
c. Canopy
d. Downrod
e. Coupling cover
f. Fan motor assembly
g. Mounting plate
h. Set of blades bracket (5)
j. Light kit assembly
j. Glass shade
k. 3 x 40W candelabra bulbs
l. Pull chain and fobs (2)
m. Extra plastic plug
n. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3)
wood screws (2), washers (2)
2) Blade attachment hardware:
screws (16), fiber washers (16)
3) Blade arm hardware:
screws with lock washers (11)
4) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
g
h
i
j
n
m
l
k

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric
shock, or personal injury, mount to outlet
box marked "acceptable for fan support of
15.8 kg (35 lbs.) or less" and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the
support of light fixtures are not acceptable
for fan support and may need to be
replaced. Due to the complexity of the
installation of this fan, a qualified licensed
electrician is strongly recommended.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only. Light
kit that are not packed with the fan must be
UL Listed and marked suitable for use with
the model fan you are installing. Switches
must be UL General Use Switches. Refer to
the Instructions packaged with the light kits
and switches for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.
ATTENTION
Under the Energy Policy Act of 2005,
federal regulations require all ceiling fans
with light kits manufactured or imported
after January 1, 2009, to limit the total
wattage consumed by the light kit to 190
watts. Therefore, this product is equipped
with a 190W limiting device. If lamping
exceeds 190 watts, the light kit will shut
off automatically until the proper wattage
of bulbs are installed. Reset the light kit by
turning it off, replacing the bulbs with the
correct wattage, and then turning the
light kit back on.

4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses
or turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate fasteners
and building materials. The outlet box and
its support must be able to fully support
the moving weight of the fan (at least 50
lbs). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGULO MÁXIMO
EN EL TECHO: 20º

4
Figure 6
Figure 7
Registration slot
5. HANGING THE FAN
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting and the "close
-to-ceiling" installation. The "close -to -
ceiling" installation is recommended in
rooms with less than 8-feet ceilings or in
areas where additional space is desired
from the floor to the fan blades.

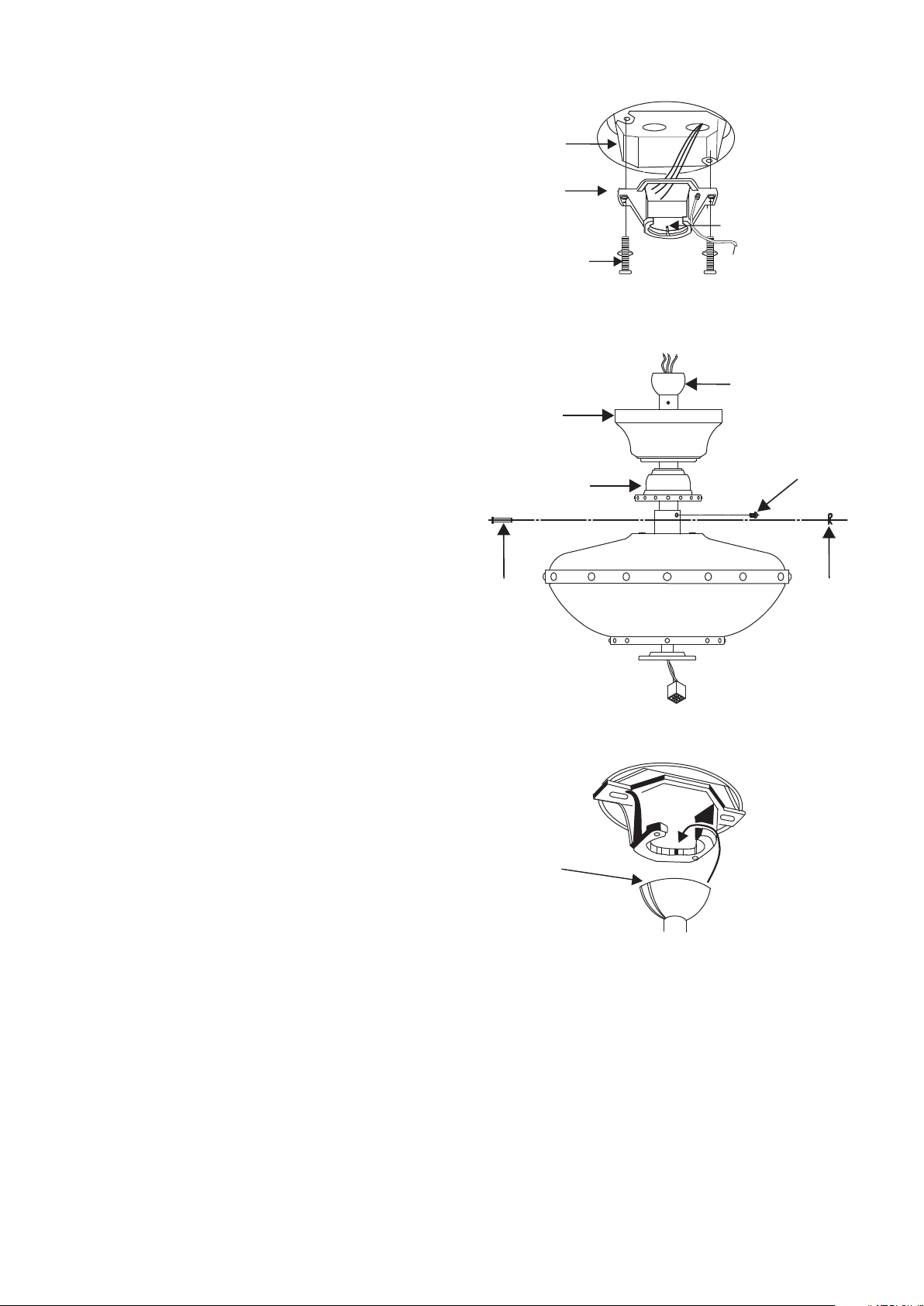

STANDARD CEILING INSTALLATION
Step 1. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 3. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 4. Route wires exiting from the top of
the fan motor through the coupling cover,
canopy, and then through the ball/
downrod. (Fig. 6)
Step 5. Align the holes at the bottom of
the downrod with the holes in the collar on
top of the motor housing (Fig.6). Carefully
insert the hitch pin through the holes in
the collar and downrod. Be careful not to
jam the pin against the wiring inside the
downrod. Insert the locking pin through
the hole near the end of the hitch pin until
it snaps into its locked position, as noted in
the circle inset of Fig. 6.
Step 6. Tighten two set screws on top of
the fan motor firmly. (Fig. 6)
Step 7. Place the downrod ball into the
hanger bracket socket. (Fig. 7)
Figure 5
Downrod
Set screws
Lock pin
Hitch pin
Canopy
Coupling cover
Tab
Mounting screws
(supplied with
electrical box)
UL Listed
electrical box
Hanger
bracket

5
CLOSE-TO-CEILING INSTALLATION
1. Pass the 120-volt supply wires through
the center hole in the ceiling hanger
bracket as shown in Fig. 5.
2. Remove the decorative canopy cover
from the canopy. (Fig. 8)
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box.
4. Remove three of the six screws and lock
washers (every other one) from the
collar of top motor. (Fig. 9)
5. Place the ceiling canopy over the collar
at the top of the motor. Align the
mounting holes with the holes in the
motor and fasten using the screws and
lock washers provided. (Fig. 9)
6. Tighten the mounting screws securely.
WARNING: Failure to completely tighten
the three screws in step 5 could result in
fan loosening and possibly falling.
7. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is
fully locked into hook as shown in Fig.
10. This will allow you to make the
electrical connections.
Figure 9
Figure 8
Figure 10
Canopy
Canopy
Decorative canopy
cover
Collar
Screw and lockwasher
(3 of 6 places)
Hook

6

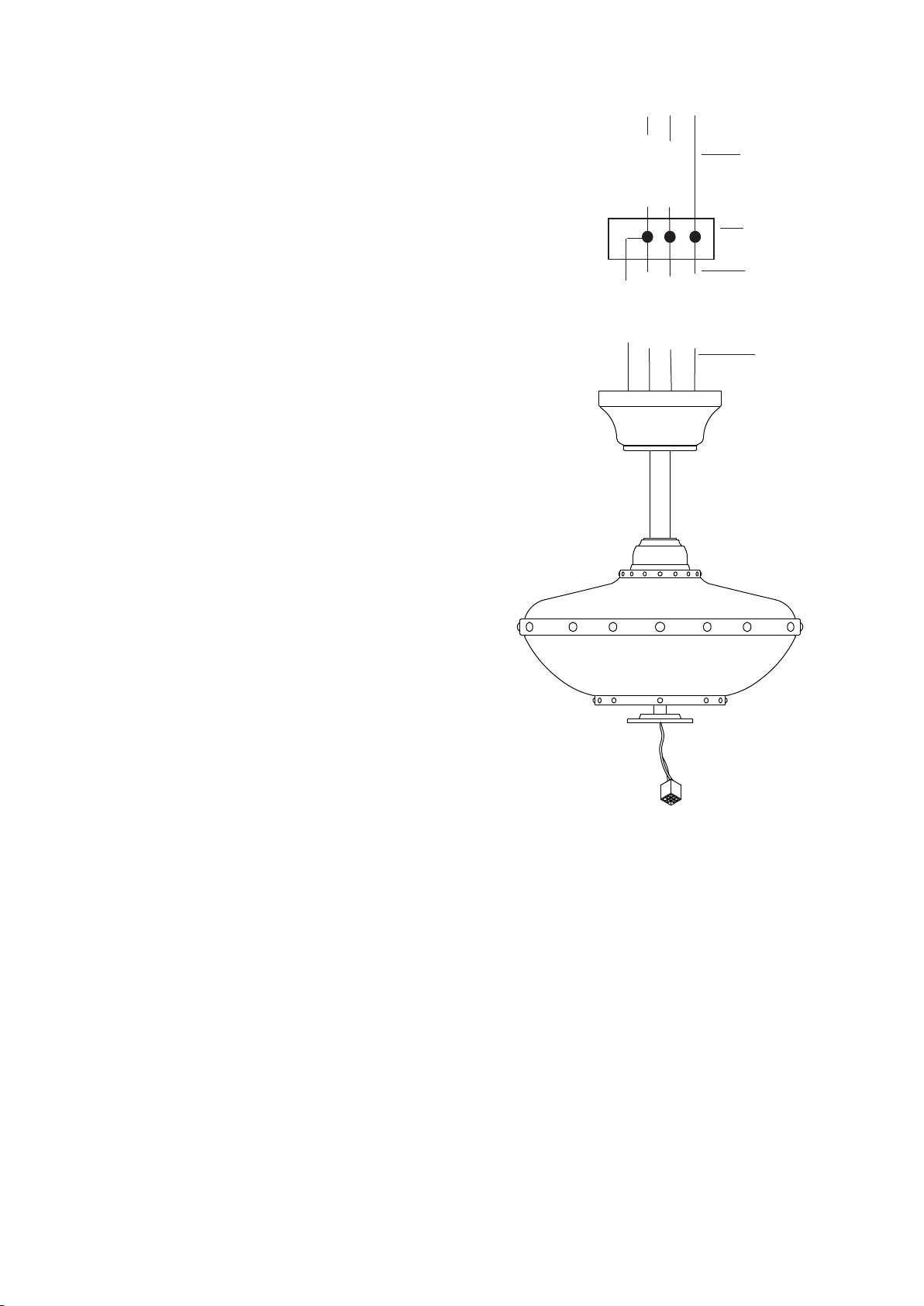

6. MAKE THE ELECTRIC
CONNECTIONS
Remember to disconnect the power.
Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1. Connect the fan supply (black) wire
and light supply (blue) wire to the black
household supply wire as shown in Figure
11.
Step 2. Connect the neutral fan (white)
wire to the white neutral household wire.
Step 3. Connect the fan ground wire
(green) to the household ground wire.
Step 4. After connecting the wires, spread
them apart so that the green and white
wires are on one side of the outlet box and
the black and the blue wires are on the
other side.
Step 5. Turn the connecting nuts upward
and push the wiring into the outlet box.
Figure 11
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
SUPPLYCIRCUIT
BLACK WHITE
BLACK
BLUE
GREEN
WHITE
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod

7

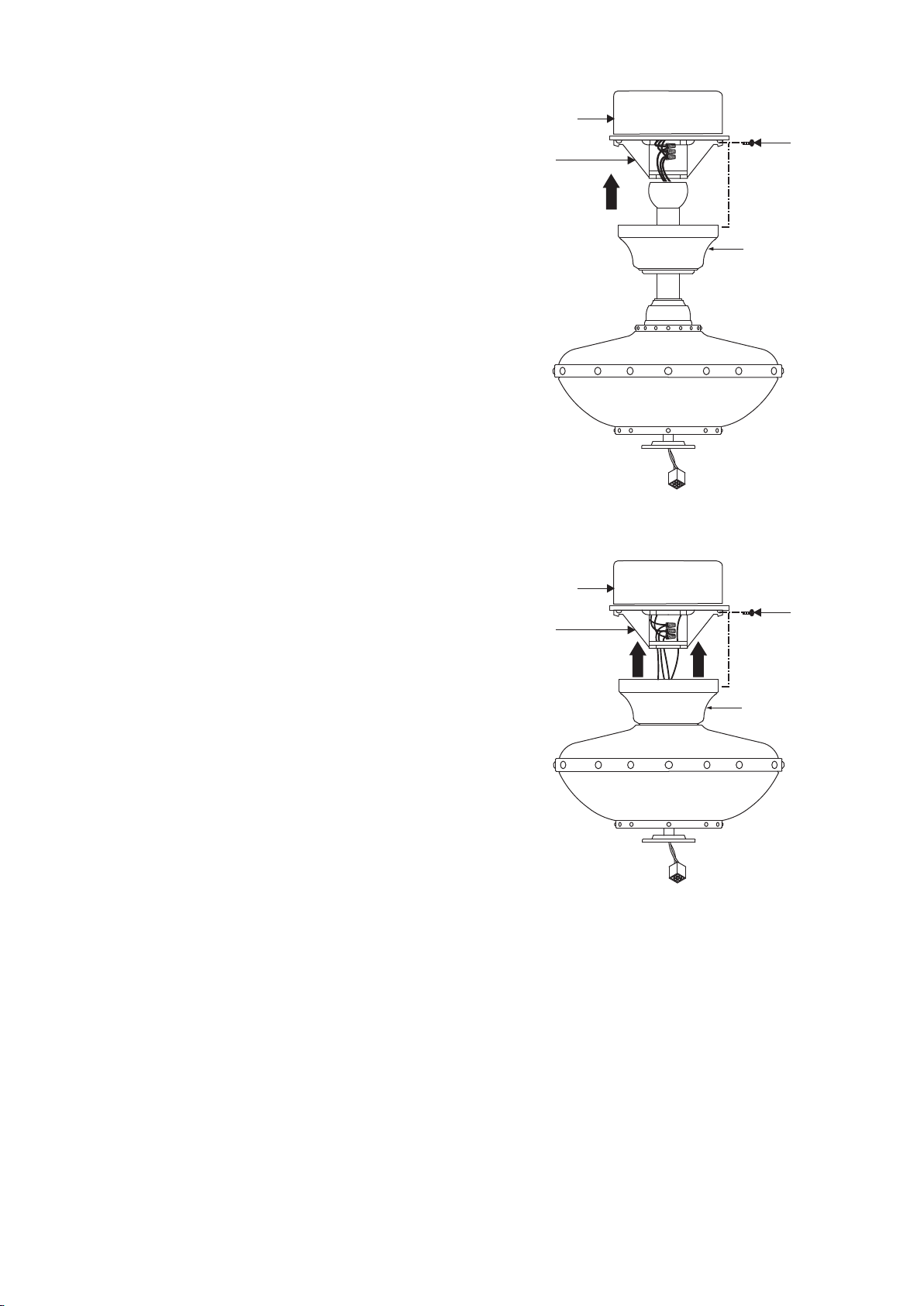

7. FINISHING THE
INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 12. Make sure you place the wires
safely into the outlet box. Secure the
canopy to the hanger bracket with the four
screws with your fan.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the
hanger bracket. Secure the canopy to the
hanger bracket as shown in Figure 13 with
four screws included with your fan.
Figure 12
Figure 13
Outlet box
Hanger
bracket
Screws
Outlet box
Hanger
bracket
Ceiling canopy
Screws
Ceiling canopy

8
8. ATTACHING THE FAN
BLADES
Caution: Remove the screws from the
motor support plate, discard the screws
and motor support plate.
Step 1. Attach the blade to the blade
bracket using the screws and fiber
washers as shown in Figure 14. Start screw
into bracket. Repeat for the two remaining
screws.
Step 2. Tighten each screw. Make sure the
blade is straight.
Step 3. Fasten blade assembly to motor
using the screws supplied. (Fig. 14)
Figure 15
Figure 14
9. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
Step 2. Place the key holes on the
mounting plate over the 2 screws
previously loosened from the mounting
ring, turn mounting plate until it locks in
place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 15)
Screws Blade
Blade bracket
Screws
Fiber
washers
Mounting
plate
Mounting ring
Screws

9
Figure 16
Figure 17

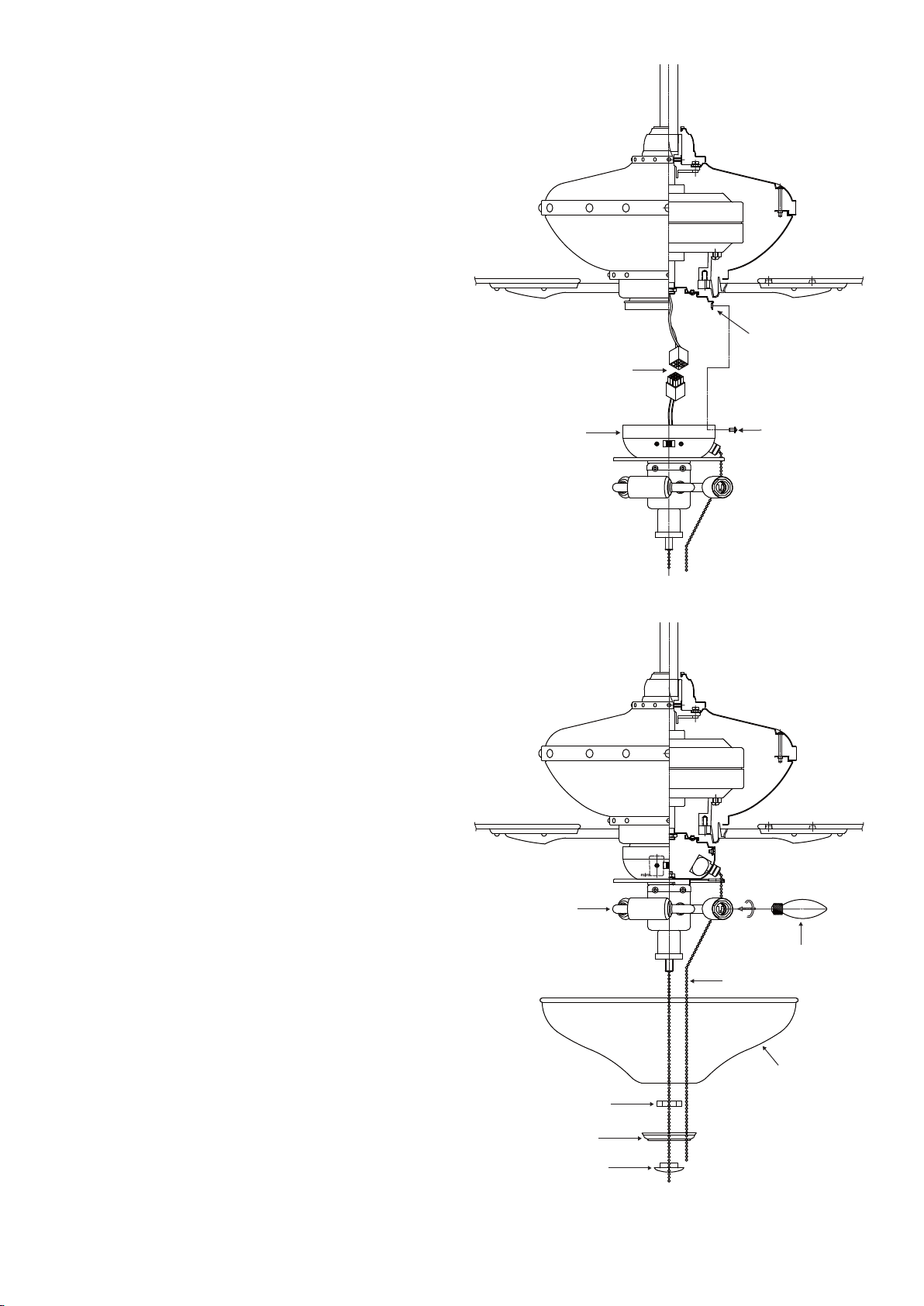

11. INSTALLING THE
LIGHT BULBS & GLASS
SHADE
1. Install 3 x 40W candelabra bulbs
(included).
2. Insert the fan pull chain through the
eyelet in the shade and cap. Also insert
the light kit pul chains through the
shade and cap. (Fig. 17)
3. Remove the metal nut, glass cap and
decorative nut from the light kit. Place
glass shade over the light kit stem,
secure with the metal nut, glass cap and
decorative nut. Do not overtighten. (Fig.
17)
Note: Make sure to leave enough space
between the fan pull chain and the bulbs
so the chain doesn't rub against any of the
bulbs.
10. INSTALLING THE
LIGHT KIT
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at
fuse box. Turning power off using the fan
switch is not sufficient to prevent electric
shock.
1. Remove the screws from the mounting
plate under the fan motor.
2. While holding the light kit assembly
under your fan, snap together the wire
connection plug. (Fig. 16)
3. Raise the light kit to the mounting plate
until the holes in light kit and mounting
plate line up. Reinsert screws to secure in
place. (Fig. 16)
Mounting
plate
Connection plugs
Light kit
assembly
Screws
Light kit
Bulbs
Pull chains
Glass shade
Decorative nut
Glass cap
Metal nut

10
13. OPERATING YOUR FAN
Turn on the power and check the operation
of your fan. The pull chain controls the fan
speed as follows: 1 pull- High, 2 pulls-
Medium, 3 pulls- Low, and 4 pulls-Off.
Light pull chain it controls the light in "ON"
or "OFF".
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans and so on.
The slide switch controls directions: forward
(switch left) or reverse (switch right).
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 19. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 20. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.
Figure 19
Figure 18
Figure 20
12. FAN WITHOUT LIGHT
KIT (OPTIONAL)
1. Disassemble the switch housing from the
light kit by removing nut and washer on the
center of switch housing, you can keep the
light kit for future use.
2. While holding the swith housing under
your fan, snap together the wire connection
plug. (Fig. 18)
3. Attach the plastic plug to the switch
housing. (Fig. 18)
4. Install the switch housing to the mounting
plate with screws provided.
Connection plugs
Mounting plate
Switch housing
Plastic plug
Screws

11
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check
the support connections, brackets, and blade attachments twice a year. Make sure they
are secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use
only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed
with a lacquer to minimize discoloration or tarnishing. Do not use water when
cleaning. This could damage the motor, or the wood, or possibly cause an electrical
shock.
3. You can apply a light coat of furniture polish to the wood blades for additional
protection and enhanced beauty. Cover small scratches with a light application of shoe
polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
14. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".

12
Problem
Fan will not start.
Fan sounds
noisy.
Lights shut off
and will not
come back on.
Fan wobble.
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections
in the switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the
motor hub is tight.
3. Make sure wire nut connections are not rubbing against each other
or the interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable
speed controls. If you have installed this type of control, choose
and install another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. This unit is equipped with a wattage limiting device. Lamping in
excess of 190 watts will disable your ceiling fan's light kit. To reset
your light kit you must turn the power off and re lamp, keeping the
wattage under 190 watts. Restore power to your ceiling fan and
continue normal operation.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above
the tip of one of the blades. Measure this distance. Rotate the fan
until the next blade is positioned for measurement. Repeat for each
blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent
(side by side) blades can redistribute the weight and possibly result
in smoother operation.
WARNING: To reduce the risk of personal injury, do not bend the
blade arm while installing, balancing the blades, or cleaning the fan.
Do not insert foreign objects between rotating fan blades.
15. TROUBLESHOOTING
