Savoy House 52-6110-4WA-13 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552
MODEL: 52-6110-4WA-13
52-6110-4CN-SN
52-6110-4WH-WH
CEILING FAN
OWNER'S MANUAL

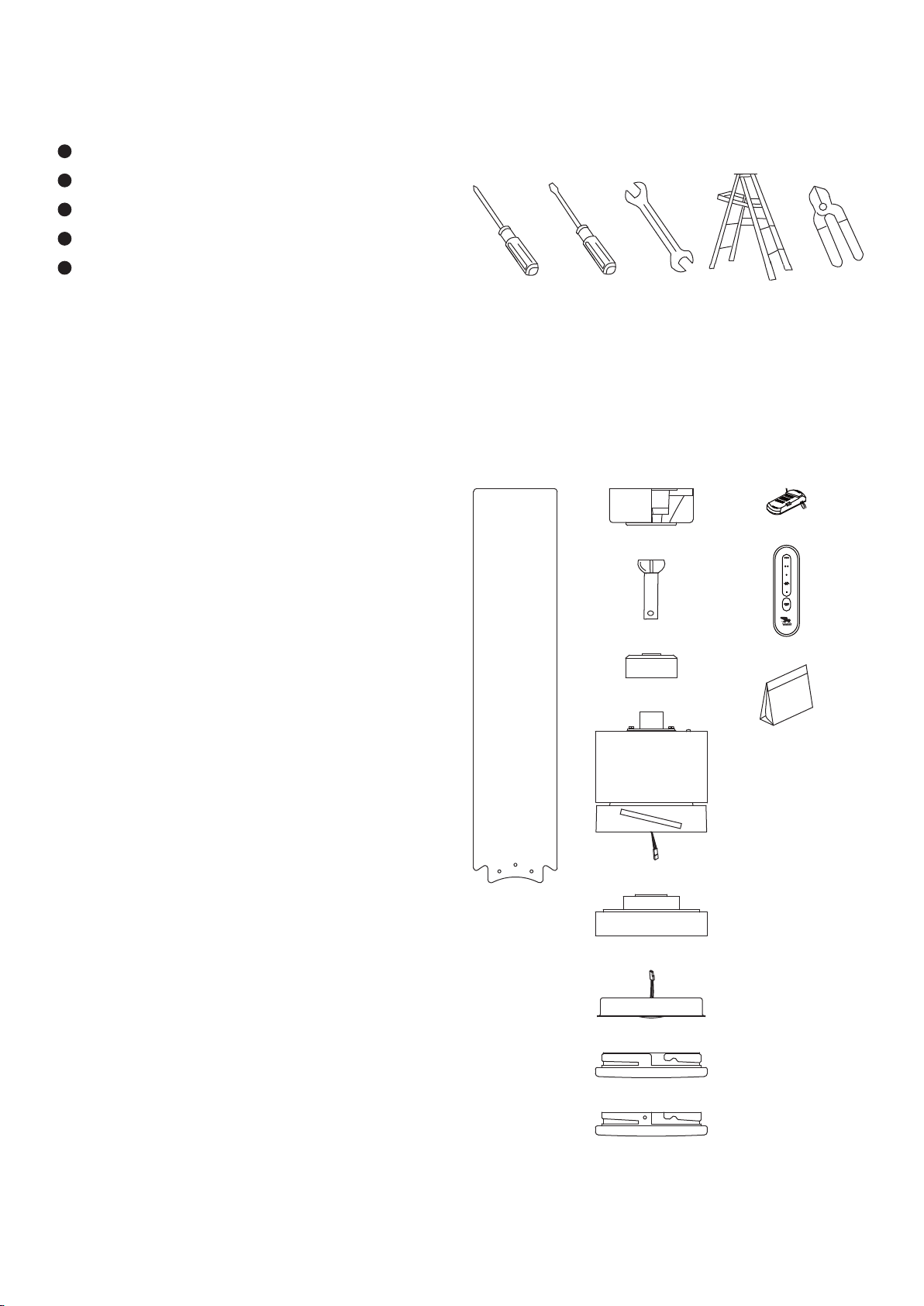

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items;
a. Set of blades assembly (4)
b. Hanger bracket assembly
c. Downrod
d. Coupling cover
e. Fan motor assembly
f. Mounting plate
g. LED Light kit
h. Glass shade
i. Optional switch cup cover
j. Receiver+6 wire nuts
k. Transmitter+holder+2 mounting
screws+3 volt battery (CR2032)
l. Package hardware
1) Mounting hardware :
screws(2), lock washers(2),
star washers(2), wire nuts(3)
wood screws(2), washers(2)
2) Blade attachment hardware:
screws (13), fiber washers (13)
3) Safety cable hardware:
wood screw(2), lock washer(2),
metal washer(2)
4) Balance Kit
1
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
e
f
g
h
i
j
l
k

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the
circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most
outlet boxes commonly used for the
support of lighting fixtures are not
acceptable for fan support and may need
to be replaced, consult a qualified
electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be UL Listed and marked suitable for
use with the model fan you are installing.
Switches must be UL General Use
Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS (ALSO
REFERRED TO AS FLANGES) DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing CUL listed
mounting box, then read the following
instructions. Disconnect the power by
removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.
Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3

REMEMBER to turn off the power. Follow
the steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning
the cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from
the canopy by removing the 1 of 2 screws
from the bottom of the hanger bracket and
loosening the other one a half turn from
the screw head. Next, turn the canopy
counter clockwise to removing the hanger
bracket from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hanger pin, lock pin
and set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top
of the fan motor through the collar cover,
canopy cover, canopy and then through
the ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of
the downrod with the holes in the collar
on top of the motor housing (Fig.7).
Carefully insert the hanger pin through
the holes in the collar and downrod. Be
careful not to jam the pin against the
wiring inside the downrod. Insert the
locking pin through the hole near the end
of the hanger pin until it snaps into its
locked position, as noted in the circle inset
of Fig. 7.
Step 8. Tighten two set screws on top of
the fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 5
Mounting screws
(supplied with
electrical box)
Hook
Ceiling
mounting
plate
CUL Listed
electrial
box
Figure 6
Figure 7
Figure 8
120V Wires
Washers
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Hanger
bracket
Ceiling
canopy
Canopy
cover
Coupling cover

5
6. INSTALLATION OF
SAFETY SUPPORT

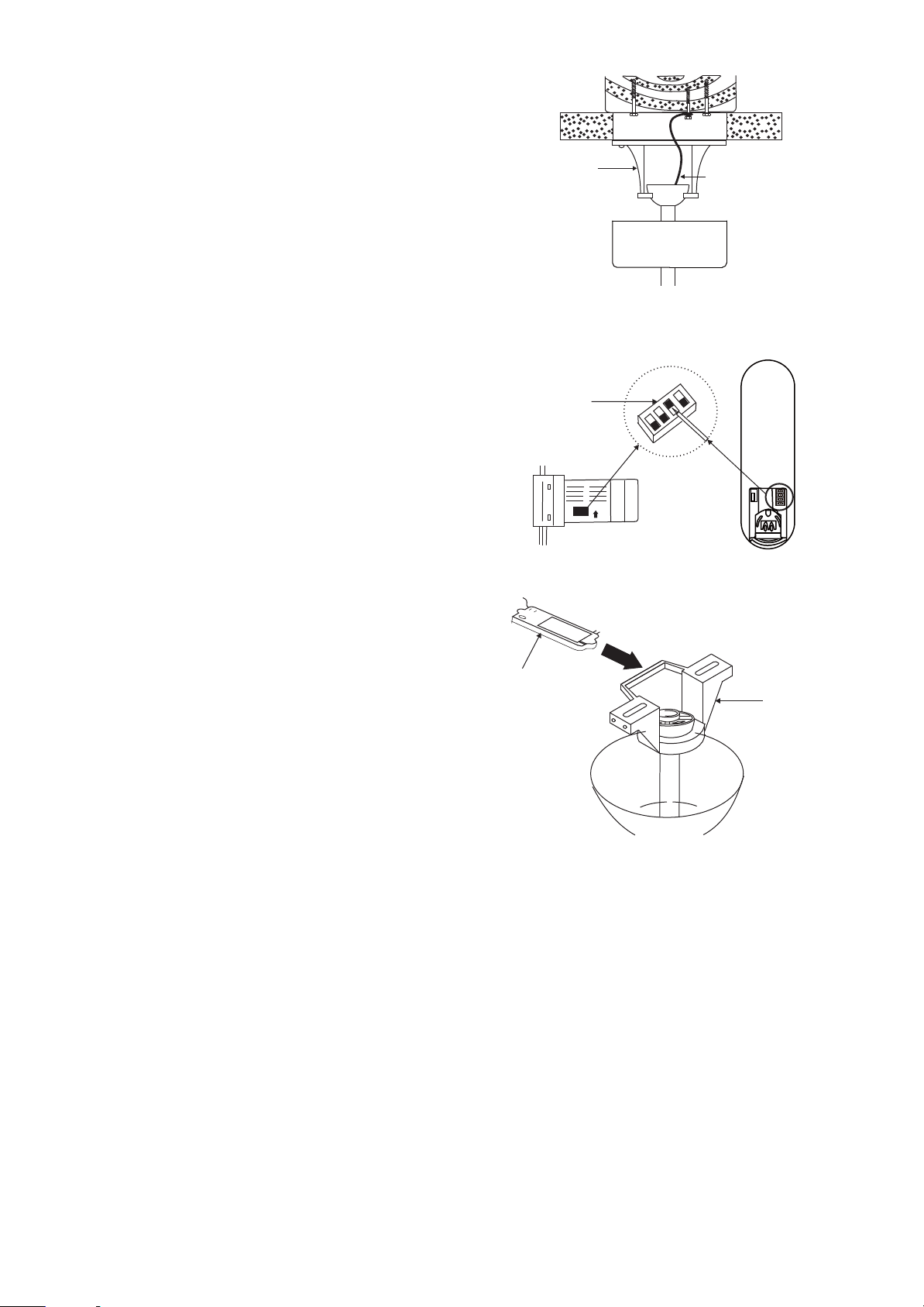

An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw
and washer, as illustrated in Figure 9.
7. MAKE THE ELECTRIC
CONNECTIONS
WARNING: To avoid possible electrical
shock, be sure electricity is turned off at
the main fuse box before wiring.
NOTE: This remote control unit is
equipped with 16 code combinations to
prevent possible interference from or to
other remote units. The frequency
switches on your receiver and transmitter
have been preset at the factory. Please
recheck to make sure the switches on
transmitter and receiver are set to the
same position, any combination of settings
will operate the fan as long as the
transmitter and receiver are set to the
same position.(Figure 10)
Step 1. (Figure 11) Insert the receiver into
the mounting bracket with the flat side of
the receiver facing the ceiling.
Step 2. (Figure 12) Motor to Receiver
Electrical Connections: Connect the black
wire from the fan to black wire marked "TO
MOTOR L". Connect the white wire from
the fan to the white wire marked "TO
MOTOR N" from the receiver. Connect the
blue wire from the fan to the blue wire
marked "For Light" from the receiver.
Secure the wire connections with the
plastic wire nuts provided.
Hanger bracket Safety cable
Figure 9
Figure 10
Figure 11
Receiver
Hanger
bracket
Code switch
ON
ON
ON ECE
1234

6
Step 3. (Figure 12) Receiver to House
Supply Wires Electrical Connections:
Connect the black (hot) wire from the
ceiling to the black wire marked "AC in L"
from the receiver. Connect the white
(neutral) wire from the ceiling to the white
wire marked "AC in N" from the Receiver.
Secure the wire connections with the
plastic wire nuts provided.
Step 4. (Figure 12) If your outlet box has a
ground wire (green or bare copper)
connect it to the fan ground wires;
otherwise connect the hanging bracket
ground wire to the mounting bracket.
Secure the wire connection with a plastic
nut provided. After connecting the wires,
spread them apart so that the green and
white wires are on one side of the outlet
box and black and blue wires are on the
other side. Carefully tuck the wire
connections up into the outlet box.
Note: Fan must be installed at a maximum
distance of 30 feet from the transmitting
unit for proper signal transmission
between the transmitting unit and the
fan's receiving unit.
8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into
ceiling outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the
canopy over the screw on the hanger
bracket, turn canopy until it locks in place
at the narrow section of the key holes.
Step 3. Align the circular hole on canopy
with the remaining hole on the hanger
bracket, secure by tightening the two set
screws.
Note: Adjust the canopy screws as
necessary until the canopy and canopy
cover are snug. (Fig. 13)
Warning: Make sure tab at bottom of
hanger bracket is properly seated in
groove of hanger ball before attaching
canopy to bracket. Failure to properly seat
tab in groove could cause damage to
electrical wiring.
Figure 12
Figure 13
White (neutral)
White (neutral)
Green or bare
copper (ground)
White ("AC IN N")
White ("to motor N")
Ground
(green)
(Connect to
ground wire on
hanger bracket
if no house
ground wire
exists.)
Outlet box
Black (hot)
Black ("AC IN L")
Black ("to motor L")
Receiver
Blue (for light)
Blue (for light)
Black (motor)
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws

7
Figure 14
Figure 15
10. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2
screws. (Do not remove)
Step 2. Place the key holes on the
mounting plate over the 2 screws
previously loosened from the mounting
ring, turn mounting plate until it locks in
place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one
previously removed. (Fig. 15)
9. ATTACHING THE FAN
BLADES
Step 1. Insert the blade through the slot in
the housing. Align the holes in the blade
and the fan motor assembly and secure
with a the screw and fiber washer. (Fig. 14)
Mounting ring
Mounting
plate
Screws
Blade
Fiber washers
Screws
Slot

8
Figure 16
11. INSTALLING THE LED
LIGHT KIT & GLASS
SHADE
NOTE: Before starting installation, disco-
nect the power by turning off the circuit
breaker or removing the fuse at fuse box.
Turning power off using the fan switch is
not sufficient to prevent electric shock.
Step 1. Remove the 1 of 3 screws from the
posts of the mounting plate and keep it for
future use. Loosen the other 2 screws. (Do
not remove) (Fig. 16)
Step 2. While holding the LED light kit
under your fan, make the polarized plug
connections:
- Red to white
- Black to black
Step 3. Place the key holes in the LED light
kit over the two screws previously loosened
from the mounting plate. Turn the LED light
kit until the LED light kit locks in place at the
narrow section of the key holes. (Fig. 16)
Step 4. Securely tighten the two light kit
mounting screws previously loosened and
the one previously removed. (Fig. 16)
Step 5. Raise glass shade up against the LED
light kit, and secure it to fan by turning glass
clockwise until snug. DO NOT
OVERTIGHTEN. (Fig. 16)
NOTE: The switch cup cover included with
your fan is an option to replace the glass for
the light in the event that you prefer not to
use the light feature of your fan. The switch
cup cover is not necessary for the light
operation; it can be saved for later use if
desired.
12. INSTALLING THE
BATTERY
Insert the 3 volt battery (included) and
make sure they are seated correctly in
each recess with the Positive + sign facing
up. (Fig. 17)
Figure 17
ON ECE
1234
LED Light kit
Screws
Mounting
Plate
Connection
plugs
Glass shade
or optional
switch cup
cover

9
Figure 18
Figure 19
Figure 20

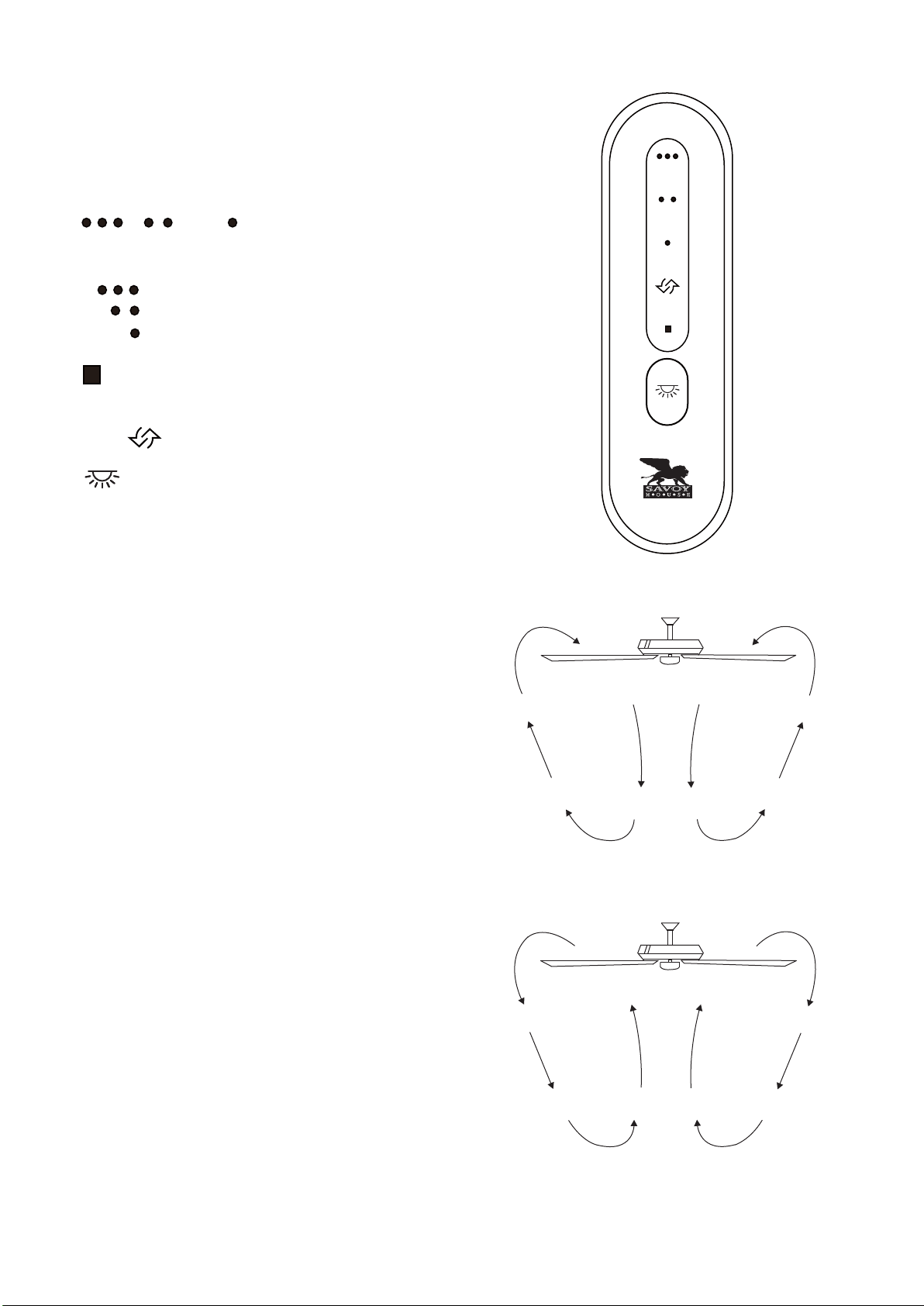

13. OPERATING
INSTRUCTIONS
Restore power to ceiling fan and test for
proper operation.
A. , , and buttons:
These three buttons are used to set the
fan speed as follows:
= high speed
= medium speed
= low speed
B. button:
This button turns the fan off.
C. The " " button has NO function.
D. button:
This button controls the light. Press and
release the button to turn the light ON
or OFF. Press and hold the button to set
the desired brightness. The light key
has an auto-resume, it will stay at the
same brightness as the last time it was
turned off.
Speed settings for warm or cool weather
depend on factors such as the room size.
Ceiling height, number of fans and so on.
The Reverse switch is located on the top
of the motor housing. Slide the switch to
the Left for warm weather operation. Slide
the switch to the Right for cool weather
operation.
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 19. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as
shown in Fig. 20. This allows you to set your
heating unit on a cooler setting without
affecting your comfort.

10
14. TROUBLESHOOTING
Problem
Fan will not start.
Fan sounds
noisy.
Remote control
malfunction:
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections
in the switch housing. CAUTION: Make sure main power is off.
3. Check to make sure the dip switches from the transmitter and
receiver are set to the same frequency.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other
or the interior wall of the switch housing. CAUTION: Make sure main
power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that light bulb is also secure.
6. Do not connect the fan with wall mounted variable speed control (s)
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. Do not connect the fan with wall mounted variable speed control (s)
2. Make sure the dip switches are set correctly.
