Savoy House M2018 Series User manual

FAN RATING AC 120V. 60Hz
UL LISTED MODEL: AC-552
READ AND SAVE THESE INSTRUCTIONS
MODEL: M2018XX
OWNER'S MANUAL
52” CEILING FAN

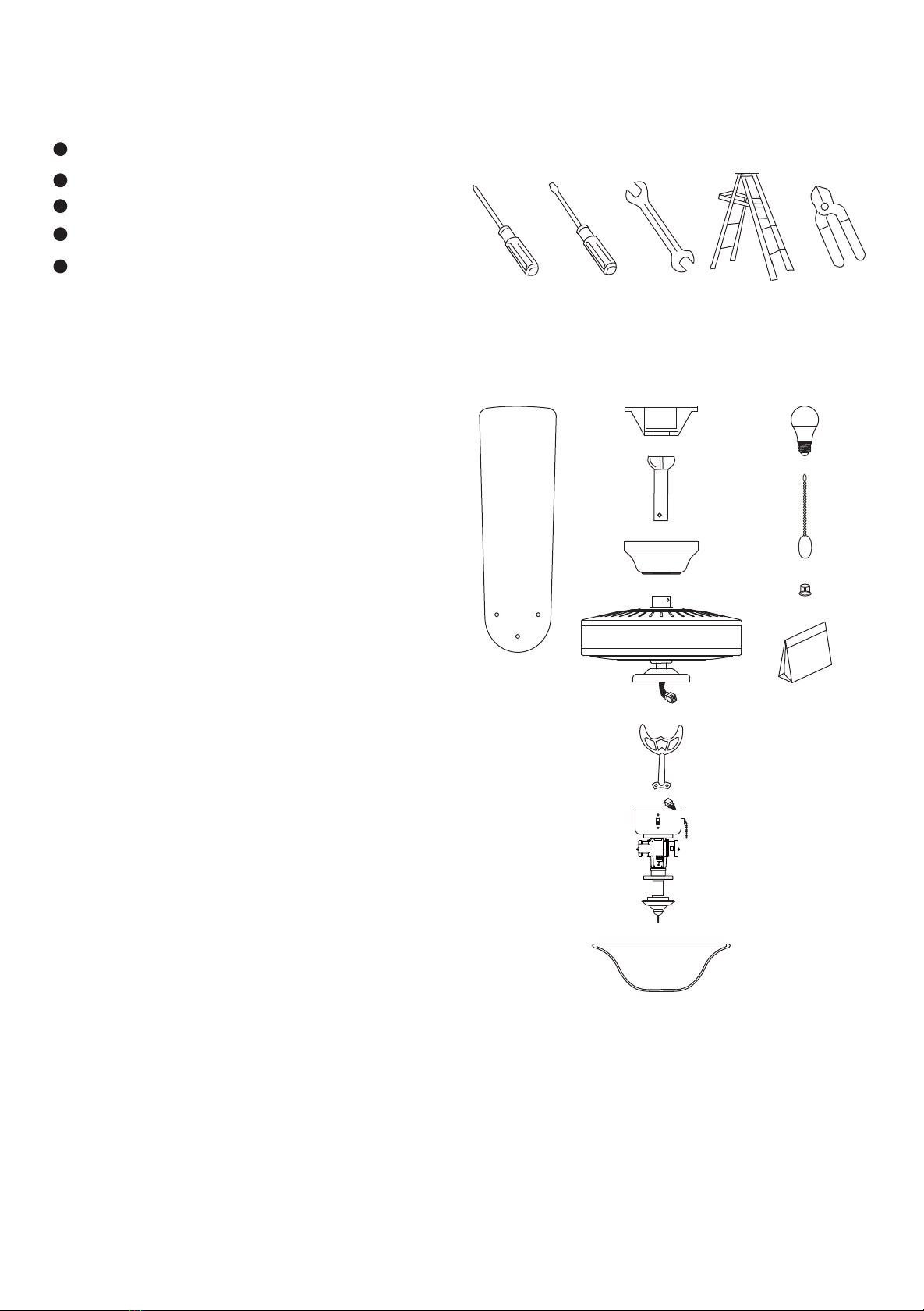

2. PACKAGE CONTENTS
Unpack your fan and check the contents.
You should have the following items;
a. Set of blades assembly (5)
b. Hanger bracket
c. Downrod
d. Canopy
e. Fan motor assembly
f. Set of blades bracket (5)
g. Light kit assembly
h. Glass shade
i. 9W E26 LED bulbs (2)
J. Pull chains and fobs (2)
k. Extra plastic plug
l. Package hardware
1) Mounting hardware :
screws(2), lock washers(2),
star washers(2), wire nuts(3)
wood screws(2), washers(2)
2) Blade attachment hardware:
screws(16), fiber washers (16)
3) Blade arm hardware:
screws with lock washers (11)
4) Safety cable hardware:
wood screw, lock washer,
metal washer
5) Balance Kit
1
Philips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutter
1. TOOLS AND MATERIALS
REQUIRED
a
b
c
d
f
g
h
i
j
k
l
e

2
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the circuit
breaker or fuse box before beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of fire, electric
shock, or other personal injury, mount fan
only on an outlet box or supporting system
marked acceptable for fan support of 35 lbs
(15.9 kg) or less and use mounting screws
provided with the outlet box. Most outlet
boxes commonly used for the support of
lighting fixtures are not acceptable for fan
support and may need to be replaced.
Consult a qualified electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge of
the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
10. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
11. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment- grounding conductor on
one side of the outlet box.
12. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be UL Listed and marked suitable for
use with the model fan you are installing.
Switches must be UL General Use
Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT". WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.

4. MOUNTING OPTIONS
If there isn't an existing UL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses
or turning off circuit breakers.
Secure the outlet box directly to the
building structure. Use appropriate
fasteners and building materials. The
outlet box and its support must be able to
fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet
boxes.
Figures 1, 2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
To hang your fan where there is an existing
fixture but no ceiling joist, you may need
an installation hanger bar as shown in
Figure 4.
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3
ANGLED CEILING
MAXIMUM 20° ANGLE

4
Figure 6
Figure 7
Registration slot
5. HANGING THE FAN
REMEMBER to turn off the power. Follow
the steps below to hang your fan properly.
NOTE: This ceiling fan is supplied with two
types of hanging assemblies; the standard
ceiling installation using the downrod with
ball and socket mounting and the
"close-to-ceiling" installation. The "close-to
-ceiling" installation is recommended in
rooms with less than 8-feet ceilings or in
areas where additional space is desired
from the floor to the fan blades.
STANDARD CEILING INSTALLATION

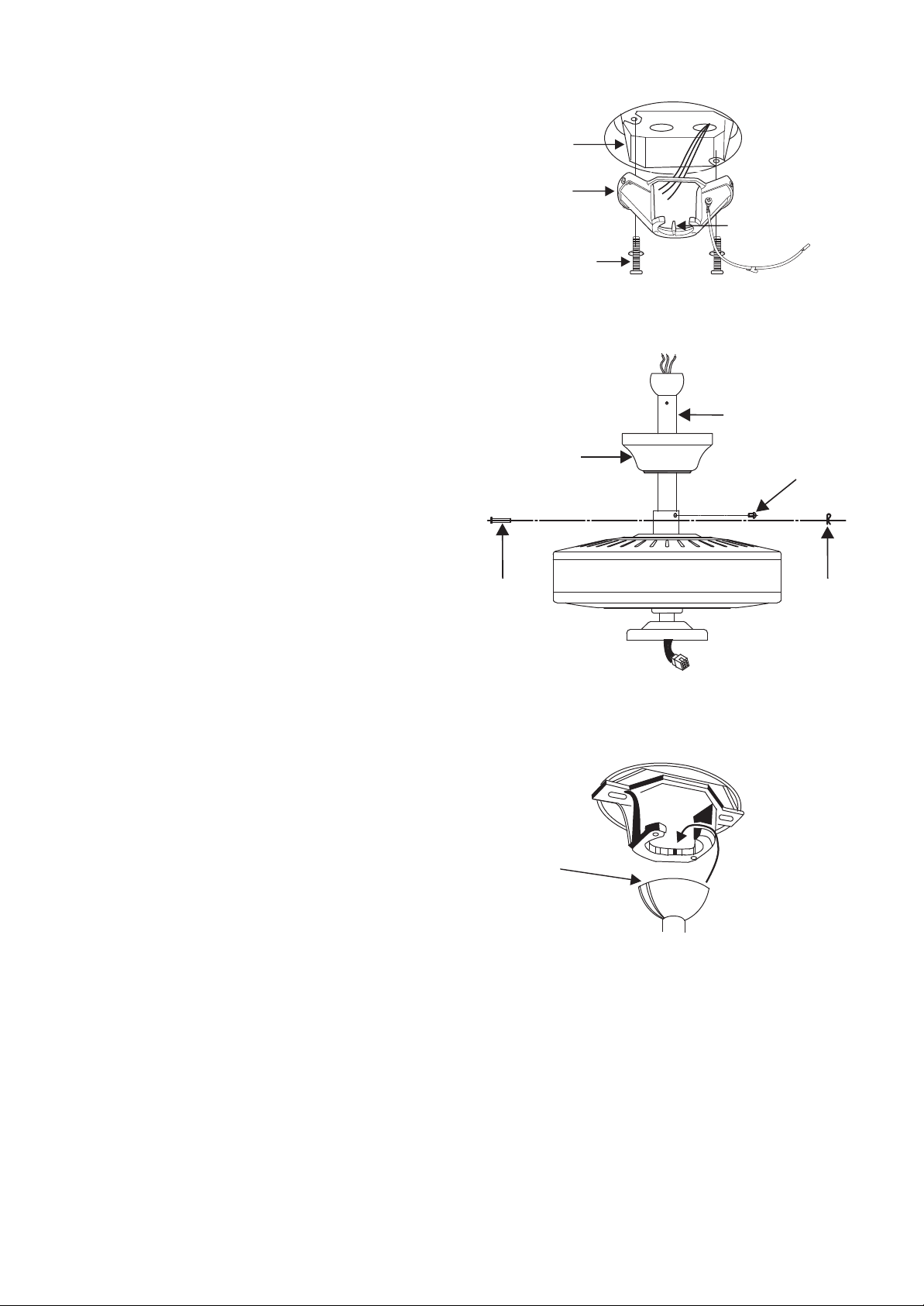

Step 1. Pass the 120-volt supply wires
through the center hole in the ceiling
hanger bracket as shown in Fig. 5.
Step 2. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 3. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 4. Route wires exiting from the top of
the fan motor through the canopy and
then through the ball/ downrod. (Fig. 6)
Step 5. Align the holes at the bottom of
the downrod with the holes in the collar on
top of the motor housing (Fig.6). Carefully
insert the hitch pin through the holes in
the collar and downrod. Be careful not to
jam the pin against the wiring inside the
downrod. Insert the locking pin through
the hole near the end of the hitch pin until
it snaps into its locked position, as noted in
the circle inset of Fig. 6.
Step 6. Tighten two set screws on top of
the fan motor firmly. (Fig. 6)
Step 7. Place the downrod ball into the
hanger bracket socket. (Fig. 7)
Figure 5
Downrod
Set screws
Lock pinHitch pin
Tab
Mounting screws
(supplied with
electrical box)
UL Listed
electrical box
Hanger
bracket
Canopy

5

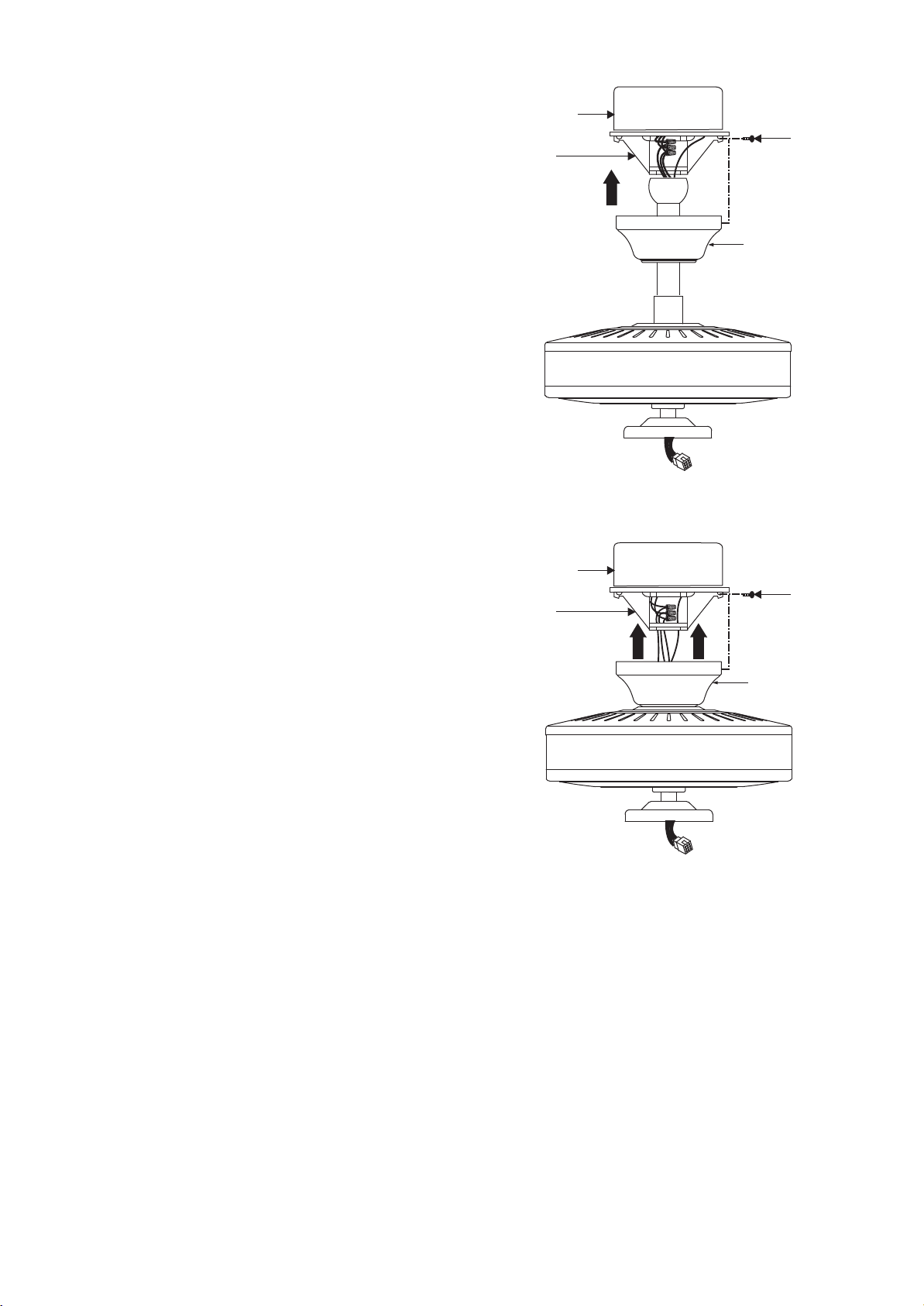

CLOSE-TO-CEILING INSTALLATION
1. Pass the 120-volt supply wires through
the center hole in the ceiling hanger
bracket as shown in Fig. 5.
2. Remove the decorative canopy cover
from the canopy. (Fig. 8)
3. Secure the hanger bracket to the ceiling
outlet box with the screws and washers
provided with your outlet box.
4. Remove three of the six screws and lock
washers (every other one) from the
collar of top motor. (Fig. 9)
5. Place the ceiling canopy over the collar
at the top of the motor. Align the
mounting holes with the holes in the
motor and fasten using the screws and
lock washers provided. (Fig. 9)
6. Tighten the mounting screws securely.
WARNING: Failure to completely tighten
the three screws in step 5 could result in
fan loosening and possibly falling.
7. Hang the fan on the hook of the hanger
bracket. Be certain that the canopy is
fully locked into hook as shown in Fig.
10. This will allow you to make the
electrical connections.
Figure 9
Figure 8
Canopy
Canopy
Decorative canopy
cover
Collar
Screw and lockwasher
(3 of 6 places)
Figure 10
Hook

6

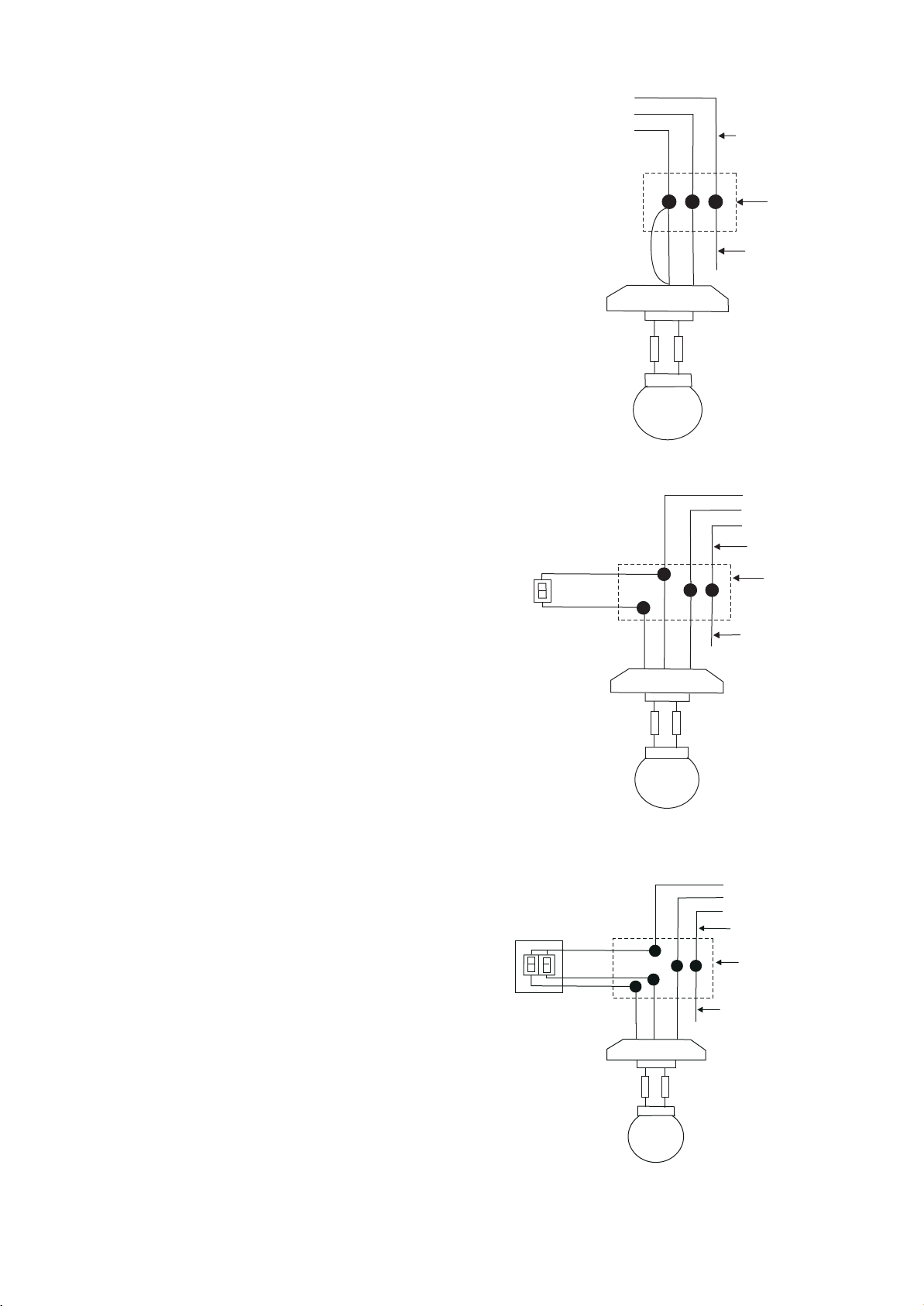

6. MAKE THE ELECTRIC
CONNECTIONS
Remember to disconnect the power.
Follow the steps below to connect the fan
to your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.
Step 1. Connect the fan supply (black) wire
and light supply (blue) wire to the black
household supply wire as shown in Figure
11.
Step 2. Connect the neutral fan (white)
wire to the white neutral household wire.
Step 3. Connect the fan ground wire
(green) to the household ground wire.
Step 4. After connecting the wires, spread
them apart so that the green and white
wires are on one side of the outlet box and
the black and the blue wires are on the
other side.
Step 5. Turn the connecting nuts upward
and push the wiring into the outlet box.
Figures 12 and 13 illustrate the wiring
connections for optional wall control. (The
wire color out of wall control may vary, see
wall control's installation manual for
correct wire connections.)
Figure 11
Figure 12
Figure 13
WH
BLUE
BLK
WH
GRN
WIRING
BOX
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
BLUE
BLK WH
WH
FAN
LIGHT
POWER LINES 120V
BLK
GREEN GROUND
BLK
WIRING
BOX
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
WH
BLUE
BLK
WH
FAN
LIGHT
BLK
BLUE WH
WH
LIGHT
SWITCH
GREEN GROUND
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
WH
WH
BLUE
BLK
LIGHT FAN
NOTE: LIGHT KITS ARE AVAILABLE AT YOU
SAVOY HOUSE RETAILER. THE FAN IS
ALREADY WIRED TO SUPPORT THE LIGHT
KIT OPTION.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.

7
7. FINISHING THE
INSTALLATION
STANDARD CEILING INSTALLATION
Slide canopy up to the ceiling as shown in
Figure 14. Make sure you place the wires
safely into the outlet box. Secure the
canopy to the hanger bracket with the four
screws with your fan.
CLOSE-TO-CEILING INSTALLATION
Remove the fan from the hook on the
hanger bracket. Secure the canopy to the
hanger bracket as shown in Figure 15 with
four screws included with your fan.
Figure 14
Figure 15
Outlet box
Hanger
bracket
Screws
Ceiling canopy
Canopy ring
Outlet box
Hanger
bracket
Ceiling canopy
Screws

8
8. ATTACHING THE FAN
BLADES
Caution: Remove 5 rubber packing mounts
and discard before installation.
Step 1. Attach the blade to the blade
bracket using the screws and fiber washers
as shown in Figure 16. Start screw into
bracket. Repeat for the two remaining
screws.
Step 2. Tighten each screw. Make sure the
blade is straight.
Step 3. Fasten blade assembly to motor
using the screws supplied. (Fig. 16)
9. INSTALLING THE LIGHT
KIT
NOTE: Before starting installation,
disconnect the power by turning off the
circuit breaker or removing the fuse at fuse
box.
Step 1. Remove the 3 screws from the
mounting plate.
Step 2. While holding the light kit under your
fan, snap together the wire connection plugs.
(Fig. 18)
Step 3. Install the light kit onto the
mountimg plate with 3 screws provided.
Be sure to tighten all screws. (Fig. 17)
Figure 16
Figure 17
Screws Blade
Blades bracket
Screws
Fiber
washers
Mounting plate
Connection plugs
Light Kit
Assembly
Screws

9
10. INSTALLING THE LIGHT
BULBS & GLASS SHADE
1. Install 2 x 9W LED bulbs (provided). (Fig.
19)
2. Remove the decorative nut, glass cap and
metal nut from the light kit. Place glass
shade over the light kit stem, secure with
the metal nut (rubber side on the top)glass
cap and decorative nut. Do not overtighten.
Secure tightly the glass frame and
decorative nut. (Fig. 18)
3. Insert the 2 pull chain through the eyelet
in the shade and cap. (Fig. 18)
4. Restore power and your light kit is ready
for operation.
NOTE: Make sure to leave enough space
between the fan pull chain and the bulbs so
the chain doesn't rub against any of the
bulbs.
11. FAN WITHOUT LIGHT
KIT (OPTIONAL)
1. Disassemble the switch housing from
the light kit by removing nut and washer
on the center of switch housing, you can
keep the light kit for future use.
2. Attach the plastic plug to the switch
housing. (Fig. 19)
3. Install the switch housing to the
mounting plate with screws provided. (Fig.
19)
Figure 18
Figure 19
Mounting plate
Switch housing
Plastic plug
Screws
Bulbs Pull Chain
Light Kit
Glass Shade
Decorative Nut
Glass Cap
Metal Nut

10
Figure 20
Figure 21
12. OPERATING YOUR FAN
NOTE: Wait for fan to stop before
changing the setting of the slide switch.
Turn on the power and check the operation
of your fan. The pull chain controls the fan
speed as follows: 1 pull- High, 2
pulls-Medium, 3 pulls- Low, and 4 pulls-Off.
Light pull chain it controls the light in "ON"
or "OFF".
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans and so on.

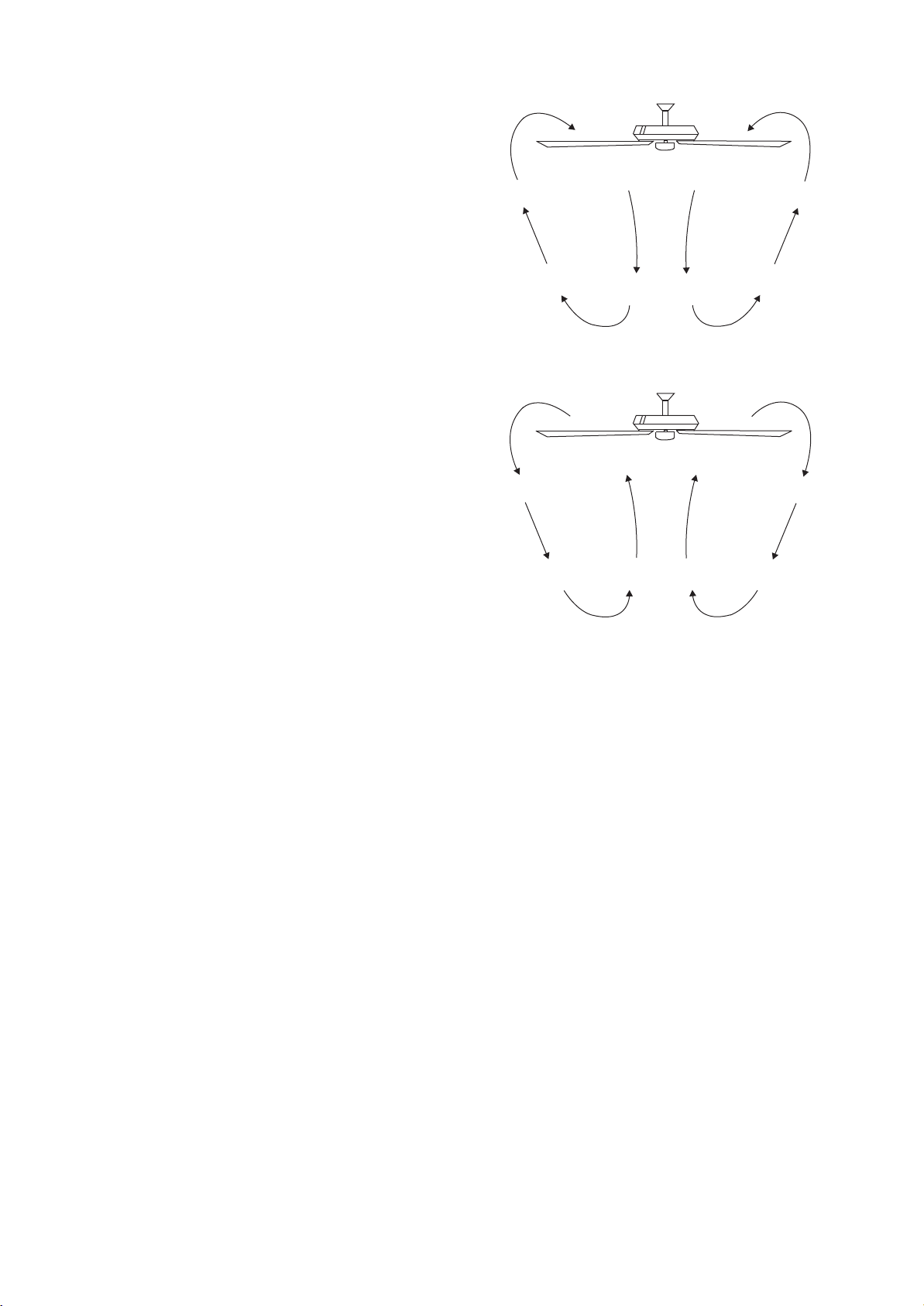

The slide switch controls directions:
forward (switch down) or reverse (switch
up)
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 20. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward
airflow moves warm air off the ceiling area
as shown in Fig. 21. This allows you to set
your heating unit on a cooler setting
without affecting your comfort.

11
13. TROUBLESHOOTING
Solution
1. Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections
in the switch housing. CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor
hub is tight.
3. Make sure wire nut connections are not rubbing against each other
or the interior wall of the switch housing. CAUTION: Make sure main
power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a
new fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the
glassware are tight. Check that the light bulb is also secure.
6. Do not connect the fan with a wall mounted variable speed control
(s).
7. Make sure the upper canopy is a short distance from the ceiling. It
should not touch the ceiling.
1. Check that all blade and blade arm screws are secure.
2. Most fan wobbling problems are caused when blade levels are
unequal. Check this level by selecting a point on the ceiling above
the tip of one of the blades. Measure this distance. Rotate the fan
until the next blade is positioned for measurement. Repeat for each
blade. The distance deviation should be equal within 1/8".
3. Use the enclosed Blade Balancing Kit if the blade wobble is still
noticeable.
4. If the blade wobble is still noticeable, interchanging two adjacent
(side by side) blades can redistribute the weight and possibly result
in smoother operation.
WARNING: TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND
THE BLADE ARM WHILE INSTALLING, BALANCING THE BLADES, OR
CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS BETWEEN
ROTATING FAN BLADES.
Problem
Fan will not start.
Fan sounds
noisy.
Fan wobble.
