Savoy House 62-5085-3CN-109 User manual

READ AND SAVE THESE INSTRUCTIONS
FAN RATING AC 120V. 60Hz
UL LISTED MODEL : AC-552
MODEL: 62-5085-3CN-109
62-5085-3SV-SN
62-5085-3WA-13
CEILING FAN
OWNER'S MANUAL

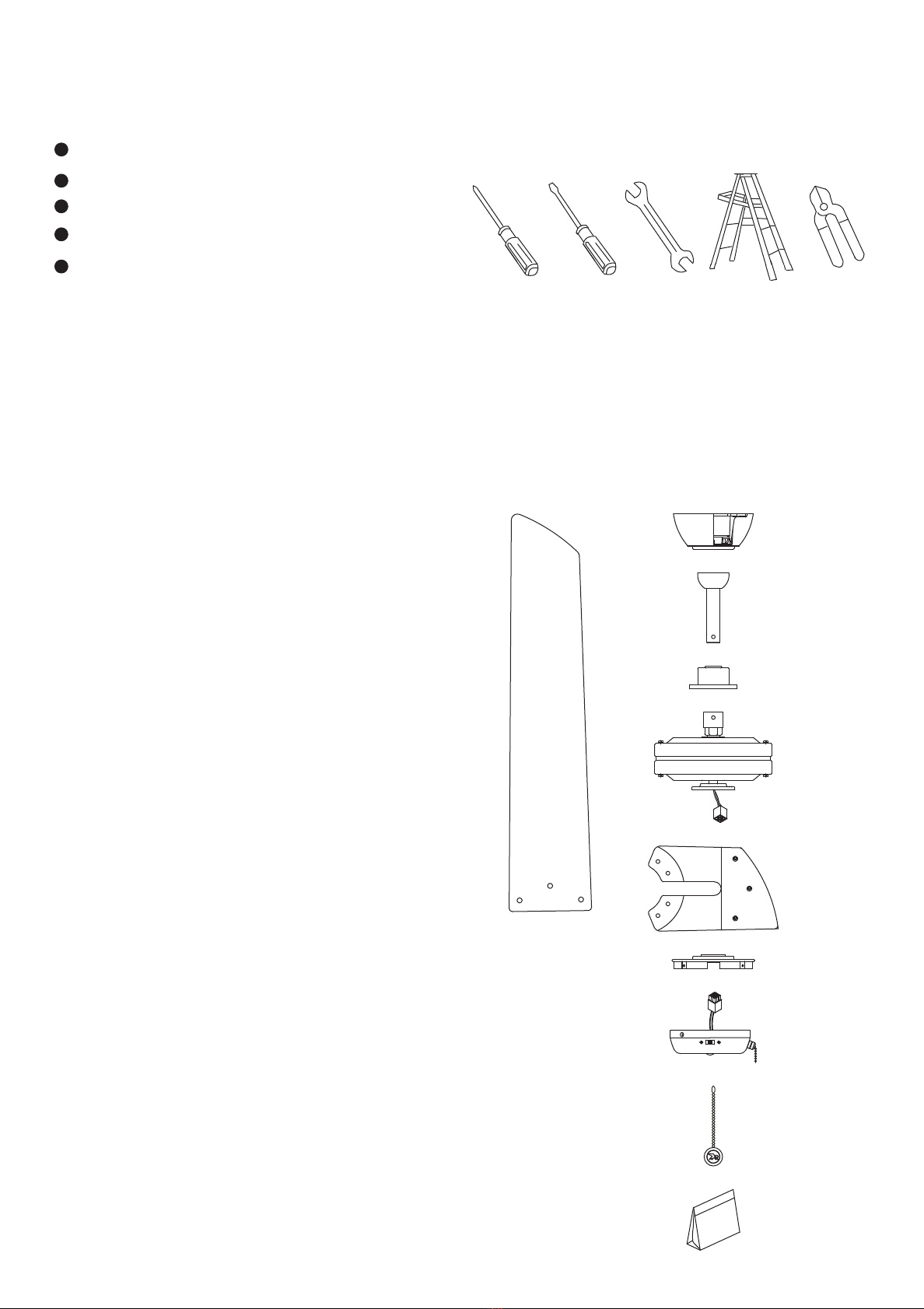

2. PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items;
a. Blade set (3)
b. Hanger bracket assembly
c. Downrod
d. Coupling cover
e. Fan motor assembly
f. Set of blades bracket (3)
g. Mounting plate
h. Switch housing
i. Pull chains and fobs
j. Package hardware
1) Mounting hardware :
screws (2), lock washers (2),
star washers (2), wire nuts (3)
wood screws (2), washers (2)
2) Blade attachment hardware:
screws (10), fiber washers (10)
3) Blade arm hardware:
screws with lock washers (13)
4) Safety cable hardware:
wood screw, lock washer,
metal washer
5) Balance Kit
Philips screw driver
Blade screw driver
11 mm wrench
Step ladder
Wire cutters
1
1. TOOLS AND MATERIALS
REQUIRED
h
i
a
b
c
d
e
f
g
j

2
WARNING
TO REDUCE THE RISK OF PERSONAL
INJURY, DO NOT BEND THE BLADE
BRACKETS (ALSO REFERRED TO AS
FLANGES) DURING ASSEMBLY OR AFTER
INSTALLATION. DO NOT INSERT OBJECTS
IN THE PATH OF THE BLADES.
3. SAFETY RULES
1. To reduce the risk of electric shock, insure
electricity has been turned off at the
circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the
National Electrical Code and local electrical
codes. Electrical installation should be
performed by a qualified licensed
electrician.
3. WARNING: To reduce the risk of electrical
shock and fire, do not use this fan with any
solid-state fan speed control device.
4. WARNING: To reduce the risk of personal
injury, use only the two steel screws (and
lock washers) provided with the outlet box
for mounting to the outlet box. Most
outlet boxes commonly used for the
support of lighting fixtures are not
acceptable for fan support and may need
to be replaced, consult a qualified
electrician if in doubt.
5. The outlet box and support structure must
be securely mounted and capable of
reliably supporting a minimum of 50
pounds. Use only UL Listed outlet boxes
marked "FOR FAN SUPPORT".
6. The fan must be mounted with a minimum
of 7 feet clearance from the trailing edge
of the blades to the floor.
7. Do not operate reversing switch while fan
blades are in motion. Fan must be turned
off and blades stopped before reversing
blade direction.
8. Avoid placing objects in the path of the
blades.
9. WARNING: Use only with light kit marked
"Suitable for Use in Wet Locations".
10. To avoid personal injury or damage to the
fan and other items, be cautious when
working around or cleaning the fan.
11. Do not use water or detergents when
cleaning the fan or fan blades. A dry dust
cloth or lightly dampened cloth will be
suitable for most cleaning.
12. After marking electrical connections,
spliced conductors should be turned
upward and pushed carefully up into
outlet box. The wires should be spread
apart with the grounded conductor and
the equipment-grounding conductor on
one side of the outlet box.
13. Electrical diagrams are reference only.
Light kit that are not packed with the fan
must be UL Listed and marked suitable
for use with the model fan you are
installing. Switches must be UL General
Use Switches. Refer to the Instructions
packaged with the light kits and switches
for proper assembly.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
TO OUTLET BOX MARKED "ACCEPTABLE
FOR FAN SUPPORT".

4. MOUNTING OPTIONS
If there isn't an existing CUL listed mounting
box, then read the following instructions.
Disconnect the power by removing fuses or
turning off circuit breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and
building materials. The outlet box and its
support must be able to fully support the
moving weight of the fan (at least 50 lbs). Do
not use plastic outlet boxes.

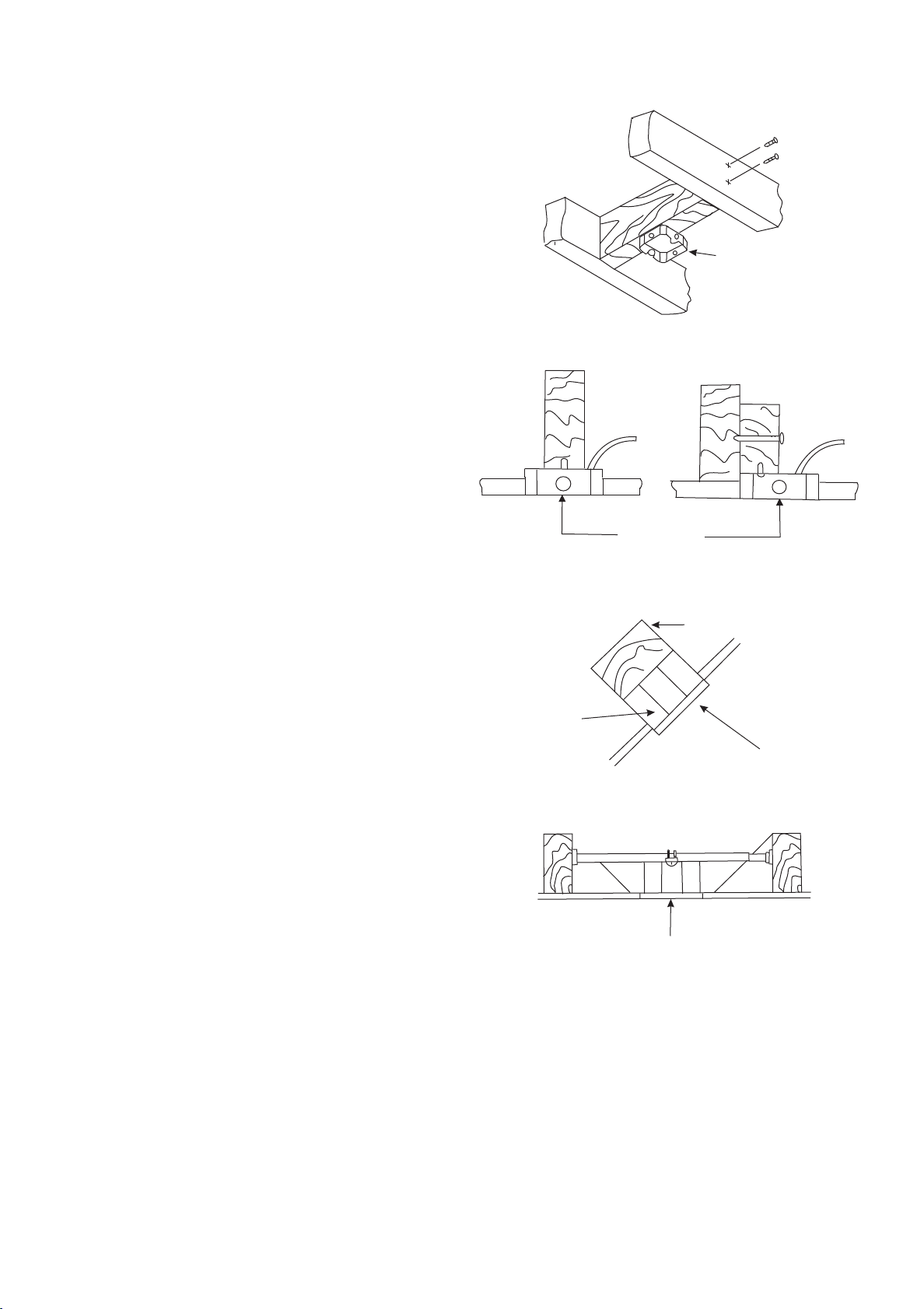

Figures 1,2 and 3 are examples of different
ways to mount the outlet box.
Note: You may need a longer downrod to
maintain proper blade clearance when
installing on a steep, sloped ceiling. (Fig. 3)
Outlet box
Provide strong
support
Recessed
outlet box Ceiling
mounting
plate
Outlet box
Figure 1
Figure 3
Figure 4
Outlet box
Figure 2
3

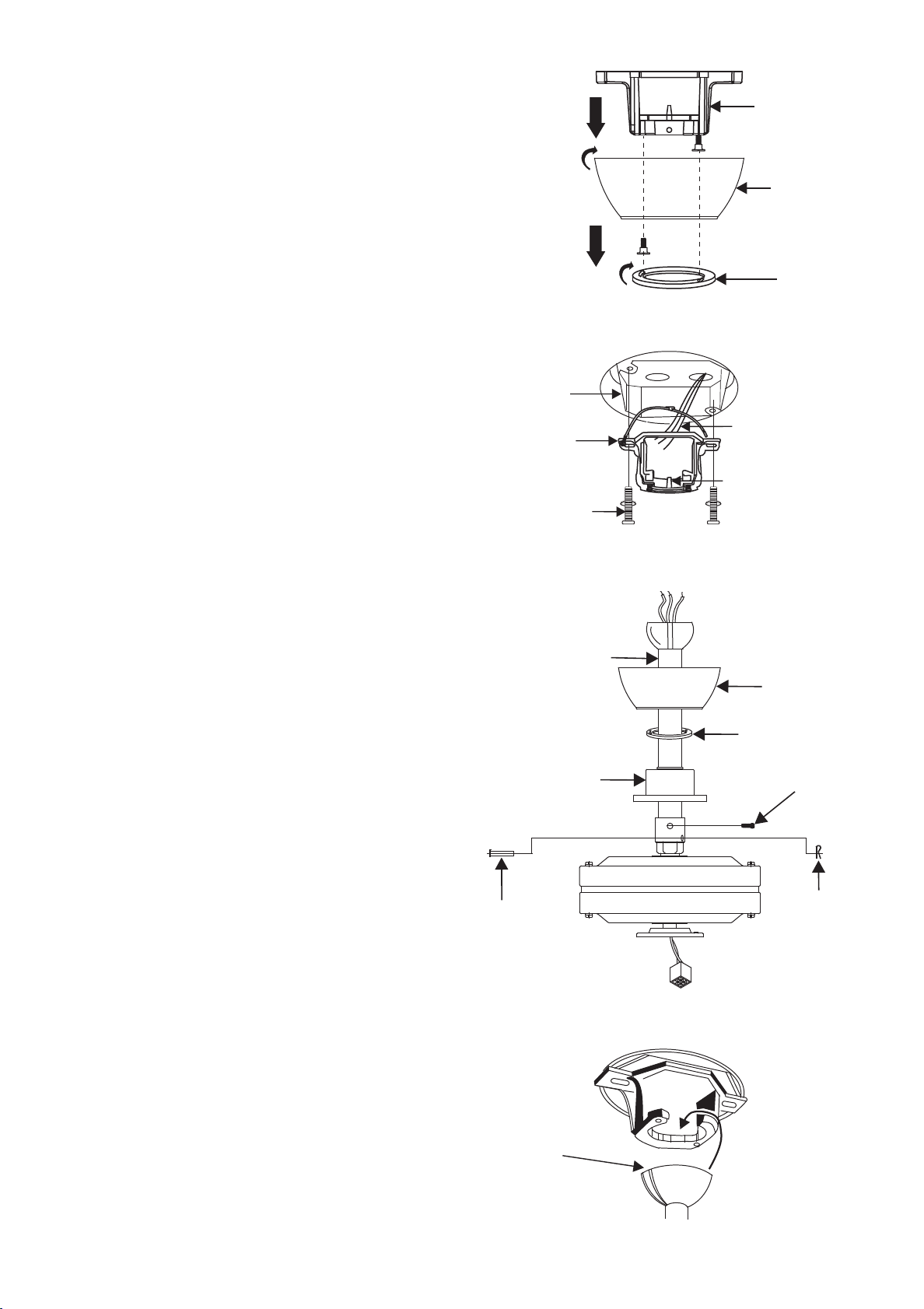

REMEMBER to turn off the power. Follow the
steps below to hang your fan properly:
Step 1. Remove the decorative canopy
bottom cover from the canopy by turning the
cover counter clockwise. (Fig. 5)
Step 2. Remove the hanger bracket from the
canopy by removing the 1 of 2 screws from
the bottom of the hanger bracket and
loosening the other one a half turn from the
screw head. Next, turn the canopy counter
clockwise to removing the hanger bracket
from the canopy. (Fig. 5)
Step 3. Pass the 120-volt supply wires
through the center hole in the ceiling hanger
bracket as shown in Fig. 6.
Step 4. Secure the hanger bracket to the
ceiling outlet box with the screws and
washers provided with your outlet box.
Step 5. Remove the hitch pin, lock pin and
set screws from the top of the motor
assembly.
Step 6. Route wires exiting from the top of
the fan motor through the collar cover,
canopy cover, canopy and then through the
ball / downrod. (Fig. 7)
Step 7. Align the holes at the bottom of the
downrod with the holes in the collar on top
of the motor housing. (Fig.7) Carefully insert
the hanger pin through the holes in the collar
and downrod. Be careful not to jam the pin
against the wiring inside the downrod. Insert
the locking pin through the hole near the end
of the hanger pin until it snaps into its locked
position, as noted in the circle inset of Fig. 7.
Step 8. Tighten two set screws on top of the
fan motor firmly. (Fig. 7)
Step 9. Place the downrod ball into the
hanger bracket socket. (Fig. 8)
5. HANGING THE FAN
4
Figure 6
Figure 7
Figure 8
Registration slot
Downrod
Canopy
Set screws
Hitch pin
Lock pin
Canopy cover
Coupling cover
Figure 5
Hanger
bracket
Ceiling
canopy
Canopy
cover
120V Wires
UL Listed
electrical box
Mounting
bracket
Hook
Mounting screws
(supplied with
electrical box)

5
6. INSTALLATION OF
SAFETY SUPPORT
An additional safety support is provided to
prevent the fan from falling. Secure the
safety cable to the ceiling joist with screw and
washer, as illustrated in Figure 9.
7. MAKE THE ELECTRIC
CONNECTIONS
Remember to disconnect the power.
Follow the steps below to connect the fan to
your household wiring. Use the wire
connecting nuts supplied with your fan.
Secure the connectors with electrical tape.
Make sure there are no loose strands or
connections.

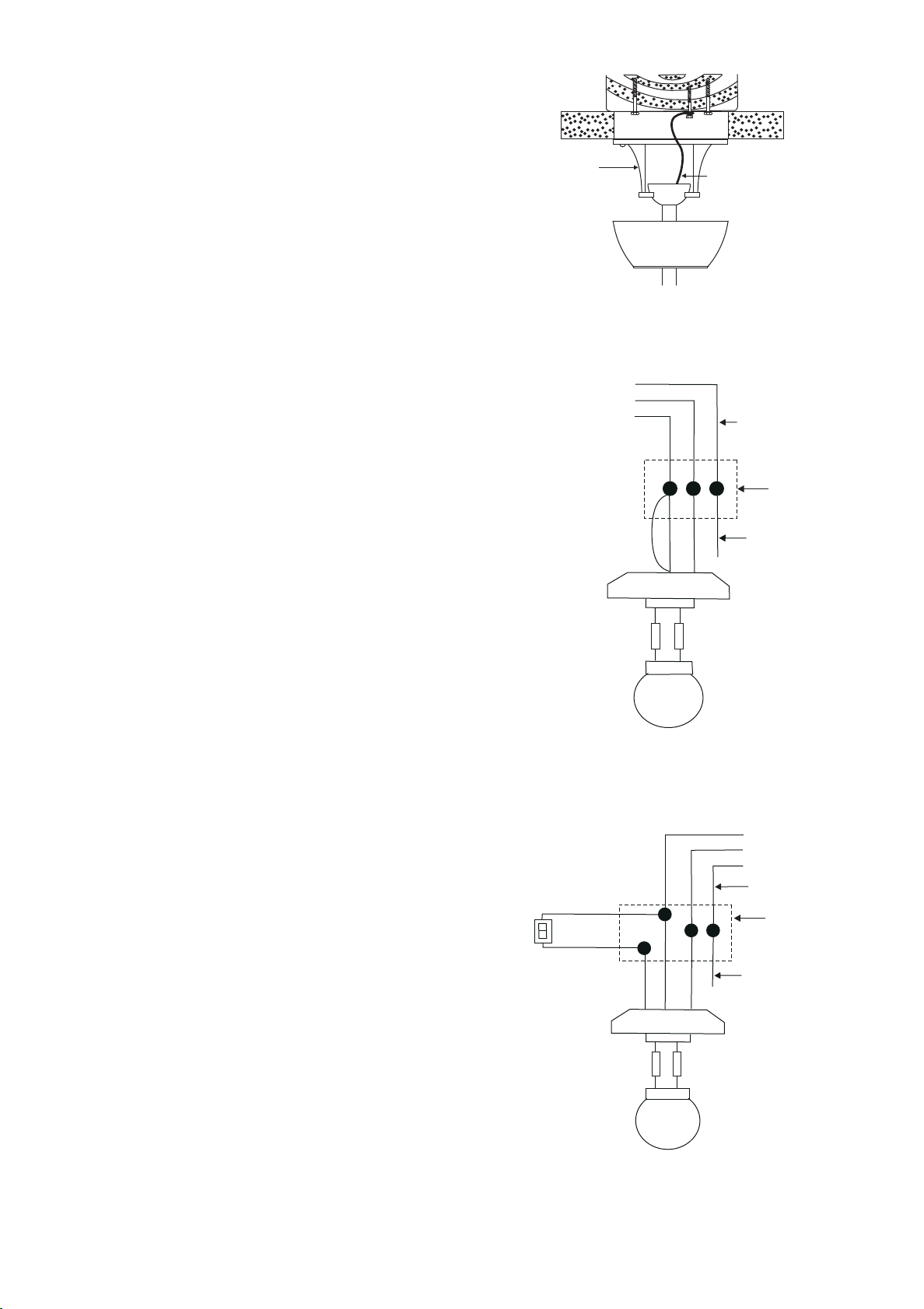

Step 1 Connect the fan supply (black) wire and
light supply (blue) wire to the black household
supply wire as shown in Figure 10.
Step 2. Connect the neutral fan (white) wire
to the white neutral household wire.
Step 3 Connect the fan ground wire (green)
to the household ground wire.
Step 4 After connecting the wires, spread
them apart so that the green and white wires
are on one side of the outlet box and the
black and the blue wires are on the other
side.
Step 5 Turn the connecting nuts upward and
push the wiring into the outlet box.
Figures 11 and 12 illustrate the wiring
connections for optional wall control (The
wire color out of wall control may vary, see
wall control's installation manual for correct
wire connections.)
Hanger bracket Safety cable
Figure 9
Figure 10
Figure 11
BLK
WH
BLUE
BLK
WH
GRN
WIRING
BOX
WIRING
BOX
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
BLUE
BLK WH
WH
FAN
LIGHT
POWER LINES 120V
POWER LINES 120V
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
BLK
BLUE WH
WH
LIGHT
SWITCH
GREEN GROUND
GREEN GROUND

6
NOTE: LIGHT KITS ARE AVAILABLE AT YOUR
SAVOY HOUSE RETAILER. THE FAN IS ALREADY
WIRED TO SUPPORT THE LIGHT KIT OPTION.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK, OR OTHER PERSONAL
INJURY. MOUNT FAN ONLY ON AN OUTLET
BOX OR SUPPORTING SYSTEM MARKED
ACCEPTABLE FOR FAN SUPPORT.
Figure 12
Figure 13
Outlet box
Hanger
bracket
Canopy
Canopy cover
Screws
GROUND TO
MOUNTING
BRACKET
OR DOWNROD
POWER LINES 120V
GREEN
GROUND
WIRING
BOX
BLK
WH
BLUE
BLK
WH
FAN
LIGHT
WH
WH
BLUE
BLK
LIGHT FAN
8. FINISHING THE
INSTALLATION
Step 1. Tuck connections neatly into ceiling
outlet box.
Step 2. Slide the canopy up to hanger
bracket and place the key hole on the canopy
over the screw on the hanger bracket, turn
canopy until it locks in place at the narrow
section of the key holes.
Step 3. Align the circular hole on canopy with
the remaining hole on the hanger bracket,
secure by tightening the two set screws.
Note: Adjust the canopy screws as necessary
until the canopy and canopy cover are snug.
(Fig.13)
Warning: Make sure tab at bottom of hanger
bracket is properly seated in groove of
hanger ball before attaching canopy to
bracket. Failure to properly seat
tab in groove could cause damage to
electrical wiring.

7
9. ATTACHING THE FAN
BLADES
Step 1. Attach the blade to the blade bracket
using the screws and fiber washers as shown
in Figure 14. Start screw into bracket. Repeat
for the two remaining screws.
Step 2. Tighten each screw. Make sure the
blade is straight.
Step 3. Fasten blade assembly to motor using
the screws supplied. (Fig. 14)
Figure 14
Figure 15
10. INSTALLATING THE
MOUNTING PLATE
Step 1. Remove the 1 of 3 screws from the
mounting ring and loosen the other 2 screws.
(Do not remove)
Step 2. Place the key holes on the mounting
plate over the 2 screws previously loosened
from the mounting ring, turn mounting plate
until it locks in place at the narrow section of
the key holes. Secure by tightening the 2
screws previously loosened and the one
previously removed. (Figure 15)
Screws
Blade
Blades bracket
Screws
Fiber
washers
Mounting
plate
Mounting ring
Screws

8
11. INSTALLING THE
SWITCH HOUSING
NOTE: Before starting installation, disconnect
the power by turning off the circuit breaker or
removing the fuse at fuse box. Turning power
off using the fan switch is not sufficient to
prevent electric shock.
Step 1. Remove the screws from the
mounting plate under the fan motor.

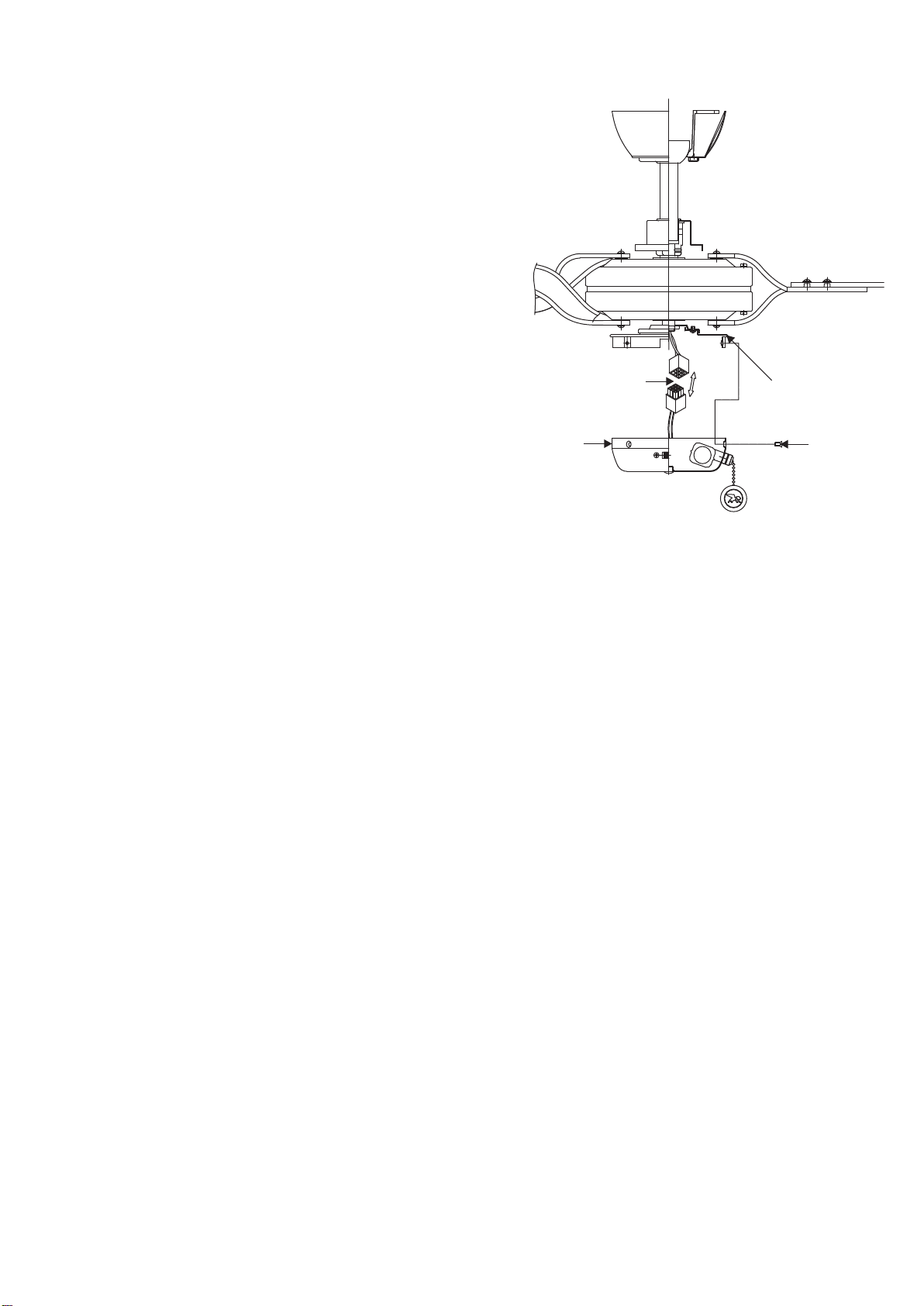

Step 2. While holding the switch housing
under your fan, snap together the wire
connection plug. (Figure 16)
Step 3. Raise the switch housing to the
mounting plate until the holes in switch
housing and mounting plate line up. Reinsert
screws to secure in place. (Figure 16)
Figure 16
Mounting plate
Connection plug
Screws
Switch housing

9
Figure 17
Figure 18

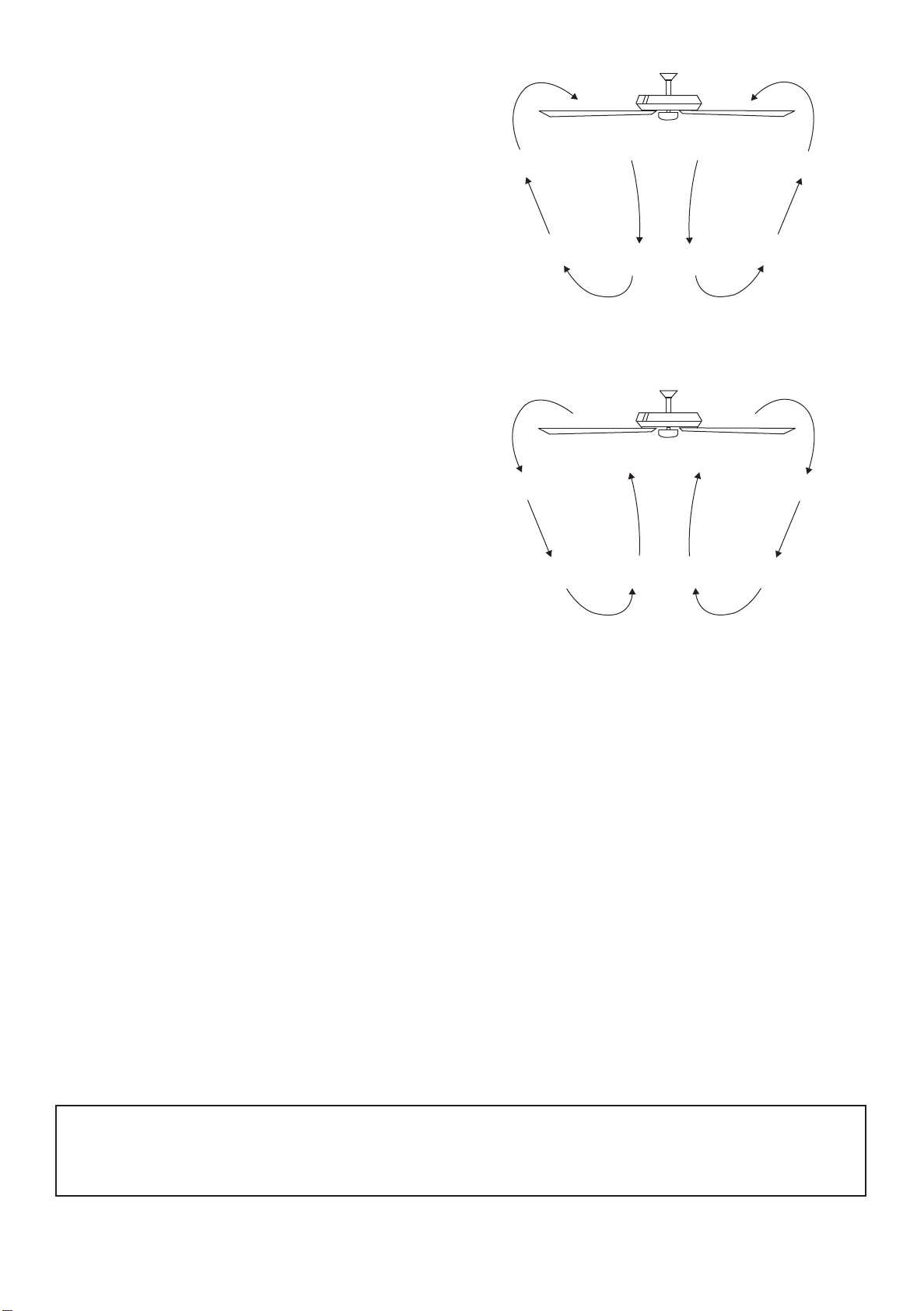

12. OPERATING YOUR FAN
NOTE: Wait for fan to stop before changing
the setting of the slide switch.
Turn on the power and check the operation of
your fan. The pull chain controls the fan speed
as follows: 1 pull- High, 2 pulls-Medium, 3
pulls- Low, and 4 pulls-Off.
Light pull chain it controls the light in "ON" or
"OFF".
Speed settings for warm or cool weather
depend on factors such as the room size,
ceiling height, number of fans and so on.
The slide switch controls directions: forward
(switch left) or reverse (switch right)
Warm weather - (Forward) A downward
airflow creates a cooling effect as shown in
Fig. 17. This allows you to set your air
conditioner on a warmer setting without
affecting your comfort.
Cool weather - (Reverse) An upward airflow
moves warm air off the ceiling area as shown
in Fig. 18. This allows you to set your heating
unit on a cooler setting without affecting
your comfort.
Here are some suggestions to help you maintain your fan
1. Because of the fan's natural movement, some connections may become loose. Check the
support connections, brackets, and blade attachments twice a year. Make sure they are
secure. (It is not necessary to remove fan from ceiling.)
2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft
brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the
motor, or the wood, or possibly cause an electrical shock.
3. You can apply a light coat of furniture polish to the wood blades for additional protection and
enhanced beauty. Cover small scratches with a light application of shoe polish.
4. There is no need to oil your fan. The motor has permanently lubricated bearings.
13. CARE OF YOUR FAN
IMPORTANT
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT
ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS".

10
Problem
Fan will not start.
Fan sounds noisy.
Solution
1.Check circuit fuses or breakers.
2. Check line wire connections to the fan and switch wire connections in the
switch housing.
CAUTION: Make sure main power is off.
1. Make sure all motor housing screws are snug.
2. Make sure the screws that attach the fan blade bracket to the motor hub is
tight.
3. Make sure wire nut connections are not rubbing against each other or the
interior wall of the switch housing.
CAUTION: Make sure main power is off.
4. Allow a 24-hour "breaking-in" period. Most noise associated with a new
fan disappear during this time.
5. If using an optional light kit, make sure the screws securing the glassware
are tight. Check that light bulb is also secure.
6. Some fan motors are sensitive to signals from solid-state variable speed
controls. If you have installed this type of control, choose and install
another type of control.
7. Make sure the upper canopy is a short distance from the ceiling. It should
not touch the ceiling.
14. TROUBLESHOOTING
