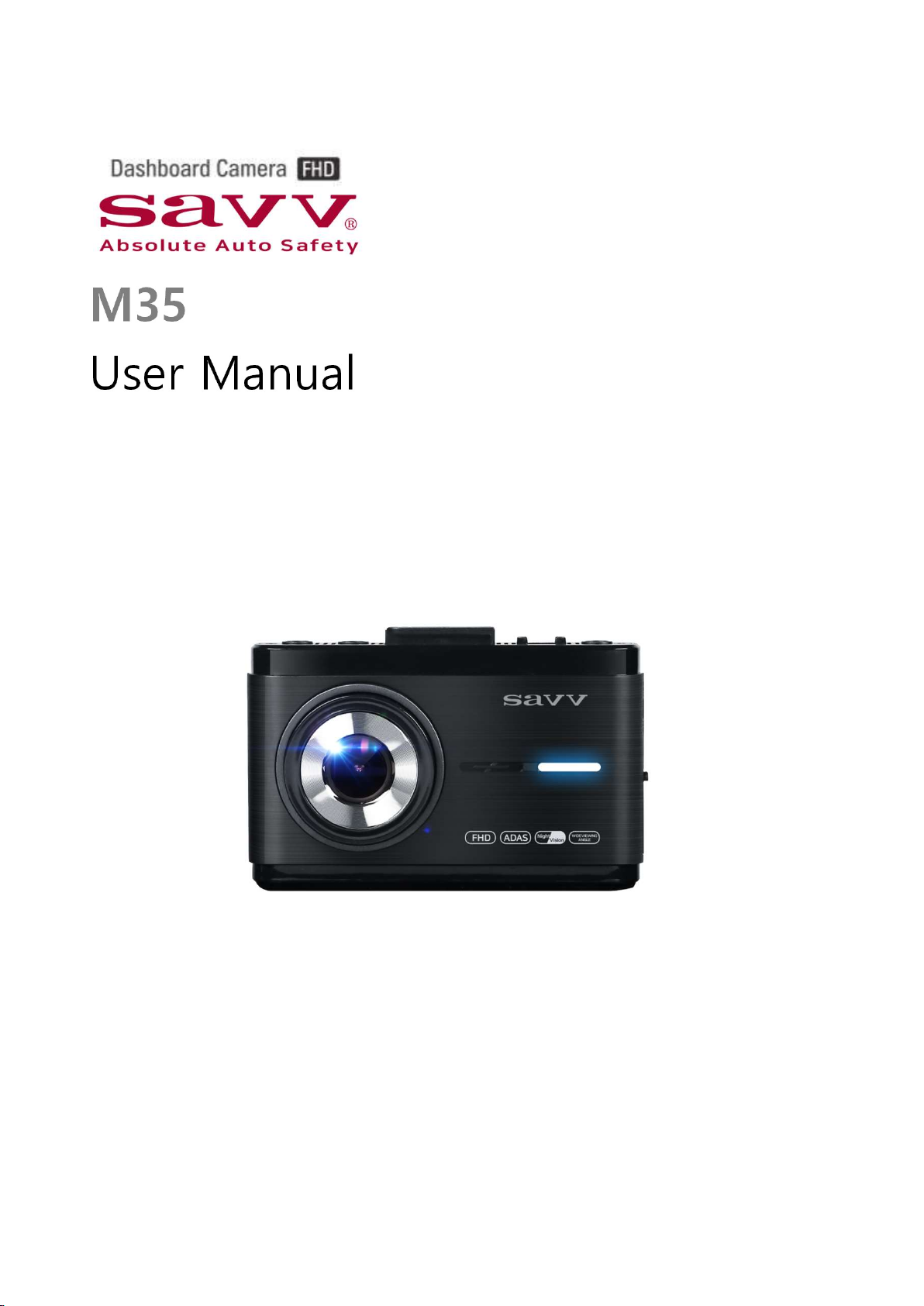

SAVV M35 User manual

M35
User Manual
SAVV DASHCAM is a supplemental video recording device. Read the following
instructions carefully in this guide to properly use and maintain the product.
This device DOES NOT guarantee video recording for all accidents as the built-in
impact sensor may not be activated due to user settings and the level of impact
during the collision. Some of the functions may not be available depending on
the installation, driving conditions, and vehicle type.

2.
Caution before using DASHCAM
• Do not operate the DASHCAM while driving.
Driving under distraction may cause an accident.
•Do not park your vehicle under direct sunlight
during hot weather when the product is installed.
It may cause product failure.
•Do not touch or wipe the product with chemicals,
detergents, oil, etc.
Gently wipe with a dry cloth after disconnecting the
power.
•Keep product from foreign materials.
Foreign materials in SD card port or external
cable port of main body may cause product failure
or malfunction.
•Be aware that if the product is damaged or the
power is cut off as a result of an accident, the
video may not be recorded.
•Excessively tinted windows may interfere with
the image recording such as brightness and
sharpness of the video.
•Attach the cradle to the main body and mount it
securely to the glass surface.
Failure to fit properly may cause the product to
fall to damage the unit.
•When changing the mounting position of the cam-
era, make sure to readjust the camera angle and
review the recorded file.
If the camera is installed in a wrong position,
normal recording might not be possible.
•The temperature below -10 °C or above 60 °C may
cause malfunction during operation.
Please keep the unit under recommended
temperature even when not in use.
• The voltage for the device is 12 to 24 volts.
Use only the standard issued hardwiring power
cables or power source for this product.
•We recommend to use of authorized SD cards
provided by SAVV and we are not
responsible for any damage caused by using
unauthorized memory cards.
Precautions when using SD Card
•The SD card has limited lifespan and it needs
to be periodically inspected or replaced.
•The warranty period of the SD card supplied
by our company is 90 days.
3.
•Make sure to turn the power OFF before
removing the SD card.
•If you remove the SD card while product is on,
the stored data may be damaged or lost.
•The SD card or product can be damaged
if you insert the card with excessive force or
if inserted in the opposite direction.
•Periodically check the data stored on the
SD card to see if the DASHCAM is operating
properly.
•In case of accidental or manual power off
during recording, data will not be saved in
SD card.
•Please store important data separately. Make
sure to store it in another storage device.
(HDD, CD, USB card, etc.)
•Depending on the season, the temperature
inside the vehicle can rise due to direct sunlight,
causing the temperature of SD card to rise.
Please park your vehicle in cooler/shady areas
to prevent date loss.
1. SD Card warranty
2. How to manage SD Card
2

Precaution with ADAS Functions
• The GPS must be connected to the satellite in
order to be operated properly.
• If the front camera has poor image conditions
(listed below) the lane and vehicle information
may not be detected.
•When windshield is damaged, contaminated or
covered with dirt, snow or ice
•When camera lens is frosted or covered with debris
•When driving through winding, hilly roads or sharp
curved road with inconsistent lane visibility
•In case of poor lane visibility due to fog, rain,
or snow.
•In case of roads with complicated lanes such as
busy intersection or highway in rural are.
•In case of sudden change of light conditions such
tunnel, underground parking lots, under bridges.
•In case of light direction change such as direct
sun light to camera lens or reflection directly
to camera lens
•When headlights or windshield is not properly cleaned
May not operate normally in severe weather conditions
•When DASHCAM is not installed near the top center of
the front windshield or the camera lens angle is
incorrect.
(e.g. installed far left, far right, bottom near dash board,
etc.)
Paring remote control
2. How to use remote control
•Short click remote control
(less than 1 second)
is to save screenshot image
in DASHCAM,
•Depress remote control
(more than 3 second)
is to record video in DASHCAM.
•There will be a shutter click sound.
1. How to pair remote control
•Insert battery into the slot.
•Turn on the power of the
DASHCAM while depressing remote
control until display appears on
LCD screen.
•Press remote control to check
3

1. Product warranty and liability
The entire risk arising from the failure to comply with the instructions specified
in the user manual remains with the user and we assume no responsibility.
Data loss, or other occurrences of accident and vehicle damage while using
the product are the responsibility of the user.
Depending on the driving environment of the vehicle or the influence
of external devices, some features may not be supported and as a result,
normal video recording may not be possible. Use
DASHCAM as an auxiliary means to check the driving image.
The SD card requires continuous maintenance. Any damage incurred
by the user is your user's responsibility. SAVV Automotive is
NOT responsible for any problems arising from
1. Any indication of unauthorized modification of original
power cable supplied.
2. Using Non-certified cable as power source
3. In case of product malfunction or fire due to abnormal voltage
and current of the vehicle battery
2. Miscellaneous cautions
This product is designed for the specified voltage and use. If this is not observed,
it may cause product breakdown and may cause a fire.
If the user disassembles and repairs arbitrarily, defects that occur are not eligible
for warranty service at no charge. For your safety,
Do not bend the power cable excessively
Do not use a damaged power cable.
If the wiring finish is unstable, it may cause product malfunction and may cause a fire.
4

Power Cable
3. Check before installation
Please do not cut a power cable or remove fuses during installation
1. Power cable connection
① B+ Fuse : Connect this line to positive (+) post of the battery that provides
continuous power supply.
② ACC Fuse : Connect this line to ACC
③ GND : Connect this line to a chassis ground on the vehicle. Make sure the
connection is made
to mare metal
* Please carefully check B+, ACC, GND labels on the cable before installation.
This product provides continuous recording in driving /parking mode.
Make sure to connect B+ line to
battery for continuous recording. No recording will be made
if B+ and ACC wire are connected to ACC only.
2. Check installation
① Check if wiring is connected correctly.
② Make sure all connection is securely fastened.
5

Specification
Recording Continuous / Event / Manu
al / Parking
Sensor 1920 x 1080 CMOS
LENS
Front: 1/2.7”, 6G, Viewing
Angle 146∘
Rear : 1/3”, 4G, Viewing A
ngle 130
Output 3.5” Wide TFT LCD (480x
320
Resolution
Front : FHD (1920x1080) 3
0fps
Rear : FHD (1920x1080)
30fps
Input Capacitive Touch
Audio Internal Microphone
G Sensor G Sensor (3 Axis)
Voltage DC 12V/ DC 24V
Size 109mm x 69.5mm x 31mm
SPEC Micro SD / Class 10 (MLC Type)
32GB Size(Allocation
ratio) Rec. time / File
Driving mode 약16G (50%) 115 min / 60 sec
Event mode 약6.4G (20%) 45 min / 30 sec
Manual mode 약3.2G (10%) 23 min / 30 sec
Parking mode 약6.4G (20%) 45 min / 30 sec
Event Rec : 10 sec before, 20 sec after collision.
Manual Rec : 10 sec before, 20 sec after execution
Parking Rec : Records when motion is detected
IN / OUTPUT Pin Configuration
We cannot guarantee the normal operation
and warranty service if you don’t use parts
provided by SAVV. Please contact an
authorized dealer or distributor to purchase
optional parts if needed.
6
Power

Defect Analysis before Contacting Service Center
I cannot record in parking mode
In parking mode, continuous recording is not
possible but only when motion and G sensor
are detected.
Check configurations in Settings>Other
Settings>Parking Mode.
The LCD screen keeps turning off
The screen will automatically turn off after initial
set time.
Screen OFF and video recording are irrelevant but
recording continues even when screen is OFF.
You can change the settings in Settings>Display>
LCD Off Time.
Rear camera / GPS doesn’t connect
First connect the device before turning it on,
then it should work properly.
The SD card does not read
The metal part of the memory card may not be
in proper contact due to foreign substance.
Please wipe it with a dry cloth or eraser and try
again.
The video file has been erased
If there is not enough space for each folder the
memory management function will delete the
oldest files first and save the latest video file.
Down load to keep important files separately.
I cannot see the parking light
The light may look cloudy during the day.
Check configurations in Settings> Other
Settings> Parking LED setting.
I keep getting alerts during driving
A beep sounds when the G senor
detects a shock. Please adjust the
sensitivity of
G sensor in Settings> Sensor Settings.
Also check the rear camera
connection status / memory card
insertion status.
A beep may sound if the connection
status and insertion status are not normal.
The product keeps rebooting
The Device will reboot when the rear
camera connection or inserted
memory card are unstable.
Check the rear camera connection
status
memory card insertion status.
The video is blurred
The video may come out blurred due to
foreign substances in the windshield or
the camera lens.
Please clean the windshield and camera
lens before use.
7

Key Features
You can see video in real-time on the LCD monitor including date, time and information.
Function keys will appear by touching the screen
1.Real-Time Screen Switch
M35-F (2CH)
M35-H2 (3CH)
M35-S2,T2 (3CH)
Check model numbers for feature details
LCD DISPLAY
FRONT/CAM1/CAM2---FRONT---CAM1---CAM2
---CAM1/CAM2---FRONT/CAM1/CAM2
LCD DISPLAY
FRONT/SIDE1/SIDE2--FRONT--SIDE1--SIDE2--
SIDE1/SIDE2--FRONT/SIDE1/SIDE2
2. Manual Video Recording
You can immediately record the
current image at any time
4. Voice Guidance and Recording
Voice Guidance ON Voice Guidance OFF
Voice Recording ON Voice Recording OFF
5. Wi-Fi Control
To use the Wi-Fi feature, search for "DASHCAM3"
in Google Play Store or Apple App Store on your
smart phone, download and install it
Wi-Fi ON Wi-Fi OFF
3. Manual Video Recording
Click on the menu button to change
product settings
8

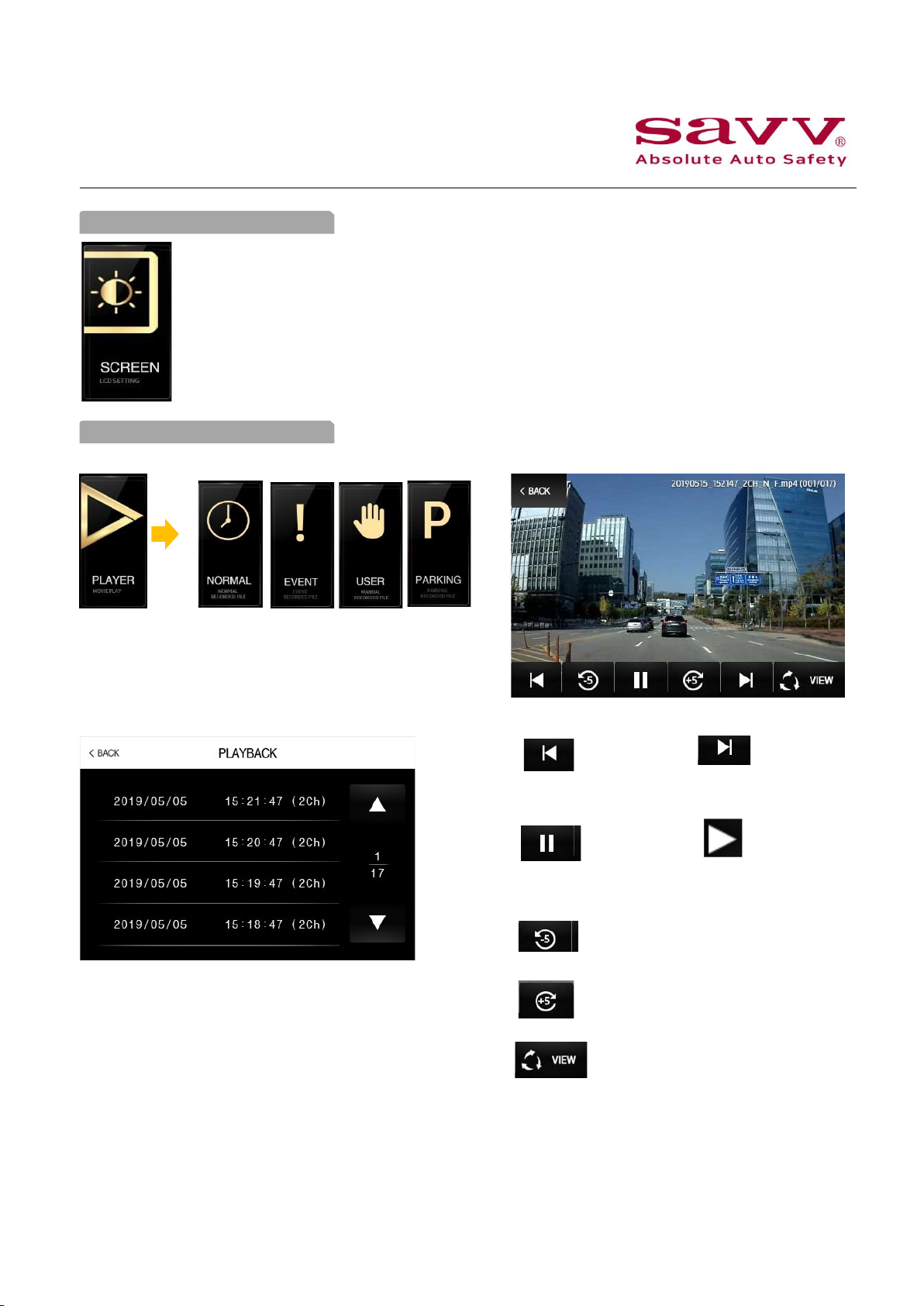

6. Menu > Screen Settings
Details of LCD Setting
1. LCD brightness control Levels 1~3 available.
(higher level is more brighter)
2. LCD OFF time Setting
- Set automatic LCD OFF time.
(turn OFF after 30 sec, clock mode after 30 sec, turn OFF after 3 min, always ON)
7. Menu > Player
You can review the recorded videos if you
press the button of each storing directory
The file format is in following order :
“Year>Month>Day>Hour>Minute>Second> Camera
Channel>Recording Mod>Camera Location”.
Touch the recorded file to play video
Play previous file Play next file
Play Pause
Backward 5 sec
Forward 5 sec
Change the playback channel.
(When external camera is
connected)
9

8. Menu > ADAS (Advance Driving Assistance
System)
The product supports Lane Departure
Warning System, Forward Collision
Warning System, and Forward Vehicle
Start Alarm functions of ADAS.
The ADAS LDWS, FCWS, and FVSA
functions notify the driver accordingly
in order to prevent any accidents while
driving.
You can enable the ADAS functions in this
menu. You can go to Detail Setup to establish
installation settings.
Blue line: Align at the center of the vehicle
Red line: Align at the ground level
Yellow line: Align at the tip of your hood
Select the color of the line you like to move, touch to move
up, down, left, right
Adjust the lines at flat ground surface for the best accuracy
The ADAS functions can only be operational
when a GPS is connected to the device and
will be activated in the following conditions
FVSA: when front of your vehicle is departing
but your vehicle is not moving
FCWS: when speed is over 9.3mph (15km/h)
LDWS: when speed is over 43.5mph (70km/h)
9. Menu > Setting
You can set up features of
the DASHCAM from
this menu.
SENSOR SETUP
Adjusts the G-Sensor sensitivity by choosing
from three levels: high, medium, and low.
10

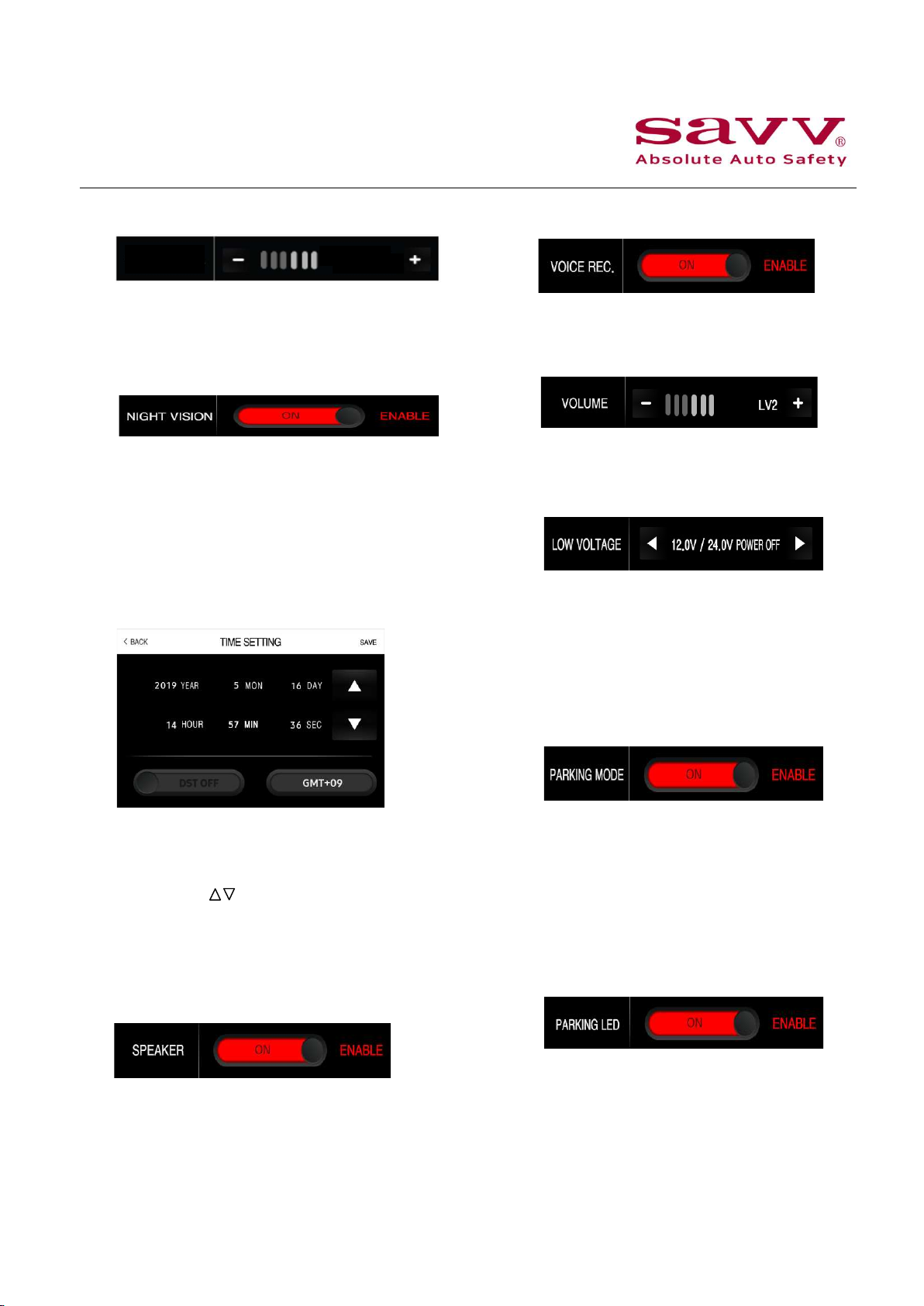

TIME SETTING
You can set the date and time.
Select the item you want to set
(year / month / hour / minute / second)
by scrolling buttons. When GPS is linked,
the time will be automatically set.
GMT is required to be set by users based on
country / city location
VOICE GUIDANCE SETUP
Voice guidance can be set.
Voice guidance stops when you select Off
VOICE RECORDING SETUP
Voice recording can be set. If you select Off,
Voice recording is not available.
VOLUME SETUP
The volume increases as the level increases
MISCELLANEOUS SETUP
11.8V / 12.0V / 12.2V / 12.4V / 23.8V /
24V / 24.2V / Continuous, event, parking,
user priority mode selection is available.
When battery voltage becomes below
the pre-set value in the parking mode,
DASHCAM will be turned off automatically.
PARKING MODE ON USE
You can select whether to use the
parking mode. If you select Off, no
parking mode is performed
and the DASHCAM will be turn off
automatically.
This feature is available ONLY for the
vehicle with constant power connected.
!
PARKING LED ON USE
You can select for front parking lamp
to be activated. When OFF is selected,
parking lamp will not be activated.
Parking
Sensor
Sensitivity
Adjust the sensitivity of parking recording
by choosing from three levels: high, The
higher sensor is set, the more recording
will be performed.
When night vision is enabled, the brightness
of the night recording will be improved.
※When using night vision, screen noise may
also increase.
LOW
11

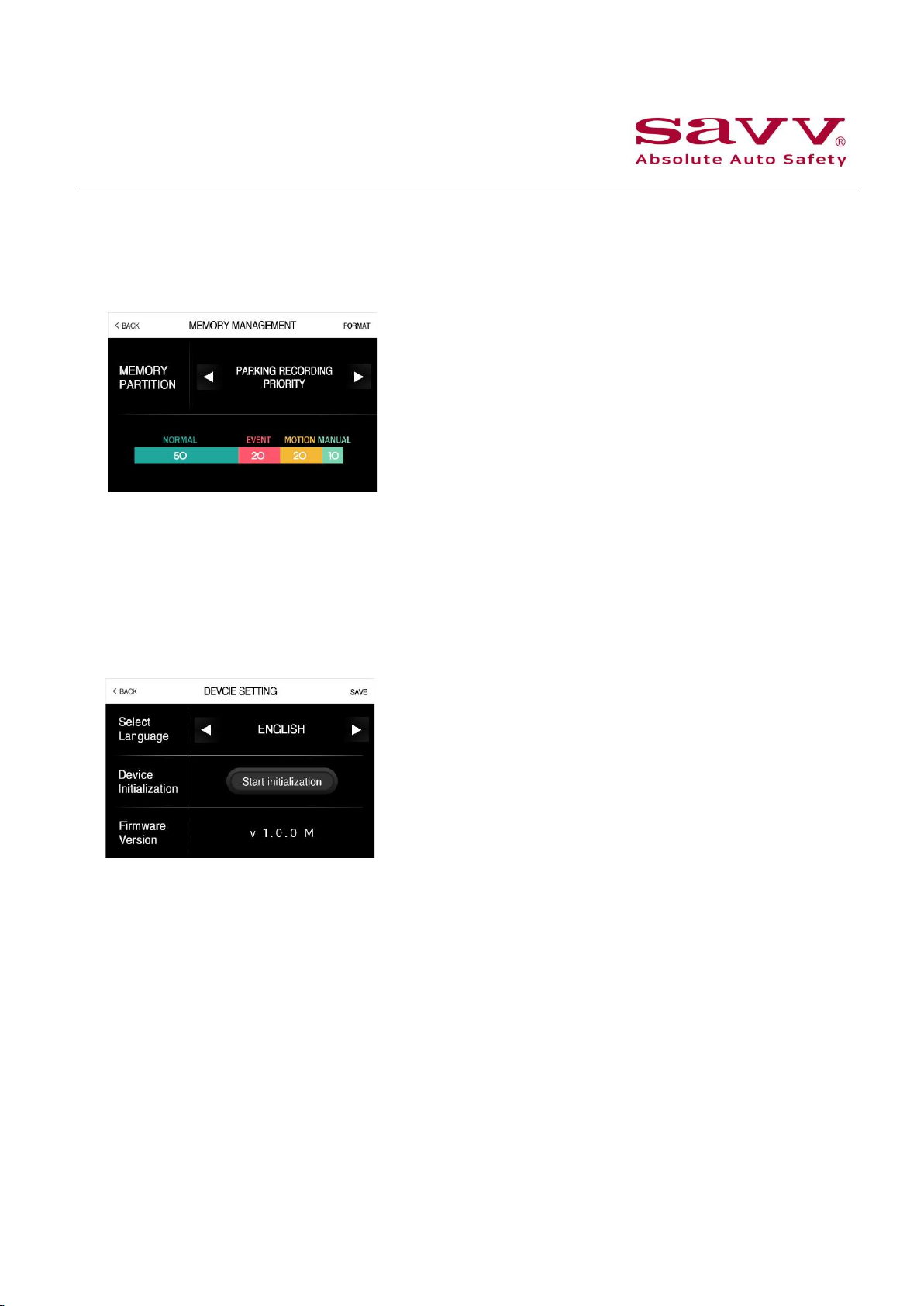

GENERAL SETTING
Select language
English, Korean, Chinese,
Japanese supported
Reset
Resets User settings
Firmware version
Check the software version applied
to the unit.
PROGRAM INSTALLATION
Firmware Update
-Smart phone
1. Download and RUN the DASHCAM3 app.
2. Connect your smart phone and the
DASHCAM via Wi-Fi.
3. Choose Firmware Update from the menu
and click to down load updated firmware.
(Use data when Wi-Fi disconnects.)
4. When the download is complete, reconnect
to the DASHCAM and run the app.
5. Press the OK button to update the firmware
when Update window appears from the menu.
Firmware Update
-SD Memory Card
1. Download and extract the firmware from
customer support of www.savv.com
2. Insert the memory card to your
PC and format it.
3. Copy the extracted file to the memory card.
4. Remove the memory card from your PC and
insert into the DASHCAM then turn on
the power.
5. If firmware is detected from the memory card,
the firmware update will be processed.
If you fail, format your memory card first and
repeat the process.
If video does not play, please install
CoreACC Codec.
!
SD CARD FORMAT
You can manage storage space of SD card
according to your preference.
Continuous, Event, Parking, User
priority mode selection is
available. After selecting the mode,
click the Format button, it will be
prompted for FORMAT confirmation.
12

Using PC Viewer
2Ch PC Viewer
3Ch PC Viewer
PLAY CONTROL Button
File Import
File Save
File List
Video Screen
Video Screen Video Screen
Impact Sensor
information
Latitude
longitude
speed Information
DASHCAM3 APP INSTALLATION
1. Install on your Smart Phone
SAVV DASHCAM supports Android and IOS.
Search for “DASHCAM3” for smart phone app.
n the Google Play Store and Apple App Store
to download.
2. Caution
When the DASHCAM is running,
it can be synchronized with Dashcam3
app only when both are linked with
Wi-Fi (Refer to Product Functions →
Wi-Fi).
Depending on the communication
status, there may be a deviation in
the link time with the smart phone app,
link could be interrupted. Depending
on the type and specification of the
smart phone, some features such as
downloading, playing recorded video,
current video may not be supported.
3. Connecting DASHCAM
①Select Wi-Fi Menu
②Select DASHCAM3 from the list
③Input password -- Default password
"00000000" 8-0s
④Activate Wi-Fi
⑤Run DASHCAM3 App
In order to prevent others from
linking with your DASHCAM, be sure
to change the password.
When you change your Wi-Fi
password or name, the DASHCAM will
reboot. Please use NEW password to
link with the DASHCAM. You can
reset the password by performing
initialization of the DASHCAM. 13

USING DASHCAM3 APP
1. Main Menu
Live Video
You can check the live video of the
DASHCAM.
When connecting additional cameras
other than the front camera, you can
check the live video of all cameras
using the (multi-channel) switch button.
Use the capture button to check the
currently displayed screen. You can also
save still images (jpg) in the DASHCAM.
Recorded Video
You can play and download the video
recorded in DASHCAM.
Recorded video stored in the smart
phone and DASHCAM can be played.
During playback use the button to
switch to recorded in multi-channel.
You can choose to save in your smart
phone.
SETTING
You can set the menu according to
your preference
2. Live Video
BACK
Back to main menu
SCREEN SHOT
Captured screen shot can be saved in
memory card PHOT folder of the DASHCAM
VEDEO SELECT
In the multi-channel mode, you can check
the current video of all cameras connected
to DASHCAM
While checking the LIVE video, the recording
of the DASHCAM does not stop.
!
14

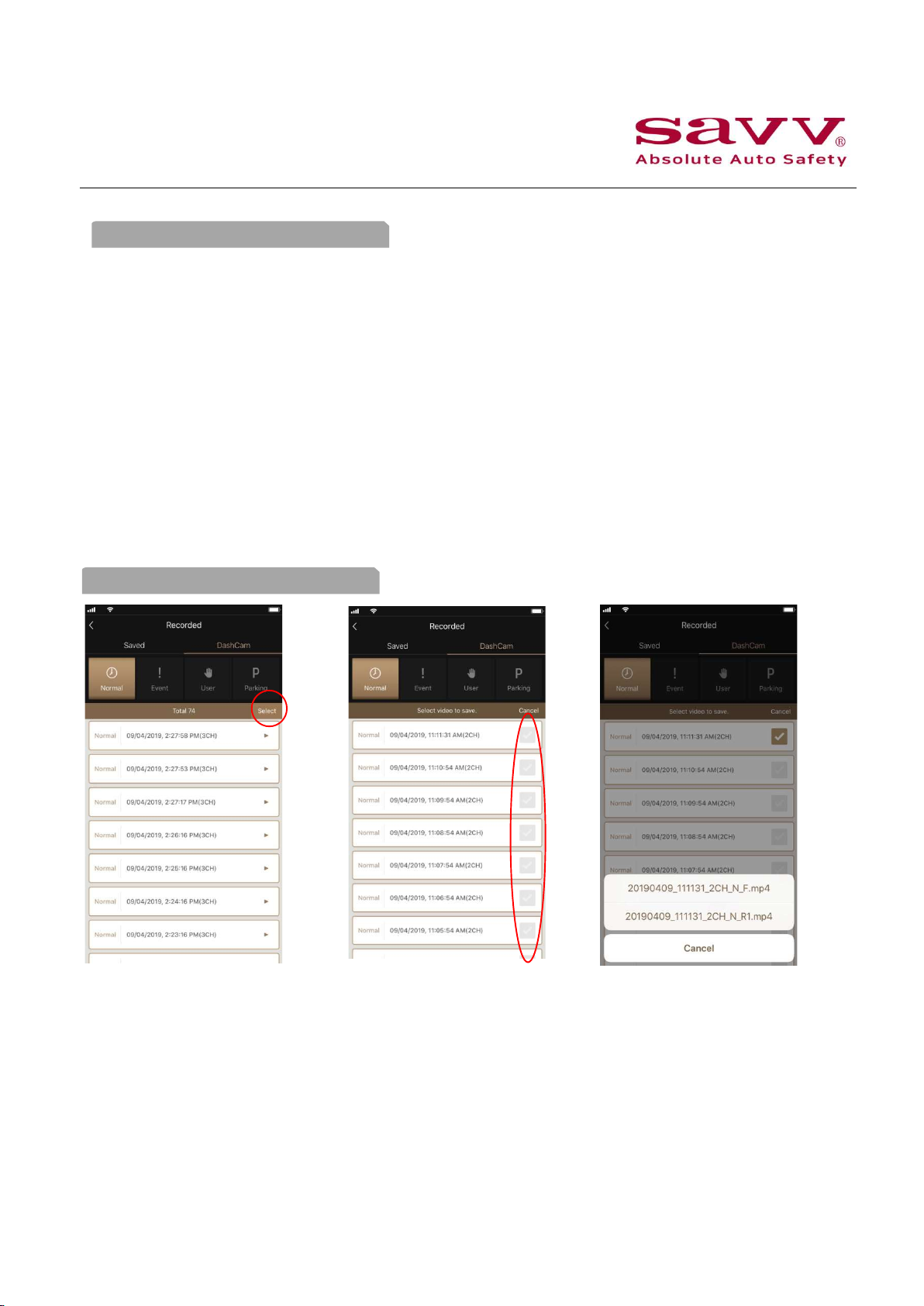

4. Recorded video>DASHCAM Video
While viewing recorded video file, DASHCAM recording will be STOPPED.
3. Recorded video>DASHCAM Video
DASHCAM Video
You can check the recorded video saved
video in the DASHCAM.
Recorded video is divided into
CONTINUOUS / EVENT / PARKING mode
recording.
Click the file in the playlist to play the
recorded video.
Downloading recorded video file from
DASHCAM
Click SELECT button
Select the file you want to save
In case of multi-channel file, you can select the
recorded video file of the channel you want to save
15

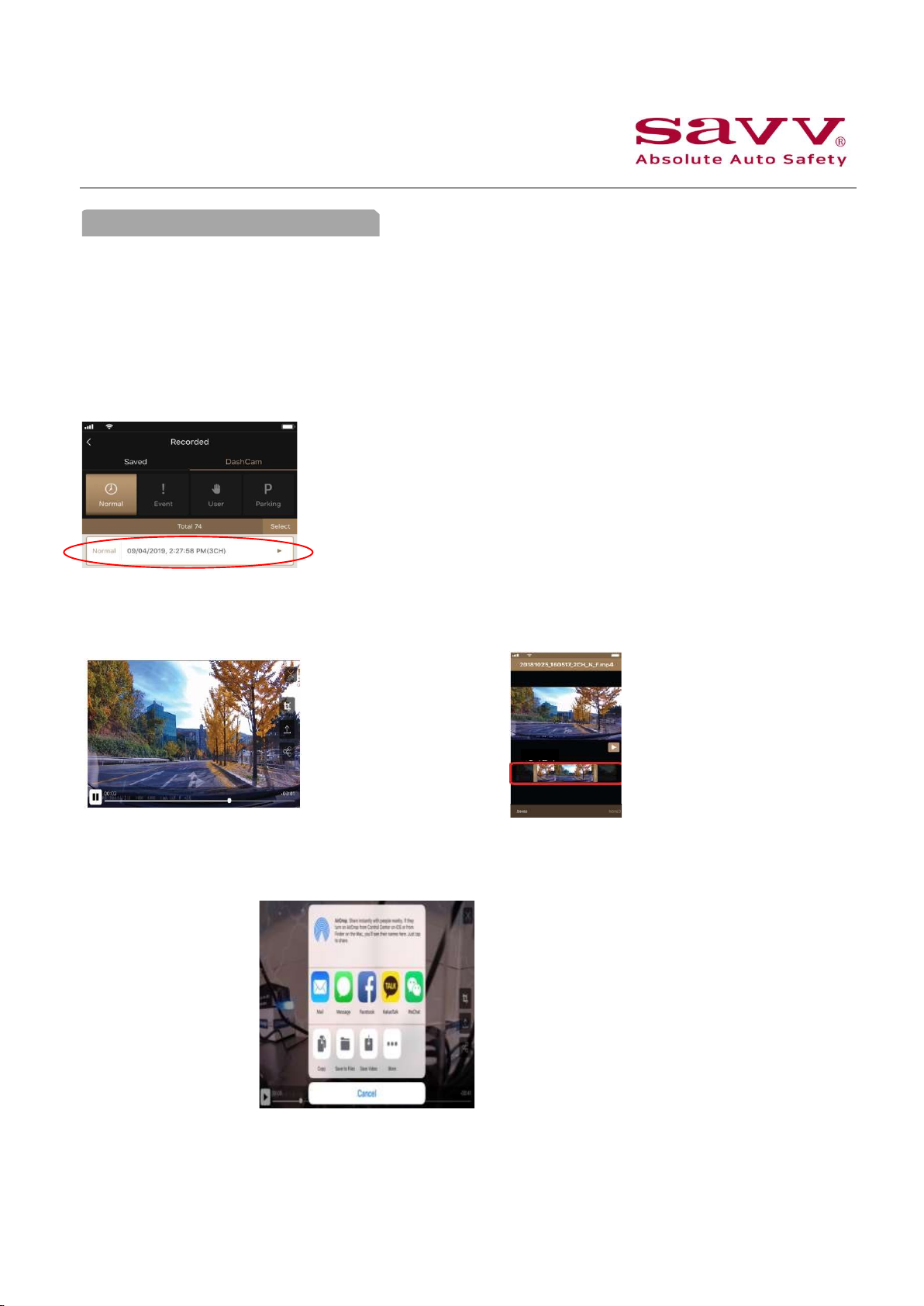

5. Recorded video>Saved Video
Saved Video
You can check the video on your smart phone from the DASHCAM.
Downloaded video is saved in order of CONTINUOUS / EVENT / PARKING
mode recording.
Click the file in the playlist to play the recorded video Click the Rename File button
to change the file name of the saved video.
Exit
Going back to Saved video
Edit
SHARE / SNS
Edit
You can select specific part of
the saved video to save it as
a new file. While viewing the
edited video, additional
editing in real time is possible.
You can share video through
social network service (SNS)
When sharing video files, Wi-Fi
connection will be disconnected
with DASHCAM and video data
transmission charge may occur.
SHARE / SNS
16

KEY FEATURES
FULL-HD
1080P
FULL HD + HD high definition
image quality
Provides clear and natural high
quality images
Built in Wi-Fi
Automatic Wi-Fi connection to
smart phone for recording live
video and save
Capacitive Touch LCD Panel
3.5”Capacitive touch LCD with
same touch as smart phone
Check recorded video on site
with 3.5” LCD
Wireless remote control
Easy, convenient and portable
remote control allows you to
record when you want
R
EC
Super night vision
Maximizes image brightness in
low light environments such as
night driving and parking
ADAS
Advanced Driving Assistance System
with GPS connected
Lane Departure Warning System,
Forward Collision Warning System,
Front Vehicle Start Alert
Format free support
No periodic memory card
format required for secure
video file recording
CONTINUOUS / EVENT /
PARKING mode recording
Optimized recording method
for various circumstances
17

External GPS
Accurate location, time, recording
information. driver assistance
system available.
Wide view angle
Wide viewing angle without
worrying about blind spots.
Wide viewing angle allows easy
checking of accidents and
surroundings
30FPS
30 FPS recording
30fps recording on each camera,
and clear picture quality.
KEY FEATURES
あ
A
가
中
Multi language support
4 language support
English, Korean, Chinese, Japanese
voice guidance and prompts
change to selected language
when language is changed
3 Axis G sensor
With 3-axis G sensor, you can
save event video without
missing a small shock
Automatic low battery
discharge prevention
Checks the voltage of the vehicle
and cuts off the power
automatically when it is below
the pre set voltage
(available in Parking mode only)
Thermal protection
Automatically detects the
vehicle's internal temperature and
automatically cuts off power at
high temperatures
Image distortion correction
Automatically corrects the
distortion recorded from
Wide-angle to provide clear
images
18

BASIC PRODUCT CONTENTS
1. Product Description
2. Basic Contents in common
Fount Camera/Main Unit Adhesive Cradle User Manual
Remote Control Power Cable Micro SD Memory And Adapter
3. Contents per model
FULL-HD Rear Camera
M35-F
HD Rear Camera
M35-H2
Indoor IR HD Camera
M35-H2
Side Camera Cable
M35-T2
Side HD Camera
M35-S2
Side IR HD Camera
M35-T2
Side Camera Cable
M35-S2
GPS
Sold separately
Real Camera Cable
M35-H2
19

INDIVIDUAL PRODUCT DESCRIPTION
1. M35-F (2CH) 2. M35-H2 (3CH)
Attachable Cradle
Power
Input Rear Camera
Lens
Security
LED
SPECIFICATION
Power
Input
Rear Camera Lens
Security
LED
IR Sensor
Indoor Camera Lens
SPECIFICATION
20
Attachable Cradle
