Saxby Lighting EL-40104 User manual

www.saxbylighting.com
Instruction manual
61214, EL-40104
Severus Landscape Indirect
V7 13/05/2023
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
UK Manufacturer: BH17 7BY
Technical data
220-240 V~, 50 Hz
Supply
Voltage:
Bulb
Type: 2W LED module (SMD) CCT, 3000/4000/6000K
For further information, please visit https://www.lighting-info.co.uk/61214
This product contains a light source of energy efficiency class F.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before cleaning.
Care and Safety
This light source is protected by a shade. This part must be replaced immediately should the shade
become cracked or damaged. This fitting must not be used without the shade in place.
Replace Cracked Shade
Conformity with all relevant EC Directive requirements.
Conformity with all relevant UKCA Directive requirements.
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
IK08
This product is rated at IP65.
This product is rated at IK08.
IP 65
This product is not suitable for dimming.
Non-replaceable control gear
Non-replaceable light source

Warning
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Check the pack and make sure you have all the parts listed.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
To prevent electrocution switch off at mains supply before installing or maintaining this fitting. Ensure other persons cannot
restore the electrical supply without your knowledge. If you are in any doubt, please consult a qualified electrician.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of the connections.
This product is suitable for location in or near a marine environment.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distance between the junction
box and the light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction boxes
(not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber sheathed cable.
The mains supply cable must have a minimum cross sectional area of 1.0mm2
Cables must be protected using suitable conduit or plastic trunking.
Installation
This power supply is Double Insulated and does
not require connection to an Earth circuit.
Determine the position of your light fitting taking into account the entry position of the cable and make sure there is sufficient
cable coming out of the wall to connect to the terminal block. Ensure that the mounting surface is solid, preferably a brick or
block wall and ensure that there are no other cables or pipes beneath the surface.
• Refit the cover plate, click in postion. Replace fuse or circuit breaker and switch on. Your light is now ready for use.
This product is colur changing and can be either
warm white (3000K) or cool white (4000K) or
daylight white (6000K).
Choose your preferred colour before installing
by using the CCT switch inside the prodcut.
CCT Switch
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Note that the switch is turned off before installation.
Ensure that the screws and cable entry points are sealed to maintain the IP rating of the product. Having correctly identified the wiring from your light fitting, connect to the approved outdoor rated external terminal block in
the following way:
Wiring
• You have correctly identified the wires.
• The connections are tight.
• No loose strands have been left out of
the connection block.
• Reseal the approved outdoor rated
external terminal block.
Check that...

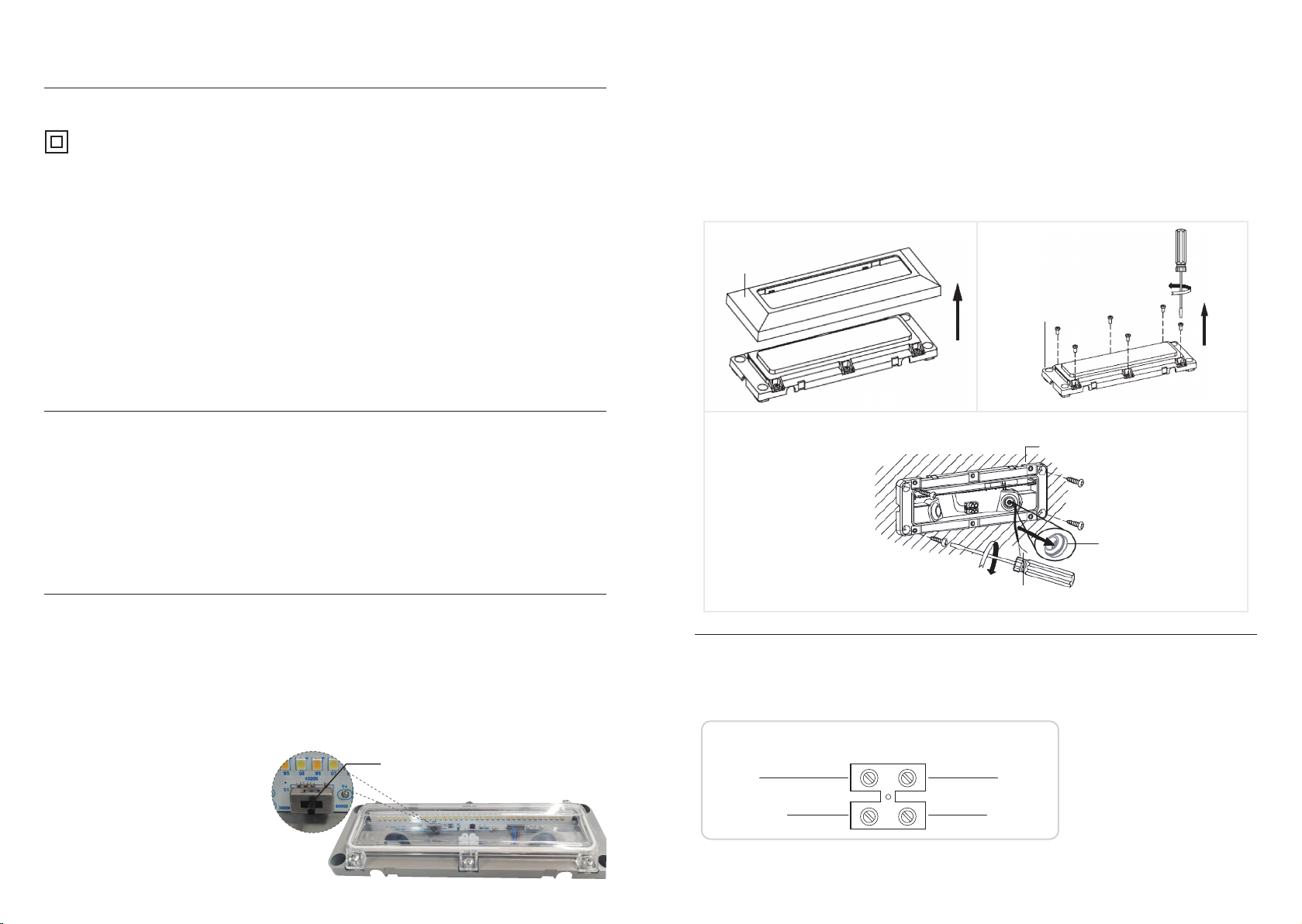

• Diagram A. Gently prise off the cover plate to reveal the 6 retaining screws on the sides of the unit.
• Diagram B. Remove these 6 x screws and retain for re-use.
• Diagram C. Bring the mains cable through the rubber grommet in the wall plate and then use the wall plate as a
template and mark the fixings holes. Make sure the wall plate is correctly aligned so that the top of it is horizontal.
Use appropriate fixings to secure the back plate to the wall.
• Wire as detailed below. When complete, wrap the terminal block in 2 layers of good quality insulation tape.
• Place the LED housing unit back onto the wall plate making sure that no cables are trapped or exposed and secure
with the 6 screws removed previously. Push the cover plate – removed previously– onto the LED housing unit.
Diagram A.
cover plate
Diagram B.
LED housing unit
Diagram C
Wall plate
Securing
screws
Incoming supply
Grommet
SUPPLY
NEUTRAL
SWITCHED LIVE
LIGHTFITTING
BLUE (N)
BROWN (L)
