Instruction manual
91954, 91955, 91956
Hades
Technical data
220-240 V~, 50 Hz
Supply
Voltage:
Bulb
Type:
91954--------1.2W LED module (SMD), 3000K
91955--------1.2W LED module (SMD), 4000K
91956--------1.2W LED module (SMD), Blue
The power supply is Double Insulated and does not require connection to an Earth circuit.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
Having correctly identified the wiring from your existing light fitting, connect to the approved IP67 (or higher rated) terminal
block in the following way (recommended terminal block Ref. 90131/90132)
Wiring
You have correctly identified the wires.
The connections are tight.
No loose strands have been left out of the
connection block.
Check that...
Conformity with all relevant EC Directive requirements.
Conformity with all relevant UKCA Directive requirements.
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
Care and Safety
Replace Cracked Shade
The LED's are protected by a plastic lens. The lens part must be replaced immediately should
it become cracked or damaged. This fitting must not be used without the plastic lens in place.
This product is rated at IP67.
IP 67
This product is not suitable for dimming.
NEUTRAL
SWITCHED LIVE
BLUE (N)
BROWN (L)
SUPPLY LIGHT FITTING
For further information, please visit https://www.lighting-info.co.uk/91954
Non-replaceable control gear
Non-replaceable light source
Except the 91956, these products contain a light source of energy efficiencyclass G.
V2 28/11/2021
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
UK Manufacturer: BH17 7BY

Warning
Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and satisfactory
operation of this product. Please retain these instructions for future reference.
Installation
Existing fittings must be completely removed before installation of a new product. Before removing the existing fitting, carefully
note the position of each set of wires.
Please read these instructions carefully before commencing any work.
This unit must be fitted by a competent and qualified electrician.
Install in accordance with the IEE Wiring regulations and current Building Regulations.
Check the pack and make sure you have all the parts listed.
To prevent electrocution switch off at the mains supply before installing or maintaining this fitting.
Ensure other persons cannot restore the electrical supply without your knowledge.
If replacing an existing fitting, make a careful note of the connections.
This light fitting should be connected to a circuit with a 30mA RCD fitted.
An appropriate outdoor mains cable must be used to power this product.
This system contains non-replaceable parts and cannot be serviced. If damage occurs the part should be scrapped.
Never cover the product.
This product will require an appropriate outdoor rated junction box (not supplied).
This product is not suitable for location in or near a marine environment and unsuitable for immersion in water.
The resistant to static loads is 5KN. This product is not suitable for drive-over, carriageways, parkings, etc.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with
your local authority or retailer for recycling advice.

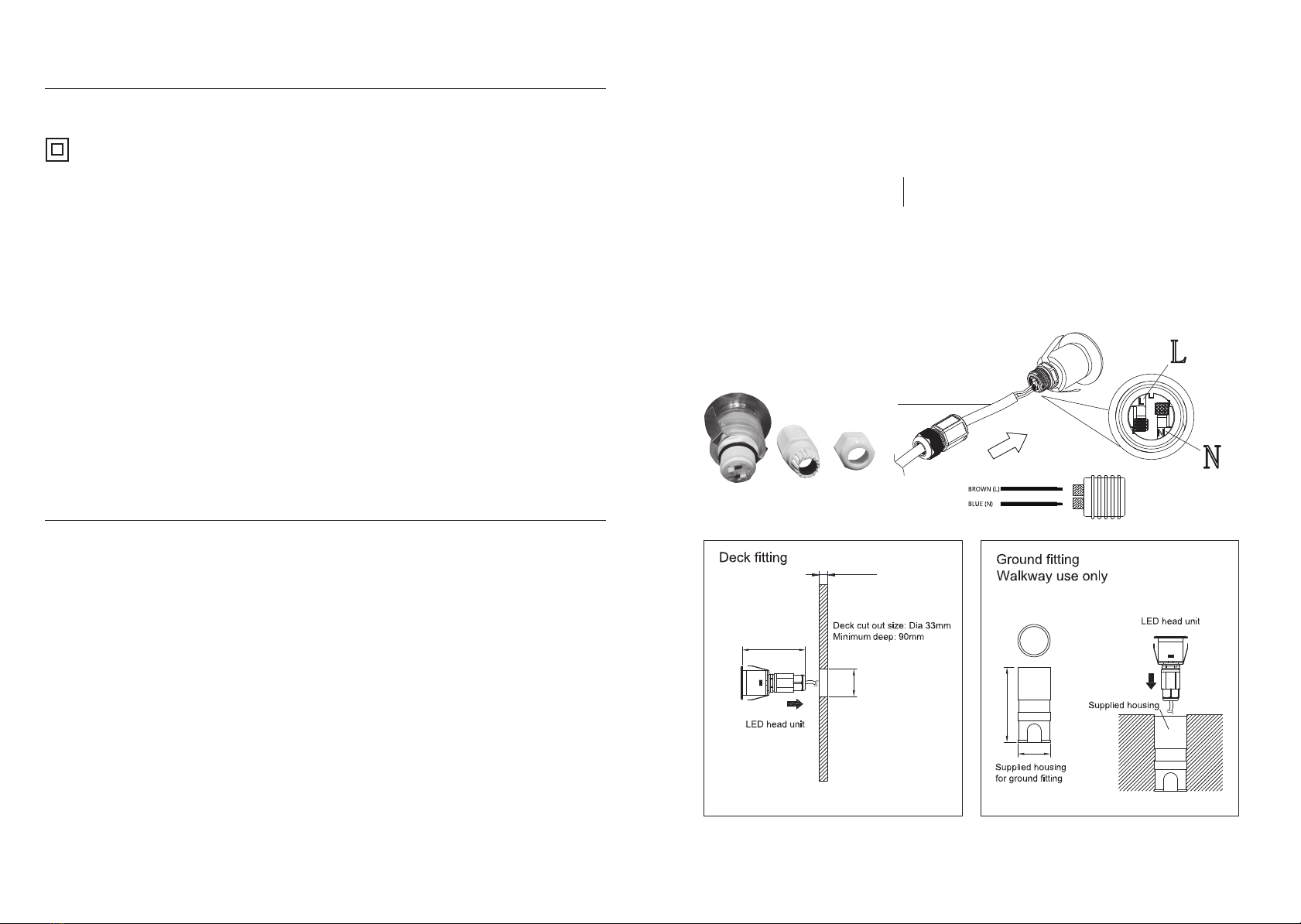

• Decide on the position of the luminaire. Depending on the location to cut out the size. It is recommended to cut the hole
slightly smaller than needed, then file the hole until the recessed unit fits snugly.
After deciding the layout of the light fittings ensure that the cables are long enough to connect to desired positions.
Note that the switch is turned off before installation.
90mm
Ø39mm
Min. 15mm
77mm
Ø33mm
Deck fitting------- Cut out size: Ø33mm
Minimum deep: 90mm
Ground fitting---- Cut out size: Ø39mm
Minimum deep: 90mm
(Walk way use only)
• Used as a ground light. This product must be fitted into the supplied housing and then installed into concrete or
paving slab. It must not be installed into soil.
• Pull the cables through the hole. Which is an outdoor grade, rubber sheathed cable. Wire as detailed wiring diagram.
• Place the product into the hole and ensure it is sitting properly.
• Form a recess to fit the housing into. Ensure that there is adequate drainage below the product.
• Replace fuse or circuit breaker and switch on. your light is now ready for use.
This light fitting is double insulated and does
not require connection to an Earth circuit.
Layout
Plan the desired layout of these fittings carefully, ensuring the cables will reach the distances between the each light fitting.
Avoid locating any cables in positions that would cause a hazard. Position cables and outdoor rated junction boxes
(not supplied) away from areas where they may be at risk from being cut, trapped or damaged.
We recommend that you use H05RN-F specification cable (not supplied) which is an outdoor grade, rubber sheathed cable.
The mains supply cable must have a minimum cross section area of 1.0mm2.
Cables must be protected using suitable conduit or plastic trunking.
This product is desinged to be fitted horizontally and vertically in decking, walls, steps, and suitable for installation dierctly
into the ground.
Recommend the
H05RN-F specification
cable (not supplied)
