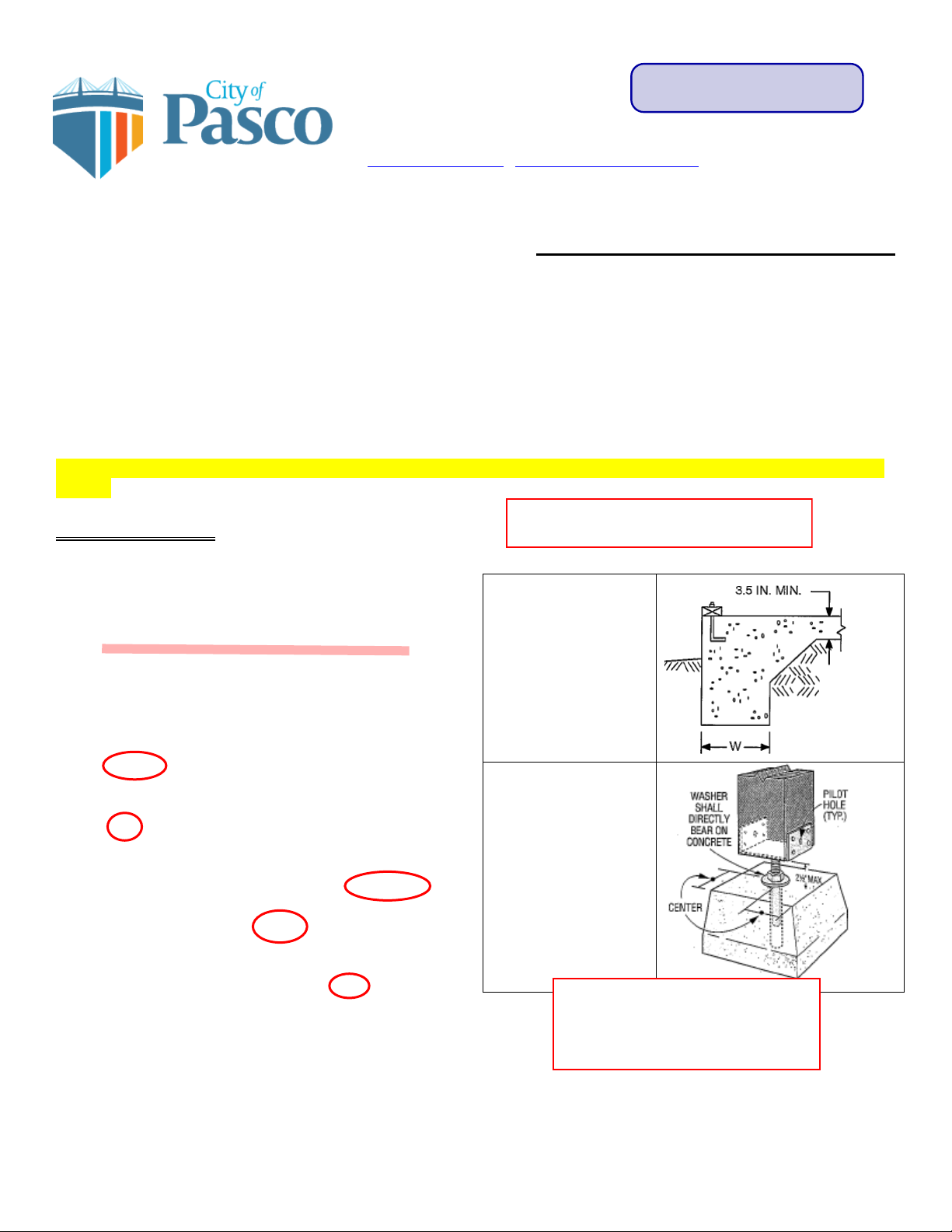

Storage Shed Construction Details
This handout is designed to assist the public in describing the construction details of a shed for the purposes of
obtaining a building permit. A site plan will also be required to show us where the shed will be located on your
property.
The City of Pasco REQUIRES a permit for all sheds, no matter the size.
You may use this handout if your shed is (1) Less than 200 square feet AND (2) Less than 10 feet in height.
For larger structures you must provide a complete set of construction details. If you are purchasing a Pre-
Manufactured shed please simply provide us with a copy of the installation manual or brochure.
NOTE: ALL sheds must be anchored to the ground AND siding & roofing must be similar to that of the
house.
Fill In The Blanks:
a. Width_____ Length_____ Height______
b. Foundation (circle one):
(1) Concrete Slab
(2) Wood Foundation (minimun 4X6 PT)
(3) Gravel Floor
(4) Concrete Block
(5) Other___________________
c. Framing Material (circle one) :
2 X 4 2X6 2X8 Other_______
d. Stud Spacing (circle one) :
16” 24” Other_______
e. Will you use (circle one) :
Pre-Manufactured Trusses OR Rafters?
oRafter Size: 2 X 4 2X6 2X8
Other____________
oRafter Spacing: 16” 24”
Other____________
f. Siding Type: ________________
g. Type of Roofing: _____________
h. Door size: _____________ & location: ______________ Man Door OR Roll up?
i. Window : ______________ & location: ______________
Anchor bolts 6’ (six
feet) on center – slab.
Maximum spacing 6’
(six feet) on center
secure with concrete
fill.
REVIEWED
By Ben Mohs 14:37, May 07, 2021
Cannot be used as habitable space.
Cannot be heated or cooled.
Provide 2x4 collar tie in bottom
1/3 of attic space. Provide
positive mechanical connectors
for wall to rafter connection.
10
10
10
T1-11
Composite
6'
end
na

STOP!
STOP!
16656-L
Call Us First!
DO NOT RETURN TO STORE.
For immediate help with assembly or product information
call our toll free number:
1-800-577-9663
or email:
[e-mail]
Our sta is ready to provide assistance
April through October M-F 8:00 AM to 4:30 PM EST
Saturday 8:30 AM to 4:30 PM EST
November through March M - F 8:00 AM to 5:00 PM EST
REVIEWED
By Ben Mohs 14:36, May 07, 2021

(This page intentionally left blank.)
07/12/2016
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 120 x 116-5/8" (305 x 296 cm)

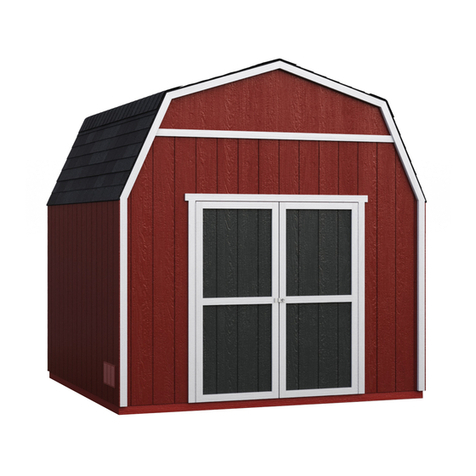

RAINIER 10' x 10' (305 x 305 cm)
ASSEMBLY MANUAL
BEFORE YOU BEGIN
VALUE SERIES
16656-L
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-800-577-9663 email: [e-mail]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for speci c restrictions and/ or requirements before building
.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 8.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
A Backyard Products Company
· ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.

32
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively aect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square
❑Utility Knife
❑Shingle Blades
B C
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIP EDGE ..................... 30 Feet #15 ROOFING FELT
To cover 145 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For rooÞng felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
• This shed kit includes a complete wood floor frame system. It does not include floor panels.
• It does not include ANY leveling materials.
• See the FLOOR LEVELING section on page 8 for recommended methods and suggested materials to properly level your
floor, as this will vary depending on your specific site.
3-TAB SHINGLES ............................ 6 Bundle s
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats r ecommended.
CAULK ................................................. 3 Tube s
Use acrylic latex exterior caulk that is paintable.
s
1" GALVANIZED ROOFING NAILS.... 3 Lb
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included fl
fic use you may want to construct a
floor frame by adding additional fl
x5
x1
x40
2 x 4 x 10' (5 x 10 x 305 cm) Treated Lumber
Cut to (5) 2 x 4 x 21" (5 x 10 x 53,3 cm)
2 x 4 x 8' (5 x 10 x 244 cm) Treated Lumber
Cut to (5) 2 x 4 x 89-1/2" (5 x 10 x 227 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
Standard 24" (61 cm) spacing
FLOOR PANELS (NOT INCLUDED)
3/4 x 23-7/8 x 92-5/8"
(1,9 x 61 x 235 cm)
x1
3/4 x 23-7/8 x 96"
(1,9 x 61 x 244 cm)
x1
3/4 x 23-7/8 x 23-7/8"
(1,9 x 61 x 61cm)
x1
3/4 x 48 x 92-5/8"
(1,9 x 113 x 235 cm)
x2
Floor Panels are all 3/4" (1,9 cm) thick.

54
PARTS IDENTIFICATION AND SIZES
FLOORDOOR RAFTERSTRIM WALLSLOFT
Part identication
is stamped on some parts.
• Check these locations for part stamp.
Treated lumber is stamped:
x1
x2
x1
x8
x4
x4
x8
x4
x2
x4
2 x 3 x 68-3/4 " (5 x 7,6 x 174,6 cm)
2 x 3 x 70-1/4" (5 x 7,6 x 178 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
2 x 3 x 96" (5 x 7,6 x 244 cm)
2 x 3 x 48" (5 x 7,6 x 122 cm)
2 x 3 x 46-1/4" (5 x 7,6 x 117 cm)
x4
x4 2 x 4 x 48" (5 x 10 x 122 cm)
2 x 4 x 72" (5 x 10 x 183 cm)
2 x 4 x 89-1/2" (5 x 10 x 227 cm)
x6
3/4" (1,9 cm)
x6 2 x 4 x 21" (5 x 10 x 53 cm)
2 x 3 x 22-1/2" (5 x 7,6 x 57 cm)
2 x 3 x 45" (5 x 7,6 x 114,3 cm)
LV
CO
NH
NC
NK
OU
ZJ
OO
PT
KP
Treated lumber is
stamped:
Pre-assembled
x1 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) GAUGE BLOCK FOR 3/4" (1,9 CM) MEASUREMENT.
2 x 3 x 25" (5 x 7,6 x 63,5 cm)
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
x2
x1
1 x 4 x 96" (2,5 x 10 x 244 cm)
HHP
x4 2 x 4 x 28-3/4" (5 x 10 x 70 cm)
SU
x2 2 x 4 x 59-3/4" (5 x 10 x 152 cm)
JRA
x4 2 x 4 x 92-5/16" (5 x 10 x 234 cm)
HQ
x2 1 x 3 x 94-1/2" (2,5 x 7,6 x 240 cm)
PF
x4 2 x 3 x 41" (5 x 7,6 x 104 cm)
PD
x4 2 x 3 x 45-1/8" (5 x 7,6 x 115 cm)
5/8 x 3 x 72" (1,6 x 7,6 x 183 cm)
2 x 3 x 69" (5 x 7,6 x 175,3 cm)
x4 2 x 3 x 72-5/8" (5 x 7,6 x 184,5 cm)
OB
x8 6 x 24" (15 x 61 cm)
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm
)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
TREATED
TREATED
TREATED
TREATED
RS RS
GAA
PANEL PARTS LIST
NOTES
ROOF PANELS LOFT
NOTE: Panel parts are not stamped with part identification.
Loft panel is
7/16" (1,1 cm) thick.
Roof panels are
7/16" (1,1 cm) thick.
7/16 x 45-1/8 x 96"
(1,1 x 115 x 244 cm)
7/16 x 41-7/8 x 96"
(1,1 x 106 x 244 cm)
7/16 x 23-7/8 x 45-1/8"
(1,1 x 61 x 115 cm)
7/16 x 48 x 96"
(1,1 x 122 x 244 cm)
7/16 x 23-7/8 x 41-7/8"
(1,1 x 61 x 106 cm)
x2
x2
x2
x2
x1

76
1Sub-assembled doors.
2. 2x3 wall studs have been engineered to support roof load and to meet demanding wind loads.
3. Sidewall top and bottom plates tie wall studs together and provide nailing support for top and bottom edge of siding.
4. Rafters line up over wall studs to eectively transfer roof load to the oor and eliminate need for double top plate.
Oversized wood gussets at peak provide a strong connection for rafter halves.
5. Treated siding overhangs the wall framing and oor to keep the elements out.
6. Collar ties and storage loft tie sidewalls together to prevent spreading under heavy roof loads.
7. Corner studs & end rafters are positioned to the outside of the siding where they serve the dual purpose of framing and trim.
8 The EZ Frame design transfers the roof load to the side walls allowing for reduced framing at the front and back wall.
9. Includes treated oor frame. Oriented Strand Board (OSB) oor deck not included .
All of our buildings have been engineered to withstand demanding wind and snow loads.
If you live in an area with extreme wind/snow load requirement, contact
us and we can assist with engineering to meet your local codes.
1
9
4
5
6
7
8
4
3
2
2
3
4
5
6
7
9
BUILDING ANATOMY
This building has been designed using our patented EZ Frame construction method.
EZ Frame is a unique construction method which has been engineered to use fewer
framing members. This reduces assembly time and cost by as much as 30% compared to
conventional construction methods. EZ Frame patent no. 5,666,766
x1
RIGHT DOOR
x1
LEFT DOOR
x2
3/8 x 48 x 96"
(1 x 122 x 244 cm)
x2
3/8 x 23-7/8 x 72"
(1 x 61 x 183 cm)
x4
3/8 x 48 x 72"
(1 x 122 x 183 cm)
WALL PANEL & DOORS PARTS LIST
NAIL BOXES (Shown Actual Size)
FASTENER/HARDWARE BAG (Shown Actual Size)
DOOR HARDWARE (Not Actual Size)
3/4" (1,9 cm) 3/4" (1,9 cm) 3/4" (1,9 cm)
Bagged seperately / special coating
64" Metal Threshold
x1 x1 x1
x4 x7 x11
x2
x1 x1x1
x2
3" (7,6 cm)
2" (5,0 cm)
x3
x6
BOXES
BOXES
2" (5,0 cm)
3" (7,6 cm)
2" (5,0 cm)
1-1/4" (3,2)
3/4" (1,9 cm)
x18
x57
x84
x50
x1 x1
x28
NOTE: Edge painted
red and black.
NOTE: Edge
painted red.
NOTE: Edge
painted green.
x1
NOTE: Edge painted
green and black.
LEFT BACK RIGHT BACKRIGHT FRONTLEFT FRONT

98

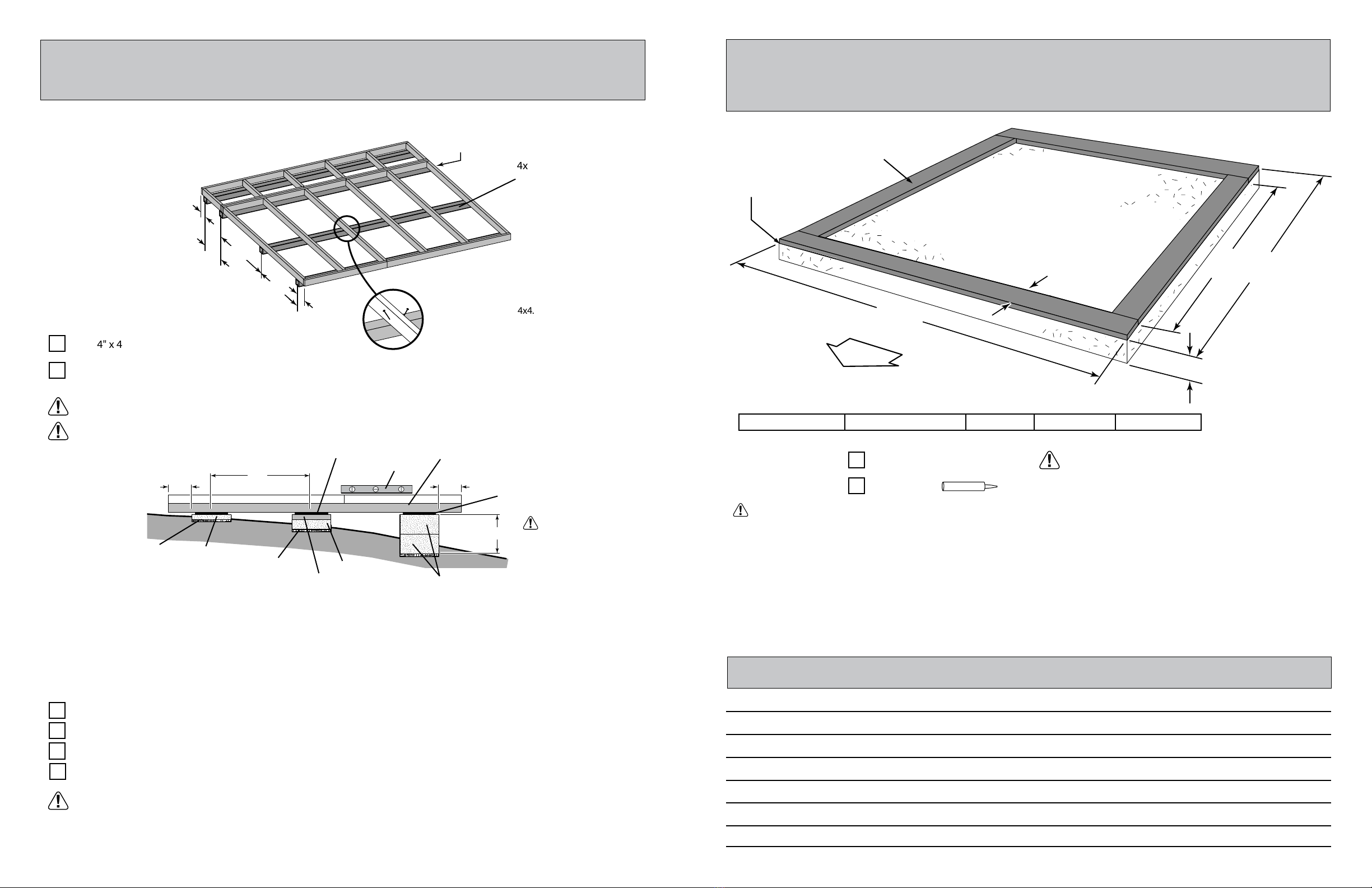

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
8"
(20,3 cm)
8"
(20,3 cm)
16"
(40,6 cm)
42-1/4"
(107 cm)
42-1/4"
(107 cm)
Support seam.
Measurements to
centers of 4x4's.
• 3" Screw angled into 4x4.
• (2) at each point frame and 4x4 touch.
CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor. If you choose to install your kit
on a concrete slab refer to the diagram below.
A
BC
4"
(10 cm)
3-1/2"
(8,9 cm)
DOOR
A B CActual Floor SizeBuilding Size
• A treated 2 x 4" (5 x 10 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or
purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5 x 10 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
120" (305 cm) 109-5/8" (278 cm)10'x 9'-8-5/8" (305 x 296 cm)10'x 10' (305 x 305 cm) 116-5/8" (296 cm)
NOTES
Treated Sill Plate
Caulk between sill plate
and concrete.
2 x 4 x10' (5 x 10 x 305 cm)
Requires:
x4 MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
4x4 Runners
(not included).
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x4 4" x 4" x 10' (10 x 10 x 305 cm) Treated Lumber
Fasteners for Frame to 4"x 4"
(3" Screws shown as one option.) Minimum (48) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
4x6
4x6
4x6
4x6

1110
2
1
3" (7,6 cm) x28
Use two 3" nails at each mark.
Orient parts as shown on  at surface. Measure and mark each
dimension from end of boards.
PARTS REQUIRED:
Flush
at ends.
Center on
marks.
Oset Seam
48"
(122 cm)
21"
(53 cm)
24"
(61 cm) 1-1/2"
(3,8 cm)
120"
(305 cm)
48"
(122 cm)
48"
(122 cm)
24"
(61 cm)
72"
(183 cm)
96"
(244 cm)
72"
(183 cm)
x2
x2
x6
NOTE:
Look for Stamp.

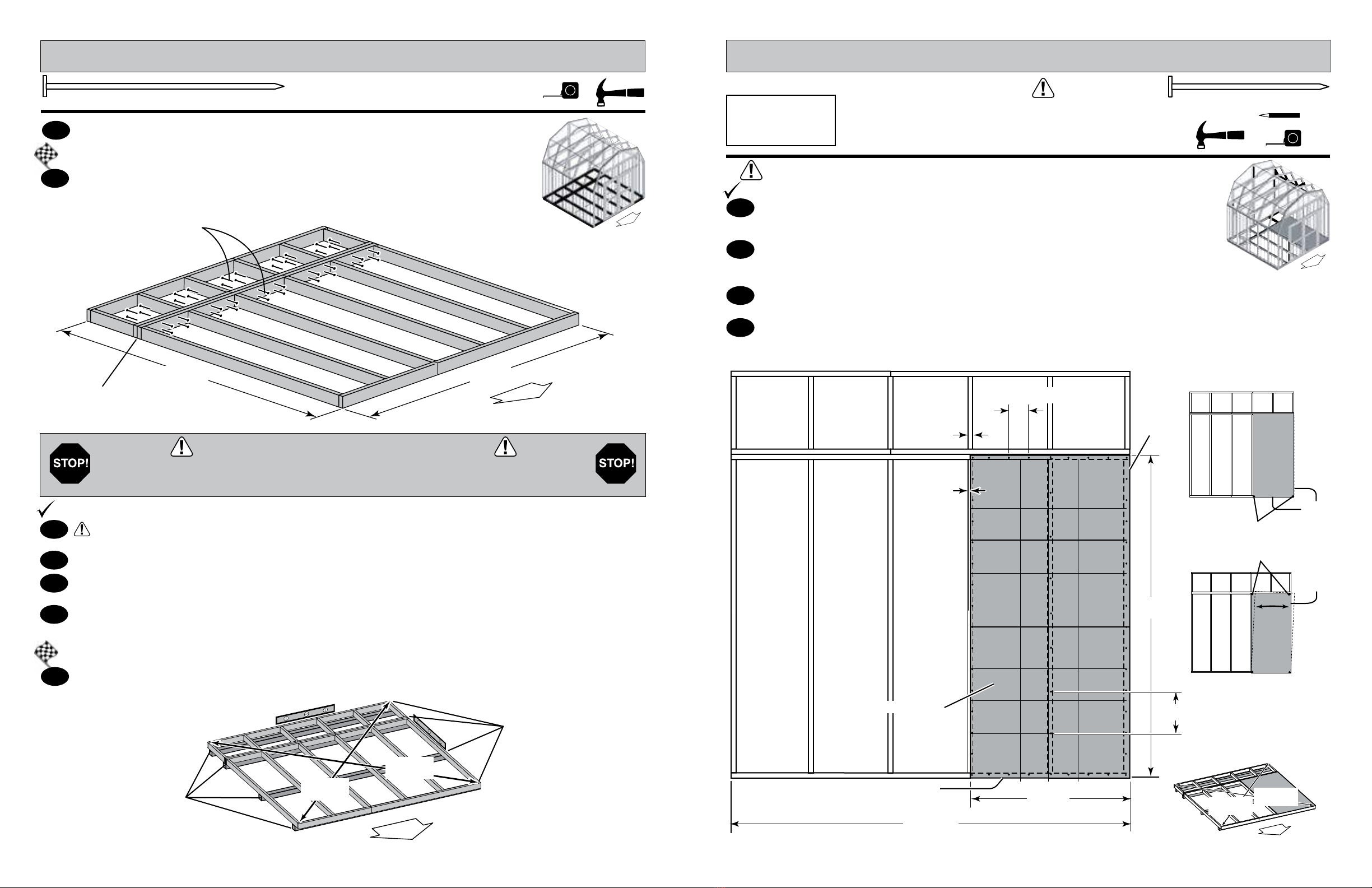

FLOOR FRAME
2 x 4 x 21" (5 x 10 x 53 cm)
2 x 4 x 48" (5 x 10 x 122 cm)
2 x 4 x 72" (5 x 10 x 183 cm)
Angle
Nails
TREATED
TREATED
TREATED
DOOR
BEGIN
You will build two oor sections.
Section 1
Section 2
Oset Seam
Toenail
3
Use two 3" nails at each mark.
4
PARTS REQUIRED:
x2
x6
x2
92-5/8"
(235 cm)
48"
(122 cm)
72"
(183 cm)
Toenailing
89-1/2"
(227 cm)
Orient parts as shown on  at surface. Measure and mark from
end of boards.
NOTE:
Look for Stamp.
FLOOR FRAME
3" (7,6 cm) x28
2 x 4 x 72" (5 x 10 x 183 cm) Treated Wood
2 x 4 x 89-1/2" (5 x 10 x 227 cm) Treated Wood
2 x 4 x 48" (5 x 10 x 122 cm) Treated Wood
Center
on marks.
Center on marks.
120"
(305 cm)
48"
(122 cm)
48"
(122 cm)
24"
(61 cm)
72"
(183 cm)
96"
(244 cm)
TREATED
TREATED
TREATED
DOOR
Section 2
Oset Seam
Oset Seam
Flush
at ends.
HINT:
For easier nailing
stand on frame.

1312
Put both oor sections together and attach as shown using 3" nails.
5
You have nished your oor frame. Proceed to level and square frame.
FLOOR FRAME
3" (7,6 cm) x40
DOOR
Flush
120"
(305 cm)
116-5/8"
(296 cm)
(4) Nails per side,
stagger pattern.
FINISH
6
FINISH
5
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 167-3/8" (425 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener
at ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the oor frame is level and square fasten the frame at each point the frame contacts the 4x4
runners.
See page 8 for the preferred oor leveling method.
DOOR
First, secure at ends with
one fastener.
Second, secure at ends
with one fastener.
DOOR
167-3/8"
(425 cm)
167-3/8"
(425 cm)
Fig. A
13
Attach the 3/4 x 48 x 92-5/8" panel with the rough side up (painted-grid lines
side) with the 48" edge and corner flush to the floor frame (Fig A). Secure
panel with two 2" nails in the corners.
Move to the opposite end. Using the long edge of the panel as a lever move the
panel side-to-side until the top corner is flush to the floor frame (Fig. B).
Secure panel with two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pr e-painted grid lines to nail into joists under panel.
3/4 x 48 x 92-5/8"
(1,9 x 122 x 235 cm)
PARTS REQUIRED:
Ensure your floor frame is square by installing one panel and squaring frame.
Floor Panels not included
See page 3 for panel sizes
and quantities.
120"
(305 cm)
92-5/8"
(235 cm)
6" (15 cm) edges of panel.
48"
(122 cm)

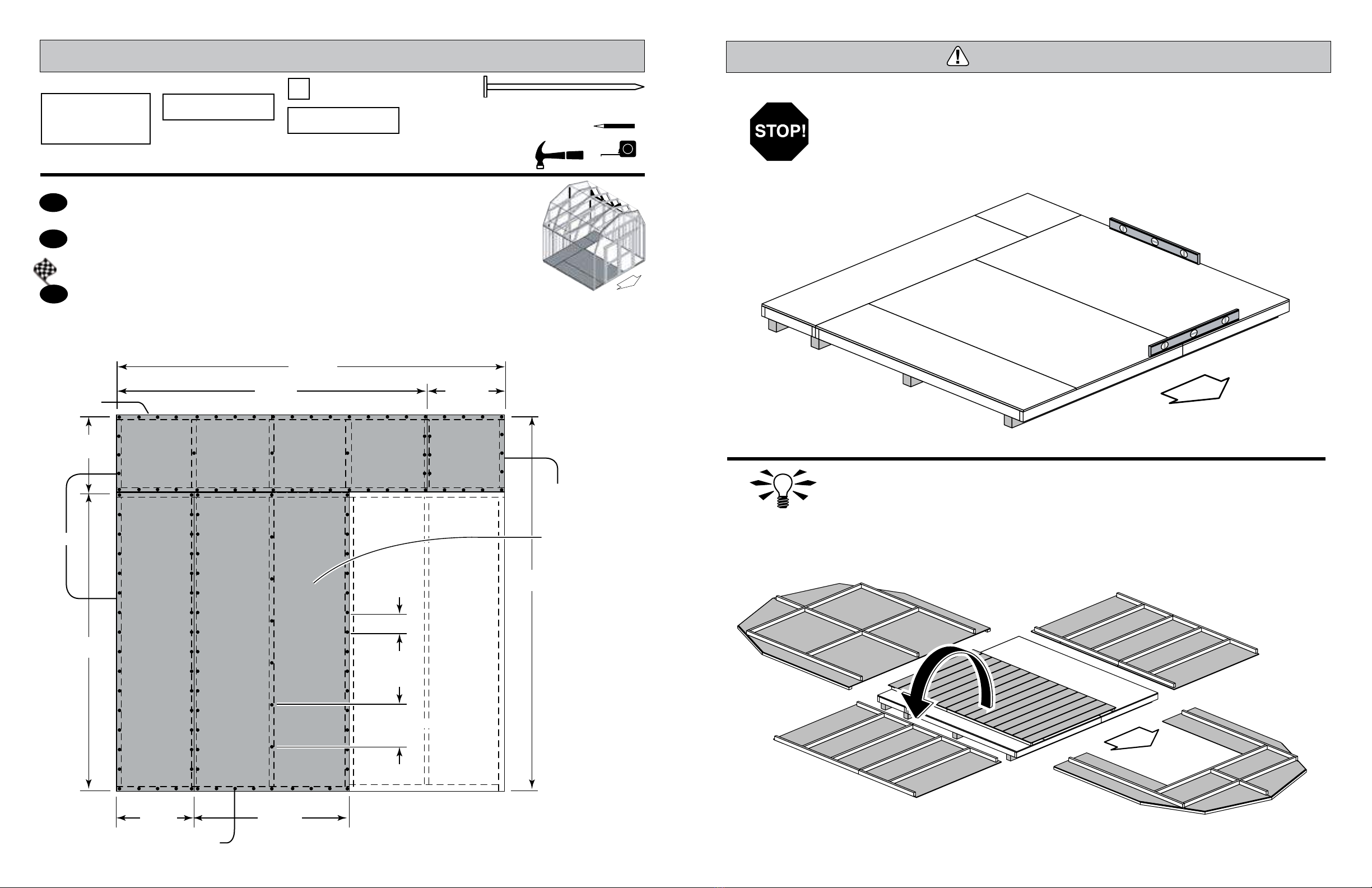

FLOOR PANELS (NOT INCLUDED)
x1
Flush
Flush
2" (5 cm) x55
DOOR
Fig. C
DOOR
(2) Nails
Flush
Fig. A
Flush
at top
corner
edge.
Fig.
B
(2) Nails
3/4"
(1,9 cm)
Approximately
1-1/2"
(3,8 cm)
Check the floor frame is squar e by measuring diagonally across the frame cor ners. If the measur ements are
the same your floor frame is square. The measurement will be approximately 167-3/8" (425 cm) (Fig. C).
12" (30,5 cm) inside panel.
Grid lines UP
167-3/8"
(425 cm)
167-3/8"
(425 cm)

1514
IMPORTANT!
Check the oor frame is level after installing oor panels. Re-level if needed.
• The oor should be used as a level work surface for wall construction.
• Organize your wall sections during subassembly
to avoid over-handling of the walls.
HINT:
IMPORTANT!
DOOR
SIDEWALL
SIDEWALL
FRONTWALL
BACKWALL
DOOR
Use a chalk line or grid lines on panels for 2" nails 6" apart on edges
and 12" apart inside panel. .
3/4 x 48 x 92-5/8"
(1,9 x 122 x 235 cm)
Continue installing panels with rough side up (painted grid lines).
4
You have finished Installing your floor panels.
PARTS REQUIRED: x1
x1
x1
x1
3/4 x 23-7/8 x 23-7/8"
(1,9 x 61 x 61 cm)
3/4 x 23-7/8 x 92-5/8"
(1,9 x 61 x 235 cm) 3/4 x 23-7/8 x 96"
(1,9 x 61 x 244 cm)
FLOOR PANELS (NOT INCLUDED)
5
FINISH
6
2" (5 cm) x154
92-5/8"
(235 cm)
116-5/8"
(296 cm)
120"
(305 cm)
96"
(244 cm) 23-7/8"
(60,6 cm)
23-7/8"
(61 cm)
23-7/8"
(61 cm)
48"
(122 cm)
Flush
Grid lines UP.
12" (30,5 cm)
6" (15 cm)
Flush
Flush
Flush
DOOR

1716
BEGIN
1
Use NK as a guide to locate PR. (Do not nail.)
1-1/2"
(3,8 cm)
96"
(244 cm)
48"
(122 cm)
48"
(122 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
94-1/2"
(240 cm)
Orient parts on edge on oor as shown.
Nail using two 3" nails at each connection.
2
3" (7,6 cm) x6
2 x 3 x 48" (5 x 7,6 x 122 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
2 x 3 x 96" (5 x 7,6 x 244 cm)
PT PT
NK
PR
PARTS REQUIRED:
x1
x1
x2
BACK WALL FRAME
(2) 3" (7,6 cm) Nails
NK
PR
PT
DOOR
48-3/4"
(124 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
48-3/4"
(124 cm)
45"
(114 cm)
Orient parts on edge on oor as shown.
Nail using two 3" nails at each connection and two 3" screws at middle connection.
3
4
FINISH
5You have nished building your back wall frame.
Flush
(2) 3"
(7,6 cm)
Nails
PARTS REQUIRED:
2 x 3 x 45" (5 x 7,6 x 114,3 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
x1
x1
PR
3" (7,6 cm) x6
BACK WALL FRAME
NC
PR
3" (7,6 cm) x2
DOOR
(2) 3" (7,6 cm)
Screws
(2) 3" (7,6 cm) Nails
HINT:
For easier nailing
stand on frame.

1918
3/4"
(1,9 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm
)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2" (5 cm) x44
Place panel on back frame as shown with primed side facing up.
Note: Orient square and lip edges as shown.
BEGIN
PARTS REQUIRED:
3/8 x 48 x 96"
(1 x 122 x 244 cm)
Use a 2x3" for support.
Use a 3/4" gauge block at edges of panel.
3
2
1
x1
Install with primed
side facing up.
LIP EDGE
SQUARE
EDGE
3/4"
GAUGE
BLOCK
3/4"
GAUGE
BLOCK
BACK WALL PANELS
For squareness maintain
3/4" measurement along
panel edges.
Nail using 2" nails 6" apart on edges and 12" apart inside panel. .
12" (30,5 cm)
6" (15 cm)
DOOR
2" (5 cm) x44
Place panel on back frame as shown with primed side facing up.
Note: Orient square and lip edges as shown.
PARTS REQUIRED:
3/8 x 48 x 96"
(1 x 122 x 244 cm)
5
6
7
4
x1
BACK WALL PANELS
3/4"
(1,9 cm)
3/4"
(1,9 cm)
97-1/2"
(247,6 cm)
3/4"
(1,9 cm)
Install with primed
side facing up.
Flush
Flush
Use a 3/4" gauge block at edges of panel.
Nail using 2" nails 6" apart on edges and 12" apart inside panel. .
Proceed to building your wing wall panels.
For squareness maintain
3/4" measurement along
panel edges.
Use a 2x3" for support.
12" (30,5 cm)
6" (15 cm)
Do not nail
in groove.
Do not nail
in groove.
DOOR
LIP EDGE
SQUARE
EDGE
3/4" Gauge Block
3/4" Gauge Block
3/4" Gauge Block
To draw panels tight at
seams angle nail.

2120

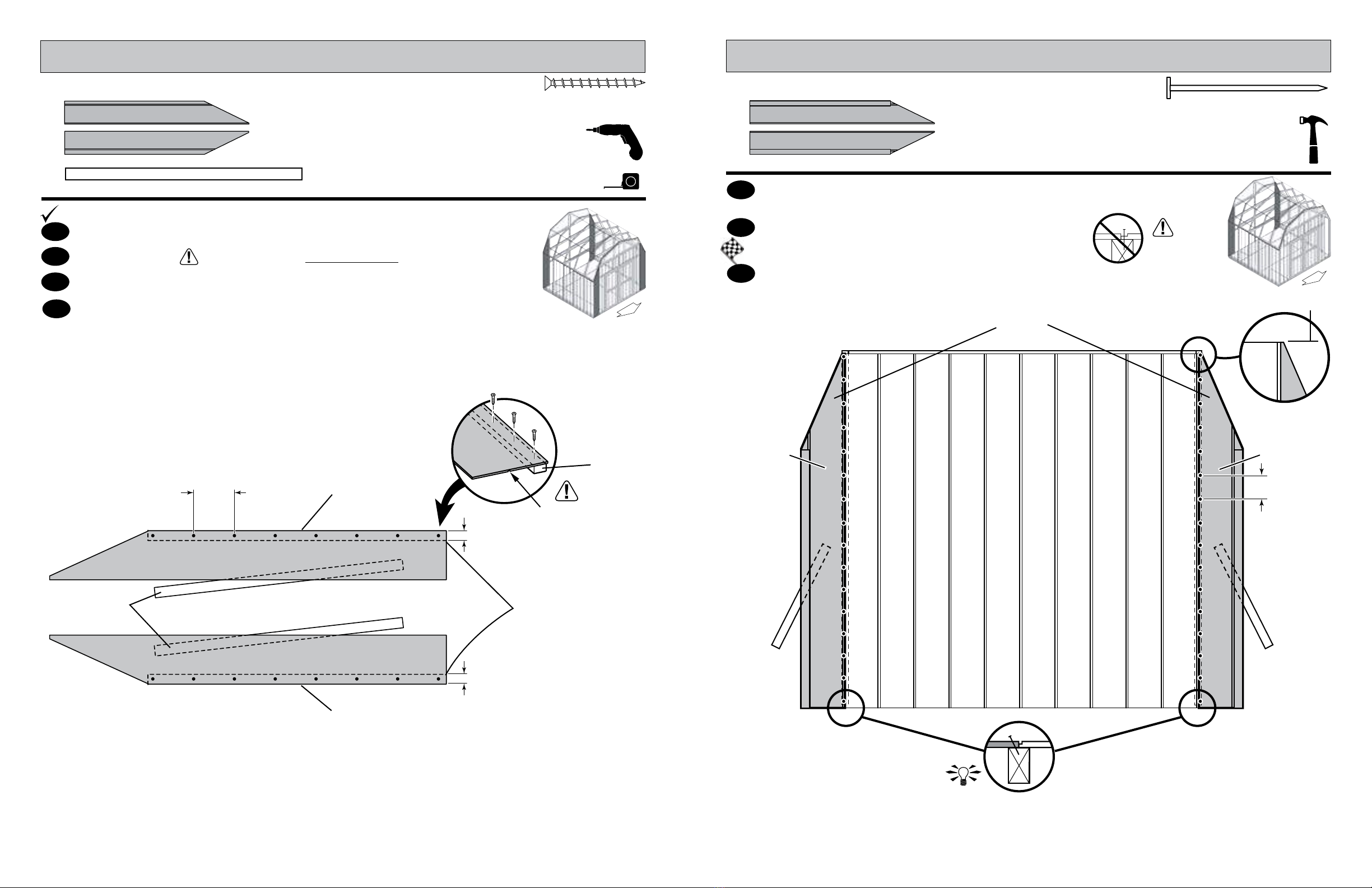

PARTS REQUIRED:
LEFT
x2
x2 RIGHT
WING WALL PANELS
You will assemble TWO RIGHT and TWO LEFT wing walls.
Place OB on oor. Place a wing wall panel primed side down onto OB (Fig.A).
3
2
1
Secure ush to edges using eight 1-1/4 screws 10" apart.
You have nished building two sets of wing wall assemblies. Set and aside.
Continue building your back wall.
x4
2 x 3 x 72-5/8" (5 x 7,6 x 184,5 cm)
OB
1-1/4" (3 cm) x32
BEGIN
Use 2x3's
for support. Flush
Flush
2-1/2"
(6,35 cm)
2-1/2"
(6,35 cm)
10" (25,4 cm)
Approximately
Primed Side
Down.
x2
OB
x2
DOOR
LEFT RIGHT
Nail left and right wing wall assemblies onto back wall frame
using 2" nails 6" apart.
Place wing wall assemblies onto frame with top of panels ush (Fig.A).
6
5
2" (5 cm) x34
PARTS REQUIRED:
x1
x1
You have nished attaching your wing walls.
FINISH
7
BACK WALL
Pre-assembled
Pre-assembled
LEFT
RIGHT
6" (15 cm)
DOOR
Flush
Fig A.
Fig A.
Do not nail
in groove.
Use 2x3
for support.
Primed side
UP
HINT:
To draw panels tight at
seams angle nail.

2322
BACK GABLE PANELS AND TRIM
PARTS REQUIRED:
2
3
4
FINISH
5You have nished building the back gable panel assemblies.
Continue building your backwall.
1
PD
x4 2 x 3 x 45-1/8" (5 x 7,6 x 115 cm)
PD PD
You will be attaching trim PD from the backside of the gable panels (Fig. A).
You will assemble a RIGHT and a LEFT assembly.
Place trim PD on oor. Orient red ends as shown.
Place a left or right gable panel onto trim primed side down
(Fig.A). Verify the square and lip edges.
Locate trim PD ush to edges and secure with six 1-1/4" screws 11" apart.
Check panels
have these
edges.
1-1/4" (3 cm) x24
Primed side is down.
Use a 2x3
on at for
support.
FlushFlush
DOOR
RED END of PD
11" (28 cm)
Approximately
x1 LEFT
Edge painted
green and black.
x1
RIGHT
Edge painted
red and black.
Look for edge
painted red
and black.
Look for edges
painted green
and black.
IMPORTANT!
Fig. A
PRIMED SIDE
DOWN.
LIP
EDGE
SQUARE
EDGE
DOOR
2" (5 cm) x24
BACK WALL GABLE PANELS
PARTS REQUIRED:
x1 2 x 3 x 25" (5 x 7,6 x 63,5 cm)
Place right gable panel onto wall frame primed side
up and onto CO and ush to left gable panel.
Nail with 2" nails 6" apart.
3
Center CO on edge onto wall frame and
secure using two 3" screws (Fig. A).
1
x1
Pre-assembled
x1
Pre-assembled
LEFT RIGHT
CO
3" (7,6 cm) x2
Place the left gable panel onto wall frame
primed side up and onto CO.
Make sure edge of panel lines up with right
edge of groove (Fig B).
Nail with 2" nails 6" apart.
2
Fig. A
CO
Screws 3"
(7,6 cm)
Flush
Line up panel
with right edge
of groove
Edge of
groove.
3/8"
0,9 cm
Fig. B
FINISH
4You have nished building your backwall.
Carefully ip the back wall o the oor.
1-1/2"
(3,8 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
CO
Flush
6" (15 cm)
LEFT
Flush
Flush
RIGHT
6"
(15 cm)

2524
3" (7,6 cm) x12
Nail upper PR rst, then place lower PR against LV and nail PR in place
with two 3" nails at each end.
Lay out two PR, two PT and one LV on edge on oor.
2
Ensure LV is centered with PR and nail in place with four 3" nails.
3
PARTS REQUIRED:
2 x 3 x 22-1/2" (5 x 7,6 x 57 cm)
You have nished building your Front Wall Frame.
FINISH
4
x1
x2
1/1/2"
(3,8 cm)
22-1/2"
(57 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
Use LV as a spacer
(do not nail).
(2) 3" (7,6 cm) Nails
at all connections.
Use LV as a spacer
(do not nail). LV
PR
PR
PT PT
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
BEGIN
1
FRONT WALL FRAME
2 x 3 x 96" (5 x 7,6 x 244 cm)
x2
Flush Flush
LV
PR
PT
DOOR
3/4"
(1,9 cm)
3/4"
(1,9 cm) 3/4"
(1,9 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)

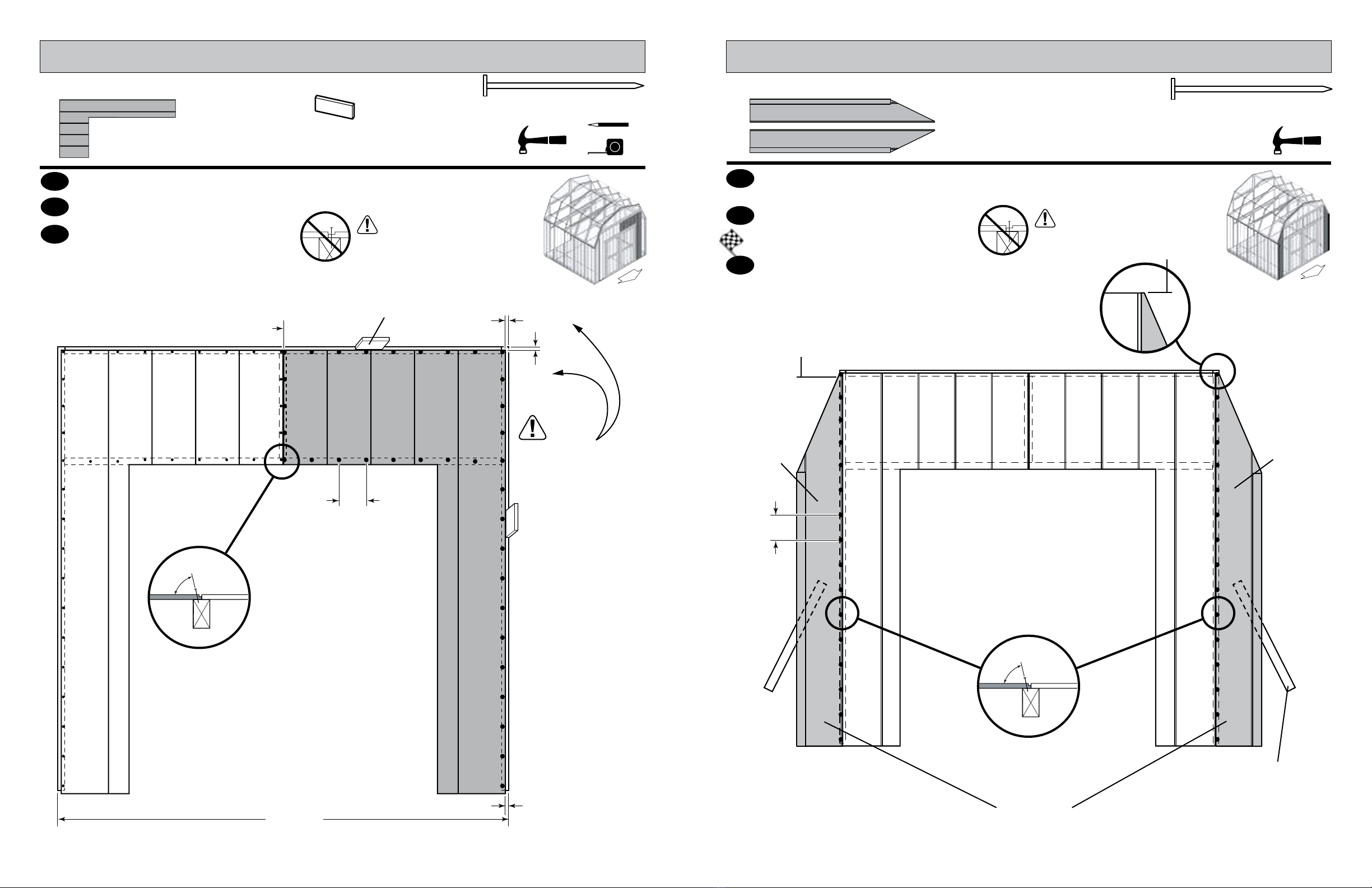

2
3
1
BEGIN
2" (5 cm) x36
PARTS REQUIRED:
x1
LEFT
Place LEFT panel on front frame as shown with primed side facing up.
Use a 3/4" gauge block on edges of panel.
Nail panel to frame with 2" nails 6" apart.
3/4" GAUGE
BLOCK
FRONT WALL PANELS
Use a 2x3"
for support.
For squareness maintain 3/4"
measurement along panel edge.
DOOR
Do not nail
in groove.
3/4" Gauge Block
3/4" Gauge Block
3/4" Gauge Block
HINT:
6"
(15 cm)

2726
2" (5 cm) x36
PARTS REQUIRED:
x1
RIGHT
3/4" GAUGE
BLOCK
FRONT WALL PANELS
97-1/2"
(247,7 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
3/4" (1,9 cm)
Flush
4
5
3Place RIGHT panel on front frame.
Use a 3/4" gauge block on edges of panel.
Nail panel to frame with 2" nails 6" apart.
For squareness maintain
3/4" measurement along
panel edge.
DOOR
3/4" Gauge Block
6
7
You have nished building your front wall.
FINISH
8
2" (5 cm) x34
PARTS REQUIRED:
Place wing wall panels onto frame with top of panels (Fig. A).
FRONT WALL PANELS
Flush
Use a 2x3"
for support.
Flush
x1
x1
Pre-assembled
Pre-assembled
LEFT
RIGHT
Nail left and right wing wall assemblies
using 2" nails 6" apart.
6" (15 cm)
DOOR
Fig. A
Primed side
UP
3/4" Gauge Block
To draw panels tight at
seams angle nail.
Do not nail
in groove.
To draw panels tight at
seams angle nail.
Do not nail
in groove.
LEFT RIGHT

2928

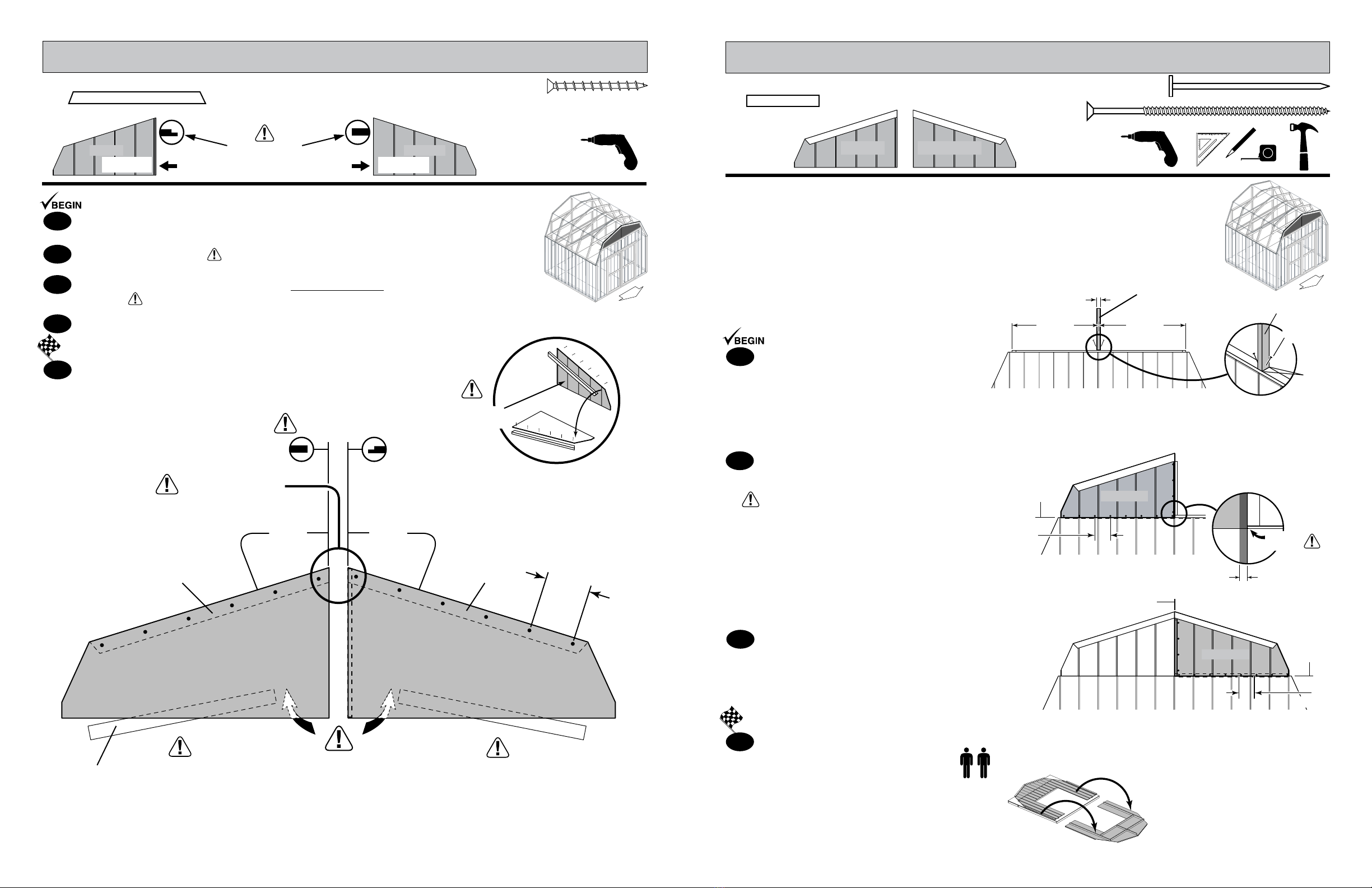

FRONT GABLE PANELS AND TRIM
PARTS REQUIRED:
2
3
4
FINISH
5You have nished building the front gable panel assemblies.
Continue building your frontwall.
1
PD
x4 2 x 3 x 45-1/8" (5 x 7,6 x 115 cm)
PD PD
You will be attaching trim PD from the backside of the gable panels (Fig. A).
You will assemble a RIGHT and a LEFT assembly.
Place trim PD on oor. Orient red ends as shown.
Place a left or right gable panel onto trim primed side down
(Fig.A). Verify the square and lip edges.
Locate trim PD ush to edges and secure with six 1-1/4" screws 11" apart.
Check panels
have these
edges.
1-1/4" (3 cm) x24
Primed side is down.
Use a 2x3
on at for
support.
FlushFlush
DOOR
RED END of PD
11" (28 cm)
Approximately
x1 LEFT
Edge painted
green.
x1
RIGHT
Edge painted
red.
Look for edge
painted red. Look for edge
painted green.
IMPORTANT!
Fig. A
PRIMED SIDE
DOWN.
LIP
EDGE
SQUARE
EDGE
DOOR
LEFT RIGHT
FRONT WALL GABLE PANELS
2" (5 cm) x24
PARTS REQUIRED:
x1 2 x 3 x 25" (5 x 7,6 x 63,5 cm)
Place right gable panel onto wall frame primed side
up and onto CO and ush to left gable panel.
Nail with 2" nails 6" apart.
3
Center CO on edge onto wall frame and
secure using two 3" screws (Fig. A).
1
x1
Pre-assembled
x1
Pre-assembled
CO
3" (7,6 cm) x2
Place the left gable panel onto wall frame
primed side up and onto CO.
Make sure lip of panel lines up with groove
of panel below (Fig B).
Nail with 2" nails 6" apart.
2
Fig. A
CO
Screws 3"
(7,6 cm)
Flush
Line up
grooves.
Edge of
groove.
3/8"
0,9 cm
Fig. B
FINISH
4You have nished building your frontwall.
Carefully ip the frontwall o the oor.
1-1/2"
(3,8 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
CO
Flush
6" (15 cm)
LEFT
Flush
Flush
RIGHT
6"
(15 cm)

3130
1
BEGIN
2
3" (7,6 cm) x20
Orient parts on edge on oor. Measure and mark from end of boards. Make
marks 1-1/2" long. They will be used later (FIG. A).
IMPORTANT! You will build two walls the same.
Use two 3" nails at each mark.
PARTS REQUIRED:
x4
x8
x4
You have nished building one side wall frame. Proceed to attach wall panels.
3
2" x 3" x 46-1/4" (5 x 7,6 x 117 cm)
2" x 3" x 68-3/4 " (5 x 7,6 x 174,6 cm)
2" x 3" x 70-1/4" (5 x 7,6 x 178 cm)
SIDE WALL FRAMES
NH
OU
OZ
NH OZ
OZ
OU x4
NH
22-1/4"
(57 cm)
46-1/4"
(117,5 cm)
46-1/4"
(117,5 cm)
70-1/4"
(178,5 cm)
94-1/4"
(244,5 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
70-1/4"
(178,5 cm)
46-1/4"
(117,5 cm)
1-1/2"
(3,8 cm)
Center on marks.
Stagger
Seams
Stagger
Seams
DOOR
Toenailing Make mark
1-1/2"
long.
2" (5 cm) x34
Place the 48 x 72" panel onto wall frame with primed side up as shown. Note the lip
and square edges.
Use the gauge block to mark the 3/4" measurement on the wall stud. Locate the panel
5/8" down on the top plate. Secure panel with two 2" nails in the corners (Fig. A).
6
5
4
Nail the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Ensure your wall frame is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever move the panel
side-to-side until you have a 3/4" measurement on the wall stud. Secure corner with
two 2" nails.
PARTS REQUIRED:
3/8 x 48 x 72"
(1 x 122 x 183 cm)
x2 3/4"
GAUGE BLOCK
SIDE WALL PANELS
DOOR
HINT:
Fig. A
5/8"
(1,6 cm)
48"
(122 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
LIP
EDGE
For squareness maintain 3/4" and
5/8" measurement along panel edge. BEGIN HERE
There will be an overhang at
top and bottom.
6" (15 cm)
12" (30 cm)
3/4" Gauge Block
SQUARE
EDGE
Do not nail
in groove.
Fig. A
Fig. B
5/8"
(1,6 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2 Nails
2 Nails

3332

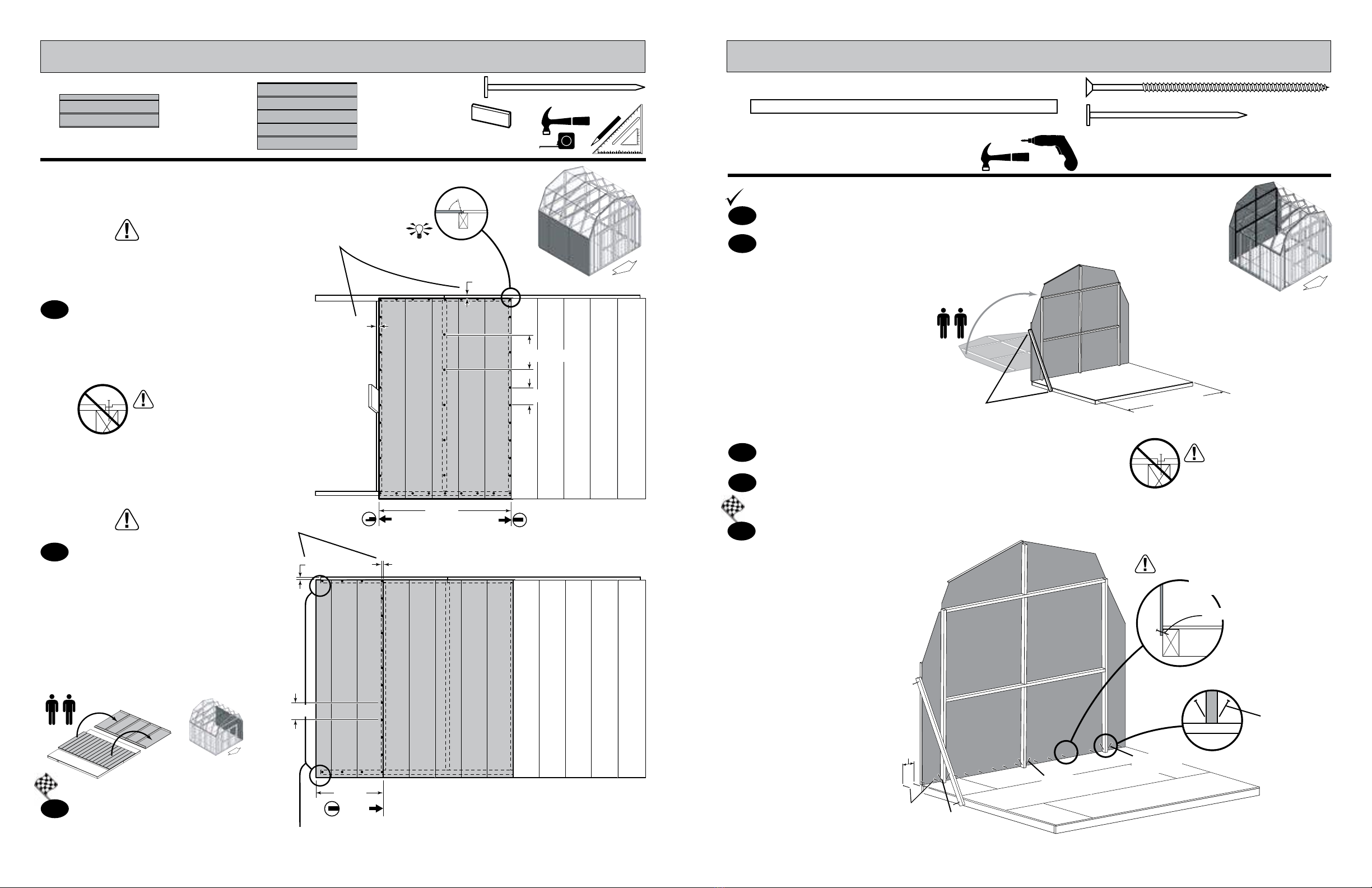

2" (5 cm) x166
Place 48" panel on frame as shown with
primed side facing up.
Nail using 2" nails 6" apart on edges and 12"
apart inside panel.
Place 23-7/8" panel on frame as shown
with primed side facing up.
NOTE THE SQUARE AND LIP EDGES.
Nail using 2" nails 6" apart on edges.
7
8
You have  nished building both of
your side walls.
FINISH
9
PARTS REQUIRED:
3/8 x 23-7/8 x 72"
(1 x 61 x 183 cm)
x2
3/8" x 48" x 72"
(1 x 122 x 183 cm)
x2
SIDE WALL PANELS
3/4" GAUGE
BLOCK
For squareness maintain 3/4" and
5/8" measurement along panel edge.
For squareness maintain 3/4" and
5/8" measurement along panel edge.
DOOR
Carefully ip your sidewall over.
Repeat STEPS 1-8 to assemble
your second side wall.
DOOR
Center back wall assembly on the 120" (305 cm) oor dimension.
Use KP as a temporary brace. Secure with two 3" screws.
2
BEGIN
1
2" (5 cm) x24
PARTS REQUIRED (TEMPORARY):
1 x 4 x 96" (2,5 x 10 x 244 cm)
x1
BACK WALL INSTALLATION
3" (7,6 cm) x8
KP
DOOR
2"
(5 cm)
6"
(15 cm)
Nail 2" nails rst.
2" (5 cm) Nail
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
Fig. A
Fig. B
120" (305 cm)
(2) 3" (7,6 cm)
Screws
48"
(122 cm)
3/4"
(1,9 cm)
5/8"
(1,6 cm)
6" (15 cm)
12" (30 cm)
LIP
EDGE SQUARE
EDGE
5/8"
(1,6 cm)
23-7/8"
(61 cm)
3/4"
(1,9 cm)
There will be an overhang
at top and bottom.
SQUARE
EDGE
Do not nail
in groove.
To draw panels tight
at seams angle nail.
3/4" Gauge Block
6" (15 cm)
First, nail lower edge of panel to oor frame using 2" nails 6" apart.
Angle nail to hit oor frame (Fig. A).
3
Screw back wall uprights to oor using two 3" Screwss (Fig. B).
4
You have nished standing your back wall.
FINISH
5
Do not nail
in groove.

3534
3Nail down the bottom plate using two 3" nails
between the wall studs.
Screw through the backwall trim into the top and
bottom plates using one 3" screw (Fig. D).
Remove temporary brace.
Repeat process to secure the left sidewall.
2
BEGIN
2" (5 cm) x70
3" (7,6 cm) x20 3" (7,6 cm) x4
SIDE WALLS INSTALLATION
Be sure the measurement between the
panel edge and the trim is the same
along the entire length. Then secure
with one 2" nail in the upper corner
(Fig. B).
Nail along the panel edge into the trim
using 2" nails spaced 6" apart.
Nail along bottom of panel using 2"
nails 6" apart. Angle nail to hit oor
frame (Fig. C).
DOOR
Stand right sidewall on oor.
It is important to secure the sidewall in the following order.
DOOR
2" (5 cm) x38
3" (7,6 cm) x8
FRONT WALL INSTALLATION
2Be sure the measurement between the panel
edge and the trim is the same along the entire
length. Then secure with one 2" nail in the upper
corner (Fig. C).
Nail along the panel edge into the trim using 2"
nails spaced 6" apart.
Secure the frontwall frame using two 3" screws
(Fig. D).
Screw through the frontwall trim into the top
and bottom plates using one 3" screw (Fig. E).
Repeat process to secure the right side of
the frontwall.
3
DOOR
Center frontwall on oor side-to-side.
Nail the frontwall ush to the oor using
2" nails 6" apart. Angle nails to hit oor
frame (Fig. A).
Nail the lower sidewall corner to the
frontwall trim with one 2" nail (Fig. B).
1
Stand frontwall on oor.
It is important to secure the frontwall in the following order.
CENTER
6"
(15 cm) 6"
(15 cm)
2" (5 cm)
Nail
Fig. B
Trim
2" (5 cm)
Nail
Fig. A
Fig. D
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
3" (7,6 cm)
Screw
Fig. E 3" (7,6 cm)
Screw
2 x 3"
6"
(15 cm)
2" (5 cm)
Nail
2" (5 cm)
Nail
Panel Same
Measurement
Fig. C
Trim
6"
(15 cm)
6"
(15 cm)
6"
(15 cm)
Fig. C
Fig. D
3" (7,6 cm)
Screw
2x3"
3" (7,6 cm)
Nail
Panel Same
Measurement
Fig. B
Trim
2" (5 cm)
Nail
DOOR
DOOR
3" (7,6 cm)
Screw
Center sidewall on oor front to back.
Nail the lower sidewall corner to the
backwall trim with one 2" nail (Fig. A).
1
CENTER
2" (5 cm)
Nail
Fig. A
Trim
DOOR
