SCA THW1801 User manual

SCA
1800W High Pressure Washer
Important - Please read these instructions fully before operating or maintaining your High Pressure Washer
These instructions contain important information that will help you get the best from your High
Pressure Washer, ensuring it remains safe to operate.
If you need help or have damaged or missing parts, call the Customer Helpline on 1300 889 028
THW1801
Instruction Manual
After Sales Support
FREE CALL 1300 889 028
EMAIL:[e-mail]

Customer Helpline 1300 889 028
2
Contents
Safety Information.....................................................................................................3
In The Box..................................................................................................................6
Accessories...............................................................................................................6
Assembly....................................................................................................... 7
Operating Instructions.............................................................................................. 9
Storage....................................................................................................................11
Maintenance.............................................................................................................12
Troubleshooting.....................................................................................................13
Technical Data..........................................................................................................14
Warranty.............................................................................................................14

Customer Helpline 1300 889 028
3
Safety Information
Important - Please read these instructions fully before starting assembly

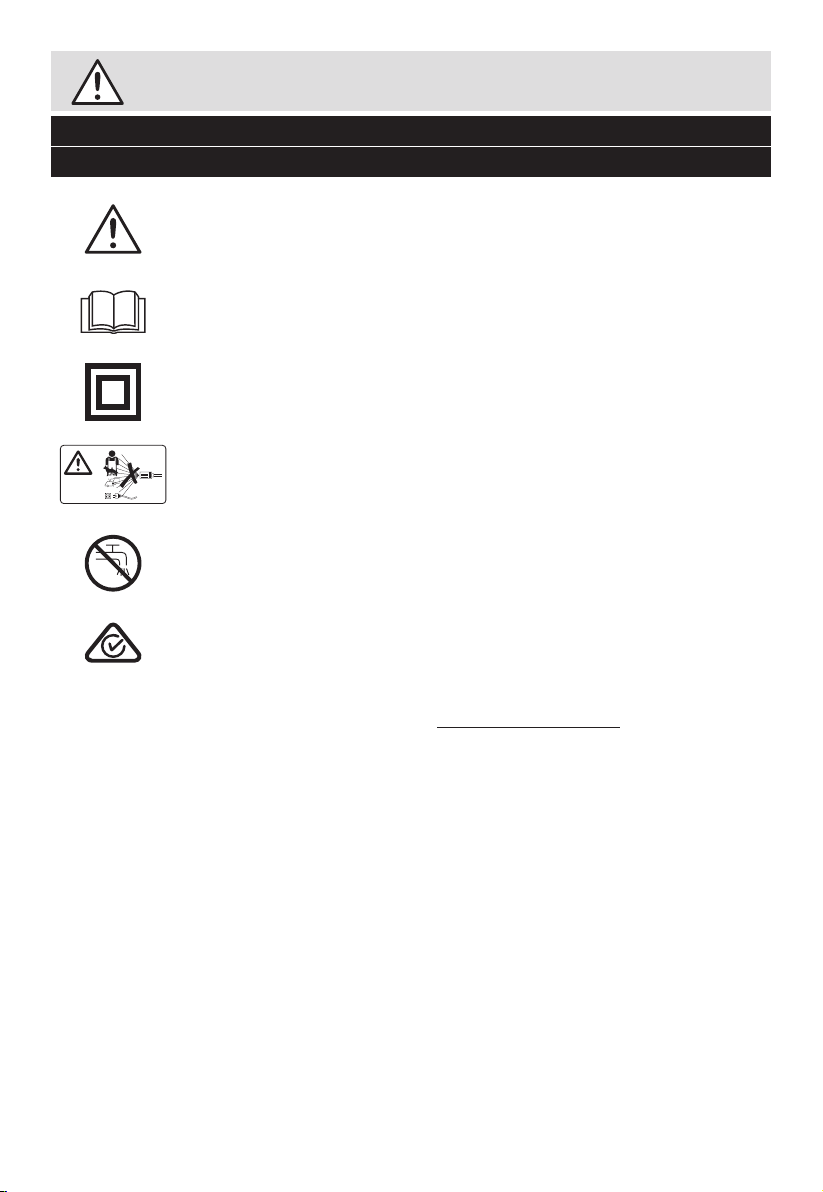

Warning Symbols
Warning
Read the operator’s manual
Double insulation
Warning: Do not direct the jet at persons, animals and electrical equipment
Machine not suitable for connection to the potable water mains
RCM marking
ABN: Australian Business Number. By this number, business information such as entity type,
status, business location etc. can be found at website http://abr.business.gov.au.
ABN of Positec Australia Pty Limited is 14 101 682 357

Customer Helpline 1300 889 028
4
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
WARNING! Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
- This machine is not intended for use by persons (including children) with reduced
physical,sensory or mental capabilities, or lack of experience and knowledge.
- Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
Additional Power Tool Safety Warnings
WARNING: Do not use the appliance without reading the instruction sheet.
- Safety boots, safety gloves, safety helmets with visors, hearing protection etc. should
be worn while operating the machine.
- When opening the trigger gun, there is a danger of the kickback force and the sudden
torque on the spray assembly. Please hold the nozzles tightly.
- WARNING: High pressure jets can be dangerous if subject to misuse. The jet must not
be directed at persons, live electrical equipment or the machine itself.
- WARNING: Do not use the machine within range of persons unless they wear
protective clothing.
- WARNING: Do not direct the jet against yourself or others in order to clean clothes or
foot-wear.
- Disconnect from the electrical power supply before carrying out user maintenance
- WARNING: High pressure cleaners shall not be used by children or untrained
personnel.
- WARNING: Risk of explosion – Do not spray flammable liquids.
- WARNING: To ensure machine safety, use only original spare parts from the
manufacturer or approved by the manufacturer.
- WARNING: High pressure hoses, fittings and couplings are important for the safety
of the appliance. Use only hoses, fittings and couplings recommended by the
manufacturer
- WARNING: Water that has flown through backflow preventers is considered to be non-
potable.
- WARNING: The machine must be disconnected from its power source by removing the
plug from the socket-outlet during cleaning or maintenance and when replacing parts
or converting the machine to another function.
- WARNING: Do not use machine if a supply cord or important parts of the machine are
damaged, e.g. safety devices, high pressure hoses, trigger gun.
- WARNING: If an extension cord is used, the plug and socket must be of watertight
construction.
- WARNING: Inadequate extension cords can be dangerous. If an extension cord is used,
it must be suitable for outdoor use, and the connection has to be kept dry and off the
ground. It is recommended that this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.

Customer Helpline 1300 889 028
5
Safety Information
Important - Please read these instructions fully before starting assembly
General Power Tool Safety Warnings
- WARNING: This hose contains electrical connections: do not use it to collect water
and do not immerse in water for cleaning; the hose should be checked regularly and
must not be used if damaged.
- The electric supply connection must be made by a qualified electrician and comply
with AS/NZS 3000. It is recommended that the electric supply to this machine should
include either a residual current device that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.

Customer Helpline 1300 889 028
6
In The Box
Parts
1
5
2
6
3
11
12
14
13
15
4
Electric cable
Spray gun and lance holder
Handle
ON/OFF switch
Outlet water connector
Inlet water connector
Inlet water hose (not supplied)
Lock off switch
Gun trigger
Spray gun
Adjustable spray nozzle
Extension lance
High pressure hose
Built-in detergent tank
Cable holder
Wheels
Normal nozzle (low pressure)
Nozzle cleaning tool
On board storage for nozzles
Inlet water filter (See B1)
Accessories
Spray gun 1
5m water outlet high pressure hose 1
Normal nozzle 1
Adjustable spray nozzle 1
Extension lance 1
18
7
1
6
5
4
3
29
10
813
12
11
17
14
15
16
19
8
9
717
18
16
19
10 20

Customer Helpline 1300 889 028
7
NOTE: Before using the tool, read the instruction book carefully.
Caution!
●Never use the pressure washer to draw in water contaminated with solvents (e.g.
paint thinners, gasoline, oil, etc.).
●Dirt in the feed water will damage the unit. To avoid this risk, we recommended
checking the water filter (20) (located inside the water inlet; to clean it out see
maintenance section).
●Always prevent debris from being drawn into the unit by using a clean water source
and an water filter (20) if required.
Water supply (cold water only)
1. Do not draw non-water liquids through the unit. For use with cold water supply only.
2. Water hose must be at least a 1/2” in diameter.
3. Flow rate of water supply must not fall below 6 l /min.
4. Flow rate can be determined by running the water for one minute into an empty
container.
5. The water supply temperature must not exceed 60oC (140oF).
ASSEMBLY

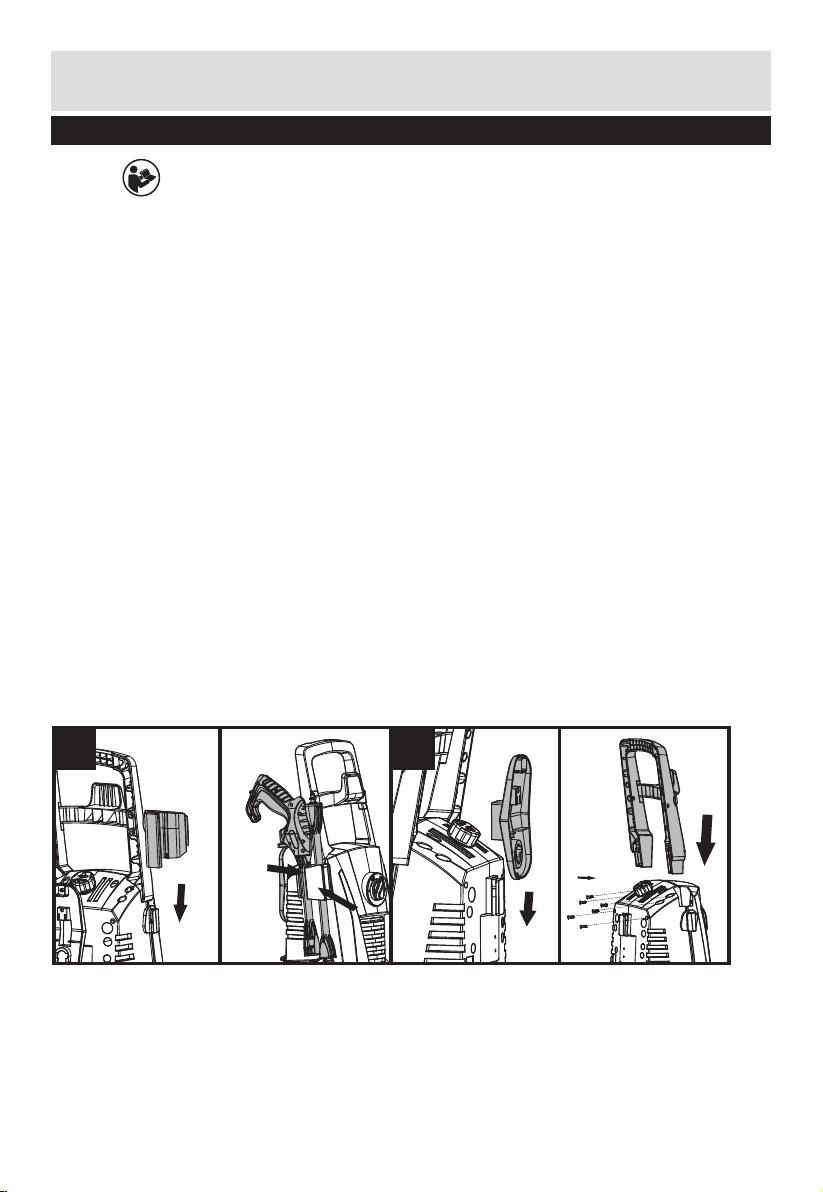

1. ASSEMBLING SPRAY GUN HOLDER
Press the spray gun and lance holder (2) on to the machine. (See A1)
2. MOUNTING OF HOLDER FOR ELECTRIC CABLE
Press the cable holder (15) on to the machine. (See A2)
3. MOUNTING OF HANDLE
Press the handle (3) on to the machine, and fix the six screws. (See A2)
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1
Assembly

Customer Helpline 1300 889 028
8
Assembly

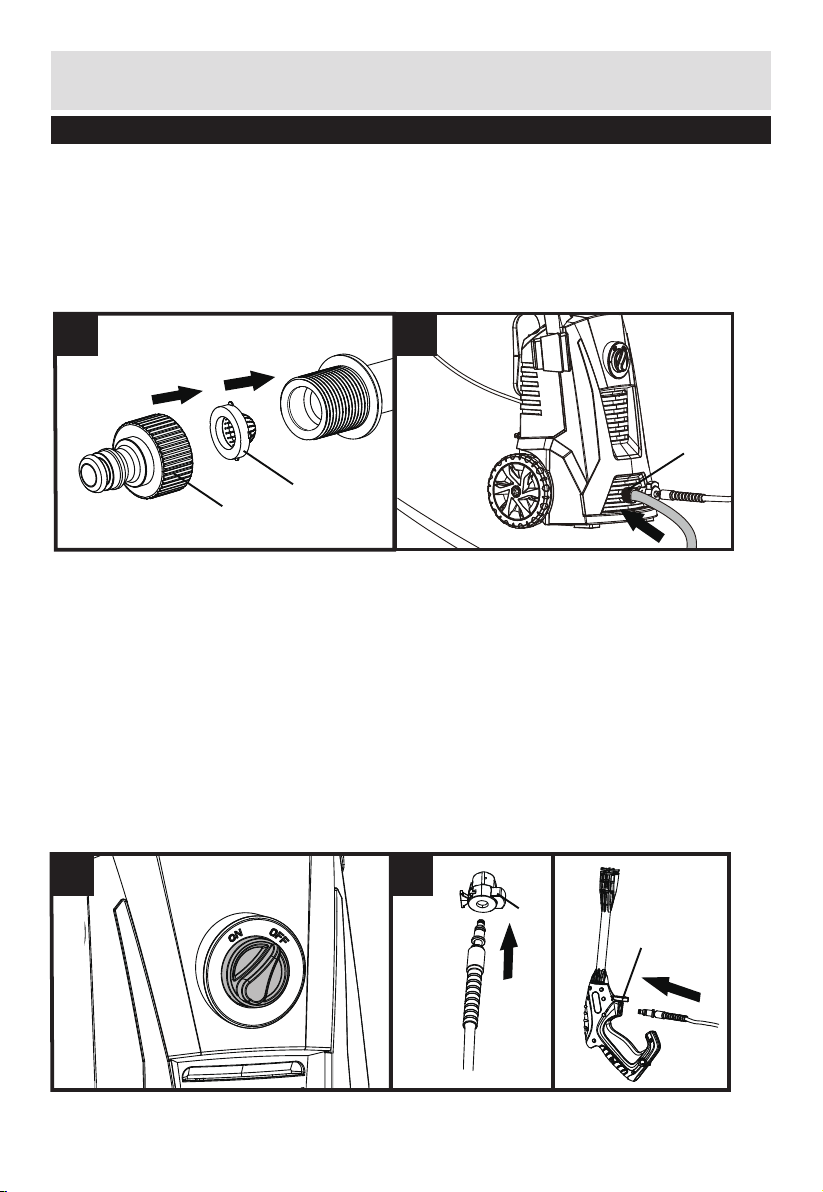

4. CONNECTION OF INLET WATER HOSE
Note: The inlet water filter (20) must always be fitted in the water inlet pipe to filter out
sand, lime stone and other impurities as these will damage the pump valves. (See B1)
Caution: Failure to fit the filter will invalidate the guarantee.
Connect the inlet water hose with a standard quick coupling.
Screw the inlet water connector (6) tight on to the water inlet. (See B2)
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1

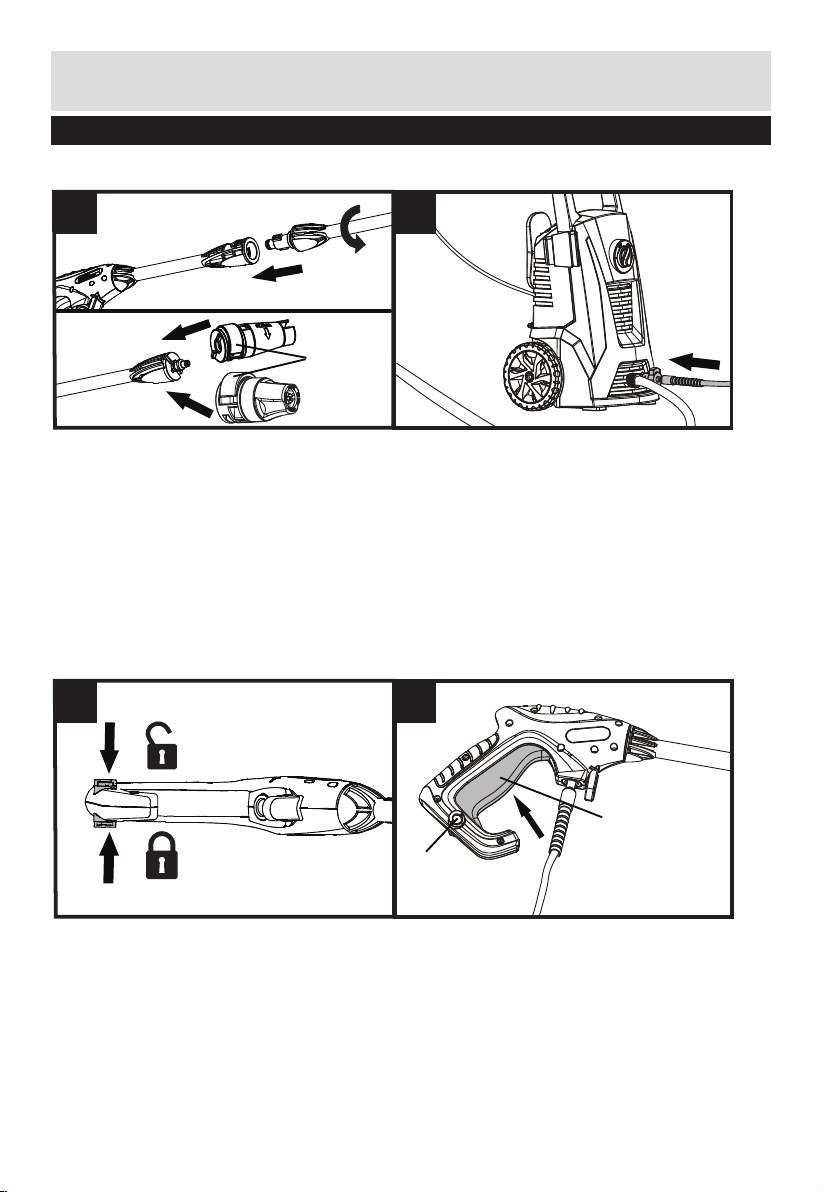

5. ASSEMBLING THE HIGH PRESSURE HOSE
1) Make sure that ON/OFF switch is in OFF position. (See C1)
2) Insert the high-pressure hose to spray gun. (See C2)
3) Insert the high-pressure hose to outlet water connector. (See C2)
4) Push the lance into the trigger gun when inserted to the end turn it. Make sure the lance
is properly fixed to the gun. (See C3)
5) Attach the nozzles. When attaching the nozzle the button (A) on the nozzle should come
out again. Check before activating the trigger that the nozzle is properly fixed. (See C3)
4) Connect the high-pressure hose to the machine. (See C4)
NOTE: Before removing any accessories, make sure that ON/OFF switch is in OFF position.
1) Detach the high pressure hose by pressing the pawl (B) and button (C). (See C2)
2) Detach the extension lance by pushing it to the end and turn it. (See C3)
3) Detach the nozzle by pressing the button (A) on the nozzle. (See C3)
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1

Customer Helpline 1300 889 028
9
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1
Operating Instructions
OPERATION
1. LOCK OFF SWITCH
The spray gun features a locking device. When the knob is activated, the spray gun cannot
be operated. (See D1)
2. ON/OFF SAFETY SWITCH
1) Connect the plug into a properly grounded outlet.
2) Before turning the unit on, press the gun trigger (9) to bleed any trapped air out of the
pump and hose. (See D2)
3) Your switch is in a locked off position to prevent in accidental starting. Depress lock off
button (8) then gun trigger (9) and release lock off button (8). Your switch is now on. To
switch off just release the gun trigger (9).
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1

Customer Helpline 1300 889 028
10
Operating Instructions
4. ADDING DETERGENT
1. Unscrew the cap of the built-in detergent tank. (See G1)
2. Add detergent to the tank and screw the cap back on. (See G2)
4) Start the pressure washer by turning ON/OFF switch to ON, let the machine run for a
while to reach the necessary pressure,and then press the gun trigger (9). (See E)
REMINDER: Motor does not run continuously, only when trigger is squeezed.

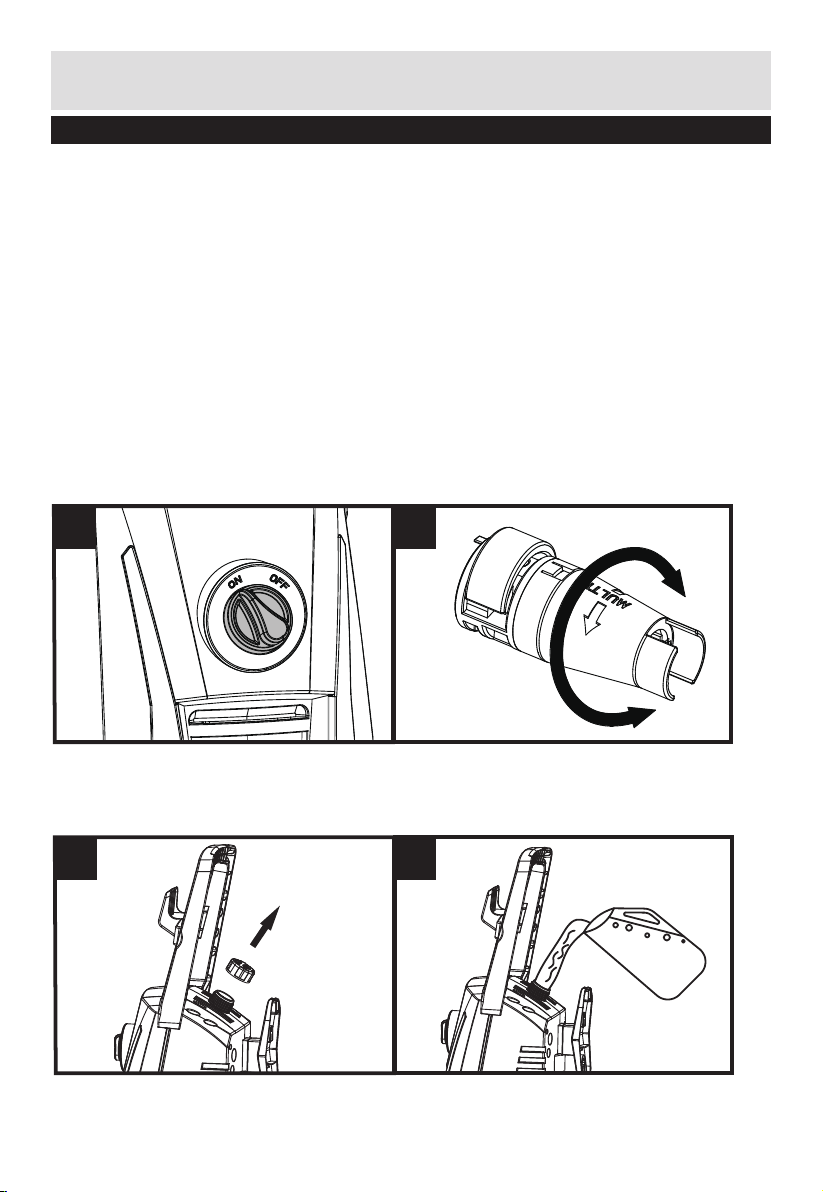

3. ADJUSTING THE SPRAY
The adjustable spray nozzle can adjust from fan to jet setting. The spray is adjusted from
jet spray to fan spray by turning the nozzle as shown in F.
NOTE: the pressure of the spray on the surface you are cleaning increases as you move
the wand closer to the surface.
CAUTION: Jet spray adjustment is very aggressive. Do not adjust while spraying. We
recommend that for most cleaning applications a 20-degree spray angle should be used
to avoid damage to the surface being sprayed.
Surface preparation
Before staring any cleaning task it is important the area for objects which could create a
hazard. Remove objects from the work area which area which could be tripped over, such
as toys or outdoor furniture. Ensure that all doors and windows are closed tight.
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1

Customer Helpline 1300 889 028
11
Storage
The machine should be stored in a frost-free room.
Pump, hose and accessories should always be emptied of water prior to storing as
follows:
Stop the machine and detach water hose and accessory.
Restart the machine and activate the trigger. Let the machine run until no more water
runs through the spray gun.
3. Stop the machine, unplug and wind up hose and cable.
4. Place spray handle, nozzles and other accessories in the holders of the machine.
Should the machine by mistake be frozen, it will be necessary to check it for damage.
NEVER START-UP A FROZEN MACHINE.
Frost damages are not covered by the guarantee.
Winding up of electric cable and high pressure hose.
To avoid accidents, the electric cable and the high pressure hose should always be
winded carefully up around the handle. Wind up the cable on the appropriate hook.
Storage of accessories
The lance and the nozzles can be stored on the pressure washer.

Customer Helpline 1300 889 028
12
Maintenance
WARNING! Always disconnect the electrical plug from the socket prior to
maintenance or cleaning. To ensure a long and problem free working life, please take
the following advice:
- Wash out water hose, high pressure hose, spray lance and accessories before mounting.
- Clean the connectors of dust and sand.
- Rinse the detergent spraying attachment after use.
- Clean the nozzles.
Any repair should always be made in an authorized workshop with original spare parts.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Cleaning of water inlet filter
Clean the water inlet filter regularly once a month or more frequently according to use.
Carefully loosen the filter with a screwdriver and clean it. Check that it is intact before re-
mounting it.
The inlet filter must always be fitted inside the water inlet pipe to filter out sand, limestone
and other impurities, as they will damage the pump valves.
CAUTION: Failure to fit the filter will invalidate the guarantee.

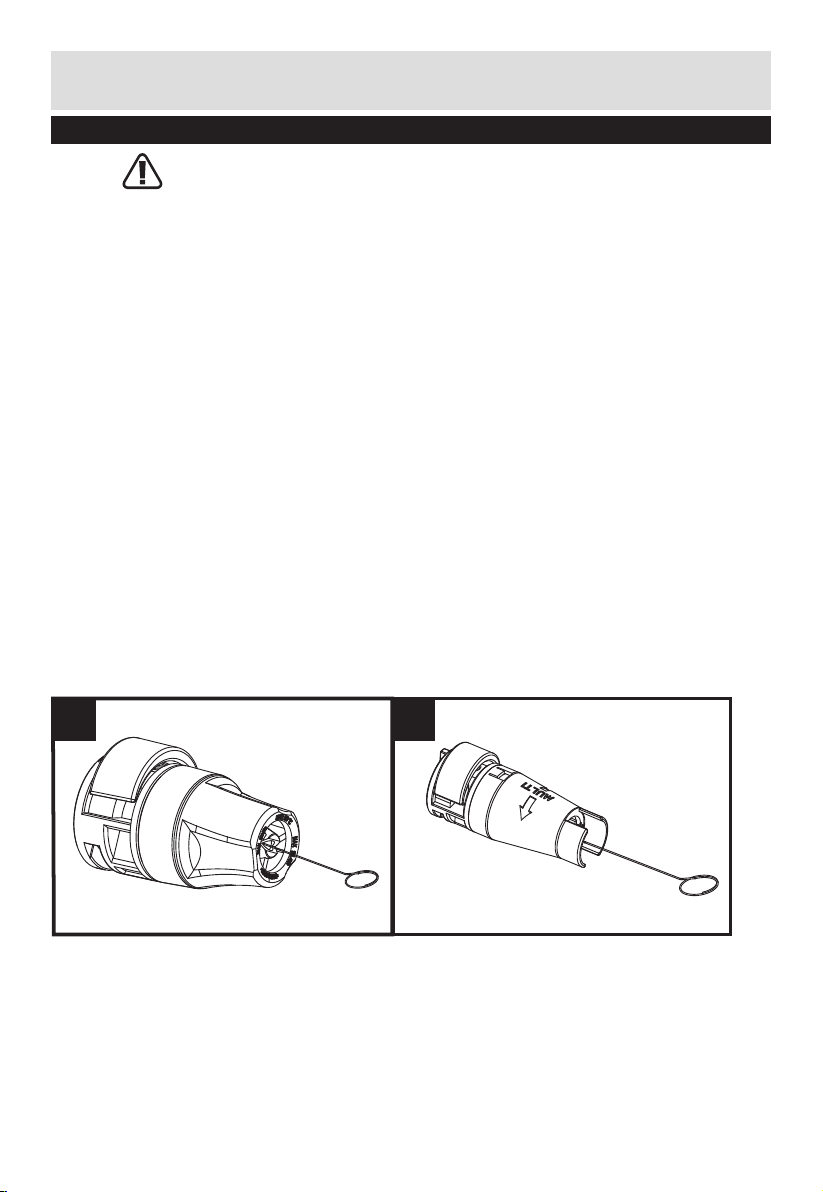

Cleaning of nozzle
A clogging up in the nozzle causes a pump pressure which is too high. This is why cleaning
is required immediately.
1. Stop the machine and disconnect the nozzle.
2. Clean the nozzle. (See H1, H2)
IMPORTANT: The nozzle cleaning tool (18) should only be used when the nozzle is detached.
3. Flush the nozzle backwards with water.
Cleaning of machine vents
The machine should be kept clean so as to let cooling air pass freely through the machine vents.
Greasing of couplings
To ensure an easy connection and that o-rings do not dry up. The couplings should be
greased regularly.
6
6
A
CB
8
9
20
A1 A2
B2
B1
C2
C1
D2
D1
F
E
G2
G1
C4
C3
H2
H1

Customer Helpline 1300 889 028
13
Troubleshooting
Disconnect the machine from the power source before making any repair. To avoid
unnecessary disappointments, you should check the following before contacting the
service organization:
Symptom Cause Recommended action
Machine refuses
to start
Machine not plugged in
Defective socket
Fuse has blown
Defective extension cable
Plug in machine.
Try another socket.
Replace fuse. Switch off other
machines.
Try without the extension cable.
Fluctuating
pressure
Pump sucking air
Valves dirty, worn out or
stuck
Pump seals worn out
Check that hoses and connections
are airtight.
Clean and replace or refer to local
distributor.
Clean and replace or refer to local
distributor.
Machine stops Fuse has blown
Incorrect mains voltage
Thermal sensor activated
Nozzle partially blocked
Replace fuse. Switch off the machine.
Check that the mains voltage
corresponds to specification on the
model tag.
Leave the washer for 5 minutes to
cool down.
Clean the nozzle.
Fuse blows Fuse too small Change to an installation higher
than the amp. consumption of the
machine. You may try without the
extension cable.
Machine
pulsating
Air in inlet hose
Inadequate supply of
mains water
Nozzle partially blocked
Water filter blocked
Hose kinked
Pump allow machine to run with
open trigger until regular working
pressure resumes.
Check that the water supply
corresponds to specifications
required.
Avoid using long, thin hoses.
(min. 1/2”)
Clean the nozzle.
Clean the filter.
Straighten out hose.
Machine often
starts and stops
by itself
Pump/spray gun is leaking
Centre.
Contact your nearest Service.
Machine starts,
but no water
comes out
Pump/hoses or accessory
frozen
No water supply
Water filter blocked
Nozzle blocked
Wait for pump/hoses or accessory
to thaw.
Connect inlet water.
Clean the filter.
Clean the nozzle.

Customer Helpline 1300 889 028
14
Technical Data
Technical Data Table
Voltage 230-240V~50Hz
Wattage 1800W
Rated pressure 1305PSI (90bar)
Max. pressure 1957PSI (135bar)
Rated flow capacity 5.5 l/min
Weight 10 kg
Double insulation /II
Warranty
Our product is guaranteed to be free from quality and manufacturing defects for a period of
12 months.
If your product becomes defective during this period, SRGS PTY LTD will offer you either a
replacement, credit or refund where a product is faulty; wrongly described; different from
the sample shown to you or do not do what they are supposed to do.
This warranty will not cover substantially modified product; misuse or abuse of the product
contrary to user instructions or packaging label; change of mind and normal wear and tear.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and failure does not
amount to a major failure.
To claim the warranty, take the product to the front Service Desk of your nearest store of
purchase. You will need to show receipt or other proof of purchase. Additional information
may be required to process your claim. Should you not be able to provide proof of purchase
with a receipt or bank statement, identification showing name, address and signature may
be required to process your claim.
Any expenses relating to the return of your product to the store will normally have to be
paid by you. For online store purchases, SRGS PTY LTD will pay for the return freight for any
product assessed as having a major failure.
The benefits to the customer given by this warranty are in addition to other rights and
remedies of the Australian Consumer Law in relation to the goods or services to which this
warranty relates.
This warranty is provided by SRGS PTY LTD, 6 Coulthards Avenue, Strathpine QLD 4500,
Australia. Phone: [phone].
