OPERATOR’S MANUAL
THIS MANUALCONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG MOWER. READING
THIS MANUAL CAN PROVIDE YOU WITH
ASSISTANCE IN MAINTENANCE AND AD-
JUSTMENT PROCEDURES TO KEEP YOUR
MOWER PERFORMING TO MAXIMUM EFFI-
CIENCY. THE SPECIFIC MODELS THATTHIS
BOOK COVERS ARE CONTAINED ON THE
INSIDECOVER. BEFORE OPERATINGYOUR
MACHINE, PLEASE READ ALL THE INFOR-
MATION ENCLOSED.
PART NO. 03214
PRINTED 1/2007
PRINTED IN USA
©2007
SCAGPOWEREQUIPMENT
DIVISION OF METALCRAFT OF MAYVILLE, INC.
Made in the USA by
R
MODEL SFZ

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the
operation, transport, maintenance, and storage of the equipment.
Thismanualcoverstheoperatinginstructions
andillustratedparts list for:
SFZ48-19KA with a serial number of D1700001 to D1799999
SFZ48-26BS with a serial number of D1500001 to D1599999
SFZ52-19KA with a serial number of D1900001 to D1999999
SFZ52-26BS with a serial number of D1800001 to D1899999
SMFZ-48 with a serial number of D1600001 to D1699999
SMFZ-52 with a serial number of D2000001 to D2099999
Alwaysusetheentireserial number listed on the serialnumber
tag when referring to this product.
WARNING:
* Read this manual completely as well as other manuals that came
with your mower.
* DO NOT operate on steep slopes. To check a slope, attempt to back
up it (with the cutter deck down). If the machine can back up the slope
without the wheels slipping, reduce speed and use extreme caution.
Under no circumstances should the machine be operated on slopes
greater than 15 degrees. ALWAYS FOLLOW OSHAAPPROVED
OPERATION.
* DO NOT mow on wet grass. Wet grass reduces traction and steering
control.
* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and
remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Keep others off the tractor (only one person at a time)

I
TABLE OF CONTENTS
4.14 Towing ................................................................................................................................. 18
SUBJECT PAGE
Section 1 - General Information
1.1 Introduction .............................................................................................................................1
1.2 Directional Reference.............................................................................................................1
1.3 Servicing the Engine and DriveTrain Components ................................................................1
1.3 Symbols ............................................................................................................................... 2-3
Section 2 - Safety Information
2.1 Introduction .............................................................................................................................4
2.2 SignalWords ...........................................................................................................................4
2.3 Before Operation Considerations ...........................................................................................4
2.4 OperationConsiderations........................................................................................................5
2.5 Roll Over Protection System ..................................................................................................7
2.6 Maintenance Considerations ................................................................................................... 8
2.7 Safety and Instructional Decals ..............................................................................................9
Section 3 - Specifications.................................................................................................... 10-11
Section 4 - Operating Instructions
4.1 Controls and Instrument Identification ................................................................................. 12
4.2 Safety Interlock System ....................................................................................................... 13
4.3 Initial Run-In Procedures ..................................................................................................... 14
4.4 Starting the Engine ............................................................................................................... 14
4.5 Ground Travel and Steering ................................................................................................. 14
4.6 Engaging the DeckDrive ......................................................................................................15
4.7 Hillside Operation ................................................................................................................. 16
4-8 Parking the Mower............................................................................................................... 16
4.9 After Operation .................................................................................................................... 16
4.10 RemovingCloggedMaterial ................................................................................................. 17
4.11 MovingMower with Engine Stopped ................................................................................... 17
4.12 Recommendationsfor Mowing ............................................................................................ 17
4.13 AdjustingCuttingHeight....................................................................................................... 17
Section 5 -Troubleshooting Cutting Conditions............................................................... 19-21

II
TABLE OF CONTENTS (CONT'D)
SUBJECT PAGE
Section 6 - Adjustments
6.1 Parking BrakeAdjustment.................................................................................................... 22
6.2 TravelAdjustments............................................................................................................... 23
6.3 Throttle Control and ChokeAdjustments ............................................................................. 24
6.4 BeltAdjustment.................................................................................................................... 24
6.5 BeltAlignment ...................................................................................................................... 24
6.6 Cutter DeckAdjustments ..................................................................................................... 25
Section 7 - Maintenance
7.1 MaintenanceChart ............................................................................................................... 27
7.2 Hydraulic System ................................................................................................................. 28
7.3 Engine Oil ............................................................................................................................. 30
7.4 Engine FuelSystem .............................................................................................................. 31
7.5 EngineAirCleaner................................................................................................................ 31
7.6 Battery.................................................................................................................................. 32
7.7 Drive Belts ........................................................................................................................... 33
7.8 CutterBlades........................................................................................................................ 33
7.9 Tires ..................................................................................................................................... 34
7.10 Body, Deck and Upholstery ................................................................................................. 34
Section 8 - Replacement Parts
SFZ48, SFZ52 Cutter Deck ...................................................................................................... 36-37
Cutter Deck Controls ................................................................................................................ 38-39
Sheet Metal Components .......................................................................................................... 40-41
SFZ Roll-Over Protection System............................................................................................. 42-43
Drive System Components........................................................................................................ 44-45
Fuel and Electrical System ........................................................................................................ 46-47
ZT-2800 HydraulicAxleAssembly ............................................................................................ 48-49
ReplacementDecals .................................................................................................................. 50-51
ElectricalSchematic ....................................................................................................................... 52
Warranty Statement............................................................................ Following Illustrated Parts List

1
Scag approved attachments and accessories:
GC-SFZ (p/n TBA)
Hurricane Mulch (p/n TBA)
Mulch Plate (p/n TBA)
SFZ Hitch (p/n TBA)
SFZ - Lights (p/n TBA)
Freedom Striper (p/n TBA)
GC-4D (p/n 9054)
GC-F4 (p/n 9055)
Blade Buddy (p/n 9212)
GENERAL INFORMATION
1.1 INTRODUCTION
Yourmower wasbuiltto thehigheststandards intheindustry.
However, the prolonged life and maximum efficiency of
your mower depends on you following the operating,
maintenance and adjustment instructions in this manual.
If additional information or service is needed, contact your
Scag Power Equipment Dealer.
We encourage you to contact your dealer for repairs. All
Scag dealers are informed of the latest methods to service
this equipment and provide prompt and efficient service in
the field or at their service shop. They carry a full line of
Scag service parts.
THEREPLACEMENTOFANYPARTONTHIS
PRODUCTBYOTHERTHANTHE
MANUFACTURER'SAUTHORIZED
REPLACEMENTPARTMAYADVERSELY
AFFECTTHEPERFORMANCE,DURABILITYOR
SAFETYOFTHISPRODUCT.
USEOFOTHERTHANORIGINALSCAG
REPLACEMENTPARTSWILLVOIDTHE
WARRANTY.
For pictorial clarity, some illustrations and figures
in this manual may show shields, guards or plates
open or removed. Under no circumstances should
your mower be operated without these devices in
place.
All information is based upon product information
available at the time of approval for printing. Scag
Power Equipment reserves the right to make changes
at any time without notice and without incurring any
obligation.
1.2 DIRECTION REFERENCE
The“Right” and “Left”, “Front” and “Rear” of themachine
are referenced from the operator’s right and left when
seated in the normal operating position and facing the
forward travel direction.
1.3 SERVICINGTHE ENGINE AND DRIVE
TRAIN COMPONENTS
Thedetailservicingand repairof theengine,hydraulicpumps
and gearboxes are not covered in this manual; only routine
maintenance and general service instructions are provided.
Forserviceofthese components during the limited warranty
period, it is important to contact your Scag dealer or find a
local authorized servicing agent of the component
manufacturer. Any unauthorized work done on these
components during the warranty period may void your
warranty.
Section 1
When ordering parts, always give the model and serial

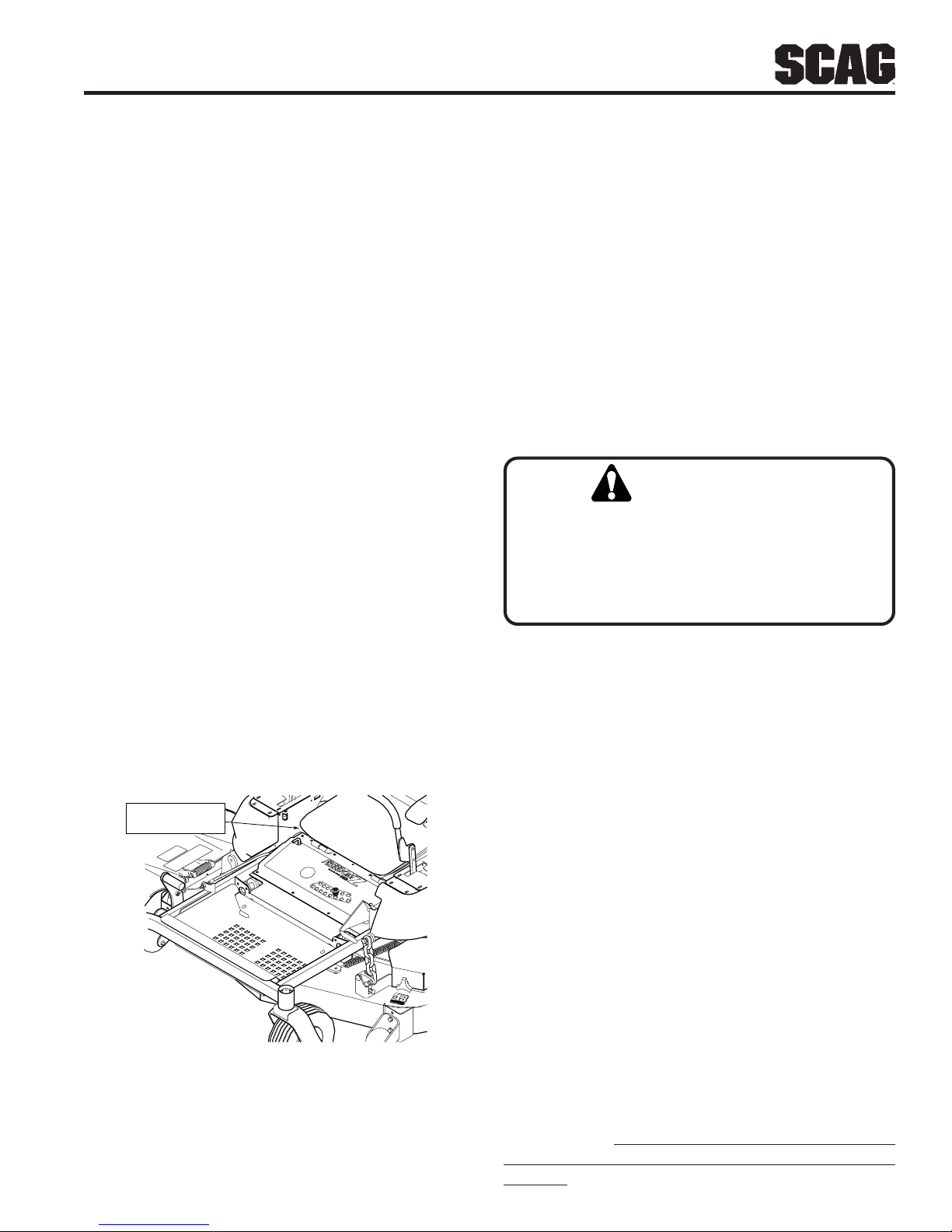

number of your mower. The serial number plate is located
under the seat as shown in Figure 1-1.
Figure 1-1 Mower Serial Number Plate Location
WARNING:
USE ONLY SCAG APPROVED ATTACHMENTS
ANDACCESSORIES. Scag recommendsthat all
approvedattachmentsandaccesoriesbeinstalledbyan
AuthorizedScag Dealer.
Attachments and accessories manufactured by companies
otherthanScagPowerEquipmentarenotapprovedforuse
onthismachine.
SERIAL NUMBER
PLATE LOCATION
2007 SFZ-SPL

2
TransmissionChoke
On/Start Spring Tension on Idler
Oil
Off/Stop
SYMBOL DESCRIPTION
SYMBOL DESCRIPTION
ISO Symbols
SpinningBlade
48071S
Parking Brake
WARNING
FALLING HAZARD
USE ONLY SCAG APPROVED
RIDING ATTACHMENTS
SEE OPERATOR'S MANUAL
481109
FallingHazard Thrown Object Hazard

3

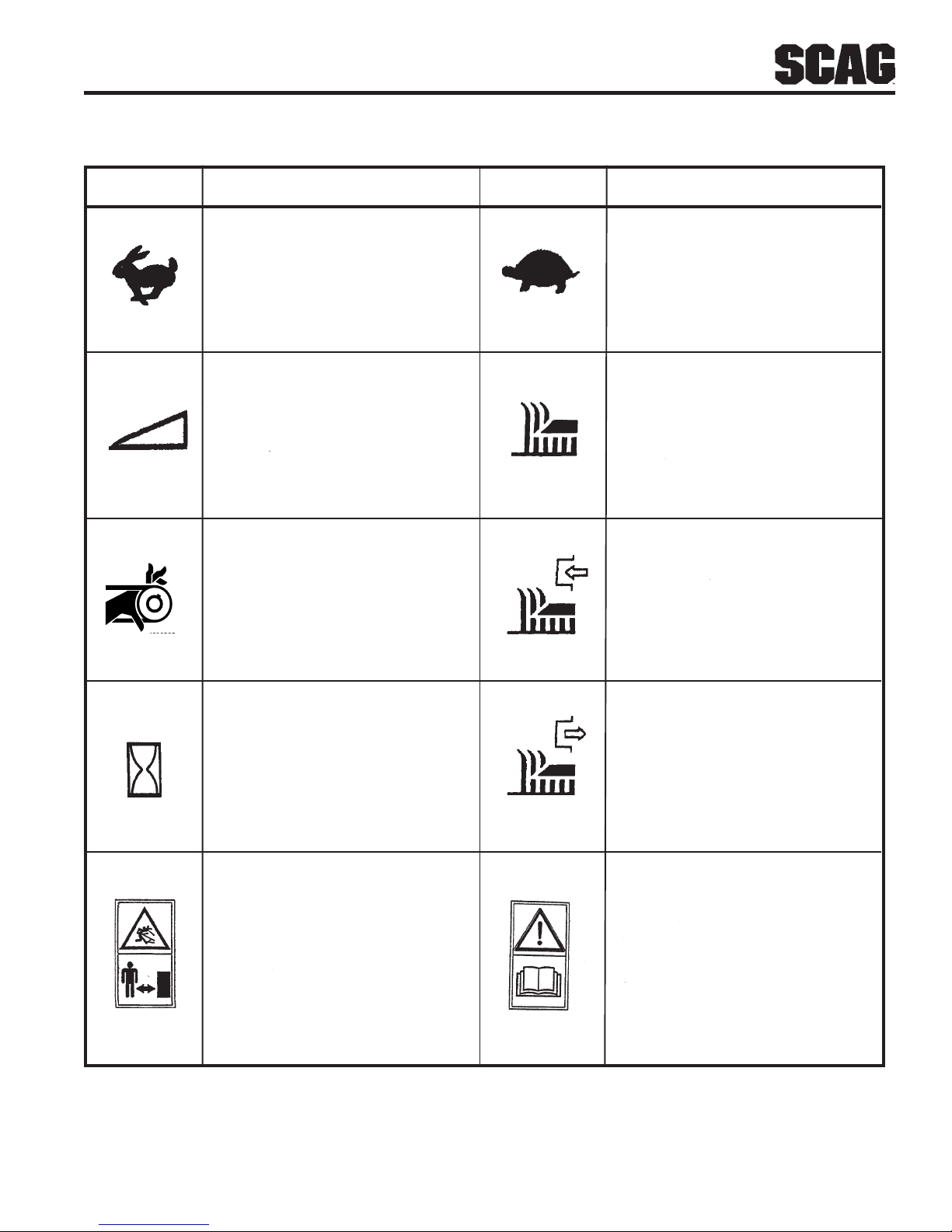

Slow
Fast
Cutting Element - Engage
Cutting Element - Basic symbol
Cutting Element - Disengage
Continuously Variable - Linear
Read Operator's Manual
Keep Bystanders Away
Pinch Point
481039S
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Hourmeter/Elapsed Operating Hours
Thown Object Hazard

4
SAFETY INFORMATION
2.1 INTRODUCTION
Your mower is only as safe as the operator. Carelessness
or operator error may result in serious bodily injury or
death. Hazard control and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of the personnel involved in the operation,
transport, maintenance and storage of the equipment.
Make sure every operator is properly trained and
thoroughly familiar with all of the controls before
operating the mower. The owner/user can prevent and is
responsible for accidents or injuries occurring to
themselves, other people or property.
READ THIS OPERATOR’S MANUAL BEFORE
ATTEMPTING TO START YOUR MOWER.
A replacement manual is available from your authorized
Scag Service Dealer or by contacting Scag Power
Equipment, Service Department at P.O. Box 152,
Mayville, WI 53050 or via the Internet at
www.scag.com. The manual for your machine can be
downloaded by using the model and serial number or use
the contact form to make your request. Please indicate
the complete model and serial number of your Scag
product when requesting replacement manuals.
2.2 SIGNAL WORDS
This symbol means “Attention! Become Alert! Your
Safety is Involved!" The symbol is used with the
following signal words to attract your attention to safety
messages found on the decals on the machine and
throughout this manual. The message that follows the
symbol contains important information about safety. To
avoid injury and possible death, carefully read the
message! Be sure to fully understand the causes of
possible injury or death.
Signal Word:
It is a distinctive word found on the safety decals on the
machine and throughout this manual that alerts the
viewer to the existence and relative degree of the
hazard.
The signal word “WARNING” denotes that a hazard
exists on or near the machine that can result in injury or
death if proper precautions are not taken.
The signal word “DANGER” denotes that an extremely
hazardous situation exists on or near the machine that
could result in high probability of death or irrepairable
injury if proper precautions are not taken.
CAUTION:
The signal word “CAUTION” is a reminder of safety
practices on or near the machine that could result in
personal injury if proper precautions are not taken.
Your safety and the safety of others depends significantly
upon your knowledge and understanding of all correct
operating practices and procedures of this machine.
2.3 BEFORE OPERATION
CONSIDERATIONS
1. NEVER allow children to operate this riding mower.
Do not allow adults to operate this machine without
proper instructions.
2. DO NOT mow when children and/or others are
present. Keep children out of the mowing area and
in the watchful care of a responsible adult other than
the operator. Be alert and turn machine off if a child
enters the area.
3. DO NOT allow children to ride on or play on the
machine, it is not a toy.
4. Clear the area to be mowed of objects that could be
picked up and thrown by the cutter blades.
5. DONOT carry passengers.
6. DO NOT operate the machine under the influence of
alcohol or drugs.
WARNING:
Section 2

5
Section 2
9. Keep the machine and attachments in good operating
condition. Keep all shields and safety devices in
place. If a shield, safety device or decal is defective
or damaged, repair or replace it before operating the
machine.
This machine is equipped with an interlock system
intended to protect the operator and others from
injury. This is accomplished by preventing the
engine from starting unless the deck drive is
disengaged, the steering control levers are in the
neutral position and the operator is in the seat.
The system shuts off the engine if the operator
leaves the seat with the deck drive engaged and/
or the steering control levers are not in the neutral
postion and the parking brake is not engaged.
Never operate equipment with the interlock system
disconnected or malfunctioning.
10. Be sure the interlock switches are functioning
correctly.
11. Fuel is flammable; handle it with care. Fill the fuel
tank outdoors. Never fill it indoors. Use a funnel or
spout to prevent spillage. Clean up any spillage
before starting the engine.
12. DO NOT add fuel to a running or hot engine. Allow
the engine to cool for several minutes before adding
fuel. Never fuel indoors or in enclosed trailers.
13. Keep flammable objects (cigarettes, matches, etc.),
open flames and sparks away from the fuel tank and
fuel container. Use only approved containers.
14. Equipment must comply with the latest requirements
per SAE J137 and/orANSI/ASAE S279 when driven
on public roads.
If the mower is driven on public roads, it must
comply with state and local ordinances as well as
SAE J137 and/or ANSI / ASAE S279 requirements.
Contact your local authorities for regulations and
equipment requirements.
15. DONOT operate without the side discharge chute
installed and in the down position or with an optional
grass catcher or mulch plate completely installed.
16. Check the blade mounting bolts at frequent intervals
for proper tightness.
17. Make sure all hydraulic fluid connections are tight and
all hydraulic hoses and lines are in good condition
before starting the machine.
2.4 OPERATION CONSIDERATIONS
1. Know the function of all controls and how to stop
quickly.
DO NOT operate on steep slopes. To check a
slope, attempt to back up it (with the cutter deck
down). Ifthemachine can back uptheslope without
thewheels slipping, reduce speed and use extreme
caution. Under no circumstances should the
machine be operated on slopes greater than 15
degrees.ALWAYS FOLLOW OSHA APPROVED
OPERATION.
this material to them.
8. DONOT wear loose fitting clothing. Loose
clothing, jewelry or long hair could get tangled in
moving parts. Do not operate the machine wearing
shorts; always wear adequate protective clothing
including long pants. Wearing safety glasses, safety
shoes and a helmet is advisable and is required by
somelocal ordinances and insurance regulations.
Alwayswear hearing protection.Operating this
machine over prolonged periods of time can
cause loss of hearing.
7. If the operator(s) or mechanic(s) cannot read English
or Spanish, it is the owner's responsibility to explain
WARNING:
-NOTE-
WARNING:
WARNING:

6
Section 2
2.4 OPERATION CONSIDERATIONS
(CONT'D)
2. Reduce speed and exercise extreme caution on slopes
and in sharp turns to prevent tipping or loss of
control. Be especially cautious when changing
directions on slopes.
3. To prevent tipping or loss of control, start and stop
smoothly, avoid unnecessary turns andtravelatreduced
speed.
4. When using any attachment, never direct the discharge
of material toward bystanders or allow anyone near
the machine while in operation.
5. Before attempting to start the engine, with the operator
in the seat, disengage power to the cutter deck, place
the steering control levers in the neutral position and
engage the parking brake.
6. If the mower discharge ever plugs, shut off the engine,
remove the ignition key, and wait for all movement to
stop before removing the obstruction.
DO NOT use your hand to dislodge the clogged
discharge chute. Use a stick or other device to
remove clogged material after the engine has
stopped running and the blades have stopped
turning.
7. Bealertforholes,rocks,roots and other hidden hazards
in the terrain. Keep away from any dropoff. Beware
ofoverheadobstructions(lowlimbs,etc.), underground
obstacles(sprinklers,pipes,treeroots,etc.). Cautiously
enter a new area. Be alert for hidden hazards.
8. Disengage power to cutter deck before backing up. Do
not mow in reverse unless absolutely necessary and
then only after observation of the entire area behind
the mower. If you must mow in reverse, maintain a
constant lookout to the rear of the machine and mow
slowly.
9. DO NOT turn sharply. Use care when backing up.
10. Disengage power to cutter deck before crossing roads,
walks or gravel drives.
11. Mowonlyindaylight or good artificial light.
12. NEVERraise the deck with the blades engaged.
13. Take all possible precautions when leaving the machine
unattended, such as disengaging the mower, lowering
theattachments, setting the parking brake, stoppingthe
engine, and removing the key.
14. Disengagepower to theattachments when transporting
or when not in use.
15. The machine and attachments should be stopped and
inspected for damage after striking a foreign object,
and damage should be repaired before restarting and
operating the machine.
DO NOT touch the engine or the muffler while
the engine is running or immediately after
stopping. These areas may be hot enough to
cause a burn.
DO NOT run the engine inside a building or a
confined area without proper ventilation.
Exhaust fumes are hazardous and contain carbon
monoxide which can cause brain injury and death.
16. Keep hands and feet away from cutter blades and
moving parts. Contact can injure.
17. Use care when loading or unloading the machine onto
a trailer or truck.
18. Usecarewhenapproachingblindcorners,shrubs,trees,
or other objects that may obscure vision.
19. NEVERleave the machine running unattended.
WARNING:
CAUTION:

7
2.5 ROLL-OVER PROTECTION SYSTEM
Section 2
Thismower has beendesignedforgood traction andstability
under normal mowing conditions. However, caution must
beusedwhen traveling on slopes, especially when the grass
iswet.Do not mow on wet grass.Wet grass reduces traction
and steering control.
Any or all parts ofthe Roll-Over Protection System MUST
NOTbe removed. Failure to adhere to this guideline could
result in injury or death.
Thepotentialexposureof thisseatbelttosevere enviromental
conditions make it crucial to inspect the seat belt system
regularly.
It is recommended that the seat belt be inspected on a daily
basis for signs of damage.Any seat belt system that shows
cuts, fraying, extreme or unusual wear, significant
discolorationduetoUVexposure, dirtor stiffness, abrasion
to the seat belt webbing, or damage to the buckle, latch
plate, hardware or any other obvious problem should be
replacedimmediately.
1. Check the full length of the seat belt webbing for cuts,
wear, fraying, dirt and stiffness. See Figure 2-1.
2. Check the seat belt webbing in areas exposed to ultra
violet rays from the sun or extreme dust or dirt. If the
originalcolorofthewebbingintheseareas is extremely
faded and/or is packed with dirt, the physical strength
ofthiswebbing may have deteriorated. If this condition
exists, replace the seat belt system.
WARNING:
Failure to properly inspect and maintain the
seat belt can cause serious injury or loss of
life.
WARNING:
Seat belt must be securely fastened during
operation. Failure to do so could cause
serious injury or loss of life.
3. Check the buckle and latch for proper operation and
determineif thelatchplate isexessivelyworn, deformed,
or if the buckle is damaged or cracked. See Figure 2-1.

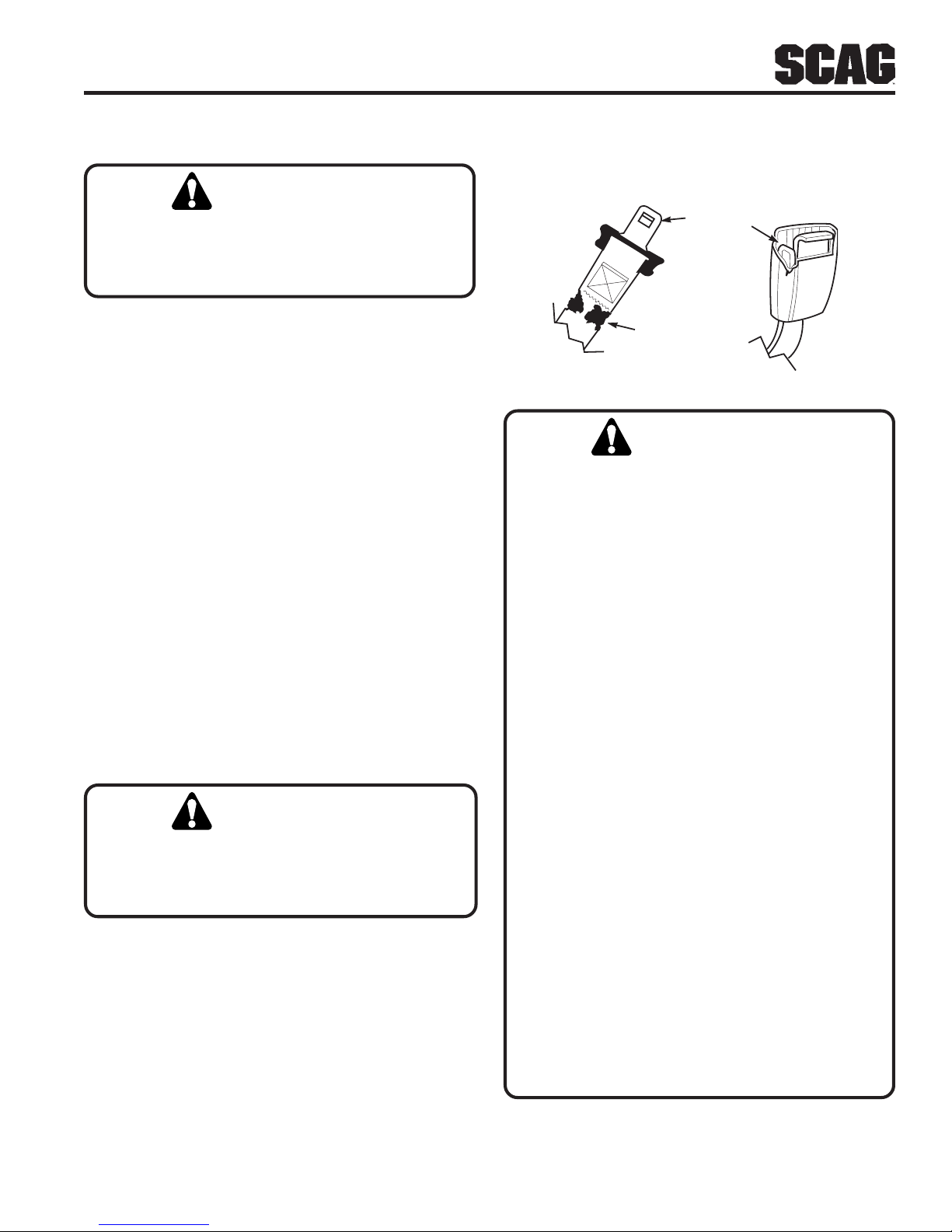

Figure 2-1 Seat Belt Inspection
INSPECT WEBBING
INSPECT BUCKLE
& LATCH
WARNING:
Reduce speed when turning, operating on slopes,
slick or wet surfaces.Allow extra distance to stop.
Stay off of slopes too steep for safe operation. To
check a slope, attempt to back up it (with the cutter
deck down). If the machine can not back up the
slope without the wheels slipping, do not operate
the machine on this slope. Under no circumstances
should the machine be operated on slopes greater
than 15 degrees.
ALWAYS travel up or down the slope whenever
possible. Never across the slope.
DO NOT mow near drop-offs, ditches or
embankments. The machine could suddenly roll
over if a wheel goes over the edge or if the edge
caves in.
Operate the machine smoothly, no sudden turns,
starts or stops on a slope.
NEVER tow on slopes. The weight of the towed
equipment may cause loss of traction and loss of
control.
DONOT permit untrained personnel to operate the
machine.

8
2.6 MAINTENANCE CONSIDERATIONS &
STORAGE
1. Never make adjustments to the machine with the
engine running unless specifically instructed to do so.
If the engine is running, keep hands, feet, and
clothing away from moving parts.
2. Disengage drives, lower implement, set parking
brake, stop engine and remove key or disconnect
spark plug wire to prevent accidental starting of the
engine when servicing or adjusting the machine.
Wait for all movement to stop before adjusting,
cleaning or repairing.
3. Disconnect battery or remove spark plug wire before
making any repairs. Disconnect the negative
terminal first and the positive last. Reconnect the
positive first and the negative last.
4. Keep all nuts, bolts and screws tight, to ensure the
machine is in safe working condition. Check blade
mounting bolts frequently to be sure they are tight.
5. Do not change the engine governor settings or
overspeed the engine. See the engine operator's
manual for information on engine settings.
Section 2
11. Use jack stands to support components when
required.
12. Carefully release pressure from components with
stored energy.
13. Let the engine cool before storing.
14. DO NOT store the machine near an open flame.
15. Shut off fuel while storing or transporting.
16. DO NOT store fuel near flames or drain indoors.
17. Charge batteries in an open well ventilated area,
away from spark and flames. Unplug charger before
connecting or disconnecting from battery. Wear
protective clothing and use insulated tools.
6. To reduce fire hazard, keep the cutting units, drives
muffler and engine free of grass, leaves, excessive
grease, oil and dirt.
7. Park the machine on level ground and engage the
parking brake.
8. NEVER allow untrained personnel to service the
machine.
9. Use care when checking blades. Wrap the blade(s)
or wear gloves and use caution when servicing
blades. Only replace or sharpen blades. NEVER
straighten or weld blades.
10. Keep all parts in good working condition. Replace all
worn or damaged decals.
Hydraulic fluid is under high pressure. Keep
body and hands away from pinholes or nozzles
that eject hydraulic fluid under high pressure.
If you need service on your hydraulic system,
please see your authorized Scag dealer. If
hydraulic fluid is injected into the skin, it must
be surgically removed within a few hours by a
doctor or gangrene may result.
WARNING:

9
Section 2
2.7 SAFETY AND INSTRUCTIONAL DECALS
483505
483402
481568
483406
483556
2007 SFZ Safety Decals
482291
483411
483425
483467
483405

10
Section 3
SPECIFICATIONS
3.1 ENGINE
GeneralType .............................................................................. Heavy DutyIndustrial/Commercial Gasoline
Brand ......................................................................................... Briggs & Statton, Kawasaki
Horsepower ............................................................................... 19 HP (Spec.#) (Scag Model SFZ48-19KA, SFZ52-19KA)
26 HP (Spec.# ) (Scag Model SFZ48-26BS, SFZ52-26BS)
Cylinders..................................................................................... 2 with Cast Iron Sleeves
Governor ................................................................................... Mechanical Type with Variable Speed Control Set At 3600 RPM
Idle Speed .................................................................................. 1750 RPM - Briggs & Stratton
................................................................................................... 1550 RPM - Kawasaki
Fuel Pump Group ...................................................................... Integral Fuel Pump with In-Line Fuel Filter
Fuel ............................................................................................ Non-Leaded Gasoline with a Minimum Octane Rating of 87
OilPumpGroup .......................................................................... Positive DisplacementGerotor™ Oil Pump
Starter ........................................................................................ Electric Starting with Bendix Shift Starter
Belts: .......................................................................................... Kevlar cord. Self-adjusting, Self-tightening
Pump Drive Belt........................................................................ Scag Part Number - 483314
3.2 ELECTRICAL
Battery ....................................................................................... 12Volt
Charging System ........................................................................ Alternator
Charging Output ........................................................................ 12 Volt, 16Amp
System Polarity ......................................................................... Negative Ground
Starter ........................................................................................ 12 Volt Electric Ring Gear Type, Key Operated
Interlock Switches..................................................................... Seat, Neutral Control, Mower Engagement (BBC), Parking Brake
Instrument Panel ....................................................................... Key Switch, Throttle Lever, Manual Choke, PTO Switch
Fuses.......................................................................................... Two (2) 20 Amp
3.3TRACTOR
Drive System ............................................................................. Hydraulic Drive with Two Hydro-Gear™ ZT2800 Integraded Zero-
Turn Transaxle
Steering/Travel Control............................................................. Twin Lever Fingertip Steering Control with Individual Control to
Each Wheel with Gas Spring Dampers
ParkingBrake ............................................................................. LeverActuated Linkage to Brakes on Both Drive WheelAxles
Wheels:
(2) Front Caster ..................................................................... 11 X 4.5-5 Two-Ply
(2) Drive ................................................................................ 20 X 10-8 Two-Ply Pneumatic Tubeless, Radius Edge
FuelTank ................................................................................... Single 7-Gallon Seamless Polyethylene Tank with large opening
................................................................................................... and Fuel Cap
Tire Pressure:
Front Caster .......................................................................... 25PSI
Drive ..................................................................................... 8 PSI
Seat ............................................................................................ Padded, Thick Cushion with Extra Spring Support

11
Section 3
3.3TRACTOR (CONT'D)
Travel Speed:
Forward ................................................................................. 0-8 MPH
Reverse ................................................................................. 0-5 MPH
3.4 CUTTER DECK
Type: .......................................................................................... Floating, Adjustable, Anti-scalping, Hybrid Design Combines
Out-front and Belly-mount Designs
Construction:............................................................................. 10-Gauge top with 11-Gauge reinforcement throughout the
................................................................................................... spindle area, 7-Gauge skirt for strength and longevity.
True Cutting Width: .................................................................. 48" (122.0 cm), 52" (132.0 cm)
Cutting Height Adjustment: ...................................................... Foot Operated Lever Adjustment from Operator's Seat, 1.00" to
4.5" in 1/4"increments
Cutter Blades:............................................................................ .197 Thick, Milled Edge, Wear Resistant Marbain™
Blade Engagement:................................................................... Electric Blade Engagement Clutch with Control Panel Switch
Connected to the Cutter Deck via Belt.
Discharge Opening:................................................................... Extra Wide Discharge Opening with Spring Loaded Discharge Chute
Spindles: .................................................................................... Heavy-duty Spindle Shaft, Cast Housing, Sealed Ball Bearing,
Maintenance-Free
Spindle Pulleys: ........................................................................ Split Steel
Cutter Deck Belts: .................................................................... B-section with Kevlar Cord. Self-adjusting, Self-tightening
Electric Clutch Type ................................................................. Ogura Heavy Duty PTO Clutch Brake
3.6 HYDRAULIC SYSTEM
Hydraulic Oil Filter................................................................... 40 Micron Spin-on Element Type
Hydraulic Reservoir .................................................................. Nylon
3.7 PRODUCTIVITY
The following chart will aid you in determining how many acres your Scag mower will cut per day.
The chart is an estimate based on 8 hours per day cutting time at 6 MPH with a 20% allowance for overlap and turns.
Cutting Width: 48" 52"
Acres Per Day: 18.6 20.2
-NOTE-
The machine will travel at 8 mph for
transport purposes. For best cutting
performance the forward travel speed
should be adjusted depending upon the
cutting conditions.

12
Section 4
OPERATING INSTRUCTIONS
Do not attempt to operate this mower unless you
have read this manual. Learn the location and
purpose of all controls and instruments before you
operate this mower.
4.1 CONTROLS AND INSTRUMENT
IDENTIFICATION
Before operating the mower, familiarize yourself with
all mower and engine controls. Knowing the location,
function and operation of these controls is important for
safe and efficient operation of the mower.
1. Ignition Switch (Figure 4-1). Used to start the
engine and has three positions; OFF, ON, and
START.
CAUTION:

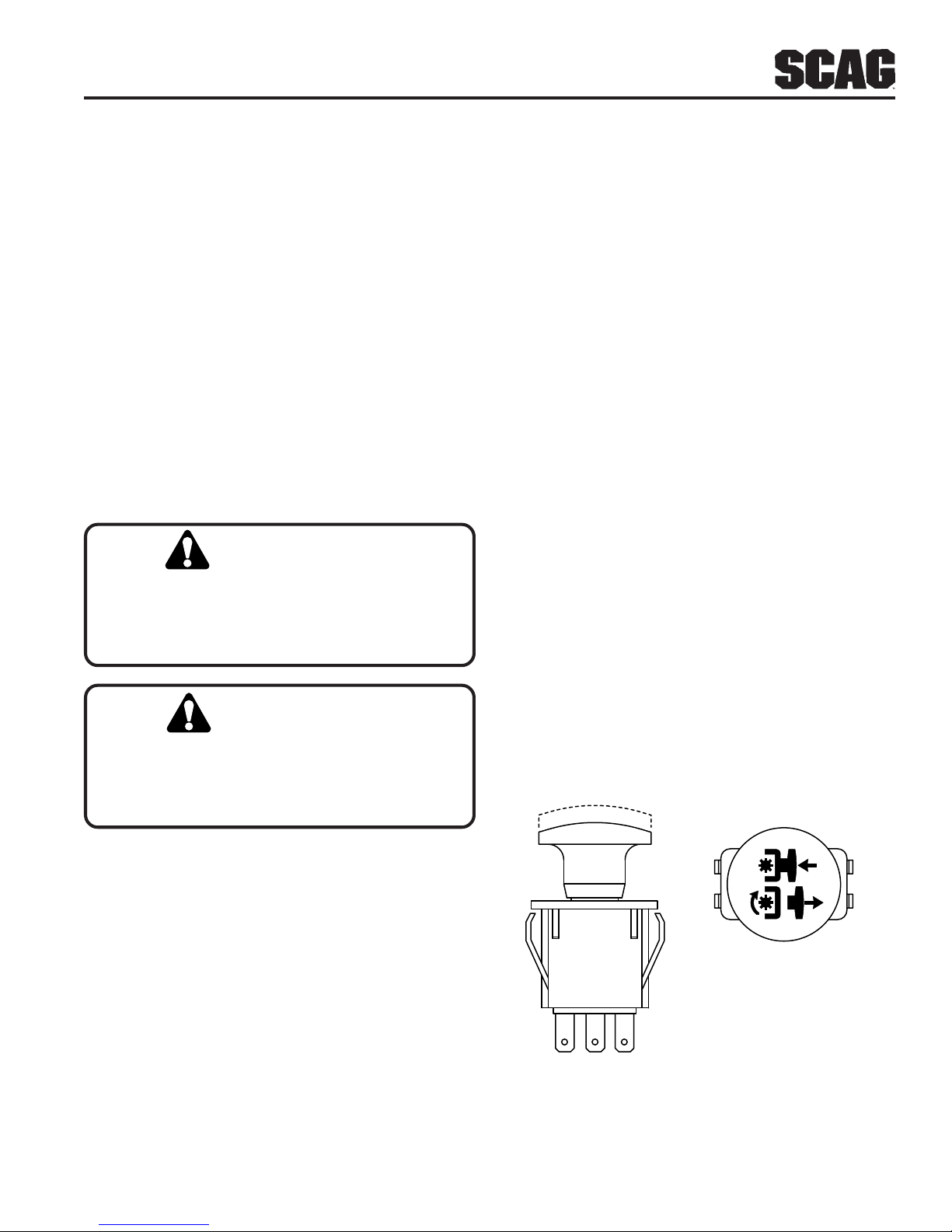

2. Mower Deck Switch (Figure 4-1). Used to engage
and disengage the mower drive system. Pulling up on
the switch will engage the deck drive. Pushing down
on the switch will disengage the deck drive.
3. Engine Choke Control (Figure 4-1). Used to start a
coldengine.
4. Engine Throttle Control (Figure 4-1). Used to
control the engine speed. Pulling the lever back
decreases engine speed. Pushing the lever forward
increases engine speed. Full forward position is the
cutting position. Full back is the IDLE position.
5. Fuel Gauge (Figure 4-1). Indicates the amount of
fuel in the fuel tank.
Figure 4-1 Controls and Instruments
CUTTER DECK
RELEASE LEVER
RIGHT STEERING
CONTROL
CUTTING HEIGHT
ADJUSTMENT
FAST
FAST
SLOW
SLOW
MOWER DECK
PULL OUT TO ENGAGE
PUSH IN TO DISENGAGE
DECK LIFT
PARKING
BRAKE
LEFT STEERING
CONTROL
DUMP VALVE
DUMP VALVE
IGNITION
SWITCH
MOWER
DECK
SWITCH
ENGINE
THROTTLE
CONTROL
ENGINE
CHOKE
CONTROL HOUR METER
SEAT HOLD DOWN
RELEASE LATCH
FUEL GAUGE
SEAT BELT

13
Section 4
6. Hourmeter (Figure 4-1). Indicates the number of
hours the engine has been operated. It operates
whenever the ignition key switch is in the ON
position. Has preset maintenance reminders for engine
andhydraulic system oil changes. Will start flashing
scheduled maintenance 2 hours before preset time
and continue flashing until 2 hours after.
Automaticallyresets.
7. Fuse Holders (Figure 4-1). Two 20-amp fuses
protect the mower’s electrical system. To replace
fuses, pull fuse out of the socket and install a new
fuse.
8. Left Steering Control (Figure 4-1). Used to control
the mower's left wheel when traveling forward or
reverse.
9. Right Steering Control (Figure 4-1). Used to
control the mower's right wheel when traveling
forward or reverse.
10. Parking Brake Control (Figure 4-1). Used to
engage and disengage the parking brakes. Pull the
lever back to engage the parking brakes. Push the
lever forward to disengage the parking brakes.
11. Dump Valve Control Levers (Figure 4-2). Located
on the left and right side of the rear bumper, used to
“free-wheel” the mower. Rotating the levers forward
into the notch allows the unit to move under hydraulic
power. Rotating the levers backward to the notch
allows the mower to be moved by hand (free-
wheeling).
12. Deck Lift Foot Lever (Figure 4-1). Used to raise
and lower the cutter deck.
13. Cutting HeightAdjustment (Figure 4-1). Used to
set the cutter deck at the desired cutting height.
14. Cutter Deck Release Lever (Figure 4-1). Used to
lock the cutter deck in the transport position. Push
the foot pedal forward and pull back on the release
lever to release the cutter deck for normal mowing.

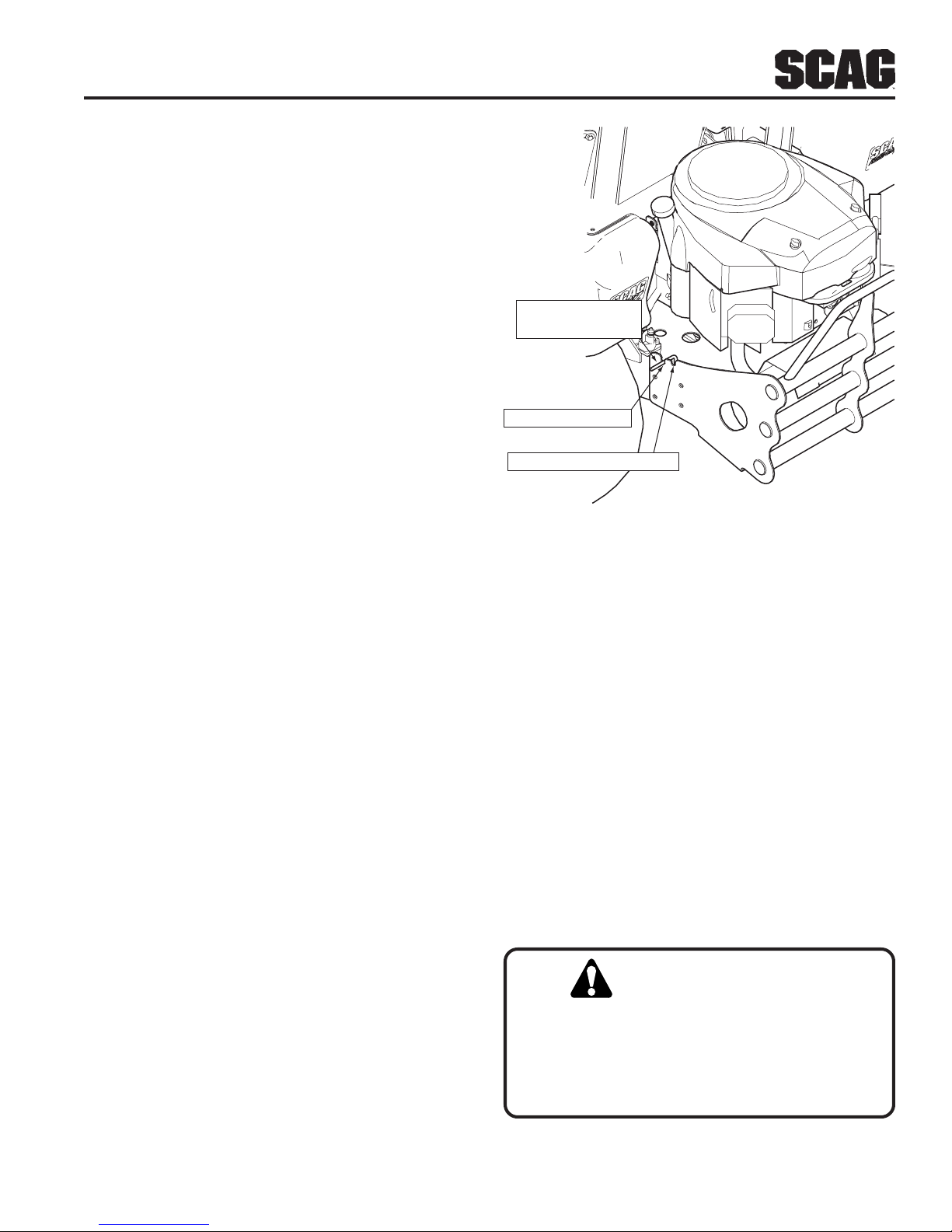

Figure 4-2 DumpValve Control
15. Seat Belt (Figure 4-1). Used to secure the operator.
Seat belt must be worn at all times during operation.
16. Seat Hold Down Release Latch (Figure 4-1).
Located behind the seat. Used to secure the seat in
the operators position. Release the latch to gain access
under the seat.
4.2 SAFETY INTERLOCK SYSTEM
The mower is equipped with a safety interlock system
that prevents the engine from starting unless the deck
drive is disengaged, the steering control levers are in the
neutral position and the operator is in the seat. The
interlock system shuts off the engine if the operator leaves
the seat with the steering control levers not in the neutral
position and/or the cutter blades engaged and/or the
parking brake not engaged.
Never operate the mower with the interlock
system disconnected or malfunctioning. Do not
disengage or bypass any switch; injury to
yourself and/or others or property damage could
result.
WARNING:
DUMP VALVE
CONTROL LEVER
"FREEWHEEL" POSITION
"DRIVE" POSITION
2007 SFZ DVL

14
Section 4
4.3 INITIAL RUN-IN PROCEDURES (First
Day of Use or Approximately 20 Hours)
1. Check all belts for proper alignment and wear at 2, 4
and 8 hours.
2. Change the engine oil and oil filter after the first 20
hours of operation. (See Section 7.3)
3. Check hydraulic oil level in reservoir. (See Section
7.2)
4. Check for loose hardware. Tighten as needed.
5. Check interlock system for proper operation. (See
Section 4.2)
6. Check tire pressure. Adjust pressure if necessary.
(See Section 7.9)
4.4 STARTINGTHE ENGINE
DO NOT USE STARTING FLUIDS. Use of starting
fluids in the air intake system may be potentially
explosive or cause a“runaway” engine condition
that could result in engine damage and/or personal
injury.
1. Sit in the operator’s seat, fasten seat belt and place
the steering control levers in the neutral position.
2. Engage the parking brake.
3. If the engine is cold, choke the engine as needed.
4. Move the engine throttle control to about half engine
speed.
CAUTION:
5. Turn the ignition key to the STARTposition and
release the key as soon as the engine starts. Do not
hold the key in the START position for more than 15
seconds at a time. Allow at least 60 seconds between
each cranking attempt to prevent overheating of the
starter motor. Prolonged cranking can damage the
starter motor and shorten battery life.
6. Allow engine to warm before operating the mower.
4.5 GROUNDTRAVEL AND STEERING
-IMPORTANT-
If you are not familiar with the operation of a
machine with lever steering and/or
hydrostatic transmissions, the steering and
ground speed operations should be learned
and practiced in an open area, away from
buildings, fences, or obstructions. Practice
until you are comfortable with the handling of
the machine before attempting to mow. Learn
the operation on flat ground before operating
on slopes.
-IMPORTANT-
Start practicing with a slow engine speed and
slow forward travel. Learn to feather the
steering controls to obtain a smooth
operating action.
ForwardTravel
To travel forward with the mower, disengage the parking
brake, pull levers inward out of the neutral lock position
and slowly push the steering control levers forward an
equal distance. The further the steering control levers
are pushed forward the greater the forward speed will
be. To increase the speed, push the steering control
levers further forward and to decrease the speed, pull the
steering control levers back.
To stop the forward travel, pull the steering control levers
back to the neutral position.
To steer the mower left while traveling forward, pull the
left steering lever back. The further the lever is pulled
back, the quicker the mower will turn left.

15
Section 4
To steer the mower right while traveling forward, pull the
right steering control lever back. The further the lever is
pulled back, the quicker the mower will turn right.
-NOTE-
Smooth operation of the steering levers will
produce smooth mower operation. While
learning the operation of the steering
controls, keep the travel speed low.
-IMPORTANT-
Do not travel forward over a curb. The
mower may hang up on the curb. Raise the
deck and travel backwards over the curb at a
45 degree angle. (see Section 4.1, item 12 for
cutter deck raising instructions)
Reverse Travel
Disengage power to the mower before backing up.
Donotmowin reverseunless absolutely necessary
and then only after observation of the entire area
behind the mower.
Before backing up, observe the rear for persons
and obstructions. Clear the area before backing
up.Possibleinjury or property damagecouldoccur.
To travel in reverse, pull levers inward out of the neutral
lock position and pull both handles back. Keep the travel
speed low while traveling in reverse.
-NOTE-
The mower may not travel straight in reverse.
Slight adjustments must be made using the
steering controls.
To steer left while traveling in reverse, allow the left
steering control lever to move forward. The further the
control is allowed to move forward, the quicker the
mower will turn left.
To steer right while traveling in reverse, allow the right
steering control lever to move forward. The further the
control is allowed to move forward, the quicker the
mower will turn right.
To stop the reverse travel, allow the steering control
levers to return to the neutral position. If the mower is to
be parked, place the handles in the neutral lock position
and engage the parking brake.
4.6 ENGAGING THE DECK DRIVE (CUTTER
BLADES)
1. Set the throttle at about 3/4 speed. Do not attempt to
engage the deck drive at high speed as this shortens
the electric clutch life — use only moderate engine
speed when engaging the deck drive.
2. Engage the deck drive by pulling out on the yellow
switch, located on the instrument panel, (Figure 4-3)
to the engage position.
-NOTE-
A squealing noise may be heard when
engaging or disengaging the deck drive. It is
caused by the electric clutch plates meshing
as the mower comes up to speed. This is
normal.
CAUTION:
CAUTION:
Figure 4-3 Cutter Engage Switch
STT99CES
PULL UP TO ENGAGE
PUSH DOWN TO DISENGAGE

16
Section 4
4.8 PARKINGTHE MOWER
1. Park the machine on a flat, level surface only. Do not
park the machine on an incline.
2. Place the steering control levers in the neutral
position.
3. Disengage the cutter blades.
4. Slow the engine to idle speed.
5. Engage the parking brake.
6. Turn the ignition key to the OFF position and remove
the key.
4.9AFTER OPERATION
1. Wash the entire mower after each use. Do not use
high pressure spray or direct the spray onto
electrical components.
-IMPORTANT-
Do not wash a hot or running engine. Cold
water will damage the engine. Use compressed
air to clean the engine if it is hot.
2. Keep the entire mower clean to inhibit serious heat
damage to the engine or hydraulic oil circuit.
3. Check the drive belts for proper alignment and any
signs of wear. Correct and adjust if necessary.
3. To disengage the deck drive, push the switch in to the
disengageposition.
4. Always operate the engine at full throttle to properly
maintain cutting speed. If the engine starts to lug
down, reduce the forward speed and allow the engine
to operate at maximum RPM.
4.7 HILLSIDE OPERATION
DO NOT operate on steep slopes. To check a slope,
attempt to back up it (with the cutter deck down).
If the machine can back up the slope without the
wheels slipping, reduce speed and use extreme
caution. Under no circumstances should the
machine be operated on slopes greater than 15
degrees. ALWAYS FOLLOW OSHA APPROVED
OPERATION.
1. This mower has been designed for good traction and
stability under normal mowing conditions. However,
caution must be used when traveling on slopes,
especially when the grass is wet. Wet grass reduces
traction and steering control. The Roll-Over
Protection System is standard equipment for this
machine. See Section 2.5, page 7 of this manual for
further details.
2. To prevent tipping or loss of control, do not start or
stop suddenly, avoid unnecessary turns and travel at
reduced speed. If tires lose traction, disengage
blades and proceed slowly off the slope.
3. Avoid sudden starts when mowing uphill. Sudden
starts may cause the machine to tip backwards.
4. Loss of traction may occur when traveling down hill.
Weight transfers to the front of the machine and may
cause the drive wheels to slip causing loss of braking
or steering.
5. Keep tires properly inflated.
WARNING:
4. Check the tire pressure. Adjust pressure if necessary.
