Scag Power Equipment SWU User manual

MODEL SWU
OPERATOR’S MANUAL
THIS MANUAL CONTAINS THE OPERATING
INSTRUCTIONS AND SAFETY INFORMA-
TION FOR YOUR SCAG MOWER. READING
THIS MANUAL CAN PROVIDE YOU WITH
ASSISTANCE IN MAINTENANCE AND AD-
JUSTMENT PROCEDURES TO KEEP YOUR
MOWER PERFORMING TO MAXIMUM EFFI-
CIENCY. THE SPECIFIC MODELS THAT THIS
BOOK COVERS ARE CONTAINED ON THE
INSIDE COVER. BEFORE OPERATING YOUR
MACHINE, PLEASE READ ALL THE INFOR-
MATION ENCLOSED.
PART NUMBER 03085

FAILURE TO FOLLOW SAFE OPERATING PRACTICES
MAY RESULT IN SERIOUS INJURY.
* Keep all shields in place, especially the grass discharge chute.
* Before performing any maintenance or service, stop the machine and
remove the spark plug wire and ignition key.
* If a mechanism becomes clogged, stop the engine before cleaning.
* Keep hands, feet and clothing away from power-driven parts.
* Read this manual completely as well as other manuals that came
with your mower.
* Keep others off the tractor only one person at a time)
REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!
Hazard control and accident prevention are dependent upon the awareness,
concern, prudence, and proper training of the personnel involved in the
operation, transport, maintenance, and storage of the equipment.
This manual covers the operating instructions
and illustrated parts list for:
SWU36A-15KA with a erial number of 6190001 to 6199999
SWU48A-17KA with a erial number of 6200001 to 6209999
SWU52A-17KA with a erial number of 6210001 to 6219999
Always use the entire serial number listed on the serial number
tag when referring to this product.
WARNING:

TABLE OF CONTENTS
SUBJECT PAGE
Introduction.................................................................................................. 1
General Safety Instructions ......................................................................... 1
Signal Words ............................................................................................... 1
Symbols....................................................................................................... 2-3
Before Operating ......................................................................................... 4
While Operating........................................................................................... 4-5
Maintenance and Storage ........................................................................... 5-6
Initial Run-In Procedures ............................................................................. 6
Mower Operation ......................................................................................... 6-7
Cutter Deck Belt Adjustments...................................................................... 7
Transmission Drive Belt............................................................................... 7
Drive Control Adjustments........................................................................... 7
"Adjust-A-Grip" Settings .............................................................................. 7-8
Adjusting Cutting Height.............................................................................. 8
Cutter Blades............................................................................................... 8
Lubrication and Maintenance Chart ............................................................ 9
Troubleshooting Cutting Conditions ............................................................ 10-12
Technical Specifications.............................................................................. 13-14
Limited Warranty Statement......................................................Inside Back Cover
I
WE SUPPORT OPE
TECHNICIAN
CERTIFICATION
Equipment & Engine
Training Council
MEMBER

TABLE OF CONTENTS
(CONTINUED)
SUBJECT PAGE
Illustrated Parts List
Notes ................................................................................................ 15
SWMU - 36" Cutter Deck .................................................................. 16-17
SWMU - 48" & 52" Cutter Deck ........................................................ 18-19
Deck Frame - 36" .............................................................................. 20-21
Deck Frame - 48" & 52"..................................................................... 22-23
Engine Deck ..................................................................................... 24-25
Handle Assembly ............................................................................. 26-27
InstrumentPanel ............................................................................... 28
PeerlessTransmission ...................................................................... 29
Wire Harness - Handle ..................................................................... 30
Wire Harness - Engine Deck ............................................................ 31
Wire Harness Adapter - Kawasaki.................................................... 31
Replacement Decals ........................................................................ 32-34
Limited Warranty Statement............................................Inside Back Cover
II

1
SIGNAL WORDS
This symbol means Attention! Become Alert!
Your Safety is Involved!". The symbol is used
with the following signal words to attract your
attention to safety messages found on the decals and
throughout this manual. The message that follows the
symbol contains important information about safety.
To avoid injury and possible death, carefully read the
message! Be sure to fully understand the causes of
possible injury or death.
Signal Word:
It is a distinctive word on safety decals and through-
out this manual that alerts the viewer to the existence
and relative degree of the ha ard.
The signal word DANGER denotes that an ex-
tremely ha ardous situation exists on or near the
machine that could result in high probability of death
or irrepairable injury if proper precautions are not
taken.
The signal word WARNING denotes that a ha ard
exists on or near the machine that can result in injury
or death if proper precautions are not taken.
The signal word CAUTION is a reminder of safety
practices on or near the machine that could result in
personal injury if proper precautions are not taken.
INTRODUCTION
Your mower was built to the highest standards in the
industry. However, the prolonged life and maximum
efficiency of your mower depends on you following
the operating, maintenance and adjustment instruc-
tions in this manual.
We encourage you to contact your dealer for repairs.
All Scag dealers are informed of the latest methods to
service this equipment and provide prompt and
efficient service in the field or at their service shop.
They carry a full line of Scag service parts.
A replacement Operator's Manual is available from
your Scag Servicing Dealer or by contacting Scag
Power Equipment, Service Department at P.O. Box
152, Mayville, WI 53050. Please indicate the
complete model and serial number of your Scag
product.
USE F THER THAN RIGINAL SCAG
REPLACEMENT PARTS WILL V ID THE
WARRANTY.
The Right and Left, Front and Rear of the
machine are referenced from the operators per-
spective when in the normal operating position and
facing the forward travel direction.
GENERALSAFETYINSTRUCTIONS
READ THIS PERAT R'S MANUAL and
instructions furnished with attachments.
Perform only those maintenance procedures described
in this manual. If major repairs are ever needed or
assistance is desired, contact an Authori ed Scag
Dealer. To ensure optimum performance and safety,
always purchase genuine SCAG replacement parts
and accessories.
Your safety and the safety of others depends
significantly upon your knowledge and
understanding of all correct operating practices and
procedures of this machine.
WARNING:
CAUTION:

2
CE Mark
TransmissionChoke
On/Start Spring Tension on Idler
Oil
Off/Stop
SYMBOL DESCRIPTION
SYMBOL DESCRIPTION
ISO Symbols
Spinning Blade
48071S
Parking Brake
WARNING
FALLING HAZARD
USE ONLY SCAG APPROVED
RIDING ATTACHMENTS
SEE OPERATOR'S MANUAL
481109
Falling Hazard

3

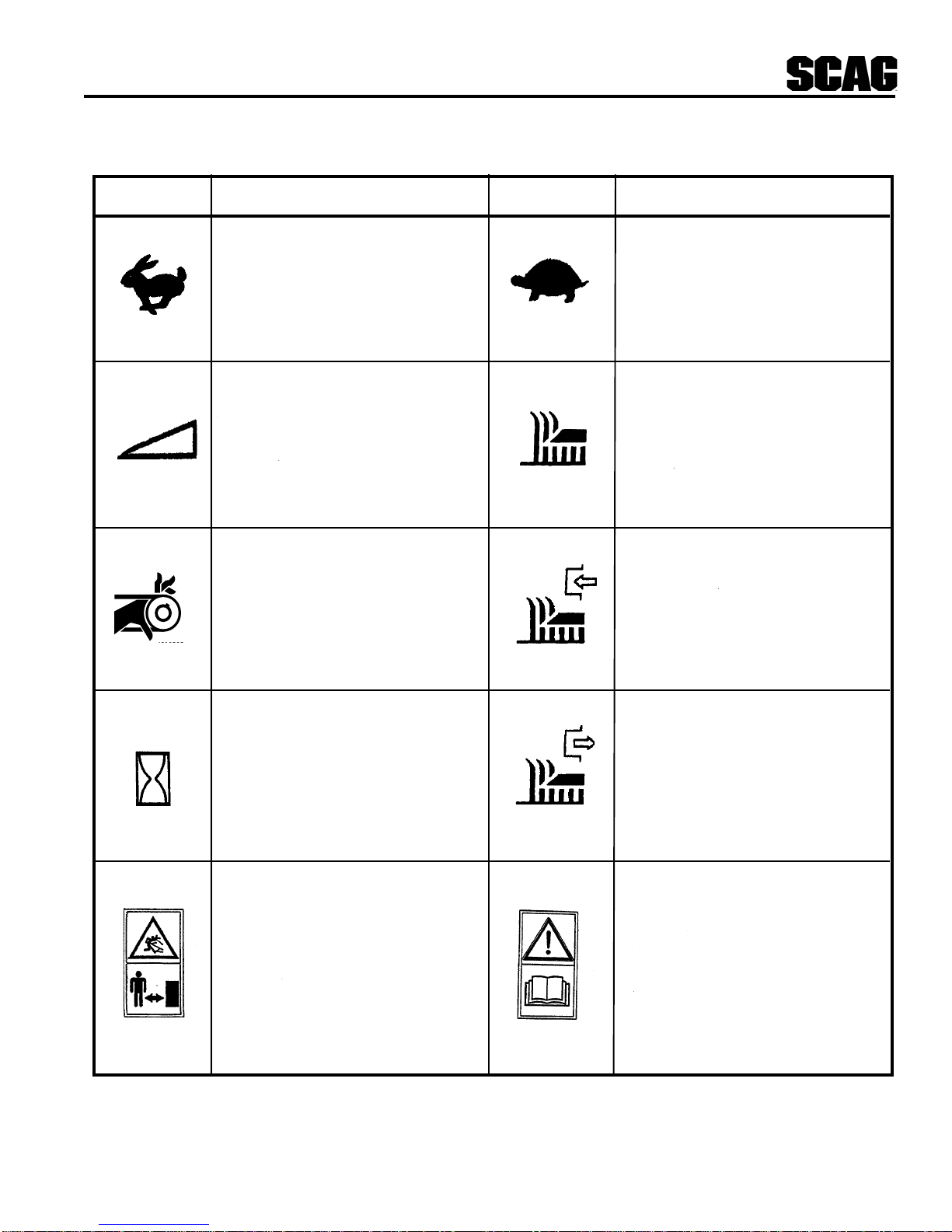

SlowFast
C tting element - Engage
C tting element - Basic symbol
C tting element - Disengage
Contin o sly variable - Linear
Read operator's man al
Keep bystanders away
Pinch Point
481039S
SYMBOL DESCRIPTION SYMBOL DESCRIPTION
Ho rmeter/elapsed operating ho rs

4
BEFORE OPERATING
1. Know the controls and how to stop quickly.
2. Do not allow children to operate the machine. Do
not allow adults to operate the machine without
proper instruction.
3. Remove all debris or other objects that might be
picked up and thrown by the cutter blades. Keep
all bystanders away from the mowing area.
4. Keep all shields, safety devices, and decals in
place. If a shield, safety device or decal is
defective or damaged, repair or replace it before
operating. Also, check all nuts, bolts and screws
for proper tightness, to assure the machine is in
safe operating condition.
5. Do not operate the machine while wearing san-
dals, tennis shoes, sneakers or shorts. Also, do
not wear loose fitting clothing which could get
caught in moving parts. Always wear long pants
and substantial shoes. Wearing safety glasses and
safety shoes is advisable and required by some
local ordinances and insurance regulations.
6. Fill the fuel tank with clean, fresh gasoline, with a
minimum octane rating of 87. Avoid spilling
gasoline. Gasoline is highly flammable, handle it
carefully.
A. Use an approved gasoline container.
B. Do not fill the tank while the engine is hot or
running.
C. Do not smoke while handling gasoline.
D. Fill the fuel tank outdoors and up to approxi-
mately 1" (25 mm) below the bottom of the
filler neck.
E. Wipe up any spilled gasoline.
7. Before attempting to start the engine, shift the
transmission into neutral, move the blade engage-
ment switch to the OFF position, and move the
neutral latches to neutral.
WHILE OPERATING
1. Start the engine when the neutral latches are in the
neutral lock position, the cutter blades are disen-
gaged, and the transmission is in neutral.
2. Do not run the engine in a confined area without
adequate ventilation. Exhaust fumes are ha ard-
ous and could possibly be deadly.
3. Using the machine demands attention. To
prevent loss of control:
A. Mow only in daylight or when there is good
artificial light.
B. Watch for holes or other hidden ha ards.
C. Do not drive close to a drop-off, ditch, creek
bank, or other ha ard.
D. Reduce speed when making sharp turns and
when turning on hillsides.
E. Always be sure of your footing. Keep a firm
hold on the handles and walk---never run.
F. Do not operate where conditions are slippery.
4. The discharge chute must always be installed and
in the down position on the side discharge cutter
deck except when the Scag optional grass catcher
or mulching plate are properly installed. If the
discharge area should plug, shut the engine off
and wait for all movement to stop before remov-
ing the obstruction.
5. Disengage the blades and wait for them to stop
before crossing gravel drives, walks or roads.
6. Shut the engine off and wait until the blades come
to a complete stop before removing the grass
catcher container.
7. Never raise the cutter deck while the blades are
rotating.
8. Always park the mower and/or start the engine on
a level surface.

5
14. Use only Scag approved riding attachments.
Scag Approved Riding Attachments:
RS-2
RS-ZT
Using unapproved attachments, (especially "stand-
up" riding attachments) may be ha ardous.
MAINTENANCEAND STORAGE
1. Disconnect the spark plug wire from the spark
plug to prevent accidental starting of the engine
when servicing, adjusting or storing the machine.
2. If the mower must be tipped to perform mainte-
nance or adjustment, remove the battery if it has
one, drain the gasoline from the fuel tank and the
oil from the crankcase.
3. To reduce potential fire ha ard, keep the engine
free of excessive grease, grass, leaves and
accumulations of dirt.
4. Be sure the machine is in safe operating condition
by keeping nuts, bolts, and screws tight. Check
the blade mounting bolts and nuts frequently to be
sure they are tightened.
5. If the engine must be running to perform a mainte-
nance adjustment, keep hands, feet, clothing and
other parts of the body away from the cutter deck
blades and other moving parts.
6. Do not overspeed the engine by changing gover-
nor settings. To be sure of safety and accuracy,
have an authori ed dealer check maximum engine
speed with a tachometer.
7. The engine must be shut off before checking the
oil or adding oil to the crankcase.
8. Allow the engine to cool before storing the
mower in any enclosure such as a garage or
storage shed. Make sure the fuel tank is empty if
the machine is to be stored in excess of 30 days.
Do not store the mower near any open flame or
where gasoline fumes may be ignited by a spark.
WARNING
FALLING HAZARD
USE ONLY SCAG APPROVED
RIDING ATTACHMENTS
SEE OPERATOR'S MANUAL
481109
9. If the cutting blades should strike a solid object
or the equipment should start to vibrate abnor-
mally, stop the engine, disconnect the spark plug
wire, and check immediately for the cause.
Vibration is generally a warning of trouble.
Check the machine for damaged or defective
parts. Repair any damage before starting the
engine or operating the cutter deck. Be sure the
blades are in good condition and the blade bolts
are tight.
10. Reduce speed and exercise extreme caution on
slopes and in sharp turns to prevent tipping or
loss of control. Be especially cautious when
changing directions on slopes.
DO NOT operate on steep slopes. To check a
slope, attempt to back up it (with the cutter deck
down). If the machine can back up the slope
without the wheels slipping, reduce speed and
use extreme caution. ALWAYS FOLLOW OSHA
APPROVED OPERATION.
11. Do not touch the engine or muffler while the
engine is running or soon after it is stopped.
These areas could be hot enough to cause a burn.
12. Before leaving the operators position or leaving
the mower unattended, shift the transmission into
neutral, place the neutral latches in the neutral
lock position, and move the blade engagement
switch to OFF. Shut the engine OFF and remove
the key.
13. Do not pass or stand on the grass discharge side
of any mower with the engine running. Stop
operation when another person approaches.
WARNING:

6
9. Always store gasoline in a safety-approved, red
container.
10. Be careful when servicing the battery as it con-
tains acid, which is corrosive and could cause
burns to skin and clothing.
11. Batteries release explosive gases when being
charged or discharged. Keep batteries away from
any source of sparks and/or flame.
INITIAL RUN-IN PROCEDURES (FIRST
DAY OF USE ORAPPROXIMATELY 10
HOURS)
1. Check the belts for proper tension at 2, 4 and 8
hours. Check for abnormal wear and adjust as
needed.
2. Check the steering control rods for neutral
adjustment. (See Adjustments, page 7)
3. Check the tires for proper pressure.
Caster Wheels 25 psi.
Drive Wheels 15 psi.
4. Check for loose hardware. Tighten as needed.
5. Check the safety switches for proper adjustment:
* The engine will crank, but not start if the
machine is not in neutral.
* On electric start machines, the engine will
not crank if the PTO switch is on.
* The engine should crank and start if the
machine is in neutral and the PTO
engagement switch is OFF.
6. Apply lubricant to all the grease fittings.
Lubricant was applied at the factory. This is
just a precautionary check to make sure that
all the fittings have been lubricated properly.
1. Read and understand the safety instructions
before attempting to operate this machine.
2. Before starting the engine:
* Check the oil level in the engine.
* Fill the fuel tank with clean, fresh, lead-free
gasoline.
* Open the fuel valve on the bottom of the fuel
tank.
MOWEROPERATION
-NOTE-
Use gasoline with an octane rating no less than
87.
* The transmission must be in NEUTRAL.
* The blade clutch switch must be in the OFF
position.
* The operator's presence levers must be
released.
* The neutral latches must be in the neutral lock
position.
* The key switch must be on.
3. Start the engine:
* Choke as required. If the engine is cold, pull
the choke knob out. When the engine starts,
slowly push the choke in. If the engine stalls,
repeat the above operation. When the engine
is warm, choking may not be necessary.
4. Engage the cutter blades by pulling the blade
clutch switch into the ON position. Push the
switch to the OFF position to disengage the cutter
blades.

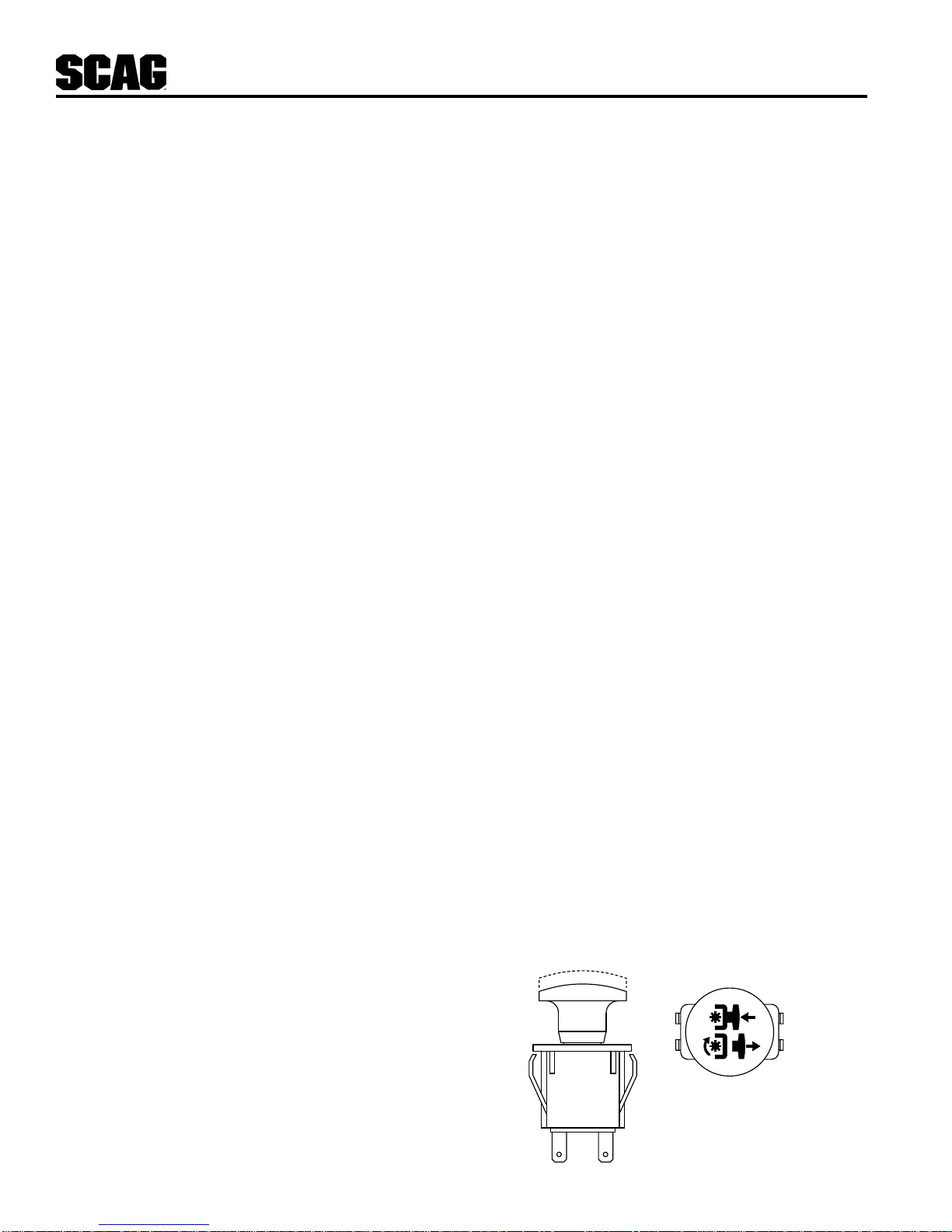

390S0138
PULL UP TO ENGAGE
PUSH DOWN TO DISENGAGE

7
TRANSMISSION DRIVE BELT
The transmission drive belt on the SWU belt drive machine
has a spring-loaded idler system and needs no adjustment.
If you find that the transmission slips, see your local Scag
Servicing Dealer for service.
DRIVE CONTROL ADJUSTMENTS
1. Adjust the steering control rods so that there is
approximately 3/4" clearance from the bottom of
the rod to the bottom of the neutral latch slot when
in the drive position. (See Figure 1)

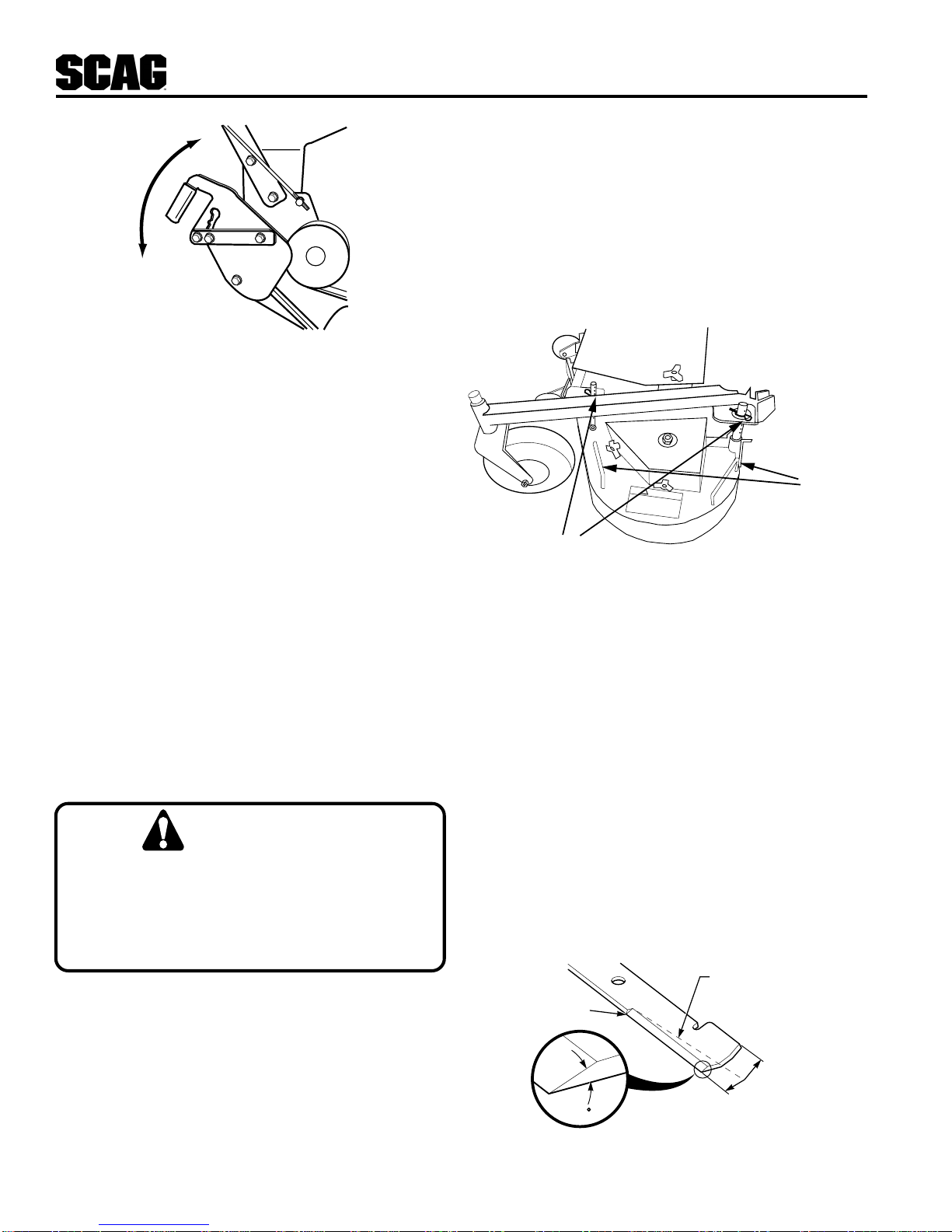

Figure 1. Steering Control Rod Adjustment
2. Adjust the steering brake rods so that the brakes do
not apply until the steering levers are pulled tight to
the handles. When the steering levers are locked in
the neutral position the machine should move freely.
"ADJUST-A-GRIP SETTINGS"
"Adjust-A-Grip," with three settings, allows hand force
adjustment in the field, with no tools required. To
operate the "Adjust-A-Grip", pull back on the handle
and move the lever up or down depending on the
amount of belt force needed (See Figure 2, page 8).
-NOTE-
When the PTO is engaged or (possibly) disen-
gaged, a sq ealing so nd from the nderside of
the machine is normal. It is ca sed by the
electric cl tch plates meshing as the c tter
blades come p to speed. For best eq ipment
life, engage the cl tch with the engine at 1/2
throttle, not nder f ll load.
To avoid serious bodily injury and damage to the
transmission, the machine must be at a full stop
before shifting between gears or shifting
between forward and reverse.
5. Shift the transmission into gear for the desired
mowing speed.
-NOTE-
Top speed is s ggested only for transport!
6. While squee ing the steering brake levers with
both hands, release both neutral latches.
7. When the steering brake levers are released, the
machine will travel straight. To make a right
turn, squee e the RH lever. To turn left, squee e
the LH lever.
8. TO STOP, squee e both levers, lock the neutral
latches, and shift the transmission into neutral.
CUTTER DECK BELT ADJUSTMENTS
Due to a spring-loaded idler system, there is no adjust-
ment necessary for the cutter deck belts. The 36" cutter
deck has one spring-loaded idler. The 48" cutter deck
has two spring loaded idlers.
WARNING:
SC404GB
NEUTRAL LOCK
POSITION
DRIVE POSITION
3/4"
STEERING
BRAKE LEVER
NEUTRAL
LATCH

8
SWU99AG
Figure 2. "Adjust-A-Grip"
C tting conditions will determine what setting is needed
for the Adj st-A-Grip" and yo r machine. If the drive
belts slip d e to high moist re conditions, the tension may
need to be increased. On the other hand, if the day is
dry and yo are c tting on flat terrain the tension may be
decreased. To change the settings:
1. P ll back and move the lever p to red ce tension
on the drive belt.
2. P ll back and move the lever down to increase
tension on the drive belt.
ADJUSTING CUTTING HEIGHT
The mower deck can be adj sted from a height of
1-inch to 4-1/2 inches at 1/2-inch intervals. To adj st the
c tting height:
Do not adjust the cutting height with the mower
blades rotating. Shut off the engine and remove
the ignition key. Bodily injury could occur from
the rotating blades. Lift cutter deck by the handles
only. Do not reach under the cutter deck to lift it.
1. Sh t off the engine and remove the ignition key.
2. Remove the two hairpins from the adj sting pins on
one side of the c tter deck (Fig re 3).
3. Using the deck handles, lift or lower the deck to the
desired c tting height and reinstall the hairpins. A
deck height decal is located on the deck mo nting
frame as an aid in adj sting the deck to the desired
height.
4. Repeat the above process on the other side of the
c tter deck.
Figure 3. Cutting Height Adjustment
CUTTER BLADES
Do not sharpen beyond 1/3 of the width of the blade.
(See Figure 3)
-NOTE-
Dress the blade with a file. Using a wheel
grinder may b rn the blade. Check the balance
of the blade. If blades are o t of balance,
vibration and premat re wear of spindle assem-
bly can occ r. See yo r a thorized Scag dealer
for blade balancing or special tools if yo
choose to balance yo r own blades.
Figure 4. Blade Sharpening
SC4O8G
ANGLE BLADE BACK
DO NOT CUT IN
X MUST NOT EXCEED
1/3 BLADE WIDTH
X
30
WARNING:
Remove Hair Pins 2K SWU DHA
Lift deck with
handles only

9
COMMENTS
LUBRICATION & MAINTENANCE
+ Grease spindle until grease comes out the relief valve.
Compatible Greases: Lidok EP #2 (found at industrial shops)
Ronex MP (Exxon service stations)
Shell Alvania (Shell service stations)
Mobilux #2 (Mobil service stations)
X
X
PROCEDURE
Check all hardware for proper tightness
Change engine oil and filter at 5 hours
X Check engine oil Do not over fill
X Remove debris from under belt cover More often if needed
X Sharpen cutter blades More often if needed
X Grease spindle bearings + S Lithium MP White Grease 2125
X Clean air filter More often if needed
X Check belt wear
X Check tire pressure Add or adjust as required
X Change engine oil See engine mfg. information
X Replace air filter More often if needed
X Grease caster wheel bearings Chassis grease
X Grease caster wheel pivot shafts Chassis grease
X Grease drive wheel bearings Chassis grease
X Grease transmission couplers Chassis grease
X Grease idler bracket LH & RH Chassis grease
X Check all hardware for proper tightness More often if needed
X Adjust air gap on electric clutch Contact your Scag dealer for information about
making this adjustment.
BREAK-IN
8 HOURS (DAILY)
40HOURS(WEEKLY)
100 HOURS (BIWEEKLY)

10
Stringers-Occasional Low engineRPM Run engine at full 3600 RPM
Blades of Uncut
Grass Ground speed too fast Slow speed to adjust for conditions
Wetgrass Cut grass after it has dried out
Dullblades,incorrectsharpening Sharpenblades
Deckplugged,grass accumulation Clean underside of deck
Beltsslipping Adjust belttensions
Streaking - Strips of Dull,worn blades Sharpenblades
Uncut Grass in Cutting
Path Incorrectbladesharpening Sharpenblades
Low engineRPM Run engine at full 3600 RPM
Beltslipping Adjust belt tension
Deckplugged,grass accumulation Clean underside of deck
Ground speed too fast Slow speed to adjust for conditions
Wetgrass Cut grass after it has dried out
Bentblades Replaceblades
Width of Deck
SGB018

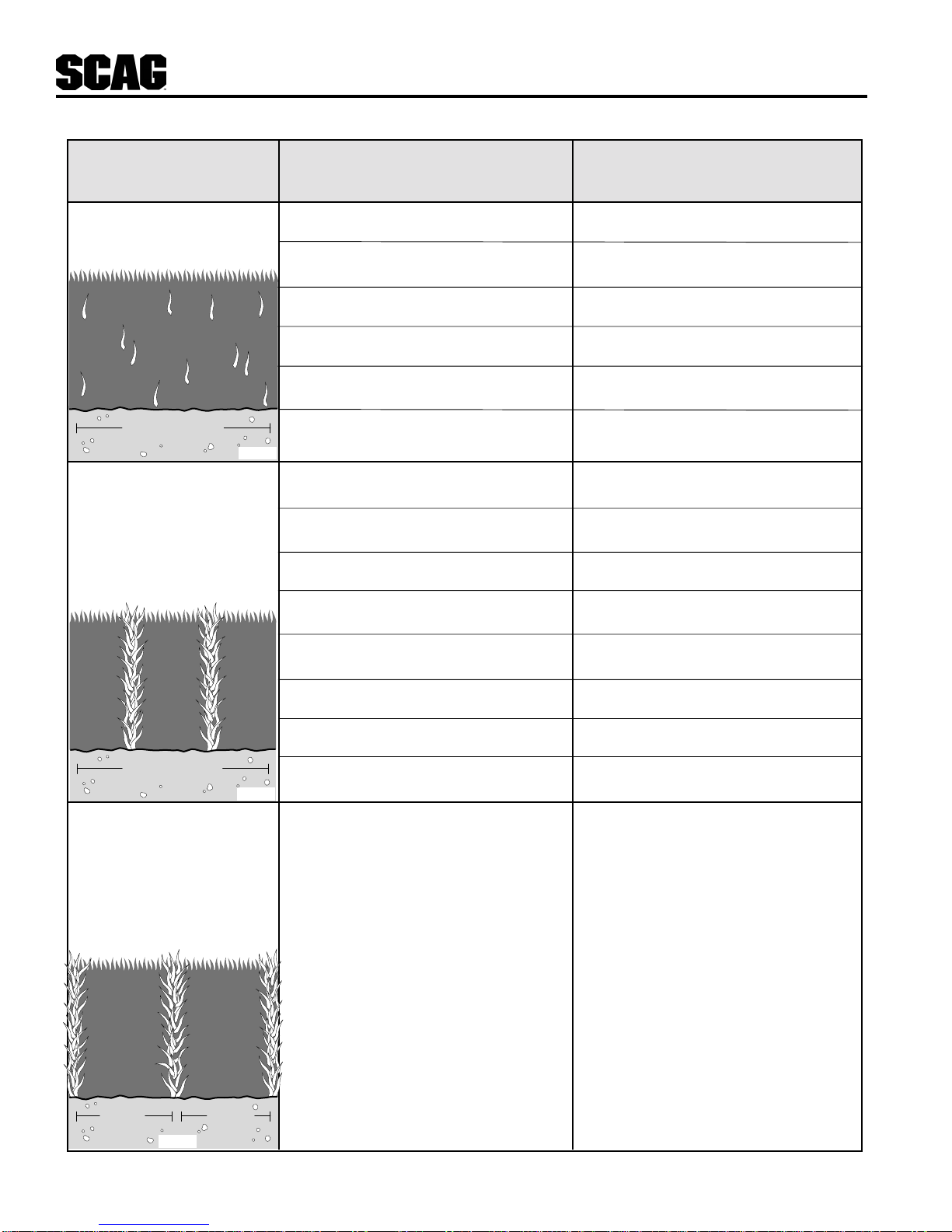

CONDITION CAUSE CURE
Width of Deck
SGB020
Width
of
Deck
Width
of
Deck
SGB019
Streaking - Strips of Notenoughoverlapping Increase the overlap of each
UncutGrassBetween betweenrows pass
CuttingPaths
TROUBLESHOOTINGCUTTINGCONDITIONS

11
CONDITION
TROUBLESHOOTING CUTTING CONDITIONS
CAUSE CURE
SlopingRidgeAcross Tire pressures not equal Check and adjust tire pressure
Width of Cutting Path Wheelsuneven Check and adjust tire pressure
Deckmounted incorrectly See your authorized SCAG dealer
Uneven Cut on Unevenground May need to reduce ground speed,
Uneven Ground - raise cutting height, and/or change
Wavy Appearance, direction of cut
High-Low Scalloped
Cut, or Rough Contour
Width of Deck
SGB020
Width of Deck
SGB021
Width of Deck
SGB023
Uneven Cut on Flat Lift worn off of blade Replaceblade
Ground - Wavy
High-Low Blade upsidedown Mount with cutting edge toward
Appearance, ground
Scalloped Cut, or
RoughContour Deckplugged, grassaccumulation Clean underside of deck
Too much blade angle (deck pitch) Adjust pitch and level
Deckmounted improperly See your authorized SCAG dealer
Bent spindle area See your authorized SCAG dealer
Dullblade Sharpenblade

12
Scalping - Blades Lowtirepressures Checkand adjust pressures
Hitting Dirt or
Cutting Very Close to Ground speed too fast Slow speed to adjust for conditions
theGround Cutting toolow May need to reduce ground speed,
raisecuttingheight, change direction
of cut, and/or change pitch and level
Roughterrain May need to reduce ground speed,
raise cutting height, and/or change
direction of cut
Ground speed too fast Slow speed to adjust for conditions
Wetgrass Cut grass after it has dried out
Step Cut Blades notmountedevenly Adjust pitch and level
Ridge in Center of
CuttingPath Bent blade Replaceblade
Internal spindlefailure See your authorized SCAG dealer
Mounting of spindle incorrect See your authorized SCAG dealer
Slope Cut - Sloping Bentspindle mounting area See your authorized SCAGdealer
RidgesAcrossWidth
of Cutting Path Internalspindlefailure See your authorized SCAG dealer
Bent deck housing See your authorized SCAG dealer
TROUBLESHOOTING CUTTING CONDITIONS
CONDITION CAUSE CURE
Width of Deck
SGB024
Width of Deck
SGB025
Width of Deck
SGB022

13
TECHNICALSPECIFICATIONS
MODELS SWU36A-15KA,SWU48A-17KA,SWU52A-17KA
ENGINE
General Type: Heavy duty industrial/commercial
Brand / Model: KawasakiFH451V,KawasakiFH500V
Horsepower: Kawasaki FH451V = 15HP maximum @ 3600 RPM
KawasakiFH500V= 17HPmaximum @3600RPM
Type: Kawasaki = 15HP 4 cycle gas, air cooled, V twin cylinder, vertical shaft engine
Kawasaki = 17HP 4 cycle gas, air cooled, V twin cylinder, vertical shaft engine
Displacement: Kawasaki FH451V = 426 cc; Kawasaki FH500V = 494 cc
Cylinder: Kawasaki FH451V & FH500V = 2 cast-iron sleeves
Governor: Mechanical type governor with variable speed control. Settings:
Kawasaki = 3600 rpm(+/- 75rpm), idle set at 1550 rpm (+/- 75 rpm)
AirCleaner: Kawasaki = Semi-cyclone type with dual element
Exhaust: Single canister side mount muffler.
FuelPumpGroup: Kawasaki = Pulse-type fuel pump with in-line fuel filter
OilPumpGroup: Kawasaki = Full pressure lubrication with oil filter
Starter/Electrical: Electronic ignition with recoil starter
ENGINEDECK
Thickness: 7 gauge steel.
Fuel Tank: 5 gallon (19.0 liters) seamless polyethylene.
Drive Wheels/Tires: 15.0 x 6.0-6 two-ply pneumatic tubeless.
Handle Bars: 1-1/4" diameter.
DRIVESYSTEM
Type: Belt drive with twin power belts for increased friction to pulley surface and
"Adjust-A-Grip" traction control lever with three settings
Transmissions: Peerless 5-speed transmission, Model #700-070A with 9 spline coupler shaft
Steering/Travel Control: Clutch/brake fingertip steering, key lock switch. ("Adjust-A-Grip"
design allows minimum hand force to operate controls)
Brakes: 6" drum, band brake, one on each wheel.
Axles: 1"
Wire Harness: 14 gauge wire.
Safety Group: Hand actuated operator presence system with blade clutch and
transmission interlock to engine kill
Forward Speed Range: 1.5 to 7.0 mph
Reverse Speed Range: 3.0 mph
Date of Issue: October, 2000
Specifications Subject to Change Without Notice

14
TECHNICALSPECIFICATIONS (CON'T)
CUTTERDECK
Type: Out-front floating design with anti-scalp rollers.
Construction: 10-gauge steel reinforced with 7-gauge (3/16") Support plate.
7-gauge (3/16") deck skirt with easy clean-out design.
TrueCuttingWidth: 36.0inches(90.2cm),48.0inches(122.0cm)
BladeEngagement: Electric blade engagement clutch with control panel switch
CuttingHeightAdjustment: Manual adjustment 1" to 4-1/2" in 1/2" increments
CutterBlades: .197ThickMarbane
36" = Two (2) 18" blades
48" = Three (3) 16.5" blades
52" = Three (3) 18" blades
DischargeOpening: 36", 48" & 52" = Extra wide 11.5"
CasterWheels: 11 x 4.5-5 smooth-tread flotation, roller bearings with quick pin removal
Spindles: Casthousing,taper rollerbearing,low maintenancewith topaccess
greasefittingand greaseoverfill reliefpoppet.
Spindle Pulleys: Cast-ironwith easilyremovedtaper hubs
Idler Arm: Spring-loadedselfadjustingwithpermanentlubrication
Cutter Deck Belts: B-section with Kevlar® cord.
ADDITIONALSPECIFICATIONS
OPTIONALITEMS/ATTACHMENTS
Fabric Grass Catcher: GC-F4 Grass Catcher with 4 cubic ft. capacity
Metal Grass Catcher: GC-4D Grass Catcher with 4 cubic ft. capacity and rope pull dump or
pickup and dump.
Sulky: RS-2 Two-Wheel Sulky with padded seat.
RS-ZT Two-Wheel Zero-Turn Sulky with padded seat.
MulchMaster Provides individually baffled chambers with specially designed
deflectors to redistibute grass clippings within the chambers for improved
mulching. Includes serrated "Eliminator" cutter blades featuring
"Double-Cut" edge for high velocity shredding of grass clippings.
APPROXIMATE DIMENSIONS SWU36A SWU48A SWU52A
Length: 79.5" 74.0" 75"
Lengthwith grass catcher: 79.5" 74.0" 75"
TrackingWidth: 34.75" 34.75" 34.75"
Width: 48.0" 59.0" 64"
Width(withdischargechuteup): 38.0" 49.0" 53"
Width with grass catcher: 56.0" 68.0" 72"
Height: 41.25" 41.25" 41.25"
Height with grass catcher: 41.25" 41.25" 41.25"
Weight: 513 lbs. 578 lbs. 643 lbs.
Weight with grass catcher: 553 lbs. 618 lbs. 686 lbs.
Date of Issue: October, 2000
Specifications Subject To Change Without Notice

15
NOTES

16
36" CUTTER DECK
To"A"
"A"
1
2
3
4
5
65
78
910 9
11
12
13
14
15
16
17
18
19
19A
20
21
22 23
24
25
26
27
22
28
29
30
31 32
13 34
13 36
3738
39
40
41
42
43
42
44
45
44
45
48
49 50
51 52
53
54
55
56
57
58
59
49
48
62
53
50
60
32
61
50
47
39
51
47
46
2001-SWU-CD36
33
35
34 41
50
63
64
