1 General information
This instruction manual describes the SCANRECO G5 Pocket system, this instruction manual should
be seen as a complement to the instruction manual for the application which the SCANRECO G5
Pocket is intended to operate with.
The SCANRECO G5 Pocket is a complete remote control system for mobile and stationary applica-
tions where durability and functionality is in high demand, the SCANRECO G5 Pocket offers the
system installer a exible and congurable remote control system with speed, precision and control
under maximum security.
To ensure the safety of the remote control system and the application you should carefully study
this instruction manual. This will ensure you are familiar with the system and ready to use it in it’s
intended application.
Notice to reader:
TO THE SYSTEM INSTALLER:
Pay special attention to the chapters Safety Information, Installation recommendations and
Programming.
TO THE OPERATOR:
Pay special attention to the chapters Safety Information, Product description and
Product Care.
TO THE SERVICE TECHNICIAN:
Pay special attention to the chapters Safety Information, Product Care, Trouble Shooting and Spare
Parts
The following labels are used throughout this document to create awareness about important
recommendations or warnings. It is important that these recommendations or warnings are
considered by the installer, operator and service personnel.
IMPORTANT!
This information must be followed, potential hazards for the operator and environment if
instructions are not followed.
ATTENTION!
General recommendations that may cause the system not to perform at full capacity if not fol-
lowed.
NOTE!
General notice.
Document type Document number PageRev
Instruction Manual 66060 A4 of 25
2 Safety information
READ THE SAFETY INSTRUCTIONS CAREFULLY BEFORE INSTALLING,
CONFIGURATING AND OPERATING THIS PRODUCT!
MAKE SURE THAT YOU, THE OPERATOR OR SERVICE TECHNICIAN, HAVE FULLY
UNDERSTOOD THE SAFETY INSTRUCTIONS BEFORE PROCEEDING
IMPORTANT!
The system installer is responsible for producing an instruction manual for the application
where the SCANRECO G5 pocket has been installed and intended to control.
The system installer is responsible for producing a product approval, if such is required, for the
application where the SCANRECO G5 pocket has been installed.
Prior to operation, the system installer is required to train the operator on all functions available
using the SCANRECO G5 Pocket.
Prior to operation, the system installer is required to inform the operator of all potential hazard-
ous situations that may appear when operating the application with the SCANRECO G5 pocket.
The system installer must take into account the specic installations instructions declared in
this instruction manual.
Due to the unlimited variety of applications (cranes, machines, objects, vehicles and other
equipment) on which the remote control system is used, and the numerous standards which
are frequently the subject of varying interpretation, it is impossible for the personnel at SCAN-
RECO to provide expert advice regarding the suitability of a given remote control for a specic
application. It is the responsibility of the purchaser and system installer to determine the suit-
ability of any SCANRECO remote control product for an intended application and to ensure that
it is installed and guarded in accordance with all country, federal, state, local, and private safety
and health regulation, codes, standards and the SCANRECO instructions in this document.
If the SCANRECO G5 Pocket will be used in a safety critical application, the purchaser / system
installer must undertake appropriate testing and evaluation of the nal application to prevent
injury to the ultimate user.
SCANRECO does not take responsibility for any damage or injury.
Unauthorized tampering with any of the products will automatically void the SCANRECO guaran-
tee and product responsibility.
2.1 General
Document type Document number PageRev
Instruction Manual 66060 A5 of 25
2.2 Pre-operational
Prior to operation, the operator must ensure that: he/she:
• is fully trained by the system installer in proper use of the application and knows all
functions available thru the SCANRECO G5 System.
• is responsible to ensure that non-qualied personnel never gains control of the
SCANRECO G5 Pocket.
• has fully understood this instruction manual.
• has fully understood the instruction manual given by the system installer.
• is well aware of the positioning of all emergency stop arrangements.
• uses the correct transmitter with the correct receiver unit.
• has at all times full view of the work area where the application is used.
• always keeps the SCANRECO G5 Pocket deactivated if not used.
• never leaves the SCANRECO G5 Pocket unsupervised.
• stores the SCANRECO G5 Pocket in such way that unauthorized personnel
cannot gain control of it.
• on a daily basis, or immediately if suspicion of such is defective; ensure that all
safety related functions and emergency stop functions works accordingly.
• always reports faults that may have appeared during operation to the system installer.
• is aware of, and obeying, any local rules applied regarding operation the application
the SCANRECO G5 Pocket is operating.
In order to ensure safety of the operator, bystanders and the machine, the user should study and
learn all provided instructions regarding how to use the SCANRECO G5 Pocket as well as all safety
instructions and the location of all emergency stop controls. This will enable the user to quickly get
familiar with the new remote control system and how to safely utilize it.
The operator must understand and follow the below instructions at all times!
Document type Document number PageRev
Instruction Manual 66060 A6 of 25
No Description Qty
1Handheld G5 Pocket Transmitter 1
2G5 Pocket Receiver 1

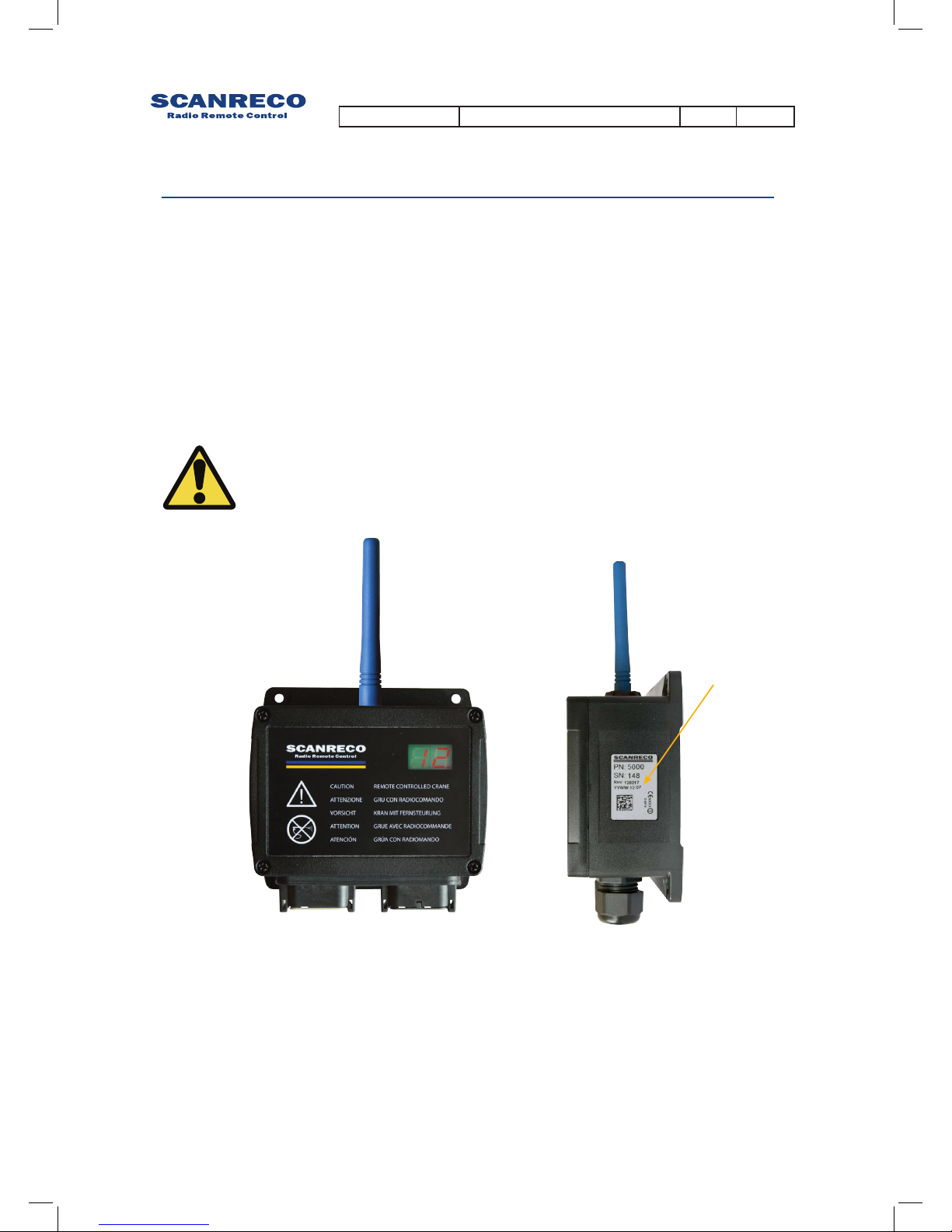

3.1 System overview
The SCANRECO G5 Pocket system has been specially developed for hydraulically driven mobile
machinery. The system is a digital remote control system based on advanced microprocessor
technology which can cope with the roughest of environments. The system is protected against
electromagnetic and radio frequency radiation. The G5 Pocket system is comprised of a Handheld
Control Unit (HCU) with ON/OFF buttons. The Central Unit (CU) provides the connection points
for connecting to the electro-hydraulic valves as well as through a CANopen bus system to other
components of the control system. Each system utilizes two way communication; digitally coded
control information is sent in both directions via radio between the HCU and the CU.
3 System information
Typical system setup:
Document type Document number PageRev
Instruction Manual 66060 A7 of 25
Attribute Information
Frequency 2,400 2,4835 GHz
Channels
management
FHSS
DSSS
THSS
Channel order Pseudorandom
Channel
capacity
Duplex
System
address/ID
<16777216 unique system addresses available
Redundancy CRC-16
Range 100 meters
Technical information
The G5 system family incorporates an automated frequency jumping technology, a reliable
radio transmission highly resistant to interference.
The radio transmission takes place within the ISM-band used at pre-dened channels.
The channel switching takes place multiple times per second following a pseudorandom se-
quence. This ensures that transmission takes place on an optimal frequency at all times!
No transmitter uses the same pseudorandom sequence order when switching channels; this
minimizes the risk of two G5 systems interfering with each other.
The G5 Pocket is approved to transmit on the ISM band. See chapter 15 for approvals.
The radio is license free for the end user.
4 Radio information
Document type Document number PageRev
Instruction Manual 66060 A8 of 25
5.1 Product description
5 G5 Pocket Transmitter

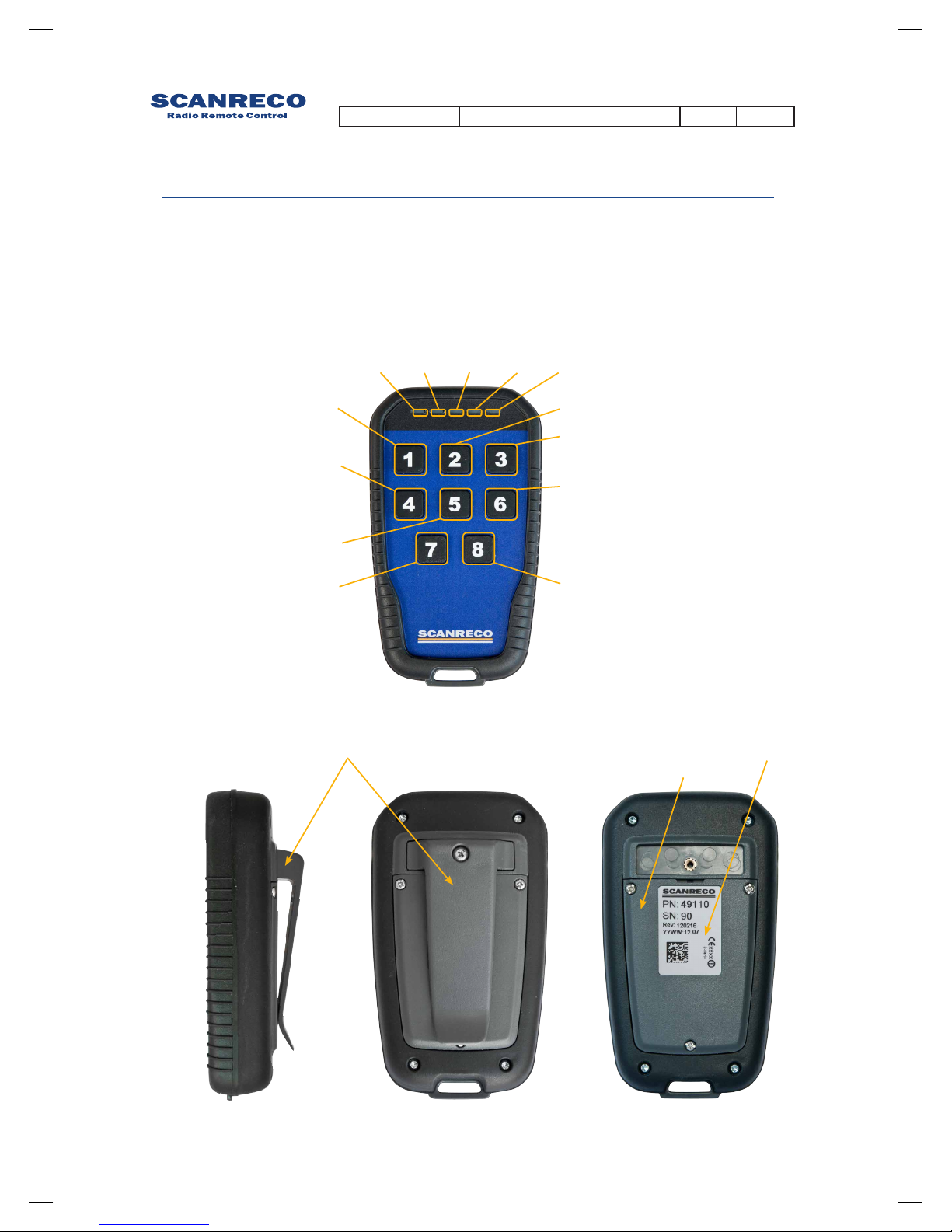

The G5 Pocket HCU is a light weight, impact and water resistant handheld unit
equipped with up to eight ON/OFF function buttons. It has ve congurable Light
Emitting Diodes (LED) for machine and status feedback. The buttons and the
LED’s can be congured for a variety of different operations. The unit is powered
with 3 standard AAA batteries and the backside has a belt clip for convenient at-
tachment on the operator’s belt.

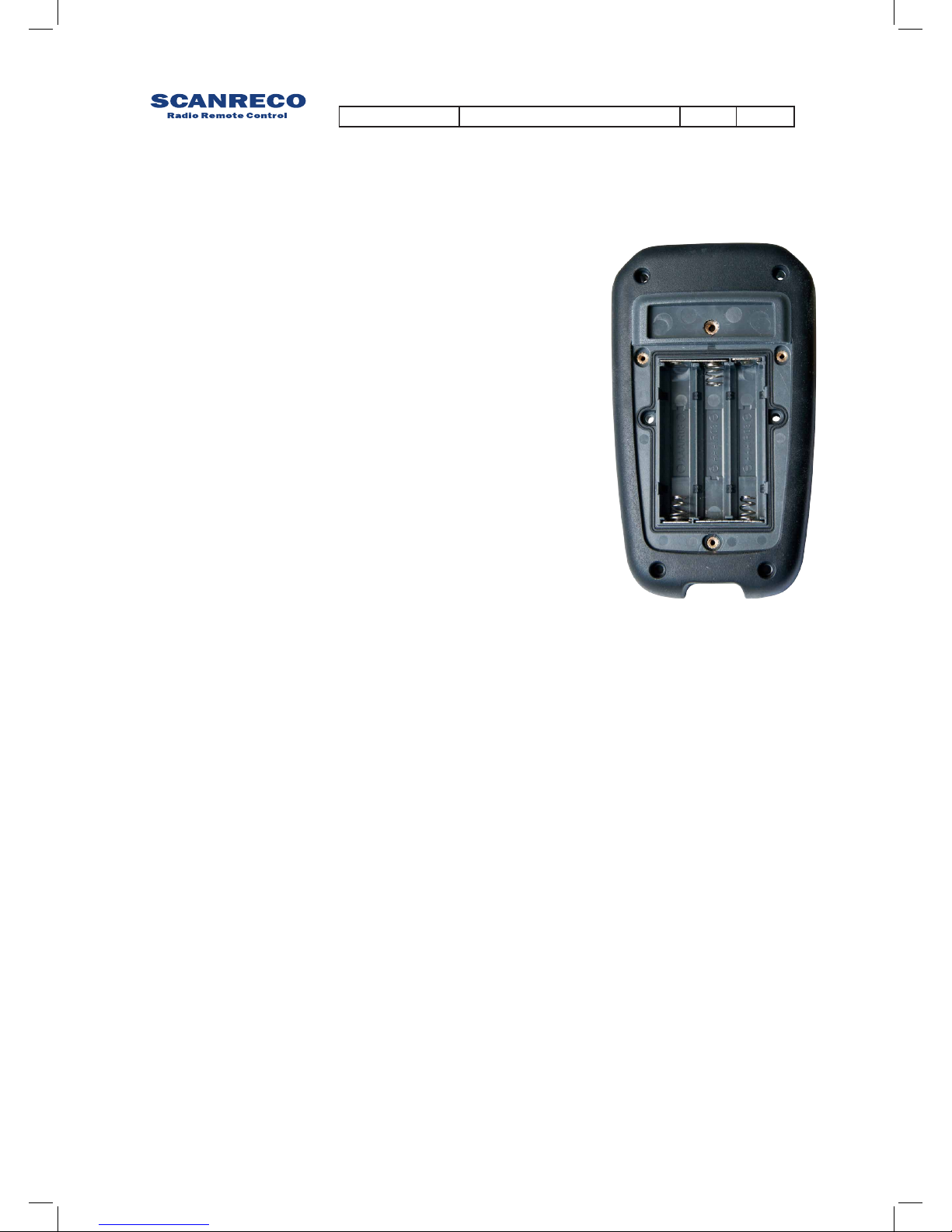

Belt clip Battery compartment
(Belt clip removed)
Label
LED 1
Button 1
Button 4
Button 3
Button 6
Button 2
Button 5
Button 7/Fn Button 8/STOP
LED 2 LED 3 LED 4 LED 5
Document type Document number PageRev
Instruction Manual 66060 A9 of 25
ONIN OUT
OFF
1 2 3 1
4
2
5
3
6
1
4
7
2
5
8
3
6
1
4
ON
2
5
OFF
3
6
1
4
2
5
3
6
STOP
Fn
Model Functions
G5-P3X 3 Push buttons
G5-P4X 4 Push buttons
G5-P6X 6 Push buttons
G5-P8X 8 Push buttons
Label
5.2 Versions
The G5 Pocket transmitter exists in the following versions:
5.3 Functionality
The G5 Pocket systems are required to be congured prior to operation but normally
this is done already before delivery, refer to programming section in this document for
further information.
The push buttons are easily programmed to activate any output or series of functions.
Button denitions include momentary, interlocked, non-latched or latched output.
G5-P3A G5-P4A G5-P6A G5-P8A G5-P8B G5-P8C
X indicates A,B,C,… for different printed symbols on the buttons
Document type Document number PageRev
Instruction Manual 66060 A
10 of 25
5.4 Changing battery
The G5 Pocket transmitter is equipped with 3 standard AAA cell batteries; to change
batteries follow the instructions below
1. Remove the belt clip by unscrewing the top middle screw.
2. Unscrew the three screws holding the lid.
3. Remove the batteries.
4. Remove all dirt/dust to ensure no water can enter the unit.
5. Insert new batteries, mind the polarity!
6. Reassemble the lid and the belt clip.
Tighten the screws according to chapter 7.4.
Document type Document number PageRev
Instruction Manual 66060 A11 of 25

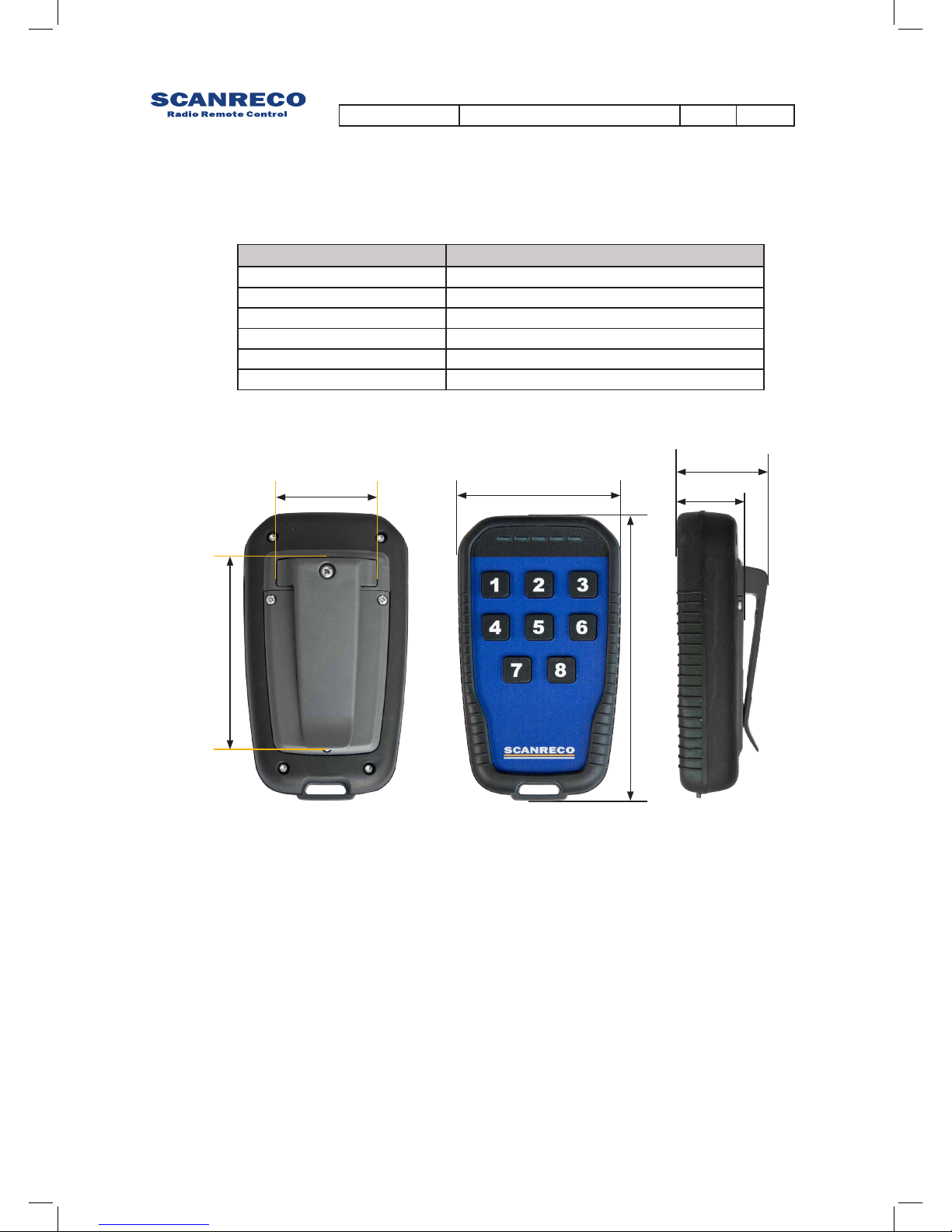

38,8mm
75,2mm
38mm
27mm
115mm
67mm
Attribute Information
Housing material Plastic PC-ABS
IP-class IP67
Ambient temperature -25˚C to +70˚C
Supply 3 x AAA battery
Operating time Several months (depending of usage and application)
Weight 160 g (0,35lb.) including battery
Dimensions:
5.5 Technical information
Document type Document number PageRev
Instruction Manual 66060 A
12 of 25
6 G5 receiver
6.1 Product description
The Central Unit (CU) is manufactured in robust plastic housing and provides contacts for
the connection of power supply and electro-hydraulic valves. Several of the outputs can
also be used as digital inputs. Depending on the version off the G5 Central unit, it can ei-
ther be equipped with MOSFET outputs and Deutsch connectors or can have relay outputs
with terminal block.
Since the central unit can be exposed to very tough environments, the box is encapsulated
to give protection from damp, heat, cold, dust, vibration and corrosive environments.
The Central unit has short circuit protected inputs and outputs and has protection against
reverse polarity, over-voltage, large incoming voltage transients and EMC/RF.
IMPORTANT!
The Central unit ESTOP function is not equipped with internal fuse and therefore an
external fuse is required at an appropriate rating (10A or lower).
Label
Document type Document number PageRev
Instruction Manual 66060 A13 of 25
G5-CU M19A G5-CU RX
6.2 Versions
The G5 Pocket Central Unit exists in different versions. The main difference between
the version types is the output type which can be either MOSFET or normal relay
output. Versions with MOSFET output have two 12-pin Deutsch connectors while
versions with relay output have cable glands with internal screw terminals.
Model Functions
G5-CU M19A Two 12-pin Deutsch connectors. 19 Digital MOSFET outputs where 14
can be congured as digital inputs.
G5-CU RX Two cable glands. Relay output where X indicates the number of
outputs.
6.3 Functionality
6.3.1 MOSFET Digital Output
The G5 Pocket system is required to be congured prior to operation, refer to
programming section in this document for further information.
The MOSFET digital outputs are designed to control electro-hydraulic valves but can also be used
to load other accessories such as lamps or motors. The maximum load for each channel is
described in table below.
Max load:
• 3A/Output
• 5A/Bank
• 10A/System
Bank12345678910
Output 1 2,3 4,5 6,16 7,9 8,10 11,12 13,17 18,19 14,15
Document type Document number PageRev
Instruction Manual 66060 A
14 of 25
6.3.2 Digital inputs
6.3.3 Relay output
6.3.4 Estop
6.4.1 Terminal schematics G5-CU M19A
6.4 Terminal schematics Central Unit
The digital inputs can be used as a switch to control different functions on the central
unit or on the HCU. The maximum input voltage shall not exceed the supply voltage.
The voltage threshold for the central unit to interpret the digital input signal as a
logical 1 is 3,2 V.
The relay output connectors are separated from the rest of the electronics in the
central unit to create an electrically isolated output. The maximum load for each
output is 10A. Through the terminal block, both the normally open and the normally
closed connection points are available.
The Estop function works as a safety function. It is a digital output that can source up to 10 A.
The output is active each time the HCU is active and communication has been established with
the Central unit. This output is normally connected to a dump valve. It is required for the system
installer to use this or similar function for the operator safety.
The Estop function is not equipped with internal fuse and therefore it is
needed to have an external fuse at appropriate rating (10A or lower).
1
12
2
11
3
10
4
9
5
8
6
7
7
6
8
5
9
4
10
3
11
2
12
1
1 = Output/input 16
2 = Output/input 15
3 = GND
4 = Output/input 14
5 = Estop
6 = Power Supply +
7 = Output 1
8 = Output 2
9 = Output 3
10 = Output 4
11 = Output 5
12 = Output/input 6
1 = Output/input 7
2 = Output/input 8
3 = Output/input 9
4 = Output/input 10
5 = Output/input 11
6 = Output/input 12
7 = RS232 TX
8 = RS232 RX
9 = Output/input 13
10 = Output/input 17
11 = Output/input 18
12 = Output/input 19
Document type Document number PageRev
Instruction Manual 66060 A15 of 25
171
6.4.1 Terminal schematics G5-CU M19A
6.4.2 Terminal schematics G5-CU 5R
ATTENTION!
After assembly make sure you tighten the housing screws with 0,8 Nm to avoid any
water ingress.
1 = GND
2 = Power Supply +
3 = REL1, common
4 = REL1, normally closed
5 = REL1, normally open
6 = REL2, common
7 = REL2, normally closed
8 = REL2, normally open
9 = REL3, common
10 = REL3, normally closed
11 = REL3, normally open
12 = REL4, common
13 = REL4, normally closed
14 = REL4, normally open
15 = REL5, common
16 = REL5, normally closed
17 = REL5, normally open
Document type Document number PageRev
Instruction Manual 66060 A16 of 25
127mm
57mm
186mm
117mm
Size: approx. ~
127 x 117 x 57 mm / ~ 5,0 x 4,6 x 2,2 in.
6.5 Technical Data Central Unit
Attribute Information
Housing material Plastic PC-PBT
IP-class IP67 (for versions with cable glands IP65)
Ambient temperature -25˚C to +70˚C
Supply voltage 9-36VDC
Fuse For Estop digital out. Use appropriate rating (10A or
lower)
Current consumption at idle <30mA
MOSFET Output load 3 A, Max simultaneously load for each CU is 10A.
See section that describes the allowed load for each
output/bank.
Relay Output load Max 10 A
Housing screw torque 0,8 Nm
Weight MOSFET output approx. 0,5Kg
Relay output approx. 0,35Kg
Document type Document number PageRev
Instruction Manual 66060 A
17 of 25
7 Installation recommendation
This chapter covers general recommendations for assembling of the G5 Pocket system.
ATTENTION: Assembly of the system in ways other than recommended in this chapter may
affect the systems performance and life-span and may void any warranties given.
Engineering note: CU equipped with Deutsch connectors require M4 screws in the two lower holes.
The Central Unit should be installed using the mounting holes in at the edges on the unit.
The Central Unit should be installed vertically or horizontally with with antenna facing upwards
or horizontally. The Central Unit should never be assembled with cable glands / connectors facing
upwards or in any ways where it is exposed to accumulation of water, moisture and other debris.
7.1 General information
7.2 Installation of Central Unit
101,5mm
5,5mm x 4
104mm
Document type Document number PageRev
Instruction Manual 66060 A
18 of 25
The Central Unit should be assembled in such way that the operator can easily check
the indications given from the units LED-display.
The Central Unit should be installed where it is exposed to a minimum amount of
vibration and high temperature as possible.
As the Central Unit is equipped with an antenna it should be installed as high and
free from obstacles as possible. An antenna obscured by object has a signicantly
reduced range!
The antenna must never touch a metal object and should not be mounted
in an area that is surrounded by metal as it causes reections that signicantly
reduce range. Keep the antenna at a distance of at least 10 cm from metal objects if possible.
Optimal range is achieved if the HCU and antenna are within line-of-sight.
The unit is equipped with an internal fuse. The Estop function is excluded from this
fuse and this output needs to be provided with an external fuse at 10A or lower.
The emergency stop arrangement should be placed visible and easily accessed.
Ensure that wiring and cable glands are properly sealed as to minimize risk that
water enters the unit.
IMPORTANT! During welding!
During welding on machine all connectors from the Central unit must be disconnected.
Ignoring this may damage the central unit and void warranty.
7.3 Wiring assembly
Document type Document number PageRev
Instruction Manual 66060 A
19 of 25
Other manuals for G5 Pocket System
2
Table of contents
Other Scanreco Remote Control manuals
