SCC TS Series Owner's manual

SCCInc.TechnicalInstructions

DocumentNo.TS‐6500
January11,2019


SCCInc.
TSSeries
TS…ProtocolConverterProfinetorProfibus
ForusewithLMV3...,LMV5...,RWF…,andTS…SeriesControls









Description
ATS…seriesprotocolconverterprovidesaflexible
communicationinterfacetothebuildingmanagementsystem
(BMS)forstreamlineddatacollectionandmonitoring.




TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page2SCCInc.
Features

ConvertsnativeModbus/RTUtoProfinetorProfibus
oDatapointsforLMV3...
oDatapointsforLMV5...
oDatapointsforRWF...
oDatapointsforTSSeriesTouchscreenKit
oDatapointsforTSSeriesLead/LagMaster
oDatapointsforTSSeriesLead/LagMaster(fromeach
boiler)
oDatapointsforTSSeriesDeaerator/SurgeTankMaster
Allowssimultaneousconnectionofupto6devicesviaserial
connectionsandupto12devicesviaEthernetModbus
TCP/IPconnections




Application

TS…protocolconverterkitsaresuitedforapplicationswithProfinet
orProfibusBMScommunication.AllSCCproductsthatcommunicate
usingModbus/RTUarecompatible.


Components

AllTS…protocolconverterkitsincludethefollowingcomponents:
Protocolconvertermodule
Platekitincludingpowersupplyandbranchcircuit
protection
Interconnectterminalsforfieldwiring
Fieldportforvariousprotocols
Thefollowingoptionsarealsoavailable:
HostportforModbusRTURS‐232
HostportforModbusRTURS‐485
Ethernetswitchtosupportupto12TS…seriesTCP/IP
devicesviaEthernettoBMS










TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page3
ProductPartNumbers
SeeTable1withavailablekitsforprotocolconverterpartnumberidentification:
TS‐PN2‐X
Touchscreen 
   
    
Protocol
Converter    
   
   
FIELDPort     
  
N=EthernetFIELDport   
Supports:Profinet  
  
  
B=RS‐485FIELDport  
Supports:Profibus  
  
HOSTPort      
 
2=RS‐232HOSTport  
Supports:One(1)LMV5... 
 
4=RS‐485HOSTport(upto24Devices)

Supports:LMV3...(viaOCI412.10)

LMV5...(viaTS‐5X‐KT)  
RWF... 
 
 
EthernetSwitch
 

(HostPortoption4mustbeselected
above)
SupportsallTS...seriesLead/LagMasterPanels,TouchscreenKits,CombustionEnclosures,
andDeaerator/SurgePanels.
X=Noneincluded
3=5‐portswitch(upto3TS...seriesdevices)
6=8‐portswitch(upto6TS...seriesdevices)
9=13‐portswitch(upto9TS...seriesdevices)
12=16‐portswitch(upto12TS...seriesdevices)




TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page4SCCInc.
ProductPartNumbers(continued)

Table1:TS…ProtocolConverterPartNumbers

FIELDPortHOSTPort EthernetSwitch
PartNumber
Profinet
Profibus
RS‐232 RS‐485
None
5‐port 8‐port

13‐port

16‐port
TS‐PN2‐Xxxx
TS‐PN4‐Xxxx
TS‐PN4‐3xxx
TS‐PN4‐6xxx
TS‐PN4‐9x x
x
TS‐PN4‐12x xx
TS‐PB2‐Xxxx
TS‐PB4‐Xxxx
TS‐PB4‐3xxx
TS‐PB4‐6xxx
TS‐PB4‐9 xx
x
TS‐PB4‐12 xxx











TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page5
Specifications



Physicalcharacteristics
Operatingvoltage

Operatingfrequency

110‐120VAC

50‐60Hz

Protocessorpower


24VDC
Powerconsumption24VA


OperatingenvironmentOperatingtemperature

32to131°F
[0to55°C]
Humidity

Max.85%withno
condensation

















TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page6SCCInc.
Dimensions


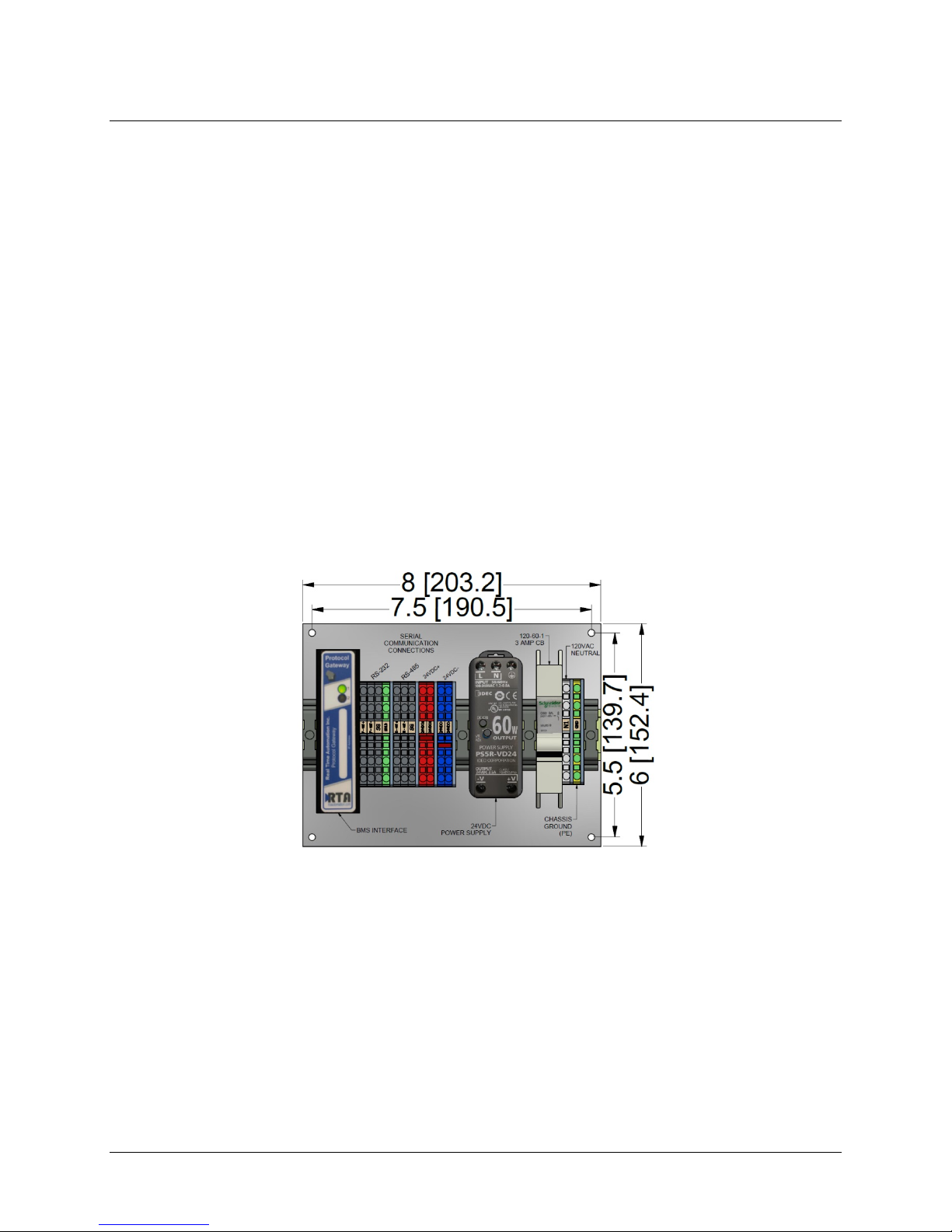

TS‐PN2‐X
LMV5ModbusRTUto:Profinet

TS‐PB2‐X
LMV5ModbusRTUto:Profibus






TS‐PN4‐X
LMV3,LMV5,and/orRWF55to:Profinet

TS‐PB4‐X
LMV3,LMV5,and/orRWF55to:Profibus























TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page7
Dimensions(continued)
TS‐PN4‐3
Upto3TS…SeriesModbusTCP/IPto:Profinet

TS‐PB4‐3
Upto4TS…SeriesModbusTCP/IPto:Profibus




TS‐PN4‐6
Upto6TS…SeriesModbusTCP/IPto:Profinet

TS‐PB4‐7
Upto6TS…SeriesModbusTCP/IPto:Profibus






TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page8SCCInc.

Dimensions(continued)
TS‐PN4‐9
Upto9TS…SeriesModbusTCP/IPto:Profinet

TS‐PB4‐10
Upto9TS…SeriesModbusTCP/IPto:Profibus



TS‐PN4‐12
Upto12TS…SeriesModbusTCP/IPto:Profinet

TS‐PB4‐13
Upto12TS…SeriesModbusTCP/IPto:Profibus





TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page9
Connections
TS‐PN2‐X(AZLRS‐232toPROFINET)

TS‐PB2‐X(AZLRS‐232toPROFIBUS)



TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page10SCCInc.
Connections(continued)
TS‐PN4‐X(SerialModbusRS‐485toPROFINET)






TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page11
Connections(continued)
TS‐PB4‐X(SerialModbusRS‐485toPROFIBUS)







TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page12SCCInc.
Connections(continued)

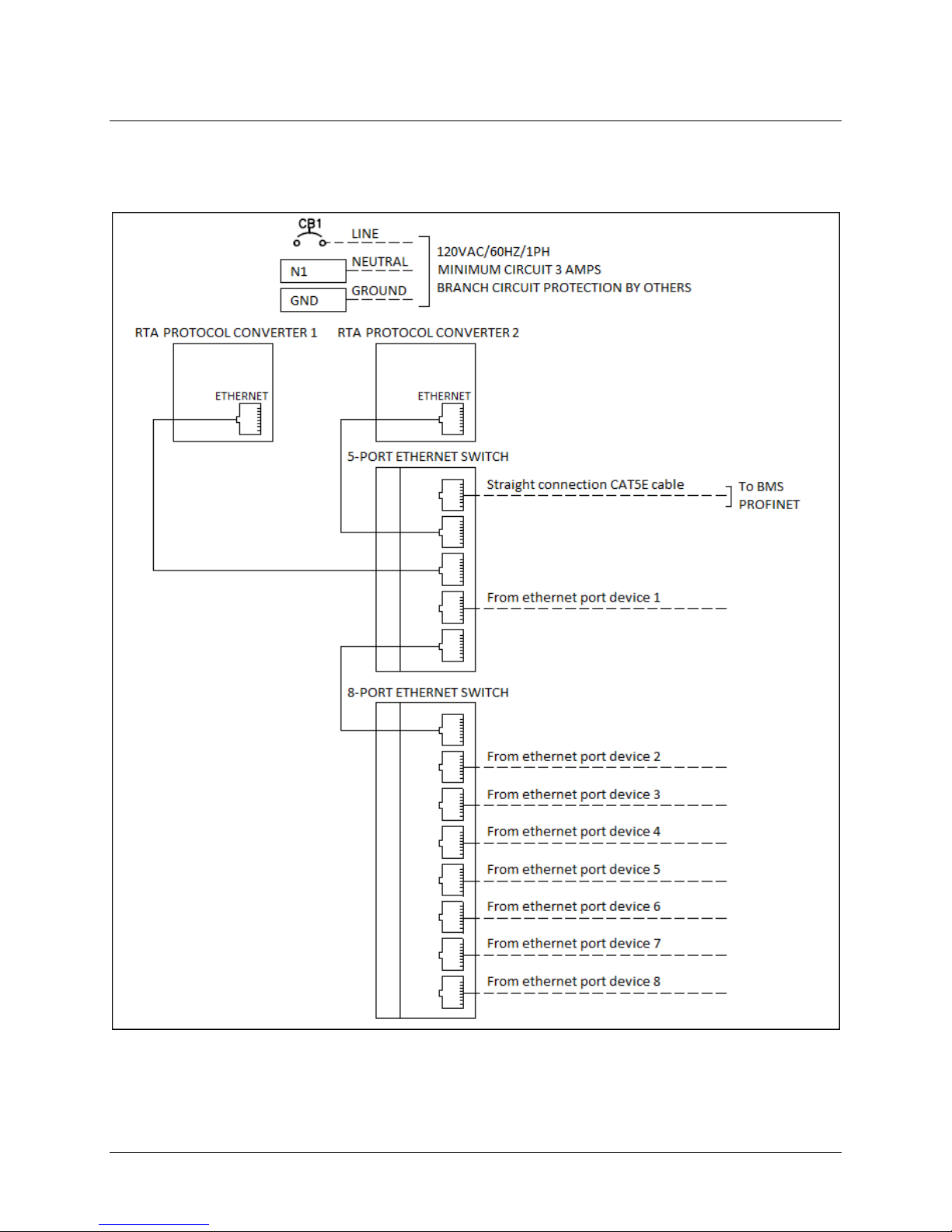

TS‐PNx‐3,5PortEthernetSwitch(PROFINET)












TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page13
Connections(continued)

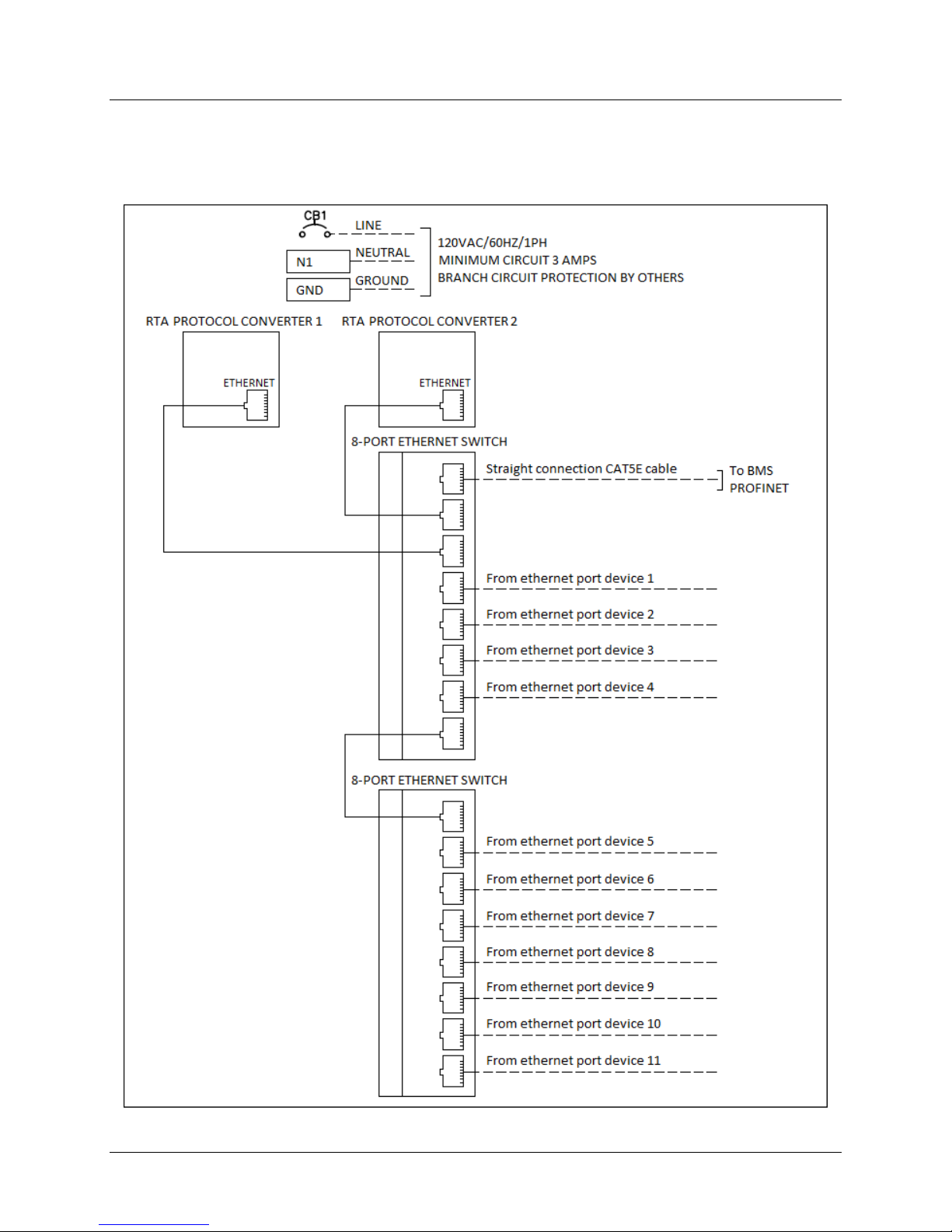

TS‐PNx‐6,8PortEthernetSwitch(PROFINET)











TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page14SCCInc.
Connections(continued)
TS‐PNx‐8,13PortEthernetSwitch(PROFINET)




TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page15
Connections(continued)
TS‐PNx‐11,16PortEthernetSwitch(PROFINET)



TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page16SCCInc.
Connections(continued)
TS‐PBx‐4,5PortEthernetSwitch(PROFIBUS)













TSSeriesTechnicalInstructions
DocumentNo.TS‐6500

SCCInc.Page17
Connections(continued)

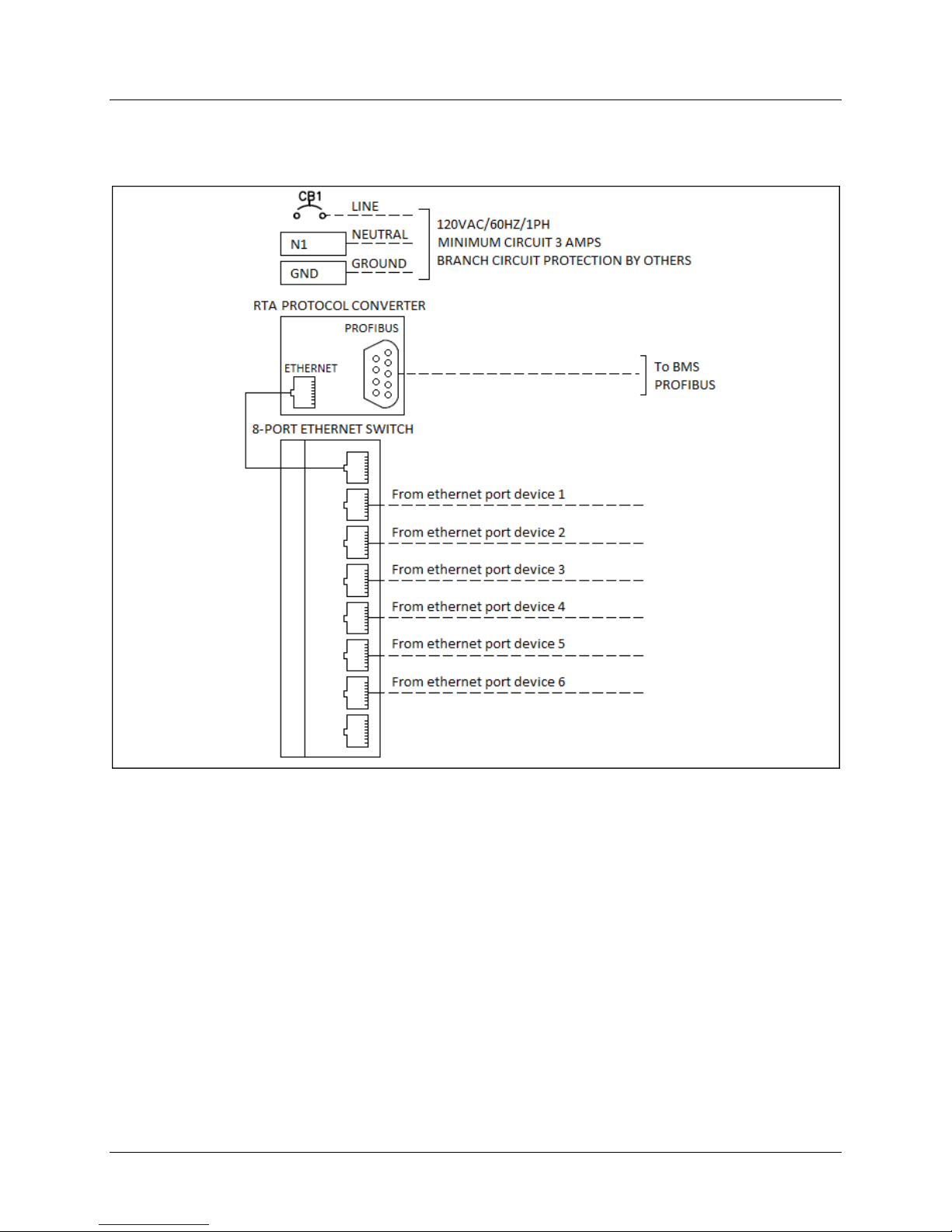

TS‐PBx‐6,8PortEthernetSwitch(PROFIBUS)











TechnicalInstructions TSSeries
DocumentNo.TS‐6500

Page18SCCInc.
Connections(continued)

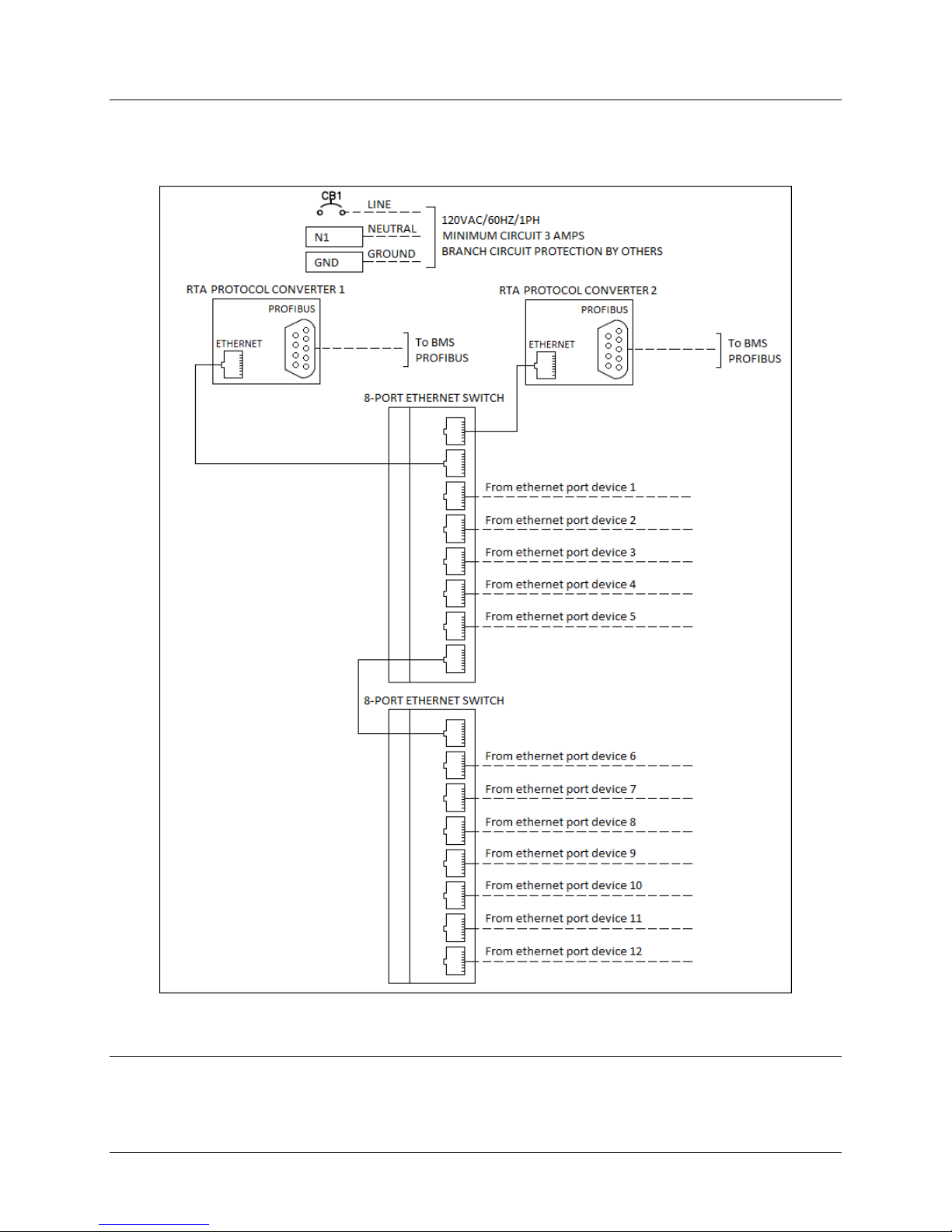

TS‐PBx‐9,13PortEthernetSwitch(PROFIBUS)




TSSeriesTechnicalInstructions
DocumentNo.TS‐6500
SCCInc.Yourfeedbackisimportanttous.IfyouhaveDocumentNo.TS‐6500
1250LuntAvenuecommentsaboutthisdocument,pleasesendthemCountryofOrigin:US
ElkGroveVillage,IL60007to[email protected]Page19
U.S.A.

Connections(continued)
TS‐PBx‐12,16PortEthernetSwitch(PROFIBUS)

Informationinthispublicationisbasedoncurrentspecifications.Thecompanyreservestherighttomakechanges
inspecificationsandmodelsasdesignimprovementsareintroduced.Productorcompanynamesmentioned
hereinmaybethetrademarksoftheirrespectiveowners.©2009SCCInc.

