Sceptre X408BV-FHD User manual

TV53DB

FMQCC Series P2
ATTACHING & REMOVING THE BASE
1. To install or remove the neck, screw in or remove the 4 screws indicated in the picture.
2. To install the base, place the display unit flat on a table. Afterwards attach the plastic base onto the neck.
Remember the plastic base should have more area facing the front of the neck. Fit the plastic ring onto the
bottom of the base and the metal plate covering the plastic ring. Screw in the 4 thick threaded screws as
indicated. Be sure to fit the protruding plastic bit to the two rail openings on the plastic ring and metal plate.
3. To finalize your installation of the Display, please read the following:
a. If you are placing the Display on a stand, we would recommend you to use a Display safety strap (not
included) in order to minimize the possibility of the Display toppling over.
b. If you are mounting the Display on the wall
c. Make sure the wall is structurally safe for the weight of the Display
d. Make sure the wall mount kit is compatible with the Display
e. Read and follow all instructions provided by the wall mounting kit.
f. Securely install all screws and connections.

FMQCC Series P3
Rear View Mounting Pattern
Mounting Specification: 400mm x 200mm using screw size M6. Length of screw should not exceed 8mm. Please Note:
The 8mm length of screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws,
you should add the original 6mm to the thickness of your mounting plate in order to get the total screw length.

FMQCC Series P4

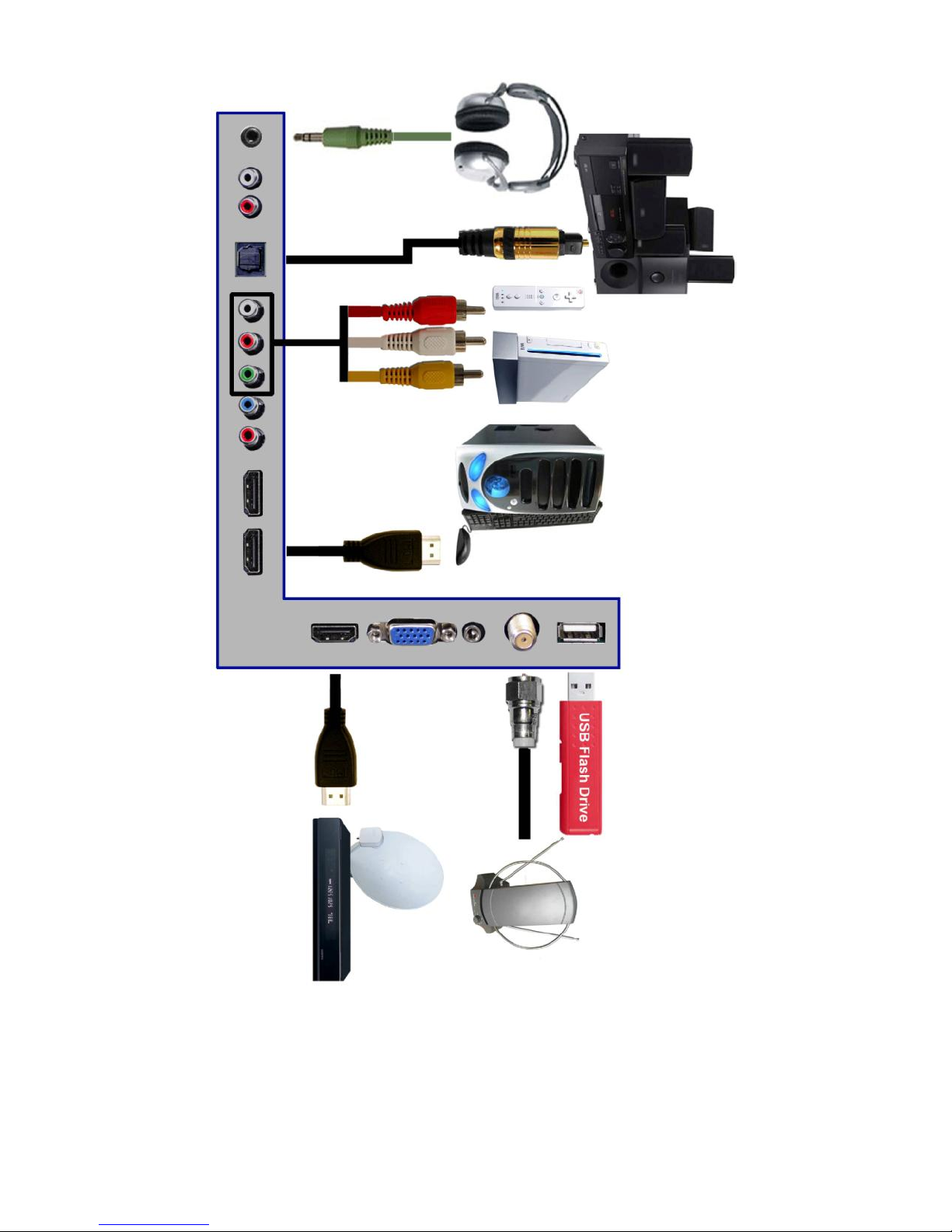

Connecting Your Cables
The following picture offers a suggestion for connecting most of your audio video equipment.
TV Tuner is optional. It may or may not be equipped in your product. Please check with the authorized seller, authorized distributor
or Sceptre Customer Service for further information.

FMQCC Series P5
Ready to Watch Some TV? (Optional)
1. Make sure your power cable is connected and the standby red light in the front of the HDTV is lit
up.
2. Check all your connection cables off the side or the back of your HDTV and also your AV
devices. Make sure they are all connected securely.
3. Turn on your HDTV and other AV devices if necessary.
4. Press the button on the side of the HDTV or the SOURCE button on the remote control and
select the correct source according to the Connecting pages.
If You’ve Connected Antenna to the HDTV…
If an antenna or cable (without a cable box) is connected to your TV’s tuner, you will need to go through
an INITIAL SETUP process in order to watch the HDTV.
1. Press MENU to open the menu
2. Use the ◄ or ► button to select the CHANNEL icon and press ENTER.
3. Use the ▲ or ▼ buttons to highlight the signal type and press ◄ or ► to select your connection
either AIR or CABLE.
4. Use the ▲ or ▼ buttons to select AUTO CHANNEL SEARCH and press ENTER to scan for
channels.
5. Once the scanning finishes, you can begin to watch HDTV

8144023120970K

FMQCC Series P7
Recycling Information
Dispose unwanted electronics and batteries through an approved recycler.
For TVs please visit the web at http://www.earth911.com/recycling-guide/how-to-recycle-large-electronics/
For Batteries please visit the web at http://www.call2recycle.org/
Energy Disclaimer
Figure estimates off the Energy Guide yellow label are based on a specific usage pattern with the power
saving mode selected under picture mode / picture setting of this product. Other picture settings / picture
modes selected will consume more power than the estimate. Energy Guide labels will not always reflect
your current electricity prices. They may also vary due to local energy prices and user's usage habits.
Voice Guidance
This display features audio voice guidance for the poor sighted. Press the green B button to enable this
function.
SCEPTRE Remote Control

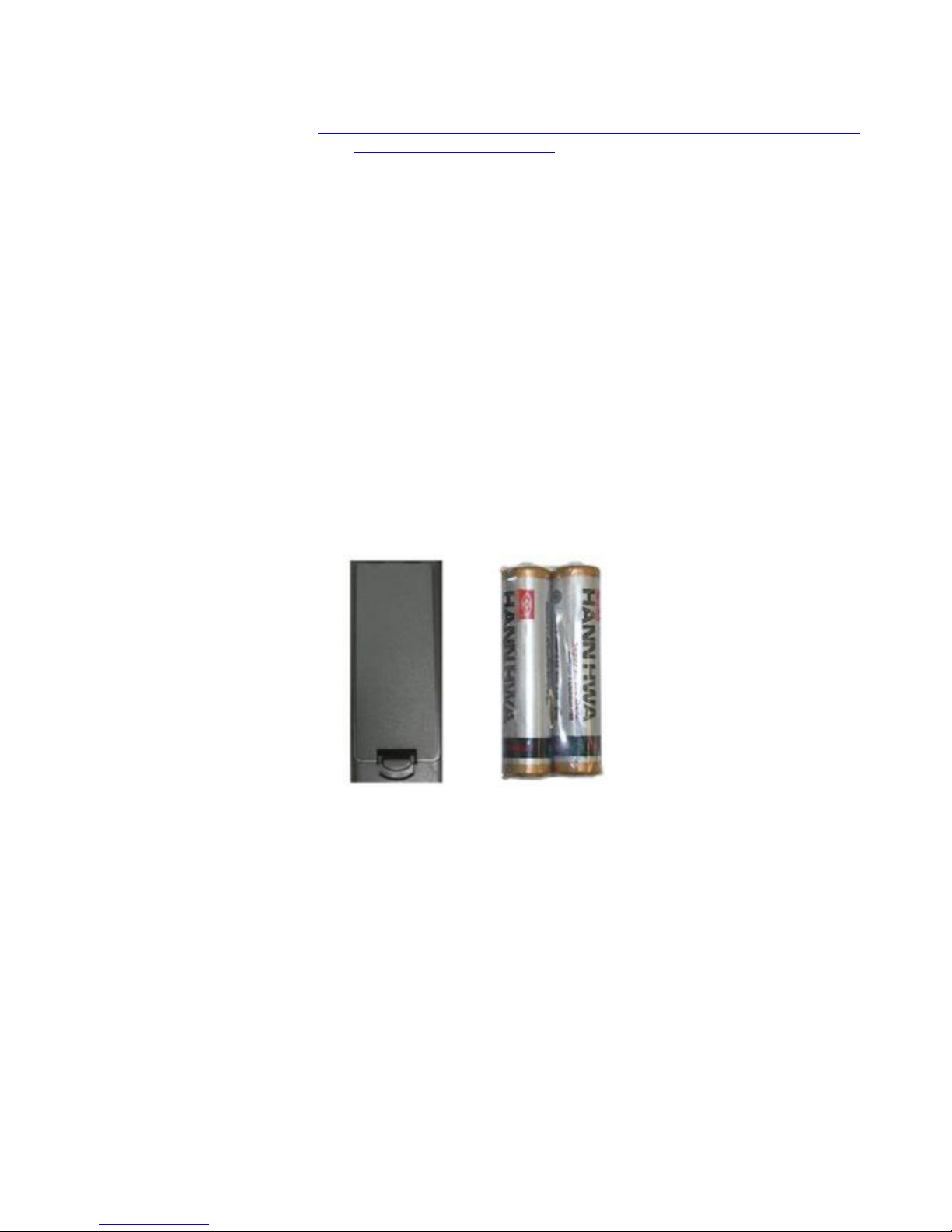

Please insert two AAA batteries into the remote control. Make sure that you match the (+) and (-) symbols
on the batteries with the (+) and (-) symbols inside the battery compartment. Afterwards, re-attach the
battery cover.
Please note:
Only use AAA batteries.
Do not mix new and old batteries. This may result in cracking or leakage that may pose a fire
risk or lead to personal injury.
Inserting the batteries incorrectly may also result in cracking or leakage that may pose a fire risk
or lead to personal injury.
Dispose the batteries in accordance with local laws and regulations.
Keep the batteries away from children and pets.
If the remote control is not used for a long time, remove the batteries.
Keep the remote control away from moisture, sunlight, and high temperatures.

FMQCC Series P8
This remote control follows SONY’s universal remote code. To find the actual code you need to consult your cable or
satellite tech support.

FMQCC Series P9
GENERAL FUNCTION BUTTONS
1. POWER –Turns the display on or off.
2. INFO –Shows the display info.
3. NUMBER BUTTONS (0-9) –Press 0-9 to select a TV channel directly when you are watching the
display. The channel will change after 2 seconds.
4. (-) –Inserts the dash for selecting digital channels directly.
5. R –Returns to the previous channel.
6. VOL(+)/VOL(-) –Press the VOL buttons to increase or decrease the sound level.
7. ▲/▼/◄/►/ENTER – These directional buttons allow you to move around in the display’s menu.
Press the ENTER button when you want to select a particular option.
8. CH(+)/CH(-) –Press the CH buttons to switch to the next or previous channel.
9. MENU –Brings up the main display menu on the screen.
10. GUIDE –Opens the current digital channel information guide (antenna only).
11. EXIT –Exit the main display menu on the screen.
12. SOURCE –Press this button to cycle through INPUT source.
13. CC –Cycles between different closed captioning modes.
14. MUTE –Turns the sound off from the display. To un-mute either press VOL(+) or press the MUTE
button again.
15. FAV –Gives you your list of favorite channels.
16. F.ADD/DEL –Adds or Deletes current channel from favorite list.
17. SLEEP –Turns the TV off in a specific set of time dependent on your selection.
18. USB –This button switches the source to USB.
19. YPbPr –This button switches the source to YPbPr.
20. HDMI –This button switches the source to HDMI.
The following buttons are functions designed to work with the optional, Sceptre Sound Bar.
21. POWER –This button turns on the sound bar.
22. SOURCE –This button selects the sound bar’s source.
23. MODE –This button selects the sound bar’s sound modes.
24. VOL(-) –This button decreases the volume of the sound bar.
25. VOL(+) –This button increases the volume of the sound bar.
Color Function Buttons
26. A –This button has no function assigned.
27. B –This button turns on or off the TV’s voice guidance for the visually impaired.
28. C –This button has no function assigned.
29. D –This button has no function assigned.
Please Note:
Buttons encircled by the word SOUND BAR are to be used with a Sceptre’s sound bar only.
Call Us If You Need Help!
Products are often returned due to a technical problem rather than a defective product that may result in unnecessary
shipping charges billed to you. Our trained support personnel can often resolve the problem over the phone or email.
For more information on warranty services or repairs after the warranty period, please contact our support department at
the number below.
For technical help, contact our Technical Support Group via email or phone. Please have your Product Number (P/N),
Serial Number (S/N), and date of purchase available before you call.
Operation Hours: Mon - Fri at 8:30 AM –5:30 PM (PST)
Tech Support E-mail: [e-mail]
Customer Service Email: [e-mail]
TEL: [phone]

FMQCC Series P10
FCC Compliance
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:
This device may not cause harmful interference
This device must accept any interference received, including interference that may cause undesired operation.
Please Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Caution: To comply with the limits for an FCC Class B computing device, always use the signal cord and power
cord supplied with this unit.
The Federal communications Commission warns that changes or modifications to the unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
European Notice
Products with the CE marking comply with both the EMC Directive (89/336/EEC), (93/68/EEC) and the Low Voltage
Directive (72/23/EEC) issued by the Commission of the European Community.
SAFETY INSTRUCTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if
improperly handled. This product has been engineered and manufactured with the highest priority on safety. However,
improper use can result in electric shock and / or fire. In order to prevent potential danger, please observe the following
instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your
Liquid Crystal Display, please read the following precautions carefully before using the product.
15. Read & Keep these instructions.
16. Heed all warnings.
17. Follow all instructions.
18. Do not use this apparatus near water.
19. Clean only with dry cloth.
20. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
21. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
22. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
23. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles,
and the point where they exit from the apparatus.
24. Only use attachments/accessories specified by the manufacturer.
25. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
26. Unplug this apparatus during lightening storms or when unused for long periods of time.
27. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.

FMQCC Series P11
IMPORTANT INFORMATION
Disclaimer, Trademarks, & Copyright Information
“HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”
SRS TruSurround HD is a trademark of SRS Labs, Inc.
TruSurround HD technology is incorporated under
license from SRS Labs, Inc. SRS TruSurround HD™ creates an immersive, feature-
rich surround sound experience from two speakers, complete with rich bass, high frequency detail and
clear dialog.
Wii™ is a registered trademark or trademark of Nintendo of America, Inc. in the United States and other
countries.
MHL® and the MHL logo are a trademark, registered trademark or
service mark of MHL, LLC in the United States and /or other countries.
This product qualifies for ENERGY STAR in the “power
saving” mode and this is the setting in which power
savings will be achieved. Changing this mode under
picture settings or enabling other features will increase
power consumption that could exceed the limits
necessary to qualify for ENERGY STAR rating. For more information on the ENERGY
STAR program, please refer to www.energystar.gov.
SCEPTRE is a trademark or registered trademark of Sceptre Group.
Sceptre, Inc. shall not be liable for technical or editorial errors or omissions contained herein; nor for
incidental or consequential damages resulting from furnishing this material, or the performance or use of
this product.
In the interest of continuing product improvement, Sceptre, Inc. reserves the right to change product
specifications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose
without prior written permission from Sceptre, Inc.
