Schiller Steiner 75-72151A User manual

PARTS MANUAL
MAN 4172181 Rev. A 02-2015
MODELS:
75-72151A
440 CAB KIT
www.steinerturf.com

CALIFORNIA
Proposition 65 Warning
Diesel engine exhaust and some of
itsconstituentsareknown tothe State
of California to cause cancer, birth
defects and other reproductive harm.
Californie Proposition 65
Avertissement
Les échappements des moteurs diesel
et certains de leurs composés sont
reconnus par l’Etat de Californie pour
être cancérigènes, provoquer des
défautscongénitaux etd’autresdangers
en matière de reproduction.
ADVERTENCIA
AVERTISSEMENT
WARNING
The engine exhaust from this product
containschemicalsknown totheState
of California to cause cancer, birth
defects or other reproductive harm.
California Advertencia
de la Proposicion 65
ElestadodeCaliforniahacesaber que
los gases de escape de los motores
dieselyalgunos desus componentes
producen cáncer, defectos de
nacimiento y otros daños en el
proceso de reproducción humana.
L’ é mission du moteur de ce mat é riel
contient des produits chimiques que
l’Etat de Californie consid è re ê tre
canc é rig è nes, provoquer des d é fauts
cong é nitaux et d’autres dangers en
mati è re de reproduction.
El estado de California hace saber
que los gases de escape de este
producto contienen productos
quÍmicos que producen cáncer,
defectosde nacimientoy otrosdaños
en el proceso de reproducción
humana.
CALIFORNIA
Proposition 65 Warning
Battery posts, terminals, wiring
insulation, and related accessories
contain lead and lead compounds,
chemicals known to the State of
California to cause cancer and birth
defects or other reproductive harm.
WASH HANDS AFTER HANDLING.

1
CAB IMPORTANT MESSAGE
Thank you for purchasing this Schiller Grounds Care, Inc. product. You have purchased a world class product, one of the best designed
and built anywhere.
This machine comes with an Owner / Operator's Manual and an Illustrated Parts Manual. The useful life and good service you receive from
this machine depends to a large extent on how well you read and understand these manuals. Treat your machine properly, lubricate and
adjust it as instructed, and it will give you many years of reliable service.
Your safe use of this Schiller Grounds Care, Inc. product is one of our prime design objectives. Many safety features are built in, but we
also rely on your good sense and care to achieve accident-free operation. For best protection, study the manuals thoroughly. Learn the
proper operation of all controls. Observe all safety precautions. Follow all instructions and warnings completely. Do not remove or defeat
any safety features. Make sure those who operate this machine are as well informed and careful in its use as you are.
See a Schiller Grounds Care, Inc. dealer for any service or parts needed. Schiller Grounds Care, Inc. service ensures that you continue to
receive the best results possible from Schiller Grounds Care, Inc. products. You can trust Schiller Grounds Care, Inc. replacement parts
because they are manufactured with the same high precision and quality as the original parts.
Schiller Grounds Care, Inc. designs and builds its equipment to serve many years in a safe and productive manner. For longest life, use this
machine only as directed in the manuals, keep it in good repair and follow safety warnings and instructions. You'll always be glad you did.
Schiller Grounds Care, Inc.
One Bob Cat Lane
Johnson Creek, WI 53038-0469
02-2015
TABLE OF CONTENTS FIGURES PAGE
SAFETY.....................................................................................................................................................................2
PARTS SECTION......................................................................................................................................................3
MOUNTING KITASSEMBLY................................... FIGURE 1............................................................................4, 5
KIT HARDWARE..................................................... FIGURE 2............................................................................6, 7

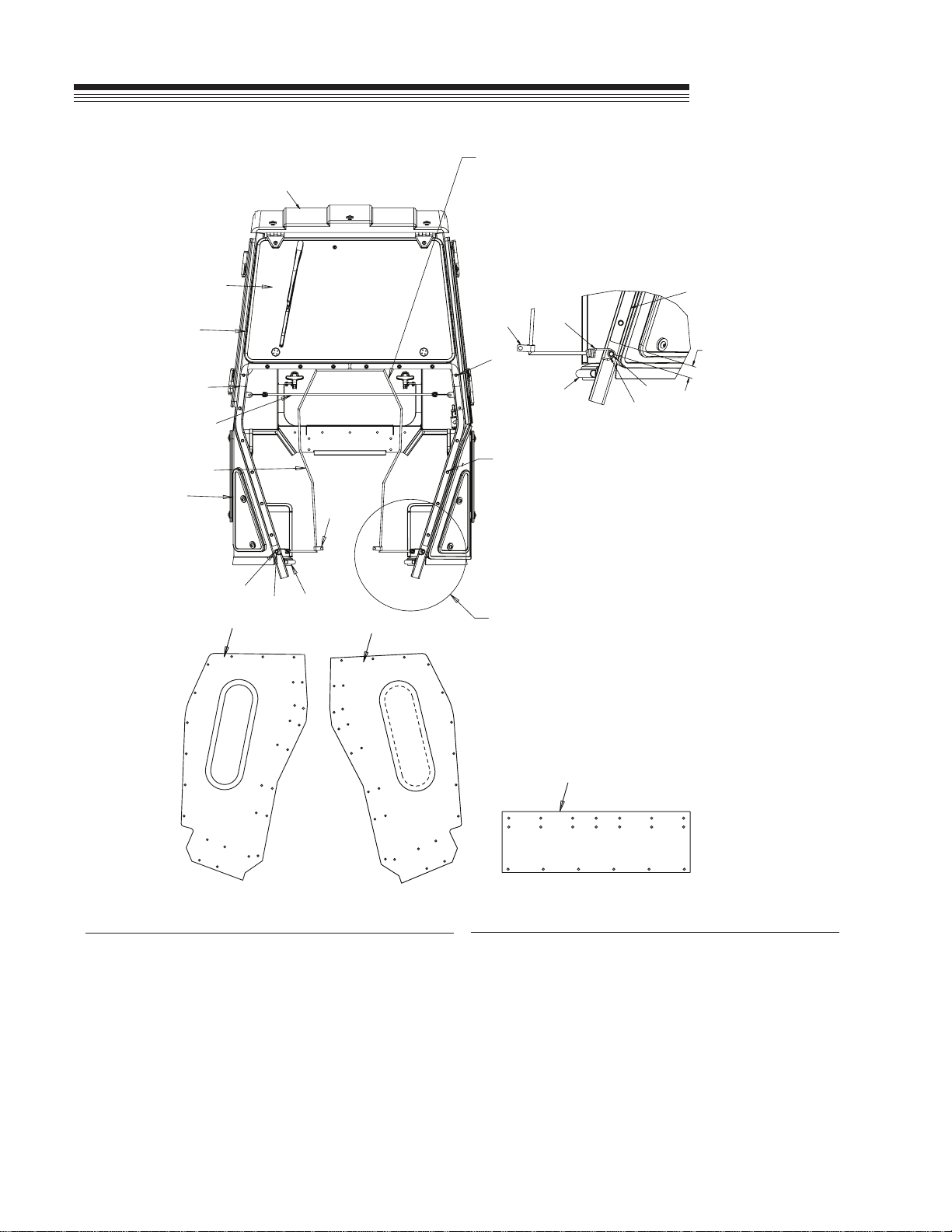

FRONT VIEW ASSEMBLY...................................... FIGURE 3............................................................................8, 9
REAR VIEW ASSEMBLY ........................................ FIGURE 4........................................................................ 10, 11
HEADLINER ASSEMBLY........................................ FIGURE 5........................................................................12, 13
WIRE HARNESS..................................................... FIGURE 6........................................................................14, 15
RIGHT SIDE ASSEMBLY........................................ FIGURE 7........................................................................16, 17
LEFT SIDE ASSEMBLY........................................... FIGURE 8........................................................................18, 19

2
CAB
MODEL NUMBER: This number appears on
sales literature, technical manuals and price lists.
SERIAL NUMBER: This number appears only
on your unit. It contains the model number fol-
lowed consecutively by the serial number. Use
this number when ordering parts or seeking war-
ranty information.
SAFETY
NOTICE !!!
Unauthorized modications may present extreme
safety hazards to operators and bystanders and
could also result in product damage.
Schiller Grounds Care, Inc. strongly warns against,
rejects and disclaims any modications, add-on
accessories or product alterations that are not
designed,developed,testedandapprovedbySchiller
GroundsCare,Inc.'s Engineering Department. Any
Schiller Grounds Care, Inc. product that is altered,
modied or changed in any manner not specically
authorized after original manufacture–including the
additionof“after-market”accessoriesorcomponent
parts not specically approved by Schiller Grounds
Care, Inc.–will result in the Schiller Grounds Care,
Inc. Warranty being voided.
Any and all liability for personal injury and/or
property damage caused by any unauthorized
modications, add-on accessories or products not
approved by Schiller Grounds Care, Inc. will be
considered the responsibility of the individual(s) or
company designing and/or making such changes.
Schiller Grounds Care, Inc. will vigorously pursue
full indemnification and costs from any party
responsibleforsuchunauthorizedpost-manufacture
modications and/or accessories should personal
injury and/or property damage result.
This symbol means:
ATTENTION!
BECOME ALERT!
Your safety and the safety of others is involved.
Signal word denitions:
The signal words below are used to identify levels
of hazard seriousness. These words appear in this
manualandonthesafetylabelsattachedtoSchiller
Grounds Care, Inc. machines. For your safety and
thesafetyofothers,readandfollowtheinformation
given with these signal words and/or the symbol
shown above.
DANGER indicates an imminently hazardous
situationwhich, ifnot avoided, WILL resultin death
or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, COULD result in
death or serious injury.
CAUTIONindicatesapotentiallyhazardoussituation
which,ifnotavoided,MAY resultinminorormoderate
injury. It may also be used to alert against unsafe
practices or property damage.
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which, if
not avoided, MAY result in property damage.

3
CAB ASSEMBLY
Read these instructions and identify all com-
ponents. Please retain these instructions for
future reference and parts ordering information.
NOTE: If the machine has the electric weight
transfer, you will need to purchase part number
4168587 Multi-Connector wire harness to provide
additional plug outlets for the cab.
Sold separately from your Steiner dealer.
MACHINE PREPARATION
1. Remove all attachments if present.
2. Disconnect power from the battery.
3. Remove the four bolts Asecuring foot plate on
tractor. Figure 1
4 Lift the foot plate up a few inches and remove
one nut Band lock washer Cfrom the foot pedal.
Figure 2
5 Completely remove the foot plate from the
machine.
FRONT MOUNT INSTALLATION:
6. If there are no holes located in the side of the
frame from the factory, drill two .531 holes on
each side per Figure 3 using the Front Mount
Template (Item 8) to locate. Place the template
even with the front edge of the frame and drill
holes.
2.78
1.59
3.04
FRONT MOUNT
TEMPLATE
FIGURE 1
FIGURE 2
FIGURE 3

4
CAB
7. Secure the two front mount brackets (Item 1)
to the bottom of the machine using hardware.
Torque to 70 ft-lb (95n-m). Figure 4
(2) 1/2" X 1.50" long bolts (Item 16)
(2) 1/2" nylon nuts (Item 17)
(3) 1/2" large OD at washers (Item 14)
two on right side one on outside left side
(1) 1/2" small OD at washer (Item 15)
one on inside left side.
8. Secure the brackets to the side of the machine
using hardware. Torque to 70 ft-lb (95n-m).
Figure 4
(4) 1/2" x 1.25 long bolts (Item 27)
(4) 1/2" nylon nuts (Item 17)
(4) 1/2" small OD at washers (Item 15)
9. Reattach the foot pedal with hardware removed in
Step 4.
10.Reattach the foot plate using hardware removed
in Step 3.
CONSOLE FILLER PANEL INSTALLATION:
11.Secure the LH Cover (Item 3) and RH Cover (Item
4) to the front console of the machine (Figure 5 &
6) using hardware:
(6) 3/8" x .75" long bolts (Item 20)
(6) 3/8" anged nuts (Item 21)
Torque to 30 ft-lb (41 N-m) FIGURE 5
FIGURE 6
FIGURE 4

5
CAB
REAR MOUNT INSTALLATION:
12. Loosely secure the Rear Mounting Bracket (Item
2) to the machine as shown in Figure 7 & 8 using
hardware:
(2) 1/2" U-bolts (Item 28)
(4) 1/2" serrated ange nuts (Item 29)
DO NOT TIGHTEN AT THIS TIME!
INSTALLING THE CAB:
13.Flip the seat forward on the machine and lower
the ROPS upper hoop.
Using a spreader bar or lifting strap and overhead
crane or forklift, carefully raise the cab and remove
the crating and pallet. Locate the lifting strap at the
location of the roof brackets on the upper sides.
14.Lower the cab onto the tractor and align the front
mount holes of the cab tubes with the holes on
the front mount brackets installed in step 7. The
rear mount may need to be tilted forward as you
lower the cab to allow it to pass to the inside of
the rear cab wall. Figure 9
15.Secure the front of the cab to the front mounts
installed in Step 4 using hardware:
Figure 10
(2) rubber isolators (Item 10)
(2) 3/4" at washers (Item 18)
(2) 3/8" x 3.50" bolts (Item 19)
(2) 3/8" nylock nuts (Item 13)
(4) 3/8" at washers (Item 11)
Torque to 30 ft-lb (41 N-m)
FIGURE 8
FIGURE 7
FIGURE 10
FIGURE 9

6
CAB
16.Install the rubber isolators (Item 10) onto the rear
mount bracket. Secure the rear mounting bracket
to the back of the cab using hardware:
Figure 11
(4) 3/8" X 2.50" long bolt (Item 12)
(4) 3/8" nylock nuts (Item 13)
(4) 3/8" at washers (Item 11)
Torque to 30 ft-lb (41 N-m)
17.Tighten the nuts on the U-bolts for the rear mount
installed in Step 13.
18.Remove the existing front cover panel located
under the steering wheel from the machine.
Retain the hardware. Figure 12
19.Install the new front cover panel (Item 5) using
the bolts removed in previous step. Figure 12
20.Remove existing rear cover panel from machine.
Attach new rear panel (Item 6) using:
Figure 13
(4) 5/16" x 1.00 long bolts (Item 25)
(4) 5/16" anged nuts (Item 26)
21.Attach the two "P" clamps on the bungee cord to
the machine at the foot panel using hardware:
Figure 14
(2) 1/4" x .75" long bolts (Item 31)
(2) 1/4" anged nuts (Item 23)
FIGURE 12
FIGURE 13
FIGURE 14
FIGURE 11

7
CAB
22.Attach (2) "P" clamps (Item 30) to retain the
bungee cord to the side of the hood using
hardware:
Figure 15 & 16
(2) 1/4" x .50" long bolts (Item 22)
(2) 1/4" anged nuts (Item 23)
The left side can use the existing hardware if
desired.
23.Drill a 5/16" hole at the location shown in Figures
17 & 18. Install the bungee cord guide (Item 9)
onto the hood cowl using hardware:
(1) 1/4" x 2.50 bolt (Item 31)
(1) 1/4" anged nut (Item 23) FIGURE 15
FIGURE 16
FIGURE 18
FIGURE 17

8
CAB

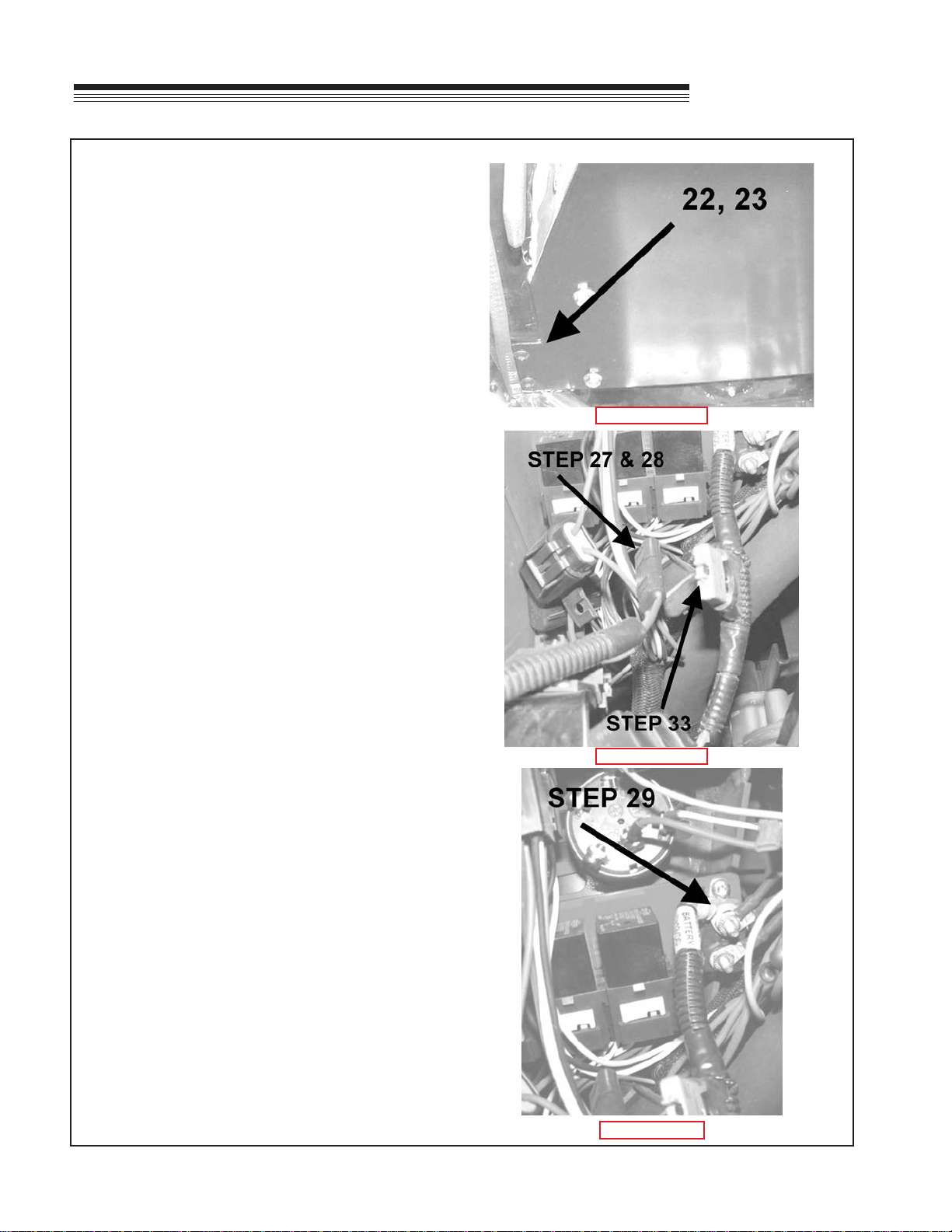

24.Attach the LH cover panel to the front cover panel
using hardware:
Figure 19
(2) 1/4" x .50 long bolts (Item 22)
(2) 1/4" anged nuts (Item 23)
ELECTRIC HOOK-UP:
25.Locate main relay breaker wire harness secured
to front cab tube.
26.Open the hood of the machine.
27 Route the entire harness up to the key ignition
area. Figure 20
28.Attach the two pole at connector on the wire
harness to the Accessory harness Connector from
the machine. Figure 20
NOTE: If the at plug is being used for the
electric weight transfer, use part number
4168587 Multi-Connector wire harness to
provide additional plug outlets for the cab. Sold
separately from your Steiner dealer.
29.Attach the other end of the harness with the ring
terminal labeled "BATTERY +12VDC" to the main
circuit breaker of the machine. Figure 21
30.Reconnect power to the battery.
31.Close the hood of the machine and turn ignition
key on and start machine.
32.Check operation of front wiper: HI, LO, and OFF.
When the switch on the wiper motor is turned off,
wiper will run for a short period of time and then
stop or park itself. Wiper should turn off when
machine key is turned off.
33.If switch panel has no power, check the breaker
Figure 20 located on the red wire of the main
relay and breaker harness. Reset breaker if
needed.
34.Check operation of the dome light. ON/OFF.
Dome light should go off when machine key is
turned off.
FIGURE 19
FIGURE 21
FIGURE 20

9
CAB
35.Coil excess wire harness and secure using
nylon ties. Make sure to leave enough room for
complete front travel of machine. Avoid any HOT
or MOVING parts. DO NOT SECURE WIRE
HARNESS TO HIGH PRESSURE FUEL LINES!
36.Tip seat up and install under seat seal assembly
textured side up. The seat ts over the seat
release lever and around the seat belt sleeves.
Figure 22
37.Lower the seat to normal position to help position
the Velcro into place for the battery box and
fuel tank before removing the liner and applying
adhesive.
38.Peel off the liner on the PSA Velcro strips and
attach to the rear wall of the cab and to the
fenders. Apply pressure to the Velcro to get good
adhesion.
Figure 23 & 24
FIGURE 24
FIGURE 23
FIGURE 22

10
CAB
MOUNTING ASSEMBLY
FIGURE 1
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
2
4
53
6
8
9
7
1
1 4171878-7 S-WLDMNT, FRONT MOUNT 2
2 4171878-6 S-WLDMNT, REAR MOUNT 1
3 4171015-78 S-COVER PANEL LEFT HAND 1
4 4171015-10 S-COVER PANEL RIGHT HAND 1
5 4171015-76 S-LOWER FRONT COVER 1
6 4171015-73 REAR, COVER 1
7 4171015-93 S-FILLER, UNDER SEAT 1
8 4171878-4 S-TEMPLATE, FRONT MOUNTS 1
9 4171878-5 S-SPACER-CORD GUIDE 1

11
CAB HARDWARE
FIGURE 2
ITEM PART NO. DESCRIPTION QTY ITEM PART NO. DESCRIPTION QTY
10 4171015-94 S-MOUNT, RUBBER 6
11 4171015-95 S-WSHR.375 12
12 4171015-96 S-BLT, HHCS .375 X 2.5 4
13 4171015-97 S-NUT, NYLOCK .375 6
14 4171878-23 S-WASHER 3
15 4171878-20 S-WSHR, .50 TYPE AN 8
16 4171878-16 S-BLT, HHCS .5 X 1.5 2
17 4171878-18 S-NUT, NYLOCK .5 5
18 4171015-98 S-WSHR, FLAT .75 2
19 4171015-99 S-BLT, HHCS .375 X 3.5 2
20 4171015-100 S-BLT, TRX .375 X .75 6
21 4171015-101 S-NUT, SER FLG .375-16 6
22 4171878-24 S-SCRW, TORX, TRUSS .25X.5 4
23 4171878-21 S-NUT, FL HEX .25 7
24 4171015-102 S-BLT, HHCS .75 2
25 4171015-48 S-SCRW, TORX, TRUSS .313X1 4
26 4171015-104 S-NUT, SER FLG .312 4
27 4171878-19 S-BLT-HHCS, .50 X 1.25 4
28 4171878-25 S-UBOLT, .5X3X3.5 2
29 4171878-22 S-NUT,HEX FL .50-13 NC 4
30 4171878-8 S-CLIP, HOSE, CLAMPING 2
31 4171878-17 S-SCREW, PH .25X.25 1
16
10
11
12
15
14
13
17
18
19 21
8
22
20
24
25
23
26
27
28
29
30
31

12
CAB
FRONT VIEW ASSY
FIGURE 3
ITEM PART NO. DESCRIPTION QTYITEM PART NO. DESCRIPTION QTY
1 4171015-110 S-VINYL RETAINER 2
2 4171878-11 S-VINYL, LOWER FRONT LH 1
3 4171878-10 S-VINYL, LOWER FRONT RH 1
4 4171015-59 S-WINDOW, FRONT TEMPERED 1
5 4171015-111 S-SCREW, SELFTAP .25 X .75 14
6 4171878-12 S-VINYL, LWR FRONT CENTER 1
7 4171878-15 ASSY-BUNGEE CORD 30" 1
8 4171878-14 ASSY-BUNGEE CORD 96" 1
9 4171015-112 S-BASE 1
10 4171015-80 S-ASSY, ROOF 1
11 4171878-8 S-CLAMP-CLIP, HOSE 2
12 64163-02 WSHR .321/.328X.593/.608X11GA2
13 4171015-44 S-RUBBER WINDSHEILD 118" 1
MATCH DRILL
.219 HOLES (14)
BEFORE RUNNING
POWER WIRE
RUN CROSS CORD THROUGH
THE LOOPS OF THE FRONT
CROSS VINYL - DO NOT RUN
THE LONG HOOD SEAL CORD
THROUGH THE CROSS VINYL
LOOPS - RUN THE LONG HOOD
SEAL CORD THROUGH SIDE
AND LOWER LOOPS OF FRONT
VINYL WINDOWS
SEE DETAIL F
1.14 REF
DETAIL F
4
3
1
12
5
8
11
7
9
1
8
12 3
9
11
23
6
10
13
14

13
CAB REAR VIEW ASSY
FIGURE 4
ITEM PART NO. DESCRIPTION QTYITEM PART NO. DESCRIPTION QTY
1 4171015-8 S-MOUNT, TEE HANDLE , RH 1
2 4171015-41 S-DOOR TRIM SEAL, 11/16 6" 2
3 4171015-34 S-TRIM SEAL, , 180 DEG 5" 2
4 4171769-09 NUT-FLG HEX .25 4
5 4171015-113 HHCS-.375 X 4.50 2
6 4171015-91 BOLT-TOREX BH .25 X .625 2
7 4171015-60 S-GLASS, REAR, TEMPERED 1
1
3
4
2
6
5
SEE DET
AIL D
7
5
13
8
12
10
99
11
DETAIL D
8 4171015-44 S-WINDOW TRIM SEAL, 11/16 11"1
9 4171015-28 S-WASHER, SHOULDER GLASS 4
10 4171015-35 S-WASHER,, .344 ID x 1.25 2
11 64229-02 NUT-NYLON LOCK 5/16-18 4
12 4171670-07 BLT-TORX HD 5/16-18 X 1-1/4 2
13 4171015-88 NUT-CNTRLCK, HEX .38 2

14
CAB
HEADLINER ASSY
FIGURE 5
ITEM PART NO. DESCRIPTION QTYITEM PART NO. DESCRIPTION QTY
1 4171769-01 PANEL-HEADLINER, SHORT 1
2 4171015-43 S-DOMELIGHT, 12 VDC 1
3 4171769-06 NUT-SERT 8-32 8
4 4171769-07 SCRW-MACH BH SOC 8-32 X .50 6
5 4171769-08 SCRW-MACH .25 X 1 PH PHIL 1
6 4171769-09 NUT-FL HEX .25 1
7 4171769-02 MOUNT-FUSE BLOCK 1
8 4171769-03 HOLDER-6 FUSE W/GROUND 1
9 4171670-09 SCRW-MACH SOC 8 X 1 2
10 4171769-10 NUT-SERT 10-24 2
11 4171015-1 COVER-FUSE 1
12 4171015-53 S-KNOB, BLACK, .875 DIA 10-24 2
13 4171769-11 PLUG-HOLE .63 1
14 4171769-12 PLUG-HOLE .25 3
15 4171769-13 GROMMET-SNAP UNIVERSAL 1 1
16 4171769-14 FUSE-7.5 AMP 1
17 4171769-15 FUSE-5 AMP 1
18 4171769-04 HARNESS-MAIN W/ RESET 1
19 4171015-56 HARNESS-MAIN HEADLINER 1
20 4171769-16 PLUG-HOLE .38 1
4
GROUND LOCATION
NO NUTSERTS IN TOP (4) HOLES
3
6 & 5
7
8
4
(FUSE COVER NOT SHOWN)
SEE DETAIL A
HOOK UP GROUND FROM BELOW
**DO NOT AT TACH OVER THE TOP**
17
9
(FUSE COVER NOT SHOWN)
DETAIL A
(5 AMP FOR
DOME LIGHT)
(7.5 AMP
FOR WIPER)
ALIGN BOTTOM 2 HOLES IN FUSE
BLOCK WITH BOTTOM 2 HOLES
IN MOUNT BRACKET
910
16
15
1
2 & 4
11 & 12
13
14
20

15
CAB WIRE ASSEMBLY
FIGURE 6
ITEM PART NO. DESCRIPTION QTY
WIRE No. USED FOR WIRE SPECCOLOR LENGTH TERMINAL END 1 TERMINAL END 2
1 FUSE BLOCK GROUND STUD TO SWITCH PANEL GROUND STUD 16 GA GXL BLACK14.00"No.10 RING 1/4" RING
2WIPER +12V (FUSE TO JUMPER LOCATION) 16 GA GXL GREEN 32.00" BLADE 1/4" FEMALE 90 BLADE 1/4" MALE 3WIPER -12V (FUSE GROUND BAR TO JUMPER LOCATION) 16 GA GXL BLACK32.00" BLADE 1/4" FEMALE 90 BLADE 1/4" FEMALE
4WIPER +12V (JUMPER LOCATION TO WIPER MOTOR) 16 GA GXL GREEN 16.00" BLADE 1/4" FEMALEBLADE 1/4" FEMALE
5WIPER -12V (JUMPER LOCATION TO WIPER MOTOR MOUNT BOLT) 16 GA GXL BLACK16.00" BLADE 1/4" MALE No.10 RING TERMINAL
6DOME LIGHT +12V (FUSE TO DOME LIGHT WHITE WIRE) 16 GA GXL WHITE 14.00" BLADE 1/4" FEMALE 90 BUTT, 16 GA BLUE
7DOME LIGHT -12V (FUSE GROUND BAR TO DOME LIGHT BLACK WIRE) 16 GA GXL BLACK14.00" BLADE 1/4" FEMALE 90 BUTT, 16 GA BLUE
DOME-
DOME+
WIPER+
WIPER-
F
MF
F
F
F
F
0
5"
BLACK
WHITE
GREEN
BLACK
GROUND BLACK
No.10
FUSE BLOCK CONNECTIONS
7.5 A
5 A
M
DOME- BLACK
DOME+ WHITE
3"
6"
GRND STUD BLACK
TO 1/4"
HEADLINER
GROUND STUD
37"
F
21" 24"
DOME
LIGHT
BUTT, 16 GA BLUE
+
+
BLACK
GREEN
3"
No.10
WIPER-
BLACK
WIPER+
GREEN
LABEL
3-19635
TO
WIPER
MOTO
R
JUMPER LOCATION
-12V GROUND
BAR STUD
-12V
-12V
1
2
3
6
7
1
2
3
4
5
4
5
6
7
4171015-56 WIRE HARNESS ASSY 1

16
CAB
RIGHT SIDE ASSY
FIGURE 7
.25
27
31
32
34 28
35
18
17
12
30
7
33
26
29
SEE DETAIL E
SEE DE
TAIL G
9.00" - TRIM
TO FOLLOW SLOPE
SEE DETAIL A
10
8
7
DETAIL A
9
7
15
39
8
12
11
13
DETAIL E
24
21
25
16
20
22
19
23
DETAIL G
1
2
3
14
36
38
37
5
6
4

17
CAB
1 4171015-61 S-GLASS, RH WINDOW 1
2 4171015-65 S-GLASS, SIDE UPPER, 1
3 4171015-66 S-GLASS, SIDE LOWER, PERED 1
4 4171015-28 S-WASHER, GLASS MOUNT 8
5 4171015-49 S-MSCR, .312-18 NC X 1.50 TH 4
6 4171015-35 S-WASHER, .344 X 1.25 4
7 4171015-26 S-ROLL PIN, .187 X .50 3
8 4171015-33 S-LATCH, T-HANDLE, VENT 4
9 4171015-8 S-MOUNT, TEE HANDLE , RH 1
10 4171015-7 S-MOUNT, TEE HANDLE , LH 1
11 64163-02 WSHR .321/.328X.593/.608X11GA2
12 417878-8 S-MSCR, TRUSS TRX, .25 X .75 2
13 4171015-92 NUT-NYLOCK .25 2
14 4171015-51 S-HINGE, PLATE TYPE, WINDOW1
15 4171769-09 NUT-FLG HEX .25 2
16 4171015-18 S-WIPER BLADE, 16 FLEX 1
17 4171015-82 WASHER-.3125 8
18 64229-02 NUT-NYLON LOCK 5/16-18 4
19 4171015-25 S-WIPER ARM, 10.75-15 ADJ 1
20 4171015-107 WASHER-NO 10 1
21 4171015-108 S-MSCR NO 10 X 1, THSL 1
22 4171015-20 S-WASHER, RUBBER .25 X .63 1
23 4171015-55 S-WIPER MOTOR COVER 1
24 4171015-109 S-BUSHING, .187 X .374 X .25 1
25 64229-10 NUT-NY LOCK NO 10
26 4171015-23 S-PLUG, HOLE, PLASTIC 4
27 4171015-15 S-WELDMENT, HANDLE RH 1
28 4171015-31 S-PIN,RELEASE, 3/16 X 1.0 1
29 4171015-48 S-MSCR, .312-18 NC X 1.0 TRX 2
30 4171015-47 S-MSCR, .312-18 NC X .75 TRX 4
31 4171015-30 S-LATCH, T-HANDLE, VENT 1
32 4171015-4 S-RH DOOR TIP OUT BRACKET 1
33 4171015-89 WASHER-LOCK .312 1
34 4171015-46 S-MSCR, .312-18 NC X .50 TRX 1
35 4171015-41 S-DOOR TRM SEAL 11/16 48" 1
36 4171015-44 S-WINDOW TRM SEAL 11/16 53" 1
37 4171015-44 S-WINDOW TRM SEAL 11/16 41" 1
38 4171015-44 S-WINDOW TRM SEAL 11/16 127"1
39 4171015-91 BOLT-TOREX BH .25 X .625 2
ITEM PART NO. DESCRIPTION QTYITEM PART NO. DESCRIPTION QTY
RIGHT SIDE ASSY
FIGURE 7

18
CAB
DETAIL A
3
17
25
14 22
13 13
12
7
10
14 10 7
37
13 12 7
23
24
19
2
1
8
9
20
34
33
35
36
11
10
7
5 & 4
SEE DETAIL A
27
21
16 &
13
18
6
28
31
18 26
29
38
32
39
13
15
30 & 32
LEFT SIDE ASSY
FIGURE 8
