Schlage LE130 User manual

Brand Code No. Brand Code No. Brand Code No.
Aikira 138 Hitachi 39, 50, 51, 52, 53,
120 Panasonic 47, 61, 62, 63, 64, 65
Aircon 42, 57, 58 Hualing 37, 70 Panda 28
Apton 67 Huifeng 73 Philco 41
AUX 21 Linycin 70 Samsung 49, 102, 111, 112,
119, 135
Chang Hong 80, 87, 88, 89, 101 Kang Li 43 Sanyo
45, 59, 60, 80, 81, 82, 83,
87, 88, 89, 90, 91, 92, 93,
94, 95, 99, 100, 101, 105,
130, 131, 132, 133, 134
Chigo 42, 57, 58 Kelon 12, 13, 14, 96 Shangling 70
Chuanhua 37, 73 Kolin 44 Sharp 7, 8, 66, 96, 97,
98, 110
Chunlan 19, 103, 104 Konka 70 Shinco 22
Conrowa 37,70,73 Lennox 69, 121, 15, 18 Shining 70
Daewoo 70 LG 17, 116, 117 Siemens 46
Daikin
0, 1, 2, 6, 11, 26, 29,
30, 31, 32, 33, 126,
127
Midea 54, 55, 56, 73 Tadiran 54
Fujitsu 25, 27, 34 , 122,
123, 124, 125
Midea-
Toshiba 48 TCL 24
Galanz 4, 70, 118 Miller 40, 42, 54, 55, 56,
57, 58, Toshiba 71, 139
General 16, 25, 27, 34 Mirage 15, 18, 69, 121 Trane 3, 137, 138
Gree 15, 18, 69, 107,
108, 121
Mitsubishi
Electric 35, 37, 70, 106, 140 Voltas 4
Guangda 37, 73 Mitsubishi
Heavy
20, 36, 38, 42, 73, 74,
75, 76, 77, 78, 79, 84,
85, 86, 128, 129
Xileng 103
Haier 23, 109, 113, 114,
115, 136 National 0 York 15
Hisene 9, 10, 68 NEC
80, 81, 82, 83, 88, 89, 90,
91, 92, 93, 94, 95, 99, 100,
101, 105, 130, 131, 132,
133, 134
Yutu 70
Please note – different models work on different frequencies. Please choose the brand and enter the codes
until the remote controller connects. If it does not connect or your brand is not listed, please contact Customer
Support on 0800 LINK HELP (NZ) or 1800 LINK HELP (Australia)
7.0 Brand/Model Chart LE130 REMOTE CONTROLLER FOR
SPLIT-TYPE AIR CONDITIONERS
USER GUIDE
CONTENTS
Features ............................................. 1.0
Operation Guide ............................... 2.0
Power .............................................2.1
System Setup .................................2.2
Changing Modes ...........................2.3
Setting Temperatures ....................2.4
Setting Fan Speed .........................2.5
Setting Swing ................................2.6
Z-Wave ................................................ 3.0
Z-Wave Setup ................................3.1
Enrolling Z-Wave ...........................3.2
Un-enrolling Z-Wave .................... 3.3
Setting Swing ................................2.6
Battery Level Indicator .................... 4.0
Remote Controller Holder .............. 5.0
Reset .............................................. 6.0
Icon Reference Chart ....................... 7.0
Brand/Model Chart ......................... 7.0

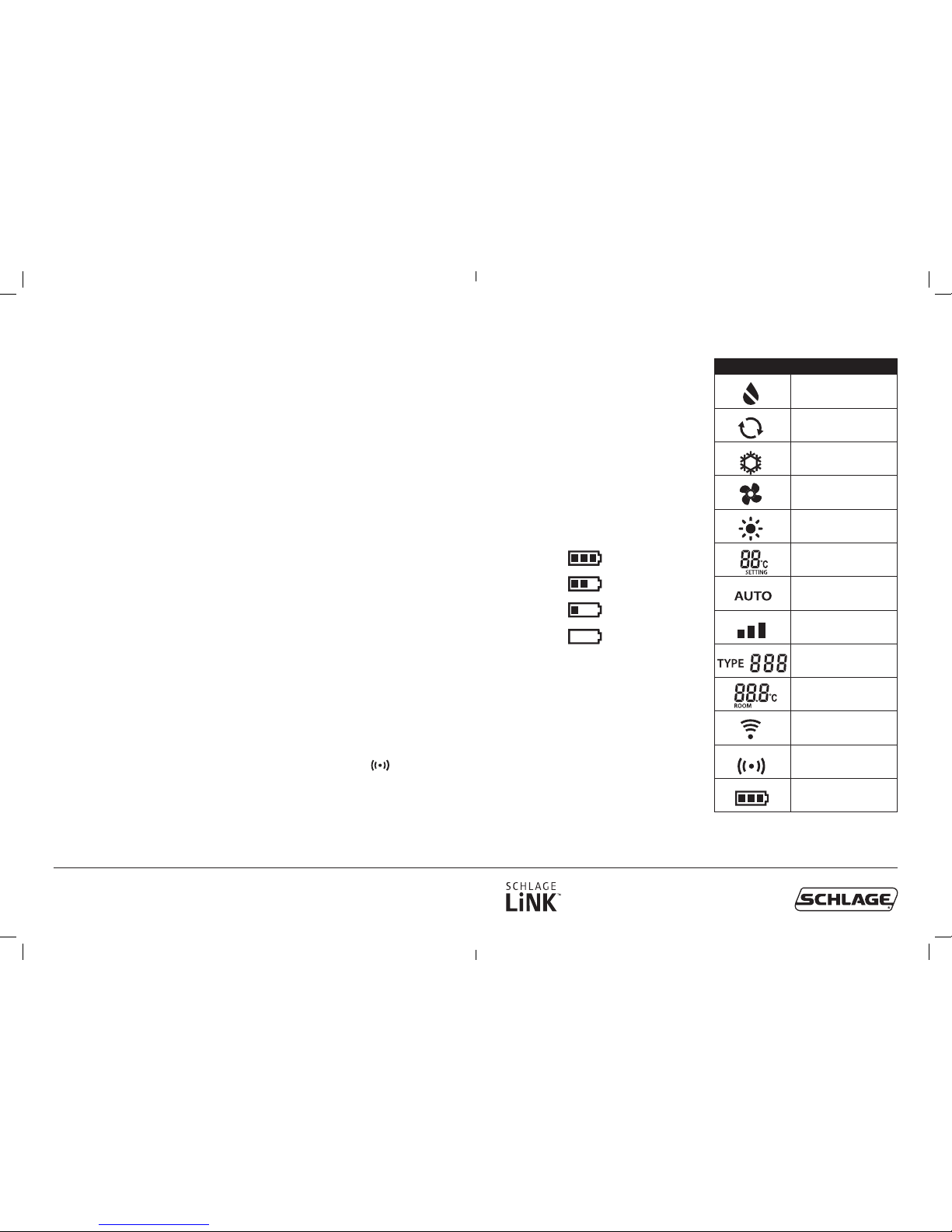

Icon Name / Description
Dry Mode
Auto Mode
Cool Mode
Fan Mode
Heat Mode
Temperature Set
Fan speed Auto
Fan speed
(low-medium-high)
Library Code Number
Room Temperature
Infra-Red transmission
Z-Wave Connected
Battery Level
1.0 Features
The Schlage LE130 Universal Remote Controller
for split-type systems operates in two ways;
1. A standard remote controller, able to operate
a wide range of brands (refer to Brand/
Model Chart)
2. Through Z-Wave on the Schlage LiNK system,
able to be operated remotely via a computer
or smart phone
Please read through the instructions before use.
2.0 Remote Controller
Operation Guide
2.1 Power on/off
• Use the red button to turn on or off the unit
• While OFF only the Room Temperature and
Type Number will display on the LCD screen
• While ON the Set Temperature, Working Mode,
Room Temperature and Z-Wave (if applicable)
icons will display on the LCD screen
2.2 System Setup (for Z-wave setup, refer to 3.1)
• To enrol the universal remote controller to
your split-type unit:
a. Turn the Universal Remote Controller on
b. Press and hold the SET button for 3 seconds.
The icon “TYPE” will flash
c. Scroll to select the code relating to your
brand of system (refer to Brand/Model Chart)
d. Press the SET button to select your brand.
This code number will display on the screen
and can be changed at any time by repeating
the above steps
2.3 Changing Modes*
• Press the MODE button to change between
AUTO, COOL, DRY, FAN and HEAT modes
2.4 Setting Temperature*
• Use the UP or DOWN buttons to set the
temperature between 16°C and 32°C
2.5 Setting Fan Speed*
• The fan speed can be set to AUTO, LOW,
MEDIUM or HIGH
2.6 Setting Swing Function
• Press the SWING button to turn on or off
3.0 Z-Wave
(Remote Management Capabilities)
The below directions apply to enrolling the
remote controller onto the Schlage LiNK system.
If you are enrolling onto a different system,
please consult the applicable user guide.
3.1 Z-Wave Enrolment
a. Refer to the Schlage LiNK Bridge and Setup
User Guide to aid in enrolling the remote
controller on the bridge
b. On the remote controller press and hold the
SET and FAN buttons simultaneously for 3
seconds. The LED light will flash 3 times.
c. Once the Universal Remote Controller has
been successfully enrolled onto the LiNK
system, the Z-Wave icon will appear
on the screen
3.2 Z-Wave Un-Enrolment
a. Refer to the Schlage LiNK Bridge and Setup
User Guide to un-enrol the remote controller
on the bridge
b. On the remote controller press and hold the
SET and FAN buttons simultaneously for 3
seconds. The LED light will flash 3 times
c. Once the Universal Remote Controller has
been successfully un-enrolled from the
bridge, the Z-Wave icon will disappear from
the screen
4.0 Batteries and Battery
Level Indicator
• There are four indication levels;
Full
Good
Low
Empty
5.0 Remote Controller Holder
• Install the remote controller holder in a place
where the signal can be received by the unit
• When the remote controller is not
used, place it in the holder to ensure
communication between the remote
controller and air conditioning unit
6.0 Reset
• Gently press the RESET button with a thin
instrument once to reset all settings to
default settings
• The Z-Wave and Brand Codes will not reset
7.0 Icon Reference Chart
* The functionality of these settings will depend on the
functions available on your heat pump/split system
LE130 REMOTE CONTROLLER FOR
SPLIT-TYPE AIR CONDITIONERS USER GUIDE
