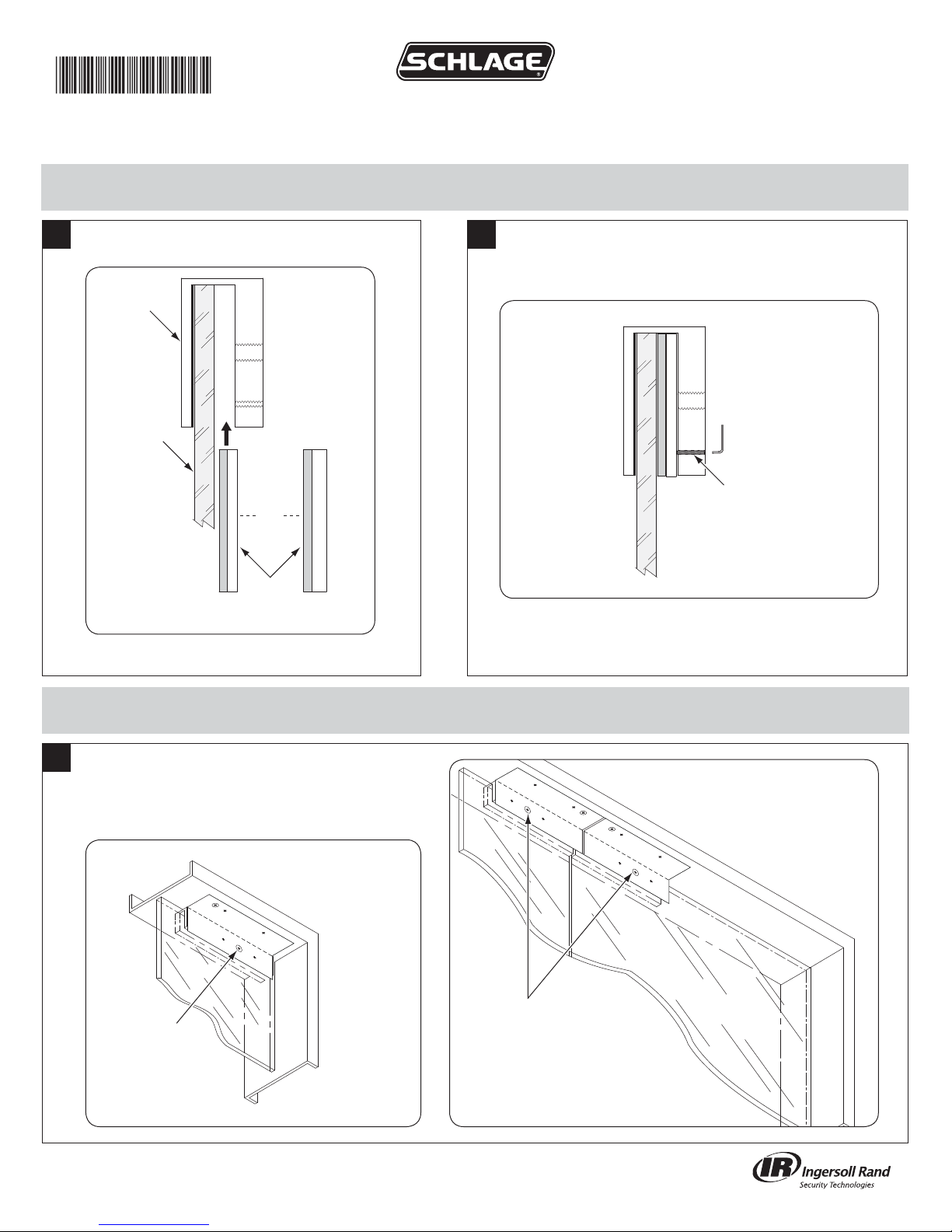

Schlage HDB Service manual

Installation
Instructions
HDB Kit
for M400 Series Electromagnetic Locks
© 2010 Ingersoll-Rand Company
1-877-671-7011
23737901 Rev. 10/10_a
1INSTALL HDB BRACKET
2PREPARE FRAME
1a Select Appropriate Shim
2a Tape Template on HDB Bracket and Frame
• Align armature hole on template with armature hole in
HDB bracket
• Prepare frame holes per template
1b Install HDB Bracket
• Install appropriate shim (padded side toward glass)
• Tighten set screws (³⁄₃₂” hex wrench included)
Shim with compression pad to be installed on top of glass
opposite the hinge side with the hole for the armature facing
toward the “push” side of the opening.
TEMPLATE
Armature
hole
TEMPLATE TEMPLATE
Armature
holes
Single Door
Double Door
23737901
Note: Herculite Door Bracket (HDB) is to be used with glass doors.
Set Screws
HDB
Bracket
Glass
Shim with
Compression
Pad
OR

3INSTALL MAGNETIC LOCK
3a Attach Armature to HDB Bracket
3b Continue Installation Per Magnetic Lock Installation Instructions
Armature
Housing
Armature
Assembly
Magnet
Assembly
HDB
Bracket
