Schletter FIXGRID PRO-100 User manual

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
1
(18)
FIXGRID PRO-100
ASSEMBLY INSTRUCTIONS
TABLE OF CONTENTS
ROOF SYSTEMS FLAT ROOF BALLASTING SOLUTIONS
Assembly instructions
for east-west orientation
1 General Information����������������������������������������������������������������� 2
Tools Needed �������������������������������������������������������������������������� 2
Other Documents Required������������������������������������������������������ 2
Tightening Torques������������������������������������������������������������������ 2
Safety Instructions ������������������������������������������������������������������ 2
Installation Instructions������������������������������������������������������������ 3
2 Versions���������������������������������������������������������������������������������� 4
3 Defining base profile lengths and module support distances ����� 6
4 Inserting the Pro front screw-in module support ���������������������� 7
5 Inserting the Pro screw-in heightening elements ���������������������� 8
6 Extending the Pro heightening element������������������������������������ 9
7 Extending the Pro module support ����������������������������������������� 10
8 Mounting the surface protection mat ��������������������������������������11
9 Connecting the floor profile ����������������������������������������������������13
10 Aligning the floor profile �������������������������������������������������������13
11 Ballasting����������������������������������������������������������������������������� 14
12 Solar module installation�������������������������������������������������������18
EN

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
2
(18)
1 GENERAL INFORMATION
TOOLS NEEDED
• Tape measure
• Screwdriver with TX drive T40 bit Module installation
• Screwdriver with SW8 socket wrench Windsafe Pro installation
• Schletter screw-in aid Module support installation and screw-in heightening element
• Screwdriver or SW24 fork spanner to create leverage
Installation of ballast and composite rail using RapidCon90 cross connector
• Flat pliers For ballast version C
OTHER DOCUMENTS REQUIRED
• General installation manual – installation and project planning
• Installation manual RapidPro module clamps
• Product sheet FixGrid Pro-100
• Project-related planning and ballasting documents
TIGHTENING TORQUES
• Screw connections M8: 15 Nm
• Use of self-drilling screws: stop-oriented
SAFETY INSTRUCTIONS
Break hazard! PV modules may be damaged if stepped on�
Planning, installation and commissioning of the solar power system must only be performed
by qualified technical personnel� Improper execution can result in damage to the system and
endanger persons�
Electrical current hazard! Installation and maintenance of the PV modules must only be performed by
qualified technical personnel� Observe the safety instructions issued by the PV module manufacturer!
Falling hazard! Working on the roof as well as ascending and descending poses a risk of falling�
It is vital to observe accident prevention regulations and use appropriate fall protection equipment�
Hazard area! Prior to installation, set up barriers
to warn people who are in the vicinity�

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
3
(18)
INSTALLATION INSTRUCTIONS
Roof pitch and securing against slipping: Due to thermal linear expansion, so-called caterpillar
effects can occur� It has to be checked in each individual case whether an additional fixation
to prevent slipping is required� We recommend a basic fixation from a roof pitch > 5°�
In some circumstances, fixation should be carried out for minor slopes�
Thermal separation of the module blocks must be ensured�
The system must only be installed with ballasting according to the planning documents� The required
ballasting and related planning documents can be determined in the Schletter Configurator�
Check that the existing roofing has been adequately fixed�
Sufficient roof cover must be checked on site�

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
4
(18)
2 VERSIONS
LANDSCAPE
Version 5° Landscape
Version 10° Landscape
Version 15° Landscape
Detail A
Modulewidth
Support spacing
A
Modulewidth
Support spacing
A
100
100
Modulewidth
Support spacing
A100
Maintainance
Maintainance
Maintainance

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
5
(18)
Modulewidth
Support spacing
B
Modulewidth
Support spacing
B
100
100
Modulewidth
Support spacing
B100
Maintainance
Maintainance
Maintainance
Detail B
LANDSCAPE PLUS
Clamping at the quarter point of the
modules in case of increased snow loads
Version 5° Landscape Plus
Version 10° Landscape Plus
Version 15° Landscape Plus

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
6
(18)
3 DEFINING BASE PROFILE LENGTHS AND MODULE SUPPORT DISTANCES
The distances of the heightening and support elements depend on the module size
and are shown accordingly in the project-related structural analysis report�
LANDSCAPE
LANDSCAPE PLUS
The modules are to be clamped flush at the upper and lower module support�
Detail A
Detail B
Modulewidth
Support spacing
A100
Maintainance
Modulewidth
Support spacing
B100
Maintainance

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
7
(18)
Mark position according to planning
documents
Place screw-in aid in position on the base profile
Insert Pro module support parallel to Pro
base profile in assembly aid (insert pressed-
in screw-in connector into click channel)
Turn the screw-in aid 90° clockwise
Lift the screw-in aid slightly
Pull the screw-in aid sideways off the base profile
4 INSERTING THE PRO FRONT SCREWIN MODULE SUPPORT
2
1
4
3 5
6

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
8
(18)
Turn the screw-in aid 90° clockwise
Lift the screw-in aid slightly
Pull the screw-in aid sideways off the base profile
Determine the distance to the screw-
in module support according to the
assembly instructions (see chapter 2)
Place screw-in aid in position on the base profile
Insert Pro module support parallel to Pro
base profile in assembly aid (insert pressed-
in screw-in connector into click channel)
5 INSERTING THE PRO SCREWIN HEIGHTENING ELEMENTS
2
4
3
5
6
1

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
9
(18)

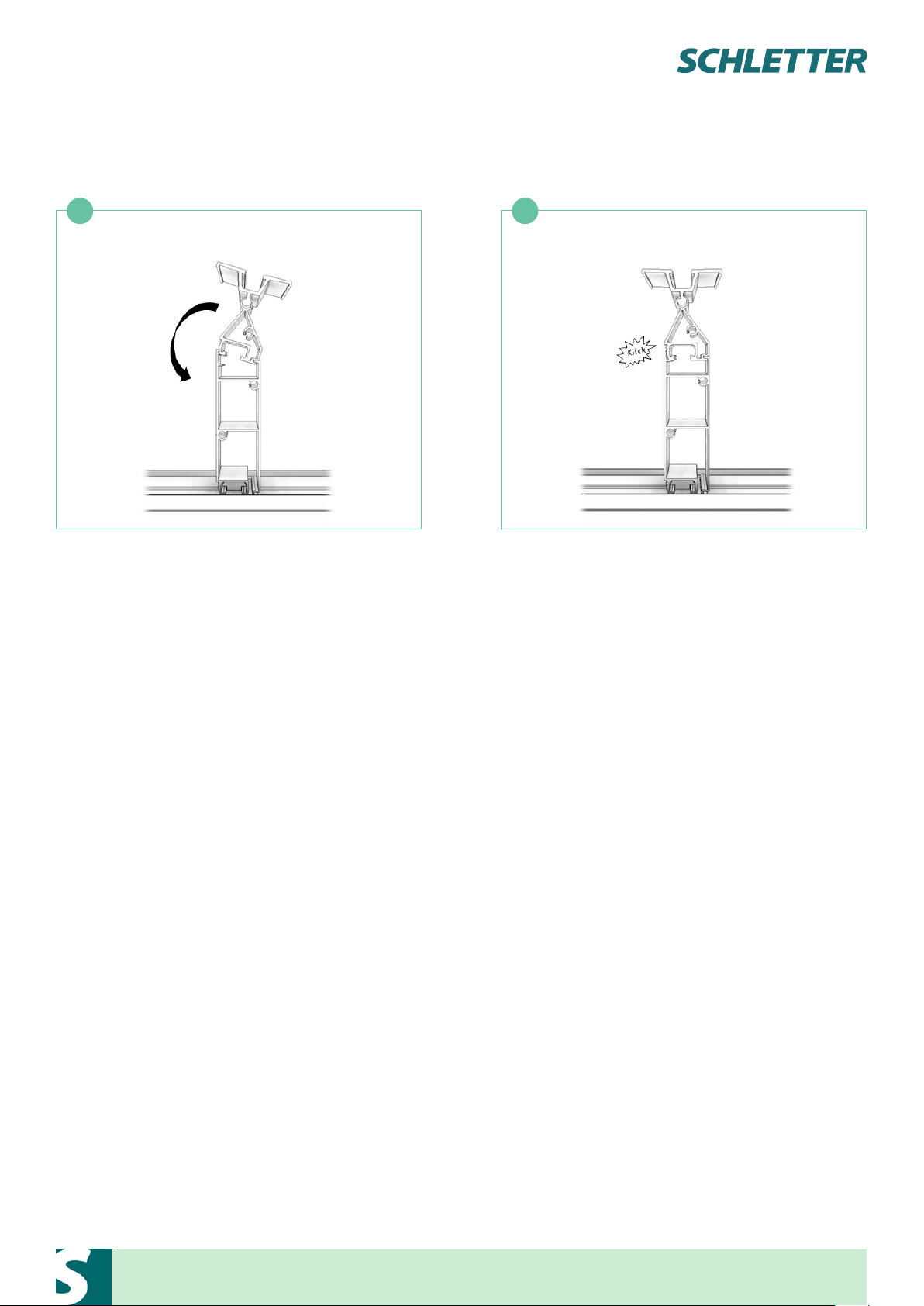

Fit Pro heightening extension element on
existing slightly inclined element (short side
to short side - groove to right-angled arm)
Click in on long side
6 EXTENDING THE PRO HEIGHTENING ELEMENT
OVERVIEW OF THE REQUIRED NUMBER OF REAR PRO
HEIGHTENING ELEMENTS FOR LANDSCAPE ASSEMBLY
5° 10° 15°
Pro module support 1 1 1
Pro heightening element – 1 2
Pro screw-in heightening
element
1 1 1
The Pro screw-in heightening element can also be used instead of the Pro heightening element�
The Pro screw-in module support can also be used instead of the Pro module support�
1 2

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
10
(18)
Place Pro module support on Pro
heightening element at a slight angle
Click in on long side
7 EXTENDING THE PRO MODULE SUPPORT
1 2

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
11
(18)
Peel off the adhesive foil on the upper side
Press it to the bottom of the base
profile at the desired position
8 MOUNTING THE SURFACE PROTECTION MAT
The surface protection mats have an aluminium lining to protect against
softener transfer with the roofing membrane� The aluminium lining is to be placed downwards�
A projection of 30 mm must be maintained
at the beginning and end of the block
1
2
3

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
12
(18)

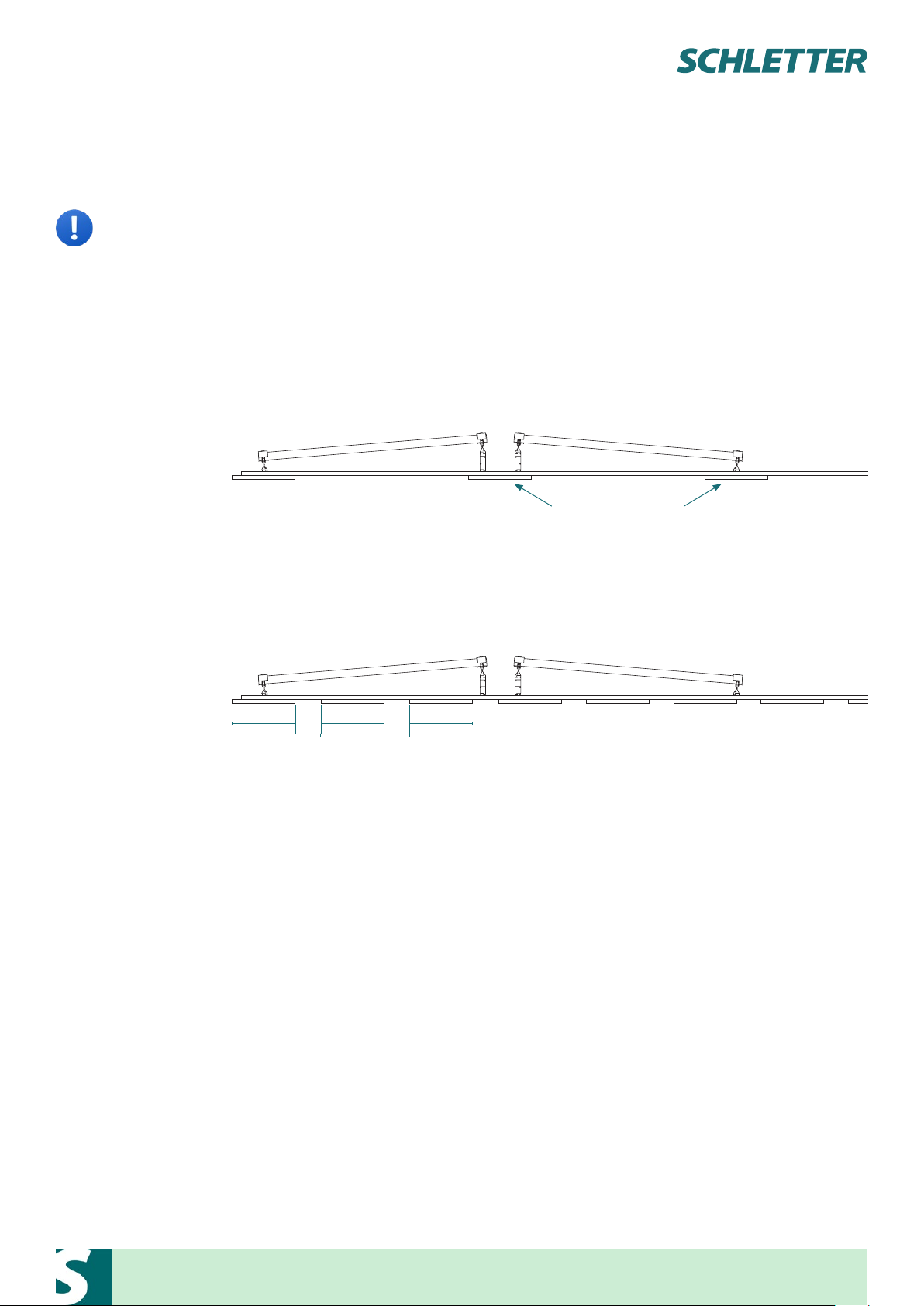

Info on positioning: As a general rule, the surface protection mat is to be placed under each module support�
Please check the maximum permissible surface pressure of the insulation installed on site�
Further surface protection mats can be fitted to reduce the surface pressure�
A 10-cm gap between the mats must be maintained to ensure the flow of rainwater�
Standard version:
Version with reduced surface pressure:
Centrally under each support
300 300
100 100
300

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
13
(18)
Insert internal connector into profile on both sides
Align centrally
Connect the second floor profile�
Bring up to the joint
Position profiles according to dimension g
g= [module length] + 23 mm
9 CONNECTING THE FLOOR PROFILE
10 ALIGNING THE FLOOR PROFILE
For increased loads, the internal connector must be additionally
secured laterally through the floor profile with drill screws� If necessary,
this will be taken into account in the Schletter configurator�
1
1
2
3
4

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
14
(18)
Place ballast blocks (e�g� 20 * 10 * 8 cm - l * w * h)
lengthwise in floor profile�
VERSION A:
PLACING THE BALLAST BLOCKS ON THE FLOOR PROFILE
11 BALLASTING
During development with the Schletter Configurator, the planning is designed in such a way
that the ballast is initially to be placed exclusively on the floor profiles (Version A)�
Additional ballast profiles are only planned to accommodate the ballast in areas where the
required ballast is higher than the space under the photovoltaic modules (Version B)� The ballast
plan of the Schletter Configurator shows where additional ballast profiles are required�
In addition, the use of a gravel bed is possible (Version C)�
1

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
15
(18)
Place the RapidCon90 cross connector at the
connection points of the floor profile to the ballast
profile in the click channel of the floor profile
Attach floor profiles to Rapid-
Con90 cross connectors
Insert first ballast block to determine exact
positioning of the ballast profiles
(The ballast blocks are to be moved up to the
vertical bar of the ballast profile)
Position SW24 fork spanner on RapidCon90 cross
connectorand turn 90° clockwise
Slide in connector ballast profile up to
vertical bar of self-locking lug
VERSION B:
ATTACHMENT OF BALLAST PROFILES
A screwdriver can also be used to create
leverage for installing the RapidCon90 cross
connector�
1
2
3
3
4
5

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
16
(18)
Slide in the second ballast profile up to
the vertical bar of the self-locking lug
Place remaining ballast blocks
Connecting the ballast profiles on the floor
profile is not possible� This must be done in
the open space between the floor profiles�
For a distance of 2,000 mm or more from
floor profile to floor profile, an additional
support must be installed centrally under
the ballast profiles� This consists of a floor
profile section and a surface protection mat�
Maximum weight on ballast profiles:
Floor profile spacing ≤ 2,000mm without support: 150 kg
Floor profile spacing > 2,000mm without support: 250 kg
6
7

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
17
(18)
Lay out the Pro ballast tray on an additional
surface protection mat and with the notch
placed on the floor profile
Slide two clamping wedges between the lowest
support of the Pro ballast tray and the floor profile
Insert the end sheet metal of the Pro ballast tray
and bend the bars with flat pliers
VERSION C:
USE OF THE PRO BALLAST TRAY IN ORDER TO USE THE GRAVEL BED
1
2
3

FIXGRID PRO EAST-WEST | 800440-100EN | V1 | ASSEMBLY INSTRUCTIONS | VERSION: 2023 / 01 | WWW.SCHLETTER-GROUP.COM
Subject to modifications
18
(18)
12 SOLAR MODULE INSTALLATION
Place and align first module,
Click in 2 end clamps and tighten screws
(connect module cables as required)
Click in 2 centre clamps, put on further
modules and fasten them
Fix the last module of the respective row with 2 end
clamps, making sure that the clamp is in contact
with the frame
Repeat steps 1-3 for the other rows
1
2
3
4
