State March 2010 Operating Manual

Hotplate 26060 FB - 26150 FB
STATE March 2010 1
Contents IV 1
Environnemental information UW 2
General information AL 3
Safety SI 4-5
Technical details TE 6-10
Transport TR 11
Commissioning IN 12
Operation BE 13
Cleaning RE 14
Stock keeping of replacement parts and service EK 15
Wiring Diagram SB 16-17
Appendix AN 18

Hotplate 26060 FB - 26150 FB
STATE March 2010 2
Congratulations
We recommend reading these operation
instructions carefully in order to familiarise
yourself with your new device.
If properly used, a good device will serve you
many years.
Please keep these operation and assembly
instructions available for possible further
owners.
We wish you a lot of fun using your new
device!
Environnemental information -E-
Disposal of the device
Devices have to be made inoperable before
they are scrapped by cutting off the mains
cables.
Make sure that the device is properly
disposed according to environmental
requirements.
Warning
Manufacturer can not be made liable if
damages are caused upon non–observance
of the following instructions:
1. The handling of this device and of all other
electrical devices requires the observance of
some basic rules for your own safety as the
following:
-don’t expose the device to any weather
influence as rain, etc.
-keep unattended children away.
2. After unwrapping make sure that the
device has not been damaged. In case
of doubt don’t take the device into
operation and inform the responsible
technician or the after-sales service.
Keep away from children all wrapping
material (plastic bags, polystyrene,
nails, etc.), as they are possible
sources of danger.
3. Device has to be used exclusively for
the indicated purpose.

Hotplate 26060 FB - 26150 FB
STATE March 2010 3
4. Before connecting the device, please check if
indications on the rating plate correspond to
the installation rating.
Basic safety instructions must be observed in
any case. In case of doubts the installation
has to be checked carefully by an authorised
specialist. The electrical safety is guaranteed
only in case that the device is installed and
grounded according to our safety instructions
for electrical installations.
5. In case of care and maintaining works
disconnect device from the electric circuit by
switching off the main switch or quitting
the voltage of the power supply.
6. Don’t leave the device unnecessarily in
operation after use. Switch off the main
switch.
7. In case of operation disturbances or
faults the device has to be
disconnected from the electric circuit.
Qualified specialists or our after-sales
service should carry out repairs. Use
only genuine replacement parts.
General information -AL-
Introduction
Device serves to keep warm food and bakery
products.
Indications given in this operating manual
can be changed without previous advice.

Hotplate 26060 FB - 26150 FB
STATE March 2010 4
Safety -SI-
1 SYMBOLS
1.1 Operating safety
This symbol will be found in all
operating safety advises in
this operating manual where
danger for life and limp of
people exists. Please observe
these advises and act
especially carefully. Pass on
all operating safety advises to
further users.
In addition to the advises in
this operation manual all
general regulations on safety
and prevention of accidents
must be observed.
1.2 Attention
ATTENTIONThis note will be found
everywhere in the operating
manual where special
guidelines, regulations,
advises and the correct
working operation have to
be observed and the
damaging and destroying of
the device has to be
prevented.
2 Operational safety recommendations
2.1 Appropriate use
Device has been manufactured according to the current state of the art technology and to the
acknowledged regulations concerning safety and is reliable in operation.
Nevertheless, if used by unskilled personnel or for impropriety purposes device can cause danger
to life and/or limb of users or third persons respectively can damage the device and other tangible
assets.
Use device exclusively in technically perfect conditions, as well as according to all safety
regulations indicated in the operating manual!
Eliminate all faults, which might affect safety immediately!
Device is only made for purposes described in the operating manual.
All other and additional use does not conform to the regulations. The manufacturer/ supplier is
not liable for damages resulting of improper use. Risk lies with the user.
!

Hotplate 26060 FB - 26150 FB
STATE March 2010 5
The proper use includes observing the operating manual and conditions of inspection and
maintenance.
After cleaning of device check loosened connections, raw rubbed parts and damages.
All detected faults have to be repaired immediately!
Always tighten firmly screwed connections loosened for maintenance and repair purposes!
If dismantling of safety devices is required at setting up, maintenance or repair, the assembly and
checking of all safety devices has to be carried out immediately after finishing the maintenance
and repair works.
Before putting into operation after maintenance works make sure that all protection advises have
been mounted!
Provide safe and environment conserving disposal of operational and auxiliary materials as well
as of replacement parts.
Don’t use device for unsuitable purposes!
Safety guidelines
During the production of your device all safety guidelines, in particular VDE and international CEE
regulations have been observed.
Your device passed final control before leaving the plant and all electrical components were
checked on proper functioning.
Contact protection according to VDE-regulations has to be guaranteed by correct assembly.

Hotplate 26060 FB - 26150 FB
STATE March 2010 6
3Electrical connection
Before connecting please observe indications on rating plate!
Observe VDE-regulations and regulations of your local power supplier!
Connected load 1 x 10 A
Fuse protection 0,33 kW - 2 kW
Voltage IN AC 230 V
-Special voltage upon demand
-Device is delivered with a helix cable of 2m length. E.g. type 3 x 1H05RN3G
-On site: provide accessible, all pole separation device
with contact distance of min. 3mm
.
EG regulations: EMV 89/336
NSR 73/23
CE regulations: 93/68
3.1 Indication of particular kinds of danger
3.2 Electrical energy
Use only genuine fuses with prescribed strength of current! In case of disturbances in power
supply switch off device immediately!
Works at electrical installations or operational means have to be carried out by authorised electric
under guidance and supervision of authorised electricians or trained persons according to Electro
mechanical rules. During works of inspection, maintenance and repair at the device or
components of installation, voltage has to be switched off. Check parts first if they are powerless,
then earth and short out. Insulate adjacent parts under tension!
Electrical equipment of a device has to be checked regularly. Faults, such as loose connections
resp. burned cables have to be removed immediately.
Use only tension-insulated tools!

Hotplate 26060 FB - 26150 FB
STATE March 2010 7
3.3 Information about high temperature
A T T E N T I O N ! ! !
Before putting into operation
During the switching on of the device (before use) high temperatures can be
reached around the heating. Please check the surface before you start working
there!
Don’t put paper, cardboard, cloth, etc. between device and fireproof covering
board, as they might catch fire.
During putting into operation insulation material may emit corresponding smells.
Warning about
hot surface

Hotplate 26060 FB - 26150 FB
STATE March 2010 8

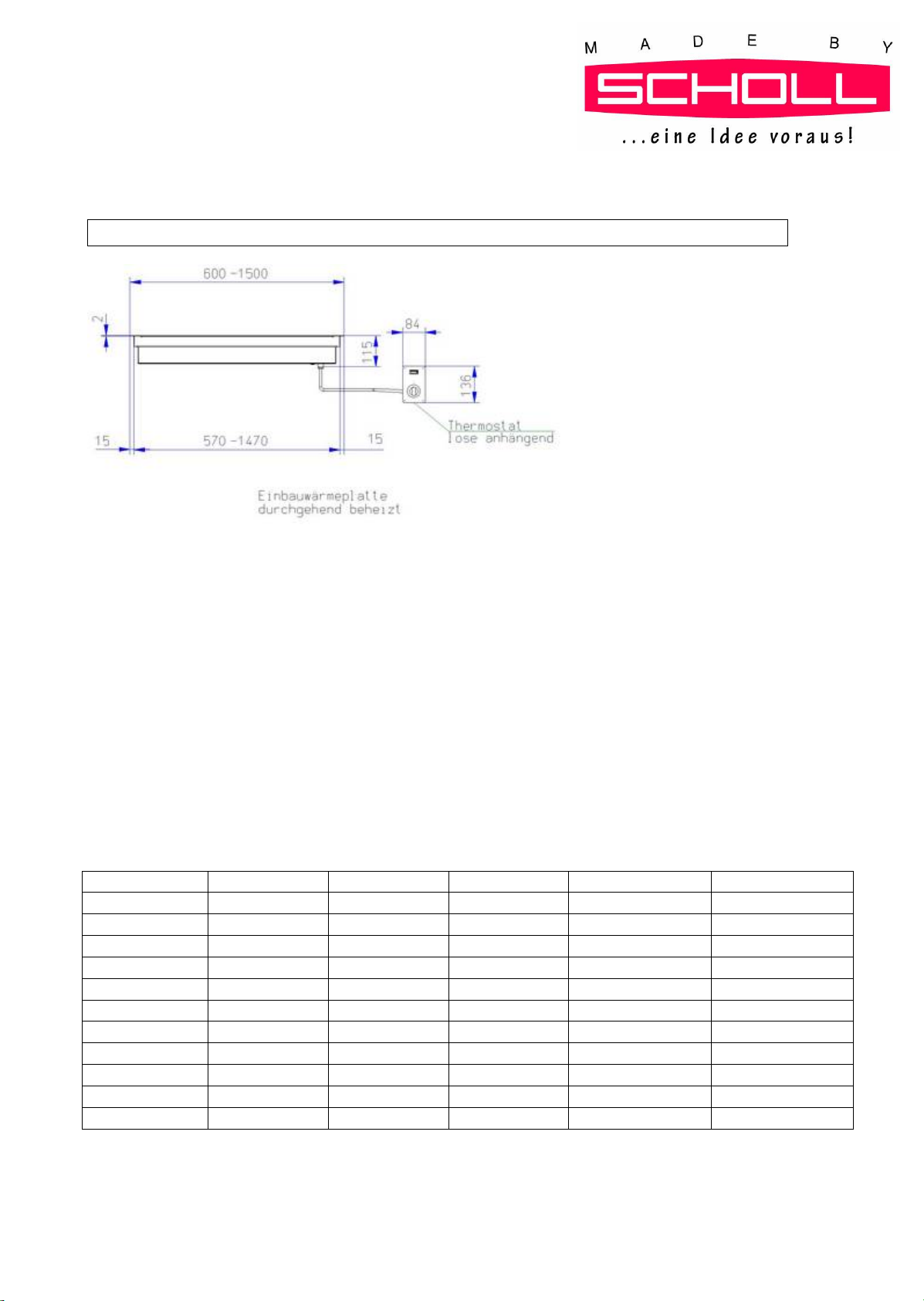

Technical details -TE-
Electrical connection: 230 V
Measures total height: 115 mm
Model-No.: Length mm Depth mm 400 500 600 700 800
26060 FB 600
26070 FB 700
26080 FB 800
26090 FB 900
26100 FB 1000
26110 FB 1100
26120 FB 1200
26130 FB 1300
26140 FB 1400
26150 FB 1500
Hotplates with separately heated zones
Depth 400 500 600 700 800
Model-No.:
26060 FB 2 x 330 W2 x 500 W2 x 630 W2 x 630 W
26070 FB 2 x 400 W2 x 400 W2 x 630 W2 x 630 W
26080 FB 2 x 330 W2 x 400 W2 x 400 W2 x 630 W2 x 630 W
26090 FB 2 x 400 W2 x 400 W2 x 630 W2 x 630 W2 x 750 W
26100 FB 2 x 400 W2 x 400 W2 x 630 W2 x 630 W2 x 750 W
26110 FB 2 x 400 W2 x 630 W2 x 630 W2 x 750 W2 x 750 W
26120 FB 2 x 400 W2 x 630 W2 x 750 W2 x 750 W2 x1000 W short
26130 FB 2 x 630 W2 x 630 W2 x 750 W2 x 750 W2 x 1000 W short
26140 FB 2 x 630 W2 x 750 W2 x 750 W2 x 1000 W short 4 x 630 W
26150 FB 2 x 750 W2 x 750 W2 x 750 W2 x 1000 W long 4 x 630 W

Hotplate 26060 FB - 26150 FB
STATE March 2010 9
Technical details -TE-
Electrical connection: 230 V
Measures total height: 115 mm
Model-No.: Length mm Depth mm 400 500 600 700 800
26060 FB 600
26070 FB 700
26080 FB 800
26090 FB 900
26100 FB 1000
26110 FB 1100
26120 FB 1200
26130 FB 1300
26140 FB 1400
26150 FB 1500
Hotplates completely heated
Depth 400 500 600 700 800
Model-No.:
26060 FB 500 W630 W630 W750 W750 W
26070 FB 400 W630 W750 W1000 W short 2 x 630 W
26080 FB 630 W750 W750 W1000 W short 2 x 630 W
26090 FB 630 W750 W875 W 2 x 630 W 2 x 630 W
26100 FB 1000 W short 875 W875 W2 x 750 W2 x 750 W
26110 FB 1000 W short 875 W 1000 W long 2 x 750 W2 x 1000 W short
26120 FB 1000 W short 875 W 1000 W long 2 x 1000 Wshort 2 x 1000 W short
26130 FB 1000 W short 1000 W long 1000 W long 2 x 1000 W short 2 x 1000 W short
26140 FB 1000 W long 1000 W long 2 x 750 W2 x 1000 W short 2 x 1000 W short
26150 FB 1000 W long 1000 W long 2 x 750 W2 x 1000 W short 2 x 1000 W short
Subject to technical alterations !
Noise level
Operation site related emission value of noise level is below 70 dB ( A ).This indication is
necessary due to certain national safety regulations.

Hotplate 26060 FB - 26150 FB
STATE March 2010 10

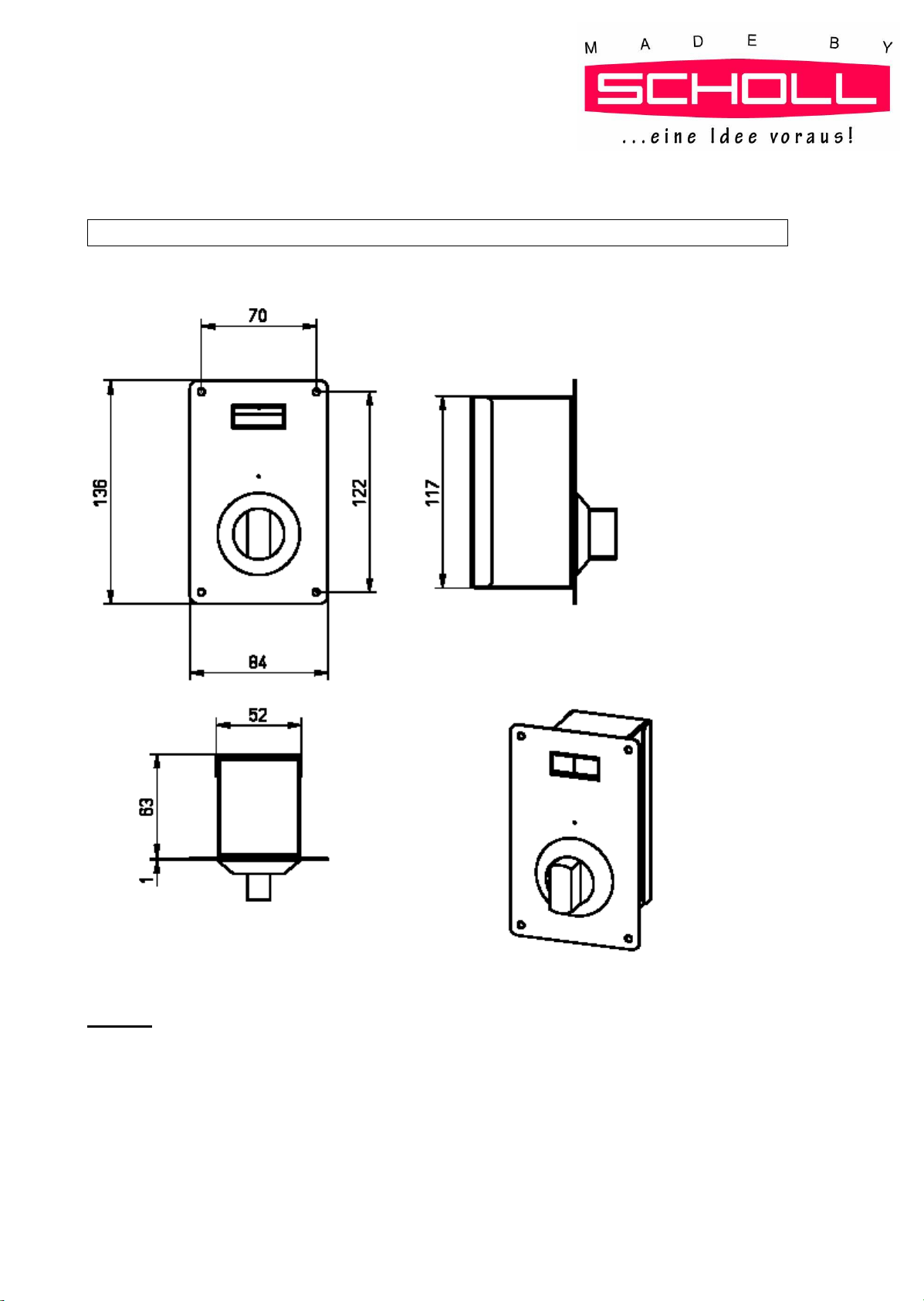

Technical details -TE-
Thermostat covering with built-in cabinet
Cut - out dimensions : Length minus 25 mm
Depth minus 25 mm
Fitting
Prepare cut-out for hotplate in on-site cover plate. Also prepare cut-out for built-in cabinet of
thermostat in on-site counter covering.
Lay thermostat cabinet from behind through cut-out. Screw lateral fixing angles to thermostat
cabinet.
Hang hotplate from above into cut-out of cover plate and seal the rim.
Electrical connections have tobe carried out by authorised specialists.

Hotplate 26060 FB - 26150 FB
STATE March 2010 11
Transport -TR-
1. Packaging
Transport route is important for selection of kind of packing. If not agreed upon otherwise by
contract, packing corresponds to regulations of packing HPE, defined by the Federal Association
for Wood Materials, Pallets, Export Packing e. V. and by the Association of German Machinery
Manufacturers.
2. Delicateness
Transport the device with particular care in order to avoid damage by violent impacts or careless
loading and unloading.
Shocks during transport have to be avoided.
Device has to be treated with care.
3. Interim storing
If devices are not assembled immediately after delivery they have to be stored carefully at a
protected place. They have to be duly covered that neither dust nor humidity can penetrate.
4. Scope of supply
Content of delivery is listed in delivery notes and completeness has to be checked upon receipt.
Possible shipping damages and/or missing items have to be notified immediately in writing.

Hotplate 26060 FB - 26150 FB
STATE March 2010 12
Commissioning -IN-
1. Before commissioning
Before putting into operation of the device following items have to be checked:
-Shipping damages?
-Indications on the rating plate have to match with the local public supply system.
-All electrical protective measures have been carried out and serviceability has been checked.
-All screwed connections are tight.
2. At commissioning
During the putting into operation has to be checked:
Defect devices are not allowed to put into operation.
Instructions for use -IN-
Connect hotplate by means of safety plug to power supply system.
Device is ready for operation.
Turn thermostat to the temperature intended.
Control light glows. Heating up period to approx. 45 min.
After heating up period regulation works automatically.
The signal light goes out after heaving reached wanted temperature.
Don’t touch hot device with unprotected hands !!!
!

Hotplate 26060 FB - 26150 FB
STATE March 2010 13
Operation -BE-
1. How to act in case of disturbance
In addition to the following advises al local safety regulations have to be observed for the
operation of the device.
All electrical repairs have to be done by authorised specialists!
1.1 Repair of disturbances
Symptoms: Reasons: Measures:
-device does not heat up -thermostat or heating defect -exchange thermostat or
radiator
-connection cable broken -exchange cable
-fuse defect - check fuse
-main switch defect
-no voltage at clip
-exchange main switch
Always unplug the
device before
opening!

Hotplate 26060 FB - 26150 FB
STATE March 2010 14
Cleaning -RE-
Always make sure that device is plugged off before cleaning the hotplate.
Don’t hose down the device.
Only wipe device with a wet tissue using a mild cleaner if necessary.
Don’t use cleaning powder.
SECURITY ADVISES
-Don’t use high-pressure cleaner.
-Don’t treat device with acids or expose it to acid vapour. Otherwise the passive layer of nickel
chromium steel will be damaged and the device may probably discolour.
Don’t use device for unsuitable purposes !!!
Water splashing
forbidden
!

Hotplate 26060 FB - 26150 FB
STATE March 2010 15
Stock keeping of replacement parts /after-sales service -RP-
Please fill in here data of the rating plate of your device.
You will find the rating plate next to the cable outlet.
Gustav Scholl
Apparatebau GmbH & Co.
56470 Bad
Marienberg
Volt
KW
Typ
Nr-
Please provide these data always when you require:
-after-sales services,
-replacement parts and accessories,
-technical advice
Replacement parts
Thermostat order-no.: 70,10,02
Thermostat-toggle order-no.: 70,20,05
Signallamp order-no.: 73,10,19
Heating 330 Worder-no.: 71,20,01
Heating 400 Worder-no.: 71,10,02
Heating 630 Worder-no.: 71,10,03
Heating 750 Worder-no.: 71,10,04
Heating 875 Worder-no.: 71,10,05
Heating 1000 W, short order-no.: 71,10,06
Heating 1000 W, long order-no.: 71,10,09
Heating 630 Worder-no.: 71,10,03 2x
Heating 750 Worder-no.: 71,10,04 2x
Heating 875 Worder-no.: 71,10,05 2x
Heating 1000 W, short order-no.: 71,10,06 2x
Heating1000 W, long order-no.: 71,10,09 2x
Connecting cable 3 x 1 order-no.:73,70,30
Your specialised dealer can obtain our fitting and proved replacement parts.
All electrical repairs have to be carried out by authorised specialists.

Hotplate 26060 FB - 26150 FB
STATE March 2010 16

Hotplate 26060 FB - 26150 FB
STATE March 2010 17

Hotplate 26060 FB - 26150 FB
STATE March 2010 18
Appendix -AN-
IMPORTANT
To enable our customer service to prepare repairs carefully and to provide the
appropriate spare parts, please provide the following information when reporting a
customer service requirement:
1. Your precise address (where applicable, final customer's address, person to contact);
2. Your contact details such as phone, fax and e-mail (including, where applicable, those of the final customer);
3. Times when a customer service visit will be convenient;
4. Exact appliance specifications (consult the nameplate and/or purchase receipt);
5. Purchase date
6. Accurate description of the problem or of your service request (including, where applicable, a photo of the defect
or installation situation);
Please also keep the purchase receipt on hand. This will help us avoid unnecessary time and costs while enabling us to
work more efficiently for you.
Service address
You can reach us at the following times:
Monday -Thursday from 7:00 a.m. till 4:00 p.m.
Fridays from 7:00 a.m. till 12:15 p.m.
Outside these office hours please communicate your requests per e-mail or telefax.
Gustav Scholl Apparatebau GmbH & Co. KG
Zinhainer Weg 4
D-56470 Bad Marienberg / Germany
Phone [phone]
Telefax 0049 (0)2661/9868-38
E-mail [e-mail]
