schroff VME64 Series User manual

VME64x Tower System
User’s Manual
Product No.:
10836-050
November 12, 2007Doc-No: 63972-159_R1.0

Impressum:
Schroff GmbH
D-75334 Straubenhardt, Germany
The details in this manual have been carefully compiled and
checked - supported by certified Quality Management System
to EN ISO 9001/2000
The company cannot accept any liability for errors or misprints.
The company reserves the right to amendments of technical
specifications due to further development and improvement of
products.
Copyright © 2007
All rights and technical modifications reserved.
Rev. Date updated Change
R1.0 November 12, 2007 Initial Release

VME64x Tower System
10836-050
www.schroff.biz I R1.0, November 12, 2007
Table of Contents
1 Safety ................................................................................................................. 1
1.1 Intended Application ............................................................................................ 1
1.2 Safety Instructions ............................................................................................... 2
1.3 Safety Symbols used in this document................................................................ 2
1.4 General Safety Precautions................................................................................. 2
1.5 References and Architecture Specifications ........................................................ 3
2 Product Definition............................................................................................. 4
2.1 Mechanical Overview........................................................................................... 5
2.2 Tower System...................................................................................................... 6
2.3 VME64x Backplane ............................................................................................. 6
2.4 Power Supply....................................................................................................... 7
2.4.1 Grounding .............................................................................................. 8
2.4.2 Power Supply......................................................................................... 8
2.5 Thermals............................................................................................................ 10
2.6 Fan Control Module (FCM) ................................................................................ 11
2.7 Display Module .................................................................................................. 11
3 Installation....................................................................................................... 12
3.1 Unpacking.......................................................................................................... 12
3.1.1 Ensuring Proper Airflow ....................................................................... 12
3.2 Basic Functional Check ..................................................................................... 13
4 Service ............................................................................................................. 14
4.1 Technical support and Return for Service Assistance ....................................... 14
4.2 Declaration of Conformity .................................................................................. 14
4.3 Scope of delivery ............................................................................................... 15
4.4 Accessories ....................................................................................................... 15
4.5 Spare Parts........................................................................................................ 15
5 Technical Data ................................................................................................ 16
6 Dimensions ..................................................................................................... 17

VME64x Tower System
10836-050
www.schroff.biz II R1.0, November 12, 2007

VME64x Tower System Safety
10836-050
www.schroff.biz 1 R1.0, November 12, 2007
1 Safety
1.1 Intended Application
The VME64x Tower System, described in this manual, is intended as a platform
for a microcomputer system based on the VME bus system (VME (VITA 1-1994)
and VME64x (VITA 1.1-1997)).
The VME64x system subracks are designed for protection class IP 20 and can
be used only in the resp. environments.
For higher protection requirements, a.e. IP 54/55 you must install the system
subrack in a protective case.
VME64x Tower Systems are not end-products, so there is no valid approval for
this unit. In order to enable stand-alone functionality, additional elements are
required. An operational system is achieved only by way of appropriate VME or
VME64x boards.
The completion and final testing of the units have been carried out, or at least
supervised, by qualified technicians. These instructions are directed exclusively
to these qualified technicians i.e.engineers, trained and qualified electricians
etc.
Make sure that:
• the assembled unit complies with the safety regulations currently applicable
in the country it is going to be used.
• the overall unit complies with all other regulations and specifications at the
place and country of use, e.g. interference limits, approval by the telecom-
munications authorities.

VME64x Tower System Safety
10836-050
www.schroff.biz 2 R1.0, November 12, 2007
1.2 Safety Instructions
The intended audience of this User’s Manual is system integrators and
hardware/software engineers.
1.3 Safety Symbols used in this document
1.4 General Safety Precautions
• Service personnel must know the necessary electrical safety, wiring and
connection practices for installing this equipment in a telecommunication
environment.
• Install this equipment only in compliance with local and national electrical
codes.
Hazardous voltage!
This is the electrical hazard symbol. It indicates that there are dangerous
voltages inside the Shelf.
Caution!
This is the user caution symbol. It indicates a condition where damage of the
equipment or injury of the service personnel could occur. To reduce the risk of
damage or injury, follow all steps or procedures as instructed.
Danger of electrostatic discharge!
The Shelf contains static sensitive devices. To prevent static damage you must
wear an ESD wrist strap.
Warning!
Voltages over 60 VDC can be present in this equipment. This equipment is
intended to be accessed, to be installed and maintained by qualified and
trained service personnel only.
This equipment is designed in accordance with protection class 1!
It must therefore be operated only with protective GND/earth connection!

VME64x Tower System Safety
10836-050
www.schroff.biz 3 R1.0, November 12, 2007
1.5 References and Architecture Specifications
• User Manual VME64x Backplanes
Order no.: 73972-103
• Short Form User Manual VME64x Backplanes
Order no.: 73972-128
• User Manual Fan Control Module (FCM)
Order no.: 73972-083
For more information see the catalogue „Electronic Packaging“ and at
www.schroff.biz

VME64x Tower System Product Definition
10836-050
www.schroff.biz 4 R1.0, November 12, 2007
2 Product Definition
The Schroff VME64x tower system consists of:
• A shielded subrack with front assembly area for
6 U front boards according to VME64x Standard (VITA 1.1-1997)
• A 7 slot VME64x (VITA 1.1-1997) Backplane
• An open frame power supply with wide range input
• Speed controlled fans for cooling the boards
• Fan Control Module (FCM) for fan monitoring/controlling
• Display module
• Mains/line switch
• AC mains/line module with IEC320-C14 connector, line filter and fuses
The fans are assembled at the rear panel, the power supply is located at the rear
lower side.

VME64x Tower System Product Definition
10836-050
www.schroff.biz 5 R1.0, November 12, 2007
2.1 Mechanical Overview
Figure 1: Mechanical Overview
10006844
1 Fan Control Module (FCM) 7 Front panel 4 U, perforated
2 Drive Unit 4 U / 8 HP 8 Fans
3 Display Module 9 AC mains/line module with IEC320-
C14 connector, filter and fuses
4 AC Switch 10 Power Supply
5 VME64x Systembusplatine 11 Air Filter
6 Card cage with guide rails
10
11
1
4
6
7
5
2
3
9
8

VME64x Tower System Product Definition
10836-050
www.schroff.biz 6 R1.0, November 12, 2007
2.2 Tower System
The VME64x Tower System system based on the Schroff europacPro subrack
in a ratiopacPro chassis with EMC shielding. The front card cage provides space
for the installation of 7 VME64x Boards (6 U, 4 HP, 160 mm deep).
The lower guide rails are fitted with ESD clips.
A 4 U / 8 HP Drive Unit for the assembly of a HD Drive is located above the card
cage.
2.3 VME64x Backplane
The 6 U Backplane is compliant to:
• VITA 1.1-1997
• VITA 38 Systemmanagement for VME
The Tower System has a 7 slot Backplane without P0 connectors as standard.
You can customize your system with different Backplanes.
For more information see the Backplane’s User Manual, Order No.: 73972-103/
-128, in the catalogue and at www.schroff.biz
1 Slot = 4 HP = 20,32 mm

VME64x Tower System Product Definition
10836-050
www.schroff.biz 7 R1.0, November 12, 2007
2.4 Power Supply
The subrack system has a open frame AC power supply with wide range input.
The power supply is assembled at the bottom of the Tower System.
The power input is provided by a AC mains/line module with IEC 320-C14
connector, integrated mains/line fuses and line filter.
A mains/line switch is located at the front side.
The maximum fuse values is 8 A.
Figure 2: Fuses
Hazardous voltage!
Parts of the power supply may be exposed with hazardous voltage. Always
remove mains/line connector before carry out any assembly work.
Caution!
Your system has not been provided with a AC power cable. Purchase a
AC power cable that is approved for use in your country. The AC power cable
must be rated for the product and for the voltage and current marked on the
product's electrical ratings label. The voltage and current rating of the cable
should be greater than the ratings marked on the product.
10006845
1 Fuse 2 AC Connector
Warning!
The fuse value has been determined in factory for the maximum power
delivered by the power supply. The fuse value must be changed to the actual
current of the complete equipped system.

VME64x Tower System Product Definition
10836-050
www.schroff.biz 8 R1.0, November 12, 2007
2.4.1 Grounding
2.4.2 Power Supply

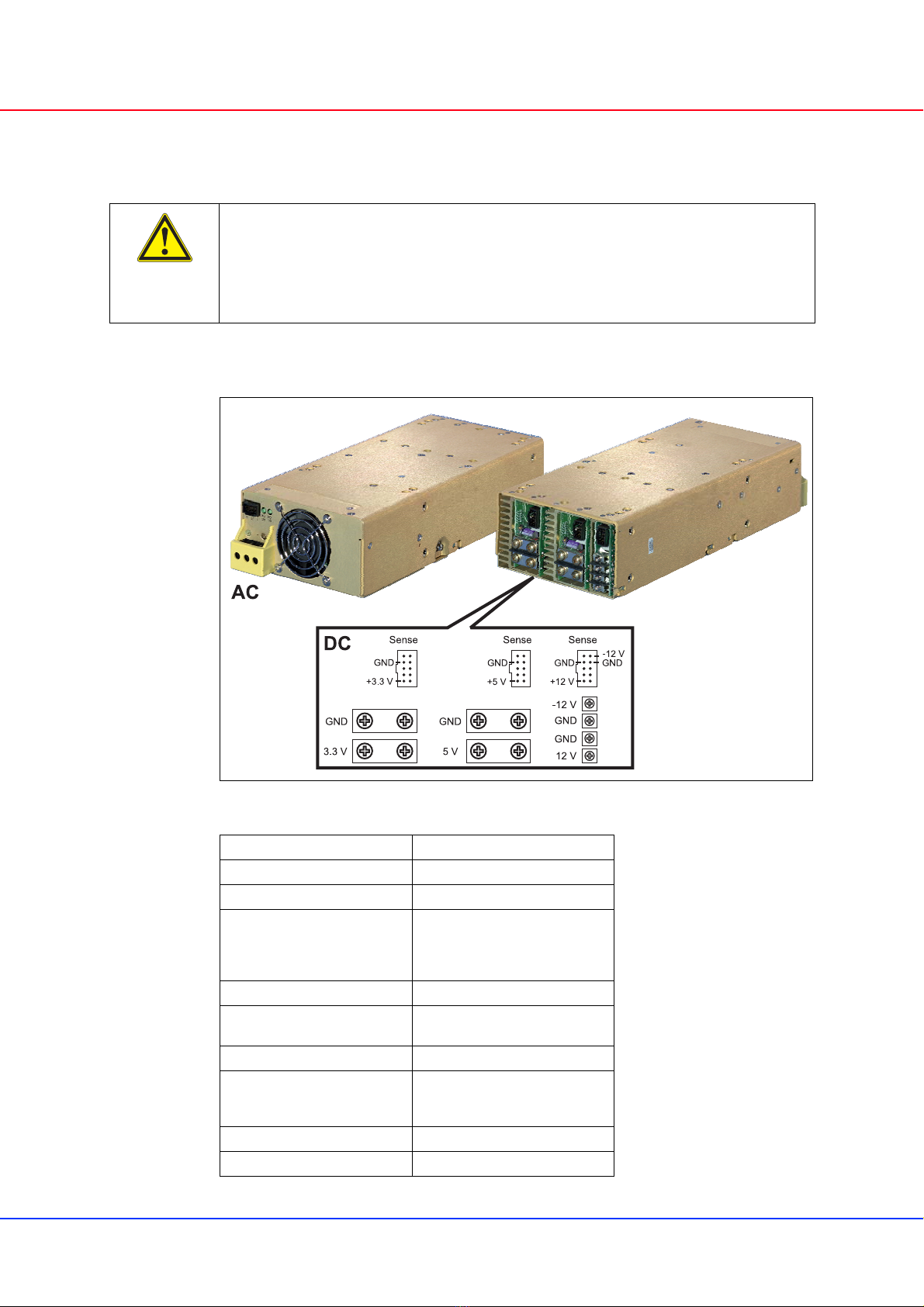

Figure 3: Power Supply
Table 1: Data AC Power Supply
e
Caution!
The unit is designed in accordance with protection class 1! It must therefore be
operated with protective earth/GND connection. Use only a three conductor
AC power cable with a protective earth conductor that meets the IEC safety
standards!
10006814
Input voltage nominal 100 - 240 VAC
Mains Frequency 50 / 60 / 400 Hz
Output (max.) 560 W (400 W if U < 200 VAC)
Output voltages 3.3
5.0
12.0
-12.0
V
V
V
V
-
-
-
-
35
60
10
4
A
A
A
A
Ripple < 1 %
Dynamic response < 2 % or 100 mV with 25 % load
step
Recovery time to within 1% < 300 µsec
Overvoltage protection for all voltages
110 – 120 % U > 5 V or
122 – 134 % U < 5 V
Overcurrent protection 105 – 120 % of rated output current
Hold-up time >= 20 ms

VME64x Tower System Product Definition
10836-050
www.schroff.biz 9 R1.0, November 12, 2007

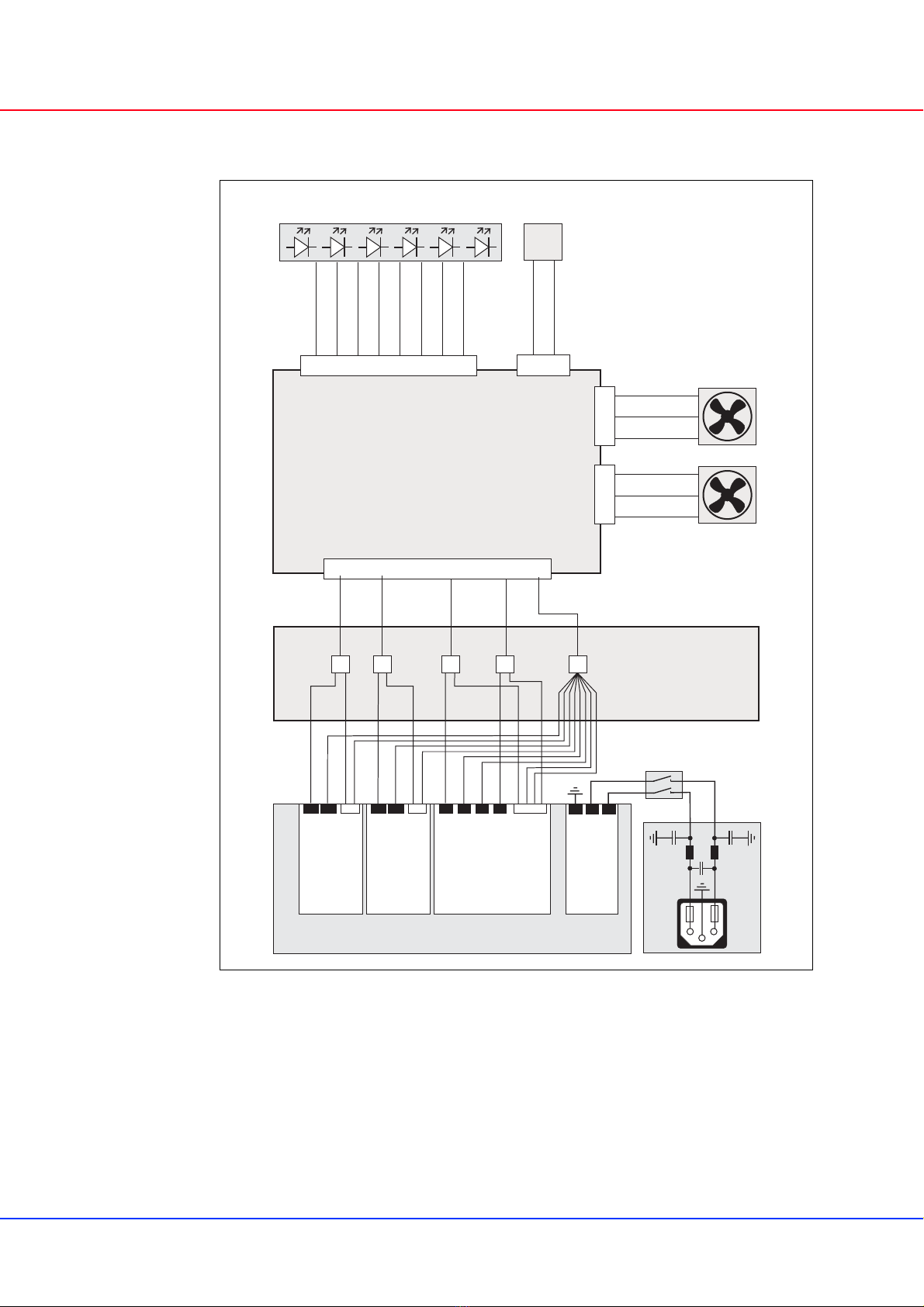

Figure 4: Wiring Diagram
10006835
X4
3.3 V Anode
Tmp Sensor +
Tmp Sensor -
5 V Anode
+12V Anode
-12 V Anode
Fan Fail Anode Tmp Fail Anode GND (Cath com) -12 V Cath.
12
X50
10 3 11
19
+12 V
3.3 V
-12 V
5V
GND
X1
Fan Control Module
X110
X120
+12 V
3.3 V
5V
GND
GND
GND
-12 V
GND
PE
L N
SENSE SENSE
++
--
Backplane
Power Supply
DISPLAY
105 711112 39
Tacho Signal
Tacho Signal
Fan Power +
Fan Power +
Fan Power -
Fan Power -
3
3
2
2
1
1
NTC
SENSE
++
--
+12 V
3.3 V
-12 V
5V GND

VME64x Tower System Product Definition
10836-050
www.schroff.biz 10 R1.0, November 12, 2007
2.5 Thermals
The front boards are cooled by forced air convection through 2 speed controlled
24 VDC axial fans (each fan 170 m³/h (100 cfm)).
The fans are assembled at the rear panel.
The air enters the subrack at the lower front into the bottom air plenum and turns
90° upward. As the air passes across the hot components on the Front Boards,
heat is carried away by forced convection. The air exits the Subrack at the top,
is drawn into the upper plenum, turns 90°, and is exhausted out the rear of the
subrack by fans.
The fan speed is controlled by the Fan Control Module (FCM) depending on the
exhaust temperature. The NTC temperatue sensor is located above the card
cage.
Figure 5: Airflow
Caution!
To maintain proper airflow, all open slots must be covered with filler panels.
The filler panel should include an airflow baffle that extends to backplane.
10002055

VME64x Tower System Product Definition
10836-050
www.schroff.biz 11 R1.0, November 12, 2007
2.6 Fan Control Module (FCM)
The Fan Control Module (FCM):
• Monitors and controls up to four fans
• Monitors the signals from up to four temperature sensors
• Controls the Display Module
• Speed up the fans in case of a failure of one fan
• Is able to communicate with the optional Chassis Monitoring Module (CMM)
Up to four NTC temperature sensors can be connected to the FCM. The highest
temperature level is the reference for the fan speed. If one ore more sensors
exceed 60° C the output for the temperature fail LED and a digital output are
activated. Since the fan speed is temperature controlled by the FCM, the fans
rotate with the lowest speed possible. Lower speeds reduce acoustic noise and
increase the longevity of the fans.
The FCM also controls a Display Module. 4 green LEDs signal the 4 VME64x
voltages, two red LEDs signal over-temperature and fan fail events.
Figure 6: Diagram fan speed/temperature
8
For more information see the FCM’s User Manual, Order No.: 73972-083 and at
www.schroff.biz
2.7 Display Module
Figure 7: Display Module
The Display Module is located at the upper front side of the subrack. 4 green
LEDs signal the 4 VME64x voltages, two red LEDs signal over-temperature and
fan fail events.
The Display Module is controlled by the FCM.
10006807
60
100
Fan
S
peed
(%)
Over-Temp.

VME64x Tower System Installation
10836-050
www.schroff.biz 12 R1.0, November 12, 2007
3 Installation
3.1 Unpacking
Consider the following when unpacking and storing the system:
• Leave the system packed until it is needed for immediate installation.
• After unpacking the system, save and store the packaging material in case
the system must be returned.
If the packaging is damaged and possible system damage is present, report to
the shipper and analyze the damage.
3.1.1 Ensuring Proper Airflow
• Maintain ambient airflow to ensure normal operation. If the airflow is blocked
or restricted, or if the intake air is too warm, an over temperature condition
can occur.
• Ensure that cables from other equipment do not obstruct the airflow through
the systems.
• Use filler panels to cover all empty chassis slots. The filler panel prevents
fan air from escaping out of the front of an open slot.
Caution!
When opening the shipping carton, use caution to avoid damaging the system.
Caution!
To maintain proper airflow, all open slots must be covered with filler panels.
The filler panel should include an airflow baffle that extends to backplane.

VME64x Tower System Installation
10836-050
www.schroff.biz 13 R1.0, November 12, 2007
3.2 Basic Functional Check
Before starting the system with VME boards the following tests have to be done:
• Ensure that the unit does not get damaged during tranport.
• Check the Protective Earth (PE) resistance, should be < 0,1 Ohm.
• Switch on the system and check all VME voltages on the Backplane
connectors before you plug in the VME boards.
Note: The +12 V output requires 10% minimum load, i.e. a resistor
12 Ohm / 12 W.
• Plug in the VME boards.
• Cover all open Slots with filler panels.
• Tighten the rear panel mounting screws.
• Power-on the system and determine the actual current consumtion.
• Replace the mains fuses suitable to the actual current.
Warning!
Voltages over 60 VDC can be present in this equipment. This equipment is
intended to be accessed, to be installed and maintained by qualified and
trained service personnel only.
This eqipment is designed in accordance with protection class 1!
It must therefore be operated only with protective GND/earth connection!
The fuse value has been determined in factory for the maximum power
delivered by the power supply. The fuse value must be adjusted to the actual
current consumtion of the completed system.
Maximum value is 8 A slow blow.

VME64x Tower System Service
10836-050
www.schroff.biz 14 R1.0, November 12, 2007
4 Service
4.1 Technical support and Return for Service Assistance
For all product returns and support issues, please contact your Schroff sales
distributor or www.schroff.biz.
We recommend that you save the packing material. Shipping without the original
packing material might void the warranty.
4.2 Declaration of Conformity
Microcomputer packaging systems are not complete units which can be
delivered directly to the end user, other items need to be fitted.
As it is defined in the EMC standard, it is not designated as a device.
A CE symbol is therefore not required. However, the systems comply with all
requirements. Each individual component complies to the EMC standard
89/336/EWG and to the low frequency standard 73/23/EWG.
These systems are generally equiped with power supplies having the
CE symbol (EN 60950, EN 61000-6-3, EN 61000-6-2).
The choice of the mains filter is carried out by considering the limited values‘
curve, according to EN 55022 class B.
To warrant the interference immunity according to EN 61000-6-2, the shielding
attenuation is measured in the frequency range from 30 MHz to 1000 MHz
according to VG 95 373, Part 15.
The systems are developped and manufactured according to EN 60950. High-
voltage tests, protective earth tests and functions tests are done on each series
system.

VME64x Tower System Service
10836-050
www.schroff.biz 15 R1.0, November 12, 2007
4.3 Scope of delivery
4.4 Accessories
4.5 Spare Parts
On request.
Quantity Description
1 Tower System, shielded, front frame, feet, handles: RAL 7016; side panels: RAL 9006)
1 VME64x Backplane (VITA 1.1-1997), 7 Slot 6 U
1 Front assembly area for max. 7 Boards 6 U 160mm deep
Guide rails incl. ESD-Clips (ESD-Clips assembled at front bottom)
1 AC mains/line module with IEC 320-C14 connector, mains fuses and line filter
1 Open Frame power supply 560 W with wide range input 100 VAC to 240 VAC
(with 4 voltages: 5 V / 60 A; 3.3 V / 35 A; 12 V / 10 A, -12 V / 4 A)
1 Complete AC/DC wiring
1 Display module and mains switch
2 Speed controlled fans, assembeld at rear panel
1 Air Filter
1 FCM-Module for fan monitoring and controlling
1 Drive Unit for HD
Parts-No. Description
20848-7xx Filler panel with EMC front plate for empty Slots, dimensions see catalogue
34562-8xx Filler panel for empty Slots, dimensions see catalogue
24579-03x Printed Circuit Board covers, dimensions see catalogue

VME64x Tower System Technical Data
10836-050
www.schroff.biz 16 R1.0, November 12, 2007
5 Technical Data
Table 2: Technical Data
Dimensions
Height 448.7 mm
Width 496.25 mm
Depth 500 mm
Weight
12 kg
Power supply
Input voltage 100 VAC to 240 VAC
Mains frequency 50 / 60 / 400 Hz
Power consumption) up to 560 W
Cooling
3 x 24 VDC Fans Each 170 m³/h (100 cfm)
Ambient Temperature
Operating 0 °C to +40 °C
Storage -40 °C to +85 °C
Humidity
permissable Humidity 30 % to 80 %, non condensing
EMC, the system meets the
requirements for:
Emitted Interference EN 55022
Interference Resistance EN 55024
Safety
Test voltage according to EN 60950 Input - Output:
Input- PE:
Output - PE:
Output - Output:
4,3 kVDC
2,2 kVDC
0,7 kVDC
0,7 kVDC
Shock and Vibration: EN 60068-2-6 and EN 60068-2-27
Electromagnetic Shielding
Shielding attenuation typ. 40 dB at 1 GHz if shielded front
panels are used.
