Schuchmann MADITA-Fun User manual

Instructions for use.
madita-fun. The modern, integrative therapy chair.
madita-fun.

Many thanks.
Dear Customer
At this point we would like to thank you for placing your trust in our company and
for purchasing our product. We ask you to read through the Instructions for use carefully
prior to initial commissioning of the product, and to observe them. Please note that gui-
delines and representations in these Instructions for use may deviate from your product
due to diering equipment. We reserve the right to make technical modifications.
Important information!
Ensure that these Instructions for use remain with the product.
Your schuchmann Team

03 Contents.
1. Preparation. ................................................................................ 05
1.1 Delivery............................................................................................................................05
1.2 Safety measures prior to use ..............................................................................05
1.3 Safe disposal...............................................................................................................05
1.3.1 Packaging...........................................................................................................05
1.3.2 Product................................................................................................................05
1.4 Where to store the Instructions for use..........................................................05
2. Product description. .................................................................... 06
2.1 Material information ................................................................................................06
2.2 Handling/transport................................................................................................06
2.3 Application areas, use according to the intended purpose .............06
2.3.1 Indications .........................................................................................................06
2.3.2 Contraindications .........................................................................................06
2.4 Use not in accordance with the intended purpose / warning gui-
delines............................................................................................................................07
2.5 Equipment for basic model................................................................................. 07
2.6 List of accessories....................................................................................................08
2.7 Product overview......................................................................................................08
3. Settings. ..................................................................................... 09
3.1 Seat height...................................................................................................................09
3.2 Seat angle....................................................................................................................10
3.3 Seat depth...................................................................................................................10
3.4 Back inclination..........................................................................................................10
3.5 Back height................................................................................................................... 11
3.6 Armrests...........................................................................................................................11
3.7 Foot support................................................................................................................ 12
3.8 Footrests ........................................................................................................................ 13
3.8.1 Positioning of the footrests.........................................................................14
3.9 Footrests with foot pans ........................................................................................ 15
4. Accessories. ................................................................................ 16
4.1 Headrest......................................................................................................................... 16
4.2 Conversion kit for combination sub-frame.................................................. 16
4.3 Removable back....................................................................................................... 17
4.4 Thorax pelotte pads ............................................................................................... 17
4.5 Foldable thorax pelotte pads............................................................................ 17
4.6 Thigh guide ..................................................................................................................18
4.7 Abducting leg guides ............................................................................................. 18
4.8 Adjustable pelvic guide......................................................................................... 19
4.9 Parking brake............................................................................................................... 19
4.10 Anti-tip mechanism............................................................................................... 19
4.11 Therapy table............................................................................................................. 19
4.12 Knee abduction wedge......................................................................................20
4.13 Wheelbase extension...........................................................................................20

04
5. Cleaning and servicing. ............................................................... 20
5.1 Cleaning and disinfecting ....................................................................................20
5.1.1 Cleaning ..............................................................................................................20
5.1.2 Disinfection......................................................................................................... 21
5.2 Servicing ........................................................................................................................ 21
5.3 Maintenance ............................................................................................................... 21
5.3.1 Maintenance specifications ...................................................................... 21
5.3.2 Maintenance plan......................................................................................... 22
5.4 Spare parts ................................................................................................................. 23
5.5 Duration of use and re-use................................................................................. 23
6. Technical data. ............................................................................ 24
7. Guarantee. .................................................................................. 25
8. Identication. ............................................................................. 26
8.1 EU Declaration of Conformity............................................................................. 26
8.2 Serial number / date of manufacture............................................................27
8.3 Product version ..........................................................................................................27
8.4 Issue of the document ...........................................................................................27
8.5 Name and address of the manufacturer, specialist dealer sup-
plying the product....................................................................................................27
Contents.
04

05 1. Preparation.
1.1 Delivery
On receiving the product, please check it for completeness, lack of faults
and any transport damage. Inspect the goods in the presence of your
forwarder. Should transport damage have occurred, please arrange for
an inventory (determination of the faults) to be made in the presence of
the forwarder. Please send a complaint in writing to the specialist dealer
responsible.
1.2 Safety measures prior to use
The correct use of the product requires detailed and thorough instruction
of the user or the accompanying person. We ask you to read through the
Instructions for use carefully prior to initial commissioning of the product,
and to observe them. It is possible that product parts that get in contact
with the skin may heat up in the sun. Depending on the duration and in-
tensity of solar radiation, the surfaces of individual parts can heat up to
over 41°C and thus lead to slight burns in the event of direct skin contact.
Therefore cover these areas or protect the device from direct sunlight.
1.3 Safe disposal
In order to preserve and protect the environment, to prevent environmental
pollution and to improve the recycling of raw materials, please note the
disposal instructions in points 1.3.1 and 1.3.2.
1.3.1 Packaging
The packaging of the product should be kept for any future transport that
might be required. Should you have to return the product for repairs or in
case of a guarantee claim, please if possible use the original box so that
the product is optimally packaged. Otherwise, separate the packaging
materials for recycling according to their classification.
Do not leave packaging materials unattended, as they are a possible source of
danger.
1.3.2 Product
At the end of the product life cycle, recycle the raw materials used in the
product according to their nature (see material information under point 2.1).
1.4 Where to store the Instructions for use
Please store these Instructions for use carefully and ensure that these
Instructions for use remain with the product in case of re-use. Should you
lose the instructions, you can always download an updated version at
www.schuchmann.de .

06 2. Product description.
2.1 Material information
The base frame and the individual elements are made of steel and
aluminium which are non-corroding and powder-coated. The covers
are made of 100% polyester and are flame resistant (according to
DIN EN 1021-1+2).
2.2 Handling / transport
The therapy chair is not designed to be carried, as it is fitted
with castors. Should you have to carry the equipment due to obstacles,
ensure that all moving parts are tightened. Then position yourself next to
the therapy chair, grip it at the front and rear under the seat unit and
carry it to the required location. To transport the therapy chair, reduce all
adjustments to their most compact size (fold up foot support, set lowest
seat height etc.)
Tighten all moving parts prior to carrying!
The user must not be in the therapy chair, while it is
being transported!
2.3 Application areas, use according to the intended purpose
The madita-fun. therapy chair is a medical product of risk class 1 and
designed for use at home, in nurseries and at school. It can be used for
all ages from early childhood to teenage years. Individually adjustable
seat dimensions and supporting pelotte pads allow a stable and upright
sitting position. Any other use or use over and above this purpose shall be
considered not in accordance with the intended purpose.
2.3.1 Indications
The madita-fun. therapy chair is designed for children and youths who
cannot sit or stand unaided however whose limited torso posture does
not require permanent sitting in a seat pan. This includes impaired sitting
with functional and/or structural damage to the torso or the torso and, if
applicable, the cervical muscles (e.g. due to neurological/neuromuscular
disorders, deformations of the spine) with poor posture.
2.3.2 Contraindications
In general, the indication should be accompanied by a doctor/or-
thopaedist. It should therefore be clarified prior to procurement
whether contraindications exist for the patient. In general, any type of pain
represents a contraindication.

07 2. Product description.
2.4 Use not in accordance with the intended purpose / warning guide-
lines
• Make sure that the therapy chair is used by one user only.
• Only use the therapy chair on an even and solid surface.
• Do not use the therapy chair to transport people.
• In order to guarantee safe lifting when transporting the therapy chair,
stand at the side of the therapy chair and grasp the front and back of
the seat surface. Here all movable parts should be tightened.
• Never leave the user seated in the therapy chair without supervision.
• Correct usage of the therapy chair requires precise and careful training
of the accompanying person.
• The max. load (see Point 6) may not be exceeded.
• Do not use the therapy chair if it has defective, worn or missing parts.
• For reasons of fire safety, the therapy chair may not be placed close to
an open fire or any other strong source of heat such as electric or gas
heaters.
• Use only accessories and spare parts made by Schuchmann, otherwise
you will compromise the safety of the user.
• Only use the therapy chair if all components have been correctly
mounted and adjusted.
• Please ensure that none of the user's extremities are in the respective
area when making adjustments of any kind to minimise the risk of injury.
• Please read out the Instructions for use for users suering from a visual
or reading impairment, so that they can use the therapy chair safely.
2.5 Equipment for basic model
• Incl. armrests, foot support, push handle, standard seat pad with cover
• Seat height can be adjusted with gas pressure spring assistance (1200N,
800N for Size 0)
• 4 castors (75 mm), of these 2 with locking devices
• Adjustment possibilities: Seat angle (via gas pressure spring 500N), back
angle, seat depth and seat width, angle, height and width-adjustable
armrests, height-adjustable backrest, foldable foot support, adjustable
knee angle, foot angle and height

08 2. Product description.
2.6 List of accessories
• Headrest
• Removable back
• Thorax pelotte pads (also foldable)
• Thigh guide
• Adjustable pelvic guide
• Therapy table
• Knee abduction wedge
• Conversion kit for combination sub-frame
• Central parking brake
• Hydraulic height adjustment
2.7 Product overview
The Fig. below is intended to show you the designation of the most
important components as well as the terms which you will find in these
Instructions for use.
Headrest
Base frame
Push bar
Back angle adjustment
Thorax pelotte pads
Castor at rear with
locking device Front castor
back
Armrests
Thigh guide
Seat pad
Footrest

09 3. Settings.
Settings and adjustments to the product or accessories may only be made
by people who have been given the necessary instructions by a medical
product advisor. Please ensure that none of the user's extremities are in the
respective area when making adjustments of any kind to minimise the risk
of injury. All adjustments can be made with standard tools (e.g. Allen key,
screwdriver or spanner).
3.1 Seat height
The seat height is adjusted using a
gas pressure spring. In order to ad-
just the seat height upwards, the foot
pedal (A) on the base frame is actua-
ted. By pressing it lightly, the seat unit
slides upwards. Lowering is achieved
through pressure from above onto the
seat whilst at the same time operating
the foot pedal. The gas pressure spring
serves merely to assist with adjust-
ment of the height. The foot pedal can
be secured against inadvertent ope-
ration with the spring pin (B) (located
on the inside of the foot pedal). To do
this, turn the spring pin until it enga-
ges. If necessary, assist engagement
by moving the foot pedal gently. The
locking eect is cancelled by pul-
ling out the spring pin and turning it
a quarter turn. Alternatively, the seat
height can be adjusted using the hy-
draulic height adjustment. In order to
bring the therapy chair up, pump the
pedal (C) until the chair reaches the
required height. In order to lower the
therapy chair, place a foot under the
pedal (C) and press it upwards.
Ensure that, during setting / adjustment of the seat height, no body parts (feet)
are trapped in the area of the setting / adjustment mechanism (between the
oor and the footrest of the therapy chair) in order to avoid injuries
A
B
C

10 3. Settings.
Electrical height adjustment is also possib-
le. This is operated with the existing remote
operation (A). Press the arrow key downwards
in order to adjust the seat height downwards
and upwards in order to adjust the seat
height upwards.
In case of problems with the control unit, please contact a specialist dealer
so that the product can be returned to the factory if required. As soon as the
housing is opened, the Linak sticker (B) is damaged, whereupon the 2-year gua-
rantee automatically expires.
3.2 Seat angle
The lever for the seat angle adjustment is
equipped with a child lock. In order to adjust
the angle of the seat unit, the hand trigger (C)
at the rear below the seat pan holder must
be actuated by pushing it together horizon-
tally until it engages. The seat unit can now
be adjusted in an active or passive position.
It is optionally possible to mount the relea-
se handle (D) for the seat angle adjustment
on the push bar / handle. To adjust the seat
angle, simply activate the release handle (D).
3.3 Seat depth
To adjust the seat depth, loosen the two wing
screws (E) under the seat unit. Then the seat
surface can be moved continuously forwards
or backwards.
After each adjustment, please retighten all
screw connections!
3.4 Back inclination
The back can be adjusted to the correct
angle after loosening of the clamping lever (F)
on the right-hand side of the seat unit.
Ensure that, during setting / adjustment of the
back inclination, no body parts are trapped in
the area of the setting / adjustment mechanism
in order to avoid injuries.
A
C
E
F
E
D
B

11 3. Settings.

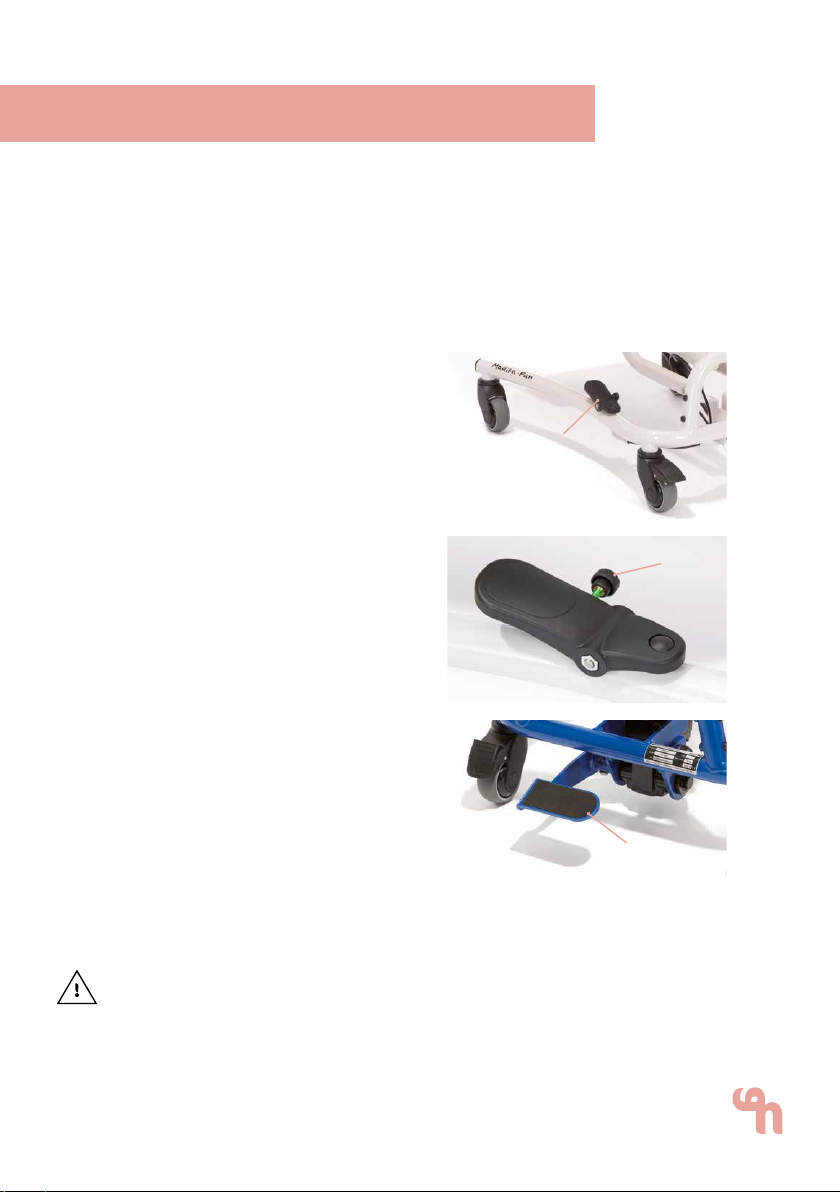

3.5 Back height
Loosen the cylinder head screw (A)
with the hexagonal wrench (M8) at the
rear and bring the back into the requi-
red height.
3.6 Armrests
The armrests can be adjusted in angle,
height and width. The angle is adjus-
ted after loosening the star knob (B).
The height can be adjusted through
loosening the star knob (C).
The width adjustment takes place
after loosening the two grub screws (D),
which are located on the underside of
the seat unit.
After each adjustment, please retighten
all screw connections!
A
B
C
D D

12

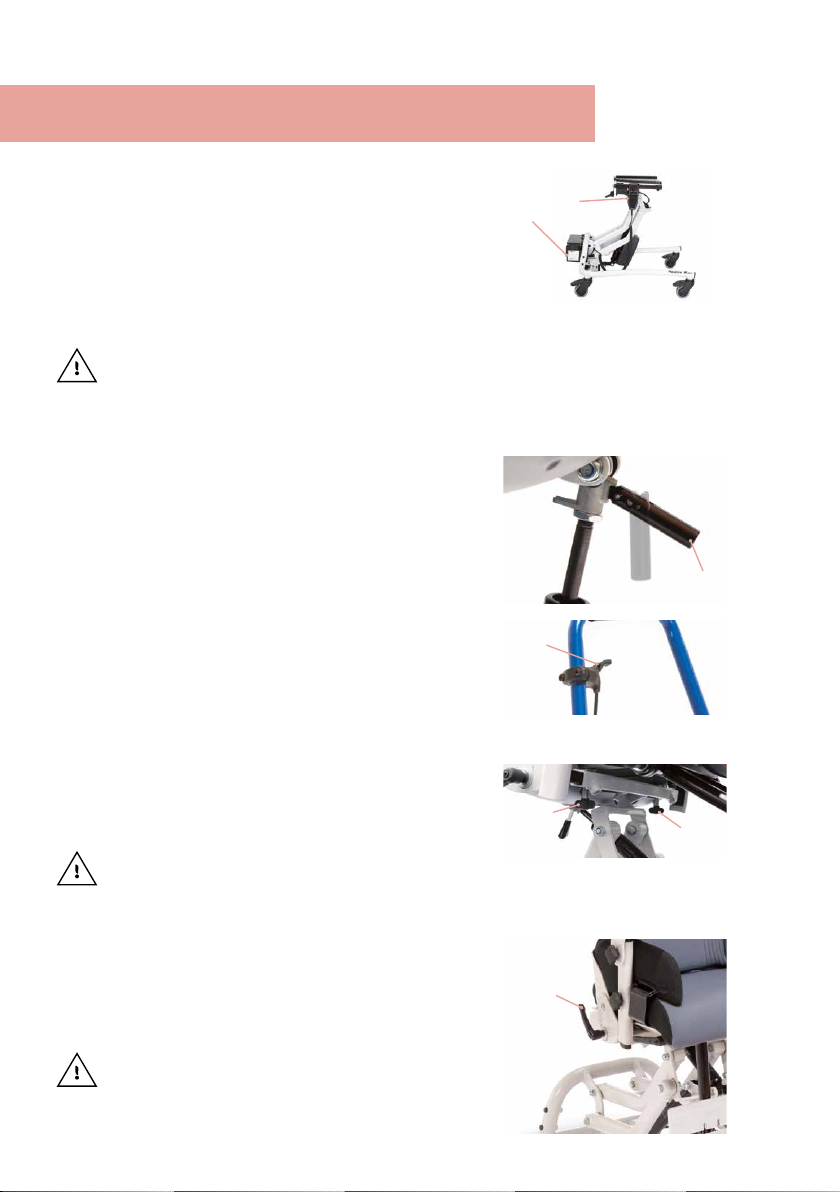

3.7 Foot support
The basic model of the madita-fun.
already includes a foot support (A).
This has a non-slip surface (B) and has
8 slots (C) for fixing straps such as foot
cus or foot fixing straps. In order to
adjust the knee angle, please loosen
the clamping lever (D) under the seat
surface, bring the foot support into the
required position and retighten the
clamping lever (D). The foot support
can be folded up in order, for example,
to facilitate climbing in (E). In order to
continuously adjust the height, please
loosen the four grub screws (F), bring
the foot support into the required po-
sition and retighten the grub screws (F).
The foot angle can also be ad-
justed for optimum positioning
of the feet. To do this, first fold the foot
support upwards and then screw the
hexagon socket screws (G) in or out.
Counter the nuts (H) after each foot
angle adjustment.
Counter the nuts (H) after each foot angle adjustment!
After each adjustment, please retighten the clamping lever and the grub screws!
For „Shortening the foot support tubes“ see assembly instructions. These can
be found at www.schuchmann.de/mediathek.
3. Settings.
A
B
C
EF
H
G
G
F
E

13
3.8 Footrests
Optionally, madita-fun. can also be
equipped with footrests (A). These
have a non-slip surface (B) and have
4 slots each (C) for fixing straps such
as foot cus or foot fixing straps. For
adjustment of the knee angle, please
loosen the clamping lever (D) under the
seat surface on both sides, bring the
footrests into the required position and
retighten the clamping lever (D). The
footrests can be folded up, for examp-
le in order to facilitate climbing in (E).
For continuous height adjustment,
please loosen the two grub screws (F)
on each footrest, bring the footrests
into the required position and retigh-
ten the grub screws (F).
After each adjustment, please retighten
the clamping lever and the grub screws!
3. Settings.
D
A
F
C
E
BA

14

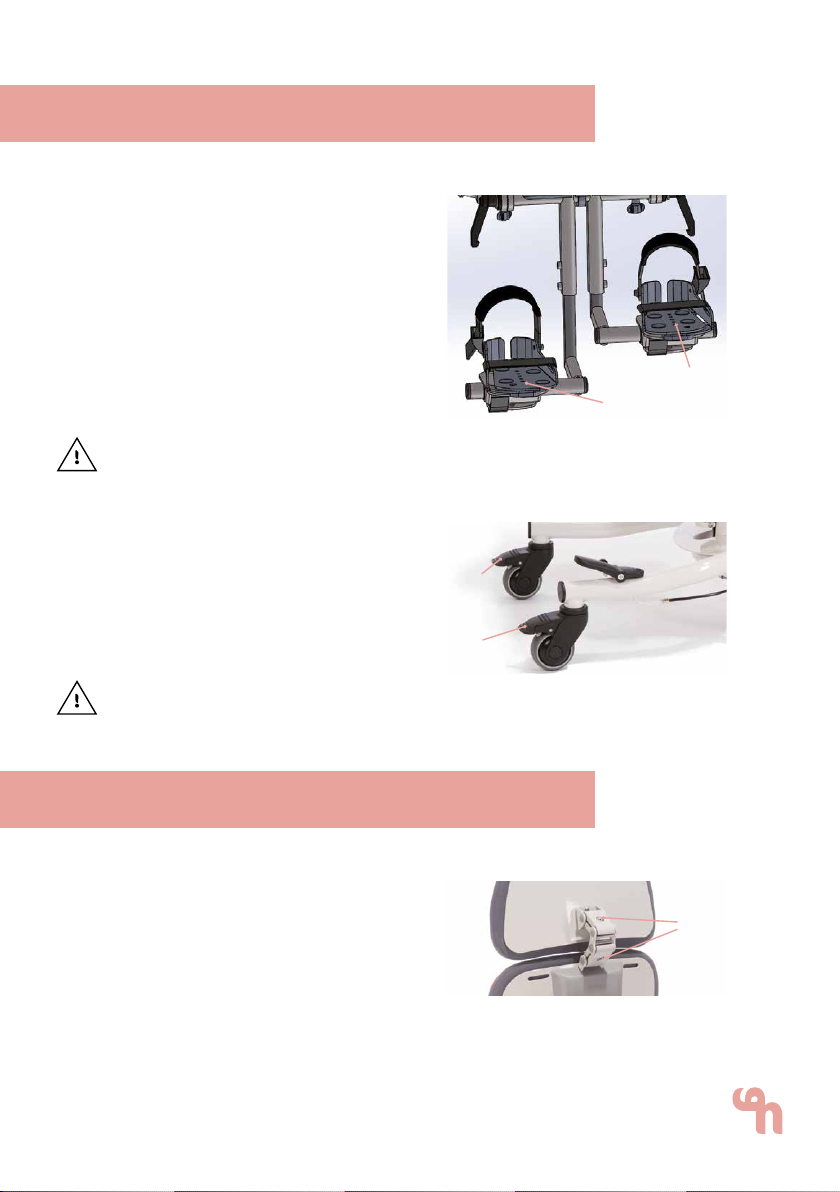

3.8.1 Positioning of the footrests
For optimum positioning of the feet,
the footrests can be adjusted inde-
pendently of each other in width,
angle and depth. In order to adjust
the width (C), please loosen the pan
head screws (D) under the footrests,
bring the footrest into the required
position and retighten the pan head
screws (D).
Foot angle
The foot angle (A) of the respective
footrest can be adjusted from (-)15° to
5°. To achieve this, please screw the
grub screws (B) under the footrests in
or out, thus adjusting the required foot
angle.
Angle / depth
In order to adjust the angle and the
depth (E), please loosen the pan head
screws (F) under the footrests, bring
the footrest into the required position
and retighten the pan head screws (F).
In addition, additional width adjust-
ments can also be made in this way.
Securing against folding up
The footrests can be secu-
red against unwanted folding
up. To do this, simply loosen the
hook and eye fastener (G) under
the footrest, bring the footrest into the
required position and close the hook
and eye fastener (G) again.
After each adjustment, please retighten
all screw connections!
3. Settings.
F
B
D
C
C
E E
AA
G

15 3. Settings. 15

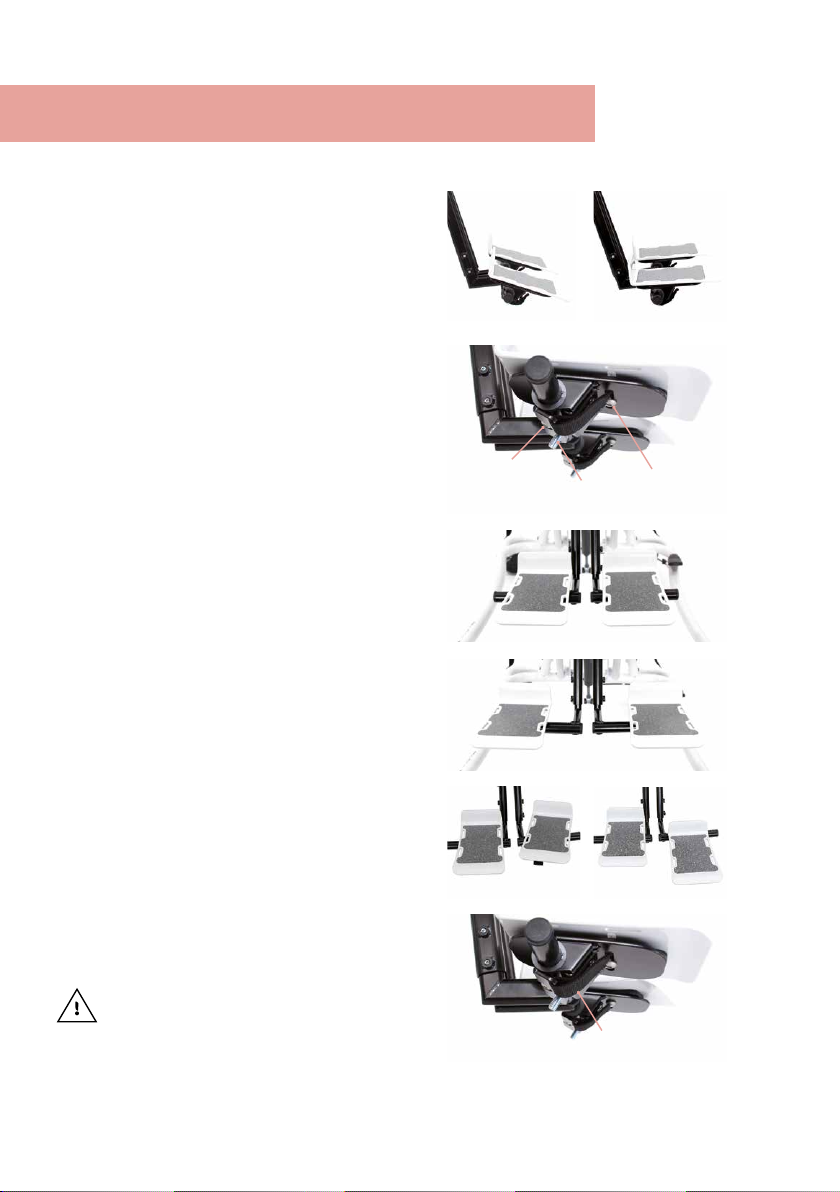

3.9 Footrests with foot pans
Optionally, the footrests can also be
equipped with foot pans (A). Here, as
on the standard design, the knee ang-
le can be adjusted, the foot pans fol-
ded up and the height adjusted (see
Point 3.8). For optimum positioning
of the feet, the footrests with foot
pans can be adjusted independently
of each other in width, angle and
depth (see Point 3.8.1).
After each adjustment, please retighten
all screw connections!
3.10 Castors
The therapy chair should always be
prevented from rolling away inadver-
tently through braking of the 2 rear
castors. To do this, press the brakes (B)
down with the tip of your foot.
The brake serves merely to prevent inad-
vertent rolling away on level surfaces!
3. Settings.
A
A
B
B
4. Accessories.
4.1 Headrest
The headrest can be adjusted in
height, depth and angle. In order to do
this, please loosen the 2 cylinder head
screws with a hexagonal wrench (C)
and bring the headrest into the requi-
red position.
C

16 4. Accessories.
4.1.1 Headrests with angle-adjustable lateral guide
The headrest with angle-adjustable lateral
guide (A) can be adjusted in height, depth
and angle (see Point 4.1).
In addition, the angle of the lateral guide
can be adjusted individually.
To adjust the lateral guide, loosen the he-
xagon socket screw (B+C) and bring the re-
spective lateral guide into the desired po-
sition.
Tighten the twist grip / clamping lever again after each adjustment!
Support the head of the user with one hand when you make an adjustment to the
headrest during use!
4.2 Conversion kit for combination sub-frame
When converting madita-fun. to a
combination sub-frame, the plastic
castors are replaced with 6“ pneu-
matic wheels with steering forks and
12 ½“ pneumatic drum braked wheels.
The drum brakes work independent
of air pressure. They are integrated
into the wheel hubs and cannot
be accessed. They provide the com-
panion to the user the possibility of as-
sisting with the braking action (in par-
ticular when driving down hills) and of
locking the sub-frame. This is conduc-
ted through the two brake levers (D)
which are mounted onto the push
handle. The drum brakes are set by turning the setting screws in or out.
They are located at the lower end of the brake cables in the brake saddle.
Leave this work to your specialist dealer in case of any uncertainty.
Handling the wheels on the combination sub-frame
The following general rules apply:
High air pressure: Low rolling resistance / less suspension comfort
Low air pressure: Higher rolling resistance / more suspension comfort
D
A
BC

1717 4. Accessories.

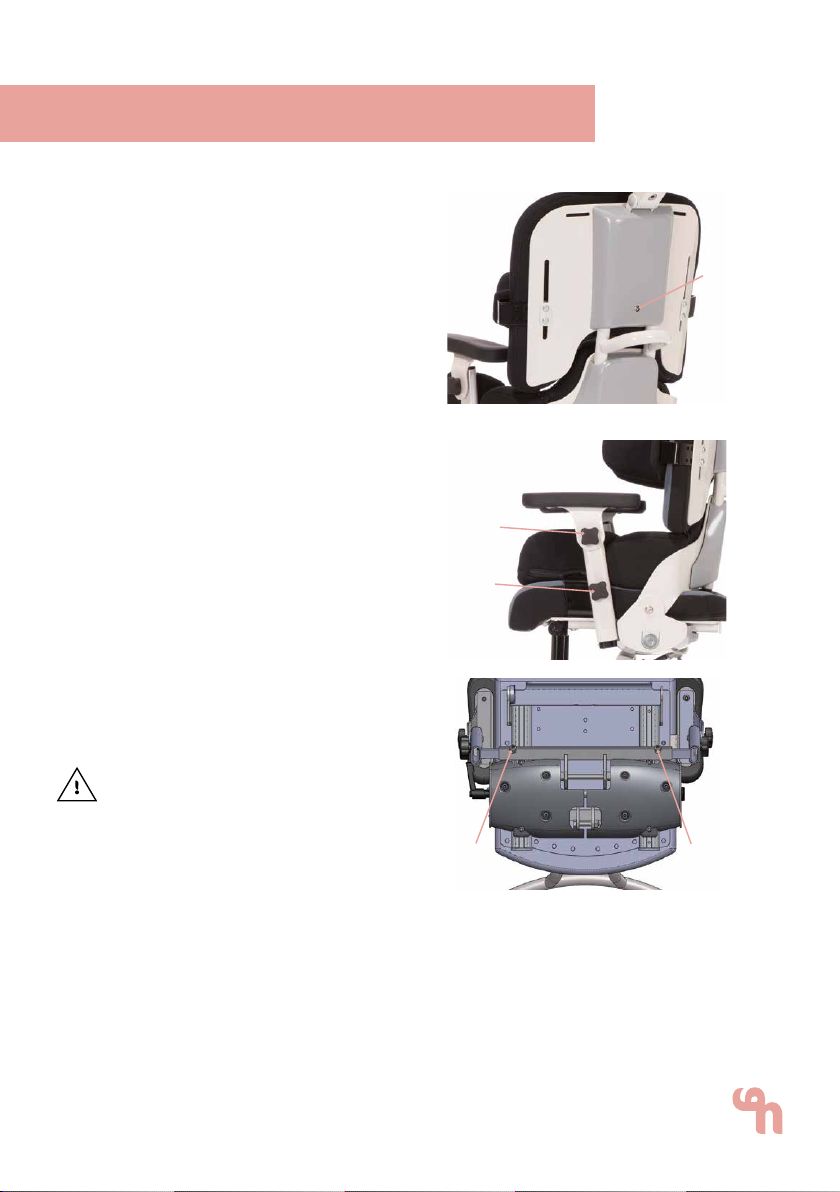

4.3 Removable back
The removable back can be operated on the
back of the therapy chair. Loosen the twist
grip (A), press the locking lever (B) together
and then remove the back.
The function of the removable back can be
integrated into the therapy plan and also
used for short periods of time, as the back,
including the headrest, is quickly plugged in
again, and provides the user with a positioner
and support when they are tired.
After each adjustment, please retighten all
screw connections!
4.4 Thorax pelotte pads
The thorax pelotte pads are individually
adjustable in height and width. In order to
do this, please loosen the 2 pan head screws
with a hexagonal wrench (C) and bring the
thorax pelotte pads into the required position.
4.5 Foldable thorax pelotte pads
Thefoldablethoraxpelottepadscanbefolded
to the sides. To do this, please press the red
pushbutton (D) on the side of the thorax
pelotte pad over the joint, and swivel the
pelotte pad away to the side.
When folding back, ensure that the thorax
pelotte pad engages!
A
B
C
D

18 4. Accessories.
4.6 Thigh guide
The thigh guide pads are individu-
ally adjustable in height and depth.
In order to adjust the depth, loosen the nuts (A)
under the seat area and bring the thigh gui-
de pad into the required position. The depth
adjustment is possible on any thigh guide
except on the standard version for Size 0 with
adjustable pelvic guide. In order to adjust
the depth, please open the zips (B), loosen
the 3 pan head screws (C) with a hexagonal
wrench and bring the pad into the required
position.
After each adjustment, please retighten all
screw connections!
4.7 Abducting leg guides
The abducting leg guides permit the medi-
cally necessary abduction of the thighs and
the compensation of a seat depth dierence.
In order to adjust the leg guides, please loo-
sen the nuts (D) below the seat surface, and
bring the leg guides into the required position.
You can easily adjust the abduction angle (1),
the thigh width (2) and also the leg length
compensation or seat depth dierence (3)
via the slotted holes whilst the user is sitting in
the therapy chair.
B
C
A
D
3
12

19 4. Accessories.
4.8 Adjustable pelvic guide
The adjustable pelvic guide can be adjusted
in width, provides the user with a high level of
security and positions the pelvis.
First loosen the cylinder head screw on the
rear of the therapy chair at the lower edge of
the cover (A). Then push the front of the pad
down slightly and loosen the hexagon socket
screw (B). Now please position the user in the
chair and bring the pelvic guide into the desi-
red position. First tighten the cylinder head
screw (A) again and only then lift out the user.
Now you only need to tighten the hexagon
socket screw (B) and then you can lift the user
back into the chair.
After each adjustment, please retighten all
screw connections!
4.9 Parking brake
The parking brake can be used by the user
themselves. If the lever (C) is pressed down,
the brake is released. If the lever (C) is pointing
upwards, the brake is applied.
4.10 Anti-tip mechanism
Theanti-tipmechanismisadjustableinheight.
To adjust the height, open the lever (D), po-
sition the anti-tip mechanism to the required
height and close the lever once more.
4.11 Therapy table
The therapy table can be adjusted in height
and depth. Height adjustment takes place
via adjustment of the armrests (see Point 3.6).
For adjustment of the depth, loosen the wing
screw (E) and bring the therapy table into the
required position. In order to fold the therapy
table to the side, for example when the child
gets in or out, loosen the wing screws (E+F),
swivel the table upwards (G) and guide it to
the side of the therapy chair.
A
B
C
D
E
G
F

20
4.12 Knee abduction wedge
The knee abduction wedge must be
mountedontothefrontoftheseatplateusinga
quick-release axle. To do this, please press
the knob (A) on the quick-release axle, and
the abduction wedge can easily be removed
or inserted. When inserting the abduction
wedge, you should be able to hear it engage
with an audible "click".
4.13 Wheelbase extension
The wheelbase extension (B) cannot be ad-
justed! It is plugged in at the front of the frame
and is used exclusively for stability.
After each adjustment, please retighten all
screw connections!
4. Accessories.
5. Cleaning and servicing.
A
B
5.1 Cleaning and disinfecting
5.1.1 Cleaning
Please clean all frame elements regularly with a sponge
or damp cloth; making sure that water droplets are
removed. Please clean with a mild household detergent
for severer dirt. Thorough drying of the cleaned areas
is important.
All fabrics that cannot be removed can be wiped with
a moist cloth. For all removable fabrics please pay
attention to the sewn-in care labels (such as A+ B) on
the respective element. Please also pay attention to
our general cleaning and hygiene advice. This can be
found at www.schuchmann.de/mediathek.
7190045
A
Obermaterial/
top cloth/dessus:
100% Polyester
B
