Schumacher Nelson User manual

January 1, 2017
1
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
2017 product
cAtALoG
irriGAtion
technoLoGy
for the future
AgriCulture environmentAl green industry Crop speCifiC

January 1, 2017
2
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
our focuS
AGricuLturAL &
induStriAL irriGAtion.
our MiSSion
SAVe WAter , SAVe
enerGy, SAVe LABor
& do A Better JoB
of irriGAtinG.
our pASSion
peopLe And productS.
productS MAde
in WALLA WALLA,
WAShinGton, u.S.A.
2017 Marks 45 Years
For Nelson Irrigation
Corporation
cAtALoG
tABLe of contentS
2

January 1, 2017
3
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / inf[email protected]
cAtALoG
tABLe of contentS
Figuring out how to best grow crops for your
particular region is very important to us.
Nelson water application solutions take into
account specific soil types, crop rotations
and farming practices. Let us help you
identify your Geocropical® needs.
3

January 1, 2017
4
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
At the heArt of the 3030 SerieS iS the
neW 3nV nozzLe. BuiLt With the preciSion
AccurAcy of the 3tn, thiS innoVAtiVe diAL-
nozzLe coMBineS MuLtipLe functionS So
you cAn effectiVeLy MAnAGe your SySteM.
introducinG the neW
3030 SerieS SprinkLer
PIVOT SPRINKLERS / 3030 SERIES
QUICK-CHANGE — PUSH & TURN, AUDIBLE “CLICK”
STAINLESS STEEL SPRING FOR ACCURATE
AND SECURE POSITIONING
COVERS COMPLETE NOZZLE RANGE, USING
THE SAME NUMBERING AND FLOW RATES
AS THE 3TN NOZZLE SYSTEM
SAME COLOR-CODES AS 3TN BUT ODD-SIZE NOZZLES
HAVE WEATHER-ENDURING SCALLOPED EDGE
Great for
Sensitive Soils
ROTATOR®ACCELERATOR SPINNER
Great Sprayhead
Replacement Option
Widest Throw
Highest Uniformity
Low Application Rates
WIDE THROW DISTANCE OF ROTATING STREAMS
PROVIDES OPTIMAL (LOW) PRECIPITATION RATES
ROTaTOR / 70’ (21.3 m) DIam. ORaNgE PLaTE /
#36 NOzzLE @ 20 PSI (1.4 baR)
WideSt throW on
drop tuBeS
A fAMiLy of productS for A MuLtitude of needS
4

January 1, 2017
5
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
3030
series
Multi-Trajectory Plates
Have Improved Performance
Great for
Sensitive Soils
SPRAYHEAD
ORBITOR
UNIVERSAL
SUPERIOR FLUSHING OPTIONS: Sequence to work debris through.
It’s never advised to stick something in a nozzle – the 3NV
flushes with a quick and simple turn of the nozzle. No tools
necessary.
“ON” AND “OFF” CAN BE SELECTIVE: If you’re over-watering,
or if you need to conserve water for a time, simply select the
sprinklers you want to turn off. Consider the cost savings of
having a built-in ball valve on every sprinkler!
MAnAGe your SySteM
Without eVer hAVinG
to reMoVe A nozzLe.
The U3030 Body is for
use with Part-Circle 3030
options and Hose Drag
Adapter. See page 13-14.
No Drift or Drool &
Less Debris Hang-up
WIDE THROW DISTANCE OF ROTATING STREAMS
PROVIDES OPTIMAL (LOW) PRECIPITATION RATES
ROTaTOR / 70’ (21.3 m) DIam. ORaNgE PLaTE /
#36 NOzzLE @ 20 PSI (1.4 baR)
SHORT THROW DISTANCE OF FIXED SPRAY
PROVIDES HIGH PRECIPITATION RATES
SPRay / 40’ (12.8 m) DIam. bLacK PLaTE / #36 NOzzLE @ 10 PSI (0.7 baR)
5
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / [email protected]

January 1, 2017
6
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
BeSt in cLASS At GettinG
WAter in
the Ground
2
MountS
up top or
on dropS
3
10 reASonS Why
rotAtor
®
technoLoGy
reiGnS
1
30 yeArS
fieLd-
proVen

January 1, 2017
7
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
LoW preSSure
optionS AVAiLABLe
(rotAtor With oLiVe
pLAte or AcceLerAtor)
4
WideSt
throW
diStAnce AVAiLABLe
on dropS
6
hiGheSt
uniforMity
7
preciSion enGineered
& MAnufActured for
LonG WeAr Life
8
ModuLAr deSiGn
centered Around
3tn & 3nV
nozzLeS
5
10 reASonS Why
rotAtor
®
technoLoGy
reiGnS
10 GeocropicAL
®
SoLutionS
for different cropS, SoiLS,
fArMinG prActiceS And cLiMAtic
conditionS ALonG With reGionAL
differenceS in the AVAiLABiLity
of WAter & enerGy
9pArt-
circLe
VerSion
AVAiLABLe
wINd-FIGhtING
streaMs
@ 6-15 psI
(0.4-1 bar)
(aCCeLerator)
up-top
@ 6-15 psI
(0.4-1 bar)
(aCCeLerator)
wINd-
FIGhtING @
20-50 psI
(1.4-3.4 bar)
hIGhest
uNIForMItY
@ 15-30 psI
(1-2 bar)
Low pres-
sure, hIGh-
uNIForMItY
@ 10-15 psI
(0.7 - 1 bar)
MaxIMuM
throw @
15-30 psI
(1-2 bar)
up-top @
15-30 psI
(1-2 bar)
MaxIMuM
dIaMeter
@ 6-15 psI
(0.4-1 bar)
(aCCeLerator)
nelsonirrigation.com

January 1, 2017
8
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
10-50 psi (0.7-3.4 bar)
50-74’ (15.2-22.6 m)
R3030
ROTATOR®
A3030
ACCELERATOR
UP-TOP
OR
DROPS
UP-TOP
OR
DROPS
R
SEE PAGE 9 FOR PART-CIRCLE R3000 & PART-CIRCLE R3030.
EASILY CONVERT
FROM ACCELERATOR TO
SPRAYHEAD TO BUBBLER
OPTIONAL SPRINKLER
CONVERTER #11472
Max. #50 Noz.
Min. #14 Noz. @
30 psi (2.0 bar)
#16 for low press.
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
Max. #50 Noz.
Min. #14 Noz. @
30 psi (2.0 bar)
#16 for low press.
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
Max. #50 Noz.
Min. #12 Noz. @
10 psi (0.7 bar)
BLUE UP-TOP
U4-8° WHITE UP-TOP GREEN D4-8° RED D6-12° ORANGE MULTI-TRAJECTORY BROWN MULTI-TRAJECTORYOLIVE LOW PRESSURE
Plate #8817
Cap/Plate Assy*
#11969-001
Cap/Plate/3030 Body
Assy* #12471-001
Plate #10749
Cap/Plate Assy*
#11969-002
Cap/Plate/3030 Body
Assy* #12471-002
Plate #8844
Cap/Plate Assy*
#11969-003
Cap/Plate/3030 Body
Assy* #12471-003
Plate #8839
Cap/Plate Assy*
#11969-004
Cap/Plate/3030 Body
Assy* #12471-004
Plate #10598
Cap/Plate Assy*
#11969-005
Cap/Plate/3030 Body
Assy* #12471-005
Plate #10681
Cap/Plate Assy*
#11969-006
Cap/Plate/3030 Body
Assy* #12471-006
Plate #12360
Cap/Plate Assy*
#11969-007
Cap/Plate/3030 Body
Assy* #12471-007
20-50 psi
(1.4-3.4 bar)
15-30 psi
(1.0-2.0 bar)
20-50 psi
(1.4-3.4 bar)
15-30 psi
(1.0-2.0 bar)
15-30 psi
(1.0-2.0 bar)
15-30 psi
(1.0-2.0 bar)
10-15 psi
(0.7-1.0 bar)
Max. #50 Noz.
Min. #10 Noz. @
10 psi (0.7 bar)
#18 @ 6 psi
Max. #50 Noz.
Min. #10 Noz. @
15 psi (1.0 bar)
#12 @10 psi
#18 @ 6 psi
Max. #50 Noz.
Min. #10 Noz. @
15 psi (1.0 bar)
#12 @10 psi
#18 @ 6 psi
MAROON GOLD NAVY
UP-TOP
Plate #9906
Cap/Plate Assy*
#11498-001
Cap/Plate/3030 Body
Assy* #12473-001
Cap/Plate Assy*
#11498-002
Cap/Plate/3030 Body
Assy* #12473-002
Cap/Plate Assy*
#11498-003
Cap/Plate/3030 Body
Assy* #12473-003
6-15 psi
(0.4-1.0 bar)
6-15 psi
(0.4-1.0 bar)
6-15 psi
(0.4-1.0 bar)
A
#10402
MAROON
ACCELERATOR
CAP
PIVOT SPRINKLERS / 3030 SERIES
6-15 psi (0.4-1 bar)
30-55’ (9.1-16.8 m)
*Part numbers do not include the Adapter & Nozzle that are required for a complete Assembly.
*Part numbers do not include the Adapter & Nozzle that are required for a complete Assembly.
8

January 1, 2017
9
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
desCrIptIoN
Sprinkler
Converter See Page 14-15
part No. 11472
A3000
ACCELERATOR
Cap/Plate/3000 Series Body
Assy (less adapter & nozzle)
#11973-xxx (Use -xxx from table
on page 8 for plate specifications)
#10402 Maroon Accelerator Cap
desCrIptIoN
PC-R3000 (less
nozzle & adpater)
10843-xxx
-001 black,
-002 white
-003 tan
QtY/box150
Lbs/box23
desCrIptIoN
PC-R3030 (less
nozzle & adpater)
12651-xxx
-001 black,
-002 white
-003 tan
QtY/box 100
Lbs/box 26
R3000Common Rotator® Parts R3030
Rotator® & Accelerator sprinklers come in the 3000 Series (with 3TN nozzle) or new 3030 Series (with 3NV nozzle).
R3000
ROTATOR®
Cap/Plate/3000 Series Body
Assy (less adapter & nozzle)
#11970-xxx (Use -xxx from table
on page 8 for plate specifications)
#9539 Blue Rotator Cap
desCrIptIoN
3/4" MNPT x
Square Thread
Adapter Rotator Plates Rotator Cap/Motor
Rotator
Cap/Plate
Assy 3TN Nozzle (see pg. 18)
R3000/
S3000
Body
r3000
Components
Total**
R3000
Cap/Plate
Body Assy 3NV Nozzle (see pg. 18) R3030/ S3030 Body
r3030
Components
Total**
R3030
Cap/Plate
Body Assy
part No. 9410 (pg. 8) 9539 11969-xxx 9461-xxx 9412 (including
nozzle &
adapter)
11970-xxx 12035-xxx 12034 (including
nozzle &
adapter)
12471-xxx
box13x13x16” 12x12x8” 12x12x8” 12x12x8” 12x12x10” 13x13x16” 13x13x16” 12x12x10” 13x13x16”
QtY/box900 600 300 200 700 300 200 500 150
Lbs/box39 11 16 14 11 16 24 14 19
**COMPONENTS TOTAL INCLUDES ADAPTER, PLATE, CAP/MOTOR, NOZZLE (3TN OR 3NV) AND BODY (R3000 OR R3030).
A3000 A3030 Common Accelerator Parts
desCrIptIoN
3/4" MNPT x
Square Thread
Adapter Plates Accelerator Cap/Motor
Accelerator
Cap/Plate
Assy 3TN Nozzle (see pg. 18)
A3000/
D3000
Body
A3000
Components
Total**
A3000
Cap/Plate
Body Assy 3NV Nozzle (see pg. 18) A3030/ D3030 Body
A3030
Components
Total**
A3030
Cap/Plate
Body Assy
part No. 9410 (pg. 8) 10402 11498-xxx 9461-xxx 9428 (including
nozzle &
adapter)
11973-xxx 12035-xxx 12346 (including
nozzle &
adapter)
12473-xxx
box13x13x16” 12x12x8” 12x12x8” 12x12x8” 12x12x10” 14x14x12” 13x13x16” 12x12x10” 14x14x17”
QtY/box900 1000 300 200 700 400 200 500 200
Lbs/box39 12 14 14 11 15 24 14 24
**COMPONENTS TOTAL INCLUDES ADAPTER, PLATE, CAP/MOTOR, NOZZLE (3TN OR 3NV) AND BODY (A3000 OR A3030).
9
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / inf[email protected]

January 1, 2017
10
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
10-20 psi (0.7-1.4 bar)
42-54’ (12.8-16.5 m)
S3030
SPINNER
O3030
ORBITOR
UP-TOP
OR
DROPS
S
O
DROPS
6-20 psi (0.4-1.4 bar)
36-60’ (11.0-18.3 m)
IMPORTANT MOUNTING INFORMATION:
1. The Orbitor requires a minimum of 2' (0.6 m) of reinforced flexible
hose in the mounting assembly.
2. When using the Orbitor with the weighted cover, do not use any other
conventional weight styles instead of, or in addition to, the Orbitor
weight.
3. When using the Orbitor with the plastic cover, an inline weight is
required. Use Nelson Slim Weights (page 17) or 3/4” NPT threaded
weights. Slip weights require the Nelson Clamp Saver (page 17).
4. Always be sure that the Orbitor Weight, Slim Weight, or threaded
weight is securely tightened.
5. Always be sure that all components in the mounting assembly and the
Orbitor are securely tightened. Use new* Nelson pressure regulators
and fittings.
6. If ¾” ball valves are used, use metal nipples or Nelson P/N-12291
plastic nipples.
ORBITOR WITH
WEIGHTED COVER ORBITOR WITH PLASTIC COVER
NEW! UP-TOP
SPINNER:
HIGH UNIFORMITY,
GREAT OVERLAP,
LOW APPLICATION
RATES
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
#18 for low press.
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
#16 for low press.
Max. #50 Noz.
Min. #14 Noz. @
30 psi (2.0 bar)
#16 for low press.
Max. #15 Noz.
Min. #10 Noz. @
10 psi (0.7 bar)
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
RED
D6-12° PURPLE D6-20° YELLOW D8-21° BEIGE** SMALL NOZZLE LIME UP-TOP
Plate #8839
Cap/Plate Assy*
#11971-001
Cap/Plate/3030 Body
Assy* #12472-001
Plate #9583
Cap/Plate Assy*
#11971-002
Cap/Plate/3030 Body
Assy* #12472-002
Plate#10361
Cap/Plate Assy*
#11971-003
Cap/Plate/3030 Body
Assy* #12472-003
Plate #11013
Operates with a
#10-15 nozzle.
Ultra-low flow.
Plate#12534
Cap/Plate Assy*
#11971-005
Cap/Plate/3030 Body
Assembly* #12472-005
10-20 psi
(0.7-1.4 bar)
10-20 psi
(0.7-1.4 bar)
10-20 psi
(0.7-1.4 bar)
10-15 psi
(0.7-1.0 bar)
6-15 psi
(0.4-1.0 bar)
Part Circle
S3030 Spinner
#12650
#14-40 NOZ.
10-20 psi
(0.7-1.4 bar)
#11-#50 Noz.
Nozzle Range
#11-#50 Noz.
Nozzle Range
#11-#50 Noz.
Nozzle Range
BLACK
STANDARD ANGLE BLUE LOW ANGLE PURPLE SMALL DROPLET
03000 Assy w/ Weight
#11488-101
03000 Assy w/ Plastic
Cover #11488-301
03030 Assy w/ Weight
#12317-101
03030 Assy w/ Plastic
Cover #12317-301
03000 Assy w/ Weight
#11488-102
03000 Assy w/ Plastic
Cover #11488-302
03030 Assy w/ Weight
#12317-102
03030 Assy w/ Plastic
Cover #12317-302
03000 Assy w/ Weight
#11488-103
03000 Assy w/ Plastic
Cover #11488-303
03000 Assy w/ Weight
#12317-103
03030 Assy w/ Plastic
Cover #12317-303
6-20 psi
(0.4-1.4 bar)
6-20 psi
(0.4-1.4 bar)
6-20 psi
(0.4-1.4 bar)
*New, patented single-strut seat manufactured after 2007.
PIVOT SPRINKLERS / 3030 SERIES
*Part numbers do not include the Adapter & Nozzle that are required for a complete Assembly.
**The beige plate should be used on flexible drops, or those with at least 1ft. (0.3 m) of hose. The smaller nozzles will be more susceptible to plugging.
10

January 1, 2017
11
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
O3000
ORBITOR
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
#18 for low press.
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
#16 for low press.
Max. #50 Noz.
Min. #14 Noz. @
30 psi (2.0 bar)
#16 for low press.
Max. #15 Noz.
Min. #10 Noz. @
10 psi (0.7 bar)
Max. #50 Noz.
Min. #14 Noz. @
15 psi (1.0 bar)
RED
D6-12° PURPLE D6-20° YELLOW D8-21° BEIGE** SMALL NOZZLE LIME UP-TOP
Plate #8839
Cap/Plate Assy*
#11971-001
Cap/Plate/3030 Body
Assy* #12472-001
Plate #9583
Cap/Plate Assy*
#11971-002
Cap/Plate/3030 Body
Assy* #12472-002
Plate#10361
Cap/Plate Assy*
#11971-003
Cap/Plate/3030 Body
Assy* #12472-003
Plate #11013
Operates with a
#10-15 nozzle.
Ultra-low flow.
Plate#12534
Cap/Plate Assy*
#11971-005
Cap/Plate/3030 Body
Assembly* #12472-005
10-20 psi
(0.7-1.4 bar)
10-20 psi
(0.7-1.4 bar)
10-20 psi
(0.7-1.4 bar)
10-15 psi
(0.7-1.0 bar)
6-15 psi
(0.4-1.0 bar)
desCrIptIoN
PC-S3000 (less
nozzle & adpater)
part No. 9926-001
QtY/box150
Lbs/box24
S3000 Common Spinner Parts S3030
desCrIptIoN
3/4" MNPT x
Square Thread
Adapter Spinner Plates Spinner Cap/Motor
Spinner
Cap/Plate
Assy 3TN Nozzle (see pg. 18)
R3000/
S3000
Body
s3000
Components
Total**
S3000
Cap/Plate
Body Assy 3NV Nozzle (see pg. 18) R3030/ S3030 Body
s3030
Components
Total**
S3030
Cap/Plate
Body Assy
part No. 9410 pg. 10 9540 11971-xxx 9461-xxx 9412 (including
nozzle &
adapter)
11972-xxx 12035-xxx 12034 (including
nozzle &
adapter)
12472-xxx
box13x13x16” 12x12x8” 12x12x8” 12x12x8” 12x12x10” 13x13x16” 13x13x16” 12x12x10” 13x13x16”
QtY/box900 600 300 200 700 300 200 500 150
Lbs/box39 11 16 12 11 16 22 14
**COMPONENTS TOTAL INCLUDES ADAPTER, PLATE, CAP/MOTOR, NOZZLE (3TN OR 3NV) AND BODY (S3000 OR S3030).
desCrIptIoN
PC-S3030 (less
nozzle & adpater)
part No. 12650
QtY/box100
Spinner & Orbitor sprinklers come in the 3000 Series (with 3TN nozzle) or new 3030 Series (with 3NV nozzle).
S3000
SPINNER
Cap/Plate/3000 Series Body
Assy (less adapter &
nozzle) #11972-xxx (Use
-xxx from table on page 10
for plate specifications)
#9540 Gray Spinner Cap
O3000 w/ Weight O3000 Plastic O3030 w/ Weight O3030 Plastic
desCrIptIoN
3/4" MNPT x
Square Thread
Adapter
O3000
Body &
Weight
o3000
Components
Total* 3TN Nozzle (see pg. 18)
O3000 Body
w/ Plastic
Cover
o3000
Components
Total** O3030 Body & Weight
o3030
Components
Total* 3NV Nozzle (see pg. 18)
O3030 Body
w/ Plastic
Cover
o3030
Components
Total**
part No. 9410 11488-1xx (WeiGhted
VerSion
including
nozzle &
adapter)
9461-xxx 11488-3xx (pLAStic
coVer
VerSion
including
nozzle &
adapter)
12317-1xx (WeiGhted
VerSion
including
nozzle &
adapter)
12035-xxx 12317-3xx (pLAStic
coVer
VerSion
including
nozzle &
adapter)
box13x13x16” 14x14x12” 12x12x10” 14x14x9” 14x14x12” 12x12x10” 14x14x12”
QtY/box900 24 700 24 24 500 24
Lbs/box39 30 11 11 33 11
**COMPONENTS TOTAL INCLUDES ADAPTER, BODY (WEIGHTED OR PLASTIC), AND NOZZLE (3TN OR 3NV).
11
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / [email protected]

January 1, 2017
12
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
6-40 psi (0.4-2.8 bar)
16-40’ (4.9-12.2 m)
T3000
TRASHBUSTER
D3030
SPRAYHEAD
D
T
UP-TOP
OR
DROPS
#9539 bLuE
ROTaTOR caP#10324-xxx PuRPLE caP WITh SPRay
PLaTE
ROTaTOR®
cONfIguRaTION SPRayhEaD cONfIguRaTION
3000FC Nozzle
#10106-xxx Requires
a rigid drop and 25 PSI
(1.7 bar) minimum.
u3030 bODy
#12381
hOSE DRag
aDaPTER #9427
u3030 bODy
#12381
PaRT cIRcLE SPRay
#9894-001
3030 SERIES PaRT-cIRcLE
SPRay & hOSE DRag aDaPTER
bOTh REquIRE uNIVERSaL bODy
- 3000 SERIES DOES NOT
SEE fOLLOWINg
PagE fOR D3000
WITh NEW! TaN
bubbLE-WIDE
PLaTE
bubbLER
aTTachmENT
(LEPa) #10577
fOR D3000 ONLy
PIVOT SPRINKLERS / 3030 SERIES
TuRquOISE #9591 gREEN #9543 bLuE #9493 gRay #9542
RED #9437 yELLOW #9631 bLacK #9541 ORaNgE #10683
WhITE #10971 PuRPLE #9550 bROWN #10721 TaN bubbLE-WIDE
See sprayhead literature for plate characteristics, throw diameter and pressure/
nozzle ranges. The Sprayhead can be used up-top or on drops.
bLuE #8817
gREEN #8844
See page 8 for
cap assy #.
gREEN #9543 yELLOW #9631 bLacK #9541
-001 -002 -003
bLuE #9493 PuRPLE #9550 ORaNgE #10683
-004 -005 -006
#12780
ShOWN WITh
SPRay/accELERaTOR
bODy — fLIP-OVER
TO uSE WITh
ROTaTOR/
SPINNER bODy
fLIP-OVER
hOSE DRag
caP aSSEmbLy
#12676
12

January 1, 2017
13
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
D3000
SPRAYHEAD
WITH TAN BUBBLE-WIDE PLATE
(SEE PAGE 14 FOR 3030 CONFIGURATION)
Flip-over D3000 Cap #9429
Spray Plate with Cap Assy #10041-xxxx
D3000 D3030
DESCRIPTION
Bubbler
Attachment
(3000 Series)
PC-Spray-
head (less nozzle
& adpater)
3030 Series
Universal
Adapter
PART NO. 10577
See
Opposite
Page
9894-001 12381
QTY/BOX700 400 200
LBS/BOX10 27 23
DESCRIPTION
3/4" MNPT x
Square Thread
Adapter
Plates
(excluding
Tan)
Tan
Bubble-
Wide Plate
Spray
Cap 3TN Nozzle (see pg. 18)
A3000/
D3000
Body
d3000
Components
Total* 3NV Nozzle (see pg. 18)
A3030/
D3030
Body
d3030
Components
Total* Sprinkler Converter
Hose Drag
Adapter
PART NO. 9410 pg. 12 pg. 12 9429 9461-xxx 9428 With one
spray plate
12035-xxx 12346 (including
nozzle &
adapter)
11472 9427
BOX13x13x16” 12x12x8” 13x13x16” 12x12x10” 13x13x12” 12x12x10” 14x14x16”
See Page
8-9
13x13x16”
QTY/BOX900 600 1000 700 400 500 200 800
LBS/BOX39 11 20 11 15 14 24 24
*COMPONENTS TOTAL INCLUDES ADAPTER, PLATE, CAP, NOZZLE (3TN OR 3NV) AND BODY (D3000 OR D3030).
DESCRIPTION
3/4" MNPT x
Square Thread
Adapter T3000 Body T3000 Cap/Spray Plate 3TN Nozzle (see pg. 18)
t3000 Components
Total* 3000FC
t3000 Components
Total*
PART NO. 9410 10419 10324-xxx 9461-xxx (Spray & 3TN) 10106-xxx (Spray & 3000FC)
BOX13x13x16” 13x13x16” 12x12x8” 12x12x10” 12x12x8”
QTY/BOX900 300 300 700 700
LBS/BOX39 11 14 11 22
For Trashbuster with R3000 Rotator Cap/Motor/Plate, specify from Rotator Section on page 8.
*COMPONENTS TOTAL INCLUDES ADAPTER, PLATE, CAP, NOZZLE AND BODY.
T3000 w/ 3TN T3000 w/ 3000FC
The Sprayhead comes in the 3000 Series (with 3TN nozzle) or new 3030 Series (with 3NV nozzle). The Trashbuster is not offered in the 3030 Series configuration.
For HD3000 order 3000 Adapter,
3TN Nozzle & Hose Drag Adapter.
For HD3030 order 3000 Adapter,
3NV Nozzle, 3030 Series Universal
Adapter and Hose Drag Adapter.
13
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / inf[email protected]

January 1, 2017
14
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
14 HOSE DRAG, BUBBLER AND SPRAY TECHNOLOGY QUALIFY AS LEPA
AND LESA SO LONG AS THE OUTLET SPACINGS ARE TIGHT AND THE
DEVICES DELIVER WATER VERY NEAR TO OR ON THE SOIL SURFACE,
WITH LITTLE ENERGY IN ORDER TO HAVE VERY LOW EVAPORATION
IN THE AIR. Nelson’s U3030 can be used for both part-circle applications
and hose drag applications. The Sprinkler Converter is a great device to
get a 3-in-1 sprinkler. Choose between functions: bubble, spray or irrigate
with rotating streams depending on water constraints. While offering the
advantages of low pressure operation and minimal water loss due to canopy
evaporation and wind drift, LEPA is limited in its areas of application.
Limitations include tight soils, sloping fields, and inner spans. Due to the
very low pressure used, it is necessary to manage the system pressure and
monitor it closely. Pressure regulators are generally a necessity for good
uniformity of LEPA nozzle discharge. There are other low energy/elevation
options beyond LEPA and LESA. Consider rotating sprinklers in the 6-10
psi (0.4-0.7 bar) range. The Rotator® and Accelerator create a wide wetted
pattern for the best soil infiltration and optimal droplet energy.
LOW ENERgy, LOW ELEVaTION / "LE" SOLuTIONS fOR PIVOTS
if you're LookinG
for “Le” SoLutionS —
Look for the
neLSon AdVAntAGe.
LepA
LoW enerGy/eLeVAtion
preciSion AppLicAtion
Germinate
Irrigate
Chemigate
Bubble
Drag
U3030
+ HOSE DRAG
STRaIGHT-dOWN
bUbbLE MOdE
(NO SPEcIaL PLaTE
OR cLIP REqUIREd)
U3030 + Hd3000 HOSE dRaG
adaPTER FOR aPPLIcaTION OF
HOSE dRaG OR dRaG SOck
bUbbLE MOdE WITH
SPRINkLER cONVERTER
(accELERaTOR MOdE)
14

January 1, 2017
15
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
15
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / inf[email protected]
LeSA
LoW enerGy/eLeVAtion
SprAy AppLicAtion
LenA
LoW enerGy/eLeVAtion
neLSon AdVAntAGe
LeSA / SPRAY
accELERaTOR
MOdE WITH
SPRINkLER
cONVERTER
SPRaY
MOdE WITH
SPRINkLER
cONVERTER
Spray
or
Orbiting
Sprinklers
MOVING
SPRINKLERS:
Rotator®
Accelerator
Spinner
D3030
SPRAYHEAD
A3030
ACCELERATOR
LepA / NEW! TAN BUBBLE-WIDE
15
The Tan Bubble-Wide plate is now
available for Low Energy Precision
Applications in the 6-10 psi range
(0.4-0.7 bar) using nozzle sizes
#9-#30. This configuration creates a
wider dome of water than standard
straight down bubblers providing
full coverage irrigation. This pattern
treats the soil better and can
increase efficiencies by reducing
wind drift and evaporation versus
standard Spray plates. Space from
30" to 60".

January 1, 2017
16
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
1 lb. Modular
Weight
In-line Slim
Weight
FNPT
x (HB)
MNPT
x (HB)
ST Adapter
x (HB)
3NV Dual
Nozzle Clip Assy
3TN Dual
Nozzle Clip
3TN Tri
Nozzle Clip
Clamp
Saver
3NV Dual Nozzle
Pliers
10130 11395-001
(0.85 lb)
10057 10148 9901 12032 9742 11089 12107 12560
12x12x4” 13x13x16” 13x13x16” 13x13x16” 13x13x16”
48 11395
(1 lb)
625 725 800 1000
50 32 36 38 15

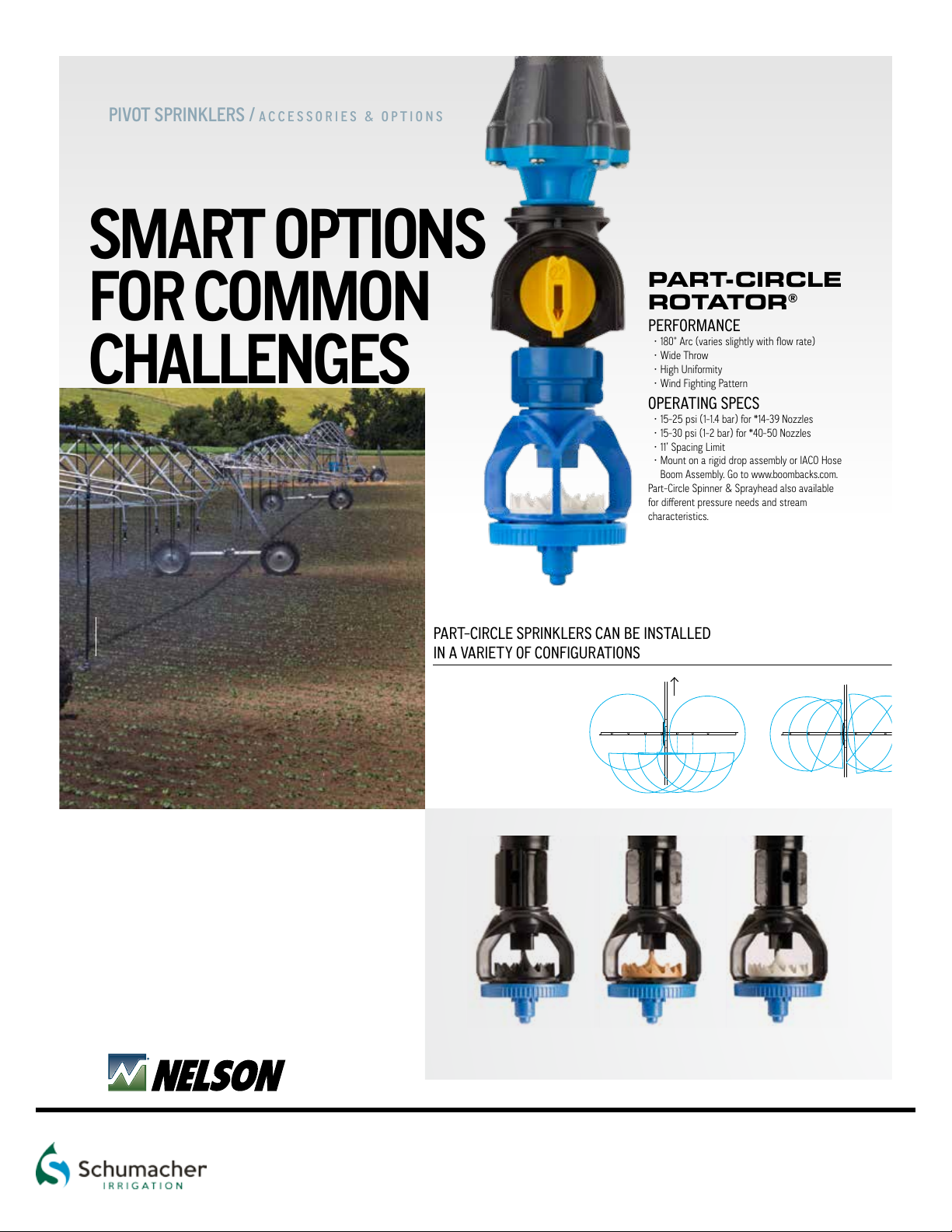

part-CIrCLe sprINkLers CaN be INstaLLed
IN a varIetY oF CoNFIGuratIoNs
Direction of Travel
BOOMBACKS
Installations on
boombacks minimize the
compromise in uniformity
that occurs when part-
circle devices are utilized.
Direction of Travel
SMArt optionS
for coMMon
chALLenGeS
PIVOT SPRINKLERS / ACCESSORIES & OPTIONS
SoLVe WheeL trAck proBLeMS
EXCESSIVE WATER IN THE WHEEL TRACKS CAN CAUSE
SLIPPAGE OF THE TIRES, CAUSING THE SYSTEM TO
SLOW DOWN IN WET AREAS AND STEEP SLOPES —
INCREASING THE APPLICATION DEPTH IN RELATION
TO OTHER PARTS OF THE FIELDS. DEEP WHEEL TRACK
RUTS ARE ALSO DETRIMENTAL TO THE EQUIPMENT AND
HARVESTING EFFICIENCY.
PART-CIRCLE
ROTATOR®
perForMaNCe
•180° Arc (varies slightly with flow rate)
•Wide Throw
•High Uniformity
•Wind Fighting Pattern
operatING speCs
•15-25 psi (1-1.4 bar) for #14-39 Nozzles
•15-30 psi (1-2 bar) for #40-50 Nozzles
•11’ Spacing Limit
•Mount on a rigid drop assembly or IACO Hose
Boom Assembly. Go to www.boombacks.com.
Part-Circle Spinner & Sprayhead also available
for different pressure needs and stream
characteristics.
#40-#50 Noz. #24-#39 Noz. #14-#23 Noz.
16

January 1, 2017
17
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
1 lb. Modular
Weight
In-line Slim
Weight
FNPT
x (HB)
MNPT
x (HB)
ST Adapter
x (HB)
3NV Dual
Nozzle Clip Assy
3TN Dual
Nozzle Clip
3TN Tri
Nozzle Clip
Clamp
Saver
3NV Dual Nozzle
Pliers
10130 11395-001
(0.85 lb)
10057 10148 9901 12032 9742 11089 12107 12560
12x12x4” 13x13x16” 13x13x16” 13x13x16” 13x13x16”
48 11395
(1 lb)
625 725 800 1000
50 32 36 38 15
ACCESSORIES
3NV DNC PLIERS
Use this tool to remove and change 3NV Nozzles from the 3NV Dual
Nozzle clips. Simply insert tool teeth into nozzle notches and it releases
NOzzLE CLIPS
Nelson Pivot Sprinklers can be equipped with two or three nozzles
using the 3TN Dual Nozzle Clip or 3TN Triple Nozzle Clip. The 3030
Series has a dual nozzle clip. These devices allow you to precisely
match crop water requirements through the season. During
germination, lower system flow rates lessen the intensity of water
droplets to maintain proper soil structure and reduce runoff. Adjust
the system flow as crop water requirements or well outputs change.
•Change system flow quickly and accurately.
•No more fumbling with or dropping nozzles.
•Meet differing in-season demands:
- Germinate at LO, Irrigate at HI
- Irrigate at HI, Chemigate at LO
Note: Do not operate in down-in-the-crop applications,
or with the Chemigation Spray Plate.
CLAmP SAVER
USE CLAMP SAVER WHEN INSTALLING ORBITORS
ON A PIVOT WITH EXISTING POLY SLIP WEIGHTS.
This simple device placed over clamps on drop
hose beneath poly slip weights protects the clamp
from the “action” or natural vibration on Orbitor
systems. This is a great solution when an irrigator
is retrofitting a pivot that already has slip weights
with the Orbitor sprinkler. Only the plastic cover
version (6-10 psi / 0.4-0.7 bar) O3000 or O3030 can
be used with poly slip weights.
FITTINGS
User-friendly HOSE BARB FITTINGS. Easy installation
into 3/4" flexible hose. Eliminates additional fittings.
The convenience of the 15/16" Hex Adapter is unique to
Nelson fittings. Secure fittings using 15/16" deep well
socket or open end wrench.
MNPT X (HB)
#10148
FNPT X (HB)
#10057
ST ADAPTER
X (HB) #9901
Direction of Travel
STRAIGHT DROPS
Installations on straight drops
require careful adjustment of
the orientation.
WEIGHTS FOR
DROP HOSE
The 1 lb. modular weight (#10130) fits
onto the pressure regulator, but if
pressure regulators are not used, the
weight fits directly on the body of the
sprinkler (3000 Series only and not
to be used with the Orbitor). The 1 lb.
Modular Pivot Weight is designed for
sprinklers operating
at 20 PSI (1.4 BAR)
and below.
The new in-line
“slim” weight is for
use with 3000 Series & 3030 Series
Sprinklers. This low profile zinc weight
fits directly into flexible drop hose
secured with a clamp, above
a Nelson regulator and/or
sprinkler. This includes the
plastic cover versions of
the O3000 and O3030 at
6, 10 or 15 psi (0.4, 0.7 or 1
bar) where the regulator
must be installed directly
onto the slim weight.
No additional weight is
allowed with the Orbitor.
17
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / inf[email protected]

January 1, 2017
18
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
The nozzle sizing system is based on 128th inch increments, e.g. 3TN/3NV Nozzle #26 has
an orifice diameter of 26/128th inches while 3TN/3NV Nozzle #27 has an orifice diameter
of 27/128th inches. For 3TN Nozzles, the odd-numbered nozzles have a color box around
the number marking. This color box denotes the color of the next larger nozzle size. The
odd-numbered 3NV Nozzles have a scalloped edge rather than secondary coloring.
#9461-xxx 3TN NOzzLE
fOR 3000 SERIES
#12035-xxx 3NV NOzzLE
fOR 3030 SERIES
SQUARE THREAD
REGULATORS & ADApTERS
orbitor configuration
shown on page 10-11.
trashbuster onLY aVaiLabLe
for 3000 series.
Bodies
plates
Caps
NOzzLE SySTEmS / 3TN & NEW 3NV fOR 3030 SERIES
3NV
cOLOR-cODED SySTEm
Odd NUMbERS HaVE
ScaLLOPEd EdGE.
EVEN NOzzLE
ODD NOzzLE
3TN
cOLOR-cODED SySTEm
Odd NUMbERS HaVE
cOLOR bOX aROUNd NUMbER.14 15 16 17 18 19
R3000/S3000
#9412 a3030/d3030 #12346
R3030/S3030
#12034
a3000/d3000
#9428 T3000 #10419
ST X 3/4"
#9410
ST X Hb
#9901
U3030
#12381
18

January 1, 2017
19
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
HOW MUCH ELEVATION
CHANGE IS ACCEPTABLE?
LESS THAN 10% FLOW VARIATION IS A GOOD RULE OF THUMB.
This graph is based on the elevation limit which will cause a flow variation
of ten percent or more. If the elevation change from the lowest point is
above the line, then a flow variation of more than 10 percent will occur.
Notice the lower design pressure allows less elevation change before
pressure regulators are recommended.
NOTE: Even if elevation changes do not require pressure regulators, you
should consider them for their other advantages.
TECHNICAL TIPS FOR REGULATING SYSTEMS
IMPORTANT: Allow approximately 5 PSI (.35 BAR) extra pressure in order for the regulator
to function properly. For example, the minimum design inlet pressure for a 20 PSI (1.4 BAR)
pressure regulator is 25 PSI (1.7 BAR).
IMPORTANT: If your system is designed with Nelson sprinklers, use Nelson Pressure
Regulators. Individual manufacturers’ pressure regulator performance varies. Interchanging
could result in inaccurate nozzle selection.
6 PSI (0.4 bar) 10 PSI (0.7 bar) 15 PSI (1.0 bar) 20 PSI (1.4 bar) 25 PSI (1.7 bar) 30 PSI (2.1 bar) 40 PSI (2.8 bar) 50 PSI (3.4 bar)
UNI-FLO HI-FLO UNI-FLO HI-FLO UNI-FLO HI-FLO UNI-FLO HI-FLO UNI-FLO HI-FLO UNI-FLO HI-FLO UNI-FLO HI-FLO UNI-FLO HI-FLO
3/4" FNPT X
SQUARE THREAD 9572-001 9611-001 9572-002 9611-002 9572-003 9611-003 9572-004 9611-005 9572-005 9611-006 9572-006 9611-007 9572-007 9611-008 9572-008 9611-009
3/4" FNPT X
3/4” FNPT 9491-001 9071-001 9491-002 9071-002 9491-003 9071-003 9491-004 9071-005 9491-005 9071-006 9491-006 9071-007 9491-007 9071-008 9491-008 9071-009
25
FEET METERS
PSI
BAR
20
ELEVATION CHANGE
DESIGN PRESSURE
15
10
5
010 20 30 40 50
-1
-2
-3
-4
-5
-6
-7
.7 1.0 1.4 1.7 2.0 2.4 2.7 3.0 3.4
The Nelson Universal Flo Pressure
Regulator has a flow up to 12 GPM (2.7
M3/H) at 15 PSI (1.0 BAR) and above.
PIVOT PRESSURE REGULATORS
SqUARE
THREAD
CONNECTION
Integral adapter connects
directly into all Nelson 3000
& 3030 Series Sprinklers.
3/4" FNPT
x FNPT
CONNECTION
Use 9410 ¾” MNPT
adapter
PATENTED PLUG RESISTANT DESIGN
SUPERIOR PLUG-RESISTANCE WITH A SINGLE-STRUT SEAT
DESIGN IN BOTH THE HI-FLO AND UNIVERSAL FLO MODELS.
EXTENDED PERFORMANCE & PRECISION ACCURACY
PRECISION COMPONENTS COUPLED WITH AN INTERNALLY
LUBRICATED O-RING MINIMIZE FRICTIONAL DRAG AND
HYSTERESIS.
DESCRIPTION Square Thread Uni-Flo Square Thread Hi-Flo 3/4” FNPT Uni-Flo 3/4” FNPT Hi-Flo
BOX 12x12x13” 12x12x11” 12x12x13” 12x12x11”
QTY/BOX 100 50 100 50
LBS/BOX 26 25 30 25
PIVOT PRESSURE REGULATORS
19
Tel: [phone] / Fax: [phone] / nelsonirrigation.com / inf[email protected]

January 1, 2017
20
Toll Free: 800-246-3685
Phone: [phone]
Fax: [phone]
Your Irrigation Superstore
Email: [email protected]
www.schumacherirrigation.com
R55
40-55'
(12-17 m) @
15-40 PSI
(1.0-2.8 bar)
18 gpm-84 gpm
(4.1 m3/h-19.1 m3/h)
Up to 10 acres
(4.0 ha)
irrigating full circle
Up to 6 acres
(2.4 ha)
corners only
Up to 13 acres
(5.3 ha)
irrigating full circle
Up to 7 acres
(2.8 ha)
corners only
Up to 17 acres
(6.9 ha)
irrigating full circle
Up to 9 acres
(3.6 ha)
corners only
Up to 23 acres
(9.3 ha)
irrigating full circle
Up to 11 acres
(4.5 ha)
corners only
R75
50-70'
(15-21 m) @
25-60 PSI
(1.7-4.2 bar)
24 gpm-70 gpm
(5.4 m3/h-15.4 m3/h)
SR75
70-90'
(21-28 m) @
25-80 PSI
(1.7-5.5 bar)
30 gpm-160 gpm
(6.8 m3/h-36.3 m3/h)
SR100
90-120'
(28-37 m) @
40-80 PSI
(2.8-5.5 bar)
50 gpm-300 gpm
(11.4 m3/h-68.2 m3/h)
typicAL Added AcreAGe on A 1/4 MiLe piVot
Go Beyond.
end of piVot SprinkLerS for Short & LonG rAdiuS of throW
20
